Taiwan Moped Locks and Keys
July 7, 2022Taiwan-made mopeds have steering locks. They lock the fork in the turned position. Some also have an electrical switch that disconnects the battery. Like the rest of the bike the fork lock is the same as on some Japan-made motorcycles or mopeds. The locks have a key number stamped next to the keyhole. Missing keys can be ordered by the key number on the lock.
Contents: 8 Key Families
1. 00 000,00000 243-250 Indian gas key
2. 00 0 241,242,352-358 Indian gas key
3. 0,0 0000,000000-0459 General gas key “groove left”
3. 0,00 000,007540-7546 Indian “groove left”
4. 0,0 0000,000000-0719 Lazer gas key “groove right”
4. 0,00 000,005540-5546 Indian “groove right”
5. 7650-7659, 7750-7759 General “thin groove left”
6. 7660-7669, 7760-7769 General “thin groove right”
7. 7670-7679, 7770-7779 General “flat left”
8. 7680-7689, 7780-7789 General “flat right”
1. 243-250 Indian gas key
blank $4.00 BN7
0000 original copy
243 none $13.0 .
244 $16.0 $13.0 .
245 none none .
246 none none .
247 none none .
248 none none .
249 none none .
250 $16.0 $13.0 .
2. 241-242, 352-358 Indian gas key
blank none M12
0000 original copy
241 none $13.0 can make
242 $16.0 $13.0 can make
352 none none .
353 none $13.0 can make
354 none none .
355 none none .
356 none none .
357 none none .
358 none $13.0 ready made
3. 459 General pop-up gas lid “groove left”
7540-7546 Indian fork lock key
Reversible with groove on the left. F141-10-50 key B
blank $5.00 YH38 Yamaha
0000 original copy
0459 none $10.0 .
7540 none $14.0 .
7541 none none .
7542 none none .
7543 none none .
7544 none $14.0 .
7545 none none .
7546 none none .
4. 719 Lazer pop-up gas lid “groove right”
5540-5546 Indian fork lock key
Reversible with groove on the right. F141-10-50 key B
blank $5.00 HD57 Honda
0000 original copy
0719 $15.0 $13.0
0719 $18.0 with Lazer black handle
5540 none none .
5541 none none .
5542 none none .
5543 none $13.0 .
5544 none none .
5545 $16.0 $13.0 .
5546 none none .
5. 7650-7659 and 7750-7759 “thin groove upper left”
blank $4.00 CO63
This blank is too wide to enter the lock until after copying.
The blade is longer, but becomes the same after copying.
0000 original copy = 0000 original copy
7650 none none = 7750 none none .
7651 $15.0 $13.0 = 7751 none none .
7652 none none = 7752 none none .
7653 $15.0 $13.0 = 7753 none none .
7654 none $13.0 = 7754 none none .
7655 none none = 7755 none $13.0 .
7656 none none = 7756 none none .
7657 none none = 7759 none none .
7658 none none = 7758 none none .
7659 none none = 7759 none none .
6. 7660-7669 and 7760-7769 “thin groove upper right”
blank $3.00 XL7
0000 original copy = 0000 original copy
7660 none none = 7760 none $14.0 .
7661 none $14.0 = 7761 none none .
7662 none none = 7762 none none .
7663 none none = 7763 none none .
7664 none none = 7764 none none .
7665 none $14.0 = 7765 none none .
7666 none none = 7766 none none .
7667 none none = 7769 none none .
7668 none none = 7768 none none .
7669 none none = 7769 none none .
7. 7670-7679 and 7770-7779 General “flat left”
Flat side has teeth on the left, when the key is pointing up.
blank none .
0000 original copy = 0000 original copy
7670 none none = 7770 none none .
7671 none none = 7771 none none .
7672 none none = 7772 none none .
7673 none none = 7773 none none .
7674 none none ≠ 7774 $17.0 none .
7675 none none = 7775 none none .
7676 none none = 7776 none none .
7677 none none = 7779 none none .
7678 none none = 7778 $17.0 none .
7679 none none = 7779 none none .
8. 7680-7689 and 7780-7789 General “flat right”
Flat side has teeth on the right, when the key is pointing up.
blank $9.00 WTP1 modified
The blade is shorter, but becomes the same after modification.
The stop surfaces are lowered by careful filing off 1.0-1.5 mm.
0000 original copy = 0000 original copy
7680 none none = 7780 none none .
7681 $19.0 $17.0 = 7781 none none .
7682 none none = 7782 none none .
7683 none $17.0 ≠ 7783 none $17.0 .
7684 none none = 7784 none none .
7685 none $17.0 = 7785 none $17.0 .
7686 none none = 7786 none none .
7687 none none = 7787 none none .
7688 none none = 7788 none none .
7689 none none = 7789 none $17.0 .
— More Choices Menu — Select:
July 4, 2022USA and California LAWS:
CA Vehicle Codes CA Environmental
US Safety Laws US Environmental
RIDING and MAPS:
Traffic Lights Safety Body Language
Anaheim Streets Nature Walks
LIBRARY:
Encyclopedia 1100-Name Index
Moped Books 1981 Buyers Guide
MORE:
Links Shop Tour A few more bikes
Myrons Artwork M.A.A. Intro Flyer
— Rides Menu — Select:
July 4, 2022
Pedal Shafts, Freewheels and Chain Tensioners
July 4, 2022
1 P E D A L S H A F T S
Some mopeds with external pedal shafts, and separate pedal and motor chains, have one of the crank arms permanently attached to the shaft and sprocket. With those, to get a new sprocket-side arm you have to replace the shaft-with-arm.
Some mopeds with external pedal shafts, and separate pedal and motor chains, have no crank arms permanently attached to the shaft and sprocket. With those the sprocket-side arm can be replaced.
More on this parts topic, later…
2 F R E E W H E E L S
Some mopeds have one drive chain and some have two. Two-chain mopeds, with both a motor chain and a pedal chain, have freewheels, like most bicycles. The freewheel is the rear pedal sprocket that spins free and goes “click click click” in the reverse direction, but locks up solid in the forward direction. The freewheel allows the pedals to be stationary even when the rear wheel is moving forward. The moped brands with right-side freewheels are Puch, Peugeot, Motobecane, Batavus, Sparta (Foxi), Hercules (Sachs), Piaggio (Vespa), Honda (PA50), Kreidler, KTM (Foxi), Kynast, Flandria. There are two brands with left-side backward freewheels, Jawa and Benelli. All of the other moped brands do not have external freewheels, but instead have a freewheel mechanism inside the engine unit.
The freewheel screws on and tightens with pedaling. Once it is tight, a special tool is required to remove it. The tool fits into slots in the freewheel center. Some low-end modern single-speed bicycle freewheels do not have removal slots. Those cheap kinds can be removed by destroying the freewheel. To remove a freewheel destructively without a removal tool, the freewheel is first disassembled, where all the little balls and clickers fall out, and then the inner hub is unscrewed in a bench vise or with a pipe wrench.
Most freewheels go on the right side of the bike and thus have right-hand thread, but Jawa and Benelli ones go on the left side of the bike and have left-hand thread.
16a generic 16T
by Sunlite
made in Taiwan
16b MB 16T #60483
by The Best Wheel
made in France
16c Hercules 16T
by Esjot
made in Germany
16d Sparta 16T
by Atom
made in France
16h Motobecane 16T
by Atom, #16057
made in France
18b Motobecane 18T
by The Best Wheel
#15244 French thread
18d left hand Jawa 18T
by Velo, says date 76-78
made in Czechoslovakia
18e generic 18T
by Sunlite
20a Motobecane 20T
by The Best Wheel
#14298 made in France
20c Kynast 20T
by Esjot
made in Germany
20e generic 20T
by Sunlite
23a Puch 23T
by Atom-Maillard
made in France
Original and Replacement Freewheels
no. freewheel make country bike make part # teeth thread price original on
16a Sunlite xxxxxxx Taiwan xxx replacement 0000 16T 1.375″- 24 $15
16b The Best Wheel France xxxMotobecane 60483 16T 1.375″- 24 $25 Solex
16c Esjot xxxxxxx Germany Hercules 9000300401 16T 1.375″- 24 N/A Sachs Westlake (P1)
16d Atom xxxxxxxx France xxx Sparta 00. 055051 16T 1.375″- 24 $25 Sparta Foxi
16d Atom xxxxxxx France xxx Peugeot xxx39026 16T 1.375″- 24 $25 Peugeot (optional)
16d Atom xxxxxxxx France xxx Motobecane 16057 16T 1.375″-.24 $25 Motobecane 7
16e Ocean xxxxxxx Italy xxxxx Piaggio 000114531 16T 1.375″- 24 $25 Piaggio Ciao, Si early
18a Atom xxxxxxxx France xxx Peugeot 00017550 18T 1.375″- 24 N/A Peugeot 102, 103
18a Atom xxxxxxxx France xxx Batavus 00049020 18T 1.375″- 24 $30 1976-77 Batavus VA
18b The Best Wheel France xxxMotobecane 15244 18T M34.7-1.0 $45 70’s MB with MB hubs
18b J Moyne xxxxX France xxxMotobecane 15244 18T M34.7-1.0 $50 Wards Riverside (AV88)
18b The Best Wheel France xxxMotobecane 15244 18T M34.7-1.0 $50 50’s-60’s Motobecane
18c Ocean .xxxxxxx Italy .xxxx Piaggio 00 103631 18T 1.375″- 24 $25 Piaggio Bravo, Grande
18d Velo xxxxx Czechoslovakia Jawa xxxx070040 18T M35 -1 LH $35 1970-83 Jawa 28, 207
18e Sunlite xxxxxxx China x.xxxreplacement 0000 18T 1.375″- 24 $15
18f The Best Wheel France x.xxxreplacement 0000 18T M32 – 1.0 $13 unknown application
20a Atom xxxxxxx France xxxMotobecane 14298 20T M34.7-1.0. $25 70’s MB with Leleu hubs
20a The Best Wheel France xxxMotobecane 14298 20T 1.375″- 24. $20 1978-81 MB with mags
20b Atom xxxxxxx France xxx Batavus 00049019 20T 1.375″- 24 $30 Batavus HS50,Starflite
20b Atom xxxxxxx France xxx Peugeot 00000586 20T 1.375″- 24 $30 Peugeot (optional)
20c Esjot xxxxxxxx Germany x Kynast 00000586 20T 1.375″- 24 $22 Flying Dutchman
20e Sunlite xxxxxx China xxx xreplacement 0000 20T 1.375″- 24 $16
22a Atom .xxxxxxx France Honda 41210-148-000 22T 1.375″- 24 none Honda PA50
23a Atom .xxxxxxx France xxx Puch 3492410230 23T 1.375″- 24 $20-$30 Puch (all models)
Freewheel threads: Like with pedal threads there is a common size and an uncommon size slightly smaller.
The common size is 1.375″ – 24, which equals 34.92 – 1.06 mm. Most modern bicycles worldwide have this ISO (International Standards Organization) standard freewheel thread type.
The uncommon size is M34.7 – 1.00, which equals 34.70 – 1.00 mm. This “French” thread type is on vintage bicycles from France, Belgium, Spain or Switzerland, and on Motobecane mopeds with Motobecane-made hubs.
So the French freewheels are slightly smaller than the rest of the world, 34.7 instead of 34.9. That small amount does not matter as long as the bike is pedaled gently. But it does matter when the pedals are pushed very hard. Then the loose fitting threads on the wheel hub can strip out, a disaster.
It is difficult to tell which thread type a hub has, by measuring the thread tops with a calipers. The 34.92 thread hubs measure 34.65 to 34.7. The 34.70 hubs measure 34.55 to 34.6. On some hubs the tops of the threads are worn down and measure less. So a standard thread might seem like a French thread type. Because of this, it is better to put away the calipers and use “feel”.
When the freewheel and hub have the same thread type, the freewheel screws on easy, yet has no looseness. Looseness is felt with fingertips pulling and pushing the freewheel center side to side. When a 34.92 freewheel is on a 34.7 hub, the center of the freewheel can move 0.22 mm. Here is a video of that. That looseness or “wiggle” is felt. The same is true for any threaded thing. When a bolt fits a nut, it screws on easy and yet does not wiggle.
All of the freewheels in Myrons Mopeds inventory were measured by feel. For each bike model listed above, a sample rear wheel with original freewheel was measured directly by feel. The freewheel was removed. It’s threads were checked by screwing onto both a French and a standard hub. The wheel threads were checked by screwing on both a French and a standard freewheel.
Gauntlet of test wheels: MB 40, Batavus M48, Peugeot 103, Model 7 hub, MB 50, MB 50, MB 50VLA.
Not shown, Puch wheels and hubs, Sparta, Peugeot 102 hub, Kreidler, Sachs, KTM, Kynast, others.
Result: None of the hubs or freewheels had French thread, except Motobecanes with Motobecane-made hubs. Wow!
1970’s Puch & Motobecane 80mm hubs
L, Leleu-made Puch hub, standard thread
R, Motobecane-made hub, French thread
These are actual Motobecane rear wheels from Myrons inventory. All except one came from Los Angeles area bikes.
model xx rim x hub xx freewheel xxx teeth thread
40XXxxX thin MB xx none xxxxxxxx 18T French
40XXxxX thin MB xx none xxxxxxxx 18T French
50XXxxX wide MB xx none xxxxxxxx 18T French
50XXxxX wide MB xx none xxxxxxxx 18T French
50XXxxX wide MB xx The Best Wheel 18T French
Model 7X 16″ Leleu x none xxxx x xx xxx standard
50VXxxX wide Leleu x none xxxx x xx xxx standard
50VXxxX wide Leleu x The Best Wheel 20T standard
50VXXxx wide Leleu x The Best Wheel 20T standard
50VLAxx mag silver x The Best Wheel 20T standard
LeMoped mag gold xx none xxxxx xx xxx standard
LeMoped mag gold xx The Best Wheel 20T standard
Result: All Leleu-made hubs have standard freewheel thread 1.375″-24, even those for Motobecane. All Motobecane-made hubs have French thread M34.7-1.0. All Motobecane-made “6-star” mag wheels have standard thread, but it is tapered and begins with French thread, so that either type of freewheel can be used.
1975 Motobecane 50S
with MB-made hubs
1978 Motobecane 50V
with Leleu-made hubs
How to tell: The best way to tell if a 1970’s Motobecane moped rear hub is Motobecane-made (and therefore French thread) is visually. There is an prominent M logo on the freewheel side. There is no step on the freewheel side, instead it slopes gradually. The flanges go farther out from the spoke holes. So from 100 feet away, viewed from the side, the Motobecane-made hubs appear larger than Leleu-made hubs.
Summary
All two-chain rear hubs or wheels, on mopeds from the 1970’s and 80’s, have standard freewheel threads, except Motobecane-made hubs on 1950’s -60’s and some 1970’s Motobecane mopeds.
A standard thread freewheel fits a French thread hub and works fine when pedaled normally. Only when a strong athletic person pedals very hard, the hub threads can strip off, requiring wheel or hub replacement.
Motobecane 100mm hubs
are also French thread
1950’s – 60’s Motobecane: Many models, maybe all, had French freewheel threads M34.7-1.0. In the 1960’s the parts manuals specified the thread. One example, shown at right, is for Motobecane AV88 and Motoconfort AU88. It lists the 18-tooth 15244 freewheel as having M34.7-100 thread.
The French freewheel thread cover up: It is very odd that, after 1976-77, Motobecane had two different freewheel threads, but they hid that fact. Instead they made the teeth different, 15244 (French thread) was 18 teeth, and the newer 14298 (standard thread) was 20 teeth. The Motobecane America parts manuals list both freewheels without explanation. There does not seem to be anything about freewheels in the Parts or Service Bulletins. The physical freewheels do not say the thread. The actual parts labels do not say the thread either. As a result, this cover-up has caused confusion and mystery for 39 years (1978-2017).
3 P E D A L C H A I N S
4 P E D A L C H A I N T E N S I O N E R S
Honda PA50
fig qty price Honda#
06 2 none 40234-148-000 pedal shaft bushing
09 1 $10.0 40535-197-600 pedal chain #410 80 link
10 1 none 40540-148-670 tensioner assy
11 2 $6.00 40541-148-010 roller wheel
27 1 $1.50 90581-831-650 washer 6 x 18
28 1 $0.60 92101-06012 hex bolt 6 x 12
5 P E D A L S H A F T B U S H I N G S
16.0 x 20.0 x 19.9 no lip $2.50 Tomos 200166, special bronze
16.2 x 20.1 x 19.0 w/ lip $5.00 Puch 349.142.0051, white plastic, for Maxi
16.2 x 21.0 x 15.9 w/ lip $5.00 Vespa 102875, black plastic, for Ciao
16.1 x 21.2 x 16.5 w/ lip $6.00 Batavus? , black plastic
16.1 x 21.3 x 18.7 w/ lip $5.00 Buzzetti 0168, black plastic, for Puch Magnum
16.2 x 25.6 x 15.5 w/ lip $5.00 Vespa 141737, black plastic, for Bravo, Grande, Si
Columbia Parts
July 3, 2022
Columbia mopeds are divided into model families that share the same parts. To use the parts list you have to know what model family 1,2,3,4,5,6 your bike is in. See Columbia Models.
family engine hubs chains frame years models
1 is Sachs 1-chain 1 sheet ’76-78 2220-A
2 is Sachs 1-chain 1 sheet ’78-80 2220-B
3 is Sachs 2-chain 1 sheet ’78-80 2220-C, ’88-93 280
4 is Solo · 2-chain 2 tube ’79-80 2240/50, ’88-93 340
5 is Sachs 2-chain 1 tube ’79-80 2260/70
6 is Sachs 2-chain 1 top-tank ’80 2280
1,2 and 3 are all model 2220, but with different equipment.
Colors:
Qty. black is on all, grey is on some, white is on none
Part# Columbia original, outsourced original, replacement
Part# 0 (zero crossed out) means unknown digit
Price bright green is new, dark green is good-used
Engine Group
000 gasoline 85-95 octane pump gas pre-mixed
000 gasoline with 2-stroke oil 50:1 or 2.5 oz/gal
Engine Solo 255 on family 4. 2240/50+340
with Columbia-made exhaust and pulley-clutch
Columbia# price Engine see Solo Engine .
ooo SL255-20 none SOLO 255 engine (20mph)
ooo SL255-25 none SOLO 255 engine (25mph)
ooo SL255-30 none SOLO 255 engine (30mph)
ooo 250-0372 none exhaust pipe 22 mm id
Solo 2300103 $5.00 spark plug NGK BR6HS
Columbia# price Carburetor see Bing-Solo .
Solo 2300341 none BING 1/10/112 ∅10 clamp-16
Solo 0510132 $10.0 jet #58 M3.5 thread
Solo 0510657 $15.0 float needle slotted, rubber tip
Columbia# price Magneto see Bosch Magnetos .
Solo 2300395 $0.00 BOSCH Ø90 → 0212-124-039
Solo 2300395 $0.00 stator 5-wire blue=ign. others=lights
0283-107000 $16.0 points M19
0965-091000 none condenser M36 ∅18 x 31 solder type
Engine Sachs 505/1A on 1. 2200-A, 2. 2200-B,
3. 2200-C + 280, 5. 2260/70, 6. 2280 (20/25)
Columbia# price Engine see Sachs 505 .
00 SA505-1A none SACHS 505/1A engine ’76-93
00 751-0219 none ex. head pipe left 20 id (20 & 25)
00 751-0290 none ex. head pipe left 26 id (30mph)
0998-004001 $5.00 spark plug NGK BR6HS
Columbia# price Carburetor see Bing-Sachs .
0281-124005 none BING 85/12/101 ∅12 clamp-20
0281-125000 $60.0 float and needle solid, metal tip
0281-124005 none BING 85/12/101A ∅12 clamp-20
0281-125000 $65.0 float and needle slotted, rubber tip
0281-125000 $15.0 float needle slotted, rubber tip
0961-151032 $8.00 jet #52 M4 thread
0261-143000 $15.0 cable pipe (elbow) short
0261-143100 $12.0 cable pipe (elbow) long
Columbia# price Magneto see Bosch Magnetos .
0212-124040 none BOSCH Ø90 ← 0212-124-040
0283-130000 none stator 5-wire blue=ign. others=lights
0283-107000 $16.0 points M19
0965-091000 none condenser M36 ∅18 x 31 solder type
Engine Sachs 505/1D on family 6. 2280 (30mph)
Columbia# price Engine see Sachs 505 .
00 SA505-1D none SACHS 505/1D engine ’80-93
00 751-0290 none ex. head pipe left 26 id (30mph)
0998-004001 $5.00 spark plug NGK BR6HS
Columbia# price Carburetor see Bing-Sachs .
0281-124015 none BING 85/12/104A ∅12 clamp-20
0961-151035 $8.00 jet #58 M4 thread
0261-143100 $12.0 cable pipe (elbow) long
Columbia# price Magneto same as 505/1A above
Pulley-Clutch Solo: 4. 2240/2250 and 340
# qty Columbia# price description
1 1 712-0302 16–10 start lever plate
2 3 732-0367 $9.00 start plate clip
3 1 00-06879 65–25 start plate
4 1 732-0349 none start spring ∅1.18 ∅0.90 x 0.73″
4 1 732-0349 $16.0 substitute ∅1.18 ∅0.90 x 0.80″
5 1 00-06881 $23.0 spring plate
6 5 748-0265 $9-$6 centrifugal weight
6 1 748-0265 $37.0 weight-spring assembly .
7 5 732-0348 none extension spring ∅xx x 29 mm
8 1 00-06885 none pulley-hub bare
8 1 00-06884 $80.0 pulley-hub assy 8,9,10 20mph
8 1 00-06883 none pulley-hub assy 8,9,10 25mph
8 1 00-06882 $105 pulley-hub assy 8,9,10 30mph
9 1 741-0224 none needle bearing ∅1.125 ∅1.375 x 0.37″
9 1 741-0224 $27.0 needle bearing TR0414P520518
10 1 748-0268 none flange bushing 20mph 1.05″ .59
10 1 748-0267 none flange bushing 25mph 0.99?
10 1 748-0266 none flange bushing 30mph 0.92″ .46
11 1 732-0350 none variator spring ∅1.38 ∅0.94 x 1.00″
12 1 748-0262 $15.0 pulley half inner
13 1 731-0472 none engage knob
14 2 712-2203 $0.00 =24 insert nut M4
15 1 732-0365 none leaf spring
16 1 710-2202 $0.70 slot screw M4 x 12
17 2 00-54219 $7.50 =26 pulley seal 16 x 24 x 5
18 1 735-0194 none rubber sleeve
19 1 713-0248 none sprocket 415 11T
20 1 736-0290 $2.00 flat washer .64-1.00-.067 = 16-25-1.7
21 1 710-2203 $1.00 screw M4 x 20 sunk
22 1 732-0364 none spring plate
23 1 756-0321 $24.0 pulley 7.5″ bare
23 1 717-0389 $49.0 pulley 7.5″ complete
25 2 741-0282 $18.0 needle bearing HK1612 ∅16 ∅22 x 14
27 1 736-0309 $0.00 tab washer
28 1 736-0187 $2.00 flat washer .64-1.00-.06 = 16-25-1.5
29 1 754-0235 $19.0 V-belt 0.50 x 35″
30 5 715-0142 $0.00 roll pin ∅0.125 x 0.50″
31 1 736-0308 $0.00 domed washer .43-.90-.03 = 10-23-0.75
32 1 712-2200 $4.00 clutch nut thin M10-1.00 x 6 hex17
33 2 736-0931 $0.20 washer ∅5
34 2 736-0722 $0.25 lock washer #10 ∅5
35 2 710-2200 $0.80 hex bolt M5 x 18
36 1 751-0250 $16.0 start lever

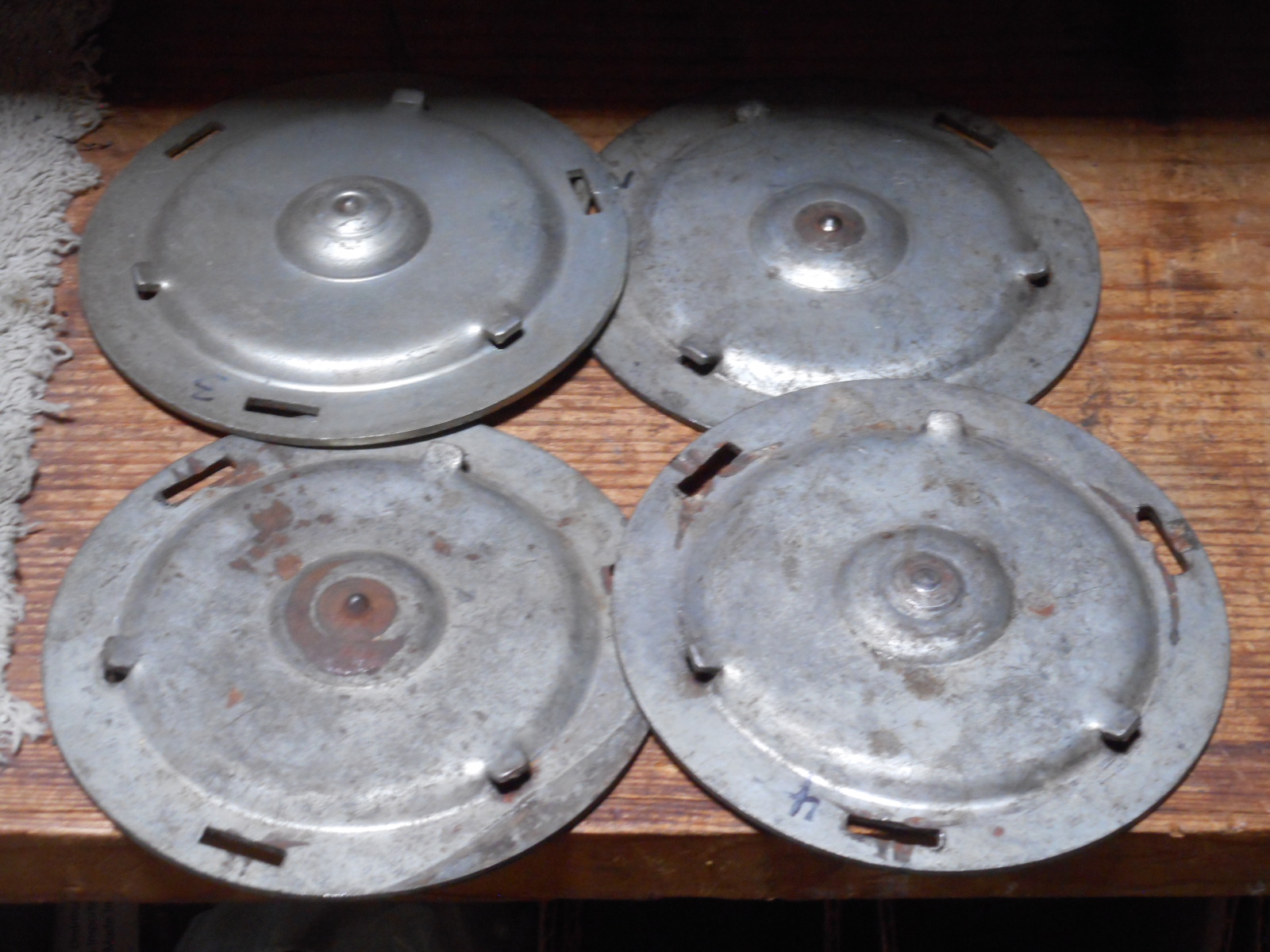

Colombia pulleys
outboard side view
Colombia pulleys
inboard side view
732-0350 substitute
Fork Group
Fork ’76-78: 1. 2200-A
# qty Columbia# price description
01 1 00-06845 none handlebar short for (1)
01 1 00-06895 none handlebar medium for (2)
02 4 710-0299 $1.00 handlebar bolt ¼-28 x 1″
03 1 741-0218 none steering bearing set
03 1 741-0218 $15.0 steering bearing set Wald 4080
04 1 745-0167 none mirror bar-end type
05 1 00-06852 $0.00 fork assy
06 2 730-0114 $0.00 reflector 2″ with hole ’76?
06 2 730-0114 $14.0 reflector metal with #10-32 post ’76-77
07 2 710-0302 $0.00 reflector screw for hole type
08 2 732-0340 $0.00 fork spring
09 4 731-0400 $0.00 fork bushing nylon
10 1 00-06827 $40.0 fork leg left 1.00″(25.4od)
10 1 00-06828 $40.0 fork leg right 1.00″(25.4od)
11 1 00-06838 $34.0 fender with braces, painted used
12 2 731-0401 $14.0 fork boot good-used
13 2 710-0289 $0.50 fender bolt ¼-20 x ½”
14 2 710-0258 $0.50 fender bolt ¼-20 x 5/8″
16 4 712-0287 $0.30 nut ¼-20
17 1 745-0171 none speedo driver VDO ½” left 1-finger
18 1 745-0170 none speedo cable grey VDO 650 mm
18 1 745-0170 $22.0 speedo cable black VDO 700
21 1 725-0532 at link headlight assy CEV 2139 bullet
22 1 745-0169 $0.00 speedometer VDO ∅48 40mph, M10
23 2 000-0000 $0.60 headlight bolt M6 x 20 comes with hl
24 2 736-0250 $2.00 steering washer 1.o x 1.75 x 0.1″
25 4 736-0329 $0.20 lock washer ¼”
26 2 741-0219 $0.50 steel ball ¼”
27 1 00-06858 $13.0 handlebar clamp plate used rusted
Columbia handlebars were first short 06845 on family 1, then medium 06895 on families 2,3,4,5 and then tall 06938 on family 6. The handlebar height and width affects the cable lengths. The cables were first short on family 1, and then 2 inches longer after that on families 2,3,4,5,6.
Fork ’78-93: 2. 2200-B, 3. 2200-C + 280,
4. 2240/50+340, 5. 2260/70, 6. 2280
# qty Columbia# price description
01 1 00-06895 $34.0 handlebar medium for (2,3,4,5)
01 1 00-06938 none handlebar tall for family (6)
02 8 736-0329 $0.20 =23 lock washer ¼”
03 4 710-0747 $1.00 clamp bolt ¼-28 x 1¼”
04 1 726-0186 $0.00 plug for top nut
05 1 712-0304 none top nut 1″-24 slanted top
05 1 712-0304 $5.00 top nut 1″-24 Wald #220
06 1 745-0167 $19.0 mirror clamp-on type
07 1 00-06891 $0.00 fork assy
09 1 741-0286 $8.00 adjustable cone
10 2 741-0287 $5.00 bearing retainer #52
11 2 730-0114 $14.0 reflector plastic with #10-32 post
12 2 741-0284 $6.00 frame cup Wald #410 33-34mm
13 1 741-0283 $8.00 fork cone (crown race)
14 2 732-0340 $0.00 fork spring
15 4 731-0400 $0.00 =18 fork bushing nylon
16 1 00-06827 $40.0 fork leg left 1.00″(25.4od)
17 1 00-06838 $34.0 fender with braces, painted
17 1 00-06841 none fender with braces, stainless
19 2 731-0401 $14.0 fork boot good-used
20 3 710-0289 $0.50 =29, bolt ¼-20 x ½”
21 4 710-0258 $0.50 =36 bolt ¼-20 x 5/8″
22 4 712-0107 $0.30 =27,42 nut ¼-20
24 1 745-0171 none speedo driver VDO ½” left 1-finger
25 1 00-06828 $40.0 fork leg right 1.00″(25.4od)
26 1 745-0170 none speedo cable black VDO 650 mm
26 1 745-0170 $22.0 speedo cable black VDO 700
28 1 725-0539 $27.0 horn 6VAC 18w
30 1 725-0590 none sealed beam headlight 6V 18w
30 1 725-0590 $32.0 headlight with replaceable bulb #1129
31 2 710-0725 $0.00 bezel screw ST#8 x 1″
32 1 731-0426 none headlight bezel Peterson
34 1 731-0424 none headlight housing for speedo
34 1 731-0468 $25.0 headlight housing for no speedo
35 1 745-0169 none speedometer VDO ∅48 40mph, M10
39 2 741-0219 $0.50 steel ball ¼”
40 1 00-06858 $13.0 handlebar clamp plate used rusted
41 2 736-0329 $0.20 headlight lock washer ¼”
Frame Group
Sheet Frame Sachs: 1. 2200-A,
2. 2200-B, 3. 2200-C and 280
# qty Columbia# price description
01 1 757-0280 none solo seat front-spring ’76-78
01 1 757-0293 none solo seat rear-spr. Messinger ’78-93
01 1 757-0293 $23.0 solo seat 10.5 x 10.5″ cruiser bicycle
02 1 00-06849 none side cover left (no petcock hole)
03 2 710-0289 $0.50 bolt ¼-20 x ½”
04 1 00-06840 $0.00 luggage rack-carrier
05 1 710-0593 $1.50 seat post bolt 5/16 -24 x 2¼”
06 1 00-06843 none rear fender painted
06 1 00-06843 none rear fender stainless
07 1 725-0533 at link tail light ’76-78 ULO 250-2
07 1 725-0533 at link tail light ’78-93 ULO 248-2
08 1 710-0597 $0.00 upper bolt ’76-78 ¼-20 x 1¼”
08 1 710-0597 $0.00 upper bolt ’78-93 ¼-20 x 1″
08 1 710-0258 $0.00 lower bolt ’76-93 ¼-20 x 5/8″
09 1 736-0175 $0.00 =51 lock washer 0.27 id
10 1 712-0287 $0.30 =27,52 nut ¼-20
11 2 710-0459 $0.00 upper shock bolt 3/8-24 x 1½”
12 6 736-0105 $0.00 =16,19 washer 0.4″ id
13 2 745-0168 $0.00 shock absorber
14 2 00-06847 $0.00 chain adjuster
15 2 710-0668 $0.00 rear axle ½-20 x 6½”
17 2 712-0214 $0.00 lower shock nut 3/8-24
18 1 00-06831 $0.00 swing arm
20 1 710-0411 $0.00 swing arm bolt 3/8-16 x 4″
22 6 712-0267 $0.50 =24,33,43 nut 5/16-18
23 5 736-0119 $0.30 =34,42 lock washer 5/16
25 1 00-06859 $0.00 exhaust mount-bracket
26 1 751-0213 $0.00 tail pipe (muffler)
28 1 736-0329 $0.30 muffler clamp lock washer ¼”
29 1 751-0219 $0.00 header pipe left 20 id (20 & 25)
29 1 751-0219 $0.00 muffler clamp, sold with header
300251-113105 $8.00 header clamp assy
31 1 00-06835 none center stand silver
32 2 710-0597 $0.50 =50 bolt ¼-20 x 1″
35 1 738-0138 $0.00 shoulder bolt 0.44od x 0.47″
36 1 738-0378 $0.00 shoulder spacer 0.44 x 3.3
37 1 710-0189 $1.00 eng. mount bolt 5/16-18 x 3″
38 1 732-0146 $0.00 center stand spring 0.75 x 4.32″
39 2 710-0378 $1.00 eng. mount bolt 5/16-18 x 2½”
40 1 751-0115 $1.00 gas hose 3/16 id x 5/16 od x 6″
41 1 751-0220 $15.0 gas valve A18 12×1 right
44 1 750-0347 $0.00 swingarm spacer tube 0.38id 0.62od x 2.8″
45 2 748-0141 $0.00 swingarm bushing nylon 0.63 od w/lip
46 1 712-0375 $0.70 swingarm lock nut 3/8-16
47 1 712-0214 $0.80 brake anchor lock nut 3/8-24
48 1 710-0152 $0.80 brake anchor bolt 3/8-24 x 1″
49 1 710-0459 $1.00 lower shock bolt 3/8-24 x 1½”
54 1 726-0165 $0.00 wires clamp
55 1 731-0307 $0.00 snap-on plug
56 1 751-0214 $0.00 pedal cranks set
57 1 724-0156 $18.0 pedal set classic
58 1 00-06825 none sheet frame step-thru Sachs
59 1 745-0166 $10.0 gas cap ∅30 1/4-turn chrome
60 1 757-0281 $18.0 seat post ∅36.3 x ∅22.2
61 4 710-0286 $1.50 cover screw ¼-20 x ½” wide-slot
62 1 00-06848 $38.0 side cover right
63 1 736-0264 $0.00 washer 0.33 id 0.63 od
64 1 712-0213 $0.70 seat clamp nut 5/16-24
65 1 725-0539 $27.0 horn 6VAC 18w
65 1 725-0539 $00.0 76-78 near engine, 78-93 behind headlight
Gas Valve for sheet frame is located on the left front, close to the decompression valve and start cable. The original had the hose spigot on the right, heading toward the carburetor. Although right is prefered, the replacement gas valve can have the hose spigot going down or left. Shown above is a “12×1 spigot down” replacement petcock, on a yellow Columbia.
Colombia (sheet frame)
replacement gas valve
Colombia (sheet frame)
replacement petcock
Tube Frame Solo: 4. 2240/50 and 340
# qty Columbia# price description
01 1 757-0293 none solo seat rear-spring Messinger
01 1 757-0293 solo seat 10.5 x 10.5″ cruiser bicycle
01 1 757-0287 none long seat with 2 or 3 styles
02 2 710-0289 $0.50 bolt ¼-20 x ½”
03 1 00-06840 $0.00 luggage rack-carrier
04 1 7
05 1 00-06910 none shock upper with mount hole
06 1 732-0368 none spring 0.88od x 5.65″
07 1 731-0400 none bushing 1.10od
08 1 731-0474 none rubber boot
09 1 00-06922 none shock lower with mount hole
10 1
11 1
12 1
13 1
16 1 725-0533 at link tail light ’78-93 ULO 248-2
59 1 724-0156 $18.0 pedal set classic
59 1 724-0156 $25.0 pedal set solid type
67 1 00-06835 $45.0 center stand silver
83 1 745-0174 $25.0 gas cap ∅30 push-in original
83 1 745-0174 $12.0 gas cap ∅30 push-in generic
86 1 751-0115 $1.50 gas hose clear 3/16 x 5/16 x 13″
88 1 751-0248 $15.0 gas valve A17 12×1 spigot-left
89 1 00-06863 none tube frame step-thru Solo
91 1 751-0252 $0.00 gas tank air vent
Gas tank vent: When adding gas, press the vent button under the seat to let air escape. Otherwise, air will prevent gas from filling the back half of the U-shaped tank. The vent has a light spring that automatically allows air to go in as gasoline goes out.
Gas tank: Tube frame tanks must mix the gas and oil in a gas can, because the tank is too long and thin for the oil to get to the back part and dissolve evenly.
Gas Valve is a vertical type valve used in a nearly horizontal position. It is located on the left rear, near the left pedal. Here it is shown (broken) on a black Columbia. The handle lever gets kicked and broken easily. Care must be taken to not kick it when stepping through the frame.
Colombia (tube frame)
original gas valve
Colombia (tube frame)
original gas valve
12×1 spigot L sideways
Tube Frame Sachs: 5. 2260/2270
# qty Columbia# price description
01 1 757-0293 none solo seat rear-spring Messinger
01 1 757-0293 $23.0 solo seat 10.5 x 10.5″ cruiser bicycle
01 1 757-0294 none solo seat rear-spring tan Messinger
02 1
03 1
04 1
05 1
06 1 00-06910 none shock upper with mount hole
07 1 732-0368 none spring 0.88od x 5.65″
08 1 731-0400 none bushing 1.10od
09 1 731-0474 none rubber boot
10 1 00-06922 none shock lower with mount hole
11 1
12 1
13 1
14 1
17 1 725-0533 at link tail light ’78-93 ULO 248-2
64 1 745-0174 $12.0 gas cap ∅30 push-in
65 1 00-06865 none tube frame step-thru Sachs
67 1 724-0156 $18.0 pedal set classic
67 1 724-0156 $25.0 pedal set solid type
76 1 745-0115 $1.00 gas hose clear 3/16 x 5/16 x 6″
77 1 751-0220 $15.0 gas valve A18 12×1 right use A17
77 1 751-0248 $15.0 gas valve A17 12×1 spigot-left
83 1 745-0174 $25.0 gas cap ∅30 push-in original
83 1 745-0174 $12.0 gas cap ∅30 push-in generic
Gas tank: See notes above about the tube frame tank, gas valve, and air vent.
Tube Frame Top Tank: 6. 2280
# qty Columbia# price description
01 1 745-0171 none gas cap screw-on internal thread
02 1 751-0280 none gas tank plastic ∅55 bottlecap thread
03 1 757-0292 none seat latch
04 1 710-0776
05 2 736-0270 none Belleville washer .265id .75od x.062
03 1
04 1
05 1
06 1
07 1 757-0287 none long seat top tank
08 1 00-06910 none shock upper with mount hole
09 1 732-0368A1 no. spring 0.88od x 5.65″ stiffer
10 1 731-0400 none bushing 1.10od
11 1 731-0474 none rubber boot
12 1 00-06922 none shock lower with mount hole
13 1 00-06932 none seat support
14 1
15 1
23 1 725-0533 at link tail light ’78-93 ULO 248-2
24 1 710-0106 $1.50 bolt ¼-20 x 1½” inside tail light
54 1 00-06835 none center stand silver
66 1 00-06934 none tube frame top-tank Sachs
73 1 724-0156 $18.0 pedal set classic
77 1 745-0115 $2.00 gas hose clear 3/16 x 5/16 x 26″
79 1 751-0220 $15.0 gas valve A18 12×1 right
80 1 771-0709 $0.00 gas valve adapter M12x1
Wheels Group
Wheels 1-chain 1. 2200-A, 2. 2200-B
steel 1-chain hubs made in Italy by Grimeca
# F R Columbia# price description
01 1 0 734-0772 none front wheel
02 0 1 734-0773 none rear wheel
03 1 1 734-0774 $39.0 tire 2.25-17
04 1 1 734-0772 $11.0 tube 2.25-17
05 1 1 734-0776 $2.00 rim band
06 1 1 842182000 none rim only 1.40×17 36-hole
07 36 36 755-0220 $2.50 spoke 185 x 2.6, 0.45 thread
08 2 2 737002010 $2.00 brake spring H64KS
09 1 1 737001010 $25.0 brake shoe set 105 x 20 Grimeca
10 1 1 737008010 $3.00 cable adjuster
12 2 2 711-0241 $7.00 spacer ∅0.51 ∅0.82 x 0.5″
13 2 0 736-0272 $1.50 washer ∅0.51 ∅1.00 x 0.60
14 1 0 710-0506 $10.0 front axle hex bolt 1/2″-20 x 5.5″
15 0 1 710-0668 none rear axle bolt 1/2″-20 x 6.5″
15 0 1 710-0668 $10.0 rear axle bolt 1/2″-13 x 6.5″ w/nut
17 1 1 737017010 $4.00 pinch bolt assy H60
18 1 1 737010010 $0.80 cam nut H104 M6 x 6
19 3 3 737006010 $0.50 cam washer H10 M6 thin
20 1 1 737003010 $10.0 brake arm H59 Grimeca
21 1 1 737008010 $15.0 cam shaft H63K
22 1 0 737034000 none front brake plate ½” with spacer
23 1 1 755001084 $10.0 sealed bearing 1/2″ x 35 x 11 #6202-8
24 1 0 740000031 $17.0 front center tube ∅13 ∅20 x 39
25 1 0 736022000 none front hub bare Grimeca HD steel 105
26 1 0 745-0171 none speedo driver VDO ½” left 1-finger
27 0 1 713-0227 at link sprocket 420 x 42T 25/30
27 0 1 713-0228 at link sprocket 420 x 48T 20mph
28 0 1 720225600 none sprocket lock plate
29 1 1 712-0285 $5.00 axle nut ½” – 20
30 0 4 722213659 $1.00 sprocket bolt M7 x 25
32 0 1 737009010 $27.0 rear brake plate ½” with spacer
33 0 2 00-06847 none chain adjuster ½”
34 0 1 740000009 $0.00 rear center tube ∅13 ∅20 x ?
35 0 1 735034000 none rear hub 1-chain Grimeca HD steel 105
36 0 1 713-0217 $30.0 chain 420 x 106L including master
36 0 1 713-0229 $30.0 chain 420 x 110L including master
Chain link counts specified here include the master link. The link counts in the Columbia parts catalogs do not include the master link.
1-chain hub sprockets for 420 or 420H chain are 5.5 mm thick, thicker than most mopeds.
Wheels with Italy-made steel 1-chain hubs
Some models in family 2, such as this ’79 Imperial, came with an Italy-made steel 1-chain hub on the rear, and a USA-made 2-chain type aluminum hub on the front. So they were sometimes substituting parts.
Wheels 2-chain: 3. 2200-C + 280,
4. 2240/50 + 340, 5. 2260/70, 6. 2280
aluminum 2-chain hubs made in USA by Columbia
The rear brake and sprocket are both on the left. The hub center is small 28mm stepping to 24mm in the center. The step retains the lip-less sealed bearings, and so no adapter sleeves are needed.
# F R Columbia# price description
01 1 1 734.0958 none front cast hub assy USA
02 1 0 750.0429 $17.0 front center spacer ∅13 ∅16 x 60.6
04 1 0 745.0171 none speedo driver VDO ½” left 1-finger
05 1 0 736.0192 $1.80 washer H113M 2mm
06 2 0 736.0327 none safety washer ∅12 with hook-tab
07 1 0 710.2204 none front axle M12-1.5 x 150
08 0 1 710.2205 none rear axle M12-1.5 x 170
09 0 2 00.06847 none chain adjuster ∅12 USA
09 0 2 00.06847 $15.0 chain adjuster ∅12 Italy, ∅11 filed
10 0 2 750.0277 $15.0 spacer ∅13 ∅17 x 11
11 2 2 741.0290 $6.00 bearing 6001Z ∅12 ∅28 x 8
12 0 1 750.0430 $23.0 rear center spacer ∅13 ∅16 x 80.6
13 0 1 734.1013 none rear cast hub assy USA
14 0 1 713.0244 none sprocket 415 42T ∅115 sheet/tube 25/30
14 0 1 713.0245 none sprocket 415 48T ∅115 sheet/tube 20mph
14 0 1 713.0246 none sprocket 415 57T ∅115 Solo tube
15 0 2 00.06921 none sprocket lock plate
16 0 4 710.2201 $1.00 sprocket bolt H61 M6x20
17 2 2 732.0361 $8.00 brake spring USA original
18 1 1 761.0173 $25.0 brake shoe set w/springs 105 x 20
19 1 1 711.0692 $16.0 brake cam = H63K
20 0 1 00.06913 none rear brake plate bare ∅12 USA
20 0 1 00.06913 $27.0 rear brake plate bare ∅12 =Grande front
21 1 1 00.06917 none brake arm Columbia 2-hole
23 1 1 736.0329 $0.60 cam washer H10
24 1 1 712.2003 $0.30 cam nut M6 H104
25 1 1 712.2204 $4.00 axle nut M12-1.5
27 2 1 750.0436 $17.0 spacer ∅12 ∅20 x 16
28 1 00.06913 $25.0 front brake plate ∅12 USA
30 1 1 734-0774 $39.0 tire 2.25-17
31 1 1 734-0775 $11.0 tube 2.25-17
32 1 1 734-0955 none rim only 1.40-17 36-hole
33 1 1 734-0776 $2.00 rim rubber band
34 36 36 755-0220 $2.50 spoke 185 ∅2.6, 0.45 thread
36 0 1 713-0200 $22.0 chain 415-106L Sachs sheet 25/30
36 0 1 713-0253 $22.0 chain 415-110L Sachs sheet 20mph
36 0 1 713-0253 $22.0 chain 415-110L Sachs tube 25/30
36 0 1 713-0249 $22.0 chain 415-114L Sachs sheet 20mph
36 0 1 713-0242 $22.0 chain 415-98L Solo tube 20mph
37 0 1 713-0247 $15.0 freewheel sprocket 410 x 18T Solo
Chain link counts specified here include the master link. The link counts in the Columbia parts catalogs do not include the master link.
2-chain hub sprockets for 415 or 415H chain are 4.3 mm thick, and have a 115mm center hole, bigger than any other moped sprocket. That is because of the oversize 105mm drum brake that goes inside the sprocket. Having the brake and sprocket on the same side allows the opposite side to have a screw-on freewheel sprocket for a pedal chain.
Brakes made in USA by Columbia are compatible with Grimeca brakes made in Italy. The cast aluminum Italian-made Grimeca brake shoes on the early 1976-78 sheet-metal-frame Columbias, directly replace the stamped steel American-made brakes on the monotube-frame and late 1978-80 sheet-frame Columbias. The USA made brake plates, cam shafts, lever arms, are also each interchangable with Grimeca items, but the axles are different 12.0 mm on the American-made hub, and 12.7 mm (1/2 inch) on the Italian-made Grimeca hub.
top is American, Ø12 axle
bottom is Italian, 1/2″ axle
brake shoes swapped
Controls Group
L. USA 2-chain-hub brake, 2-end S-hook cable.
R. Italian 1-chain-hub brake, takes 1-end cable.
Controls for Sachs: 1. 2200-A, 2. 2200-B
3. 2200-C280, 5. 2260/2270, 6. 2280
# qty Columbia# price description
01 1 746-0284 at link right control Magura wrap-around
02 2 746-0286 $4.00 brake cable anchor pin
03 1 270.5103 $8.00 choke thumb lever
04 1 746-0287 $2.00 choke cable pinch bolt
05 1 753-0237 $20.0 throttle cable 36.8 x 4.5 2-ended
05 1 753-0237 $00.0 for short cable pipe, most ’76-79
05 1 753-023L $20.0 throttle cable 36.8 x 5.0 2-ended
05 1 753-023L $00.0 for long cable pipe, most ’79-93
07 1 746-0285 at link left control Magura w/start lever
09 1 746-0288 $2.00 left grip
10 2 000.5581 $15.0 brake light switch
11 1 270-1037 $22.0 front (right) brake lever
12 1 746-0289 none front brake cable 36.9+ 1-end (1, 2)
12 1 746-0289 $10.0 front brake cable 34.0 x 5+ 1-end
13 1 753-0200 $23.0 start cable 34(+3) x 4+ 1-end
14 2 737-0080 $3.00 brake cable adjuster w/nut
15 1 725-0344 none front brake 38.9″ 2-end S-hook (3,5,6)
15 1 725-0344 $15.0 front brake 33.7 x 5.2+ 1-end w/pinch bolt
16 1 746-0290 none rear brake cable 62.8+ 1-end (1, 2)
16 1 746-0290 $12.0 rear brake cable 60 x 6+ 1-end
17 1 725-0345 none rear brake 64.8″ 2-end S-hook (3,5,6)
17 1 725-0345 $15.0 rear brake 59.1 x 5.7+ 1-end w/pinch bolt
19 1 753-0200 $13.0 choke cable 37.4 x 1.6+ 1-end
20 1 210-1037 $22.0 rear (left) brake lever good-used
21 1 013-1Z32 $13.0 start lever with pinch screw
Sachs engine Columbia: On Columbia with Sachs engine, the throttle cable carburetor end passes through a M6-0.75 thread adjuster on the Bing carb elbow, so the adjuster is not trapped on the cable, and is sold separately. The carb elbow, aka curved pipe, can be either short or long. So there are two different throttle cables, short or long. The difference is 1/2 inch of exposed inner wire.
Controls for Solo: 4. 2240/2250 and 340
# qty Columbia# price description
01 1 746-0284 at link right control Magura wrap-around
02 2 746-0286 $4.00 brake cable anchor pin
03 1 270.5103 $8.00 choke thumb lever
04 1 746-0287 $2.00 choke cable pinch bolt
05 1 746-0347 $23.0 throttle cable 42.0-3.2 2-end
05 1 746-0347 $20.0 throttle cable 42.0-3.2 2-end
06 1 746-0348 $20.0 choke cable 42.0-2.0 2-end
07 2 000.5581 $15.0 brake light switch NOWI
08 1 746-0285 at link left control Magura w/start lever
10 1 725-0345 none rear brake 64.8″ 2-end S-hook
10 1 725-0345 $15.0 rear brake 59.1 x 5.9+ 1-end w/pinch bolt
11 1 746-0288 $2.00 left grip Magura ribbed
12 1 013-1Z32 $13.0 start lever with pinch screw
13 1 210-1037 $22.0 rear (left) brake lever good-used
14 1 725-0344 none front brake 38.9″ 2-end S-hook
14 1 725-0344 $15.0 front brake 33.7 x 5.2+ 1-end w/pinch bolt
15 1 746-0346 $10.0 start cable 37.0 x 5.5+ 1-end
16 1 270-1037 $22.0 front (right) brake lever
Solo engine Columbia: On Colombia with Solo engine, the throttle cable carburetor end passes through the a M6-0.75 thread adjuster on the top of the carburetor. So the adjuster is not part of the cable, unlike Puch, and like on the Colombia with Sachs engine.
Electrical Group
Electrical: 1. 2200, 2. 2200-mid (most)
# qty Columbia# price description
01 1 725-0536 at link R switch CEV 8177 engine stop
02 1 725-0537 at link L switch CEV 8040 light/horn
03 1 725-0532 at link headlight assy CEV 2139 bullet
04 1 725-0541 $0.00 tail light ground wire
05 1 725-0533 at link tail light ’76-78 ULO 250
05 1 725-0533 at link tail light ’78-93 ULO 248
06 2 725-0538 $15.0 brake light switch CEV 9343 good-used
06 2 725-0538 $9.00 brake light switch Domino 2218.20.04
07 1 725-0539 $27.0 horn 6VAC 18w near engine
08 1 725-0540 none wire harness ’76-78 low horn
09 1 725-0522 $0.00 terminal block
10 1 725-0590 none headlight bulb sealed beam 6V 18w
10 1 725-0590 $32.0 headlight replaceable bulb 6V 21w
11 1 725-0534 $2.00 tail light bulb 6V 5w #63
12 1 725-0535 $2.00 brake light bulb 6V 10w #81
Horn was first located on the right side of the engine in ’76-78, because of CEV round bullet headlight. During 1978 the headlight changed to Peterson rectangular. That allowed the horn to be behind the headlight because there was more room. The horn wires changed in the wiring harness, and also the switches.
Electrical: 2. 2200-mid (some), 3. 2200-late+280,
4. 2240/2250 and 340, 5. 2260/2270, 6. 2280
# qty Columbia# price description
01 1 725-0637 none wire harness ’78-93 high horn
02 1 725-0598 $0.00 terminal block
03 1 725-0599 at link R switch Merit 342 engine stop
04 1 725-0539 $27.0 horn 6VAC 18w behind headlight
05 1 725-0600 at link L switch Merit 343 light/horn
06 1 725-0591 none headlight assy Peterson rectangular
06 1 725-0592 none headlight assy Peterson, w/speedo
07 1 725-0541 $0.00 headlight ground wire
08 1 725-0533 at link tail light ’78-93 ULO 248
09 2 725-0538 $15.0 brake light switch CEV 9343 good-used
09 2 725-0538 $9.00 brake light switch Domino 2218.20.04
10 1 725-0590 none headlight bulb sealed beam 6V 18w
10 1 725-0590 $32.0 headlight replaceable bulb 6V 21w
11 1 725-0534 $2.00 tail light bulb 6V 5w #63
12 1 725-0535 $2.00 brake light bulb 6V 10w #81
Electrical: Columbia lights are completely separate from the ignition. Never will the engine die when the brakes are applied or when the brake light wires are loose, like on many other mopeds. Each of the lights has it’s own generator wire, so they are independent of each other. The 6V 22W AC yellow wire powers the head light, speedo light and horn, the 6V 10W AC green (and green/black) powers the brake light, and the 6V 5W grey wire powers the tail light. Those three lighting source coils, plus a fourth ignition source coil (perhaps 20 volts but not officially rated), comprise the “Bosch 6V 22-5/10” magneto-generator.
Columbia wiring has an
internal ignition ground
Columbia wires
(some disconnected)
— China Brands Menu — Select:
July 2, 2022
1980’s clone mopeds
(Chengdu, Chongqing)
SSR Lazer (Bashan)
