A. Metric Bolts

Machine screws and bolts are listed by thickness, style, and length.

Green price is new, dark price is used, N/A is not available.

Good-used bolts are tested and are not damaged, but maybe tarnished or slightly corroded.

All bolts are plated (to resist corrosion), unless they say “plain”.  Silver (or no-color) means zinc-plated.

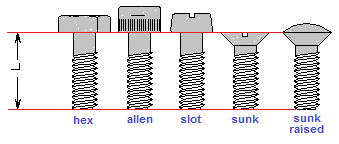

The meaning of length is different for “sunk”.

Bolt styles are set by various industry standards.
Here are the main ones:

JIS   is Japan Industry Standard
xxxx used by Japan, China, Taiwan, Korea, others
DIN is Deutsches Institut für Normung
xxxx used by Germany, Austria, Netherlands, others
ISO  is International Standards Organization
xxxx used worldwide
ANSI is American National Standards Institute
xxxx used by America

Metric threads: The way a screw or bolt is described here (the syntax) is “thickness dash thread width times shank length”. So an M6-1.00 x 20 bolt is just under 6mm thick, each thread is 1.00mm wide, and the length below the head is 20mm. By knowing the millimeters and thread pitches, you can find screws and parts for anything from carburetors to telescopes.



2.5 mm bolts (0.45 threads)



slot
(sm)

M2.5 x 4  slot small head  $1.00  for inside 1970’s CEV and Merit switches





3.0 mm bolts (0.50 threads)



slot
(sunk)

slot
(pan)

slot
(chse)

hex

M3 x  5  slot sm. head $0.80  for inside switches or screw terminals
M3 x  8  hex silver xx  $0.50
M3 x 12 hex silver xx  $0.50
M3 x 12 hex black xx  $0.50
M3 x  8  slot cheese    $0.50
M3 x 12 slot cheese    $0.50
M3 x 12 slot pan xxx  $0.50
M3 x 20 slot pan xxx  $0.50 or 5/$2.00  or 10/$3.00
M3 x 21 slot sunk xx  $1.00 – $0.50


phil.
(sunk)

phil.
(wide)
DIN

phil.
(pan)
JIS

M3 x  4  phillips xxxx $0.50
M3 x  6  phillips xxxx $0.50
M3 x  8  phillips xxxx $0.50
M3 x 10 phillips xxxx $0.50 – $0.30
M3 x 16 phillips xxxx $0.50  or 5/$2.00 or 10/$3.00
M3 x 22 phillips xxxx $0.80
M3 x  4  phillips wide $0.50
M3 x  6  phillips wide $0.50
M3 x  8  phillips sunk $0.50



 3.0 mm bolts (0.60 threads)  and  3.5 mm bolts (0.60 threads)



M3-0.60 metric thread is close to #5-40 American. #5-40 has a 3.17 shank diameter (not 3.0), and thread width 0.635 (not 0.60). #5-40 nuts screw onto M3-0.60 bolts. Because the nut is bigger, the slightly different thread is tolerated, so it falsely feels correct. But under load it would strip easier because not all of the threads are in use. M3-0.60 nuts will not screw onto #5-40 bolts.

M3-0.60 x 10 slot pan xxx  $0.50
M3-0.60 x 14 slot pan xxx  $0.50
M3-0.60 x 22 phillips xxxx $0.50
M3-0.60 x 25 phillips sunk $0.50


M3.5 x 16 phillips



4 mm bolts (0.70 threads)



M4-0.70 metric thread is very close to #8-36 American. #8-36 has a 4.2 shank diameter (not 4.0), and 0.71 thread width (not 0.70).  M4 is slightly smaller, but will interchange. M4 nuts screw onto #8-36 bolts. #8-36 nuts screw onto M4 bolts, but wiggle slightly more. Note that #8-32 is common, but #8-36 is uncommon.

hex head

M4 x 10 hex silver   $0.50
M4 x 12 hex silver   $0.50
M4 x 12 hex gold     $0.50

M4 x 14 hex silver   $0.50
M4 x 16 hex silver   $0.50
M4 x 20 hex silver   $0.50
M4 x 20 hex gold     $0.50
M4 x 25 hex silver   $0.60
M4 x 28 hex black   $0.50
M4 x 28 hex plain   $0.30

M4 x 30 hex silver   $0.60
M4 x 35 hex silver   $0.60


slot (pan)

slot
(cheese)

M4 x 08 slot cheese   $1.20
M4 x 10 slot cheese   $1.30
M4 x 12 slot cheese   $1.30
M4 x 18 slot cheese   $0.60
M4 x 20 slot cheese   $0.60
M4 x 23 slot cheese   $0.50
M4 x 35 slot cheese   $0.60
M4 x 10 slot pan xx   $0.80
M4 x 12 slot pan xx   $0.60
M4 x 15 slot pan xx   $0.60
M4 x 16 slot pan xx   $0.60
M4 x 25 slot sunk xx $0.80 for CEV 195 and 196 console switches


slot-phil (pan)

phillips
(pan)
JIS

M4 x  8  phil. small    $2.50 small head for points
M4 x 10 phil. small    $2.50 small head for points
M4 x 10 phillips pan  $1.20
M4 x 12 phillips pan  $1.00
M4 x 14 phillips pan  $0.70
M4 x 16 phillips pan  $0.50
M4 x 32 phillips pan  $0.50  or 5/$2.00  or 10/$3.00
M4 x 55 phillips pan  $1.00 new but ugly
M4 x 72 phillips pan  $1.90 Peugeot 68063, for CEV 9350 tail light
M4 x 18 phillips gold $0.50
M4 x 25 phillips gold $0.60

M4 x 22 slot-phil blk $0.50  or 5/$2.00 or 10/$3.00


phillips
(wide)
DIN

M4 x 08 phillips wide $0.50
M4 x 10 phillips wide $0.50 for stator plates
M4 x 12 phillips wide $0.70 for stator plates
M4 x 14 phillips wide $0.80
M4 x 20 phillips wide $0.60
M4 x 27 phillips wide $0.60 for CEV 8188, 8189, 8190 plastic clamp-on switches
M4 x 30 phillips wide $0.50
M4 x 45 phillips wide $0.70 Peugeot 68385, for ULO 248 tail light
M4 x 50 phillips wide none  for Angel and General tail light

M4 x 55 phillips wide $0.80
M4 x 60 phillips wide $0.80


phillips
(raised)

phillips
(sunk)

M4 x 12 phillips sunk  $0.50
M4 x 25 phillips sunk  $1.00 Minarelli 7055, for V1 plastic fan cover
M4 x 10 phillips sunk raised  $1.20 Minarelli 5420, for fan

M4 x 12 phillips sunk raised  $0.40  or 5/$1.50  or 10/$2.00






allen

M4 x 10 allen stainless none
M4 x 14 allen stainless $0.50
M4 x 16 allen black xx $0.50
M4 x 18 allen stainless $0.50
M4 x 20 allen stainless none
M4 x 14 allen stainless $0.50

M4 x 25 allen black xx  $0.50





4 mm bolts (0.75 coarse threads)



M4-0.75 x 12 slot   $3.00
M4-0.75 x 14 slot   $3     for Dellorto SHA carburetor top
M4-0.75 x 18 slot   $5     for Dellorto SHA carburetor bottom
M4-0.75 x 19 slot   $5     for Dellorto SHA carburetor bottom





5 mm bolts (0.75 fine threads)



M5-0.75 x 12 slot      $8  for Dellorto SHA carburetor inlet banjo





5 mm bolts (0.80 threads)


M5-0.80 metric thread is very close to #10-32 American. #10-32 has a 4.8 shank diamteter (not 5.0), and 0.79 thread width (not 0.80).  M5 is slightly larger. A M5 nut screws onto a #10-32 bolt easily, and can wiggle. Conversely, a #10-32 nut becomes too tight on a M5 bolt, and can only screw on 1 or 2 turns.

hex head

M5 x  8  hex silver   $0.25  battery terminal screw
M5 x 10 hex silver   $0.50
M5 x 12 hex silver   $0.60 – $0.35
M5 x 16 hex silver   $0.60 – $0.35  Peugeot 801096
M5 x 18 hex silver   $0.60

M5 x 20 hex silver   $0.60 – $0.35
M5 x 25 hex silver   $0.80 – $0.40
M5 x 30 hex silver   $0.80 – $0.50
M5 x 35 hex silver   $0.80 – $0.50
M5 x 40 hex silver   $0.80
M5 x 45 hex silver   $1.00
M5 x 50 hex silver   $0.60 new but ugly

M5 x 60 hex silver   $0.60 new but ugly
M5 x 70 hex silver   $0.60 new but ugly
M5 x 20 hex black   $1.00
M5 x 30 hex black   $1.00
M5 x 40 hex black   $1.20
M5 x 12 hex gold     $0.60
M5 x 16 hex gold     $0.60
M5 x 20 hex gold     $0.80
M5 x 30 hex gold     $0.80


slot (raised)

slot
(cheese)

M5 x 10 slot cheese $0.50
M5 x 12 slot cheese $0.50
M5 x 16 slot cheese $0.50
M5 x 20 slot cheese $0.60
M5 x 30 slot cheese $0.60
M5 x 40 slot cheese $0.80
M5 x 45 slot cheese $0.60
M5 x 50 slot cheese $0.80
M5 x 16 slot raised  $0.80 – $0.50


slot (pan)

slot
(sunk)

M5 x 10 slot sunk  $0.50
M5 x 12 slot sunk  $0.50
M5 x 16 slot sunk  $0.50
M5 x 12 slot pan xx  $0.50
M5 x 16 slot pan xx  $0.50  or 4/$1.60 or 10/$3.00 Peugeot 52033 substitute
M5 x 16 slot wide x  $0.50   Puch 900.1505 for ULO tail light lower
M5 x 30 slot pan xx  $0.50  Puch 900.1546 for ULO tail light upper


slot-X
(truss)

slot
(wide)

M5 x 16 slot pan wide $3.00 – $2.00 Peugeot 52033 cover screw
M5 x 22 slot pan wide $2.50 $1.50 Peugeot 61912 long cover screw
M5 x 10 slot-X truss   $1.00  Peugeot 008025 for belt cover
M5 x 35 slot-X truss   $1.00  Peugeot 008049 for belt cover






phillips
(wide)
DIN

phillips
(pan)
JIS

M5 x  6  phillips pan  $0.80
M5 x  8  phillips pan  $0.60
M5 x 10 phillips pan  $0.60
M5 x 12 phillips pan  $0.60  or 5/$1.50  or 10/$2.50
M5 x 14 phillips pan  $0.60
M5 x 16 phillips pan  $0.70

M5 x 20 phillips pan  $0.60
M5 x 25 phillips pan  $0.60  or 5/$2.00  or 10/$3.00
M5 x 30 phillips pan  $0.70
M5 x 35 phillips pan  $0.70  or 5/$2.50  or 10/$3.50 Puch Maxi side covers
M5 x 45 phillips pan  $0.70  or 5/$2.50  or 10/$3.50 Puch Maxi side covers

M5 x 70 phillips pan  $1.00
M5 x 12 phillips wide $0.60
M5 x 14 phillips wide $0.60


slot-phil
(pan)

phillips
(raised)

phillips
(sunk)

M5 x 12 phillips sunk  $0.60
M5 x 16 phillips sunk  $0.60
M5 x 20 phillips sunk  $0.80
M5 x 12 phil sunk raised $0.40
or 5/$1.50 or $10/$2.00
M5 x 16 phil sunk raised $0.80
M5 x 16 slot-phil pan  SS  $0.50  or 5/$2.00

M5 x 25 slot-phil pan zinc $0.50


allen
(button)
ISO 7380

allen
(socket)

M5 x 10 allen chrome $1.00 or 5/$3.00
M5 x 12 allen socket  $0.50
M5 x 16 allen socket  $0.60 – $0.40
M5 x 20 allen socket  $1.50

M5 x 16 allen black    $0.80

M5 x 30 allen black    $0.80
M5 x 45 allen black    $0.80

M5 x 10 allen button  $1.00  Tomos 026700   these all have good hex holes, not worn
M5 x 12 allen button  $1.00  Tomos 026701   they require a sharp-edge allen wrench
M5 x 14 allen button  $1.00  Tomos 026703   or else they get rounded-out easily
M5 x 16 allen button  $1.00  Tomos 026697
M5 x 20 allen button  $1.00  Tomos 026686
M5 x 30 allen button  $1.00  Tomos 027271 A55 oil pump cover

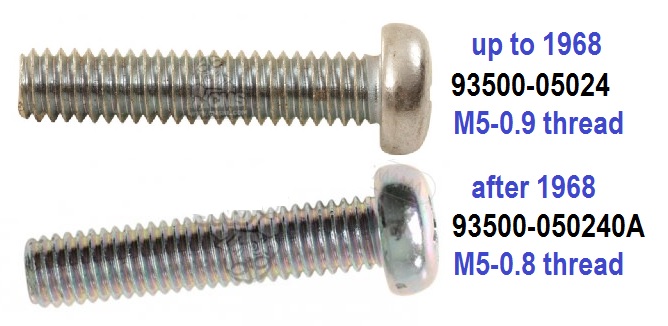

5 mm bolts (0.90 coarse threads) on Motobecane (France) and pre-1970’s Japan (early JIS)



M5-0.90 x 12 hex bolt silv.  $1.00

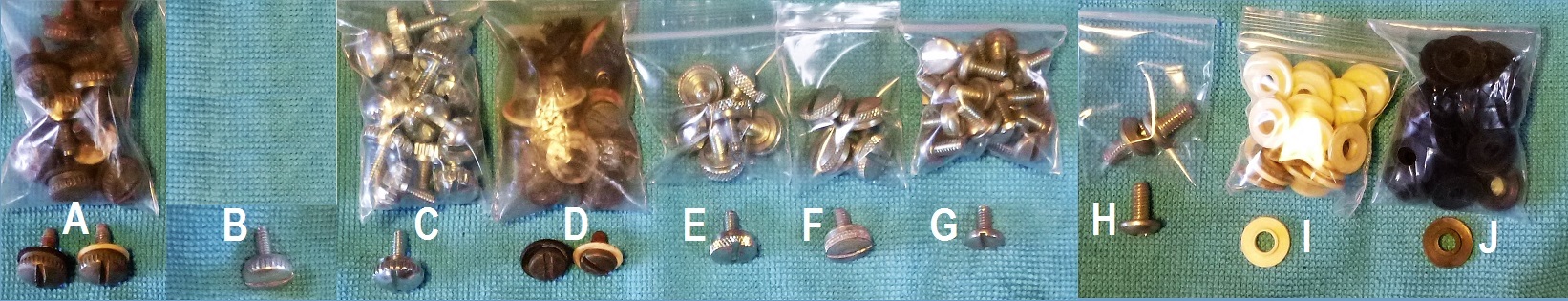

M5-0.90 x 12 slot pan wide $4.00 Motobecane belt cover screw original

M5-0.90 x 16 slot pan wide   N/A  Motobecane side cover screw original

M5-0.90 x 16 phillips pan   $1.50 Motobecane side cover screw substitute
M5-0.90 x 22 phillips pan   $1.50 1960’s Japan (Honda, etc) and 1970’s Taiwan (General, etc) controls
M5-0.90 x 25 phillips pan   $1.50 1960’s Japan (Honda, etc) and 1970’s Taiwan (General, etc) controls
M5-0.90 x 35 phillips pan   $1.50

M5-0.90 x 60 phillips pan   $0.90 or 10 for $5.00



6 mm bolts (1.00 threads)



hex head

M6 x 10 hex silver   $0.80
M6 x 12 hex silver   $0.50 – $0.30 or 5/$1.00  or 5/$2.00  or 10/$3.00
M6 x 16 hex silver   $0.80 – $0.30 or 5/$1.00  or 5/$2.00 Peugeot 801121

M6 x 20 hex silver   $1.00 – $0.30 or 5/$1.00
M6 x 25 hex silver   $1.00 – $0.30 or 5/$1.50
M6 x 30 hex silver   $1.00– $0.40
M6 x 33 hex silver   $0.40  or 5/$1.50  Motobecane 00050, has less threads, only 8mm
M6 x 35 hex silver   $1.00  or 5/$2.00  or 10/$3.00  or 50/$10.00
M6 x 40 hex silver   $1.00 – $0.40  or 5/$2.00
M6 x 45 hex silver   $0.80 – $0.50
M6 x 50 hex silver   $1.20 – $0.50
M6 x 55 hex silver   $1.20 – $0.60 Peugeot 801122 original
M6 x 60 hex silver   $1.20 – $0.60 Peugeot 801130 original
M6 x 65 hex silver   $1.00 – $0.80 Peugeot 801131 original
M6 x 70 hex silver   $1.20  or 5/$3.00  or 10/$4.00  or 50/$12.50
M6 x 75 hex silver   $0.80  or 5/$3.00

M6 x 80 hex silver   $2.00
M6 x 90 hex silver   $2.20
M6x100 hex silver   $2.50
M6x110 hex silver   $2.50

M6 x 30 hex black   $1.00
M6 x 35 hex black   $1.20
M6 x 40 hex black   $1.20
M6 x 50 hex black   $1.40 – $1.00
M6 x 60 hex black   $1.20$1.00  or 5/$5.00
M6 x 70 hex black   $1.40
M6 x 20 hex gold    $0.80  or 5/$3.00  or 10/$5.00
M6 x 35 hex gold    $1.20
M6 x 40 hex gold    $1.20
M6 x 55 hex gold    $1.40  Peugeot 801122
replacement
M6 x 60 hex gold    $1.40  Peugeot 801130 replacement

M6 x 70 hex gold    $1.40  or 5/$6.00
M6 x 80 hex gold    $1.00  or 5/$4.00  or 10/$6.00  or 50/$20.00


hex flange

M6 x 12 hex flange  $0.60
M6 x 16 hex flange  $0.80
M6 x 20 hex flange  $0.80 – $0.50
M6 x 28 hex sm fl.  $1.20 Motobecane ?

M6 x 35 hex flange  $1.00
M6 x 40 hex flange  $1.20 – $0.80  or 5/$5.00
M6 x 70 hex sm fl.  $2.50 – $1.50 Peugeot 56165 up-rear case, close to drum


hex8 flange
(Honda)

M6 x 20 hex8 flange $0.80
M6 x 25 hex8 flange $1.00
M6 x 30 hex8 flange $1.00
M6 x 35 hex8 flange $1.20
M6 x 40 hex8 flange $1.20
M6 x 50 hex8 flange $1.50




slot head
(cheese)

M6 x  8  slot cheese  $0.80 – $0.40  Puch 900.1305 oil check plug
M6 x 10 slot cheese  $0.50
M6 x 12 slot cheese  --N/A-
M6 x 16 slot cheese  --N/A-
M6 x 20 slot cheese  $0.80
M6 x 25 slot cheese  $0.70  or 5/$2.50 Morini 29-1165, Puch 24577 case bolt
M6 x 30 slot cheese  $0.70 – $0.50  Garelli oooooooo, Puch 901.1216 case bolt
M6 x 35 slot cheese  $1.00  – $0.00  Morini 29-1168, Garelli 152.392.00

M6 x 40 slot cheese  $1.00 – $0.70   Morini 29-1169, Puch 900.1207, Garelli 152.396.00
M6 x 45 slot cheese  $1.00 – $0.80   Morini 29-1171

M6 x 50 slot cheese  $1.00 – $0.70 or 5/$4   xxxxxx  Puch 901.1308, Garelli 152.412.00
M6 x 60 slot cheese  $0.80
M6 x 65 slot cheese  $0.80  – $0.00  Morini 29-1173

M6 x 70 slot cheese  $1.20
M6 x 30 slot chs blk  $0.80
M6 x 35 slot chs blk   N/A     Garelli 152.400.00
M6 x 40 slot chs blk  $0.80  Garelli 152.404.00
M6 x 50 slot chs blk  $1.00


truss
(wide)

slot
(wide)

slot (pan)

M6 x 10 slot pan     $0.50 – $0.35
M6 x 12 slot pan     $0.80
M6 x 16 slot pan     $0.80
M6 x 20 slot pan     $0.80
M6 x  8  slot wide   $1.50
M6 x 10 slot wide   $1.50 – $1.00  for Tomos A3 fenders
M6 x 12 slot wide   $1.20  or 4/$4.00 for Tomos A3
M6 x 16 slot wide   $1.20  or 4/$4.00
M6 x 20 slot wide   none Peugeot 103 cover screws
M6 x 25 slot wide   $2.50 Peugeot 102 cover screws

M6 x 16 truss wide           Batavus and Trac style


slot
(sunk)
(raised)

slot
(sunk)

M6 x 20 slot sunk    $1.20 substitute for Minarelli 7055
M6 x 25 slot sunk    $1.00
M6 x 25 slot sunk raised $1.50 – $1.00 Puch 900.9460 for clutch cover ’69-77 Maxi
M6 x 55 slot sunk raised $1.50 – $1.00 Puch 900.1684 for 2-speed clutch cover
M6 x 70 slot sunk raised $1.50 – $1.00 Puch 900.1687 for 2-speed clutch cover






slot-phil
(pan)

phillips
(pan)
JIS

M6 x 16 phillips pan $0.80  or 5/$3.00
M6 x 20 phillips pan $0.80 Indian H662-00-50 clutch cover bolt
M6 x 25 phillips pan $1.00 Indian H662-50-50 clutch cover bolt
M6 x 30-32 phil pan $1.00 Indian H663-20-50? clutch cover bolt
M6 x 35-36 phil pan $1.20 Indian H663-20-50? engine case bolt
M6 x 40 phillips pan $1.20  or 5/$5.00
M6 x 45 phillips pan $1.40 – $1.00 Indian H664-20-50 engine case bolt
M6 x 50 phillips pan $1.00
M6 x 75 phillips pan $1.00 Indian H667-50-50 clutch cover and case bolt
M6 x 85 phillips pan $1.20  or 5/$5  Indian H668-50-50 cl. cover and case
M6 x 20 slot-phil pan stainless $0.50
M6 x 30 slot-phil pan stainless $0.50
M6 x 45 slot-phil pan gold xxx $0.60


phillips wide
(Motobecane)

phillips
(wide)
DIN

M6 x 12 phillips wide   $1.00 – $0.60 Tomos 027265 side cover screw
M6 x 16 phillips wide   $1.00 – $0.60
M6 x 20 phillips wide   $1.00 – $0.60
M6 x 25 phillips wide   $1.00
M6 x 25 ph wide black $1.20
M6 x 10 phil wide MB  $0.80  Motobecane style
M6 x 16 phil wide MB  $1.00  Motobecane style
M6 x 20 phil wide MB  $1.00  Motobecane style
M6 x 35 phil wide MB  $1.00  Motobecane style


phillips
(sunk)
(raised)

phillips
(sunk)

M6 x 10 phillips sunk  $1.50 Taiwan-moped (early Honda) fork lock
M6 x 12 phillips sunk  $1.50
M6 x 16 phillips sunk  $1.50

M6 x 20 phillips sunk  $2.00  Minarelli 7055
M6 x 30 phillips sunk  $1.50
M6 x 14 phil sunk raised black $1.20 – $1.00  Yamaha
M6 x 20 phil sunk raised silver $1.50  substitute for Minarelli 7055

M6 x 25 phil sunk raised silver $1.50 – $1.00  Puch 1-speed clutch cover ’78 Maxi
M6 x 25 phil sunk raised gold   $1.50 – $1.00  Puch 1-speed clutch cover on ??
M6 x 30 phil sunk raised silver $1.50 – $1.00  Puch 1-speed clutch cover ’78 Newport


allen
(short)

allen (socket)

M6 x 12 allen silver  $0.80
M6 x 16 allen silver  $0.70  or 5/$3.00  or 10/$5.00
M6 x 18 allen silver  $0.90  stainless
M6 x 20 allen silver  $0.70
M6 x 25 allen silver  $0.70 – $0.50
M6 x 30 allen silver  $0.80  or 5/$3.00  or 10/$5.00
M6 x 35 allen silver  $0.80 – $0.50
M6 x 40 allen silver  $0.80 – $0.50
M6 x 45 allen silver  $1.00$0.70
M6 x 50 allen silver  $1.00 – $0.70
M6 x 55 allen silver  $1.20  or 5/$5.00
M6 x 60 allen silver  $1.20
M6 x 65 allen silver  $1.20

M6 x 70 allen silver  $1.20  or 5/$5.00
M6 x 14 allen black  $1.20  Minarelli 5320 for V1 clutch cover bottom (qty 1)
M6 x 16 allen black  $0.80  Minarelli 5420 for V1 fan cover metal type (qty 3)
M6 x 16 allen black  $0.80  gloss w/washer
M6 x 20 allen black  $0.80  matte finish or gloss w/washer
M6 x 25 allen black  $0.80  Morini 29-1986, matte finish
M6 x 25 allen black  $0.80  gloss w/washer

M6 x 30 allen black  $1.00  Morini 29-1987, Minarelli 5250, for V1 case (qty 11), matte finish
M6 x 35 allen black  $0.60  or 5/$3.00   shiny (gloss) finish
M6 x 35 allen black  $0.60  Morini 29-1988, Minarelli 5330, for clutch cover (qty 6), matte finish

M6 x 40 allen black  $1.20  Morini 29-1989, matte finish
M6 x 45 allen black  $1.20  Morini 29-1990, matte finish
M6 x 50 allen black  $1.40  Morini 29-1991, matte finish
M6 x 55 allen black  $0.80  or 5/$2.50  or 10/$4.00  or 50/$15 or 200/$40  gloss finish
M6 x 60 allen black  --N/A-  Morini 29-1993, matte finish
M6 x 65 allen black  --N/A-  Morini 29-1994, matte finish

M6 x 70 allen black  $1.20  Morini 29-1995, matte finish
M6 x 16 allen gold   $0.80
M6 x 35 allen gold   $1.00  or 5/$4.00  or 10/$6.00
M6 x 40 allen gold   $1.00
M6 x 20 allen short  $1.20


allen
(button)
ISO 7380

M6 x 10 button allen  $1.00 – $0.50  Tomos 026705
M6 x 12 button allen  $1.00 – $0.50  Tomos 026706
M6 x 14 button allen  $1.00 – $0.50  Tomos 026689 for A55 left engine cover

M6 x 16 button allen  $1.50 – $0.60  Tomos 026690
M6 x 20 button allen  $1.00 – $0.50  Tomos 026707
M6 x 25 button allen  $1.00 – $0.50  Tomos 026692 for A55 right front engine cover
M6 x 30 button allen  $1.00 – $0.50  Tomos 026693
M6 x 35 button allen  $1.00 – $0.50  Tomos 026699

M6 x 40 button allen  $1.00 – $0.50  Tomos 026695
M6 x 50 button allen  $1.00 – $0.50  Tomos 026696 for A55 right rear engine cover

M6 x 16 button allen stainless  $0.80
M6 x 20 button allen stainless  $0.80
M6 x 20 but. allen ss big head  $0.60
M6 x 35 button allen stainless  $0.80



7 mm bolts (1.00 threads)



hex head

M7 x 16 hex (top lip)  $1.50 – $0.80  H124 sprocket, steel hub spoke wheel (can use 20,25,30)
M7 x 16 hex silver xx  $1.20 – $0.80  Peugeot 801133, for 103 motor mount
M7 x 18 hex silver xx  $1.00
M7 x 20 hex silver xx  $0.80
M7 x 22 hex silver xx  $1.50  Tomos 025208 sprocket ’74-91 alum hub spoke whl (use 25 or 30)
M7 x 22 hex silver xx
  $1.00  H124M sprocket cast aluminum wheel (can use 25 or 30)
M7 x 25 hex silver xx  $0.80  Tomos 026304 sprocket ’79-on “mag” wheel (can use 7 x 30)
M7 x 30 hex silver xx  $0.80  or 4/$2.50  or 10/$5.50
M7 x 30 hex10 silver   $0.60  Motobecane
M7 x 33 hex10 flange  $0.80  Motobecane 14936 case bolt
M7 x 35 hex silver xx  $1.00

M7 x 40 hex silver xx  $0.60  Peugeot H.B clamp bolt
M7 x 40 (43) hex10    $1.50  Motobecane

M7 x 45 (47) hex10    $1.00  Motobecane 00366 case bolt
M7 x 50 (53) hex10    $1.00  Motobecane 01189 exhaust mount

M7 x 60 hex silver xx  $1.00
M7 x 70 hex silver xx  $1.00
M7 x 75 hex silver xx  $1.80 – $1.00  Peugeot 801441 for 103 side cover mounts
M7 x 12 hex black xx  $1.00 Minarelli 5690, for pancake exhaust

M7 x 20 hex black xx  $0.80
M7 x 40 hex black xx  $1.00
M7 x 70 hex black xx  $1.00

M7 x 16 hex gold xx   $0.80
M7 x 20 hex gold xx   $0.80
M7 x 40 hex gold xx   $1.00
M7 x 50 hex gold xx   $1.00



7 mm bolts (1.25 coarse threads)



M7-1.25 x 45 hex10  $0.80 – $0.50  Motobecane 15276 case bolt





8 mm bolts (1.00 fine threads)



hex head

M8-1.00 x 23 hex silver  $1.00
M8-1.00 x 37 hex silver  $1.00
M8-1.00 x 45 hex silver  $1.00
M8-1.00 x 57 hex silver  $1.00
M8-1.00 x 65 hex silver  $1.00  Tomos 026040 for early engine mount
M8-1.00 x 70 hex silver  $1.00  Tomos 026041 for center stand and engine (use black, see below)
M8-1.00 x 75 hex silver  $1.00  Tomos 026042
M8-1.00 x 80 hex silver  $1.00  Tomos 026043 for engine mount
M8-1.00 x 90 hex silver  $1.50 – $0.80
M8-1.00 x 70 hex black $1.50 for Tomos centerstand



8 mm bolts (1.25 threads)



hex head

M8 x 16 hex silver   $0.60
M8 x 20 hex silver
M8 x 25 hex silver   $0.60
M8 x 30 hex silver   $0.60
M8 x 35 hex silver   $0.60
M8 x 40 hex silver   $0.60
M8 x 45 hex silver   $0.80
M8 x 50 hex silver
M8 x 55 hex silver
M8 x 60 hex silver       $1.00 Tomos 025397 for early seat clamp
M8 x 65 hex silver
M8 x 70 hex silver
M8 x 80 hex silver
M8 x 90 hex silver


allen
(socket)

M8 x 20 allen silver
M8 x 25 allen silver
M8 x 30 allen silver
M8 x 35 allen silver
M8 x 40 allen silver
M8 x 45 allen silver
M8 x 50 allen silver




allen
(button)
ISO 7380

M8 x 14 button allen  $1.00  Tomos 026702
M8 x 20 button allen  $1.00  Tomos 026704
M8 x 25 button allen
M8 x 30 button allen
M8 x 40 button allen





10 mm bolts (1.25 fine threads)



hex head

M10-1.25 x 25 hex silver
M10-1.25 x 30 hex silver
M10-1.25 x 35 hex silver
M10-1.25 x 40 hex silver
M10-1.25 x 45 hex silver
M10-1.25 x 50 hex silver









10 mm bolts (1.50 threads)



hex head

M10 x 20 hex silver         Peugeot 801134
M10 x 25 hex silver
M10 x 30 hex silver
M10 x 35 hex silver  $1.50 Tomos 025409 for rear shock
M10 x 40 hex silver  $1.50 Tomos 025569
M10 x 80 hex silver  $1.50 Tomos 025578






allen (button)
ISO 7380

M10 x 20 button allen
M10 x 25 button allen  $1.00  Tomos 026698
M10 x 30 button allen
M10 x 35 button allen  $1.00  Tomos 026699
M10 x 40 button allen
M10 x 50 button allen
M10 x 60 button allen







B. Metric Nuts



size thread height wrench      style            price


M4 – 0.70  x  4     hex 7    standard zinc   $0.40  or 5/$1.50 or 10/$2.00


M5 – 0.75  x  4     hex 7   Dellorto adjuster
M5 – 0.80  x  5     hex 8    standard zinc x $0.40  or 5/$1.50 or 10/$2.00
M5 – 0.80  x  5     hex 8    std chrome xxx $1.00  or 5/$4.00 or 10/$7.00
M5 – 0.80  x  6     hex 8    self-locking xx  $0.70  or 5/$3.00  or 10/$5.00
M5 – 0.80  x  7     hex 8    thick nut zinc    $1.00  or 5/$4.00  or 10/$7.00
M5 – 0.80  x  5     hex 8    cap chrome xx  $1.00  or 5/$4.00
M5 – 0.80  x  25   hex 8    tall nut Morini x $1.50  or 5/$5.00
M5 – 0.90  x  5     hex 8    coarse zinc xxx $1.50  or 5/$6.00  or 10/$10.00


M6 – 0.75  x  4  hex  9   Dellorto elbow
M6 – 0.80
x  4  hex 10  fine thin nut    $1.50  or 5/$6.00
M6 – 1.00  x  4  hex 10  thin nut zinc    $0.50  or 5/$2.00  or 10/$3.00
M6 – 1.00  x  4  hex  9   Solex nut xx    $1.50
M6 – 1.00  x  5  hex 10  standard zinc   $0.30  or 5/$1.20 or 10/$2.00  50/$8.00
M6 – 1.00  x  7   hex 10  self-locking     $0.60  or 5/$2.50
M6 – 1.00  x  6  hex 10  thick nut zinc   $0.60  or 5/$2.50
M6 – 1.00  x  8  hex 10  round corners  $2.50 brass, Puch 902.2919
M6 – 1.00  x  8  hex 10  sharp corners  $1.80 brass, generic
M6 – 1.00 x 18  hex 10  coupling nut    $1.00  tall, coupling nut


M7 – 1.00  x  5.5  hex 11   standard zinc   $0.60    $2.50   $4.00
M7 – 1.00  x  7     hex 10   small hex zinc  $1.00    $4.50   $7.00
M7 – 1.00  x  5.5  hex 11   std chrome      $2.00    $8.00  $15.00
M7 – 1.00  x  7.2  hex 11   self-locking      $1.80    $8.00/5
M7 – 1.00  x  7     hex 11   tall zinc nut     $1.00 – $0.60  Motobecane case, Grimeca sprocket
M7 – 1.00  x  10   hex 10   tall plain nut  $1.50


M8 – 1.00  x  6.3  hex 13   fine nut zinc
M8 – 1.00  x  8     hex 13   fine self-lock
M8 – 1.25  x  6.5  hex 12   standard zinc  $0.50 $2.00/5  $3.50/10
M8 – 1.25  x  6.3  hex 13   standard zinc
M8 – 1.25  x  8     hex 13   self-locking


M9 – 1.00  x  10   hex 14  see Solex axle nut


M10-1.00  x  10   hex 17  fine nut zinc
M10-1.00  x   6    hex 17  fine thin zinc
M10-1.00  x  10   hex 14  see engine hardware crank nuts
M10-1.25  x  10   hex 14  standard black
M10-1.25  x  10   hex 14  cap nut black
M10-1.25  x  10   hex 17  standard zinc
M10-1.25  x  11   hex 17  self-locking
M10-1.50  x  10   hex 17  coarse nut


M11-1.00  x  11   hex 17  see wheel parts axle nut
M11-1.00  x  8    hex 17  see wheel parts axle lock nut
M11-1.00  x  6    hex 17  see wheel parts axle lock nut
M11-1.00  x  4    hex 17  see wheel parts axle lock nut


M12-1.00  x  12 see wheel parts
M12-1.00  x  10 see wheel parts
M12-1.00  x  8   see wheel parts
M12-1.00  x  6   see wheel parts
M12-1.25  x  12 fine nut zinc    hex 19
M12-1.25  x  12 fine nut zinc    hex 17
M12-1.50  x  12 standard zinc  hex 19
M12-1.50  x  13 self-locking     hex 19


M14-1.00  x  8   see Indian clutch nut H214
M16-1.00  x  10
M20-1.00  x  10 see Tomos sprocket nut 209080
