Wheel Parts

July 14, 2015

Tires, brakes, or spokes are separate.
Click for
Tires or Brakes or Spokes



Part number colors: MMI, Myrons, Tomos,
Garelli, Peugeot, Piaggio, Puch, Others


Spoke-type Rims Rims

Chrome steel rims
size 00000 holes 00 tire 0000
 MMI#   price
16 x 1.35  36 0.23  2.25-2.50 H45C 0 $40.0 good used
17 x 1.35  36 0.21  2.25-2.50 H45/1K none
17 x 1.20  36 0.21  2.00-2.25 H45A 0 none

Aluminum rims
size 00000 holes 00 tire 0000  MMI#   price

17 x 1.60  36 0.00  2.50-2.75 H0000  none
16 x 1.50  36 0.00  2.25-2.50 H45B    none

Rim strips
6357
  rim strip 16-17″ rubber band over spokes $2.00
can use electrical tape (protects tube from spokes)




Moped Axle types Axles

Bolt type axles (bolt head not counted in length)
part number   thread x length  price  Front

611-10145 0  M10-1.25 x 145  $12 78-85 Lazer/General ∅80
611-121450  M12-1.50 x 145  $12 78-85 General ∅110
111-00011 0  M12-1.50 x 155  $12 ?
W110-00-50  M12-1.25 x 160  $13 78-81 Indian front
part number   thread x length  price  Rear

W210-00-50  M12-1.25 x 168  $20 78-81 Indian
611-12172 0  M12-1.50 x 173  $27 78-85 Lazer/General

Smooth axles
part# 00  size 00  thread 0  price  Front

209255  12×150 M11-1.00  $20.0 ’74-91 Tomos
222584  12x000 M11-1.00  N/A ’91-06 Tomos
226086  12×220 M12-1.00  N/A ’07-13 Tomos (most)
232868  12×220 M12-1.25  N/A ’07-13 Tomos (some)
part# 00  size 00  thread 0  price  Rear
209256  12×165 M11-1.00  $21.0 ’74-91 Tomos (most)

222585
  12×165 M11-1.00  $20.0 ’91-08 Tomos (most)
230515  12×185 M11-1.00  $23 ’08-13 Tomos
418261  12×182 M12-1.00  $20 80-86 Puch
574254  12×180 M12-1.00  N/A 76-86 Garelli VIP, Gulp

All-thread axles
part# 0  thread x length  price  Front

138427  M11-1.00 x 140 $15    Ciao C7N (shortened 145)
20381    M11-1.00 x 145 $11.0 Garelli, Cimatti, KTM, MB…
H52xxx  M11-1.00 x 150 $19.0 Malaguti, Negrini, Pacer
400261  M11-1.00 x 155 $19.0 Garelli VIP/Gulp, Puch, Sears
G69668M12-1.00 x 150 $18    Vespa Grande
H52Kx   M12-1.00 x 165 $19.0 Negrini KPN
part# 0  thread x length  price  Rear

217092  M11-1.00 x 165 $18    Tomos Silver Bullet, F- Vespa Si

417261 M11-1.00 x 175 $22    Puch mag, front Vespa Bravo
H119x   M11-1.00 x 180 $21.0 1-chain Grimeca spoke
H119L   M11-1.00 x 200 $16.0 11mm extra long
H119G  M12-1.00 x 180 $18.0 1-chain Grimeca mag
410261 M12-1.00 x 180 $18.0 Leleu-Puch 2-chain hub
H119M  M12-1.00 x 200 $15.0 12mm extra long




Axle nuts Axle Nuts

size 00000   hex  price  part# 00   Wide Nuts (outer)
M11-1.00×10 17 $3.00 H112      outside of frame F or R
M11-1.00×10 19 $3.00 15478    outside of frame F or R
M12-1.00×11 19 $4.50 H112M   outside of frame, usually R
M12-1.50×11 19 $3.00 12-1.5    some Tomos and Columbia
size 00000   hex  price  part# 00 Thin Nuts (inner)
M11-1.00 x 3 17 $3.00 217.087 special for some speedo drivers

M11-1.00 x 4 24 $3.00 H115      large for rear wheel to not slip
M11-1.00 x 5 17 $3.00 11x17x5 special for some speedo drivers

M11-1.00 x 6 17 $2.00 H56        thin for locking cone onto axle
M11-1.00 x 7 17 $3.50 H56        thin for locking cone onto axle
M12-1.00 x 4 24 $3.50 H115M    large for rear wheel to not slip
M12-1.00 x 5 19 $2.00 12x19x5 special for some speedo drivers

M12-1.00 x 6 19 $2.50 H56M     thin for locking cone onto axle
M12-1.00 x 7 19 $2.50 12x19x7

M12-1.00 x 8 24 $5.00 11x24x8 large for rear wheel to not slip




Axle washers Axle Washers

part# 000 i.d. 0 o.d.  width  price
044124  11mm x 19 x 0.8 $2.00 special thin and wide
H62
       11mm x 17 x 0.5  $2.00 special thin
H113     11mm x 17 x 2.0  $1.50 normal axle washer
227450  11mm x 20 x 2.0  $1 .00
H62M     12mm x 18 x 1.2  $2.50 special thin
12×2.0   12mm x 20 x 2.0  $1.00
12×3.0   12mm x 20 x 3.0  $1.50 special thick

13×1.5   13mm x 27 x 1.5  $1.00  1/2″ SAE
H113M   12mm x 24 x 2.3 $1.80 or $1.20 used, normal axle washer




Axle Spacers
574549  spacer 12.5×16  x  3 mm  $3.00
H57      spacer 12.5×16  x  4 mm $3.00
space5  spacer 12.5×16  x  5 mm $5.00
407041  spacer 12.5×16  x  6 mm $5.00
514549  spacer 12.5×16  x  7 mm $5.00
208253  spacer 12.5×16  x  8 mm  (use 230668) Tomos 1977-90 front-left SB
230668  spacer 12.5×16  x  8 mm $6.00 Tomos 2001-13 box swingarm models
H147     spacer 12.5×16 x  9 mm $5.00
217094  spacer 12.5×22 x 10 mm $6.50 Tomos 1977-91 rear mag outer R

222883  spacer 12.5×22 x 10 mm $6.50 Tomos 1996-later rear outer left, black
209253  spacer 12.5×22 x 11 mm $6.50 Tomos 1976-1991 rear outer R

500277  spacer 12.6×16 x 11 mm  N/A Columbia
space12 spacer 12.6×22 x 12 mm  $6.50
209263  spacer 12.5×16 x 13 mm $8.00 Tomos 1976-1991 rear outer L
H116B   spacer 12.5×16 x 14 mm $5.00
574258  spacer 12.5×16 x 16 mm N/A Garelli
227485  spacer 12.5×22 x 16 mm $6.50 Tomos 1996-later front left, black
H116     spacer 12.5×16 x 17 mm $7.50
H116A   spacer 12.5×16 x 20 mm $7.00
space25 spacer 12.6×20 x 25 mm  $7
space29 spacer 12.6×17 x 29 mm  $7
222568  spacer 12.5×16 x 40 mm $7.50 Tomos 1992-13 front 16″ mag- Slot, 10-ray, ZCW
206871  spacer 14.0×18 x 47 mm $13.0 Tomos 1974-91 front spoke
209262  spacer 12.5×18 x 57 mm  $14.0 Tomos 1976-91 either 209262 rear or 206871 front
500439  spacer 12.5×18 x 61 mm N/A Columbia cast front center
222569  spacer 12.5×16 x 64 mm $7.50 Tomos 1992-13 rear 16″ mag- Slot, 10-ray, ZCW
410231  spacer 12.8×16 x 70 mm $10 for 1980-86 Puch-Leleu sealed bearing hub
500430  spacer 12.8×16 x 81 mm N/A Columbia 2-chain cast rear center
space83 spacer 12.5×18 x 83 mm $12 Myrons Leleu/Puch SB upgrade


Sealed bearing

Sealed Bearings
6000ZZ
sealed bearing 10 x 26 x 8   $5.00
16100Z sealed bearing 10 x 28 x 8   N/A
6200Z   sealed bearing 10 x 30 x 9   $6.00
6001Z   sealed bearing 12 x 28 x 8   $6.00
16101Z sealed bearing 12 x 30 x 8   $20
6201Z   sealed bearing 12 x 32 x 10 $7.00
00000
00000
00000


Balls

Bearing Balls
00690
  bag of 26 balls 3/16″ $2.00 Leleu rear   29 cup 12 axle
00694  bag of 22 balls 7/32″ $2.00 Leleu front  29 cup 11 axle
H67P    bag of 22 balls 7/32″ $2.00 Grim rear 30 cup 11 axle
H67xx  bag of 20 balls 1/4″   $2.00 Grim. F/R 32 cup 11 axle
H67M   bag of 22 balls 1/4″   $2.00 Grim. F/R 35 cup 12 axle
H67Ax  caged ring of 8 1/4″  $3.00 Grim. F/R 32 cup 11 axle

0
0


Cones

Bearing Cones
H66
    bearing cone std. Grimeca 11mm, 19.0od x12.0 $8.00
00000
H66M  bearing cone big Grimeca 12mm, 22.0od x13.8 $16.0
00000
69284  bearing cone front Leleu 11mm, 18.1od x13.25 $5.00
00000
69276  bearing cone rear Leleu 12mm, 20.0 od x13.6   $19.0
00000


Cups

Bearing cups (outer race) Leleu
69285
   cup 29 $5.00 for all Leleu front
69648   cup 29 $10.0 for all Leleu rear
Bearing cups (outer race) Grimeca
H69P
  cup 30 $16.0 for 2-chain rear wheels
H69xx  cup 32 $7.50 for most front or rear
H69B   cup 32 $19.0 Bernardi type machined outer

H69S   cup 32 $7.50 has notches for speedo driver
H69M   cup 35 $19.0 for some rear wheels
000

A dual chain rear hub or wheel has a bicycle type freewheel that surrounds the right rear wheel bearing. That limits the size of the bearing.

That is why the balls are smaller on a dual chain rear hub than on a front hub. You would think they should be bigger, because they carry 3 times more weight than the front.



Bearing Dust Rings
1a 1c H68M   Grimeca 35  $20.0 for F, 1-chain R  31 x 23 x 4
2a 2a H68     Grimeca 32  $6.00 for F, 1-chain R  28 x 20 x 3.5
2b 2c H68     Grimeca 32  $6.00 thin version
3a 3a H68P   Grimeca 30  none  for 2-chain rear 26 x 20 x 3.5
3b 3c H68P   Grimeca 30  $15.0 good-used straightened
3d 3e H68PS Grimeca 30  $10.0 rubberized seal 26 x 20 x 4

4a 4a 69280
  Leleu 29 F   $10.0 bearing cup ∅14 ∅29  for Leleu front   29 x 20
5a 5a 69680  Leleu 29 R  $7.00 bearing cup ∅14 ∅29  for Leleu rear     29 x 22




Grimeca brake arms Grimeca brake arm camshaft hole
Grimeca brake arms 1, 3, 4, 6, 7

Brake Arms
00536T
 brake arm straight with clevis (for pear-end cable) $15
         original on Batavus, Trac with snowflake mags
00536  brake arm curved with clevis (for pear-end cable)   $22
         original on Sachs (Hercules)
H59    brake arm with flat-sided hole (for H60 pinch bolt)   $10.0
         original on most Grimeca wheels
209258 brake arm with Ø10 hole (for M6 loop pinch bolt)
         original on 1974-91 Tomos spoke wheels
69669  brake arm with Ø11 hole (for M7 loop pinch bolt)    $15
         original on 1970-86 Vespa (Piaggio)
6 7131  brake arm curved with cradle (for barrel end cable) $10
         orig. on 78-80 Puch, Sears, JCP, Murray with snowflake mags
Klever  brake arm long with notch (for clevis-end cable)     $18
         original on 1977-80 KTM Foxi




Loop Pinch Bolts

Grimeca Pinch Bolt

Grimeca Pinch Bolt















Brake Cable Anchors
H60
  pinch bolt Grimeca type    $5  see Cable Parts
       original on most Grimeca wheels
P21  pinch bolt loop type 6mm    $7  see Cable Parts
       original on 1974-91 Tomos spoke wheels
P22  pinch bolt loop type 7mm  $12  see Cable Parts
       original on 1970-86 Vespa (Piaggio)
P8   pinch bolt Ø8 sideways barrel $4  see Cable Parts
       useful for “making” brake cables
.

Pinch bolts (cable anchors) are offered in the Cable Parts section. Here are the common brake kinds.


Brake Springs

Brake Springs
1
H64S
    brake coil spring for Grimeca Ø90 $2.50 38mm long
2  H64KS  brake coil spring – Grimeca Ø105 $8.00 51mm long
3  H64US  brake  U-spring for Grimeca Ø90 $12.0 free floating
4  H64VS  brake  V-spring for Grimeca Ø90 $15.0 fixed to post
5  087030 brake coil spring early Leleu Ø80   $1  30mm long
6  8703L  brake coil spring  late  Leleu Ø80   $5  29mm long
7  00000  brake coil spring Motobecane Ø80 $1  32mm long
8  00000  brake coil spring for Honda Ø110? $3  42mm long
9  00000  brake  V-spring for Honda Ø80   $10 also General, others
10 00000 brake  V-spring for Honda Ø80   N/A comes with EBC301 brakes

Brake springs are very strong yet compact.
Hardware store springs are too weak or big.


Grimeca Coil Type

Grimeca U-Spring

Grimeca 90x18 V-spring

Grimeca V-Spring

Taiwan V-Spring

Honda V-Spring















Grimeca Coil Spring: On steel hub spoke wheels, the center part of the hub is not as big, and there is room for dual small coil springs. Their advantage is they are much easier to install. Brakes can be folded like “from a taco to a tortilla” for installing and “from a tortilla to a taco” for removing.

Grimeca U-Spring: A second type would be the same brake shoes and brake panel, but with the two spring holes near the cam drilled bigger and a free floating horse shoe spring instead of the dual coils. This design is needed for aluminum wheels that have a bigger center portion. Without the “U” spring, the coil springs would rub.

A U-Spring uses the same brake plate as coil springs. There is no visible difference on the outside, between a U-spring brake plate and a coil spring brake plate.

Grimeca V-Spring: A third type is special plate and shoe set designed to be horseshoe spring only. The brake shoes each have a pencil size hole at one end. The stationary post (opposite the cam shaft) goes through the hole in each brake and has a notch at the end for the horseshoe spring. This non-floating horseshoe spring is more “V” shaped. It is held at the tip of the V by a rounded groove in the pivot post. The V-Spring brake shoes are also nicknamed “hole kind”.

There is no visible difference on the outside, between a V-spring brake plate and a U-spring or coil spring brake plate, but inside there are three differences.

1) the cam shaft on a Grimeca V-spring type has a retaining plate, while a coil spring type has no plate (to allow installation by “folding the taco into a tortilla”).

2) the pivot post on a Grimeca V-spring type is longer and has a rounded groove for the V-spring.

3) the pivot post on a Grimeca V-spring has no center groove for retention, while the coil spring and U-spring types have a center groove (for the center ridge on the shoes).

The V-spring design has better retention and safety, but is more difficult to install, because it requires a huge force to spread. See how to spread a V-spring using a home made spreader tool, in the Wheels Service section.


Brake Shoes see Brakes for full list
H64
    Grimeca 90 x 18, coil springs $25.0
H64K  Grimeca 105×20, coil springs $20.0
H64U  Grimeca 90 x 18 for U-spring $27.0
H64V  Grimeca 90 x 18 for V-spring  $30.0

69275  Leleu x  80 x 18, coil springs $25.0
00000 Honda   80 x 18 for  V-spring $21.0

Brakes are listed in a separate section. Here are just some of the common ones.


Brake Cam Shafts


#    price   MMI#   Tomos# plate cam drum spring
1    $8-6   H0000  209238 steel Ø10   90

2    $9.00
H63
 00 000000 steel Ø10   90 coil or U
3    $16.0 H63K 0 000000 steel Ø10 105 coil spr
4,5 $9.00 H63V 0 217007 steel Ø10   90 V spring
4,5 $00.0 H63V 0 222576 alum Ø10   90 V spring
4,5 $2.50 H0000  222580 inner washer 10 x 6
6    none  H0000  219791 steel Ø10   90 V spring
7    none  H0000  229743 alum Ø12 105 coil spr
8    $15.0 H0000  230954 alum Ø10 105 coil spr
2-4 $0.60 H104A  000000 cam nut tall M6-1.00 x 6
2-4 $0.60 H105 0 000000 cam washer (qty 2) ∅6-13 x 1.0
5-8 $0.30 H0000  031075 cam nut M6-1.00 x 5
5-8 $0.20 H0000  031509 cam washer ∅6

These brake cams are for Grimeca compatible brake arms with the Ø10 x 6 hole shown.






Brake Plate Parts

#  price   MMI#
1  $6.00 H148  inspection plug black rubber
$7 - 4 H53 0 cable adjuster original M6 hex
$3.00 H000  cable adjuster A2 M6 hex




Helper Springs


# price   MMI#   Puch# 0000 F/R plate  arm   wheel
1 $8.00 H0000 349.140.7191   F steel bent Gri.   mag original
2 $7.50 H120R 349.140.7191   F steel flat   Gri.   mag original
2 $0.00 H120R Cimatti126056 R steel flat   Gri. spoke original
3 $3.00 H0000 349.240.7191   F alum flat   Gri.   mag original
4 $7.00 H0000 349.241.7191   R steel bent Gri.   mag original
5 none  H120L Garelli 9134294 R steel flat   Gri. spoke original
5
$9.50 H120LS Garelli 913424 R steel substitute #4 modified
6 $7.00 H0000 349.341.5151   R alum flat Leleu spoke original
7 none  H0000 Tomos 222582 F/R alu. flat Tomos ’89-95 mag






Sprockets and Sprocket Parts

These are listed in Parts/Drivetrain/Sprockets







fig  price   MMI#  adjuster axle  Eyelet Chain Adjusters
$3.00  407500 adjuster Ø12
$3.00  000000
adjuster Ø12
$4.00  000000 adjuster Ø12
$5.00  000000 adjuster Ø12
$4.00  000000 back plate
 Sparta style
$3.00  000000 back plate Peugeot style
$7.00  000000 back plate Puch Magnum




fig  price   MMI# 0 adjuster axle  Spiral Chain Adjusters
1L  $5.00 H114R   adjuster Ø11 3-hole Tomos ’74-13 209212 left
1L  $0.00 H114R   adjuster Ø11 3-hole Tomos ’08-13 209212 right

1R $5.00 H114L    adjuster Ø11 3-hole Tomos ’74-07 223112 right
2L $75 H00000 adjuster Ø11 4-hole Cimatti 1310 right
2R $75 H00000 adjuster Ø11 4-hole Cimatti 1300 left
3L $7.00 H00000 adjuster Ø11 4-hole knurled handle
3R $6.00 H00000 adjuster Ø11 4-hole knurled handle
4L $7.00 H00000 adjuster Ø12 4-hole General
5L $8.00 H00000 adjuster Ø14 4-hole

6L $6.50 H114RM adjuster Ø12 solid right
6R $8.00 H114LM adjuster Ø12 solid left
7L $8.00 H00000 adjuster Ø12 solid left

7R $8.00 H00000 adjuster Ø12 solid right

8L none  H00000 adjuster Ø12 Garelli 002.551.4.143 left
8R $86  H00000 adjuster Ø12 Garelli 002.551.4.141 right
9L  $6.00 H00000 adjuster Ø12 Columbia (straightened)
9R $7.00 H00000 adjuster Ø12 Columbia (straightened)

These plate type adjusters are reversible, left and right, unlike shoes and gloves. On some models a left type is used on the right and a right type is on the left. So L types are not always on the left side, and R types are not always on the right.






Wheels

July 14, 2015

Table of Contents

A. Wheels for Sale

1. Introduction
2. Wheel Sets
3. Rear Wheels
4. Front Wheels

———-
——————  < p a r t i t i o n  >  —————————–

B. Wheels on Display

1. brand xxx country  drum (mm) xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx wheel family


Grimeca Old Logo

Grimeca compatibles

1. Grimeca xxxx   Italy    90, 105
2. Bernardi xxxx
  Italy    90, 105
3. Piaggio xxxxx
  Italy     90, 105
4. KTM xxxxxxx
Austria    90
5. Tomos xxx    Slovenia  90, 105
6. ZCW xxxxxx   China      105
7. Columbia  xx
 America   105
8. Derbi xxxxxx
  Spain      105

leleu small

Leleu compatibles

9.  Leleu xxxxx  France  70, 80, 100
10. Puch xx xxxx
Austria       80
11.
Motobecane  France       80
12. Kreidler  xx
Germany     80

General 5 star wheel

Taiwan and misc

13. General xxx Taiwan   80, 110
14. Yuan Ta xxx
 Taiwan       90
15. Mira xxxxxx
Taiwan      100
16. Sport Mag II
America  80, 90






A. Wheels for Sale

1. Introduction

Welcome to Myrons Wheel Parts Department.  Moped wheels are organized here into families with the same size drum brakes. The “Grimeca” family has 90 or 105mm brake drums, with mostly single chain rear hubs. The “Leleu” family has 70, 80, or 100mm brake drums, with mostly dual chain rear hubs. The “Asian” family has 80, 90, 100, or 110mm brake drums, with all single chain rear hubs.

All mopeds had spoke (wire) wheels until 1977, when die cast aluminum or magnesium alloy wheels (mags) came out. A “mag” wheel resists bending, and never has broken spokes. Through the 1980’s there were both  “spoke” and “mag” wheels. But by the 1990’s most mopeds had aluminum “mags”.

Myrons Mopeds Wall of Wheels in 2011

Myrons Mopeds Wall of Wheels in 2011

Myrons has about 200 moped wheels, but the more popular ones are scarce. Most of Myrons wheels are in the “raw” state. That means they have not been serviced. Most used moped wheels have bad wheel bearings and/or bent rims and broken spokes. They all need at the very least fresh grease, cleaning, sanding the brake drum, lubing the brake cam.

Some moped wheels interchange but most do not.  Using a wheel from a different moped is not as simple as swapping a car wheel. The brake anchor, the axle spacing, the rim centering, can all be different, resulting in things like tires rubbing and slowing you down, brakes not stopping good, a wobbly feel, or the chain coming off and damaging other things. When the wheel’s inner axle length is too long, the wheel is difficult or impossible to get on or off. When it’s too short, on the front, the front suspension becomes sticky or frozen as the axle nuts are tightened. When the brake anchor is too close to the frame, the brake rubs when the axle nuts are tightened. When it’s too far away, the whole brake plate/panel can suddenly detach from the frame, and rotate with the wheel, wrapping the cable around the wheel, bending the brake arm, and freezing up the rear wheel. When your wheels function and fit properly, you will enjoy riding more, with a smooth, safe, solid, and fast bike.



Terms Used to Describe Wheels:

The wheels below are described by rim width x  rim diameter, and Ø drum diameter.

So a 1.35×16″ Ø90 is a 16 inch rim, 1.35 inch inner width, and a 90 millimeter brake drum.

A 1-chain rear wheel has a motor chain on one side, and a brake on the other side.

A 2-chain rear has a motor chain and brake on one side, and a pedal chain and freewheel on the other side.



Rim and Tire Size illustration

Rim Width is less than Tire Width

1.20 rim takes a 2.00 or 2.25 tire
1.35 rim takes a 2.25 or 2.50 tire
1.60 rim takes a 2.50 or 2.75 tire
1.85 rim takes a 2.75 or 3.25 tire








2. Wheel Sets for Sale

.        W H E E L   S E T S        TIRES ARE NOT INCLUDED       SB=sealed bearing
17″ Puch spoke thin rims x  $280  xlnt condition/narrow Maxi rims/complete
17″ Puch spoke thick rims   $320  very good condition  click for image




3. Rear Wheels for Sale

.        R E A R   W H E E L S
wheel 16″R Garelli HD SS spoke xxx xxx  $230  new bearings/straight/heavy duty SS spokes
wheel 16″R Cimatti 42T 165 axle xx xxx  $210  xlnt bearings/straight/good chrome
wheel 17″R Colombia Open Road 57T xx  $150  all American made/SB/double chain/black
wheel 17″R Kynast Flying Dutchman 40T $180  brand new/shiney/needs fresh grease (included)
wheel 17″R Kynast Flying Dutchman 40T $150  xlnt bearings/straight/double chain/half bad chrome
wheel 17″R KTM Foxi 38T xxxx xxxx xxx  $100  good bearings/bent but useable/with brake panel

’77-80 Honda Express rear wheel A
no dents, no wear or rust on 80mm drum
Not for ’81-83 with bigger brakes 95mm.
trued, very straight, price $140

’77-80 Honda Express rear wheel B
80mm drum sanded, trued, very straight
Not for ’81-83. Those have bigger brakes 95mm.
spokes are brown, price $100



















Honda Express rear wheel checking and truing set-up






















4. Front Wheels for Sale

.        F R O N T   W H E E L S
wheel 16″F Italian spoke 145 axle xxxxx   $70  good bearings/straight/no speedo driver/bad chrome
wheel 16″F Cimatti spoke 145 axle xxxx  $100  xlnt bearings/straight/some spots of bad chrome
wheel 16″F Garelli VIP spoke 105 hub xx   $60  kinda straight/no brake panel
wheel 17″F Colombia Commuter 105mm $130  for sheet frame/3/8″ axle/SB/straight/rusty/complete
wheel 17″F Colombia Open Road 105mm $100  for tube frame/12mm axle/SB/straight/black/no brakes
wheel 17″F KTM Foxi spoke 145 axle xx  $120  xlnt bearings/kinda straight/fair chrome
wheel 17″F Vespa Ciao spoke 152 axle   $120  good bearings, straight, OK chrome, no speedo driver
wheel 17″F Vespa Ciao spoke 152 axle   $160  new, no speedo driver, spokes gray but rest is shiney

Suzuki FA50 front wheel
without axle or brake, good drum
spins true and free, no dents
chrome has tiny spots, price $90





















These are some of Myron’s wheels. There are many more wheels not listed, Grimeca mags, other mags, Leleu, Motobecane, Tomos, Taiwan, Derbi. These wheels are still in the raw state. Most of them need service, usually truing and bearing greasing, sometimes replacing bearings and spokes. Once they are in a state that is ready to sell, they will be photographed, priced, and listed here.



Find out more about the Wheels »


Spokes

July 14, 2014

Contents:

1. Spoke Length
2. Quick Info
3. Spoke List
—— partition ——
4. Spoke Nipples
5. Spoke Threads
6. Length Calculation
7. Calculated Lengths














1. Spoke Length

Length can vary by 1 or 2 mm depending on the definition.
Spokes from the bicycle industry use Inner Edge Length.
Spokes from the moped industry use Center Line Length.
Spokes measured directly usually use Total Length.

Here we use Center Line Length. So a spoke that we say is 144 mm long, is 143 mm long from a bicycle spoke supplier, or 145 mm long from simple measurement.




2. Quick Info


Replacement spokes can be up to 2 mm longer or shorter, as long as the original spoke was not already long or short.

Inner or Outer: Spokes can go inside the hub flange or outside. On original moped wheels they alternate inner and outer. Inner spokes are longer because they have less than 90° bend. Outer spokes are shorter because they have more than 90° bend. Here we use the 90 degree equivalent for the named length. See illustration.

Spoke thickness goes by several wire gauge families. Scroll down to Spoke Threads and Gauges for details.

Spoke threads: Most spokes have rolled threads, where the thread tops are raised higher than the spoke. Some spokes have cut threads, where the thread tops are lower than the spoke.

Thread pitch: Here the meaning of “thread” is the width of one thread, in mm. So ten 0.60 threads is 6 mm length.

ID Marks: For each spoke thickness (gauge) there can be several thread pitches. For many that means the ID mark on the spoke must match the ID mark on the nipple. ID marks include (A) (R) Italy, (  ) UK/Asia, () USA, (Б) Swiss, () (U) Germany, (C) (B) (*) (+) or (Я) France. Scroll down to Spoke Threads and Gauges for details.


Spoke head logos (ID marks). See more here




2. Spoke List

Spoke length (from center line) is from direct measurement. Over 90% of the listed applications have been verified by calculation. Scroll down to Length Calculation to see the good agreement between actual and calculated lengths.

rim xx qty xx length xxxxx  thread   price 0000 nipple
x↓ cross ↓ drum   ↓  thickness   ↓  /each  /set  mark ↓   type  OEM#

AMF Roadmaster .
16F 3x 36 090  173  2.6 12G 0.45 $2.00 $00 () 26i
16R 3x 36 090  173  2.6 12G 0.45 $2.00 $00 () 26i

Angel and Speed Bird (TYM)
17F 2x 32 080  179  2.6 12G 0.45 $2.00 $00 () 26b or(  )
17R 2x 32 080  179  2.6 12G 0.45 $2.00 $00 () 26b or(  )

Batavus VA, HS50, Starflite, Bronco, Mobat
16F 2x 28 080  169  2.6-0.0  0.50 $1.90 $43 () 26q or(U) 40210
16R 2x 36 070  165  3.0-0.0  0.60 $2.20 $45 () 30d  left   40173
16R 2x 36 070  168  3.0-0.0  0.60 $3.00 $00 () 30d right  40172

Batavus Regency
16F 2x 28 080  169  2.6-0.0  0.50 $2.00 $43 () 26q or(U) 40210
16R 3x 36 080  173  3.0-0.0  0.60 $3.00 $00 () 30d 40221

Cimatti City Bike, Town Bike
16F 2x 36 090  156  2.5-0.0  0.65 $2.80 $00 (A) 25d or(R) 25e
16R 2x 36 090  156  2.5-0.0  0.65 $2.80 $00 (A) 25d or(R) 25e
substitute  000  156  2.7-2.4  0.55 $1.70 $45 () 24a,24b

Colombia (1-chain), Open Road, Mopet (2 chain)
17F 3x 36 105  185  2.6 12G 0.45 none  $00 (O) 26f
17R 3x 36 105  185  2.6 12G 0.45 none  $00 (O) 26f
substitute  000  185  3.2-0.0  0.65 $1.50 $00
(  ) 32a

Derbi 83-86 Variant SL (only 15° bend almost straight)
16F 2x 36 105  157  2.9-0.0  0.60 $3.00 $00 (M) 29c 0A01220061
16R 2x 36 105  157  2.9-0.0  0.60 $3.00 $00 (M) 29c 0A01220061

Derbi 76-83 Variant SL, TT (only 15° bend spoke)
17F 2x 36 105  168  2.9-0.0  0.60 $3.00 $00 (E) 29c 0006513502
17R 2x 36 105  168  2.9-0.0  0.60 $3.00 $00 (E) 29c 0006513502

Derbi 78-87 C5 Diablo, RD50 (only 15° bend spoke)
21F 2x 36 105  217  2.9-0.0  0.60 none  $00 (E) 29c 0007912060
18R 2x 36 105  179  2.9-0.0  0.60 none  $00 (E) 29c 0006512061

Flandria Bermuda (with thin steel rims)
17F 3x 36 090  188  2.5-0.0  0.55 $2.00 $00 (Б) 25a DT zinc
17R 3x 36 090  192  2.5-0.0  0.55 $2.50 $00 (Б) 25a right DT zinc
17R 3x 36 090  188  2.5-0.0  0.55 $2.00 $00 (Б) 25a left DT zinc

Flandria Bermuda (with deep aluminum rims)
17F 3x 36 090  186  2.5-0.0  0.55 none  $00 (Б) 25a DT stainless
17R 3x 36 090  190  2.5-0.0  0.55 $2.50 $00 (Б) 25a right DT ss
17R 3x 36 090  186  2.5-0.0  0.55 none  $00 (Б) 25a left DT ss
substitute  000  187  2.5-0.0  0.55 $2.00 $00 (Б) 25a DT stainless

Garelli 75-77 Eureka Flex, Sport, Gran Sport
16F 2x 36 090  156  2.5-0.0  0.65 $2.80 $00 (R) 25e 00093201
16R 3x 36 090  174  2.5-0.0  0.65 $2.00 $00 (R) 25e 500601
substitute  000  156  2.7-2.4  0.55 $1.70 $45 () 24a,24b

Garelli 77-78 Sport HD
16F 2x 36 090  156  2.5-0.0  0.65 $2.80 $00 (R) 25e 00093201
16R 3x 36 090  174  3.0-0.0  0.65 $3.00 $00 (R) 30g 50685100
substitute  000  156  2.7-2.4  0.55 $1.70 $45 () 24a,24b011
substitute  000  174  3.0 17J  0.60 $1.80 $45 (C) 30e 21195

Garelli 77-80 Sport, Rally Sport, Super Sport
16F 2x 36 090  156  2.5-0.0  0.65 $2.80 $00 (R) 25e 00093201
16R 3x 36 090  174  2.5-0.0  0.65 $2.00 $00 (R) 25e 50060100
17F 3x 36 090  187  2.5-0.0  0.65 $2.00 $00 (R) 25e 50320300
17R 3x 36 090  187  2.5-0.0  0.65 $2.00 $00 (R) 25e 50320300
substitute  000  156  2.7-2.4  0.55 $1.70 $45 () 24a,24b

Garelli 80-82 Sport, Rally Sport, Super Sport, 83-84 Monza GT
16F 3x 36 105  168  3.0-0.0  0.60 $3.50 $00 (A)  30c 09324219
16R 3x 36 105  168  3.0-0.0  0.60 $3.50 $00 (A)  30c 09324219

Garelli 75-78 Gulpmatic
16F 3x 36 105  173  2.5-0.0  0.65 $2.00 $00 (R) 25e 5031510000
16R 3x 36 090  174  2.5-0.0  0.65 $2.00 $00 (R) 25e 50060100

Garelli 78-80 VIP
16F 3x 36 105  173  2.5-0.0  0.65 $2.00 $00 (R) 25e 5031510000
16R 3x 36 090  174  3.0-0.0  0.65 $3.00 $00 (R) 30g 50685100
17F 3x 36 105  187  2.5-0.0  0.65 $2.00 $00 (R) 25e 50320300
17R 3x 36 090  188  3.0-0.0  0.65 $3.00 $00 (R) 30g 50320400 011
substitute  000  174  3.0 17J  0.60 $1.80 $45 (C) 30e 21195

Garelli 81-86 VIP-N
17F 3x 36 105  187  2.5-0.0  0.65 $2.00 $00 (R) 25e 50320300
17R 3x 36 105

General, Lazer 77-85, small hubs, a is inner, b is outer
17Fa 2 32 080  177  2.6 12G 0.45 $2.00 $00 (  ) 26c 11505073
17Fb 2 32 080  177  2.6 12G 0.45 $2.50 $00 (  ) 26c 11505074
17Ra 2 32 080  171  2.6 12G 0.45 $2.00 $00 (  ) 26c 11505469
17Rb 2 32 080  171  2.6 12G 0.45 $2.50 $00 (  ) 26c 11505470

General, AMS 77-85 with big hubs, a is inner, b is outer
17Fa 2 32 110  171  2.6 12G 0.45 $2.00 $00 (  ) 26c 21505469
17Fb 2 32 110  171  2.6 12G 0.45 $3.00 $00 (  ) 26c 21505470
17Ra 2 32 110  162  3.2 10G 0.65 $3.00 $00 (  ) 32c 21515469
17Rb 2 32 110  162  3.2 10G 0.65 $3.00 $00 (  ) 32c 21515470

rim xx qty xx length xxxxx  thread   price 0000 nipple
x↓ cross ↓ drum   ↓  thickness   ↓  /each  /set  mark ↓   type  OEM#

Generic or Unknown Application
substitute  000  090  2.0 14G 0.45 $1.50 $00 (
 ) 20a
substitute  000  116  3.2 10G 0.65 $2.00 $00 (
 ) 32b
substitute  000  126  3.5 09G 0.65 $2.00 $00 (
 ) 35b
substitute  000  127  3.2 10G 0.65 $2.00 $00 (
 ) 32a
substitute  000  135  3.2 10G 0.65 $2.00 $00 (
 ) 32a
substitute  000  143  2.0 14G 0.45 $0.80 $15 (
 ) 20b needs washer
substitute  000  144  2.6 12G 0.45 $1.80 $35 (O) 26c (143)

substitute  000  145  3.2 10G 0.65 $2.50 $00 (B) 32b
substitute  000  148  2.9 11G 0.55 $3.00 $00 (  ) 29b outer
substitute  000  148  2.9 11G 0.55 $2.80 $00 (  ) 29b inner
substitute  000  152  3.5-3.2  0.65 $2.50 $00 (  ) 32a
substitute  000  153  3.5 09G 0.65 $2.50 $00 (  ) 32a inner
substitute  000  153  3.5 09G 0.65 $2.00 $00 (  ) 32a outer
substitute  000  155  2.4-2.2  0.45 $1.90 $45 (Я) 22b

substitute  000  155  3.2 10G 0.65 $3.00 $00 (
 ) 32a
substitute  000  159  4.0 08G 0.80 $2.50 $00 (  ) 40a

substitute  000  160  3.2 10G 0.65 $2.50 $00 (  ) 32a
substitute  000  166  4.0 08G 0.80 $2.00 $00 (  ) 40a
substitute  000  167  3.2 10G 0.65 $2.30 $00 (  ) 32c outer

substitute  000  173  3.2 10G 0.65 $2.00 $45 (  ) 32a
substitute  000  176  3.2 10G 0.65 $3.00 $00 (  ) 32a
substitute  000  177  3.5 09G 0.65 $2.50 $00 (jw)32a or(  )
substitute  000  180  2.5-0.0  0.65 $2.00 $00 (A) 25b
substitute  000  182  4.0-3.5  0.65 $3.00 $00 (  ) 35a inner
substitute  000  182  4.0-3.5  0.65 $3.00 $00 (  ) 35a outer
substitute  000  186  3.0-0.0  0.60 $2.00 $00 (Δ) 30f

substitute  000  188  3.5 09G 0.65 $2.50 $00 (
 ) 35b stainless
substitute  000  191  2.6 12G 0.45 $1.90 $43 (  ) 26h
substitute  000  192  3.0 00G 0.65 $2.50 $00 () 30g only 1 avail.

substitute  000  192  3.2 10G 0.65 $1.80 $28 (  ) 32a
substitute  000  195  2.6 12G 0.45 $2.00 $00 (  ) 26c only 1 avail.
substitute  000  195  3.2 10G 0.65 $2.00 $41 (  ) 32a
substitute  000  200  2.6 12G 0.45 $2.00 $00 (Δ) 26e

substitute  000  212  3.5 09G 0.65 $2.00 $00 (  ) 35b only 1 avail.
substitute  000  220  2.3 13G 0.45 $2.50 $00 (  ) 23c
substitute  000  224  2.3 13G 0.45 none  $00 (  ) 23c
substitute  000  245  3.2 10G 0.65 $2.50 $00 (  ) 32a only 1 avail.
substitute  000  263  2.6 12G 0.45 $1.50 $00 (  ) 26
substitute  000  270  2.6 12G 0.45 $1.50 $00 (  ) 26
substitute  000  296  2.0-1.7  0.45 $1.50 $00 (  ) 17a only 3 avail.

Gitane 76-80 Confort, Sport (Italian moped with French spokes)
16F 2x 36 090  156  2.7-2.4  0.55 $1.70 $45 () 24a,24b
16R 2x 36 090  156  2.7-2.4  0.55 $1.70 $45 () 24a,24b

Harley Davidson 1965 M50 (to # 65M-9595)
18F 3x 36 090  198? 2.5-0.0  0.65 none  $00 (A) or(R) 43040-65
18R 3x 36 090  198? 2.5-0.0  0.65 none  $00 (A) or(R) 43040-65

Harley Davidson 1965 M50 (after 65M-9595)
18F 2x 36 090  188? 2.5-0.0  0.65 none  $00 (A) or(R) 43041-65
18R 2x 36 090  188? 2.5-0.0  0.65 none  $00 (A) or(R) 43041-65
substitute  000  188  2.5-0.0  0.55 $2.50 $54 (Б) 25a

Harley Davidson 1966 M50, MS50, ’67-70 M65, MS65, MLS65
17F 2x 36 090  166? 2.5-0.0  0.65 none  $00 (A) or(R) 43100-66
17R 2x 36 090  166? 2.5-0.0  0.65 none  $00 (A) or(R) 43100-66

Harley Davidson 71-72 MS65, MLS65
17F 2x 36 090  166? 3.0-0.0  0.00 none  $00 (A) or(R) 43040-71P
17R 2x 36 090  166? 3.0-0.0  0.00 none  $00 (A) or(R) 43040-71P

Harley Davidson 1972 MLS65 (16″ rear)
17F 2x 36 090  166? 3.0-0.0  0.00 none  $00 (A) or(R) 43040-71P
16R 2x 36 090  152? 3.0-0.0  0.00 none  $00 (A) or(R) 43049-62PA

Hercules 76-83 sheet-frame 504 (2-chain, bigger L rear hub flange)
17F 3x 36 090  190  2.3 13G 0.45 $3.00 191 () 23b 24111070
17R 3x 36 090  190  2.3 13G 0.45 $3.00 191 () 23b 24111070 right
17R 3x 36 090  188  2.3 13G 0.45 $2.50 187 (U) 23a 24111110  left

Hercules 76-83 tube-frame with 505 (1-chain)
17F 3x 36 090  186  2.3 13G 0.45 $3.00 187 (U) 23a 24111110
17R 3x 36 090  186  2.3 13G 0.45 $3.00 187 (U) 23a 24111110

Honda 1970’s CB200  a is inner, b is outer
18Fa 0 36 000  201  3.5-3.2  0.65 $1.50 $00 (  ) 32b good-used
18Fb 0 36 000  201  3.5-3.2  0.65 $1.50 $00 (  ) 32b good-used

Honda 69-77 PC50  a is inner, b is outer
19Fa 2 36 080  202  2.3 13G 0.45 none  $00 (  ) 00x 97142.112451
19Fb 2 36 080  202  2.3 13G 0.45 none  $00 (  ) 00x 97241.112441
19Ra 2 36 080  198  2.6 12G 0.45 none  $00 (  ) 00x 97197.212351
19Rb 2 36 080  198  2.6 12G 0.45 none  $00 (  ) 00x 97324.212341

Honda 1977 NC50 Express a is inner, b is outer
14F   2 28 080 143.5 2.3 13G  .45 none  $00 (  ) 23d 42606.147.305
14Ra 2 28 080 143.5 2.3 13G  .45 none  $00 (  ) 23d 42606.147.305
14Rb 2 28 080 143.0 2.3 13G  .45 none  $00 (  ) 23d 42607.147.305
substitute  000  144  2.6 12G 0.45 $1.80 $35 (  ) 26  (143)

Honda 78-79 NC50, 79 NA50 a is inner, b is outer
14F   2 28 080 143.5 2.3 13G  .45 none  $00 (  ) 23d 42606.147.315
14Ra 2 28 080 143.5 2.6-2.3 0.45 none  $00 (  ) 23d 42606.147.315
14Rb 2 28 080 143.0 2.6-2.3 0.45 none  $00 (  ) 23d 42607.147.325
substitute  000  144  2.6 12G 0.45 $1.80 $35 (  ) 26  (143)

Honda 1980 NC50, NA50 a is inner, b is outer
14F   2 28 080 143.5 2.6-2.3 0.45 none  $00 (  ) 23d 42607.147.325
14Ra 2 28 080 143.5 2.6-2.3 0.45 none  $00 (  ) 23d 42607.147.325
14Rb 2 28 080 143.5 2.6-2.3 0.45 none  $00 (  ) 97081.22127.B0
substitute  000  144  2.6 12G 0.45 $1.80 $35 (  ) 26  (143)

Honda 81-83 NC50, 81 NA50 a is inner, b is outer
14F   2 28 080 143.5 2.6-2.3 0.45 none  $00 (  ) 23d 42606.147.315
14Ra 2 28 095 141.0 2.6-2.3 0.45 none  $00 (  ) 23d 42606.191.325
14Rb 2 28 095 140.5 2.6-2.3 0.45 none  $00 (  ) 23d 97081.22121.B0

Honda 82-83 NU50 a is inner, b is outer
16F   2 32 095 163.5 2.9-2.6 0.45 $0.00 $00 (  ) 26j 97192.32167.F0
14Ra 2 28 095 138.0 2.9-2.6 0.45 $4.20 $00 (  ) 26j 97108.32118.F0
14Rb 2 28 095 138.0 2.9-2.6 0.45 $4.20 $00 (  ) 26j 97164.32116.F0

Honda 1978 PA50 Hobbit a is inner, b is outer
17Fa 3 36 080 187.5 2.3 13G  .45 none   $00 (  ) 23d 97087.11215.10
17Fb 3 36 080 187.0 2.3 13G  .45 none   $00 (  ) 23d 97088.11214.10
17Ra 2 36 080 159.5 2.6 12G  .45 $3.80 $00 (  ) 26j  97064.21158.10
17Rb 2 36 080 159.0 2.6 12G  .45 $3.80 $00 (  ) 26j  97060.21158.10
substitute  000  187  2.6-0.0  0.50 $2.00 $00
(  ) 26l 24003010
substitute  000  160  2.6-0.0  0.50 $1.50 $40 () 26n

Honda 79-83 PA50 Hobbit a is inner, b is outer
17Fa 3 36 080 186.0 2.3 13G  .45 none   $00 (  ) 23d 97187.11212.10
17Fb 3 36 080 185.5 2.3 13G  .45 none   $00 (  ) 23d 97088.11211.10
17Ra 2 36 080 157.5 2.6 12G  .45 none   $00 (  ) 26j  97060.21154.10
17Rb 2 36 080 157.0 2.6 12G  .45 none   $00 (  ) 26j  97065.21154.10
substitute  000  187  2.6-0.0  0.50 $2.00 $00
(  ) 26l
substitute  000  156  2.7-2.4  0.55 $1.70 $45 () 24a,24b

Indian 78-81 AMI-50 4-stroke  a is inner, b is outer
17Fa 2 32 090  176  2.9 11G 0.55 $2.50 $00 (  ) 29a W141-00-50
17Fb 2 32 090  176  2.9 11G 0.55 none   $00 (  ) 29a W142-00-50
17Ra 2 32 090  176  2.9 11G 0.55 $2.50 $00 (  ) 29a W141-00-50
17Rb 2 32 090  176  2.9 11G 0.55 none   $00 (  ) 29a W142-00-50
substitute  000  177  2.6 12G 0.45 $2.50 $00 (  ) 26c

rim xx qty xxlength xxxxx  thread   price 0000 nipple
x↓ cross ↓ drum   ↓  thickness   ↓  /each  /set  mark ↓   type  OEM#

Italian spokes for other wheels not listed
14   2x 28 090  142  2.5-0.0  0.65 $2.00 $00 (A)or(R) odd
16   2x 36 105  151  2.5-0.0  0.65 $2.50 $00 (A)or(R) odd
16   2x 36 090  155  2.2-0.0  0.45 $2.50 $00 (A) 22a thin
16   2x 36 090  173  2.2-0.0  0.45 $2.50 $00 (A) 22a thin, only 1

16   3x 36 090  174  3.0-0.0  0.60 $3.00 $00 (A) 30c for dimpled
16   3x 36 090  176  2.5-0.0  0.65 $2.00 $00 (A)or(R) for flat rim

17   3x 36 090  188  3.0-0.0  0.60 $3.00 $00 (A) 30a for dimpled

Jawa 73-82 207 Babetta
16F 2x 36 085  160  2.6-0.0  0.50 $2.00 $00 (  ) 26k 074016 inner
16F 2x 36 085  160  2.6-0.0  0.50 $2.50 $00 (  ) 26k 074022 outer
16R 2x 36 085  160  2.6-0.0  0.50 $2.00 $00 (  ) 26k 074016 inner
16R 2x 36 085  160  2.6-0.0  0.50 $2.50 $00 (  ) 26k 074022 outer

Kreidler 77-80 MP9, MP19 Flory
17F 3x 36 080  189  2.3-0.0  0.45 none  $00 () 23b 26501020 chrome
17R 3x 36 080  190  3.0-2.6  0.50 $4.00 $00 () 26n 26511020 only 1
substitute  000  191  2.6 12G 0.45 $1.90 $43 (  ) 26h

Kynast 77-80 Flying Dutchman   (bigger left rear hub flange)
17F 2x 36 090  170  2.6-0.0  0.50 none  $00 () 26p
17R 2x 36 090  169  2.6-0.0  0.50 $2.00 168 () 26p  right
17R 2x 36 090  163  2.6-0.0  0.50 $2.00 $00 () 26p  left
substitute  000  169  2.6-0.0  0.50 $1.90 $43 () 26q or(U)

KTM 74-80 Automatik, Foxi Deluxe  (bigger left rear hub flange)
17F 3x 36 090  188  2.5-0.0  0.55 $2.50 $54 (Б) 25a1210071
17R 3x 36 090  192  2.5-0.0  0.55 $3.00 $72 (Б) 25a 1010071 right
17R 3x 36 090  188  2.5-0.0  0.55 $2.50 $54 (Б) 25a 1210071 left

Malaguti 77-80 Commuter
16F 2x 36 090  156  2.5-0.0  0.65 $2.80 $00 (A) 25b H46A
16R 3x 36 090  171  2.5-0.0  0.65 $3.50 $00 (A) 25b H46
substitute  000  156  2.7-2.4  0.55 $1.70 $45 () 24a,24b

Motobecane 78-79 Model 7
16F 2x 28 070  173  2.4-2.2  0.55 $2.00 172 (C) 22b 19755
16R 2x 36 070  157  3.0 17J  0.60 none  157 (C) 30e 23041

Motobecane 40, 40T, Traveler
17F 1x 36 080  154  3.0 17J  0.60 $2.50 150 (C) 30e 53582 hi hub011
17F 2x 36 080  174  3.0 17J  0.60 $1.80 173 (C) 30e 21195 lo hub
17R 2x 36 080  174  3.0 17J  0.60 $1.80 $45 (C) 30e 21195 “173”

Motobecane 50, 50V, Moby
17F 2x 36 080  168  3.0 17J  0.60 $2.00 $45 (C) 30e 19625 hi hub “166”
17R 2x 36 080  174  3.0 17J  0.60 $1.80 $45 (C) 30e 21195 “173”

Negrini Gazelle, MX Sport
16F 2x 36 090  156  2.5-0.0  0.65 $2.80 $00 (A) 25b H46A
16R 3x 36 090  171  2.5-0.0  0.65 $3.50 $00 (A) 25b H46
substitute  000  156  2.7-2.4  0.55 $1.70 $45 () 24a,24b

NVT Easy Rider, Scorpion
17F 3x 36 090  188  2.5-0.0  0.65 none  $00 (A) 25b H46D
17R 3x 36 090  188  2.5-0.0  0.65 none  $00 (A) 25b H46D
substitute  000  188  2.5-0.0  0.55 $2.50 $54 (Б) 25a

Odyssey (Solo)
16F 2x 36 090  153  2.6-0.0  0.50 none  $00 () 26p
16R 2x 36 090  153  2.6-0.0  0.50 none  $00 () 26p

Pacer P1, Sport, Super Sport
16F 2x 36 090  156  2.5-0.0  0.65 $2.80 $00 (A) 25d H46A
16R 3x 36 090  171  2.5-0.0  0.65 $3.50 $00 (A) 25d H46
substitute  000  156  2.7-2.4  0.55 $1.70 $45 () 24a,24b

Peugeot 102
17F 1x 28 080  165  2.4 15J  0.55 $1.50 $36 (C)(*)(+) 24a 51492
17R 1x 28 070  172  2.7-2.4  0.55 $2.50 $00 (C) (B)    24a 47143

Peugeot 103
17F 1x 28 080  165  2.4 15J  0.55 $1.50 $36 (C)(*)(+) 24a 51492

17R 1x 28 080  167  2.7-2.4  0.55 $1.90 $42 (B)          24a 52951

Puch 76-80 Maxi GN (hard tail, thin rims)
17F 2x 36 080  190  2.6-0.0  0.50 $2.50 $00 (  ) 26m

17R 3x 36 080  193  2.6-0.0  0.50 $2.50 $00 (  ) 26m

Puch 70-79 Maxi, Newport, 85-86 Maxi (thin rims)
17F 2x 36 080  190  2.6-0.0  0.50 $2.50 $00 (  ) 26m

17R 3x 36 080  191  2.6-0.0  0.50 $2.00 $00 (  ) 26m 54003010

Puch 78-80 Maxi Luxe, Newport, Newport II, Maxi II (wide rims)
Puch ’80 Maxi  (wide rims)
17F 3x 36 080  187  2.6-0.0  0.50 $2.00 $00 (  ) 26l 24003010
17R 3x 36 080  188  2.6-0.0  0.50 $1.50 $36 (  ) 26l

Puch 1978 Maxi Luxe (wide rim),’78-80 Magnum XK
17F 3x 36 080  187  2.5-0.0  0.55 $2.00 $00 (Б) 25a DT stainless
17R 3x 36 080  187  2.5-0.0  0.55 $2.00 $00 (Б) 25a DT stainless

rim xx qty xx length xxxxx  thread   price 0000 nipple
x↓ cross ↓ drum   ↓  thickness   ↓  /each  /set  mark ↓   type  OEM#

Safari 76-78 Super, Super Extra, Cobra ’78-80, 300MT ’91-92
16F 2x 36 090  156  2.5-0.0  0.65 $2.80 $00 (A) 25d H46A
16R 2x 36 090  156  2.5-0.0  0.65 $2.80 $00 (A) 25d H46A
substitute  000  156  2.7-2.4  0.55 $1.70 $45 () 24a,24b

Safari 78-90 300MT, 400MT ’78
16F 3x 36 090  171  2.5-0.0  0.65 $3.50 $00 (A) 25d H46
16R 3x 36 090  171  2.5-0.0  0.65 $3.50 $00 (A) 25d H46

Sears 1978 Free Spirit (thin rim)
17F 3x 36 080  188  2.6-0.0  0.50 $1.50 $36 (  ) 26l
17R 3x 36 080  188  2.6-0.0  0.50 $1.50 $36 (  ) 26l

Sears 54-68 Allstate Mo-Ped
19F 2x 36 090  204  2.5-0.0  0.50 none  $00 (  ) 26l left

19F 2x 36 090  196  2.5-0.0  0.50 none  $00 (  ) 26l right
19R 2x 36 090  204  2.5-0.0  0.50 none  $00 (  ) 26l left
19R 2x 36 090  196  2.5-0.0  0.50 none  $00 (  ) 26l right

Solex 46-55 45, 330
23F 2x 36 000  277  2.4 15J  0.55 none
23R 2x 36 000  277  2.4 15J  0.55 none

Solex 55-58 660, 1010
21F 2x 32 000  252  2.4 15J  0.55 none
21R 2x 32 000  252  2.4 15J  0.55 none

Solex 58-63 1400, 1700, 2200
19F 2x 28 000  225  2.4 15J  0.55 none $00 (C)  24a
19R 2x 28 000  225  2.4 15J  0.55 none $00 (C)  24a
substitute black 225  2.6 12G 0.45 $1.70 $00 (  ) 23c

Solex 64-65? 3300 Atom hubs, ∅70 rear
19F 2x 28 000  225  2.4 15J  0.55 none  $00 (C)  24a
19R 2x 28 070  210  2.4 15J  0.55 none  $00 (C)  24a
substitute  000  211  2.3 13G 0.45 $1.20 $28 (  ) 23c

Solex 65?-74 3300, 3800 Atom hubs, ∅83 rear
19F 2x 28 000  225  2.4 15J  0.55 none  $00 (C) 24a
19R 2x 28 083  210  2.4 15J  0.55 none  $00 (C) 24a
substitute  000  211  2.3 13G 0.45 $1.20 $28 (  ) 23c

Solex 75-86 3800, 4600 Leleu hubs, ∅80 rear
19F 1x 28 000  220  2.4 15J  0.55 $3.00 218 (+)(*) 24a 61358
19R 1x 28 080  190  2.4 15J  0.55 $3.00 $00 (C) 24a 61359
substitute  000  220  2.3 13G 0.45 $2.50 $00 (  ) 23c

Solex 75-79 4600 V2, 4600 V3 Motobecane
19F 1x 28 000  220  2.4 15J  0.55 $3.00 218 (+)(*) 24a 61358
19R 1x 28 080  190  2.7-2.4  0.55 $3.00 $00 (C)  24a 61359
substitute  000  220  2.3 13G 0.45 $2.50 $00 (  ) 23c

Solex 71-82 5000, Pli-Solex (folder)
16F 1x 28 000  179  2.4 15J  0.55 none  $00 (*) 24a 61799
16R 1x 28 080  152  2.4 15J  0.55 none  $00 (*) 24a 61798
16R 1x 28 080  152  2.7-2.4  0.55 none  $00 (*) 24a (7027300 on)
substitute  000  152  2.7-0.0  0.55 $2.50 $00 (A) 27a

Sparta 76-80 Foxi GT, Buddy, Lucky, Flying Dutchman
16F 2x 36 080  160  2.3-0.0  0.45 $1.00 $27 ()or(U) 055005
16R 2x 36 080  160  2.6-0.0  0.50 $1.50 $40 () 26n 055506
16R 2x 36 080  160  3.0-2.6  0.50 $2.00 $54 () 26n upgrade

Suzuki 81-90 FA50 Shuttle
14F 2x 28 080  144  2.6 12G 0.45 none  $00 (  ) 55320-02202 set#
14R 2x 28 080  144  2.6 12G 0.45 none  $00 (  ) 55320-02202 set#
substitute  000  144  2.6 12G 0.45 $1.80 $35 (  ) 26  (143)

Tomos 74-78 Automatic A3
16F 2x 36 090  155  2.5-0.0  0.65 $2.50 $00 (A) 25c 207079
16R 2x 36 090  155  2.5-0.0  0.65 $2.50 $00 (A) 25c 207079
substitute  000  156  2.7-2.4  0.55 $1.70 $45 () 24a,24b

Tomos 78-83 Bullet (A3)
16F 2x 36 090  154  2.7-0.0  0.55 $3.00 $00 (A) 27a 213534
16R 2x 36 090  154  2.7-0.0  0.55 $3.00 $00 (A) 27a 213534

Tomos 84-91 Bullet (A3)
16F 2x 36 090  152  2.7-0.0  0.55 $2.50 $00 (A) 27a 21913500
16R 2x 36 090  152  2.7-0.0  0.55 $2.50 $00 (A) 27a 219135

Tomos 02-03 Revival (A35)  R is right, L is left
17F 1x 36 000  182  3.0-0.0  0.60 $3.00 180 (A) 30c 232798 R
17F 1x 36 000  182  3.0-0.0  0.60 $3.00 180 (A) 30c 232798 L inner

17F 1x 36 000  178  3.0-0.0  0.60 none  176 (A) 30c 226799 L outer
16R 1x 36 118  167  3.0-0.0  0.60 none  160 (A) 30c 232814 L

16R 1x 36 118  150  3.0-0.0  0.60 $3.00 149 (A) 30c 232733 R
substitute  000  167  3.2 10G 0.65 $2.30 $00 (  ) 32c outer

Tomos 04-13 Revival TS (A55), Streetmate
17F 2x 36 000  178  3.0-0.0  0.60 none  176 (A) 30a 243170
16R 2x 36 105  148  3.0-0.0  0.60 none  145 (A) 30c 233147
substitute  000  148  2.9 11G 0.55 $3.00 $00 (  ) 29b outer
substitute  000  177  3.5 09G 0.65 $2.50 $00 (jw)32a or(  )

Trac 82-90 Clipper, Eagle, Hawk, Escot, Sprint
16Fa 2 32 090  159  2.6 12G  0.45  none  158 () 26d 25506
16Fb 2 32 090  159  2.6 12G  0.45  none  158 () 26d 25505
16Ra 2 32 090  160  2.6 12G  0.45 $2.00 $44 () 26d 25578

16Rb 2 32 090  160  2.6 12G  0.45 $2.50 $54 () 26d 25577

Trac 84-90 Olympic, Liberty  a is inner, b is outer
17Fa 2 36 110  160  2.6 12G  0.45 none  $00 (  )  26d 25006
17Fb 2 36 110  160  2.6 12G  0.45 none  $00 (  )  26d 25007
17Ra 2 36 110  160  2.9 11G  0.55 $2.00 $00 (  )  29b 25054
17Rb 2 36 110  160  2.9 11G  0.55 $2.50 $00 (  )  29b 25055

Trac 87-88 DH100 Superhawk  a is inner, b is outer
17Fa 2 36 110  174  2.6 12G  0.45 $2.00 $00 () 26d 35503
17Fb 2 36 110  174  2.6 12G  0.45 $2.00 $00 () 26d 35504
17Ra 2 36 110  159  3.2 10G  0.60 none  $00 () 32c 35604
17Rb 2 36 110  159  3.2 10G  0.60 none  $00 () 32c 35605
substitute  000  160  3.2 10G 0.65 $2.50 $00 (  ) 32a

Vespa 74-80 Ciao C7N, C7E, C7V
17F 2x 28 090  182  2.5-0.0  0.65 $2.00 $00 (A) 25b 142826  nut#101830

17R 2x 36 135  160  3.0-0.0  0.60 $3.00 $00 (A) 30a 114501 ’70s zinc
17R 2x 36 135  160  3.0-0.0  0.60 none  $00 (A) 30c 114501 ’90s zinc
substitute  000  160  3.2 10G 0.65 $2.50 $00 (  ) 32a

Vespa 77-80 Bravo EEV
16F 2x 28 090  167  2.5-0.0  0.65 none  $00 (R) 25b 136111, nut#
16R 2x 36 135  145  3.0-0.0  0.60 $3.00 $00 (A) 30b 114223, nut#114216
substitute  000  145  3.2 10G 0.65 $2.50 $00 (B) 32b
substitute  000  167  2.7-2.4  0.55 $1.90 $42 (B) 24a 52951

Vespa 78-80 Grande 048
17F 2x 36 105  160  3.0-0.0  0.60 $4.50 $00 (A) 30b G68609 painted silver
16R 2x 36 135  145  3.0-0.0  0.60 $3.00 $00 (A) 30b 114223, nut#114216
substitute  000  145  3.2 10G 0.65 $2.50 $00 (B) 32b
substitute  000  160  3.2 10G 0.65 $2.50 $00 (  ) 32a

Yamaha 79-80 QT50 Yamahopper
14F 2x 28 080  144  2.6 12G 0.45 none  $00 (  ) 3L5.251.0400 set#
14R 2x 28 080  144  2.6 12G 0.45 none  $00 (  ) 3L5.251.0400 set#
substitute  000  144  2.6 12G 0.45 $1.80 $35 (  ) 26  (143)

Yamaha 80-90 QT50, MJ50 ’82
14F 2x 28 080  144  2.9-2.6  0.45 none  $00 (  ) 3L5.251.0401 set#
14R 2x 28 080  144  2.9-2.6  0.45 none  $00 (  ) 3L5.251.0401 set#
substitute  000  144  2.6 12G 0.45 $1.80 $35 (  ) 26  (143)





Find out more about the Spokes »


Brakes

July 14, 2014

updated 2022-07



The meaning of "size"

Definition of size



Size: The size of a drum brake shoe is not it’s actual length and width. The size is the width, and the diameter of the imaginary circle which the arc is a part of, which is also the brake drum diameter. Notice that the actual length is a little less than the drum diameter. So a 90 x 20 mm brake shoe is actually about 84 mm long by 20 mm wide.

Brakes that have the same drum diameter and width, can still be different, because of these things: the pivot post can have different positions, thicknesses and widths, the spreader shaft can have different positions, thicknesses and widths, the spring holes can have different positions and widths. So the size is actually several numbers, not just two.




Brake Shoes listed by Size

Each set is for one wheel. Links are to photos.

MM# 00  price   alt#  drum x width  nickname
===========================
070161 $28.0 Leleu70r  70 x 16 Leleu70 replica .

080171 $20.0 EBC501 080 x 17 Yamaha-80  .

080181 $21.0 EBC301 080 x 18 Honda-80  .

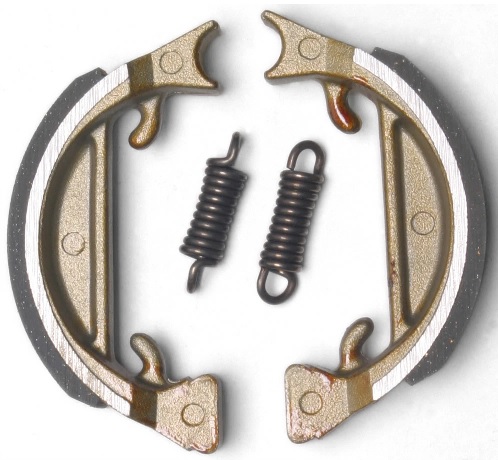

080182 $25.0 Leleu80   80 x 18 Leleu-80 (EBC322g)  note 1

080183 $20.0 BC322   80 x 18 Leleu-80PA

080201 $33.0 27130 00 80 x 20 Motobecane  .
080201 $28.0 EBC876   80 x 20 replica AGPA M-198 x  note 2
080201 none  EBC322m80 x 18 EBC322 after grinding  note 3

080202 $20.0 EBC614   80 x 20 Suzuki-80 = 54400-02820

083181 none  Atom83   83 x 18 Atom-83  .

085181 $30.0 EBC804   85 x 18 Jawa-85  .

090181 $25.0 EBC908 090 x 18 Grimeca-90  note 4

090182 $27.0 Grim90U 90 x 18 Grimeca-90U note 5

090183 $30.0 EBC931 090 x 18 Grimeca-90V  note 6

090201 $30.0 Jawa90    90 x 20 Jawa-90   note 7

090202 $22.0 EBC613 090 x 20 Suzuki-90  .

090203 none  Indi90     90 x 20 Indian-90   note 8

090204 none  Indi90U   90 x 20 Indian-90U  note 9

090205 $25.0 Bern90V  90 x 20 Bernardi-90V = 201071
090205 $30.0 EBC931 090 x 18 substitute Grimeca-90V  .

090221 $30.0 Trac90V   90 x 22 Trac-90V  .
090221 $30.0 EBC931 090 x 18 substitute Grimeca-90V  .

095201 $20.0 EBC302   95 x 20 Honda-95  .

095251 $25.0 EBC333   95 x 25 Honda-95b  .

100201 $29.0 EBC615  100 x 20 Indian-100  note 10
100201 none  EBC601g 100 x 20 substitute, see note 11

100251 $22.0 EBC601  100 x 25 Suzuki-100  = 54400-02860

105201 $20.0 EBC909  105 x 20 Grimeca-105  .

105251 $32.0 Derb105 105 x 25 Derbi-105-early  note 12

105252 none  EBC880  105 x 25 Derbi-105-hole  note 13
105251 $25.0 FSB808  105 x 25 Derbi-105-open  note 13

110251 $25.0 EBC303  110 x 25 Honda-110  .

118201 none  EBC926  118 x 20 Grimeca-118  .

135161 $15.0 EBC907  135 x 16 Vespa-135  = 130240

disk116 $20.0 SFA116 ’02-04 Tomos Grimeca = 232842

disk115 $22.0 SFA115 ’04-18 Tomos AJS xxxx = 243604



Note 1. EBC322 requires grinding. Without grinding the spring rubs and makes noise. The depth is made just deep enough so that the coils of the spring never touch the brake shoes. In the photo, right is before grinding, left is after.

Note 2. All pre-1978 and some 1978-80 Motobecanes have Motobecane brakes, MB# 21730 (EBC876). There is a left and a right shoe. Most Motobecanes have these brake shoes, but some 1978-80 have Leleu brakes, MB# 16104 (EBC322). On those both shoes are the same, like most other drum brakes.

Note 3. EBC322m is made from a EBC322 by 1. slight grinding of the sides at the spreader end, 2. dremmeling on the inner side of the spreader spring hooks to make the spring stay farther away from the spreader cam, 3. reusing the original MB springs because they are thinner.

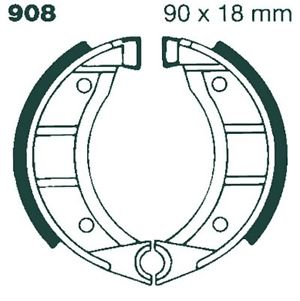

Note 4. The Grimeca 90×18 brake shoe has the most moped applications. It is on almost all Italian moped and mini-bike spoke wheels. It is also on German (Hercules), Austrian (KTM), Yugoslavian (Tomos), Mexican (Carabela), and American (AMF) moped spoke wheels. The Italian made Grimeca 90×18 brake shoe is second only to the French made Leleu 80×18 brake shoe in total number of units.

Note 5. Grimeca-U brake shoes are the same as Grimeca except for the spring. The red places in the photo are what is different. Grinding and drilling are necessary to convert Grimeca type shoes to Grimeca-U type.

Note 6. There is no visible difference on the outside, between a V-spring brake plate and non-V-spring (U-spring or dual coil) brake plate, but inside there are three differences.  1) the cam shaft on a V-spring type has a retaining plate, while a coil spring type has no plate (to allow installation by “folding the taco into a tortilla”).  2) the pivot shaft on a V-spring type is longer and has a rounded groove for the V-spring.  3) the pivot shaft on a V-spring has no center groove for retention, while the coil spring and U-spring types have a center groove (for the center ridge on the shoes). In this photo the left 2 are U-spring and the rest are V-spring.

Note 7. These are the older Jawa spoke wheel brake shoes, with 5.0 mm thick lining instead of 2.5mm. That makes the diameter increase from 85 to 90mm, to fit “Italian standard 90mm” moped wheels.

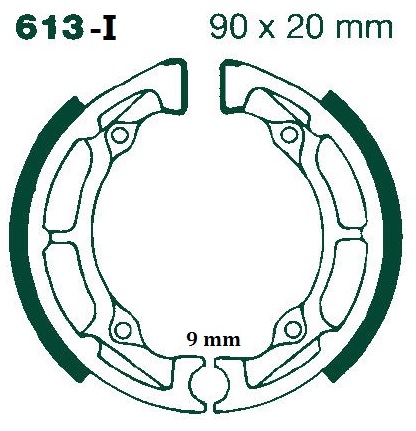

Note 8. These are EBC613 brakes with the pivot post half-hole widened from 8mm to 9mm, for the bigger Indian post.

Note 9. The modern aftermarket EBC613 spring holes do not have enough material and strength for a U-spring. The older Indian brake shoes have much more material around the spring holes. So EBC613 cannot safely be drilled out to accept a U-spring. That’s why Indian90U replacements are unavailable.

Note 10. Many Indian mopeds with beautiful Taiwan-made Mira snowflake mags need these brake shoes, because the originals deteriorate and/or de-laminate. These EBC brakes look different, with different ribs than original, but they are an exact replacement.

Note 11. EBC601 is the same as EBC615, except the lining is wider. Grind off 2.5 mm from each side to make a 615 from a 601.

Note 12. Derbi brake plates can have two different cam thicknesses. Older models 1977-78 mostly had 10mm thick cams and 105251 brake shoes. Later models from about 1979-on had 8mm thick cams and 105252 brake shoes. See photo. 105252 shoes have steel plates on the cam end, but 105251 do not. To make 105252 shoes fit on an early 10mm cam either the steel plates must be removed from the brake shoes, or the 10mm cam ground thinner to 8mm.

Note 13. Derbi 105252 brake shoes (for 8mm cam) are made in two versions that interchange. Derbi-105-open type shoes have half-circle pivot ends, while Derbi-105-hole shoes have full circle pivot ends.




Brake Shoes listed by Application

Below, look up the MM# for your application.
Applications are USA models, unless noted.
Above, see price, photos and notes for that MM#.

Colors: F front or R rear wheel, engine, spoke wheels, mag wheels
pedal mopeds, non-pedal mopeds and motorcycles
scooters (with a “floor”), off-road or dual-purpose

brakes 00  chains
MM# 00 F R ⇓  years      make    (engine)     models   000000  wheels
============================================
090183 F    1
1978-80 AMF Roadmaster 110 to 131     Grimeca spoke
090182    R 1 1978-80 AMF Roadmaster 110 to 131     Grimeca spoke
090183 F    1 1980-84 AMF (Min. V1) Roadmaster 140,141 Gri. spoke

090182    R 1 1980-84 AMF (Min. V1) Roadmaster 140,141 Gri. spoke
080181 F R 1 1978-80 AMS (Sachs 505) Sierra 50, Tahoe 50 ∅80 hubs
110251 F R 1
1981-84 AMS (Sachs 505) Sierra 50, Tahoe 50 ∅110 hubs
080181 F R 2 1977-79 Angel AP48, BP48                           PC50 spoke
090181 F R 1
1977-79 Baretta (Minarelli V1) 22, 38, 44 Grimeca spoke
090181 F R 1 1977-79 Baretta (Minarelli V1) Magnum  Grimeca spoke
070161    R 2 1974-77 Batavus (M48) VA, HS50              Leleu spoke
070161    R 2 1977-80 Batavus (M48) Starflite                Leleu spoke
080182 F    2
1976-77 Batavus (M48) VA (step-thru)      Leleu spoke
080182 F    2 1977-77 Batavus (M48) HS50 (top tank)   Leleu spoke
080182 F    2 1977-77 Batavus (M48) Mobat, Bronco     Leleu spoke
080182 F    2 1978-79 Batavus (M48) Starflite VA          Leleu spoke
080182 F    2 1978-79 Batavus (M48) Starflite HS          Leleu spoke
080182 F R 1 1978-80 Batavus (M56) Regency VA         Leleu spoke
080182 F R 1 1978-80 Batavus (M56) Regency HS         Leleu spoke
080182 F R 2 1980-84 Batavus (Peugeot) Mondial         Leleu spoke
105201 F R 1 1981-84 Batavus (Sachs 505) Gran Prix  Grimeca 7-ray
090182 F R 1 1978-80 Batavus (M56) Regency VA        Grimeca-X
090182 F R 1 1978-80 Batavus (M56) Regency HS        Grimeca-X
090182 F R 2 1981-84 Batavus (Peugeot) Gran Prix   Grimeca 5-star
090181 F R 1 1977-79 Benelli G2                              Grimeca spoke
090181 F R 1 1977-79 Bianchi Eagle 25,30             Grimeca spoke
090181 F R 1 1977-79 Bianchi Satellite                   Grimeca spoke
090181 F R 1 1977-79 Bianchi Stardust                  Grimeca spoke
090181 F R 1 1977-78 Carabela Motomatic             Grimeca spoke
090181 F R 1 1976-79 Cimatti City Bike                   Grimeca spoke
090181 F R 1 1976-79 Cimatti Town Bike                Grimeca spoke
090181 F R 1 1978-79 Cimatti Gran Prix XL            Grimeca spoke
105201 F R 2
1977-80 Colombia (Solo) Mopet           USA spoke

105201 F R 2 1978-80 Colombia (Solo) Open Road   USA spoke
105201 F R 2 1980-81 Colombia (Solo) Western Flyer USA sp
105201 F R 2 1977-80 Colombia (Sachs) Mopet        USA spoke
105201 F R 1 1977-80 Colombia (Sachs) Open Road USA spoke
105201 F R 1 1977-79 Colombia (Sachs) Commuter  USA spoke
105201 F R 1 1979-81 Colombia (Sachs) Imperial     USA spoke
105201 F R 1 1980-81 Colombia (Sachs) Medallion   USA spoke
105201 F R 1 1980-81 Colombia (Sachs) Western Flyer USA sp
090181 F R 1 1977-78 Concord (Min. V1) XKE       Grimeca spoke
090182 F R 1 1980-85 Concord (Min. V1) Invader  Grimeca 5-star
090182 F R 1 1980-85 Concord (Min. V1) Freedom Grimeca 5-star
090182 F R 1 1980-85 Concord (Min. V1) Shadow  Grimeca 5-star
090182 F R 1 1979-80 Cosmo (Min. V1) Amico       Grimeca-X
090181 F R 1 1978-79 Concord Invader                  Grimeca spoke
090181 F R 1 1978-79 Concord Freedom                Grimeca spoke
090181 F R 1 1978-79 Concord Shadow                  Grimeca spoke
090181 F R 1 1978-80 Cosmo Colt 1, Colt 3            Grimeca spoke
105251 F R 1
1977-79 Derbi Variant SL, TT (10mm cam) D spoke
105251 F R 1 1977-79 Derbi Variant SLE (10mm cam) Der 5-star

105252 F R 1
1979-85 Derbi Variant SL, TT (8mm cam)  D spoke
105252 F R 1 1979-85 Derbi Variant SLE (8mm cam)  Der 5-star
105252 F R 1 1979-86 Derbi Laguna                          Derbi 5-star
105252 F R 1 1979-87 Derbi C5, RD50                      Derbi spoke
105252 F R 1 1986-89 Derbi Variant Sport               Derbi 4-star
105251 F R 1 1987-89 Derbi DS50 moped/scooter    Derbi
090181 F R 1 1977-79 Demm Smily, Scout             Grimeca spoke
105201 F R 1 1982-82 Eagle   (505/1D) Eagle III  Grimeca 7-ray

090182 F R 1 1978-80 Gadabout (Minarelli V1)  Grimeca-X
090181 F R 1 1974-76 Garelli (H1) Eureka              Grimeca spoke
090181 F R 1 1977-80 Garelli (H1) Sport                 Grimeca spoke
090181 F R 1 1981-85 Garelli (H1) Basic                  Grimeca spoke
090181 F R 1 1977-79 Garelli (H1) Gran Sport        Grimeca spoke
090181 F R 1 1979-85 Garelli (H1) Rally Sport        Grimeca spoke
090181 F R 1 1978-81 Garelli (H1) Super Sport XL Grimeca spoke
105201 F    1 1977-78 Garelli (G2) Gulpmatic          Grimeca spoke
090181 F R 1 1977-78 Garelli (G2) Gulpmatic        Grimeca spoke
105201 F    1 1978-80 Garelli (V2) VIP Deluxe       Grimeca spoke
090181 F R 1 1978-80 Garelli (V2) VIP Deluxe      Grimeca spoke
090181 F R 1 1981-84 Garelli (M1) Monza              Grimeca spoke
105201 F R 1 1981-86 Garelli (V2) VIP-N               Grimeca spoke
105201 F R 1 1981-83 Garelli (H1) Sport                 Grimeca spoke
105201 F R 1 1981-83 Garelli (H1) Rally Sport       Grimeca spoke
105201 F R 1 1981-83 Garelli (H1) Super Sport XL  Grimeca spoke
105201 F R 1 1984-86 Garelli (H1) Rally SL            Grimeca spoke
105201 F R 1 1984-85 Garelli (H1) SSXL                 Grimeca spoke
105201 F R 1 1984-86 Garelli (H1) Basic                 Grimeca spoke
105201 F R 1 1983-85 Garelli (M1) Monza GT        Grimeca spoke
090182 F R 1 1986-86 Garelli (M1) Monza GT       Grimeca-X

090182 F R 1 1978-79 Garelli (H1) Gran Sport LTD Grimeca-X
090182 F R 1 1979-82 Garelli (1sp) Rally Sport LTD Grimeca-X
090182 F R 1 1979-81 Garelli (1sp) Super Sport LTD Grimeca-X
080181 F R 1 1978-85 General (Min. V1) 5-Star          ∅80 hubs
080181 F R 1 1978-85 General (Min. V1) 5-Star ST    ∅80 hubs
110251 F R 1 1981-85 General (Sachs) 5-Star              ∅110 hubs
110251 F R 1 1981-85 General (Sachs) 5-Star ST        ∅110 hubs
090181 F R 1 1977-78 Gitane (Min. V1) CL200, Confort Gr spoke
090181 F R 1 1977-78 Gitane (Min. V1) Sport          Grimeca spoke
110251 F R 1 2000-05 Hero Puch Automatic            spoke wheels
110251 F R 1 2000-05 Hero Puch Turbo Sport          mag wheels

080181 F    0 1977-83 Honda NC50 Express             Honda spoke
080181    R 0 1977-80 Honda NC50 Express             Honda spoke
095201    R 0 1981-83 Honda NC50 Express
095251 F    0 1982-83 Honda NU50 Urban Express
095251 F    0 1982-83 Honda NU50M Urban Express
095201    R 0 1982-83 Honda NU50 Urban Express

080181 F    0 1979-81 Honda NA50 Express II          Honda spoke
095201    R 0
1981-81 Honda NA50 Express II

080181 F    0 1981-82 Honda NX50 Express Sr.       Honda spoke
095201    R 0 1981-82 Honda NX50 Express Sr.

080181 F    0 1983-87 Honda NB50 Aero                  Honda steel
095201    R 0 1983-87 Honda NB50 Aero                  Honda steel

080181 F R 0 1984-84 Honda NN50 Gyro                 Honda steel
080181 F R 0 1984-87 Honda NQ50 Spree                Honda steel
080181 F    1 1967-68 Honda P50 (rear engine)        Honda spoke
080181 F    2 1978-81 Honda PA50 Hobbit                 Honda spoke
080183    R 2 1978-81 Honda PA50 Hobbit               Leleu spoke
080181 F R 2 1982-83 Honda PA50 Hobbit              Honda spoke
080181 F R 2 1969-70 Honda PC50 Lil Honda         Honda spoke
080181 F R 2 1975-77 Honda PC50K1                        Honda spoke
095201    R 0 1983-84 Honda NH80 Aero                 Honda steel
095251    R 0 1985-85 Honda NH80 Aero                 Honda steel

080181 F R 0 1985-86 Honda TG50 Gyro                  Honda steel
080181 F    0 1988-93 Honda SA50 Elite                   Honda steel
095201    R 0 1988-93 Honda SA50 Elite                  Honda steel
095251 F R 0 1994-01 Honda SA50 Elite SR, Elite SA
095251 F R 0 1994-01 Honda SA50P Elite S
095251    R 0 1985-07 Honda CH80 Elite

080181 F R 0 1988-90 Honda SB50 Elite                    Honda steel
080181 F    0 1987-88 Honda SE50 Elite                     Honda steel
095201    R 0 1988-97 Honda SE50 Elite                    Honda steel
095251 F R 0

2002-11 Honda CHF50 Metropolitan
095251 F R 0 2002-11 Honda CHF50P Metropolitan II
095251 F    0 2013-14 Honda NCH50 Metropolitan
095251 F R 0 2003-14 Honda NPS50, NPS50S Ruckus
110251 F    1 1990-90 Honda NS50F
110251 F R 1 1980-83 Honda C70 Passport
110251 F    0 1983-85 Honda NH80 Aero
110251 F    0 1985-07 Honda CH80 Elite
110251 F R 0 1984-84 Honda CH125 Elite
110251    R 1 1984-85 Honda CB125S
110251 F R 0 1984-84 Honda NH125 Aero
110251 F R 0 1985-87 Honda CH150 Elite, CH150D
080181 F R 1 2004-12 Honda CRF50F
080181 F R 1 2000-03 Honda XR50R
080181 F R 1 1980-99 Honda Z50R
110251 F R 1 1988-88 Honda ZB50
095251 F R 1 1983-84 Honda CR60R
110251 F R 1 1977-82 Honda CT70 Trail 70
110251 F R 1 1991-94 Honda CT70 Trail 70
110251 F R 1 1970-73 Honda SL70 K1
110251 F R 1 1974-74 Honda XL70 (up to #103001)
095251 F R 1 2004-14 Honda CRF70F
110251 F R 1 1978-78 Honda XL75
110251 F R 1 1971-76 Honda XR75 K1/K2/76
095251    R 1 1982-82 Honda CR80R
095251 F R 1 1983-84 Honda CR80R
095251 F    1 1985-85 Honda CR80R
095251 F R 1 1985-03 Honda XR80R
110251 F R 1 1991-96 Honda EZ90 Cub
095251 F R 1 2004-14 Honda CRF100F
095251 F R 1 1985-03 Honda XR100R
095251 F R 1 2013-14 Honda CRF110R
110251 F R 1 1970-74 Honda SL100 K1/K2/K3
110251 F R 1 1974-74 Honda XL100 (up to #1020001)
110251 F R 1 1977-78 Honda XL100
110251 F R 1 1980-86 Honda CT110
110251 F R 1 1967-74 Honda CL125S (single)
090203 F R 1 1978-81 Indian AMI-50 Chief            spoke wheels
090204 F R 1 1978-81 Indian AMI-50 Chief             Sport Mag II
100201 F R 1
1979-81 Indian AMI-50 Chief          Mira snowflake

085201 F R 2
1976-77 Jawa Babetta (20,25,30)          Jawa spoke
085201 F R 2 1978-80 Jawa X20, X25, X30                 Jawa spoke
090201 F R 2
1985-90? Jawa 210?                             mag wheels?

080182 F R 2 1977-79 JC Penney Pinto, Swinger, Swinger 2   L sp
080182 F R 2 1977-79 JC Penney Pinto 2 (spoke whls)  Leleu spoke
090182    R 2 1977-79 JC Penney Pinto 2 (w/mags)     Grimeca-X
090183 F    2 1977-79 JC Penney Pinto 2 (w/ mags)     Grimeca-X
090202 F R 1 2003-06 Kawasaki KDX50

080182 F R 2 1977-80 Kreidler MP9 Flory                      Leleu spoke
080182 F R 2 1978-80 Kreidler MP19 Flory               Kreidler 5-star
090182 F R 2 1977-79 KTM (Sachs 504) Foxi Deluxe   Grimeca spoke
090182 F R 2 1977-79 KTM (Sachs 504) Foxi Salsburg Grimeca spoke
090182 F R 2 1978-79 KTM (Sachs 504) Foxi Baron       KTM 5-ray
080182 F R 1 1996-07 KTM 50SX Pro Junior
080182 F R 1 1996-07 KTM 50SXR Senior Adventure
080182 F R 1 2004-05 KTM 50SX Mini Adventure
110251    R 1 2000-01 Kymco Cobra 50 (2-stroke)
110251    R 1 2002-03 Kymco Cobra Cross (2-stroke)
110251    R 1 2000-05 Kymco ZX50 (2-stroke)
110251    R 1 2005-12 Kymco Agility 50 (4-stroke)
110251    R 1 2005-08 Kymco Vitality 50 (4-stroke)
110251    R 1 2009-12 Kymco Sento 50 (4-stroke)
110251    R 1 2006-11 Kymco Agility 125 (4-stroke)
095201    R 0 2014-14 Kymco 50i (4T – SE50BG)
095201    R 0 2013-14 Kymco 110i (4T-SE22BD)
090181 F R 2 1977-78 Kynast Flying Dutchman (steel fenders)  Gr sp

080181 F R 1 1977-78 Lazer Sport 50  orange               “Honda” spoke
080181 F R 1 1977-78 Lazer Sport 50 ST  blue              “Honda” spoke
085201 F R 2 1993-6?.Manet-Puch Korado (Euro)      Jawa spoke
090205 F R 2
1995-00 Manet-Puch Korado                 Bernardi 3-ray

070161 F R 2 1977-79 Motobecane Model 7                 Leleu spoke
080182 F R 2 1978-79 Motobecane 50                      Leleu spoke
080182 F R 2 1978-79 Motobecane 50VLC                 Leleu spoke
080182 F R 2 1980-80 Motobecane Moby, Traveller Leleu spoke
080182 F R 2 1980-80 Motobecane Traveller            Leleu spoke
080201 F R 2
1976-77 Motobecane 40TS, 40TL        MB spoke
080201 F R 2 1976-77 Motobecane 50S, 50L, 50V    MB spoke
080201 F R 2 1978-79 Motobecane 50VLC                MB spoke
080201 F
 R 2 1978-79 Motobecane 50VLA                   MB 6-star
080201 F R 2 1980-80 Motobecane Moby, Traveller   MB spoke
080201 F R 2 1980-80 Motobecane Le Moped            MB 6-star
090181 F R 2 1977-79 Moto Guzzi Robin                     Grimeca spoke
090182 F R 1 1985-89 Motomarina Sebring, Raven   Grimeca mags
090181 F R 1 1978-80 Motron Sprint, Medalist, Fairway Gri. spoke
090182 F R 1 1978-80 Motron Classic,Medalist,Fairway Gri. mags

080182 F R 2 1978-80 Murray 8315, 8320                     Leleu spoke
080182 F R 2 1978-80 Murray 8415, 8420                     Leleu spoke
080182 F R 2 1978-80 Murray 8515, 8520                     SM2 10-ray
070161    R 2 1980-80 Peugeot 102                             Leleu spoke
080182 F R 2 1976-83 Peugeot 103 LS – U1                  Leleu spoke
080182 F R 2 1976-83 Peugeot 103 L2 – U1,U2,U3         Leleu spoke
080182 F R 2 1976-83 Peugeot 103 LVS – U2,U3            Leleu spoke
080182 F R 2 1978-83 Peugeot 103 SP – U2,U3              Leleu spoke
080182 F R 2 1979-83 Peugeot 103 SPB – U2,U3        Peugeot 6-star
080182 F R 2 1980-83 Peugeot TSM – U2,U3                  Leleu spoke
080182 F    2 1980-80 Peugeot 102SP – U2,U3               Leleu spoke
080182 F R 2 1974-76 Puch Maxi S, Maxi N                     Leleu spoke
080182 F R 2 1976-76 Puch Maxi Nostalgic                     Leleu spoke
080182 F R 2 1977-77 Puch GN (Rigid), Maxi, Newport   Leleu spoke
080182 F R 2 1978-79 Puch Rigid, Maxi, Newport L        Leleu spoke
080182 F R 2 1978-79 Puch Maxi Luxe, Maxi II                Leleu spoke
080182 F R 2 1978-79 Puch Magnum XK                         Leleu spoke
080182 F R 2 1980-81 Puch Maxi, Maxi Luxe                   Leleu spoke
080182 F R 2 1980-81 Puch Newport II, Magnum II      Leleu spoke
080182 F R 2 1979-81 Puch Sport MkII                          Puch 5-star
080182 F R 2 1980-81 Puch Magnum LTD                     Puch 5-star
080182 F R 2 1981-83 Puch Series B                               Leleu spoke
080182 F R 2 1982-84 Puch Dart, Maxi Sport LS          Leleu spoke
080182 F R 2 1983-85 Puch Cobra                                  Leleu spoke
080182 F R 2 1984-85 Puch Austro-Daimler                  Puch 5-star
080182 F R 2 1985-86 Puch Austro-Daimler II              Puch 5-star
080182 F R 2 1985-86 Puch Maxi Sport LS II                 Puch 5-star
080182 F R 2 1985-86 Puch Cobra II                               Puch 5-star
080182 F R 2 1985-86 Puch Cobra II                               Puch 5-star
090182    R 2 1978-79 Puch (2sp) Magnum MkII silver Grimeca-X
090182    R 2 1977-78 Puch (1sp) Sport                           Grimeca-X
090182    R 2 1978-79 Puch (2sp) Sport MKII                    Grimeca-X
090182 F    2 1977-78 Puch (1sp) Sport (with steel F brake plate) G-X
090182 F    2 1978-79 Puch (2sp) Sport MkII (with steel F plate) Gr-X
090183 F    2 1978-79 Puch (2sp) Magnum MkII                 Grimeca-X
090183 F    2 1978-79 Puch (1sp) Sport (w/alum F brk plate)  Grim-X
090183 F    2 1978-79 Puch (2sp) Sport MkII (w/al F brk plate)  G-X
090182 F R 2 1975-79 Sachs (504-1A) P1 Westlake      Grimeca spoke
090182 F R 2 1975-79 Sachs (504-1A) P1 Westlake            Grimeca-X
090182 F
 R 2 1980-84 Sachs (504-1D) Sundancer       Grimeca spoke
090182 F R 1 1978-79 Sachs (505-1A) M4 Balboa         Grimeca spoke
090182 F R 1 1978-79 Sachs (505-1A) M4 Balboa            Grimeca-X
090182 F R 1 1980-84 Sachs (505-1D) Suburban              Grimeca-X
090182 F R 1 1980-84 Sachs (505-1D) Seville                   Grimeca-X
090182 F R 1 1980-84 Sachs (505-1D) Prima                    Grimeca-X
105201 F R 1 1980-84 Sachs (505-1D) Prima G3         Grimeca 7-ray

090202 F    1 1980-82 Sachs G4 (Taiwan)                 Taiwan spoke
110251    R 1 1980-82 Sachs G4 (Taiwan)                 “Honda” spoke
118201 F R 1 1978-81 Safari Commando                   (Grimeca-X)

083181    R 1 1955-80 Schwinn Tandem (drum brake)     Atom spoke
080182 F R 1 1978-78 Sears (Puch) Free Spirit (red or blue) L spoke

090183 F    2 1978-78 Sears (Puch) Free Spirit Deluxe (silver) G-X

090182   
R 2 1978-78 Sears (Puch) Free Spirit Deluxe (silver) Gr-X
090181 F R 1 1977-79 Snark Bianchi Standard           Grimeca spoke
090181 F R 1 1977-79 Snark Bianchi Deluxe              Grimeca spoke
090181 F R 1 1977-79 Snark Bianchi Satellite            Grimeca spoke
083181    R 1 1966-74 Solex 3800 w/Atom rear hub    Atom spoke
080181    R 1 1975-88 Solex 3800 w/Leleu rear hub    Leleu spoke

080182 F R 2 1976-77 Sparta Foxi GT, Foxi Sport           Leleu spoke
080182 F R 2 1977-80 Sparta Buddy, Deluxe, Stingray   Leleu spoke
080182 F R 2 1977-80 Sparta Flying Dutchman KML40 Leleu spoke
080181 F R 2 1977-79 Speed Bird BP48, BP48S          “Honda” spoke
080202 F R 0
1980-91 Suzuki FA50 Shuttle                 Suzuki spoke
080202 F R 0 1980-81 Suzuki FS50                             Suzuki spoke
100251 F R 0
1979-83 Suzuki FZ50 Rascal
090202 F R 1
1978-08 Suzuki JR50 (all)

080181 F R 1 2008-11 Suzuki DR-Z 70
100201 F    1 1982-85 Suzuki RM80
110251 F    0 1999-12 SYM Fiddle 50 (with front drum brake)

095201    R 0 1999-12 SYM Fiddle 50 (with front drum brake)
110251  R 0 2008-11 SYM Fiddle 50 (with front disk brake)

110251    R 0 1999-12 SYM Jet Euro 50 (2-stroke)
110251    R 0 2005-14 SYM MiO 50 (4-stroke 30mph)
110251  R 0 2014-14 SYM Jet 50 Evo (2-stroke 30mph)
110251  R 0 2007-12 SYM SYMply 50 (4-stroke)
110251   R 1 2009-14 SYM SYMba 100 (4-stroke)

090181 F R 1 1974-86 Tomos (A3) Bullet                 Tomos spoke
090181 F R 1 1987-91 Tomos (A3) Bullet (some)      Tomos spoke
090182 F R 1 1987-91 Tomos (A3) Bullet (some)      Tomos spoke

090182 F R 1 1978-80 Tomos (A3) Silver Bullet         Grimeca-X
090182 F R 1 1980-85 Tomos (A3) Silver Bullet      Grimeca 5-star
090183 F R 1 1986-91 Tomos (A3) Golden Bullet    Grimeca 5-star
090183 F R 1 1986-91 Tomos (A3) Golden Bullet TTLX Grim 5-star
090183 F R 1 1992-95 Tomos (A35) Bullet, Bullet TT  Tomos Web
090183 F R 1 1993-95 Tomos (A35) Sprint, Targa      Tomos Web
105201 F R 1 1996-07 Tomos (A35) Sprint, Targa    T Slot or 10ray
105201 F R 1 1996-02 Tomos (A35) Targa LX          T Slot or 10ray
105201 F R 1 2003-06 Tomos (A35) Tomos, ST, LX  T Slot or 10ray
105201 F R 1 2007-13 Tomos (A55) Sprint, ST, LX   T Slot or ZCW
disk115 F    1 2004-12 Tomos (A55) Revival TS        Tomos spoke

105201   R 1 2004-12 Tomos (A55) Revival TS        Tomos spoke
disk115 F    1 2005-12 Tomos (A55) Streetmate       Tomos spoke

105201  R 1 2005-12 Tomos (A55) Streetmate       Tomos spoke
disk115 F    1 2008-13 Tomos (A55) Streetmate-R   Tomos ZCW

105201  R 1 2008-13 Tomos (A55) Streetmate-R   Tomos ZCW
disk115 F    1 2005-08 Tomos (A55) Arrow, Arrow-R
110251  R 1 2005-08 Tomos (A55) Arrow, Arrow-R
disk116 F    1 2002-04 Tomos (A35) Revival           Grimeca spoke

118201   R 1 2002-04 Tomos (A35) Revival           Grimeca spoke

090221 F R 1
1982-85 Trac (M56) Clipper, Eagle       Trac spoke

090221 F R 1 1982-85 Trac (M56) Hawk                    Trac spoke
090221 F R 1 1985-89 Trac (DP50) Clipper                Trac spoke
090221 F R 1 1985-89 Trac (DK50) Escot                  Trac spoke
090183 F R 1 1982-85 Trac (M56) Eagle, Hawk        Grimeca-X
090183 F R 1 1986-88 Trac (DP50) Hawk, Sprint      Grimeca-X
090183 F R 1 1986-89 Trac (DK50) Image, Sprint     Grimeca-X
110251 F R 1 1985-89 Trac (DP50) Olympic          Trac 110 spoke
110251 F R 1 1984-89 Trac (DK50) Liberty           Trac 110 spoke
110251 F R 1 1989-90 Trac (DP50) Blitz               Trac 110 spoke
110251 F R 1 1987-90 Trac DH100 Super Hawk    Trac 110 spoke

135161    R 1
1976-86 Vespa Ciao C7N, C7E, C7V     Piaggio spoke
135161    R 1 1977-80 Vespa Bravo EEV1T               Piaggio spoke
135161   R 1 1978-80 Vespa Grande 048                 Piaggio spoke
135161   R 1 1979-80 Vespa Grande 048                 Grimeca-X
135161   R 1 1981-84 Vespa Grande 068                 Grimeca-X
135161   R 1 1980-86 Vespa Si SIV1T                     Piaggio 4-star
105201 F    1 1978-80 Vespa Grande 048               Grimeca spoke
105201 F    1 1980-85 Vespa Grande 068               Grimeca-X
105201 F    1 1979-85 Vespa Si  xxxxxxxxxxxxx     Piaggio 4-ray

080171 F R 0 1982-82 Yamaha MJ50 Towny           Yamaha steel
080171 F R 0 1980-87 Yamaha QT50 Yamahopper Yamaha spoke
080171 F    0 1983-86 Yamaha CA50 Riva              Yamaha steel
080171 F    0 1986-87 Yamaha CE50 Riva              Yamaha steel
080171 F    0 1988-91 Yamaha CG50 Riva              Yamaha steel
080171 F    0 1987-94 Yamaha SH50 Razz              Yamaha steel
080171 F    0 1998-99 Yamaha SH50 Razz              Yamaha steel
080171 F R 0 1981-09 Yamaha PW50                     Yamaha steel
080171 F R 0 2012-12 Yamaha PW50                     Yamaha steel
080181 F R 1 2006-09 Yamaha TT-R 50






Brake Shoes Info

Types: There are four types of drum brake shoes used on mopeds:

EBC 908 brake shoes1. Open type with coil springs: When the center of the wheel is small enough, the open type with coil springs is preferred because servicing is easier. To install, connect the springs and place the shoes in the shape of a taco. Then fold the taco into a flat tortilla. That stretches the springs without any tools. Then tap the shoes with the handle of a screwdriver until they snap into place. The advantage of this style is easy servicing.



EBC880 photoEBC8802. Hole type with coil springs: These brake shoes have a large hole in the pivot post end, and two small coil spring holes. They cannot be installed by “folding the taco into a tortilla”. But they also cannot separate from the pivot post. The advantage is slightly more safety.

When the center of the wheel is big and the brake drum is small, the U spring or V spring type is required. Otherwise the coil springs rub on the wheel center and make a violin sound.

EBC 908D brake shoes3. Open type with U spring: The U spring goes inside the pivot post. The brake shoes and brake plate are the same as the hole type with coil springs. Only the spring is different, a single large U-spring instead of two small coils. For Grimeca 90 x 18, minor modifications to the coil spring brake shoes are required to fit a U-spring. See below. The advantage of this type is greater spring clearance and compatibility with type 1.



Grimeca V-SpringEBC9314. Hole type with V spring: The V spring goes outside the pivot post. These brake shoes have a large hole on the pivot end (not the smaller spring holes), and the V spring goes around the pivot post. So the pivot post has a rounded groove for the spring. The advantage of this type is slightly more reliability and safety.

But installing the spring is difficult and requires a special spreader tool. At left is that tool. It is made from a M6 x 30 screw, nut, washers, special lip-washer for centering, and a 12mm piston pin. The piston pin end and screw head are ground to fit the spring so it can’t slip off. Price $15








Installing Leleu 70mm replacement brake shoes

The replacements have thinner and weaker spring anchor hooks. They can break off during installation when the spring has to be stretched to go over the hook. To prevent breaking the spring hooks, there are two things on the brake plate that need to be ground. One is the top lip on the pivot post. It needs to be reduced in diameter, but with some lip remaining for retention. The top edge needs to be rounded. That helps to not overstretch the spring. Two is the top lip on the spreader cam. It too needs to be reduced, but with some lip remaining for retention.

Once those areas are ground, the shoes can be installed with just fingers and no tools. Do not use prying tools. Only fingers are needed.












Tires and Tubes

September 9, 2012

updated 2022-04

Contents:
1. Tubes
2. Tubes Info
3. Tires
4. Tires and Rims Info
5. Dual Meaning of Tire Size




1. Tubes



All have straight metal valve stem type TR4, with two nuts.
One nut goes inside the rim, one goes outside.



2.50/2.75 – 12  fits 2.25 to 2.50 – 12
$6   9.5 oz (270 g)  Sedona
.
.



2.00/2.25 – 14  fits 2.00 to 2.25 – 14
$8   7.0 oz (196 g)  Kenda
.
.



2.25/2.50 – 14  fits 2.00 to 2.25 – 14
$9    10 oz (280 g)  Sedona
.
.



2.25/2.50 – 16  fits 2.00 to 2.25 – 16
$9    8.0 oz
(224 g)  Sedona
N/A 10.5 oz (294 g)  IRC
N/A 15.1 oz (430 g)  Bikemaster



A wider Sedona tube is a heavy duty substitute.
Here a 2.75/3.00-16 tube fits in a 2.25-16 tire.
63% more weight for just 22% more price.
More care is required during installation.
The big benefit is a lot less flat tires.



2.75/3.00 – 16  fits 2.50 to 2.75 – 16
$11
13.1 oz
(367 g)  Sedonna
N/A  18.7 oz (530 g)  Bikemaster

.



3.25/3.50 – 16  fits 3.00 to 3.50-16
$10
  23.0 oz (650 g)  Bikemaster
heavy duty
.



2.00/2.25 – 17  fits 2.00 to 2.25-17
$14
  16.0 oz (448 g)  Bikemaster
heavy duty, only one available
.



2.25/2.50 – 17  fits 2.00 to 2.25 – 17
$9.00  10.0 oz
(280 g)  Sedona
$11
10.5 oz (294 g)  IRC
.



70 / 100 – 17  fits 2.50 to 3.00 – 17
$13
 15.5 oz (444 g)  Michelin
2.75/3.00 – 17   fits 2.50 to 3.00 – 17
$14  15.9 oz (450 g)  Bikemaster



2.25/2.50 – 18  fits 2.25 to 2.50 – 18
$11  12.4 oz (350 g)  Sedona
(same tube as 2.50/2.75-18)
.



2.50/2.75 – 18  fits 2.25 to 2.50 – 18
$11  12.4oz (350 g)  Sedona
(same tube as 2.25/2.50-18)
.



2.75/3.00 – 18  fits 2.50 to 3.00 – 18
$12  17.0 oz (480 g)  Sedona
(same tube as 3.25/3.50-18)
.



3.25/3.50 – 18  fits 2.50 to 3.00 – 18
$12  17.0 oz (480 g)  Sedona
(same tube as 2.75/3.00-18)
.



2.25/2.50 – 19  fits 2.00 to 2.50 – 19
$11.0 12 oz (340 g)  Sedona
(same tube as 2.50/2.75-19)
.



2.50/2.75 – 19  fits 2.25 to 2.50 – 19
$11  12 oz (340 g)  Sedona
(same tube as 2.25/2.50-19)
.






2. Tubes Info





Here are two actual sizes, labeled as four.
Upper 2 say 3.25/3.50-18 and 2.75/3.00-18.

Lower 2 say 2.50/2.75-18 and 2.25/2.50-18.
This is label dishonesty.





Expansion: One tube size can fit a range of tire sizes, because the rubber can stretch. The tube gets bigger as it is inflated with air, until it presses against the inside of the tire.

Correct Size Criteria: When a tube is the correct size for a tire, and it is inflated slightly (but not expanded), it should fit inside the tire. It should not need to expand out to contact the tire. When a tube is too thin, it has to expand, which makes it more vulnerable to punctures. When a tube is too wide, it has to be wrinkled or folded to fit inside a thin tire. Where the folds are at can lead to punctures caused by internal rubbing.

Label Dishonesty: There are some tubes with misleading labels. Like with food, you think you’re getting more than what is actually there. Comparing the weight is the best way to know how much rubber you’re getting. The bicycle industry does the same thing. The label says a bigger size than the tube really is. That uses less rubber, saving the manufacturer money. But the tube has to stretch more when inflated, so the wall thickness is less, which causes it to get punctured easier. Because of this mislabeling, some are recommended for a different width tire than what the box label says. Always compare weights when shopping for tubes, not just “size” and price!




 3. Tires



14-1 tire 2.25 – 14
Kenda K261
22514VL171
classic street $29
wt 3.2 lb, for rim 356 mm = 14″



14-2 tire 2.25 – 14
Vee Rubber 020
22514TL162
classic street  N/A
wt 2.9 lb, for rim 356 mm = 14″




15-1 tire 2.50-15 Shinko SR241 WP122-874452 classic trail $40 special order item

15-1 tire 2.50 – 15
Shinko SR241
25016WP122
classic trail Not/Available
wt 5.5? lbs, for rim 381 mm = 15″




16-1 tire 2.00 – 16 (20 x 2.0)
Vee Rubber 087
20016TL102
classic street Not/Available
wt 2.6 lb, for rim 406 mm = 16″



16-2 tire  2.25 – 16 (20 x 2.0)
Sava/Mitas B8
22516TL193
white wall  $56
wt 3.0 lb, for rim 406 mm = 16″



3 tire 2.25-16 Shinko SR714

16-3 tire 2.25 – 16 (20 x 2.25)
Shinko SR714
22516WP152
modern street $34
wt 4.0 lb, for rim 406 mm = 16″





16-4 tire 2.25 – 16 (20 x 2.25)
Sava B8
22516TL112
classic street $33
wt 3.0 lb, for rim 406 mm = 16″



16-6 tire 2.50 – 16
Sava MC2
25016TL172
modern street $37
wt 4.4 lb, for rim 406 mm = 16″



8 tire 2.50-16 Vee Rubber VRM021

16-7 tire 2.50 – 16
Vee Rubber 219
25016VL152
classic trail $30
wt 4.3 lb, for rim 406 mm = 16″



16-9 tire 2.50 – 16
Sava B8
25016TL162
classic street $39
wt 3.2 lb, for rim 406 mm = 16″



16-10 tire  2.75 – 16
Mitas MC2
27516TL123
modern street N/A
wt 4.4 lb, for rim 406 mm = 16″



16-11 tire 3.00 – 16
Shinko SR244
30016WP132
modern trail $37 on sale
wt 6.3 lb, for rim 406 mm = 16″



90-80 - 16 Shinko SR741

16-13 tire 90/80 – 16
Shinko SR714  = 3.25 – 16
908016WP172  3.5″ wide
modern street $33 on sale
wt 6.5 lb, for rim 406 mm = 16″



16-14 tire  3.25 – 16
Mitas MC2
32516TL183  3.6″ wide
modern street  N/A
wt 6.0 lbs, for rim 406 mm = 16″




17-1 tire 2.00 – 17 (21 x 2.0)
Vee Rubber 126
20017TL112
classic street $35
wt 3.5 lb, for rim 432 mm = 17″



17-2 tire 2.00 – 17 (21 x 2.0)
IRC NR58  110mph S-rated
20017TL102
classic street none
wt 2.9 lb, for rim 432 mm = 17″



17-3 tire 2.00 – 17 (21 x 2.0)
Mitas MC11
20017TL122
modern street $36
wt 2.8 lb, for rim 432 mm = 17″



17-3 tire 2.25-17 Cheng Shin C109 TR611-6800?? classic street $35

17-5 tire 2.25 – 17 (21 x 2.25)
Cheng Shin 109
22517TR011
classic street $27
only 1 available, 432 mm = 17″



17-7 tire 2.25 – 17 (21 x 2.25)
Mitas MC11 white
22517TL193
white wall N/A
wt 3.6 lb, for rim 432 mm = 17″



17-8 tire 2.25 – 17 (21 x 2.25)
Mitas/Sava B4
22517TL193
white wall $56
wt 3.2 lb, for rim 432 mm = 17″



16 tire 2.25-17 Shinko SR704

17-11 tire 2.25 – 17 (21 x 2.25)
Shinko SR704
22517WP152
classic street $34.0
wt 3.3 lb, for rim 432 mm = 17″



17-12 tire 2.50 – 17
Mitas/Sava MC11
25017TL182  2.7″ wide
modern street $37
wt 4.6 lb, for rim 432 mm = 17″



17-13 tire 2.50 – 17
Mitas M-06
25017TL142
modern street $37
wt 4.8 lb, for rim 432 mm = 17″



17-14 tire 2.50 – 17
Mitas MC11 white
25017TL144
modern street $62
wt 3.6 lb, for rim 432 mm = 17″



22 tire 2.50-17 Vee Rubber VRM021

17-16 tire 2.50 – 17
Vee Rubber 021
25017VL182
classic trail  $27
on sale wt 4.4 lb, rim 432 = 17″



17-17 tire 2.50 – 17
Shinko SR244
25017WP112
modern trail $31
wt 4.9 lb, for rim 432 mm = 17″



17-19 tire 2.75 – 17
Mitas/Sava MC11
27517VL142
modern street $39
wt 5.1 lb, for rim 432 mm = 17″



23 tire 2.75-17 IRC TR1

17-20 tire 2.75 – 17
IRC TR1 Trial
27517TR182
classic trail  $41
wt 5.1 lb, for rim 432 mm = 17″



24 tire 2.75-17 IRC NR21

17-21 tire 3.00 – 17
IRC NR21
30017TR113
street tire N/A
wt 4.8 lb, for rim 432 mm = 17″






18-1 tire 2.25 – 18 (22 x 2.25)
Mitas B4
22518TL172
classic street $39.0
wt 3.9 lb, for rim 457 mm = 18″



18-3 tire 2.50 – 18
Mitas/Sava B3
25018TL172
classic street $39
wt 4.0 lb, for rim 457 mm = 18″



32 tire 2.50-18 IRC NR2

18-5 tire 2.50 – 18
IRC NR2
25018TR122
classic street  N/A
wt 4.6 lb, for rim 457 mm = 18″



18-7 tire 2.75 – 18
Sava MC7
27518TL192
modern street $44
wt 5.8 lb, for rim 457 mm = 18″



18-9 tire 3.00 – 18
Sava MC7
30018TL192
modern street $49
wt 6.0 lb, for rim 457 mm = 18″




19-1 tire 1.75 – 19 (23 x 2.0)
Hutchinson 21B
17519TL182  2.0″ wide
friction drive flat top $46.0
wt 2.0 lb, for rim 483 mm = 19″



19-2 tire 2.00 – 19 (23 x 2.0)
Mitas M02
20019TL712
classic street $36
wt 2.2 lb, for rim 483 mm = 19″



19-3 tire 2.25 – 19 (23 x 2.25)
Mitas M02
22519TL832
classic street $38
wt 2.4 lb, for rim 483 mm = 19″



19-4 tire 2.25 – 19 (23 x 2.25)
Vee Rubber 013
22519TL542
classic street N/A
wt 4.5 lb, for rim 483 mm = 19″
stiff sidewalls



19-5 tire 2.25 – 19 (23 x 2.25)
Heidenau M3
22519TL082
classic street $41
wt 3.5 lb, for rim 483 mm = 19″




20-1 tire 2.00 – 20 (24 x 2.0)
Kenda Kwick Drumlin Cargo
20020JB000  heavy duty
4-ply 75 psi bicycle tire  N/A
wt 2.5 lb, for rim 507 mm = 20″
for 1952 Motobecane, and others




20.5-1 tire 1.85 – 20.5 (24 x 1¾ S7)
Sunlite S7  for vintage Schwinn
185205JB000  light duty
2-ply 50 psi bicycle tire  N/A
wt 1.3 lb, for rim 520 mm = 20.5″
for 1958 Parilla, and others




21-1 tire 2.50 – 21
Shinko SR413
25021TL123
classic trail  N/A
wt    lb, for rim 533 mm = 21″
for 1985 Derbi RD50, others




22-1 tire 2.00 – 22 (26 x 2.0)
Kenda Kwick Drumlin Cargo
20022JB000  heavy duty
4-ply 75 psi bicycle tire  N/A
wt 2.7 lb, for rim 559 mm = 22″
for 1955 Lambretta, others




23-1 tire 1.50 – 23 (26 x 1½ = 650B)
Schwalbe Road Cruiser
15023JB000  1.46″ wide
85 psi bicycle tire  N/A
wt 1.6? lb, for rim 584 mm = 23″
for 1949 Solex, others




25-1 tire 1.50 – 25 (28 x 1½ = 700B)
Sunlite UtiliT Street Classic
15025JB000  1.57″ wide
50 psi bicycle tire  N/A
wt 1.6 lb, for rim 635 mm = 25″
for 1940 Solex, others








4. Tire and Rim Info



Motorcycle tires are for 8, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19, 21 and 23 inch rims. See below.

Bicycle tires are for 12(16×2), 13.2(18), 16(20×2), 18 (22×2), 20(24×2), 22(26×2) inch rims.

History: Before the 1970’s motorcycle and bicycle tires were the same. Some time in the late 1960’s, as safety standards improved, motorcycle and bicycle tires were separated. Bicycle tires were given even rim sizes, while motorcycle tires were given mostly odd rim sizes. Motorcycle tires for USA motor vehicles had to comply with DOT safety standards, with speed and weight ratings. Bicycle tires had different safety standards.

Correct size: The insides of the tire must match the outer sides of the rim, where the tire seats at. If the tire fits too loose it will work for low pressure only. At normal or high pressure the loose tire would tend to bulge out, allowing the tube to escape. Then the tube balloons out quickly and pops. If the tire fits too tight, a section of the tire will not stretch over the outer side of the rim. This happens when the center rim band is too wide or when tape is placed over the rim outer sides. In either case the tire will not seat correctly. One or both sides will have a flat section, instead of a perfect circle. That causes a bumpy ride on perfectly smooth streets, less grip and control.

Correct installation: The inner tube must be completely inside the tire, not pinched between the tire and rim. It often gets pinched near the valve stem, if the stem is not pushed way inward before tire mounting. That makes the tire fit too tight, causing the above problems, plus the pinched section will become chaffed (worn), leading to a flat tire later on.




14 inch rim (356 mm)

Fourteen inch rims are pretty much only on mopeds and junior off road bikes.

This 1981 Honda NC50 Express has 14" rims. Tires say "2.25 - 14"



This 1981 Honda NC50 Express
has 14″ rims.
Tires say “2.25 – 14”




15 inch rim (381 mm)

Wide tires for 15 inch rims are common on modern street motorcycles, like “130/90 -15” (5 inch wide) to “170/80 – 15” (6 1/2 inch wide), but thin 15’s are uncommon. Size “2.50 – 15” (2 1/2 inch wide) is pretty much only found on 1970’s small trail bikes by Yamaha, Kawasaki, and others.  No bicycles have that 381mm rim size. So there’s only this one choice.

This 1973 Yamaha GT1 80cc has 15" rims, with "2.50 - 15" trail tires.



This 1973 Yamaha GT1 (80cc)
has 15″ rims,
with “2.50 – 15” trail tires.




16 inch rim (406 mm)

Tires for sixteen inch rims are on about 1/3 of all USA mopeds, while 17″ is the other 2/3. Almost all Italian mopeds use 16″ rims, with mostly 2.25 – 16 (20.5″ OD) tires. Juvenile and BMX bicycles all use 16 inch rims, but they are called 20″ in the bicycle industry. Yes, 20 x 2.125 bicycle tires interchange with 2.25 – 16 motorcycle tires, because they both use 406mm rims. Motorcycle tires for on-road use have to meet US DOT standards, and have many things labeled on the tire. Bicycle tires have different safety standards, and are not legal and not safe to use on on-road motorcycles.

This 1980 Tomos Bullet has 16" rims. Tires say "2.25 - 16"



This 1980 Tomos Bullet
has 16″ rims.
Tires said “20×2.25″ and “2.25–16″




17 inch rim (432 mm)

This 1969 Puch Maxi has 17" rims. Original tires said "21 x 2.0"

This 1969 Puch Maxi has 17″ rims.
Original ’60’s tires said “21 x 2.0”
’70’s also said “2.00 -17”
Notice 17 = 21 – 2*2.0






18 inch rim (456 mm)

Some 1960’s tires were labeled narrower than modern tires. The Harley Davidson M65 original tires said 22 x 1 3/4 (1.75 – 18), but they were actually 2.00 or 2.25 in width. You can see the restored M65 rear tire is thinner than the rim. Yet in old photos the tires are wider than the rims. A 2.25-18 motorcycle tire is a better choice than a 22 x 1.75 bicycle tire.

22 x 1.75 bicycle tire on a 1965 Harley Davidson M50



Left, a 22 x 1.75 bicycle tire
on a 1967 Harley Davidson M65





This 1969-72 Tomos Colibri 14V has 18″ rims
with “23 x 2.5″ tires
Notice 18 = 23 – 2*2.5
Pre-69 had 19” rims. with “23 x 2.25” tires





This 1962 Motobecane AV48 had 19" or 18" rims, with "23 x 2.0" or "22-1/2 x 2-1/4" Hutchinson tires. Notice 19 = 23 - 2*2 and 18 = 22.5-2*2.25

This 1962 Motobecane AV48 had 19″ or 18″ rims
with “23 x 2.0” or “22-1/2 x 2-1/4” tires.
Notice 19 = 23 – 2*2
and 18 = 22.5-2*2.25








19 inch rim (484 mm)

Many vintage motorized bicycles had 19 inch rims, with (now obsolete) bicycle tires size 23 x 2.0 (equal to 2.0 – 19 or French 550 x 50B). By the 1970’s, tires were smaller and wider, 16 and 17 inch. Of the US model mopeds, only the Solex had 19″ rims. 19 inch tires thinner than 2.75 are not sold by normal USA motorcycle or bicycle tire suppliers. The thinnest “metric street” tire available is 80/90 – 19, which is about 2.75 – 19.

This 1956 Sparta FP50 has 19" rims, with "23 x 2.0" tires

This 1956 Sparta
FP50 has 19″ rims,
with “23 x 2.0” tires





This '63 Sears Allstate has 19" rims. Original tires said "23 x 2.25"

This 1963 Sears Allstate
has 19″ rims. Original
tires said “23 x 2.25”





This '62 Tomos Colibri T12 has 19" rims, with "23 x 2.25" tires.

1962 Tomos Colibri
T12 has 19″ rims,
with “23 x 2.25” tires.





This 1966 Solex 3800
has 19″ rims.
Tires say 1.75-19 but they’re
actually 2 inch wide, 2.00-19



This 2000 Solex 3800,
an Impex remake, has 19″ rims
with 1.75-19 tires.






20 inch rim (507 mm)

Some vintage motorized bicycles had 20 inch rims, that accept bicycle size 24 x 2.125 “balloon” tires. For them, fat bicycle tires, for a mini beach cruiser, are an affordable option. Street classic tread all black is shown, but other choices exist. Whitewall 24 x 2.125 available also. Most bicycle shops carry 24×2.125 tires also. The ISO number on every bicycle tire is what tells the rim size. This tire says 57-507, which means 57mm wide (2.24″) and 507mm (20.0″) inner diameter.

This 1955 Sparta FP50 has 20" rims, with "24 x 2.0" tires

This 1955 Sparta
FP50 has 20″ rims,
with “24 x 2.0” tires





This 1952 Motobecane AV32 has 20" rims. Orig tires say "600x50B Michelin 24x1-1/2 x 2" Notice 20 = 24 - 2*2.0

This 1952 Motobecane
AV32 has 20″ rims.
Orig tires say “600x50B
Michelin 24 x 1-1/2 x 2”
Notice 20 = 24 – 2*2.0




20.5 inch rim (520 mm)

1958 Parilla moped tire for a 20.5 inch rim

Here are all tire sizes near 20.5” rim:

(ISO 483 = 19.0″) 2.25 – 19  motorcycle
(ISO 507 = 20.0″) 24 x 2.0  bicycle
(ISO 520 = 20.5“) 24 x 1¾ S7 for old Schwinn
(ISO 533 = 21.0”) 2.50 – 21  motorcycle






21 inch rim (534 mm)

Twenty one is a common front rim size on off road and street cruiser motorcycles. The thinnest street tire is 80/90-21, which equals 2.75-21. The thinnest off road commonly available is also 2.75 – 21. Vintage French bicycles had 21″ rims with “600B” or “24 x 1-1/2” tires, but not modern bicycles.

Any rim can be measured to determine the bead diameter, where the tire sits. One way is to wrap a cloth measuring tape around the tire-less rim to measure the circumference, then divide by 3.14. See Sheldon Brown Rim Measuring for more details.

This 1985 Derbi RD50 has a 21" front rim, with a "2.50 - 21" tire

This 1985 Derbi RD50
has a 21″ front rim,
with a “2.50 – 21” tire






22 inch rim (559 mm)

Some vintage motorized bicycles had 22 inch rims, that accept bicycle size 26 x 2.125 “balloon” tires. For them, wide bicycle tires, for a beach cruiser or mountain bike, are an affordable option. Street classic tread all black is shown, but other choices exist. Whitewall 26 x 2.125 available also. Most bicycle shops carry 26×2.125 tires also. The ISO number on every bicycle tire is what tells the rim size. This tire says 57-559, which means 57mm wide (2.24″) and 559mm (22.0″) inner diameter. For more about tire sizes see Sheldon Brown Tyre Sizing. Bicycle tires are intended for low speed and low weight. They have no motor vehicle safety endorsements, like “street-legal” or “DOT” tires do. They are listed here to show what all the choices are. But they are not recomended for use on motor vehicles.

This 1955 Lambretta moped has 22" rims, 26x2.125 bicycle tires

This 1955 Lambretta
has 22″ rims that take
26×2.125 bicycle tires.
Originals said “22×2.0”
Notice 22 = 26 – 2*2.0




23 inch rim (584 mm)

Twenty three inch rims are on antique motorcycles, and on some off road front, and also some on road front customs for novelty. Modern downhill mountain bike racers use 23 inch rims, called “27.5 x 2.0”. 1950’s French bicycles use 23″ rims, called “650B” or “26 x 1-1/2”. Some modern commuter bikes also use 650B tires (584mm rim), in-between a mountain bike 26″ (559mm) and road bike 700C (622mm).  Antique motorcycles from the 1910’s, 20’s, 30’s use the bicycle system, where the tire size means the outer diameter. So, at least some 28 x 2.5 tires correspond to 2.50 – 23, but maybe not all. A 28 x 2.5 or 28 x 3.0 antique replica tire costs around $200 and up from Coker Tire. Measure the rim diameter precisely to determine the rim size, on any vintage, antique, or unknown motorcycle. A 23-inch-rim tire costs ten times as much as a 22-inch-rim tire!

This 1954 Mercier has 23" rims, 650B tires.

This 1954 Mercier has
23″ rims with 650B tires.
650 is the outer diameter.
B is the width, 33mm.
Note 584 = 650 – 2*33



This 1949 Solex has 23" rims with "650B" or "26 x 1-1/2" tires. Notice 23 = 26 - 2*1.5

This 1949 Solex has
23″ rims with “650B”
or “26 x 1-1/2” tires.
Notice 23 = 26 – 2*1.5






24 inch rim (610 mm)

For some reason, there are no bicycles or motorcycles, except for some antique ones possibly, with 24″ rims. If there were any antique motorcycles with “28 x 2.0” or “29 x 2.5″ tires, they likely had 24” rims. Most early motorcycle tires were “28 x 2.5″, assumed to be a 23” rim, or “28 x 3.0″, assumed to be a 22” rim.




25 inch rim (635 mm)

Twenty five inch rims are not on any motorcycle. They are on older traditional bicycles, still common “work horse” bicycles in Europe and Asia, today. In less developed places in the world, the 28 x 1-1/2 tires, rod brake (not cables), always black, classics out number all other vehicles. The “700B” French size tire had a height of 32 or 33mm, to make an outer diameter of 700mm.

This 1940 Solex has 25" rims, with "700B" or "28 x 1-1/2" tires. Notice 28 = 25 - 2*1.5

This 1940 Solex has
25″ rims, with “700B”
or “28 x 1-1/2” tires.
Notice 25 = 28 – 2*1.5



As you go back in time, tires were bigger and thinner, just like with automobiles!




5. Dual Meaning of Tire Size

A bicycle 16 inch tire fits inside a motorcycle 16 inch tire.

A 16 x 2.50 fits inside a 2.50 – 16.

Rim size is at bead seat.

Rim size is at bead seat.











The “size” of the tire has a different meaning for bicycles, than for motorcycles and cars. For bicycles, the tire size means the outer diameter of the tire. For motorcycles and cars, the tire size means rim size, which is the inner diameter of the tire. So a 20 x 2.125 bicycle tire fits a 16″ moped rim. Conversely, a 2.25 – 16 moped tire fits a 20″ bicycle rim.

Vintage motorcycle tires: After about 1969, motorcycle tires no longer used the bicycle system. From then on, “22 x 2.0” meant bicycle 18 inch rim, and “2.0 – 18” meant motorcycle 18 inch rim. Bicycles were given the even numbered rim sizes 16, 20, 22 while motorcycles were given the odd numbered rim sizes 17, 19, 21, 23, pretty much. Bicycles were given the “outer times width” syntax “22 x 2.0”, while motorcycles given the “width dash rim” syntax “2.0 – 18”. The “x” and the “-” are not interchangeable. Also the order is not interchangeable. This was a new way to tell the difference between a bicycle tire and a motorcycle tire, just by the “tire size”.

Rim measurement: You can measure any rim with a tape measure, and determine the tire size. Try to measure the rim diameter at the “porch”, where the tire sits, not the “lip” at the very edge. A 16″ rim will have a total diameter of 16.6″. So don’t count the lip.  This method settles the confusion of whether a marking or specification is using the bicycle (tire OD) or motorcycle (tire ID) system. Older mopeds often have 2.25-18 (22 x 2.25) and 2.25-19 (23 x 2.25) tires. They used the bicycle system. Modern moped-size (thin) tires, since the 1970’s, all use the motorcycle system, in the USA. Some modern electric scooters have an oddball size, 16 x 3.00. It’s a bicycle size, because a 16 x 2.25 bicycle tire fits, but wider. It’s a solid aluminum disk rear wheel, and so the inner tube valve stem must be the 90 degree type. The rim diameter at the “porch” is about 12″. A motorcycle inner tube size 3.00-12 fits perfect, but they are only available with straight valve stems. Tires and tubes for those must be purchased from the dealer or distributor of those electric scooters.
