Contents:
A. Identification
B. Sears Parts Lists
1. ’56-57 Mo-Ped xx = Puch MS50
1. ’63-64 E. Mo-Ped
2. ’58-66 Mo-Ped xx = Puch MS50V
3. ’64-65 Campus 50 = Puch MS50VDKF

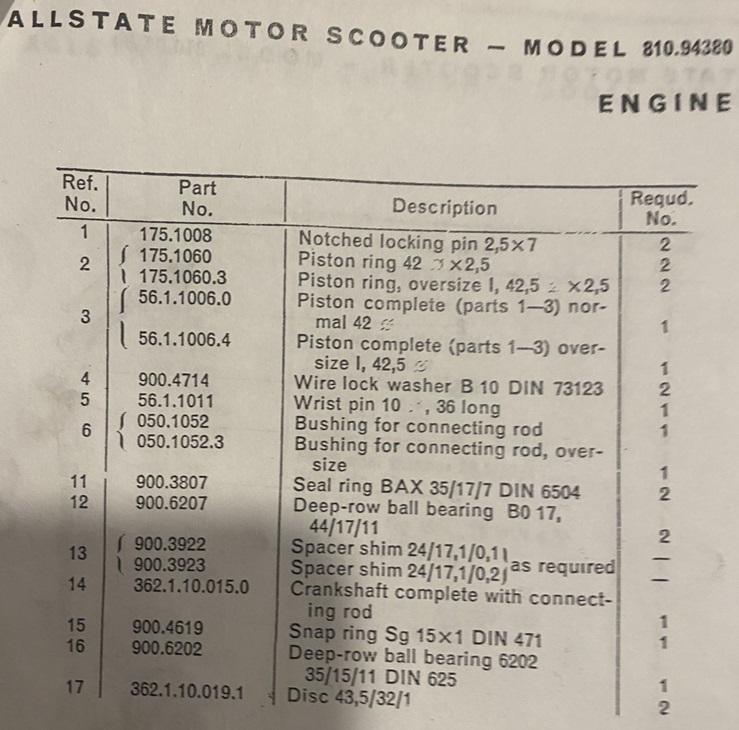

4. ’61-63 Compact x = Puch DS60
5. ’60-64 Sport 60 x = Puch SM60

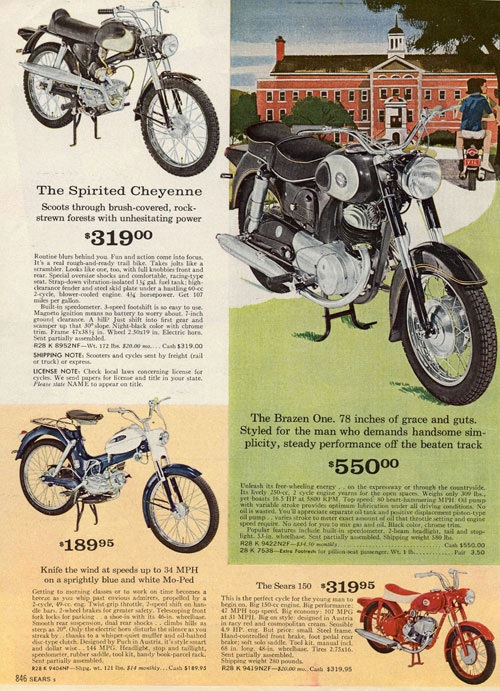

5. ’65-66 Cheyenne
6. ’65-67 Sabre xxxx = Puch VZ50M
——— <partition> ———-
C. Model List
D. Specs and Service Info
’56-64
’65-67
Sears stores sold the Allstate line of motorcycles from 1954 to 1968. The Allstate Mo-Ped and motorcycles were made by Puch. Allstate scooters were made by Cushman and Piaggio. There were also Allstate insurance, automobiles, tires, auto parts and accessories, garage door openers, fire extinguishers, and other products with that name.
Allstate: The name Allstate came from a contest held by Sears in 1925. From http://www.searsarchives.com/brands/allstate.htm, “The Allstate brand began in 1925 as part of a national contest to name Sears’ new brand of automobile tires. Public response in the contest was overwhelming. Before it was over, 937,886 people submitted a total of 2,253,746 names. Entries came from every state and in 25 different languages. Hans Simonson of Bismarck, N.D., received a $5,000 cash prize for his winning entry Allstate.”
Motor West: Some Sears Allstate Mo-Ped (and early Puch or Tomos compatibles) parts can be found at Motor West Motorcycles in Milwaukee Wisconsin USA: http://motorwestmotorcycles.com/.
Sears Allstate Riders: A full list of all Sears Allstate models is at Models/Sears Allstate Riders. Every Sears model number listed below has a link a Sears Allstate Riders web page for that model, with photos, flyers and info.
A. Identification

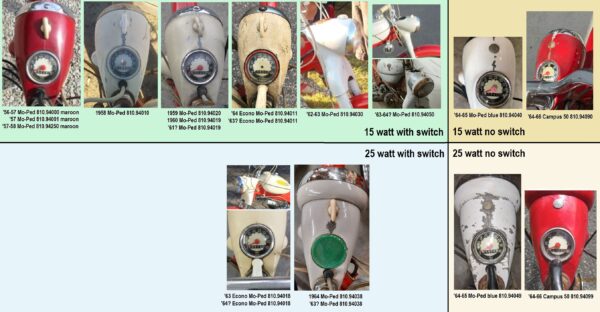

Headlight: The headlight can help with identification. All ’56 to ’62 and some ’63-66 had a 6 volt 15/15 watt headlight. Most ’63-66 models had a 6V 25/25 watt headlight. The 25/25 bulb, glass and chrome ring were bigger than the 15/15 bulb, glass and chrome ring.
Switch: On mopeds, ’56 to ’63 had the headlight switch on the top of the headlight. ’65-66 had the headlight switch on the handlebar. ’64 models had it either way.
Magneto: Besides making the ignition spark, the magneto makes power for the lights. There is no battery or voltage regulator. To regulate the voltage, the magneto watts has to nearly match the headlight and tail light bulbs watts. Models with small headlights have 17 watt lights coils, 15 for headlight plus 2 for tail light. Models with big headlights have 29 watt lights coils, 25 for headlight plus 3 for tail light plus 1 for speedo light. So seeing the headlight from a distance or in a photo helps identify the magneto.

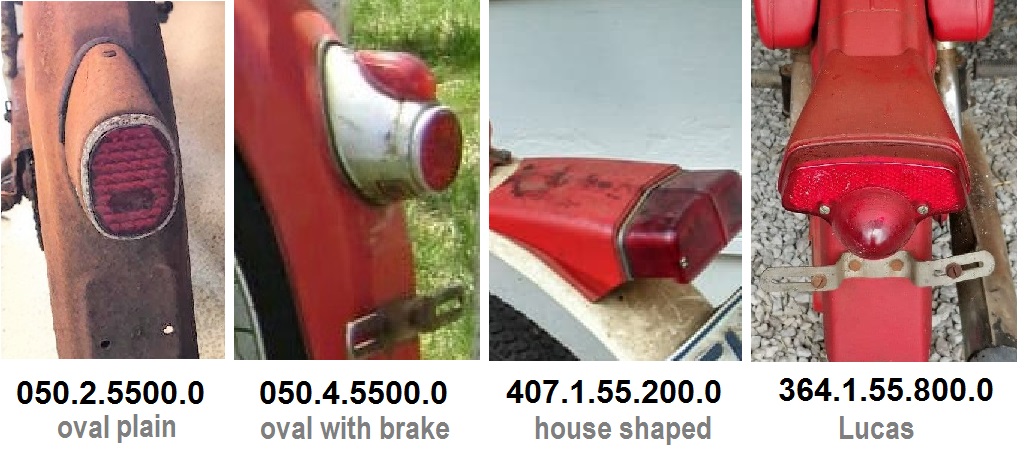

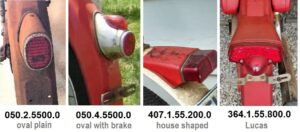

Tail light: The tail light can help with identification. Like with the headlight, the brake light bulb watts must match the brake light generator coil watts. So seeing the rear light from a distance or in a photo helps identify the magneto.
050.2.5500.0 6V 2.4w bulb oval plain
is on ’56-57 Mo-Ped
050.4.5500.0 6V 2.4w and 6V 2.4w oval with brake
’57-63 Mo-Ped, ’64 Economy Mo-Ped 810.94011,
’64-65 Mo-Ped 810.94038, 810.94040
407.1.55.200.0 6V 18/3w bulb house shaped
’60-63 Sport 60 810.94060, 810.94069,
’61-63 Compact 810.94380, 83, 90
364.1.55.800.0 6V 18/3w bulb Lucas
’63 Economy Mo-Ped 810.94018, ’64-65 Mo-Ped 810.94049,
’63-64 Sport 60 810.94061, 810.94068, ’64-66 Campus 50,
’64-66 Cheyenne, ’64-66 Compact, ’65-67 Sabre
Puch ’54-82 M series 50cc engines
Engines for 50cc mopeds have limited speed and power, according to what country they are sold in. They have 12mm carburetors and 2 or 3 speed manual transmissions.
1. 1954-77 Puch M-series 2-speed moped engines M1 to M5
2. 1959-82 Puch M-series 3-speed moped engines M6 to M9
Engines for 50 to 60cc motorcycles and scooters have no limits on speed and power. They have larger ports, pipes and carburetors, and can have any number of transmission speeds.
Sears ’56-67 50-60cc engines
Sears sold mopeds, motorcycles and scooters with both limited and unlimited 50-60cc engines.

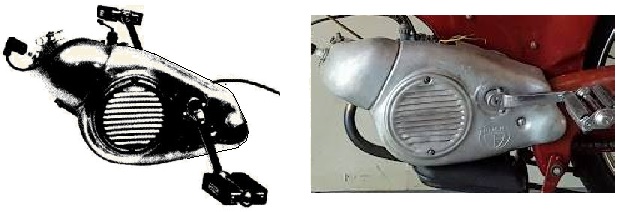

M1 50cc 2-speed with pedals hand-shift
050 ’56-57 Allstate Mo-Ped = MS50
050 ’63-64 Economy Mo-Ped (hard tail)
M3 50cc 2-speed with pedals hand-shift
302 ’58-65 Allstate Mo-Ped = MS50V
DS 60cc 3-speed kick-start hand-shift
364 ’61-66 Allstate Compact = DS50

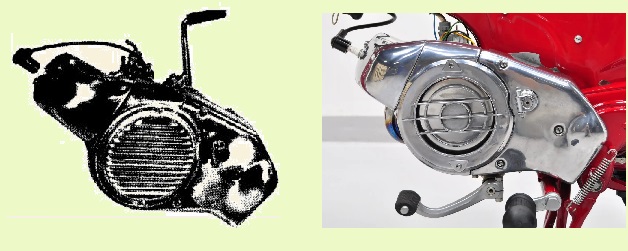

M6 50cc 3-speed kick-start foot-shift
360 ’64-66 Sears Campus 50 = MS50VDKF
Some have a solo seat and some have a long seat.
SM 60cc 3-speed kick-start foot-shift
361 ’60-64 Allstate Sport 60 = SM60
368 ’64-66 Sears Cheyenne = SM60
VZM 50cc 4-speed kick-start foot-shift
367 ’65-67 Sears Sabre = VZ50M

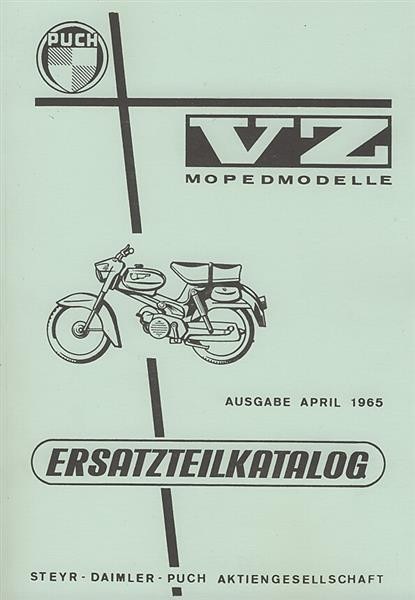

1. 1965 Puch VZ50 Parts Catalog shows a VZ engine. It covers models VZ 50 PH, PHN, PX, PXN, KH, KHN, KX, KXN, RPH; VZ 50/60 RKH, RKX; VZ 50 RPHN, RKHN, RKXN. The 4-speed VZ engine looks the same as a 3-speed M8b.
2. 1966 Puch VZ50M Parts Catalog shows VZM engine. It covers models VZ50M (Germany), VZ50S (Switzerland), VZ50MN (Norway). The 4-speed VZM engine has a different fan cover and air intake.
B. Parts Lists
Six Sears Allstate 50-60cc models have 19 parts catalogs, here combined into 6. Each parts catalog is for one or more ID numbers. The ID numbers link to the parts catalog cover image on searsallstateriders.com.
Part numbers are black for exact replacement, or dark orange for a good substitute.
Prices are green for new, or dark green for good used.
1. 1956-64 Mo-Ped = MS50

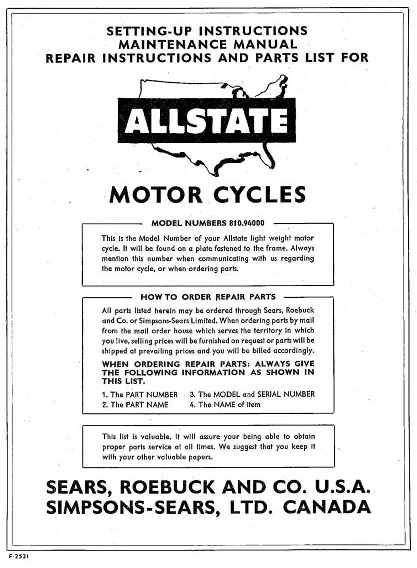

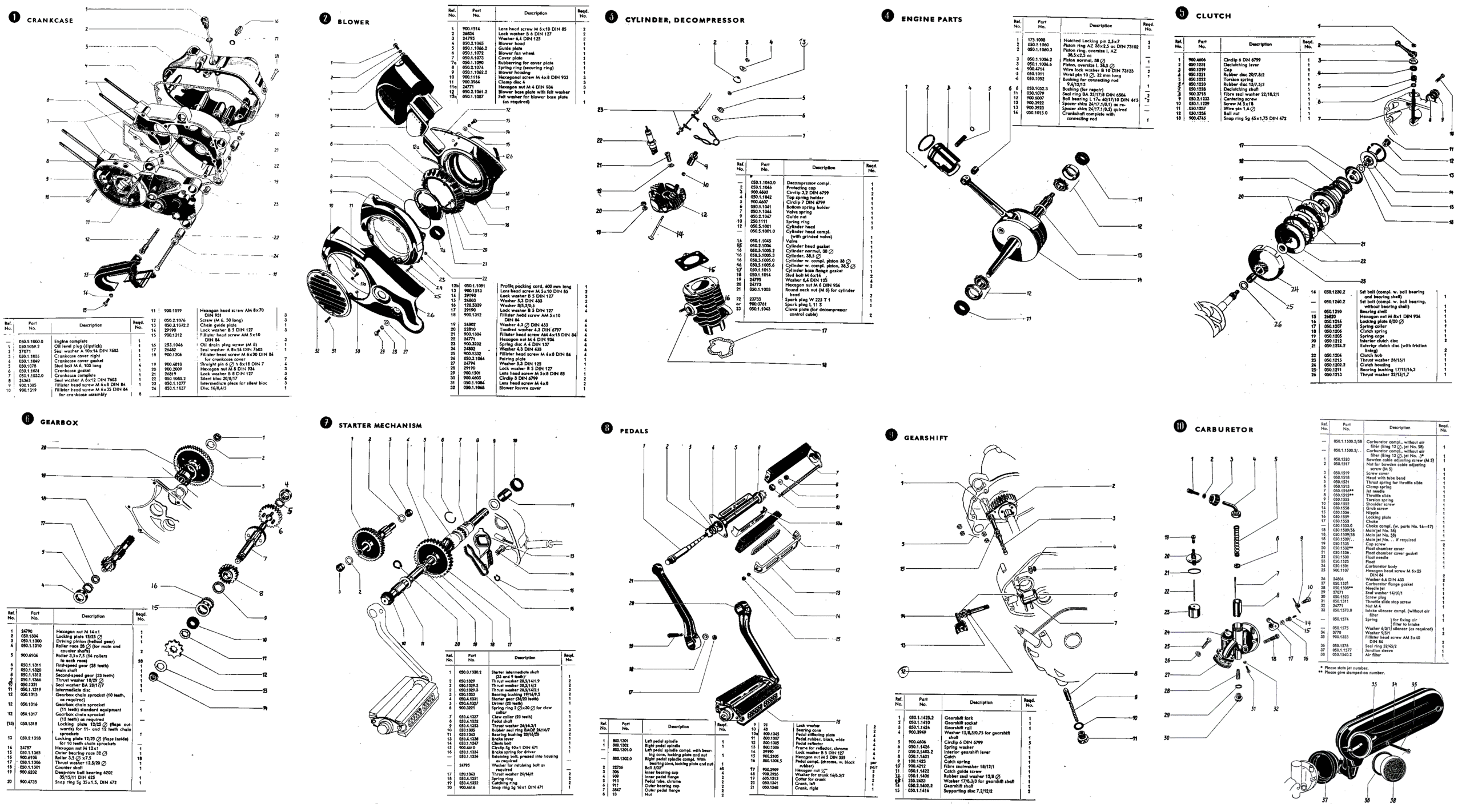

Parts catalog 6 for ’56 Mo-Ped, sections 1 to 10

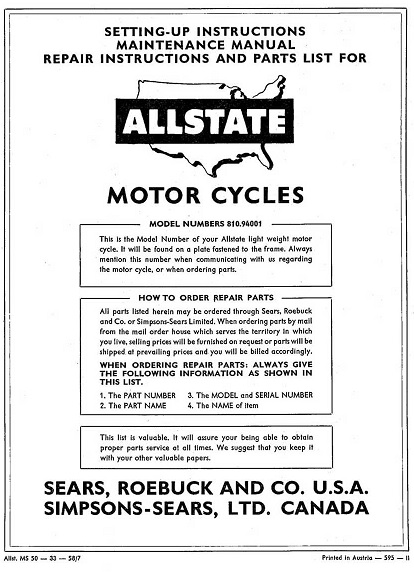

3 Allstate Mo-Ped Parts Catalogs combined
6 is ’56-56 for Mo-Ped 810.94000
7 is ’57-58 for Mo-Ped 810.94001
3 is ’63-64 for Econo Mo-Ped 810.94011 and 810.94018
M1 engine, 50cc 2-speed hand-shift with pedals
673 fig 00.00.000.0/00 price eng M1 engine
111 1-00 050.5.1000.0 0 none M1 engine (MS50)
444 1-05 050.5.1078.00 $4.00 M1 cylinder stud 6 x 105, orig = 103
111 1-07 050.1.1032.0 0 none M1 engine case set
111 2-32 050.1.1068 00 none M1 blower louvre cover 5.5″
111 3-16 050.5.1005.2 0 none M1 cylinder bare
111 3-16 050.5.1005.0 0 none M1 cylinder and piston assy
100 3-22 23733 00000 $4.00 M1 spark plug NGK B7HS or BR7HS
011 3-22 60410 00000 $4.50 M1 spark plug NGK BR6HS
222 4-02 050.1.1060.0 0 $11.0 M1 piston ring 38 x 2.5 GN
111 4-03 050.1.1006.2 0 none M1 piston bare 38 x 10-18-19
111 4-03 050.1.1006.0 0 none M1 piston 38 x 10-18-19, 2.5 rings
111 4-03 050.1.1006.0 0 $55.0 M1 piston 38 x 10-18-19, 2.0 rings
222 4-04 900.4714 000 $1.00 M1 piston clip 10
111 4-05 050.1.1011.0 0 $10.0 M1 piston pin 10 x 32
222 4-11 050.1079.000 none M1 L/R crank seal 17-35-8
222 4-11 900.3807 000 $7.50 M1 L/R crank seal 17-35-7
222 4-12 900.6007 000 $32.0 M1 L/R crank bearing L17
111 4-14 050.1015.0 00 none M1 crankshaft, flywheel key grove
111 6-12 050.1316 000 none M1 sprocket 11 teeth
333 22-09 27458 000.0 none M1 stator screw M4x15-slot
333 22-09 27458 000.0 $0.80 M1 stator screw M4x16-phil-wide
111 22-19 23340 0000 $1.50 M1 flywheel key #M86 3 x 5
111 22-21 900.2011 00 $2.50 M1 flywheel nut M10-1.0 x 8 hex17
673 fig 050.1.1500.2/5 price M1 carburetor see Bing Allstate
111 050.1.1500.2/58 0 none carburetor ∅12 jet 58, cable choke
673 000.0.0.0000.0 price magneto 17w for 810.94000
100 050.5000.0 00 none M1 magneto 1-wire (lights) int. spark
100 900.0790 000 none M1 flywheel LM/UR1/115/17 L5 17 watt
100 900.0792 000 none M1 points base
100 900.0793 000 none M1 points lever
100 900.0796 000 none M1 lights coil 17 watt
100 900.0791 000 none M1 ignition spark coil
673 000.0.0.0000.0 price magneto 17/5w for 810.94001
010 302.2.50.000.0 none M3 magneto 3-wire int. spark =0212 125 001
010 302.2.50.010.2 none M3 flywheel LM/URC1/116/27/5 L1
010 302.2.50.015.0 $14.0 M3 points set #M19a
010 302.2.50.013.2 none M3 condenser
010 360.2.50.012.2 none M3 ignition spark coil
010 302.2.50.011.2 none M3 lights coil 17 watt
010 302.2.50.014.2 none M3 brake coil 5 watt
010 302.2.50.009.1 none M3 base plate
673 000.0.0.0000.0 price magneto 17/3?w for 810.94011
001 000.0.00.000.0 none M1+ magneto 3-wire ext. spark
001 000.0.00.000.0 none M1+ flywheel LM/URP1/115/27L1
673 000.0.0.0000.0 price magneto 29/18w for 810.94018
001 364.1.50.600.0 none DS magneto 4-wire ext. spark
001 364.1.50.610.2 none DS flywheel LM/URP1/116/29/18L1
001 302.2.50.015.0 $14.0 M3 points M19a original note 1
001 302.3.50.015.0 $16.0 M3 points M19 replacement note 2
001 500.2.50.013.2 none DS condenser
001 364.1.50.612.2 none DS ignition source coil
001 364.1.50.611.2 none DS lights coil 29 watt
001 364.1.50.614.2 none DS brake coil 18 watt
Note 1. Original 3-piece M19a points do not have a pivot post. They do not replace M19, because they require the original pivot post.
Note 2. Replacement 1-piece M19 points have a built-in pivot post. They replace M19a, after the original pivot post is unscrewed and removed from the stator base plate.
673 000.0.0.0000.0 price lights for 810.94000
100 050.2.5500.0 none tail light ‘oval plain’ no brake light
111 901.0721 000 $2.00 tail light bulb 6V 3w, orig = 2.4w
111 900.0721 000 none head light bulb 6V 15/15w
673 000.0.0.0000.0 price lights for 810.94001 and 810.94011
011 050.4.5500.0 none tail light ‘oval with brake’
111 901.0721 000 $2.00 tail light bulb 6V 3w, orig = 2.4w
011 170.5548 000 $2.00 brake light bulb 6V 3w
111 900.0721 000 none head light bulb 6V 15/15w
673 000.0.0.0000.0 price lights for 810.94018
001 364.1.55.800.0 none tail light Lucas
001 902.0709 000 none tail light bulb 6V 18/3w Ba15d
001 902.0709 000 $2.50 tail light bulb 6V 15/3w Ba15d
001 364.1.53.812.1 $7.00 headlight bulb 6V 25/25 Ba20d
673 x=18 y=36 000 price front wheel
xxx 050.2.4030 00 none spoke 204 x 2.5 left
xxx 050.2.4031 00 none spoke 196 x 2.5 right (brake)
yyy 600.4007 000 none spoke nipple 48 tpi
111 050.4015.0 00 none brake shoe set 90 x 20 EBC970
111 900.0841 000 $40.0 tire 2.25-19 (23 x 2.25) Mitas M02
111 900.0841 000 none tire 2.25-19 (23 x 2.25) Vee Rubber 013
111 900.0841 000 $42.0 tire 2.25-19 (23 x 2.25) Heidenau M3
111 900.0843 000 $12.0 inner tube 2.25-19
222 900.6200 000 $6.00 bearing 10 x 30 x 9 #6200
111 050.1.4023 00 $12.0 center spacer tube 10 x 37
673 x=18 y=36 000 price rear wheel
xxx 050.2.4030 00 none spoke 204 x 2.5 left
xxx 050.2.4031 00 none spoke 196 x 2.5 right (brake)
yyy 600.4007 000 none spoke nipple 48 tpi
111 050.4015.0 00 none brake shoe set 90 x 20 EBC970
111 900.0841 000 $40.0 tire 2.25-19 (23 x 2.25) Mitas M02
111 900.0841 000 none tire 2.25-19 (23 x 2.25) Vee Rubber 013
111 900.0841 000 $42.0 tire 2.25-19 (23 x 2.25) Heidenau M3
111 900.0843 000 $12.0 inner tube 2.25-19
222 900.6200 000 $6.00 bearing 10 x 30 x 9 #6200
111 050.1.4123 00 $13.0 center spacer tube 10 x 80
111 050.1.4109 00 none rear sprocket 34 teeth
111 050.4.2810.0 0 $20.0 chain 1/2 x 3/16″ 415H 94 links
2. 1958-66 Mo-Ped = MS50V

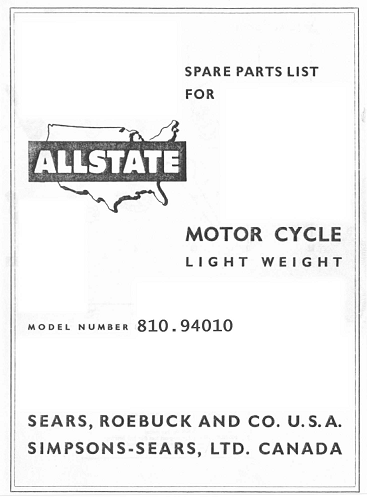

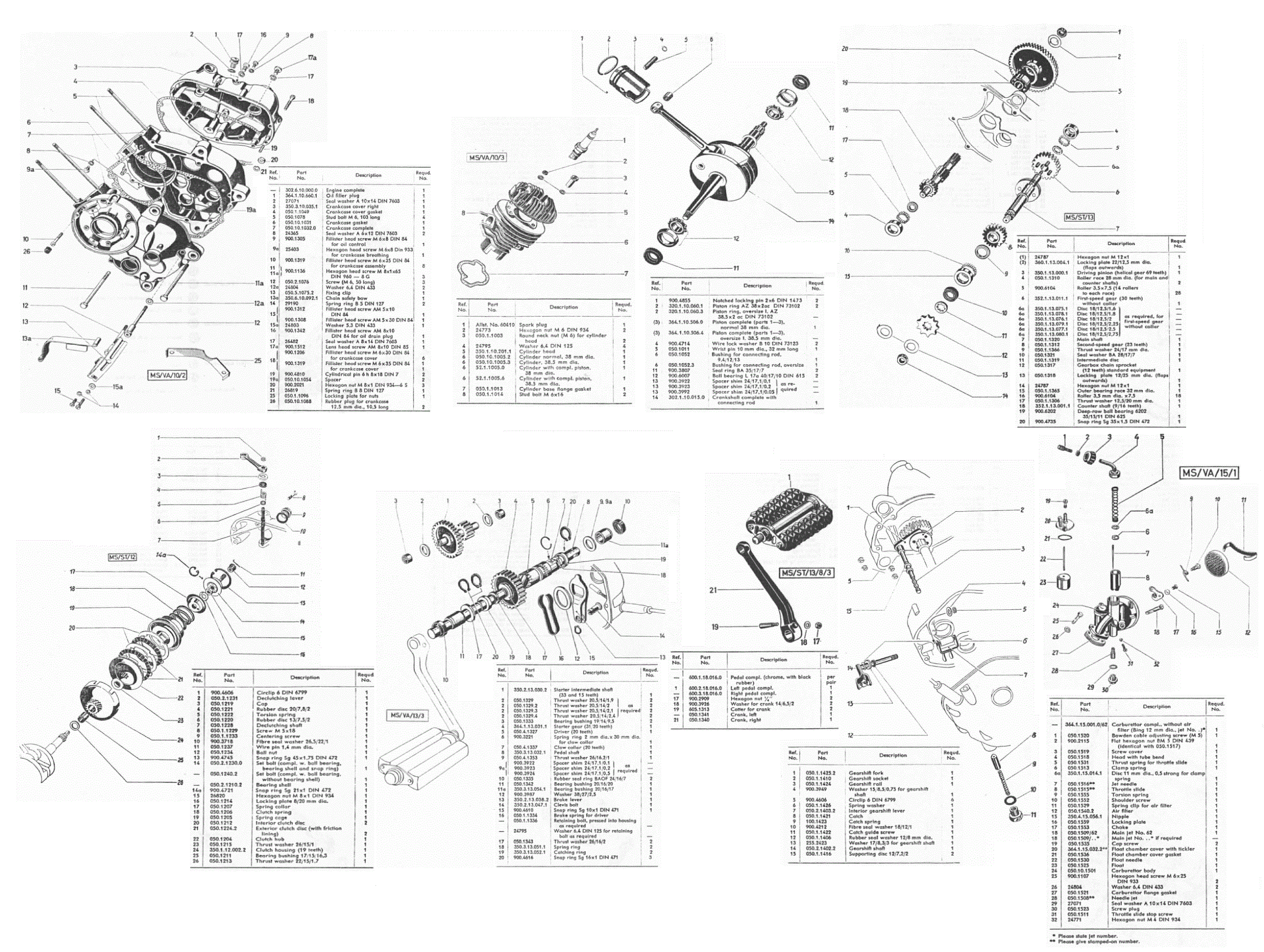

Parts catalog 8 for ’58-61 Mo-Ped, sections 1 to 10
4 Allstate Mo-Ped Parts Catalogs combined
8 is 58-61 for 810.94010 and 810.94019
9 is 59-61 for 810.94020
2 is 62-63 for 810.94030 and 810.94039
4 is 64-65 for 810.94040 and 810.94049

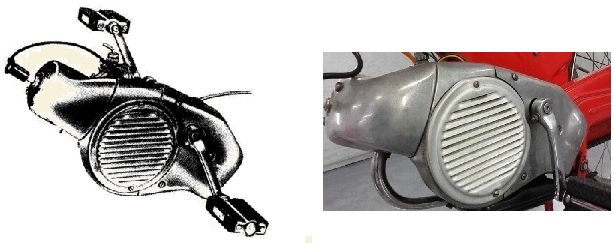

M3 engine, 50cc 2-speed hand-shift with pedals
8924 fig 0000.0.00.000.0 price eng M3 engine
1111 1-00 302.6.10.000.0 none M3 engine (MS50V)
4444 1-05 050.5.1078 .0 $4.00 M1 cylinder stud 6×105 orig 103
1111 1-07 050.1.1032.0 none M1 engine case set
1111 2-32 050.10.1068 0 none M3 blower louvre cover 6.5″
1111 3-16 050.10.1005.2 none M1 cylinder bare
1111 3-16 52.1.1005.0 00 none M3 cylinder & piston
1111 3-22 60410 00 000 $4.50 M3 spark plug NGK BR6HS
2222 4-02 302.1.10.060.1 $9.00 M3 piston ring 38 x 2.0 GN
1111 4-03 364.1.10.506.0 $55.0 M6 piston assy 38 x 10-18-19
2222 4-04 900.4714 000 $1.00 M1 piston clip 10
1111 4-05 050.1.1011.0 $10.0 M1 piston pin 10 x 32
2222 4-11 900.3807 000 $7.50 M1 L/R crank seal 17-35-7
2222 4-12 900.6007 000 $32.0 M1 L/R crank bearing L17
1111 4-14 302.1.10.015.0 none M3 crankshaft, flywheel pin hole
1111 6-12 050.1317 000 none M3 sprocket 12 teeth
3333 22-09 27458 000.0 none M1 stator screw M4x15-slot
3333 22-09 27458 000.0 $0.80 M1 stator screw M4x16-phil-wide
1111 22-19 28776 00 00 none M3 flywheel key ∅3 x 5 roller
1111 22-19 28776 00 00 $4.00 M3 flywheel key ∅3 x 4 roller
1111 22-21 900.2011 00 $2.50 M1 flywheel nut M10-1 x 8 hex17
8924 fig 00.00.000.0/00 price M3 carburetor see Bing Allstate
1111 364.1.15.001.0/62 none M3 carburetor ∅12 jet 62, cable choke
Changes: The M3 carburetor had a much bigger jet, 62 instead of 58, because the intake silencer (air box) was removed. A tickler (primer) was added to the float top. The choke cable pinch bolt was eliminated, so the choke cable changed from single-ended to double-ended.
8924 000.0.00.000.0 magneto 17/5w 810.94010, 19, 20, 30, 40
1111 302.2.50.000.0 none M3 Bosch magneto =0212 125 001

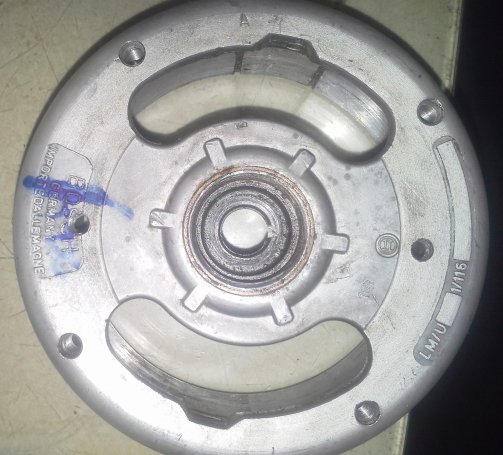

1111 302.2.50.010.2 none M3 flywheel LM/URC1/116/27/5 L1
1111 302.2.50.015.0 $14.0 M3 points M19a original note 1
1111 302.3.50.015.0 $16.0 M3 points M19 replacement note 2
1111 302.2.50.011.2 none M3 lights coil 17 watt
1111 302.2.50.014.2 none M3 brake light coil 5 watt
8924 000.0.00.000.0 magneto 29/18w 810.94039, 49
0011 364.1.50.600.0 none DS Bosch magneto 4-wire
0011 364.1.50.610.2 none DS flywheel LM/URP1/116/29/18L1
0011 302.2.50.015.0 $14.0 M3 points M19a original note 1
0011 302.3.50.015.0 $16.0 M3 points M19 replacement note 2
0011 500.2.50.013.2 none DS condenser
0011 364.1.50.612.2 none DS ignition source coil
0011 364.1.50.611.2 none DS lights coil 29 watt
0011 364.1.50.614.2 none DS brake coil 18 watt
Note 1. Original 3-piece M19a points do not have a pivot post. They do not replace M19, because they require the original pivot post.
Note 2. Replacement 1-piece M19 points have a built-in pivot post. They replace M19a, after the original pivot post is unscrewed and removed from the stator base plate.
8924 000.0.00.000.0 price lights for 810.94010, 11, 30, 40
1111 050.4.5500.0 none tail light ‘oval with brake’
1111 901.0721 000 $2.00 tail light bulb 6V 3w, orig = 2.4w
1111 170.5548 000 $2.00 brake light bulb 6V 3w
1111 900.0721 000 none head light bulb 6V 15/15w
8924 000.0.00.000.0 price lights for 810.94039, 49
1111 364.1.55.800.0 none tail light Lucas
1111 902.0709 000 none tail light bulb 6V 18/3w Ba15d
1111 902.0709 000 $2.50 tail light bulb 6V 15/3w Ba15d
1111 364.1.53.812.1 $7.00 headlight bulb 6V 25/25 Ba20d
3. ’64-65 Campus 50 = MS50VDKF
1 Sears Campus 50 Parts Catalog
1964 for Campus 50 810.94090 and 810.94099
M6 engine, 50cc 3-speed hand-shift kick start
000.0.00.000.0 price M6 engine 360
050.10.1068 0 none M3 magneto cover
000.0.00.000.0/00 price M6 carburetor see Bing Allstate
360.1.15.500.0/62 none M6 carburetor ∅12 jet 62, lever choke
Changes: The M6 carb is an M3 carb with a lever operated choke instead of a cable choke.
000.0.00.000.0 price lights for 810.94090
364.1.55.800.0 none tail light Lucas
900.0721 000 none head light bulb 6V 15/15w
000.0.00.000.0 price lights for 810.94099
364.1.55.800.0 none tail light Lucas
902.0709 000 none tail light bulb 6V 18/3w Ba15d
902.0709 000 $2.50 tail light bulb 6V 15/3w Ba15d
364.1.53.812.1 $7.00 headlight bulb 6V 25/25 Ba20d
4. 1961-63 Compact = DS60
6 Allstate Compact Parts Catalogs
1 is ’61-63 for 810.94380, 810.94381, 810.94382
4 is ’64-66 for 810.94383, 810.94390, 810.94430

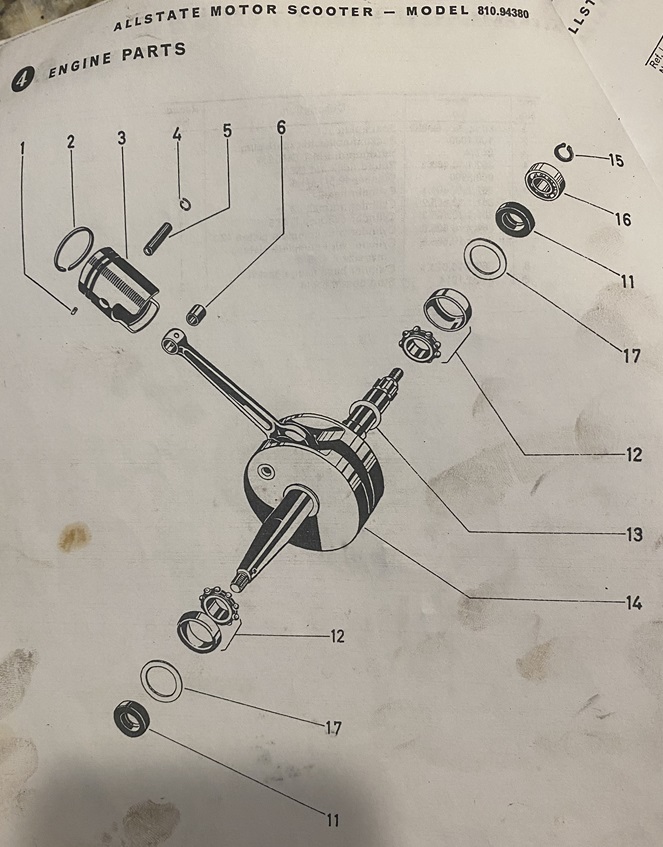

DS60 engine, 60cc 3-speed hand-shift kick start
14 fig 1-9 0.0.00.000.0 price eng DS60 engine 361, 364
11 1-00 361.1.10.000.0? none DS engine (DS60)
11 1-07 364.2.10.732.0 none DS engine case set
11 3-07 361.1.10.605.2 none DS cylinder bare ∅42
11 3-07 361.1.10.605.1 none DS cylinder and piston
22 4-02 364.1.10.460.1 $10.0 DS piston ring ∅42 x 2.0 GN
11 4-03 364.1.10.606.0 none DS piston assy ∅42
11 4-05 364.1.10.611.1 none DS wrist pin ∅15 x 33
11 4-14 364.1.10.615.0 none DS crankshaft
14 000.0.00.000.0/00 price carburetor see Bing Magnum X
11 361.1.15.000.0?/?? none carb ∅17 jet ?? Bing 1/17/??
14 000.0.00.000.0 price lights 1961-63
10 407.1.55.200.0 none tail light house-shaped
11 902.0709 000 none tail light bulb 6V 18/3w Ba15d
11 902.0709 000 $2.50 tail light bulb 6V 15/3w Ba15d
11 364.1.53.812.1 $7.00 headlight bulb 6V 25/25 Ba20d
14 000.0.00.000.0 price lights 1964-66
01 364.1.55.800.0 none tail light Lucas
11 902.0709 000 none tail light bulb 6V 18/3w Ba15d
11 902.0709 000 $2.50 tail light bulb 6V 15/3w Ba15d
11 364.1.53.812.1 $7.00 headlight bulb 6V 25/25 Ba20d
5. ’60-66 Sport 60, Cheyenne = SM60
Parts catalog 3 for ’60-63 Sport 50, sections 1 to 10
3 Sport 60 and Cheyenne Parts Catalogs combined
3 is 1963 for Sport 60 810.94060 and 810.94069

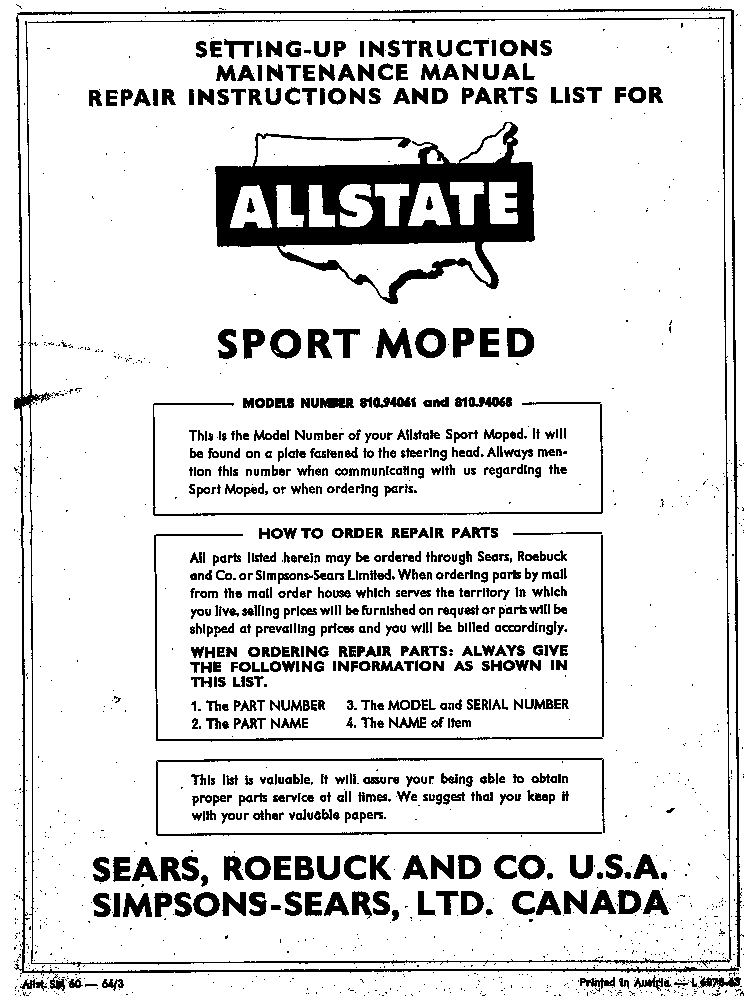

4 is 1964 for Sport 60 810.94061 and 810.94068
5 is 1965 for Cheyenne 810.89520-29, 810.94070-79
SM engine, 60cc 3-speed foot-shift kick start

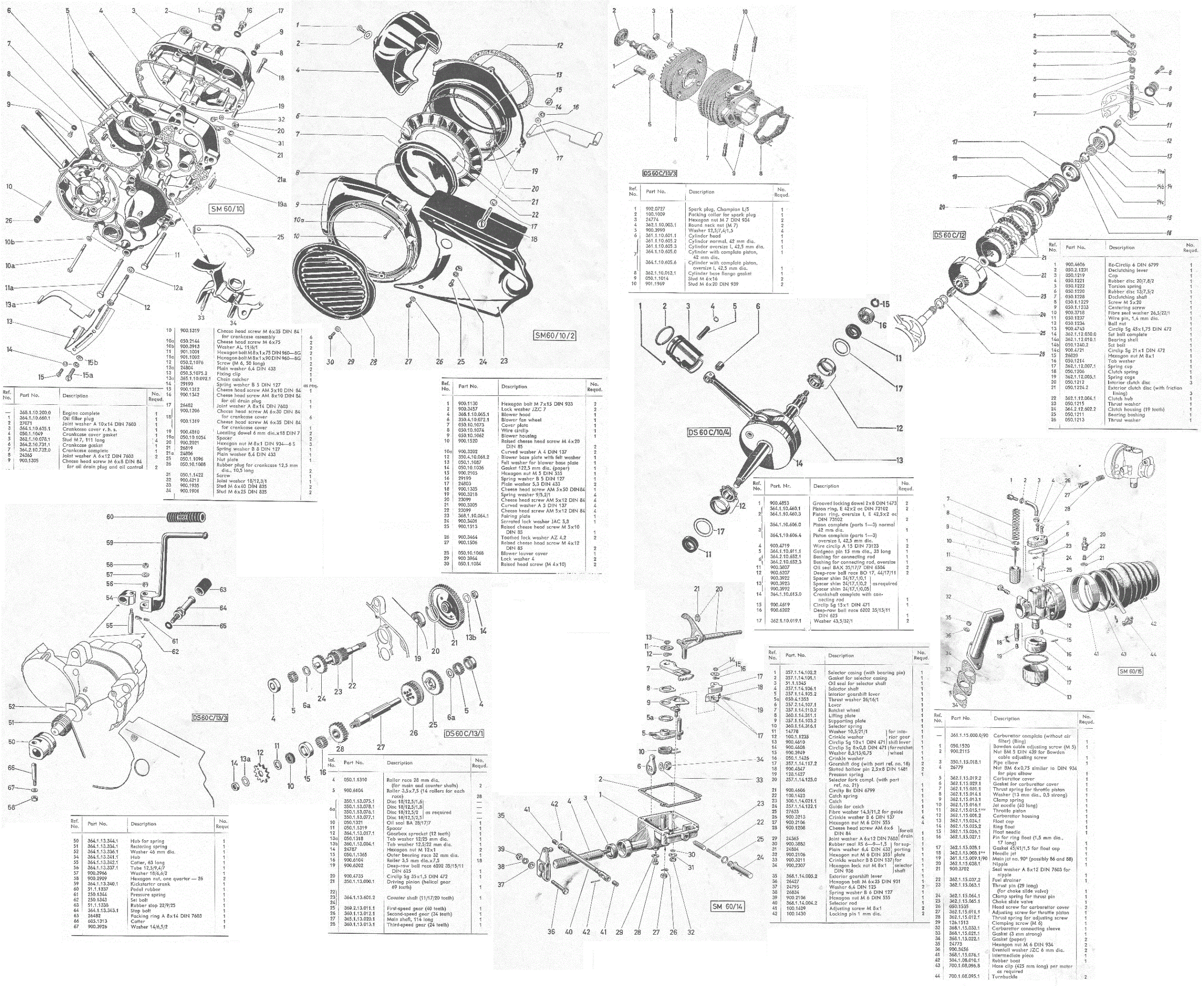

345 fig 1-9 0.0.00.000.00 price eng SM engine 361, 368
111 1-00 368.1.10.200.0 none SM engine (SM60)
111 1-07 364.2.10.732.0 none DS engine case set
110 2-28 050.10.1068 0 none M3 blower louvre cover 6.5″
001 2-28 368.1.10.068.1 none SM blower cover Cheyenne
111 3-01 902.0727 000 $4.00 spark plug NGK B7HS or BR7HS
111 3-07 364.1.10.605.2 none DS cylinder bare ∅42
111 3-07 364.1.10.605.0 none DS cylinder and piston
222 4-02 364.1.10.460.1 $10.0 DS piston ring ∅42 x 2.0 GN
111 4-03 364.1.10.606.0 none DS piston assy ∅42
110 4-05 364.1.10.611.1 none DS wrist pin ∅15 x 33
001 4-05 364.1.10.611.2 none DS wrist pin ∅15 x 33
111 4-14 364.1.10.615.0 none DS crankshaft
111 23-21 900.2011 00 $2.50 M3 flywheel nut M10-1.0 x 8 hex17
111 23-21 28776 00 00 $4.00 M3 flywheel key ∅3×4 roller, orig 3×5
345 fig 10 000.000.0000 carburetor see Bing Magnum X
110 361.1.15.000.0/90 none carb ∅17 jet 90 Bing 1/17/54
001 368.2.15.200.0/80 none carb ∅17 jet 80 Bing 1/17/??
345 000.0.00.000.0 price magneto 29/18w
111 364.1.50.600.0 none DS Bosch magneto 4-wire
111 364.1.50.610.2 none DS flywheel LM/URP1/116/29/18L1
111 000.0000 000 $14.0 M3 points #M19a
345 000.0.00.000.0 price lights for 810.94060, 69
100 407.1.55.200.0 none tail light house-shaped
111 902.0709 000 none tail light bulb 6V 18/3w Ba15d
111 902.0709 000 $2.50 tail light bulb 6V 15/3w Ba15d
111 364.1.53.812.1 $7.00 headlight bulb 6V 25/25 Ba20d
345 000.0.00.000.0 price lights for 810.94061, 68, 20-29, 70-79
011 364.1.55.800.0 none tail light Lucas
111 902.0709 000 none tail light bulb 6V 18/3w Ba15d
111 902.0709 000 $2.50 tail light bulb 6V 15/3w Ba15d
111 364.1.53.812.1 $7.00 headlight bulb 6V 25/25 Ba20d
6. ’65-67 Sabre = VZ50M
2 Sears Sabre Parts Catalogs
5 is 65-66 for Sabre 810.89510 to 810.89513
6 is 66-67 for Sabre 810.895141 to 810.895151
VZM engine, 50cc 4-speed foot-shift kick start
56 000.0.00.000.0 price eng VZM engine 367
11 367.1.10.000.0?none VZM engine (VZ50M)
11 331.1.10.031.1 none VZM case gasket
11 331.1.10.013.1 none VZM base gasket
11 331.1.10.049.1 none VZM trans gasket
11 331.1.10.022.1 none VZM intake gasket
11 331.1.10.006.0 none VZM piston assy
22 331.1.10.160.1 $9.00 VZM piston ring ∅38 x 2.0 GN
56 000.0.00.000.0/00 carburetor see Bing Magnum X
11 368.2.15.200.0/?? none carb ∅17 jet ?? Bing 1/17/89
