June 16, 2023European Moped Locks and Keys
June 16, 2023Contents:
A. LOCKS
1. Puch Locks made by Neiman
2. Motobecane Locks by Neiman
3. Peugeot Locks made by Neiman
4. Tomos Locks by Neiman, Titan, Zadi
5. Vespa Locks made by Neiman
6. Italian Locks made by Zadi
7. Garelli Locks made by Giobert
8. Jawa Locks made by FAB
9. Other Locks by Neiman, Clausor
B. KEYS
10. Neiman Keys
11. Neiman-Puch Keys
12. Neiman-France Keys
13. Zadi Keys
14. Zadi-Flat Keys
15. Zadi-Mini Keys
16. Zadi-Black Keys
A. Locks
1. Puch Locks
Puch 349.121.5220 swing arm lock Neiman key
D=12.0 L=26.0 H=16.8 A=4.3 B=15.6 D1=9.9 L1=000
price $36 with two keys, or $24 with one key
Puch 330.120.0529 steering lock Neiman key
D=12.0 L=26.0 H=16.8 A=4.3 B=15.6 D1=8.0 L1=00.0
price $26 with two keys
Puch 330.120.0529 steering lock Neiman-Puch key
D=12.0 L=26.0 H=16.8 A=4.3 B=15.6 D1=8.0 L1=00.0
price $29 with one key
2. Motobecane Locks
Motobecane 19798 steering lock Neiman-France key
D=12.0 L=24.0 H=16.8 A=4.3 B=15.0 D1=9.7 L1=00.0
price none available with two keys
3. Peugeot Locks
Peugeot 15018 steering lock Neiman key
D=12.0 L=24.0 H=16.8 A=4.3 B=15.0 D1=9.7 L1=10.5
price $49 with two keys
for 1975-83 Peugeot 102 and 103
Peugeot 61805 steering lock Neiman key
for ’79-83 Peugeot TSM
price none available
4. Tomos Locks
Tomos 208911 steering lock Neiman key
D=11.7 L=26.0 H=16.8 A=4.3 B=15.4 D1=9.8 L1=12.5
$39 with 2 keys, or $27 with 1 key, no cover, no spring
for 1975-76 Tomos Automatic
Tomos 208911 interchanges with Tomos 229293.
Tomos 209783 steering lock Titan-Round key
D=16
price none available with 2 keys, no cover, no break-away screw
for 1977-91 Tomos A3 Bullet, Silver Bullet, Golden Bullet
retained by a special M4 break-away screw
Tomos 226450 steering lock Titan-Black key
D=18?
price none available
for 1992-95 Tomos A35 Bullet, Colibri
for 1993-02 Tomos A35 Sprint, Targa, Targa LX
retained by a special M4 break-away screw
Tomos 232892 steering lock Zadi-Black key
D=11.6 L=26 H=16.6 A=6.0 1 B=15.5 D1=10.0 L1=12.5
price $30 with 1 key, no cover, no spring
for ’01-05 Tomos Revival, Revival-TS, Streetmate, Arrow
Tomos 233198 steering lock Zadi-Black generic key
for ’06-17 Tomos Revival-TS, Streetmate, S.mate-R, Arrow-R
After 2005 this lock was made by TBS. It was an exact copy.
Tomos 229293 steering lock Neiman long key says GKS
D=11.8 L=26.0 H=16.7 A=4.2 1 B=15.6 D1=9.9 L1=18.0
price $35 with 2 keys, or $25 with 1 key, no cover, no spring
for 2003-06 Tomos A35 Sprint, Tomos, ST, Tomos LX
for 2006-13 Tomos A55 Sprint, ST, LX
Tomos 229293 interchanges with Tomos 208911.
5. Vespa (Piaggio) Locks
Vespa 152096? steering lock Neiman key
D=12.0 L=24.0 H=? A=4.3 B=? D1=10? L1=14.8
price none available L + L1 = 38.85 same as Peugeot?
for ’72-73? Vespa Ciao C7E?
Vespa 152096 steering lock Neiman key
D=12.0? L=24? H=? A=4.3 B=? D1=10? L1=?
price none available same as Peugeot?
for ’78-83 Vespa Grande 048, 068
Vespa 155226 steering lock Neiman key
D=11.9 L=30.5 H=17.8 A=4.3 B=15.3
price none available without rivet and door plate
for ’74-80+ Vespa Ciao C7E, C7V, Bravo EEV and Si SIV
Vespa 155226 replacement Neiman-Zadi key
D=12.0 L=31 H=17.8 A=4.1 B=15.2
price $20
for ’73-80+ Vespa Ciao C7E, C7V, Bravo EEV and Si SIV
The replacement lock key enters the original lock but fits tight.
The original lock key does not enter the replacement lock.
6. Italian Locks
Italian ∅19 steering lock Zadi-Flat key
D=18.7 L=21 D1=8 L1=9 D2=15 L2=5 D3=22 L3=13
for Motobecane Sebring part# J2
retained by a special M4 break-away screw
price none available
Italian steering lock
Lock MMI# H74 had key blank H74A.
for Negrini Harvard
retained by a special M4 break-away screw
price none available
Italian steering lock
Lock MMI# H74B had key blank H74C = Zadi ZD7.
Some H74B locks will work with an uncut ZD7 blank!
for Negrini Gazelle III, MX Sport II
for Pacer Deluxe, Sport, Super Sport
for Malaguti Commuter
retained by a special M4 break-away screw
price none available
These M4 break away screws can be made from any length of M4 screw by grinding a narrow neck near the end.
7. Garelli Locks
Garelli ∅19 steering lock Giobert-Flat key says Garelli
D=18.8 L=15 D1=8 L1=9 D2=15 L2=5 D3=22 L3=15
for Garelli
price none available
Garelli ∅18 steering lock ????? key
D=18 L=15 D1=8? L1=9? D2=? L2=? D3=? L3=10
for Garelli
Is this “18” actually 18.8?
price none available
8. Jawa Locks
These fork locks are made in Czechoslovakia by FAB. They look like Neiman but are larger. The clip is the same as a Peugeot clip.
Jawa ∅14 steering lock FAB-Round key
D=14.0 L=26 H=19.0 A=4.0 B=26 D1=10 L1=6
price $33 with two keys
9. Other Locks
Unknown steering lock Neiman key
D=12.0 L=26 H=17.9 A=4.3 B=15.4 D1=8 L1=30.5
price not available
Derbi seat lock Clausor key
price $30 with two keys
for ’77-86 Derbi Variant SL, SLE
B. Keys
10. Neiman Keys
In this key family there are five key shapes that all fit in the same locks; Round, Early-L, L, Long and Oval.
To know what key number you need, you must have one key that works and has a readable 6 digit number on it. There is no key number on the lock itself. Some locks have numbers, but they are not key numbers. These keys are used on Puch, Peugeot, Batavus, Hercules, Kreidler, Motobecane, Sparta, Tomos, Vespa and others.
Neiman-Round key with blank SR61N
key# price available
blank none 0 SR61N
114220 $5.00 1
124330 $5.00 1
124530 $5.00 2
133250 $5.00 1
135420 $5.00 2
142420 $5.00 2
143540 $5.00 1
145120 $5.00 2
154210 $5.00 2
155120 $5.00 1
213250 $5.00 2
224510 $5.00 1
233410 $5.00 2
233450 $5.00 1
243210 $5.00 2
244250 $5.00 1
251120 $5.00 2
255410 $5.00 1
312250 $5.00 2
313450 $5.00 2
325410 $5.00 1
331540 $5.00 2
334520 $5.00 2
341130 $5.00 2
344310 $5.00 2
411330 $5.00 2
413430 $5.00 2
422410 $5.00 2
425220 $5.00 2
434510 $5.00 1
435210 $5.00 1
514220 $5.00 1
514410 $5.00 1
515310 $5.00 1
515430 $5.00 2
523430 $5.00 2
524130 $5.00 2
532230 $5.00 1
532520 $5.00 1
533120 $5.00 1
533410 $5.00 1
Neiman-Early-L key
key# price available
312340 $5.00 2
Neiman-L key
key# price available
blank none 1 original
103215 $5.00 1
Neiman-Long key with no numbers
key# price available
000000 $5.00 2
000000 $5.00 2
000000 $5.00 2
000000 $5.00 2
Neiman-Oval key
11. Neiman-Puch Keys
To know what key number you need, you must have one key that works and has a readable 5 digit number on it. There is no key number on the lock itself. This key was only used on 1980’s Puch.
Neiman-Puch key with blank GE9 (different from Neiman)
key# price available
blank 0 $7.00 2 GE9
P4065 $5.00 2
P7866 $5.00 2
12. Neiman-France Keys
A Neiman-France key does not enter a Neiman-Round lock, and a Neiman-Round key does not enter a Neiman-France lock. This key was only used by Motobecane.
Neiman-France key (different from Neiman)
13. Zadi Keys
To know what key number you need, you must have one key that works and has a readable 4 digit number on it. There is no key number on the lock itself.
Zadi key and blank ZD7
key# price available
blank none 0 ZD7
1168 $5.00 1
2074 $5.00 2
2388 $5.00 1
2446 $5.00 2
14. Zadi-Flat Keys
Zadi-Flat key and blank ZD9
key# price available
blank none 0 ZD9
15. Zadi-Mini Keys
These smaller keys are for a storage compartment like a glove box in a car, or under seat storage on a motorcycle or moped. They have no numbers on them.
Zadi-Mini keys with no numbers
key# price available
000000 $5.00 2
000000 $5.00 2
000000 $5.00 2
000000 $5.00 2
16. Zadi-Black Keys
Zadi-Black keys with no numbers, M1 blank
M1 blank works with fork lock but not ignition lock.
Zadi-Black keys with no numbers, XL7 blank modified
XL7 blank modified works with ignition lock but not fork lock.
Veglia Speedometer Parts
April 16, 2023
Veglia-2.7/2.7 speedo family is on US model mopeds, Benelli, Moto Guzzi, Testi (some) and Vespa-Piaggio (some).
Veglia-2.0/2.0 speedo family is on US model mopeds, Baretta (some), Concord, 80’s Cosmo (some), Demm (some), Fantic (some), Malaguti (some), Motron (some).
Peugeot-2.0/2.0 speedo family is on US model Peugeot 102 and 103 mopeds.
A. Veglia Speedometers
1. Veglia-2. diam Veglia# 0 part# on US-model mopeds:
1. Veglia-2.7 60 61-47541 307168 ’78-83 Vespa Grande (no blinkers)
2. Veglia-2.7 60 61-00000 183314 ’79-85 Vespa Si
3. Veglia-2.7 48 61-47282 155587 ’74-80 Vespa Ciao, Bravo
4. Veglia-2.0 60 61-47531 1200M ’77-80 Baretta, Malaguti
5. Veglia-2.0 48 61-47551 000000 ?
Veglia-Peugeot Speedometers
Veglia-Peugeot speedometer 60mm #56315
B. Veglia Speedo drivers
Vespa# Veglia# price hole axle ratio side type conduit screws in
114744 50-1024 $33 2.75 11 1.73 R d 2.00-17 Vespa Ciao spoke
114744 50-1024 $34 2.75 11 1.73 R d 2.50-16 Vespa Si 4-ray mag
141303 50-1210 $52 2.75 11 1.64 R d 2.25-16 Vespa Bravo
306937 50-1224 $55 2.75 12 1.73 L b 2.50-17 Vespa Grande spoke
307300 50-1222 $45 2.75 12 1.73 R b 2.50-17 Vespa Grande x-mag
MMI# Veglia# price hole axle ratio side type conduit screws in
1202M 50-1026 $57 2.00 11 1.64 L d 2.25-16 Baretta, Malaguti
Peugeot# eglia# price hole axle ratio side type conduit slides on
46709 00-0000 $23 2.00 11 1.73 R d 2.25-17 Peugeot
Derbi# Veglia# price hole axle ratio side type conduit slides on
00000 80-7550 $39 2.00 12 1.73 R d 2.50-17 Derbi ’76-86 good-used
00000 80-7550 $55 2.00 12 1.73 R d 2.50-17 Derbi ’76-86 new
Ratio: Some Veglia drivers are marked with the gear teeth ratio, 18/11 = 1.64 or 19/11 = 1.73.
Veglia 80-7550 on ’76-86 Derbi Variant
C. Veglia Speedo Cables
⇓ end mm ⇑ end mm application Veglia 2.7/2.7
mm inch Piaggio# price cable
mm inch Piaggio# price wire
2.55-2.65 2.55-2.65 Vespa Ciao C7N
770 30.4 114745 none silver original
811 32.0 114746 $16.0 wire only
2.55-2.65 2.55-2.65 Vespa Ciao C7E, C7V
850 30.4 158135 $34.0 silver original
891 32.0 097775 $16.0 wire only
2.55-2.65 2.55-2.65 Vespa Ciao P, PX
770? 30.4 213466 none black original
811? 32.0 213467 none wire only
2.55-2.65 2.55-2.65 Vespa Bravo
800 31.5 162125 $34.0 silver original
838 33.0 162126 $16.0 wire only
2.55-2.65 2.55-2.65 Vespa Grande (no blinkers)
713 28.1 307192 $30.0 black original
747 29.4 307192 $00.0 wire only
2.55-2.65 2.55-2.65 Vespa (Piaggio) Si
1038? 00 000000 none black original
1072 42.2 00000 $16.0 wire only
⇓ end mm ⇑ end mm application Veglia 2.0/2.0
mm inch MMI# 0 price cable
mm inch MMI# 0 price wire
1.90-1.95 1.90-1.95 1980’s Marina Mobili Inc.
650 25.6 1201M 0 $45.0 black
683 26.9 1201M 0 $45.0 black
1.90-1.95 1.90-1.95 Baretta, Malaguti
720 28.3 1201AM none black
751 29.6 1201AM none black
1.90-1.95 1.90-1.95 1980’s Marina Mobili Inc.
790 31.0 1201BM none black
790 31.0 1201BM none black
Peugeot# conduit 0 lower end upper end price Veglia-2.0/2.0 Peugeot
52732 0 655=25.8″ 1.93-1.97 1.93-1.97 $23.0 original Peugeot 102, 103
60562 0 690=27.2″ 1.93-1.97 1.93-1.97 none Peugeot 103SP, TSM (longer)
02860 0 710=28.5″ 1.87-1.90 1.72-1.74 $29.0 replacement modified (725 total)
conduit shortened 3/4″, lower end piece spread wider, upper inner diam. widened
Speedometer Service
April 8, 2023
Basic troubleshooting: Either the speedometer or odometer can work without the other, but the both need the cable and driver to be working. So if both speed and miles don’t work, it’s usually caused by a broken or slipping cable, and sometimes a broken or slipping driver. If either the speed or miles works, then then both the cable and driver must be good.
Stuck solid (frozen): Old speedometers become frozen where the cable enters. The grease there becomes sticky after many years. That causes the cable to break, or sometimes the driver. That is the main reason why 35 year old mopeds often have broken speedo cables. The other reason is the cable gets kinked. Speedometer drivers also become frozen after many years.
Unfreezing speedometers is done with a modified allen wrench with a tapered square end. It should fit snug in the square cable hole. Heat from a small torch is used to soften the hard tar. Once the square hole can turn a tiny bit, go backward. Go back and forth gradually more and more, adding drops of acetone or penetrating oil as necessary. Once it is free to turn by hand, but still sticky, then a drill is used to spin it faster than by hand, using a modified drill bit with a tapered square end. It can take days or weeks and dozens of repeated applications of penetrating oil and rotation on a drill, before all of the stickiness is gone. If any stickiness is left behind, it can re-freeze a year later.
Unfreezing drivers: See below for the detailed procedure that involves soaking in acetone.
Greasing drivers: Most 70’s metal speedo drivers had a grease zerk, but most 80’s plastic ones did not. One way to grease them without a grease gun or zerk is with spray chain lube. It penetrates in thin and then soon becomes thick. Another way is with a 5cc syringe and a 10-1.00 x 15 tall nut (for a Peugeot moped flywheel).
1. modified syringe greaser,
2. 2.5mm allen wrench modified to 1.8-2.0 tapered square
A. Speedometer Tools
A. Acetone in a drip bottle with thin spout, for dissolving tar. Acetone is a powerful solvent that dissolves ink, tar, and paint. It penetrates into soft materials like rubber and vinyl, causing them to swell, distort, and become weaker. Lacquer thinner and MEK are similar to acetone.
B. Tri Flow drip lubricant, for applying drops of oil. It contains banana oil and microscopic Teflon spheres.
C. 1.7mm cable end bent. This is for counting revolutions when measuring gear ratio on 1.8-hole drivers.
D. 1.9mm cable end straight. This is for spinning 2.0-hole speedos on a drill.
E. Modified allen wrench, ground to a 1.9mm square on the small end. This is for applying torque to a stuck 2.0-hole speedo, and for rotating back and forth once it is able to move, or around and around if it’s able to move in circles.
F. Tapered square end shaft, for spinning 2.7-hole speedos with a drill.
G. Modified allen wrench, ground to a 2.6mm square on the small end. This is for applying torque to a stuck 2.7-hole speedo, and for rotating back and forth once it is able to move, or around and around if it’s able to move in circles.
H. Small screwdriver for rotating 2.7-hole speedos.
I. Greaser made from a 5 cc syringe and a M10-1.0 x 15 hex15 tall-thin nut (for a Peugeot flywheel). It was pure luck that the nut threaded tightly onto the smooth, tapered plastic spout. Of course, this is only for M10-1.0 thread speedo drivers, which fortunately is the majority.
B. Unfreezing Huret speedo drivers
1970’s Huret speedometers and drivers become frozen (stuck solid) after 40 years. Other kinds do also but not as much. Even new speedos and driver become frozen, because the Huret grease decomposes into hard sticky tar. Out of a sample of 30 new and 10 used 70’s Huret speedo drivers, all were frozen solid.
Speedo drivers soaking in acetone
Ten frozen Huret speedo drivers were soaked in acetone in this sealed glass jar. After 17 hours they were removed and tested. 8 out of 10 were able to move, but 2 were still stuck solid. Those 2 were re-soaked with a new batch of frozen ones.
Acetone breaks down hard insoluble tar that is like taffy, and makes it less sticky and more soluble in diesel fuel or gasoline. When first removed from a day of soaking in acetone, the tar would ooze out like warm peanut butter when compressed air was applied to the cable hole. But after 20 minutes, that same peanut butter re-solidified, as the acetone evaporated out of it. So they need to go into the diesel fuel bath right after the acetone bath, rather than drying out first. They also need rotation to spread the solvent to all areas, like stirring.
The 8 unfroze drivers were then soaked in diesel fuel along with 7 others that did not need an acetone bath. The diesel fuel dissolves the loosened tar visible on the outside, as well as some soluble tar on the inside. After 2 days of soaking, 11 out of 15 moved freely, but 4 were still sticky. Those 4 were returned to the acetone bath pickle jar. The rest were brushed, cleaned and then blow dried with compressed air.
While waiting to be greased, 1 of the 11 drivers refroze and 2 became sticky, as acetone evaporated from the grease inside. Those 3 were returned to the pickle jar of acetone.
Greasing with a modified syringe
The remaining 8 clean and free drivers were greased with a modified syringe, made from a 5 cc syringe and a 10-1.00 x 15 tall nut (for a Peugeot moped flywheel). Each driver took 0.2 to 0.6 cc of lithium grease. The syringe has to be squeezed really hard with both hands. The grease goes in slowly. The gears are rotated in between squeezes to spread out the grease. Soon the old black grease and solvent oozes out from the thin gaps, like on the left driver in the above photo. The feel goes from gritty to greasy as the new grease pushes out solvent and grit.
The last step was straitening the fingers as needed, with a needle-nose pliers.
17 stuck drivers became 8 ready to use drivers. For the other 9 the entire process was repeated, as many times as necessary. This is how new and used 1970’s Huret (and others) speedo drivers are refurbished in preparation for sale.
Huret Speedometer Parts
April 8, 2023
Huret-2.7/2.7 speedo family is on US models of Arciero, Bianchi (some), Demm (some), Garelli, Gitane, Motobecane, Negrini (some), Pacer, Snark (some), Velomec.
The speedometers in this family have a white face.
Huret-2.0/2.7 speedo family is on some US model mopeds but not many.
The speedometers in this family have a black face.
Jawa-2.2/2.2 speedo family is on ’74-83 Jawa mopeds.
A. Huret Speedometers
1. Huret-2.7 Motobecane, 2. Huret-2.7 60mm round MMI #H125F for Garelli. 3. Huret-2.0 60mm round, 4. Huret-2.7 48mm round
Good-used Huret-2.7 Motobecane speedos, unfrozen, lubed, and tested.
Long term testing: These were unfroze with acetone and re-lubricated with Tri-Flow. Then they sat on a parts shelf for four years in zip-lock bags. After that long, none had become stuck/frozen.
Huret-2.7 Motobecane speedometers: The cover is glass, so it resists scratching. Repeated exposure to sunlight fades the white background to yellow and the blue numbers to white. When the numbers are faded out the needle is still red, so speed can be estimated, like telling time on a clock with no numbers.
# price miles all are working normally unless noted
1 N/A 1780 excellent condition, works good
2 $55 5261 dark numbers, works good, but returns to 5mph not 0
3 $45 2024 barely visible numbers, works good
4 $40 7365 invisible numbers, works good
5 $35 5337 completely invisible numbers, works good
Motobecane speedo service: Accessing the needle requires removing the lower plate that hides the needle. That is done by applying pressure to the two white posts that stick through the face plate.
Good-used Huret-2.7 60 mm speedos, unfrozen, lubed, and tested.
Speed Testing: A hand drill was set to spin at a constant speed (by a stop screw in the trigger). Each speedo was spun for 30-50 seconds. The final speed was recorded.
Huret-2.7 60mm round speedometers: The test speeds all agreed quite well. These have great dampening, no jumping unless noted. The clear cover is glass, not plastic. So it does not get dull or scratched.
# price miles all are working normally unless noted
1 none 2291 test speed 21, needle moves nice, not jumpy
2 none 1827 test speed 22, needle moves nice, not jumpy
3 $65 1036 test speed 21, needle moves nice, not jumpy
4 $25 1535 test speed 21, needle sticks and wiggles
5 none 2750 test speed 21, needle moves nice, not jumpy
6 none 7332 test speed 21, needle moves nice, not jumpy
7 $70 0538 test speed 21, needle moves nice, not jumpy
8 none 4720 test speed 20, needle moves nice, not jumpy
B. Huret Speedo drivers
With 2.7 mm cable hole and M10 x 1 threads.
There are two ratio choices for many tire sizes.
1.6 ratio for 20″ outer diameter 2.25-14 is 18.5″
3.00-13, 2.50-14, 2.00-15 are 19″, 2.25-15 is 19.5″
3.00-14, 2.50-15, 2.00-16 are 20″, 2.25-16 is 20.5″
3.00-15, 2.50-16, 2.00-17 are 21″
1.8 ratio for 23″ outer diameter 2.25-17 is 21.5″
3.00-16, 2.50-17, 2.00-18 are 22″, 2.25-18 is 22.5″
3.00-17, 2.50-18, 2.00-19 are 23″, 2.25-19 is 23.5″
3.00-18, 2.50-19, 2.00-20 are 24″
Huret drivers are reversible for left or right side,
because the cable can attach from either end.
The cable must rotate clockwise, viewed from above.
With the cable on, left side ones look like a d.
Right side ones look like a letter b.
The date stamp says the week 01-52 and year 75-80.
The marking says the tire outer diameter and/or the ratio.
H127-F
axle side o.d. ratio price depth type
∅11 left 20″ D 1.6 $35.0 3.2 1-finger
dates: 2877 for 16-17″ spoke wheels
on Arciero, Gitane, Pacer, Velomec,
and some Bianchi, Demm, Negrini, Snark.
Washers may need to be added or subtracted.
H127-2K
axle side o.d. ratio price depth type
∅11 left 23″ D 1.8 $42.0 3.2 1-finger
dates: 1075, 2178 for 17-19″ spoke wheels
on Negrini KPN and others
Washers may need to be added or subtracted.
H127-FM
axle side o.d. ratio price depth type
11 left 20″ D 1.6 $59.0 3.2 2-prong
dates: 1780 for 16-17″ mag wheels
Drill a finger hole in the wheel and use H127-F.
Washers may need to be added or subtracted.
Transval 1.7
axle side o.d. ratio price depth type
12 left 22″ D 1.7 $29.0 4.0 2-prong
Transval for 17″ mag wheels
Garelli 506361.7381
axle side o.d. ratio price depth type
∅11 left 20″ D 1.6 $42.0 depth 7.0 1-finger
dates: 1780 with step-spacer for 2.25-16/17 on
’75-80 Eureka, Gran Sport, Rally Sport, Super Sport
Use H127-F with a 4mm washer behind it.
Garelli 507252.7381
axle side o.d. ratio price depth type
∅11 left 20″ D 1.6 $48.0 depth 6.0 1-finger
dates: 2877 0478 with step-spacer for 2.50-17
on ’78-82 VIP, ’83 Monza GT
(83-86 Rally SL, VIP-N, 84-86 Monza GT had CEV)
Use H127-F with a 3mm washer behind it.
Garelli 507501.7381
axle side o.d. ratio price depth type
11 left 20″ D 1.6 none ??? 2-prong
dates: unknown for 16-17″ mag wheels
on ’77-78 Super/Gran Sport LTD
Drill a finger hole in the wheel and use H127-F.
Washers may need to be added or subtracted.
Garelli 508051.7381
axle side o.d. ratio price depth type
11 left 20″ D 1.6 none ??? 2-prong
dates: unknown for 16-17″ mag wheels
on ’79-80 Super/Gran/Rally Sport LTD
Drill a finger hole in the wheel and use H127-F.
Washers may need to be added or subtracted.
Motobecane 17360
axle side o.d. ratio price depth type
∅11 left 23″ D 1.8 $55.0 4.0 2-finger
dates: 4176 1577 1777 2578 2778 for 2.25/2.50-17
Use H127-F with a 1mm washer behind it.
Motobecane 01494
axle side o.d. ratio price depth type
∅11 left 20″ D 1.6 none 4.0 2-finger
dates: unknown for 2.00-16 tire on Model 7
Use H127-F with a 1mm washer behind it.
unknown app.
axle side o.d. ratio price depth type
∅11 right 28″ 2.2 none 0.0 2-finger
dates: 4174 for 27-28″ OD bicycle tire
Greasing with a modified syringe
Preparation: All of these Huret drivers were initially frozen, tarry on the inside. Some were also tarry on the outside. Scroll down for the detailed procedure for unfreezing, cleaning and lubing. All of those listed for sale have been serviced and are ready for use.
C. Huret Speedo cables
00 head M driver head driver head driver
0 thread M thread hole hole end end
M10-1.00 M10-1.00 2.0 2.75 1.9 2.6 Huret-2.0/2.7
M10-1.00 M10-1.00 2.75 2.75 2.6 2.6 Huret-2.7/2.7
M10-1.00 M10-1.00 1.80 2.00 1.7 1.9 Huret-1.8/2.0
0 part# 000 conduit lower end upper end price Huret 2.7/2.7
UN12018 00 570 22.4″ 2.56-2.63 2.56-2.63 none silver modern replacement
502951.7386 570 22.4″ 2.65-2.72 2.65-2.72 none black orig on Garelli early 70’s
18222 00000 570 22.4″ 2.52-2.55 2.52-2.55 $42 silver orig on Motobecane 50, 40, 7
191 0000000 575 22.6″ 2.60-2.65 2.60-2.65 $27 black modern replacement
H-126FB 000 575 23.6″ 2.60-2.65 2.60-2.65 none 80’s Taiwan 600 total
506961.7386 620 24.4″ 2.65-2.72 2.65-2.72 $34 black used orig on Garelli (some)
H-126AF 00 695 27.4″ 2.60-2.65 2.60-2.65 $38 80’s Taiwan 720 total
507607.7386 720 28.4″ 2.65-2.72 2.65-2.72 none black orig on Garelli (most)
446 0000000 730 28.7″ 2.58-2.62 2.58-2.62 $42 black modern replacement
UN12191 00 810 31.9″ 2.55-2.60 2.55-2.60 $49 black original on Avanti
part# 000 conduit lower end upper end price Huret-2.0/2.7
31 0460 444 570 22.4″ 2.55-2.60 1.78-1.82 $35 black orig, 1.8-to-2.6 adapter
31 0460 444 570 22.4″ 1.78-1.82 1.78-1.82 $20 same but missing lower adapter
H-126AF 000 695 27.4″ 2.43-2.48 1.80-1.85 $30 80’s Taiwan 720 total, wire inverted
0 part# 000 conduit lower end upper end price Huret 1.8/2.0
YA12018 00 540 21.3″ 1.80-1.91 1.72-1.78 $20 silver orig on MB (Euro models)
Jawa speedometers are on 1973-83 Jawa 207 (Babetta) mopeds.
4d. Jawa Speedometers
Jawa speedometers #14002, 0-40 mph
48 mm, M10-1.0 threads, 2.2 square hole
all have been cleaned, lubed and tested
# miles price tested
# miles price speed
1 00001 $65 43.0 new
2 00002 $68 42.5 new
3 01023 $40 42.0 good-used
4 01102 $45 42.5 good-used
5 01645 N/A 46.0 good-used
6 02509 $45 41.5 good-used
#3 and #4 need the glass cleaned on the inside. This can be done with ordinary cotton swabs (Q-tips). They fit in barely through the illumination slot on the side of the can.
4e. Jawa Speedo drivers
4f. Jawa Speedo cables
0 part# 00 conduit 0 lower end upper end price Jawa
07-4780 495=19.5″ 2.05-2.15 2.05-2.15 $18 silver Jawa 207 original
VDO Speedometer Parts
April 8, 2023
VDO-1.8/1.8 speedo family is on US models of Batavus, Columbia, Hercules, Kreidler, Murray, Odyssey, Puch, Sachs, Sears Free Spirit, Solo, Sparta and Tomos mopeds 2003 to 2008.
VDO-2.0/1.8 speedo family is on US-model Derbi Variant Sport 1986-89.
Speedo drivers are listed in CEV Speedometer Parts.
VDO-2.0/2.0 speedo family is on Tomos mopeds 2008-18.
Derbi-1.9/1.9 speedo family is on US-models of Derbi Variant 1976-86.
Speedo drivers are listed in Veglia Speedometer Parts.
A. VDO Speedometers
VDO 60mm speedos on US model Puch mopeds
VDO Speedometers For Sale
30mph, Puch logo, straight needle $60
40mph, straight needle none
B. VDO Speedo Drivers
Metal Drivers (made up to 4/1978) Plastic Drivers (made from 4/1978 on)
mark price axle ratio mar side/ cable
markings 00 price axle ratio type hole open with 1 finger
21 LH 027/1 none 12.7 1.7 L d 1.8 Columbia dates 11/77
17 LH 29/54 none 12.7 1.7 L d 1.8 Columbia dates
00 LV 06/63 none 11 1.7 L b 1.8 Kynast dates 4/77
00 LV 28/18 $55.0 11 1.7 L b 1.8 unknown dates 11/79
16 LH 29/26 $55.0 11 1.6 L d 1.8 unknown dates 6/78
markings 00 price axle ratio type hole open with 2 prongs
21 LH 06/70 $52.0 11 1.7 L d 1.8 KTM 1009-050-000 dates 11/76
17 LH 29/24 $55.0 11 1.7 L d 1.8 unknown dates 4/80
21 LH 06/61 $55.0 11 1.8 L d 1.8 unknown dates 1/77 7/71
21 RH 17/17 $65.0 11 1.6 LRdb 1.8 Batavus 42.138 dates 2/77 3/78
16 RH 032/1 none 11 1.6 LRdb 1.8 Batavus 42.365 dates 4/78
markings 00 price axle ratio type hole shielded with 2 prongs
17 LH 31/17 $70.0 11 1.7 L d 1.8 Hercules dates 4/78 11/79
21 RV 023/1 $52.0 11 1.7 R d 1.8 Puch dates 5/77 7/77 10/77 4/78 12/78
00 RH 23/4 none 11 1.7 R b 1.8 Puch date 5/78 (79 Magnum)
17 RV 031/5 none 11 1.7 R d 1.8 Puch dates 7/78 8/78
23 LH 023/5 $52.0 11 1.6 L d 1.8 Sparta 06008 dates 11/74 12/76 7/77 4/78
17 RH 23/10 $52.0 11 1.7 R b 1.8 Honda PA50 44800-148-670 dates 11/77
17 RH 30/2 none 11 1.7 R b 1.8 Honda PA50 44800-148-670 dates
markings 00 price axle ratio type hole aftermarket with 2 prongs
AE-88 00000 $20.0 12 1.7 R b 1.8 Puch greased, photo below, sold “as is”
Markings: The brass end caps on VDO speedo drivers are marked with the tire or rim that they are geared for. 1970’s metal drivers are marked with the tire outer diameter (23, 22, 21, 20). 1980’s plastic drivers are marked with the rim size (19, 18, 17, 16). The tire OD’s are 4 inches more than the rim sizes, because moped tires are about 2 inches tall.
Batch marking: The marking that looks like a gear ratio is not. It’s some kind of batch number.
Tire marking: On some (21LH 6/61 and 23LH 23/5) the tire size marking disagrees with the measured gear ratio.
Side: Most (10 of 14) VDO speedo drivers are for the left side. Some (2 of 14) are for right side. Some (2 of 14) are for left or right side. On those the cable can attach in two places with opposite rotation.
AE-88 driver, greased by a modified syringe
Greasing: The 70’s metal VDO speedo drivers had a grease zerk, but the 80’s plastic ones did not. One way to grease them without a grease gun or zerk is with spray chain lube. It penetrates in thin and then soon becomes thick. Another way is with a 5cc syringe and a 10-1.00 x 15 tall nut (for a Peugeot moped flywheel).
C. VDO Speedo Cables
conduit 000 lower 000 upper
mm inch 000 end 0000 end 0 price VDO-1.8/1.8
550 21.6 1.75-1.78 1.75-1.78 28-17 black original
570 22.4 42.137 Batavus VA, HS50
565 22.2 1.75-1.78 1.75-1.78 $28.0 black original
570 22.4 42.137 Batavus VA, HS50, Starflite, Regency
570 22.4 1.75-1.78 1.75-1.78 $17.0 silver original
570 22.4 Sparta Foxi
580 22.8 1.75-1.78 1.75-1.78 $28.0 black original
590 23.2 1.75-1.78 1.75-1.78 28-17 black original
625 24.8 1.75-1.78 1.75-1.78 28-17 black original
630 24.8 328.153.0250 Puch Maxi
625 24.8 1.70-1.75 1.70-1.75 none replacement
625 24.6 MP-3150 80’s Taiwan
640 25.2 1.75-1.78 1.75-1.78 $28.0 black original
700 27.6 1.75-1.78 1.75-1.78 none black original
625 24.6 367.153.0250 Puch Magnum XK, Sears FS red
700 27.6 1.70-1.75 1.70-1.75 $20.0 replacement
700 27.6 MP-3154 80’s Taiwan
750 29.5 1.75-1.78 1.75-1.78 $20.0 replacement
750 29.5 UN12006
750 29.5 1.65-1.70 1.65-1.70 $19.0 replacement
750 29.5 D. 204200 020’s replacement
750 29.5 1.50-1.60 1.50-1.60 none replacement
750 29.5 E. 204200 010’s replacement
750 29.5 ends are too small
790 31.1 1.70-1.75 1.70-1.75 none black original
790 31.1 321.153.8250 Puch Magnum MkII, Sears FS silver
790 31.1 1.70-1.75 1.70-1.75 none replacement
790 31.1 A. 217.664 Tomos ’03-on
790 31.1 white area needs grinding 4.0 to 3.3 mm
790 31.1 1.70-1.75 1.73-1.78 none replacement
790 31.1 B. MP-3152 ’80’s Gadabout
790 31.1 white area needs grinding 4.0 to 3.3 mm
790 31.1 1.70-1.75 1.73-1.78 $22.0 modified replacement
790 31.1 MP-3152G after grinding
830 32.7 1.75-1.78 1.75-1.78 $25.0 black original
830 32.7 27.78.96 Kreidler (longer than necessary)
850 33.5 1.75-1.78 1.75-1.78 $17.0 replacement
850 33.5 UN12017 modern replacement
conduit 000 lower 000 upper
mm inch 000 end 0000 end 0 price VDO-2.0/1.8
780 30.7 1.73-1.75 1.85-1.90 $29.0
790 31.1 0A0.165.0021 Derbi Variant Sport ’86-89
??? ??.? 1.73-1.75 1.85-1.90 none
790 31.1 0E0.165.0021 Derbi DS50 ’87-89
conduit 000 lower 000 upper
mm inch 000 end 0000 end 0 price VDO-2.0/1.8
540 21.3 1.83-1.93 1.72-1.80 $20.0 grey replacement
790 31.1 YA12018 MBK mini-cycle
790 31.1 1.80-1.85 1.80-1.85 none replacement
790 31.1 C. even-better
790 31.1 white area needs grinding 4.0 to 3.3
790 31.1 1.80-1.85 1.80-1.85 $22.0 modified replacement
790 31.1 even-betterG after grinding
conduit 000 lower 000 upper
mm inch 000 end 0000 end 0 price Derbi 1.9/1.9
780 30.7 1.80-1.85 1.80-1.85 none
780 30.7 0A0.163.0021 Derbi Variant ’75-86
800 31.5 1.80-1.85 1.80-1.85 $36
800 31.5 0A0.164.0021 Derbi C5, RD50
Derbi 1.9/1.9 cables: Many Derbi speedometer cables have a kink below the speedometer that causes the inner wire to break repeatedly. The kink is from the back of the “pancake” headlight pushing the speedo cable back. There is no easy remedy. As with any speedometer cable, any kink or sudden change in direction will eventually cause the inner cable wire to break there, because as it rotates it is being bent back and forth.
D. VDO-Derbi Speedometers (Walker)
Derbi speedometers are made in Spain by Walker, under license by VDO.
VDO-Derbi #000.501.6010 on all US models 1976-85
# miles price condition
1 10447 $60.0 new cond test=16.5mph, worked good flat rim original on TT
2 01953 $70.0 new cond test=16.0mph, worked good flat rim original on TT
3 05565 $30.0 fair cond test=16.0mph, worked good
4 03702 $30.0 fair cond test=17.0mph, worked good
5 01944 none good cond test=17.0mph, worked good
6 00038 $80.0 new cond test=16.5mph, worked good
7 00001 $90.0 new cond test=17.0mph, worked good
8 00124 none new cond test=16.5mph, worked good
9 00933 $55.0 good cond test=17.5mph, worked good shown with rubber visor ring
10 04376 $35.0 fair cond test=16.0mph, worked good
11 16748 $15.0 bad needle test=18.0mph, worked good shown with rubber visor ring
12 00000 $10.0 000.821.6830 rubber visor ring (optional)
E. Veglia-Derbi Speedo drivers
Tomos Speedometer Parts
April 7, 2023
CEV 2.0/1.8 is on 1974 to 2002 US models of Tomos mopeds.
VDO 1.8/1.8 is on 2003 to 2008 US models of Tomos mopeds.
Speedo cables are listed in VDO Speedo Parts.
VDO 2.0/2.0 is on 2008 to 2018 US models of Tomos mopeds.
Speedo cables are listed in VDO Speedo Parts.
Tomos 2.0/2.7 is on 2005 to 2008 US models of Tomos Arrow.
A. Tomos Speedometers
’74-02 CEV-type 40 mph M11-0.75 thread
# Tomos# price years models face hole made by
1. 213233 none 74-79 all dk blu 2.0 CEV see note 1
2. 214838 none 80-87 all black 2.0 CEV see note 1
3. 222006 none 87-91 all black 2.0 CEV-Tomos
4. 227496 none 92-02 all black 2.0 Facomsa
’02-17 VDO-type 40 mph M10-1.00 thread
# Tomos# price years models face hole made by
5. 232803 none 03-05 all white 1.8 MMB
6. 232803 none 05-08 all white 1.8 generic
7. 232803 none 09-10 Rev white 2.0 F- logo see note 2
8. 232803 none 08-17 all white 2.0 Alpha
Note 1: #1 and 2 are listed in the CEV Speedometers section.
Note 2: #7 is on Revival-TS only. The odometer reads in kilometers.
B. Tomos Speedo Drivers
type R b is on right side, looks like a “b”
type L d is on left side, looks like a “d”
# hole ratio mark type hole depth price
001 12 1.4 14:10 R b 2.7 15.0 none
on ’05 Arrow, ’06-08 Arrow-R
#236328 metal, for 3.00-12, M12 thread
011 0 12 1.4 14:10 R b 2.7 15.0 none
on ’08 Arrow-R, ’17-18 Racing TT
#236328 plastic, for 3.00-12, M12 thread
7408 11 1.6 408 L d 1.8 03.7 70-50
on ’74-06 models with 2.25-16 front tire
#209650 for 2.25-16 (11mm axle ends)
408 12 1.6 16:10 L d 1.8 03.3 $49
on ’07-08 models with 2.25-16 front tire
#230631 for 2.25-16 (12mm axle ends)
012 0 12 1.6 16:10 L d 2.0 04.5 $29.0
on ’08-18 models with 2.25-16 front tire
#209650 for 2.25-16 (12mm axle ends)
003 12 1.7 17:10 R b 1.8 03.3 55-40
on ’02-08 Revival, Streetmate
#232801 metal, for 2.50 or 2.75-17 tire
013 0 12 1.7 17:10 R b 2.0 04.5 $27.0
on ’08-13 Revival, Streetmate
#232801 plastic, for 2.50 or 2.75-17 tire
C. Tomos Speedo Cables
This is only for ’74 to ’02 Tomos. Cables for ’03 to ’18 Tomos mopeds (except Arrow) are in VDO Speedo Parts.
mm inch ⇓ end mm ⇑ end mm price
conduit 0 CEV part# Tomos# description CEV-2.0/1.8
600 23.6 1.73-1.77 1.88-1.98 none original
600 23.6 7812/600 213.232 ’74-76 Tomos (low speedo)
700 27.6 1.73-1.77 1.88-1.98 none original
700 27.6 7812/700 213.729 ’77-79 Tomos (high speedo)
750 29.5 1.73-1.77 1.88-1.98 $42.0 original
750 29.5 7812/750 214.837 ’80-91 Tomos (more bend)
750 29.5 1.73-1.77 1.88-1.98 none original
750 29.5 7812/750 227.698 ’92-97 Tomos
750 29.5 7812/75 227.698w $15.0 inner wire only
750 29.5 1.75-1.78 1.83-1.85 $44.0 original
750 29.5 7812/750 213.729 ’98-02 Tomos
750 29.5 7812/75 213.729w $15.0 inner wire only
750 29.5 1.94-1.98 1.70-1.75 $18.0 replacement
750 29.5 Rep1/750 213.729 for ’74-02 Tomos
750 29.5 1.70-1.75 1.95-2.00 $26.0 modified replacement
750 29.5 RepT/750 Rep1 modified, see note 1
750 29.5 1.75-1.80 1.88-2.00 $15.0 incorrect replacement
750 29.5 Rep2/750 Wrong upper thread, see note 2
Note 1: RepT is made from Rep1 in 4 steps. 1. Using a tapered punch, vice and hammer, the upper end tube is bent wider at the entrance flare, from 7.2 to 7.5 mm ID, to fit the 7.4 OD lip on the CEV speedometer. 2. A C-clip, made from a section of a paper clip, is added inside the upper plastic screw cap, if it does not screw on far enough to retain the upper end tube solid, straight and centered. 3. The inner wire is inverted. 4. The 2.0+ mm weld bulge at the tip of the upper square end is ground off to make the tip a 1.9 mm square.
Note 2: Rep2 cannot screw onto a CEV speedometer because the upper end cap thread is incorrect. It is M11-1.0 instead of M11-0.75. So the conduit, with the incorrect end cap trapped on it, is useless. But the inner wire has a good use. It can replace a broken inner wire on an Tomos 227.698 cable, original on 1992 to 2002. Some might need grinding of the 1.8+ mm weld bulge on the lower end to make the tip a 1.7 mm square.
mm inch ⇓ end mm ⇑ end mm price
conduit 0 CEV part# Tomos# description Tomos-2.0/2.7
000 00.0 2.60-2.60 1.95-1.95 $00.0
000 00.0 0000/750 236.388 ’05-08 Tomos Arrow, Arrow-R
Speedometer Parts Menu
April 7, 2023Select:
Service
..Info
Speedometers on vintage mopeds are all mechanical type, not electronic. A driver or sender on the front wheel rotates the cable. The cable, with a spinning wire inside, goes up to the speedometer head. Inside the gauge a spinning magnet moves the needle. An odometer or mileage meter is also driven by the cable, with gears.
Speedo families are heads, cables and drivers that have certain things in common. The head and driver threads are the same. The head and driver square cable holes are the same. So heads, cables and drivers within the same family all interchange.
Square cable holes are a little bigger than square cable ends. A 2.0mm hole takes a 1.85 to 1.95mm cable, and a 2.75mm hole takes a 2.55 to 2.70mm cable. This is a source of confusion.
Speedo drivers: On the front wheel is small gear box that changes the wheel rotation into the cable rotation.
Speedo driver Side means what side of the front wheel would make the driver rotate the cable clockwise, viewed from above. Reversing the side by flipping the front wheel reverses the speedo cable rotation.
Speedo driver Type: Most drivers have the cable exiting below the axle. Most left side drivers are type d because they look like a letter “d”. Most right side ones are type b because they resemble letter “b”. But some type d’s are for right side, and some type b’s are for left. This is because the worm gear teeth can be wound left or right, like a left or right hand thread bolt.
Speedo driver Ratio means how many times the cable rotates for each wheel rotation. Larger diameter tires require higher driver ratios to achieve the same cable rotation. Smaller tires require lower ratios. The gear ratio is related to the angle of the gear teeth as well as the tooth counts.
Speedo cables can be different lengths for the same bike. Aiming the speedo driver more upward requires a shorter cable. Aiming the driver more downward requires a longer cable. When the front suspension goes over bumps, the speedo cable has to flex up and down. Aiming the driver 90 degrees to the suspension travel makes the least stress on the cable and the least interference with the suspension movement. Most newer bikes are that way. But then the cable hangs out a lot, and requires a fender eyelet to help prevent the long cable from getting snagged on things when parking or maneuvering.
CEV Speedometer Parts
April 7, 2023
CEV-2.0/2.0 speedometer family is on US models of Italian mopeds, Baretta (some), 80’s Cosmo (some), Bianchi (some), Gadabout, Italvelo (some), Intramotor Gloria, Malaguti (some), Motobecane Sebring, Motobee, Motomarina, Motron (some), Negrini (some), Rizzato, Safari, Snark (some), Testi (some), Vespa Grande (some), West Wind, Yankee Peddler, and some non-Italian mopeds, Carabela, KTM Foxi.
CEV-2.0/1.8 speedo family is on 1974 to 2002 Tomos mopeds.
Speedo drivers and cables are listed in Tomos Speedometer Parts.
CEV-1.8/2.0 speedo family is on some Italian mopeds or mini-cycles
CEV-2.0/2.7 speedo family is on some Italian scooters, mini-cycles or motorcycles.
A. CEV Speedometers
CEV 2.0/2.0 60mm speedometers in Nov 2024
Speed testing: They are all tested on the same drill, for comparison of speed accuracy. The odometer accuracy never varies – it either works or not. It takes up to 3 minutes at 20mph to click off one mile. Each speedometer is tested for at least 3 minutes, some over 10 minutes all together. Once all of the 17 tested speeds are retested and verified, an average speed can be calculated. First the highest and lowest are ignored. Then the remaining 15 test speeds are added up and the sum is divided by 15 to give 23.8 average. You can see that most of the speedos tested at 23, 24, or 25 mph. The accuracy is an important factor in determining the price. The condition of the glass, face, and needle are also important.
CEV-2.0/2.0 60mm round speedometers: 15 out of 17 were originally frozen. They have all been cleaned, checked, and lubed, and tested.
# dia. miles price tested
# mm miles price speed error odometer
1 60 00130 $70 40 -1 odo works
2 60 00004 $30 22 -19 odo works, speedo reads very low
4 60 00009 $30 40 –1 no odo (no miles)
5 60 04726 $40 37 -4 odo works, ugly, broken light
6 60 00002 $30 42 +1 no odo (no miles)
7 60 00002 $85 42 +1 odo works, goes to 60 mph
8 60 00359 $65 41 -0 odo works
Vespa Grande came with three different 60mm speedos, CEV blue #307252, Veglia black #307168, and CEV black #307872.
B. CEV Speedo Drivers
Rinvio per contachilometri CEV 7408
CEV speedo drivers come in a wide range of styles, sizes, and ratios, perhaps 100 kinds. Here are only about half of them, the ones with small axle holes, mostly 11 or 12 mm, for lightweight motorcycles, mini-cycles and mopeds.
CEV speedo driver part numbers in the 1960’s and 70’s all had a 4-digit number starting with 7. They were sequential, here starting at 7121. Most older ones (lower part numbers) had higher ratios for larger tires 18 and 19 inch. But only the last 3 digits were stamped on the driver, at the brass end cap. After the mid 1980’s the 3-digit stamped-on numbers replaced 4-digit numbers. So a CEV 7416 is the same as a CEV 416. But some changed, like the CEV 7408 with an 11 mm axle hole became the CEV 408 with a 12 mm axle hole.
’82 MMI catalog
Grease zerk or cap: CEV drivers in the 1960’s, 70’s and early 80’s all had grease zerks for applying grease with a grease gun, up to number 7429. The 1982 Marina Mobili Parts Catalog and 1985 price list contain 9 CEV drivers from 7121 to 7429 for mopeds, mini-cycles and lightweight motorcycles. Some time after that, in the late 1980’s or 90’s, starting with number 7430, the zerk was discontinued, replaced at first by a small non-removable cap, and then a large removable grease cap. With that you just push the grease in with your finger tip. That was the most visible thing that changed. Some versions also got thinner. Here we use the older 4-digit numbers for the older grease zerk versions, and the newer 3-digit numbers for the newer grease cap versions.
Right or left: The cable must rotate clockwise, looking down from the speedometer. So for each side of the bike there are right or left types. It happens that CEV worm gear drives are all wound in the same direction, like a normal bolt. There are no reverse threads inside. So the shape of the speedo driver determines what side of the bike it goes on. Ones that resemble a “d” go on the left, and “b” ones go on right. This is true for CEV speedo drivers, but not all other makes.
1. driver with grease zerk
2. grease cap permanent
3. grease cap removable
ID# Index: look up the ratio, then scroll down to it
CEV 001 1.4 003 1.7 004 1.7 011 1.4 012 1.6 013 1.7
CEV 121 1.8
CEV 221 1.8 238 1.9 240 0.9 252 1.5 278 1.2 287 1.3 288 1.1 289 1.6 290 1.6? 296 1.7
CEV 303 1.7 322 0.9 324 1.7 337 1.2 341 0.9 358 1.9 373 1.8 375 1.9
CEV 402 1.3 403 1.8 408 1.6 416 1.6 419 1.3 421 1.8 422 1.6 428 1.7 429 1.8 430 1.8 442 2.1 456 1.6 474 1.7 486 1.7
CEV 508 1.9 536 1.8 543 1.3
CEV#: 4-digit has grease zerk, 3-digit has grease cap, 2-digit has none
CEV# color: violet is from the ’82 MMI catalog (Marina Mobili Inc).
ratio color: black is from ’82 MMI, green is measured, gray is guessed
xx# axle ratio mar side/ cable
xx# hole ratio mark type hole depth price
7341 11 0.9 341 R b 2.0 07.5 $47
for OD 11.2 3.00-5
.
7240 12 0.9 240 L d 2.0 07.5 none
for OD 11.2 3.00-5
.

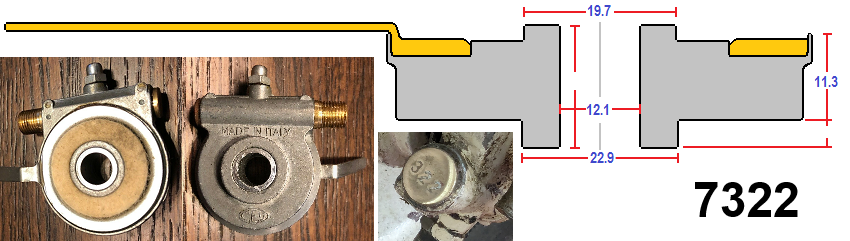

7322 12 0.9 322 L d 2.0 20.6 none
for OD 11.2 3.00-5
Benelli CB1160/B ’69-73 Buzzer (3.00-5)
7xxx 10 1.0 xxx R b 2.0 03.7 none
for OD 12.4 3.50-5, 4.00-5, 3.00-7
Di Blasi 172 ’74-79 R2 (3.50-5)
1979-1997 Di Blasi R7 had Huret
xxx 0 10 1.0 xxx L d 2.7 03.7 none
for OD 12.4 4.00-5, 3.00-7, 2.50-8
Di Blasi 2343 ’97-on R7E (4.00-5)
7xxx 12 1.1 xxx R b 2.7 00.0 none
for OD 13.7 3.50-7
Benelli CB2157 ’71-72 Hurricane (3.50-7)
maybe ’70-72 Fantic Broncco TX6 (3.50-7)
7278 12 1.2 278 R b 2.7 20.6 none
for OD 14.9 3.50-8, 2.75-9 or 2.50-10
Benelli K55/B ’69-71 Hornet (2.75-9)
’67-72 Dynamo Compact (3.50-8)
7337 12 1.2 337 R b 2.7 22.0 $47
for OD 14.9 3.50-8, 2.75-9 or 2.50-10
.
7287 11 1.3 287 R b 2.0 03.7 none
for OD 16.2 3.00-10 or 3.50-10
.
7288 12 1.3 288 R b 2.0 06.8 none
for OD 16.2 3.00-10 or 3.50-10
’68-70 Garelli Broncco TC4, TS4 (3.00-10)
7402 11 1.3 402 R b 2.0 03.7 none
for OD 16.2 3.00-10 or 3.50-10
.
7419 11 1.3 419 L d 2.0 03.7 none
for OD 16.2 3.00-10 or 3.50-10
.
435 12 1.3 435 L d 1.8?03.7? none
for OD 16.2 3.00-10 or 3.50-10
Derbi 0E01620051 ’87-89 DS50
543 11 1.3 543 L d 2.0 03.7 none
for OD 16.2 3.00-10 or 3.50-10
.
7xxx 12 1.3 xxx R b 2.7 03.7none
for OD 16.2 3.00-10
Benelli K104 ’70-73 Dynamo Trail, II
7252 12 1.5 252 R b 2.7 00.0 none
for OD 18.7 2.50-14
Benelli G716 ’71-73 Mini Enduro
7422 10 1.6 422 0 0 2.0 00.0 none
for OD 19.9 2.00-16 or 2.25-16
.
7408 11 1.6 408 L d 1.8 03.7 70-50
for OD 19.9 2.00-16 or 2.25-16
on ’74-06 Tomos, ’78-80 Rizzato
012 0 12 1.6 16:10 L d 2.0 04.5 $29.0
plastic India-made for Tomos ’74-’18 most
Tomos 209650
7289 11 1.6 289 L d 2.0 03.7 none
for OD 19.9 2.00-16 or 2.25-16
’78-80 Rizzato Califfo 16″
7290 11 1.6? 290 L d 2.0 03.7 none
for OD 19.9 2.00-16 or 2.25-16
’78-80 Rizzato Califfo 16″
7416 12 1.6 416 R b 2.0 03.7 $49
for OD 19.9 2.00-16 or 2.25-16
.
456 12 1.6 456 L d 2.0 05.3 $47
for OD 19.9 2.00-16 or 2.25-16
Motron 0122
013 0 12 1.7 17:10 R b 2.0 04.5 $27.0
plastic India-made for Tomos ’02-13 Rev, Sm
Tomos 232801
7428 11 1.7 428 R b 2.0 00.0 none
for OD 21.1 2.50-16, 2.25-17 or 2.50-17
.
474 12 1.7 474 L d 2.0? 00.0 none
1987 Motomarina Sebring
shield lip on finger ring
7296 11 1.7 296 L d 2.0 00.0 none
for OD 21.1 2.50-16, 2.25-17 or 2.50-17
MMI J103 Motron 16″, Sebring 17″
also Negrini Harvard 16″
7303 11 1.7 303 R b 2.0 07.5 $49
for OD 21.1 2.50-16, 2.25-17 or 2.50-17
shield lip on finger ring and outer step
7324 11 1.7 324 L d 2.0 03.7 $69
for OD 21.1 2.50-16, 2.25-17 or 2.50-17
Cimatti C3540 shield lip on finger ring
486 12 1.7 486 L d 1.8 03.7 none
for OD 21.1 2.50-16, 2.25-17 or 2.50-17
Derbi 0F01620051 ’87-89 Variant Sport
004 12 1.7 none R b 2.7 12.8 $39
for OD 21.1 2.50-16, 2.25-17 or 2.50-17
58556 ‘93-12 Aprilia Scarabeo 50-100
7121 11 1.8 121 L d 2.0 03.7 none
for OD 22.4 2.25-18 or 2.00-19
.
7373 11 1.8 373 R b 2.0 03.7 none
for OD 22.4 2.25-18 or 2.00-19
.
7221 11 1.8 221 L d 2.0 03.7 none
for OD 22.4 2.25-18 or 2.00-19
wide shield lip on finger ring
430 11 1.8 430 L d 2.0 07.5 none
for OD 22.4 fits Ward 450SS with the hub
hole moved inward, and a regular CEV 2.0 cable
7429 12 1.8 429 R b 2.0 03.7 none
for OD 22.4 2.25-18 or 2.00-19
.
7421 12 1.8 421 R b 2.0 07.6 none
for OD 22.4 2.25-18 or 2.00-19
.
536 12 1.8 536 R b 2.7 03.7 none
for OD 22.4 2.25-18 or 2.00-19
.
7239 12 1.8 239 L d 00.0 none
for OD 22.4 2.25-18 or 2.00-19
Benelli G227/3 Riverside 450SS
7358 9.7 1.9 358 R/L 2.0 03.7 none
for OD 23.6 2.25-19, 2.75-18 or 2.50-19
reversible right or left
7403 12 1.9 403 R b 2.7 22.0 $47
for OD 23.6 2.25-19, 2.75-18 or 2.50-19
.
7375 12 1.9 375 R b 2.0 03.7 none
for OD 23.6 2.25-19, 2.75-18 or 2.50-19
conduit screws on directly, no end cap
508 15 1.9 508 L d 2.7 23.5 $47
for OD 23.6 2.25-19, 2.75-18 or 2.50-19
.
7238 15 1.9 238 R b 2.7 00.0 none
for OD 23.6 2.25-19, 2.75-18 or 2.50-19
Benelli M92/2 Riverside 125, Cobra 125
442 12 2.1 442 L d 2.0 03.7 none
for OD 26.1 2.50-21 or bicycle 26 x 2.0
ultra-light off-road like a Derbi RD50
Tomos speedo drivers: In mid-2008 Tomos in Slovenia began outsourcing most production to India. Components also changed to India-made, such as the speedo driver. The part number did not change, but the square cable hole grew from 1.8 to 2.0 mm. This caused the square cable to slip often. The simple no-cost remedy is to smash the square 1.7 x 1.7 end of the cable into a rectangle 1.9 x 1.5.
Gear ratios: Several known tire sizes and gear ratios were used to calculate all others. First the tire outer diameter (OD) for a 1.6 ratio was guessed. Then all the other tire OD’s were calculated from that. The guess was revised, tire OD’s recalculated and compared. This was repeated, to finally match the known values.
Tire size: These vintage tires all have a 100% profile. The height is 100% of the width. So a 2.25-17 tire has an outer diameter of 17 + 2.25 + 2.25 = 21.5 inch. A 2.75-16 also has that same OD. Different tire sizes can have the same outer diameter.
gear for Tire sizes for CEV gear ratios
ratio OD tire size OD tire size OD tire size OD
0.9 11.2 0.00-11 00.1 3.00 - 5 11.0
1.0 12.4 3.50 - 5 12.0 2.50 - 7 12.0 4.00 - 5 13.0
1.1 13.7 3.00 - 7 13.0 2.50 - 8 13.0 3.50 - 7 14.0
1.2 14.9 2.75 - 9 14.5 3.50 - 8 15.0 2.75-10 15.5
1.2 14.9 3.50 - 8 15.0 2.50-10 15.0
1.3 16.2 3.00-10 16.0 3.25-10 16.5
1.4 17.4 2.50-12 17.0 2.75-12 17.5 3.00-12 18.0
1.5 18.7 2.25-14 18.5 2.50-14 19.0
1.6 19.9 2.75-14 19.5 2.00-16 20.0 2.25-16 20.5
1.7 21.1 0.00-11 00.1 2.50-16 21.0 2.75-16 21.5
1.7 21.1 0.00-11 00.1 2.00-17 21.0 2.25-17 21.5
1.8 22.4 3.00-16 22.0 2.75-17 22.5 2.50-18 23.0
1.8 22.4 2.50-17 22.0 2.25-18 22.5 2.00-19 23.0
1.9 23.6 2.75-18 23.5 2.25-19 23.5 2.50-19 24.0
2.0 24.9 0.00-11 00.1 3.00-19 25.0
2.1 26.1 2.50-21 26.0 0000 26 x 2.0 bicycle 26.0
C. CEV Speedo Cables
mm inch ⇓ end mm ⇑ end mm price
conduit 0 CEV part# part# description CEV-1.8/2.0
575 22.6 1.80-1.90 1.60-1.65 $47.0 original
mm inch ⇓ end mm ⇑ end mm price
conduit 0 CEV part# part# description CEV-2.0/2.0
575 22.6 1.85-1.90 1.90-1.95 $49.0 original
575 22.6 7804/575 C3530 Cimatti
600 23.6 1.85-1.90 1.90-1.95 $49.0 original
600 23.6 7804/600 307253 Vespa Grande w/blinkers
650 25.6 1.85-1.90 1.90-1.95 $44.0 original good-used
650 25.6 7804/650 0010B ’80 Motron
wire only 1.85-1.90 1.90-1.95 $17.0 original
700 27.6 1.85-1.90 1.90-1.95 $49.0 original
700 27.6 7804/700
750 29.5 1.85-1.90 1.90-1.95 none original
750 29.5 7804/750 ’78-79 0010 Motron
750 29.5 1.94-1.98 1.85 x 1.6 $32.0 replacement
750 29.5 RepC/750 Rep1 modified see note 1
800 31.5 1.85-1.90 1.90-1.95 $49.0 original
800 31.5 7804/800
Note 1: RepC is made from Rep1 in 4 steps. 1. Using a tapered punch, the upper end tube is bent wider at the entrance flare, from 7.2 to 7.5 mm ID, to fit the 7.4 OD lip on the CEV speedometer. 2. A C-clip, made from a section of a paper clip, is added inside the upper plastic screw cap, if it does not screw on far enough to retain the upper end tube solid, straight and centered. 3. The 2.0+ mm weld bulge at the tip of the lower square end is ground off to make the tip a 1.9 mm square. 4. The 1.7 mm upper square end is formed into a slight rectangle by gentle hammer taps.
mm inch ⇓ end mm ⇑ end mm price
conduit 0 CEV part# part# description CEV-2.0/2.7
500 19.7 2.60-2.65 1.88-1.98 $37.0 unknown application
D. CEV Speedo Housings
CEV 04820 is a handlebar-mounted black plastic housing for a 60 mm diameter speedometer.
9408 0 none with clamps, indicator lights, key switch
9408.1 none with clamps, indicator lights
9408.2 none with clamps, key switch
04820 none with clamps, plain
04820b $33.0 without clamps, plain
19323 $7.00 clamp original new
19324 $1.00 clamp screw original M5 x 16 allen
3648 0 $0.50 clamp nut M4
19323r $7.00 replacement clamp-screw-nut M5x25
CEV 04918 is a headlight mounted black plastic housing for a 60 mm speedometer.
It only fits on a CEV 1211 thin type headlight.
04918 $19.0 speedo housing for 1211 headlight
Bosch Menu
March 25, 2023Select:
Bosch 90mm Magnetos
Bosch 80mm Magnetos
Information

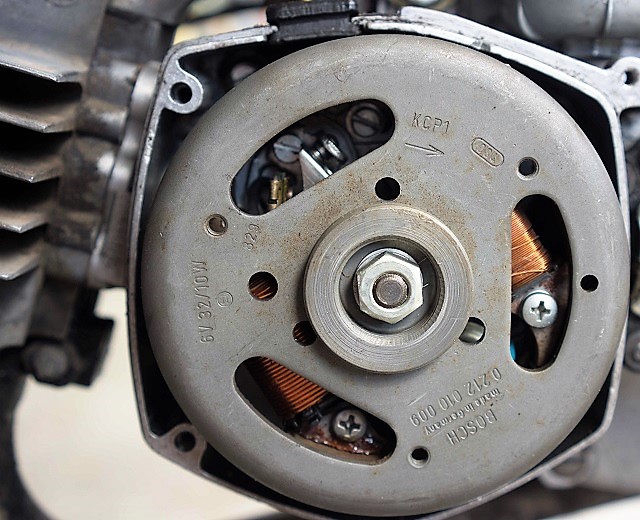

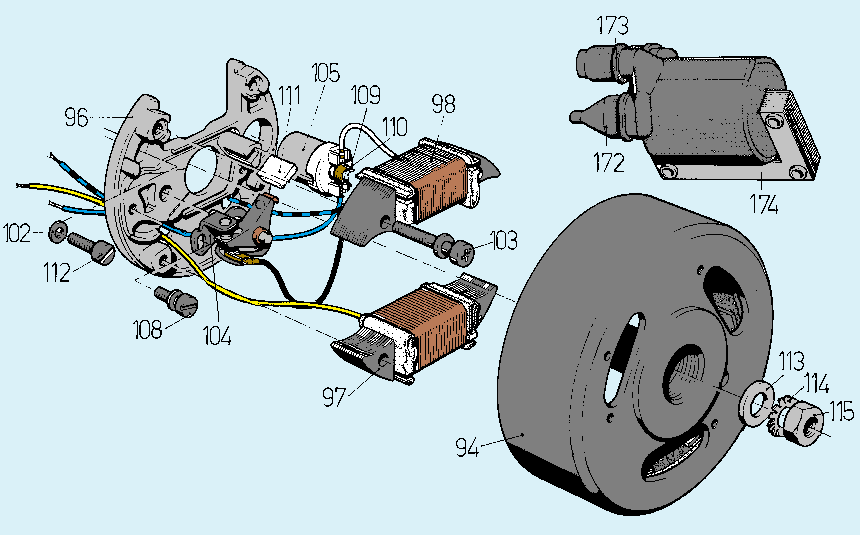

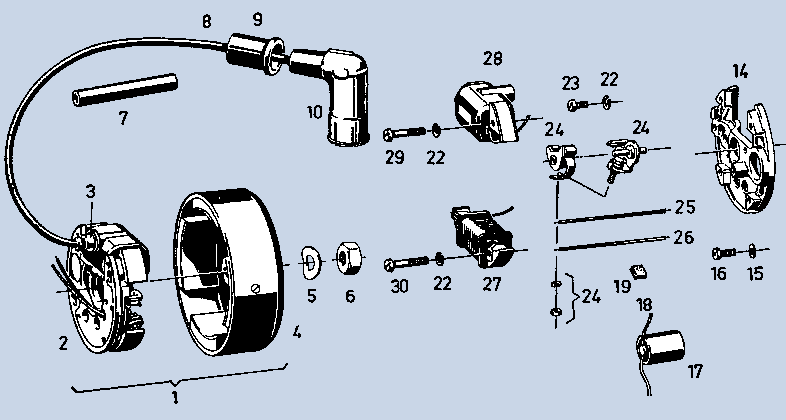

Welcome. The magneto has two separate functions, 1) produce sparks for ignition, 2) produce electric power for lights.
1) Ignition Pulses: The magneto produces precisely timed pulses, which are transformed into sparks by an internal or external coil.
2) Lights Power: The lights power is normally 6 volts alternating current (6V AC). Normally the correct bulbs are used, and none are burned out. But under certain circumstances the voltage can be less, like 3 volts, or more, like 10 volts. When two or more bulbs share the same generator wire, and one of the bulbs burns out, the others will get an over-voltage, like 8 or 10 volts, become instantly bright and soon burn out. The total watts of the bulbs has to match the watts of the generator, for the voltage to be 6 volts. If the bulb watts is more, then the voltage is less so the light is dim. Bosch makes magnetos with extra generator coils, one for each light, to eliminate the over-voltage and under-voltage problem.
Magneto-Generator History: Moped magnetos changed as moped lights changed over the years. In the 1960’s not many countries worldwide had laws about the brightness of moped lights or the placement of switches and buttons. Mopeds did not have brake lights or extra generator coils for them. A typical 1960’s moped had a 15 watt headlight and a 2 watt tail light, both powered by the same 17 watt generator coil.
Starting in 1972, the USA adopted safety standards for motorcycles and motor-driven cycles (Mopeds had not been defined yet). Lights, rims, brakes and tires had to be US DOT approved. Tail lights had to shine to the sides. Engine stop switches/buttons had to be reachable by the right thumb, while horn and light switches had to be reachable by the left thumb. Switches and fuel petcocks had to be labeled and say what they do. Brake lights were required.
Then in historic 1976 the USA adopted safety standards specifically for mopeds and motorized bicycles. The brake light had to be brighter (at least 10 watts) and not cause the headlight to get dimmer.

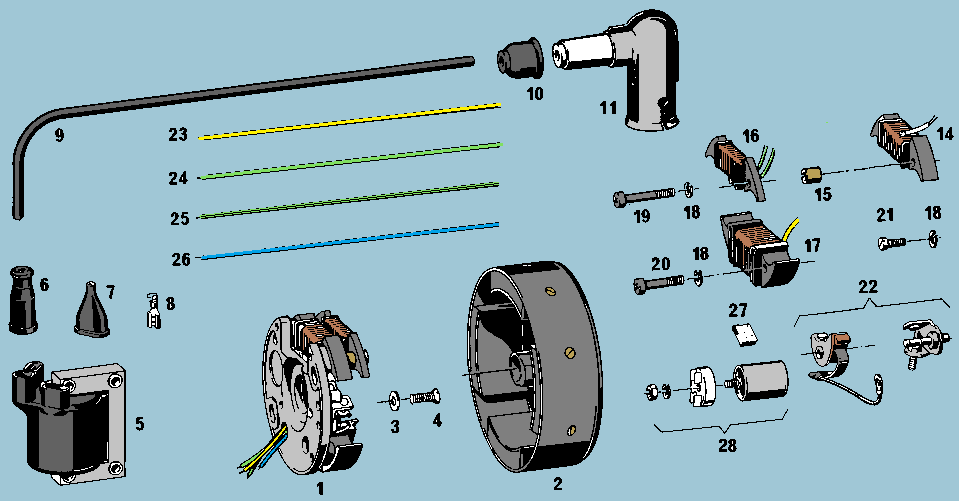

Internal and External Ignition Ground: To supply the required independent brake light power, there were two solutions. 1) Internal Ignition Ground, where the ignition source coil internal ground was kept the same, and an extra generator coil was added or 2) External Ignition Ground, where the ignition source coil internal ground was relocated to outside of the engine and used as a brake light power source. Bosch made both magneto types, in both sizes 80 and 90 mm.

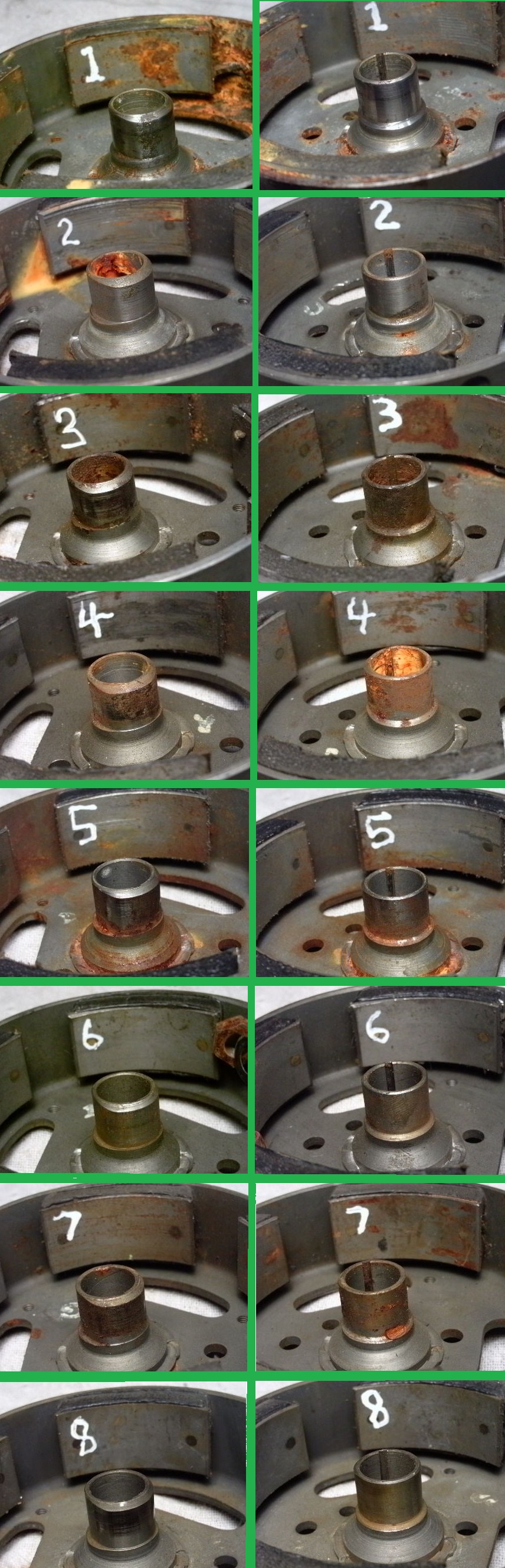

Swapping Flywheels: Nearly identical flywheels can have different timing angles. That means the woodruff key groove is at a different angles to the “bump” on the points cam. So you can swap flywheels but your ignition timing would be way off. more to follow…
Over 200 quality Bosch magneto parts attended the reunion.

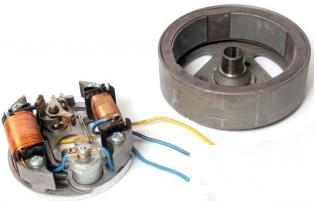

The 80 mm “small” ones are left, the 90 mm “big” ones are right.
Not shown, the many engines and bikes the used parts came from.
It don’t come easy. Parts catalogs list the bike maker part numbers, but most do not also give the component maker part number.

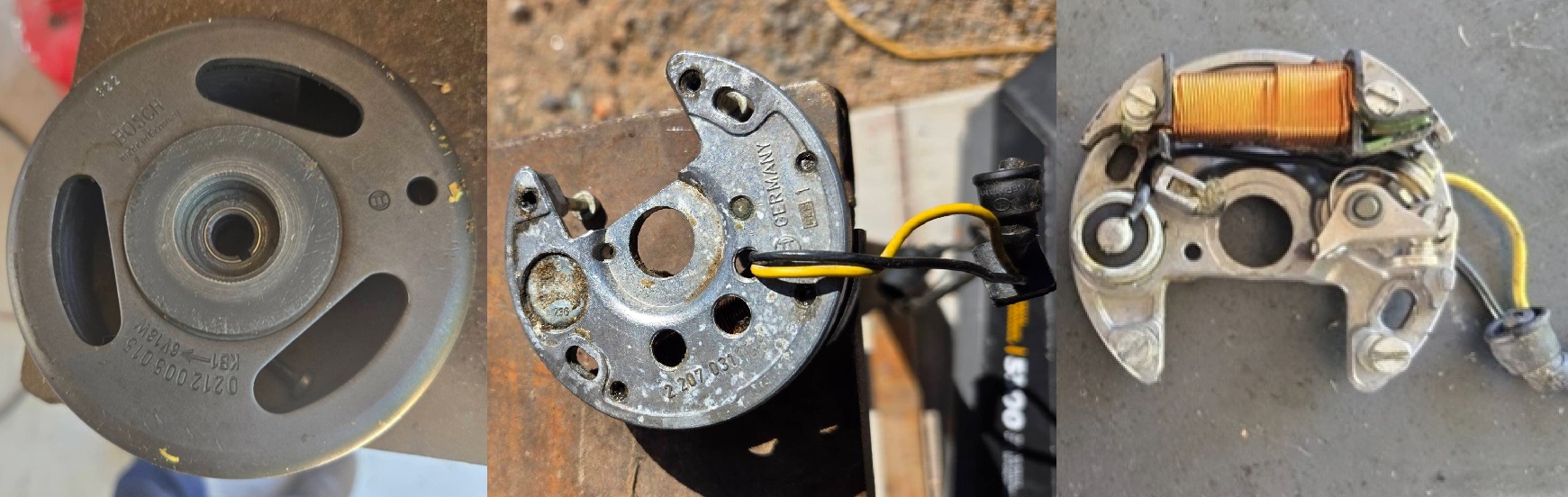

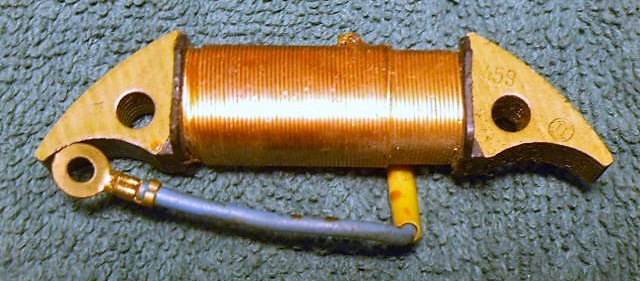

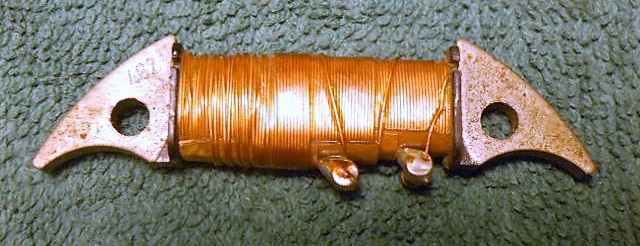

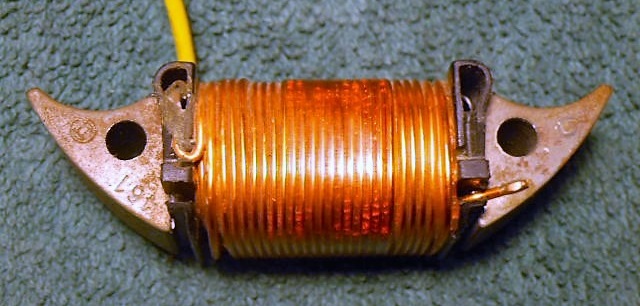

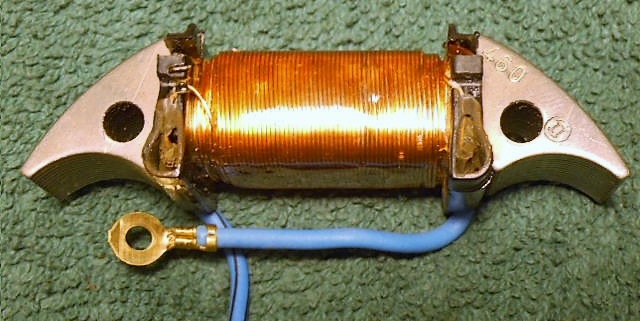

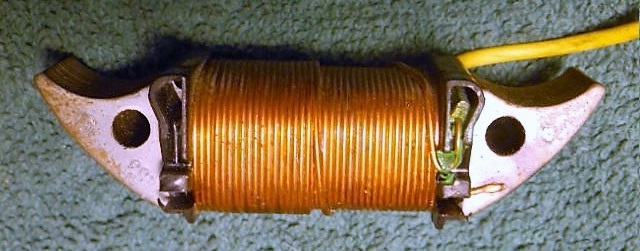

Bosch coil part numbers come from the packaging of new coils. Sometimes empty ripped-up original boxes are pieced back together, to get the part number translation, such as Sachs-to-Bosch. 1970’s-80’s armatures also have the last 3 digits stamped on.

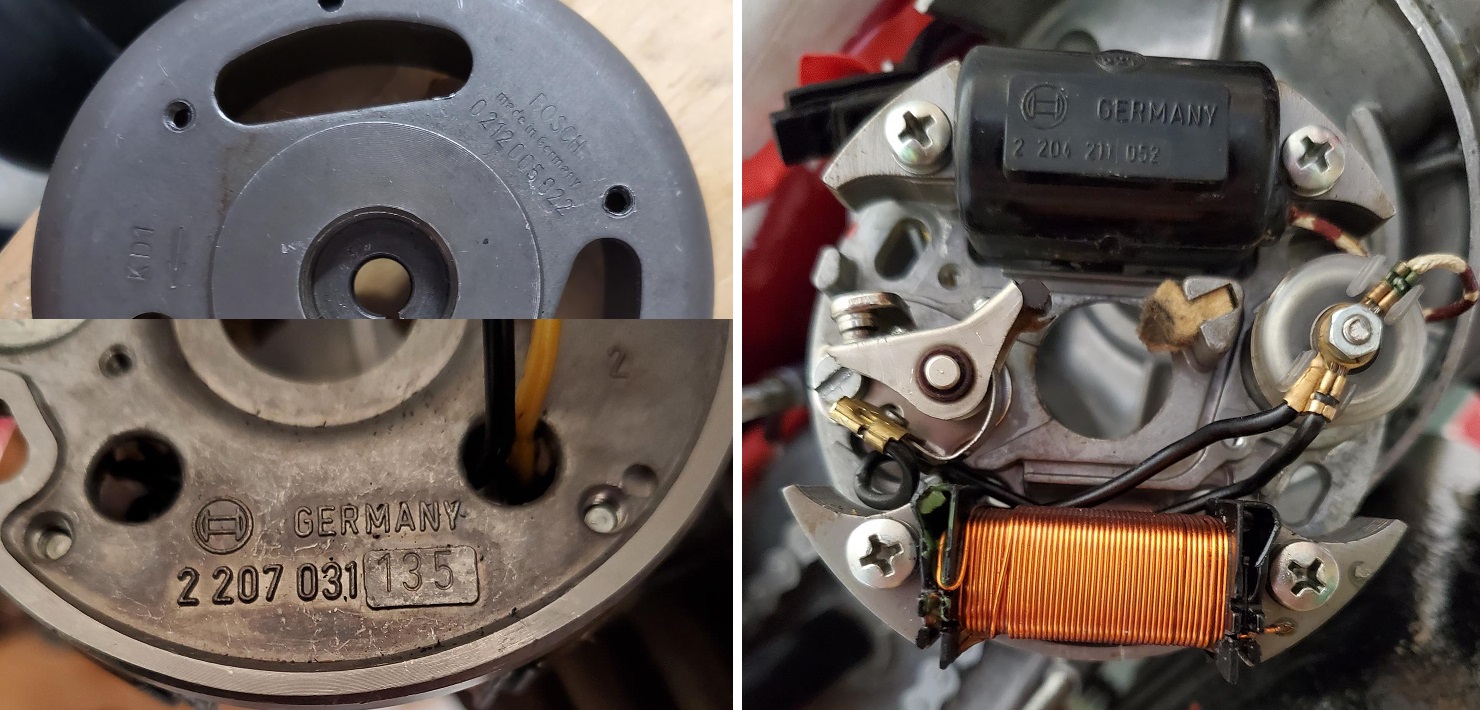

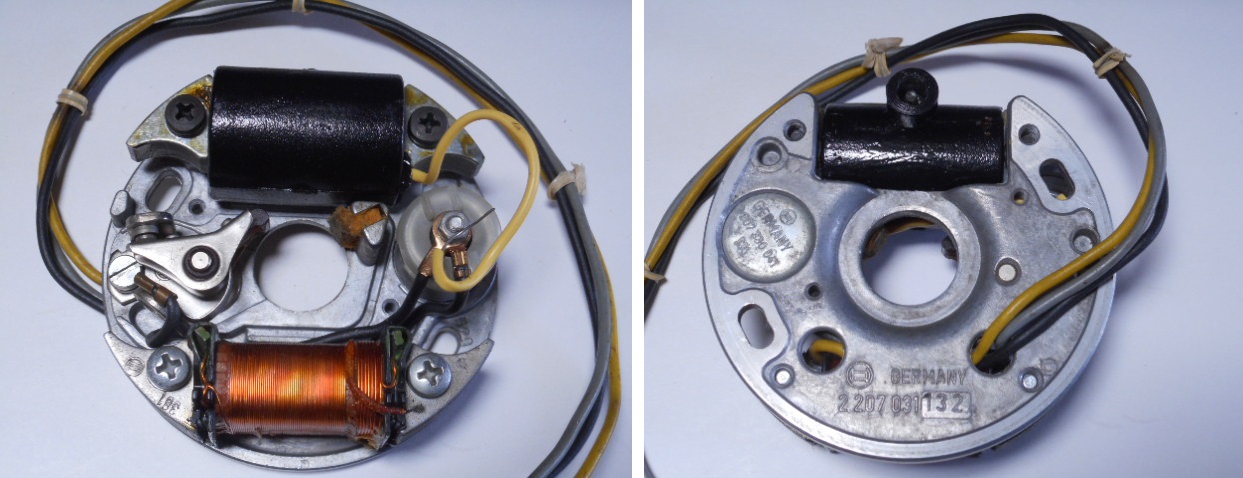

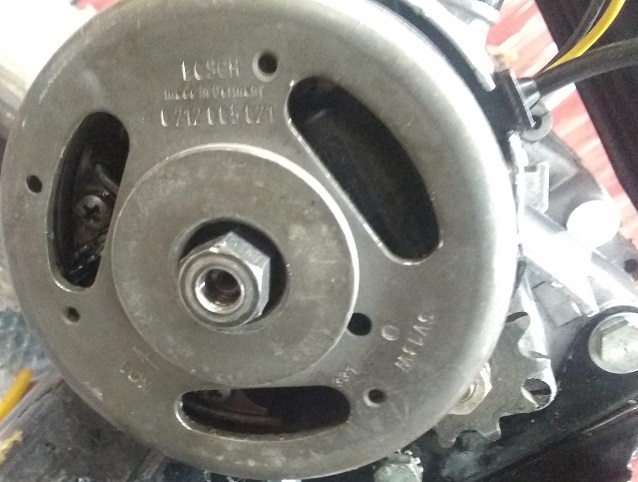

Bosch stator part numbers are on the back of the base plate. The first 7 digits are cast in, the same for all. The last 3 digits of the stator assembly part number are stamped on by the factory when the coils are attached.

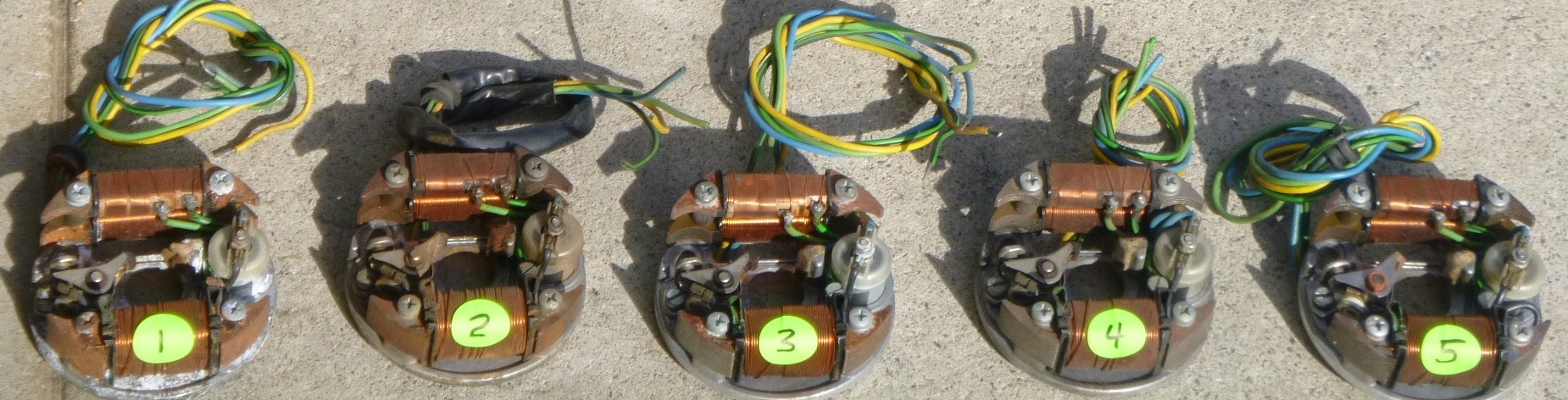

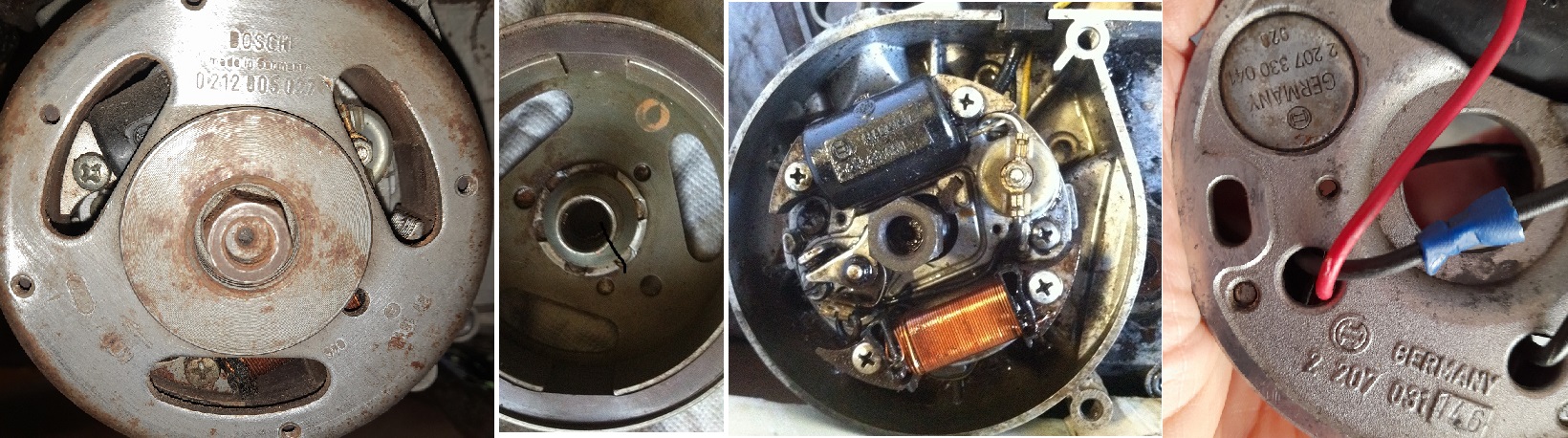

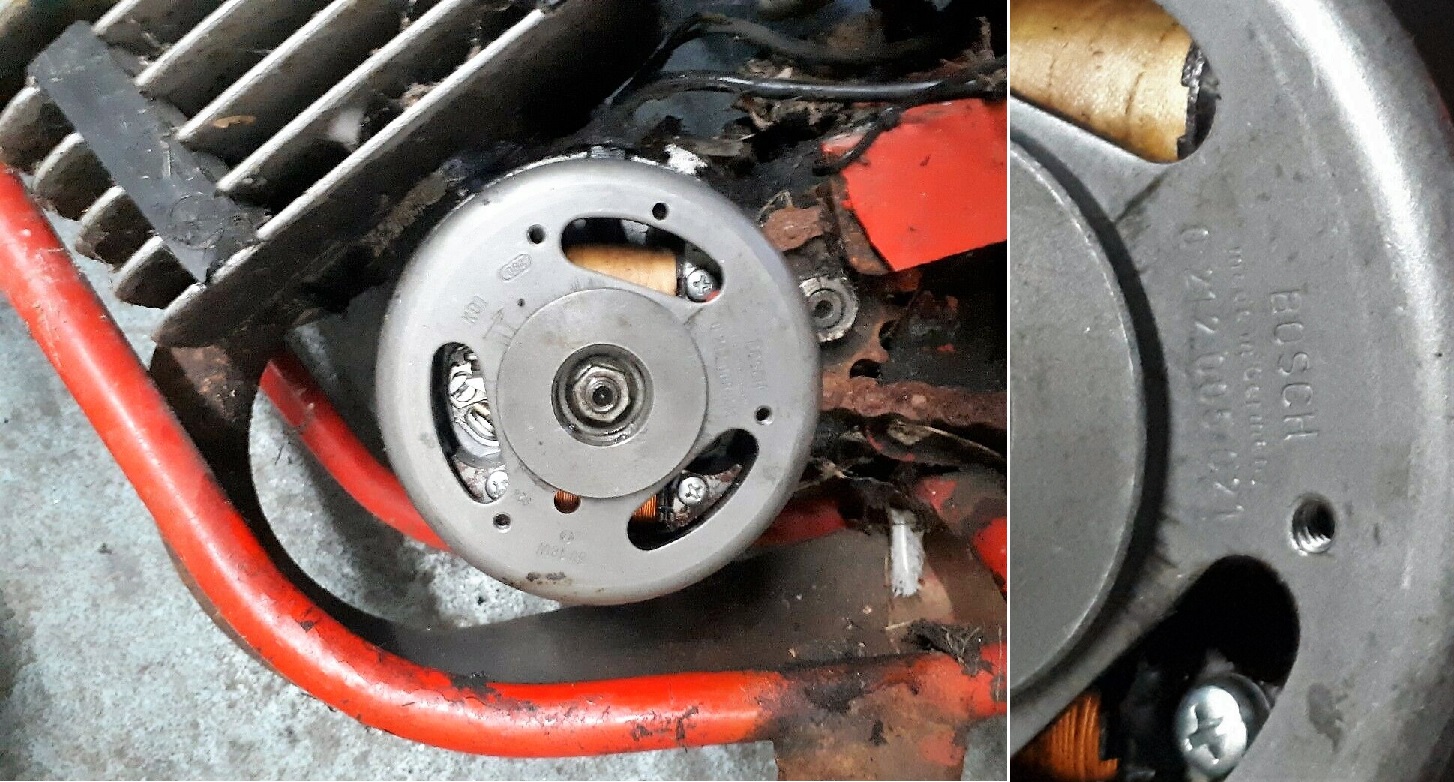

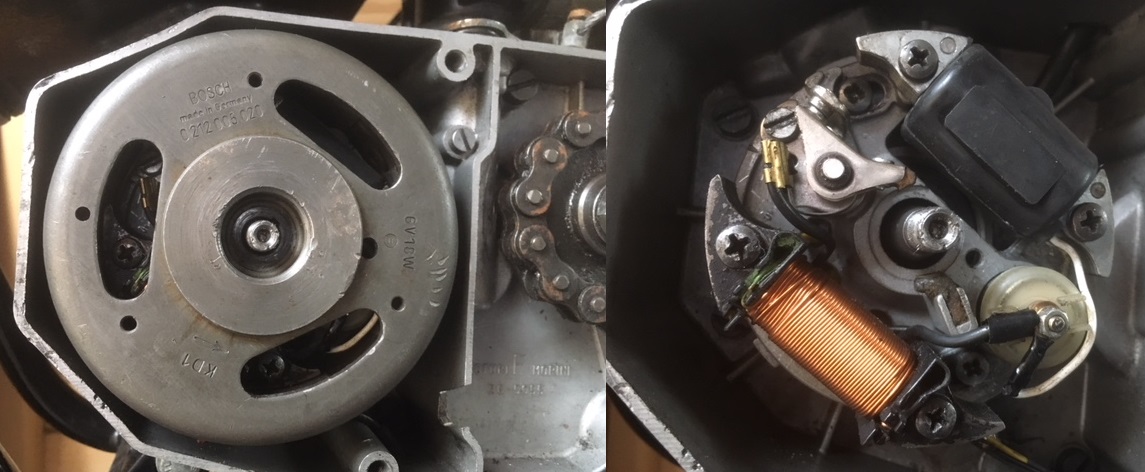

Bosch stator identification: Each engine has a different and unique rubber grommet for the wires to pass through. A pile of used moped stators can be sorted by grommet type, which is engine type. The ones missing grommets can be matched to the grommet ones by stator part number. This is done without any books or manuals. Specifications, illustrations, or part numbers from books, manuals, internet photos are additional forms of ID. All forms of ID must agree.
Bosch 0212 416 016 is a 12V 75w magneto for a vintage snowmobile. It has a 75 watt lights coil and a flywheel inner diameter of 110mm.
