Leleu Wheel Parts

Contents:

D. Leleu loose bearings (made in France)
20. 2-chain hub  ∅80 Puch Peugeot Batavus Kreidler Sparta MB
21. Front hub      ∅80 Puch Peugeot Batavus Kreidler Sparta MB
22. 2-chain hub  ∅70 Batavus, Puch Rigid, Peugeot 102, MB 7
23. Front hub      ∅70 Motobecane 7

E. Leleu sealed bearings (made in France)
25. 2-chain hub  ∅80 ’80-86 Puch, ’78-83 Peugeot 103 SP

F. Leleu-Compatible (made in France)
26. 2-chain hub  ∅80 sealed xxx ’70-82 Motobecane
27. Front hub      ∅80 loose balls ’70-82 Motobecane
28. 2-chain mag ∅80 sealed xxx ’77-82 Motobecane
29. Front mag     ∅80 loose balls ’77-82 Motobecane

G. Taiwan

H. Korea






 D. French Flag Leleu loose balls



Leleu cast aluminum hubs are made in France. E. Leleu et Cie (E. Leleu and Co.) made quality drum brake hubs for mopeds and small motorcycles, since at least the 1950’s.

Leleu rough

Leleu hubs are original on Peugeot, Motobecane, Solex, Sparta, Puch, Batavus, and Kreidler mopeds. 1970’s US models were mostly all 80mm brake drums, with some 70mm. But earlier French mopeds in the 1950’s and 60’s commonly had 100 mm, brake drums.

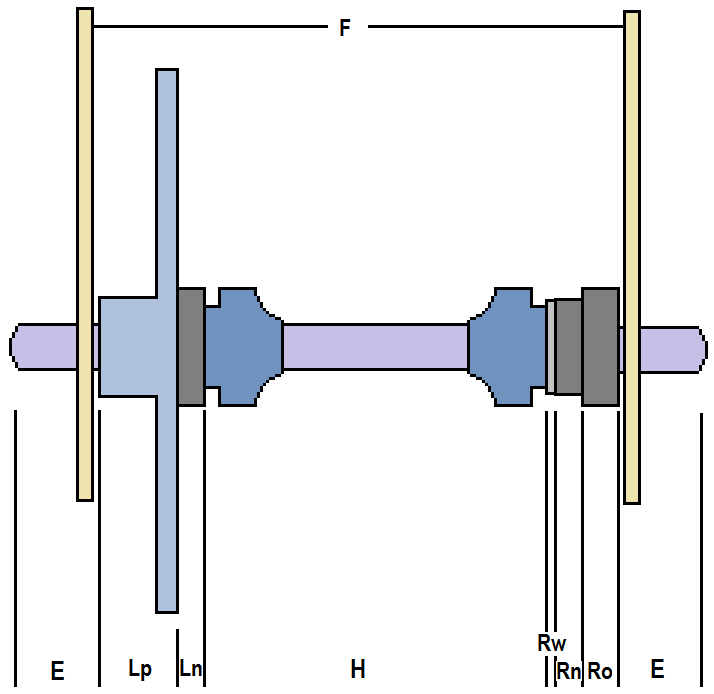

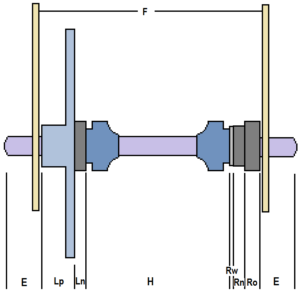

20. leleu small Rear spoke Ø80 loose ball
Peugeot 103, Puch (to ’79),
Sparta (Foxi), Kreidler

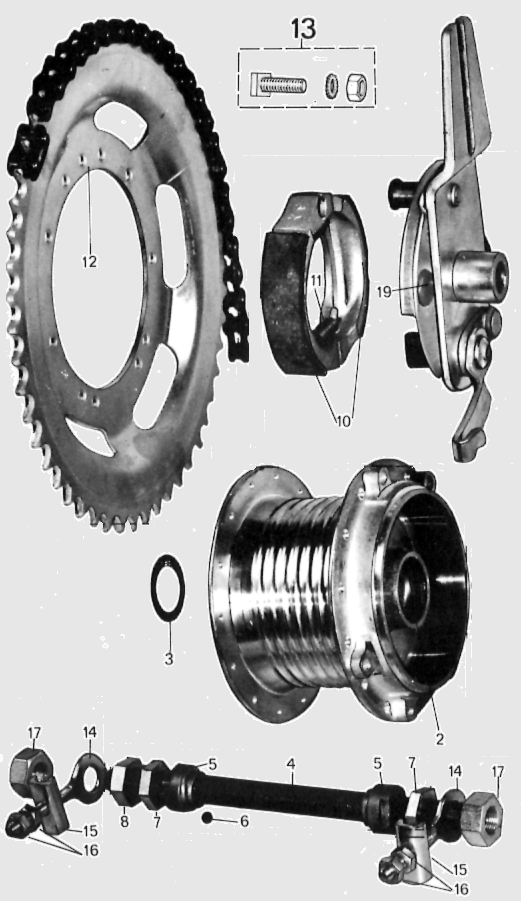

Peugeot 103 rear hub

Peugeot 103LVS Rear Hub Parts

1   56309   1  rear hub without sprocket
2   69648   2  ball cup
3   69680   2  cover washer
4   69414   1  axle Ø12
5   69276   2  cone Ø12
6   00690  26 ball
7   69357   2  lock nut
8   01980   1  outer lock nut

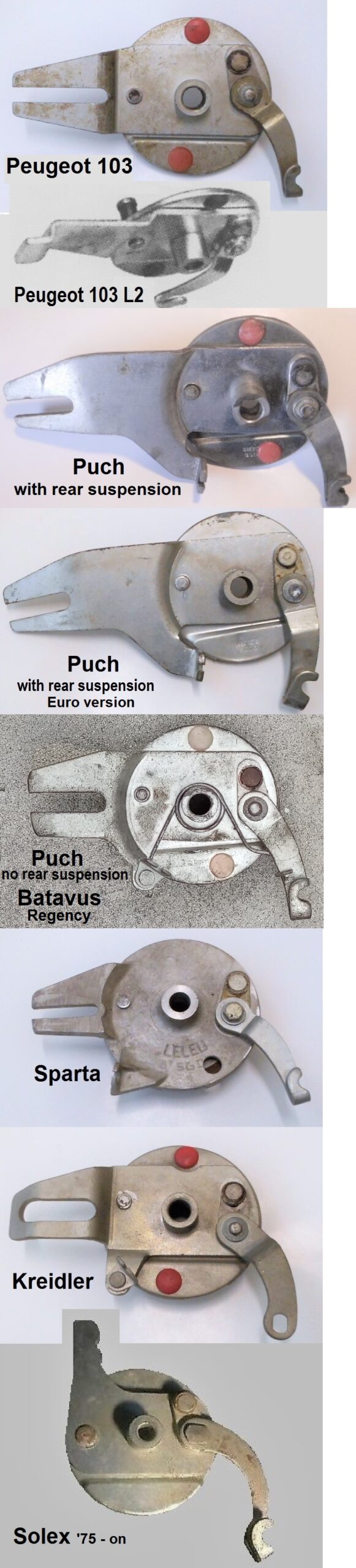

9   68088   1  brake plate complete
10  69275   1  brake shoe set
11  08703   2  brake shoe spring
12  48795   1  sprocket 48 teeth (LS-U1)g
12  51608   1  sprocket 52 teeth (LVS-U2,U3)
13  00620   5  sprocket bolt
14  49282   2  chain tensioner
15  17035   2  axle stirrup
16  34010   2  stirrup nut
17  69278   2  rear axle nut

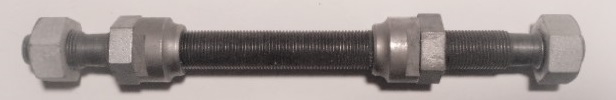

18  51415   1  rear axle set 4,5,5,7,7,8
19  68113   2  plastic plug
20
21
22
23

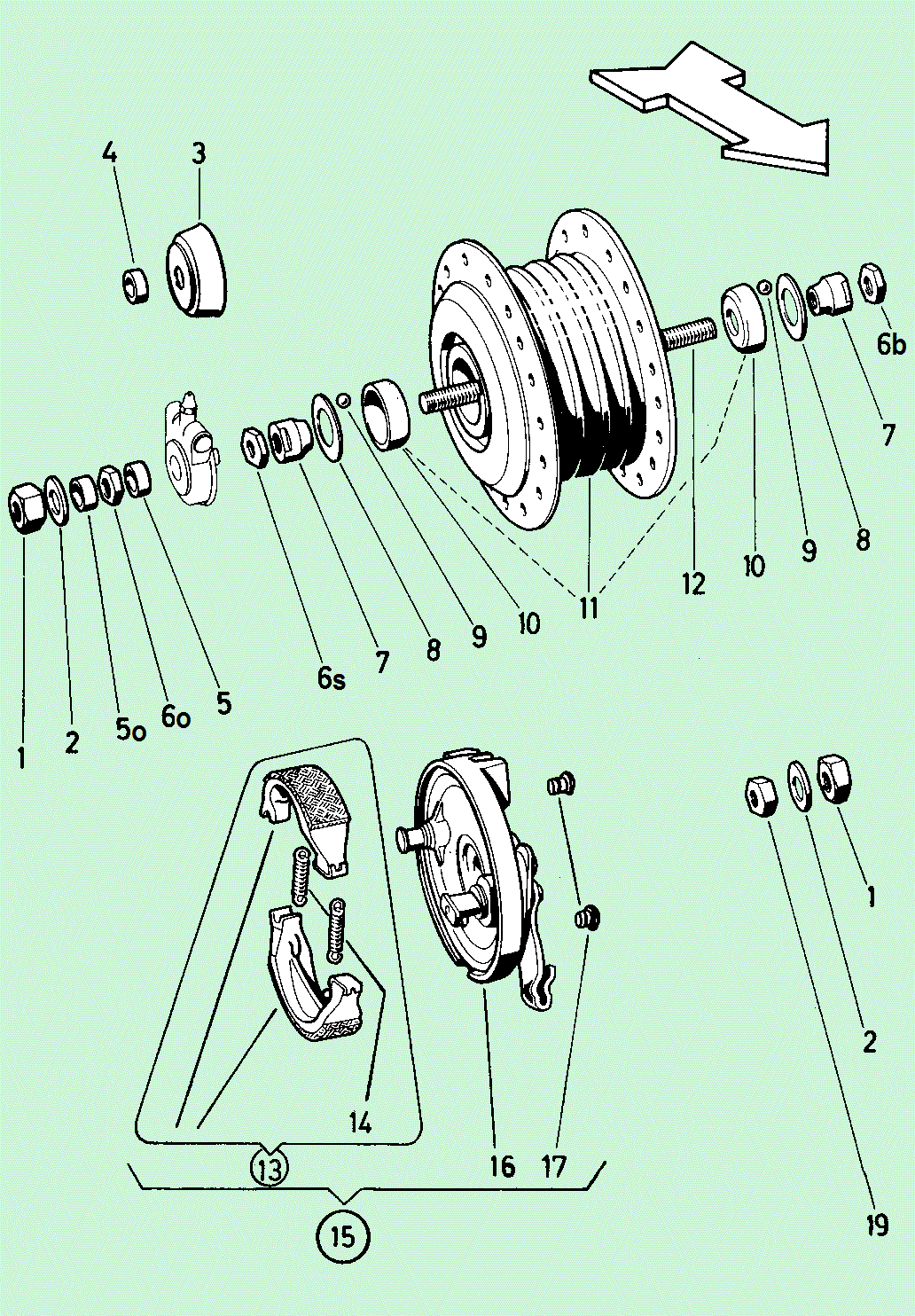

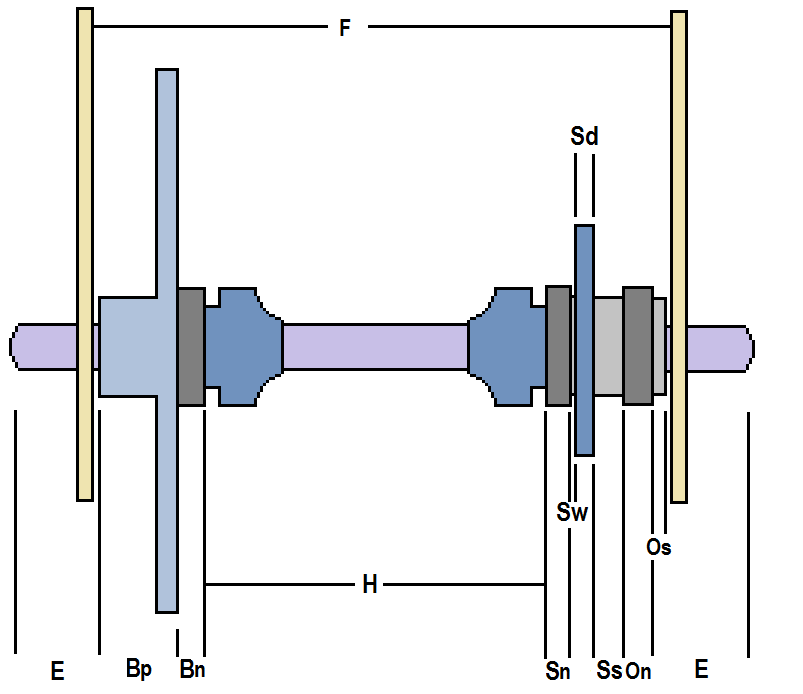

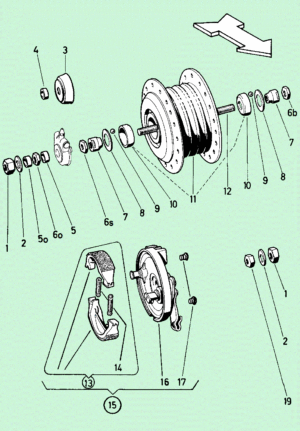

21. leleu small Front spoke Ø80 loose ball
Peugeot, Puch, Sears, JCP, Batavus, Sparta, Kreidler

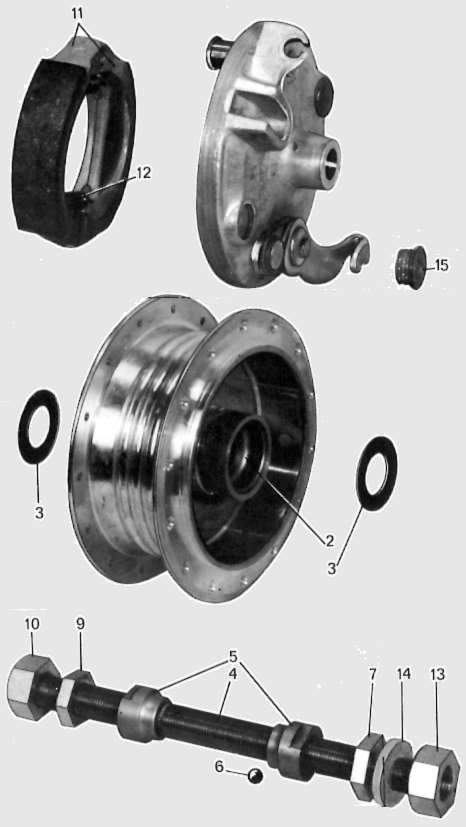

Peugeot 103 front hub

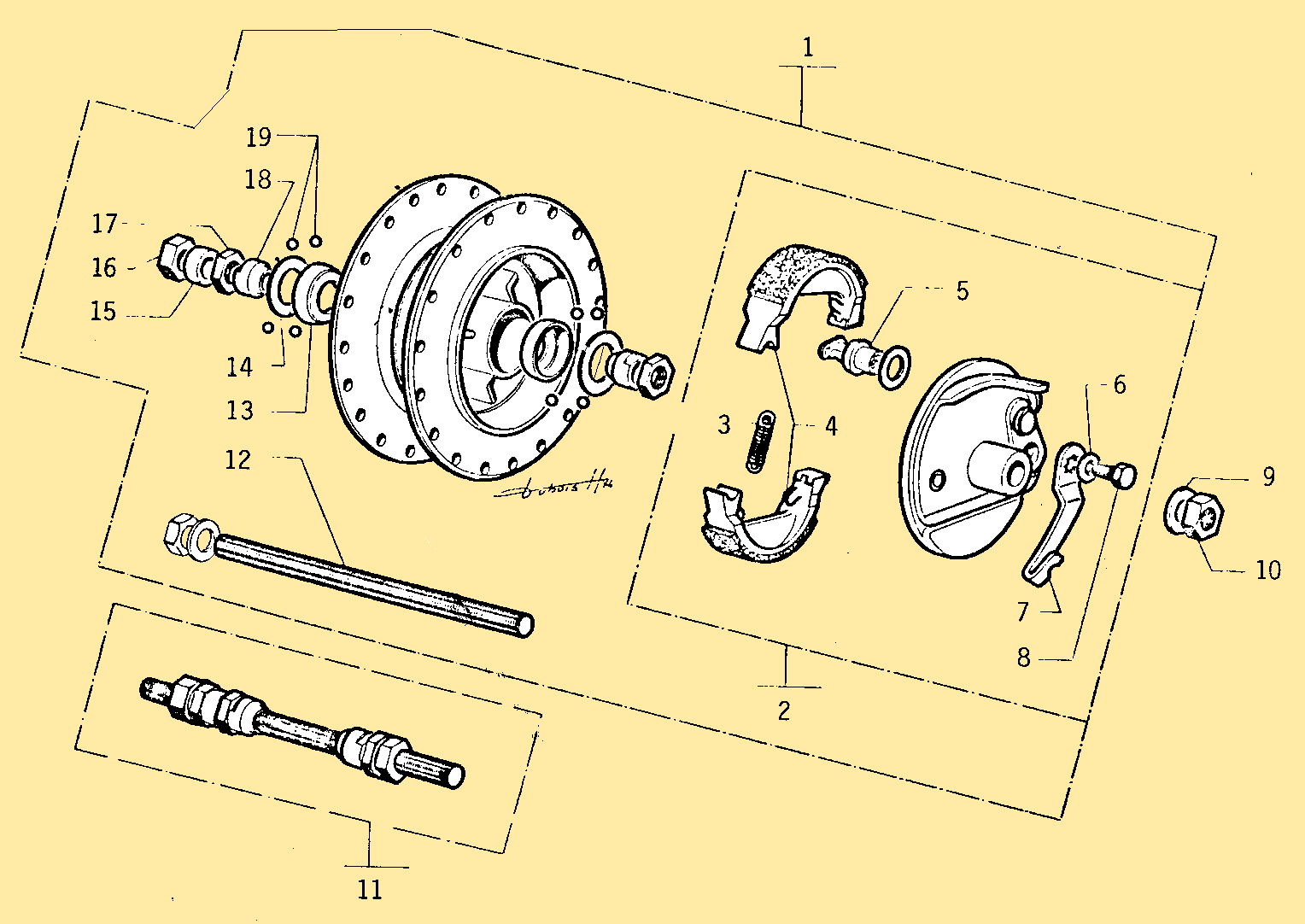

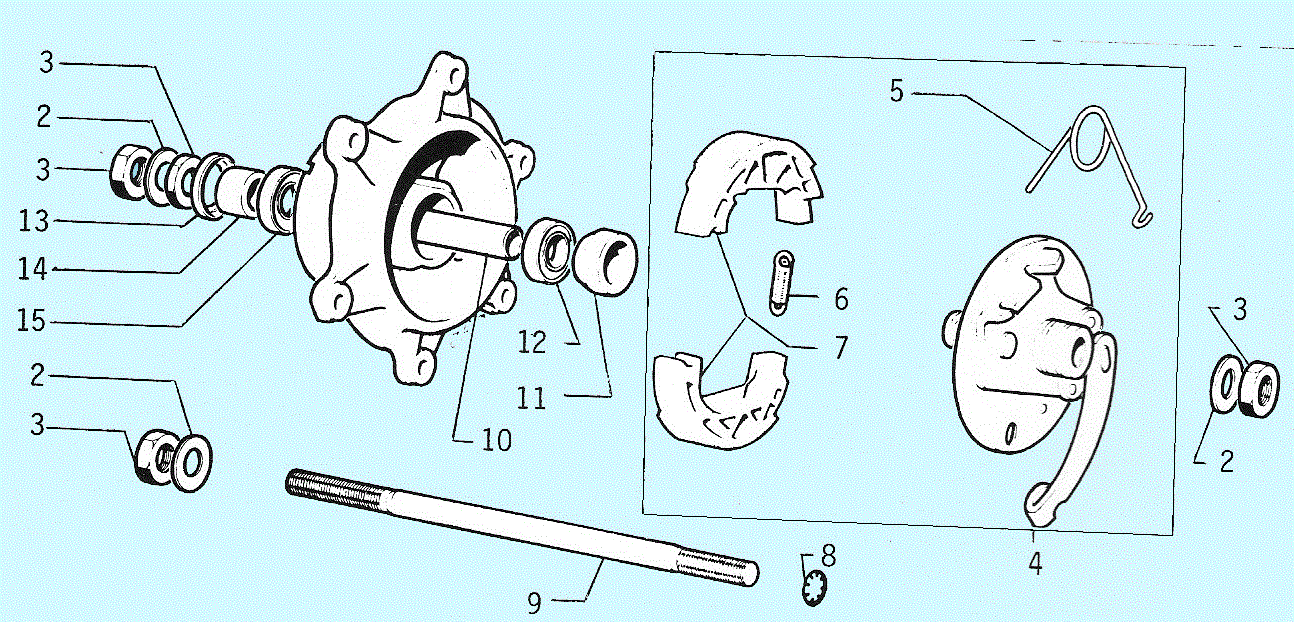

Peugeot 103 Front Hub Parts

.  Peugeot   Puch   Batavus   Sparta   Kreidler
.
1   56308   56308   56308   56308   56308   1  front hub
2   69285   69285   69285   69285   69285   2  ball cup
3   69280   2  dust cover washer
4   69417   1  axle Ø11 x 158
5   69284   2  cone
6   00694  22 ball 5.55mm
7   69333   2  lock nut
8   68103   1  brake plate complete
9   01442   1  lock nut
10  68127  1  lock nut
11  69275   1  brake shoe set
12  08703  2  brake shoe spring
13  69282  2  front axle nut
14  53114  2  axle washer
15  68112  2  plastic plug

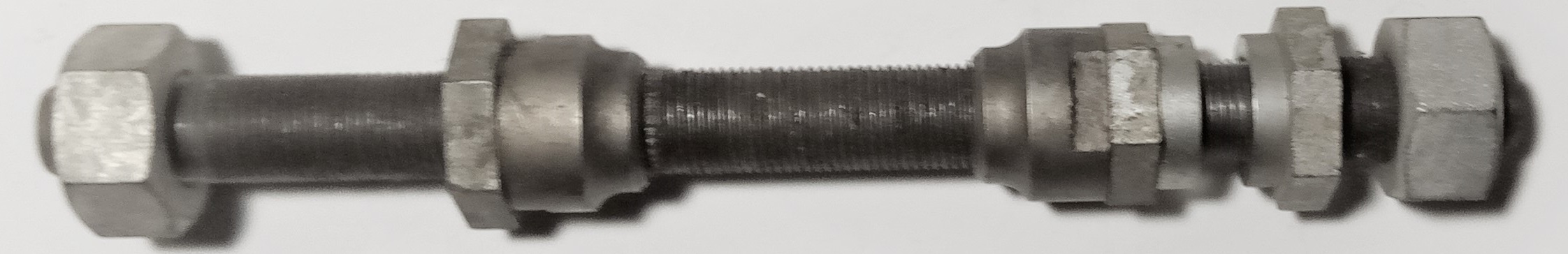

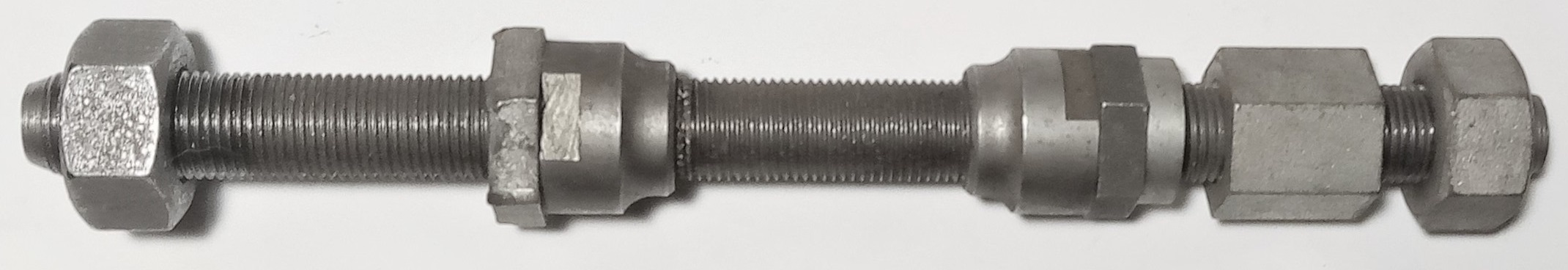

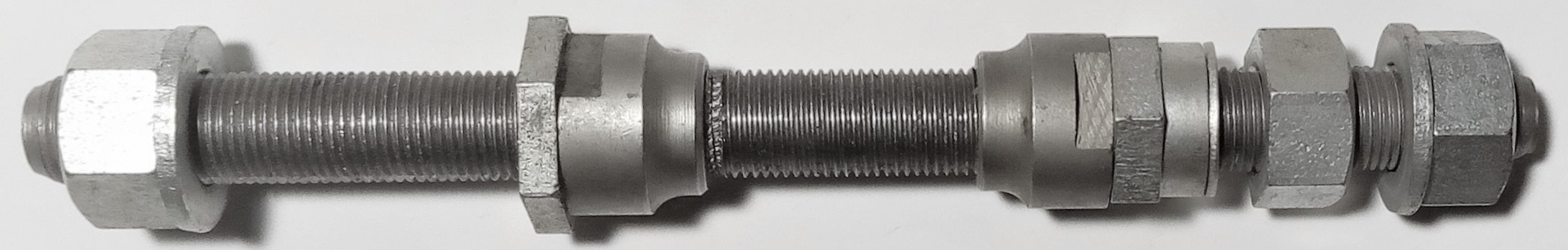

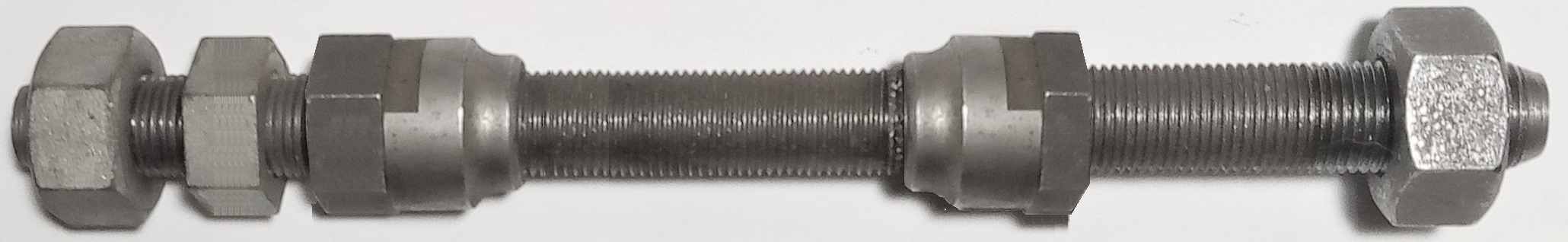

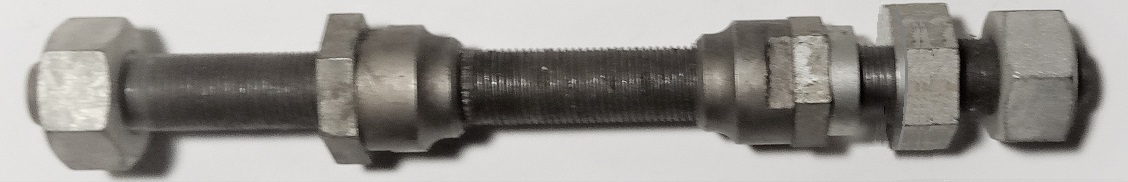

16  51404  1  front axle set
17
18
19
20
21
22
23

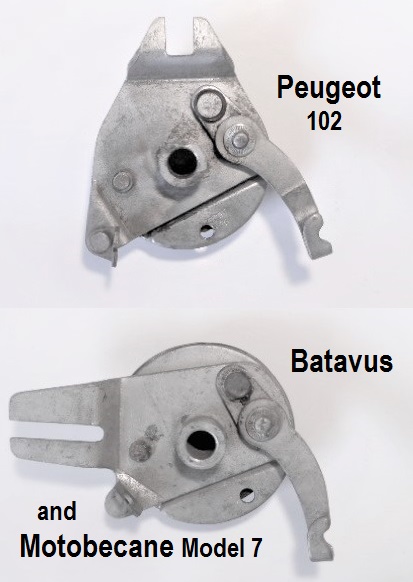

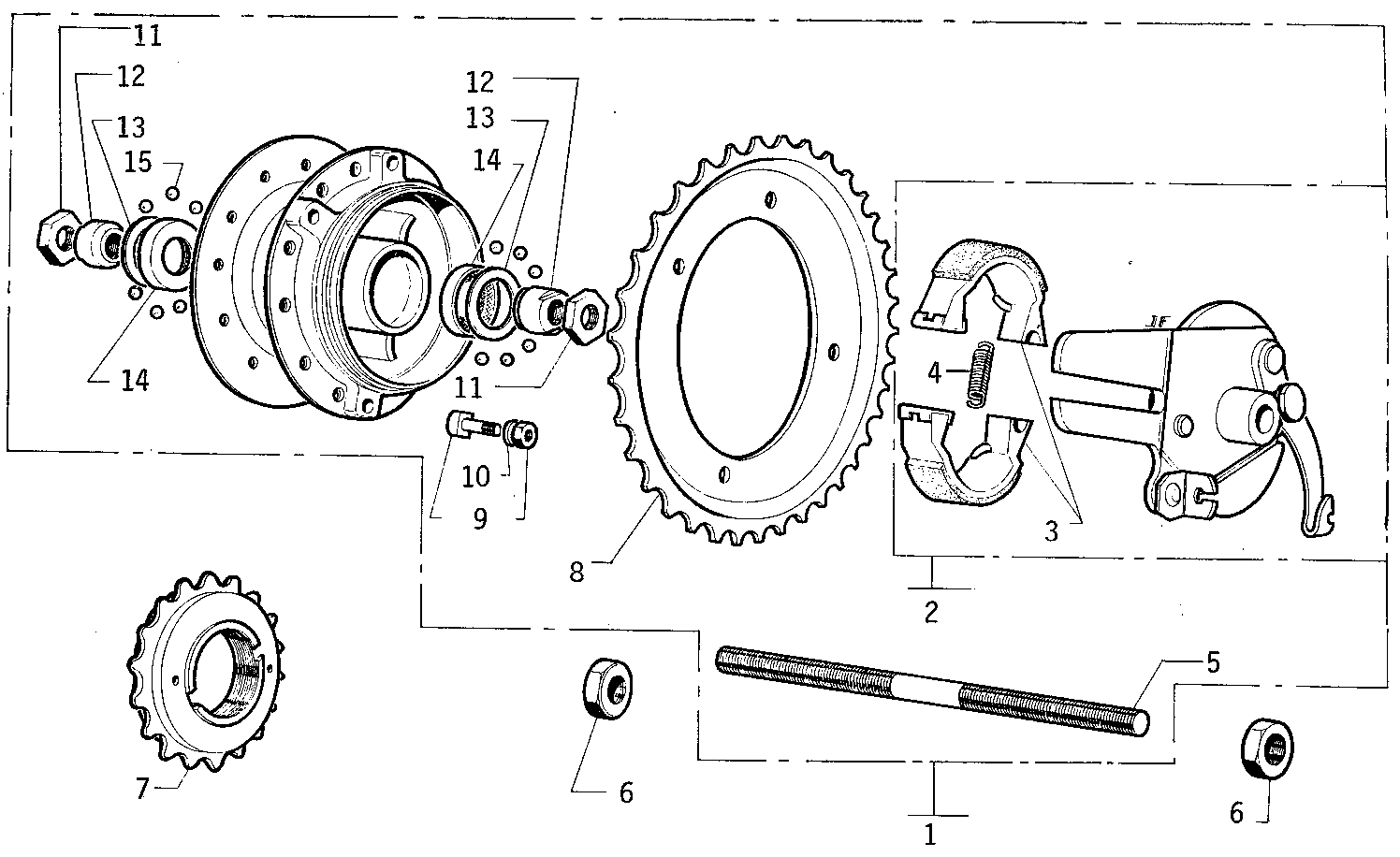

22. leleu small Rear Spoke Ø70 loose ball
Peugeot 102, Motobecane 7, Batavus VA,HS50,Starflite

Peugeot 102 rear hub

Peugeot 102 Rear Hub Parts

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

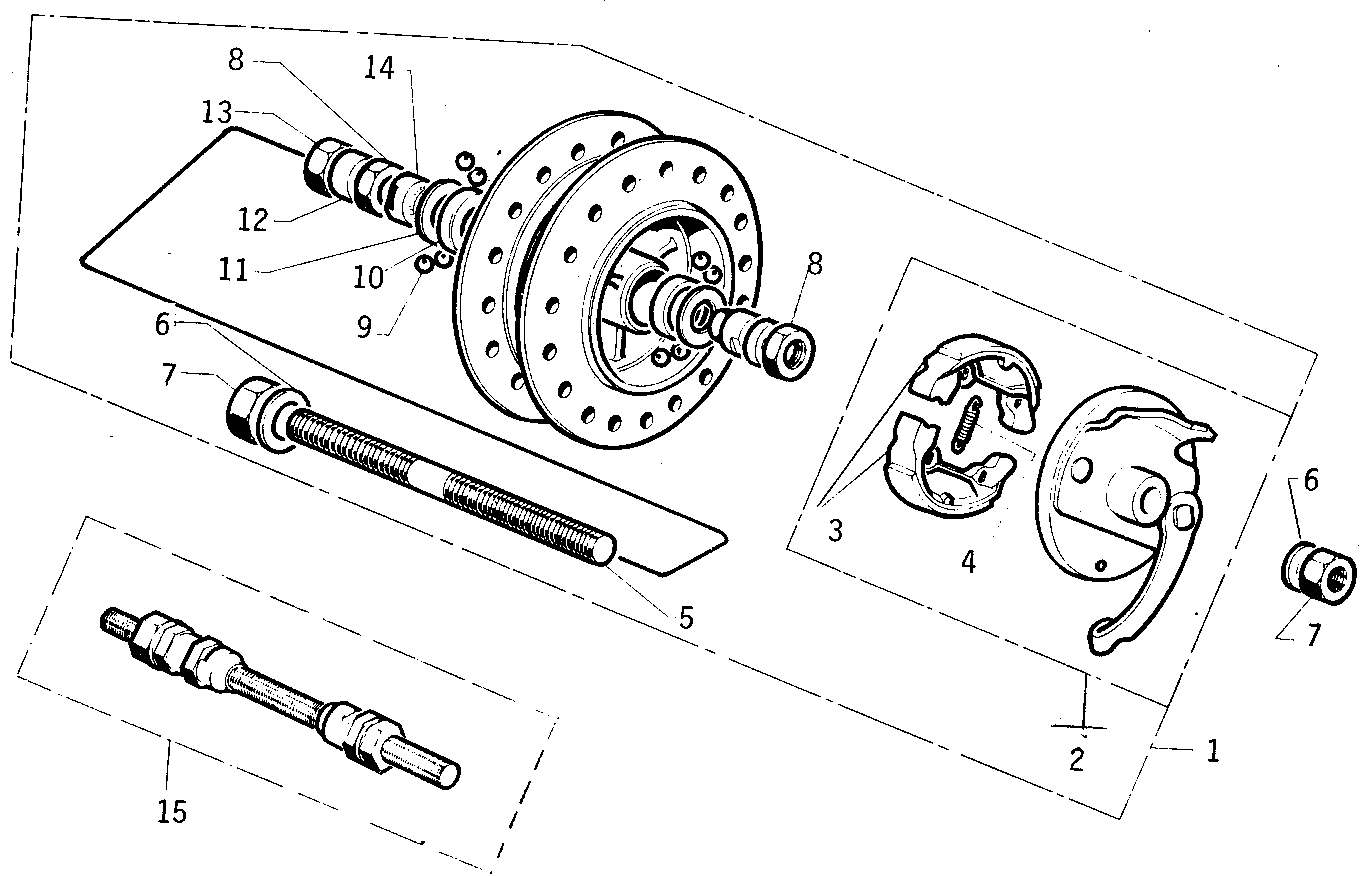

23. leleu small Front Spoke Ø70 loose ball
Motobecane 7

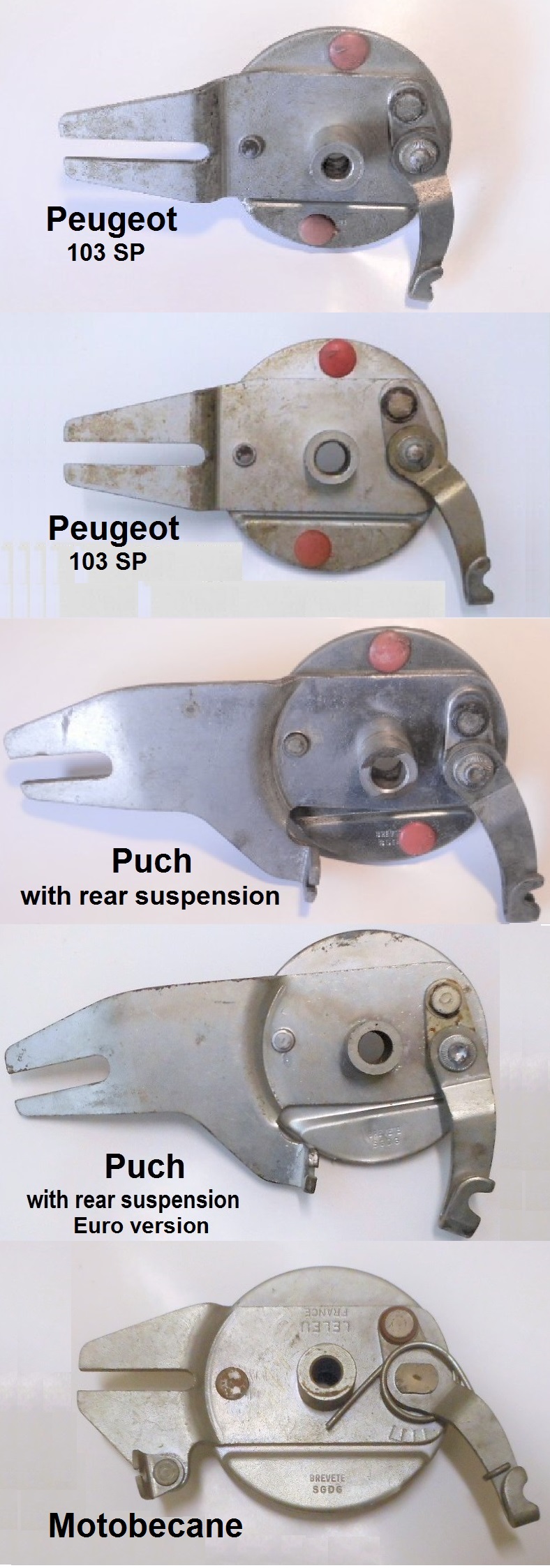

E. French Flag Leleu sealed

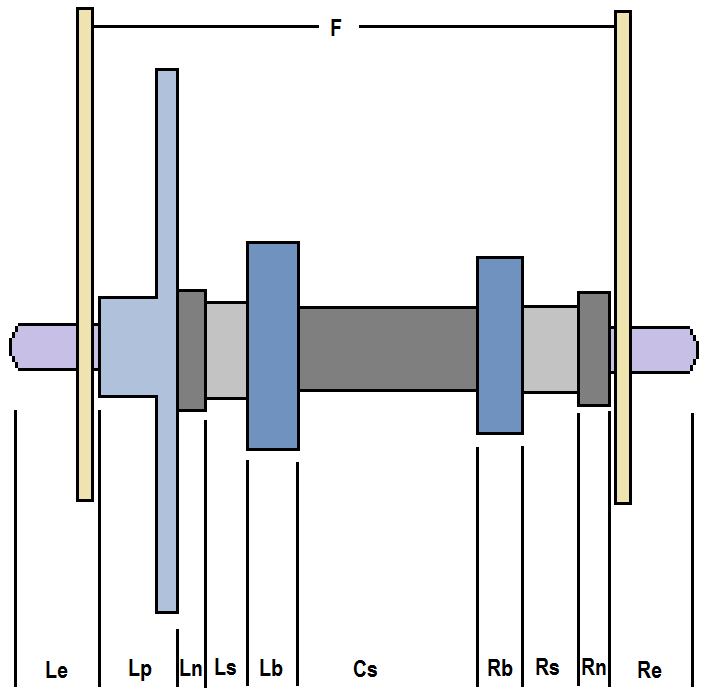

25. leleu small Rear spoke Ø80 sealed
Peugeot 103SP (ø10 axle), Puch 1980-86 (ø12 axle)

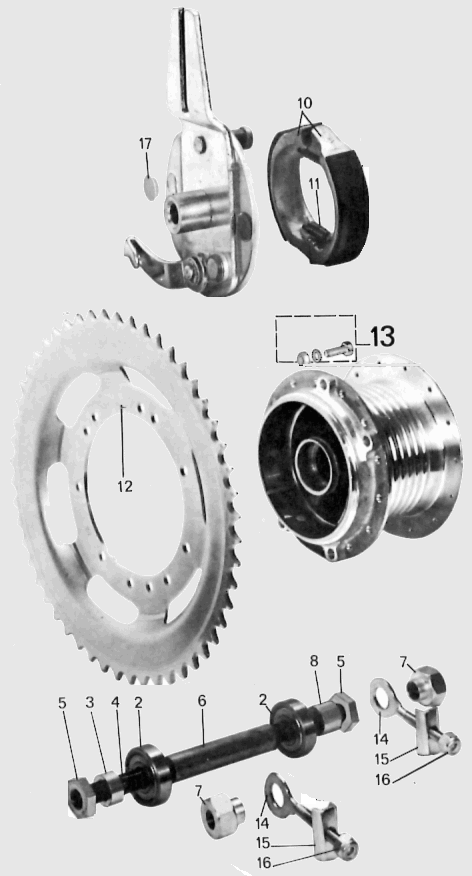

Peugeot 103SP rear hub

Peugeot 103SP Rear Hub Parts

1   58562   1  rear hub without sprocket
2   68136   2  ball bearing 6200Z 10x30x9
3   68135   1  spacer ∅10 ∅20 x 10
4   68130   1  axle Ø10 x 180
5   68132   2  thin nut M10-1.0 x 5 hex19
6   68133   1  center tube ∅10 ∅14 x 67
7   68134   2  shouldered nut M10-1.0 hex19
8   68131   1  spacer ∅10 ∅16 x 15
9   68252   1  brake plate complete
10  69275   1  brake shoe set
11  08703   2  brake shoe spring
12  48795   1  sprocket 48 teeth (LS-U1)
12  51608   1  sprocket 52 teeth (LVS-U2,U3)
13  00620   5  sprocket bolt
14  49282   2  chain tensioner
15  17035   2  axle stirrup
16  34010   2  stirrup nut
17  68113   2  plastic plug
18
19
20
21
22
23






F. French Flag Leleu-Compatible

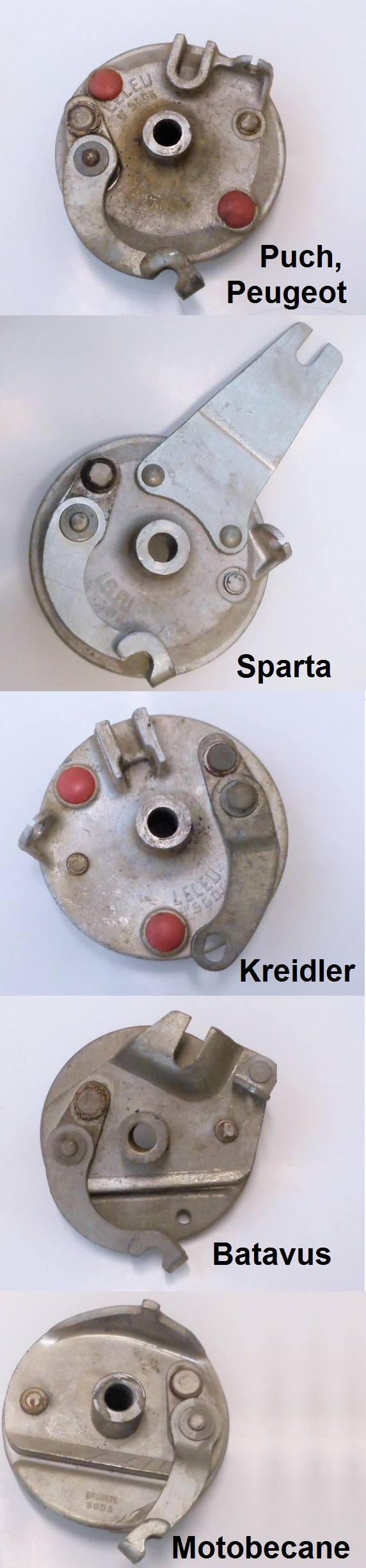

Motobecane made many of their own components. Like the way Tomos made their hubs compatible with Grimeca, Motobecane made their hubs compatible with Leleu. So the complete wheels interchange, the brake plate complete interchanges, but most of the individual parts do not. Motobecane made both stamped steel and cast aluminum spoke wheel hubs. Their cast aluminum hub has a big M logo embossed into it.

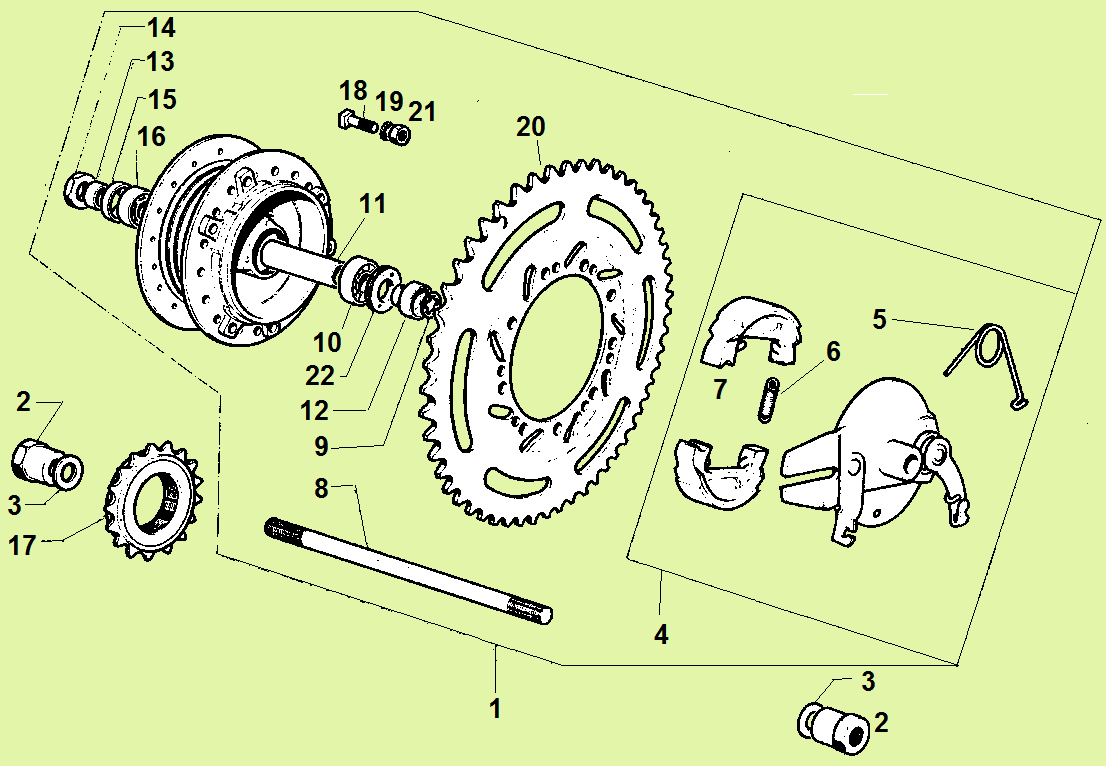

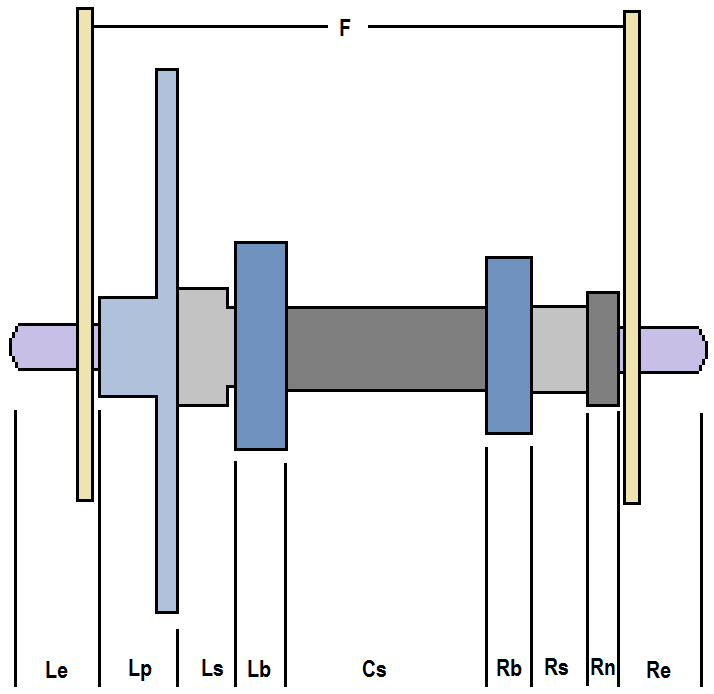

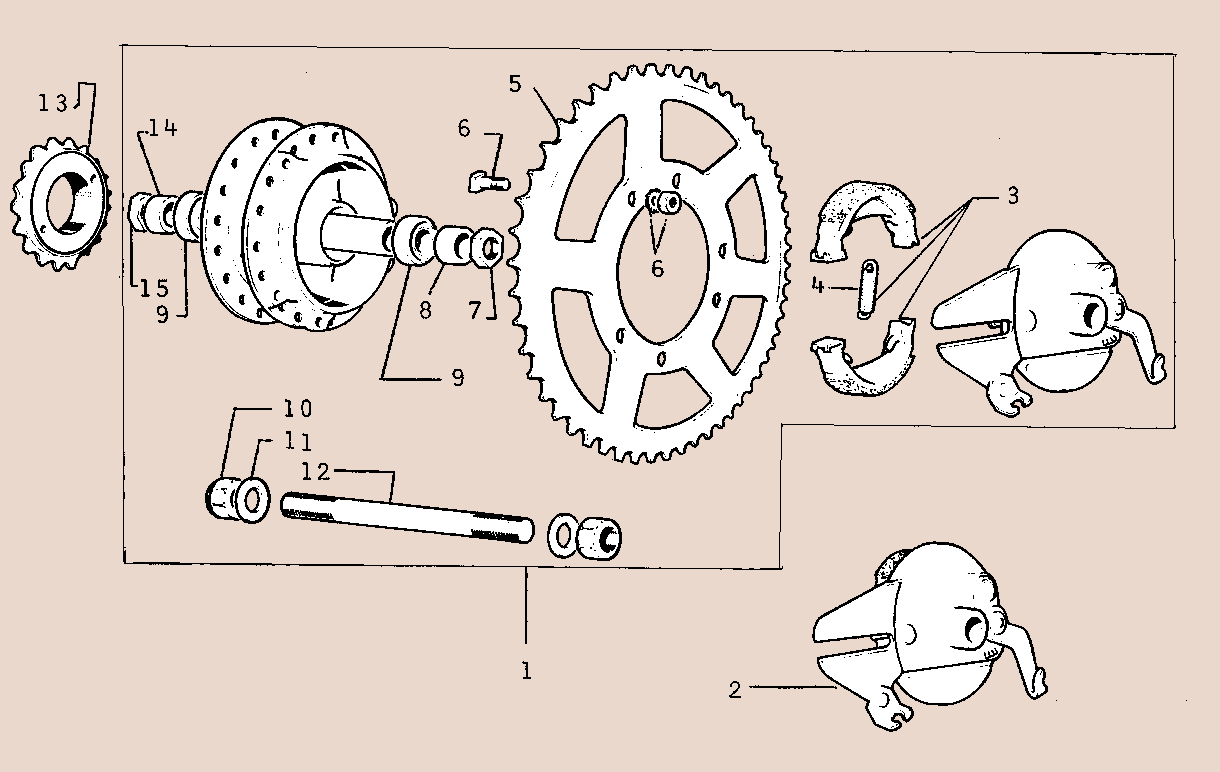

26. Motobecane 2-chain hub

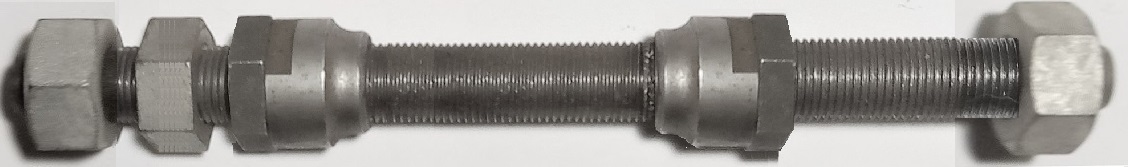

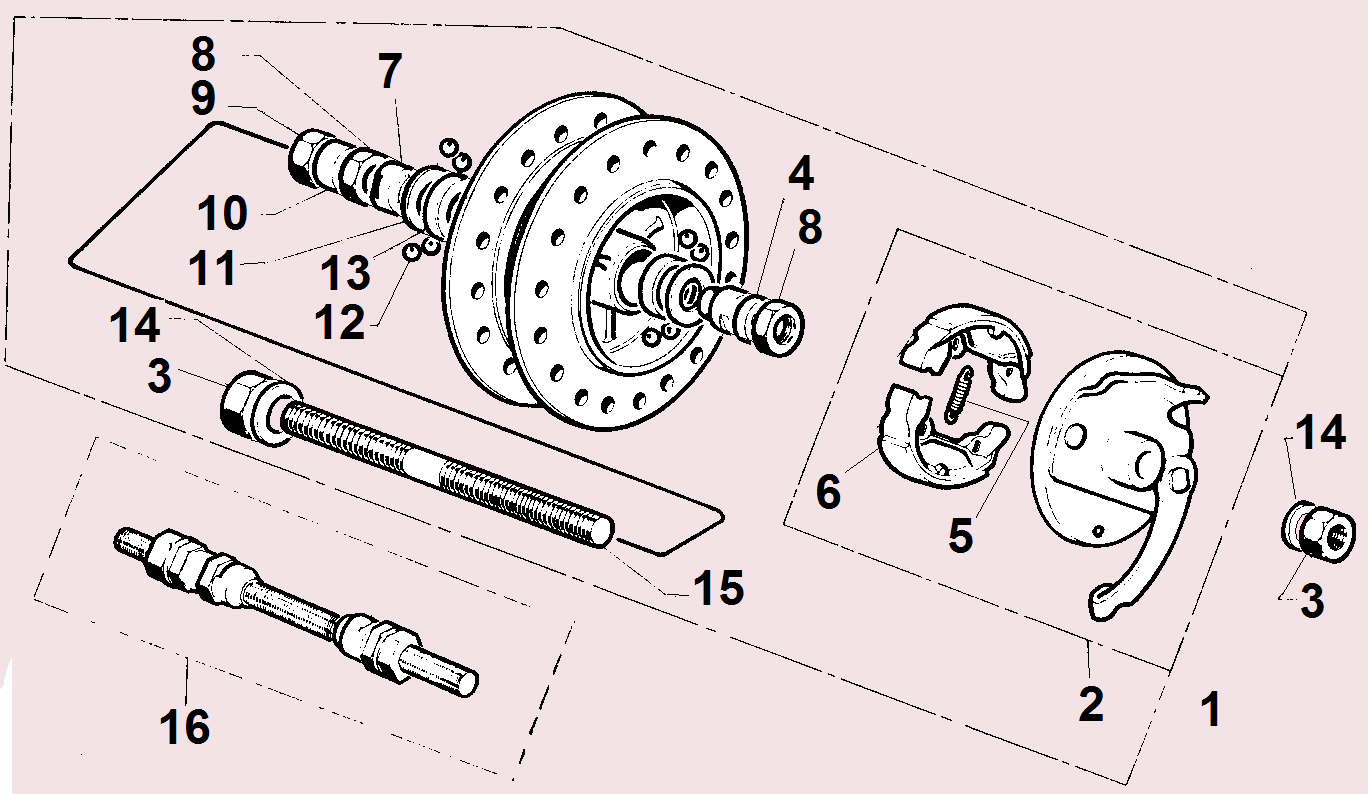

27. Motobecane Front hub

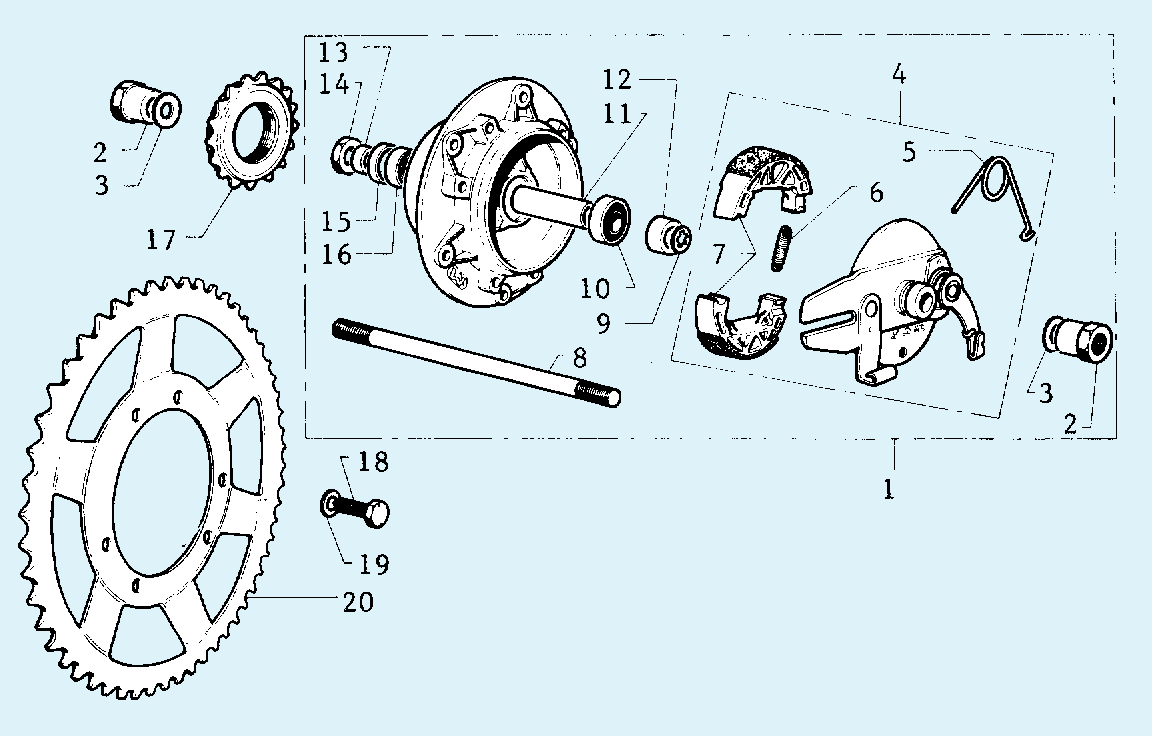

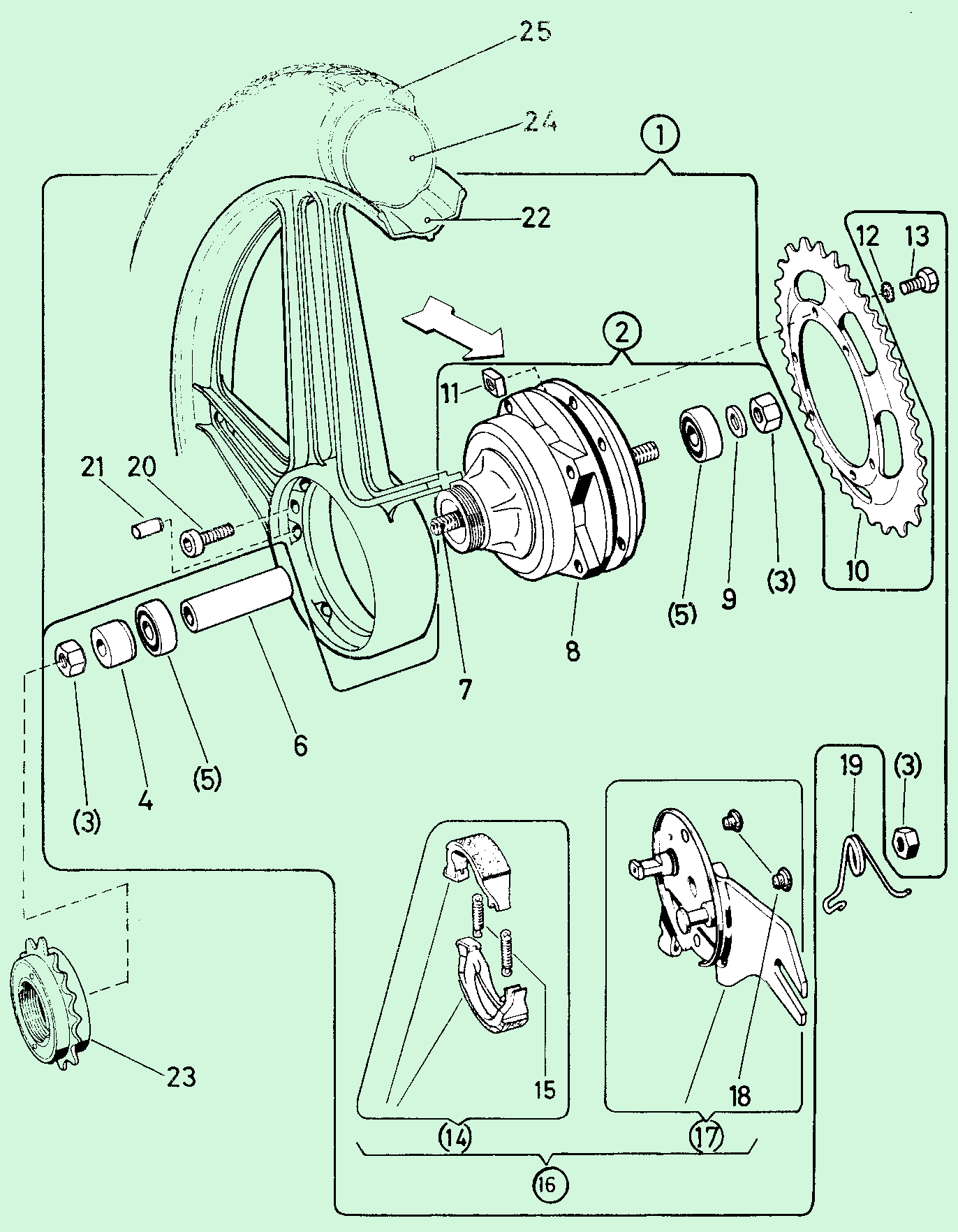

28. Motobecane 2-chain mag



fig part# qty price  description
01 24299 1 none  rear hub complete

02 24258 2 $0.00 outer axle nut M10
03 00406 2 $0.00 outer washer 10 x

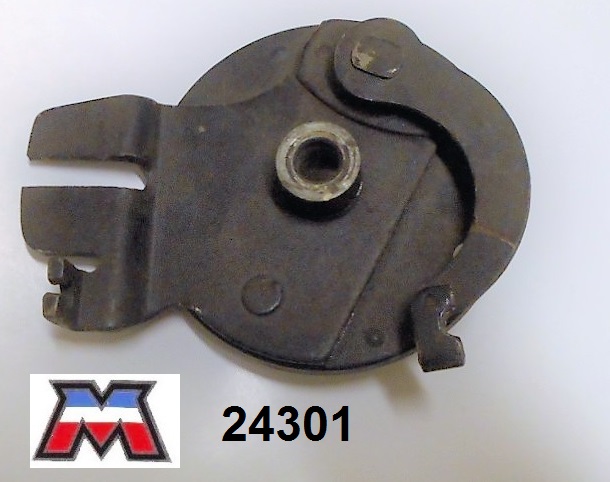

04 24301 1 none  brake plate assy
05 21773 1 $0.00 helper spring
06 22135 2 $2.00 brake spring
07 21730 1 $0.00 brake shoe set
08 20362 1 $0.00 rear axle
09 20448 1 $0.00 special washer
10 20768 1 $0.00 left bearing
11 24020 1 none  center spacer 10.2 x 15 x 58
11 24020 1 $22.0 substitute 10.5 x 14 x 58
12 24017 1 $0.00 left spacer
13 24021 1 $0.00 right spacer
14 20767 1 $0.00 right thin nut
15 21735 1 $0.00 right dust cover
16 21734 1 $0.00 right bearing
17 15244 1 $0.00 freewheel 18T
17 14298 1 $0.00 freewheel 20T
18 23663 6 $0.00 sprocket bolt
19 01525 6 $0.00 sprocket washer
20 20096 1 $0.00 sprocket 54T
00 23688 6 $0.00 rear hub bolts

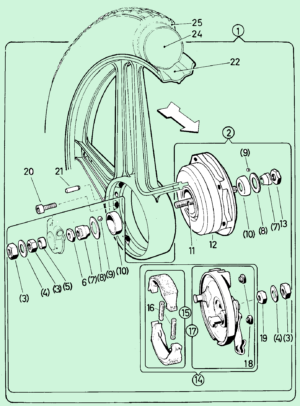

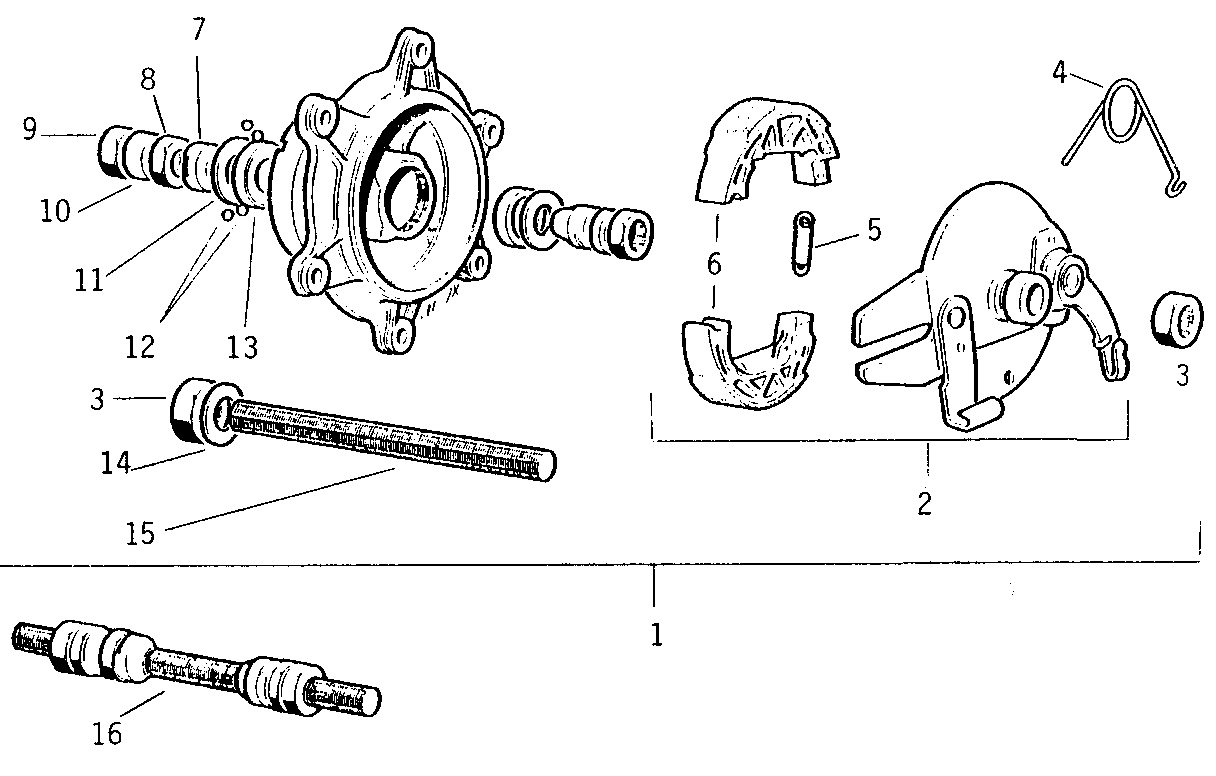

29. Motobecane Front mag












G.  Taiwan sealed



Taiwan wheels are on Taiwan mopeds. They do things more like motorcycles and less like bicycles. Asian wheels always have sealed bearings, with axles that slide out, like motorcycles. Asian spokes have inner and outer types, like motorcycles. Asian hubs are always cast aluminum, never stamped steel, like motorcycles. Asian hubs are always single chain rears, since they do not “believe” in having both a motor and pedals at the same time.

left front brake plate Trac #26 for spoke wheel






H.  Korea sealed





Trac Olympic Rear Wheel similar to ’78 Honda CT90

fig qty  Trac# 00 Daelim# 000  description
1-0 1 25051 42600-005-890  rear wheel complete

1-1 1 25052 42601-005-890  rear hub complete
1-1 1 00000 00000-000-000  L wheel bearing 6301   ∅12 ∅37 x 12
1-1 1 00000 00000-000-000  R wheel bearing 6301Z ∅12 ∅37 x 12
2-0 1 25059 42610-005-890  cush-drive flange ∅40
2-0 1 00000 00000-000-000  sprocket bearing ? ∅27? ∅40? x ??

4-0 1 25065 42301-HD2-890 rear axle ∅12
8-0 1 25061 42304-005-890  collar ??
9-0 1 25060 90753-029-003  oil seal ∅27 ∅40 x 6

11   1 25058 42303-005-890  axle sleeve ∅12 ∅17
13   1 25056 42653-001-004  o-ring ∅40.5 x 3.0
