Table of Contents
A. Grimeca loose bearings (made in Italy)
1. Front hub ∅90 ’70’s-80’s Italian, others
2. Front hub ∅105 ’70’s Garelli, Vespa Grande
3. 1-chain hub ∅90 ’70’s-80’s Italian, others
4. 1-chain hub ∅105 ’81-86 Garelli

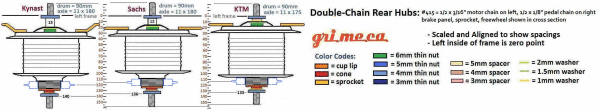

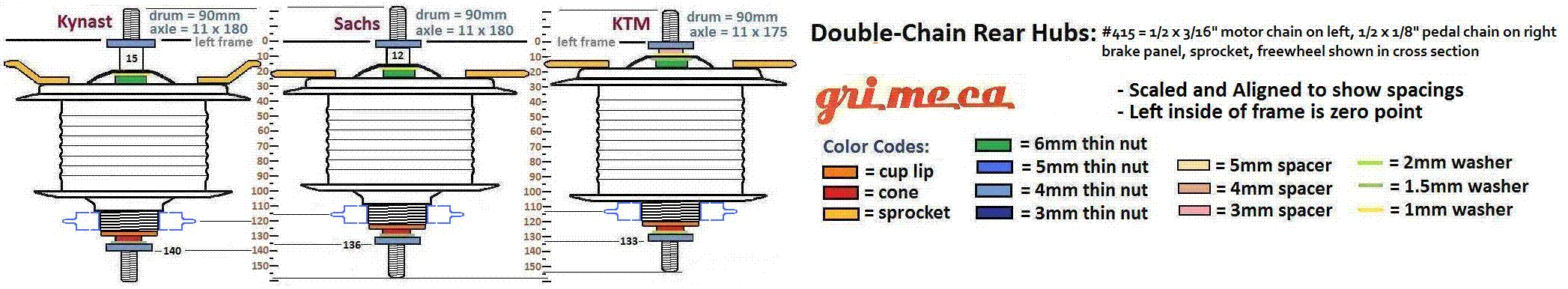

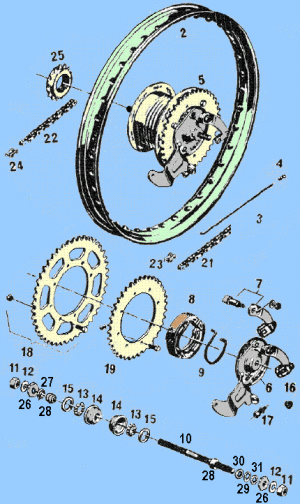

5. 2-chain hub ∅90 ’70’s Hercules, KTM, Kynast

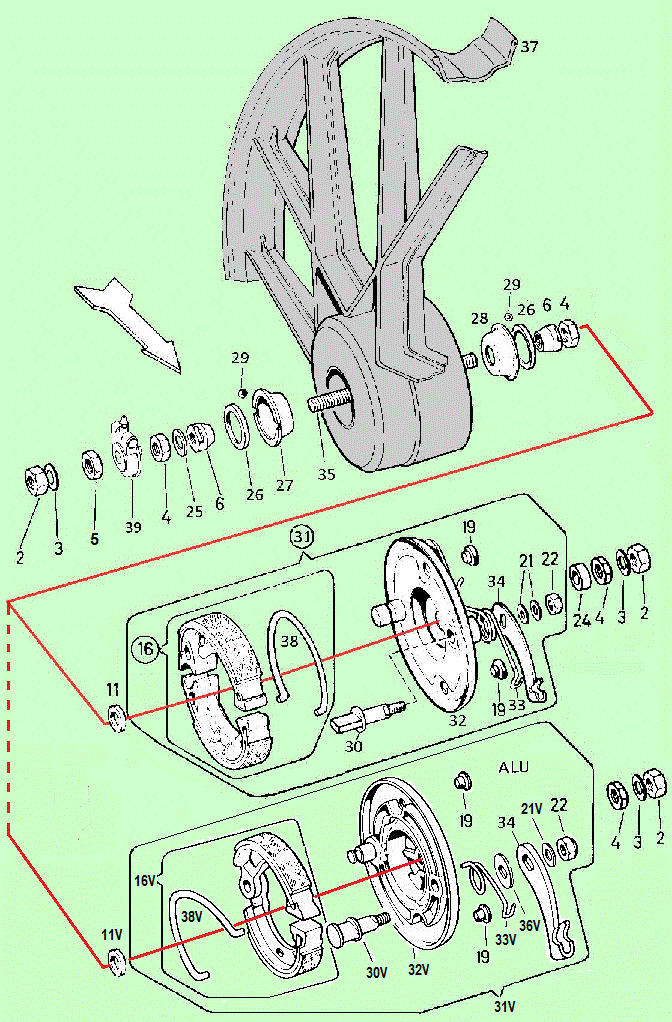

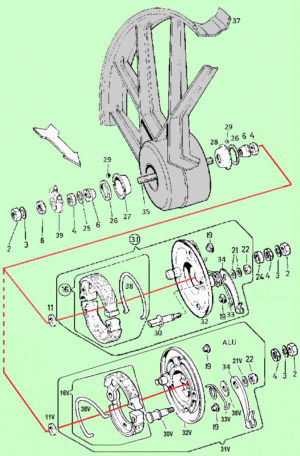

6. Front mag ∅90 ’70’s-80’s Italian, others

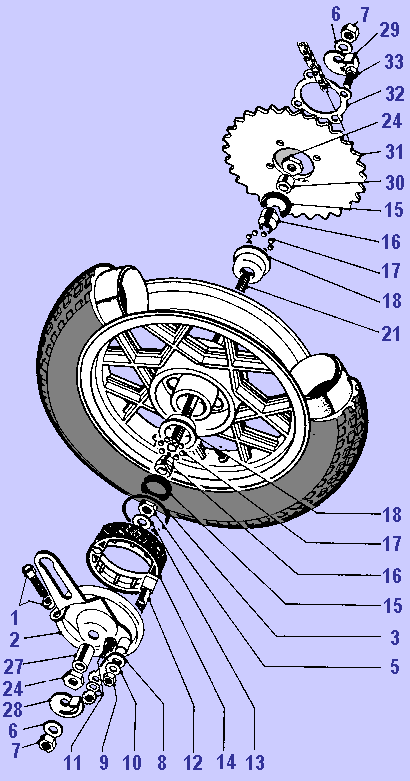

7. 1-chain mag ∅90 ’70’s-80’s Italian, others

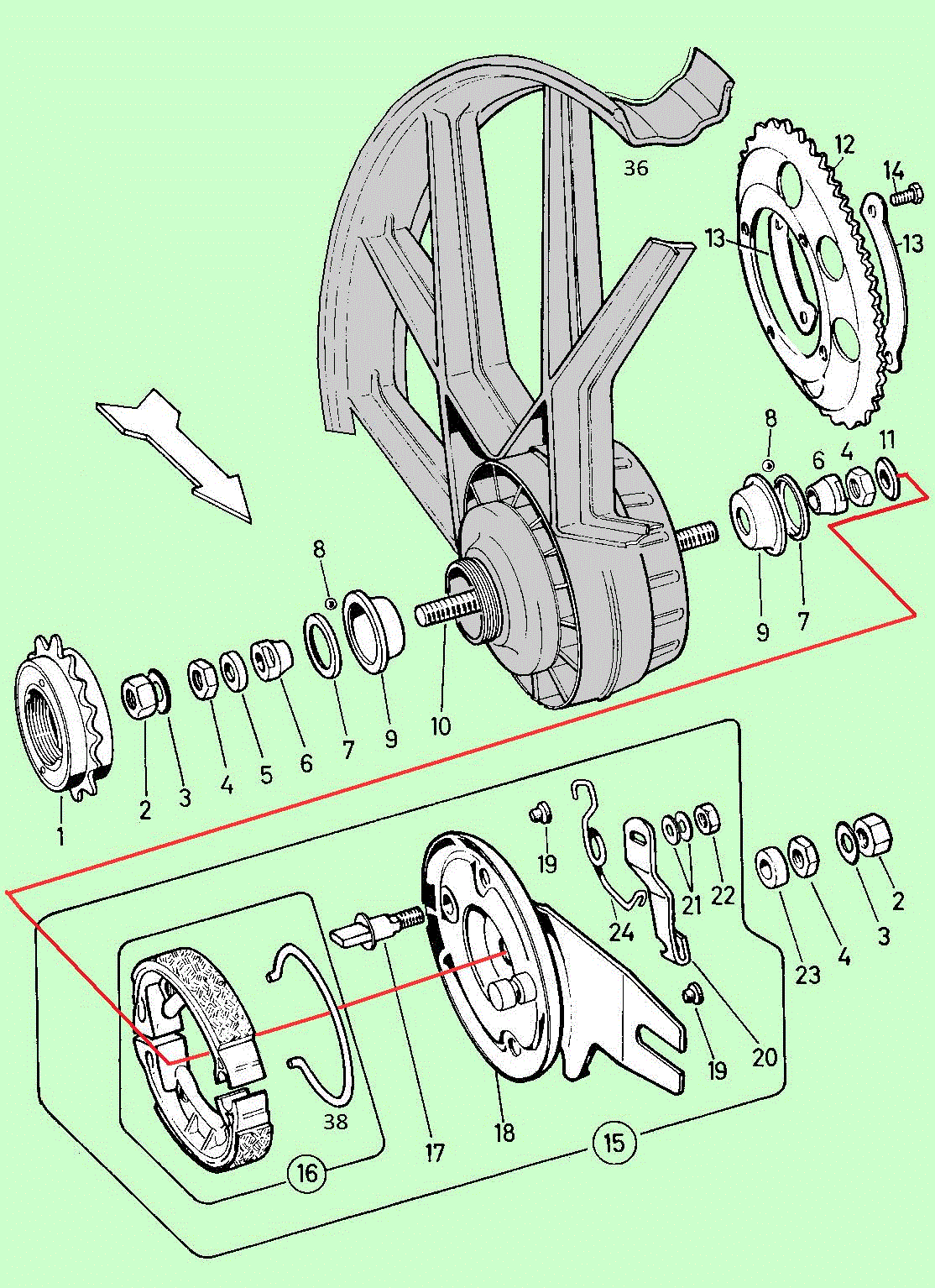

8. 2-chain mag ∅90 ’77-79 Puch, Kromag
B. Grimeca sealed bearings (made in Italy)

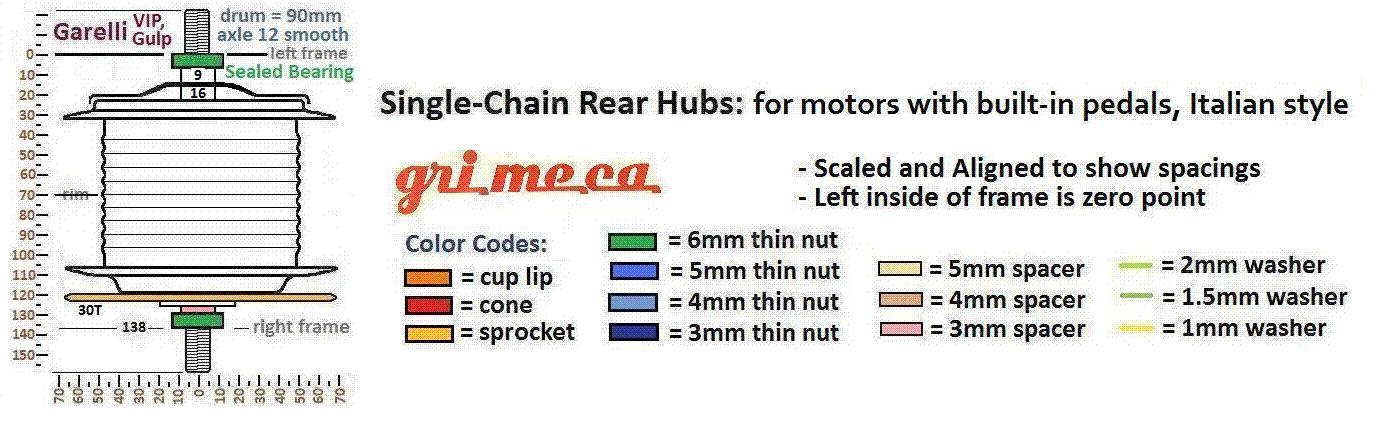

9. 1-chain rear hub ∅90 ’75-78 Garelli Gulp, ’78-85 VIP

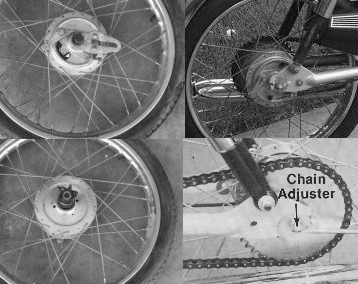

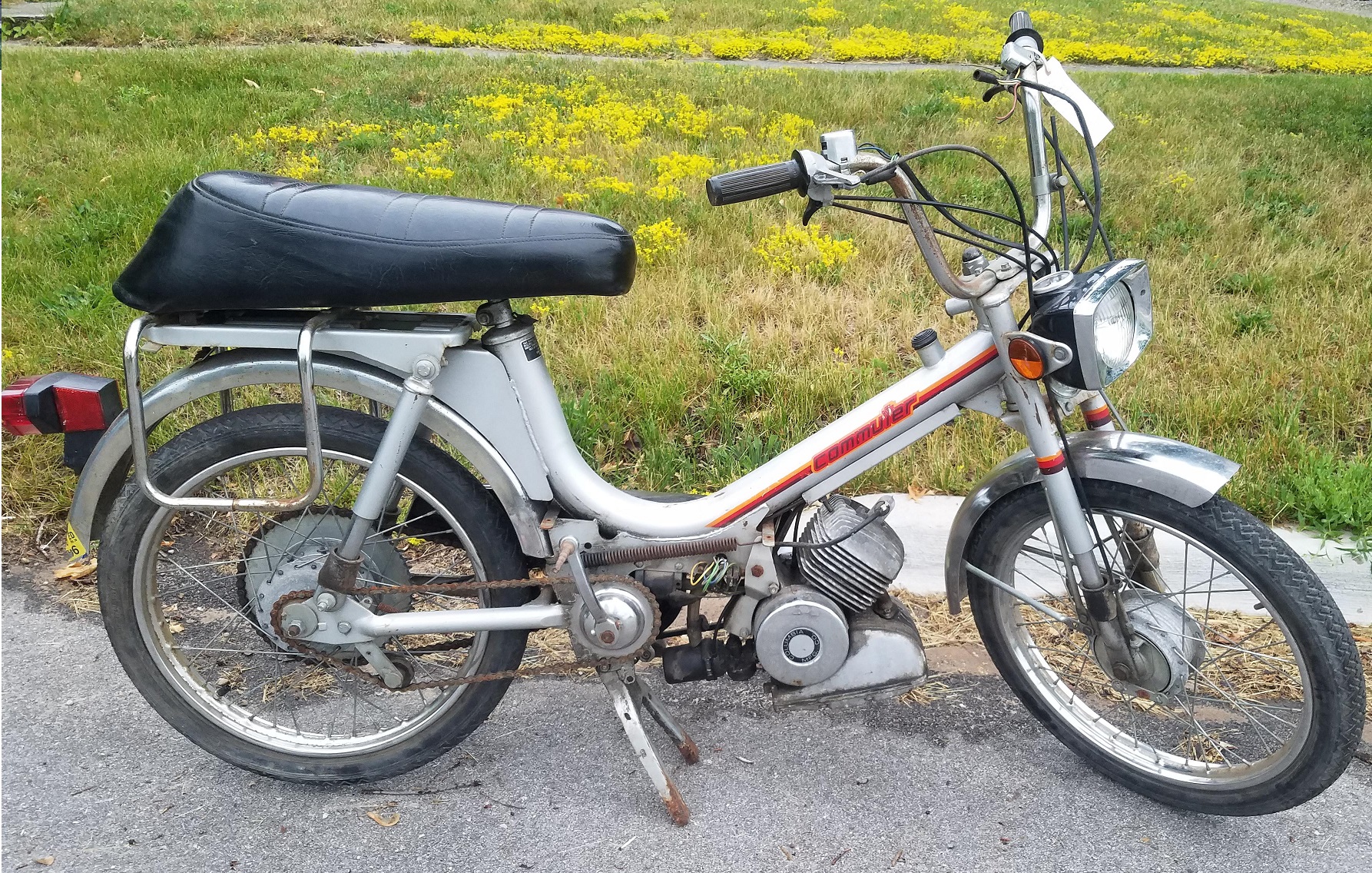

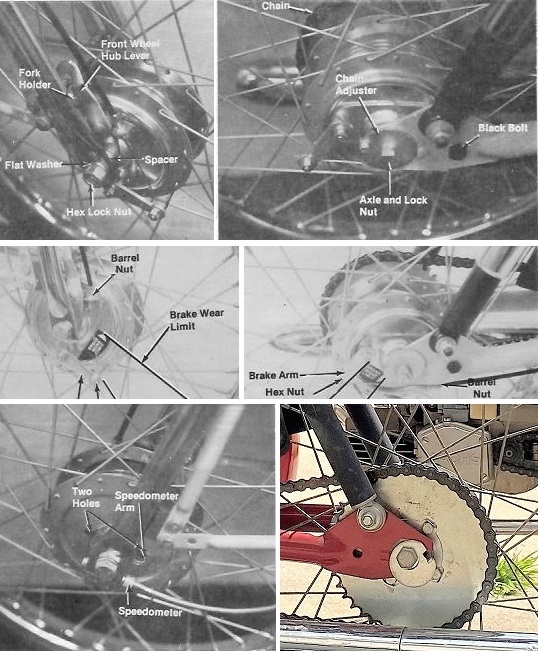

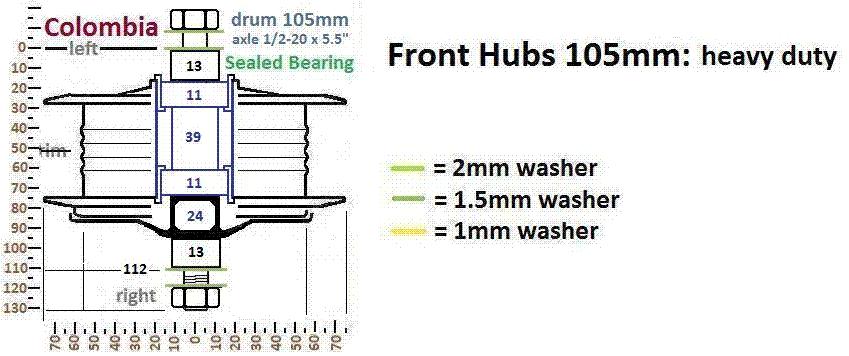

10. 1-chain F & R hub ∅105 ’77-80 Columbia, ’88-93 KKM
11. 1-chain rear hub ∅118 ’78-82 Safari Commando
11. 1-chain rear hub ∅118 ’01-03 Tomos Revival
C. Grimeca-Compatible sealed bearings

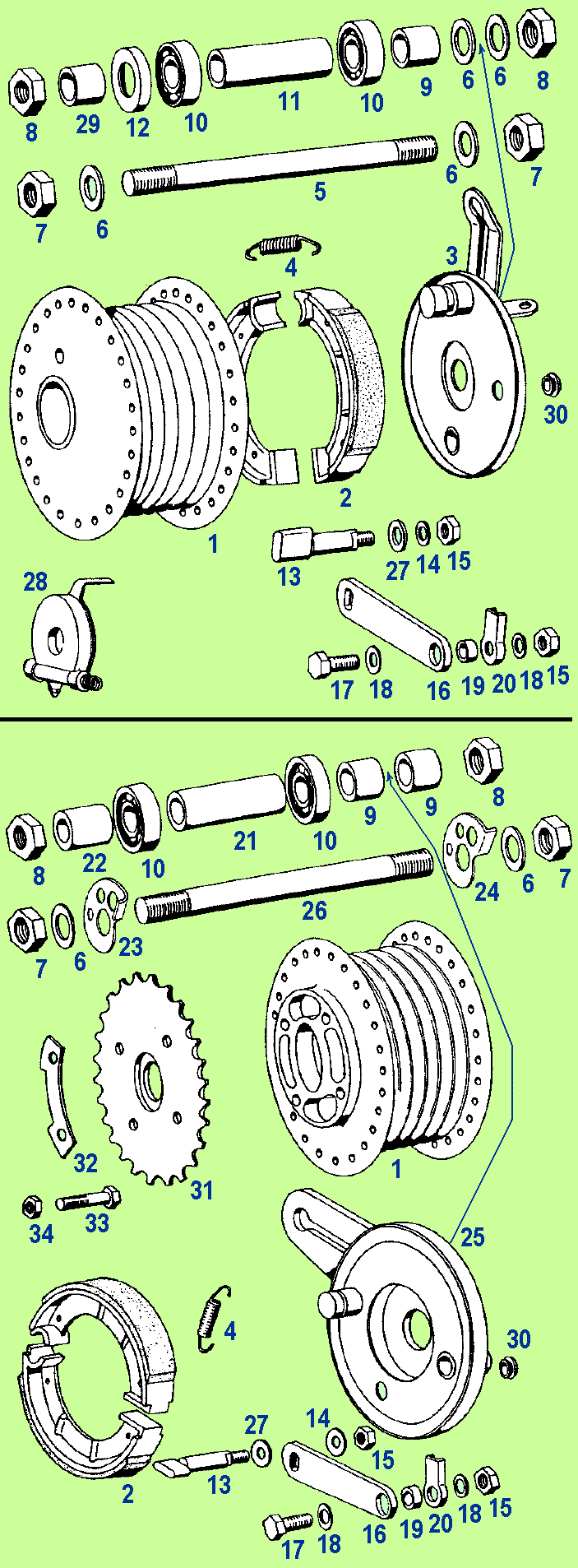

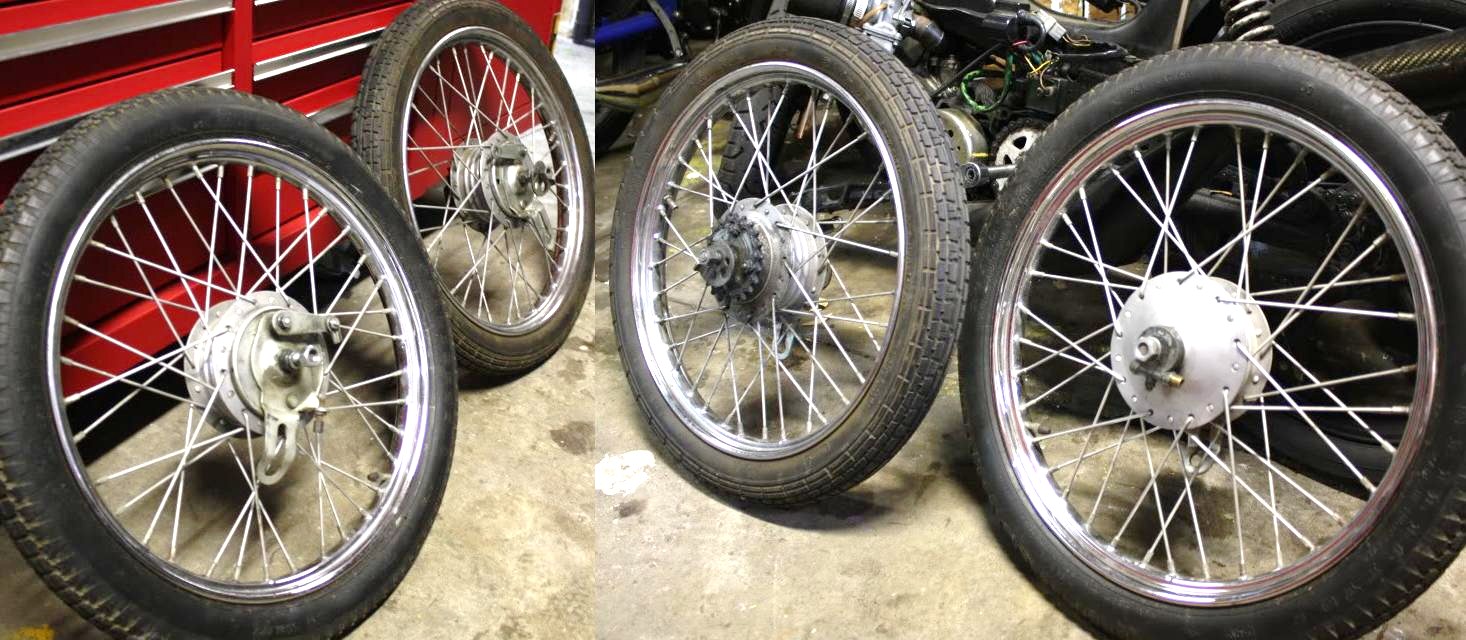

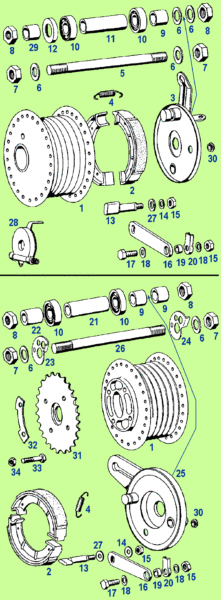

12. 1-chain F & R hub ∅90 ’75-91 Tomos

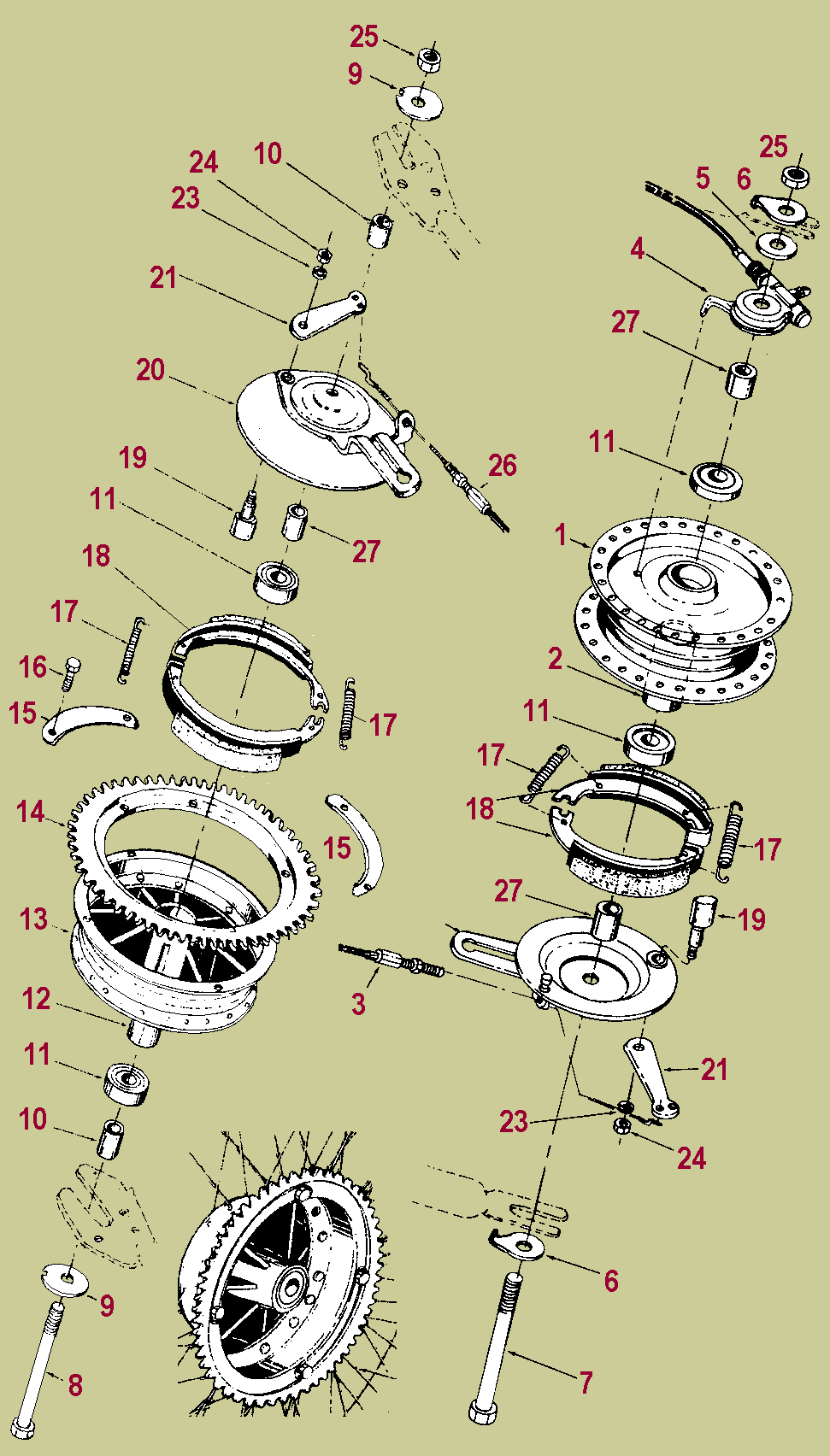

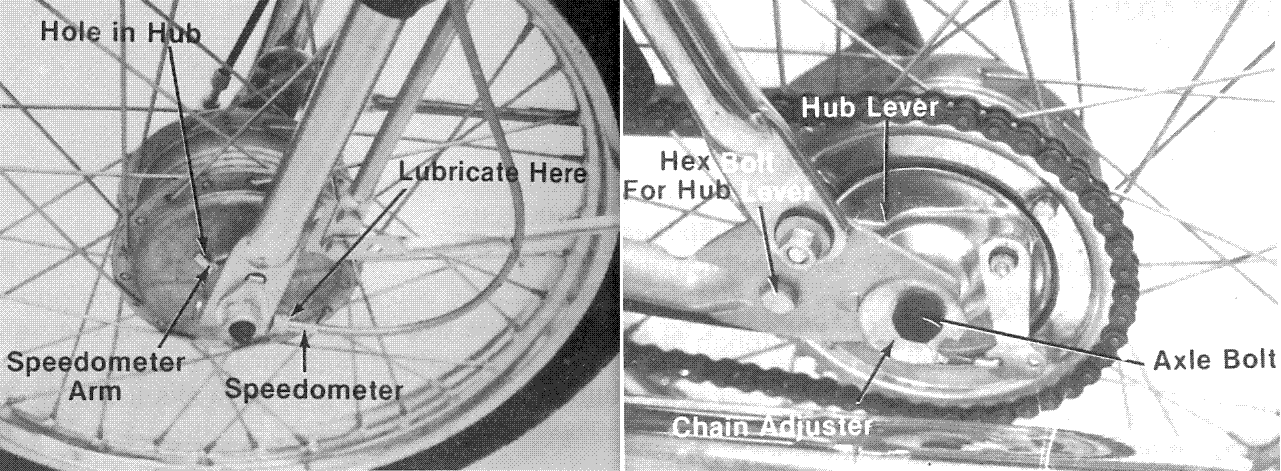

13. 2-chain F & R hub ∅105 ’79-80 Columbia, ’88-93 KKM

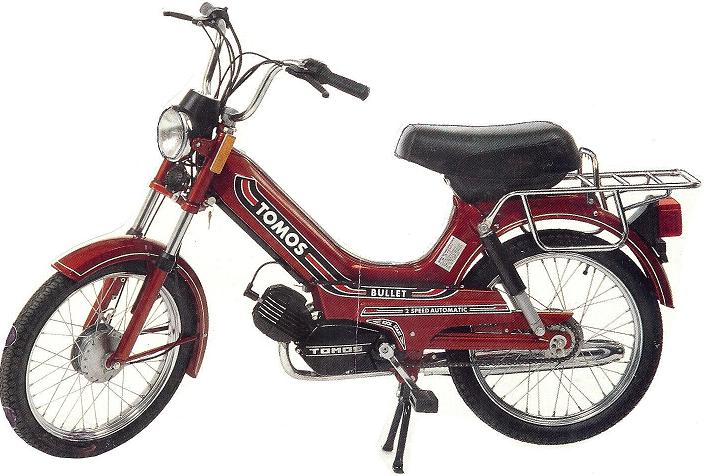

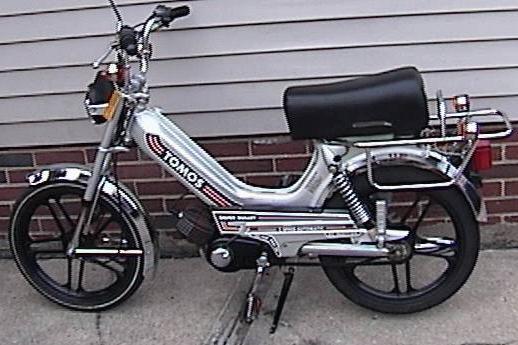

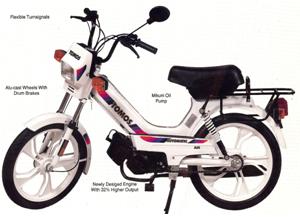

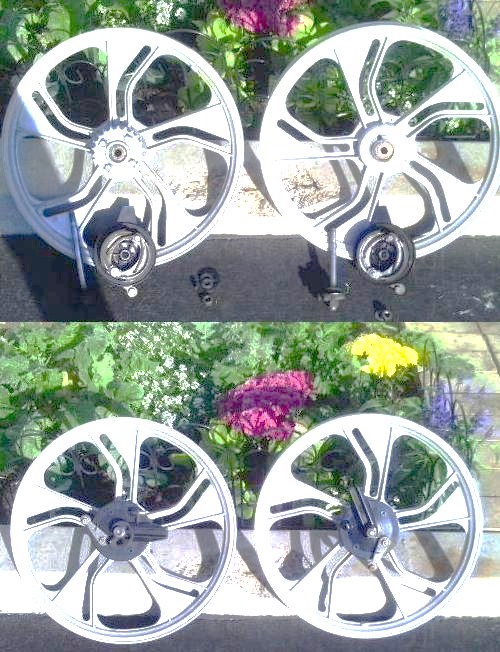

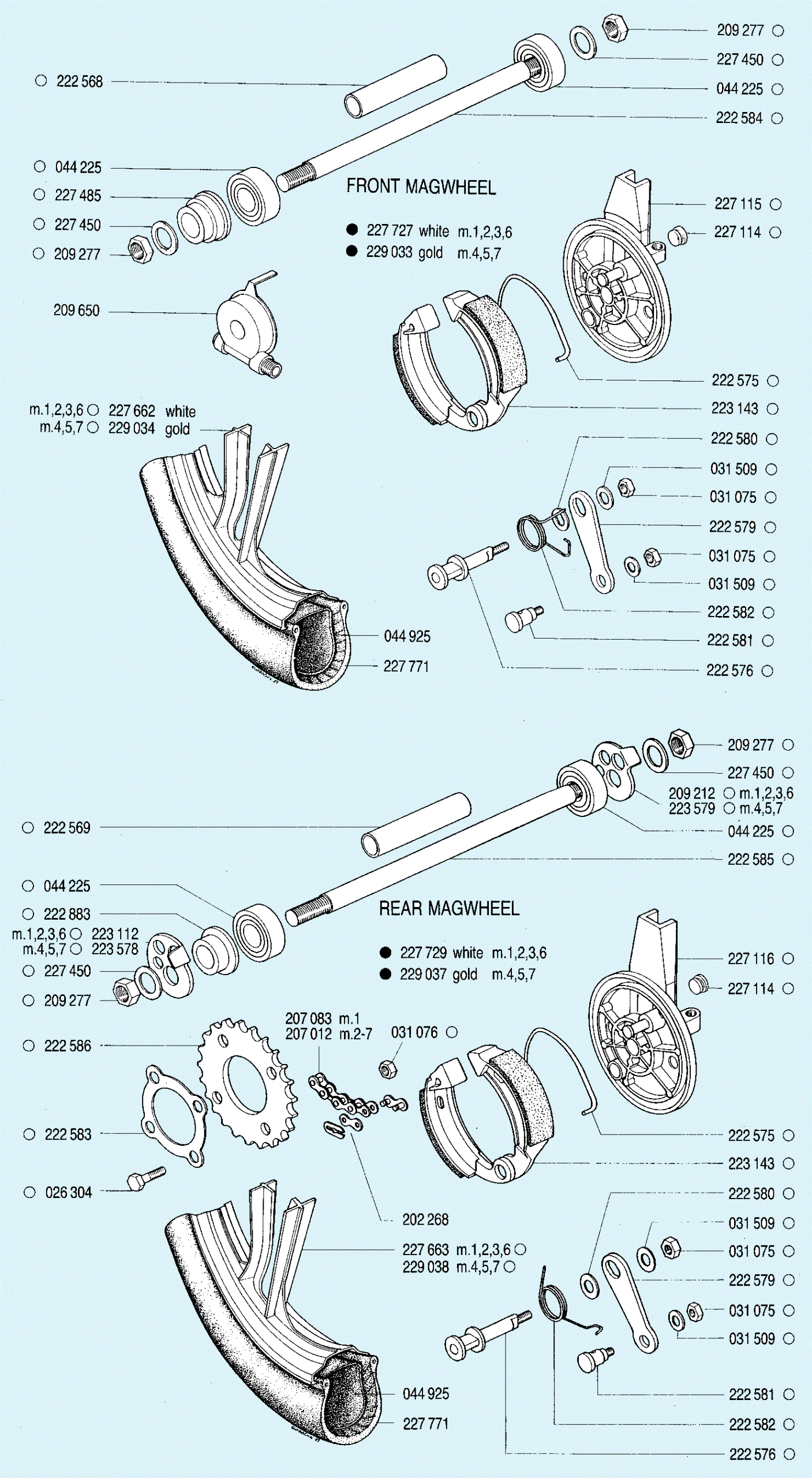

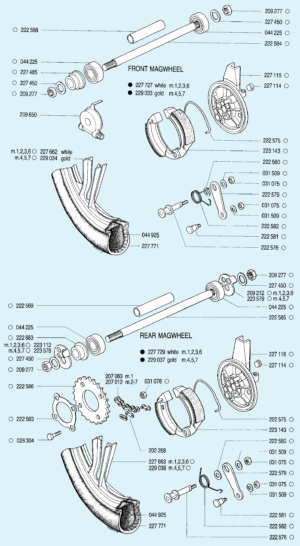

14. 1-chain F & R mag ∅90 ’91-95 Tomos

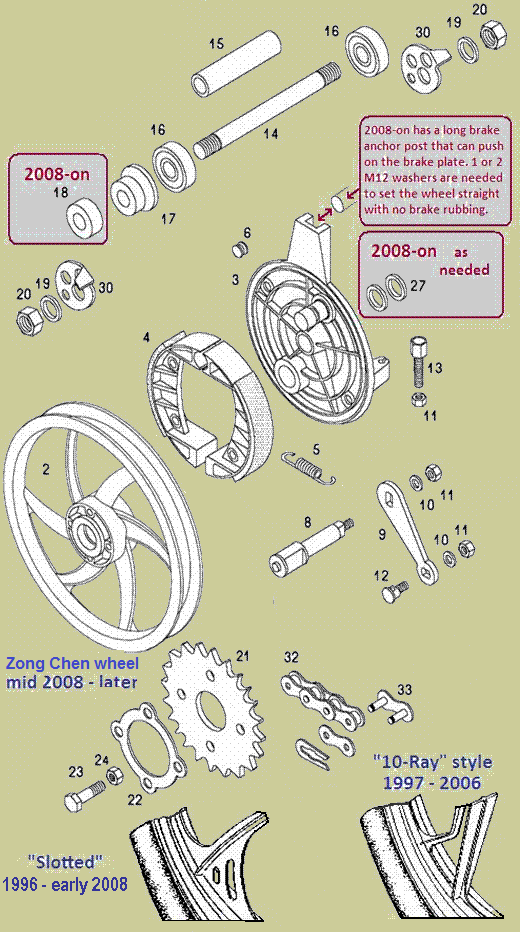

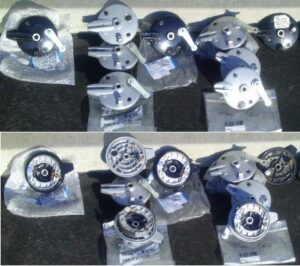

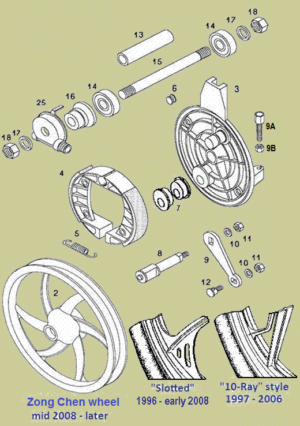

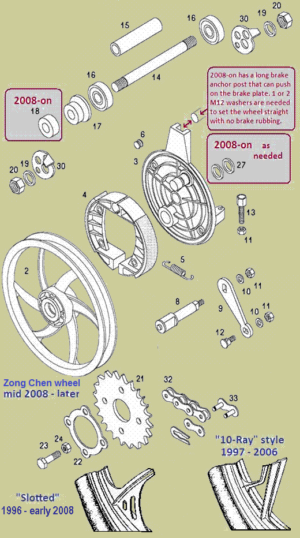

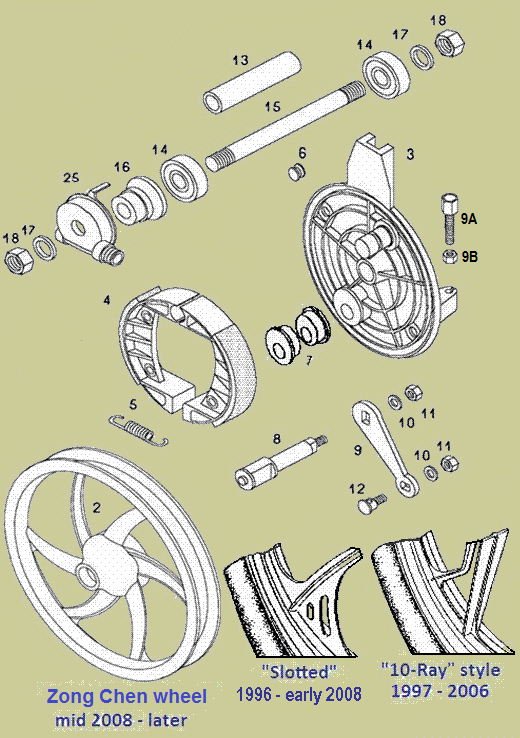

15. 1-chain F & R mag ∅105 ’96-17 Tomos
16. 1-chain F & R mag ∅000 Others
A.
Grimeca loose balls
Grimeca steel hubs or cast aluminum wheels (mags) are made in Italy. Grimeca is a world leader in motorcycle wheels, with many firsts, including the first disk brake, Ducati 1971, and the first light alloy wheel, Morini 1974.
Spoke wheel hubs: Grimeca makes stamped-steel hubs with 90, 105 or 118 mm brake drums, and 30, 32, 35, or 40 mm center holes. Within the 90mm drum size, there are at least 4 different single-chain hub bodies, with different spacing’s, and at least 2 different double-chain hub bodies. Each one of those hub bodies can have different axle lengths and axle spacer lengths possible. So there are dozens of configurations possible. Most 90mm Grimeca hubs have 11mm axles and axle components. Most 105mm hubs have 12mm heavy duty axles and axle cones, locknuts, nuts, washers, and spacers.

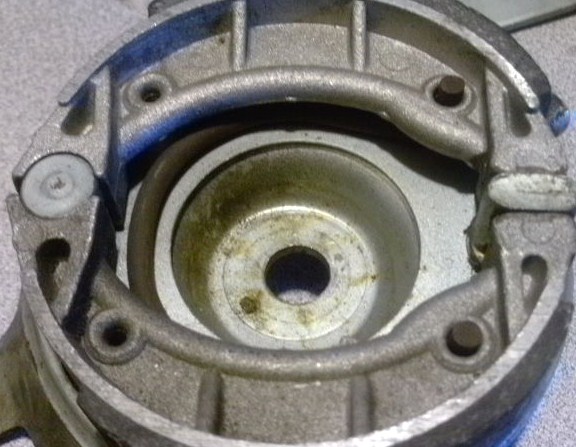

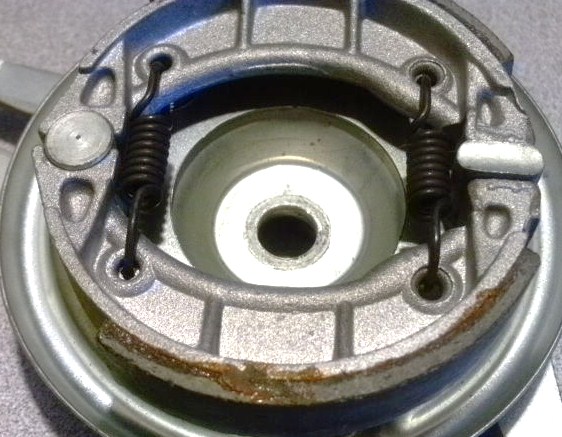

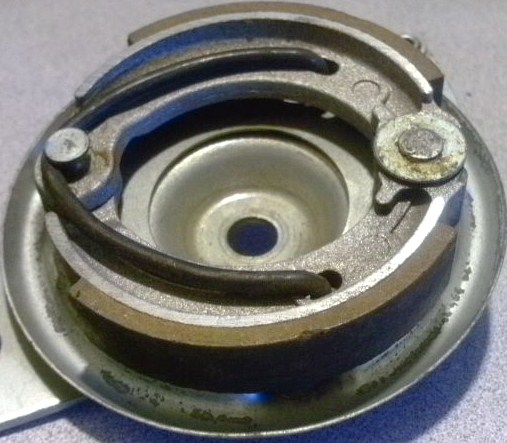

90mm types: Coil spring, U-spring, V-spring

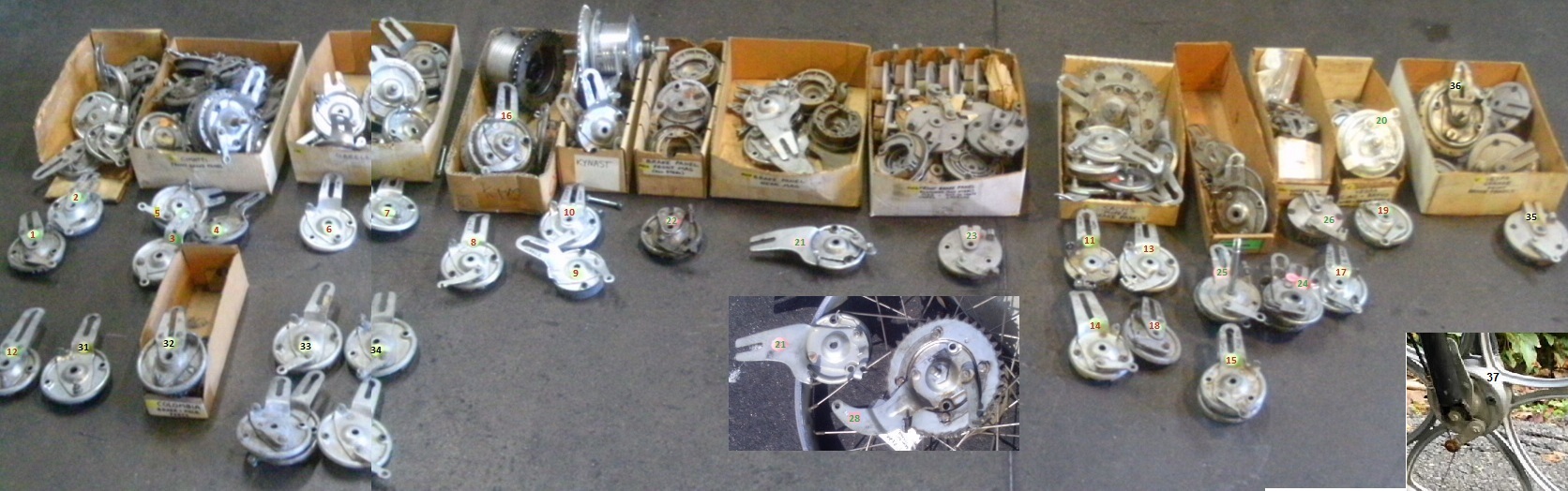

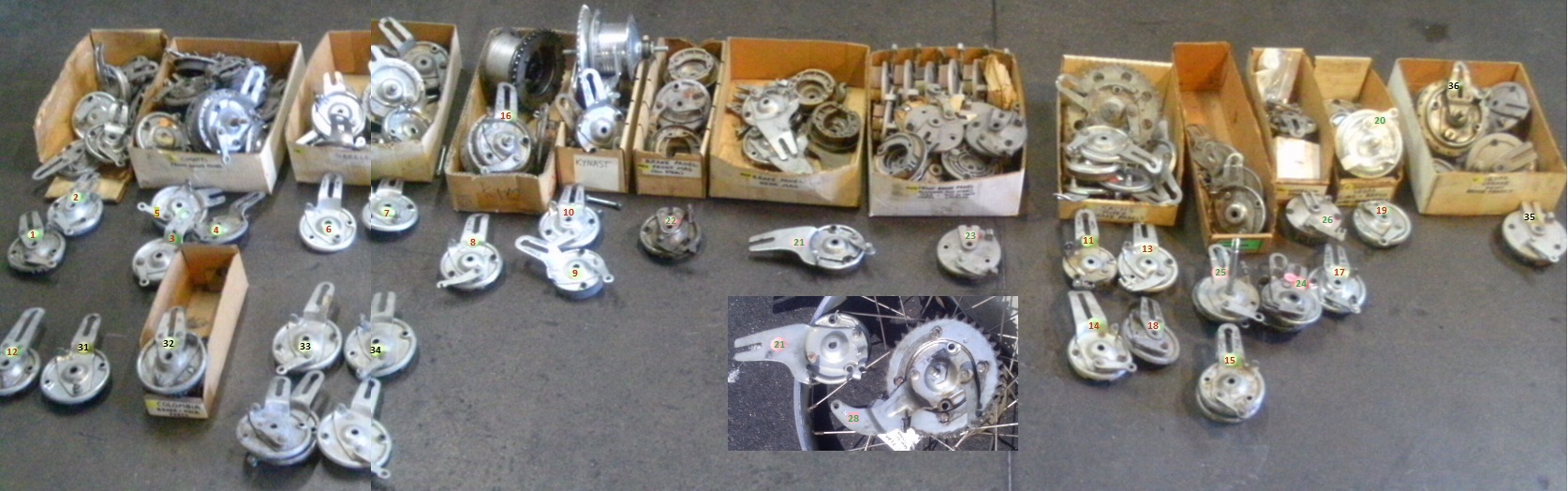

Brake Plates: Here are identification photos of numbered brake plates. Bare 90 mm plates have 2 types, U and V. Complete 90 mm plates with shoes have 3 types, C, U, and V. Each type can have several versions.

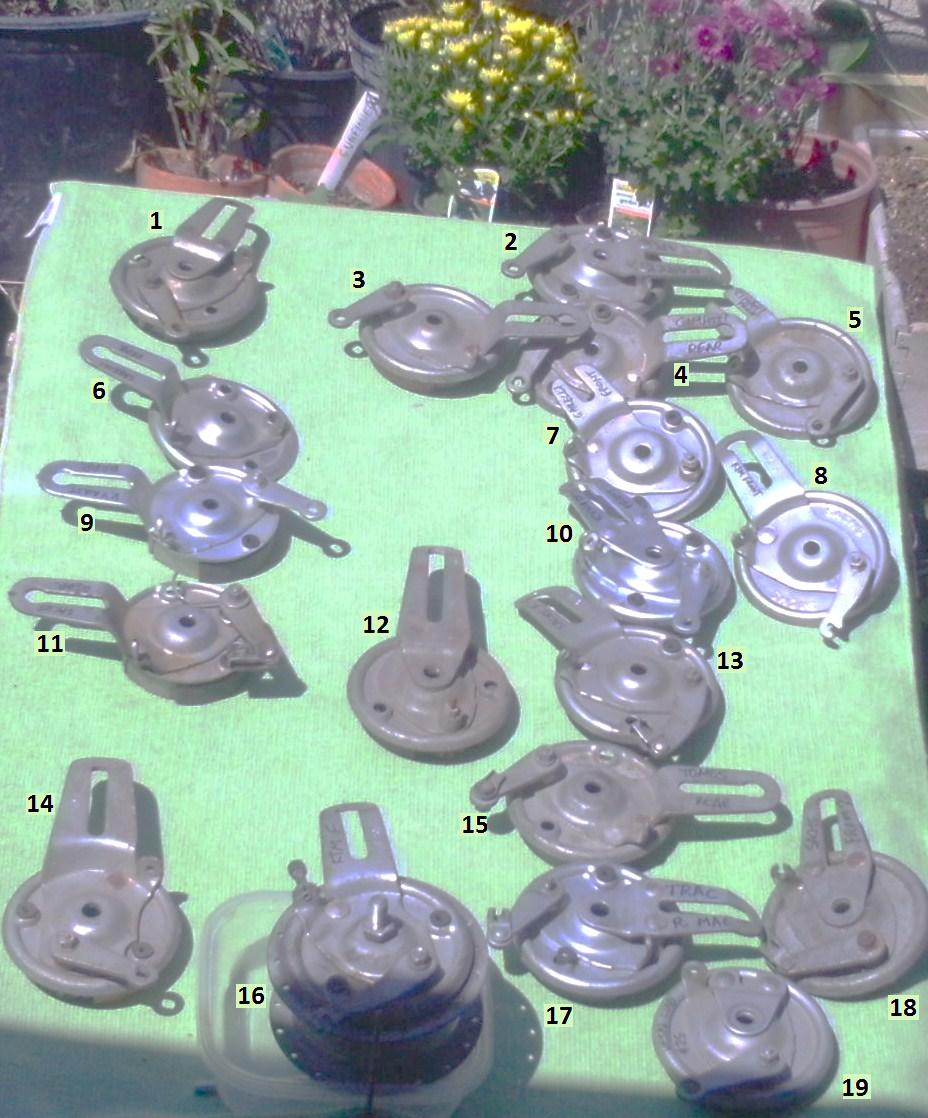

Grimeca 90 mm brake plates #1 to #19 (green).
Most have 11mm axle holes for loose bearings.
The back sides of those with U or V springs #3 ,8, 11-14, 17.
Grimeca 90 and 105 mm brake plates #1 to #37 (dark red).
Most have 11mm axle holes for loose bearings.

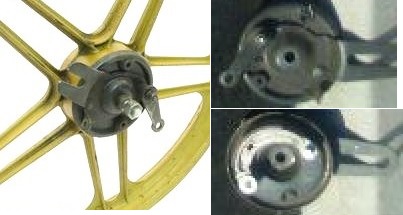

Grimeca 90 mm brake plates, left T3, T4, right T5, T6 (blue).
All have 11mm axle holes for loose bearings.

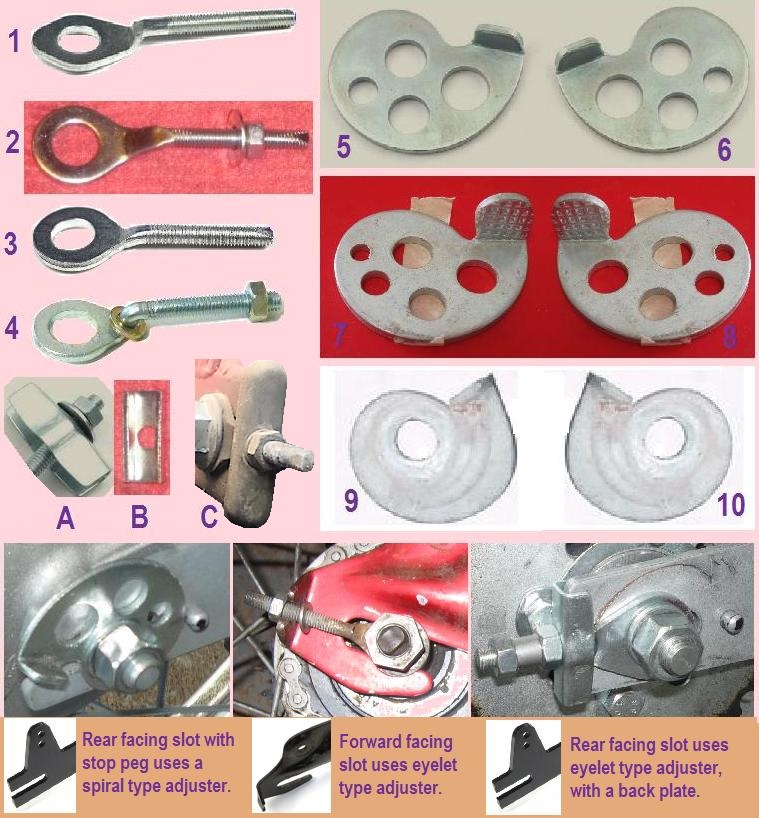

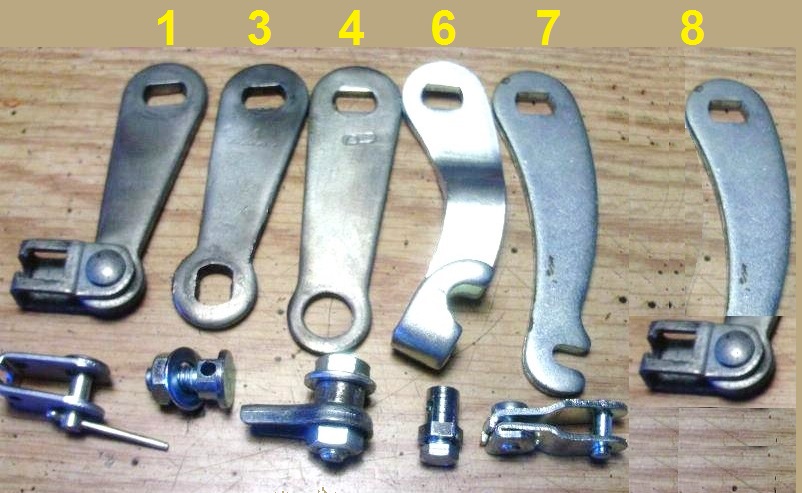

Lever arms L1 to L8, Brake cam shafts, Chain adjusters
1.

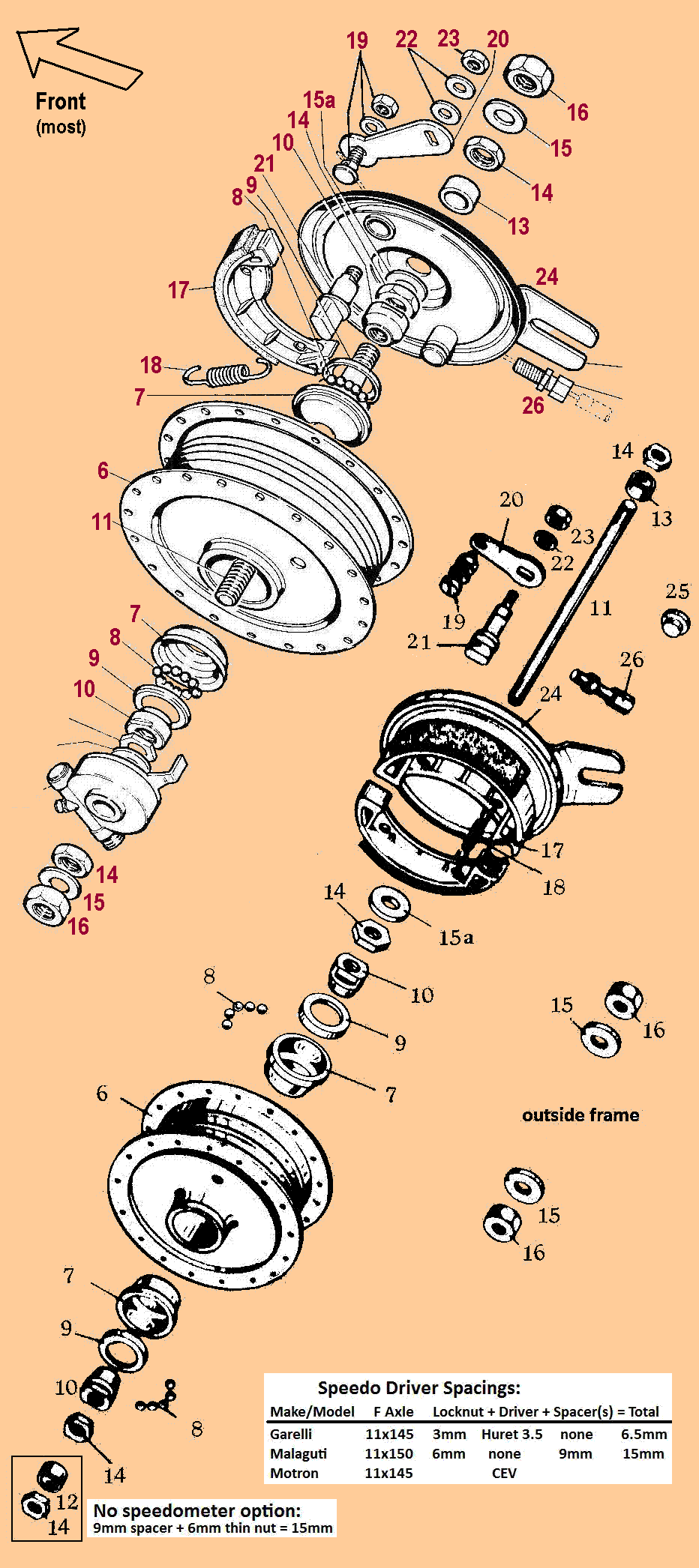

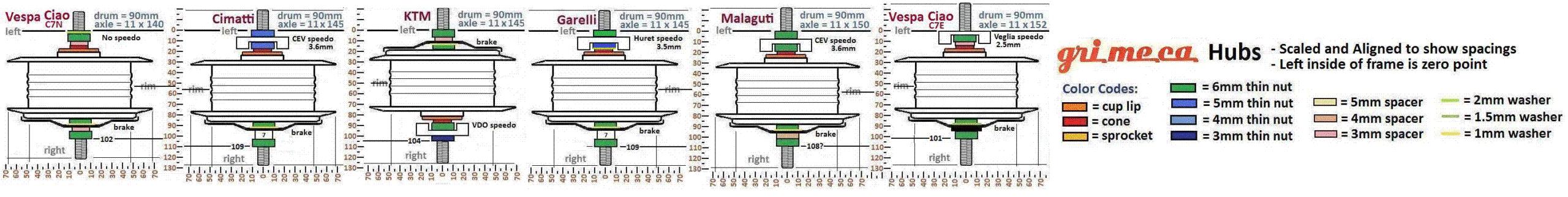

Front Hub Ø90 (loose bearings)
Grimeca front spoke wheel hubs with 90mm brake drum are used on Italian mopeds, including Baretta, Benelli, Bianchi, Cimatti, Colt, Concord, Fantic, Gadabout, Garelli, Gitane, Intramotor, Maico, Malaguti, Moto Guzzi, Motomarina, Motobecane Sebring, Motron, Negrini, Pacer, Safari, Scorpion, Snark, Testi, Vespa (Piaggio) and others, plus some non-Italian models of AMF, Colombia, NVT, Trac, Tomos, and others.
123456 MMI# front wheel # for tire plate axle spokes
100000 M00 front wheel 1 2.00-17 steel 11×140 28
100000 M00 Vespa Ciao C7N
010000 M00 front wheel 2 2.25-16 steel 11×145 36
010000 M00 Cimatti City Bike
001000 M00 front wheel 3 2.25-17 steel 11×145 36
001000 M00 KTM Foxi Deluxe, ’75-76 Hercules
000100 M00 front wheel 4 2.25-16 steel 11×145 36
000100 M00 ’75-80 Garelli (most),
000010 M3 0 front wheel 5 2.25-16 steel 11×150 36
000010 M3 0 Malaguti, Negrini, Pacer
000001 M00 front wheel 6 2.00-17 steel 11×150 28

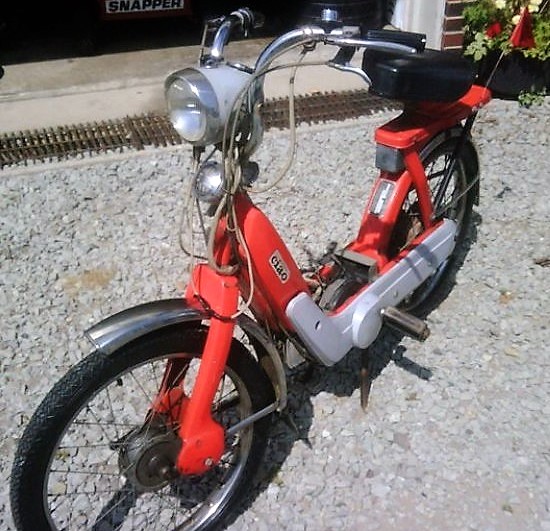

000001 M00 Vespa Ciao C7E
fig 123456 price MMI# description
01 100000 none H00 F hub 1 complete
01 010000 $0.00 C2370 F hub 2 complete
01 001000 none H00 F hub 3 complete
01 000100 $0.00 H00 F hub 4 complete
01 000010 $0.00 H51 F hub 5 complete
01 000001 none H00 F hub 6 complete
06 100001 none H000 front hub bare 28-hole
06 011110 $15.0 H146 front hub bare 36-hole
07 222222 $7.50 H69 bearing cup ∅32 od
08 111111 $2.00 H67 bag of 20 1/4″ balls
08 111111 $2.00 H67a ring of 8 1/4″ caged balls
09 222222 $6.00 H68 dust cover ∅28 ∅20 x 3.5
10 222222 $8.00 H66 bearing cone M11 ∅19 x 12
11 100000 $15.0 H00 front axle M11 x 140
11 011100 $10.0 H00 front axle M11 x 145
11 000011 $19.0 H52 front axle M11 x 150
12 000000 $5.00 H147 spacer option 12 x 9 for no speedo
13 101010 $3.00 H57 spacer 12 x 4 brake outer
13 010100 $5.00 H00 spacer 11 x 7 brake outer 514549
13 100001 $3.00 H00 spacer 11 x 3 outer 574549
14 323334 $2.00 H56 lock nut M11 x 6
14 020000 $6.00 H00 lock nut M11 x 5
14 001100 $4.00 H00 lock nut M11 x 3
15 222222 $1.50 H113 outer washer 11 x 2.0
15a 222222 $2.00 H62 inner washer 11 x 0.5
16 222222 $3.00 H112 outer axle nut
17 111111 $25.0 H64 brake shoe set 090181
18 222222 $2.50 H64S brake coil spring 38mm

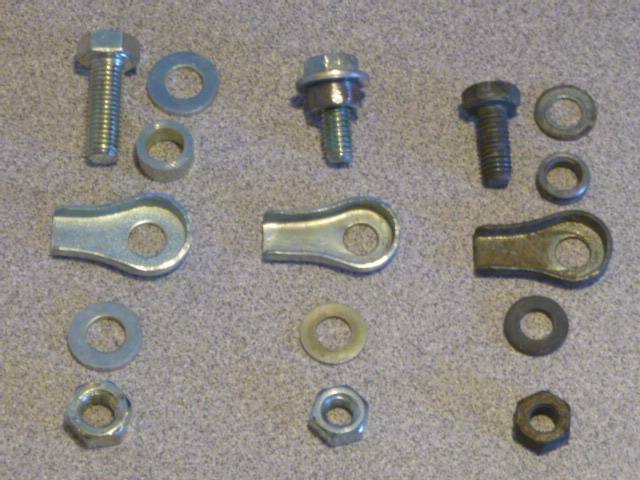

19 111111 $4.00 H60 Grimeca pinch bolt
20 111111 $5.00 H59 brake lever arm #L3

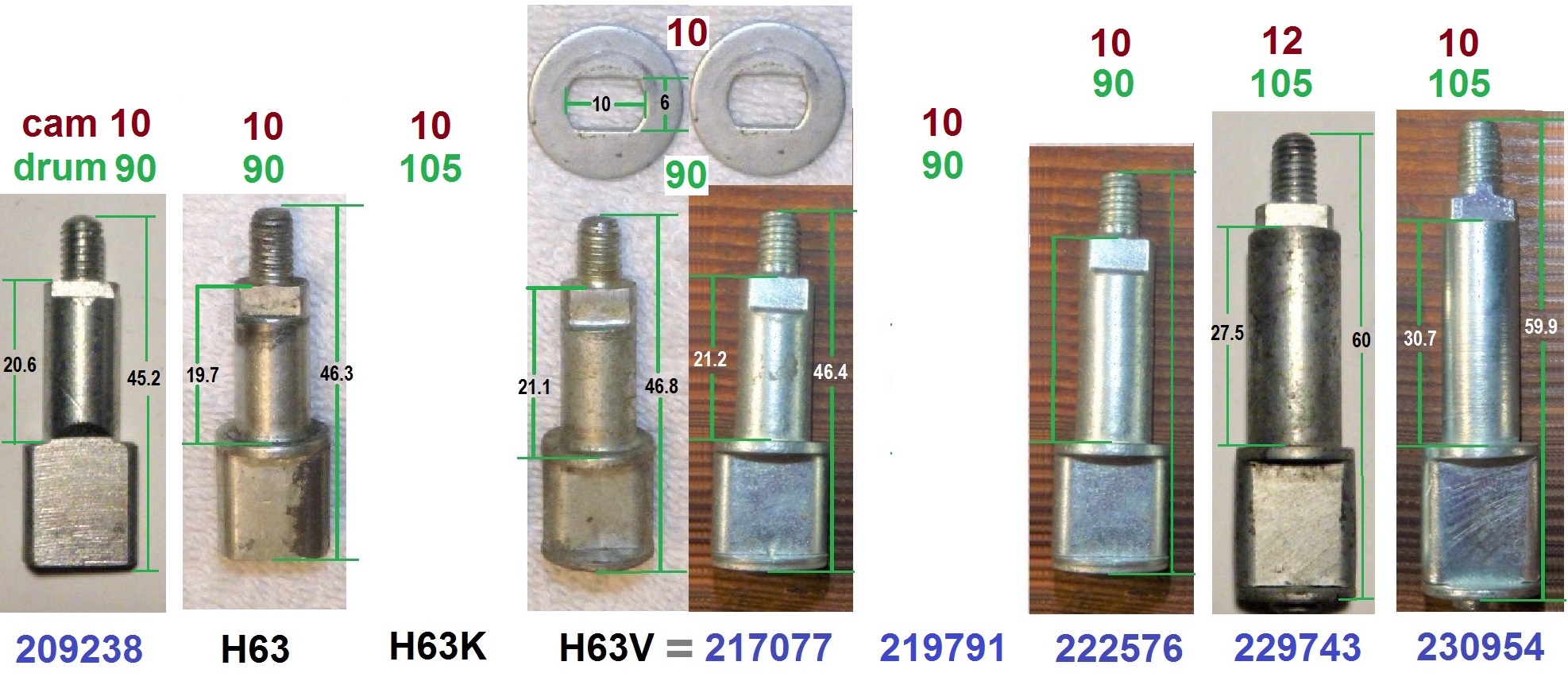

21 111111 $9.00 H63 cam shaft
22 222222 $0.60 H105 cam washer ∅6-13 x 1.0
22 111111 $0.20 H000 substitute washer ∅6
23 111111 $0.60 H104A cam nut M6 x 6 tall
23 111111 $0.30 H000 substitute nut M6 x 5
24 100000 $30.0 H00 front brake plate rt. #20 Ciao C7N
24 010000 $20.0 H00 front brake plate rt. #5 Cimatti
24 001000 none H00 front brake plate rt. #16 KTM
24 000100 30-15 H00 front brake plate rt. #7 Garelli
24 000010 $17.0 H58 front brake plate rt. #18 Malaguti
24 000001 none H00 front brake plate rt. #19 Ciao C7E
24 000000 30-15 H00 front brake plate left #1
24 000000 $30.0 H00 front brake plate rt. #10 Kynast
25 111111 $6.00 H148 inspection plug
26 111111 $7 - 4 H53 cable adjuster original M6 hex
26 111111 $3.00 H00 cable adjuster A2 M6 hex

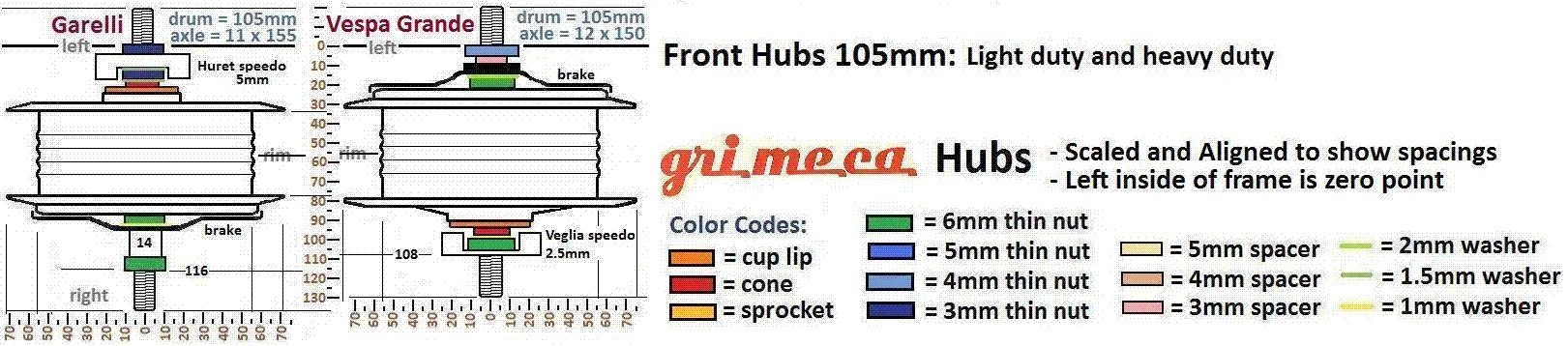

2. Front Hub Ø105 (loose bearings)
Grimeca front spoke wheel hubs with 105mm brake drum are used on Italian mopeds, including Garelli, Negrini, Vespa (Piaggio) and others.
123 MMI# front wheel # for tire plate axle spokes
100 M3G front wheel 1 2.25-17 steel 11×155 36

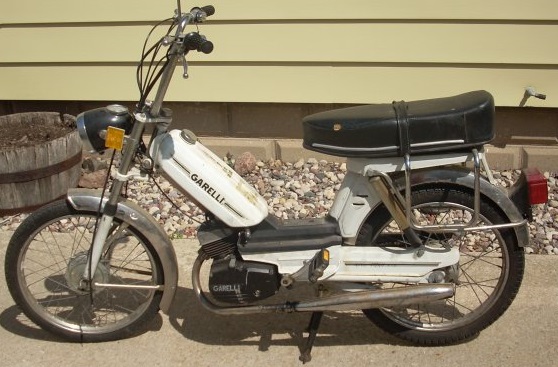

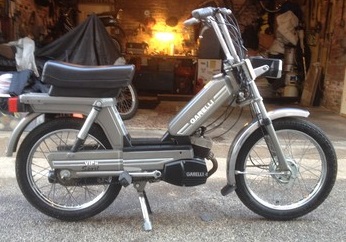

100 M3G ’78-80 Garelli VIP and ’81-86 all models
010 M00 front wheel 2 2.50-17 steel 12×150 36

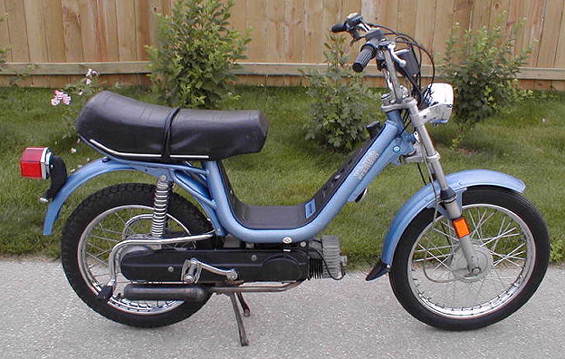

100 M00 ’78-83 Vespa Grande
001 M00 front wheel 3 2.25-19 steel 12×165 36
100 M00 ’81-82 Negrini KPN (City Cross)
fig 123 price MMI# description
01 100 none H51G front hub 1 complete
01 010 none H000 front hub 2 complete
01 001 none H51K front hub 3 complete
07 200 $7.50 H69 bearing cup ∅32
07 022 $19.0 H69M bearing cup ∅35
08 100 $2.00 H67 bag of 20 1/4″ balls
08 100 $2.00 H67a ring of 8 1/4″ caged balls
08 011 $2.00 H67M bag of 22 1/4″ balls
09 200 $6.00 H68 dust cover ∅28 ∅20 x 3.5
09 022 $20.0 H68M dust cover ∅31 ∅23 x 4
10 200 $8.00 H66 bearing cone M11 ∅19 x 12
10 022 $16.0 H66M bearing cone M12 ∅22 x 14
11 100 $18.0 H00 front axle M11-1.0 x 155
11 010 $19.0 H000 front axle M12-1.0 x 150
11 001 $19.0 H52K front axle M12-1.0 x 165
12 000 $5.00 H147 spacer option 12 x 9 for no speedo
13 100 $5.00 H116B spacer brake 12 x 14
13 01? $3.00 H000 spacer brake 12 x 3
14 200 $2.00 H56 lock nut M11 x 6
14 200 $3.00 H00 lock nut M11 x 3
14 023 $2.50 H56M thin nut M12 x 6
15 200 $1.50 H113 outer washer 11 x 2
15 022 $1.80 H113M outer washer 12 x 2
15a 200 $2.00 H62 thin washer 11 x 0.5
15a 022 $2.50 H62M thin washer 12 x 1.2
16 200 $3.00 H112 outer axle nut M11
16 022 $4.50 H112M outer axle nut M12
17 111 $20.0 H64C brake shoe set 105201
18 222 $8.00 H64CS brake coil spring 51mm
19 111 $4.00 H60 Grimeca pinch bolt
20 111 $5.00 H59 brake lever arm #L3
21 100 $9.00 H63 0 cam shaft
21 0?? $16.0 H63K cam shaft
22 222 $0.60 H105 cam washer ∅6-13 x 1.0
22 111 $0.20 H000 substitute washer ∅6
23 111 $0.60 H104A cam nut M6 x 6 tall
23 111 $0.30 H0000 substitute nut M6 x 5
24 100 $25.0 H00 front brake plate rt. #34 Garelli
24 010 none H00 front brake plate left #36 Grande steel
24 010 $29.0 H00 front brake plate left #35 Grande alum
24 001 $25.0 H58K front brake plate rt. #31 Negrini KPN?
25 111 $6.00 H148 inspection plug
26 111 $7 - 4 H53 cable adjuster original M6 hex
26 111 $3.00 H00 cable adjuster A2 M6 hex

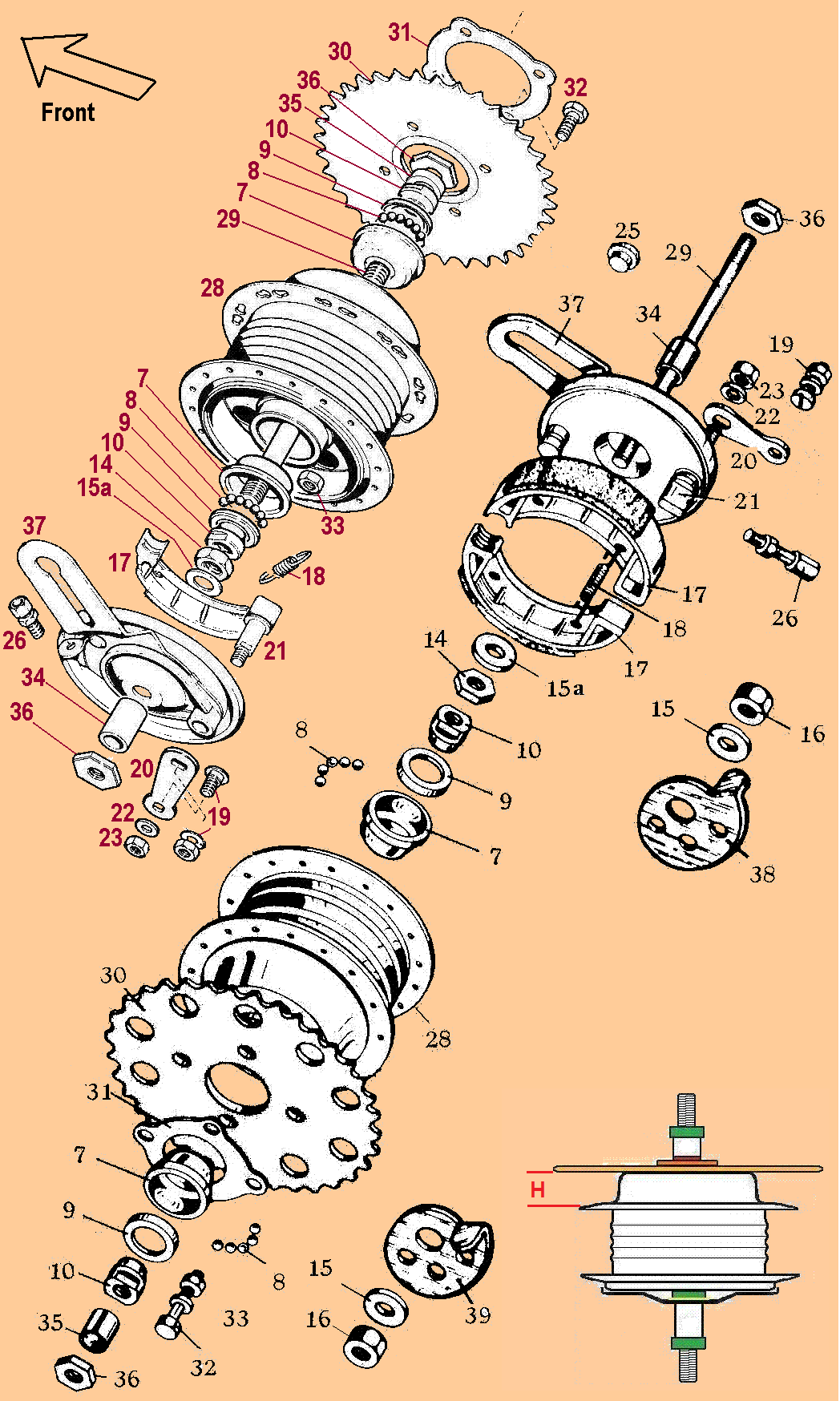

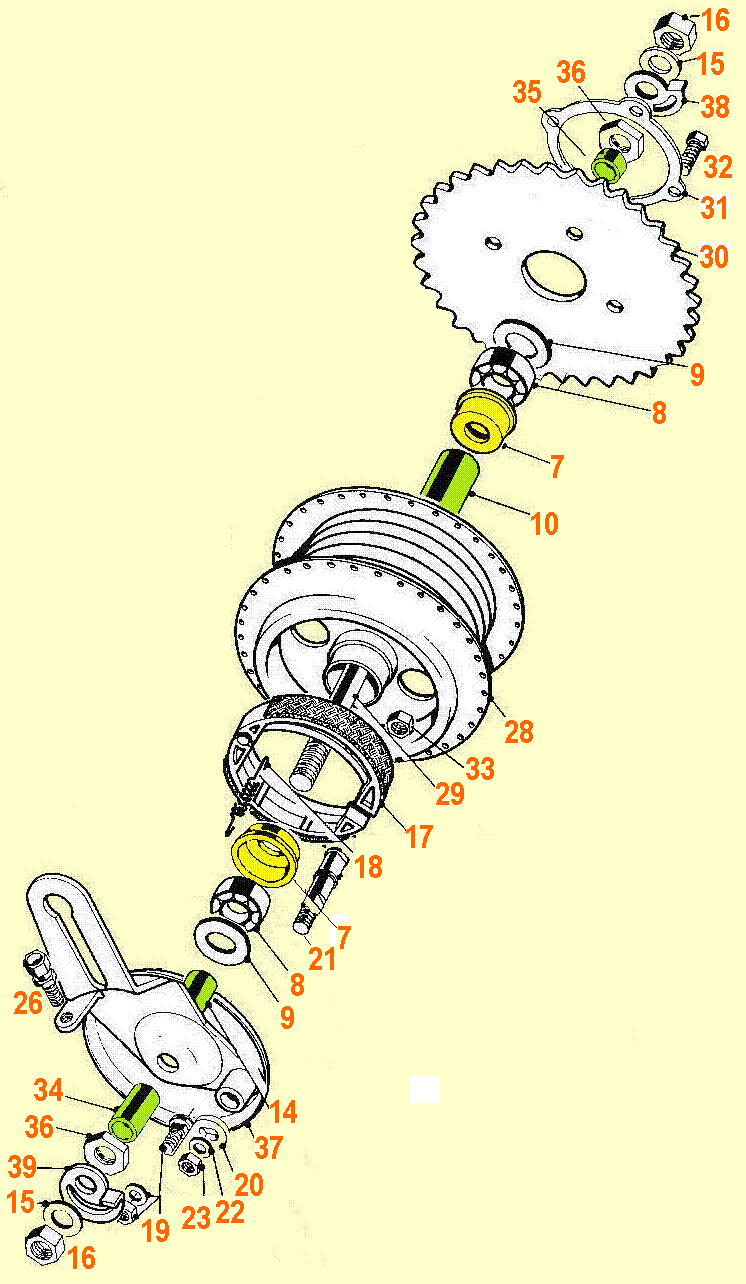

3. Rear Hub Ø90 (loose bearings)

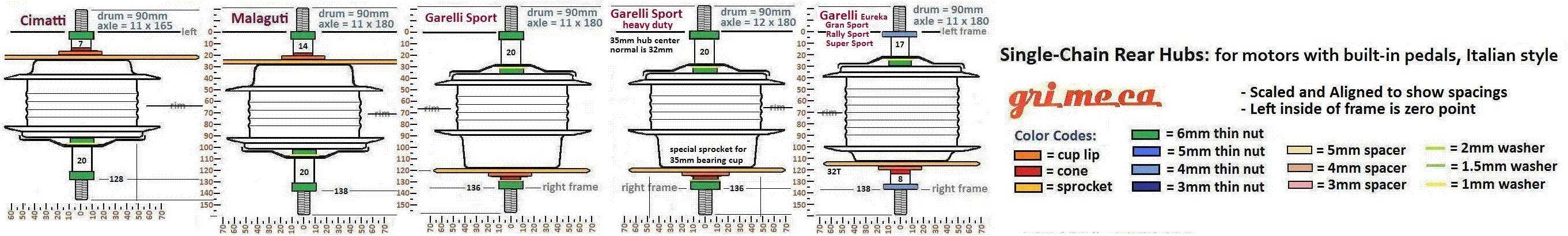

Grimeca single-chain rear spoke wheel hubs with 90mm brake drum are used on Italian mopeds, including Baretta, Benelli, Bianchi, Cimatti, Colt, Concord, Fantic, Gadabout, Gitane, Intramotor, Maico, Malaguti, Moto Guzzi, Motomarina, Motobecane Sebring, Motron, Negrini, Pacer, Safari, Scorpion, Snark, Testi, Vespa (Piaggio) and others, plus some non-Italian models of AMF, Colombia, NVT, Trac, Tomos, and others.
123456 MMI# rear wheel # for tire plate axle spokes H
100000 M4NB rear wheel 1 2.25-16 steel 11×180 36 14

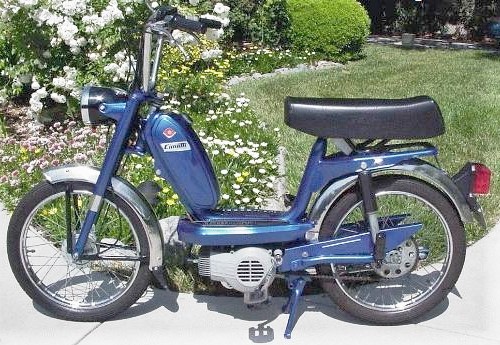

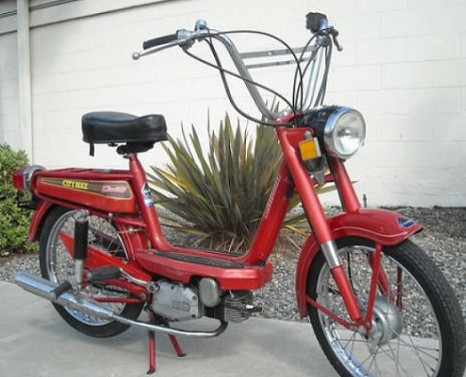

100006 M0000 ’76-79 Cimatti City Bike, Town Bike
010000 M4WB rear wheel 2 2.25-16 steel 11×180 36 22

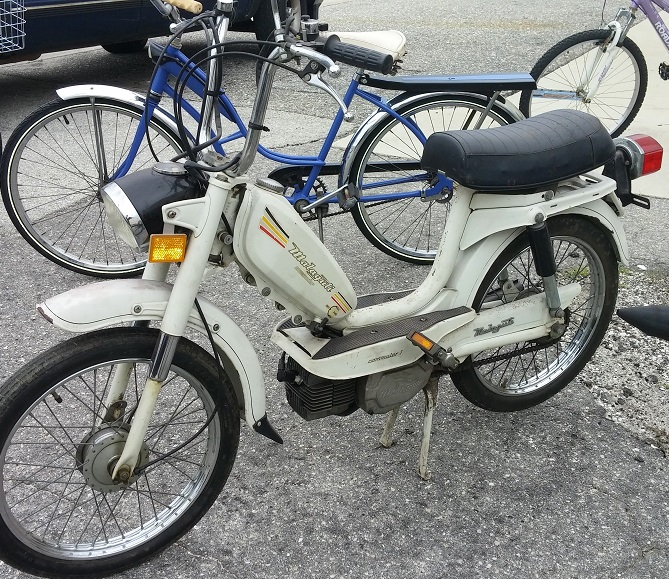

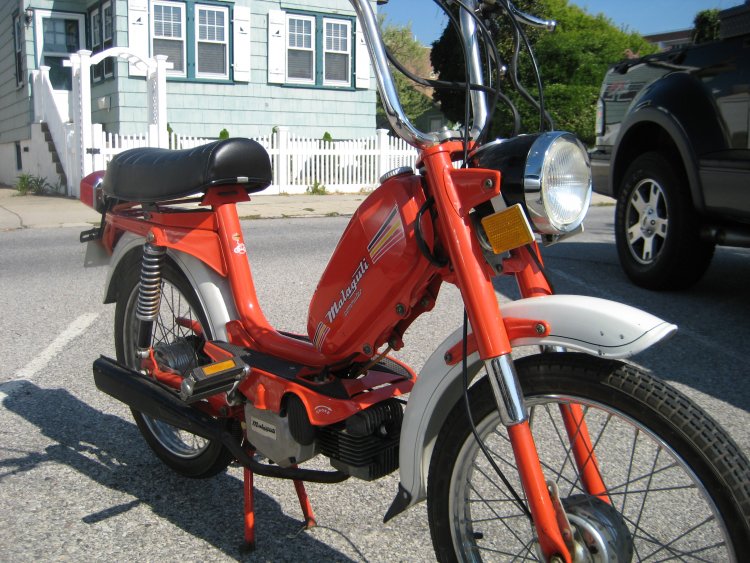

010006 M0000 ’77-79 Malaguti Commuter

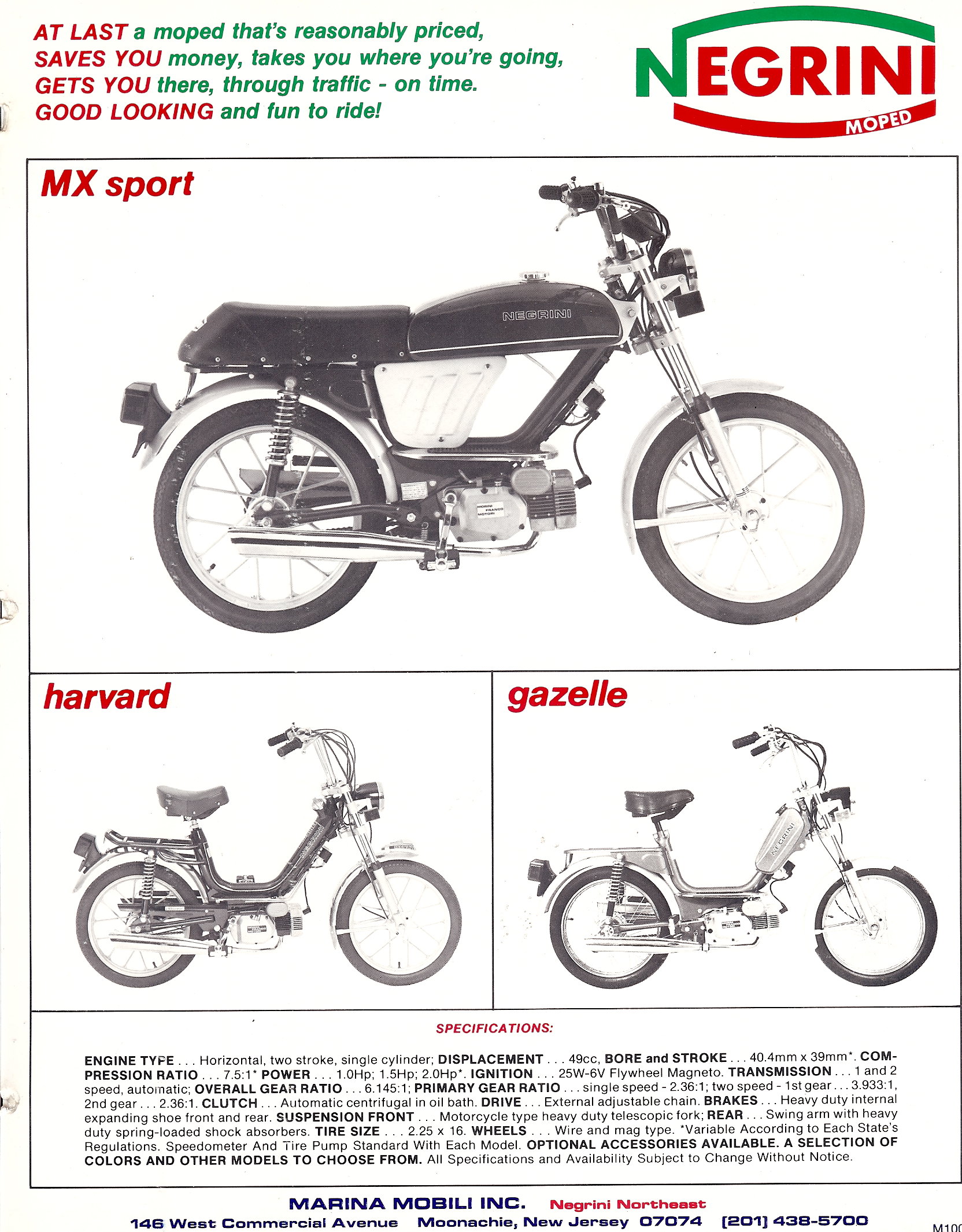

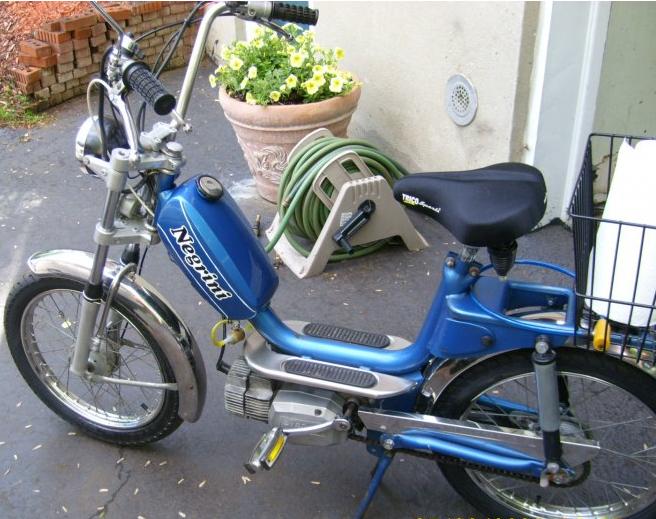

010006 M0000 ’76-78 Negrini Gazelle, Harvard

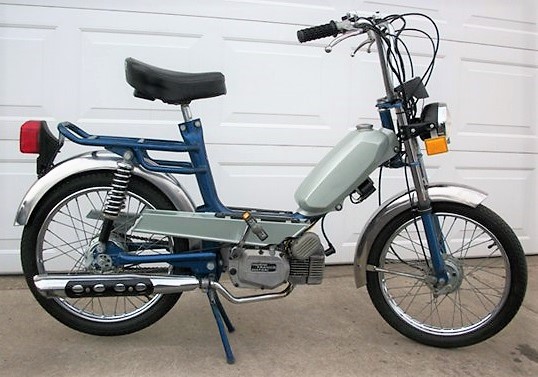

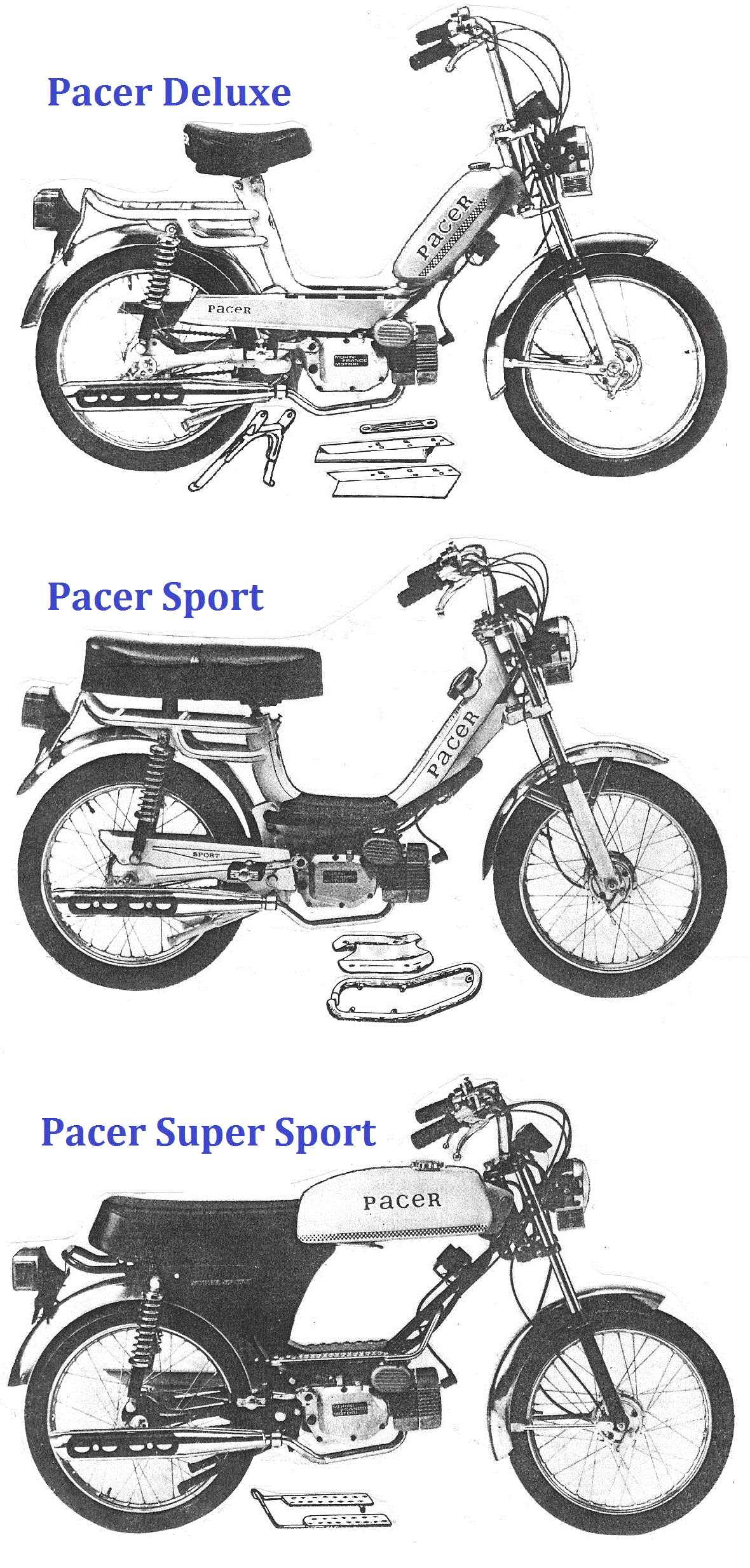

010006 M0000 ’76-80 Pacer Deluxe, Super Sport

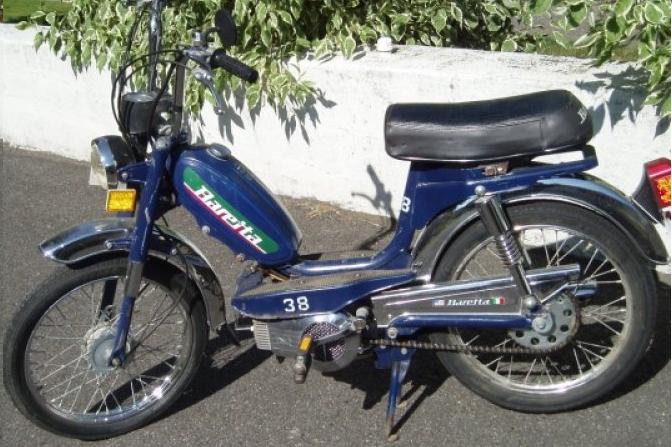

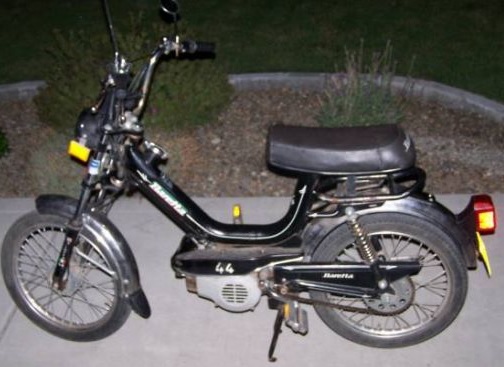

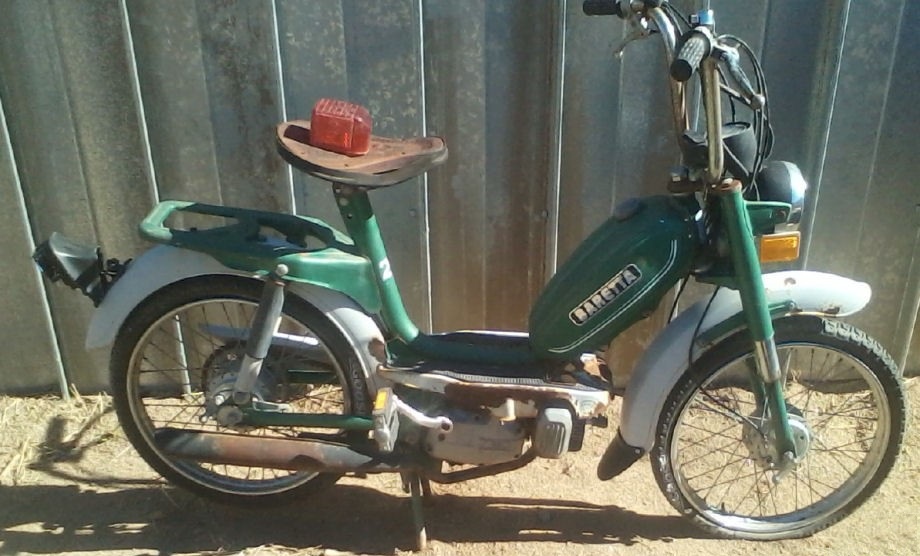

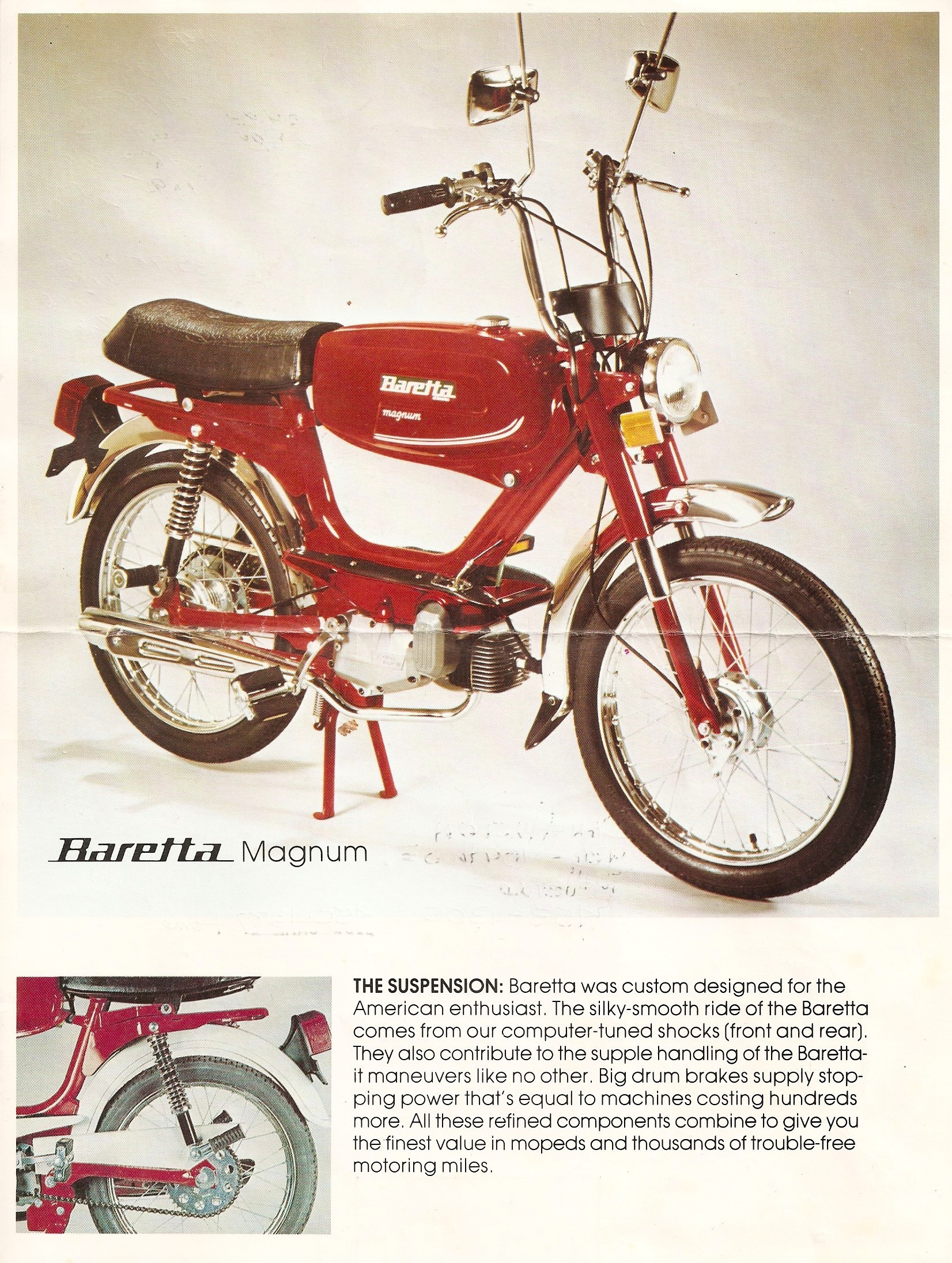

010006 M0000 ’77-78 Baretta 22, 38, 44, Magnum
001000 M4XWB rear wheel 3 2.25-16 steel 11×180 36 27

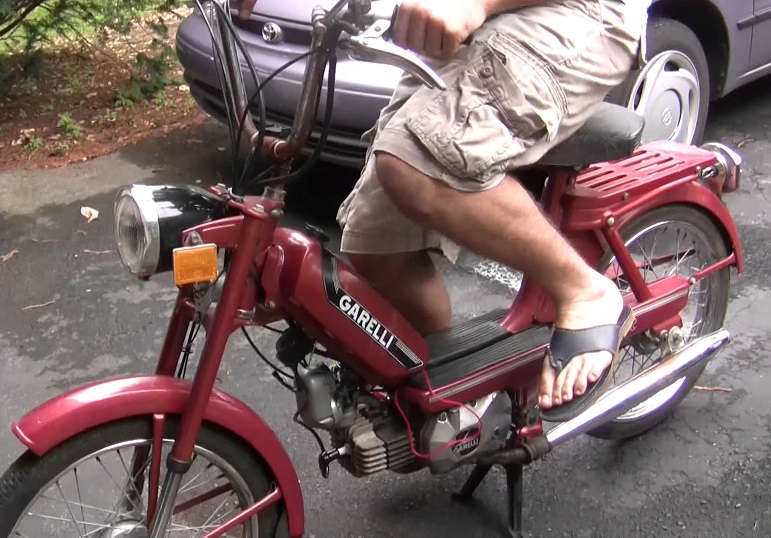

001006 M4XWB ’76-78 Garelli Sport (hard tail)
000100 M0000 rear wheel 4 2.25-16 steel 12×180 36 27
001006 M0000 ’77-78 Garelli Sport HD (hard tail)
000010 M4GA rear wheel 5 2.25-16/17 s 11×180 36 11

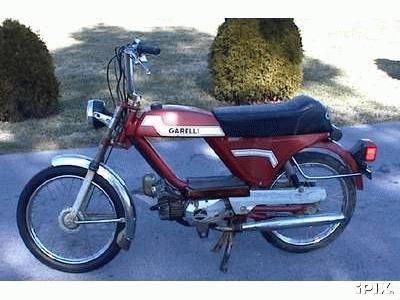

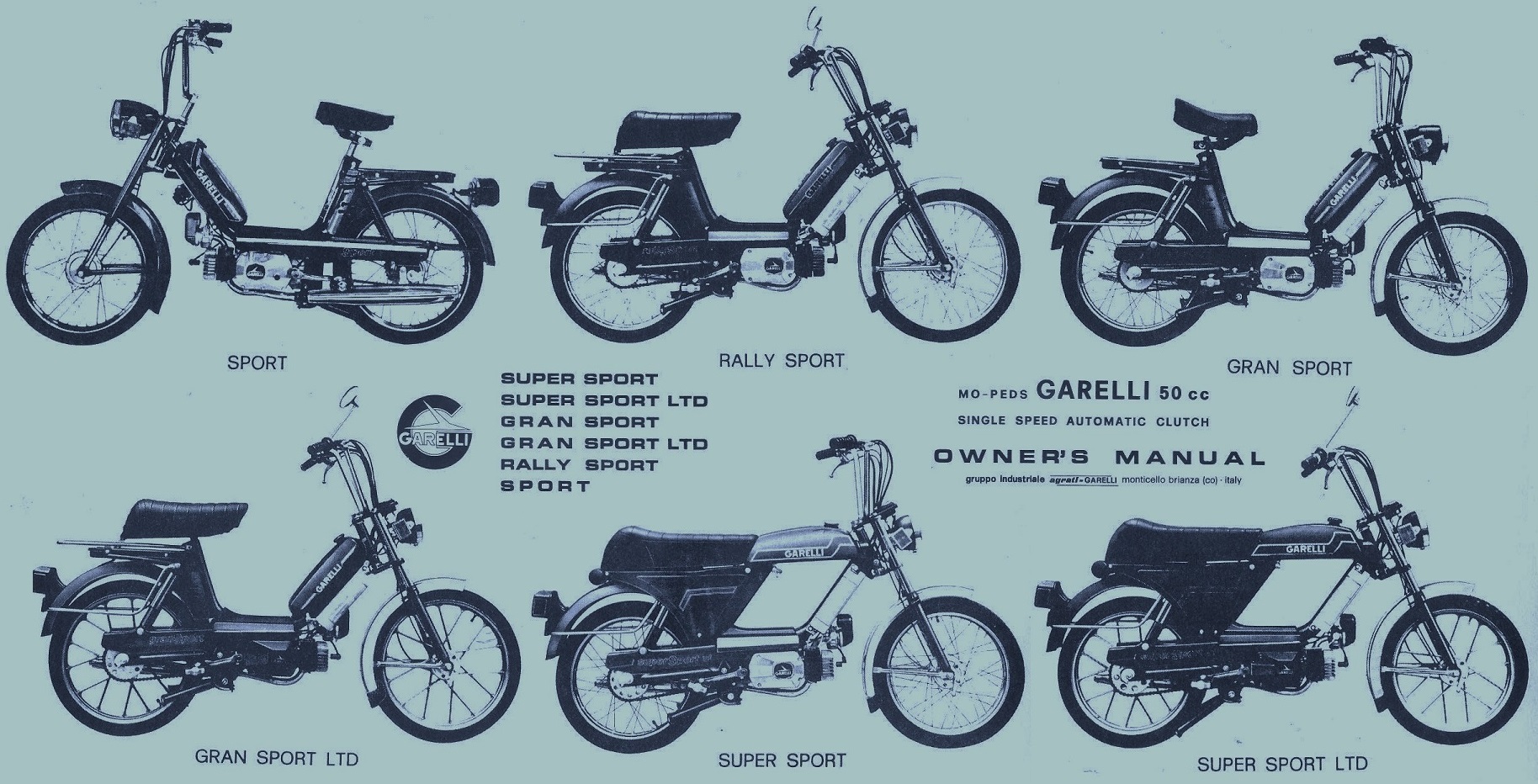

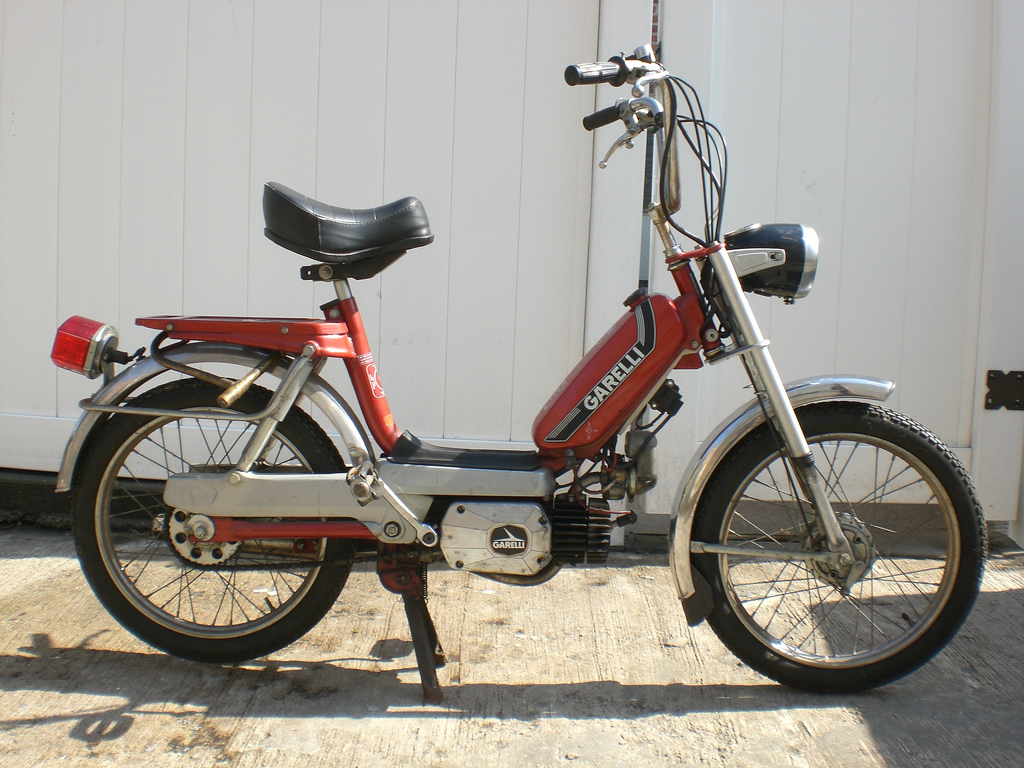

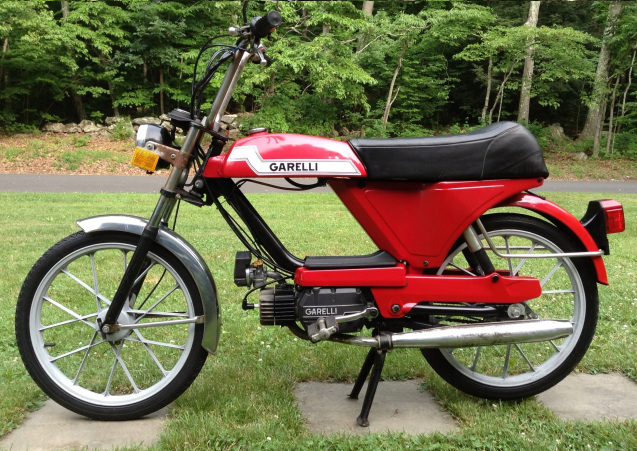

001006 M4GA ’75-76 Garelli Eureka Flex, ’77-80 Super Sport

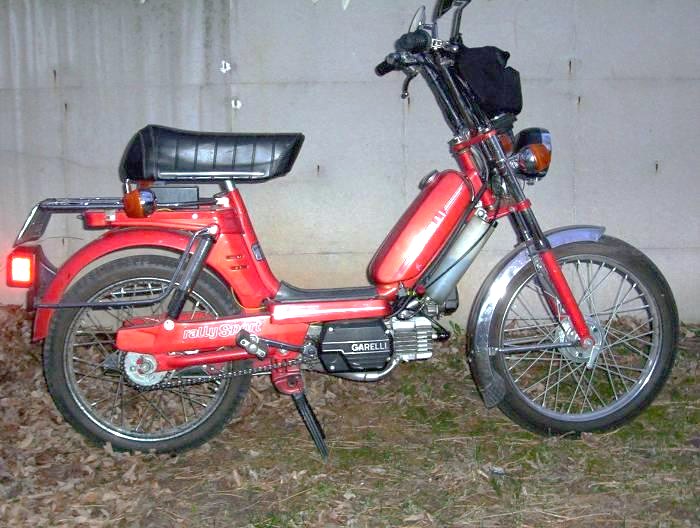

001006 M4GA ’77-78 Garelli Gran Sport, ’77-80 Rally Sport
000001 M4A rear wheel 6 2.25-17 steel 11×180 36 22

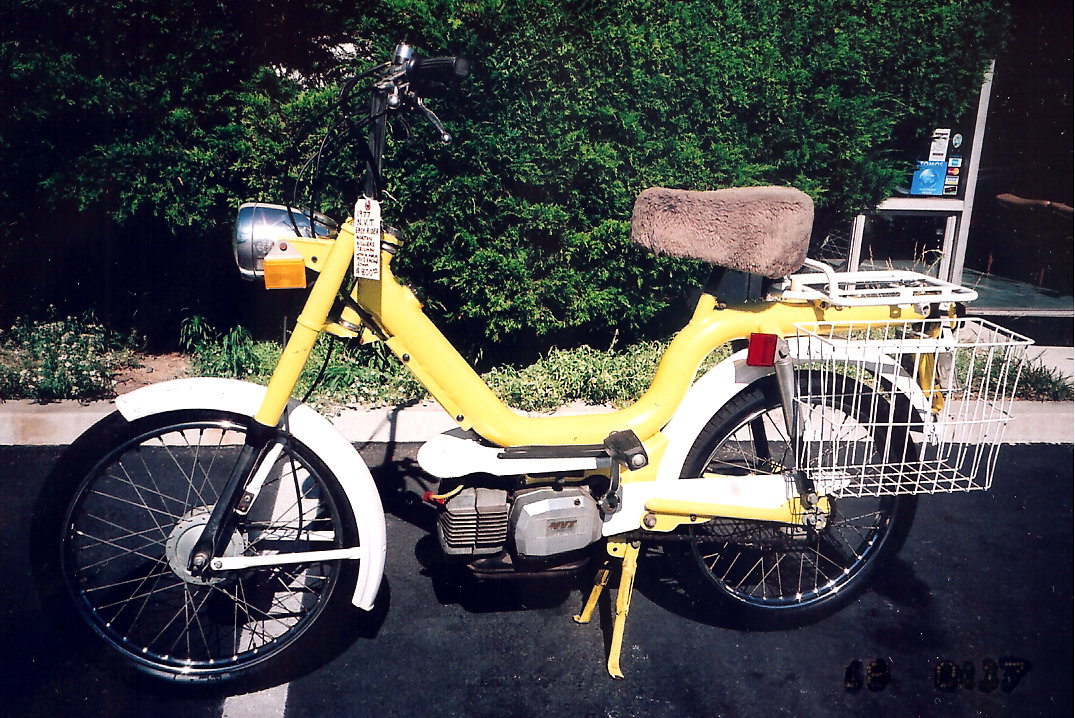

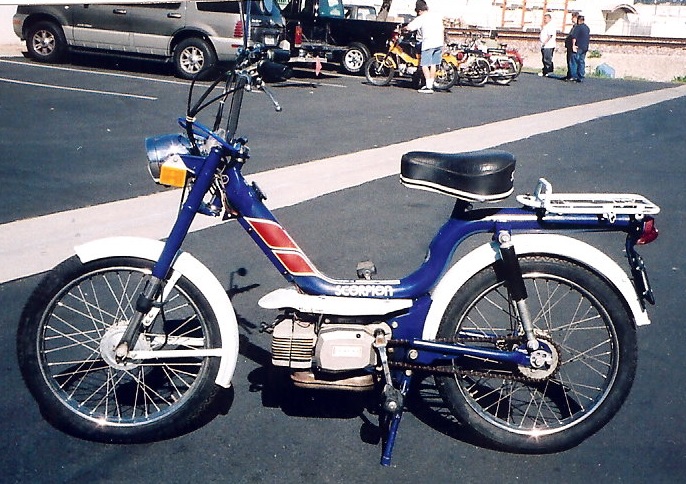

001000 M4A ’76-77 NVT Easy Rider, ’77-79 Scorpion
fig 123456 price MMI# description
01 100000 $0.00 C2380 rear hub 1 complete
01 010001 $0.00 H120 rear hub 2 and 6
01 001000 $0.00 1184M rear hub 3 complete
01 000100 $0.00 H000 rear hub 4 complete
01 000010 $0.00 H120GA rear hub 5 complete
07 222022 $7.50 H69 bearing cup ∅32
07 000200 $19.0 H69M bearing cup ∅35
08 111011 $2.00 H67 bag of 20 1/4″ balls
08 111011 $2.00 H67a ring of 8 1/4″ caged balls
08 000100 $2.00 H67M bag of 22 1/4″ balls
09 222022 $6.00 H68 dust cover ∅28 ∅20 x 3.5
09 000200 $20.0 H68M dust cover ∅31 ∅23 x 4
10 222022 $8.00 H66 bearing cone M11 ∅19 x 12
10 000200 $16.0 H66M bearing cone M12 ∅22 x 14
14 111011 $2.00 H56 lock nut M11 x 6
14 000100 $2.50 H56M lock nut M12 x 6
15 222022 $1.50 H113 outer washer 11 x 2.0
15 000200 $1.80 H113M outer washer 12 x 2.0
15a 222022 $2.00 H62 thin washer 11 x 0.5
15a 000200 $2.50 H62M thin washer 12 x 0.5
16 222022 $3.00 H112 outer axle nut M11
16 000200 $4.50 H112M outer axle nut M12
17 111111 $25.0 H64 brake shoe set 090181
18 222222 $2.50 H64S brake coil spring 38mm
19 111111 $4.00 H60 Grimeca pinch bolt P25
20 111111 $5.00 H59 brake lever arm L3
21 111111 $9.00 H63 cam shaft
22 222222 $0.60 H105 cam washer ∅6-13 x 1.0
22 111111 $0.20 H000 substitute washer ∅6
23 111111 $0.60 H104A cam nut M6 x 6 tall
23 111111 $0.30 H0000 substitute nut M6 x 5
25 111111 $6.00 H148 inspection plug
26 111111 $7 - 4 H53 cable adjuster original M6 hex
26 111111 $3.00 H00 cable adjuster A2 M6 hex
28 100000 $00.0 H000 rear hub bare Cimatti
28 010001 $00.0 H149 rear hub bare Malaguti
28 001000 $00.0 H000 rear hub bare Garelli
28 000100 none H000 rear hub bare Garelli HD
28 000010 none H000 rear hub bare Garelli wide
29 111011 $22.0 H119 rear axle M11 x 180
29 000100 $18.0 H119G rear axle M12 x 180
30 100000 $40.0 H123/42 sprocket ∅39.5 x 62 42T (30mph)
30 010000 $34.0 H123/28 sprocket ∅39.5 x 62 28T (30/25)
30 001010 $34.0 H123/32 sprocket ∅39.5 x 62 32T (30mph)
30 000100 none H123/32M sprocket ∅42.5 x 66 32T (30mph)
30 000001 none H123/30 sprocket ∅39.5 x 62 30T (30/25)
31 111011 $4.00 H122 locking plate ∅62 x 4
31 000100 $5.00 H122M locking plate ∅66 x 4
32 444444 $1.00 H124 sprocket bolt M7 x 18 hex
32 444444 $0.80 H0000 substitute M7 x 25 hex
33 444444 $1.20 H124A sprocket nut M7 x 7 tall
34 111101 $7.00 H116A brake side spacer 12 x 20
34 000010 $7.50 H116 brake side spacer 12 x 17
35 100000 $5.00 H000 sproc side spacer 12 x 7
35 010001 $5.00 H116B sproc side spacer 12 x 14
35 000010 $6.00 H000 sproc side spacer 12 x 8
36 222002 $2.00 H56 outer thin nut M11 x 6 hex17
36 000200 $2.50 H56M outer thin nut M12 x 6 hex19
36 000020 $3.00 H115 outer thin nut M11 x 4 hex24
37 100000 $19.0 H000 rear brake plate rt. #4 Cimatti
37 010001 30-17 H118 rear brake plate rt. #2 Baretta
37 001010 32-17 H000 rear brake plate left #6 Garelli 11
37 000100 none H000 rear brake plate left #0 Garelli 12
38 110001 $5.00 H114R chain adjuster right ∅11 C6
38 001110 $8.00 H0000 chain adjuster right Garelli C10
39 110001 $5.00 H114L chain adjuster left ∅11 C5
39 001110 $8.00 H0000 chain adjuster left Garelli C9
00 110001 $00.0 H120A outer helper spring left
00 001110 $00.0 H120B outer helper spring right
4. Rear Hub Ø105 (loose bearings)
Grimeca single-chain rear spoke wheel hubs with 105mm brake drum are used on Italian mopeds, including Garelli, Negrini, and others.
12 MMI# rear wheel # for tire plate axle spokes H
10 M4G rear wheel 1 2.25-16 steel 11×200 36 23.5

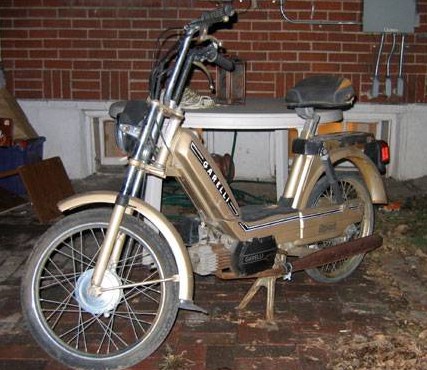

10 M000 ’81-86 Garelli all models
01 M000 rear wheel 2 2.50-17 steel 12×200 36 ??

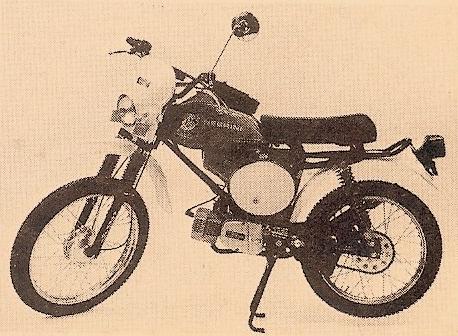

01 M000 ’81-82 Negrini KPN (City Cross)
fig 12 price MMI# description
01 10 none H120G rear hub Garelli late
01 01 none H000 rear hub Negrini KPN
07 20 $7.50 H69 bearing cup ∅32
07 02 $19.0 H69M bearing cup ∅35
08 10 $2.00 H67 bag of 20 1/4″ balls
08 01 $2.00 H67M bag of 22 1/4″ balls
09 20 $6.00 H68 dust cover ∅28 ∅20 x 3.5
09 02 $20.0 H68M dust cover ∅31 ∅23 x 4
10 20 $8.00 H66 bearing cone M11 ∅19 x 12
10 02 $16.0 H66M bearing cone M12 ∅22 x 14
14 10 $2.00 H56 lock nut M11 x 6
14 01 $2.50 H56M lock nut M12 x 6
15 20 $1.50 H113 outer washer 11 x 2.0
15 02 $1.80 H113M outer washer 12 x 2.0
15a 20 $2.00 H62 thin washer 11 x 0.5
15a 02 $2.50 H62M thin washer 12 x 0.5
16 20 $3.00 H112 outer axle nut M11 x 10
16 02 $4.50 H112M outer axle nut M12 x 11
17 11 $20.0 H64K brake shoe set 105201
18 22 $8.00 H64KS brake coil spring 51mm
19 11 $4.00 H60 Grimeca pinch bolt P25
20 11 $5.00 H59 brake lever arm L3
21 11 $9.00 H63 cam shaft
22 22 $0.60 H105 cam washer ∅6-13 x 1.0
22 11 $0.20 H000 substitute washer ∅6
23 11 $0.60 H104A cam nut M6 x 6 tall
23 11 $0.30 H0000 substitute nut M6 x 5
25 11 $6.00 H148 inspection plug
26 11 $7 - 4 H53 cable adjuster original M6 hex
26 11 $3.00 H00 cable adjuster A2 M6 hex
28 10 none H000 rear hub bare H=23.5 Garelli
28 01 none H000 rear hub bare H – ?? Negrini
29 10 $16.0 H119L rear axle M11 x 200
29 01 $18.0 H119M rear axle M12 x 200
30 10 $34.0 H123/32 sprocket ∅39.5 x 62 32T (30mph)
30 01 none H123/30M sprocket ∅42.5 x 66 30T (30mph)
31 10 $4.00 H122 locking plate ∅62 x 4
31 01 $5.00 H122M locking plate ∅66 x 4
32 44 $1.00 H124 sprocket bolt M7 x 18 hex
32 44 $0.80 H0000 substitute M7 x 25 hex
33 44 $1.20 H124A sprocket nut M7 x 7 tall
35 10 $6.00 H000 sprocket-side spacer 11 x 8
35 01 none H000 sprocket-side spacer 12 x ?
36 20 $3.00 H115 outer thin nut M11 x 4 hex24
36 02 $3.50 H115M outer thin nut M12 x 4 hex24
37 10 $25.0 H000 rear brake plate left #33 Garelli 11
37 01 none H000 rear brake plate right #00 KPN 12
38 10 $8.00 H0000 chain adjuster right Garelli C10
38 01 $6.50 H114RM chain adjuster right ∅12 C8
39 10 $8.00 H0000 chain adjuster left Garelli C9
39 01 $8.00 H114LM chain adjuster left ∅12 C7
5. 2-chain Hub Ø90 (loose bearings)
Grimeca double-chain rear spoke wheel hubs are used on Sachs, KTM, Kynast, Odyssey, Badger. There is a motor chain sprocket and brake on one side, and a smaller bicycle chain freewheel sprocket on the other side.
00 123 rear wheel # for tire plate axle spokes
00 100 rear wheel 1 2.25-17 steel 11×180 36
00 100 ’77-80 Kynast Flying Dutchman
00 010 rear wheel 2 2.00-17 steel 11×180 36

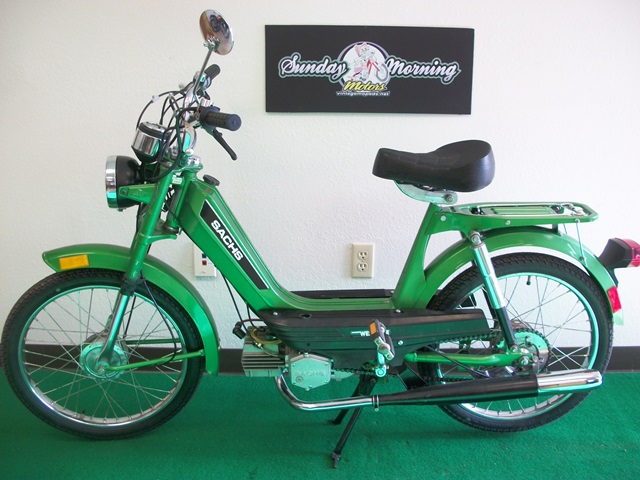

00 100 ’75-80 Hercules P1, Sachs Westlake, Sundancer
00 001 rear wheel 3 2.00-17 steel 11×180 36
00 100 ’77-79 KTM Foxi Deluxe
fig 123 price MMI# description
05 100 none H000 rear hub assy ’77-80 Kynast
05 010 none H000 rear hub assy ’75-76 Hercules
05 010 none H000 rear hub assy ’77-80 Hercules
05 001 none H000 rear hub assy KTM
06 100 $35.0H000 rear brake plate left #9 Kynast
06 011 none H000 rear brake plate left #28 Hercules, KTM
07 111 $9.00 H63 brake cam shaft
7a 100 $5.00 H59 lever L3 Kynast
7a 011 $18.0 H00 lever L7 ’75-76 Hercules
7a 001 none H00 lever L8 ’77-80 Hercules
7b 222 $0.60 H105 cam washer ∅6-13 x 1.0
7b 111 $0.20 H000 substitute washer ∅6
7c 111 $0.60 H104A cam nut M6 x 6 tall
7c 111 $0.30 H0000 substitute nut M6 x 5
08 111 $27.0 H64U brake shoe set 090182
09 111 $12.0 H64US brake U spring
10 111 $22.0 H119 rear axle M11 x 180
11 222 $3.00 H112 outer nut M11 x 10
12 222 $1.50 H113 outer washer 11 x 2.0
13 111 $2.00 H000 bag of 22 7/32″ balls
14 111 $16.0 H69P bearing cup Ø30
15 111 $15.0 H68P dust ring original
15 111 $10.0 H68PU substitute seal
16 111 $6.00 H148 rubber plug 9mm
17 111 $7 - 4 H53 cable adjuster
18 100 none H0000 20mph sprocket 50T dish
18 011 none H0000 20mph sprocket 50T flat
19 100 none H0000 30 & 25 sprocket 45T dish
19 011 55–35 H0000 30 & 25 sprocket 45T flat
20 444 $1.00 H00 hex bolt and nut M6 x 20
26 222 $3.00 H115 outer thin nut M11 x 4 hex24
27 111 $1.50 H113 washer 11 x 2.0
28 222 $8.00 H66 bearing cone M11
29 111 $2.00 H62 thin washer 11 x 0.5
30 111 $2.00 H56 thin nut M11 x 6 hex17
31 100 $7.00 H0000 spacer 12 x 15, over brake
31 010 $6.50 H0000 spacer 12 x 12, over brake
31 001 $3.00 H0000 spacer 12 x 3, over brake
6. Front Mag Ø90 (loose bearings)
Grimeca front cast alloy wheels with 90mm brake drum are used on Italian mopeds, including Bianchi, Colt, Concord, Fantic, Gadabout, Malaguti, Motomarina, Motobecane Sebring, Motron, Negrini, Safari, Snark, Testi, and others, plus some non-Italian models of Puch, Sears, JC Penney, Trac, Tomos, and others. Most are the snowflake style, others are 5-star, 7-ray.
00 1234567 MMI# F wheel # for tire plate spring.
00 1000000 H0000 F wheel 1 2¼-17 steel 11 U

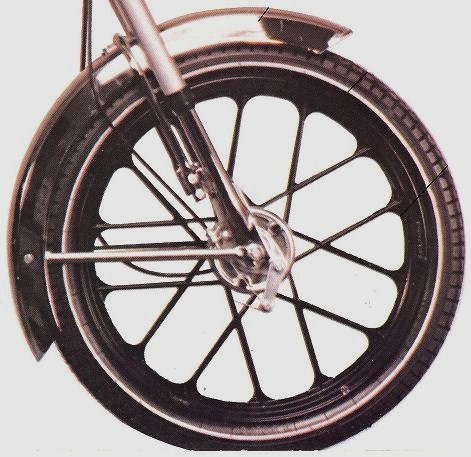

00 1000000 Grimeca snowflake ’77-79 Puch .
00 0100000 H0000 F wheel 2 2¼-17 alum 11 V
00 0100000 Grimeca snowflake ’78-79 Puch .
00 0010000 M5 00 F wheel 3 2¼-16 steel 11 U
00 0010000 Grimeca snowflake ’77-80 Garelli, Trac, Batavus
00 0001000 M5B 00 F wheel 4 2¼-16 steel 11 U
00 0001000 Bernardi 7-ray xxx ’80-82 Garelli .
00 0001000 Bernardi 4V-ray x ’85-87 Motomarina .
00 0000100 M5M 0 F wheel 5 2¼-16 steel 11 V

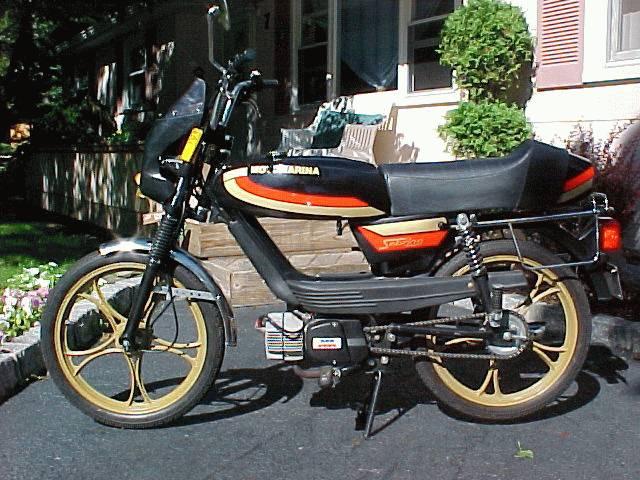

00 0000100 Grimeca crescent ’86-89 Motomarina .
00 0000010 H0000 F wheel 6 2¼-17 steel 11 V
00 0000010 Grimeca snowflake ’78-80 Hercules .
00 0000001 H0000 F wheel 7 2¼-16 steel 11 V
00 0000001 Grimeca snowflake ’78-81 Tomos .
00 0000001 Grimeca 5-star xx ’81-91 Tomos .
fig 1234567 price MMI# Tomos# parts list .
02 2222222 $3.00 H112 209.277 outer axle nut M11 x 10
03 0022222 $1.50 H113 206.829 outer washer 11 x 2.0
03 2200000 $2.00 H000 000.000 outer washer 11 x 0.8
04 2222222 $2.00 H56 206.827 lock nut M11 x 6
05 ??????0 $2.00 H56 206.827 lock nut M11 x 6
05 0000001 $2.00 H00 217.087 thin nut M11 x 3
06 2222222 $8.00 H66 208.481 bearing cone
11 1100000 $1.50 H113 206.829 brake inner washer 11 x 2.0
11 001???0 $2.00 H62 000.000 brake inner washer 11 x 0.5
11 0000001 $4.00 H0000 217.086 brake inner washer 11 x 3.5
11 0100000 $2.50 H0000 000.000 brake washer 12 x 0.5
16 1011000 $27.0 H64U 000.000 brake shoe set 090182
16V0100111 $30.0 H64V 217.075 brake shoe set 090183
19 111111 $6.00 H148 217.085 inspection plug
21 2022222 $0.60 H105 031.932 cam washer ∅6-13 x 1.0
21 1111111 $0.20 H000 000.000 substitute washer ∅6
22 1111111 $0.60 H104A 031.075 cam nut M6 x 6 tall
22 1111111 $0.30 H0000 000.000 substitute nut M6 x 5
24 1000000 $5.00 H0000 000.000 brake outer spacer 12 x 6
24 001???0 $5.00 H147 000.000 brake outer spacer 12 x 9
24 0000001 $4.00 H0000 217.086 brake outer spacer 11 x 3.5
25 1100000 $2.50 H0000 000.000 axle washer 1.0 thick
25 0001111 $2.50 H00 217.157 axle washer 1.2 thick
25 0010000 $1.50 H113 206.829 axle washer 2.0 thick
26 2222222 $6.00 H68 217.082 dust ring
27 1100010 $7.50 H69S 000.000 bearing cup w/notches for VDO
28 1122212 $7.50 H69 217.082 bearing cup
29 1111111 $2.00 H67 035.132 bag of 20 1/4″ balls
30 1011000 $9.00 H63 000.000 brake cam ∅10 x 46
30V0100111 $8.00 H63V 0 217.077 brake cam ∅10 x 46 V type
31 1000000 $35.0 H0000 000.000 F brake assy lf. 22 U Puch steel
31V0100000 $40.0 H0000 000.000 F brake assy lf. 23 V Puch alum
32 1000000 $20.0 H0000 000.000 F plate bare lf. 22 U Puch steel
32V0100000 $20.0 H0000 000.000 F plate bare lf. 23 V Puch alum.
32 0011000 30-15 H0000 000.000 F plate bare rt. 7 U Garelli
32V0000100 $00.0 H0000 000.000 F plate bare rt. 37 V Crescent
32V0000010 $23.0 H0000 000.000 F plate bare rt. 13 V Hercules
32V0000001 none H0000 217.089 F plate bare rt. T3 V Tomos silver
32V0000001 none H0000 222.157 F plate bare rt. T5 V Tomos black
32V0000000 $27.0 H0000 000.000 F plate bare rt. 8 V KTM
33 1000000 $7.50 H120R 000.000 helper spring Puch 349.140.7191
33V0100000 $3.00 H0000 000.000 helper spring Puch 349.240.7191
34 1100000 $10.0 H0000 000.000 lever arm L6 Puch
34 0011101 $5.00 H59 00 222.197 lever arm L3 Grimeca
34 0000010 none H0000 000.000 lever arm L8 Hercules
35 1100000 $19.0 H0000 000.000 F axle M11 x 155
35 0010000 $10.0 H0000 000.000 F axle M11 x 145
35 0001101 $19.0 H52 217.080 F axle M11 x 150
36V0100111 $5.50 H0000 217.088 inner cam washer ∅10 ∅20 x 1
37 1100000 $60.0 H0000 000.000 F wheel bare 17″ snowflake
38 1011000 $12.0 H64US 000.000 brake spring U type
38V0100111 $15.0 H64VS 217.076 brake spring V type
39 1111111 $00.0 H0000 000.000 speedo driver see speedo parts
Notes:
Column 3 front Grimeca snowflake, on the side opposite the brake:
On ’83-86 Trac there is no lock nut or washer after the cone. The bearing cone locks onto the Korea-type speedo driver. The cones can be adjusted by rotating the speedo driver on the axle.
On ’78-80 Batavus there is a 6mm thick lock nut and a 1.5 or 2.0 mm thick washer after the cone and before the VDO speedo driver.
7. Rear Mag Ø90 (loose bearings)
Grimeca single chain rear cast alloy wheels with 90mm brake drum are used on Italian mopeds, including Bianchi, Colt, Concord, Fantic, Gadabout, Malaguti, Motomarina, Motobecane Sebring, Motron, Negrini, Safari, Snark, Testi, and others, plus some non-Italian models of Trac, Tomos, and others. Most are the snowflake style, others are 5-star, 7-ray.
00 12345 MMI# R wheel # for tire plate spring.
00 10000 M6 000 R wheel 1 2¼-16 steel 11 U

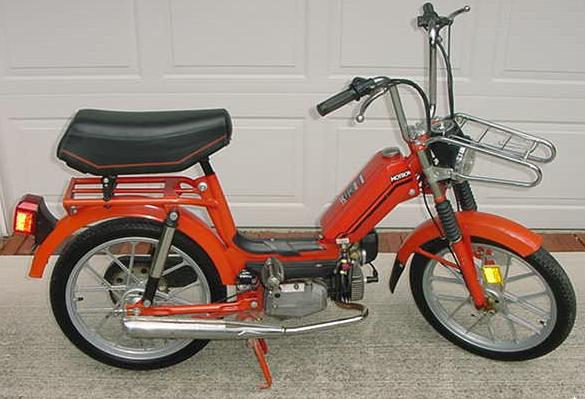

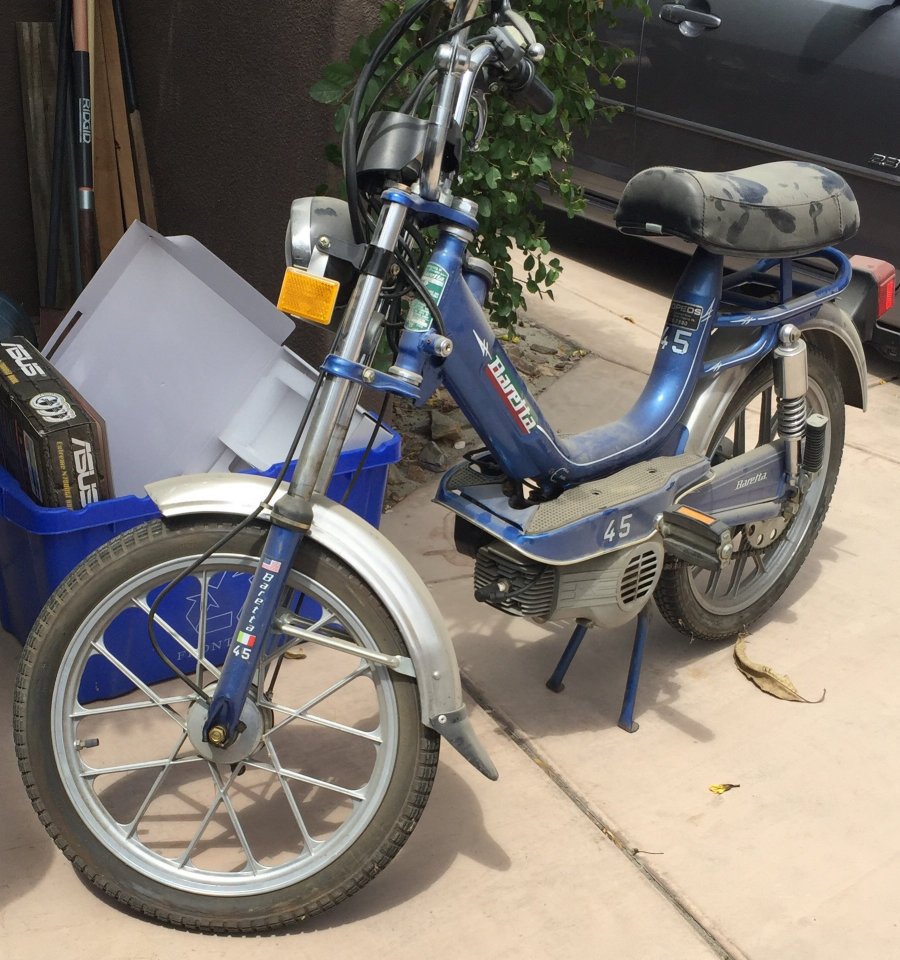

00 10000 Grimeca snowflake ’77-79 Baretta, ’78-80 Motron
00 01000 M0 000 R wheel 2 2¼-16 steel 12 V

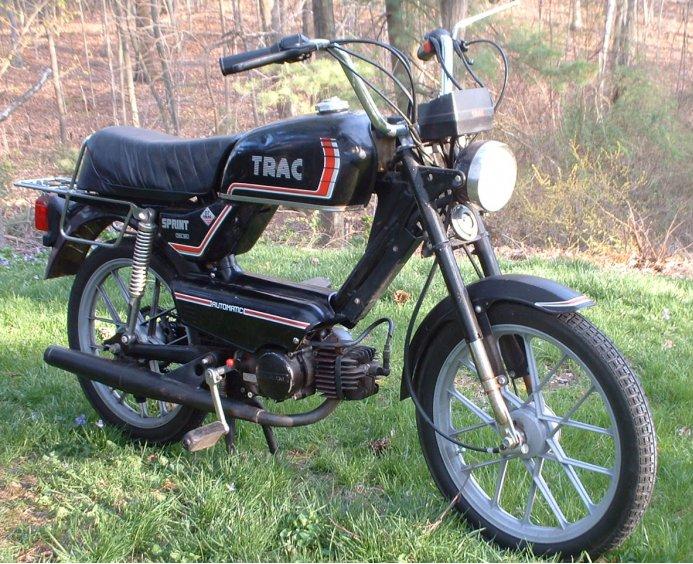

00 01000 Grimeca snowflake ’83-89 Trac, ’78-80 Batavus,
00 00100 M6B 00 R wheel 3 2¼-16 steel 11 U
00 00100 Bernardi 7-ray xxx ’80-82 Garelli .
00 00100 Bernardi 4V-ray x ’85-87 Motomarina .00
00 00010 M6M 0 R wheel 4 2¼-16 steel 12 U

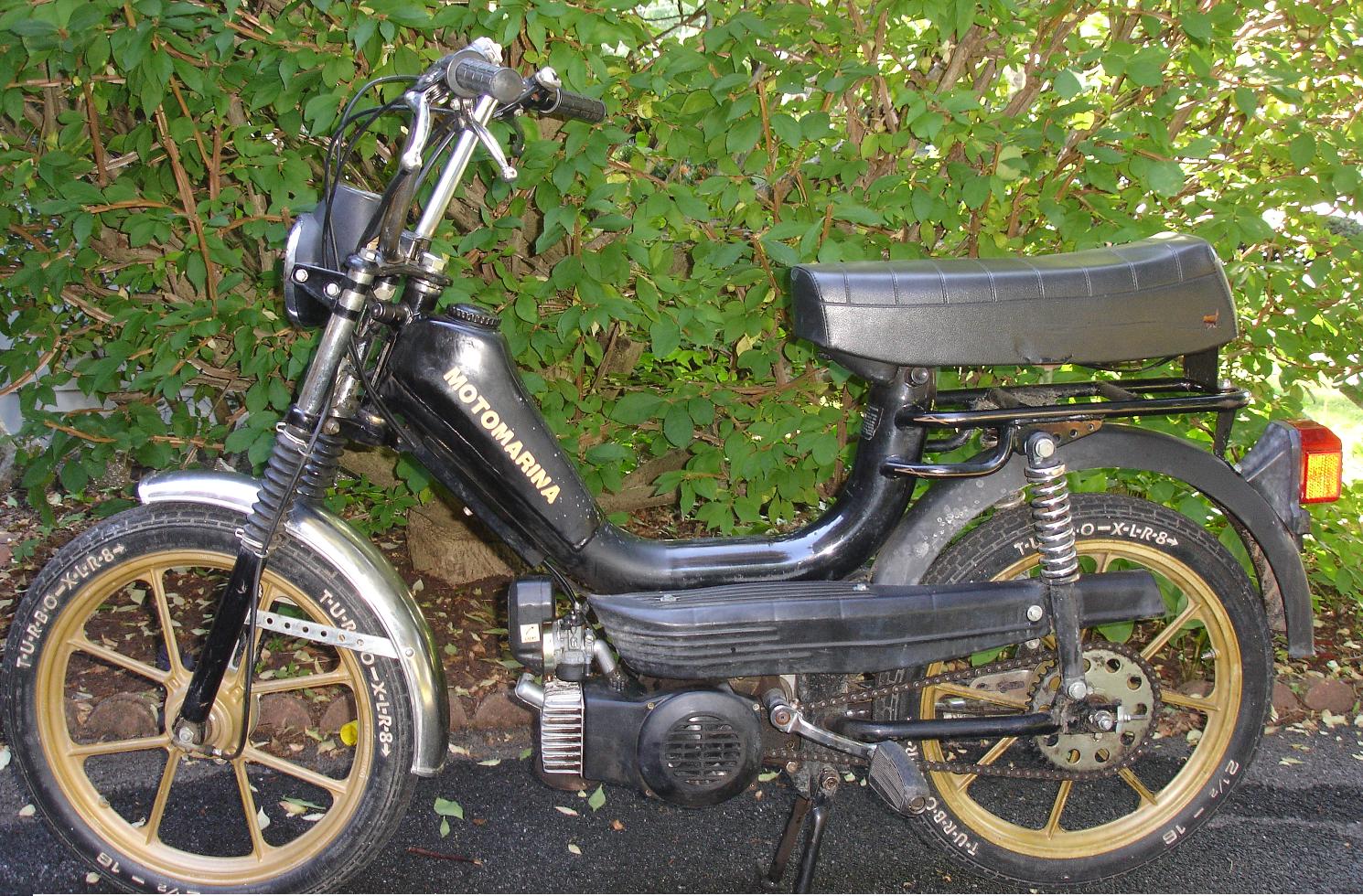

00 00010 Grimeca crescent 16″ for ’86-89 Motomarina . 0
00 00001 M0 000 R wheel 5 2¼-16 steel 11 V

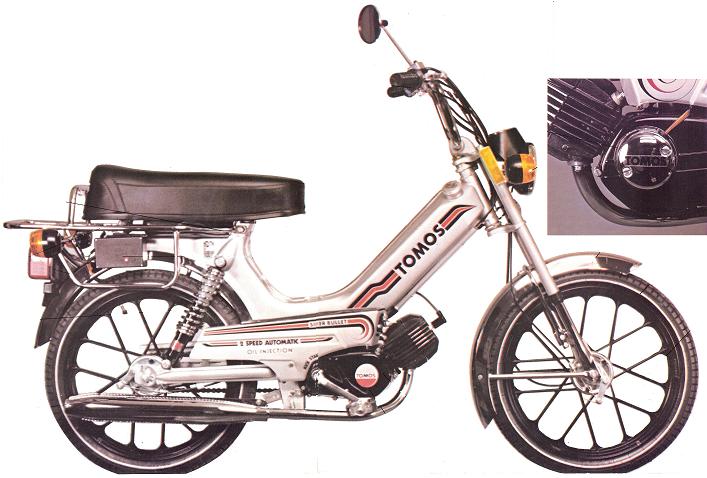

00 00001 Grimeca snowflake 16″ for ’78-81 Tomos Silver Bullet .

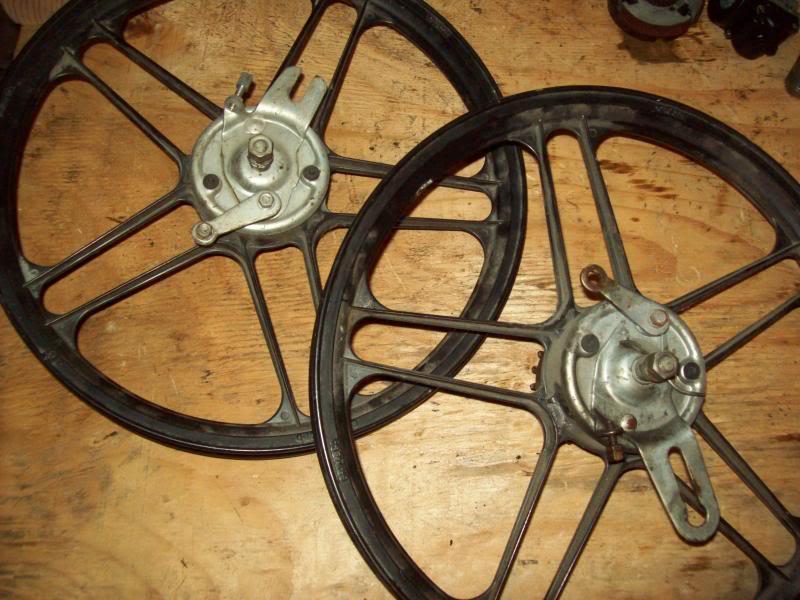

00 00001 Grimeca 5-star xx 16″ for ’81-91 Tomos .
fig 12345 price MMI# Tomos# description.
01 11111 $7 - 4 H53 00 000.000 cable adjuster original
01 11111 $3.00 H0000 000.000 cable adjuster A2 M6 hex
02 10100 30-17 H118 000.000 plate 11 rt. #2 Baretta
02 01000 $29.0 H0000 000.000 plate 12 rt. #17 V Trac
02 00?10 $00.0 H118M 000.000 plate 12 rt. #?? U
02 00001 $30.0 H0000 217.083 plate 11 rt. T4=14 Tomos sil.
02 00001 $30.0 H0000 222.196 plate 11 rt. T6 V Tomos blk
02 00000 $40.0 H0000 000.000 plate 11 lf. #11 U Sachs
02 00000 $00.0 H0000 000.000 plate 11 rt. #3 V
02 00000 $17.0 H0000 000.000 plate 11 r/l #12 U Motomarina
03 10110 $12.0 H64US 000.000 brake spring U
03 01001 $15.0 H64VS 217.076 brake spring V
05 10101 $2.00 H56 00 206.827 lock nut M11 x 6
05 01010 $2.50 H56M 000.000 lock nut M12 x 6
06 20202 $1.50 H113 0 206.829 outer washer 11 x 2.0
06 02020 $1.80 H113M 000.000 outer washer 12
07 20202 $3.00 H112 0 209.277 outer axle nut M11
07 02020 $4.50 H112M 000.000 outer axle nut M12
08 10110 $5.00 H59 00 000.000 brake lever arm L3
08 01000 $15.0 H0000 000.000 brake lever arm L1 Trac
08 00001 $00.0 H0000 222.197 brake lever arm L3-bent Tomos
09 11111 $0.60 H104A 031.075 cam nut M6 x 6 tall
09 11111 $0.30 H0000 000.000 substitute nut M6 x 5
10 22222 $0.60 H105 0 031.932 cam washer ∅6-13 x 1.0
10 1111111 $0.20 H000 000.000 substitute washer ∅6
10 01001 $5.50 H0000 217.088 inner cam washer ∅10 ∅20 x 1
11 10111 $4.00 H60 00 208.499 Grimeca pinch bolt P25
12 10110 $9.00 H63 00 000.000 cam shaft ∅10 x 46
12 01001 $8.00 H63V 0 217.077 cam shaft ∅10 x 46 V type
13 20202 $2.00 H62 00 206.829 thin washer 11 x 0.5
13 00020 $2.50 H62M 000.000 thin washer 12 x 0.5
13 01000 $3.00 H0000 000.000 spacer 12 x 3
14 10110 $27.0 H64U 0 000.000 brake shoe set 090182
14 01001 $30.0 H64V 0 217.075 brake shoe set 090183
15 20202 $6.00 H68 00 217.082 dust cover ∅28 ∅20 x 3.5
15 02020 $20.0 H68M 000.000 dust cover ∅31 ∅23 x 4
16 20202 $8.00 H66 00 208.481 bearing cone M11 ∅19 x 12
16 02020 $16.0 H66M 000.000 bearing cone M12 ∅22 x 14
17 10101 $2.00 H67 00 035.132 bag of 20 1/4″ balls
17 10101 $2.00 H67a 0 035.132 ring of 8 1/4″ caged balls
17 01010 $2.00 H67M 000.000 bag of 22 1/4″ balls
18 20202 $7.50 H69 00 217.081 bearing cup ∅32
18 02020 $19.0 H69M 000.000 bearing cup ∅35
21 10000 $22.0 H119 0 000.000 axle 11 x 180 Grimeca for Baretta
21 01000 $18.0 H119G 000.000 axle 12 x 175 Grimeca for Trac
21 00100 $16.0 H119L 000.000 axle 11 x 200 Bernardi for Negrini
21 00010 $15.0 H119M 000.000 axle 12 x 200 Grimeca for Sebring?
21 00001 $18.0 H0000 217.092 axle 11 x 165 Grimeca for Tomos
22 11111 $6.00 H148 0 217.085 inspection plug
24 20200 $3.00 H115 0 000.000 large thin nut M11 x 4 hex24
24 02020 $3.50 H115M 000.000 large thin nut M12 x 4 hex24
24 00002 $2.00 H56 00 206.827 lock nut M11 x 6
27 01000 $6.50 H0000 000.000 brake-side spacer ∅12 x 12 Trac
27 00001 $6.50 H0000 217.094 brake-side spacer ∅12 x 10 Tomos
27 ?0??0 $7.00 H116A 000.000 brake side spacer ∅12 x 20
27 ?0??0 $7.50 H116 0 000.000 brake side spacer ∅12 x 17
27 ?0??0 $5.00 H116B 000.000 brake side spacer ∅12 x 14
28 10101 $5.00 H114L 223.112 left chain adjuster ∅11 C5
28 00010 $8.00 H114LM 000.00 left chain adjuster ∅12 C7
28 00010 $4.00 H0000 000.000 chain adjuster ∅12 eyelet type C3
29 10101 $5.00 H114R 209.212 right chain adjuster ∅11 C6
29 00010 $6.50 H114RM 000.00 right chain adjuster ∅12 C8
29 00010 $4.00 H0000 000.000 chain adjuster ∅12 eyelet type C3
30 01001 $3.00 H57 00 217.086 sprocket-side spacer ∅12 x 4
30 ?0??0 $7.00 H116A 000.000 sprocket-side spacer ∅12 x 20
30 ?0??0 $7.50 H116 0 000.000 sprocket-side spacer ∅12 x 17
30 ?0??0 $5.00 H116B 000.000 sprocket-side spacer ∅12 x 14
31 10000 $40.0 H123.42 00.0 sprocket ∅39.5 x 62, 42T
31 01000 $38.0 H123.39M 00.0 sprocket ∅42.5 x 66, 39T
31 00100 $34.0 H123.32 0.00 sprocket ∅39.5 x 62, 32T
31 00010 $30.0 H123.30M 0.00 sprocket ∅42.5 x 66, 30T
31 00001 34-17 H123.22 217.089 sprocket ∅39.5 x 62, 22T
32 10101 $4.00 H122 0 217.096 sprocket lock plate ∅62 4-hole
32 01010 $5.00 H122M 000.000 sprocket lock plate ∅66 4-hole
33 44444 $0.80 H124M 025.210 sprocket bolt M7 x 30
34 44444 $1.20 H124A 031.076 sprocket nut M7 x 7 tall
8. 2-chain Mag Ø90 (loose bearings)
Grimeca double chain rear cast alloy wheels are used on Puch, Sears, and JC Penney. There is a motor chain sprocket and brake on one side, and a smaller bicycle chain freewheel sprocket on the other side. Grimeca cast alloy 2-chain rear wheels were only made in the snowflake style.
Rear wheel # for tire plate spring.
Rear wheel 1 2¼-17 steel 11 U
Grimeca snowflake ’77-79 Puch Sport, ’78 Sears Free Spirit
Grimeca snowflake ’78-79 Puch Sport MkII, Magnum MkII
fig qty price MMI# Puch# description.
01 1 30-20 H000 349.241.0230 freewheel 23T
02 2 $3.00 H112 349.140.7141 outer axle nut M11-1.0 x 10
03 2 $2.00 H000 000.604.4124 outer washer 11 x 19 x 0.8
03 2 $2.00 H62 000.000.0000 outer washer 11 x 17 x 0.5
04 3 $2.00 H56 349.140.7081 thin nut M11 x 6 hex17
05 1 $3.00 H000 349.241.7041 spacer 11 x 3
06 2 $8.00 H66 349.140.7101 bearing cone
07 2 $20.0 H68P 349.241.7111 dust ring original 26 x 20 x 3.5
07 2 $15.0 H68P 349.241.7111 dust ring used-straightened
07 2 $10.0 H68ps 349.241.7111 rubberized seal 26 x 20 x 4
08 1 $2.00 H67P 000.900.6121 bag of 22 balls 7/32″
09 2 $16.0 H69P 349.241.7061 rear cup 30 mm OD
10 1 $22.0 349.241.7261 rear axle M11-1.0 x 175
10 1 $22.0 3222 Sears rear axle M11-1.0 x 180
11 1 $2.00 H62 350.113.0761 thin washer 11 x 0.5
12 1 $35.0 H000 349.141.7451 sprocket 45T ∅98 x 115
12 1 $35.0 H000 349.141.7401 sprocket 40T ∅98 x 115
13 2 $5.50 H000 349.141.7181 sprocket plate 81.3 c-c ∅115×4
14 4 $0.80 H104 000.900.1132 sprocket bolt M6 x 16 hex
15 1 $00.0 H000 349.241.7070 brake assy #21
16 1 $27.0 H64U 349.140.7159 brake shoe set U type
17 1 $9.00 H63 349.241.7091 cam shaft
18 1 $00.0 H000 349.241.7072 brake plate left #21
19 2 $3.00 H148 349.140.7161 inspection plug
20 1 $10.0 H000 349.241.7131 brake arm bent
21 2 $0.60 H105 00000..24795 cam washer ∅6-13 x 1.0
21 1 $0.20 H000 000.00.0000 substitute washer ∅6
22 1 $0.30 H104A 0000..24773 cam nut M6
23 1 $5.00 H000 349.241.7051 spacer 11 x 7
24 1 $7.00 H000 349.241.7191 helper spring
36 1 none H000 349.241.7022 rear wheel bare
38 1 $12.0 H64US 00.000.0000 brake spring U type
B. Grimeca sealed
Brake Plates: Here are identification photos of numbered brake plates. 90 mm plates bare have 2 types, U or coil spring, and V spring. 90 mm plates with shoes have 3 types, U spring, coil spring, and V spring. Each type U, C or V can have several versions.
Grimeca 90 and 105 mm brake plates #1 to #36 (red).
9. Rear Hub Ø90 (sealed bearings)
One version of Grimeca 90mm sealed bearing rear hub is shown. It was original on the two-person models Garelli Gulp and VIP. This was one of only a few 1970’s moped Italian wheels with sealed bearings. By the 1990’s it was the opposite, most moped wheels had sealed bearings.
MMI# rear wheel # for tire plate axle spring
00000 rear wheel 1 2¼-16/17 steel 12 coil
00000 ’76-78 Garelli Gulp, ’77-80 VIP, ’83-85 VIP-N
fig qty price MMI# Garelli# description.
07 2 none H0000 063557.4365 bearing sleeve 28x32x36
08 2 $6.00 H0000 003020.5600 bearing 6001Z 12x28x8
09 2 none H0000 063557.4264 dust cover
10 2 none H0000 502202.4266 center spacer
15 2 $1.80 H113M 002148.0200 outer washer
16 2 $5.00 H112M 063557.4222 outer nut
17 1 $25.0 H64 0 502202.4266 brake shoe set 090181
18 2 $2.50 H64S0 502202.4273 brake spring
19 1 $4.00 H6000 012551.4536 cable pinch bolt P25
20 1 $5.00 H5900 012551.4275 brake lever
21 1 $9.00 H6300 502202.4274 brake cam
22 2 $0.60 H1050 002138.4000 cam washer ∅6-13 x 1.0
22 1 $0.20 H000 000000.0000 substitute washer ∅6
23 1 $0.30 H104A 002100.3900 cam nut M6
25 1 $6.00 H1480 506341.4246 rubber plug
26 1 $7 - 4 H5300 000561.4515 cable adjuster original
26 1 $3.00 H5300 000561.4515 cable adjuster A2 M6 hex
29 1 $21.0 H0000 063557.4254 axle 12 x 180 smooth
30 1 $30.0 H123-30M 966.4234 sprocket 30T
31 1 $4.00 H1220 063557.4553 locking plate
32 4 $1.00 H1240 012551.4517 sprocket bolt M7 x 18
32 4 $1.20 H124A 012551.4517 sprocket nut M7 tall
34 1 $5.00 H1470 500052.4548 spacer 9mm
35 1 H0000 063557.4549 spacer 3mm
36 2 $2.50 H56M 063557.4547 axle lock nut 12x6x19
37 1 none H0000 500370.4280 rear brake plate
38 1 $8.00 H0000 002551.4141 right chain adjuster Garelli C10
39 1 $8.00 H0000 002551.4143 left chain adjuster Garelli C9
Here Garelli has made adapter sleeves with lips, that the sealed bearings fit into. The lips on the sleeves prevent the press fit (or sliding fit) bearings from moving gradually sideways. The inside holes of this and the other stamped steel Grimeca hubs are smooth tubes, 30, 32 or 35mm ID. So they are not designed for sealed (lip-less) bearings.
10. 1-chain F&R Hubs Ø105 (sealed bearings)

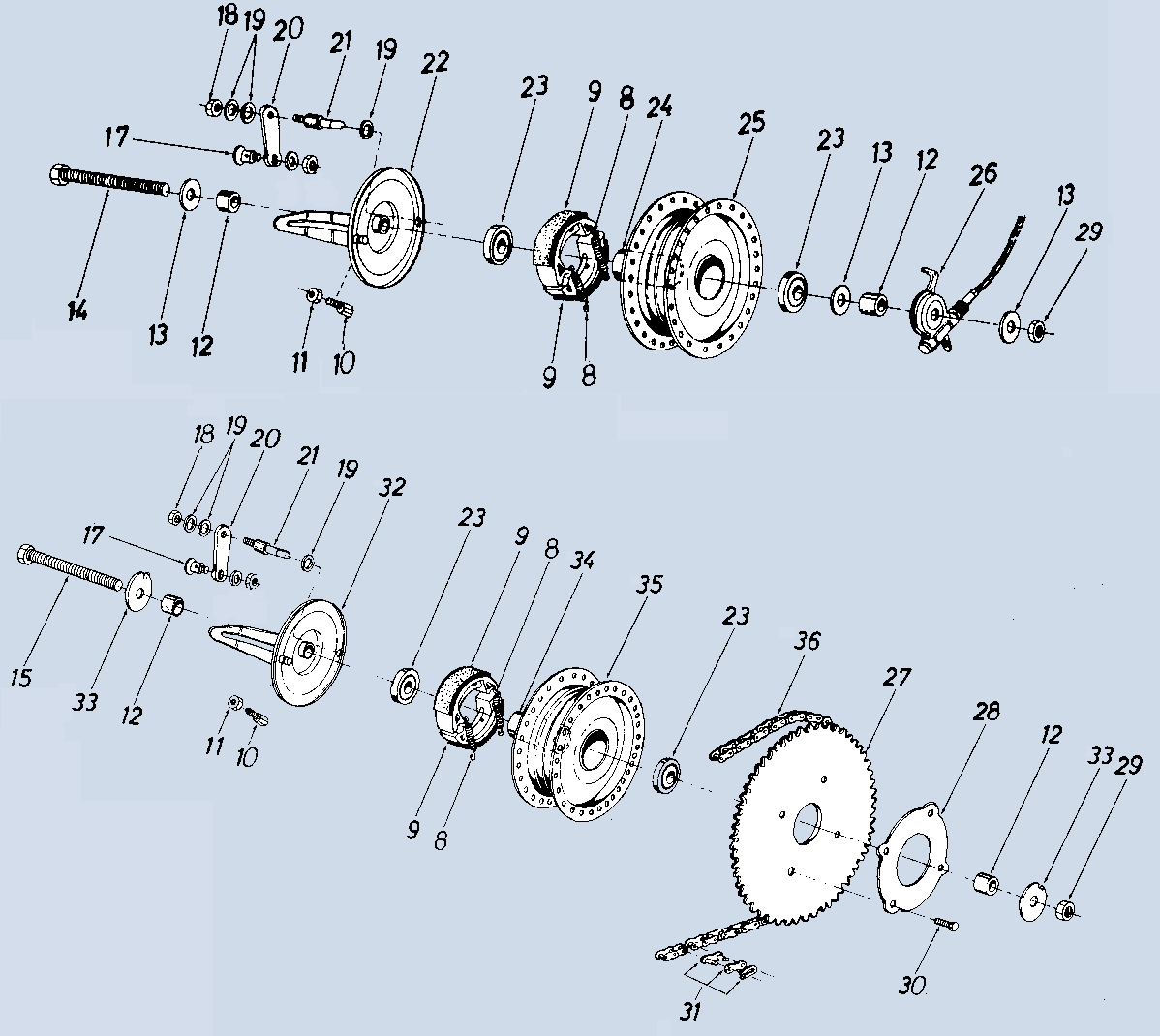

Columbia steel 105mm hubs 1-chain type
1-chain Stamped Steel Hubs: This is for the Sachs engine Columbia. The brake is on the right, sprocket on the left. The center hole was a massive 40mm, with 40×35 adaptor sleeves with thick lips holding large sealed bearings, 6202-8 12.7 x 35 x 11. The axles were long 1/2 inch bolts (12.7 mm). These hubs would normally have 15mm axles and 6202Z bearings, on a small Italian motorcycle.
The rear brake is on the right, and the sprocket is on the left. These heavy duty stamped steel hubs were made by Grimeca and used on the early (1977) Columbia sheet metal frame models with a Sachs engine. Later models had the 2-chain cast hubs made by Columbia.
fig F R MMI# Columbia# price wheel for tire plate axle spring
00 1 0 H0000 734.0772 none F wheel 2¼-17 steel ½” coil
00 0 1 H0000 734.0773 none R wheel 2¼-17 steel ½” coil
00 0 0 H0000 ’76-78 Columbia 2200 and some ’79-80
fig F R MMI# Columbia# price description
08 2 2 H64KS 737002010 $8.00 brake spring
09 1 1 H64K 737001010 $20.0 brake shoe set 105 x 20 Grimeca
10 1 1 H53 0 737008010 $8.00 cable adjuster original
10 1 1 H53 0 737008010 $3.00 cable adjuster A2 M6 hex
12 2 2 H0000 711.0241 $7.00 spacer ∅0.51 ∅0.82 x 0.5″
13 2 0 H0000 736.0272 $1.50 washer ∅0.51 ∅1.00 x 0.60
14 1 0 H0000 710.0506 $10.0 front axle hex bolt 1/2″-20 x 5.5″
15 0 1 H0000 710.0668 none rear axle bolt 1/2″-20 x 6.5″
15 0 1 H0000 710.0668 $10.0 substitute 1/2″-13 x 6.5″ w/nut
17 1 1 H60 0 737017010 $4.00 pinch bolt assy
18 1 1 H104 737010010 $0.30 cam nut M6
19 2 2 H105 737006010 $0.60 cam washer ∅6 thin
20 1 1 H59 0 737003010 $5.00 brake arm Grimeca
21 1 1 H63K 737008010 $16.0 cam shaft
22 1 0 H0000 737034000 none front brake plate ½” with spacer
23 2 2 H0000 755001084 $10.0 sealed bearing 1/2″ x 35 x 11 #6202-8
24 1 0 H0000 740000031 $17.0 front center tube ∅13 ∅20 x 39
25 1 0 H0000 736022000 none front hub bare Grimeca HD steel 105
26 1 0 H0000 745.0171 none speedo driver VDO ½” left 1-finger
27 0 1 H0000 713.0227 at link sprocket 420 x 42T 25/30
27 0 1 H0000 713.0228 at link sprocket 420 x 48T 20mph
28 0 1 H0000 720225600 none sprocket lock plate
29 1 1 H0000 712.0285 $5.00 axle nut ½” – 20
30 0 4 H0000 722213659 $0.80 sprocket bolt M7 x 25
32 0 1 H0000 737009010 $30.0 rear brake plate rt. #32 w/spacer
33 0 2 H0000 00.06847 none chain adjuster ½”
34 0 1 H0000 740000009 none rear center tube ∅13 ∅20 x ?
35 0 1 H0000 735034000 none rear hub 1-chain Grimeca HD steel 105
11. Rear Hub Ø118 (sealed bearings)
The 2001-2003 early Tomos Revival rear drum brake hub was 118mm Grimeca stamped steel. The front hydraulic disk brake was also Grimeca.
2004-2012 Tomos Revival TS rear drum brake hub was 105mm Tomos-Grimeca aluminum. The front disk brake was AJP until 2007, then generic after that.
The 1978-1981 Safari Commando rear drum brake hub was 118mm Grimeca stamped steel.
C. Grimeca compatibles
12.
1-chain F&R Hubs Ø90 (sealed bearings)
In 1975 to 1991 Tomos mopeds with spoke wheels had their own Yugoslavia-made sealed bearing machined aluminum hubs, brake shoes, and stamped steel brake plates, all Grimeca compatible (same drum diameter, width, and location, same cam and pivot shaft locations and sizes).
’75-90 Tomos ∅90 brake plates front T1=24 and rear T2=15=25.
These aluminum hubs have way less broken spokes, compared to the equivalent stamped steel Grimeca hubs. The spoke holes are machined, not punched out. But the rear sprocket lacks a strong center support, so the sprocket bolts work loose as the soft metal deforms. Many sprockets have become not centered.
These hubs have a machined inner lip on each side to retain the sealed bearings. This is needed because the sealed bearings don’t have outer lips, like Grimeca loose bearing cups have. So these hubs are made for sealed (lip-less) bearings, while Grimeca loose ball hubs are not.
Loop pinch bolts. Left: Vespa 7 mm
Center and right: Tomos 6 mm
fig F R MMI# Tomos# price wheel for tire plate axle spring
00 1 0 H0000 211.845 none F wheel 2¼-16 steel 12/11 coil
00 0 1 H0000 213.395 none R wheel 2¼-16 steel 12/11 coil
fig F R MMI# Tomos# price
01 1 0 H0000 209.856 $00.0 front hub complete 1-20, 27, 29
01 0 1 H0000 209.245 $00.0 rear hub complete
02 1 1 H64 0 211.071 $25.0 brake shoe set 090181
03 1 0 H0000 211.964 30-15 front brake plate T1
04 2 2 H64S 209.257 $2.50 brake spring coil type
05 1 0 H0000 209.255 $20.0 front axle ∅12 x 80, M11 x 145
06 2 2 H113 209.254 $1.50 outer washer ∅11 x 1.5 or 2.0
06 1 0 H000 209.254 $1.50 outer brake washer ∅11 x 1.5
07 2 2 H112 209.277 $3.00 outer nut M11-1.0 x 10
08 2 2 H56 0 209.249 $2.00 axle lock nut M11-1.0 x 6
09 1 0 H0000 209.253 $6.50 F inner brake spacer 12 x 11
09 0 2 H0000 209.253 $6.50 R in/out brk spacer 12 x 11
10 2 2 H0000 044.233 $6.00 bearing 6001Z ∅12-28 x 8
11 1 0 H0000 206.871 $13.0 front center spacer ∅14-18 x 47
12 1 0 H0000 209.272 none bearing cover ∅17-28 x 4
13 1 1 H63 0 209.238 $9.00 brake cam shaft
14 1 1 H0000 031.932 $0.20 cam washer 6
15 1 1 H0000 031.075 $0.30 cam nut M6
16 1 1 H0000 209.258 $8.00 brake arm ∅10
17 1 1 H0000 026.288 $0.80 LPB hex bolt M6 x 15 or 16
18 2 2 H0000 200.248 $1.20 LPB washer ∅6 ∅11 thin
19 1 1 H0000 209.275 $6.00 LPB bush ∅9.5 x 5?
20 1 1 H0000 209.260 $3.00 LPB cable plate
20 1 1 15,17,18,19,20 $7.50 loop pinch bolt (LPB) assy P22
21 0 1 H0000 209.262 $14.0 rear center spacer ∅14-18 x 57
22 0 1 H0000 209.263 $8.00 rear left spacer ∅12 x 13
23 0 1 H114L 223.112 $5.00 left chain adjuster ∅11 C5
24 0 1 H114R 209.212 $5.00 right chain adjuster ∅11 C6
25 0 1 H0000 211.965 30-15 rear brake plate T2=15
26 0 1 H0000 209.256 $21.0 rear axle ∅12 x 103, M11 x 165
27 1 1 H0000 209.239 $2.50 inner cam washer ∅10-18 x 1.0
28 1 1 H0000 209.650 $00.0 speedo driver see speedo parts
29 1 0 H0000 208.253 $6.00 front left spacer 12 x 8 =230668
30 1 1 H0000 215.016 none inspection plug (on some)
31 0 1 H0000 209.261 $15.0 sprocket A3SP 22T good-used
31 0 1 H0000 213.256 $27.0 sprocket A3GM 24T good-used
31 0 1 H0000 211.847 none sprocket A3SL 26T
32 0 2 H0000 205.742 none sprocket lock plate ∅62 2-∅7-hole
32 0 2 H0000 000.000 $4.00 substitute plate xx ∅62 2-∅8-hole
33 0 4 H0000 025.208 $1.50 sprocket bolt M7x22
34 0 4 H0000 031.076 $0.60 sprocket nut M7
13. 2-chain F&R Hubs Ø105 (sealed bearings)
Columbia cast alloy 105mm hubs 2-chain type
2-chain Cast Aluminum Hubs: This is for the Solo engine Columbia, with both a pedal and motor chain. The Sachs engine Columbia also uses these hubs on certain models, but no freewheel or pedal chain is installed.
The rear brake and sprocket are both on the left. The hub center is small 28mm stepping to 24mm in the center. The step retains the lip-less sealed bearings, and so no adapter sleeves are needed.
fig F R MMI# Columbia# price
01 1 1 H0000 734.0958 none front cast hub assy
02 1 0 H0000 750.0429 $19.0 F center spacer ∅12 x 60.6
03 1 0 H0000 746.0344 $0.00 F brake cable -see Columbia cables
04 1 0 H0000 745.0171 $0.00 speedo driver -see VDO speedo
05 1 0 H113M 736.0192 $1.80 washer ∅12 x 2.0
06 2 0 H0000 736.0327 none safety washer with tab
07 1 0 H0000 710.2204 $0.00 F axle M12-1.5 x 150
08 0 1 H0000 710.2205 $0.00 R axle M12-1.5 x 170
09 0 2 H0000 000.6847 none chain adjuster Columbia type
10 0 2 H0000 750.0277 $15.0 spacer ∅13 ∅17 x 11 original
10 0 2 H0000 750.0277 $6.50 substitute ∅12 x 11 Tomos 209253
11 2 2 H0000 741.0290 $6.00 bearing 6001Z 12x28x8
12 0 1 H0000 750.0430 $25.0 R center spacer ∅12 x 80.6
13 0 1 H0000 734.1013 none rear cast hub assy
14 0 1 H0000 713.0244 none sprocket 42T ∅115 x 125
14 0 1 H0000 713.0245 none sprocket 48T ∅115 x 125
15 0 2 H0000 000.6921 none sprocket lock plate ∅125 x 2-∅6
16 0 4 H61 00 710.2201 $1.00 sprocket bolt M6x20
17 2 2 H64KS 732.0361 $8.00 brake spring
18 1 1 H64K 0 761.0173 $20.0 brake shoe set 105 x 20
19 1 1 H63K 0 711.0692 $16.0 brake cam
20 0 1 H0000 000.6913 none R brake plate =Grande front #36
21 1 1 H0000 000.6917 none brake arm S-hook type
23 1 1 H105 0 736.0329 $0.60 cam washer 6
24 1 1 H104A 712.2003 $0.30 cam nut M6
25 1 1 H0000 712.2204 $4.00 axle nut M12-1.5
26 0 1 H0000 746.0345 $0.00 R brake cable -see Columbia cables
27 2 1 H0000 750.0436 $17.0 spacer ∅12 ∅20 x 16 original
27 2 1 H0000 750.0436 $6.50 substitute ∅12 x 16 Tomos 227485
28 1 0 H0000 000.6913 $27.0 F brake plate ∅12 =Grande front #36
14. 1-chain F&R Mags Ø90 (sealed bearings)
In 1991-95 Tomos mopeds had die cast aluminum wheels with sealed bearings and 90mm brake drums, Grimeca compatible. Tomos made these wheels and the cast aluminum brake plates and other brake and axle components. These Tomos “web” wheels replaced the 1981-91 Grimeca “5-star” mag wheels.
’91-95 Tomos ∅90 brake plates T7 and T8.
White on A35 Colibri (model 1), Bullet (2), Bullet TT (3 and 6)
Gold on A35 Golden Bullet (4), Golden Bullet TTLX (5 and 7)
1980’s brake plates T3, T5 and T4, T6 cannot substitute for ’91-95 plates T7 and T8, because the ’91-95 wheels have a thick aluminum lip that sticks out past the edge of the steel 90mm brake drum. They can only after the steel sheet metal outer edge is ground off, by maybe several millimeters.
FR MMI# Tomos# price
22 H112 0 209.277 $3.00 outer axle nut M11-1.0 x 10
22 H113M 227.450 $1.80 outer washer ∅12 x 2
22 H0000 044.225 $7.00 bearing 6201Z ∅12 ∅32 x 10
10 H0000 227.485 $6.50 front left spacer ∅12 ∅22 x 16
01 H0000 222.883 $6.50 rear left spacer ∅12 ∅22 x 10
10 H0000 222.568 $7.50 front center tube ∅12 ∅16 x 40
01 H0000 222.569 $7.50 rear center tube ∅12 ∅16 x 64
10 H0000 222.584 $17.0 front axle ∅12 x 97, M11 x 145
01 H0000 222.585 $20.0 rear axle ∅12 x 115, M11 x 165
10 H0000 227.115 none front brake plate T8
01 H0000 227.116 none rear brake plate T7
11 H0000 227.114 none inspection plug
11 H64V 0 223.143 $20.0 brake shoe set
11 H64VS 222.575 $15.0 brake V-spring
11 H0000 222.576 $9.00 cam shaft
11 H0000 222.582 none helper spring
11 H0000 222.580 $2.50 inner cam washer 10-6
11 H59 00 222.579 $5.00 brake arm
11 H0000 031.509 $0.20 outer cam washer 6
11 H0000 031.075 $0.30 cam nut M6
11 H0000 222.581 $4.00 pinch bolt only
11 H0000 031.509 $0.20 pinch washer
11 H0000 031.075 $0.30 pinch nut M6
11 H60 00 000.000 $4.00 pinch bolt assy P25
01 H0000 222.586 $27.0 sprocket 22T 30mph 42.5 x 60
01 H0000 222.586 $20.0 sprocket 22T aftermarket
01 H0000 227.361 $25.0 sprocket 24T 25mph 42.5 x 60
01 H0000 222.583 $4.50 sprocket lock plate ∅60 4-∅7
04 H0000 026.304 $0.80 sprocket bolt M7 x 25
01 H114L 223.112 $5.00 chain adjuster left
01 H0000 223.578 none chain adjuster left black
01 H114R 209.212 $5.00 chain adjuster right
01 H0000 223.579 none chain adjuster right black
10 H0000 209.650 $00.0 speedometer drive see speedo parts
15. 1-chain F&R Mags Ø105 (sealed bearings)
All Tomos brake plates, made in Slovenia, interchange with Grimeca Italian made ones. The brake shoes, cams, also interchange. Tomos had their own “6mm loop” pinch bolt until 1991. So their early 209258 brake arms were “Tomos only”. After that they used the old H60 Grimeca pinch bolt and H59 Grimeca brake arm.
While pre-1996 had 90mm, starting in 1996 Tomos mopeds had 105mm brake drums and new wheel styles, still for size 2.25-16 tires. The die cast aluminum wheels have inner lips for sealed bearings
L to R: ’96-08 Tomos ∅105 T10, T12, T13, T14, T9
fig abc Tomos# price Front brake assy cam shaft
03 100 229747 none a black T9 ’96-02 ∅12 fixed
03 010 233124 $70.0 b black T13 ’03-08 ∅10 eccentric
03 010 233155 $65.0 b silver T14 ’03-08 ∅10 eccentric
03 001 233124 $70.0 c black F13 ’08-13 ∅10 fixed
03 001 233155 none c silver F14 ’08-13 ∅10 fixed
fig qty Tomos# price Front wheel parts list
03 100 229736 $39.0 plate bare blk ’96-02 ∅12
04 111 229740 $20.0 H64K brake shoe set 105201
05 222 229741 $8.00 H64KS coil spring
06 111 227114 $0.00 rubber plug
07 020 230949 $0.00 eccentric bush ’03-08
08 100 229743 $0.00 brake cam shaft ∅12 ’96-02
08 011 230954 $0.00 brake cam shaft ∅10 ’03-13+
09 111 229684 $0.00 H59 brake lever arm
10 111 031509 $0.20 pinch washer 6
11 222 031075 $0.30 nut M6
12 111 222581 $4.00 pinch bolt only
12 111 222581 $4.00 H60 pinch bolt assy P25
9A 111 231858 $0.00 cable adjuster (most)
9B 111 031075 $0.30 adjuster nut M6 (most)
13 111 222568 $0.00 front center spacer 12 x 40
14 222 044225 $7.00 bearing 6201-Z 12 x 32 x 10
15 111 226086 $22.0 front axle ∅12 x 187, M12-1.00 x 215
15 001 232868 none front axle ∅12 x 187, M12-1.25 x 215
16 111 227485 $0.00 F/R spacer 12 x 16 black =222883
17 222 031935 $0.00 front outer washer 12 x 2.5
18 222 206498 $0.00 H112M front outer nut M12-1.00
18 002 031126 $0.00 front outer nut M12-1.25
25 001 230631 $0.00 speedometer driver
fig abcd Tomos# price Rear brake assy cam shaft
03 1000 229748 none a black T10 ’96-02 ∅12 fixed
03 0100 233196 none b black T11 ’03-08 ∅10 eccentric
03 0100 233197 $78.0 b silver T12 ’03-08 ∅10 eccentric
03 0010 233196 $85.0 c black F11 ’08-13 ∅10 fixed
03 0010 233197 none c silver F12 ’08-13 ∅10 fixed
03 0001 237137 none d black ’08-13 Streetmate-R
03 0001 237136 none d silver ’08-13 Streetmate-R
fig abcd Tomos# price Rear wheel parts list
03 1000 229738 none plate bare black ’96-02 ∅12
04 1111 229740 $20.0 H64K brake shoe set 105201
05 2222 229741 $8.00 H64KS coil spring
06 1111 227114 $0.00 rubber plug
07 0200 230949 $0.00 eccentric bush ’03-08
08 1000 229743 $0.00 brake cam shaft ∅12 ’96-02
08 0111 230954 $0.00 brake cam shaft ∅10 ’03-13+
09 1111 229684 $0.00 H59 brake lever arm
10 1111 031509 $0.20 pinch washer 6
11 3333 031075 $0.30 nut M6
12 1111 222581 $4.00 pinch bolt only
12 1111 222581 $4.00 H60 pinch bolt assy P25
13 1111 231858 $0.00 cable adjuster M6 (most)
14 1110 230515 $21.0 rear axle ∅12 x 116, M11-1.0 x 185
14 0001 237009 none rear axle ∅15 x 116, M11-1.0 x 185
15 1110 222569 $8.00 rear center spacer ∅12.2 ∅16 x 64.2
15 0001 000000 none rear center spacer ∅15.2 ∅22 x 64.2
16 2220 044225 $7.00 bearing 6201-Z 12 x 32 x 10
16 0002 232872 $10.0 bearing 6202-Z 15 x 35 x 11
17 1110 227485 $0.00 F/R spacer 12 x 16 black =222883
18 0010 230668 $0.00 rear left spacer 12 x 8 (’08-on only)
19 2222 227450 $0.00 rear outer washer 11 x 20 x 2.0
20 2222 209277 $0.00 H112 rear outer nut M11-1.00
21 0010 223119 $0.00 rear sprocket Z=28 (LX,ST,SP)
21 0010 227361 $25.0 rear sprocket Z=24
21 1100 222586 $20.0 rear sprocket Z=22 aftermarket
22 2222 222583 $0.00 locking tab for rear wheel
23 4440 026304 $0.80 hex screw M7x25
24 4440 031076 $0.00 H124A nut M7
27 2222 031935 $0.00 washer 12 x 2.5mm
30 1111 209212 $0.00 chain adjuster RH
31 1111 209212 $0.00 chain adjuster RH
16. Others (sealed bearings)
The 2005-2008 Tomos Arrow rear drum brake was 110mm made in Italy.
Other Grimeca-Compatible Brakes:
Mag wheel models of Trac (Korea), and spoke wheel models of Carabella (Mexico) and possibly Wheel King (Taiwan).
Substitute MMI Part Numbers
shoe# spring# cam#
H64 H64A H63 orig. ∅90 coil
H64 H64S H63 substitute
H64K H64/1K H63K orig. ∅105 coil
H64 H64KS H63 substitute
H64M H64MS H63 orig. ∅90 U-spring
H64U H64US H63 substitute
H000 H0000 H00 orig. ∅90 V-spring
H64V H64VS H63V substitute
Coil spring 90: The evolution of the moped 90 mm drum brake is seen in the MMI part numbers. At first, when MMI (Marina Mobili Inc) began in the late 70’s, there were mostly spoke wheels with Italian-made Grimeca stamped steel hubs. Those hubs had small centers that took coil springs and did not require special U or V type brake springs.
Coil spring 105: The first MMI bike model that had a 105mm brake drum was the ’80-82 Negrini KPN. So they added a K suffix for the 105 brake parts.
U-spring 90: Cast aluminum “mag” wheels have larger centers, to large for 90mm brakes with coil springs. At first, in the early 80’s most mags had U-springs. The brake plate and cam were the same as coil type, so only the shoes and spring were different. So they added an M suffix for the mag wheel versions.
V-spring 90: The early 80’s MMI catalog does not mention V-springs. By the late 80’s most mags had them. V type springs, shoes and brake plates offer more safety but more difficult installation. The shoes are retained better.
