IDM magnetos, made in Italy, are on some early-to-mid-1990’s Tomos. They are CEV-compatible, and have the same appearance.
Iskra magnetos are made in Slovenia (which was part of Yugoslavia before 1991). They are original equipment on most Tomos mopeds from 1989 to 2007.
AET After about 1993 Iskra magnetos were labeled AET. Iskra electric motors, AET electric equipment and Tomos mopeds were (or are) divisions of Hidria, a family of Slovenian manufacturing companies. Iskra-AET magnetos have the AET logo stamped on the flywheel, and the Iskra name cast into the back side of the stator base plate. So they can be called by either name.
Tomos mopeds, USA models, had many magnetos, but many were interchangeable. The magneto brands Ducati, ZEM, CEV, IDM, and Iskra-AET, each had different versions. They are all listed below, in order of VIN code and year range.
1. Tomos Magnetos
text colors: no turn signals, turn signals, points magneto, CDI magneto
price colors: used, new, none = not available
vin: digits 5 and 6 of the Vehicle Identification Number
wires: ♦ = ignition, ♦ = lights, ♦ = brake light (external ignition ground)
wires: ♦ = battery charging, ♦◊ = CDI pulser
On A3 Engines 1974 to 1991
Ducati 31.17.30 6V 40W, Ø94 M26-1.5 rotor, Ø90 3-M4 stator
magneto $200 wires ♦♦♦ Tomos 213.322=211.956, fits ’74-13
213.737 rotor $130 213.738 base plate none
221.309 points M14 $16.0 221.310 condenser M17 $13.0
vin years on Tomos (US) models xx (type) magneto
00 75-76 Automatic A3 x xxxxxx (pedal) Ducati 31.17.30
00 77-78 A3SP xxxxxxxx xxxXX (pedal) Ducati 31.17.30
00 77-78 A3GM xxxXxxx xXxXX (pedal) Ducati 31.17.30
00 77-78 A3SL xxxxxxxx xxxXX (pedal) Ducati 31.17.30
00 79-80 A3 Bullet SP xxxxx xxxx (pedal) Ducati 31.17.30
00 79-80 A3 Bullet GM xXXx xxxx (pedal) Ducati 31.17.30
00 79-80 A3 Bullet SL xxxxx xxxx (pedal) Ducati 31.17.30
ZEM 31.17.30 6V 40W, Ø94 M26-1.5 rotor, Ø90 3-M4 stator
magneto none wires ♦♦♦ Tomos 213.322, fits ’74-13
213.737 rotor none 213.738 base plate none
221.309 points M14 $16.0 221.310 condenser M17 $13.0
CEV 6951 6V 28/10W, Ø94 M26-1.5 rotor, Ø90 3-M4 stator
magneto none wires ♦♦♦ Tomos 213.322, fits ’74-13
213.737 rotor CEV 6943 $100 213.738 base plate 13085 $75
221.309 points M14 $16.0 221.310 condenser M17 $13.0
vin years on Tomos (US) models x (type) magneto
01 81-83 A3 Bullet SP xxxxx xxxx (pedal) Ducati 31.17.30
01 83-85 A3 Bullet SP xxxxx xxxx (pedal) ZEM 31.17.30
01 85-86 A3 Bullet SP xxxxx xxxx (pedal) CEV 6951
02 81-83 A3 Bullet GM xXXx xxxx (pedal) Ducati 31.17.30
02 83-85 A3 Bullet GM xXXx xxxx (pedal) ZEM 31.17.30
02 85-86 A3 Bullet GM xXXx xxxx (pedal) CEV 6951
03 81-83 A3 Bullet SL xxxxx xxxx (pedal) Ducati 31.17.30
03 83-85 A3 Bullet SL xxxxx xxxx (pedal) ZEM 31.17.30
03 85-86 A3 Bullet SL xxxxx xxxx (pedal) CEV 6951
04 81-81 A3 Silver Bullet SP xmag (pedal) Ducati 31.17.30
05 81-81 A3 Silver Bullet GM xmag (pedal) Ducati 31.17.30
07 81-83 A3 Silver Bullet SP spoke (pedal) Ducati 31.17.30
08 81-83 A3 Silver Bullet SP 5star (pedal) Ducati 31.17.30
08 83-85 A3 Silver Bullet SP 5star (pedal) ZEM 31.17.30
08 85-86 A3 Silver Bullet SP 5star (pedal) CEV 6951
09 81-83 A3 Silver Bullet GM 5star (pedal) Ducati 31.17.30
09 83-85 A3 Silver Bullet GM 5star (pedal) ZEM 31.17.30
09 85-86 A3 Silver Bullet GM 5star (pedal) CEV 6951
11 85-86 A3 Golden Bullet xxxxxx (pedal) CEV 6951

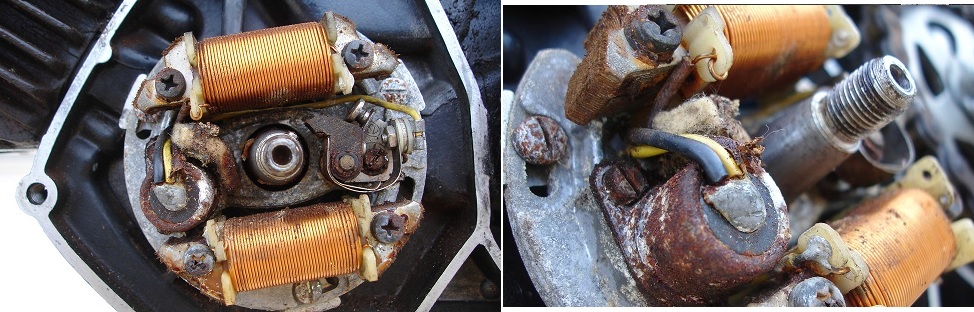

CEV 6418 12V 28/10W, Ø80 M19-1.0 rotor, Ø90 3-M4 stator
magneto none wires ♦♦♦ Tomos 222.502, fits ’74-13
222.770 rotor none 221.313 base plate 13923 none
221.309 points M14 $16.0 221.310 condenser M17 $13.0
CEV 6436 12V 75W, Ø80 M19-1.0 rotor, Ø90 3-M4 stator
magneto none wires ♦♦ Tomos 222.303, fits ’74-13
222.738 rotor (stronger) none 221.313 base plate 13923 none
221.309 points M14 $16.0 221.310 condenser M17 $13.0
vin years on Tomos (US) models (type) magneto
12 86-88 A3 Bullet xxxxx xxxXxx (pedal) CEV 6418
13 86-88 A3 Golden Bullet xxxxxx (pedal) CEV 6436
14 87-88 A3 Bullet TT xxxx xxxXx (pedal) CEV 6418
?? 87-88 A3 Bullet TT xxxx xxxxxx (kick) CEV 6418
?? 87-88 A3 Golden Bullet TT xxxx (kick) CEV 6436
19 87-88 A3 Golden Bullet TT xXX (pedal) CEV 6436
20 87-88 A3-01 Bullet xxxx xxxxx (pedal) CEV 6418

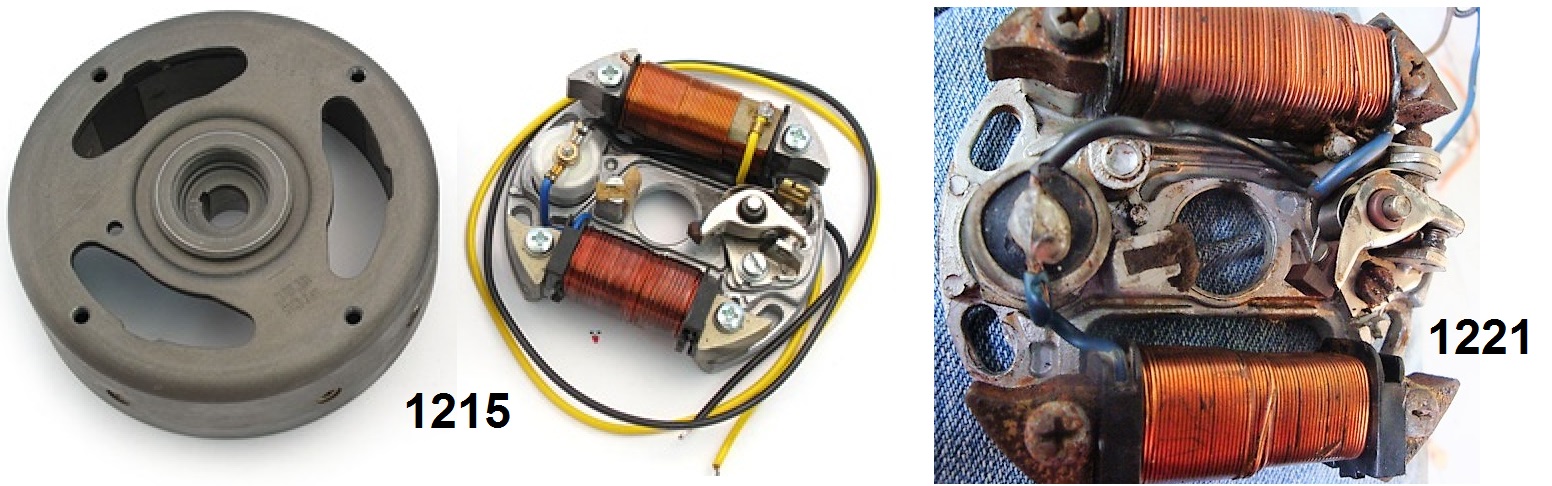

Iskra 1215 12V 50W, Ø90 M26-1.5 rotor, Ø90 3-M4 stator
magneto none wires ♦♦ Tomos 222.010, fits ’74-13
223.176 rotor none 223.162 base plate =Bosch $25
223.164 points M19b $15.0 223.166 condenser M32 $15.0
Iskra 1221 12V 28/10W, Ø90 M26-1.5 rotor, Ø90 3-M4 stator
magneto none wires ♦♦♦ Tomos 227.090, fits ’74-13
227.086 rotor none 227.087 stator assy none
223.164 points M19b $15.0 223.166 condenser M32 $15.0
vin years on Tomos (US) models (type) magneto
?? 88-91 A3 Golden Bullet xxXxxx (kick) Iskra 1215
?? 88-91 A3 Golden Bullet xxxxx (pedal) Iskra 1215
26 88-91 A3 Bullet xxxxx xxxxxxx (kick) Iskra 1221
27 88-91 A3 Golden Bullet TTLX (kick) Iskra 1215
28 88-91 A3 Bullet TT xxxxxxxxxx (kick) Iskra 1221
29 88-91 A3 Bullet xxxx xxxxxX (pedal) Iskra 1221
30 88-91 A3 Golden Bullet TTLX (pedal) Iskra 1215
31 88-91 A3 Bullet TT xxxxx xxx (pedal) Iskra 1215
33 88-91 A3 Bullet TS xxxxxxxxx (pedal) Iskra 1215
On A35 Engines 1991 to 2006

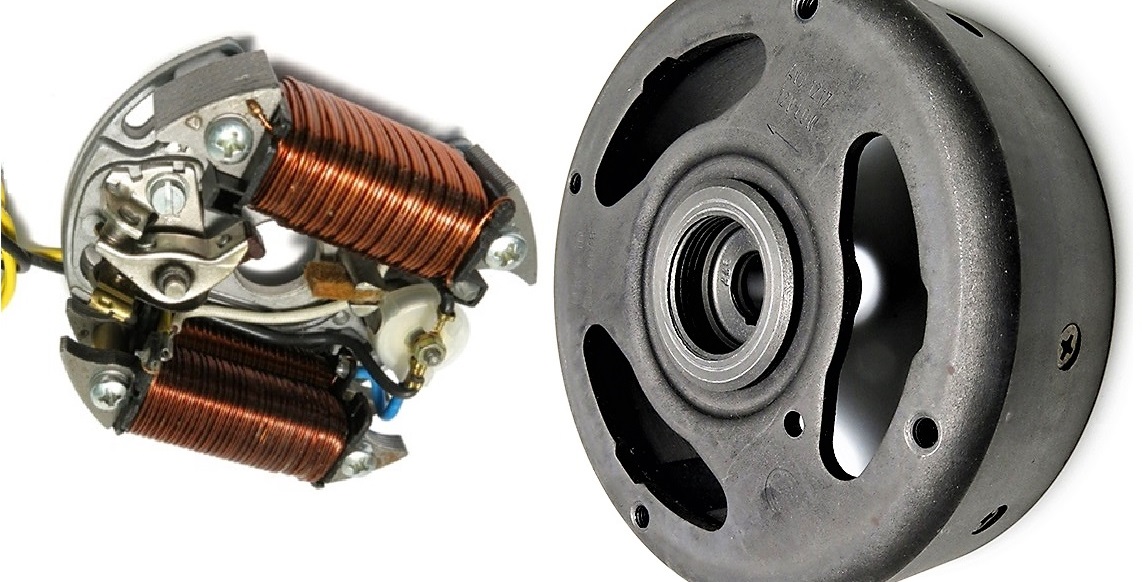

Iskra-AET 1217 12V 80W, Ø90 M26-1.5 rotor, Ø90 3-M4 stator
magneto none wires ♦♦ Tomos 222.704, fits ’74-13
223.173 rotor none 223.171 stator assy none
223.164 points M19b $15.0 223.166 condenser M32 $15.0
vin years on Tomos (US) models (type) magneto
34 92-93 A35 Bullet xxxxxxxxxx (pedal) Iskra 1217
35 92-93 A35 Bullet TT xxxxXxX (pedal) Iskra 1217
36 92-93 A35 Colibri xxxxxxxxx (pedal) Iskra 1217
37 92-93 A35 Colibri xxxxxxXXXX (kick) Iskra 1217
38 92-93 A35 Golden BulletXXXX (pedal) Iskra 1217
39 92-93 A35 Golden Bullet TTLX (pedal) Iskra 1217
40 92-93 A35 Bullet TT xx xxXXXX (kick) Iskra 1217
41 92-93 A35 Golden Bullet TTLX (kick) Iskra 1217

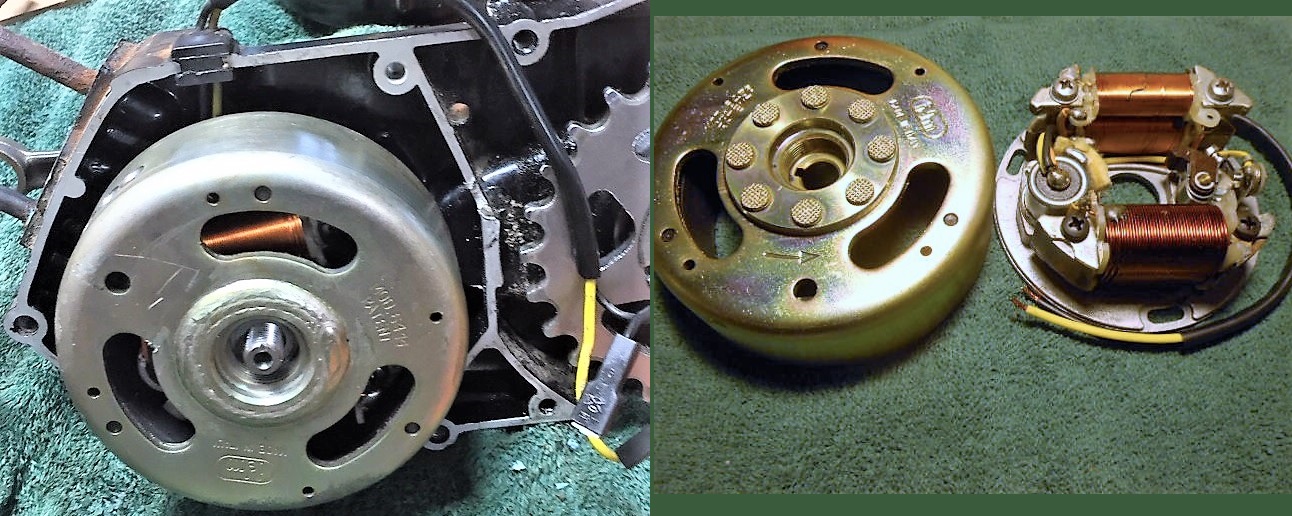

IDM 6436 12V 75W, Ø80 M19-1.0 rotor, Ø90 3-M4 stator
magneto $230 wires ♦♦♦ Tomos 221.005, fits ’74-13
221.311 rotor none 221.312 stator assy 13923 none
221.309 points M14 $16.0 221.310 condenser M17 $13.0
IDM 6411 12V 50W, Ø90 M19-1.0 rotor, Ø90 3-M4 stator
magneto none wires ♦♦ Tomos 229.459, fits ’74-13
229.472 rotor none 229.471 stator assy none
The IDM 6411 magneto has a reputation of being faulty. The CDI ignition looses spark. When that happens, both the CDI-coil unit and the magneto assembly must be replaced.

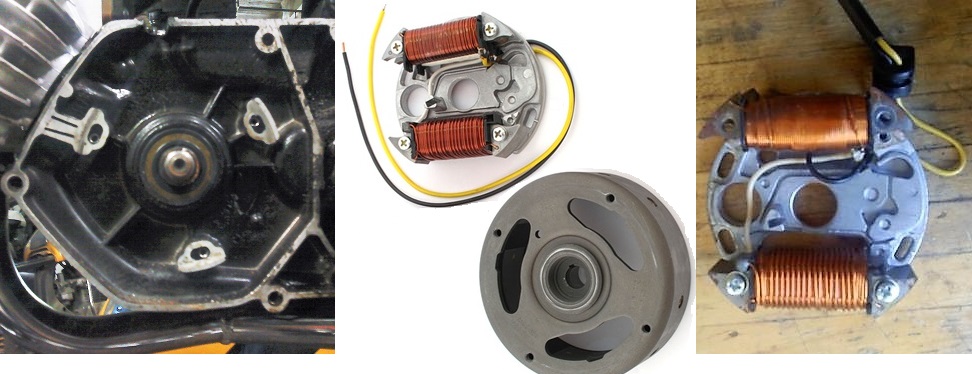

AET 11.160.053 12V 80W, Ø90 M26-1.5 rotor, Ø90 3-M4 stator
magneto none wires ♦♦ Tomos 229.521, fits ’74-13
229.527 rotor none 229.526 stator assy none
vin years on Tomos (type) magneto
42 93-94 Sprint x (pedal) IDM 6436/IDM 6411
42 94-95 Sprint x (pedal) IDM 6436/Iskra 1217/AET 11.160.053
43 93-94 Sprint xxx (kick) IDM 6436/IDM 6411
43 94-95 Sprint xxx (kick) IDM 6436/Iskra 1217/AET 11.160.053
44 94-95 Targa wht/grn(p) IDM 6436/Iskra 1217/AET 11.160.053
45 94-95 Targa wht/red(p) IDM 6436/Iskra 1217/AET 11.160.053
46 94-95 Targa LX (pedal) IDM 6436/Iskra 1217/AET 11.160.053
47 94-95 Targa wht/grn(k) IDM 6436/Iskra 1217/AET 11.160.053
48 94-95 Targa LX x(kick) IDM 6436/Iskra 1217/AET 11.160.053
49 94-95 Targa wht/red(k) IDM 6436/Iskra 1217/AET 11.160.053
56 94-95 Sprint TT (pedal) IDM 6436/Iskra 1217/AET 11.160.053
58 94-95 Sprint TT (kick) IDM 6436/Iskra 1217/AET 11.160.053
59 95-95 Colibri xx (pedal) Iskra 1217

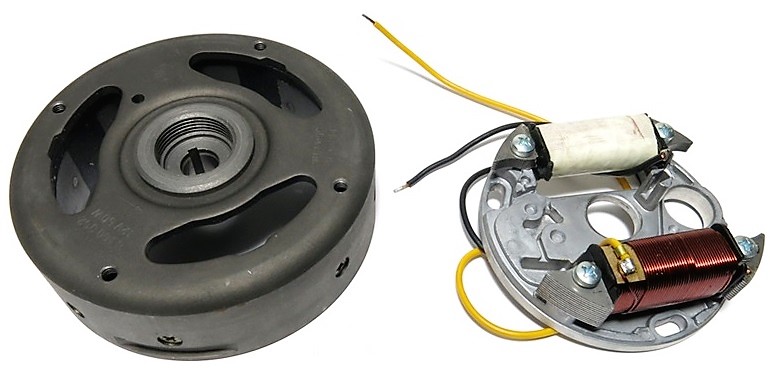

AET 11.160.052 12V 50?W, Ø90 M26-1.5 rotor, Ø90 3-M4 stator
magneto none wires ♦♦ Tomos 229.444, fits ’74-13
229.484 rotor none 229.526 stator assy none

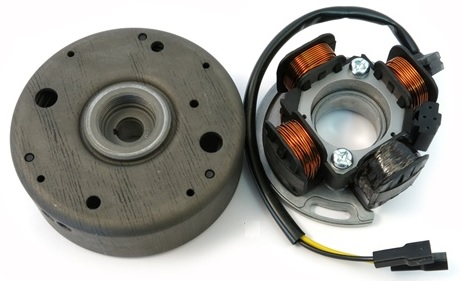

AET 11.170.001 12V 80W, Ø80 M26-1.5 rotor, Ø90 2-M5 stator
wires ♦♦ Tomos 230.327 or 232.976, fits ’98-13
232.976 magneto $184 ’03-06 with grommet #3 224196
230.327 magneto $180 ’97-02 no grommet for early case
230.329 rotor none 230.328 stator assy none
61 97-98 TX50 x xxxXx (kick) AET 11.160.052 -wire 12V 50W 229.444
61 98-02 Super Tom xxx (kick) AET 11.170.001
61 03-06 MC50 series X (kick) AET 11.170.001
61 96-97 Sprint xxxXx (pedal) IDM 6411
61 98-02 Sprint xxxXx (pedal) AET 11.170.001
61 03-06 Sprint xxxXx (pedal) AET 11.170.001.
In 1998 the 230.327 magneto changed to a “4-star” or “plus sign” design. 3 of the 4 coils were for lighting, connected in series, and one coil was for ignition. So the output wires did not change. The base plate screws changed, from three 4 mm, to two 5 mm.
1974-1997 engine cases had only mounts for 3-M4-screw stator plates.
1998-later engine cases had mounts for both 2-M5 and 3-M4-screw base plates.
In 2003 the engine case, on all models, became electric-start-ready. The magneto did not change, but the magneto part number did because a rubber grommet was added.

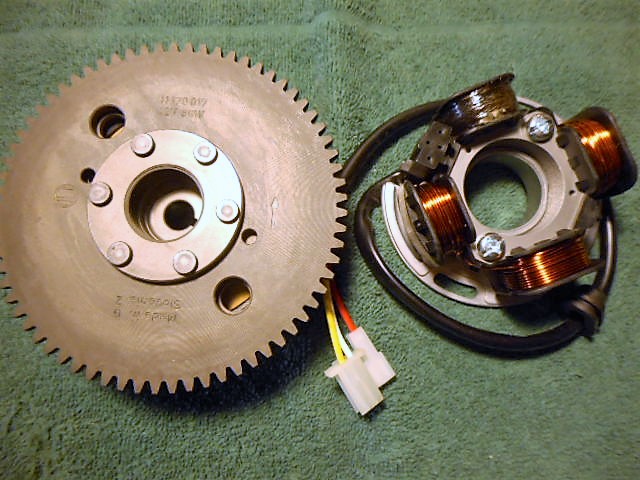

AET 11.170.017 12V 80W, Ø80 M26-1.5 rotor, Ø90 2-M5 stator
magneto $180 wires ♦♦♦ Tomos 230.842, fits ’98-13
230.965 rotor none 230.964 stator assy none
vin years on Tomos xxx (type) magneto
62 96-97 Targa LX xxx (pedal) AET 11.160.053
62 98-02 Targa LX xxx (pedal) AET 11.170.001
62 03-06 Tomos LX xx (pedal) AET 11.170.001
62 05-05 LX Limited xX (pedal) AET 11.170.017
63 96-97 Targa xxxxXx (pedal) AET 11.160.053
63 98-02 Targa xxxXxx (pedal) AET 11.170.001
63 03-04 Tomos Xxxxx (pedal) AET 11.170.001
63 05-06 ST xxxxXxxxx (pedal) AET 11.170.001
64 96-97 Sprint xXxxXx (kick) IDM 6411
64 98-02 Sprint xXxxXx (kick) AET 11.170.001
64 03-06 Sprint xXxxXx (kick) AET 11.170.001
65 96-97 Targa LX xxxx (kick) AET 11.160.053
65 98-02 Targa LX xxxx (kick) AET 11.170.001
65 03-06 Tomos LX xxx (kick) AET 11.170.001
65 05-05 LX Limited xXx (kick) AET 11.170.017
66 96-97 Targa xxxxXxx (kick) AET 11.160.053
66 98-02 Targa xxxxxXx (kick) AET 11.170.001
66 03-04 Tomos xxxxXx (kick) AET 11.170.001
66 05-06 ST xxxxxxxxXx (kick) AET 11.170.001
69 98-99 TT ClassicXxx (pedal) AET 11.170.001
In 2001-02 the A35 Revival was the first Tomos with electric start. The 230.842 magneto was the same as a 230.327, except it had an extra wire for battery charging, and a large flat gear on top, for electric starting.
72 01-03 RevivalXxXxx (pedal) AET 11.170.017
75 01-03 RevivalXxXxxx (kick) AET 11.170.017
On A55 Engines 2004 to 2017
In 2004-05 the A55 engine came out. It was cleaner and more efficient, to meet new 2006 EPA pollution standards. The A55 had a different magneto with an external pulser, which added two more wires.

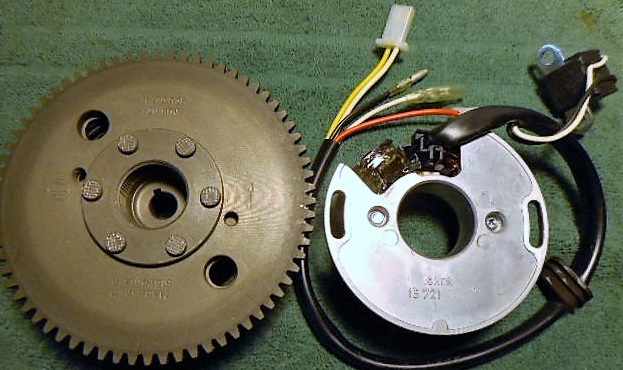

AET 11.170.026 12V 80W, Ø80 M26-1.5 rotor, Ø90 2-M5 stator
magneto none wires ♦♦♦◊♦ Tomos 233.720, fits ’04-13

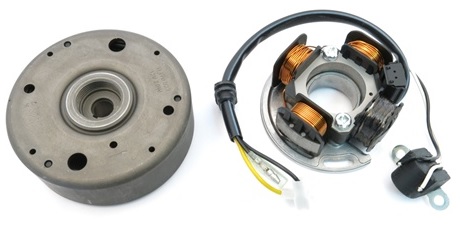

AET 11.170.027 12V 80W, Ø80 M26-1.5 rotor, Ø90 2-M5 stator
magneto none wires ♦♦◊♦ Tomos 233.735, fits ’04-13
vin years on Tomos xxx (type) magneto
76 06-08 Arrow-RXXxxx (kick) AET 11.170.026
77 06-08 Arrow-RXXxxx(pedal) AET 11.170.026
78 05-05 ArrowXxxXxxx(pedal) AET 11.170.027
79 05-09 Streetmate Xx (kick) AET 11.170.026
79 08-09 Streetmate-R (pedal) AET 11.170.026
79 10-13 Streetmate Xx (kick) Kinetic
80 05-09 Streetmate xx(pedal) AET 11.170.026
80 10-13 Streetmate xx(pedal) Kinetic
81 04-09 Revival TS xxx (kick) AET 11.170.026
82 04-09 Revival TS xx (pedal) AET 11.170.026
From 2004 to 2009, the A55 engine had AET 11.170.017 for electric start models, and AET 11.170.027 for non-electric start models. From 2010 to 2013 all models had electric-start type magnetos, with a ring gear and extra wire. But they were made by Kinetic and said 12V 60W.

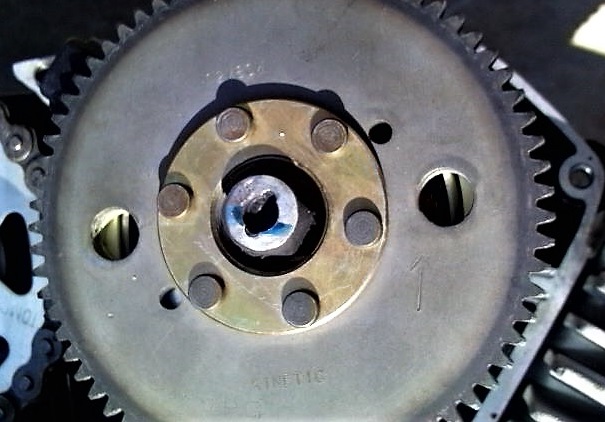

Kinetic 12V 60W, Ø80 M26-1.5 rotor, Ø90 2-M5 stator
magneto none wires ♦♦♦◊♦ Tomos 233.720, fits ’04-13
243.101 rotor $70 243.100 stator assy none
vin years on Tomos xxx (type) magneto
87 07-09 SprintXxxxxxx (kick) AET 11.170.027
87 10-13 SprintXxxxxxx (kick) Kinetic
88 07-09 SprintXxxXxx (pedal) AET 11.170.027
88 10-13 SprintXxxXxx (pedal) Kinetic
89 07-09 STXxxxxxxxxx (kick) AET 11.170.027
89 10-13 STXxxxxxxxxx (kick) Kinetic
90 07-09 STXxxxxxXxx (pedal) AET 11.170.027
90 10-13 STXxxxxxXxx (pedal) Kinetic
91 07-09 LXXxxxxxxxxx (kick) AET 11.170.027
91 10-13 LXXxxxxxxxxx (kick) Kinetic
92 07-09 LXXxxxxxXxx (pedal) AET 11.170.027
92 10-13 LXXxxxxxXxx (pedal) Kinetic
93 10-13 Streetmate-R x(kick) Kinetic
94 10-13 Streetmate-R (pedal) Kinetic
In 2017 new US-model Tomos mopeds were once again being sold.
India M1100000 12V 80W, Ø80 M26-1.5 rotor, Ø90 2-M5 stator
magneto none wires ♦♦♦ Tomos 230.842, fits ’98-13
for Euro models

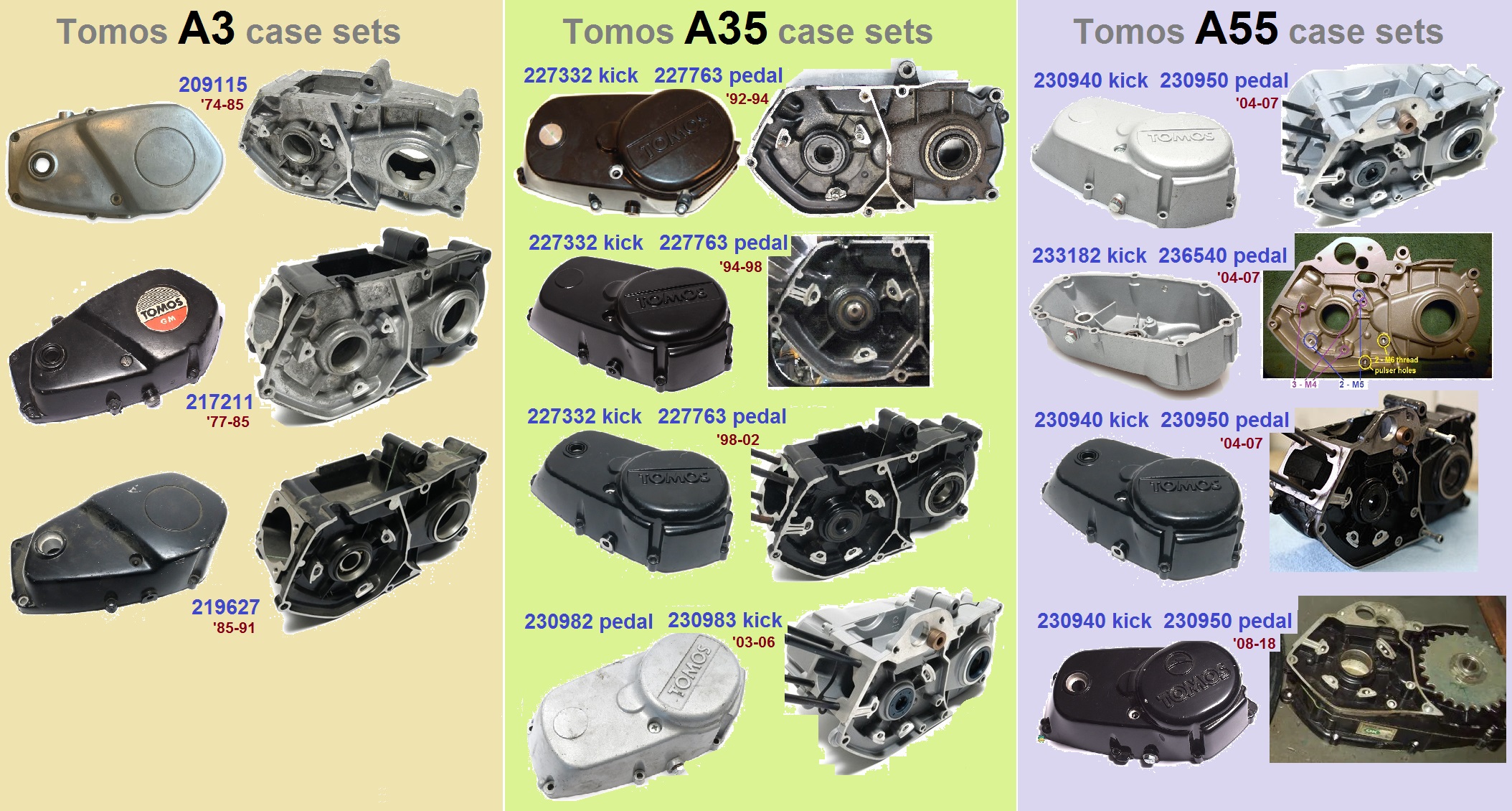

Engine cases: You don’t have to know the year or model to know what magneto(s) fit at particular Tomos. You only have to know what left-side engine case it has. The stator plate has to fit the engine case, and the flywheel has to fit the crank.
From 1974 to 1997 there were three M4-0.7 thread stator plate holes, for A3 and early A35. 3 total.
From 1998 to 2002 two M5-0.8 thread stator plate holes were added, for mid A35. 5 total, 3 unused.
From 2003 to 2006 the electric start affected the wires grommet, for late A35. 7 holes total, 5 unused
From 2003 to 2013 two M6-1.0 thread pulser coil holes were added, for A55. 7 holes total, 3 unused.
Flywheels: All the flywheels, both 80 and 90 mm ID, fit the same crank, but they can have different points cams or ignition triggers. Some flywheels do interchange, some might, and some don’t.
4. Service Info

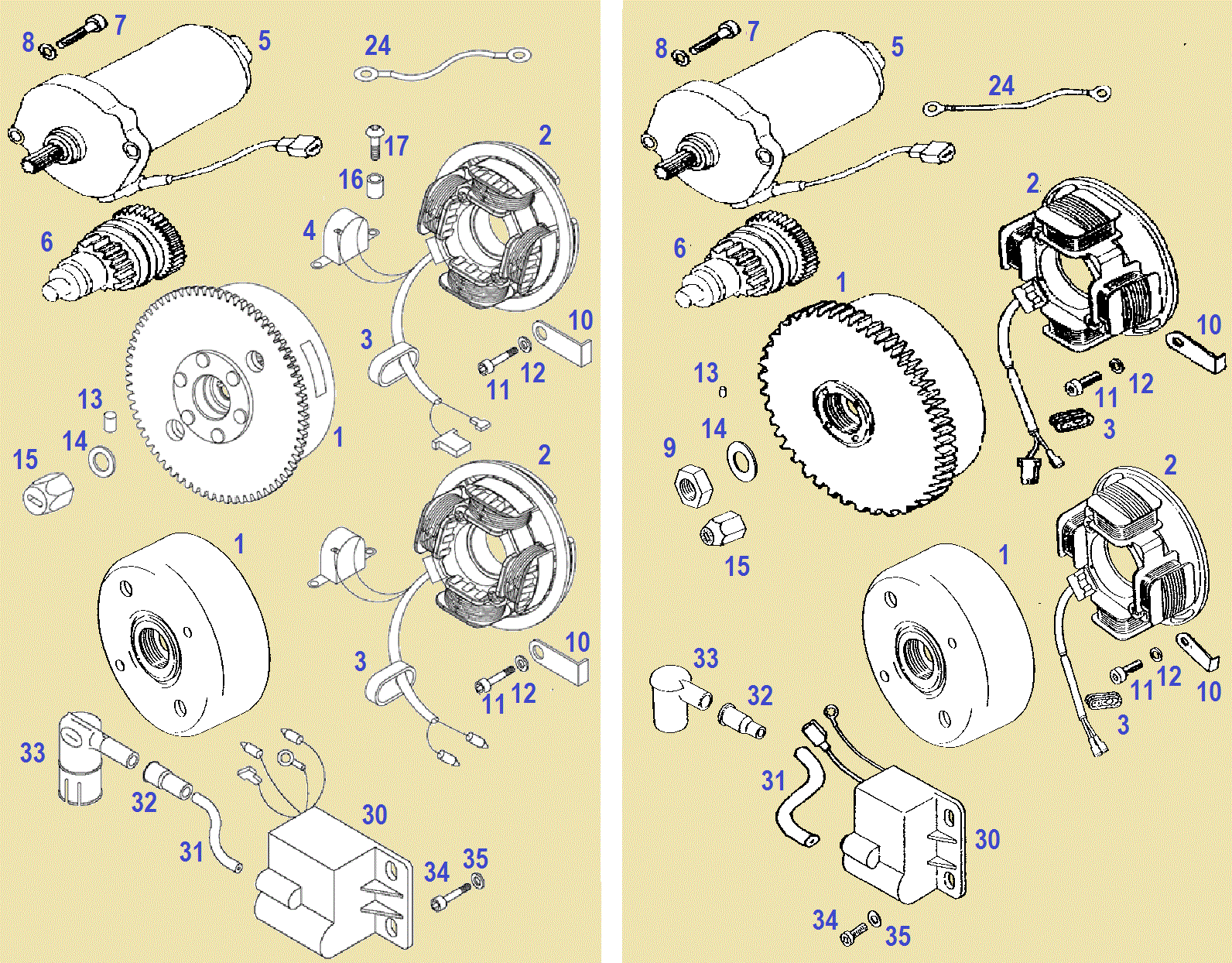

Here is an image of the magneto section in the 1993 Tomos A35/Colibri Service Manual, by Tomos Products.
