Wards Riverside Cables

Contents:
1. ’59-64 Riverside Mo-Ped (Motobecane)
2. ’65-68 Riverside 150-D, 250-D (Benelli)






1. ’59-64 Riverside Mo-Ped
made in France by Motobecane

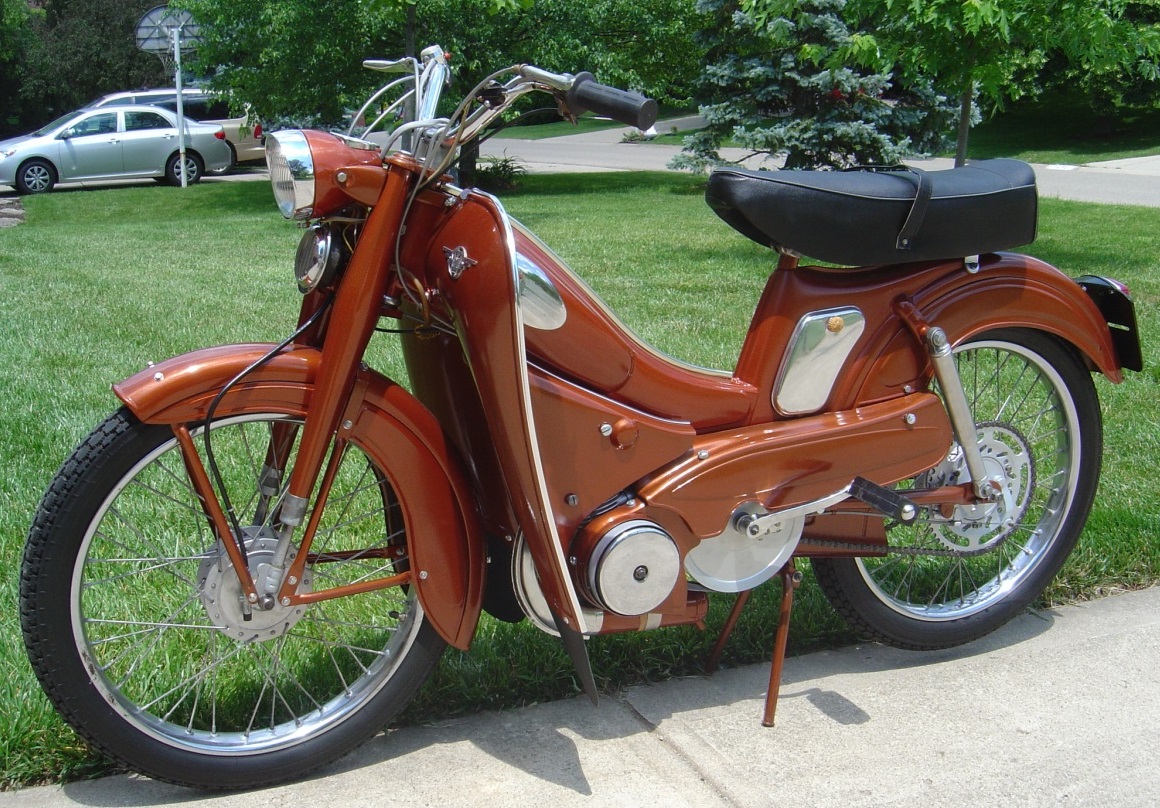

1960 Riverside Mo-Ped Deluxe

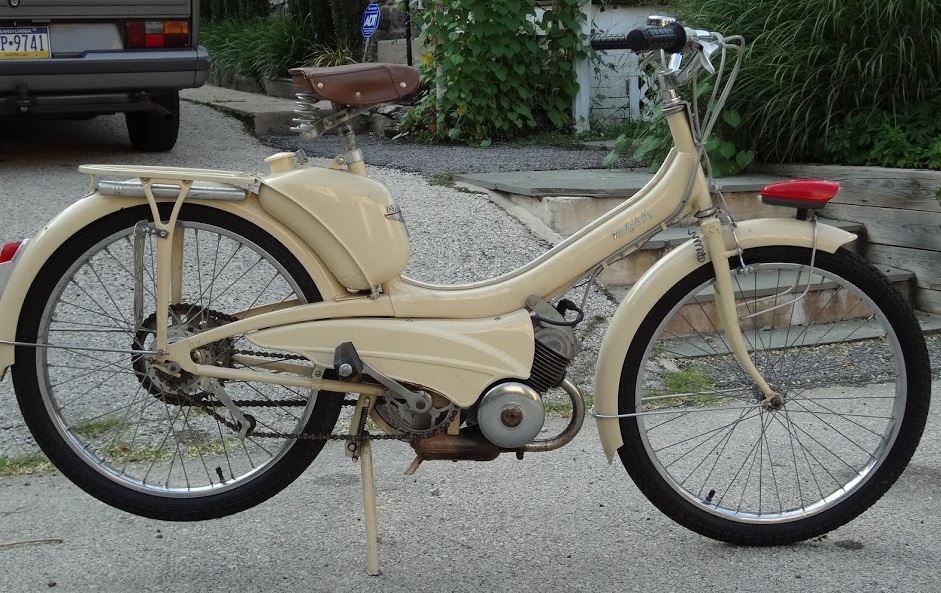

1962 Riverside Mo-Ped Standard



















15576s $10.0 choke cable 35.0 x 42″ gray

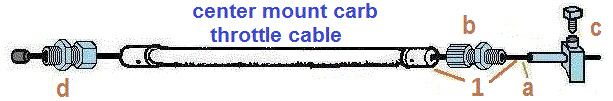

1  15577s $10.0 throttle cable 35.0 x 42″ gray
sold separately:  a  inner wire    b  upper adjuster
c  sliding block      d  lower adjuster (some)

15578s $14.0 decomp cable gray 29×33″ 32″min



15579s $10.0 front brake cable  gray 30 x 38″



15580s $10.0 rear brake cable  gray 56 x 64″








2. ’65-68 Riverside 150-D, 250-D

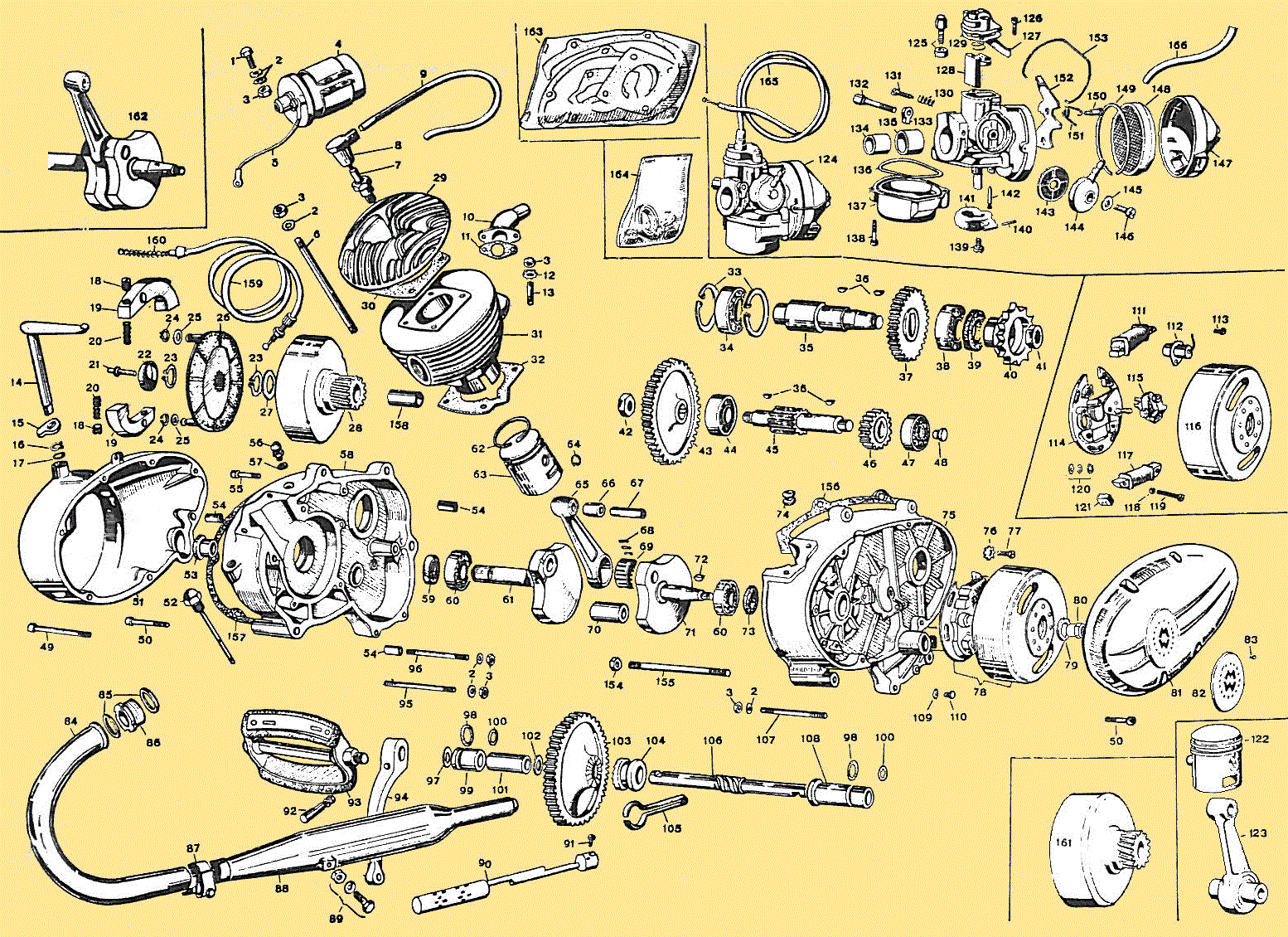

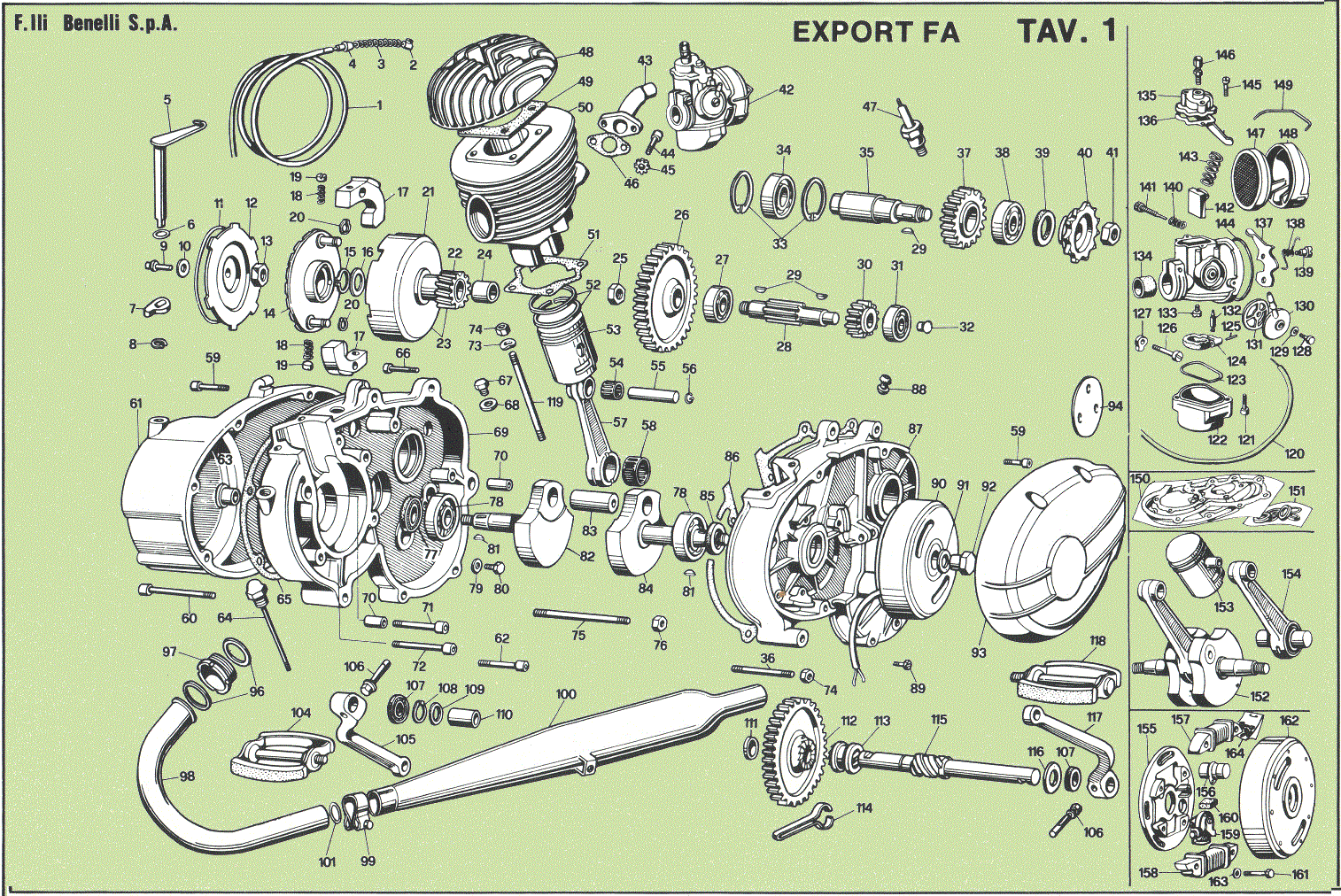

made in Italy by Benelli

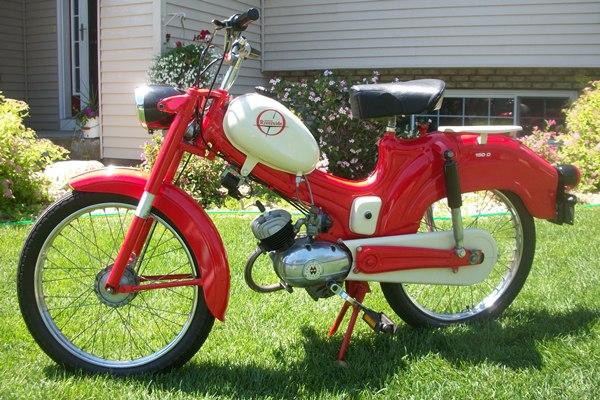

1965 Riverside 150-D

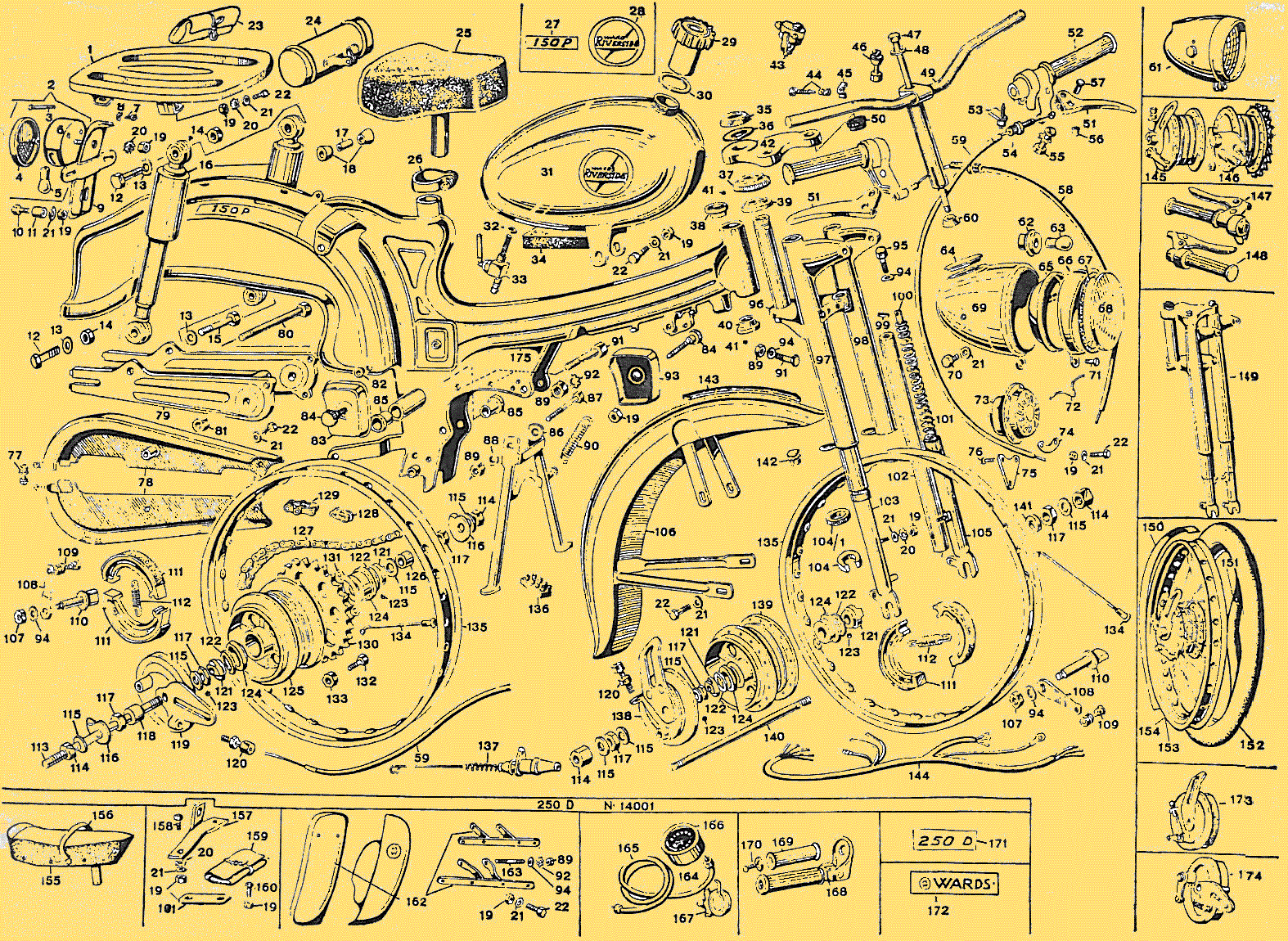

1966 Riverside 250-D

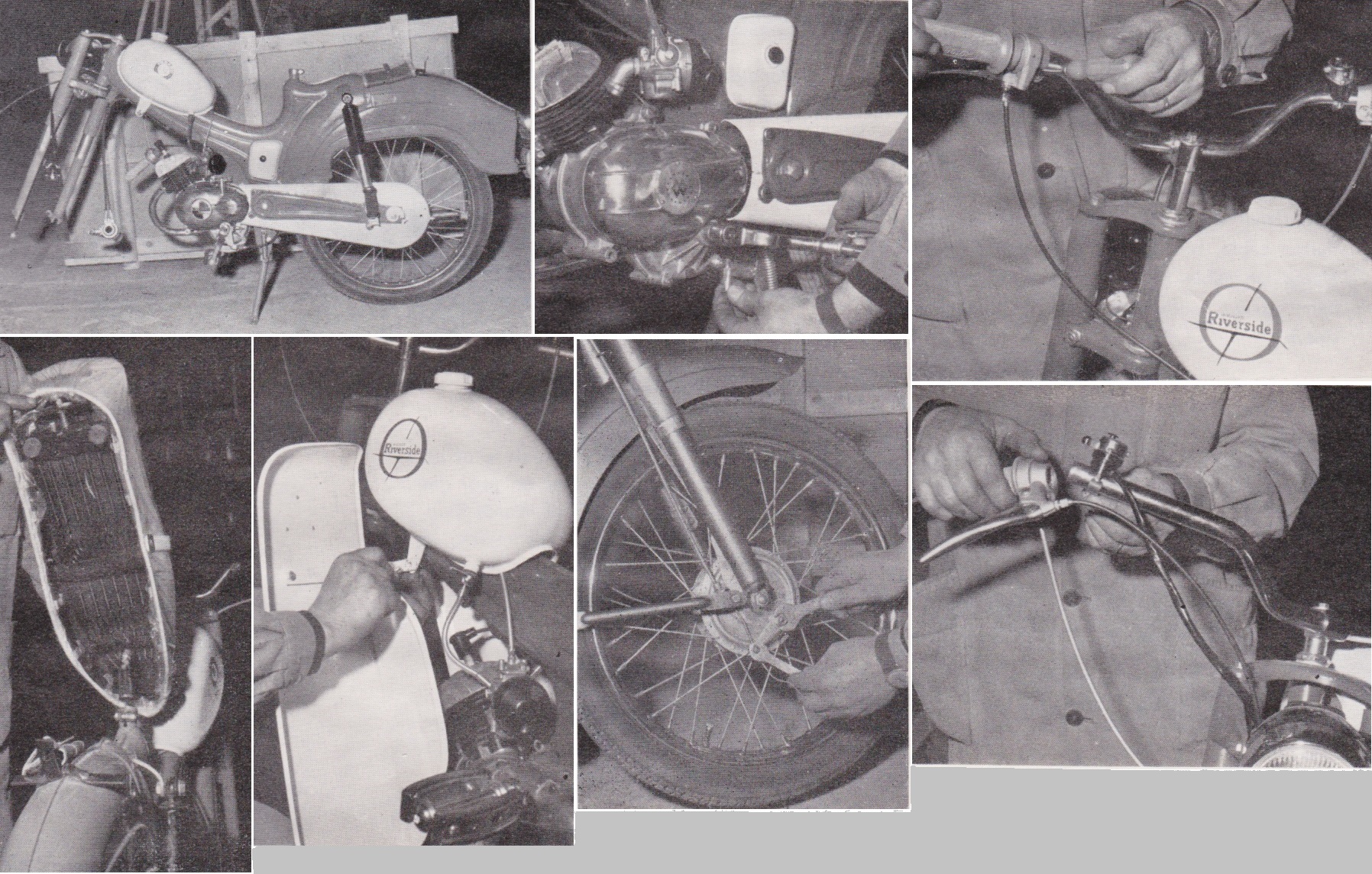

Owners manual shows original cables were light grey,
but many have since been replaced with black.






165
Benelli G29/1 2-ended throttle cable
Domino wrap-around throttle with 5.9 mm cable hole
33 x 2.4″ grey or black    $22  .


58
Benelli G244 1-ended front brake cable
33 x 6″    grey or black    $10  .


59
Benelli G244/6 1-ended rear brake cable
53 x 6″    grey or black    $10  .


159

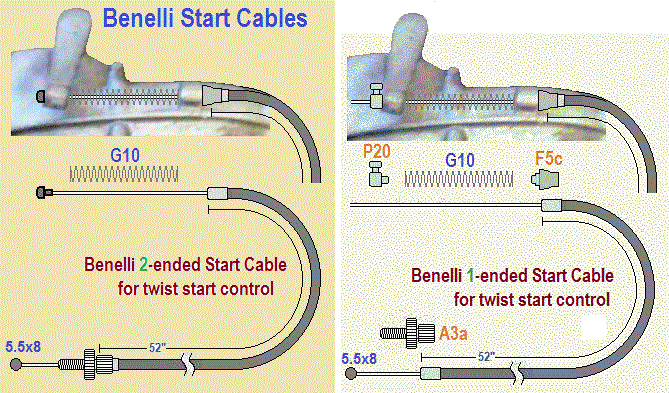

00.00.00.00 G244/3 none  2-ended start cable
for Domino twist-start left control
52 x ??” grey original   use 1-ended replacement

001 00.00.00.00 G244/3 $10.0 1-ended start cable
for Domino twist-start left control

52 x 5″ grey or black        sold separately:

002 48.80.24.70 M277   $3.00 pinch bolt P20 .
003 48.80.25.70 G10     $5.00 helper spring ∅6.5-7 x 60-75
004 48.80.18.70 UI7191 $0.50 step ferrule F5c .
041 70.62.69.20 G7/4    $6-$4 upper adjuster A3a .
