Z Wirings: Zundapp



Zundapp mofas, mopeds, and mokicks were never sold in the US. The “BMW of mopeds” is included in the wiring party because Zundapps are easy to admire! Too bad “ZD40” means 40kph  (26mph).

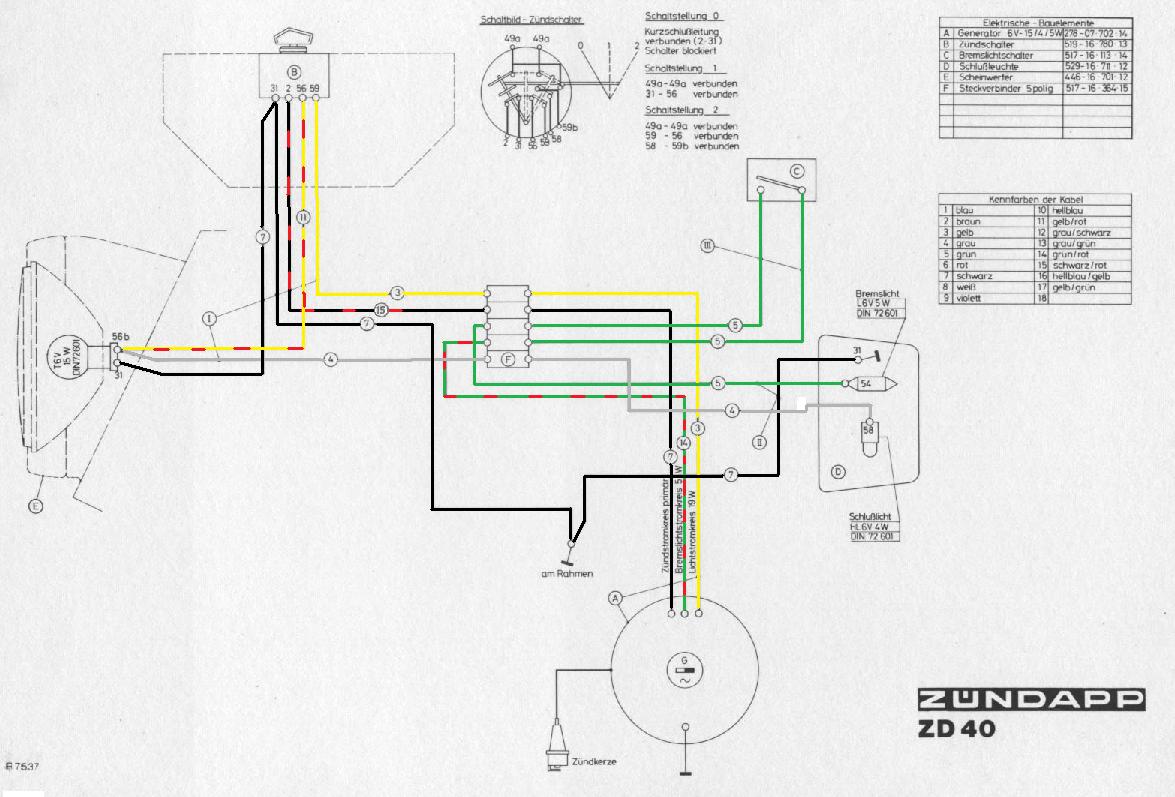

Zundapp ZD40 Wiring

Zundapp ZD40 Wiring
Euro model w/brk light
internal ignition ground

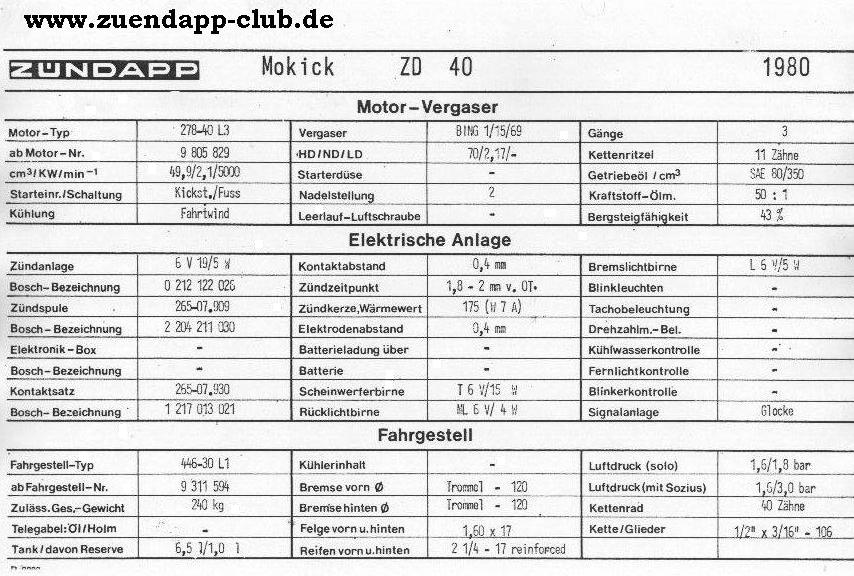

Zundapp zd40 Specs

Zundapp ZD40 1980
3-speed mokick specs
Bosch 0212 122 026 magneto

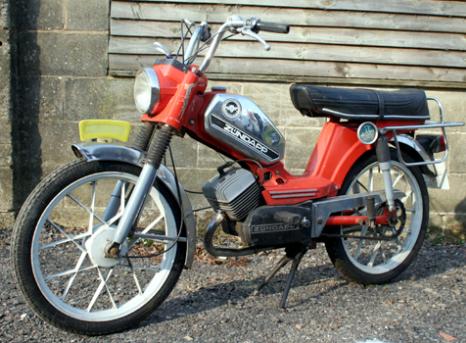

1977 Zundapp ZD40 pedal start moped 3-speed grip shift aluminum frame

Zundapp ZD40 1977
with pedals, 3-speed and aluminum frame!
