Generic Cables

Semi-universal: Generic cables are not for any one brand or model. They are often called “universal” because they fit many models. But since they do not fit all brands or models, “semi-universal” is more correct.

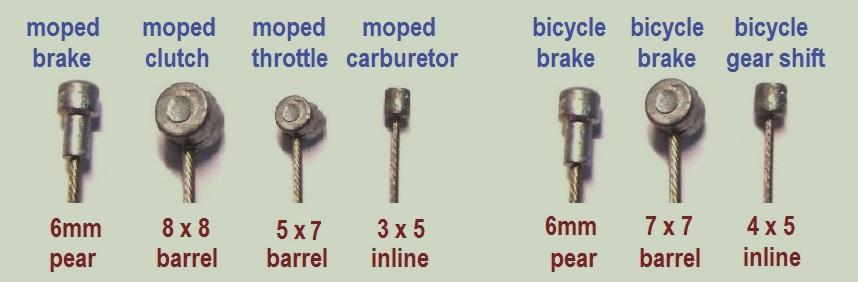

Cable Ends on Replacement Cables

Cable ends: Cable ends are molded onto the braided wire permanently. They have different shapes and sizes.

Single end: Generic cables are single-ended. That means one end of the braided inner wire is bare. That allows the wire to slide out and be replaced. All bicycle cables and many moped cables are single ended.

Double end: Some original cables are double-ended, where the inner wire cannot slide out.

Pinch bolts (knarps): These have a screw that tightens onto the cable wire. They can replace a permanent end. See cable parts for more details.

Single end wire with pinch bolt: A single end generic inner wire plus a pinch bolt can replace a broken double end wire. The replacement wire must be at least as long as the original, and the same or less thickness.





<– Lower end    Upper end –>


Front Brake Cables

CF1  $10  front brake cable ∅1.5, 39 x 48″
CF1 $00 5 lined black conduit, ∅5.5 chrome end caps



CF2  $12  front brake cable ∅2.0, 37 x 43″
CF2 $00 6 lined black conduit, ∅6.5 chrome end caps



WF1  $5  front brake wire ∅1.5 x 1220 (48″)



WF1-8  $7  front brake wire ∅1.5 x 1220 (48″) ∅8 x 8 end



WF1-7  $5  front brake wire ∅1.5 x 1220 (48″) ∅7 x 7 end



WF2  $5  thick front brake wire ∅2.0 x 1220 (48″)



WF2-8  $7  front brake wire ∅2.0 x 1220 (48″) ∅8 x 8 end




Rear Brake Cables

CR1  $10  rear brake cable ∅1.5, 60″ x 65″
CF1 $00 5 lined black conduit, ∅5.5 chrome end caps



CR2  $13 rear brake cable ∅2.0, 59 x 65″
CF2 $00 6 lined black conduit, ∅6.5 chrome end caps



CR2-b  N/A  rear brake cable ∅2.0, 62 x 69″ (= H76)
CF2-b $00 6 lined black conduit, ∅6.5 chrome end caps



WR1  $5  rear brake wire ∅1.6 x 1700 (67″)



WR1-8  $7  rear brake wire ∅1.6 x 1700 (67″) ∅8 x 8 end



WR1-7  $5  rear brake wire ∅1.5 x 1650 (65″) ∅7 x 7 end



WRL  $6  long rear brake wire ∅1.5 x 2570 (105″)



WR2  N/A  thick rear brake wire ∅2.0 x 1750 (69″)



WR2-8  N/A  thick rear brake wire ∅2.0 x 69″ ∅8 x 8 end




Throttle Cables

CT1 oo $10  throttle cable ∅1.2, 37 x 47″
CT1 oo $00 5 lined black conduit, ∅5.5 chrome end caps
CT1-P5  $12  CT1 with P5 pinch bolt ∅5.5 x 8
CT1- oo $00  replaces many 2-ended throttle cables



WT1 00  $5  throttle wire 47″ (1200 mm)
WT1-P5   $7  WT1 with P5 pinch bolt ∅5.5 x 8
WT1-P5   $0  replaces many 2-ended throttle cables



WTL 00 $6  long throttle wire 79″ (2000 mm)
WTL-P5   $8  WTL with P5 pinch bolt ∅5.5 x 8
WT1-P5   $0  replaces many scooter throttle wires



WTB 00 $7  barrel type throttle or decomp wire 47″



WGL  $5  bicycle gear shift wire 79″ (2000 mm)




Clutch (Start) Cables

CC1  $10  clutch cable ∅1.5, 43 x 51″
CC1 $00 5 lined black conduit, ∅5.5 chrome end caps



WC1  $5  clutch wire ∅1.5 x 1300 (51″)



WC2  $5  clutch wire ∅2.0 x 1300 (51″)




Decompression (Start) Cables

WD1  $7  decomp wire ∅1.2 x 1020 (40″)
