Domino “80s black”



Contents:
1. Type B ’80’s Black
2. Type S ’80’s Solex
3. Type A ’00’s Avanti

4. Type P ’80’s Piaggio






1.  Type B Controls

Domino “80’s black” controls were on 1980’s and 90’s mopeds. In the US they were on ’83-86 Trac, ’86 Garelli, and ’86-91 Tomos. The lever blades are black plastic. The cast aluminum housings are black, and have a large empty space for integrated CEV or CEV-compatible switches.

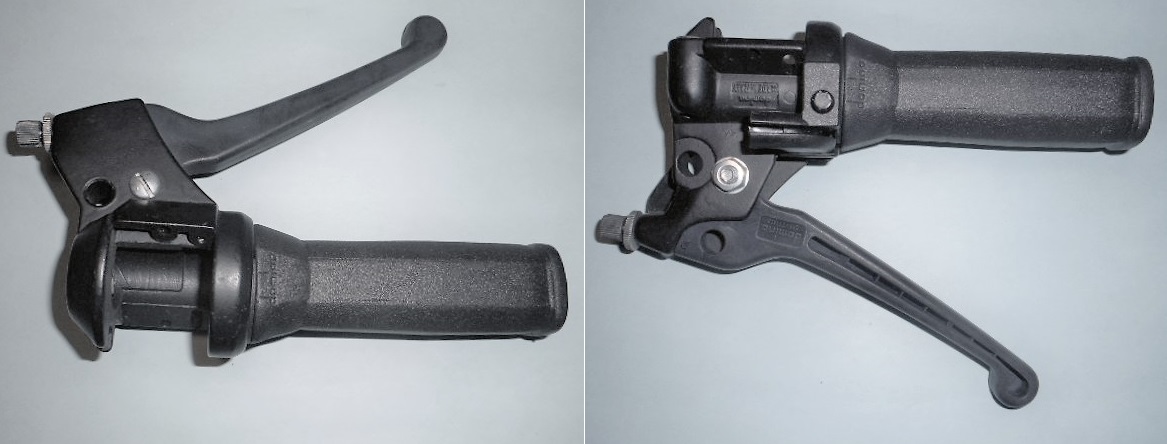

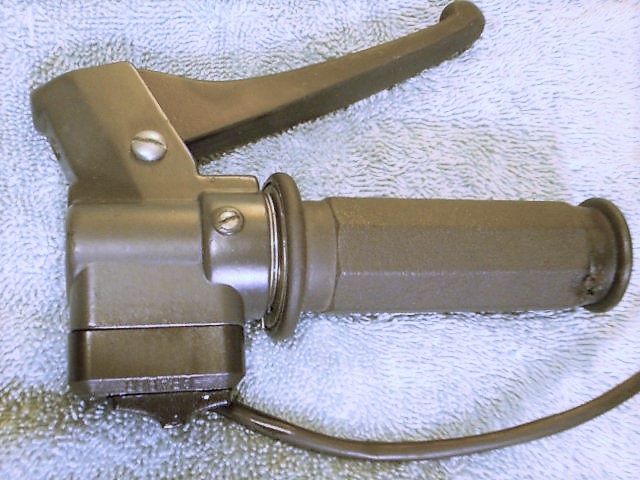

Here is how they look with switches installed. These are Trac switches, not CEV.

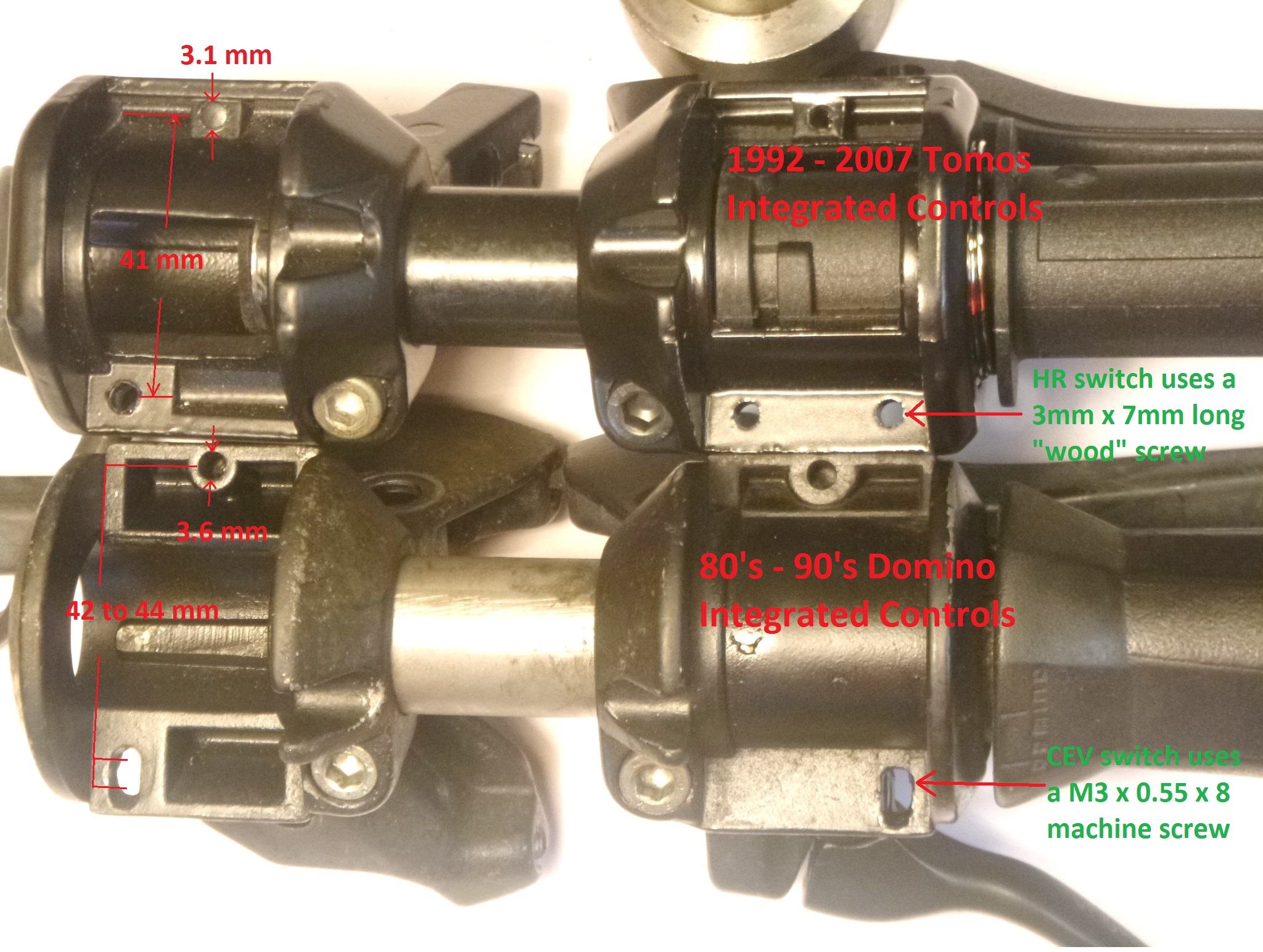

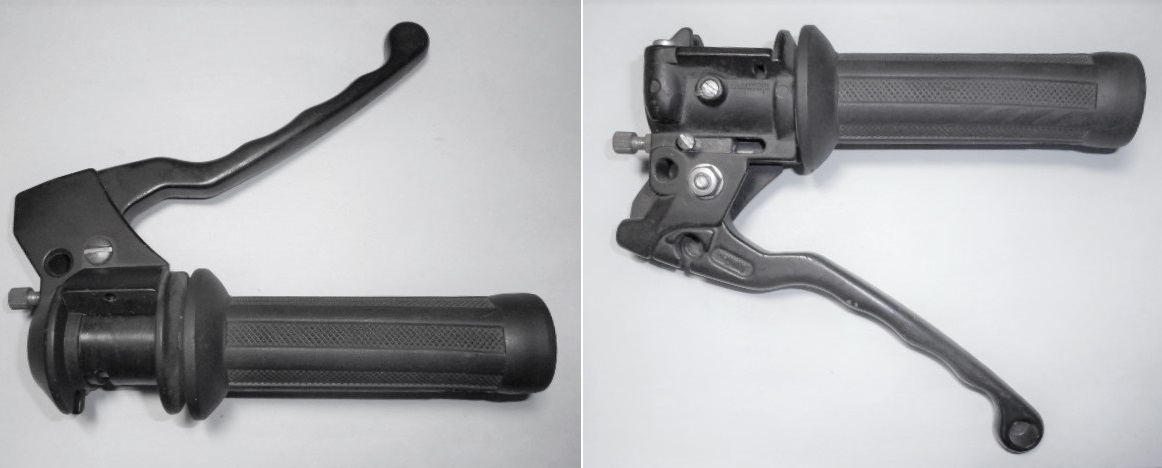

Domino 80’s black controls (bottom) compared with 90’s HR Hidria Rotomatika (top) controls used on ’92-07 Tomos. They look the same but almost nothing interchanges. HR switches do not fit Domino and CEV switches do not fit HR.

Brake light switch holes: All type B controls have threaded holes for a brake light switch.

Throttle assist spring: All type B right controls have a throttle assist spring.




Type B Shared Parts


MM#   price     description    specs
Domino# 000  Piaggio#   Type B Shared Parts

000D1  $19.0 sliding block for metal twist tube
0000.00.0000 123392 CNC aluminum remake, wider than D1K

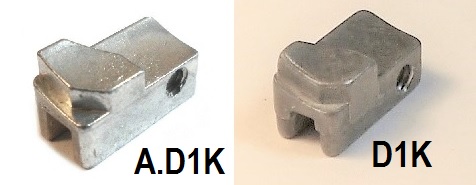

00D1K  $5.00 sliding block for plastic twist tube
1335.91.0000 229935 thinner than D1

000D2  $5.00 pinch screw regular
0107.02.0620 123391,

00D2d  $8.00 pinch screw small head for thumb lever

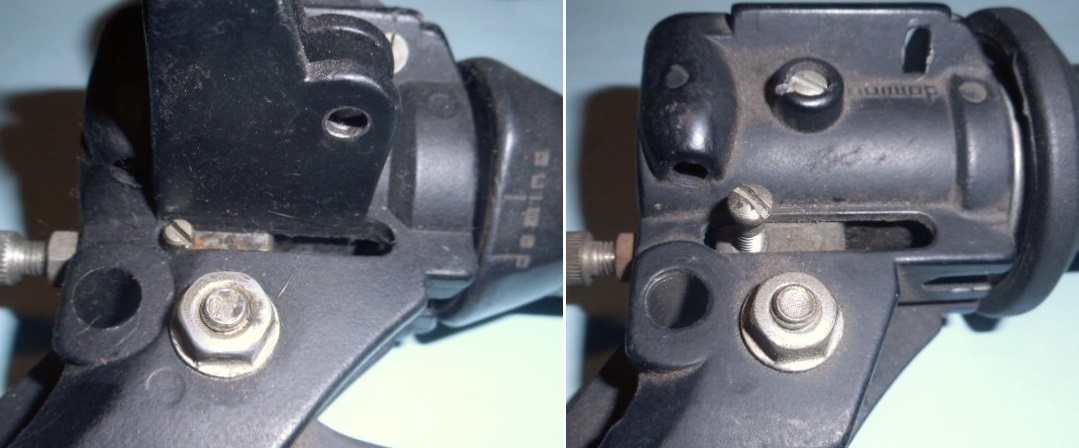

0000.00.0000 000000 left is D2d, right is D2

000D3  $6.00 screw that holds twist tube
0107.02.0600 123389,

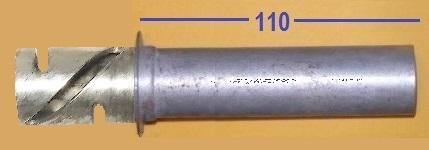

0oD6B  $24.0 twist tube steel 110/140
0000.00.0000 000000 uses D1 sliding block, assist spring type

  D6BL $27.0 twist tube steel 120/150
0000.00.0000 000000 uses D1 sliding block, assist spring type

0oD6K  none  twist tube plastic 110/140
0000.00.0000 000000 uses D1K sliding block, assist spring type

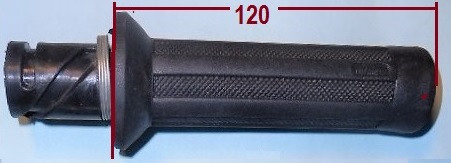

0 D6KL $29.0 twist tube plastic 120/150
0000.00.0000 000000 uses D1K sliding block, assist spring type

000D7  $2-$1 nut for pivot bolt M6-flange
0000.00.0000 121780a,

000D8  $7-$3 pivot bolt M6 x 25 slot
0107.02.0620 121780,

oD11K  $5.00 assist spring brake and start
0800.02.6930 000000,

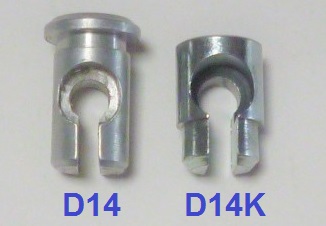

oD14K  $3.00 brake and start cable anchor
0101.02.0180 123394a has a step ∅8-∅9

00D15  $4.00 clamp cone-tube
0101.02.0180 123394a This has a cone end that digs into the bar.
If loose, then handlebar is worn. Relocate the control on the bar.

00D16  $1.50 clamp bolt M6 x 18 allen
0101.02.0170 123394

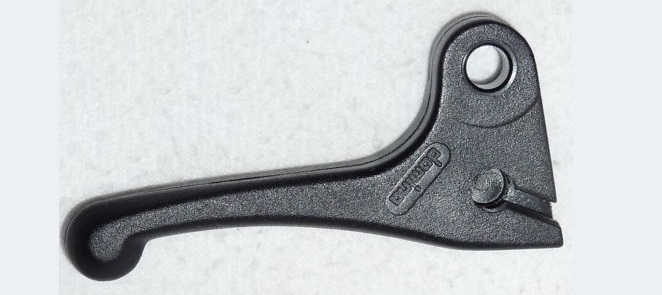

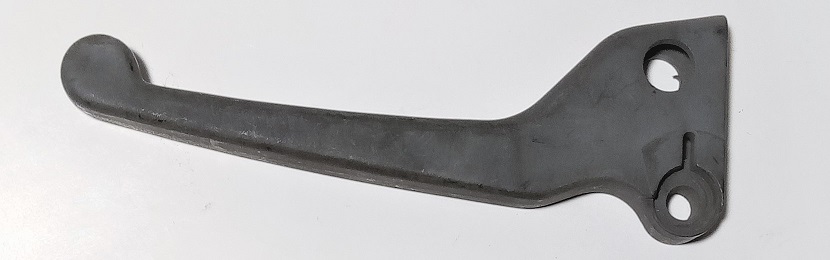

D19K    $25.0 clutch lever black plastic
0000.00.0000 000000 parts are the same as brake lever

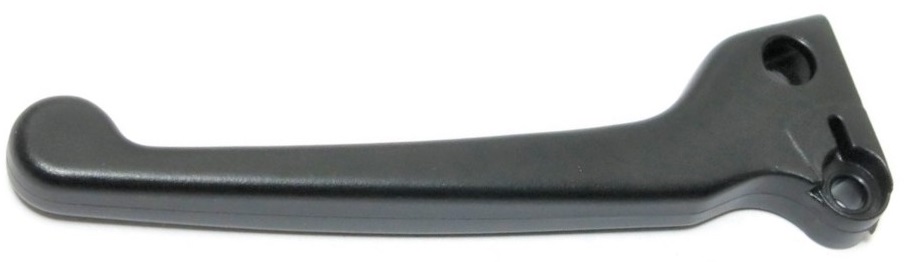

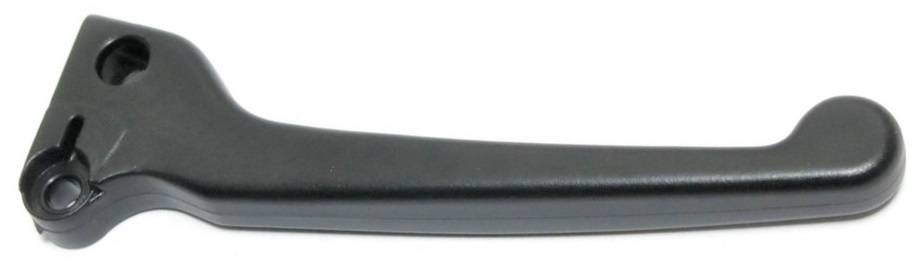

D20Kr   $13.0 R lever black plastic
0779.73.4004 000000 24.0 x 135 early type

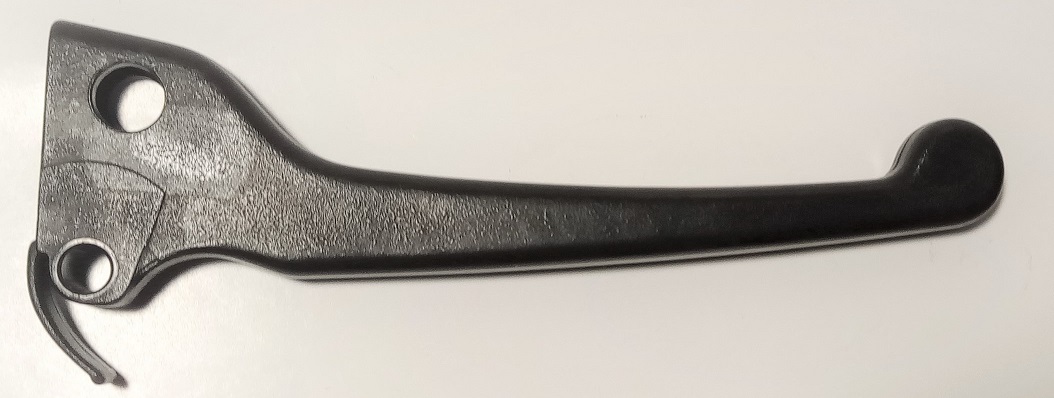

D20Tr   $15.0 R lever with assist spring
0779.73.4004 000000 24.0 x 135 Tomos #222611

D20Kl   $15.0L lever black plastic
0778.63.4004 000000 24.0 x 135 early type

D20Tl   none  L lever with assist spring
0778.63.4004 000000 24.0 x 135 Tomos #222439

oD21K  $11.0 R grip ∅25 x 110 octa-square
oD22K  $8.00 L grip ∅22 x 110 octa-square
.DKset  $15.0 grip set 110 octagonal-square
1973.82.4004 000000 “pair grips moped”

0D21L  $15.0 R grip ∅25 x 120 texture style
0D22L  $10.0 L grip ∅22 x 120 texture style
.DLset  none  grip set 120 ’80’s texture style
0000.00.0000 000000,

00D23  $13.0 throttle assist spring 4-loop
0518.02.5970 174994,

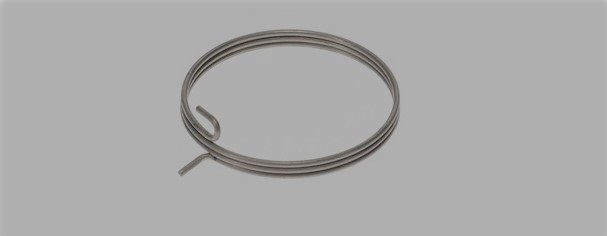

0D23T $9.00 substitute 3-loop
0000.00.0000 000000 Tomos 223709 for Hidria controls

00G24  $4.00 A1b cable adjuster M5
0511.02.5900 000000 M5-0.8 with thin hex nut

0V29s  $5.50 A3b brake adjuster M6 slotted
0270.02.2580 000000 with nut,

 V29h  $3.00 A2a cable adjuster M6 hex
0000.00.0000 000000 with nut, substitute for V29s

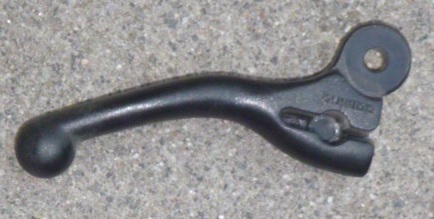

00D35  $12.0 L/R thumb lever ∅5.9 hole
0511.02.5850 000000 ’80’s type for choke or decomp

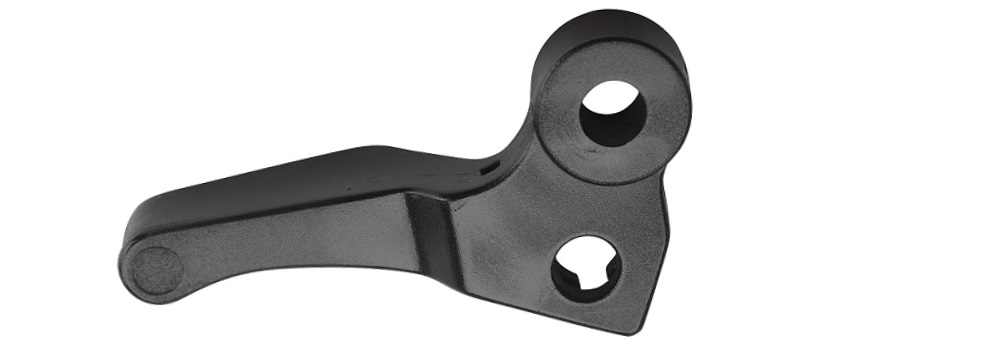

0D35n  none  L/R thumb lever ∅5.9 hole
1373.02.1554
 000000 ’00’s type for choke or decomp

00D36  $2.00 P5a cable pinch bolt ∅5.5 x 8
0101.02.0310 000000,

00D37  none  80’s thumb lever retaining rivet
0000.00.0000 000000 must drill and tap

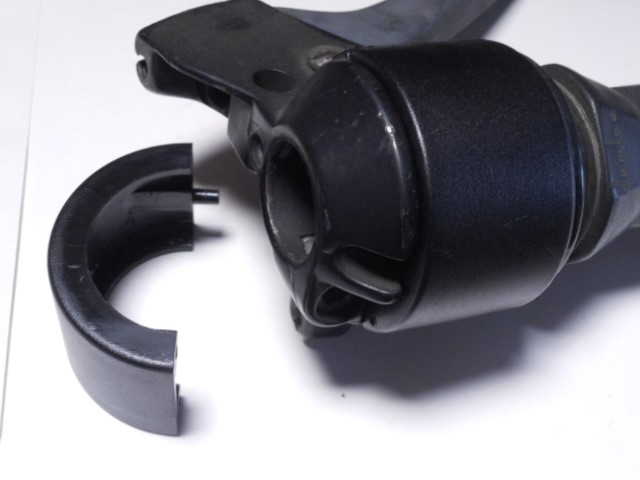

00D38  $5.00 block-off plate R or L
0711.02.845   000000 for when there is no switch

00D39  $1.50 block off plate screw
0000.00.0000 000000 M3 x 8

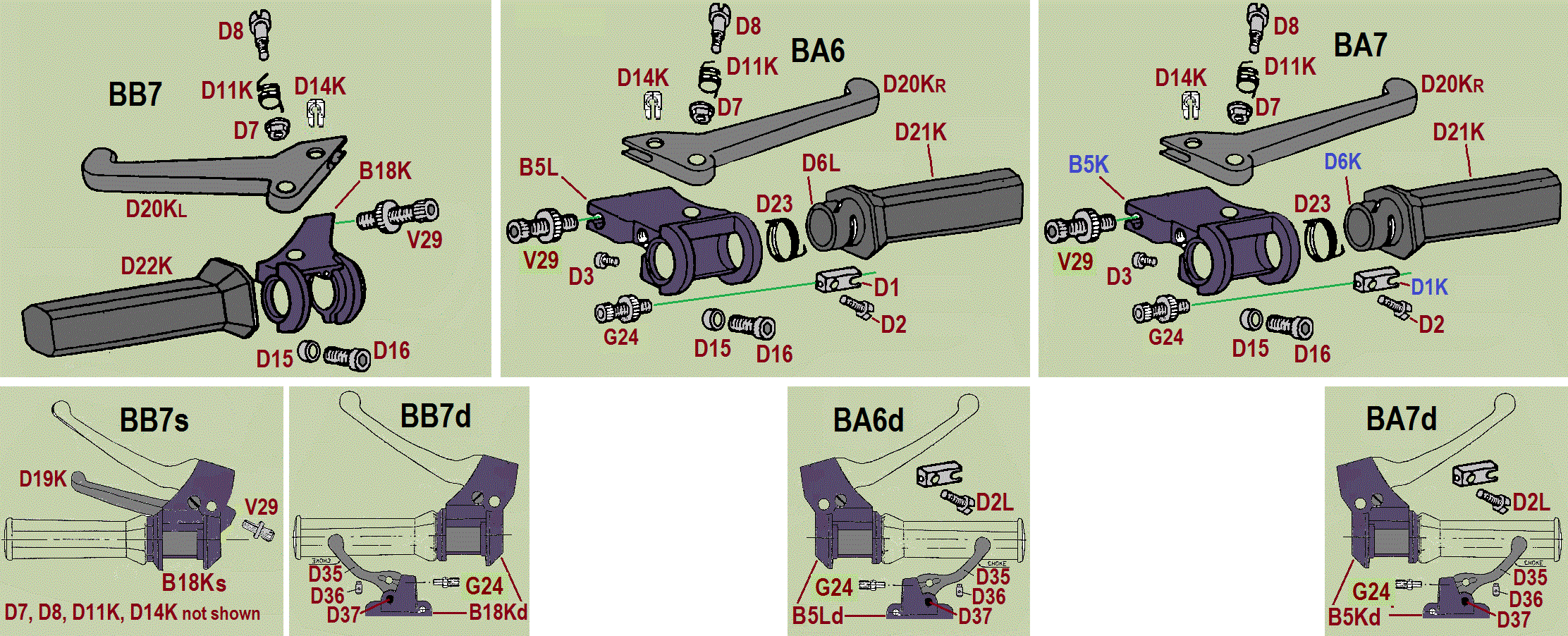

Type B Controls and Housings

“bl” means brake light switch hole
“assist” means throttle assist spring
All cable holes threaded-bottomless.
Grips are not included with assemblies.

MM#  price    description
Domino#
perch, lever, grip, slide, screw, tube.



DA7K Domino "80s black" throttle and brake control  BA6  none  R control bl, no lower lever
0000.00
B5L,   D20Kr, D21K, D1,   D2,   D6B,
’85-91 Tomos #222434, steel twist tube

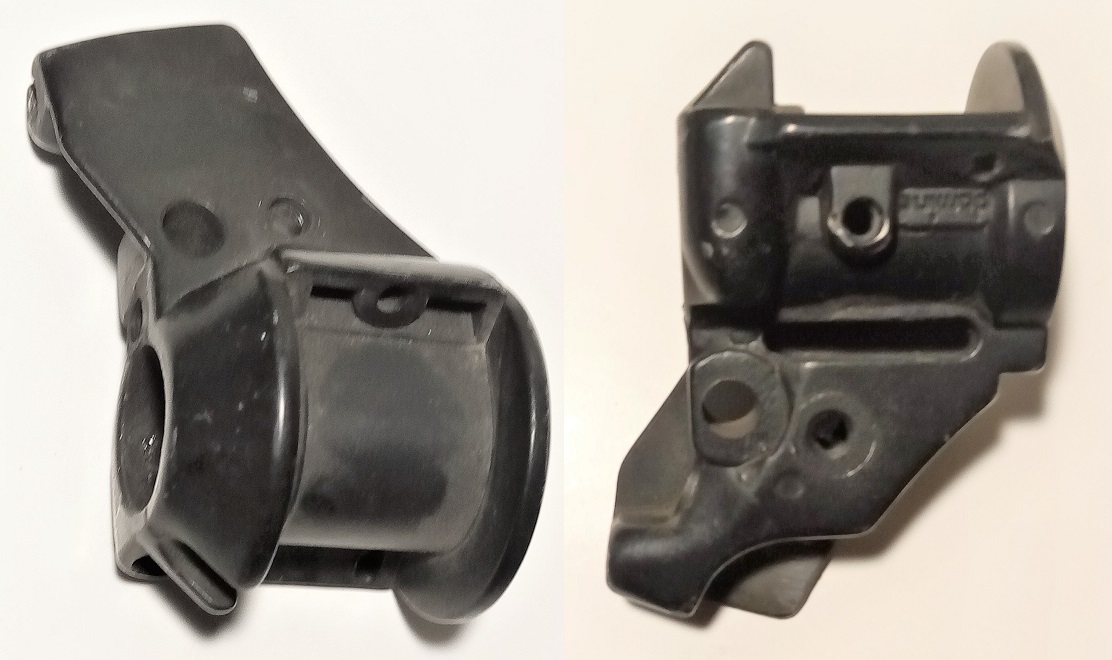

0B5L  $46.0 R housing bl brake/throttle
wide channel for D1 slide, small ID for steel twist tube
Tomos #222612


  BB7  $40.0 L control bl, no lower lever
0904.04  B18K, D20Kl, D22K, MMI#DB8K

’85-91 Tomos #222435, ’93-95 Jawa
’85-89 Trac (kick models)

BB7L  none  L control bl, no lower lever
0000.00  B18K, D20??, D22L
’87-90 Trac DH100

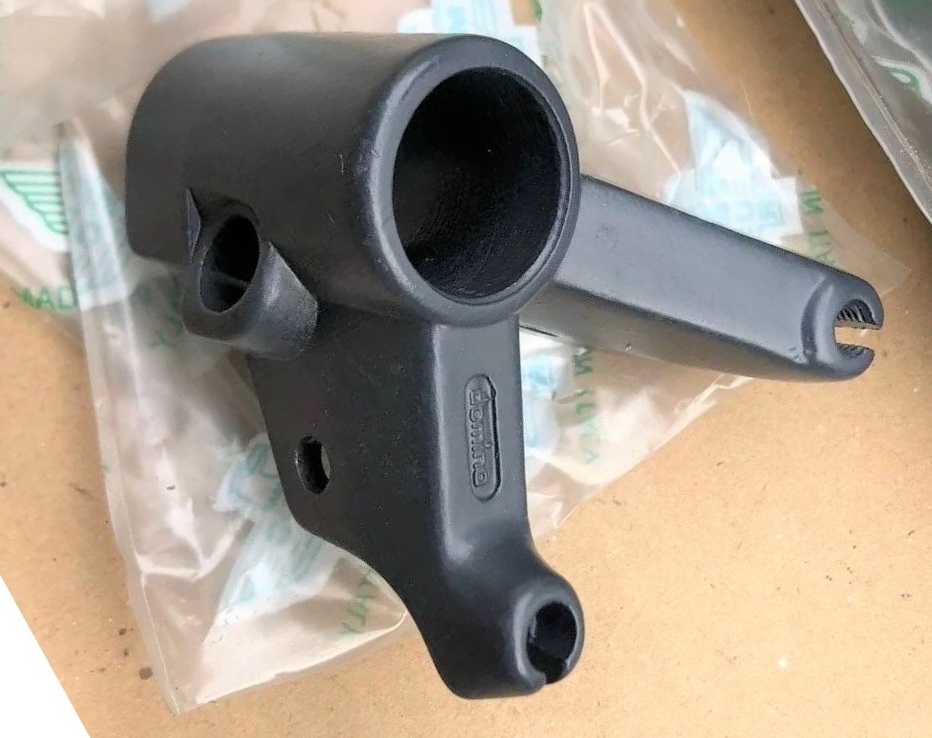

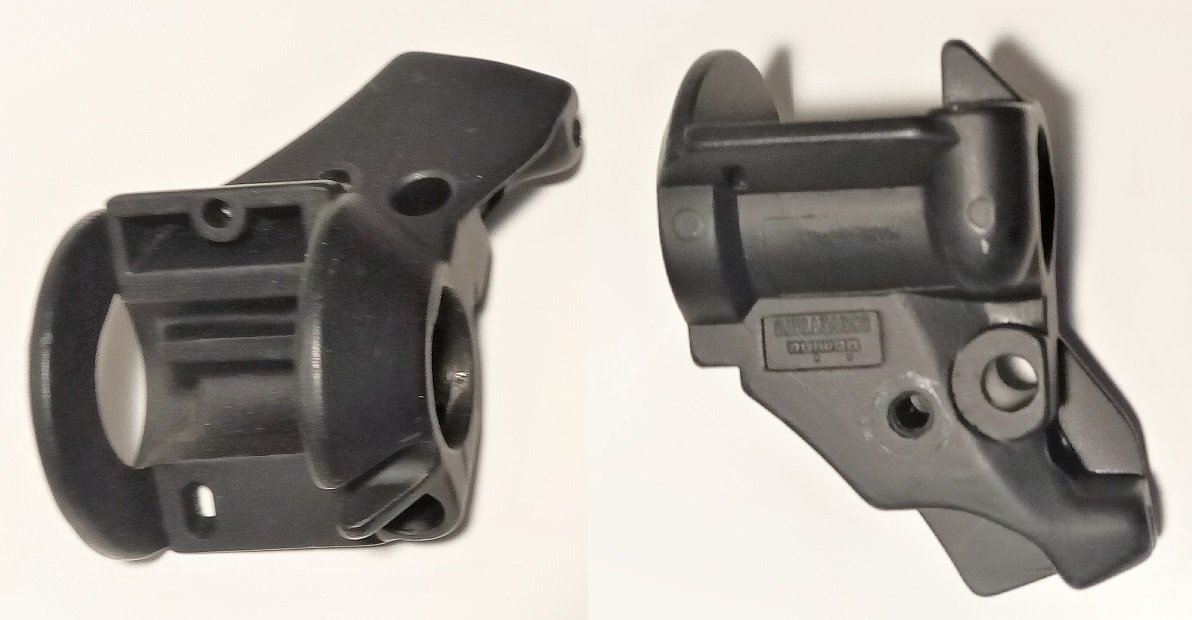

B18K  $32.0 L housing bl, no lower lever
Tomos #222589

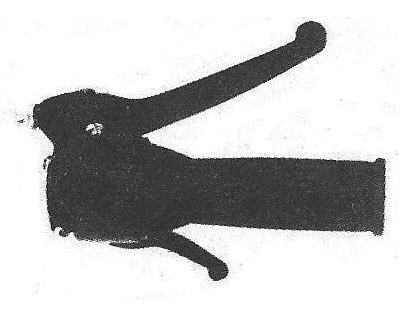

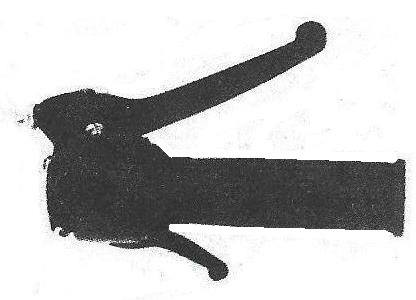

DA8K Domino "90s black" throttle and brake controlBA6d  $85.0 R control bl, D35 lower lever
0000.00  B5Ld, D20Kr, D21K, D1,   D2d, D6B, MMI#DA8K

’85-89 Trac mopeds, steel twist tube

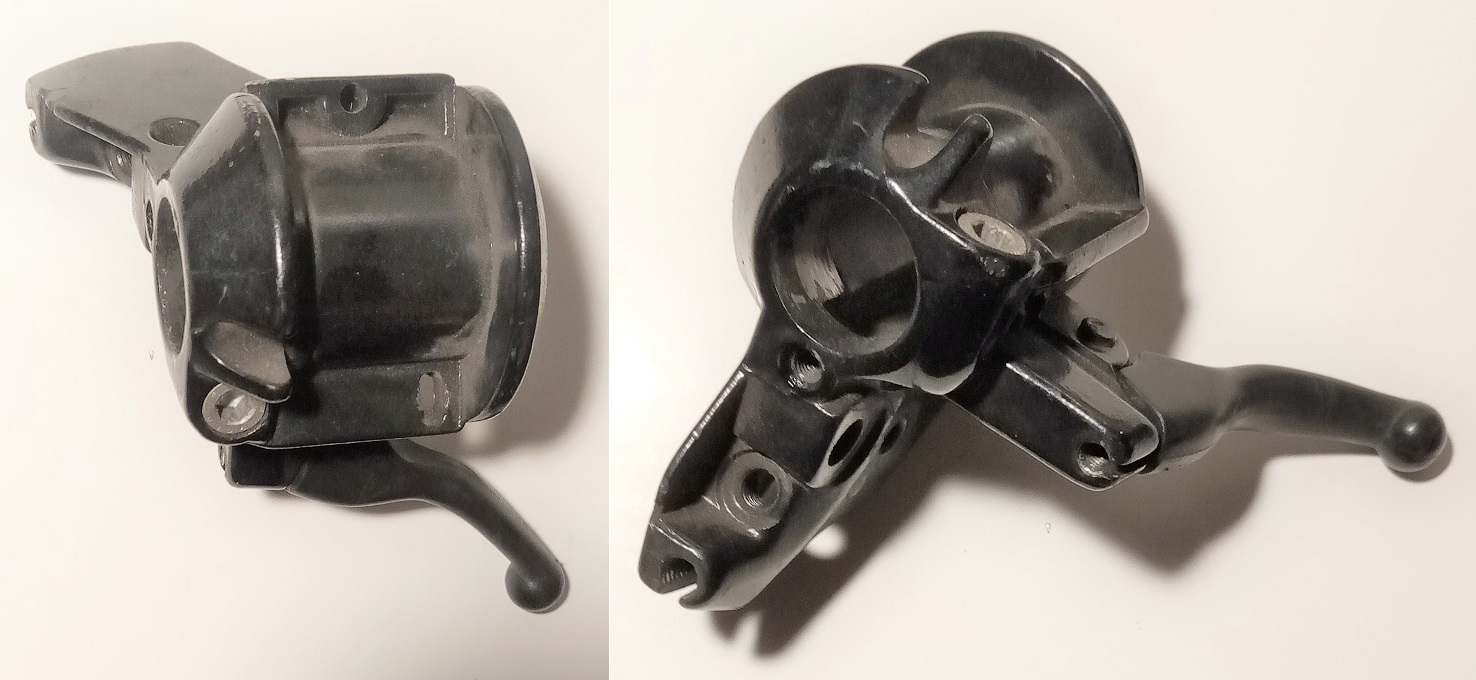

B5Ld  $54.0 R housing bl brake/throttle/choke
B5Ld  $40.0 used without choke lever
wide channel for D1 slide, small ID for steel tube, MMI#D5L

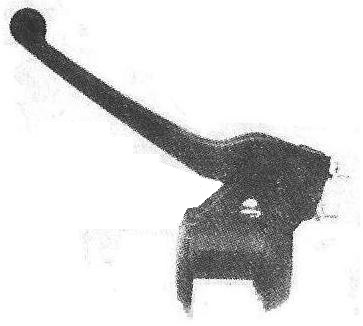

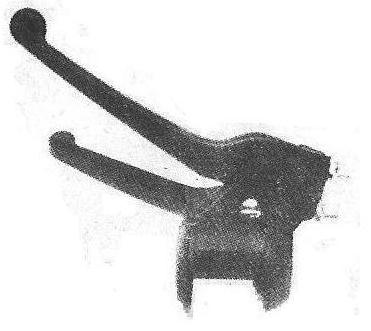

DB7K "80s black" brake and start control BB7s  68-52 L control bl, D19K lower lever
0000.00  B18Ks, D20Kl, D22K or D22L, MMI#DB7K
’85-89 Trac (pedal models), D22K grip
’86+ Garelli mopeds, D22L grip

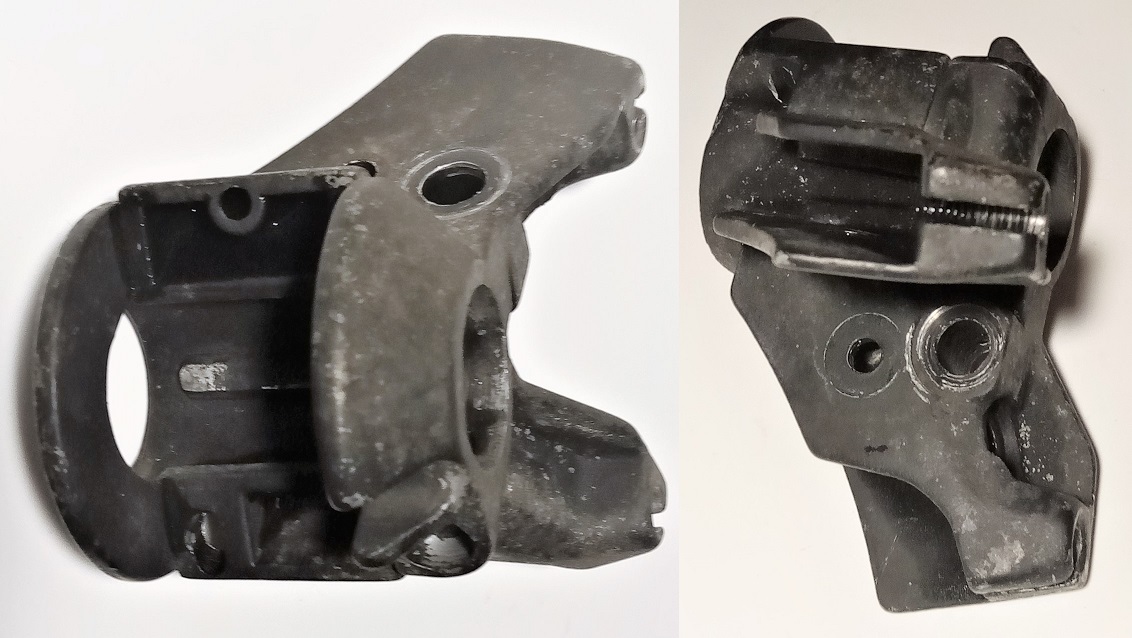

B18Ks $39.0 L housing bl brake/clutch


DA7K Domino "80s black" throttle and brake control  BA7  none  R control bl, no lower lever
0000.00  B5K,   D20Kr, D21L, D1K, D2,   D6K, MMI#DA7K

’86+ Garelli, ’93-95 Jawa, plastic twist tube

BA7L $76.0 R control bl, long, plastic-long
0000.00
B5K,   D20??, D21L, D1K, D2,   D6KL
’87-90 Trac DH100

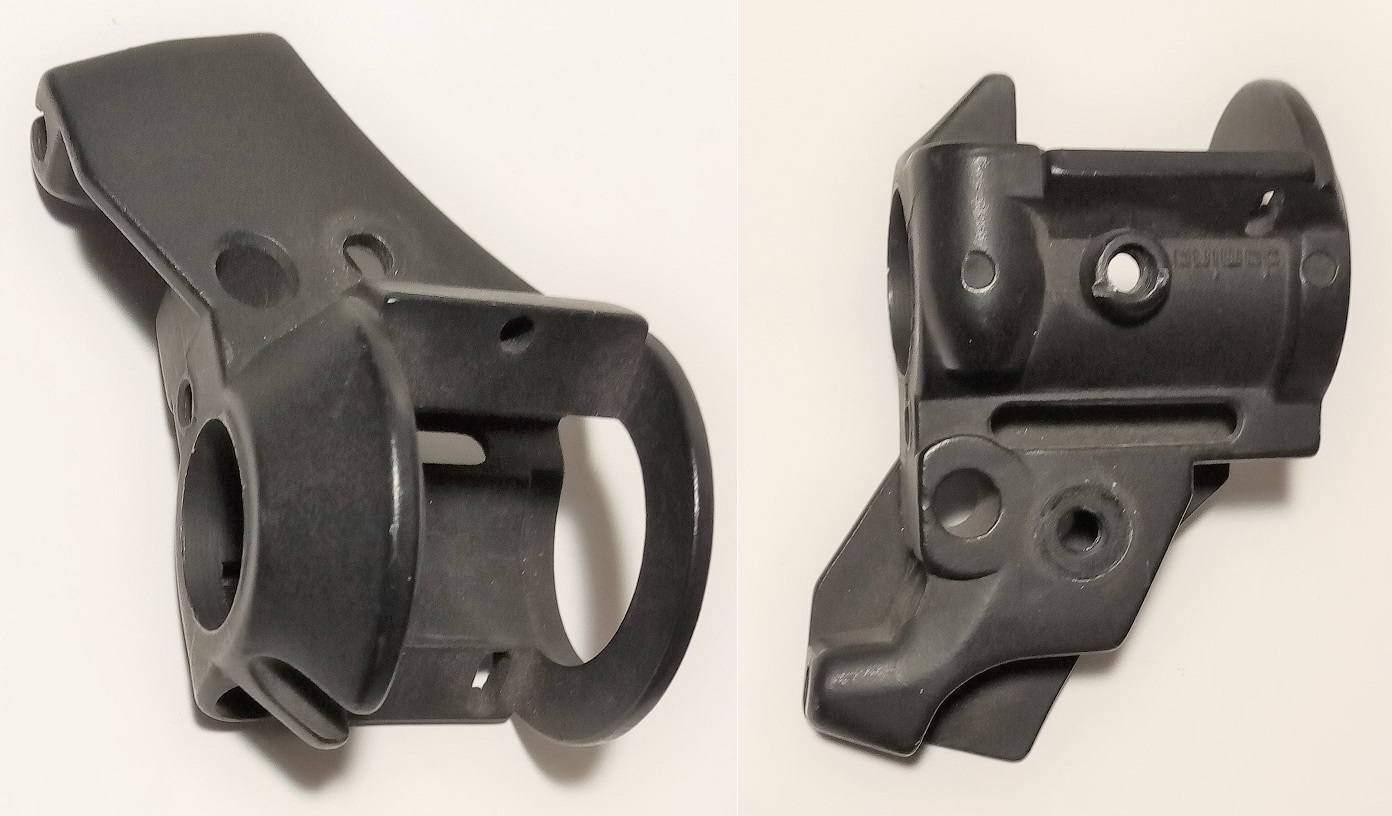

0B5K  $44.0 R housing bl brake/throttle
thin channel for D1K slide, large ID for plastic tube, MMI#D5K


DB7K "80s black" brake and start control BB7s  68-52 L control bl, D19K lower lever
0000.00  B18Ks, D20Kl, D22K or D22L, MMI#DB7K
’85-89 Trac (pedal models), D22K grip
’86+ Garelli mopeds, D22L grip

B18Ks $39.0 L housing bl brake/clutch



BA7d  none  R control bl, D35 lower lever
0000.00
B5Kd, D20Kr, D21L, D1K, D2d, D6KL
’86-89 Derbi Variant Sport, DS50, plastic throttle tube

B5Kd  none  R housing bl brake/throttle/choke
thin channel for D1K slide, large ID for plastic twist tube

BB7d  none  L control bl, D35 lower lever
0000.00  B18Kd, D20Kl, D22L
’86-89 Derbi Variant Sport, DS50

B18Kd none  L housing bl brake/decomp



BA7w  $68.0 R control bl, wrap-around
0000.00
B5kw, D20Kr, D21K, none, none, D6Kw
wrap-around plastic throttle tube, takes 2-ended cable

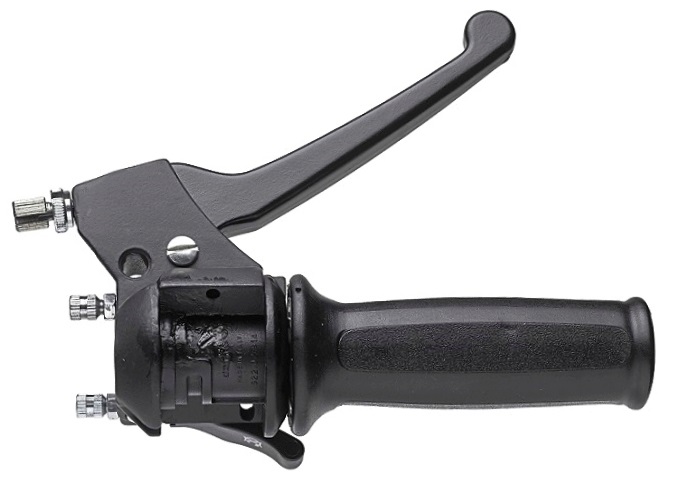

BA8d none  R control bl, D35n l0wer lever
1682.03
B5Kn, D20Tr, D21K, D1K, D2, D6K,
plastic throttle tube

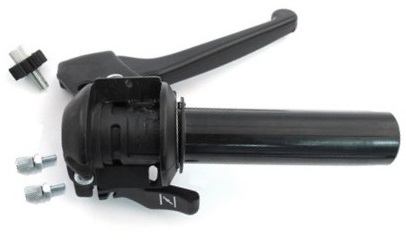

BA8dl none  R control bl, D35n lower lever
1741.03
B5Kn, D20Tr, D21L?, D1K, D2, D6KL,
plastic-long throttle tube

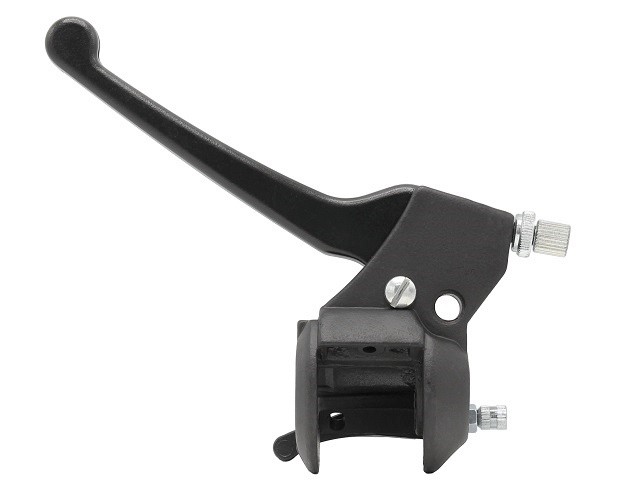

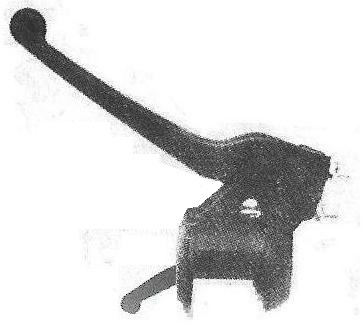

BB8d none  L control bl, D35n lower lever
1683.04  B18Kn, D20Tl, D22K or D22L?










2.  Type S Controls

Domino “late Solex” controls were on 1986-88 S 3800 made in France by Motobecane (at right), and the re-make of that, 1999-2005 Solex 3800 made in Hungary by Impex (at left). The throttle is self-closing, unlike most older Solex’s. What’s special is the front (right) brake also controls the throttle (gas). So it has an “either or” mechanism.


fig  price  MM#  description

04  none  SA00   R control assembly no bl

05 none  S500   R housing, no bl switch hole

06 none  0000   twist tube plastic

07 none  S000   R grip 25 x 120

08 none  S800   cursor to brake cable

09 none  S900   cursor to throttle cable

10  $13.0 D20Kr R brake lever

10  $15.0 D20Tr   R lever with assist spring

11 none  S110   throttle cover
12  $3.00 D14K  brake cable anchor pin

13 none  S130   cover screw

14  $7-$3 D800  brake pivot bolt

15  $2-$1 D700  pivot bolt nut M6 flange

16  $1.50 D160  clamp bolt   M6 x 18 allen

17  $4.00 D150  clamp cone-tube

18 none  S180   L housing, no bl switch hole
19  none  SB00   L control assembly no bl

21 none  S000   L grip 22 x 120

22  $15.0 D20Kl L brake lever

23 none  S000   decomp lever

24 none  S000   decomp lever retaining ring






3. Type A Controls

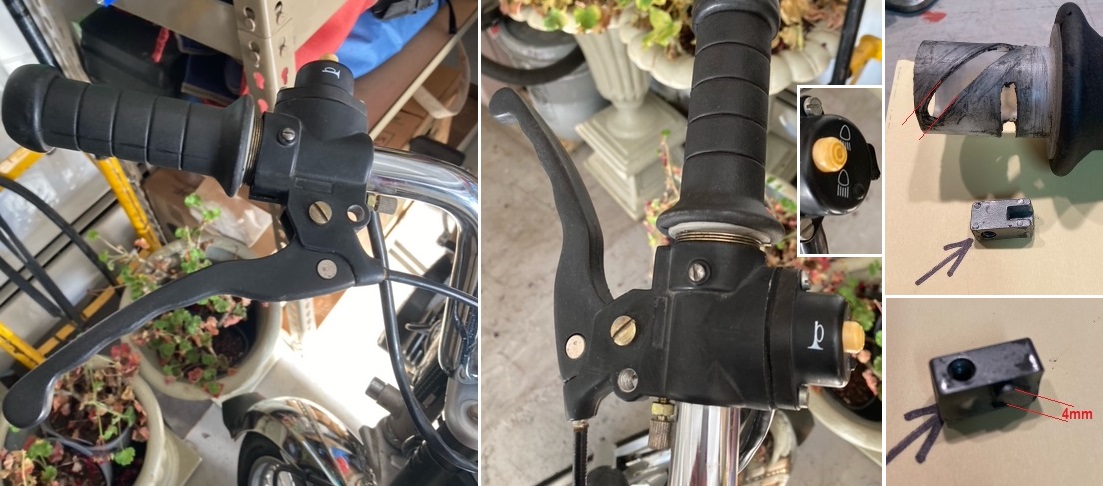

 2000-03 Avanti and Cosmo mopeds are made in India by Mont Motors. The controls, made by Majestic Auto Group (MAG), are remakes of 1980’s and 90’s Domino controls.



2000-01 Avanti Autopower, Mont, Kobra
1. A.EB4s left control has a threaded mirror hole,
long lever, threaded brake switch hole.

3. A.EA4d right control has a threaded mirror hole,

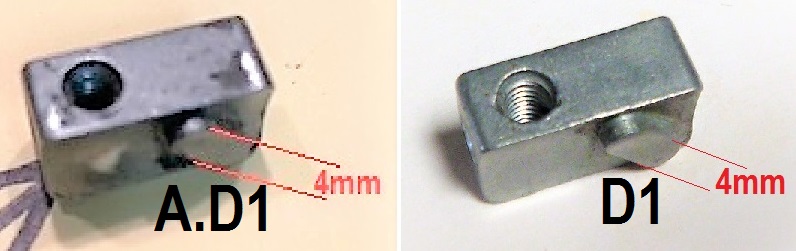

long lever, no brake switch hole, A.D1 sliding block.

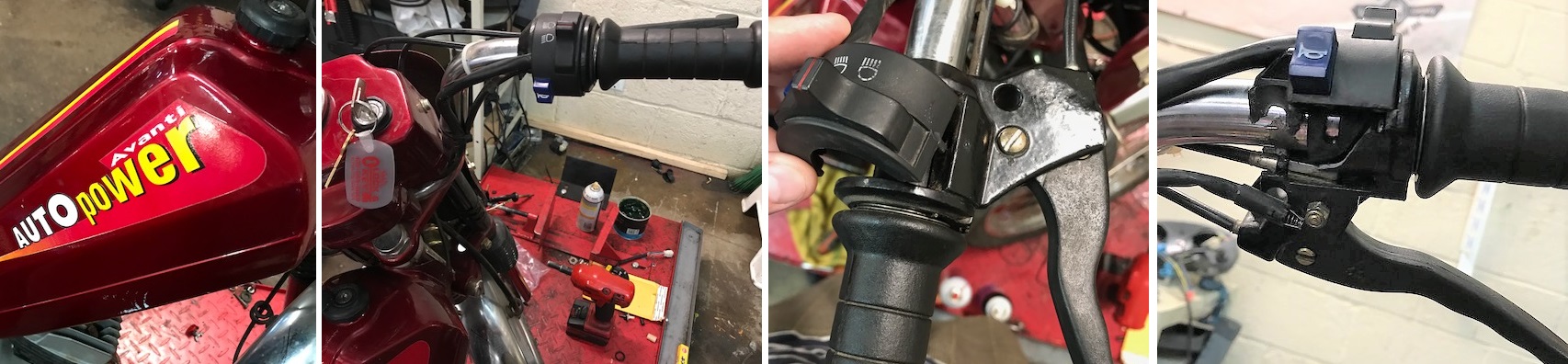

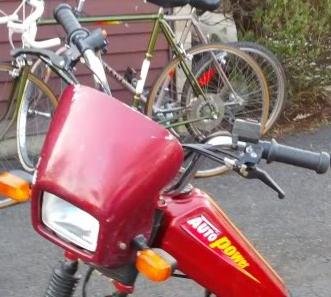

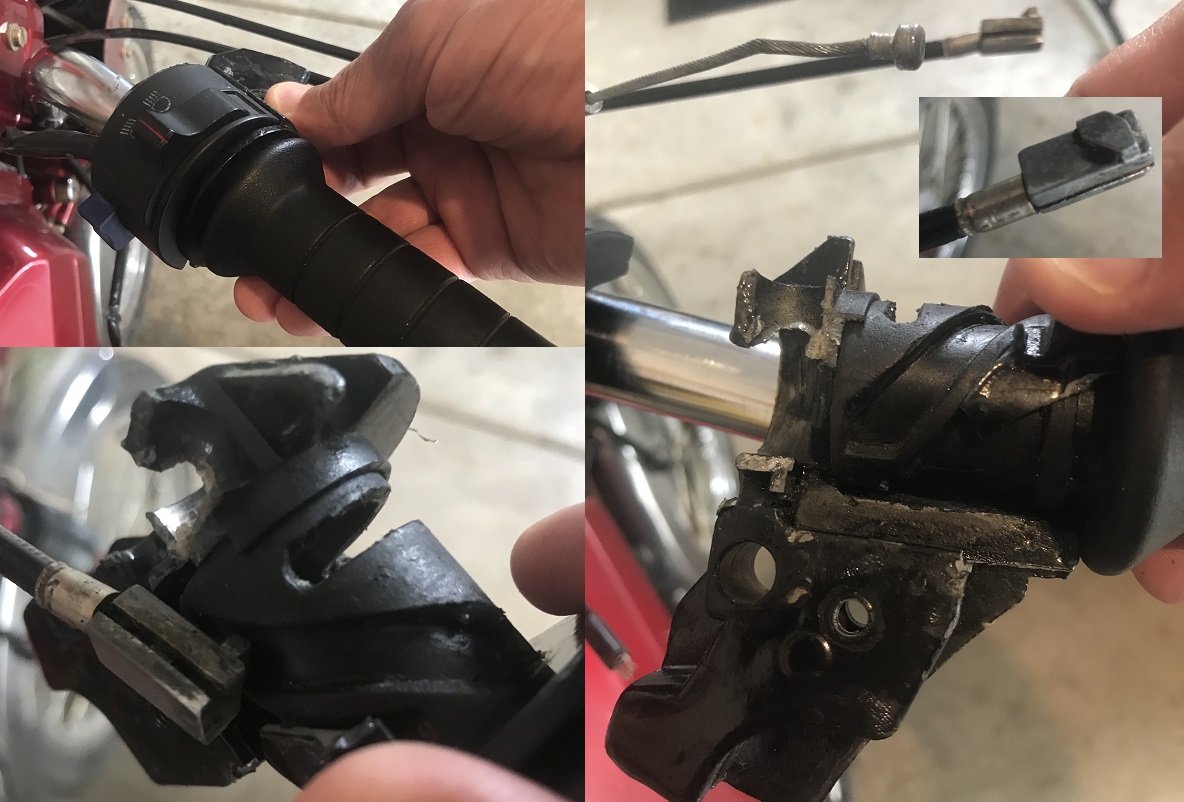

2000 Avanti Autopower controls  Avanti Autopower controls 2001 Avanti Autopower controls
’00 Autopower, ’00 Mont, ’00 Autopower, ’01 Autopower, ’01 Kobra

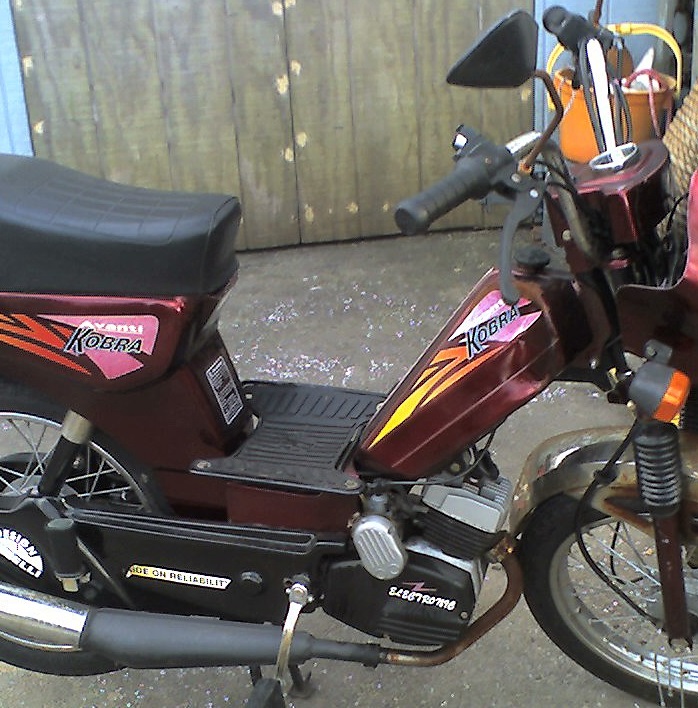

2001-02 Avanti Autopower, Mont, Kobra, Super Sport
2001-02 Cosmo Stinger
2. A.EB4L left control has a threaded mirror hole,
long lever, threaded brake switch hole.
4. A.BA7L right control has a bolt-thru mirror hole,
long lever, threaded brake switch hole, A.D1L slider.

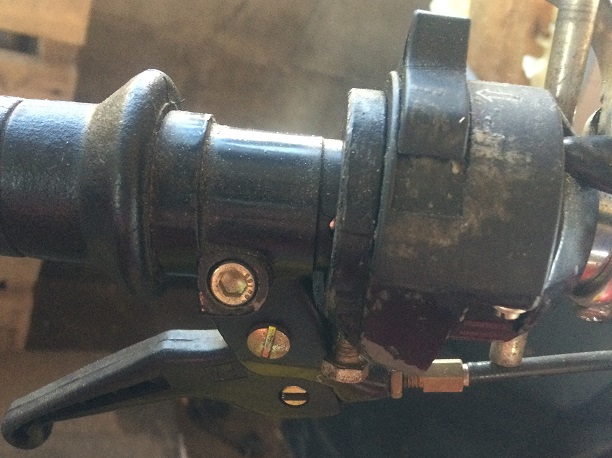

    Cosmo Stinger 2002 Avanti Supersport Avanti Supersport
’01 Autopower, ’01 Autopower, ’02 Stinger, ’02 Stinger, ’02 Stinger, ’02 Stinger






Shared Parts

fig 1234  price  0  MM#  Shared Parts

00 1100none  D22A   left grip
01 0011none  D21A   right grip
01 1111none  DAset  grip set 120mm
Domino 2166.82

02 0010none  A6BL   twist tube steel ∅25 x 120/150
02 0010$27.0 D6BL   twist tube steel ∅25 x 120/150

02 0001none  A6KL   twist tube plastic ∅25 x 120/150
02 0001$29.0 D6KL   twist tube plastic ∅25 x 120/150

03 0011$13.0 D23 0  throttle assist spring 4-loop
03 0011$11.0 D23s substitute 3-loop Tomos 223709

04 0010none  A1 00  slider original
04 0010$19.0 D1 00  slider substitute?

04 0001none  A1K 0  slider original
04 0001$5.00 D1K 0  slider substitute?

05 0011$5.00 D2 00  slider pinch screw

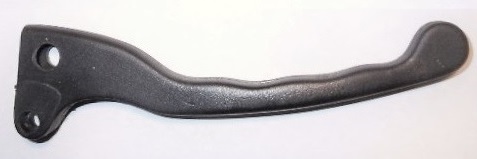

07 0011none  A20LR right lever black long

08 0011$6.00 D3 00  twist tube retainer screw

11 1000$1.50 D17 0 clamp bolt M6 x 20 allen
0117.02.1070 123395

12 1111$5.50 V29 0 A3b brake adjuster M6 slotted
0270.02.2580 000000 with nut, for Vespa and others

12 1111$3.00 V29h    A2b cable adjuster M6 hex

12 1100$4.00 G24 0 A1b throttle adjuster M5
0511.02.5900 000000 with thin hex nut

13 2211$3.00 D14K   cable anchor pin

14 2211$2-$1 D7 00  nut for pivot bolt

14 1111$7-$3 D8 00  brake pivot bolt M6 x 25 slot

15 1000$3.00 D13 0  start pivot bolt M6 x 23 slot

15 0100$7-$3 D8 00  start pivot bolt M6 x 25 slot

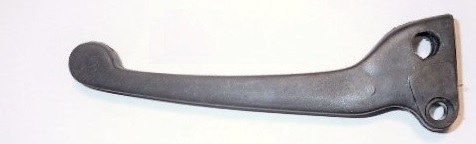

19 0000$11.0 A20KL L lever short for assist spring

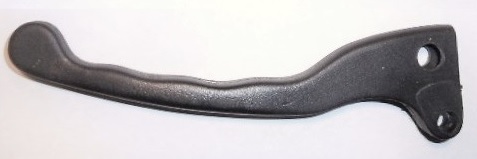

19 1100$13.0 A20LL L lever long for no assist spring

21 1111$4.00 D150  clamp cone-tube

23 0111$1.50 D16 0 clamp bolt M6 x 18 allen
0101.02.0170 123394

24 1100$25.0 D19K  clutch lever black plastic
0000.00.0000 000000 parts are the same as brake lever




Controls and Housings

fig   price  0  MM#  Controls and Housings
Domino# 0000 perch, lever, grip, slide, screw, tube.

A   none  A.GA6d R control no bl,
0000.00.0000 A5ade, A20Ll, D21A, A1, D2, A6BL
’00-01 Avanti Autopower, Mont, Kobra

10 none  A5ade R housing, no bl hole
10 $69.0 D5adb R housing bl

A   none  A.BA7L R control bl,
0000.00.0000 A5K, A20Ll, D21A, A1K, D2, A6KL
’01-02 Avanti Autopower, Mont, Kobra, Super Sport
’01-02 Cosmo Stinger

10 none  A5K 0  R housing bl late
10 $44.0 B5K 0  R housing bl

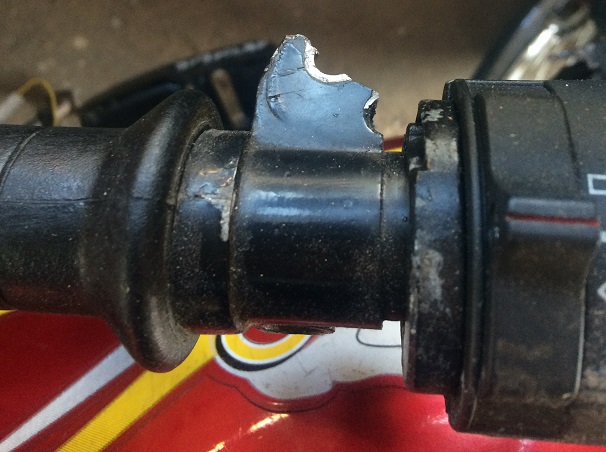

B   Cosmo Stingernone  A.GB5   L control bl
0000.00.0000 A18b, A20Lr, D22A,
’00-02 Avanti Autopower, Mont, Kobra
’01-02 Avanti Super Sport, Cosmo Stinger

22 none  A18b  L housing bl
22
$26.0 G18b  L housing bl











4. Type P Controls



1980 Piaggio Ciao PX (US), 1980 Si (US), 1982 Si (US)



Piaggio Models:   with blinkers /B
one speed M, variable speed V

Belgium-B, Sweden-S, Norway-N, USA-US .
1.
’84-85 Bravo EML, EVL, Si SIM, SIV
 (no brake light)
2. ’80-85 Ciao PX C7E-US, ’79-93 Si SIV-US
3. ’84-85 Bravo EML/B-B, EVL/B-B, Si SIV/B, SIM/B-S
4.
’84-85 Si SIV/B  (no brake light)


fig 1234MM#  price  description
Domino# 000  Piaggio#

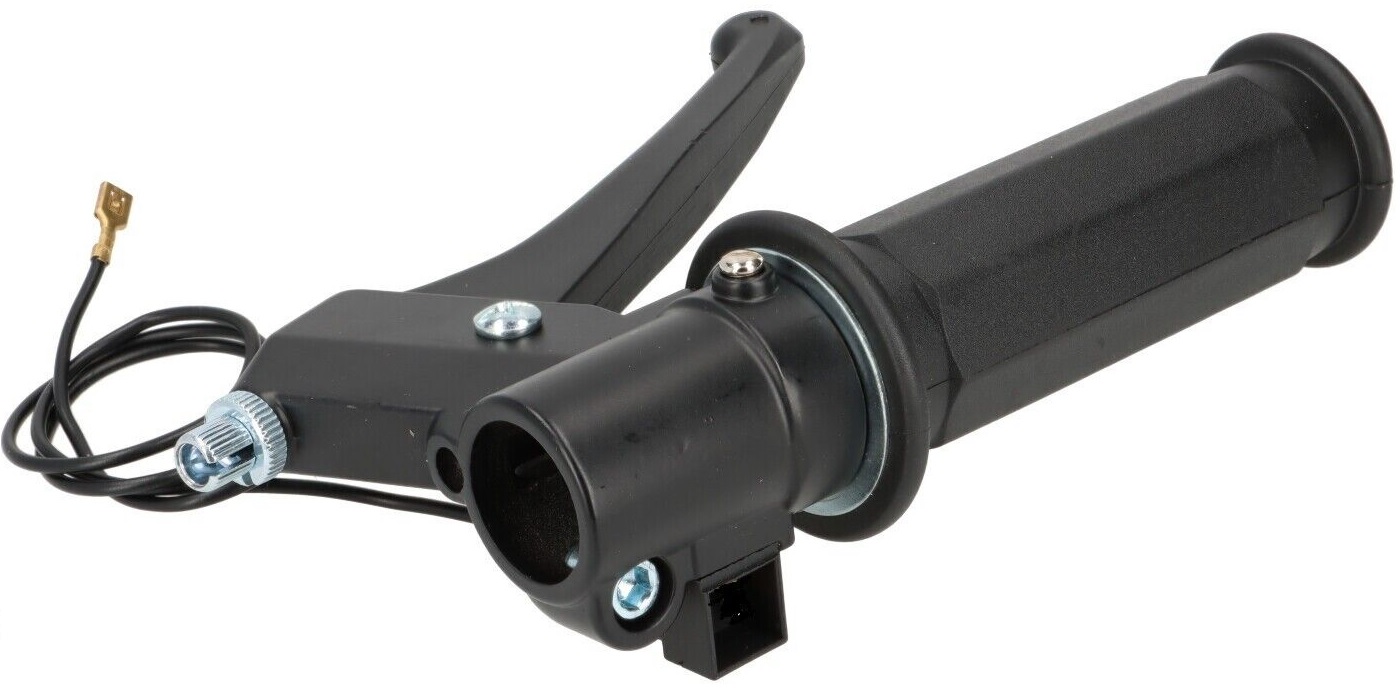

A  10000PAe  none  R control black
0000.00.0000 188057,

no stop switch hole, no switch mount, no assist spring

A  0100PAsg$45.0 R control gray assist
0000.00.0000 189824,

with stop switch hole, square switch mount, assist spring
switch is shown but not included

A  00100 PA   none R control black
0000.00.0000 188562,

with stop switch hole, lower button mount, no assist spring

A  0001PA1e  none R control black
0000.00.0000 212517 remake

no stop sw hole, lower horn button, no assist spring

B  10000PBe  none L control black
0000.00.0000 188056,

no stop switch hole, no switch mount

B  01000PBg  none L control gray
0000.00.0000 189022,
with stop switch hole, lower button mount, thumb lever

B  00100PBs  none L control black square
0000.00.0000 189044,

with stop switch hole, square switch mount

B  0001PB1e  none L control black
0000.00.0000 212519,

no stop switch hole, no switch mount

01 1111D21c none  R grip ∅24 x 114 Piag oct 18526
00 1111D22c none  L grip ∅22 x 114 Piag oct 18527
00 1111Dsetc grip set 114 Pia. octagon
1934.82.0000 188526-18527 Piaggio Ciao, Si to ’88

02 101100D6 $21.0 twist tube steel
0000.00.0000 123393 100 x 125 plain type

02 01000D6a 21-16  twist tube steel
0000.00.0000 174993 100 x 130 assist type with flange

03 101100D4  $5.00 grip washer
0000.00.0000 123390,

04 111100D1 $19.0 sliding block
0000.00.0000 123392 new CNC alum. remake

05 111100D2 $5.00 pinch screw
0107.02.0620 123391,

06 2222oD11K  $5.00 brake lever assist spring
0800.02.6930 177072,

07 1111P20R $16.0 right brake lever
0799.73.4004
 177340 24.0 x 137

08 111100D3 $6.00 twist tube screw
0107.02.0600 123389,

09 01000D23 $13.0 assist spring 4-loop
0518.02.5970 174994,
09 0100D23s $9.00 substitute spring 3-loop
0000.00.0000 000000 Tomos 223709


P type right housings:
M6 thread brake cable hole, threadless throttle cable hole

10 10000P5e  none  right housing black
no stop switch hole, lower switch mount, no assist type
0000.00.0000 188059,

10 0100P5sg  $28.0 right housing gray
stop switch hole, square switch mount, assist spring type
0000.00.0000 189825,

takes M3-0.5 x 22 sunk-head switch screws

10 001100P5  none  right housing black
no stop switch hole, lower switch mount, no assist type
0000.00.0000 212518,




11 11110D16 $1.50 right clamp bolt M6 x 18 allen
0101.02.0170 123394,

12 22220V29 $6-$4 A3a brake adjuster M6 round
0000.00.0000 103964 with nut, for Vespa

12 2222V29s  $5.50 A3b brake adjuster M6 slotted
0270.02.2580 000000 with nut,

12 2222V29h A2a cable adjuster M6 hex
0000.00.0000 000000with nut, substitute

13 2222D14K $3.00 brake/start anchor pin
0101.02.0180 177073 has a step ∅8-∅9

14 222200D8 $7-$3 brake pivot bolt M6 x 25 slot
0107.02.0620 121780,

14 222200D7 $2-$1 brake nut M6 flange
0000.00.0000 121780a,

15 11110D13 $3.00 start pivot bolt M6 x 23 slot
0101.02.0020 121781

15 111100D7 $2-$1 start nut M6 flange
0000.00.0000 121780a,

19 1111P20L $16.0 L brake lever black plastic
0798.63.4004
 176945 24.0 x 137

21 22220D15 $4.00 clamp bolt cone-tube
0101.02.0180 123394a,


P type left housings:
M6 thread brake cable holes, threadless start cable hole

22 10000P18 none  L housing 2-lever black
0000.00.0000 188058,
no stop switch hole, plain (no switch mount)

22 0100P18g $13.0 L housing 2-lever gray
0000.00.0000 189021,
with stop switch hole, diamond mount for horn button

22 0010P18s none  L housing 2-lever black
0000.00.0000 189043,
with stop switch hole, square mount for blinker switch

22 0001P18? none  L housing 2-lever black
0000.00.0000 212520,
no stop switch hole, square mount for blinker switch


23 11110D17 $1.50 left clamp bolt M6 x 20 allen
0117.02.1070 123395

24 11110P19 $16.0 start (decomp) lever
0511.02.5850 176946 black plastic ∅6 x 8 cable end
