Puch Speed Versions

Horsepower versions: There were three horsepower (speed) versionson ’75 to ’86 US-model Puch mopeds, 1.0 hp (20 mph), 1.5 hp (25 mph) and 2.0 hp (30 mph). Each US state had a different speed and power limit. A sticker on each side cover said the power (speed) version, but nowhere else did. Without that, the power version can be determined by inspection or measurement of each part and matching that to the specs in the chart below. The carburetor ID number is the easiest and most useful way to find the power version in the chart.

Top End Versions: There were four different top end versions, 7-fin on ’75-85 Maxi, 8-fin on ’78-86 Maxi Hi-Torque, 9-fin on ’78-82 Magnum, and 10-fin on ’83-86 Austro Daimler (Maxi Plus) and Dart.

1975-86 Models and Model Codes: Here the Puch models that share the same speed version parts are grouped together and given codes. 18 parts catalogs cover the 12 year range of US-model Puch mopeds and re-brands. 16 of 18 are shown. Not included are pre-1975 US-model Puch mopeds and motorcycles sold by Sears. Also not included are Puch remakes made after 1987 in Italy, Slovakia and Turkey.

1978-82 Sears, JC Penney and Murray partnered with Puch to produce their own brands. Sears and JC Penney are made in Austria by Kromag. Murray is made in USA by Murray. The parts manuals do not have Puch part numbers and all Puch branding is removed from the actual bikes and parts, because they want to keep the true identity secret. Three lines of evidence allow the Puch part number translations. 1) The Puch Series B parts manual has the same illustrations and text format as Sears and Murray parts manuals. 2) Actual carburetors, intakes and exhausts from Sears Free Spirit, JC Penney or Murray show the identity agrees with Puch Series B. 3) Specifications for gaskets and intakes from Sears or Murray show the identity agrees with Puch Series B.  For other parts the translation from Sears, JC Penney or Murray part numbers to Puch part numbers is guessed, based on agreement with Puch Series B.



SHEET FRAME MODELS
code   catalog   power   colors: 7-fin, 8-fin, 9-fin, 10-fin

75    Jul 76 1.0-2.0 ’75-76 Maxi-N, Maxi-S, Nostalgic

76    Oct 761.0-2.0 ’76-77 Rigid, Maxi, Maxi Sport, Newport

78    Mar 781.0-2.0 ’78 GN, Maxi
78r  Mar 781.0 hp  ’78 Maxi Luxe, Sport, Newport
78t  Mar 781.0 hp  ’78 Sport MkII

78LMar 781.5-2.0 ’78 Maxi Luxe, Sport, Newport
78TMar 781.5-2.0 ’78 Sport MkII

79    Jan 791.0-2.0 ’79 GN, Maxi
79r  Jan 791.0 hp  ‘79 Maxi Luxe, Sport, Newport L
79t   Jan 791.0 hp  ‘79 Sport MkII, Maxi II
79L Jan 79 1.5-2.0 ’79 Maxi Luxe, Sport, Newport L
79T Jan 79 1.5-2.0 ’79 Sport MkII
79T Jan 79 1.5-2.0 ’78-79 Maxi II

80    Jan 801.0-2.0 ’80-83 Maxi
80r  Jan 801.0 hp  ’80-83 Maxi Luxe
80t   Jan 801.0 hp  ’80-83 Sport MkII, Newport II

80L  Jan 801.5-2.0 ’80-83 Maxi Luxe
80T  Jan 801.5-2.0 ’80-83 Sport MkII, Newport II

84    Jan 841.0-2.0 ’84-85 Maxi to 7736972
84s  Jan 841.5-2.0 ’84-85 Maxi Sport LS to 2421596
84r   Jan 841.0 hp  ’84-84 Maxi Luxe
84t   Jan 841.0 hp  ’84-84 Sport MkII, Newport II

84L  Jan 841.5-2.0 ’84-84 Maxi Luxe
84T  Jan 841.5-2.0 ’84-84 Sport MkII, Newport II

84A  Jan 841.5-2.0 ’84-86 Austro Daimler (Maxi Plus) I
85T
  Jan 851.5-2.0 ’84-86 Austro Daimler (Maxi Plus) II

85    Jan 851.5-2.0 ’85-86 Maxi from 7736973
85r   Jan 851.0 hp  ’85-85 Maxi Luxe
85t
   Jan 851.0 hp  ’85-85 Sport MkII, Newport II
85L
Jan 851.5-2.0 ’85-85 Maxi Luxe
85T
Jan 851.5-2.0 ’85-85 Sport MkII, Newport II

86L  Jan 841.5-2.0 ’85-86 Maxi Sport LS from 2421597

86T  Jan 851.5-2.0 ’85-86 Maxi Sport LS II



TUBE FRAME MODELS
code   catalog   power   colors: 7-fin, 8-fin, 9-fin, 10-fin

78j    Jan 781.0-2.0 ’78-79 JC Penney Pinto, Swinger

78s   Jan 781.0-2.0 ’78 Sears Free Spirit

78K   Jul 781.0-2.0 ’78 Magnum XK
78M  Jul 781.0-2.0 ’78 Magnum MkII

79K Aug 791.0-2.0 ’79 Magnum XK
79M Aug 791.0-2.0 ’79 Magnum MkII

80M Jan 801.0-2.0 ’80-82 Magnum MkII
80M Jan 801.0-2.0 ’80-81 Magnum II

80m  Jan 801.5 ’79-82 Murray 8315, 8415, 8515
80m  Jan 802.0 ’79-82 Murray 8320, 8420, 8520

81    Apr 811.5-2.0 ’80-82 Series B

81M Feb 811.0-2.0 ’81-82 Magnum LTD

83D  Jan 831.5-2.0 ’83-84 Dart

85C  Jan 861.5-2.0 ’85-86 Cobra
86C  Jan 861.5-2.0 ’85-86 Cobra II

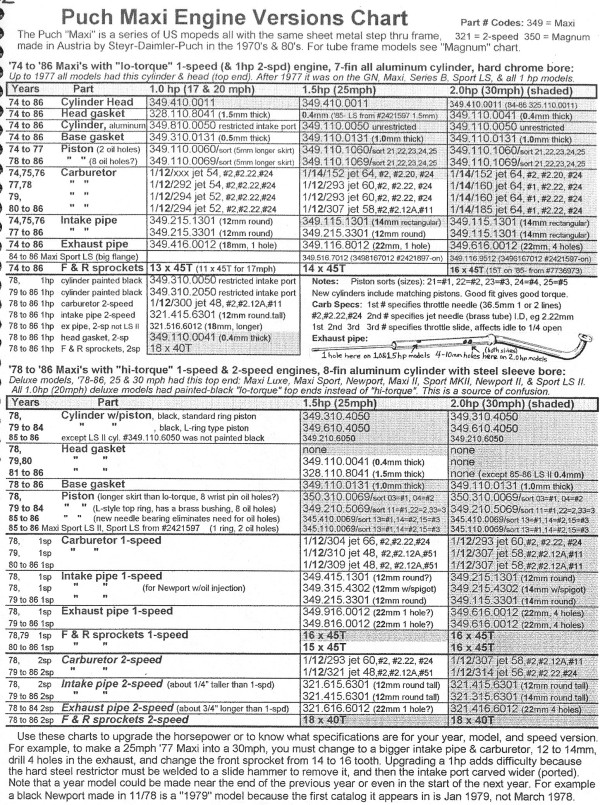

1975-86 Puch Speed Versions

10 things are different for 1.0, 1.5 or 2.0 hp versions.

1. Head: some might have more chamber volume
2. Head gasket: some are thicker, for lower compression
3. Piston: some are longer, restricting intake
4. Cylinder: some have restrictor plugs
5. Base gasket: some are thinner, for less port duration
6. Carburetor: some are smaller
7. Air filter: some have restrictor plugs
8. Intake pipe: some are smaller or restricted
9. Exhaust pipe: some have less holes inside
10. Sprockets: some are geared lower



How to upgrade to 2.0 hp specification:

This procedure is only for bikes where all of the parts are original.

1. Indentify the year and model of the bike. The year is on the ID plate. Here they are shown and explained.

2. Look up your bike’s parts catalog and model code in the list above.

3. Then for each part in the list below, look at the color of the Puch part number for that model code. Green means the part is the same as on 2.0 hp versions. Black means it is not the same as on 2.0hp versions.

4. Change all of the parts with black part numbers to green specification, either by replacement or modification.

5. Unfortunately not all of the part specifications are known.




1. Head

000.001.1111 color code years power  HEAD
349.410.0011 silver 75   ’75-76 1.0 Maxi-N, Maxi-S, Nostalgic
349.410.0011 silver 76   ’76-77 1.0 Rigid, Maxi, Maxi Sport, Newport
349.410.0011 silver 78   ’78-78 1.0 GN, Maxi
349.410.0011 silver 79   ’79-79 1.0 GN, Maxi
349.410.0011 silver 80   ’80-83 1.0 Maxi
349.410.0011 silver 84   ‘84-85 1.0 Maxi

349.210.2011 black 78r  ‘78-78 1.0 Maxi Luxe, Newport
349.210.2011 black 78t  ‘78-78 1.0 Sport MkII
349.210.2011 black 79r  ‘79-79 1.0 Maxi Luxe, Newport L
349.210.2011 black 79t  ‘79-79 1.0 Sport MkII, Maxi II
349.210.2011 black 80r  ‘80-83 1.0 Maxi Luxe
349.410.0011 silver 75   ’75-76 1.5-2.0 Maxi-N, Maxi-S, Nostalgic
349.410.0011 silver 76   ’76-77 1.5-2.0 Rigid, Maxi, Maxi Sport, Newport
349.410.0011 silver 78   ’78-78 1.5-2.0 GN, Maxi
349.410.0011 silver 78s    ’78-78 1.5-2.0 Sears Free Spirit
349.410.0011 silver 78j    ’78-79 1.5-2.0 JC Penney Pinto, Swinger
349.410.0011 silver 79   ’79-79 1.5-2.0 GN, Maxi
349.410.0011 silver 80   ’80-83 1.5-2.0 Maxi
349.410.0011 silver 81   ‘80-82 1.5-2.0 Series B

325.110.0011 silver 84   ‘84-84 1.5-2.0 Maxi
325.110.0011 silver 84s  ‘84-84 1.5-2.0 Maxi Sport LS to 2421596

349.310.4011 black 78L ’78-78 1.5-2.0 Maxi Luxe, Sport, Newport
349.310.4011 black 78T ’78-78 1.5-2.0 Sport MkII
349.310.4011 black 79L ’79-79 1.5-2.0 Maxi Luxe, Sport, Newport L
349.310.4011 black 79T ’79-79 1.5-2.0 Sport MkII
349.310.4011 black 79T ’78-79 1.5-2.0 Maxi II
349.310.4011 black 80L ’80-83 1.5-2.0 Maxi Luxe
349.310.4011 black 80T ’80-83 1.5-2.0 Sport MkII, Newport II
349.810.4011 black 84L ’84-85 1.5-2.0 Maxi Luxe
349.810.4011 black 84T ’84-85 1.5-2.0 Sport MkII, Newport II

349.710.4011 silver 85C ’85-86 1.5 Cobra
349.710.4011 silver 86C ’85-86 1.5 Cobra II
349.110.4011 silver 86L ’85-86 1.5-2.0 Maxi Sport LS from 2421597
349.110.4011 silver 85   ’85-86 1.5-2.0 Maxi
349.110.4011 silver 86T ’85-86 1.5-2.0 Maxi Sport LS II
349.110.4011 silver 85C ’85-86 2.0 Cobra
349.110.4011 silver 86C ’85-86 2.0 Cobra II
328.410.4011 black 78K’78-78 1.0-1.5-2.0 Magnum XK
328.410.4011 black 78M’78-78 1.0-1.5-2.0 Magnum MkII
328.410.4011 black 79K’79-79 1.0-1.5-2.0 Magnum XK
328.410.4011 black 79M’79-79 1.0-1.5-2.0 Magnum MkII
328.410.4011 black 80M ’80-82 1.0-1.5-2.0 Magnum MkII
328.710.4011 black 80M ’80-81 1.0-1.5-2.0 Magnum II
345.110.1011 silver 84A ’84-86 1.5 Austro-Daimler (Maxi Plus)
345.110.1011 silver 84T ’84-86 1.5 Austro-Daimler (Maxi Plus) II
345.110.0011 silver 84A ’84-86 2.0 Austro-Daimler (Maxi Plus)
345.110.0011 silver 84T ’84-86 2.0 Austro-Daimler (Maxi Plus) II




2. Head Gasket

000.000.000 mm code years power  HEAD GASKET
349.110 none 0.0 78L ’78-78 1.5-2.0 Maxi Luxe, Sport, Newport
349.110 none 0.0 78T ’78-78 1.5-2.0 Sport MkII

349.110 none 0.0 79L ’79-79 2.0 Maxi Luxe, Sport, Newport L
349.110 none 0.0 79T ’79-79 2.0 Sport MkII
349.110 none 0.0 79T ’78-79 2.0 Maxi II
349.110 none 0.0 80T ’80-83 2.0 Sport MkII, Newport II

349.110.0041 0.4 75   ’75-76 1.0 Maxi-N, Maxi-S, Nostalgic
349.110.0041 0.4 76   ’75-76 1.0 Rigid, Maxi, Maxi Sport, Newport
349.110.0041 0.4 75   ’75-76 1.5-2.0 Maxi-N, Maxi-S, Nostalgic
349.110.0041 0.4 76   ’76-77 1.5-2.0 Rigid, Maxi, Maxi Sport, Newport
349.110.0041 0.4 78   ’78-78 1.5-2.0 GN, Maxi
349.110.0041 0.4 78t  ’78-78 1.0 Sport MkII
349.110.0041 0.4 79   ’79-79 1.5-2.0 GN, Maxi
349.110.0041 0.4 79t  ’79-79 1.0 Sport MkII
349.110.0041 0.4 80   ’80-83 1.5-2.0 Maxi
349.110.0041 0.4 81   ’80-82 1.5-2.0 Series B
349.110.0041 0.4 84   ’84-84 1.5-2.0 Maxi
349.110.0041 0.4 84s  ’84-84 1.5-2.0 Maxi Sport LS to 2421596
349.110.0041 0.4 85   ’85-86 2.0 Maxi

349.110.0041 0.4 85C ’85-86 2.0 Cobra
349.110.0041 0.4 86T ’85-86 2.0 Maxi Sport LS II
349.110.0041 0.4 86C ’85-86 2.0 Cobra II

349.110.0041 0.4 78K ’78-78 1.0-2.0 Magnum XK
349.110.0041 0.4 78M’78-78 1.0 & 2.0 Magnum MkII

349.110.0041 0.4 79K ’79-79 1.0-2.0 Magnum XK
349.110.0041 0.4 79M’79-79 1.0 & 2.0 Magnum MkII
349.110.0041 0.4 80M’80-82 1.0 & 2.0 Magnum MkII
349.110.0041 0.4 80M’80-82 1.0 & 2.0 Magnum II
349.110.0041 0.4 81M’81-82 1.0 & 2.0 Magnum LTD

349.110.0041 0.4 83D ’83-84 2.0 Dart
349.110.0041 0.4 84A ’84-85 2.0 Austro Daimler (Maxi Plus)
349.110.0041 0.4 84T ’84-85 2.0 Austro Daimler (Maxi Plus) II

349.310.0041 0.8 85C ’85-86 1.5 Cobra
349.310.0041 0.8 86C ’85-86 1.5 Cobra II
349.310.0041 0.8 83D ’83-84 1.5 Dart
349.310.0041 0.8 84A ’84-85 1.5 Austro Daimler (Maxi Plus)
349.310.0041 0.8 84T ’84-85 1.5 Austro Daimler (Maxi Plus) II

328.110.8041 1.5 78r  ’78-78 1.0 Maxi Luxe, Newport
328.110.8041 1.5 78t  ’78-78 1.0 Sport MkII

328.110.8041 1.5 79r  ’79-79 1.0 Maxi Luxe, Newport L
328.110.8041 1.5 79t  ’79-79 1.0 Sport MkII, Maxi II
328.110.8041 1.5 80r  ’80-83 1.0 Maxi Luxe
328.110.8041 1.5 84   ’84-84 1.0 Maxi
328.110.8041 1.5 84r ’84-85 1.0 Maxi Luxe
328.110.8041 1.5 84   ’84-84 1.0 Maxi
328.110.8041 1.5 85   ’85-86 1.5 Maxi

328.110.8041 1.5 86L ’85-86 1.5 Maxi Sport LS from 2421597
328.110.8041 1.5 78L ’78-78 1.5 Maxi Luxe, Sport, Newport L
328.110.8041 1.5 78T ’78-78 1.5 Sport MkII

328.110.8041 1.5 79L ’79-79 1.5 Maxi Luxe, Sport, Newport L
328.110.8041 1.5 79T ’79-79 1.5 Sport MkII
328.110.8041 1.5 79T ’78-79 1.5 Maxi II
328.110.8041 1.5 80T ’80-83 1.5 Sport MkII, Newport II
328.110.8041 1.5 78M’78-78 1.5 Magnum MkII

328.110.8041 1.5 79M’79-79 1.5 Magnum MkII
328.110.8041 1.5 80M’80-82 1.5 Magnum MkII
328.110.8041 1.5 80M’80-82 1.5 Magnum II
328.110.8041 1.5 81M’81-82 1.5 Magnum LTD

None of these cylinders need a head gasket. New 8-fin ’78-83 2.0 hp models did not come with head gaskets. Remove the head gasket to upgrade to 2.0 hp specification. That provides a slight increase in compression ratio by reducing the combustion chamber volume.




3. Piston

000.00.1111  lower oil
000.0.11   rings  holes code years power  PISTON

349.110.0060 C 26  2 75   ’75-76 1.0 Maxi-N, Maxi-S, Nostalgic,
349.110.0060 C 26  2 76   ’76-77 1.0 Rigid, Maxi, Maxi Sport, Newport
349.110.0069 C 26  4 78   ’78-781.0 GN, Maxi
349.110.0069 C 26  4 78r  ’78-781.0 Maxi Luxe, Sport, Newport
349.110.0069 C 26  4 78t  ’78-781.0 Sport MkII
349.110.0069 C 26  4 78s  ’78-781.0 Sears Free Spirit

349.110.0069 C 26  4 79   ’79-791.0 GN, Maxi
349.110.0069 C 26  4 79r  ’79-791.0 Maxi Luxe, Sport, Newport
349.110.0069 C 26  4 79t ’79-791.0 Sport MkII, Maxi II

349.110.0069 C 26  4 80   ’80-83 1.0 Maxi
349.110.0069 C 26  4 80r  ’80-83 1.0 Maxi Luxe
349.110.0069 C 26  4 80t  ’80-83 1.0 Sport MkII, Newport II
349.110.1060 C 21  2 75   ’75-76 1.5-2.0 Maxi-N, Maxi-S, Nostalgic
349.110.1060 C 21  2 76   ’76-77 1.5-2.0 Rigid, Maxi, Maxi Sport, Newport

349.110.1069 C 21  4 78   ’78-781.5-2.0 GN, Maxi
349.110.1069 C 21  4 78s  ’78-781.5-2.0 Sears Free Spirit
349.110.1069 C 21  4 79   ’79-791.5-2.0 GN, Maxi
349.110.1069 C 21  4 80   ’80-83 1.5-2.0 Maxi
349.110.1069 C 21  4 81   ’80-82 1.5-2.0 Series B
349.110.1069 C 21  4 84   ’84-84 1.5-2.0 Maxi
349.110.1069 C 21  4 84s  ’84
-84 1.5-2.0 Maxi Sport LS to 2421596
350.310.0069 C 23  ? 78L ’78-78 1.5-2.0 Maxi Luxe, Sport, Newport
350.310.0069 C 23  ? 78T ’78-78 1.5-2.0 Sport MkII

349.210.5069 L  23  ? 79L ’79-79 1.5-2.0 Maxi Luxe, Sport, Newport L
350.310.0069 C 23  ? 79T ’79-79 1.5-2.0 Sport MkII
350.310.0069 C 23  ? 79T ’78-79 1.5-2.0 Maxi II

349.210.5069 L  23  ? 80L ’80-83 1.5-2.0 Maxi Luxe
349.210.5069 L  23  ? 80T ’80-83 1.5-2.0 Sport MkII, Newport II
350.310.0069 C 23  ? 78K  ’78-78 1.0-1.5-2.0 Magnum XK
350.310.0069 C 23  ? 78M ’78-78 1.0-1.5-2.0 Magnum MkII
350.310.0069 C 23  ? 79K  ’79-79 1.0-1.5-2.0 Magnum XK
350.310.0069 C 23  ? 79M ’79-79 1.0-1.5-2.0 Magnum MkII
350.310.0069 C 23  ? 80M’80-83 1.0-1.5-2.0 Magnum II
350.310.0069 C 23  ? 80M ’80-83 1.0-1.5-2.0 Magnum MkII
350.310.0069 C 23  ? 81M ’81-82 1.0-1.5-2.0 Magnum LTD
345.110.0069 1 23  4 85   ’85-86 1.5-2.0 Maxi
345.110.0069 1 23  4 85C ’85-86 1.5-2.0 Cobra
345.110.0069 1 23  4 86C ’85-86 1.5-2.0 Cobra II
345.110.0069 1 23  4 86L ’85-86 1.5-2.0 Maxi Sport LS from 2421597
345.110.0069 1 23  4 86T ’85-86 1.5-2.0 Maxi Sport LS II
345.110.0069 1 23  4 84A’84-85 1.5-2.0 Austro-Daimler (Maxi Plus)
345.110.0069 1 23  4 84T’84-85 1.5-2.0 Austro-Daimler (Maxi Plus) II

1.0 hp pistons for 7-fin cylinders have a 5 mm longer skirt (lower). That causes the intake port to open later and close sooner (less duration). Also some of the port is still blocked by the piston even at maximum opening (less area). It’s a simple matter to file or grind 5 mm off of the intake side piston skirt, to make it 21 mm from the bottom edge of the pin, the same as 2.0 hp specification. 8-fin and 10-fin cylinders never had 1.0 hp versions. 1.0 hp pistons for 9-fin cylinders are the same as 1.5 and 2.0 hp.

Rings:
C means two common type rings
L means upper L ring, lower common
1 means one common ring only




4. Cylinder

000.001.1111 color code years power  CYLINDER with piston
349.810.0050 silver 00   restricted intake port

349.810.0050 silver 75   ’75-76 1.0 Maxi-N, Maxi-S, Nostalgic
349.810.0050 silver 76   ’76-77 1.0 Rigid, Maxi, Maxi Sport, Newport
349.810.0050 silver 78   ’78-78 1.0 GN, Maxi
349.810.0050 silver 79   ’79-79 1.0 GN, Maxi
349.810.0050 silver 80   ’80-83 1.0 Maxi
349.810.0050 silver 84   ’84-85 1.0 Maxi to 7736972
349.310.0050 black 000 restricted intake port
349.310.0050 black 78r  ’78-78 1.0 Maxi Luxe, Sport, Newport
349.310.0050 black 78t  ’78-78 1.0 Sport MkII
349.310.2050 black 00  restricted intake port
349.310.2050 black 79r  ’79-79 1.0 Maxi Luxe, Sport, Newport
349.310.2050 black 79t  ’79-79 1.0 Sport MkII
349.310.2050 black 80r  ’80-83 1.0 Maxi Luxe
349.310.2050 black 80t  ’80-83 1.0 Sport MkII, Newport II
349.310.2050 black 84r  ’84-84 1.0 Maxi Luxe
349.310.2050 black 84t  ’84-84 1.0 Sport MkII, Newport II
349.310.2050 black 85r  ’85-85 1.0 Maxi Luxe
349.310.2050 black 85t  ’85-85 1.0 Sport MkII, Newport II
349.110.0050 silver 00   not restricted
349.110.0050 silver 75   ’75-76 1.5-2.0 Maxi-N, Maxi-S, Nostalgic
349.110.0050 silver 76   ’76-77 1.5-2.0 Rigid, Maxi, Maxi Sport, Newport
349.110.0050 silver 78   ’78-78 1.5-2.0 GN, Maxi
349.110.0050 silver 78s  ’78-78 1.5-2.0 Sears Free Spirit
349.110.0050 silver 78j  ’78-79 1.5-2.0 JC Penney Pinto, Swinger
349.110.0050 silver 79   ’79-79 1.5-2.0 GN, Maxi
349.110.0050 silver 80   ’80-83 1.5-2.0 Maxi
349.110.0050 silver 80m’80-82 1.5-2.0 Murray 83xx, 84xx, 85xx
349.110.0050 silver 81   ’80-82 1.5-2.0 Series B
349.110.0050 silver 84   ’84-85 1.5-2.0 Maxi to 7736972
349.110.0050 silver 84s  ’84-85 1.5-2.0 Maxi Sport LS to 2421596
349.310.4050 black 00   not restricted

349.310.4050 black 78L ’78-78 1.5-2.0 Maxi Luxe, Sport, Newport
349.310.4050 black 78T ’78-78 1.5-2.0 Sport MkII
349.610.4050 black 000 replaces 349.310.4050
349.610.4050 black 79L ’79-79 1.5-2.0 Maxi Luxe, Sport, Newport L
349.610.4050 black 79T ’79-79 1.5-2.0 Sport MkII
349.610.4050 black 79T ’79-79 1.5-2.0 Maxi II
349.610.4050 black 80L ’80-83 1.5-2.0 Maxi Luxe
349.610.4050 black 80T ’80-83 1.5-2.0 Sport MkII, Newport II
349.610.4050 black 84L ’84-84 1.5-2.0 Maxi Luxe
349.610.4050 black 84T ’84-84 1.5-2.0 Sport MkII, Newport II
349.210.6050 silver 000 replaces 349.310.4050 and 349.610.4050
349.210.6050 silver 84L ’84-84 1.5-2.0 Maxi Luxe
349.210.6050 silver 84T ’84-84 1.5-2.0 Sport MkII, Newport II
349.210.6050 silver 85L ’85-85 1.5-2.0 Maxi Luxe
349.210.6050 silver 85T ’85-85 1.5-2.0 Sport MkII, Newport II

349.110.6050 silver 85   ’85-86 1.5-2.0 Maxi from 7736973
349.110.6050 silver 85C ’85-86 1.5-2.0 Cobra to 1505807
349.110.6050 silver 86C ’85-86 1.5-2.0 Cobra II to 1505807
349.110.6050 silver 86L ’85-86 1.5-2.0 Maxi Sport LS from 2421597
349.110.6050 silver 86T ’85-86 1.5-2.0 Maxi Sport LS II
349.610.6050 silver 85C ’85-86 1.5-2.0 Cobra from 1505808
349.610.6050 silver 86C ’85-86 1.5-2.0 Cobra II from 1505808
328.710.4050 black 78K’78-78 1.0-2.0 Magnum XK
328.710.4050 black 79K’79-79 1.0-2.0 Magnum XK
328.310.2050 black 78M’78-78 1.0-2.0 Magnum MkII
328.310.2050 black 79M’79-79 1.0-2.0 Magnum MkII
328.310.2050 black 80M’80-82 1.0-2.0 Magnum MkII
328.910.2050 black 80M’80-82 1.0-2.0 Magnum II
334.110.0050 black 84A’84-86 1.5-2.0 Austro Daimler (Maxi Plus)
334.110.0050 black 85T’84-86 1.5-2.0 Austro Daimler (Maxi Plus) II




5. Base Gasket

000.001.1111 mm code years power  BASE GASKET .
349.310.0131 0.5 all   ’75-86 1.0 all 7-fin models
349.310.0131 0.5 all   ’78-86 1.0 all 8-fin models

349.110.0131 1.0 all   ’75-86 1.5-2.0 all 7-fin models
349.110.0131 1.0 all   ’78-86 1.5-2.0 all 8-fin models
328.210.5131 0.3 all   ’78-82 1.0-1.5-2.0 all 9-
fin models
328.310.0131 0.5 83D’83-84 1.5-2.0 Dart

328.310.0131 0.5 84A’84-86 1.5-2.0 Austro Daimler (Maxi Plus)
328.110.0131 1.0 84T’84-86 1.5-2.0 Austro Daimler (Maxi Plus) II




6. Carburetor

000.000.0000    mm 00 jet code  years  power  CARB 14 mm
349.415.5000 1/14/152 64 75   ’75-76 1.5-2.0 Maxi-N, Maxi-S, Nostalgic
???.???.????    1/14/157 ?? 78j  ’78-79 2.0 JC Penney Swinger
349.815.5000 1/14/160 64 76   ’76-77 2.0 Rigid, Maxi, Maxi Sport, Newport
349.815.5000 1/14/160 64 78   ’78-78 2.0 GN, Maxi
349.815.5000 1/14/160 64 79   ’79-79 2.0 GN, Maxi to 7705425

???.???.????    1/14/163 68 78s ’78-78 2.0 Sears Free Spirit
349.115.6000 1/14/???  68 81   ’80-82 2.0 Series B
???.???.????    1/14/164 52 78s ’78-78 1.0-1.5 Sears Free Spirit
349.915.5000 1/14/???  52 81   ’80-82 1.5 Series B
???.???.????    1/14/166 62 80m’80-81 2.0 Murray 83xx, 84xx, 85xx
349.815.6000 1/14/185 64 80   ’79-83 2.0 Maxi from 7705426
349.815.6000 1/14/185 64 84   ’84-84 2.0 Maxi

349.815.6000 1/14/185 64 84s  ’84-84 2.0 Maxi Sport LS to 2421596
349.315.6500 1/14/203 70 86C ’85-86 1.5 Cobra II
349.515.5500 1/14/196 68 85C ’85-86 1.5-2.0 Cobra

349.515.5500 1/14/196 68 86C ’85-86 2.0 Cobra II

000.000.0000    mm 00 jet code  years  power  CARB 12 mm
???.???.????    1/12/279 00 000 modern remake

349.215.4000 1/12/292 54 75   ’75-76 1.0 Maxi-N, Maxi-S, Nostalgic
349.215.4000 1/12/292 54 76   ’76-77 1.0 Rigid, Maxi, Maxi Sport, Newport
349.215.4000 1/12/292 54 78r  ’78-78 1.0 Maxi Luxe, Sport, Newport
349.315.4000 1/12/293 60 76   ’76-77 1.5 Rigid, Maxi, Maxi Sport, Newport
349.315.4000 1/12/293 60
78   ’78-78 1.5 GN, Maxi
349.315.4000 1/12/293 60 79   ’79-79 1.5 GN, Maxi to 7705250
349.315.4000 1/12/293 60
78L ’78-78 2.0 Maxi Luxe, Sport, Newport
349.415.4000 1/12/294 54 76   ’76-77 1.0 Rigid, Maxi, Maxi Sport, Newport
349.415.4000 1/12/294 54 78r  ’78-78 1.0 Maxi Luxe, Sport, Newport
349.415.4000 1/12/294 54 79r  ’79-79 1.0 Maxi Luxe, Sport, Newport L
349.415.4000 1/12/294 54 80   ’80-83 1.0 Maxi
349.415.4000 1/12/294 54 80r  ’80-83 1.0 Maxi Luxe
349.415.4000 1/12/294 54 84   ’84-84 1.0 Maxi
349.715.7000 1/12/297A 5080M’80-82 1.0 Magnum MkII
349.715.7000 1/12/297A 5080M’80-82 1.0 Magnum II
349.715.7000 1/12/297A 5081M’81-82 1.0 Magnum LTD
???.???.????    1/12/299 00 000  unknown
349.815.4000 1/12/300 48 78t  ’78-78 1.0 Sport MkII
349.815.4000 1/12/300 48 79t  ’79-79 1.0 Sport MkII, Maxi II
349.815.4000 1/12/300 48 80t  ’80-83 1.0 Sport MkII, Newport II
???.???.????    1/12/302 50 78j  ’78-79 1.0 JC Penney Swinger

349.115.7000 1/12/304 66
78L ’78-78 1.5 Maxi Luxe, Sport, Newport
349.215.7000 1/12/307 58 78T ’78-78 2.0 Sport MkII
349.215.7000 1/12/307 58 80   ’80-83 1.5 Maxi from 7705251
349.215.7000 1/12/307 58 84   ’84-84 1.5 Maxi
349.215.7000 1/12/307 58 84s  ’84-84 1.5 Maxi Sport LS to 2421596
349.215.7000 1/12/307 58 86L ’85-86 1.5-2.0 Maxi Sport LS from 2421597
349.215.7000 1/12/307 58 80L ’80-83 2.0 Maxi Luxe
349.215.7000 1/12/307 58 85   ’85-86 1.5-2.0 Maxi
349.615.7000 1/12/309 48 80L ’80-83 1.5 Maxi Luxe
349.615.7000 1/12/309 48 80M’80-82 1.5 Magnum MkII
349.615.7000 1/12/309 48 80M’80-82 1.5 Magnum II
349.615.7000 1/12/309 48 81M’81-82 1.5 Magnum LTD
349.615.7000 1/12/310 48 79L ’79-79 1.5 Maxi Luxe, Sport, Newport L
349.315.8000 1/12/314 56 79T ’79-79 2.0 Sport MkII, Maxi II
349.315.8000 1/12/314 56 80T ’80-83 2.0 Sport MkII, Newport II
349.315.8000 1/12/314 56 86T ’85-86 1.5-2.0 Maxi Sport LS II
349.415.8000 1/12/316 64 78K’78-78 2.0 Magnum XK
349.415.8000 1/12/316 64 79K’79-79 2.0 Magnum XK
349.515.8000 1/12/317 50 78K’78-78 1.5 Magnum XK
349.515.8000 1/12/317 50 79K’79-79 1.5 Magnum XK
349.615.8000 1/12/318 50 78K’78-78 1.0 Magnum XK
349.615.8000 1/12/318 50 79K’79-79 1.0 Magnum XK
349.615.8000 1/12/318 50 78M’78-78 1.0 Magnum MkII
349.615.8000 1/12/318 50 79M’79-79 1.0 Magnum MkII
349.815.7000 1/12/321 50 79T ’79-79 1.5 Sport MkII
349.815.7000 1/12/321 50 79T ’78-79 1.5 Maxi II
349.815.7000 1/12/321 50 78j ’78-79 1.5 JC Penney Pinto, Swinger
349.815.7000 1/12/321 50 80T ’80-83 1.5 Sport MkII, Newport II
349.715.8000 1/12/322 60 78M’78-78 2.0 Magnum MkII
349.715.8000 1/12/322 60 79M’79-79 2.0 Magnum MkII
349.715.8000 1/12/322 60 80M’80-82 2.0 Magnum MkII
349.715.8000 1/12/322 60 80M’80-82 2.0 Magnum II
349.715.8000 1/12/322 60 81M’81-82 2.0 Magnum LTD
349.815.8000 1/12/323 48 78M’78-78 1.5 Magnum MkII
349.815.8000 1/12/323 48 79M’79-79 1.5 Magnum MkII
???.???.????    1/12/339 52 83D ’83-84 1.5 Dart
???.???.????    1/12/340 54 83D ’83-84 2.0 Dart
345.315.6000 18.12.106 52 84A ’84-86 1.5 Austro Daimler (Maxi Plus)
345.315.6000 18.12.106 5284T ’84-86 1.5 Austro Daimler (Maxi Plus) II
345.415.6000 18.12.107 5484A ’84-86 2.0 Austro Daimler (Maxi Plus)
345.415.6000 18.12.107 5484T ’84-86 2.0 Austro Daimler (Maxi Plus) II

Identification: Use this list to identify the bike model and speed version from knowing the year and carburetor ID number.

Jet Size: Intake air restrictors located in the air filter box, before the carburetor, cause the jet size to be much smaller. Intake air restrictors located in the intake port or intake pipe, after the carburetor, cause the jet size to be the same or only slightly smaller. Besides the intake pipe and air filter box, other things that affect the jet size on a piston-port two-stroke engine are piston, cylinder, exhaust, and to a lesser degree, head and gaskets.




7. Air Filter

000.001.1111 fig code years  power  AIR FILTER for sheet frame
349.315.0700 20 75   ’75-76 1.0 Maxi-N, Maxi-S, Nostalgic
349.315.0700 20 76   ’76-77 1.0
Rigid, Maxi, Maxi Sport, Newport
349.315.0700 20 78   ’78-78 1.0-1.5 GN, Maxi
349.315.0700 20 79   ’79-79 1.0-1.5 GN, Maxi
349.315.0700 20 80   ’80-83 1.0-1.5 Maxi
349.315.0700 20 78r  ’78-78 1.0-1.5 Maxi Luxe, Sport, Newport
349.315.0700 20 78t  ’78-78 1.0-1.5 Sport MkII
349.315.0700 20 79r  ’79-79 1.0-1.5 Maxi Luxe, Sport, Newport L
349.315.0700 20 79t  ’79-79 1.0-1.5 Sport MkII, Maxi II
349.315.0700 20 80r  ’80-83 1.0-1.5 Maxi Luxe
349.315.0700 20 78L ’78-78 1.5 Maxi Luxe, Sport, Newport
349.315.0700 20 78T ’78-78 1.5 Sport MkII

349.315.0700 20 79L ’79-79 1.5 Maxi Luxe, Sport, Newport L
349.315.0700 20 79T ’79-79 1.5 Sport MkII
349.315.0700 20 80L ’80-83 1.5 Maxi Luxe
349.315.0700 20 80T ’80-83 1.5 Sport MkII, Newport II
349.315.0700 20 84   ’84-84 1.0-1.5 Maxi
349.315.0700 20 84s  ’84-84 1.0-1.5 Maxi Sport LS to 2421596
349.315.0700 20 84L ’84-85 1.5 Maxi Luxe
349.315.0700 20 84T ’84-85 1.5 Sport MkII, Newport II
349.315.0700 20 86L ’85-86 1.5 Maxi Sport LS from 2421597
349.315.0700 20 86T ’85-86 1.5 Maxi Sport LS II
349.115.0700 10 75   ’75-76 1.5-2.0 Maxi-N, Maxi-S, Nostalgic
349.115.0700 10 76   ’76-77 1.5-2.0 Rigid, Maxi, Maxi Sport, Newport
349.115.0700 10 78   ’78-78 2.0 GN, Maxi
349.115.0700 10 79   ’79-79 2.0 GN, Maxi
349.115.0700 10 80   ’80-83 2.0 Maxi
349.115.0700 10 78L ’78-78 2.0 Maxi Luxe, Sport, Newport
349.115.0700 10 78T ’78-78 2.0 Sport MkII

349.115.0700 10 79L ’79-79 2.0 Maxi Luxe, Sport, Newport L
349.115.0700 10 79T ’79-79 2.0 Sport MkII
349.115.0700 10 80L ’80-83 2.0 Maxi Luxe
349.115.0700 10 80T ’80-83 2.0 Sport MkII, Newport II
349.115.0700 10 84   ’84-84 2.0 Maxi
349.115.0700 10 84s  ’84-84 2.0 Maxi Sport LS to 2421596
349.115.0700 10 84L ’84-85 2.0 Maxi Luxe
349.115.0700 10 84T ’84-85 2.0 Sport MkII, Newport II
349.115.0700 10 85S ’85-86 2.0 Maxi Sport LS from 2421597
349.115.0700 10 86T ’85-86 2.0 Maxi Sport LS II
345.115.5161 00 84A ’84-86 1.5-2.0 Austro Daimler (Maxi Plus)
345.115.5161 00 84T ’84-86 1.5-2.0 Austro Daimler (Maxi Plus) II

000.001.1111 fig code years  power   AIR FILTER for tube frame
321.215.2700 40
78K ’78-78 1.0-1.5 Magnum XK
321.215.2700 40
78M’78-78 1.0-1.5 Magnum MkII
321.215.2700 40
79K ’79-79 1.0-1.5 Magnum XK
321.215.2700 40
79M’79-79 1.0-1.5 Magnum MkII
321.215.2700 40
80M’80-82 1.0-1.5 Magnum MkII
321.215.2700 40
80M’80-82 1.0-1.5 Magnum II
321.215.2700 40
81M’81-82 1.0-1.5 Magnum LTD
321.215.2700 40 81   ’80-82 1.5 Series B
321.115.2700 30
78K ’78-78 2.0 Magnum XK
321.115.2700 30
78M’78-78 2.0 Magnum MkII
321.115.2700 30
79K ’79-79 2.0 Magnum XK
321.115.2700 30
79M’79-79 2.0 Magnum MkII
321.115.2700 30
80M’80-82 2.0 Magnum MkII
321.115.2700 30
80M’80-82 2.0 Magnum II
321.115.2700 30
81M’81-82 2.0 Magnum LTD
321.415.2700 50 81   ’80-82 2.0 Series B
321.415.2700 50 85C ’85-86 1.5-2.0 Cobra
321.415.2700 50 86C ’85-86 1.5-2.0 Cobra II



Restrictors: Intake air silencer/filter assemblies #20 and #40, for 1.0 or 1.5 hp versions, contain restrictor plugs #4 and #44. Remove the pressed in plugs to convert the air box to 2.0 hp version. This must be done along with the 2.0 hp carburetor changes which include a bigger jet.




8. Intake Pipe

000.001.11 base carb code years  power  INTAKE PIPE 1-speed
349.215.1301 12  12  75   ’75-76 1.0 Maxi-N, Maxi-S, Nostalgic
349.215.1301 12  12  76   ’76-77 1.0-1.5 Rigid, Maxi, Maxi Sport, Newport
349.215.1301 12  12  78   ’78-78 1.0-1.5 GN, Maxi
349.215.1301 12  12
000 ’78-78 1.0 and 2.0 Maxi Luxe, Sport
349.215.1301 12  12
78K ’78-78 1.0 and 2.0 Magnum XK
349.215.1301 12  12
79K ’79-79 1.0 and 2.0 Magnum XK
349.115.1301 Sq  14  75   ’75-76 1.5-2.0 Maxi-N, Maxi-S, Nostalgic
349.115.1301 Sq  14  76   ’76-77 2.0 Rigid, Maxi, Maxi Sport, Newport
349.115.1301 Sq  14  78   ’78-78 2.0 GN, Maxi  349.114.1301 = 3135
349.115.1301 Sq  14  78s  ’78-78 2.0 Sears Free Spirit
349.115.1301 Sq  14  78j   ’78-79 2.0 JC Penney Pinto, Swinger
349.115.1301 Sq  14  80m’79-82 2.0 Murray 8320, 8420, 8421, 8520
349.115.1301 Sq  14  81   ’80-82 2.0 Series B
3135, 3206 0  Sq  8.5 78s  ’78-78 1.5 Sears Free Spirit
3135, 3206 0  Sq  8.5 78j   ’78-79 1.5 JC Penney Pinto, Swinger
3135, 3206 0  Sq  8.5 80m’79-82 1.5 Murray 8315, 8415, 8416, 8515
3135, 3206 0  Sq  8.5 81   ’80-82 1.5 Series B
3135, 3205 0  Sq  6.7 78s  ’78-78 1.0 Sears Free Spirit
3135, 3205 0  Sq  6.7 78j   ’78-79 1.0 JC Penney Pinto, Swinger
349.415.1301 12 9 12 000 ’78-78 1.5 Maxi Luxe, Sport
349.415.1301 12 9 12 78K ’78-78 1.5 Magnum XK
349.415.1301 12 9 12 79K ’79-79 1.5 Magnum XK
349.215.3301 12  12  79   ’79-79 1.0-1.5 GN, Maxi replaces 349.215.1301
349.215.3301 12  12  79r  ’79-79 1.0 Maxi Luxe, Sport, Newport L
349.215.3301 12  12  79L ’79-79 1.5 Maxi Luxe, Sport, Newport L
349.215.3301 12  12  80   ’80-83 1.0-1.5 Maxi
349.215.3301 12  12  84   ’84-85 1.0-1.5 Maxi
349.215.3301 12  12  84r  ’84-84 1.0 Maxi Luxe
349.215.3301 12  12  84L ’84-84 1.5 Maxi Luxe
349.215.3301 12  12  85   ’85-86 1.5 Maxi
349.215.3301 12  12  85r  ’85-85 1.0 Maxi Luxe
349.215.3301 12  12  85L ’85-85 1.5 Maxi Luxe
349.115.3301 14  14  79   ’79-79 2.0 GN, Maxi replaces 349.115.1301
349.115.3301 14  14  79L ’79-79 2.0 Maxi Luxe, Sport, Newport L
349.115.1301 14  14  80   ’80-83 2.0 Maxi
349.115.1301 14  14  80L ’80-83 2.0 Maxi Luxe
349.115.1301 14  14  84   ’84-85 2.0 Maxi
349.115.1301 14  14  84s  ’84-85 1.5-2.0 Maxi Sport LS to 2421596
349.115.1301 14  14  84L ’84-84 2.0 Maxi Luxe
349.115.1301 14  14  85   ’85-86 2.0 Maxi
349.115.1301 14  14  85L ’85-84 2.0 Maxi Luxe
349.115.1301 14  14  85C ’85-86 1.5-2.0 Cobra
349.115.1301 14  14  86L ’85-86 1.5-2.0 Maxi Sport LS from 2421597

000.001.11 base carb code years  power  INTAKE PIPE 2-speed
321.615.6301 12  8.5 78T ’78-78 1.5 Sport MkII

321.415.6301 12  12  78t  ’78-78 1.0 Sport MkII
321.415.6301 12  12  78T ’78-78 2.0 Sport MkII
321.415.6301 12  12  79t  ’79-79 1.0 Sport MkII, Maxi II
321.415.6301 12  12  79T ’79-79 1.5 Sport MkII
321.415.6301 12  12  79T ’79-79 1.5 Maxi II
321.415.6301 12  12  80t  ’80-83 1.0 Sport MkII, Newport II
321.415.6301 12  12  80T ’80-83 1.5 Sport MkII, Newport II
321.415.6301 12  12  80M’80-81 1.0-2.0 Magnum II
321.415.6301 12  12  84t  ’84-84 1.0 Sport MkII, Newport II
321.415.6301 12  12  84T ’84-84 1.5 Sport MkII, Newport II
321.315.6301 14  14  79T ’79-79 2.0 Sport MkII, Maxi II
321.315.6301 14  14  80T ’80-83 2.0 Sport MkII, Newport II
321.315.6301 14  14  84T ’84-84 2.0 Sport MkII, Newport II
321.315.6301 14  14  86T ’85-86 1.5-2.0 Sport LS II
321.315.6301 14  14  86C ’85-86 1.5-2.0 Cobra II

000.001.11 base carb code years  power  INTAKE 1-sp oil injection
349.215.4032 14  14  000 ’78-78 1.0 and 2.0 Newport (oil inj)
349.315.4032 12  12  000 ’78-78 1.5 Newport (oil injection)

000.001.11 base carb code years  power  INTAKE 2-sp oil injection
349.815.6302 12  12  78M’78-78 1.0-2.0 Magnum MkII (oil inj)
349.815.6302 12  12  79M’79-79 1.0-2.0 Magnum MkII (oil inj)
349.815.6302 12  12  80M’80-82 1.0-2.0 Magnum MkII (oil inj)

Two-speed intake pipes are noticeably taller and slightly longer than 1-speed intakes, because the 2-speed engine case places the cylinder lower and slightly forward. The difference in intake dimensions equals the difference in cylinder position, because the carburetor is in the same position relative to the frame.

Oil injection intake pipes have a oil hose spigot.




9. Exhaust Pipe


EXHAUST FRONT PIPE left side 1-speed ∅26 seal ring
000.001.1111 ∅P H code years  power  H is # of holes, grey is unsure
349.416.0012 18 1 75   ’75-76 1.0 Maxi-N, Maxi-S, Nostalgic
349.416.0012 18 1 76   ’76-77 1.0 Rigid, Maxi, Maxi Sport, Newport
349.416.0012 18 1 78   ’78-78 1.0 GN, Maxi
349.416.0012 18 1 78r  ’78-78 1.0 Maxi Luxe, Sport, Newport
349.416.0012 18 1 79   ’79-79 1.0 GN, Maxi
349.416.0012 18 1 79r  ’79-79 1.0 Maxi Luxe, Sport, Newport L
349.416.0012 18 1 80   ’80-83 1.0 Maxi
349.416.0012 18 1 80r  ’80-83 1.0 Maxi Luxe
349.416.0012 18 1 84   ’84-84 1.0 Maxi
349.416.0012 18 1 84r  ’84-84 1.0 Maxi Luxe
349.416.0012 18 1 85r  ’85-85 1.0 Maxi Luxe

349.116.8012 22 1 75   ’75-76 1.5 Maxi-N, Maxi-S, Nostalgic
349.116.8012 22 1 76   ’76-77 1.5 Rigid, Maxi, Maxi Sport, Newport
349.116.8012 22 1 78   ’78-78 1.5 GN, Maxi
349.116.8012 22 1 79   ’79-79 1.5 GN, Maxi
349.116.8012 22 1 80   ’80-83 1.5 Maxi
349.116.8012 22 1 84   ’84-84 1.5 Maxi
349.616.0012 22 4 75   ’75-76 2.0 Maxi-N, Maxi-S, Nostalgic
349.616.0012 22 4 76   ’76-77 2.0 Rigid, Maxi, Maxi Sport, Newport
349.616.0012 22 4 78   ’78-78 2.0 GN, Maxi
349.616.0012 22 4 78L ’78-78 2.0 Maxi Luxe, Sport, Newport
349.616.0012 22 4 79   ’79-79 2.0 GN, Maxi
349.616.0012 22 4 79L ’79-79 2.0 Maxi Luxe, Sport, Newport L
349.616.0012 22 4 80   ’80-83 2.0 Maxi
349.616.0012 22 4 80L ’80-83 2.0 Maxi Luxe
349.616.0012 22 4 84   ’84-84 2.0 Maxi
349.616.0012 22 4 84L ’84-85 2.0 Maxi Luxe
349.916.0012 22 1
78L ’78-78 1.5 Maxi Luxe, Sport, Newport
349.816.0012 22 1 79L ’79-79 1.5 Maxi Luxe, Sport, Newport L
349.816.8012 22 1 80L ’80-83 1.5 Maxi Luxe
349.816.8012 22 1 84L ’84-84 1.5 Maxi Luxe
349.816.8012 22 1 85L ’85-85 1.5 Maxi Luxe
111.000.3049 22 0 78s  ’78-78 1.0 Sears Free Spirit
111.000.3049 22 0 78j  ’78-79 1.0 JC Penney Pinto, Swinger
111.000.3091 22 4 78s  ’78-78 1.5-2.0 Sears Free Spirit
111.000.3091 22 4 78j  ’78-79 1.5-2.0 JC Penney Pinto, Swinger
111.000.3091 22 4 80m’80-81 1.5-2.0 Murray 83xx, 84xx, 85xx

321.216.7012 22 4 81   ’81-82 1.5-2.0 Series B  = 3091?



4-hole versus 1-hole: The purpose of the holes is not for more or less flow. The holes allow reflected (negative) sonic pulses (pops!) to travel back up the head pipe to help draw out exhaust and draw in intake at the same time. More hole area makes more power.

Hole location: The farther the holes are from the cylinder, the longer is the travel time of the negative sonic pulse (pop!), so the beneficial effect occurs at a lower rpm. That is why the 20mph version holes are near the rear, and the 30mph holes are near the front.

EXHAUST FRONT PIPE left side 2-speed ∅26 seal ring
000.001.1111 ∅P H code years  power  H is # of holes, grey is unsure

349.516.6012 18 1 78t  ’78-78 1.0 Sport MkII
349.516.6012 18 1 79t  ’79-79 1.0 Sport MkII, Maxi II
349.516.6012 18 1 80t  ’80-83 1.0 Sport MkII, Newport II
349.516.6012 18 1 84t  ’84-84 1.0 Sport MkII, Newport II
349.516.6012 18 1 85t  ’85-85 1.0 Sport MkII, Newport II
349.616.6012 22 1 78T ’78-78 1.5 Sport MkII
349.616.6012 22 1 79T ’79-79 1.5 Sport MkII
349.616.6012 22 1 79T ’79-79 1.5 Maxi II
349.616.6012 22 1 80T ’80-83 1.5 Sport MkII, Newport II
349.616.6012 22 1 84T ’84-84 1.5 Sport MkII, Newport II
349.616.6012 22 1 85T ’85-85 1.5 Sport MkII, Newport II
321.416.6012 22 4 78T ’78-78 2.0 Sport MkII
321.416.6012 22 4 79T ’79-79 2.0 Sport MkII
321.416.6012 22 4 79T ’79-79 2.0 Maxi II
321.416.6012 22 4 80T ’80-83 2.0 Sport MkII, Newport II
321.416.6012 22 4 84T ’84-84 2.0 Sport MkII, Newport II
321.416.6012 22 4 85T ’85-85 2.0 Sport MkII, Newport II




1. Puch 1-speed exhaust on a 2-speed bike
2. How to tell the type, 1 or 2 speed
3. A third type, not yet identified

The 2-speed cylinder is about 10 mm lower and 7 mm farther forward than a 1-speed cylinder. To make a 1-speed exhaust fit a 2-speed, the flange has to be re-angled by grinding to raise the rear pipe, the frame mount hole widened forward, and the pipe mount hole widened rearward.

’75-83 and some ’84: On these models with a 26mm ID seal ring, the tail pipe had only one mount hole. It was only slightly slotted, not enough to allow the 1 and 2 speed engines to use the same front exhaust pipe.

’85-86 and some ’84: On these models with a 22mm ID seal ring, the tail pipe had several mount slots. That allowed the 1 and 2 speed front pipes to be the same dimensions.




EXHAUST FRONT PIPE left side 1- or 2-speed ∅22 seal ring
0000.001.1111
∅P H code years  power H is # of holes, grey is unsure

349.516.7012 22 1 84s  ’84-84 1.5 Maxi Sport LS to 2421596
349.816.7012 22 1 85   ’85-86 1.5 Maxi
349.816.7012 22 1 86L ’84-86 1.5 Maxi Sport LS from 2421597
321.316.5012 22 1 86T ’85-86 1.5 Maxi Sport LS II

322.216.2012 22 1 85C ’85-86 1.5 Cobra
322.216.2012 22 1 86C ’85-86 1.5 Cobra II
349.116.9512 22 4 84s  ’84-84 2.0 Maxi Sport LS to 2421596
349.616.7012 22 4 85   ’85-86 2.0 Maxi
349.616.7012 22 4 86L ’84-86 2.0 Maxi Sport LS from 2421597
321.616.5012 22 4 86T ’85-86 2.0 Maxi Sport LS II

322.116.2012 2285C ’85-86 2.0 Cobra
322.116.2012 22 4 86C ’85-86 2.0 Cobra II




EXHAUST FRONT PIPE right side 1- or 2-speed ∅22 seal ring
000.001.1111
∅P H code years  power  H is # of holes, grey is unsure
345.216.1012 22 1 84A ’84-86 1.5 Austro Daimler (Maxi Plus)
345.216.1012 22 1 84T ’84-86 1.5 Austro Daimler (Maxi Plus) II

345.316.1012 22 4 84A ’84-86 2.0 Austro Daimler (Maxi Plus)
345.416.1012 22 4 84T ’84-86 2.0 Austro Daimler (Maxi Plus) II




EXHAUST FRONT PIPE left side 1- or 2-speed Magnum
000.001.1111
∅P H code  years  power H is # of holes, grey is unsure

321.316.8012 00 0 78K  ’78-78 1.0 Magnum XK
321.316.8012 00 0 79K  ’79-79 1.0 Magnum XK
321.216.8012 25 6 78K  ’78-78 1.5-2.0 Magnum XK
321.216.8012 25 6 79K  ’79-79 1.5-2.0 Magnum XK
321.216.8012 00 0 78M ’78-78 1.0 Magnum MkII
321.216.8012 00 0 79M ’79-79 1.0 Magnum MkII
321.216.8012 00 0 80M ’80-83 1.0 Magnum II
321.216.8012 00 0 80M ’80-83 1.0 Magnum MkII (black)
321.516.8012 25 2 78M ’78-78 1.5 Magnum MkII
321.516.8012 25 2 79M ’79-79 1.5 Magnum MkII
321.516.8012 25 2 80M ’80-83 1.5 Magnum II
321.516.8012 25 2 80M ’80-83 1.5 Magnum MkII (black)
321.416.8012 25 6 78M ’78-78 2.0 Magnum MkII
321.416.8012 25 6 79M ’79-79 2.0 Magnum MkII
321.416.8012 25 6 80M ’80-83 2.0 Magnum II
321.416.8012 25 6 80M ’80-83 2.0 Magnum MkII (black)

Flange angle: The Magnum 9-fin cylinder has an angled exhaust flange, unlike the 7-fin and 8-fin cylinders which have horizontal flanges. So the 9-fin front pipe has a little less curve in it.






10. Sprockets

000.000.0000  teeth 0 code years power  sprocket plain
000.561.1322 13x45T 75   ’75-76 1.0 Maxi-N, Maxi-S, Nostalgic
000.561.1322 13x45T 76   ’76-77 1.0 Rigid, Maxi, Maxi Sport, Newport

349.113.0141 14x45T 75   ’75-76 1.5 Maxi-N, Maxi-S, Nostalgic
349.113.0141 14x45T 76   ’76-77 1.5 Rigid, Maxi, Maxi Sport, Newport
349.113.0161 16x45T 75   ’75-76 2.0 Maxi-N, Maxi-S, Nostalgic
349.113.0161 16x45T 76   ’76-77 2.0 Rigid, Maxi, Maxi Sport, Newport

000.000.0000  teeth 0 code years power  sprocket rubber coated
000.150.1036 11x45T 78   ’78-78 1.0 NY GN, Maxi
000.150.1036 11x45T 78r  ’78-78 1.0 NY Maxi Luxe, Sport, Newport
000.150.1036 11x45T 79   ’79-79 1.0 NY GN, Maxi
000.150.1036 11x45T 79r ’79-79 1.0 NY Maxi Luxe, Sport, Newport
000.150.1036 11x45T 80   ’80-83 1.0 NY Maxi
000.150.1036 11x45T 80r ’80-83 1.0 NY Maxi Luxe
000.150.1036 11x45T 84   ’84-84 1.0 NY Maxi
000.150.1036 11x45T 84r ’84-84 1.0 NY Maxi Luxe
349.113.1132 13x45T 78   ’78-78 1.0 GN, Maxi
349.113.1132 13x45T 78r ’78-78 1.0 Maxi Luxe, Sport, Newport
349.113.1132 13x45T 78s ’78-78 1.0-1.5 Sears Free Spirit
349.113.1132 13x45T
78K ’78-78 1.0 Magnum XK
349.113.1132 13x45T 79   ’79-79 1.0 GN, Maxi
349.113.1132 13x45T 79r ’79-79 1.0 Maxi Luxe, Sport, Newport L
349.113.1132 13x45T 79K ’79-79 1.0 Magnum XK
349.113.1132 13x45T 80   ’80-83 1.0 Maxi
349.113.1132 13x45T 80r ’80-83 1.0 Maxi
349.113.1132 13x45T 81   ’80-82 1.5 Series B

349.113.1132 13x45T 80m 79-82 1.5 Murray 8315, 8415, 8515
349.113.1132 13x45T 84   ’84-85 1.0 Maxi to 7736972
349.113.1132 13x45T 84r ’84-84 1.0 Maxi Luxe
349.113.1142 14x45T 78   ’78-78 1.5 GN, Maxi
349.113.1142 14x45T 78K ’78-78 1.5 Magnum XK
349.113.1142 14x45T 79   ’79-79 1.5 GN, Maxi
349.113.1142 14x45T 79K ’78-78 1.5 Magnum XK
349.113.1142 14x45T 80   ’80-83 1.5 Maxi
349.113.1142 14x45T 84   ’84-85 1.5 Maxi to 7736972
349.113.1142 14x45T 84s ’84-85 1.5 Maxi Sport LS to 2421596
349.113.1152 15x45T 78s ’78-78 2.0 Sears Free Spirit
349.113.1152 15x45T 78L ’78-78 1.5 Maxi Luxe, Sport, Newport L
349.113.1152 15x45T 79L ’79-79 1.5 Maxi Luxe
349.113.1152 15x45T 80L ’80-83 1.5 Maxi Luxe
349.113.1152 15x45T
80m 79-82 2.0 Murray 8320, 8420, 8520
349.113.1152 15x45T 81   ’80-82 2.0 Series B
349.113.1152 15x45T
84s  ’84-85 2.0 Maxi Sport LS to 2421596
349.113.1152 15x45T 84L ’84-84 1.5 Maxi Luxe

349.113.1152 15x45T 85   ’85-86 2.0 Maxi from 7736973

349.113.1162 16x45T 78   ’78-78 2.0 GN, Maxi
349.113.1162 16x45T
78K ’78-78 2.0 Magnum XK
349.113.1162 16x45T 79   ’79-79 2.0 GN, Maxi
349.113.1162 16x45T 79K ’78-78 2.0 Magnum XK
349.113.1162 16x45T 80   ’80-83 2.0 Maxi
349.113.1162 16x45T 84   ’84-85 2.0 Maxi to 7736972
349.113.1162 16x45T 84L ’84-84 2.0 Maxi Luxe
349.113.1162 16x45T 85L ’85-85 2.0 Maxi Luxe
349.113.1162 16x45T
86L ’85-86 1.5-2.0 Maxi Sport LS from 2421597
349.113.1182 18x45T 78t ’78-78 1.0 Sport MkII
349.113.1182 18x45T 78M’78-78 1.0 Magnum MkII
349.113.1182 18x45T 79t ’79-79 1.0 Sport MkII, Maxi II
349.113.1182 18x45T 79M’79-79 1.0 Magnum MkII
349.113.1182 18x45T 80t  ’80-83 1.0 Sport MkII, Newport II
349.113.1182 18x45T 80M’80-82 1.0 Magnum MkII
349.113.1182 18x40T 80M’80-81 1.0 Magnum II
349.113.1182 18x45T 84t  ’84-84 1.0 Sport MkII, Newport II
349.113.1182 18x45T 85t  ’85-85 1.0 Sport MkII, Newport II

349.113.1182 18x40T 78T ’78-78 1.5-2.0 Sport MkII
349.113.1182 18x40T 78M’78-78 1.5-2.0 Magnum MkII
349.113.1182 18x40T 79T ’79-79 1.5-2.0 Sport MkII
349.113.1182 18x40T 79T ’79-79 1.5-2.0 Maxi II
349.113.1182 18x40T 79M’79-79 1.5-2.0 Magnum MkII
349.113.1182 18x40T 80T ’80-83 1.5-2.0 Sport MkII, Newport II
349.113.1182 18x40T 80M’80-82 1.5-2.0 Magnum MkII
349.113.1182 18x40T 80M’80-81 1.5-2.0 Magnum II
349.113.1182 18x40T 84T ’84-84 1.5-2.0 Sport MkII, Newport II
349.113.1182 18x40T 85T ’85-85 1.5-2.0 Sport MkII, Newport II
349.113.1182 18x40T 86T ’85-86 1.5-2.0 Maxi Sport LS II









This is the old version that has been replaced.
