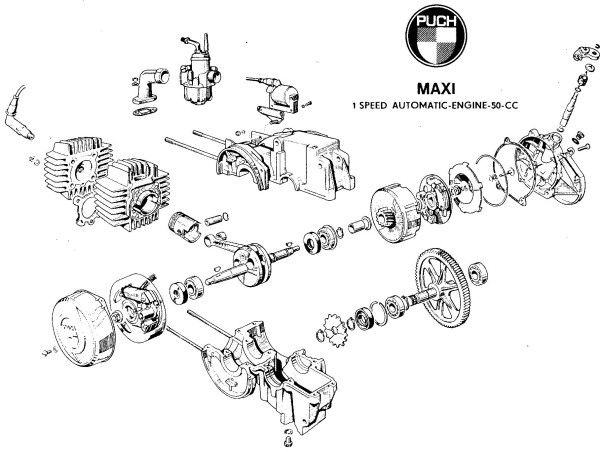

Puch 1 speed automatic



8 Puch parts catalogs, for USA 1-speed models, are combined here, using 8 quantity columns. Two speed models are in a separate section below.

Price: The price is colored green for new and dark green for good-used. Price is for each.

Quantity: The quantity is how many of each item are specified in that catalog and parts group. The quantity is colored black if that part is for all 1-speed models in that catalog with that speed version, or light blue if it’s for most or some.

6.  Jul 76 Maxi-N, Maxi-S, Nostalgic

7. Oct 76 Rigid, Maxi, Maxi Sport, Newport

8. Mar 78 GN, Maxi, Maxi Luxe, Sport, Newport

9. Jan 79 GN, Maxi, Maxi Luxe, Sport, Newport L

0. Jan 80 Maxi, Maxi Luxe

1. Apr 81 Series B

4. Jan 84 Maxi, Maxi Luxe, Maxi Sport LS

5. Jan 85 Maxi, Maxi Luxe, Maxi Sport LS

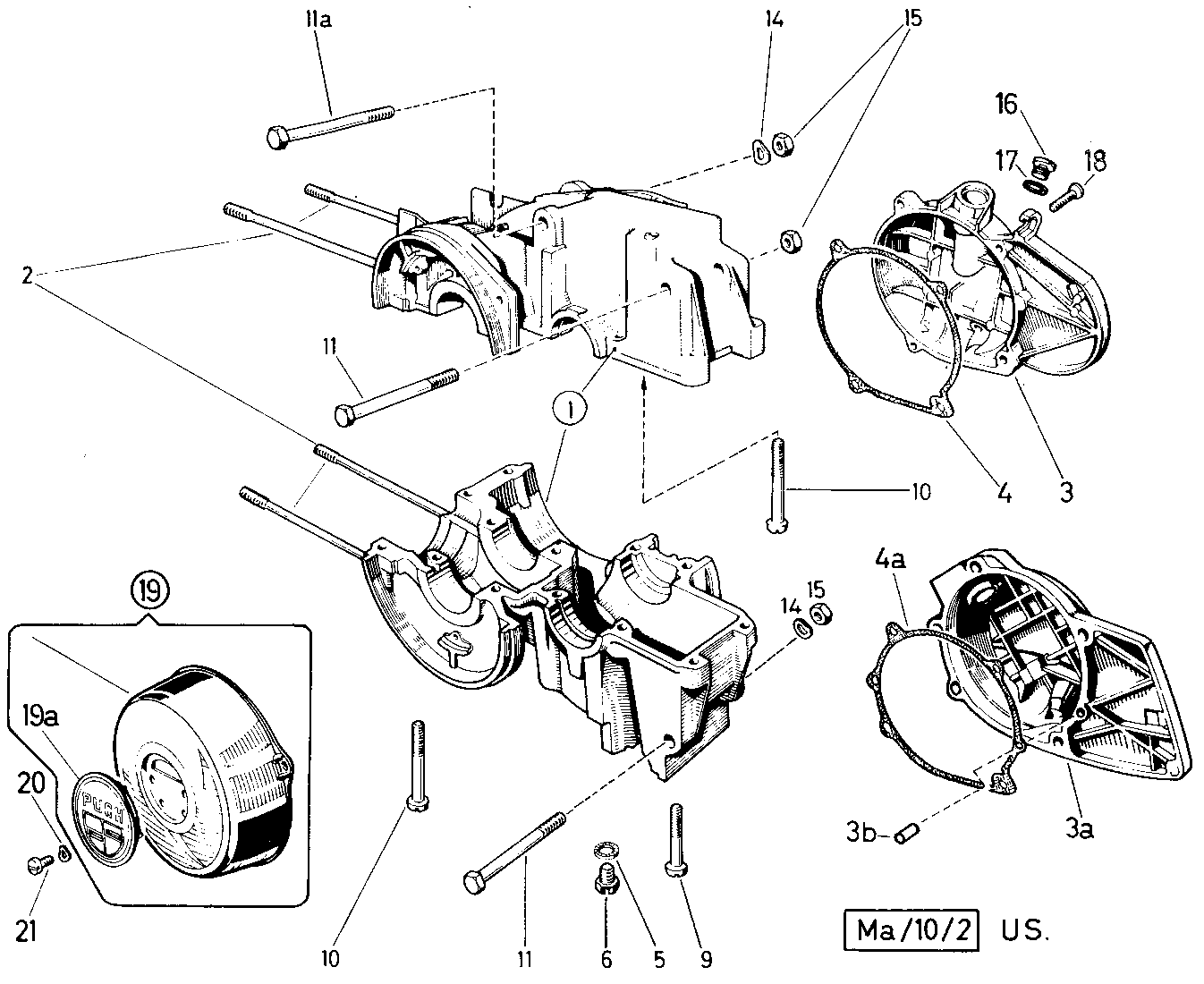

A. Case Parts Group

fig    catalogs
fig   6789 0145    Puch part#    price
   A. Case Parts Group
1    1100 0000  349.110.8320 none  case set ’76-77
1    0010 0000  349.110.4320 none  case set ’78 Newport oil injection
1    0011 1111  349.110.3320 none  case set ’78-86
2    4444 4444  360.110.0341 $4.00 cylinder stud M6 x 103 (105)
3    1000 0000  349.310.3351 $0.00 clutch cover bare early
3    1111 1111  349.510.3351 $0.00 clutch cover bare
3    0010 0000  349.210.4351 $0.00 clutch cover Newport oil inject.

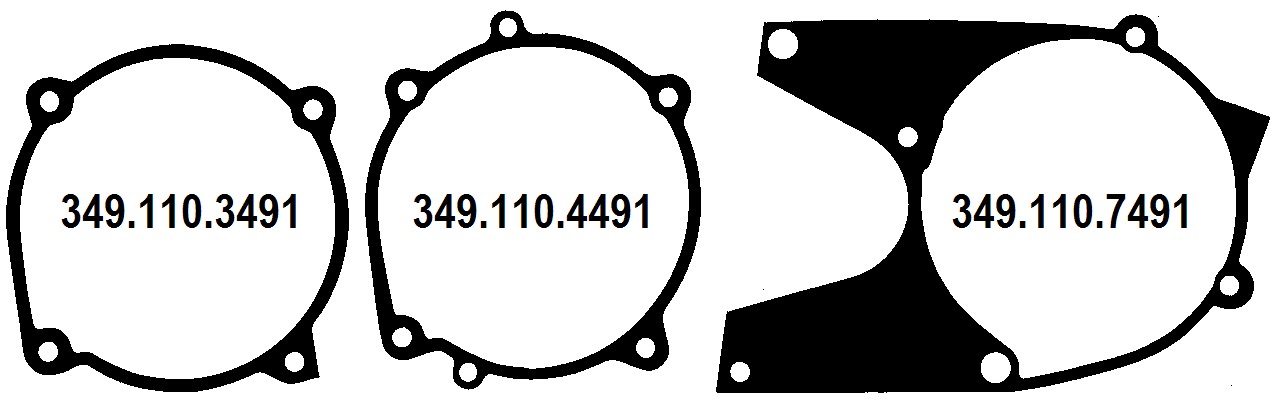

4    1111 1111  349.110.3491 $5.00 clutch cover gasket
5    1111 1111  00000  26482 $1.00 drain seal washer A8 x 14
6    1111 1111  000 901.1053 $2.00 drain plug M8 x 10 hex
7    2200 0000  00000  24365 $1.00 case drain seal washer A6 x 12
8    2200 0000  000 900.1305 $0.50 case drain screw M6 x 9
9    8888 8888  000 900.1216 $0.70 case screw M6 x 30 cheese-slot
10  5555 5555  000 900.1308 $1.00 case screw M6 x 50 cheese-slot
11  2222 2222  000 901.1001 $1.00 rear mount bolt M8-1.0 x 75 for all others
11  2222 0000  000 900.1162 $1.00 rear mount bolt M8-1.0 x 80 for hard tail
11a 1111 1111  000 901.1002 $1.00 front mount bolt M8-1.0 x 90
14  2222 2222  000 900.3211 $0.30 rear mount lock washer B8
15  2222 2222  000 902.2021 $0.60 rear mount nut M8-1.0 plain
15  1111 1111  000 902.2914 $1.50 front mount nut M8-1.0 nylock
16  1111 1111  364.110.6601 $3.00 oil filler plug M10
17  1111 1111  00000  27071 $1.50 filler seal washer M10 x 14
18  4440 0000  000 900.9460 $1.50 cover screw M6 x 25 dome-sunk-slot
18  0010 0000  000 900.9460 $0.00 ’78 Newport with oil injection
18  0004 4444  D00.966.0082 $1.50 cover screw M6 x 25 dome-sunk-phil
18  0030 0000  D00.966.0022 $0.00 ’78 Newport with oil injection
19  1111 0000  349.210.0342 $0.00 magneto cover chrome/grey
19  1111 1111  349.410.0342 $0.00 magneto cover black/green-gold
19  0001 1111  349.710.0342 $0.00 magneto cover chrome/black

19a 1111 0000  349.110.0361 $0.00 plastic panel grey
19a 1111 1111  349.210.0361 $0.00 plastic panel green-gold
19a 0001 1111  349.410.0361 $0.00 plastic panel black
20  2222 2222  000 900.3202 $0.40 lock washer A4
21  2222 2200  000 900.1509 60-40 cover screw M4 x 10 slot
21  0000 0022  000 900.1509 60-40 cover screw M4 x 10 phil

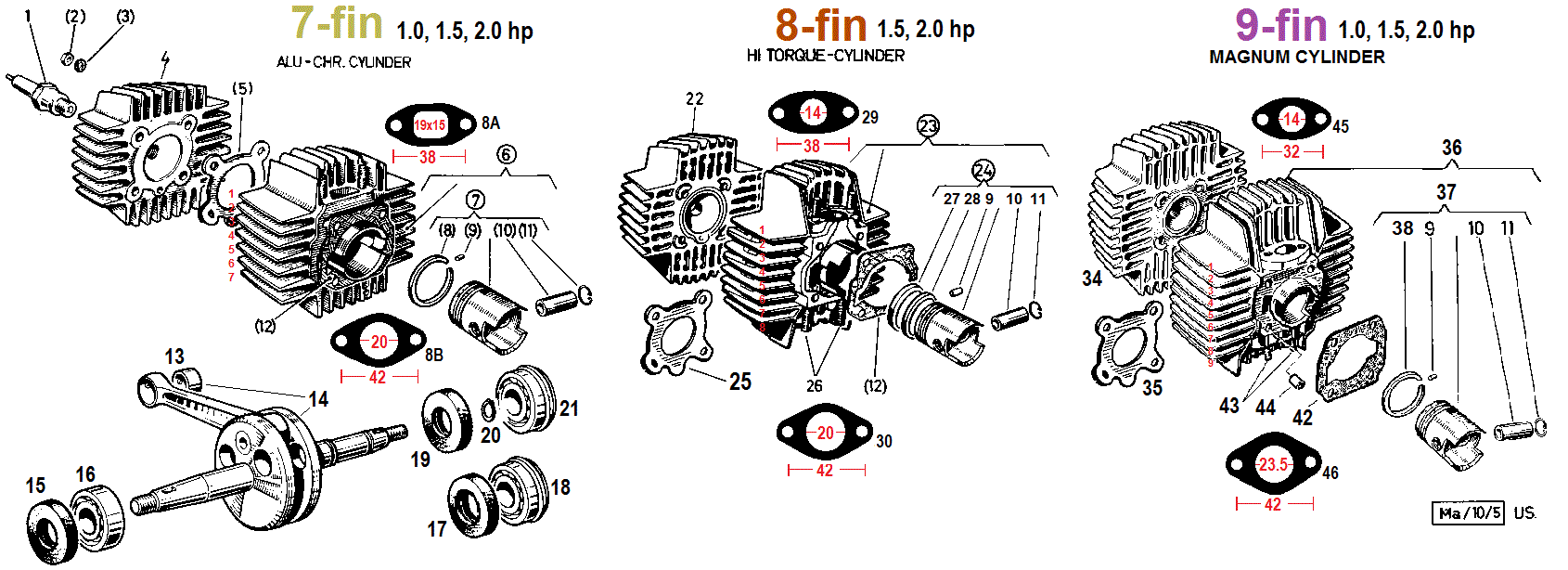

B. Cylinder Parts Group

fig  catalogs 00 cylinders include pistons
fig 6789 0145   Puch part#    price
   B. Cylinder Parts Group
1   1100 0000 000 902.0728 $3.50 spark plug for 1.0 hp versions
1   1100 0000 000 902.0728 $0.00 Bosch W95T1=W10AC=NGK B4H
1   1100 0000 000 902.0726 $3.50 spark plug for 1.5 hp versions
1   1100 0000 000 902.0726 $0.00 Bosch W145T1=W8AC=NGK BR5HS
1   1100 0000 000 902.0724 $3.50 spark plug for 2.0 hp versions
1   1100 0000 000 902.0724 $0.00 Bosch W175T1=W7AC=NGK BR6HS
2   4444 4444 000 900.2014 $0.30 head nut M6
3   4444 4444 000 00 24804 $0.20 head washer 6
4   1111 1111 349.410.0011 $25.0 7-fin head
4   0011 1011 349.210.2011 none  7-fin head black
5   1111 1011 328.110.8041 $00.0 7-fin head gasket 1.5 mm 1.0 hp
5   1111 1111 328.110.0041 $00.0 7-fin head gasket 0.4 mm 1.5-2.0
6   1111 1011 349.810.0050 $00.0 7-fin cylinder 1.0 hp
6   0011 1011 349.310.2050 none  7-fin cylinder 1.0 hp black
6   1111 1111 349.110.0050 $00.0 7-fin cylinder 1.5-2.0
7   1100 0000 349.110.0060 none  7-fin piston 1.0 hp use 0069
7   1100 0000 349.110.1060 none  7-fin piston 1.5-2.0 use 1069
7   0011 1111 349.110.0069 $00.0 7-fin piston 38.00 x 12-17-26 1.0 hp
7   0011 1111 349.110.1069 $00.0 7-fin piston 38.00 x 12-17-21 1.5-2.0
8U 1111 1111 331.110.1601 $$9.0 upper piston ring 38.0 x 2.0 GN
8L 1111 1111 331.110.1601 $$9.0 lower piston ring 38.0 x 2.0 GN
8b 0011 1111 328.110.9601 $10.0 8-fin upper L-ring 38.0 x 2 L
9   2222 2222 000 900.4855 none  ring gap pin ∅2 x 6
10 1111 1100 331.110.0111 $12.0 piston pin ∅12 x 31
10 0000 0011 349.110.1111 none  piston pin ∅12 x 31
11 2222 2222 000 901.4701 $1.50 piston clip B12
12 1111 1011 349.310.0131 $00.0 base gasket 0.5 mm for 1.0 hp
12 1111 1111 349.110.0131 $00.0 base gasket 1.0 mm for 1.5-2.0
13 1111 1111 349.110.0211 $4.00 bushing 11.55 14.03 12.0 see note 1
13 1111 1111 349.110.0213 none  bushing 11.98 14.03 12.0 see note 1
14 1111 1100 349.110.1150 $00.0 ’75-83 crankshaft ∅17-22-17
14 0000 0011 349.310.1150 none  ’84-86 crankshaft ∅17-17-17

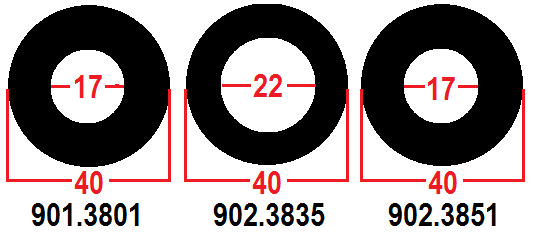

15 1111 1100 000 901.3801 $7.00 left crank seal 17-40-7
15 0000 0011 000 902.3851 $9.00 left crank seal 17-40-7TC
16 1111 1111 000 900.6203 $8.00 left crank bearing 6203-C3
17 1111 1100 000 902.3835 $9.00 ’75-83 right crank seal 22-40-7
18 1111 1100 000 900.6233 $10.0 ’75-83 right crank bearing 6203NR
19 0000 0011 000 902.3851 $9.00 ’84-86 right crank seal 17-40-7TC
20 0000 0011 000 900.4617 $2.00 ’84-86 retaining ring 17 x 1
21 0000 0011 000 900.6254 $10.0 ’84-86 right crank bearing 6203NR
22 0011 1000 349.310.4011 $30.0 8-fin head black
22 0000 0011 349.310.4011 none  8-fin head black 2.0
22 0000 0011 349.810.4011 none  8-fin head black 1.5
22 0000 0001 349.110.4011 none  8-fin head silver
23 0010 0000 349.310.4050 none  8-fin cylinder black use 610.4050
23 0001 1010 349.610.4050 $00.0 8-fin cylinder black use 210.6050
23 0000 0001 349.210.6050 $00.0 8-fin cylinder black
23 0000 0001 349.110.6050 none  8-fin cylinder silver
24 0011 1111 349.210.5069 $00.0 8-fin piston 38.00 x 12-17-23
25 0011 1111
328.110.8041 $00.0 8-fin head gasket 1.5mm for 1.5 hp
25 0000 0011 349.110.0041 $00.0 8-fin head gasket 0.4mm for 2.0 hp
26 0022 2222 000 901.1912 $00.0 8-fin exhaust stud M6 x 18

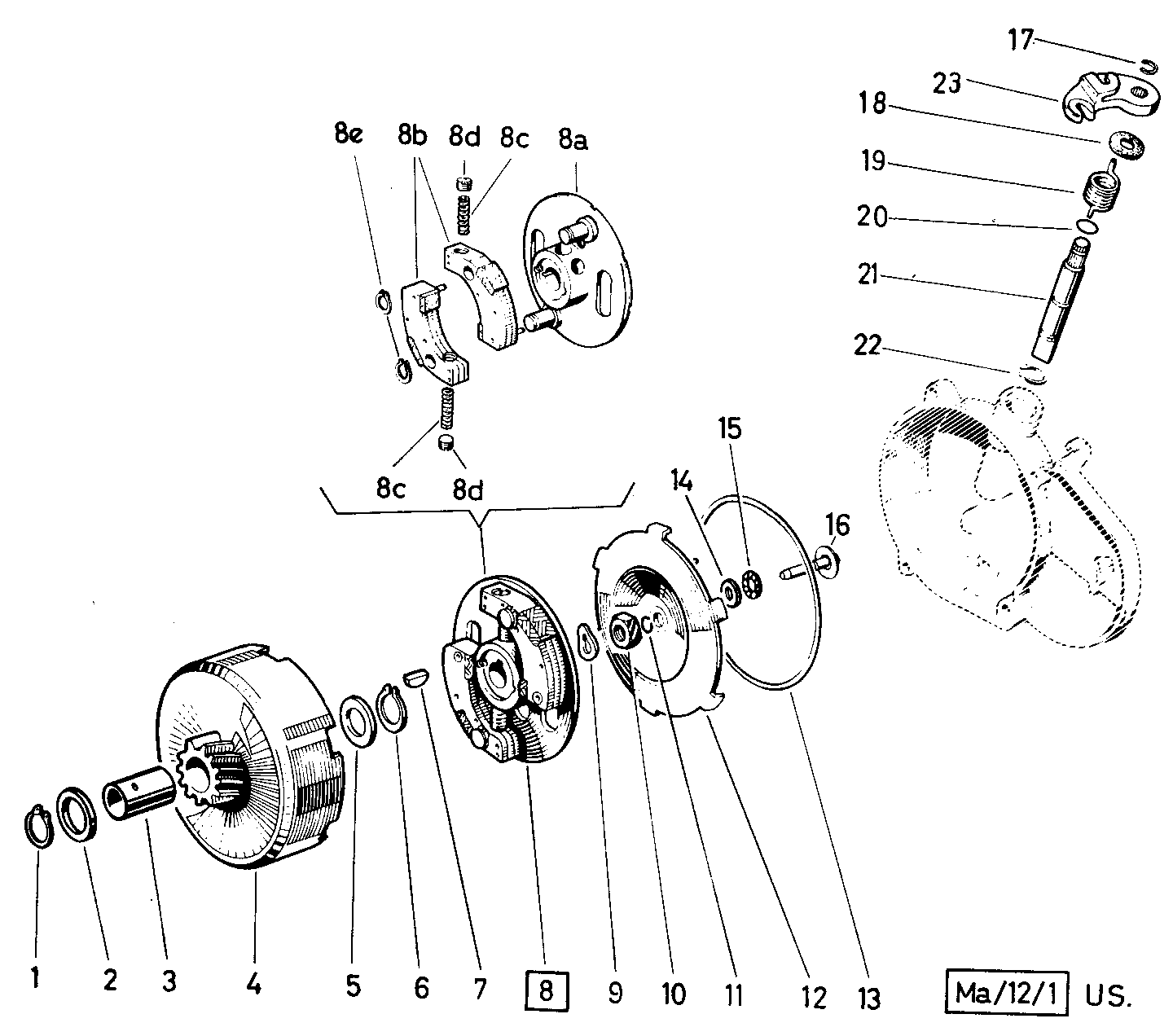

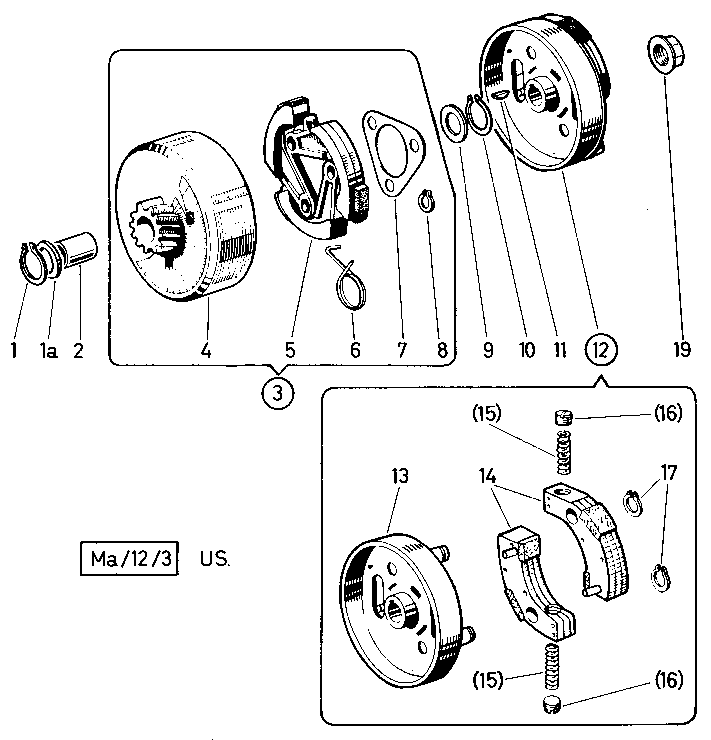

C. Clutch Parts Group

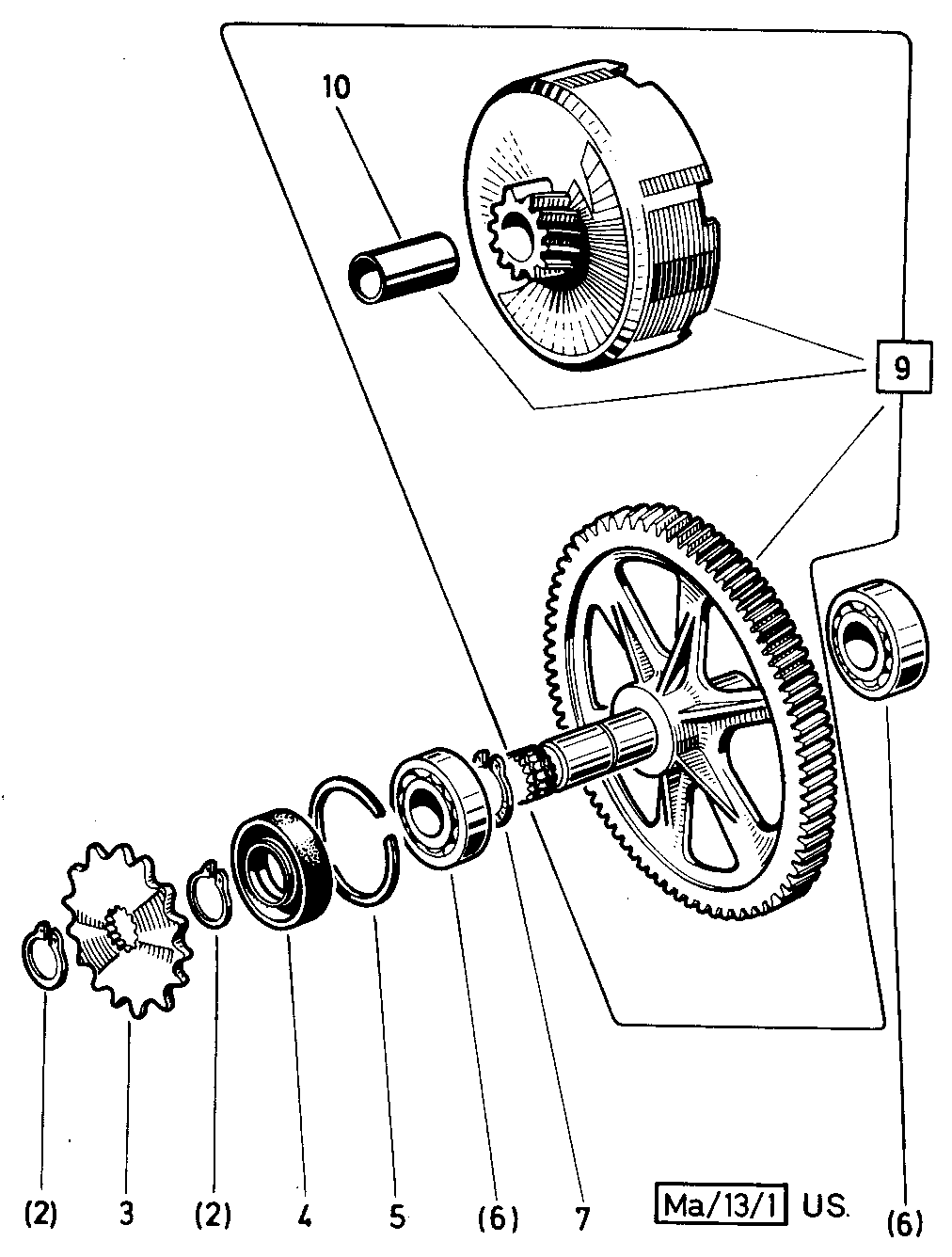

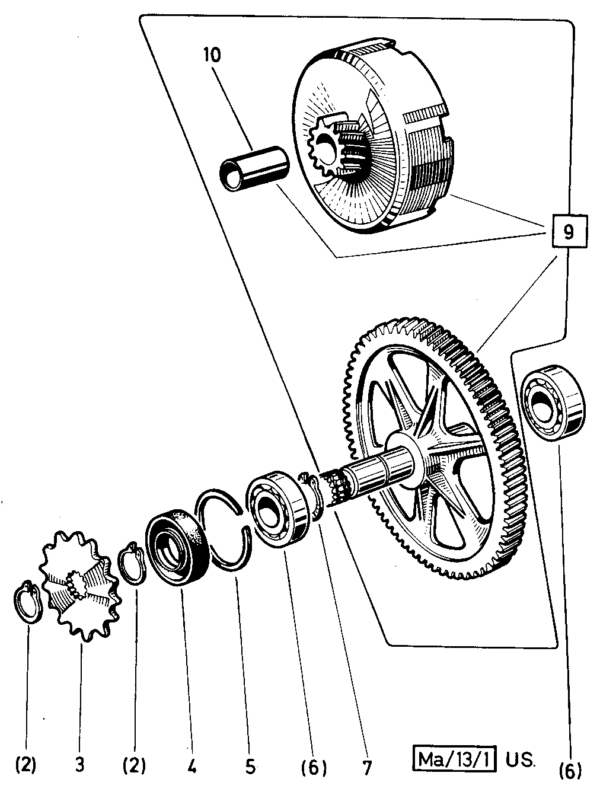

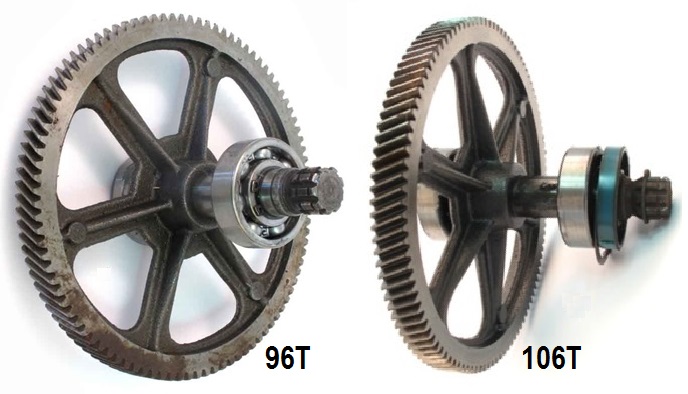

D. Driveshaft Parts Group


fig qty  Puch part#  price
1    1  000.000.0000 $0.00 x
2    1  000.000.0000 $0.00 x
3    1  000.000.0000 $0.00 x
4    1  000.000.0000 $0.00 x












Puch 2 speed automatic





Info Puch 2-speed Engine



Puch 2-speed shift cushions decomposed

All of the polyurethane “pucks” or “shift cushions” on Puch 2-speed automatic engines decompose after 20 or 30 years. If you drive one with decomposed or missing cushions, during the shift it can chatter and shake the bike. This can cause the gears to have broken teeth, a disaster. Every old 2-speed should have new pucks before being rode after years of sitting. They are oil-resistant rubber disks about the size of a quarter.
