Minarelli V1

August 26, 2012

The Minarelli V1 moped engine was used on US-models made by Cimatti, Gitane, Testi, Concord, Motron, Fantic, General, AMF, Baretta, Gadabout, Motomarina, Safari and others. It is well made, performs good, and is easy to work on.

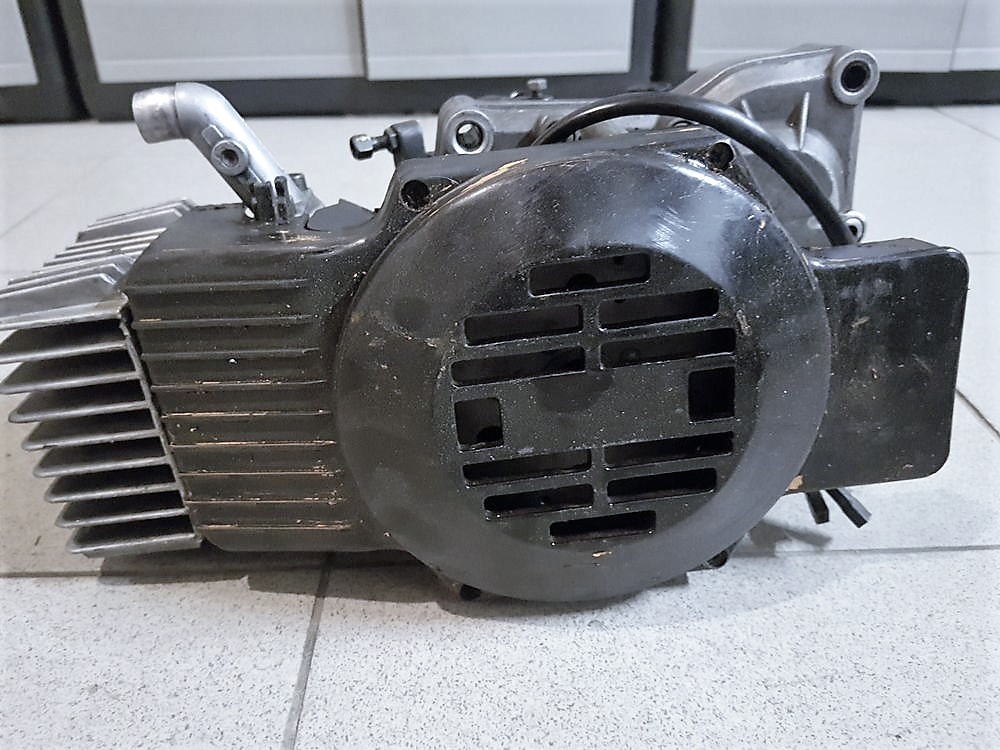

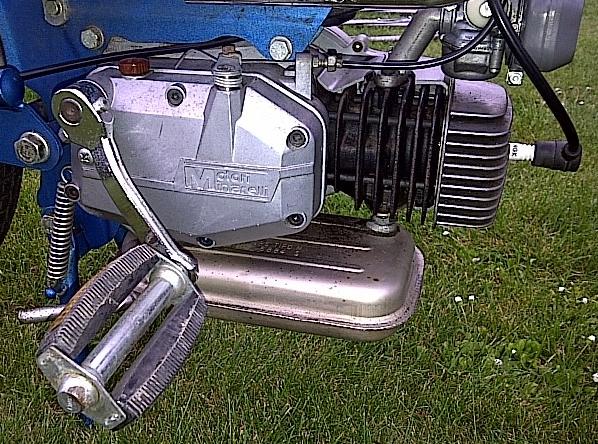

Minarelli V1 engine

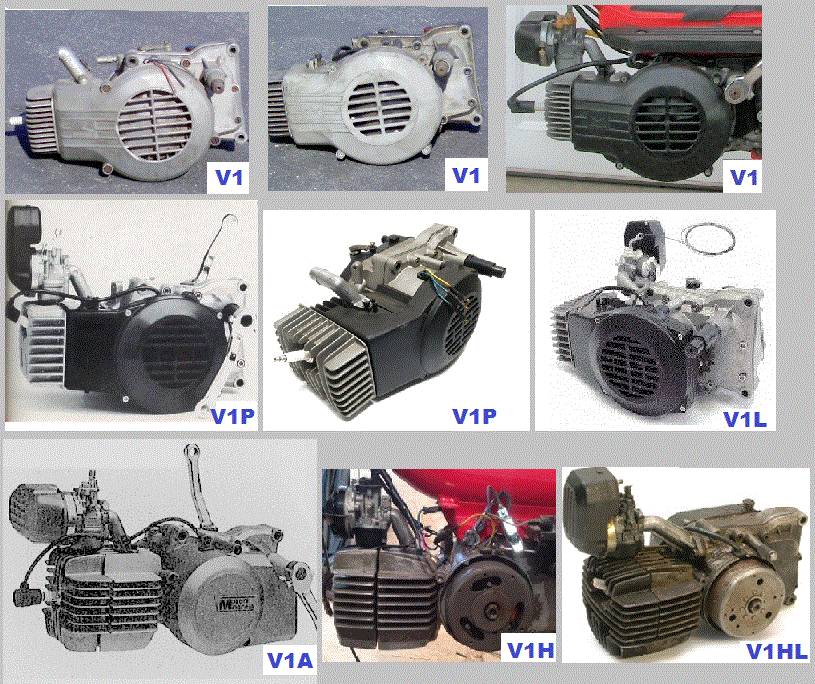

000. V1      years   cylinder   Minarelli V1 Engines:
1. V1, V1N ’69-77  iron with metal unpainted fan shroud
1. V1      1977-80  iron with plastic (grey or black) fan shroud
2. V1A    1977-80? aluminum cylinder with no cooling fan
3. V1P    1979-86  iron, late black fan shroud, square head

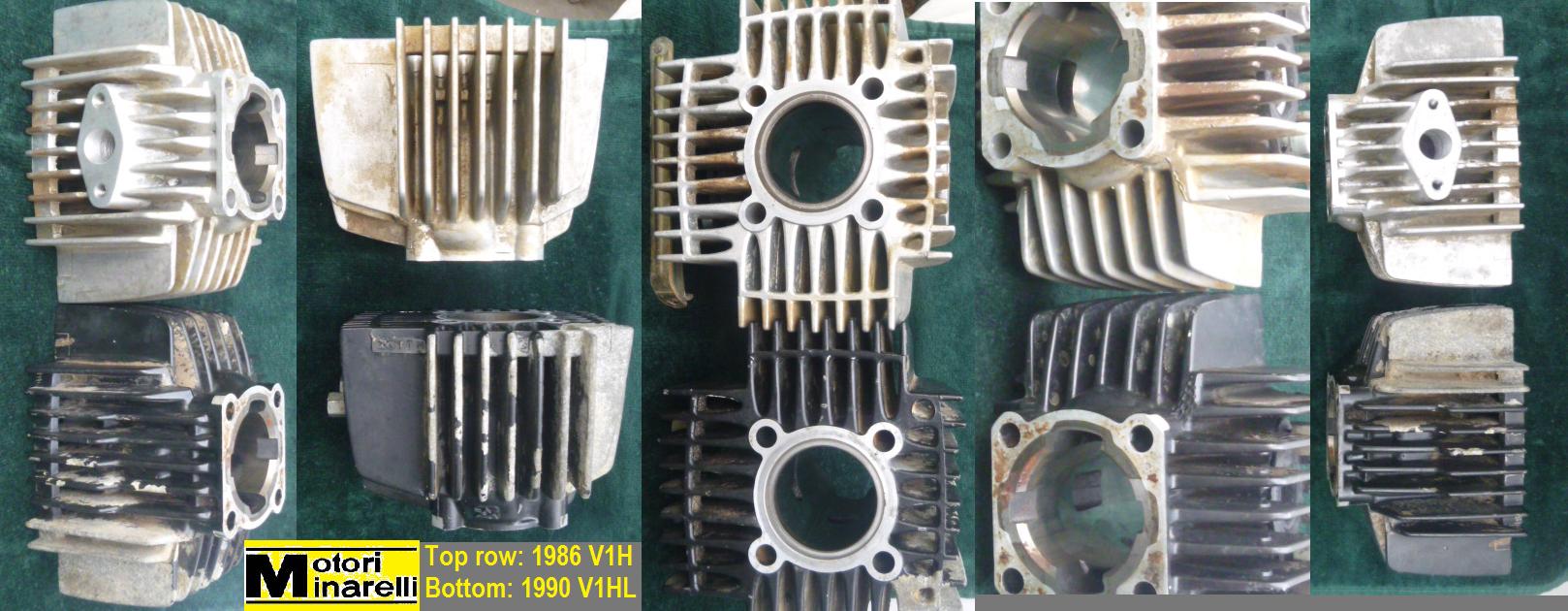

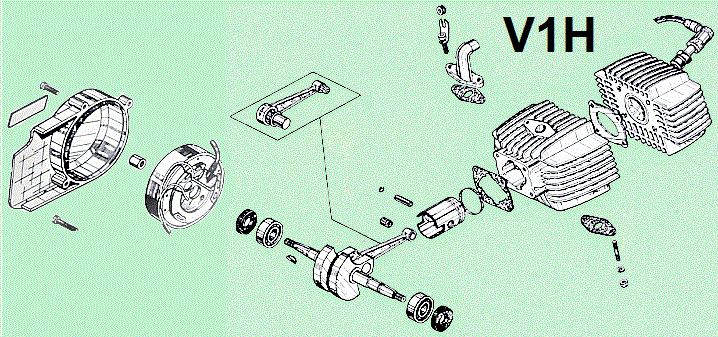

4. V1H    1982-87  aluminum cylinder with no cooling fan

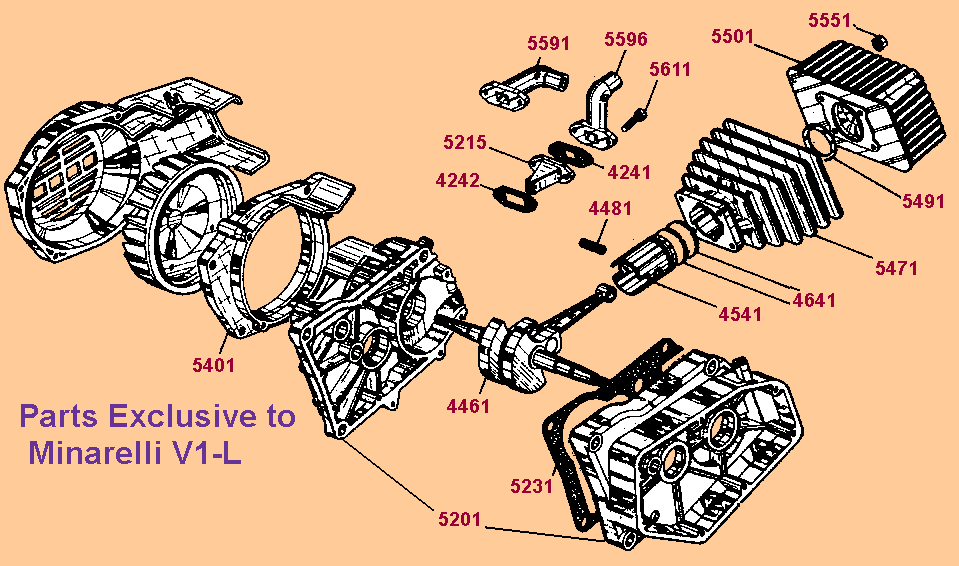

5. V1L    1987-89  iron with case reed valve, fan cooled
6. V1HL  1988-90  aluminum case reed, no cooling fan
7. V1-KS 1973-80  V1 kick start

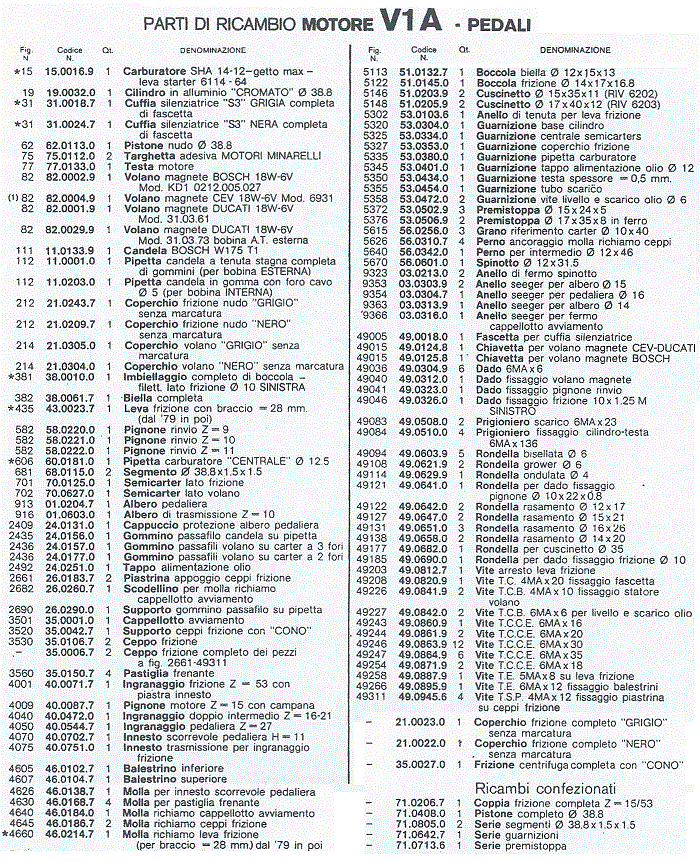

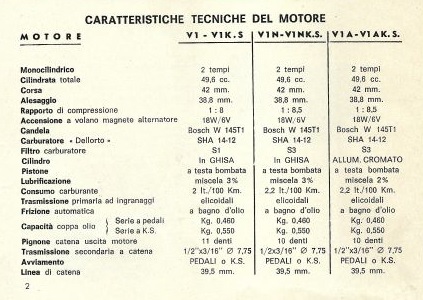

1978 Minarelli V1 Owners Manual has six versions, V1, V1N, V1A, each with pedals or kick start.

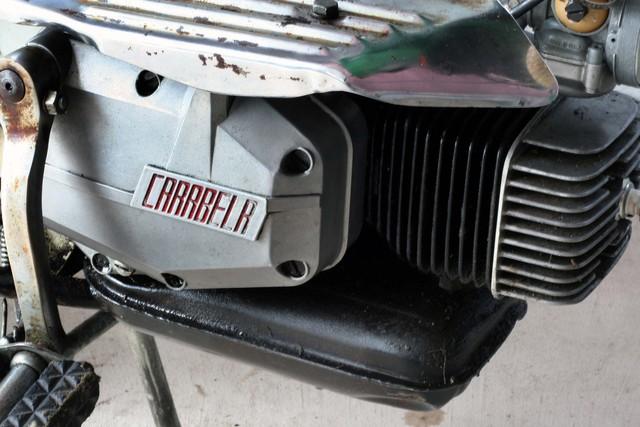

Carabela Motomatic (49cc pedal) and Carabela Carerra (top tank, 60cc kickstart) moped engines were remakes of early-70’s Minarelli V1. They were made in Naucalpan Mexico, by Acer Mex S.A. under license from Minarelli. The left case #702 is for the bigger 94mm stator plate and metal fan covers. The driveshaft #916 on the right end and drive clutch #4075 have 12mm flat sides instead of 10mm. It has the ’70-78 stub-plane clutch with a ’77-78 castle nut. The start cable has a different stop piece.

Carabela Engine

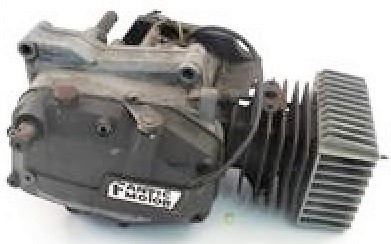

Fantic mopeds made in Italy had Minarelli engines with different engine covers that said Fantic. This is a Minarelli V1P-Fantic. The fan cover, and fan base are different from Minarelli ones. The screw holes are in different places.

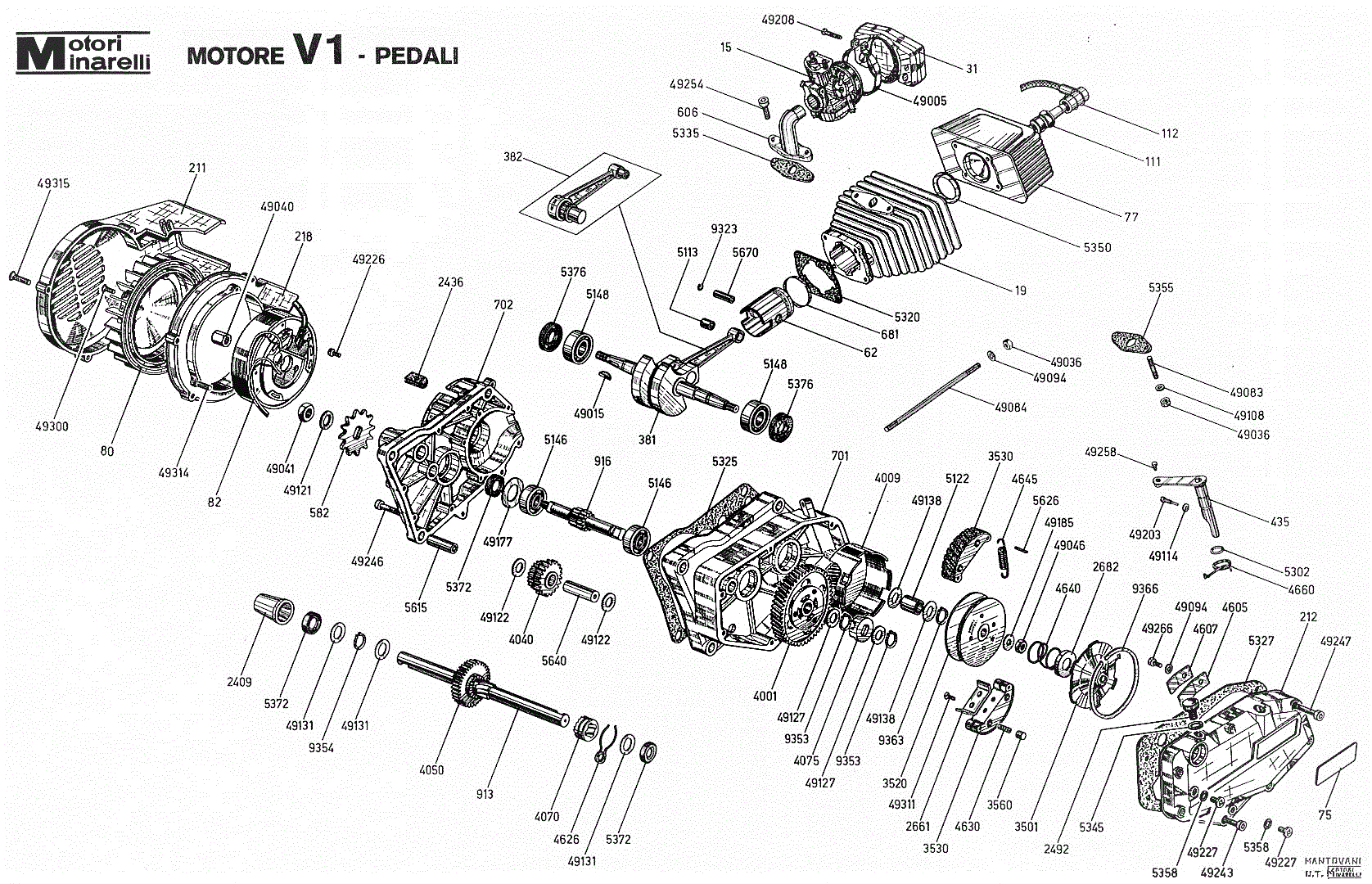

1. 1969-80 Minarelli V1

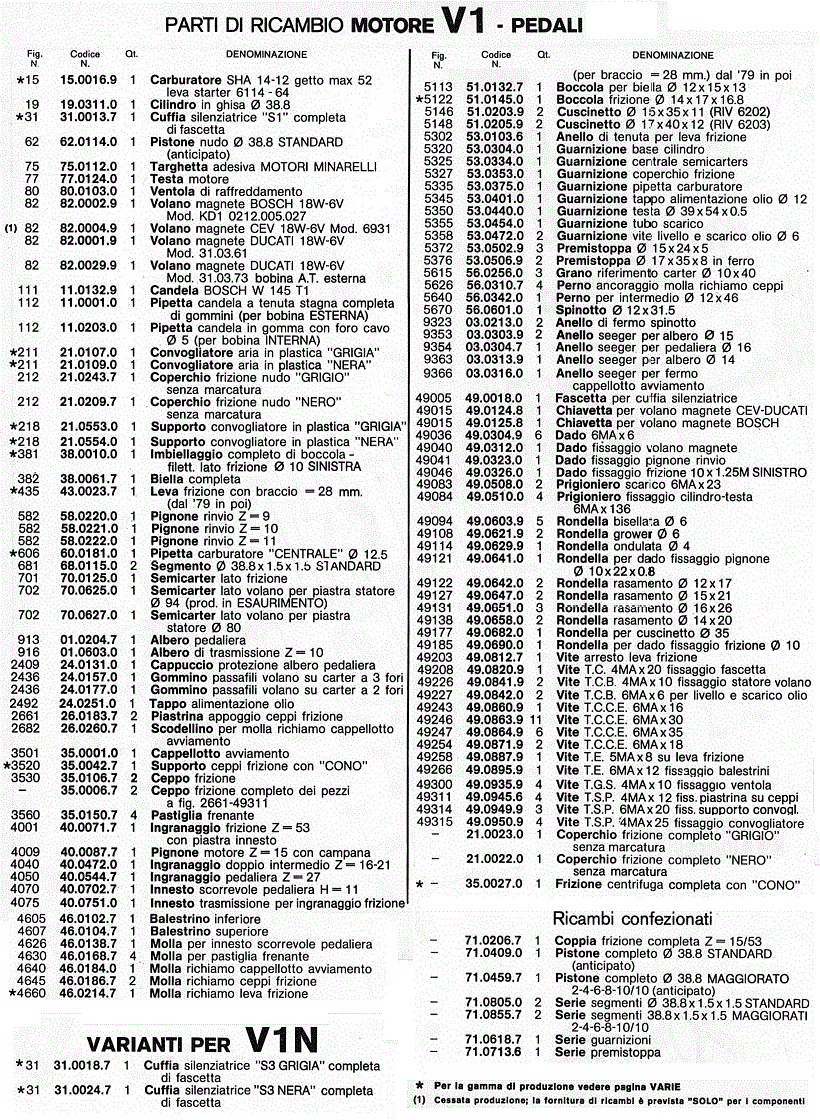

This V1 parts list is for the version sold in Italy.

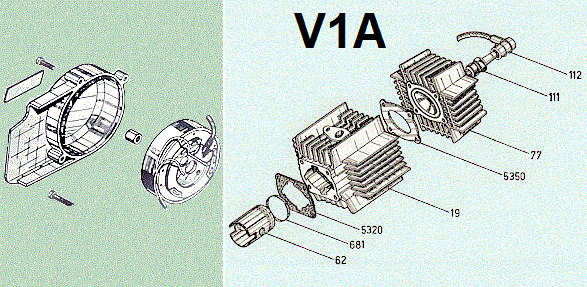

Minarelli V1 (1969-80)

Carburetors Dellorto, short choke lever
figure Minarelli# qty MMI# price  description
00  15 15.0010.9 1 5640  none  SHA14/9   jet 47  US 1.0 hp
00  15 00.0000.0 1 5640  none  SHA14/9   jet 49  US 1.5 hp
00  15 15.0016.9 1 0000  none  SHA14/12 jet 52  V1, V1A use 15.0024.9
00  15 15.0024.9 1 5650 $70.0 SHA14/12 jet 52  US 2.0 hp
0015 15.0000.6 1 0000 $0.00 ∅18 sleeve, no air cover, no cable pipe
15105 15.0360.6 1 6360 $5.00 6109 fuel filter
15130 15.0410.6 1 6380 $5.00 1486/52 main jet #52
15130 15.0410.6 1 6380 $7.00 1486/49 main jet #49
15130 15.0410.6 1 6380 $7.00 1486/47 main jet #47
15170 15.0490.6 1 6430 $2.00 6123 float gasket
15255 15.0601.6 1 6530 $7.00 9249 inlet banjo black plastic angled out
15300 15.0701.6 1 6550 $10.0 2838 float needle
15000 15.0000.6 1 0000 $0.00 for full list see Carb/Dellorto/SHA14

Cylinders

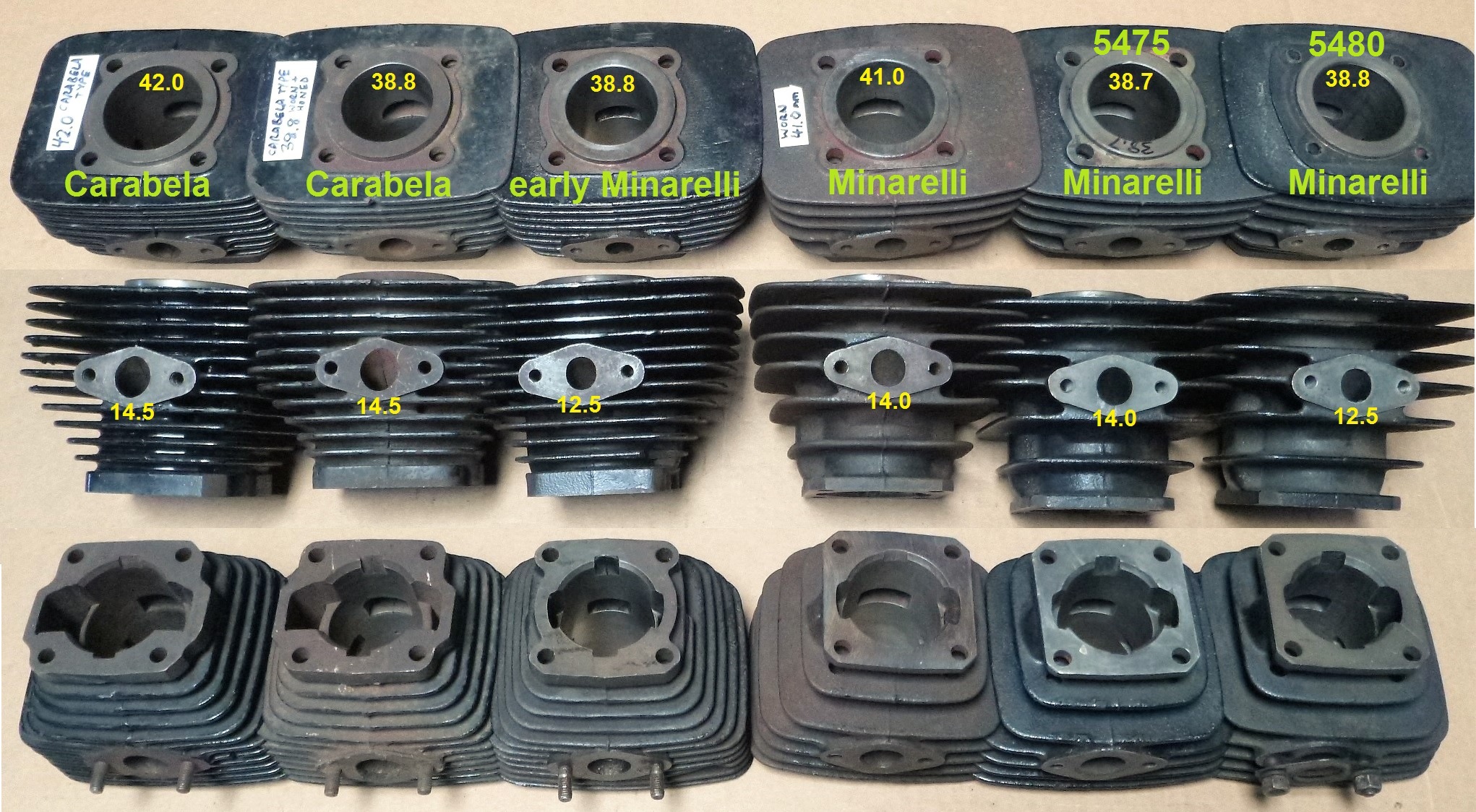

figure Minarelli# qty MMI# price bore fins intake years  version
0
19/1 19.0300.0 1 0000  none  42.0 C 11 14.5 ’76-80 Carabela 59cc
019/2 19.0300.0 1 0000  none  38.8 C 11 14.5 ’76-80 Carabela 49cc
019/3 19.0311.0 1 5480  none  38.8    11 12.5 ’76-77 V1-US 1.5-2.0
019/0 19.0312.0 1 5470  none  38.0    11 12.5 ’76-85 V1-US 1.0 hp
019/6 19.0300.0 1 5480  none  38.8      6 12.5 ’77-79 V1-US 1.5-2.0
019/4 19.0300.0 1 0000  none  41.0 P   6 14.0 ’79-85 V1P-55
019/0 19.0320.0 1 0000  none  38.8 P   6 14.0 ’79-85 V1P
019/5 19.0323.0 1 5475  none  38.7 P   6 14.0 ’79-85 V1P-US

Air Covers


00031 31.0013.7 1 5660 $32.0 air cover bare S1 Minarelli grey
00031 31.0025.7 5660M $15.0 air cover bare S1 Minarelli black
0 31/1 31.0018.7 1 0000 none  air cover bare S3 F44 grey (V1N)
0 31/1 31.0024.7 1 6670 $11.0 air cover bare S3 F44 #8603 blk (V1N)
0 31/2 31.0021.7 1 6660 none  air cover bare S33 grey use F44
0 31/2 31.0026.7 1 0000 none  air cover bare S33 #8602 blk. use F44
0 31/3 31.0023.7 1 5660 $25.0 air cover-clamp S4 Min. grey used

Piston Kits
00062 71.0405.0 1 4500 $65.0 piston kit Ø38.0 (US 1.0 hp)
00062 71.0406.0 1 4535  none  piston kit Ø38.7 (US ’78-85)
00062 71.0410.0 1 4540 none  piston kit 38.8 (US ’75-78)
00062 71.0410.0 1 4540 none  piston kit 38.8 GOL 0034

00062 71.0460.7 1 4550 $73.0 piston kit Ø39.0 (1st oversize)
00062 71.0460.7 1 4560 none  piston kit Ø39.2 (2nd oversize)
00062 71.0460.7 1 4570 $73.0 piston kit Ø39.4 (3rd oversize)

Heads and Fans
00077 77.0124.0 1 5500 $39.0 cylinder head round ’69-80 V1 used
00080 80.0103.0 1 5410 $40.0 fan early ∅103 id ’69-80 V1

Magnetos
figure Minarelli# qty MMI# price  description            stator  wires
00082 82.0001.9 1 0000  none  Ducati 31.03.61 mag. ∅80 Ο
00082 82.0002.9 1 0000  none  Bosch 0212.005.027  ∅80 Ο♦
00082 00.0000.0 1 0000  none  CEV 6861 magneto    ∅94 Ο USA
00082 00.0000.0 1 5340  none  CEV 6876 magneto    ∅94 Ο USA
00082 00.0000.0 1 0000  none  CEV 6923 magneto    ∅94 Ο
00082 82.0004.9 1 0000  none  CEV 6931 magneto    ∅80 Ο
00082 00.0000.0 1 0000 $295  CEV 6940 magneto    ∅94 Ο USA
00082 82.0029.9 1 0000  none  Ducati 31.03.73 mag. ∅80 Ο
00082 82.0033.9 1 5360 $280  CEV 6932 magneto    ∅80 Ο USA
00082 00.0000.0 1 5350  none  Bosch 0212.010.005  ∅80 Ο USA

Spark Plugs
00111 11.0133.9 1 5510 $3.50 spark plug W175T1=W7A=BR6HS
00112 11.0202.0 1 5520 $6.00 spark plug cap for ∅7 wire
00112 11.0001.0 1 0000 $8.00 plug wire & cap ∅7 x 600 for external coil
00112 11.0203.0 1 0000 $9.00 plug wire & cap ∅5 x 600 for internal coil

Covers

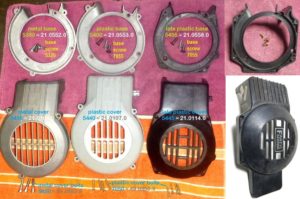

00211 21.0106.0 1 5430 none  fan cover V1 ’69-77 metal used
00211 21.0107.0 1 5440 none  fan cover V1 ’77-80 plastic grey
00211 21.0109.0 1 5442 none same but black


figure Minarelli# qty MMI# price  description

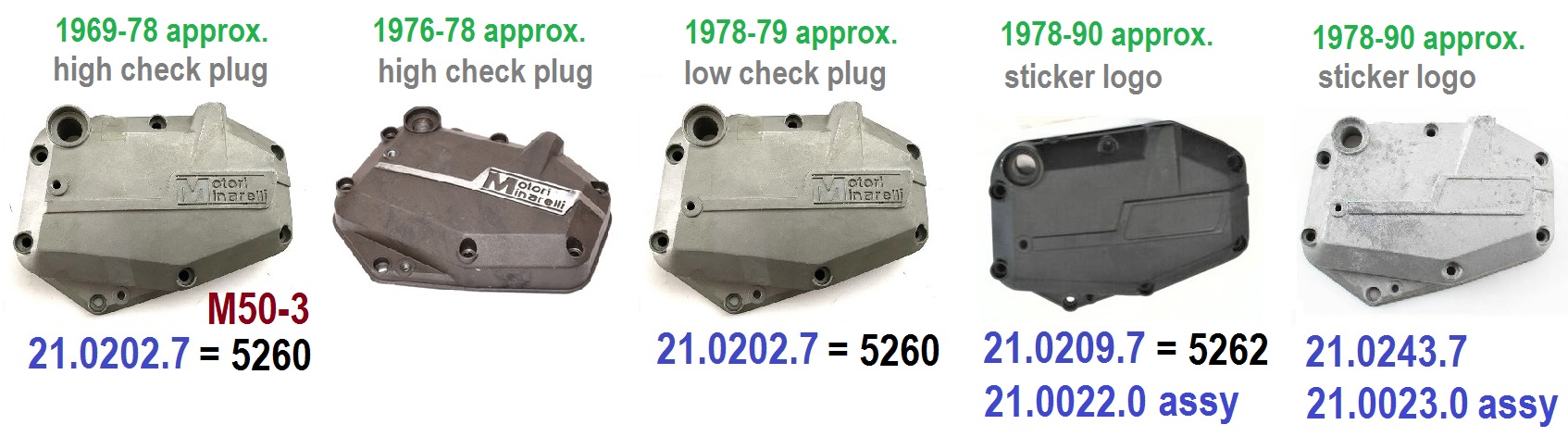

00212 M50-3 00  1 5260 45-30clutch cover bare, high check plug
00
212 21.0202.7 1 5260 50-35 clutch cover bare, low check plug
00212 21.0000.0 0000 $35.0 clutch cover bare, says Carabela
00218 M50-4 00  1 5390 $35.0 fan cover base metal 2-bolt for 5430
00218 21.0552.0 1 5395  $40.0 fan cover base metal 3-bolt for 5430
00218 21.0553.0 1 5400 $40.0 fan cover base plastic 3-bolt for 5440
00218 21.0554.0 1 5402  none  same but black
00000 21.0022.0 1 5260  none  clutch cover assy grey no logo
00000 21.0023.0 1 5262  none  clutch cover assy black no logo
00000 24.0156.0 1 5630  none  grommet for plug wire guide
00000 26.0290.0 1 5620  none  guide for spark plug wire

Shafts

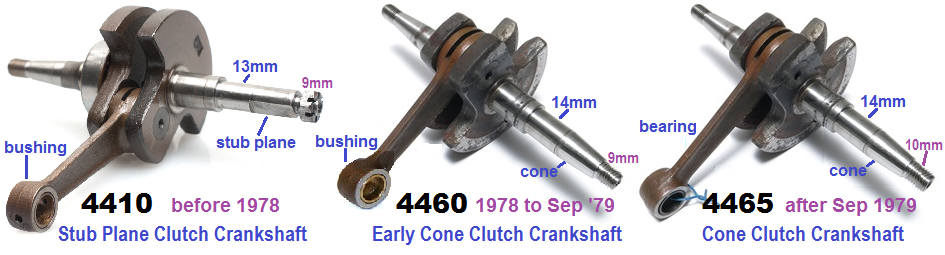

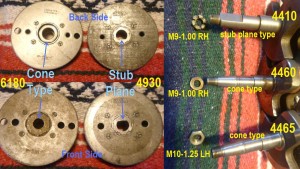

00381 38.0003.0 1 4410 $80.0 stub plane crank M9-1.0 RH (pre-’78)
00000 00.0000.0 1 4465  none  (rod end Ø14.95 x 13 for bushing)
00381 38.0008.0 1 4460 $95.0 cone type crank M9-1.0 RH (’78-9/79)
00000 00.0000.0 1 4465  none  (rod end Ø14.95 x 13 for bushing)
00381 38.0010.0 1 4465  none  late cone crank M10-1.25 LH (9/79-on V1P)
00000 00.0000.0 1 4465  none  (rod Ø15.00 x 14 for needle bearing)

00382 38.0061.7 1 5560 $35.0 connecting rod assy with bushing
00435 43.0021.7 1 5100 $20.0 start shaft-lever long 38 c-c ’69-78
00435 43.0023.7 1 5105 $23.0 start shaft-lever short 28 c-c ’79-on

Sprockets
00582 58.0220.0 1 4800 $12.0   9 tooth sprocket (1hp, 20mph)
00582 58.0221.0 1 4810 $19.0 10 tooth sprocket (25 or 30mph)
00582 58.0222.0 1 4820 $15.0 11 tooth sprocket (2hp, 30mph)
00582 58.0203.0 0 4822 $21.0 12 tooth sprocket
00582 50.0204.0 0 4823 $21.0 13 tooth sprocket (for C2)

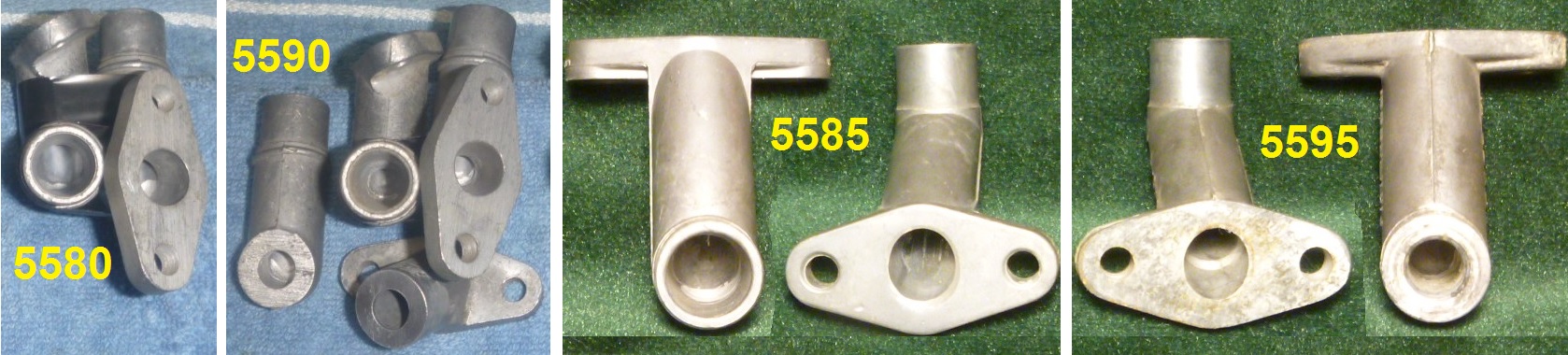

Intakes


606/2  60.0174.0 1 5580 $26.0 Ø18×12 side  intake  14-12-12 (2.0hp)
606/2  60.0175.0 1 5590 $10.0 Ø18 x 9 side  intake  13- 9 -12 (1.5hp)
606/2  60.0168.0 1 5600  none  Ø18 x 7 side  intake  12- 7 -12 (1.0hp)
606/1  60.0181.0 1 5585 36-25Ø18×12 front intake 14-12-12 (2.0hp)
606/1  60.0180.0 1 5595 $20.0 Ø18 x 9 front intake  9 -10-12 (1.5hp)
606/1  60.0179.0 1 5605  none  Ø18 x 7 front intake  7 -10-12 (1.0hp)

Piston Rings
figure Minarelli# qty MMI# price  description
00681 A2-12  00  2 0000 $11.0 ring Ø38.0 x 2.5 GN (US 1.0 hp)
00681 71.0802.0 1 4600  none  ring set, same size
00681 A2-12M  0 2 0000  none  ring Ø38.2 x 2.5 GN oversize
00681 71.0852.7 1 4610  none  ring set, same size
00681 A2-12M  0 2 0000 $9.00 ring Ø38.4 x 2.5 GN oversize
00681 71.0852.7 1 4620  none  ring set, same size
00681 68.0115.0 2 0000 $10.0 ring Ø38.8 x 1.5 GN (US ’75-78)
00681 71.0805.0 1 4640  none  ring set, same size
00681 00.0000.0 2 0000 $16.0 ring Ø38.7 x 1.5 GN (US ’78-85)
00681 71.0803.0 1 4635  none  ring set, same size
00681 00.0000.0 2 0000 $10.0 ring Ø39.0 x 1.5 GN oversize
00681 71.0855.7 1 4650  none  ring set, same size

Engine Parts
00701 70.0125.0 1 5200  none  right case half
00702 70.0625.0 1 5210  none  left case half for Ø94 stator plate (early)
00702 70.0627.0 1 5220  none  left case half for Ø80 stator (most USA)
00913 01.0204.7 1 5740 $45.0 pedal shaft
00916 01.0603.0 1 4760 $40.0 drive shaft, 10mm inner flats
00916 00.0000.0 1 0000  none  drive shaft, 12mm flats Carabela
02409 24.0131.0 1 5850 $7.00 pedal shaft cap
02436 24.0157.0 1 5370  none  wire grommet for internal HT coil
02436 24.0166.0 1 5380 $3.00 wire grommet for external HT coil


02492 24.0251.0 1 5280 $2.00 oil filler cap, no vent, must drill hole
02492 24.0251.0 1 5280 $8.00 oil filler cap with vent, brown or black
02492 24.0251.0 1 5280 $8.00 oil filler cap with vent, long black

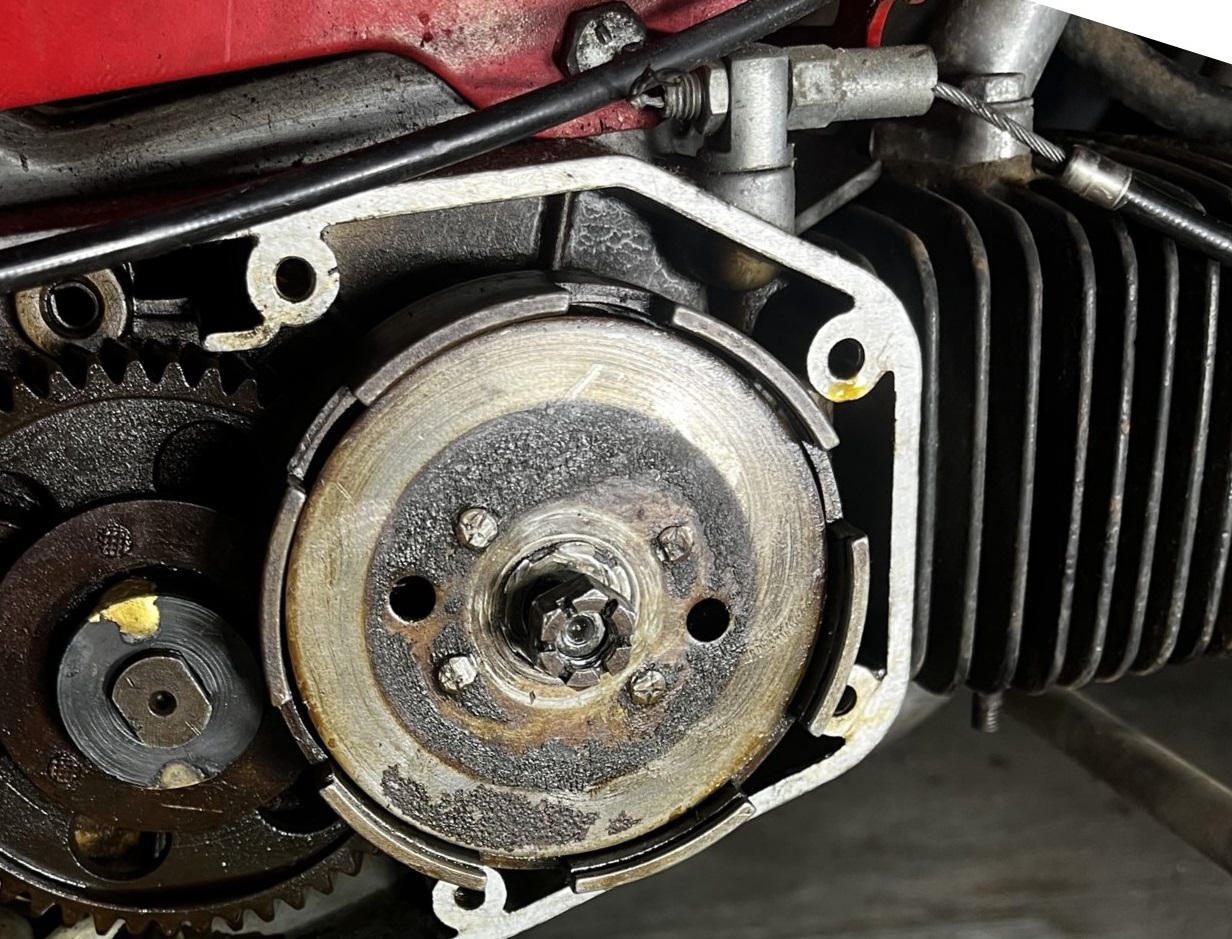

Clutch and Transmission
02661 26.0183.7 2 4970 $2.00 clutch shoe plate
02682 26.0260.7 1 5070 $5.00 start spring cap
03501 35.0001.0 1 5080 $45.0 start clutch plate 17.8 deep
03520 35.0042.7 1 6200  none  cone clutch (C-clutch) housing
03520 35.0040.7 1 4940 $44.0 stub plane (S-clutch) housing
00000 35.0023.0 1 6180 $97.0 cone clutch (C-clutch) complete
00000 35.0021.0 1 4930 $75.0 stub plane clutch (S-clutch) comp.
03530 35.0106.7 2 4950 $7.00 shoe bare with 4970, 2-4980
03530 35.0006.7 2 4960 $12.0 shoe assy 4950,2-4990,2-5000,5010
03560 35.0150.7 4 5000 $1.00 brake pad
04001 40.0071.7 1 4890 $65.0 53 tooth gear
04009 40.0087.7 1 4900 $60.0 15 tooth gear with clutch drum
04040 40.0472.0 1 5710 $30.0 idler
04050 40.0544.7 1 5750  none  pedal gear
04070 40.0702.7 1 5760  none  side gear
04075 40.0751.0 1 4870 $8.00 drive clutch, 10mm flats
04075 00.0000.0 1 0000  none  drive clutch, 12mm flats Carabela
04605 46.0102.7 1 5190 $12.0 lower pressure leaf (long)
04607 46.0104.7 1 5180 $6.00 upper pressure leaf (short)

Springs
04626 46.0138.7 1 5770  none  friction spring
04630 46.0168.7 4 4990 $1.00 brake pad spring
04640 46.0184.0 1 5060 $7.00 starter spring
04645 46.0186.7 2 5010 $1.00 clutch shoe spring
04660 46.0212.7 2 5220  none  start spring for long lever
04660 46.0214.7 2 5225  none  start spring for short lever

Bushings and Bearings
05113 51.0132.7 1 4470 $5.00 piston bushing Ø11.65 Ø15.06 x 13
00000 00.00 (to ’78, must be drilled and reamed after installation)
05122 51.0145.0 1 6040 $19.0 C-clutch bushing Ø14 x Ø17 x 17
05122 51.0146.0 1 4920 $14.0 S-clutch bushing  Ø13 x Ø17 x 17
05146 51.0203.9 2 4770 $6.00 drive shaft bearing 15-35-11 #6202
05148 51.0205.9 2 4700 $8.00 crank bearing 17-40-12 #6203C3

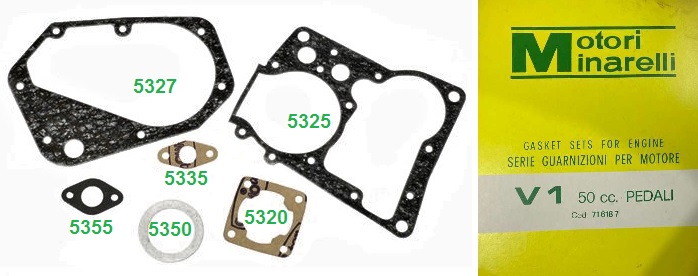

Gasket Set V1 and V1P

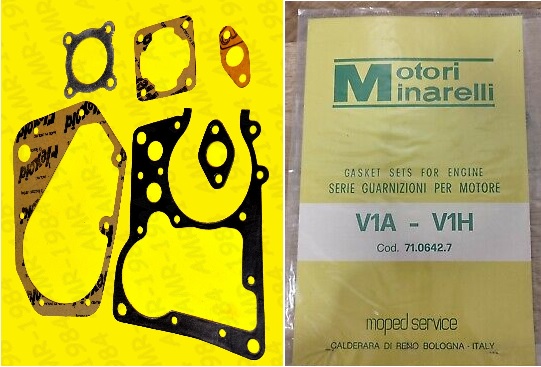

00000 71.0618.7 1 5890 $19.0 gasket set for V1, V1-KS, V1P
05320 53.0304.0 1 5460 $3.50 cylinder base gasket
05325 53.0334.0 1 5230 $7.00 center case gasket
05327 53.0353.0 1 5270 $4.00 clutch cover gasket
05335 53.0375.0 1 4240 $2.50 intake manifold gasket
05350 53.0415.0 1 5490 $7.00 head gasket ∅39 ∅54 x 0.7
05355 53.0454.0 1 5670 $4.00 exhaust gasket

Gaskets and Seals
figure Minarelli# qty MMI# price  description
05302 53.0103.6 1 5110 $1.00 start shaft o-ring 1.8 x 7.5 (11.1 od)
05345 53.0401.0 1 5290 $2.00 oil fill gasket ring ∅12
05350 53.0440.0 1 0000 $15.0 head gasket ∅39 ∅54 x 0.5
05350 00.0000.0 1 0000 $15.0 head gasket ∅39 ∅54 x 0.3
05350 00.0000.0 1 0000 $15.0 head gasket ∅42 ∅54 x 0.5
05358 53.0472.0 2 5310 $1.00 oil drain/check gasket ∅6
05372 53.0502.9 3 4790 $6.00 oil seal 15-24-5
05376 53.0506.9 2 4710 none  crankshaft seal 17-35-8 use 17-35-7
05376 53.0506.9 2 4710 $7.50 crankshaft seal 17-35-7
05615 56.0256.0 3 5240 $7.50 center case dowel Ø10/8 x 40
00000 17.0713.6 1 2820 $25.0 seal set 2 of 17x35x8, 3 of 15-24-5

Pins
05626 56.0310.7 4 5020  none  spring retaining pin
05640 56.0342.0 1 5720 $20.0 idler pin
00000 56.0502.9 1 5780  none  friction spring anchor pin (on case)
05670 56.0601.0 1 4480 $9.50 piston pin Ø12.00 x 31.3

Clips and Keys
09323 03.0213.0 2 4490 $1.00 piston pin clip  Ø12
09353 03.0303.9 2 4860 $1.50 ext. retaining ring ∅15
09354 03.0304.7 1 5800 $1.50 ext. retaining ring ∅16
09363 03.0313.9 1 6000 $2.00 C-clutch ext. ret. ring ∅14
09366 03.0316.0 1 5090 $12.0 start plate lock ring
49005 49.0018.0 1 5880 $4.00 air cover clamp with screw
49015 49.0124.8 1 4720  none  key 3.0 x 3.7 x 9.6 CEV, Ducati use M85
49015 49.0125.8 1 4730 $2.00 key 3.0 x 3.6 x 9.5 M85 for Bosch

Nuts


49036 49.0304.9 6 5550 $0.60 head & exhaust nut M6 x 6 (tall)
49040 49.0312.0 1 4750 $7.00 flywheel nut M10-1.25 x 14 hex15
49041 49.0323.0 1 4840 $2.50 sprocket nut M10x1.25 x 6 hex17
49039 49.0311.0 1 5040 $10.0 S-clutch castle nut M9-1 x 6 (’76?-78)
49039 49.0309.9 1 6270  none  C-clutch tall nut M9-1×12 (78-Sep79)
49046 00.0000.0 1 6270 $00.0 use 4430 with liquid thread-lock
49046 49.0326.0 1 4430 $4.00 S-clutch plain nut M9-1 x 6 (’69-76?)

Studs and Washers
figure Minarelli# qty MMI# price  description
49046 49.0281.9 1 5050  none  cottor pin for 5040 castle nut (pre-1978)
49083 49.0508.0 2 5870 $2.00 exhaust stud M6
49084 49.0510.0 4 5530 $4.50 cylinder stud M6 x 136

49094 49.0603.9 4 5540 $0.20 cylinder stud washer M6
49108 49.0621.9 2 5860 $0.25 lock washer Ø6
49114 49.0629.9 1 5140 $0.20 start shaft set screw washer M4
49138 49.0658.0 2 6020  none  C-clutch shim 14.6 x 21.0 x 0.75
49138 49.0656.0 2 5570  none  S-clutch shim 13.6 x 20.8 x 0.75
49177 49.0682.0 1 4780 $8.00 shim washer 22.2 x 35 x 1
49121 49.0641.0 1 4830 $2.00 sprocket washer 10.15 x 21.8 x 0.8
49122 49.0642.0 1 5730 none  shim washer 12.2 x 17 x 0.4
49127 49.0647.0 2 4850 $6.00 shim washer 15.2 x 20.9 x 0.3mm
49131 49.0651.0 3 5790  none  shim washer 16.1 x 26 x 0.6
49185 49.0678.0 1 5030 $2.00 washer   Ø9   9.3x19x1.5 (pre-Sep79)
49185 49.0690.0 1 5032 $1.00 washer Ø10 10.1x19x1.5 (post-Sep79)

Screws and Bolts


49000 49.0000.0 1 0000 $0.00 xxxx xxxx xxxxx  size     type
49203 49.0812.7 1 5130 $4.00 start shaft screw M4      TC special
49226 49.0841.9 2 4740 $0.50 stator plate xxx   M4x10 TCB
49227 49.0842.0 2 5300 $2.00 oil level & drain xM6x6   TCB
49243 49.0860.9 1 5320 $1.20 clutch cover bolt M6x14 TCCE black
49243 49.0860.9 3 5320 $1.20 metal fan base x M6x14 TCCE black
49246 49.0863.9 11 5250 $1.00 engine case bolt M6x30 TCCE black
49247 49.0864.9 6 5330 $0.60 clutch cover bolt M6x35 TCCE black
49254 49.0871.9 2 5610 $0.80 intake pipe bolt   M6x20 TCCE
49258 49.0887.9 1 5150 $2.00 cable pinch bolt  M5x8   TE dome-end
49266 49.0895.9 1 5840 $1.00 starter leaf bolt   M6x12 TE
49300 49.0935.9 4 5420 $1.20 fan screw xxxxx  M4x10 TGS (threads 5-8mm)
49311 49.0945.6 2 4980 $1.00 clutch shoe xxxx M4x12 TSP
49314 49.0860.9 3 5320 $1.20 metal fan base x M6x14 TCCE black
49314 49.0949.9 3 7055 $2.00 plastic fan base  M6x20 TSP

49315 49.0862.9 3 5450 $0.80 metal fan cover  M6x30 TCCE
49315 49.0950.9 4 7050 $1.00 plastic fan cover M4x25 TGS

Start Cable Items not shown
00000 65.0133.0 1 5160 $8.00 cable stop bridge (on frame)
00000 65.0004.0 1 5170 $3.00 cable adjuster M6

Exhaust Items

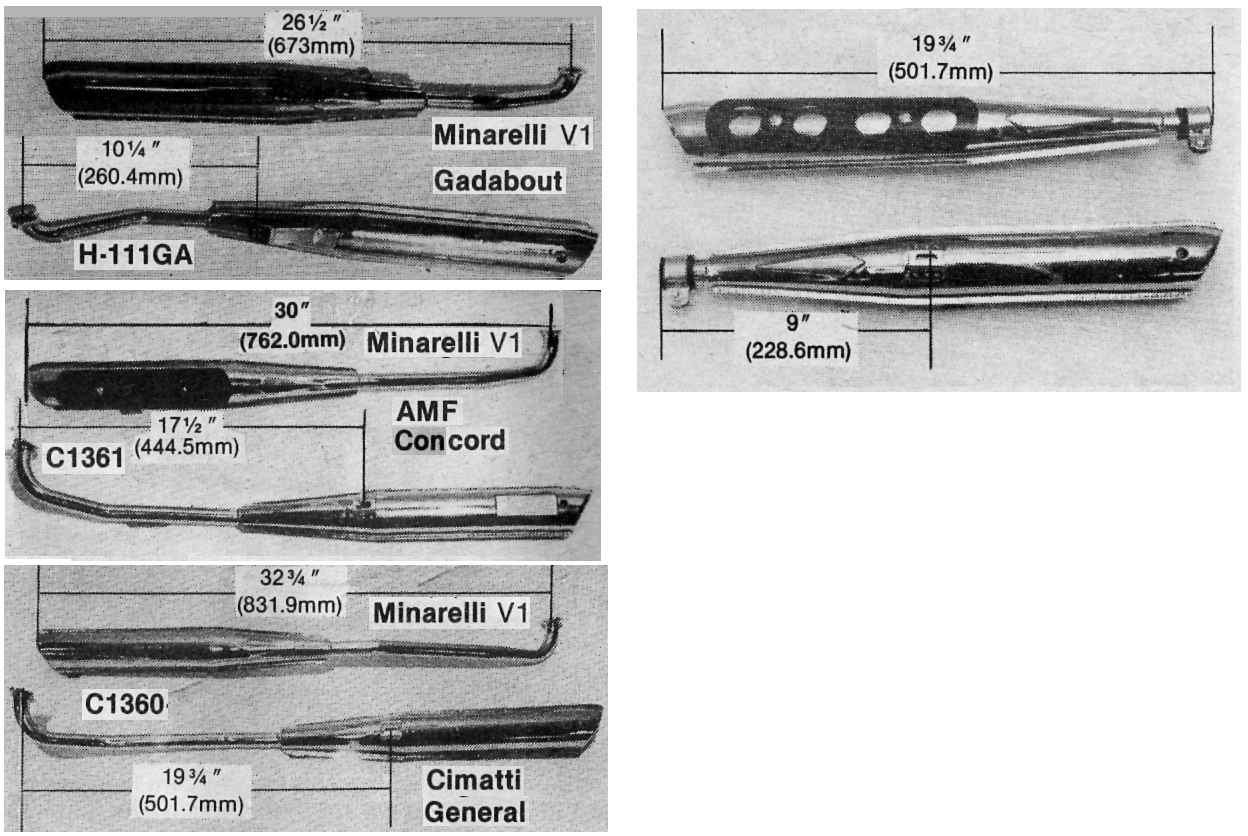

Minarelli Exhausts
figure Minarelli#   MMI#   price  description
00000 00.0000. H111GA  none  1-piece exhaust 260 x 673 Gadabout
00000 00.0000.0  C1361  none  1-piece exhaust 445 x 762 Concord, AMF
00000 00.0000.0  C1360  none  1-piece exhaust 502 x 832 Cimatti, General
00000 00.0000.0 H111H  none  2-piece rear  229 x 502 ∅22 clamp id
00000 00.0000  H111SM  none  2-piece front ∅22 od
00721 72.0114.0 1 5680  none  tipo M pancake exhaust (different versions)
49274 49.0904.9 1 5690 $1.00 pancake exhaust bolt M7x12
49095 49.0604.9 1 5700 $0.50 washer Ø7

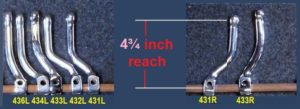

Pedal Arms 4¾” reach, 5¾” length
figure Minarelli# qty MMI# price  description
00438 43.0150.8 1 5810 none  right arm original 431R
00439 43.0151.8 1 5820 none  left   arm original 431L
00438 00.0000.0 1 0000 $23.0 right arm replica  433R
00439 00.0000.0 1 0000 $19.0 left   arm replica  433L
49002 49.0002.9 2 H134 $2.00 pedal wedge pin 9.0 mm
––––– 00.0000.0 1 0000 $36.0 arm set replica 433 R+L

Points and Condenser
00821 82.0001.6 1 M31   $15.0 points = Bosch 2207 013 005 w/wire
00821 00.0000.0 1 0000  $00.0 for Bosch 0212-005-027, 0212-010-005
00821 00.0000.0 1 M18A $26.0 points equal to CEV 13035
00821 00.0000.0 1 0000  $00.0 for CEV 6861, 6876
00821 82.0004.6 1 M18   $16.0 points equal to CEV 04221
00821 00.0000.0 1 0000  $00.0 for CEV 6923, 6931, 6932, 6940
00821 82.0011.6 1 M18   $16.0 points for Ducati = CEV 04221
00821 00.0000.0 1 0000  $00.0 for Ducati 31.03.61, 31.03.73

00823 82.0130.6 1 M32   $15.0 condenser = Bosch 2207 330 050
00823 00.0000.0 1 0000  $00.0 for Bosch 0212-005-027, 0212-010-005
00823 82.0131.6 1 M17   $13.0 condenser equal to CEV 07365
00823 00.0000.0 1 0000  $00.0 for CEV 6861 6876 6923 6931 6932 6940
00823 82.0134.6 1 M17   $13.0 condenser for Ducati ∅17.9
00821 00.0000.0 1 0000  $00.0 for Ducati 31.03.61, 31.03.73






2. 1977-80? Minarelli V1A

Minarelli V1A (EU 1977?-80?) parts different from late-70’s V1
figure Minarelli# qty MMI# price  description
000
19 19.0032.0 1 0000  none  cylinder bare 38.8 all-aluminum
00062 71.0408.0 1 0000  none  piston assy 38.8 with 1.5 GN rings
00077 77.0133.0 1 0000  none  head for 38.8 V1A
00214 21.0305.0 1 0000  none  magneto cover V1A grey
00214 21.0304.0 1 0000  none  magneto cover V1A black
00381 38.0061.7 1 0000  none  crankshaft

Gasket Set V1A

0
00000
71.0642.7 1 0000  none  gasket set for V1A and V1H
05320 53.0304.0 1 5460 $3.50 cylinder base gasket
05325 53.0334.0 1 5230 $7.00 center case gasket
05327 53.0353.0 1 5270 $4.00 clutch cover gasket
05335 53.0375.0 1 4240 $2.50 intake manifold gasket
05350 53.0434.0 1 5493  none  head gasket V1A+V1H 0.5mm
05355 53.0454.0 1 5670 $4.00 exhaust gasket

V1A changes:

The cylinder changed from all-iron to all-aluminum with bigger cooling fins.

The head changed to match the cylinder. The head gasket changed from ring type to regular.

No more fan. The problem with the V1 exposed cooling fan, was the fan blades would all break off, if the engine was operated with the fan cover broken inward. So wise Minarelli eliminated the fan. The bigger aluminum cooling fins carried plenty of heat away, as long as the bike was moving through the air.






3. 1979-86 Minarelli V1P

Minarelli V1P (9/79-86) parts different from late-70’s V1
figure Minarelli# qty MMI# price  description
00019 19.0320.0 1 0000  none  cylinder 38.8 P      6-fin ∅14 all-iron
00019 19.0323.0 1 5475  none  cylinder 38.7 P-US 6-fin ∅14 all-iron

000
77 77.0140.0 1 5505 none  head square V1P
00080 80.0108.0 1 5415 none  fan ∅103 V1P (not V1)
00211 21.0114.0 1 5445 $59.0 fan cover V1P black used
00212 21.0243.7 1 0000  none  clutch cover bare grey no logo
00212 21.0209.7 1 5262 $49.0 clutch cover bare black no logo
00212 21.0023.0 1 0000  none  clutch cover assy grey no logo
00212 21.0022.0 1 0000  none  clutch cover assy black no logo
00218 21.0558.0 1 5405 $38.0 fan cover base V1P black
00381 38.0010.0 1 4465  none  late cone crank M10-1.25 LH
00000 00.0000.0 1 4465  none  (rod Ø15.00 x 14 for needle bearing)
05113 51.0301.9 1 4475
$9.00 piston bearing Ø12 Ø15 x 15
49046 49.0326.0 1 6275 $1.00 cone-clutch lock nut 10-1.25×6 LH
49314 49.0949.9 3 7055 $2.00 fan base bolt M6x20 sunk

Gasket Set V1P


00000 71.0618.7 1 5890 $19.0 gasket set for V1, V1-KS, V1P
05320 53.0304.0 1 5460 $3.50 cylinder base gasket
05325 53.0334.0 1 5230 $7.00 center case gasket
05327 53.0353.0 1 5270 $4.00 clutch cover gasket
05335 53.0375.0 1 4240 $2.50 intake manifold gasket
05350 53.0415.0 1 5490 $7.00 head gasket ∅39 ∅54 x 0.7
05355 53.0454.0 1 5670 $4.00 exhaust gasket

V1P changes:

The fan, fan cover and fan cover base were improved to resist fan blade breakage and made in black only. The individual parts do not interchange with V1 types

The intake flange hole on the cylinder grew larger, from 12.5 mm on the 1977-79 6-fin late V1, to 14.0 mm on the 1979-86 V1P.

The clutch cover outer surface changed, from a permanent cast-in Minarelli logo, to a rectangular place for a sticker logo. This allowed re-branding.

The piston pin bushing changed to a needle bearing. So the crankshaft rod end also changed, from a bushing type to a needle bearing type. This made it resistant to damage from lack of oil.

The start lever-shaft had already changed 9 months earlier on the 1979 V1, from long 38mm to short 28mm.




4. 1985-87 Minarelli V1H

Minarelli V1H (US 1985-87) parts different from V1P
figure Minarelli# qty MMI# price  description
000
19 00.0000.0 1 5473  none  cylinder bare 40.3 sleeved alum.
00062 71.1205.0 1 4543  none  piston 40.3 1.5 rings
00077 77.0148.0 1 5503  none  head V1H/V1HL
00214 21.0304.0 1 0000  none  magneto cover V1A black
00381 71.5035.0 1 4463  none  crankshaft full circle, stroke 39
00681 68.0126.0 2 0000  none  piston ring ea. 40.3 x 1.5 GN
00681 71.0815.0 1 4643  none  piston ring set 40.3 x 1.5 GN

Gasket Set V1H

0
00000
71.0642.7 1 0000  none  gasket set for V1A+V1H
05320 53.0304.0 1 5460 $3.50 cylinder base gasket
05325 53.0334.0 1 5230 $7.00 center case gasket
05327 53.0353.0 1 5270 $4.00 clutch cover gasket
05335 53.0375.0 1 4240 $2.50 intake manifold gasket
05350 53.0434.0 1 5493  none  head gasket V1A+V1H 0.5mm
05355 53.0454.0 1 5670 $4.00 exhaust gasket



V1H changes:

The Minarelli V1H was on some US model mopeds made in 1985-87. The V1H was a V1P with a 40.3 bore, iron-sleeved aluminum cylinder, head, and no cooling fan. The cylinder was still piston port induction (where the intake manifold feeds the cylinder, and the bottom edge of the piston opens and closes off the port hole to make a net suction inward).

1987 Safari 300MT Minarelli V1-H motor

1987 Safari 300MT
Minarelli V1H

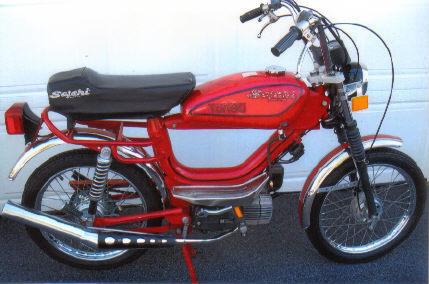

1985 Safari 300MT Turbo

1985 Safari 300MT Turbo

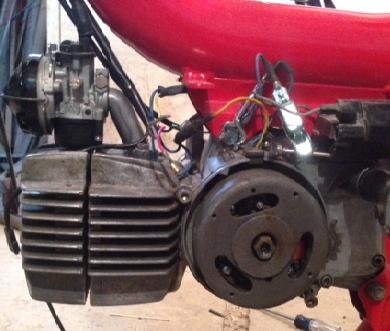

Minarelli V1H engine

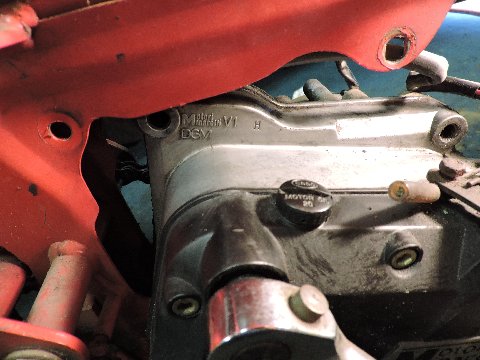

Minarelli V1-H ID number

Minarelli V1H


















5. 1987-90 Minarelli V1L

Minerelli V1-L specific Parts

Minarelli V1L (US 1987-90) parts different from V1P
figure Minarelli# qty MMI# price  description
000
19 00.0000.0 1 5471  none  cylinder bare 40.3 all-iron
00062 71.1202.0 1 4541  none  piston assy 40.3 L-ring
00218 00.0000.0 1 5401  none  fan base V1L
00381 00.0000.0 1 4461  none  crankshaft, stroke 39
606/1  00.0000.0 1 5596  none  intake V1L Ø12 front
606/2  00.0000.0 1 5591  none  intake V1L Ø12 side
00077 00.0000.0 1 5501  none  head 40.3 like V1P square
00681 00.0000.0 1 4641  none  ring set 40.3 x 2.0L, 1.5 GN
00701 00.0000.0 1 5201  none  case set V1L
05325 53.0343.0 1 5231  none  case gasket V1L, V1HL
05347 53.0405.0 2 4242 $12.0 reed valve gasket
05350 00.0000.0 1 5491  none  head gasket ring type
05670 56.0602.0 1 4481 $12.0 piston pin Ø12 x 34.5
06015 60.0071.0 1 5215 $40.0 reed valve
49048 49.0332.0 4 5551 $2.00 head nut M6x6 flange
49245 49.0862.9 4 5611 $0.70 intake bolt M6x25 allen
00000 71.1602.7 1 4551  none  piston assy 40.6 1st over
00000 71.1602.7 1 4561  none  piston assy 40.8 2nd over
00000 00.0000.0 1 4651  none  ring set 40.6 x 2.0L, 1.5 GN
00000 00.0000.0 1 4661  none  ring set 40.8 x 2.0L, 1.5 GN

V1L changes:

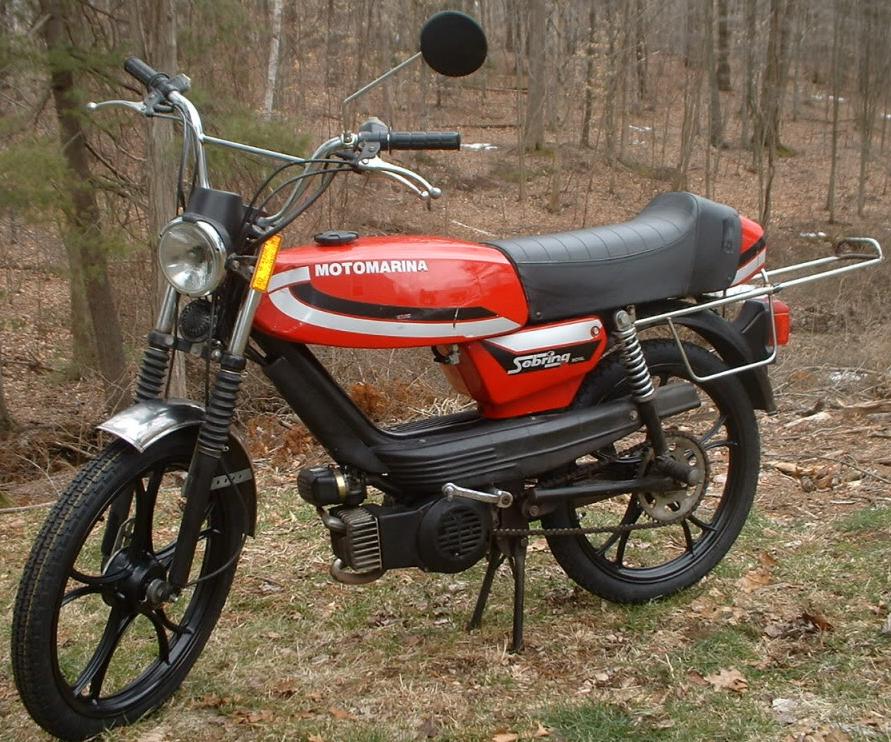

1989 Motomarina with Minarelli V1L

1989 Motomarina with
Minarelli V1L engine

In 1988-89, Minarelli introduced the V1L, a V1 “e” with a crankcase two-petal reed valve. The cylinder was still fan cooled, a V1 all cast iron type, but without any intake port, and a bigger bore, 40.3 instead of 38.8mm. This engine had “crankcase reed valve induction”, a modern design that made more torque, especially take-off. Morini already had success with it’s M1 reed motor eight years earlier, so Minarelli was several years late.

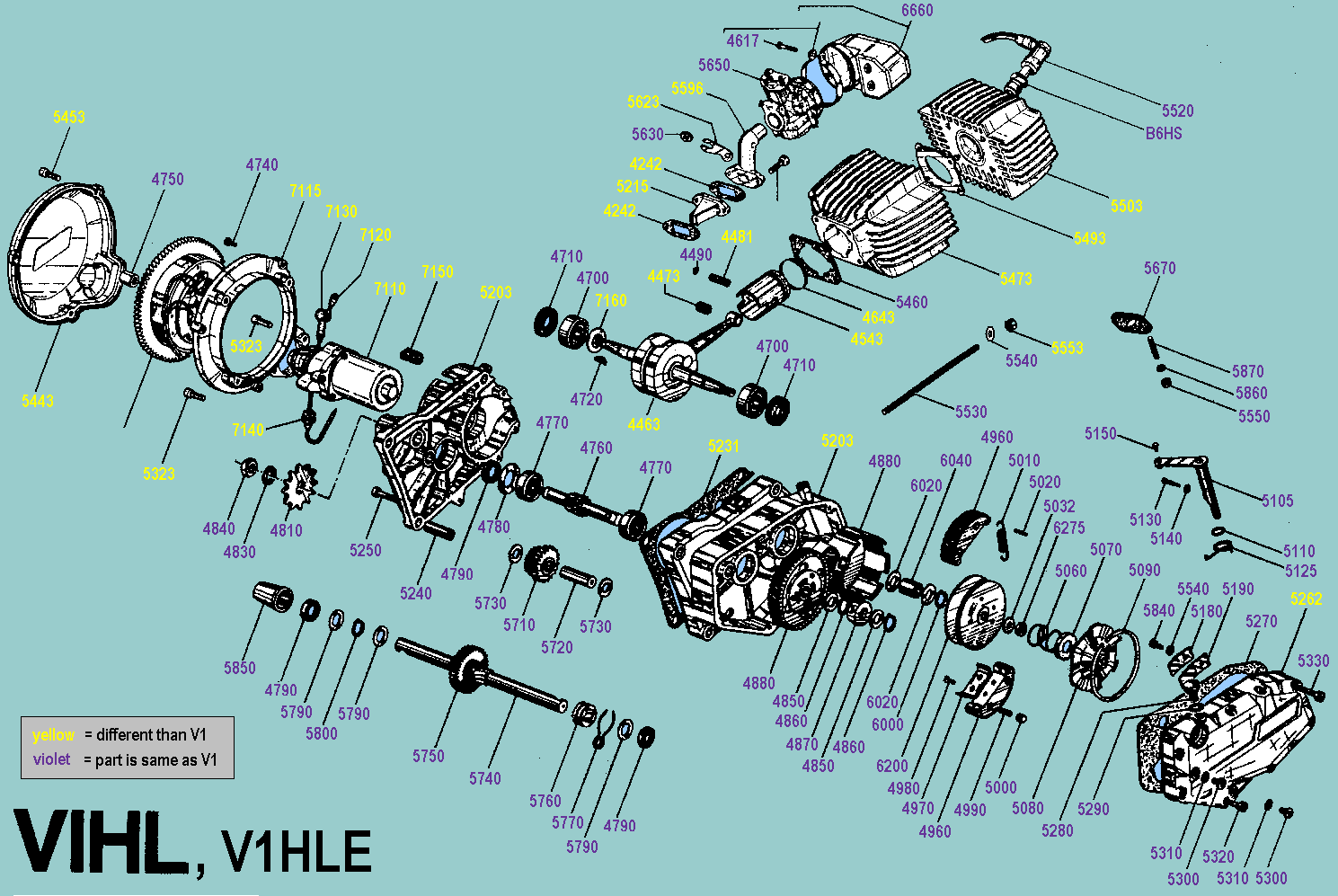

6. 1987-90 Minarelli V1HL, V1HLE

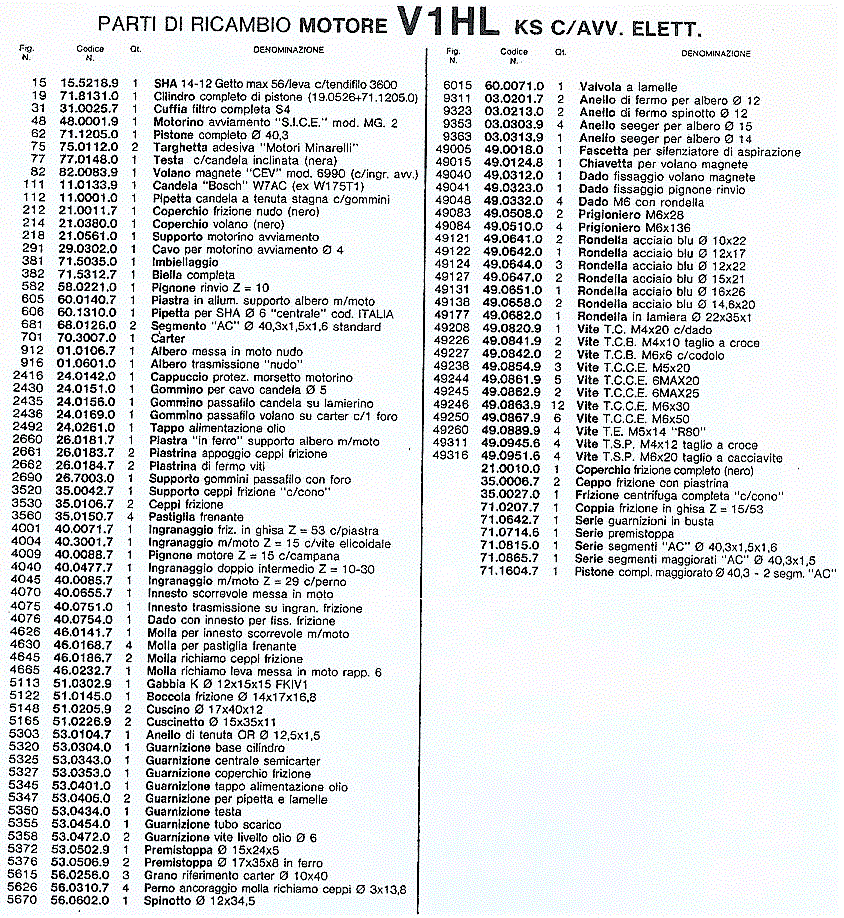

Minarelli V1HL and V1HLE parts

Minarelli V1HL, V1HLE (US 1987-90) parts different from V1P
figure Minarelli# qty MMI# price  Dellorto carb   jet   choke  version
00015 15.0024.9.0 1 5650 $70.0 SHA14/12  #52   short  (US)
00015 15.5218.9.0 1 0000  none  SHA14/12  #56   3600

V1H and V1HL cylinder comparison
figure Minarelli# qty MMI# price  description
00019 19.0526.0 1 5473  none  cylinder bare 40.3 sleeved alum.
000
19 71.8131.0 1 0000  none  cylinder w/piston


00031 31.0013.7 1 5660 $32.0 air cover bare S1 Minarelli grey
00031 31.0025.7 5660M $15.0 air cover bare S1 Minarelli black
000
48 48.0001.9 1 7110  none  electric starter motor
000
62 71.1205.0 1 4543  none  piston assy 40.3 rings 1.5
00214 21.0380.0 1 5443  none  magneto cover large black
00218 21.0561.0 1 7115  none  magneto cover base e-start
00381 71.5035.0 1 4463  none  crankshaft full circle, stroke 39
00606 60.1310.0 1 0000  none  intake pipe front ∅6
00606 00.0000.0 1 5596  none  intake pipe front ∅12 (US)
00681 68.0126.0 2 0000  none  piston ring ea. 40.3 x 1.5 GN
00681 71.0815.0 1 4643  none  piston ring set 40.3 x 1.5 GN
00701 70.3007.0 1 5203  none  case set for electric starter
00291 29.0302.0 1 7120  none  starter motor wire
02416 24.0142.0 1 7130  none  rubber cap
02430 24.0151.0 1 7140  none  wire guide
02436 24.0156.0 1 7150  none  wire guide grommet
02690 26.7003.0 1 5623  none  plug wire support clip
05113 51.0302.9 1 4473  none  piston bearing 12 x 15 x 15
05350 53.0434.0 1 5493  none  head gasket V1A+V1H 0.5mm
49048 49.0332.0 4 5551 $2.00 head nut M6x6 flange
49143 00.0000.0 1 7160  none  shim washer 18 x 24 x 0.5 (US)
49238 49.0854.9 3 5453 $1.50 cover screw M5 x 20 allen
49244 49.0861.9 5 5323 $0.70 cover base screw M6 x 20 allen
00000
 71.1604.7 1 4553  none  piston assy oversize 40.6
00000
 71.1604.7 1 4563  none  piston assy oversize 40.8



1990 Safari 300MT Minarelli V1L engine

1990 Safari 300MT
V1HL alum cyl. no fan



In 1988-90, Minarelli made the V1HL, a V1H with a reed valve and no cooling fan. The bore and stroke were the same 40.3 and 42.0.  The cylinder was a V1H type with cast iron core, black powder coated aluminum cooling fins, but without any intake port. The unused intake side of the cylinder wall has a shallow “boost port”. In conjunction with a window high up on the intake side of the piston, the boost port provides a third transfer path from below the piston to above. It is visible at the lower right in the above photo.







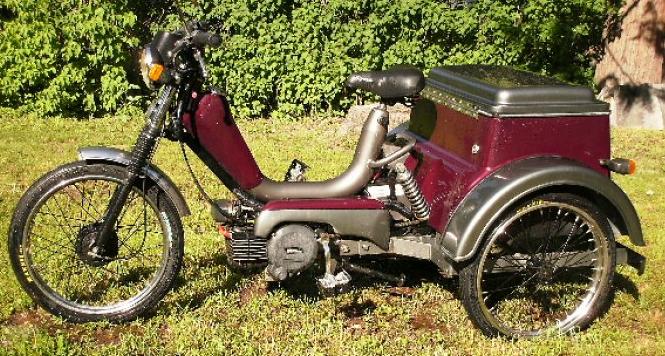

80's MotoMarina Tri-Power Minarelli V1-LHE with electric start

1987 MotoMarina Tripower
Minarelli V1HLE engine



Also in 1987-90, Minarelli made the V1HLE (also called V1HL). It was a V1HL (case reed and no cooling fan) with an electric start mechanism, for use on trikes, which are difficult to pedal start. The Minarelli V1HLE electric start high torque one speed was used on late 1980’s Motomarina three wheeled mopeds.

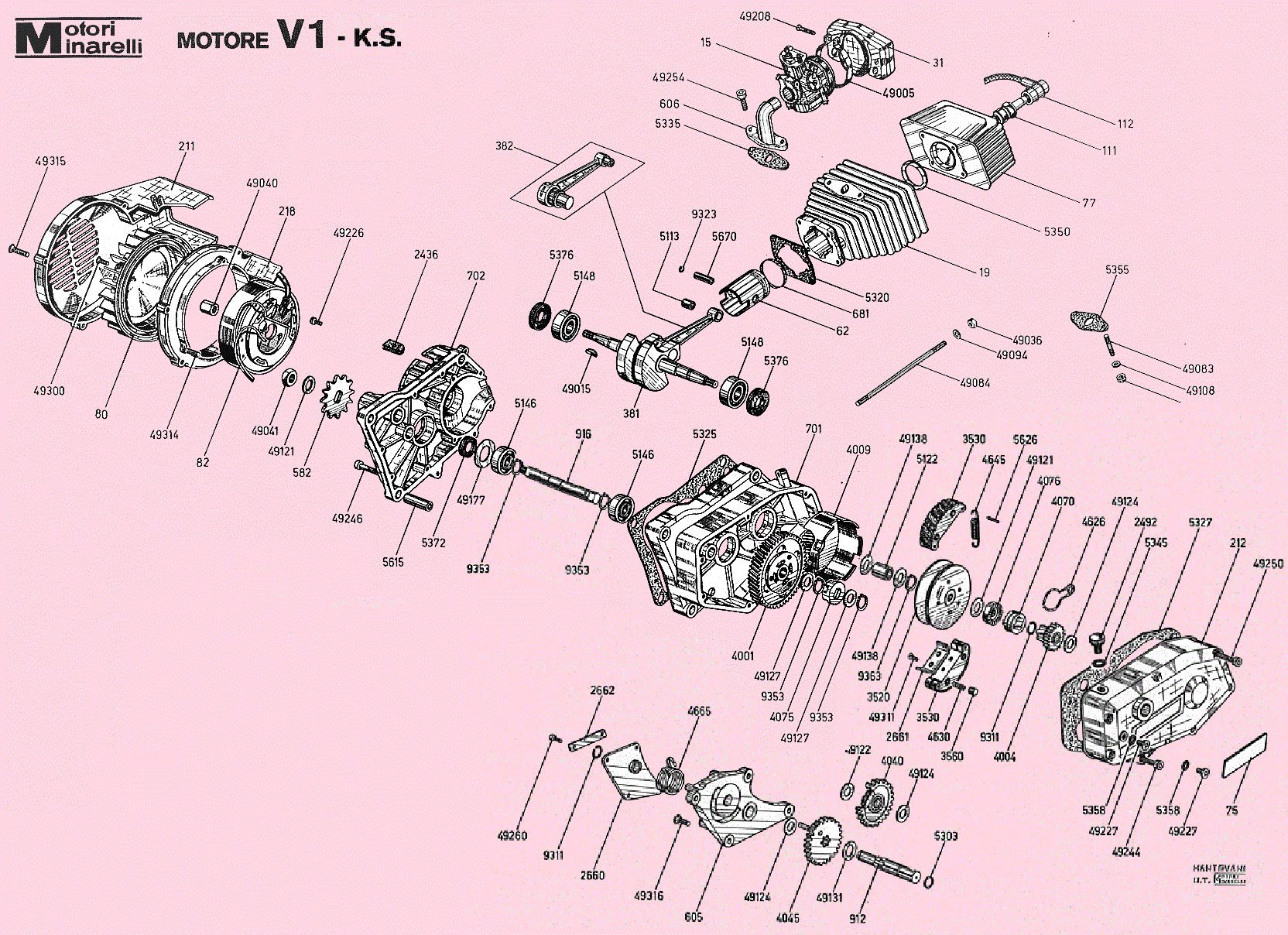

7. 1973-80 Minarelli V1-KS

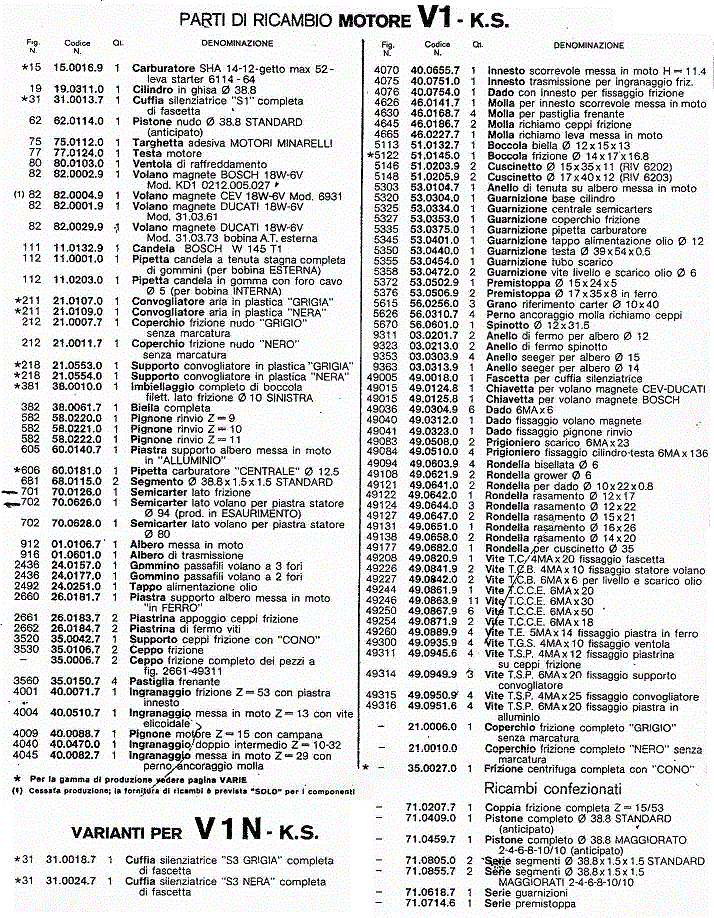

Minarelli V1-KS (1973-80?) parts different from V1
figure Minarelli# qty MMI# price  description
00212 21.0007.7 1 0000  none  clutch cover bare grey no logo
00212 21.0011.7 1 0000  none  clutch cover bare black no logo
00605 60.0104.7 1 0000  none  start shaft support plate
00916 01.0501.0 1 0000  none  start shaft
02660 26.0181.7 1 0000  none  support plate
02662 26.0184.7 2 0000  none  screw plate
04004 40.0510.7 1 0000  none  gear 13T
04040 40.0470.0 1 0000  none  intermediate gear
04045 40.0082.7 1 0000  none  kick start gear 29T
04070 40.0655.7 1 0000  none  sliding clutch
04076 40.0754.0 1 0000  none  coupling clutch
04626 46.0141.7 1 0000  none  friction spring
04665 46.0227.7 1 0000  none  kick return spring
05303 53.0104.7 1 0000  none  ring
0
9353 03.0303.9 4 4860 $1.50 external retaining ring ∅15 x 1
0
9311 03.0201.7 2 0000 $2.00 external retaining ring ∅12 x 1
49084 49.0510.0 4 5530 $4.50 cylinder stud M6 x 136

49122 49.0642.0 1 5730 none  shim washer Ø12 Ø17 x 0.4
49124 46.0644.0 3 0000  none  shim washer ∅12 Ø22 x ?
49131 49.0651.0 4 5790 shim washer Ø16.1 Ø26 x 0.6
49260 49.0889.9 4 0000  none  hex bolt TE M5x14
49316 46.0951.6 4 0000 $2.00 phil-sunk screw TSP M6x20

Gasket Set V1-KS


00000 71.0618.7 1 5890 $19.0 gasket set for V1, V1-KS, V1P
05320 53.0304.0 1 5460 $3.50 cylinder base gasket
05325 53.0334.0 1 5230 $7.00 center case gasket
05327 53.0353.0 1 5270 $4.00 clutch cover gasket
05335 53.0375.0 1 4240 $2.50 intake manifold gasket
05350 53.0415.0 1 5490 $7.00 head gasket ∅39 ∅54 x 0.7
05355 53.0454.0 1 5670 $4.00 exhaust gasket
