Benelli models with 4M, 4MS, 4M65 engines 1965-77

49 or 59cc vertical cylinder 4-speed foot-shift, manual clutch.











4M engine: The 4M has a mild cylinder, with shorter and narrower ports, a 12mm ID intake, and a smaller 12mm Dellorto SHA 14/12 side-draft carburetor.

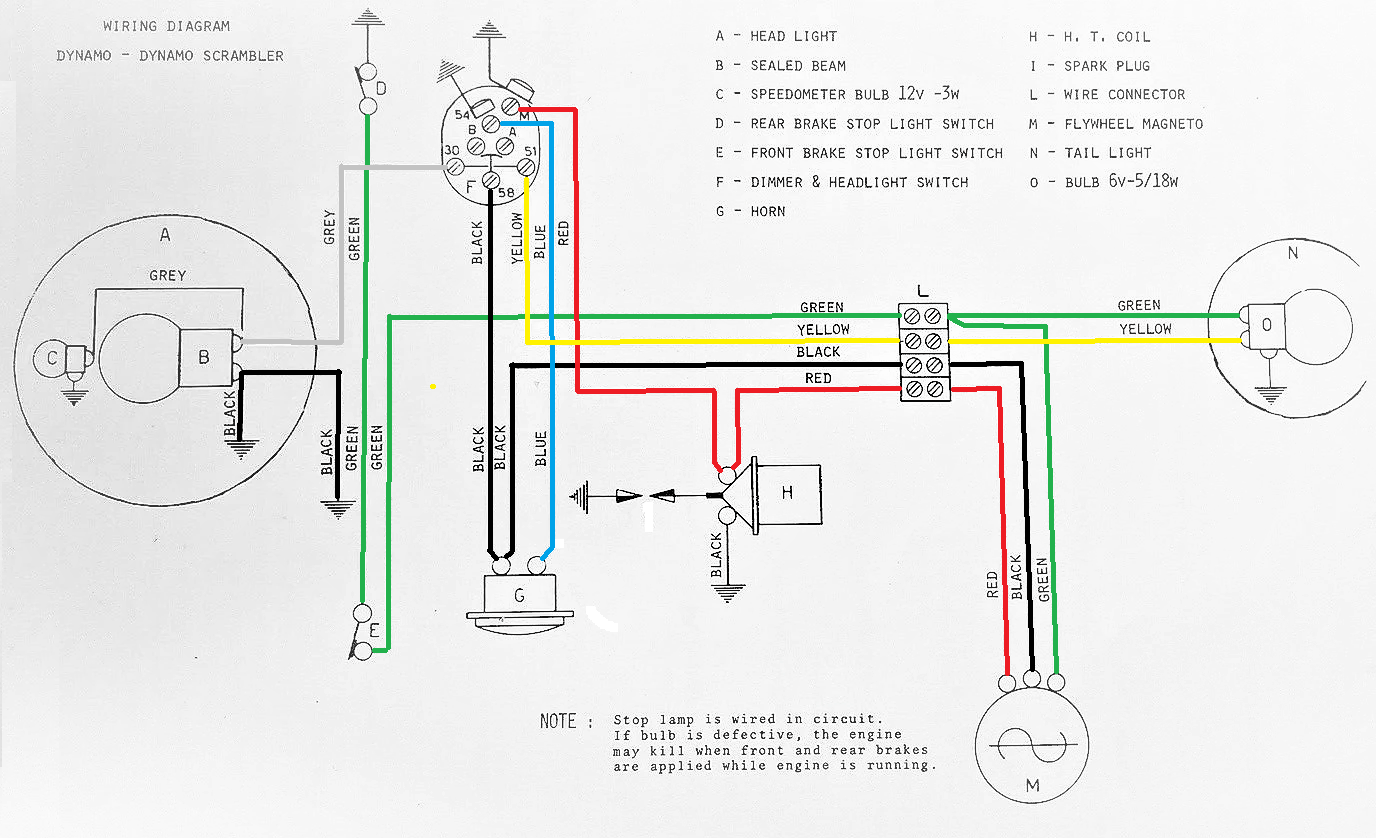

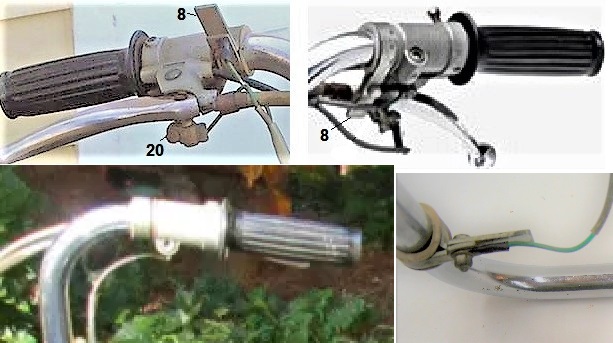

The 4M engine was on the 1968-69 Benelli Dynamo Compact. M means marce, Italian for “march”, or in the motorcycle industry “foot-shift”.

4MS engine: The 4MS has a “sport” cylinder, with taller and wider ports, a 16mm ID intake, and a larger 16mm Dellorto UA16S down-draft carburetor. Horsepower 4.5 at 7800 rpm. This is the version shown in the parts illustration.

The 4MS engine was on the ’65-68 Benelli Fireball, ’67-68 Fireball Trail, ’65-68 Riverside 450SS, and ’69 Dynamo Trail and Super Mini.

1965-68 Ward Riverside 450SS with Benelli 4MS engine

4M and 4MS partial parts list:

00#  price 0 1970# 00000 description        specs
002  $0.20 ‌MU332 head washer ∅6
003  $0.30 ‌MU280 head & ex. nut M6
008  none  ‌B1348/2 spark plug = NGK BR6ES
009  none   ‌G7007 cylinder stud M6 x ?
011  $12.0 ‌G7010 head gasket ∅41
013  none   ‌G7011/2 base gasket
035  $7.50  MU2265  drive seal 28-38-7
084  $00.0 MU7865 right crank seal
087  $45.0 G7346 piston bare dome top hi-comp use #91
089  $10.0 ‌G7347 0 piston ring Std 40.0 x 1.5 GN
089  $22.0 G7347/2 piston ring 1os 40.2 x 1.5 GN
089  none   G7347/4 piston ring 2os 40.4 x 1.5 GN
089  $10.0 G7347/6 piston ring 3os 40.6 x 1.5 GN
090  $8.00 G7115 piston pin ∅12 x ?
091  $65.0 ‌G7346/C   piston assy Std 40.0 x 17-12-18 GOL
091  N/A     G7346/C2 piston assy 1os 40.2 x 17-12-18
091  N/A     G7346/C4 piston assy 2os 40.4 x 17-12-18
091  N/A     G7346/C6 piston assy 3os 40.6 x 17-12-18
100  N/A     G7342 left crank seal 15-25-5

101  $75.0 G29 carburetor for 4M, Dellorto SHA 14/12 #58 jet
101  $00.0 G29 see Benelli FA section for parts list









4M65 engine: Since 1970 the 4M and 4MS 49cc engine size was increased to an advertised 65cc on the 4M65. But the actually size was 59.3cc. Bore and stroke were 44 x 39 mm. That was dishonesty in labeling, motivated by “bigger is better” thinking.

The Benelli 4M65 engine is on 1971-73 Mini Enduro, 1970-72 Cougar, 1970-71 Dynamo Compact, Dynamo Trail (Scrambler), Woodsbike, 1972-73 Compact II, Dynamo II, Woods II, 1974-75 Dynamo Trail, 1976-77 Dynamo. It has large square head, larger piston, Dellorto ME15BS carburetor.









Benelli models with 3V, 3VK, 3VK-1978 engines

49cc vertical cylinder 3-speed grip-shift, manual clutch.





















3V and 3VK partial parts list:

00#  price 0 1980# 0000 1970# 00000 description        specs
004  $0.30 ‌92.60.22.06 MU280 head & ex. nut M6
005  $0.20 ‌95.00.02.06 MU332 head washer ∅6
006  $4.00 ‌96.50.61.05 G7483 cylinder stud M6 x 105 (107 total)
007  N/A     ‌70.02.24.00 G7825 head
008  $7.00 ‌48.02.20.70 G7010 head gasket ∅41
007  N/A     ‌00.00.00.00 G7006/A cylinder (different from FA)
011  N/A     ‌00.00.00.00 G310 intake pipe ∅18 at clamp (different from FA)
062  N/A     00.00.00.00 G7011 base gasket
095  $47.0.0 70.06.04.00 G7346 piston bare dome top hi-comp use #183
096  $10.0 48.06.12.70 G7018 piston pin ∅12 x ?
097  $1.50 90.27.20.12 L339 piston pin clip ∅12
098  $10.0 ‌48.06.08.70 G7347 0 piston ring Std 40.0 x 1.5 GN
098  $22.0 48.06.08.72 G7347/2 piston ring 1os 40.2 x 1.5 GN
098  none   48.06.08.74 G7347/4 piston ring 2os 40.4 x 1.5 GN
098  $10.0 48.06.08.76 G7347/6 piston ring 3os 40.6 x 1.5 GN
106  N/A     70.71.24.00 G7094/4 magneto assy Dansi MSL105
106  N/A     00.00.00.00 G7094/2 magneto assy CEV 6097
106  N/A     70.71.16.20 G00000  magneto assy Dansi 100844  on 3VK NT (Export FA)
133   00.00.00.00 M56/2  points for MSL105 01.3240 photo
135  $15.0 00.00.00.00 M26/2  condenser for MSL105 M17D photo
150  $75.0 70.11.26.00 G29  carburetor Dellorto SHA 14/12L genuine, modern (not all metal)
150  $00.0 00.00.00.00 G29  with correct #58 jet, 18 clamp sleeve, air cover, screen and clip
157  $5.00 35.93.57.00 DE1486/58main jet 58
133  $00.0 00.00.00.00 G7094/2Dpoints for CEV 6097
183  $65.0 70.06.02.20 G7346/C   piston assy Std 40.0 x 17-12-18 GOL
183  N/A     70.06.02.22 G7346/C2 piston assy 1os 40.2 x 17-12-18
183  N/A     70.06.02.24 G7346/C4 piston assy 2os 40.4 x 17-12-18
183  N/A     70.06.02.26 G7346/C6 piston assy 3os 40.6 x 17-12-18





























Benelli models with GM, GK engines 1965-73

49cc horizontal cylinder 1-speed, automatic clutch















GM engine (Gentlemen Monomarcia 49cc) is on the 1965-69 Benelli Gentlemen (Italy model), father of the Benelli G2. It is also on the 1969 Benelli Maverick (US model), a front-gas-tank version of the Gentlemen. Notice the 1967 spelling of Gentlemen, not Gentleman. The Gentlemen spelling appears in several late 60’s official publications. 1970 official brochures said Gentleman. See Benelli’s with G2, G2K engines. Here we will use Gentlemen for 1960’s and Gentleman for 1970’s.

The GM engine has a Dansi MDP44 magneto and front-facing Dellorto SHA 14/9 carburetor. It does not have internal pedals. Instead both motor and pedal chains are on the left side, very unusual.

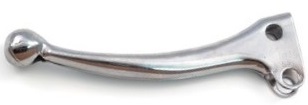

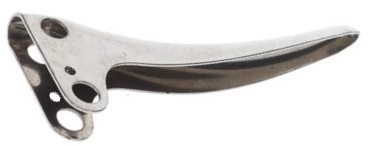

The Gentleman with pedals had a Domino left control with a start lever, instead of a left twist grip start control like the 1965-69 Wards Riverside had. It is visible in the photo. So it’s in bicycle mode all the time, until you pull the start lever.

GK (Gentlemen Kickstart 49cc) engines are on US-model mini-cycles. The kick models do not have pedals or a pedal chain.  The GK and GK-65 engines have a two-piece transmission cover, different than a GM one-piece. They do not have pedals or a pedal chain.

USA mini-cycles with GK and GK65 engines have Dansi ADP244S magnetos and front-facing carburetors, Dellorto SHA 14/12.



GM partial parts list:

00#  price 0 1980# 0000 1970# 00000 description        specs
001 $10.0 ‌ 70.09.30.10 G244/20 start cable for lever control 1L 52 x 57″
001 $00.0 ‌ 70.09.30.10 G244/20 146, 147, 148, 149, 150 not included
002  $00.0 00.00.00.00 G29/A carburetor SHA 14/12
050  N/A     00.00.00.00 N14 magneto assembly Dansi MDP44 82/110 x 94
059  $4.00 ‌96.50.61.05 G7483 cylinder stud M6 x 105
060  $0.20 ‌95.00.02.06 MU332 head washer ∅6
061  $0.30 ‌92.60.22.06 MU280 head & ex. nut M6
067  $0.00 00.00.00.00 G7019 piston bushing
076  $45.0 70.06.04.00 G7346 piston bare dome top hi-comp use #165
077  $0.00 48.06.12.70 G7018 piston pin ∅12 x ?
079  $10.0 ‌48.06.08.70 G7347 0 piston ring Std 40.0 x 1.5 GN
079  $22.0 48.06.08.72 G7347/2 piston ring 1os 40.2 x 1.5 GN
079  none   48.06.08.74 G7347/4 piston ring 2os 40.4 x 1.5 GN
079  $10.0 48.06.08.76 G7347/6 piston ring 3os 40.6 x 1.5 GN
080  $9.00 ‌48.02.48.70 N23 base gasket
084  $12.0 ‌48.02.20.70 G7010 head gasket ∅41
086  $5.00 ‌00.00.00.00 N183 spark plug = NGK BR5ES
088  $2.00 00.00.00.00 UI7496 exhaust stud M6 x 26
090  $65.0 ‌70.06.02.20 G7346/C   piston assy Std 40.0 x 17-12-18 GOL
090  N/A     70.06.02.22 G7346/C2 piston assy 1os 40.2 x 17-12-18
090  N/A     70.06.02.24 G7346/C4 piston assy 2os 40.4 x 17-12-18
090  N/A     70.06.02.26 G7346/C6 piston assy 3os 40.6 x 17-12-18
092  $6.00 00.00.00.00 G7096 spark plug cap plastic
093  N/A     00.00.00.00 SD462/3 stator plate ∅94 for 01.3239 points
094  N/A     48.70.95.70 G221/11 lubricating felt
095  N/A     35.70.79.00 G221/3 points and cond. screw
096  48.70.86.70 G26/2 = G221/6 condenser M17T 07.0074 0.28 μf, ∅18 x 21 photo
097  N/A     00.00.00.00 N14B internal spark coil
098  00.00.00.00 SD462/2 points 01.3239 photo
099  $0.40 70.71.89.20 G221/8 thin lock washer ∅4 x 7 x 0.5
100  $1.20 35.71.57.50 G221/7 coil screw M4 x 25 slot
101  N/A     00.00.00.00 N14/C lights coil
102  N/A     00.00.00.00 N14/A flywheel Dansi MDP44 82 id x 110 od
146 $0.50  48.80.18.70 UI7191  start cable cap subst.  for 1L F5C photo
147 $4.00  48.80.25.70 G10       start cable spring subst. 6.5-7.0 id x 60-75
148 $3.00  48.80.24.70 M277     start cable pinch bolt for 1L P20 photo
149 $3.00  70.62.69.20 G000     start lever adjuster   for 1L A3a photo
150 $4.00  00.00.00.00 G000     Domino start lever anchor pin D14a





Benelli models with GK65 engines 1969-73

59cc horizontal cylinder 1-speed, automatic clutch

















GK65 engine: (Gentlemen Kickstart 59cc) engines are on 1970-73 US-model mini-cycles. The model names say “65” but the actual size was 59cc, not 65cc. The bore and stroke are 44 and 39 mm, so (44/2)*(44/2)*3.14*39/1000 = 59.27 cc. The GK and GK-65 engines have a two-piece transmission cover, different than a GM one-piece. They do not have pedals or a pedal chain.

These have Dansi ADP244S magnetos and front-facing carburetors, Dellorto SHA 14/12.





GK65 partial parts list

00#   price   1970#    description      specs
071  none   G244/26  start cable
o1A  none   G244/27  start cable
072  none   G10  start spring
073  $3.00 N277  start pinch bolt P20 photo
050  $0.30 MU280  head & ex nut M6
072  none   N134  magneto complete  Dansi ADP244S  photo
B82  none   G421  piston bare ∅44 use #165
083  $8.00 G424 piston pin ∅12 x ?
084  $1.00 MU339 piston clip ∅12
085  $10.0 G591    piston ring Std 44.0 x 1.5 GN
085  none   ‌G591/2 piston ring 1os 44.2 x 1.5 GN
085  none   ‌G591/4 piston ring 2os 44.4 x 1.5 GN
085  none   ‌G591/6 piston ring 3os 44.6 x 1.5 GN
105  none  ‌B1348/2 spark plug = NGK BR6ES
108  none   ‌G422 head gasket ∅45
110  $4.00 G7483 cylinder stud M6 x 105
111  $0.20 MU332 washer M6
112  none   ‌N316 base gasket
117  $2.00 UI7496 exhaust stud M6 x 26
121  $00.0 G29/A   carburetor SHA 14/12
152  none   N134/A  flywheel ∅82 ∅110 aluminum Dansi ADP244S
153  none   G314/A  lighting source coil
154  none   G221/2  ignition source coil (with external ground wire that powers brake light)
155  $1.20 G221/7  coil screw M4 x 25 slot
156  $0.40 G221/8  thin lock washer  ∅4 x 7 x 0.5
157  none   SD401  screw set
158  $21.0 CS0004  points #01.3239  photo  (gap 0.015″)
159  $15.0 G221/6  condenser #07.0074  0.28 μf, ∅18 x 21 photo
160  $1.50 G221/3  points screw M4 x 8 small slot
161  none   SD426/3  stator plate bare ∅94  2+3 hole
165  none   ‌G421/C   piston assy Std 44.0 x 17-12-18
165  none   ‌G421/2C piston assy 1os 44.2 x 17-12-18
165  none   ‌G421/4C piston assy 2os 44.4 x 17-12-18
165  none   ‌G421/6C piston assy 3os 44.6 x 17-12-18







Benelli models with FA engines 1960?-75

49cc vertical cylinder 1-speed automatic clutch.



FA engine (Frizone Automatico) engine had an upright slanted forward cylinder, not horizontal like the GM or G2 motor. It was rounded everywhere, not mostly square like the 1970’s motors. The pedals were part of the motor unit, not separate like on the G2.

The 1965-69 Wards Riverside 150D and 250D mopeds, the 1974-75 Benelli 3FA moped. and 1976 Benelli Export FA had FA engines. The left grip was a twist grip that operated the starting clutch. Normally the bike is in pedal mode. Twist the left grip back to engage the motor for starting. Once started it is under automatic clutch control, engaged above 10mph and in neutral below about 5mph. The hand levers are hand brakes, left rear and right front. The controls are early Domino. Throttle is a wrap-around type.





The Benelli FA and M4 cylinders are the same as the Benelli M4S cylinder on the 50cc Fireball, except the porting. The Fireball cylinder has a 17mm (for the Dellorto UA16 carb) intake port at the flange, while the FA (and M4?) have a 10mm intake port hole (for a Dellorto 14/12 carb). The exhaust port is taller and wider on the Fireball. The transfer ports and intake port are also wider and maybe taller.

The 1960’s Benelli FA, M4 and M4S piston is the same as the 1970’s Benelli G and G2 piston. They are all 40.0mm bore, 39 stroke, and use the same rings 40 x 1.5 FG. The exhaust has a screw-on mount, with M34-1.5 male thread on the exhaust, female on the cylinder.



---

1965-67 Wards Riverside (Benelli FA engine)

Mopeds with manual starting clutches usually have an extra hand lever below the left handlebar, for starting. Instead of a start lever, Benelli has a start grip. You pedal the bike, then twist the left grip, to engage the engine. Then let go once the engine has started.

Date: The date of manufacture is not stated on the ID plate or anywhere else on the frame. On 250D models with original speedometers, there may be a date stamped in ink, on the bottom of the speedometer shell. Remove the speedometer to see it.

Here is a link to the 1965 Wards Riverside Service Manual



Wards Product Codes

FFA-61-14001A  1965-66 Riverside 250-D 1.5hp red/wht long seat 2.25-18
FFA-61-14018A  1965-66 Riverside 150-P 1.5hp red/wht solo  seat 2.25-18
FFA-61-14001B  1966-67 Riverside 250-D 1.5hp red/wht long seat 2.25-18
FFA-61-14018B  1966-67 Riverside 150-D 1.5hp red/wht solo  seat 2.25-18

























---

This is an entire 1965-67 Montgomery Ward Riverside moped parts manual, condensed, colorized with prices, availability and specifications added. It is combined with a 1976 Benelli Export FA engine parts illustration and parts list. In ten years not much changed except the starting clutch and maybe something else.

On parts that have different sizes, the 1976 part numbers say the size in millimeters, here colored in orange.















































































FA engine complete parts list:

66# 76#  price  0 ’76 part#    ’66 part#    description   specs
001 000  $0.00  00.00.00.00  MU1476  coil bolt M6 x ??
002 073  $0.20  95.00.02.06  MU332  washer M6
003 074  $0.30  92.60.22.06  MU280  nut M6-1.00
004 000  none.  00.00.00.00  I9161  ignition coil ’66 round can type
000 C72  $78.0 71.71.65.10  G000   ignition coil ’76 H79 E type Dansi photo
000 C72  $43.0 71.71.65.10  G000   same but good-used, both sold “as is”
005 000  $3.00  00.00.00.00  I9161/1  ground wire
006 119  $4.00  96.50.61.05  G7483  cylinder stud M6 x 105
007 047  none   35.71.70.00  B1348/2  spark plug NGK B6ES now BR6ES
008 C86  $6.00  45.71.74.00  G6076  spark plug cap modern plastic
009 C73  $2.00 823.91.00.70 G25  spark plug wire 12″
010 043  none.  70.11.50.10  G7350  intake pipe ∅18 od
011 046  $0.00  70.11.55.00  G7015  intake gasket
012 045  $0.25  95.02.11.06  MU432  lock washer M6

013 000  $3.00  00.00.00.00  G7496  intake stud M6 x 30
000 044  $0.70  98.62.23.20  00000  intake bolt M6 x 20 allen
014 005  none.  48.09.39.70  G7947  starter lever-shaft ∅11
015 007  none.  48.08.76.70  G7948 start lever inner
016 008  $2.00  90.27.10.11  G7949  start shaft retaining ring external ∅11 x 1
017 006  $0.00  90.70.61.07  G4  start shaft seal ring 10 id ?
018 019  none.  48.08.19.70  G7944/1  adjustment screw
019 017  none.  48.08.20.70  G7944/2  clutch shoe
020 018  none.  48.08.35.70  G7944/3  clutch shoe spring
021 009  none.  48.08.55.70  G7946  clutch push rod ∅6 x 31
022 000  none.  00.00.00.00  G7945  thrust cap
023 015  $1.50  90.27.10.15  MU3813  retaining ring external ∅15
024 020  $1.50  90.27.10.10  MU8153  shoe retaining ring external ∅10
025 000  none.  00.00.00.00  G7944/5  washer M10
026 012  none.  48.08.26.70  G7944/6  starter clutch plate
027 016  $0.00  48.08.16.70  G5  washer 16 id?
000 011  $6.00  48.02.32.70  G418  retaining ring ∅95 x 2.0
028 021  none.  69.08.46.00  G7944/7  clutch drum with gear
029 048  none.  70.02.24.00  G7825  cylinder head
030 049  $12.0  48.02.20.70  G7010  head gasket
031 050  none.  70.02.03.10  G7438  cylinder
032 051  $0.00  70.02.08.00  G7011/1  base gasket
033 033  $5.00  90.27.20.42  MU7062  retaining ring internal ∅42 x 1.7
034 034  $10.0  90.20.10.20  MU7056  right drive shaft bearing 6302 15-42-13
035 035  none.  70.21.36.10  G7987  secondary gear shaft
036 029  $0.00  91.60.03.37  MU3817  clutch woodruff key
037 037  none.  70.21.45.10  G7774  secondary shaft gear
038 038  $10.0  90.20.11.20  MU3061  left drive shaft bearing 6302Z 15-42-13
039 039  $7.50  90.40.28.38  MU2265  drive seal 28-38-7
040 040  none.  70.33.05.10  G7340  drive sprocket
041 041  $0.00  70.21.93.00  G73440  sprocket nut
042 025  $0.00  48.21.93.70  L837  gear shaft nut
043 026  none.  70.21.58.10  G9  large primary gear
044 034  $10.0  92.20.10.20  MU7038  right gear shaft bearing 6003 17-35-10
045 035  none.  70.21.36.10  G7988 gear shaft
046 037  none.  70.21.45.10  G7039  small primary gear
047 038  $7.00  92.20.11.20  L746  left gear shaft bearing 6201  12-32-10
048 032  none.  70.01.42.10  G7777  left case plug
049 060  $1.20  98.62.03.45  M79  clutch cover screw M6 x 45 allen black
050 059  $0.80  98.62.03.25  MU1414/1  mag. cover screw M6 x 25 allen black
051 061  none.  70.00.16.10  G1  clutch cover
052 064  none.  70.00.49.10  G7092/1  dip stick
053 063  $0.00  70.08.38.10  G8  bushing with lip
054 070  $0.00  35.00.20.00  UI7080  dowel tube ∅6 ∅8? x 20?
055 059  $0.80  98.62.03.25  MU1224 case screw M6 x 25 allen black
056 067  none.  48.00.46.71  L492  breather
057 068  $0.00  90.71.40.80  L493  seal washer
058 069  none.  70.00.10.00  G7861  right case half
059 077  none.  90.40.19.27  MU7778  right crank seal 19-27-6
060 078  $0.00  90.20.14.16  G7365  L & R crank bearing 6004 C3   20- 42-12
061 082  none.  70.06.44.10  G7943  right crank half
062 052  $10.0  48.06.08.70  G7347  piston ring 40.0 x 1.5 GN
062 000  $22.0  48.06.08.72  G7347/2   piston ring 1os 40.2 x 1.5 GN
062 000  none    48.06.08.74  G7347/4   piston ring 2os 40.4 x 1.5 GN
062 000  $10.0  48.06.08.76  G7347/6   piston ring 3os 40.6 x 1.5 GN
063 053  $47.0  70.06.04.00  G7346  piston bare (substitute)
064 056  $1.50  90.27.20.12  L339  piston clip ∅12
065 000  none.  00.00.00.00  G7116  connecting rod bare, for bushing
000 057  none.  48.06.16.70  G0000  connecting rod bare, for bearing
066 000  $0.00  00.00.00.00  G7019  piston pin bushing ∅12 ∅14?
066 054  $0.00  95.25.20.12  00000  piston pin bearing ∅12 ∅15?
067 055  $10.0  48.06.12.70  G7018  piston pin ∅12
068 000  none.  00.00.00.00  MU7112  rod bearing rollers
069 000  none.  00.00.00.00  G7111  rod bearing cage
000 058  none.  92.25.20.12  00000  rod bearing assembled
070 083  none.  70.06.50.00  G7115  crank pin
071 084  none.  70.06.43.00  G7119  left crank half
072 081  $2.00 ‌ 91.60.02.38  G7274  flywheel woodruff key M81 2.0 x 3.7
073 085  none.  90.40.15.25  G7342  left crank seal 15-25-5
074 088  $0.00  91.55.10.70  UI281  grommet
075 087  none.  70.00.07.10  G7862/2  left case half
076 000  $0.70  00.00.00.00  MU7084  lock washer M4 toothed
077 089  $1.30  98.20.04.10  MU1147  stator plate screw M4 x 10 slot
 Dansi magnetos: all ∅82 id rotors, ∅94 od stators xx  IIN means Internal spark, Int. ground, No brake light
66# 76#  price  0 ’76 part#    ’66 part#  xxxxxx  wires xxx EEB means External spark, Ext. ground, Brake light
078 000  none.  00.00.00.00  G221   magneto ign lts gnd ASL205NS ∅110 ⇐ EEB ’65-67 Wards Riverside
078 000  none.  00.00.00.00  G7094 magneto ign lts xxx MSL105 xx ∅110 ⇐ IIN ’65-73? Export FA
000 090  none.  70.71.24.00  G000   magneto ign lts xxx 100844   xx ∅103 ⇐ EIN ’73-80? Export FA
079 091  $1.80  95.10.12.75  UI7091  flywheel washer ∅9 ∅17 inner teeth
080 092  $0.00  92.75.00.73  I9020  flywheel nut M8-1.0 x ?
081 093  none.  70.00.02.10  G7767  magneto cover
082 000  none.  00.00.00.00  M93  MW name plate
083 000  none.  00.00.00.00  B1219  name plate rivet
084 098  none.  70.12.08.00  G7840  exhaust header pipe
085 096  $0.00  70.12.03.00  G7009  exhaust seal ring ∅30? od
086 097  none.  70.12.02.00  G7763  exhaust nut M34-1.50
087 099  none    70.12.69.00  G7841/1  muffler clamp
088 100  none.  70.12.30.00  G7841  muffler 32 id rear
089 000  $2.00  00.00.00.00  MU614C  muffler bolt w/nut M8 x 15
090 000  $33.0  00.00.00.00  G7918/2  baffle 31.8 x 300 (Tomos substitute)
091 000  none.  00.00.00.00  G7918/2  baffle screw
092 106  $2.00  91.77.00.92  G7085  pedal pin ∅9.0
093 000  $18.0  00.00.00.00  G7087/C  pedal set replacement photo
094 000  $35.0  00.00.00.00  G7923/C  pedal crank set 502 replacement
094 105  none   70.26.15.10  G0000  right pedal crank 502R rep. (needs high offset)
094 117  $20.0  70.26.15.11  G0000  left pedal crank 502L replacement
095 000  none.  96.50.60.80  G105    case stud M6 x 80 use bolt
000 071  $1.20  98.62.03.70  G0000  case bolt M6 x 70 allen
096 000  none.  96.50.60.65  G7013  case stud M6 x 65 use bolt
000 072  $1.20  98.62.03.55  G0000  case bolt M6 x 55 allen
097 070  none.  35.00.20.00  G7356  spacer ∅6 x 20?
098 000  none.  00.00.00.00  MU7075  bushing circlip ∅20? external
000 108  $1.50  90.27.11.16  00000  pedal shaft circlip ∅16 external
099 000  none.  00.00.00.00  G7110 kick-starter right bushing with clip groove
100 107  none.  90.40.16.25  MU3796  pedal shaft seal 16-25-5
101 110  none.  70.26.67.00  G7055  pedal shaft inner spacer ∅17
102 109  $0.00  70.26.74.00  G7354  pedal shaft washer
103 112  none.  70.26.66.10  G368  pedal shaft gear
104 113  none.  70.26.65.10  G7358  engage dog
105 114  none.  70.26.52.00  G7072  engage dog spring
106 115  none.  70.26.53.11  G7348  pedal shaft
107 036  $0.00  70.01.76.00  G7138  case stud M6 x ??
108 000  none.  00.00.00.00  G7370  pedal shaft bushing
109 079  $0.00  90.71.40.62  L417  drain plug seal washer
110 080  $0.00  98.05.43.10  MU234  drain plug
111 000  none.  00.00.00.00  G221/2  ignition source coil (with external ground wire for brake light)
111 000  none.  00.00.00.00  G0000   internal spark coil for MSL105
000 157  none.  70.71.51.20 G0000  ignition source coil for 100844
112 156    48.70.86.70  G221/6  condenser #07.0074  0.28 μf, ∅18 x 21 photo
113 164  $1.50  35.70.79.00  G221/3  points screw M4 x 8 small slot
114 000  none.  00.00.00.00  G221/1  stator plate bare ∅94  2+3 hole
000 155  none.  70.70.22.20  G0000  stator plate bare ∅94  2+3 hole for 100844
115 000  none.  00.00.00.00  G221/4  points #01.3236 photo  (gap 0.015″)
000 159  none.  70.70.88.20 $16.0  points #M14 for 100844
116 000  none.  00.00.00.00  G221/10  flywheel ∅82 ∅110  Dansi ASL205NS photo
000 162  none.  70.71.16.20  GG0000  flywheel ∅82 ∅103  Dansi   100844  photo
117 000  none.  00.00.00.00  G221/9  lighting coil 6V 28W = 21W head + 5W tail + 2W speedo
000 158  none.  70.71.50.20 G0000  lighting coil for 100844
118 163  $0.40  70.71.89.20  G221/8  thin lock washer  ∅4 x 7 x 0.5
119 000  $1.20  35.71.57.50  G221/7  coil screw M4 x 25 slot
000 161  $0.00  35.71.55.00  00000  coil screw M4 x ?? slot
120 164  none.  48.71.57.70  G221/5  screw set
121 160  none.  48.70.95.70  G221/11  lubricating wick (felt)
122 100  $65.0  70.06.02.20  G7346/C  piston complete modern 40.0 x 17-12-18 GOL made in Italy
122 100  none.  70.06.02.22  G7346/C2  piston complete  1st  o.s 40.2 x 17-12-18
122 100  none.  70.06.02.24  G7346/C4  piston complete 2nd o.s 40.4 x 17-12-18
122 100  none.  70.06.02.26  G7346/C6  piston complete 3rd o.s 40.6 x 17-12-18
123 000  none.  00.00.00.00  G7116/C  connecting rod assy for bushing
000 154  none.  70.06.40.10  G00000  connecting rod assy for bearing
124 042  $75.0  70.11.26.00  G29  carburetor Dellorto SHA 14/12 genuine, modern (not all metal)
124 000  $75.0  00.00.00.00  G29  with correct #58 jet clamp sleeve, air cover, screen and clip
125 146  $5.00  49.93.87.00  DE1104/C  throttle cable adjuster w/nut A13
126 145  $2.00  43.93.28.00  DE3318  top screw M4-0.75 x 14
127 135  $16.0  43.93.50.00  DE6110/C  carb top assy good-used
128 142  $10.0  43.93.75.00  DE6108  throttle slide #1 good-used
129 136  $3.00  43.93.22.00  DE6111  top gasket
130 140  $2.00  43.93.63.00  DE3606  idle screw spring
131 141  $4.00  43.93.86.00  DE6140  idle speed screw
132 126  $2.00  46.93.86.00  DE6305  carb clamp screw M6
133 127  $2.50  43.93.76.00  DE6304  clamp screw nut M6
134 000  $0.00  00.00.00.00  DE3724  intake pipe restrictor/reducer ∅12-to-10 ?
135 134  $5.00  46.93.89.00  DE6448  clamp sleeve ∅20-to-18
136 123  $2.00  46.93.47.00  DE6123  float gasket round but goes in D-shaped groove
137 122  $5.00  43.93.44.00  DE6107  float bowl metal used
138 121  $4.00  43.93.45.00  DE3598  float bowl screw M4-0.75 x 18
139 133  $5.00  35.93.57.00  DE1486/58  main jet 58
140 125  $2.00  43.93.31.00  DE4560  float hinge pin Ø2.0 x 16.5
141 124  $18.0  43.93.30.00  DE6122  float white hollow plastic 3.5 grams
142 132  $10.0  43.93.48.00  DE2838  float needle valve with  viton rubber tip
143 131  $5.00  00.00.00.00  DE6109  fuel filter disk
144 130  $8.00  00.00.00.00  DE6106  fuel inlet banjo, metal angled out, good-used
144 130  $7.00  00.00.00.00  DE9249  fuel inlet banjo, black plastic angled
145 129  $1.50  00.00.00.00  DE3385  seal washer 5 x 9
146 128  $5.00  00.00.00.00  DE4190  fuel inlet screw M5-0.75 x 15
147 148  $10.0  70.93.10.20  DE6183  air cover #53051a
147 148  $17.0  00.00.00.00  DE0000  air cover set #53051 3-piece 53051 a,b,c
148 147  $9.00  43.93.25.00  DE6117  air filter metal #53051c
149 144  $3.00  00.00.00.00  DE6159  air filter gasket
150 139  $3.00  00.00.00.00  DE5417  choke pivot screw
151 138  $3.00  00.00.00.00  DE6105  choke spring
152 137  $7.00  00.00.00.00  DE6114  choke plate-lever medium
153 149  $6.00  70.93.42.20  DE6235  air cover clip #53051b
154 076  $0.80  92.60.22.08  MU187  nut M8
155 075  none.  96.50.80.98  H8256  case stud M8 x 98
156 086  none.  70.00.09.00  G7830  case gasket
157 065  none.  70.00.06.00  G7835  clutch gasket
158 024  none.  70.07.03.10  G3  clutch drum bushing
159 000  none.  00.00.00.00  G244/3  start cable for twist control 2T 52 x ?? use 1T
000 001  none.  00.00.00.00  G0000   start cable for lever control 2L 52 x ?? use 1L
159 000  $12.0  00.00.00.00  G0000   start cable for twist control 1T 52 x 57″
000 001  $10.0  70.09.30.10  G244/20 start cable for lever control 1L 52 x 57″
000 C41  $3.00  70.62.69.20  G7/4 00 adjuster for 1T,1L start cable A3a see below 41
000 C35a $4.50  00.00.00.00  Gooo    cable anchor pin D14a substitute image see 35a
000 002  $3.00  48.80.24.70  M277    pinch bolt for 1T,1L start cable P20 photo
000 004  $0.50  48.80.18.70  UI7191 stop cap   for 1T,1L start cable F5C photo
160 003  $4.00  48.80.25.70  G10 oo  start cable spring subst. 6.5-7.0 id x 60-75
161 000  none.  00.00.00.00  G7944/C  clutch complete ’66
000 165  none.  70.08.00.10  000000   clutch complete ’76
162 000  none.  00.00.00.00  G79  crankshaft with piston pin bushing
100 152  none.  70.06.40.10  000  crankshaft with piston pin bearing
163 150  none.  70.99.90.20  G242/1  gasket set
164 151  none.  69.99.95.01  G243/1  seal set 5-piece
164 151  none.  69.99.95.01  G243/1  19-27-6, 15-25-5, 28-38-7, 16-25-5, 16-25-5
165 000  $0.00  00.00.00.00 G29/1  throttle cable 2-ended (for wrap-around throttle)
000 120  $0.00  35.11.75.40  00000  throttle cable 1-ended (for slide-type throttle)
166 F32  $1.00 823.94.50.80 G7187/3  fuel hose 12″ clear 3/16″id 5/16″od

















































































































The rear sprocket has a 36.5mm centering hole (not 39.5), and a 62mm bolt hole spacing diagonally.

























G1 and G1R have a 1-speed automatic with pedals, and same bottom-end parts as V1P.

G1-KS and G1R-KS have a 1-speed auto, kick start, and same bottom-end parts as V1P-KS.



---

1. 1972-85? Minarelli G1, G1-KS

Minarelli G1 and G1-KS (1972-85?)
figure Minarelli# qty MMI# price  description
00015 15.0005.9 1 5640  none  carburetor Dellorto SHA 14/9  jet #47
00015 15.0016.9 1 5650 $75.0 carburetor Dellorto SHA14/12 jet #52
00015 15.0016.9 1 0000 $00.0 ∅18 sleeve, no air cover, no cable pipe
00019 19.0304.0 1 0000  none  cylinder S40 all-iron, M28 ex. thread
00031 31.0010.6 1 0000 $12.0 air cover F27 large sloping
00031 31.0005.6 1 0000 none  air cover 10236 cylindrical
00062 71.0410.0 1 4540 none  piston kit 38.8 rings 1.5
00062 71.0410.0 1 4540 $60.0 piston kit 38.8 GOL 0034
00062 71.0460.7 1 4550 $73.0 piston kit Ø39.0 (1st oversize)
00062 71.0460.7 1 4560 none  piston kit Ø39.2 (2nd oversize)
00062 71.0460.7 1 4570 $73.0 piston kit Ø39.4 (3rd oversize)
00077 77.0152.0 1 0000  none  head (testa) SPORT
00082 82.0002.9 1 0000  none  magneto Bosch 0212.005.027 ∅80 Ο♦♦
00111 11.0132.9 1 W8A  $5.00 spark plug W145T1=W8A=BR5HS
00112 11.0203.0 1 5520 $7.00 spark plug cap for ∅5 wire
00212 21.0007.7 1 0000  none  clutch cover metal natural
00212 21.0209.7 1 5262  none  clutch cover metal black
00214 21.0352.0 1 0000  none  magneto cover grey
00214 21.0353.0 1 0000  none  magneto cover black
00381 38.0010.0 1 4465  none  late cone crank G1,V1P M10-1.25 LH
00000 00.0000.0 1 4465  none  rod Ø15.00 x 14 for needle bearing
00582 58.0220.0 1 4800 $12.0   9 tooth sprocket (1hp, 20mph)
00582 58.0221.0 1 4810 $19.0 10 tooth sprocket (25 or 30mph)
00582 58.0222.0 1 4820 $15.0 11 tooth sprocket (2hp, 30mph)
00681 68.0115.0 2 4640 $10.0 piston ring (each) 38.8 x 1.5 GN
05113 51.0301.9 1 4475 $15.0 piston bearing Ø12 Ø15.00 x 15
05320 53.0302.0 1 0000 none  base gasket ∅44 40×40
49005 49.0018.0 1 5880 $4.00 air cover clamp with screw
49046 49.0326.0 1 6275 $1.00 cone-clutch lock nut 10-1.25×6 LH
49015 49.0125.8 1 4730 $2.00 key 3.0 x 3.6 x 9.5 M85 for Bosch
49040 49.0312.0 1 4750 $7.00 flywheel nut (dado) M10-1.25 x 14 hex 15
49084 49.0509.0 1 0000 $3.50 cylinder stud M6 x 109 (110)

Magneto Parts for Bosch 0212.005.027 ∅80 2-wire, int. spark
00821 82.0001.6 M31  1 $15.0 points M31 with eyelet wire
00823 82.0130.6 M32  1 $15.0 condenser M32 with screw post
00828 82.0014.6 0000 1  none  stator assy Bosch
00826 82.0202.6 0000 1  none  flywheel ⇒ Bosch

Minarelli G1-KS on ’80-82? Italjet M5C, ’82-84? Italjet M5D





---

2. 1979-85? Minarelli G1R, G1R-KS

Minarelli G1R and G1R-KS (1979-85?)
figure Minarelli# qty MMI# price  description
00015 15.0015.9 1 5650 $75.0 carburetor Dellorto SHA14/12 jet #52
00015 15.0015.9 1 0000 $00.0 ∅18 sleeve, no air cover, no cable pipe
00019 19.0046.0 1 0000  none  cylinder sleeved alum. 38.8 S40 Radiale
00031 31.0010.6 1 0000 $12.0 air cover F27 large sloping
00062 71.0419.0 1 0000  none  piston kit 38.8 rings L2.0+1.5
00077 77.0172.0 1 0000  none  head 38.8 grey Radiale
00077 77.0421.0 1 0000  none  head 38.8 black Radiale
00082 82.0029.9 1 0000  none  magneto Ducati 31.03.73
00381 38.0012.0 1 0000  none  crankshaft (imbiellaggio)
00681 68.0115.0 1 4640 $10.0 lower ring 38.8 x 1.5 GN
00682 68.0116.0 1 0000  none  upper L-ring 38.8 x L2.0
05320 53.0306.0 1 0000 none  base gasket ∅47 48×48
49084 49.0513.0 4 0000 $3.50 cylinder stud 7 x 118.5 (120)

Magneto Parts for Ducati 31.03.73 ∅80 ⇒ 2-wire, ext. spark
figure Minarelli# qty MMI# price  description
00821 82.0011.6 1 M18   $00.0 points M18 ??
00823 82.0134.6 1 M17T $00.0 condenser M17T ?? (∅17.9) use M17

Minarelli G1R-KS on ’80-82 Italjet JC5C, ’82-84 Italjet JC5D









Minarelli V2 and C2 have a variable-pulley automatic transmission. V2 has many parts in common with V1. C2 has many parts in common with V1P. 1970’s and 80’s V1/V2/C2 have a few parts in common with the late 1950’s Minarelli P1, such as the cast iron cylinder.

















---

1. 1977-80? Minarelli V2

This V2 parts list is for the version sold in Italy.



Minarelli V2 (1977-80?)
figure Minarelli# qty MMI# price  description
00  15 15.0016.9 1 0000  none  carb SHA14/12 jet 52 use 15.0024.9
00  15 15.0024.9 1 5650 $75.0 carb SHA14/12 jet 52, US 2.0 hp
00  15 15.0000.6 1 0000 $0.00 ∅18 sleeve, no air cover, no cable pipe
15105 15.0360.6 1 6360 $5.00 6109 fuel filter
15130 15.0410.6 1 6380 $5.00 1486 main jet #52
15170 15.0490.6 1 6430 $2.00 6123 float gasket
15255 15.0601.6 1 6530 $7.00 9249 inlet banjo black plastic angled out
15300 15.0701.6 1 6550 $10.0 2838 float needle
15000 15.0000.6 1 0000 $0.00 for full list see Carb/Dellorto/SHA14
00019 19.0311.0 1 5480  none  cylinder all-iron, US 2.0 hp

00031 31.0013.7 1 5660 $32.0 air cover bare S1 Minarelli grey
00031 31.0025.7  5660M $15.0 air cover bare S1 Minarelli black
0 31/1 31.0018.7 1 0000 none  air cover bare S3 F44 grey
0 31/1 31.0024.7 1 6670 $11.0 air cover bare S3 F44 #8603 black
0 31/2 31.0021.7 1 6660 none  air cover bare S33 grey use F44
0 31/2 31.0026.7 1 0000 none  air cover bare S33 #8602 blk. use F44
0 31/3 31.0023.7 1 5660 $25.0 air cover-clamp S4 Min. grey used
00062 71.0409.0 1 0000  none  superseded use 71.0410.0
00062 71.0410.0 1 4540 none  piston kit 38.8 ball top 1.5 rings
00062 71.0410.0 1 4540 $60.0 piston kit 38.8 GOL 0034
00062 71.0460.7 1 4550 $73.0 piston kit Ø39.0 (1st oversize)
00062 71.0460.7 1 4560 none  piston kit Ø39.2 (2nd oversize)
00062 71.0460.7 1 4570 $73.0 piston kit Ø39.4 (3rd oversize)
00077 77.0124.0 1 5500 $39.0 head
00080 80.0103.0 1 5410 $40.0 fan early ’69-80 V1
00  82 82.0002.9 1 0000  none  Bosch 0212.005.027 ∅80 wires-Ο♦♦♦
00821 82.0001.6 1 M31   $15.0 points = Bosch 2207 013 005 w/wire
00823 82.0130.6 1 M32   $15.0 condenser = Bosch 2207 330 050
00  82 82.0004.9 1 0000  none  CEV 6931 magneto  ∅80 wires-Ο♦♦♦
00  82 82.0033.9 1 5360 $280  CEV 6932 magneto  ∅80 wires-Ο♦♦♦ US
00821 82.0004.6 1 M18   $16.0 points equal to CEV 04221
00823 82.0131.6 1 M17   $13.0 condenser equal to CEV 07365
00111 11.0101.9 1 0000  none  spark plug WK175T1 use BR6HS
00111 11.0133.9 1 5510 $5.00 spark plug W175T1=W7A=BR6HS
00112 11.0202.0 1 5520 $6.00 spark plug cap for ∅7 wire
00211 21.0111.0 1 0000  none  fan cover metal black
00212 21.0234.7 1 0000  none  clutch cover metal black
00218 21.0552.0 1 5390  none  fan base metal 3-bolt for metal cover
00381 38.0004.0 1 0000  none  crankshaft
00382 38.0061.7 1 5560 $35.0 connecting rod assy with bushing
00582 58.0205.0 1 0000  none  14 tooth sprocket
00606 60.0181.0 1 5585 36-25 Ø18×12 front intake 14-12-12 (2.0hp)
00681 68.0115.0 2 4640 $10.0 piston ring (each) 38.8 x 1.5 GN
05320 53.0304.0 1 5460 $3.50 cylinder base gasket
05372 53.0502.9 4 4790 $6.00 pedal+variator seal 15 x 24 x 5
05374 53.0504.9 1 0000 $7.50 pulley outer seal     16 x 24 x 5
05376 53.0506.9 2 4710 none  crankshaft seal       17 x 35 x 8
05379 53.0510.9 1 0000  none  pulley inner seal     30 x 47 x 7
49005 49.0018.0 1 5880 $4.00 air cover clamp ∅60 replica with screw
49084 49.0510.0 4 5530 $4.50 cylinder stud M6 x 136

49244 49.0861.9 3 0000 $0.70 fan base bolt M6x20 TCCE
49300 49.0935.9 4 5420 $1.20 fan screw xxxxx  M4x10 TGS (threads 5-8mm)
49245 49.0862.9 3 5450 $0.80 metal fan cover  M6x30 TCCE

























---

2. 1981-85? Minarelli C2

C2 has a variable-pulley automatic transmission.

Minarelli C2 (1981-85?)
figure Minarelli# qty MMI# price  description
00  15 15.0016.9 1 0000  none  carb SHA14/12 jet 52 use 15.0024.9
00  15 15.0024.9 1 5650 $75.0 carb SHA14/12 jet 52, US 2.0 hp
00  15 15.0000.6 1 0000 $0.00 ∅18 sleeve, no air cover, no cable pipe
15105 15.0360.6 1 6360 $5.00 6109 fuel filter
15130 15.0410.6 1 6380 $5.00 1486 main jet #52
15170 15.0490.6 1 6430 $2.00 6123 float gasket
15255 15.0601.6 1 6530 $7.00 9249 inlet banjo black plastic angled out
15300 15.0701.6 1 6550 $10.0 2838 float needle
15000 15.0000.6 1 0000 $0.00 for full list see Carb/Dellorto/SHA14
00019 19.0320.0 1 5480  none  cylinder “P” all-iron

0 31/1 31.0024.7 1 6670 $11.0 air cover bare S3 F44 #8603 black
00062 71.0410.0 1 4540 none  piston assy standard 38.8 original
00062 71.0410.0 1 4540 $60.0 piston assy standard 38.8 GOL 0034
00062 71.0460.7 1 4550 $73.0 piston kit Ø39.0 (1st oversize)
00062 71.0460.7 1 4560 none  piston kit Ø39.2 (2nd oversize)
00062 71.0460.7 1 4570 $73.0 piston kit Ø39.4 (3rd oversize)
00077 77.0140.0 1 5505 none  head square V1P
00080 80.0108.0 1 5415 none  fan V1P (not V1)
00082 82.0029.9 1 0000  none  Ducati 31.03.73 mag. ∅80 Ο♦♦♦
00082 82.0033.9 1 5360 $280  CEV 6932 magneto    ∅80 Ο♦♦♦ USA
00111 11.0132.9 1 W8A  $5.00 spark plug W145T1=W8A=BR5HS
00211 21.0114.0 1 5445 $59.0 fan cover V1P black used
00218 21.0558.0 1 5405 $38.0 fan cover base V1P black
00582 50.0204.0 1 4823 $21.0 13 tooth sprocket (for C2)
00681 68.0115.0 2 4640 $10.0 piston ring (each) 38.8 x 1.5 GN
05320 53.0304.0 1 5460 $3.50 cylinder base gasket
49005 49.0018.0 1 5880 $4.00 air cover clamp ∅60 replica with screw
49084 49.0510.0 4 5530 $4.50 cylinder stud M6 x 136

49300 49.0935.9 4 5420 $1.20 fan screw xxxxx  M4x10 TGS (threads 5-8mm)
49315 49.0950.9 4 7050 $1.00 plastic fan cover M4x25 TGS



The C2 was on only a few deluxe US moped models. It has the same all-iron cylinder, piston, “square” head, intake, carburetor, fan, and magneto as a “late” 1979-1985 V1. But the transmission and engine case is much different and longer. The bore is 38.8, not 38.7. The sprocket is 13T, not 11T.

Once again Minarelli made a two speed moped engine, but sales were less than they hoped for. The huge extra cost of the variator drive made it less affordable for most people. Morini had also made the M101, a two speed variator engine, and the MO2 two speed. But the Morini M1 reed valve one speed had better average acceleration than the Morini MO1 piston port two speed did, for a much lower cost and weight. By the late 1980’s, wise Minarelli gave up on two speeds, and “saw the light” of the one speed with case reed induction.

















Contents:
00  years  carb ∅  case ndcovers cyl. 1956 part #s
1. ’63-66? ∅12 ∅44 round round iron P4
1. ’66-67? ∅19 ∅44 round round iron P4S Sport
1. ’66-67? ∅20 ∅44 round round iron P4SS Super Sport

2. ’65-70? ∅20 ∅44 round round iron P4-55 kits
2. ’65-70? ∅20 ∅44 round round iron P4-50 racing
2. ’65-69? ∅20 ∅44 round round iron P4-60 racing
00  years  carb ∅  case ndcovers cyl. 1967 part #s
3. ’67-70? ∅12 ∅44 round round iron P4S 
3. ’71-72? ∅19 ∅47 round round alu. P4S-al
3. ’71-72? ∅19 ∅47 round round alu. P4S-70
00  years  carb ∅  case ndcovers cyl. 1970 part #s
4. ’71-73? ∅12 ∅44 round angle iron P4V
4. ’72-74? ∅19 ∅47 round angle  alu. P4V-70
4. ’74-75? ∅19 ∅48 round angle  alu. P4V-75

5. ’71-79? ∅12 ∅47 angle  angle  iron P4E Export
5. ’72-79? ∅19 ∅47 angle  angle  alu. P4E-al Export
5. ’72-79? ∅12 ∅44 round angle iron P4A

6. ’72-81? ∅12 ∅47 angle  angle  alu. P4CS Compact System



Sources:

Piccolo Giolielo – Tecnica Minarelli P4 P6 50cc by Luigi Corbetta
Motoclisimo D’Epoca 4/2003 at  fantichistisettanta.forumfree.it.

Catalogo Ricambi Generale 1979 by Motori Minarelli
at  passione50cc.forumfree.it.

Tecnica Motori Minarelli 50cc P4 ovalino, Monza, Cadetti, Cross
by motomorini173 at  moto gran premio e 50ini.

Eclates des Moteurs collected by The Minarellist
parts for sale, free pdf manuals at  Le Minarelliste.

Parts Lists and Manuals at indiandirtbikeparts.com

Service and Parts Bulletins at indiandirtbikeparts.com



---

1. 1963-67 Minarelli P4, P4S, P4SS

P4 has a 4-speed, foot-shift, manual clutch, kick start. All P4 crankshafts and cases have a width of 32mm between the bearings. P6 is wider, 36mm. Early P4 crankshafts have a 13mm right cone. In 1971 it became 15mm.

P4S changes: The carburetor and intake changed from Dellorto SHA 14/12 to UA19S side-float type. The cylinder, piston and rings changed changed from 38.0 x 2.5 to 38.8 x 1.5. The compression ratio increased from 7.7 to 9.0. The head changed from small round fins M2-40 to bigger straight fins M24-12. The exhaust nut thread changed from M28 to M32. The nut goes over the pipe, so the pipe is smaller than that.


1. ’63-66? P4     47.7cc (38.0 x 42)
2. ’66-67? P4S   49.6cc (38.8 x 42) Sport
3. ’66-67? P4SS 49.6cc (38.8 x 42) Super Sport
4. ’63-66? P4 parts list

4sS 1956#   Minarelli#  price  4 is P4, s is P4S, S is P4SS .
100 A2-11   71.0405.0 $65.0 piston kit 38.0 dome top
011 A24-31 71.0410.0 none  piston kit 38.8 ball top
011 A24-31 71.0410.0 $60.0 piston kit 38.8 GOL 0034
200 A2-12   00.0000.0 $11.0 piston ring 38.0 x 2.5 GN
022 A24-7   68.0115.0 $10.0 piston ring 38.8 x 1.5 GN
110 A2-8     51.0132.7 $5.00 p. bushing ∅11.7-15×13 note 1
001 A42-10451.0301.9 $9.00 piston bearing Ø12 Ø15 x 15
111 A2-9     56.0601.0 $9.50 piston pin ∅12.00 x 31.5
222 A2-10   03.0213.0 $1.50 piston pin clip ∅12
110 A24-10 38.0005.0  none  crank T-type for bushing
001 A24-32 38.0000.0  none  crank O-type for bearing
110 A24-15 38.0060.7  none  rod 14.95 x 13 for bushing
001 A42-101 0.0000.0  none  rod 15.00 x 14 for bearing
100 M2-40  00.0000.0  none  head 38.0 (testa) small rounded
010 M24-12 77.0152.0  none  head (testa) 38.8 Sport QUADRO
001 M31-??  77.0161.0  none  head (testa) 38.8 Sport RECORD
444 C2-17   49.0304.9 $0.60 head nut M6 x 6
444 M2-13  49.0509.0 $3.50 cylinder stud M6 x 109 (110)
111 C1-17   51.0205.9 $10.0 left bearing 17-40-12 #6302
222 A2-19   51.0203.9 $10.0 right bearing 15-35-11 #6202
222 A2-20   53.0506.9 $7.50 left crank seal 17-35-8 or 7
111 A2-21   00.0000.0 $7.00 right crank seal 15-30-8 or 7
100 M2-5    00.0000.0  none  cylinder C iron 38.0 ex-M28
011 M24-13 19.0306.0  none  cylinder    iron 38.8 ex-M32
111 M2-10   53.0302.0 none  base gasket ∅44 40×40
100 M2-27   00.0000.0  none  exhaust (scarico) M28 thread
011 M24-21 00.0000.0  none  exhaust (scarico) M32 thread
100 M2-44   00.0000.0  none  intake pipe 12 id x 18 od
010 M24-15 00.0000.0  none  intake pipe 19 id x 24 od
001 M31-26 00.0000.0  none  intake pipe 20 id x 23 od
100 M2-45  15.0024.9 $75.0 Dellorto SHA14/12 note 2
010 M24-25 00.0000.0  none  carb Dellorto UA19S
001 M24-27 00.0000.0  none  carb Dellorto UB20S with bell
111 A2-14   00.0000.0  none  pinion gear washer
111 A2-25   00.0000.0  none  pinion gear key
111 A42-1   00.0000.0  none  pinion gear 13T ∅13
111 A42-2   00.0000.0  none  pinion gear nut
111 A2-16   49.0124.8  none  key 3.0-3.7-9.6  use M85
111 A2-16   49.0125.8 $2.00 key 3.0-3.6-9.5 M85 note 3
111 A2-17   49.0312.0 $7.00 flywheel nut M10-1.25 x 14 hex15
100 M2-19  82.0000.0  none  magneto ⇐ CEV 6067 ∅94 o♦♦ 6V early
011 M16-12 00.0000.0  none  magneto 6V 18w internal spark

Note 1. The piston pin bushing must be reamed after installation from 11.7 to 12.0 mm with special tools, an adjustable reamer and reamer holder tool. Here is more info.

Note 2. The genuine Dellorto SHA14/12 carburetor comes with a 52 jet, ∅18 sleeve, no air cover, no cable pipe. The F27 air cover is required for the correct air/fuel mixture. For a full parts list see Carb/Dellorto/SHA14.

Note 3. In March 1974 the flywheel key changed from 3.0 x 3.7 x 9.6 to #M85 3.0 x 3.6 x 9.5.







---

2. 1965-70 P4 Kits and Racers

Transformation Kits (Serie Transformazoni) with bore ∅41:

’65?-70? P4 Transformation Mini Monza
1956#    Minarelli#   price  55.4 cc (41.0 x 42)
A24-50 71.0475.7  none  piston 41.0 flat top L-ring
M24-27 15.0000.0  none  carb Dellorto UB20S with bell (cornetto)
M24-50 19.0000.0  none  cylinder iron ∅41.0 M32 thread
M24-51 77.0000.0  none  head (testa) 41.0
M31-26 15.0000.0  none  intake pipe 20 id x 23 od

’65?-70? P4 Transformation Monza
1956#    Minarelli#   price  same as Mini Monza except:
M24-50 19.0000.0  none  cylinder ∅41.0 exhaust 35

’65?-70? P4 Transformation Super Monza
1956#    Minarelli#   price  same as Monza except:
M24-55 77.0000.0  none  head (testa) 41.0 with bigger fins



---

This late 1960’s Minarelli P4  engine family was intended for racing or sport riding.

P4 Racing changes: The crank changed from A24-32 (cone ∅13 pork chop flywheel) to A42-100 (cone ∅15 full circle flywheel). The width remained at 32mm. The piston changed from A24-31 (dome top 2.5 rings) to A42-102 (flat top L2.0 and 1.5 rings). The carburetor and exhaust got bigger.

’65-70? P4 50 RG Regolarita 49.6cc (38.8 x 42)
1956#    Minarelli#   price  same as P4S except for:
A42-102 71.0413.0  none  piston 38.8 flat top L-ring
A42-102 71.0463.7  none  piston 39.0 oversize
A42-100 38.0063.7  none  crankshaft cone ∅15 full circle
A24-104 51.0301.9 $9.00 piston bearing Ø12 Ø15 x 15
M24-30   15.0000.0 none  carb Dellorto UB20S with filter
M31-26   15.0000.0 none  intake pipe 20 id x 23 od
M42-111 00.0000.0 none  exhaust (scarico) ∅35 x 320
M42-102 19.0000.0 none  cylinder iron ∅38.8 Special
M42-208 82.0000.0 none  magneto 6V 18w int. spark
M42-208 82.0000.0 none  Ducati 31.02.37

’65-71? P4 50 SP Special (Velocita) same as RG except:
1956#    Minarelli#   price
M42-107 00.0000.0  none  exhaust (scarico) ∅35 x 300

’65-71? P4 50 CR Cross same as SP except:
1956#    Minarelli#   price
M24-30   15.0000.0  none  carb Dellorto UB20S with filter
M42-208 82.0000.0  none  magneto 6V 18w int. spark,
M42-208 82.0000.0  none  Ducati 31.02.32 (no lights)

In 1965 a new 60 cc class was launched in Italy to replace the 50 class. In 1970 it returned to 50 cc.

’65-69 P4 60 CA Cadetti (Velocita)
59.2cc (41.4 x 44) piston port induction
1956#    Minarelli#   price
A42-203  68.0000.0  none  piston 41.4 with 6.5 skirt cut
M24-27   15.0000.0  none  carb Dellorto UB20S with bell (cornetto)
M42-211 00.0000.0  none  exhaust (scarico) ∅35 x 295
M42-202 19.0000.0  none  cylinder iron ∅41.0 Cadetti
M42-208 82.0000.0  none  magneto 6V 18w int. spark,
M42-208 82.0000.0  none  Ducati 31.02.37

’65-69 P4 60 CR Cross
58.1cc (41.0 x 44) piston port induction
1956#    Minarelli#   price
A42-205  68.0000.0  none  piston 41.0 with 5.5 skirt cut
M24-30   15.0000.0  none  carb Dellorto UB20S with filter
M42-111 00.0000.0  none  exhaust (scarico) ∅35 x 320
M42-202 19.0000.0  none  cylinder iron ∅41.0 Cadetti
M42-208 82.0000.0  none  magneto 6V 18w int. spark,
M42-208 82.0000.0  none  Ducati 31.02.32 (no lights)

Top: 1965 Italjet Vampiro racer with P4 60 CA Cadetti (piston port induction) engine. The intake goes to the cylinder. The caption says “The Italjet Vampiro with Minarelli 60 engine presented in Monza shortly before the 1965 Milan Show. It will sell for 180 lire including the plastic fairing. Bore and stroke dimensions 41.4 x 44mm = 59.2cc. Note the built continuous double cradle frame and the four-shoe front brake.”

Bottom: 1967 Minarelli factory racer with P4 60 (rotary induction) engine. The intake goes to the crankcase. The caption says “The “lamellar” Minarelli prepared for the 1967 season has the same bore and stroke measurements as the conventionally fueled model, but delivers 9.5 HP at 10,800 rpm against the 9.0 at 10,800 rpm of the “first manner” Italjet which will also be referred to later. It comes from the “lamellar” propeller (rotary induction), with the 17 mm carburetor in direct communication with the crank arm. Always with 4% lubrication.”

In the 70’s and 80’s this engine was incorrectly referred to as a reed valve (lamellare) type, but it did not have a reed valve. Only 60 of these factory racers had this different intake system, according to moto gran premio e 50ini.  Instead of piston-controlled intake (induction), it had crankshaft-controlled (rotary valve) induction. That’s what Vespa Ciao had since 1968, and Yamaha had since 1961. The reed valve had not been invented yet. It was later invented by Yamaha and first produced in 1972.



’66?-69? P4 60 QM (motor-car)
58.1cc (41.0 x 44) this also had that long stroke crank





Motori Minarelli is born: In 1967 the company name and logo changed, from F.B. Minarelli to Motori Minarelli. Above in the 1967 ad they showed off their new logo by making it as big as possible, filling an entire page width.





---

3. 1967-70 Minarelli P4S, P4S-al, P4S-70

Late P4S changes: This ’67-73 late P4S is 95% the same as ’65-67 P4S. Only some kick start and gearshift parts are different. This is evident from the illustrations and part numbers.


1. ’67-70 P4S  49.6cc (38.8 x 42) on 2,3. ’70-73? Fantic Chopper, Diablo
4. ’69-70 Indian Papoose, Super Scrambler, ’71 Bobcat 50, Scrambler 50
5. ’72 Indian (Italjet) JC54 , SE54 and ’67-72 Italjet JC54, SE54, others



P4S-70 changes: The case, cylinder, piston and head changed for the bigger bore, from 38.8 to 45.0 mm. In 1971 the crankshaft changed from piston pin bushing type to a needle bearing type.


1. ’71-72 P4S-70  69.9cc (45.0 x 44) on ’71-72 Indian (Italjet) SE74,
2. ’71-72 Broncco (Fantic) Diablo
3. ’72 P4S-70 and ’73 P4V-70 comparison



5a7  1967#   Minarelli#  price     5 is P4S, a is P4S-al,  7 is P4S-70
110 012050 71.0410.0 none  piston kit 38.8 ball top
110 012050 71.0410.0 $60.0 piston kit 38.8 GOL 0034
001 000000 71.0485.7  none  piston kit ∅45.0 dome top 1.5 rings
220 012054 68.0115.0 $10.0 piston ring Ø38.8 x 1.5 GN
110 012067 51.0132.7 $5.00 bushing ∅11.7-15 x 13 note 1
110 112000 38.0005.0  none  crank T-type 14.95 x 13 for bushing
110 112002 77.0152.0  none  head (testa) 38.8 Sport QUADRO
100 112004 70.0110.0  none  right case P4 rounded
100 112005 70.0610.0  none  left case P4 rounded
111 112085 53.0503.9 $7.00 right crank seal 15-30-8or7
100 162003 19.0306.0  none  cylinder iron 38.8 M32 ex thread
400 162010 49.0509.0 $3.50 cylinder stud M6 x 109 (110)
400 162011 49.0304.9 $0.60 head nut M6 x 6
400 162012 49.0603.9 $0.20 head washer ∅6
100 162174 53.0302.0  none  base gasket ∅44 40×40
111 162181 53.0506.9 $7.50 left crank seal 17-35-8or7
111 162190 51.0205.9 $10.0 left crank bearing 17-40-12 #6302
111 162191 51.0203.9 $10.0 right crank bearing 15-35-11 #6202
100 811901 00.0000.0  none  carb Dellorto UA18? side-float
001 811901 00.0000.0  none  carb Dellorto SHB 19/19
100 912301 00.0000.0  none  magneto 6V 18w internal spark
100 000000 71.0611.7  none  gasket set P4-SP iron



Note 1. The piston pin bushing must be reamed after installation from 11.7 to 12.0 mm with special tools, an adjustable reamer and reamer holder tool. Here is more info.



---

4. 1971-75 Minarelli P4V, P4V-70, P4V-75

Minarelli part numbers changed sometime around 1970.

P4V changes: The ’60’s rounded engine covers became angular, to fit the same rounded cases. In 1971 the crankshaft changed from axe (mannaia) shaped, also called pork chop shaped. The piston pin bushing 38.0005.0 changed to a needle bearing 38.0017.0.



1. 1971-75? P4V      49.6cc (38.8 x 42), 2. P4V parts, 3. P4V list
4. 1973-74 P4V-70 69.9cc (45.0 x 44) on Indian SE/ME/MX74
 and ’74-75 P4V-75 74.7cc (46.5 x 44) on Indian ME/MX74



#     VPP  Indian# 0  Minarelli#  price  V=P4V, P=P4V-70, P=P4V-75
0     100  2000.1000 38.0017.0  none  crankshaft ’71-on 50cc ∅15 x 42
0     011  2120.1018 00.0000.0  none  crankshaft ’72-75 70cc ∅15 x 44
1     800  2000.1000 49.0863.9 $1.00 cover screw M6 x 30 allen black
1     088  2300.1121 00.0000.0 1 -.60 cover screw M6 x 30 slot
2     111  2110.1008 51.0301.9 $9.00 piston bearing Ø12 Ø15 x 15
3     100  2000.1000 56.0601.0 $9.50 piston pin ∅12 x 31.5
3      010 2110.1009 00.0000.0 $0.00 piston pin ∅12 long
3     001  2150.1010 00.0000.0 $0.00 piston pin ∅12 longer
4     222  2110.1010 03.0213.0 $1.50 piston pin clip  Ø12
5     100  2000.1000 71.0410.0 none  piston kit 38.8 ball top
5     100  2000.1000 71.0410.0 $60.0 piston kit 38.8 GOL 0034
5     010  2110.1011 00.0000.0  none  piston kit 45.0 std 70cc
5     001  2150.1001 00.0000.0  none  piston kit 46.5 std 75cc
6     200  2000.1000 68.0115.0 $10.0 piston ring Ø38.8 x 1.5 GN
6     100  2000.1000 71.0805.0  none  ring set 38.8 x 1.5 GN std 50cc
6     010  2110.1016 00.0000.0  none  ring set 45.0 x 1.5 GN std 70cc
6     001  2150.1006 00.0000.0  none  ring set 46.5 x 1.5 GN std 75cc
7     111  2300.1024 49.0124.8  none  flywheel key 3.0-3.7-9.6 use M85
7     111  2301.1024 49.0125.8 $2.00 flywheel key 3.0-3.6-9.5 M85 note 1
8     222  2300.1028 51.0207.9 $16.0 L/R crank bearing 6203/C3
9     222  2110.1121 53.0506.9 $7.50 L/R crank seal 17-35-8 or 7
10   111  2110.1023 16.2044     none  pinion gear key (to 3-’74) note 2
11   222  2110.1026 51.0203.9 $10.0 bearing 6202
12   222  2110.1099 49.0603.9 $0.20 intake washer ∅6
13   111  2120.1024 01.0304.7  none  main shaft Z=10-14-18-20
15   111  2110.1028 51.0137.0 none  L main shaft bushing ∅13-17 x 12
25   111  2110.1041 51.0137.0 none  R drive bushing ∅13-17 x 13
28   111  2110.1042 49.0682.0  none  drive washer ∅15-35 x 1
29   111  2110.1043 53.0502.9 $6.00 drive seal 15-24-5
32   111  2000.1000 49.0313.9  none  sprocket nut
33   111  2110.1052 40.0802.7  none  pinion gear 13T
34   011  2110.1054 00.0000.0  none  pinion gear washer
35   111  2110.1055 49.0310.0  none  pinion gear nut
49   111  2000.1000 49.0317.0  none  clutch nut M14-1.0
58   100  2000.1000 70.0110.0  none  right case half ∅44 P4V
58   010  2120.1013 00.0000.0  none  right case half ∅47 P4-70
58   001  2150.1029 00.0000.0  none  right case half ∅48 P4-75
59   100  2000.1000 70.0610.0  none  left case half ∅44 P4V
59   010  2120.1013 00.0000.0  none  left case half ∅47 P4-70
59   001  2150.1028 00.0000.0  none  left case half ∅48 P4-75
60   111  2120.1017 53.0332.0 none  case gasket
61   222  2120.1016 56.0255.0  none  mount sleeve ∅8-10 x 30
62   100  0000.0000 49.0861.9 $0.80 case screw M6 x 20 allen black
62   011  2120.1040 00.0000.0 $0.80 case screw M6 x 20 slot
63   200  0000.0000 49.0867.9 $1.40 case screw M6 x 50 allen black
63   022  2120.1014 00.0000.0 1 -.70 case screw M6 x 50 slot
64   100  0000.0000 49.0869.9 --N/A- case screw M6 x 65 allen black
64   011  2120.1085 00.0000.0 $0.80 case screw M6 x 65 slot
65   400  0000.0000 49.0865.9 $1.20 case screw M6 x 40 allen black
65   044  2300.1079 00.0000.0 1 -.70 case screw M6 x 40 slot
66   300  0000.0000 49.0862.9 $0.80 case screw M6 x 25 allen black
66   033  2110.1081 00.0000.0 $0.70 case screw M6 x 25 slot
66a 5000000.0000 49.0863.9 $1.00 clutch screw M6 x 30 allen black
66a 055  2300.1121 00.0000.0 1 -.60 clutch screw M6 x 30 slot
67   111  2300.1083 53.0473.0 $1.00 drain plug gasket ∅8-16 x 1
68   111  2300.1082 49.0911.9 $2.00 drain plug M8 x 10 hex13
69   111  2120.1011 26.0188.0  none  oil splash plate
70   333  2300.1085 49.0629.9 $0.20 washer M4
71   333  2300.1086 49.0841.9 $0.50 screw M4 x 10 phil-wide
72   111  2120.1010 53.0352.0  none  clutch gasket oval 6-hole
73   111  2120.1009 21.0212.0  none  clutch cover 6-hole
75   111  2110.1082 53.0402.0  none  name plate gasket
76   011  2110.1083 00.0000.0  none  name plate “Indian”
77   222  2110.1084 49.0936.9 $0.90 name plate screw M4 x 12 phil-sunk
80   111  2300.1081 53.0401.0 $2.00 fill plug seal washer ∅12
81   111  2300.1080 24.0250.0 $8.00 fill plug
82   111  2120.1008 24.0153.0  none  wires grommet
83   333  0000.0000 49.0841.9 $0.50 stator screw M4 x 10 phil-wide
84   100  2000.1000 82.0012.9  none  magneto Ducati 31.02.30 ∅94
84   100  2000.1000 82.0014.9  none  magneto Ducati 31.02.39 ∅94
84   011  2110.1085 00.0000.0  none  magneto Ducati 31.02.38 ∅94
85   111  2300.1094 49.0312.0 $7.00 flywheel nut M10-1.25 x 14 hex15
87   111  2120.1005 21.0312.0  none  magneto cover
89   400  2000.1000 49.0509.0 $3.50 cylinder stud M6 x 109 (110)
89   044  2110.1124 49.0513.0 $3.50 cylinder stud M7 x 118
90   044  2300.1108 49.0604.9 $0.20 head washer M7
91   400  2000.1000 49.0304.9 $0.60 head nut M6 x 6
91   044  2300.1109 49.0306.9 $1.20 head nut M7 x 7
92   100  2000.1000 53.0302.0 none  base gasket ∅44 40×40
92   011  2110.1086 53.0306.0  none  base gasket ∅48 48×48
93   100  2000.1000 19.0306.0  none  cylinder 50cc ∅38.8-44 iron M32
93   010  2110.1087 00.0000.0  none  cylinder 70cc ∅45.0-47 aluminum
93   001  2110.1087 00.0000.0  none  cylinder 75cc ∅46.5-48 aluminum
94   100 2 000.1000 53.0417.0  none  head gasket ∅40-55 x 0.7
94   010  2110.1088 00.0000.0  none  head gasket ∅47-55 x 0.7?
94   001  2150.1012 00.0000.0  none  head gasket ∅48-55 x 0.7?
95   100  2000.1000 77.0152.0  none  head (testa) Sport QUADRO
95   100  2000.1000 77.0161.0  none  head (testa) Sport RECORD
95   011  2110.1089 00.0000.0  none  head 70-75cc
98   100  2110.1091 00.0000.0  none  intake gasket
99   100  2120.1003 00.0000.0  none  intake pipe
100 200  2110.1093 49.0304.9 $0.60 intake nut M6 x 6
101 100  2000.1000 15.0016.9  none  carb SHA 14/12 use 15.0024.9
101 100  2000.1000 15.0024.9 $75.0 carb Dellorto SHA 14/12 note 3
102 011  2110.1096 00.0000.0  none  exhaust flange
103 011  2110.1095 00.0000.0 $0.00 exhaust gasket
104 044  2110.1097 49.0631.9 $0.30 exhaust washer ∅6
105 044  2110.1098 49.0204.0 $0.00 exhaust nut M6 x 23
107 111  2110.1100 49.0922.0  none  bolt M12 x 26
108 111  2300.1114 53.0471.0  none  seal washer ∅12
147 111  2300.1151 49.0622.9 $1.00 flywheel washer M10 thin

Note 1. Indian Service Bulletin SVB-153: In March 1974 the flywheel key 2300.1024 changed  to 2301.1024, slightly shorter. That improved the seating (fit) of the flywheel, so it had less tendency of becoming loose and damaging the key and key groove.

Note 2: Indian Service Bulletin SVB-153: In March 1974 the pinion gear key 2110.1023 was eliminated. It is not needed as long as the pinion gear nut is tight. The key was on the ’67-70 P4S but was already eliminated on the ’71-75 P4V. That’s why there is only a 1960’s Minarelli part number for it.

Note 3. The genuine Dellorto SHA14/12 carburetor comes with a 52 jet, ∅18 sleeve, no air cover, no cable pipe. The F27 air cover is required for the correct air/fuel mixture. For a full parts list see Carb/Dellorto/SHA14.

P4V gears: P4V gears 1 to 4 had a 56 tooth total for each pair, 23+33, 27+29, 30+26, 33+23.



---

5. 1971-79 Minarelli P4E, P4E-al, P4A

P4E changes: The engine case changed from round to angular. The cylinder hole grew from ∅44 to ∅47. The cylinder studs grew from 40×40 to 48×48. This made room for bigger ports for more power, and made bigger bores 70 or 75cc possible, also for more power. The pork-chop all-needle-bearing P4V crankshaft became a full circle type. The exhaust bolts to the cylinder with a 3-bolt flange, instead of screwing on with a special inverted nut.

 ‘
1,2,3. ’71-79? P4E 49.6cc (38.8 x 42) Export in ghisa (iron)
4. ’78-79? Italjet CX50, 5. ’78-79? Italjet SX50

 ‘
1,2,3. ’71-79? P4E-al 49.6cc (38.8 x 42) Export in aluminio
flat top (testa piatta) piston, L-ring, 4. ’78-79 Italjet CX50R

1. ’71-79? P4A 49.6cc (38.8 x 42) P4V cases, covers
2. P4E, P4E-al, P4A parts list



PPa  figure Minarelli#  price  P is P4E, P is P4E-al, a is P4A
101 00015 15.0020.9 $75.0 carb SHA 14/12 note 1
010 00015 15.0029.9  none  carb Dellorto SHB 19/19D
100 00019 19.0314.0  none  cylinder iron ∅44 ∅32 3-bolt
010 00019 19.0002.0  none  cylinder alu. ∅47 ∅?? 4-bolt
001 00019 19.0306.0  none  cylinder iron ∅44 ∅32
001 00019 19.0315.0  none  cylinder iron ∅44 ∅28
111 00031 31.0010.6 $12.0 air cover F27 large sloping
101 00068 71.0410.0 none  piston kit 38.8 ball top
101 00068 71.0410.0 $60.0 piston kit 38.8 GOL 0034
010 00068 71.0413.0  none  piston kit flat top L-ring
010 00068 71.0463.7  none  piston kit flat top oversize
100 00077 77.0115.0  none  head (testa) EXPORT GHISA
010 00077 77.0110.0  none  head (testa) NORMALE
010 00077 77.0111.0  none  head (testa) SP bigger fins
001 00077 77.0152.0  none  head (testa) QUADRA SPORT
001 00077 77.0161.0  none  head (testa) RECORD SPORT
111 00082 82.0014.9  none  magneto Ducati 31.02.39 2-wire ⇐, ext. spark coil
110 00212 21.0232.0  none  clutch cover grey
110 00212 21.0233.0  none  clutch cover black
110 00214 21.0328.0  none  magneto cover grey
110 00214 21.0335.0  none  magneto cover black
111 00381 38.0037.0  none  crankshaft cone ∅15 full circle
101 00681 68.0115.0 $10.0 upper ring Ø38.8 x 1.5 GN
010 00681 68.0116.0 $11.0 upper ring Ø38.8 x 2.0 L
111 00681 68.0115.0 $10.0 lower ring Ø38.8 x 1.5 GN
110 00701 70.0116.0  none  right case ∅47 angular
001 00701 70.0110.0  none  right case ∅44 round
110 00702 70.0616.0  none  left case ∅47 angular
001 00702 70.0610.0  none  left case ∅44 round
111 00821 82.0006.6 $16.0 points (ruttore) CEV 04229 = M14
111 00823 82.0132.6 $13.0 condenser Ducati ∅17.9 = M17
111 05113 51.0301.9 $9.00 piston bearing Ø12 Ø15 x 15
110 05320 53.0306.0 none  base gasket ∅47 48×48
001 05320 53.0302.0 none  base gasket ∅44 40×40
111 05670 56.0601.0 $9.50 piston pin Ø12.00 x 31.5
222 09323 03.0213.0 $1.50 piston pin clip  Ø12
100 49015 49.0124.8 $2.00 woodruff key (chiavetta) #M85 3.0 x 3.6
440 49037 49.0306.9 $1.20 head nut M7 x 7
100 49039 49.0310.0  none  pinion nut
100 49040 49.0312.0 $7.00 flywheel nut M10-1.25 x 14 hex15
100 49041 49.0313.9  none  sprocket nut
100 49042 49.0317.0  none  clutch nut M14-1.0
440 49084 49.0513.0 $3.50 cylinder stud 7 x 118.5 (120)
600 49226 49.0841.9 $0.50 stator screw M4 x 10 phil-wide



Note 1. The genuine Dellorto SHA14/12 carburetor comes with a 56 jet, ∅18 sleeve, no air cover, no cable pipe. The F27 air cover is required for the correct air/fuel mixture. For a full parts list see Carb/Dellorto/SHA14.

P4E gears: P4E gears 1 to 4 had a 43 or 44 tooth total for each pair, 10+33, 14+29, 18+26, 20+23.



---

6. 1972-81? Minarelli P4CS



Left, 1979? P4CS Compact System
Right, 1981 Testi Cricket 4M with P4CS













Crankshaft parts for all motors 1960’s – 70’s







Contents:

00 years  model  00  carb   covers    case
1952 part #’s, Fabbrica Bolognese Motocicli
01. ’54-56? P48 000 ∅12?  round♦   round♦
1956 part numbers, F. B. Minarelli
02. ’56-57? E48 000 ∅12?  round♦   round♦
03. ’57-68? P3 0000 ∅12    round♦   round♦
03. ’60-68? P3 Sport ∅15    round♦   round♦
1967 part numbers, Motori Minarelli
04. ’67-70? P3N 000 ∅12   round♦   round♦
1970 part numbers
05. ’68-74   P3S 000 ∅12 angular♦   round♦
07. ’75-86? P3S 000 ∅12 angular♦   round♦



---

---

1. F.B.M. P48 1954-56

This had one speed, manual clutch with pedals. The design is based on a 1950’s Sachs moped engine.

In 1956 Fabbrica Bolognese Motocicli split into F.B. Minarelli and Motori Franco Morini.



---

---

2. Minarelli E48 1956-57

This had a two-speed cable-shift, manual clutch. It is basically a P3 with one gear missing.

The new F.B. Minarelli logo was a triangle with wings. This was stamped or cast onto most of the engine parts. 1970’s and 80’s Motori Minarelli parts with this logo were originally on a 1960’s F.B. Minarelli model.



---

---

3. Minarelli P3, P3-KS 1957-68?

This was a 3-speed hand-grip-shift, manual clutch, with pedals or with kick start. There were two head versions, with a motor mount and without.

’57?-68? Minarelli P3 (ovalino) 47.7 cc (38.0 x 42)
1956# Minarelli# qty MMI# price  description.
0 A1-25 49.0124.8 1 4730 $2.00 flywheel key #M85 3.0 x 3.6
0 A1-27 49.0841.9 3 4740 $0.50 stator screw M4 x 10 phil-wide
00 A2-1 38.0000.0 1 0000  none  crankshaft P3 pork chop, loose rollers
00 A2-1 38.0017.0 1 0000  none  (rod end Ø14.95 x 13 for bushing)
00 A2-2 00.0000.0 1 0000  none  right crank half P3
00 A2-3 00.0000.0 1 0000  none  left crank half P3
00 A2-4 00.0000.0 1 0000  none  crank pin P3
00 A2-5 00.0000.0 1 0000  none  connecting rod P3
00 A2-6 00.0000. 24 0000  none  roller Ø2.5 x 9.8
00 A2-7 00.0000.0 2 0000  none  rod washer
00 A2-8 51.0132.7 1 4470 $5.00 piston pin bushing ∅11.7 ∅15 x 13
00 A2-8 51.0132.7 1 4470  none  (must be reamed after installation)
00 A2-9 56.0601.0 1 4480 $9.50 piston pin Ø12.00 x 31.5
0 A2-10 03.0213.0 2 4490 $1.50 piston pin clip  Ø12
0 A2-11 71.0405.0 1 4500 $65.0 piston kit 38.0 dome top, 2.5 rings
0 A2-11 71.0455.7 1 4520 $65.0 piston kit 38.4 2nd oversize
0 A2-12 68.0000.0 2 0000 $11.0 piston ring each 38.0 x 2.5 GN
0 A2-12 71.0802.0 1 4600  none  piston ring set
0 A2-14 00.0000.0 1 0000  none  pinion washer
0 A2-15 00.0000.0 1 0000  none  pinion nut (dado)
0 A2-16 49.0124.8 1 4720  none  key 3.0 x 3.7  use A1-25 #M85
0 A2-17 49.0000.0 1 0000  none  flywheel nut M10-1.25 use #4750
0 A2-17 49.0312.0 1 4750 $7.00 flywheel nut M10-1.25 x 14 hex15
0 A2-18 00.0000.0 1 0000  none  flywheel washer Ø10 (eliminated)
0 A2-19 51.0203.9 3 4770 $10.0 crank/trans bearing 15-35-11 #6202
0 A2-20 53.0506.9 1 4710 none  left crank seal 17-35-8
0 A2-21 53.0503.9 1 0000  none  right crank seal 15-30-8 use 15-30-7
0 A2-21 49.0000.0 1 0000 $7.00 right crank seal 15-30-7
0 C1-15 00.0000.0 1 0000  none  clutch nut
0 C1-16 00.0000.0 1 0000  none  washer ∅13
0 C1-17 51.0205.9 1 4700 $10.0 left crank bearing 17-40-12 #6302
0 C1-23 00.0000.0 2 0000  none  washer ∅12.5
00 C2-8 00.0000.0 1 0000  none  driveshaft circlip external
00 C2-9 00.0000.0 3 0000  none  driveshaft washer ∅15
0 C2-10 00.0000.0 1 0000  none  gear shaft clip
0 C2-11 00.0000.0 1 0000$6.00 driveshaft seal 15-24-7 use 15-24-5
0 C2-11 53.0502.9 1 4790 $6.00 P2-12 seal 15-24-5
 C14-18 00.0000.0 1 0000  none  sprocket cone-keyed
00 F5-6 65.0133.0 1 5160 $8.00 start cable stop bridge
00M2-5 19.0315.0 1 0000  none  cylinder iron 38.0 exhaust M28
0M2-10 53.0302.0 1 0000 none  base gasket ∅44 40×40
0M2-13 49.0509.0 4 0000 $3.50 cylinder stud M6 x 109 (110)
0M2-18 15.0000.0 1 0000  none  carburetor Dellorto ME series, maybe 12
0M2-19 82.0000.9 1 0000  none  magneto ⇐ CEV 6067 ∅94 o♦♦ 6V
0 P2-12 53.0502.9 2 4790 $6.00 pedal shaft seal 15-24-5

’60?-68? Minarelli P3 (40 km/h)  parts different from P3
1956# Minarelli# qty MMI# price  description.
0 A2-22 00.0000.0 1 0000  none  piston 38.0 (40km)

’60?-68? Minarelli P3 Sport        parts different from P3
1956# Minarelli# qty MMI# price  description.
0 A20-1 00.0000.0 1 0000  none  crankshaft, bigger rollers
0 A20-2 00.0000.0 1 0000  none  right crank half
0 A20-3 00.0000.0 1 0000  none  left crank half
0 A20-4 00.0000.0 1 0000  none  crank pin
0 A20-5 00.0000.0 1 0000  none  connecting rod
0 A20-6 00.0000. 17 0000  none  roller Ø4.0 x 10
0 A20-7 00.0000.0 2 0000  none  rod washer
0 A20-8 00.0000.0 1 0000  none  piston 38.0
0 A20-9 00.0000.0 1 0000  none  cylinder iron 38.0 exhaust M32
 A20-10 00.0000.0 1 0000  none  head
 A20-11 00.0000.0 1 0000  none  head
 A20-12 00.0000.0 1 0000  none  intake pipe
 A20-13 00.0000.0 1 0000  none  intake gasket
 A20-14 00.0000.0 1 0000  none  carburetor Dellorto UA15-S























---

---

6. Minarelli P3N 1967-70

’67?-70? Minarelli P3N (ovalino) 47.7 cc (38.0 x 42)
1967# Minarelli# qty MMI# price  description.
012058 56.0601.0 1 4480 $9.50 piston pin Ø12.00 x 31.5
012059 03.0213.0 2 4490 $1.00 piston pin clip  Ø12
012067 51.0132.7 1 4470 $5.00 piston pin bushing ∅11.7 ∅15 x 13
012067 51.0132.7 1 4470  none  (must be reamed after installation)
102002 00.0000.0 1 0000  none  head small rounded
102003 19.0315.0 1 0000  none  cylinder iron 38.0 exhaust M28
102015 71.0405.0 1 4500 $65.0 piston kit 38.0 dome top, 2.5 rings
102015 71.0455.7 1 4520 $65.0 piston kit 38.4 2nd oversize
102020 00.0000.0 2 0000 $11.0 piston ring each 38.0 x 2.5 GN
102020 71.0802.0 1 4600  none  piston ring set
102055 53.0502.9 2 4790 $6.00 pedal shaft seal 15-24-5
112085 53.0503.9 1 0000 none  right crank seal 15-30-8 use 15-30-7
112085 53.0503.9 1 0000 $7.00 right crank seal 15-30-7
162010 49.0509.0 4 0000 $3.50 cylinder stud M6 x 109 (110)
162011 49.0304.9 4 0000 $0.60 head nut M6 x 6
162012 49.0603.9 4 0000 $0.20 head washer ∅6
162029 49.0312.0 1 4750 $7.00 flywheel nut M10-1.25 x 14 hex15
162113 49.0323.0 1 4840 $2.50 sprocket nut M10x1.25 x 6 hex17
162174 53.0302.0 1 0000 none  base gasket ∅44 40×40
162181 53.0506.9 2 4710 none  left crank seal 17-35-8 use 17-35-7
162181 53.0506.9 2 4710 $7.50 crankshaft seal 17-35-7
162190 51.0205.9 1 4700 $10.0 left crank bearing 17-40-12 #6302
162191 51.0203.9 1 4770 $10.0 right crank bearing 15-35-11 #6202
812204 00.0000.0 1 0000  none  carb Dellorto SHA
912201 00.0000.0 1 0000  none  magneto 6V 18w internal spark




Left, 1971 Minarelli P3N, W3, W3-QM owners manual
Right, 1968 Cimatti Milord 48 with Minarelli P3N engine

P3N changes: The crankshaft rod bearing changed from loose rollers to caged rollers. The motor mount on the head was eliminated. The sprocket changed from cone-keyed center to round with flat sides.







---

---

7. Minarelli P3S, P3S-KS 1970-86?

’70?-86? Minarelli P3S  49.6 cc (38.8 x 42)
figure Minarelli# qty MMI# price  description.
00  15 15.0020.9 1 0000  none  carb SHA14/12 jet 56 F27 use 15.0024.9
00  15 15.0024.9 1 5650 $75.0 SHA14/12 jet 56
00  15 15.0000.6 1 0000 $0.00 ∅18 sleeve, no air cover, no cable pipe
15105 15.0360.6 1 6360 $5.00 6109 fuel filter
15130 15.0410.6 1 6380 $5.00 1486/56 main jet #56
15170 15.0490.6 1 6430 $2.00 6123 float gasket
15255 15.0601.6 1 6530 $7.00 9249 inlet banjo black plastic angled out
15300 15.0701.6 1 6550 $10.0 2838 float needle
15000 15.0000.6 1 0000 $0.00 for full list see Carb/Dellorto/SHA14
00019 19.0315.0 1 0000  none  cylinder ∅38.8 M28  Sport Quadro
00031 31.0010.7 1 0000 $12.0 air cover F27 no inlet tubes
00068 71.0410.0 1 4540 none  piston kit 38.8 ball top
00068 71.0410.0 1 4540 $60.0 piston kit 38.8 GOL 0034
00068 71.0460.7 1 4550 $73.0 piston kit Ø39.0 (1st oversize)
00068 71.0460.7 1 4560 none  piston kit Ø39.2 (2nd oversize)
00068 71.0460.7 1 4570 $73.0 piston kit Ø39.4 (3rd oversize)
00077 77.0152.0 1 0000  none  head (testa) Sport QUADRO
00082 82.0007.9 1 0000  none  magneto CEV 6925 0000  ∅94 o♦♦
00082 82.0012.9 1 0000  none  magneto Ducati 31.02.30 ∅94   ♦♦
00082 82.0028.9 1 0000  none  magneto CEV 6925E 000  ∅94   ♦♦
00681 68.0115.0 2 0000 $10.0 piston ring Ø38.8 x 1.5 GN
00681 71.0805.0 1 4640  none  piston ring set
05113 51.0301.9 1 4475 $9.00 piston bearing Ø12 Ø15 x 15
05320 53.0302.0 1 0000 none  base gasket ∅44 40×40
05372 53.0502.9 2 4790 $6.00 pedal shaft seal 15-24-5
05373 53.0503.9 1 0000 none  right crank seal 15-30-8 use 15-30-7
05373 53.0503.9 1 0000 $7.00 right crank seal 15-30-7
05376 53.0506.9 1 4710 none  left crank seal   17-35-8 use 17-35-7
05376 53.0506.9 1 4710 $7.50 left crank seal   17-35-7
05615 56.0255.0 3 5240 $10.0 dowel Ø10/8 x 30 (cut from a 40)
05670 56.0601.0 1 4480 $9.50 piston pin Ø12.00 x 31.5
09323 03.0213.0 2 4490 $1.50 piston pin clip  Ø12
49005 49.0018.0 1 5880 $4.00 air cover clamp with screw
49036 49.0304.9 4 0000 $0.60 head nut M6 x 6
49039 49.0039.9 1 0000  none  pinion nut
49040 49.0312.0 1 4750 $7.00 flywheel nut M10-1.25 x 14 hex15
49041 49.0323.0 1 4840 $2.50 sprocket nut M10x1.25 x 6 hex17
49084 49.0509.0 4 0000 $3.50 cylinder stud M6 x 109 (110)
49015 49.0124.8 1 4720  none  key 3.0 x 3.7 x 9.6 CEV, Ducati use M85
49015 49.0125.8 1 4730 $2.00 key 3.0 x 3.6 x 9.5 M85 for Bosch
49226 49.0841.9 6 0000 $0.50 stator screw M4 x 10 phil-wide

P3S changes: The bore increased from 38.0 to 38.8. So the cylinder and piston changed. The piston pin bushing changed to a needle bearing. So the crankshaft rod changed from bushing to bearing type. The small round head fins became large straight fins.



































1978-80 Motron moped cables:

$10    33 x 47″ throttle cable
$10    39 x 44″ front brake
$10    60 x 65″ rear brake
$10    43 x 47″ start/clutch







Cosmopolitan Motors: Benelli mopeds and motorcycles were imported to the USA from about 1965 to 1988 by Cosmopolitan Motors in Hatboro PA. Cosmo sold the Automatic, Maverick, 3FA, Blazer, G2 and C2 pedal-start mopeds, and the 3VK kick-start moped. They also sold many different Benelli mini cycles and trail bikes, plus Benelli 250 twin, 250 and 500cc 4-cylinder, 750 and 900cc 6-cylinder sport motorcycles.



J.C. Penney: In the late 1960’s and early 70’s JC Penney department stores sold Benelli Buzzer, Dynamo, Hurricane, Volcano mini-cycles and Cougar trail bike in their auto centers.



Montgomery Ward: The Wards department store line was named “Riverside”. The earliest Wards Riverside models were scooters made by Japan’s Mitsubishi and Italy’s Bianchi companies, and mopeds made by France’s Motobecane. Those pre-1965 France-made Wards Riverside mopeds are completely different from the 1965-67 Benelli-made Wards Riverside mopeds.



Wards Riverside Benelli: In 1965, Wards changed manufacturers and opted to sell mostly machines from the Italian company Benelli. Benelli offered mopeds and a line of single cylinder motorcycles 50-360cc. The Benelli line plus a Lambretta scooter allowed Wards to compete in the marketplace with the Austrian Puch mopeds and motorcycles that Sears was selling under their Allstate brand.

By 1970 the moped and motorcycle sales went away for the department store retailers, and for European manufacturers in general, primarily due to the Japanese invasion with highly engineered, reliable and powerful 4 stroke motorcycles under the likes of Honda, Yamaha and Suzuki. Also, in 1970 the US Environmental Protection Agency (EPA) was created to oversee and combat increasing pollution and air quality issues. Smokey two stroke motorcycles and other high emission vehicles would be the first targets.



Benelli Motorcycles USA 1965 to 2008

Here are the Benelli motorcycles sold in the USA, with specs from motorcyclespecs.co.za.
Wards Riverside models are included. More info is at Brands/Italy/Wards Riverside.
Over-65cc are colored light grey, 50-65cc are dark blue, 50cc mopeds are red.

---

1965

Benelli    model name xxxxx size  engine 000  front  tires  rear
Benelli 50 Fireball 50mph x   49cc 4MS2T50/1 2.25-18 2.25-18
Benelli 125 Monaco scooter 124cc 3V2T125/1  2.50-16 2.50-16
Benelli 125 Cobra 68mph    124cc 4M2T125/1 2.75-18 3.00-18
Benelli 125 Sprite  xxxxxxx 124cc 4M4T125/1 3.00-18 3.25-18
Benelli 200 Sprite xxxxxxx  198cc 4M4T200/1 3.00-18 3.25-18

Riverside 250-D long seat     49cc FA2T50/1   2.25-18 2.25-18
Riverside 350-S scooter xx   49cc 3VK2T50/1 2.25-16 2.25-16
Riverside 450-SS sport bike 49cc 4MS2T50/1 2.25-18 2.25-18
Riverside 125 Lightweight  124cc 4M2T125/1 2.75-18 3.00-18
Riverside 125 Scrambler x  124cc 4M2T125/1 2.75-18 3.00-18







---

1966

Benelli    model name xxxxx size  engine 000  front  tires  rear
Benelli 50 Fireball 4.5hp xx  49cc 4MS2T50/1 2.25-18 2.25-18
Benelli 125 Monaco scooter 125cc 3V2T125/1 2.50-16 2.50-16/1 0.00-00
Benelli 125 Cobra  xxxxxx  124cc 4M2T125/1 2.75-18 3.00-18 0.00-00
Benelli 125 Cob. Scrambler 124cc 4M2T125/1 2.75-18 3.00-180.00-00
Benelli 200 Sprite  xxxxxx  198cc 4M4T200/1 3.00-18 3.25-18
Riverside 250-D long seat     49cc FA2T50/1   2.25-18 2.25-18
Riverside 350-S scooter xx   49cc 3VK2T50/1 2.25-16 2.25-16
Riverside 450-SS sport bike 49cc 4MS2T50/1 2.25-18 2.25-18
Riverside 125 Lightweight  124cc 4M2T125/1 2.75-18 3.00-18
Riverside 175 Lightweight  170cc 4M2T175/1 2.75-18 3.00-18
Riverside 125 Scrambler    124cc 4M2T125/1 2.75-18 3.00-18
Riverside 175 Scrambler    170cc 4M2T175/1 2.75-18 3.00-18
Riverside 250 Mojave  x     245cc 4M4T250/1 3.00-18 3.25-18



---

1967

Benelli    model name xxxx  size  engine 000  front  tires  rear
Benelli 50 Automatic  xxxx   49cc GM2T50/1  2.25-16 2.25-16
Benelli 50 Dynamo Compact 49cc 4M2T50/    3.50-8   3.50-8
Benelli 50 Fireball  xxxxxxx  49cc 4MS2T50/1 2.25-18 2.25-18
Benelli 50 Fireball Trail  xxx  49cc 4MS2T50/1 2.50-19 2.75-17?
Benelli 125 Cobra  xxxxxx  124cc 4M2T125/1 2.75-18 3.00-18
Benelli 125 Cobra Trail  xx  124cc 4M2T125/1 2.75-18 3.00-18
Benelli 125 Sprite  xxxxxx  124cc 4M4T125/1 2.75-18 2.75-18
Benelli 200 Sprite  xxxxxx  198cc 4M4T200/1 3.00-18 3.25-18
Benelli 250 Barracuda  xx   245cc 4M4T250/1 3.00-18 3.25-18



Riverside 150-D solo seat    49cc FA2T50/1   2.25-18 2.25-18
Riverside 250-D long seat    49cc FA2T50/1   2.25-18 2.25-18
Riverside 350-S scooter xx  49cc 3VK2T50/1 2.25-16 2.25-16
Riverside 450-SS sport bike 49cc 4MS2T50/1 2.25-18 2.25-18
Riverside 125 Lightweight  124cc 4M2T125/1 2.75-18 3.00-18
Riverside 175 Lightweight  170cc 4M2T175/1 2.75-18 3.00-18
Riverside 125 Scrambler    124cc 4M2T125/1 2.75-18 3.00-18
Riverside 175 Scrambler    170cc 4M2T175/1 2.75-18 3.00-18
Riverside 250 Mojave  x     245cc 4M4T250/1 3.00-18 3.25-18



---

1968

Benelli    model name xxxxxx  size  engine 000  front  tires  rear
Benelli 50 Dynamo Compact   49cc 4M2T50/1   3.50-8   3.50-8
Benelli 50 Fireball xxxxxxxxx  49cc 4MS2T50/1 2.25-18 2.25-18
Benelli 50 Fireball Trail xxxxx  49cc 4MS2T50/1 2.50-19 2.75-17?
Benelli 125 Cobra xxxxxxxx  124cc 4M2T125/1 2.75-18 3.00-18
Benelli 125 Cobra Scrambler 124cc 4M2T125/1 2.75-18 3.00-18
Benelli 125 Sprite xxxxxxxx  124cc 4M4T125/1 2.75-18 2.75-18

Benelli 125 Sprite California  124cc 5M4T125/1 2.75-18 2.75-18
Benelli 250 Barracuda xxxx   245cc 4M4T250/1 3.00-18 3.25-18
Benelli 250 Barracuda Calif.   245cc 5M4T250/1 3.00-18 3.25-18
Benelli 650 Tornado xxxxxx   643cc 5M4T650/2 3.50-18 4.00-18
Riverside 450-SS sport bike  49cc 4MS2T50/1   2.25-18 2.25-18
Riverside 125 Lightweight x  124cc 4M2T125/1 2.75-18 3.00-18
Riverside 260 Mojave xxx     245cc 4M4T260/1 3.00-18 3.25-18
Riverside 360 Mojave xxx     356cc 4M4T360/1 3.00-18 3.25-18

        Late 1968, Sprite and Barracuda renamed to El Diablo.
Benelli 125 El Diablo  xxxxx 124cc 4M4T125/1 2.75-18 3.00-18?
Benelli 125 El Diablo  xxxxx 124cc 5M4T125/1 2.75-18 3.00-18?
Benelli 200 El Diablo  xxxxx 198cc 4M4T200/1 3.00-18 3.25-18
Benelli 250 El Diablo  xxxxx 245cc 4M4T250/1 3.00-18 3.25-18
Benelli 250 El Diablo  xxxxx 245cc 5M4T250/1 3.00-18 3.25-18

















---

1969

Benelli    model name xxxx  size  engine 000  front  tires  rear
Benelli 50 Buzzer xxxxxxxx  49cc GK2T50/1   3.00-5   3.50-5
Benelli 50 Dynamo Compact 49cc 4M2T50/1   3.50-8   3.50-8
Benelli 50 Dynamo Trail   xx 49cc 4MS2T50/1 3.00-10 3.00-10
Benelli 65 Hornet  xxxxxxxx 59cc GK652T/1    2.75-9   2.75-9
Benelli 50 Super Mini xxxxx 49cc 4MS2T50/1 2.25-14 2.50-14?
Benelli 50 Maverick, xxxxxx 49cc GM2T50/1   2.25-16 2.25-16
Benelli 125 Cobra xxxxxxx 124cc 4M2T125/1 2.75-18 3.00-18
Benelli 125 El Diablo  xxxx 124cc 4M4T125/1 2.75-18 3.00-18?

Benelli 125 El Diablo  xxxx 124cc 5M4T125/1 2.75-18 3.00-18?
Benelli 200 El Diablo xxxx  198cc 4M4T200/1 3.00-18 3.25-18
Benelli 250 El Diablo  xxxx 245cc 4M4T250/1 3.00-18 3.25-18
Benelli 250 El Diablo  xxxx 245cc 5M4T250/1 3.00-18 3.25-18
Benelli 650 Tornado xxxx   643cc 5M4T650/2 3.50-18 4.00-18
Riverside 125 Lightweight  124cc 4M2T125/1 2.75-18 3.00-18
Riverside 260 Mojave xx    245cc 4M4T260/1 3.00-18 3.25-18
Riverside 360 Mojave xx    356cc 4M4T360/1 3.00-18 3.25-18

















---

1970

Benelli    model name xx size  engine  000 front  tires  rear
Benelli 65 Buzzer xxxxxx 59cc GK652T/1  3.00-5   3.50-5
Benelli 65 Buzzer Junior  59cc GK652T/1   3.00-5   3.50-5
Benelli 65 Hornet xxxxx  59cc GK652T/1   2.75-9   2.75-9
Benelli 65 Dynamo Trail   59cc 4M652T/1   3.00-10 3.00-10
Benelli 65 Dyn. Compact 59cc 4M652T/1   3.50-8   3.50-8
Benelli 65 Woods Bike x  59cc 4M652T/1   3.00-10 3.00-10
Benelli 65 Cougar xxxxx  59cc 4M652T/1   2.50-18 2.75-17

Benelli 180 Volcano  xxx170cc 4M2T175/1 3.00-10 3.00-10
Benelli 125 Cobra Trail   124cc 4M2T125/1 2.75-19 3.00-18?
Benelli 125 Sprite xxxx  124cc 5M4T125/1 2.75-18 2.75-18
Benelli 200 El Diablo xx 198cc 4M4T200/1 3.00-18 3.25-18
Benelli 250 Super Sport 245cc 4M4T250/1 3.00-18 3.25-18
Benelli 650 Tornado xx  643cc 5M4T650/2 3.50-18 4.00-18

In late 1970 the El Diablo name went back to Sprite.















---

1971

Benelli    model name xx size  engine  000 front  tires  rear
Benelli 65 Buzzer  xxxx  59cc GK652T/1  3.00-5   3.50-5
Benelli 65 Buzzer Jr xxx 59cc GK652T/1  3.00-5   3.50-5
Benelli 65 Hornet  xxx x 59cc GK652T/1  2.75-9   2.75-9
Benelli 65 Hurricane   x  59cc GK652T/1  3.50-7   3.50-7
Benelli 65 Dynamo Trail  59cc 4M652T/1  3.00-10 3.00-10
Benelli 65 Woodsbike x  59cc 4M652T/1  3.00-10 3.00-10
Benelli 65 D. Compact    59cc 4M652T/1  3.50-8   3.50-8
Benelli 65 Mini Enduro   59cc 4M652T/1  2.50-14 2.75-14?

Benelli 65 Cougar xxxx  59cc 4M652T/1  2.50-18 2.75-17
Benelli 180 Volcano x   170cc 4M2T175/1 3.00-10 3.00-10
Benelli 125 Cobra Trail 124cc 4M2T125/1 2.75-19 3.00-18?
Benelli 175 Enduro  xx 170cc 4M2T175/1 2.75-19 3.00-18?
Benelli 250 Supersport 245cc 5M4T250/1 3.00-18 3.25-18
Benelli 650 Tornado     643cc 5M4T650/2 3.50-18 4.00-18















---

1972

Benelli    model name xx size  engine  000 front  tires  rear
Benelli 65 Buzzer  xx    59cc GK652T/1  3.00-5   3.50-5
Benelli 65 Buzzer Jr      59cc GK652T/1  3.00-5   3.50-5
Benelli 65 Dynamo II    59cc 4M652T/1  3.00-10 3.00-10
Benelli 65 Compact II   59cc 4M652T/1  3.50-8   3.50-8
Benelli 65 Woods II      59cc 4M652T/1  3.00-10 3.00-10
Benelli 65 Hurricane     59cc GK652T/1  3.50-7   3.50-7
Benelli 65 Mini Enduro  59cc 4M652T/1  2.50-14 2.75-14?
Benelli 65 Cougar xxxx 59cc 4M652T/1  2.50-18 2.75-17
Benelli 180 Volcano     170cc 4M2T175/1 3.00-10 3.00-10

Benelli 175 Enduro  xx 170cc 4M2T175/1 2.75-19 3.00-18?
Benelli 250 Supersport 245cc 5M4T250/1 3.00-18 3.25-18
Benelli 650 Tornado     643cc 5M4T650/2 3.50-18 4.00-18

In 1972 the Dynamo gas tank and seat were improved
with a better appearance, making it blend in to the seat.

The 1972 Volcano shown was restored by C. Smolen
It’s a 175cc 4-spd, 14hp, 65mph. Only 200 were made.









---

1973

Benelli    model name xx size  engine  000 front  tires  rear
Benelli 65 Buzzer xxxxx 59cc GK652T/1 3.00-5   3.50-5
Benelli 65 Dynamo II x  59cc 4M652T/1 3.00-10 3.00-10
Benelli 65 Mini Enduro   59cc 4M652T/1 2.50-14 2.75-14?
Benelli 90 Banshee xxx 89cc 5M2T90/1 2.75-18 3.00-18?
Benelli 125 Panther xx 124cc 5M2T125/1 2.50-21 3.80-18
Benelli 250 Phantom x 231cc 5M2T250/2 3.00-18 3.25-18
Benelli 650 Tornado  x 643cc 5M4T650/2 3.50-18 4.00-18





---

1974

Benelli    model name xx size  engine  000 front  tires  rear
Benelli Moped 3FA  xxx   49cc FA2T50/1   2.25-16 2.25-16
Benelli Moped 3VK  xxx  49cc 3VK2T50/1 2.25-16 2.25-16
Benelli 65 Dynamo Trail  59cc 4M652T/1  3.00-10 3.00-10
Benelli 90 Banshee  xxx  89cc 5M2T90/1 2.75-18 3.00-18?
Benelli 125 Panther xx 124cc 5M2T125/1 2.50-21 3.80-18

Benelli 250 Phantom x 231cc 5M2T250/2 3.00-18 3.25-18 30hp 100mph
Benelli 650 Tornado  x 643cc 5M4T650/2 3.50-18 4.00-18













---

1975

Benelli    model name xx size  engine  000 front  tires  rear
Benelli Moped 3FA  xxx   49cc FA2T50/1   2.25-16 2.25-16
Benelli Moped 3VK  xxx  49cc 3VK2T50/1 2.25-16 2.25-16
Benelli 65 Dynamo Trail  59cc 4M652T/1  3.00-10 3.00-10
Benelli 90 Banshee  xxx  89cc 5M2T90/1 2.75-18 3.00-18?
Benelli 250 Phantom  x 231cc 5M2T250/2 3.00-18 3.25-18
Benelli 500 Quattro  xx 499cc 5M4T500/4 3.25-18 4.10-18

In 1975, the Dynamo II went back to being called Dynamo Trail.





---

1976

Benelli     model name xx size  engine  000 front  tires  rear
Benelli 50 Blazer xxxxxxx 49cc G22T50/1   2.25-16 2.25-16
Benelli 50 Sprint xxxxxxx 49cc 5MS2T50/1 2.25-18 2.25-18
Benelli 65 Dynamoxxxxx  59cc 4M652T/1  3.00-10 3.00-10

Benelli 90 Banshee xxxx   89cc 5M2T90/1 2.75-18 3.00-18?
Benelli 250 Phantom xx  231cc 5M2T250/2 3.00-18 3.25-18
Benelli 500 Quattro xxx  499cc 5M4T500/4 3.25-18 4.10-18
Benelli 750 Sei xxxxxxx  747cc 5M4T750/6 3.25-18 4.10-18



---

1977

Benelli    model name xxxsize  engine  000 front  tires  rear
Benelli 50 Blazer xxxxxxx 49cc G22T50/1   2.25-16 2.25-16
Benelli 65 Dynamo xxxx  59cc 4M652T/1  3.00-10 3.00-10
Benelli 250 Phantom xx  231cc 5M2T250/2 2.75-18 3.00-18
Benelli 500 Quattro xxx  499cc 5M4T500/4 3.25-18 4.10-18
Benelli 650 Tornado xxx  643cc 5M4T650/2 3.50-18 4.00-18
Benelli 750 Sei xxxxxxx  747cc 5M4T750/6 3.25-18 4.10-18







---

1978

Benelli    model name xxxsize  engine  000 front  tires  rear
Benelli 50 G2 xxxxxxxxxx 49cc G22T50/1   2.25-16 2.25-16
Benelli 250 Phantom xx  231cc 5M2T250/2 2.75-18 3.00-18
Benelli 500 Quattro xxx  499cc 5M4T500/4 3.25-18 4.10-18
Benelli 750 Sei xxxxxxx  747cc 5M4T750/6 3.25-18 4.10-18
Moto Guzzi 50 Robin xxx 49cc G22T50/1   2.25-16 2.25-16













---

1979

Benelli    model name xxxsize  engine  000 front  tires  rear
Benelli 50 G2 xxxxxxxxxx 49cc G22T50/1   2.25-16 2.25-16
Benelli 250 Phantom xx  231cc 5M2T250/2 2.75-18 3.00-18
Benelli 504 Sport xxxxx  499cc 5M4T500/4 3.25-18 4.10-18
Benelli 750 Sei xxxxxxx  747cc 5M4T750/6 100/90-18 120/90-18
Benelli 900 Sei xxxxxxx 906cc 5M4T900/6 100/90-18 120/90-18
Moto Guzzi 50 Robin xxx 49cc G22T50/1   2.25-16 2.25-16

In 1979 the 500 Quattro got a disc brake, mag wheels, and was renamed 504 Sport

---

1980

Benelli    model name xxxsize  engine  000 front  tires  rear
Benelli 50 G2 xxxxxxxxxx 49cc G22T50/1   2.25-16 2.25-16
Benelli 504 Sport xxxxx  499cc 5M4T500/4 3.00S18 3.50S18
Benelli 900 Sei xxxxxxx  906cc 5M4T900/6 100/90-18 120/90-18
Moto Guzzi 50 Robin xxx 49cc G22T50/1   2.25-16 2.25-16





---

1981

Benelli    model name xxxsize  engine  000 front  tires  rear
Benelli 50 G2 xxxxxxxxxx 49cc G22T50/1   2.25-16 2.25-16
Benelli 50 C2 long seat xx 49cc G22T50/1   2.25-16 2.25-16
Benelli 254 Quattro xxx  231cc 5M4T250/4 2.75-18 3.00-18
Benelli 504 Sport xxxxx  499cc 5M4T500/4 3.00S18 3.50S18
Benelli 900 Sei xxxxxxx  906cc 5M4T900/6 100/90-18 120/90-18





---

1982 to 1985

Benelli    model name xxxsize  engine  000 front  tires  rear
Benelli 50 G2 xxxxxxxxxx 49cc G22T50/1   2.25-16 2.25-16
Benelli 50 C2 long seat xx 49cc G22T50/1   2.25-16 2.25-16
Benelli 900 Sei xxxxxxx 906cc 5M4T900/6 100/90-18 120/90-18

After 1982, two-stroke on-road over-50cc new motorcycle sales were not allowed in the US.





---

1986 to 1988

Benelli    model name xxxsize  engine  000 front  tires  rear
Benelli 900 Sei xxxxxxx 906cc 5M4T900/6 100/90-18 120/90-18







---

1989 to 1999

No USA models

---

2000 to 2007

Benelli    model name xxx  size  engine  000 front  tires  rear
Benelli 900S Tornado Tre  898cc 6M4T900/3 120/70-17 190/50-17

During the ten years of Benelli absence in the USA, motorcycle technology improved. The 1988 Sei 900 had 80hp, while the 2000 Tornado 900 had 140hp, 75% more powerful, despite having half as many cylinders!



---

2008

Benelli    model name xxxxxx xxx xxx xxxx size  engine  000 front  tires  rear
Benelli 900 Tornado Naked Tre xxxxxxxx     898cc 6M4T1130/3 120/70-17 180/55-17
Benelli 1130 Tornado Tre xxxxxx xxxx xxx 1131cc 6M4T1130/3 120/70-17 190/50-17
Benelli 1130 Tre K Totnadoxxxx xxx xxxxx 1131cc 6M4T1130/3 120/70-17 180/55-17
Benelli 1130 Tornado Naked Tre Sport Evo 1131cc 6M4T1130/3 120/70-17 180/55-17 or 200/55-17

The 2009 and all other years Benelli USA models and specs can be viewed at totalmotorcycle.com.
