Dansi Magnetos

July 16, 2014

Contents

1. Parts by Type

2. Index and Identification

3. Parts for US-models with Aermacchi engines

4. Parts for US-models with Morini engines

5. Parts for EU-models with Morini engines

6. Parts for US-models with Benelli engines

7. Parts for EU-models with Benelli engines

8. Parts for EU-models with various engines







1. Dansi Parts by Type

Dansi Dansi bicycle generator

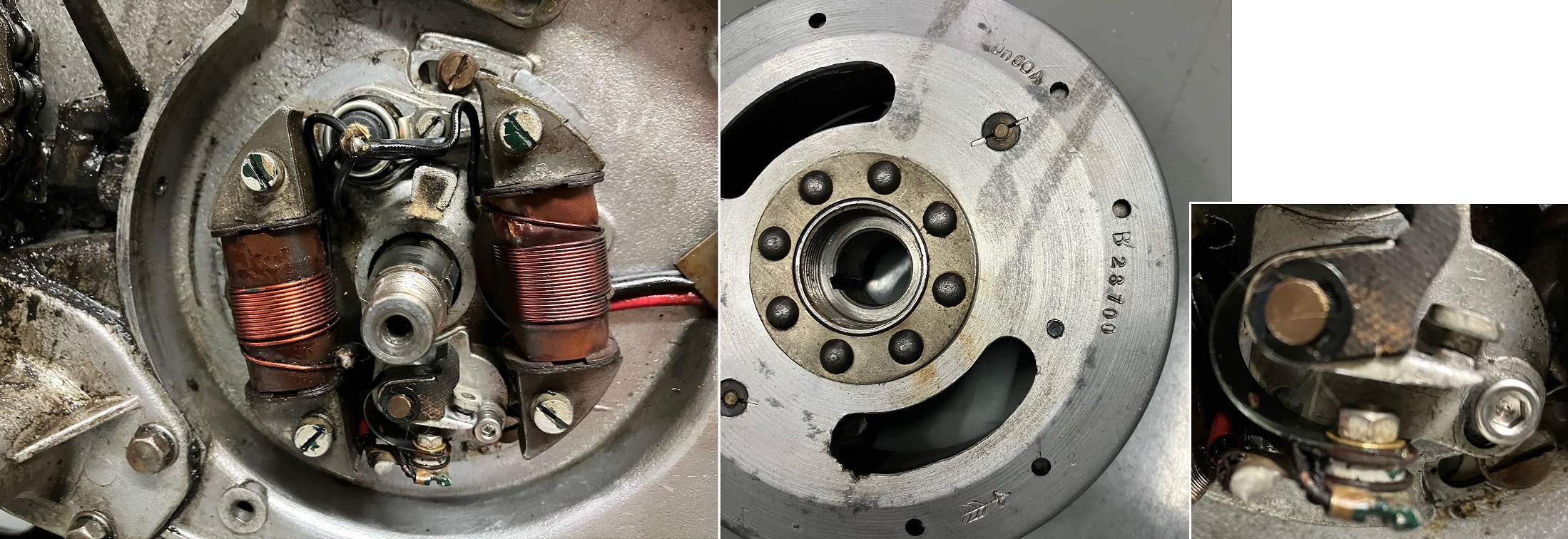

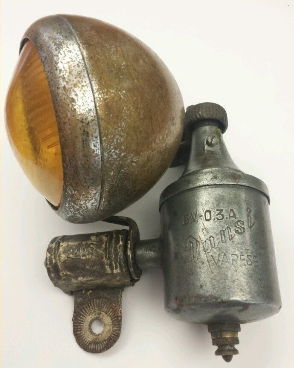

Armando Dansi and his company made bicycle generators and lights in Varese, Italy, since the 1930’s.

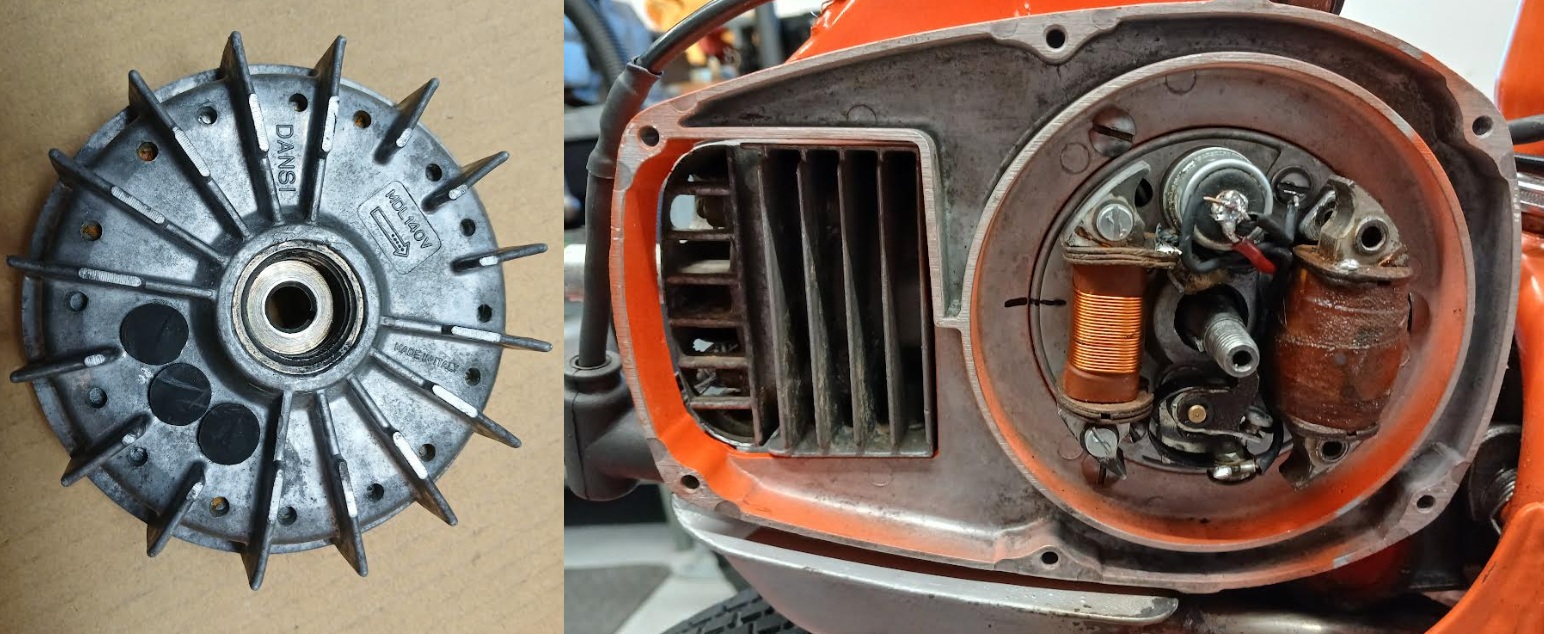

Dansi magneto generators (power dynamos) were on 1950’s to 1980’s Italian small motorcycles and mopeds, such as Aermacchi, Benelli, Cagiva, Fantic, Italjet, Lambretta, Lem, Malanca, Rizzato, Zannetti, and non-Italian brands such as Flandria, NSU and NVT.

On US-models 1960 to 1990, Dansi magnetos were original on mini-cycles and mopeds with engines by Aermacchi (Harley Davidson),  Benelli (Benelli and Moto Guzzi) and Morini (Arciero, Baretta, Benvenuti, Beta, Bianchi, Cimatti, Cosmo, Colt, F. Morini, Fantic, Garelli, Intramotor-Gloria, Indian, Italjet, Italvelo, Italtelai, LEM, Malaguti, Motobecane Sebring, Negrini, NVT, Pacer, Scorpion, Snark, Spisni Lino, Velomec, West Wind).

Sources: Some Benelli part numbers are from original parts catalogs displayed on Benelli Bauer. Some are not listed in Benelli Bauer. They are from original parts catalogs and suppliers lists.





6 points (contacts) ruttori (contatti) and 8 stator plates (piatti statore)

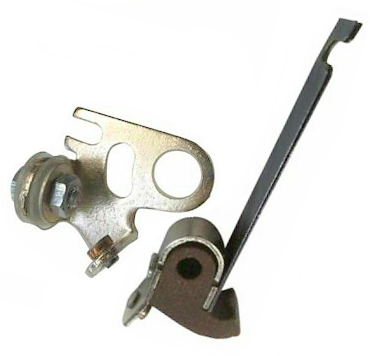

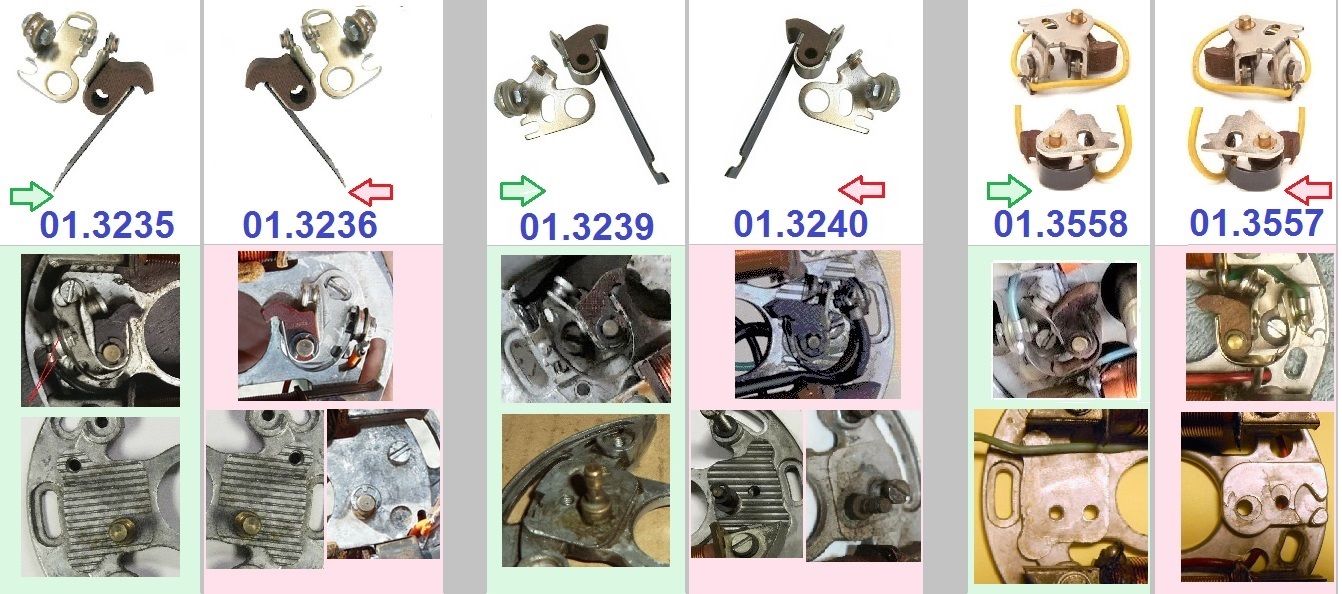

Dansi Points
mm# sgr# rot M#  Dansi# price 0  ’76-on 00000  70’s  000000   60’s

mm# sgr# rot M#  Dansi# price 0  Benelli# 00  Benelli# 0000 Benelli#

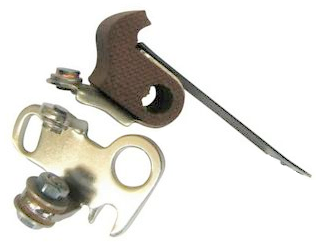

1D 01.3235 M00 000000 $18.0 62.70.96.00? 000.000.0.000 SD5/B

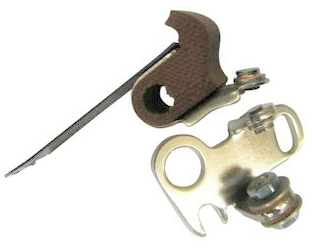

1S  01.3236 M00 000000 $26.0 35.70.88.00 799.001.0.799 G221/4

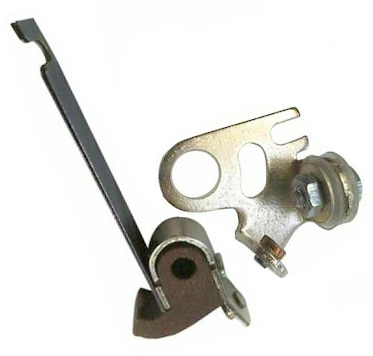

2D 01.3239 M00 000000 $29.0 69.70.88.00 779.002.0.799 CS0004
2S  01.3240 M00 000000 $19.0 70.70.88.20 000.000.0.000 M56/2

3D 01.3558 M18 408800 $16.0 48.70.88.70 779.014.0.799
3S  01.3557 M14 000000 $16.0





Dansi Condensers
sgr#   rot.  M#  Dansi# price
’76-on 00000 70’s  00000   60’s

sgr#   rot.  M#  Dansi# price    Benelli#       Benelli#        Benelli#
type   rot.   capacitance  size

00.0000     M00 000000 none  35.70.86.00 723.001.0.799 G221/6
∅18 flange type, 0.29mf ∅17.9 x 21 with wires  use M17D

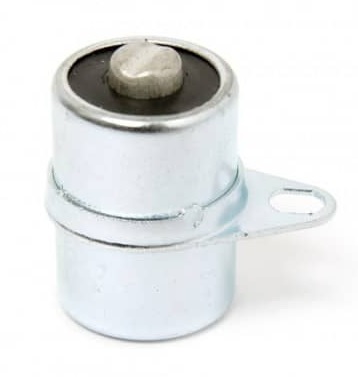

07.0074   M17D 403966 $15.0 48.70.86.70 723.002.0.799 G26/2
∅18 flange type, 0.29mf ∅17.9 x 21, no wires  can use M17

07.0207     M17 000000 $13.0
∅18 flange type, 0.30mf ∅17.8 x 25, no wires

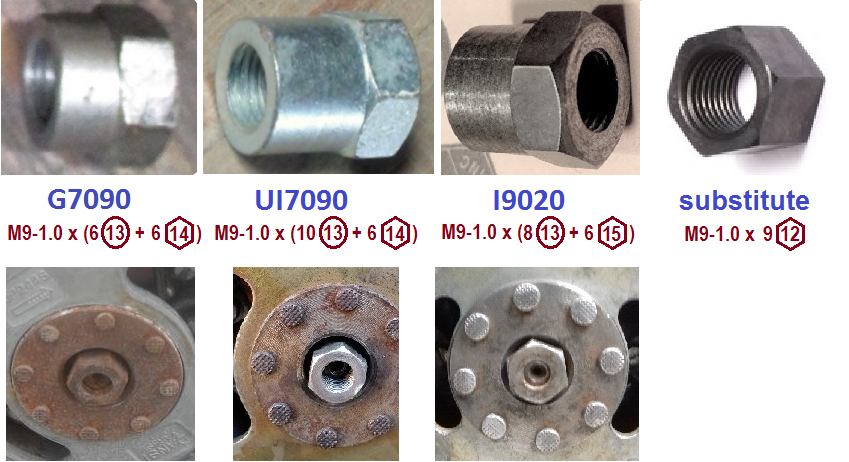

 Flywheel Nuts
  price   ’76-on 0000  70’s  00000  60’s 000 for
price    Benelli#       Benelli#       Benelli#  engines

none  00.00.00.00 264.025.0.799 G7090  GM
$00.0 flywheel nut M9-1.0 x 12, ∅13 x 6, hex14 x 6
$00.0 superseded by UI7090

$9.50 48.71.95.70 264.025.0.799 UI7090 G2
$00.0 flywheel nut M9-1.0 x 16, ∅13 x 10, hex14 x 6

none  92.75.00.73 264.004.0.799 I9020   FA, 4M
$00.0 flywheel nut M9-1.0 x 14, ∅13 x 8, hex14 x 6

$7.00 substitute for GM, G2, FA, 4M
$00.0 flywheel nut M9-1.0 x 9 hex 12 (uses a 12 socket)

none  35.06.72.70 000.000.0.799 00000  4M-1978
$00.0 flywheel nut not yet identified




Dansi Flywheel Pullers
fig# part# 0 price    all have M19-1.00 thread unless noted

1.  P19100  $18.0 flywheel puller M19-1.0 thread
2.  P19x22  $19.0 flywheel puller M19-1.0 and M22-1.5





Dansi Coils

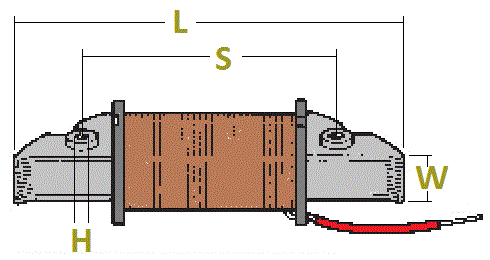

H  S  W  L  price Dansi# M#  Benelli# 00  Benelli# 0000 Benelli#
H  S  W  L  for magneto#

Ignition Source Coils internal ground, one wire
4 46 00 00 none  0000 M00 00.00.00.00 713.001.0799 R3086/D
0 00 00 00 for ASL308NB (R3086) .
4 4? 00 00 none  0000 M00 00.00.00.00 713.009.0799 R2063/F
0 00 00 00 for (R2063) .
4 4? 00 00 none  0000 M00 00.00.00.00 713.008.0799
0 00 00 00 for (FA3774) .

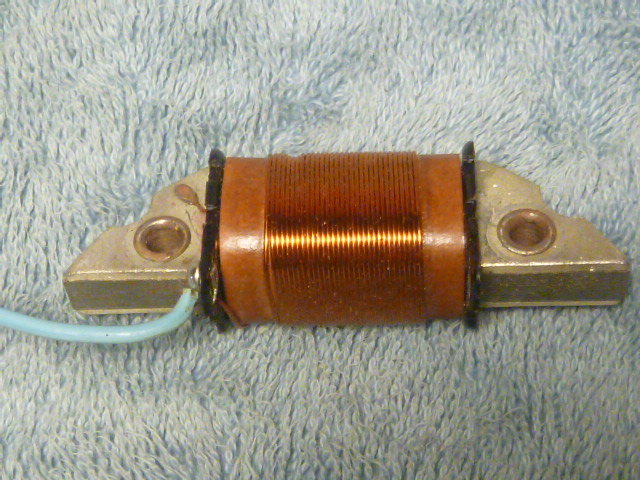

4 47 12 72 $75.0 0000 M20 48.71.50.90
0 00 00 00 for 101441 (48.71.24.90) .
4 47 00 00 none  0000 M00 48.71.50.71
0 00 00 00 for 101662? .
4 47 14 72 none  6218 M00 SGR 00.1348
0 00 00 00 replacement .

Ignition Source Coils external ground, two wires

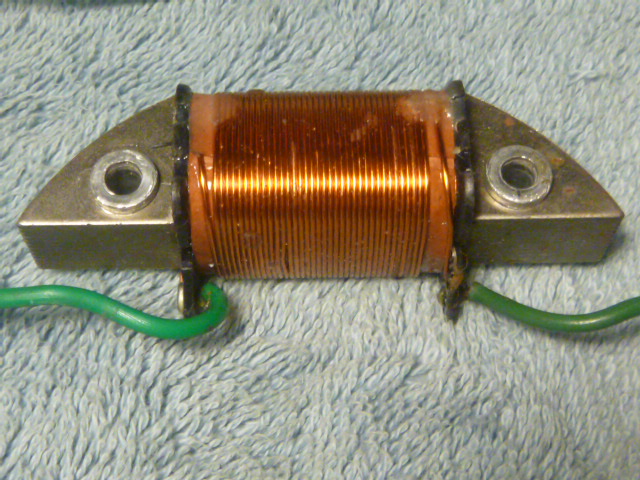

4 47 14 72 none  0000 M27 71.71.50.25
0 00 00 00 for 101732, 101765, 101813 .

Ignition Spark Coils
4 47 10 72 none  6400 M00 48.71.50.70 713.006.0799 N14/B
0 00 00 00 for 100892 (48.71.24.71), others .
4 47 10 72 none  6400 M00 SGR 00.1137
0 00 00 00 replacement .

000 D18 106 713.006.0.799 48.71.50.70  N/A     N14/B (lower) internal spark coil B

Lighting Source Coils
4 46 00 00 none  0000 M00 00.00.00.00 000.000.0799 R3086/B
0 00 00 00 for ASL308NB (R3086) .
4 4? 00 00 none  0000 M00 00.00.00.00 713.010.0799 R2063/C
0 00 00 00 for ??????? (R2063) .
4 47 00 00 none  0000 M00 48.71.51.70 713.005.0799 N14/C
0 00 00 00 for ??????? (FA3774) .
4 47 00 00 none  0000 M00 48.71.51.70 713.005.0799 N14/C
0 00 00 00 for MDP44? .
4 47 15 72 $65.0 6533 M21 48.71.51.90
0 00 00 00 for 101441 6V 25/10w .
4 47 00 00 none  0000 M00 48.71.51.70
0 00 00 00 for ???????  6V18w? .
4 47 00 00 none  0000 M00 48.71.51.71
0 00 00 00 for 101662? 6V25w? .

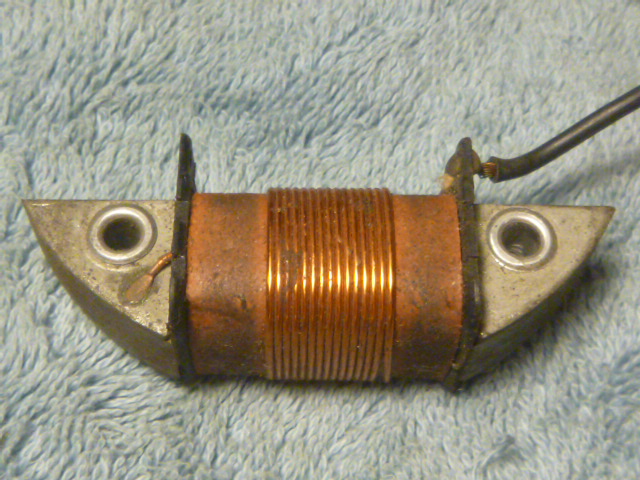

4 47 15 72 $65.0 0000 M28 71.71.51.25
0 00 00 00 for 101813 6V25w .




Hardware

Dansi#   M# 0 Benelli# 0000 Benelli# 00 price 0 Benelli# .

000000 M00 742.005.0.799 48.70.95.70 N/A     G221/11
000000 M00 felt greaser
000000 M15 793.007.0.799 35.70.79.00 $2.50 G221/3
000000 M00 points screw M4x8 small head
000000 M16 793.007.0.799 35.70.79.00 $0.20 G221/3
000000 M00 points screw lock washer M4 x 9 x 1
000000 M00 793.008.0.799 00.00.00.00 $0.00 R2063/E
000000 M00 ignition coil screw M5

000000 M22 776.013.0.799 70.71.89.20 $0.40 G221/8
000000 M00 coil lock washer M4 x 7 thin
000000 M25 793.041.0.799 35.71.57.50 $1.20 G221/7
000000 M00 coil screw M4 x 25 slot
000000 M00 000.000.0.000 48.71.57.50 $1.60 G0000
000000 M00 coil screw and washer M4 x 25
000000 M00 783.006.0.799 48.71.57.70 N/A     SD404/1
000000 M00 screws and washers









2. Index and Identification

Look up your magneto number to see what section the parts are in.

D<<rotation o.d plate years  in section
ADL54? 000 110  1Da  60-66  6. US Benelli
ADL54/ANB 110  1Da  65-68  6. US Benelli

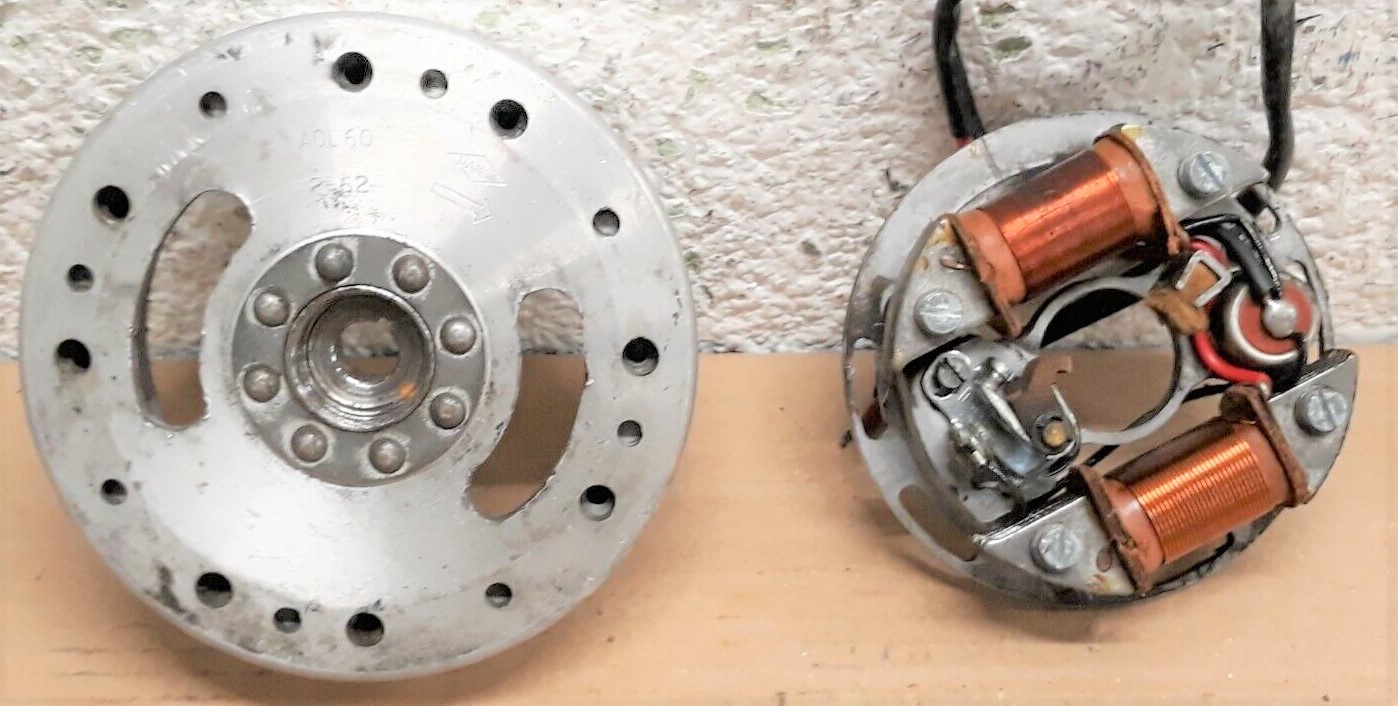

ADL60 000  110  1Da  60-63  8. EU various

ADL2S 000  110  2Db  60-67  8. EU various

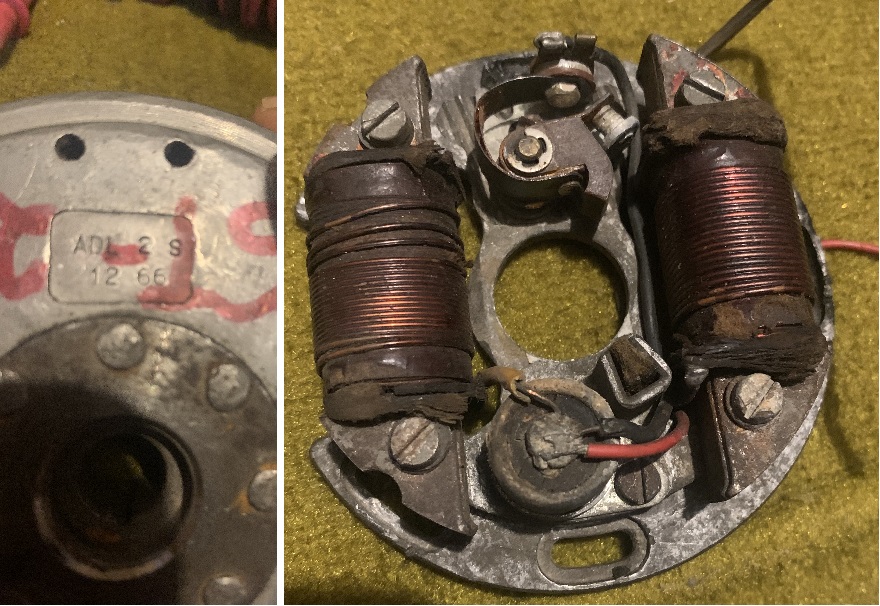

ADL250B 0  110  2Dc  00-00  8. EU various
ADP44 000  110  2Dc  62-72  7. EU Benelli

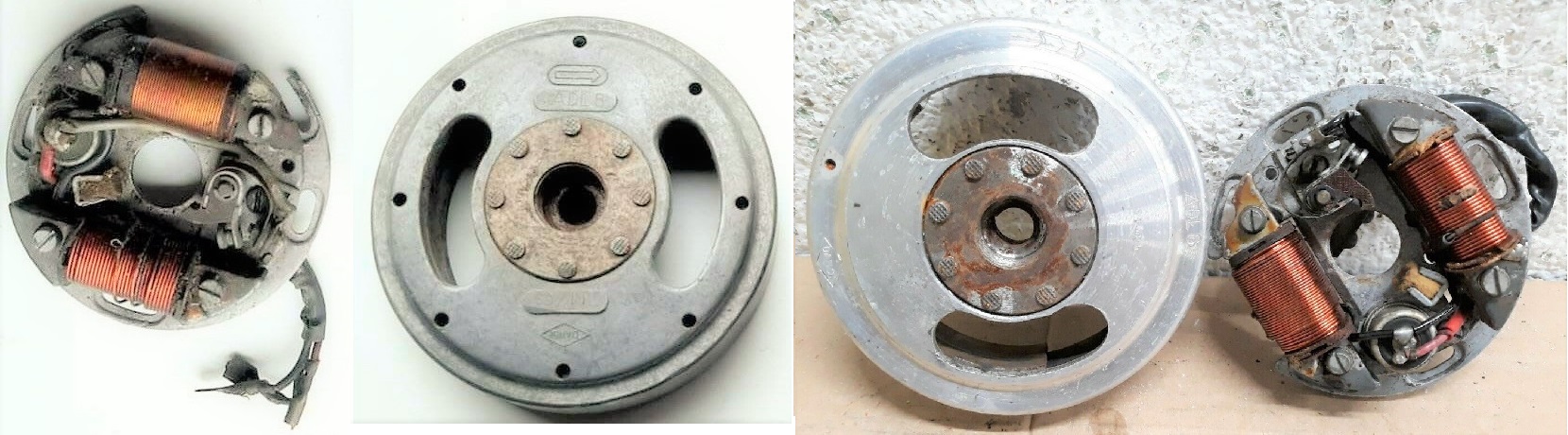

ADL8 0000  110  2Db  00-00  8. EU various

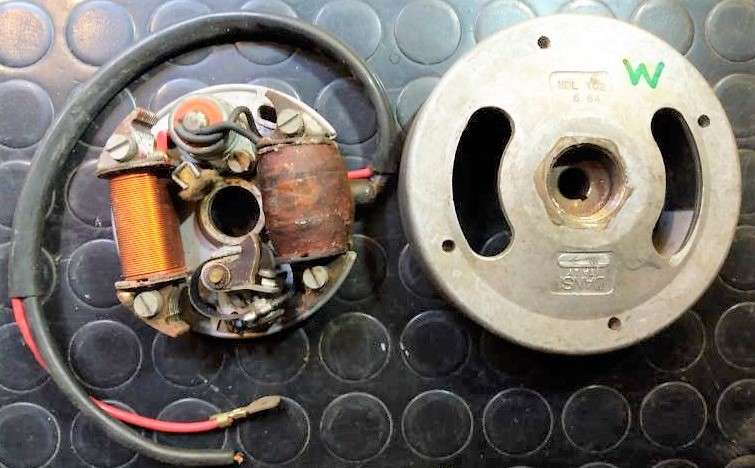

MDL102 00  110? 2De  00-00  8. EU various

MDL111 00  110  2Dd  70-73  4. US Morini

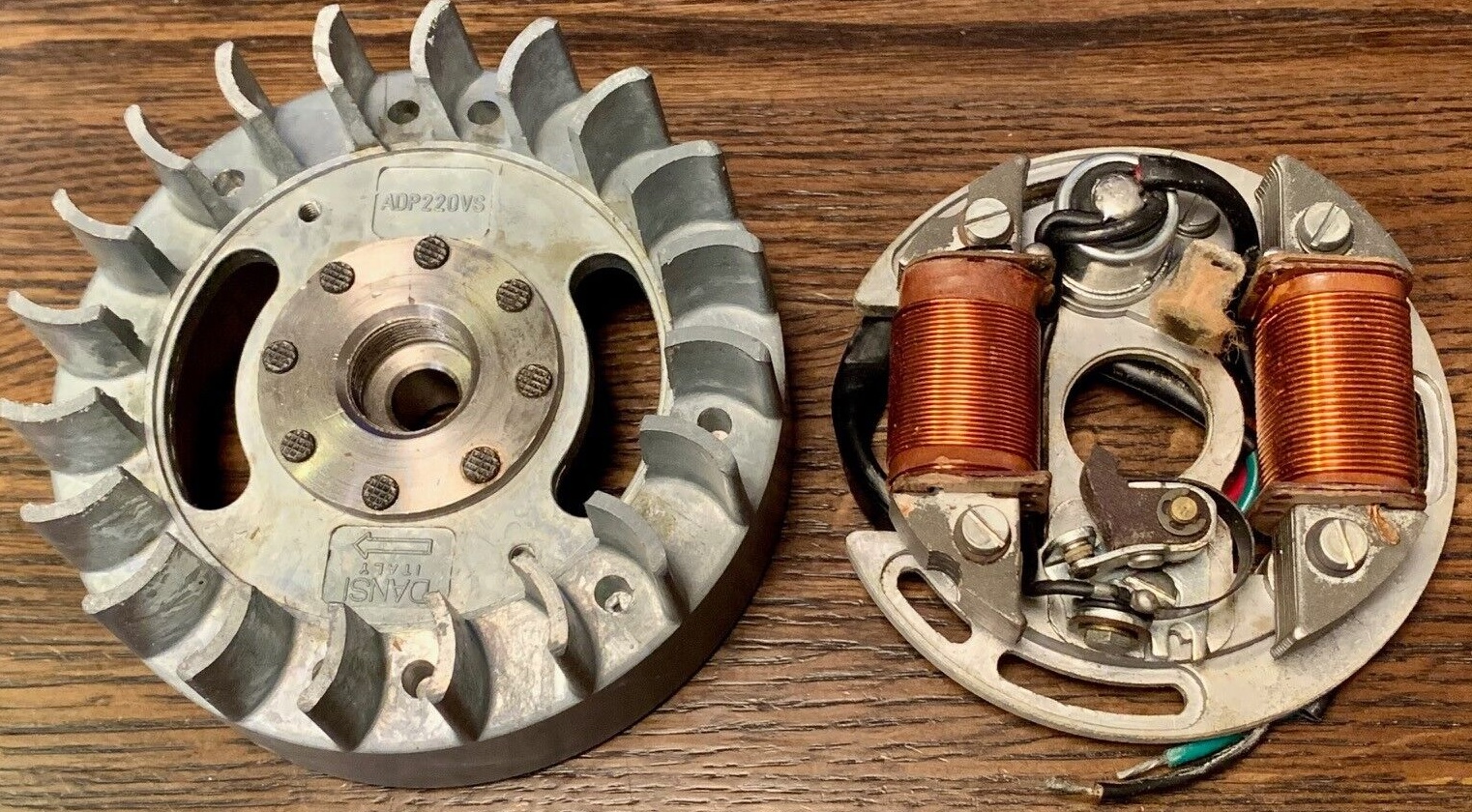

ADP220VS   fan   2Dd  65-67  6. US Benelli

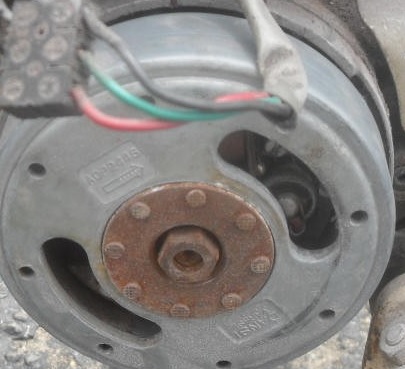

ADP244S 0  110  2Dd  69-73  6. US Benelli

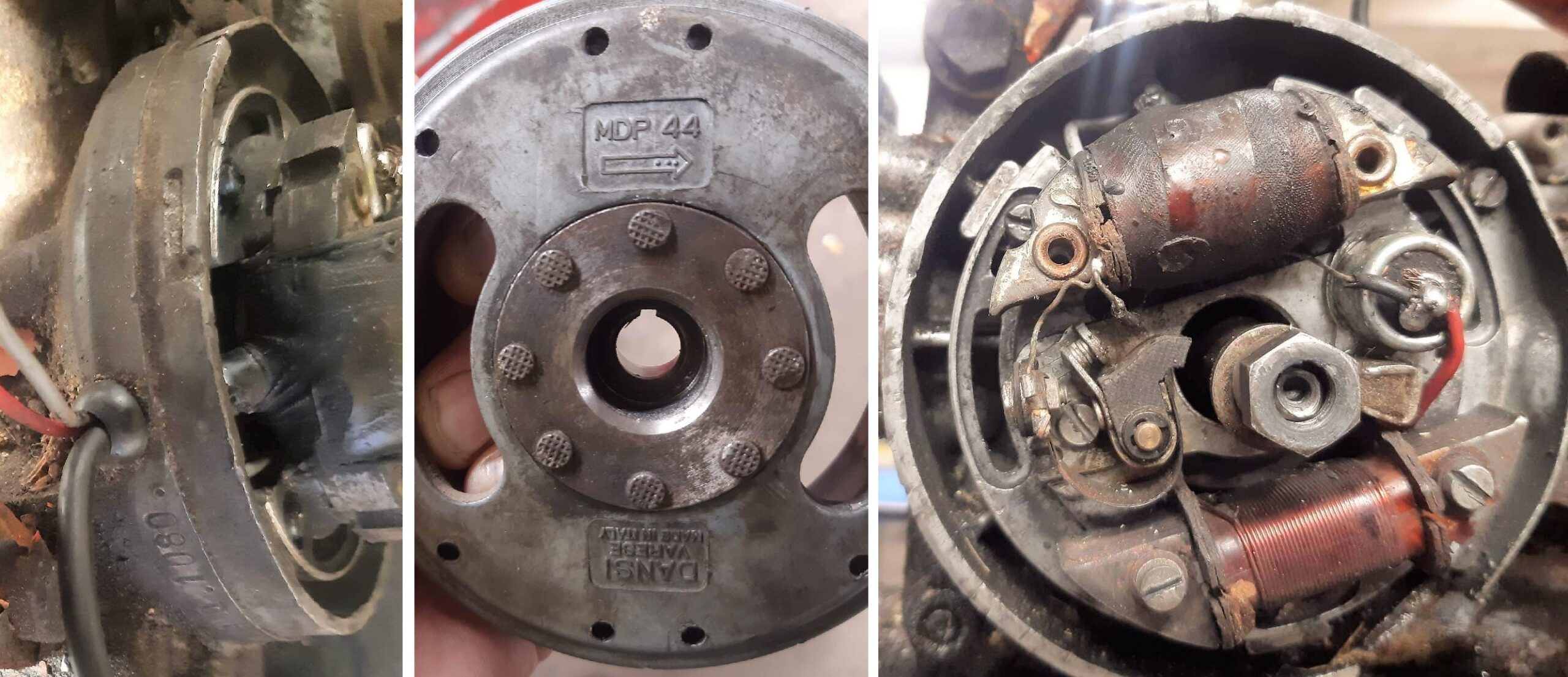

MDP44 000  110  2Dd  67-73  7. EU Benelli
100892 D    110  2Dd  70-74  7. EU Benelli
100884 D    103  3Db  78-80  7. EU Benelli
101441 D    103  3Db  76-77  6. US Benelli
101662 D    103  3Db  74-84  7. EU Benelli
101813 D    103  3Db  77-80  6. US Benelli

S >>rotation o.d plate years  in section

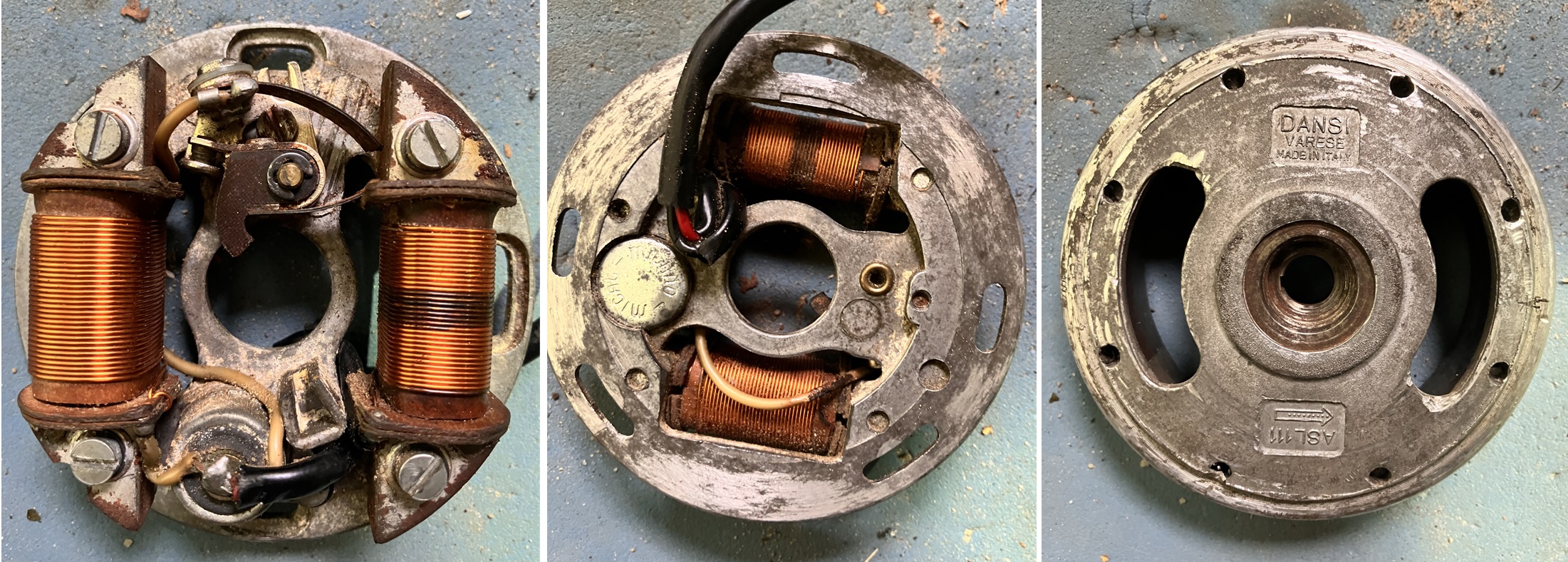

ASL111          110  2sc  67-70  8. EU various

ASL204NS   110  1Sb  67-73  6. US Benelli G314
ASL234NS   110  1Sb  73-74  3. US Aermacchi
ASL251S 0   110  1Sb  00-00  3. US Aermacchi

ASL5N 000  110  1Sc  60-68  6. US Benelli
ASL6? 000   110? 1Sc  00-00  5. EU Morini

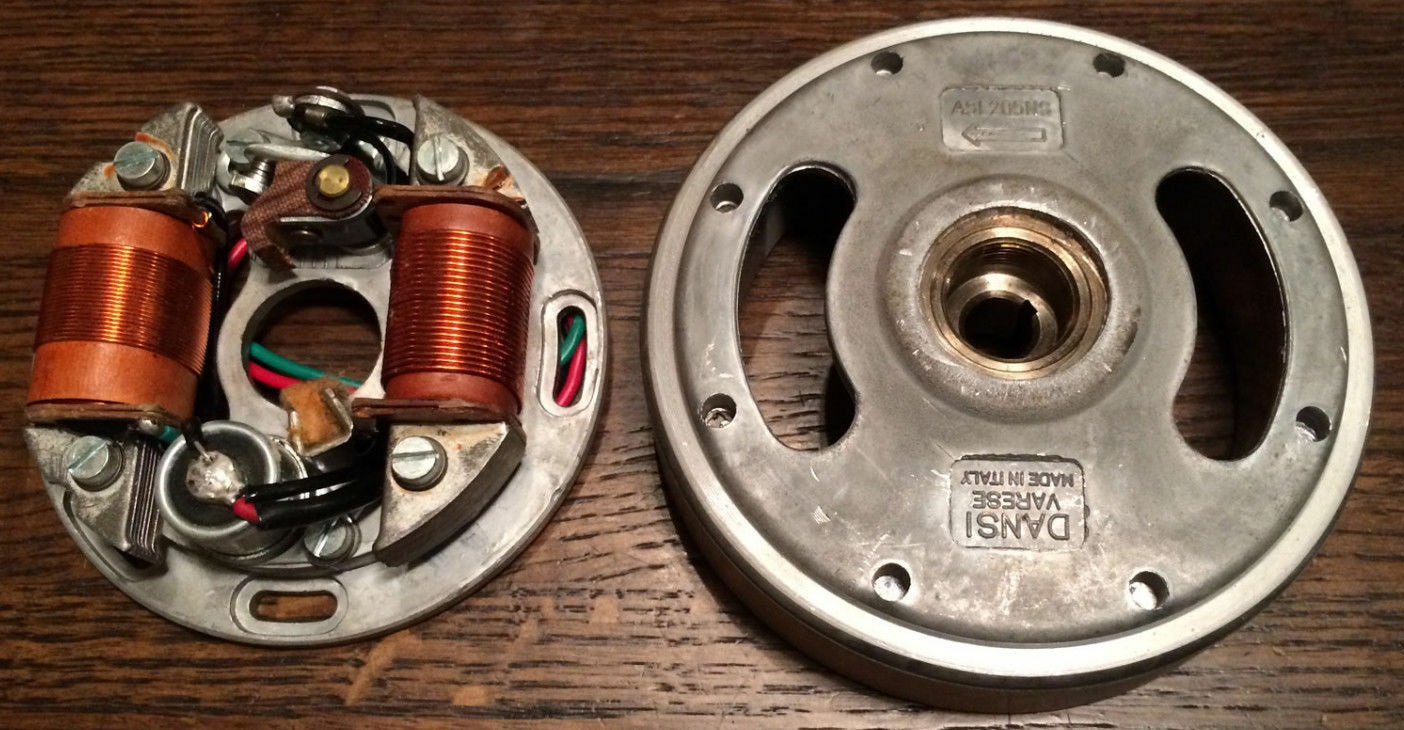

ASL205NS   110  1Sc  65-75  6. US Benelli
ASL206S? 0 110? 1Sc  71-72  4. US Morini
ASL233S 0   110  1Sc  71-72  4. US Morini
ASL233NS   110  1Sc  71-72  4. US Morini
ASL308NB   103  1Sc  73-76  6. US Benelli

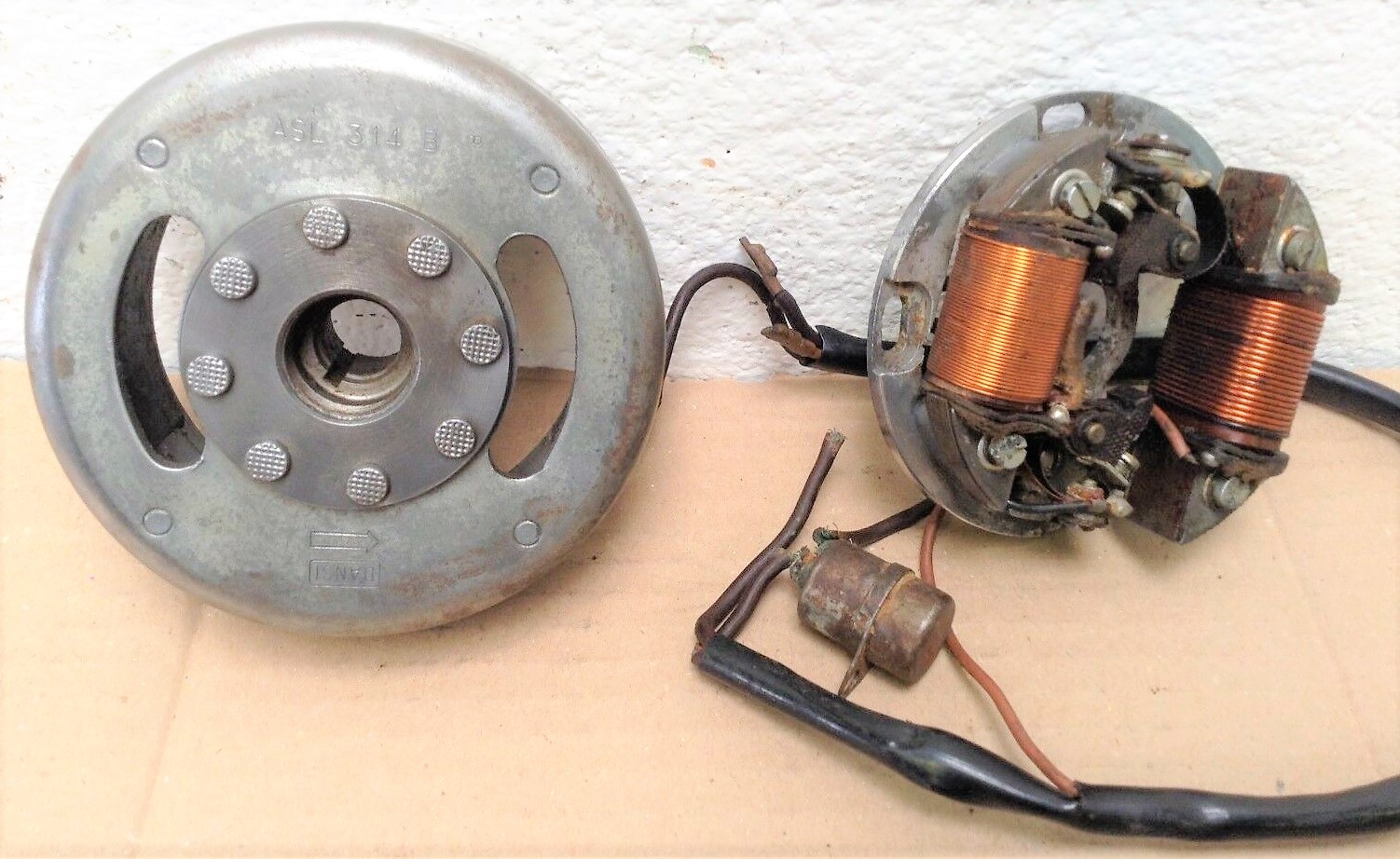

ASL314B  0  103  1Sc  73-74  7. EU Benelli
ASL236NS   110  2Sc  00-00  3. US Aermacchi

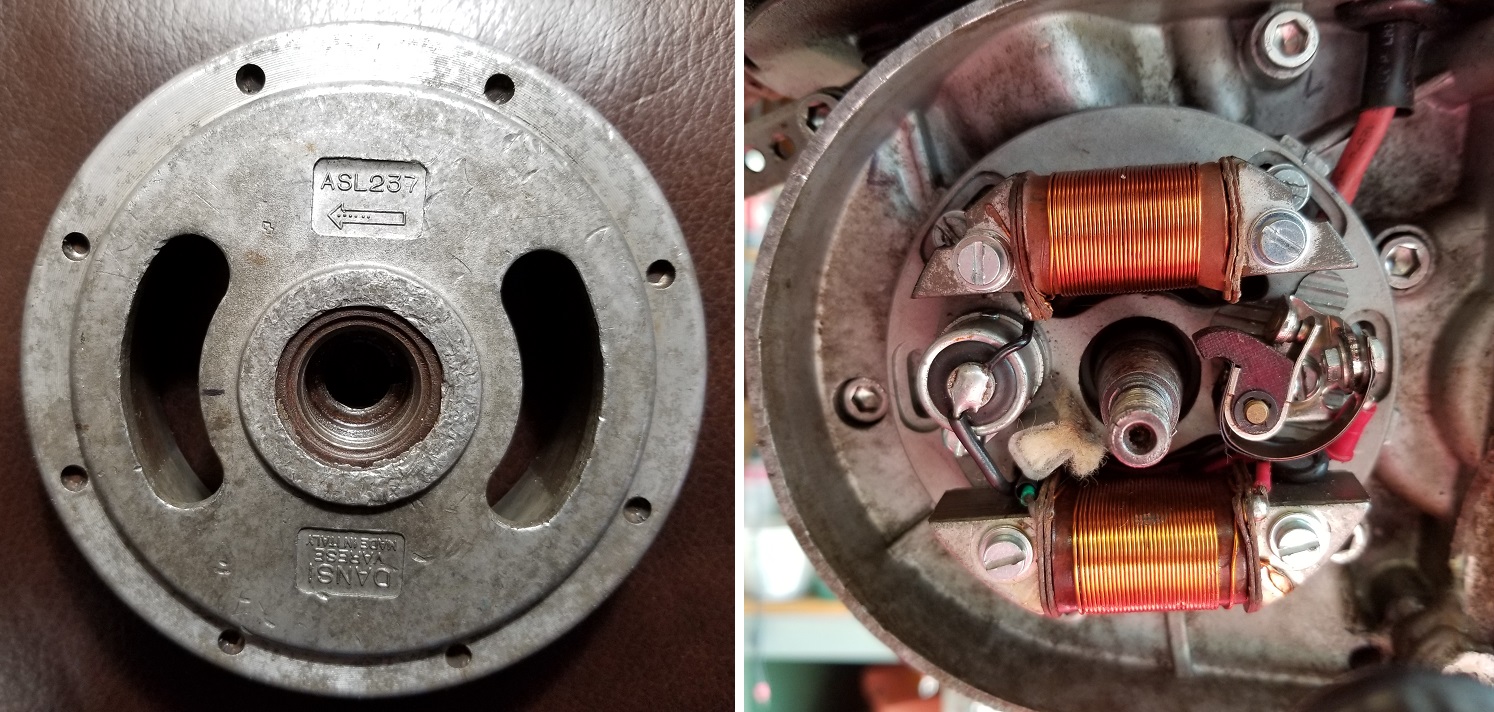

ASL237 00   110  2Sc  72-72  3. US Aermacchi
MSL105 00  110  2Sc  74-80  7. EU Benelli
ASL207?  0   110  2Sd  65-66  6. US Benelli

ASL222S 0   110  2Sd  64-66  3. US Aermacchi
ASL223VS     fan  2Sd  66-69  4. US Morini

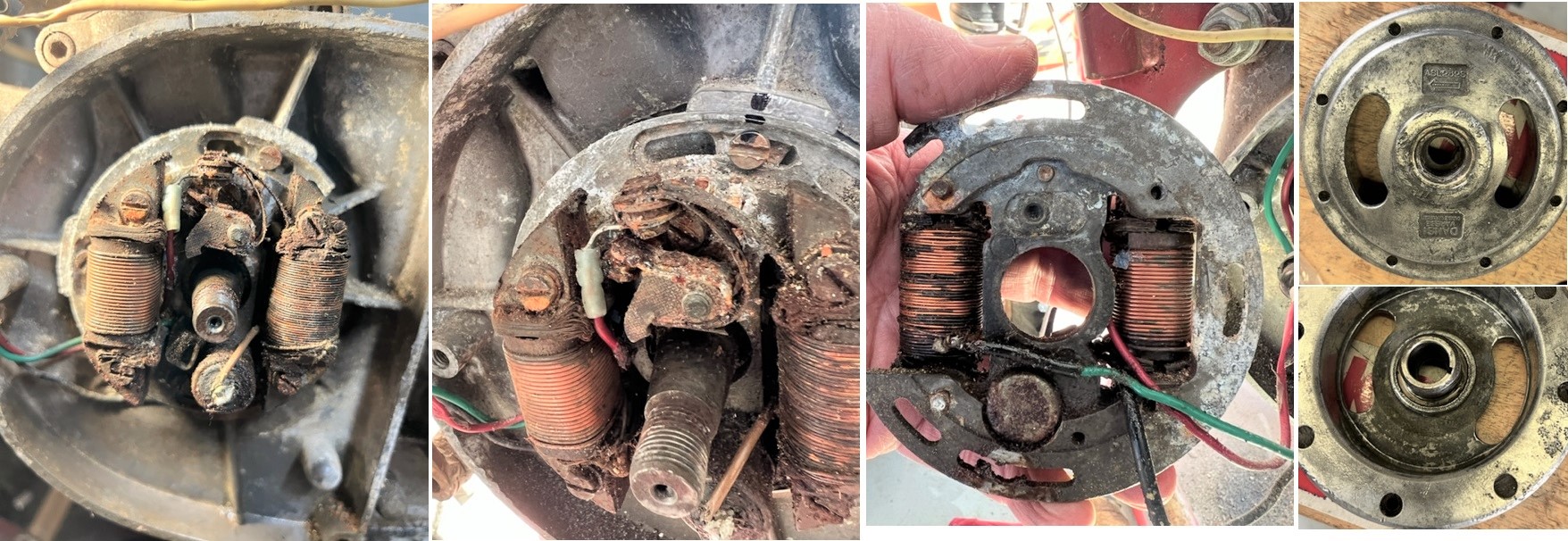

ASL232S  0  110  2Sd  70-72  6. US Benelli

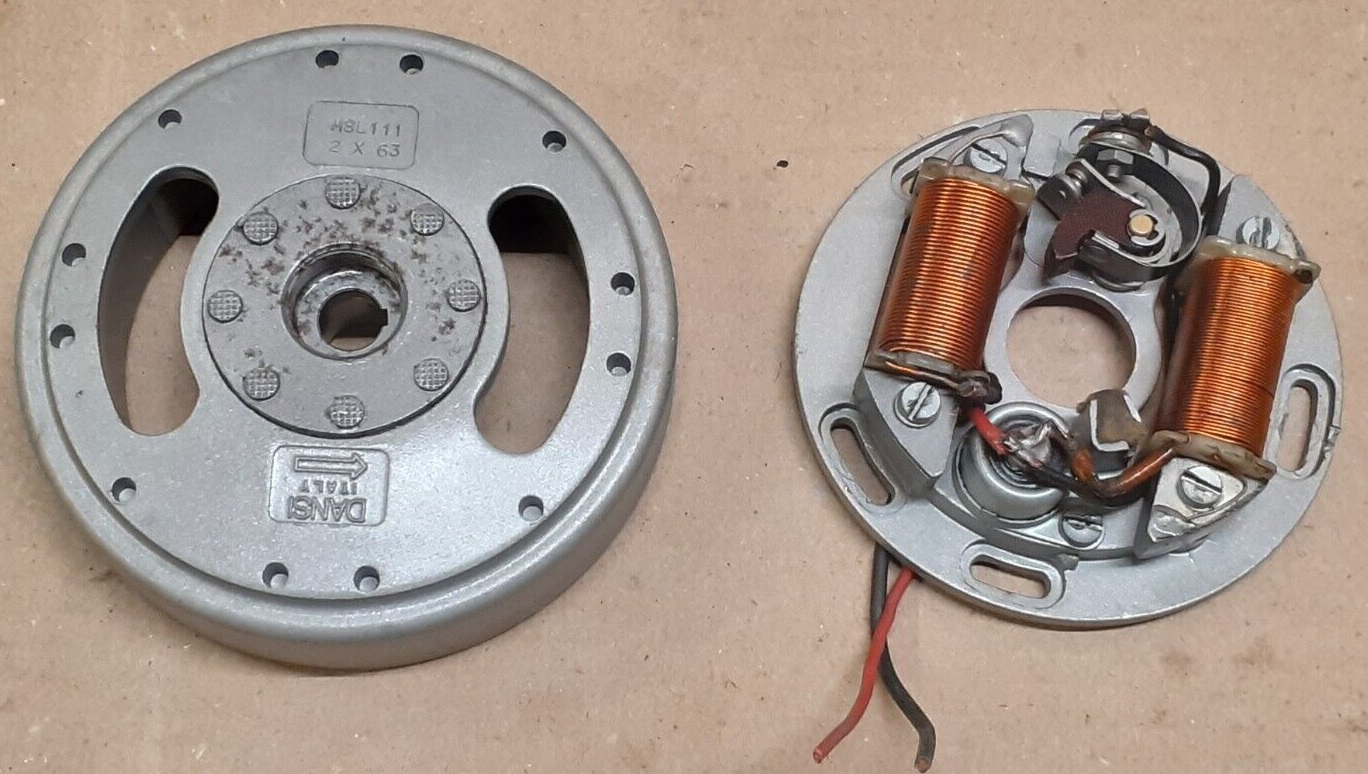

MSL111 00  110  2Sd  00-00  5. EU Morini
101286 S    103  3Sc  75-79  4. US Morini
101603 S    103  3Sc  00-00  5. EU Morini
101732 S    103  3Sc  75-77  4. US Morini
101765 S    103  3Sc  76-80  4. US Morini
102690 S    103  3Sc  00-00  5. EU Morini

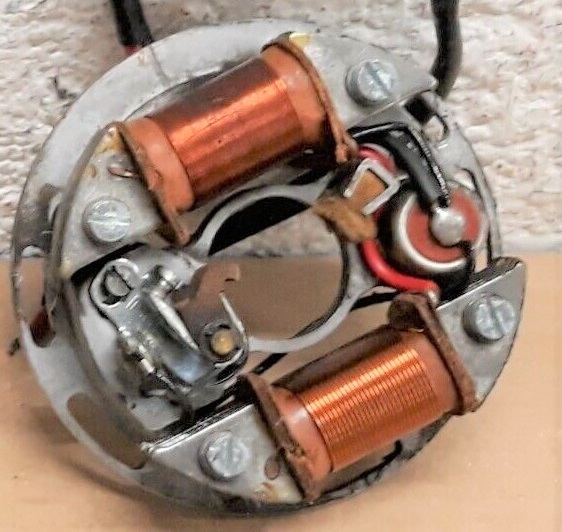

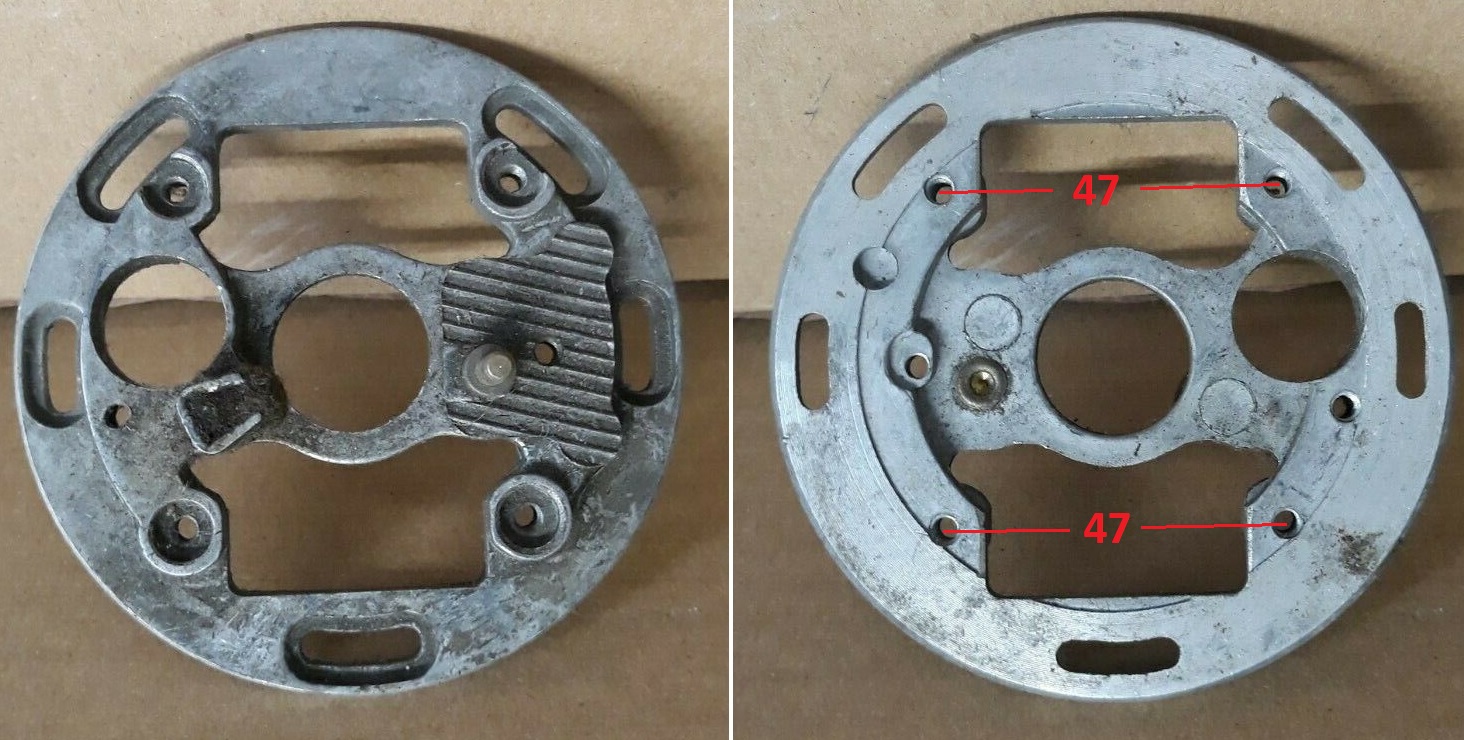

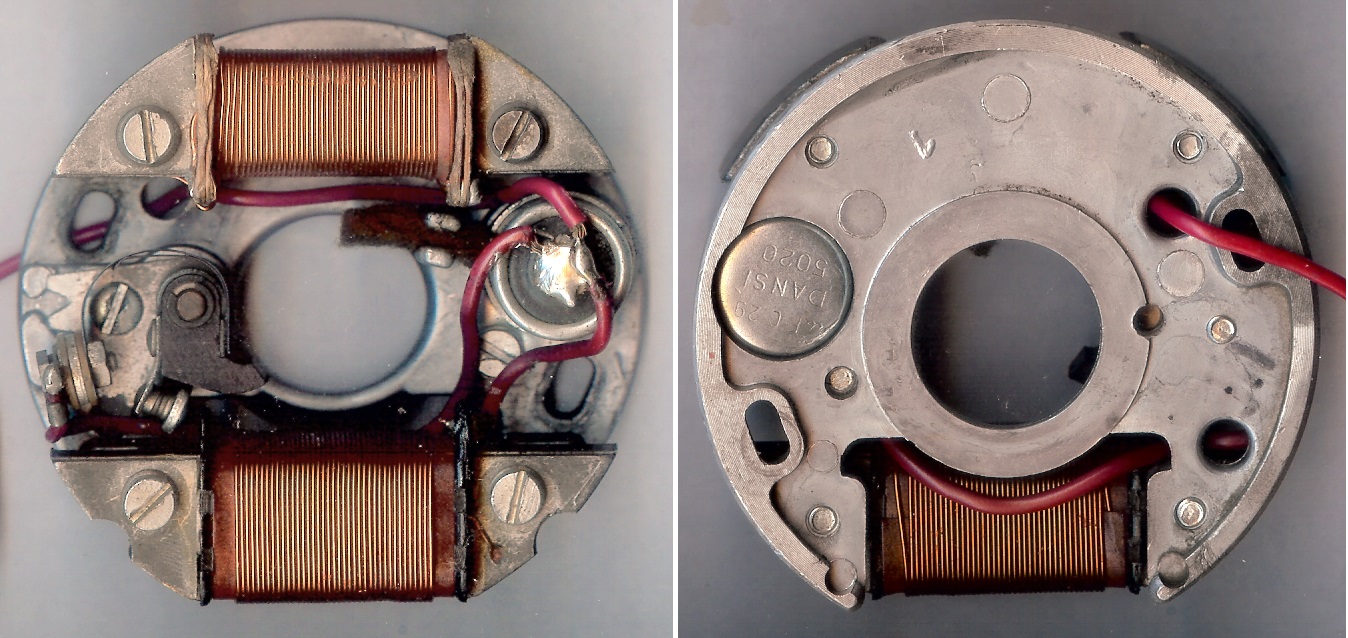

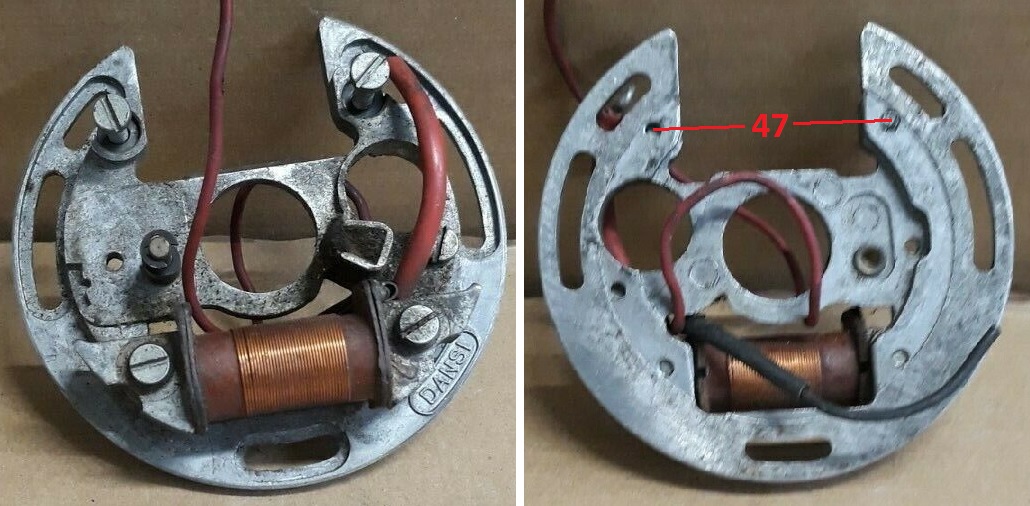

Stator Plate Versions with links to photos
mm# o.d. slots   slots   points under   upper   lower
mm# o.d. slots   type   points points 0 coil 00  coil    Dansi#

1Da  ∅94 2+3 plain 5 xx  1D smooth  4 x 46? 4 x 46?
000  Benelli SD6 .
1Sb  ∅94 2+3 stepped 4  1S   ribbed  4 x 46? 4 x 46?
000  Benelli G221/1, Aermacchi .

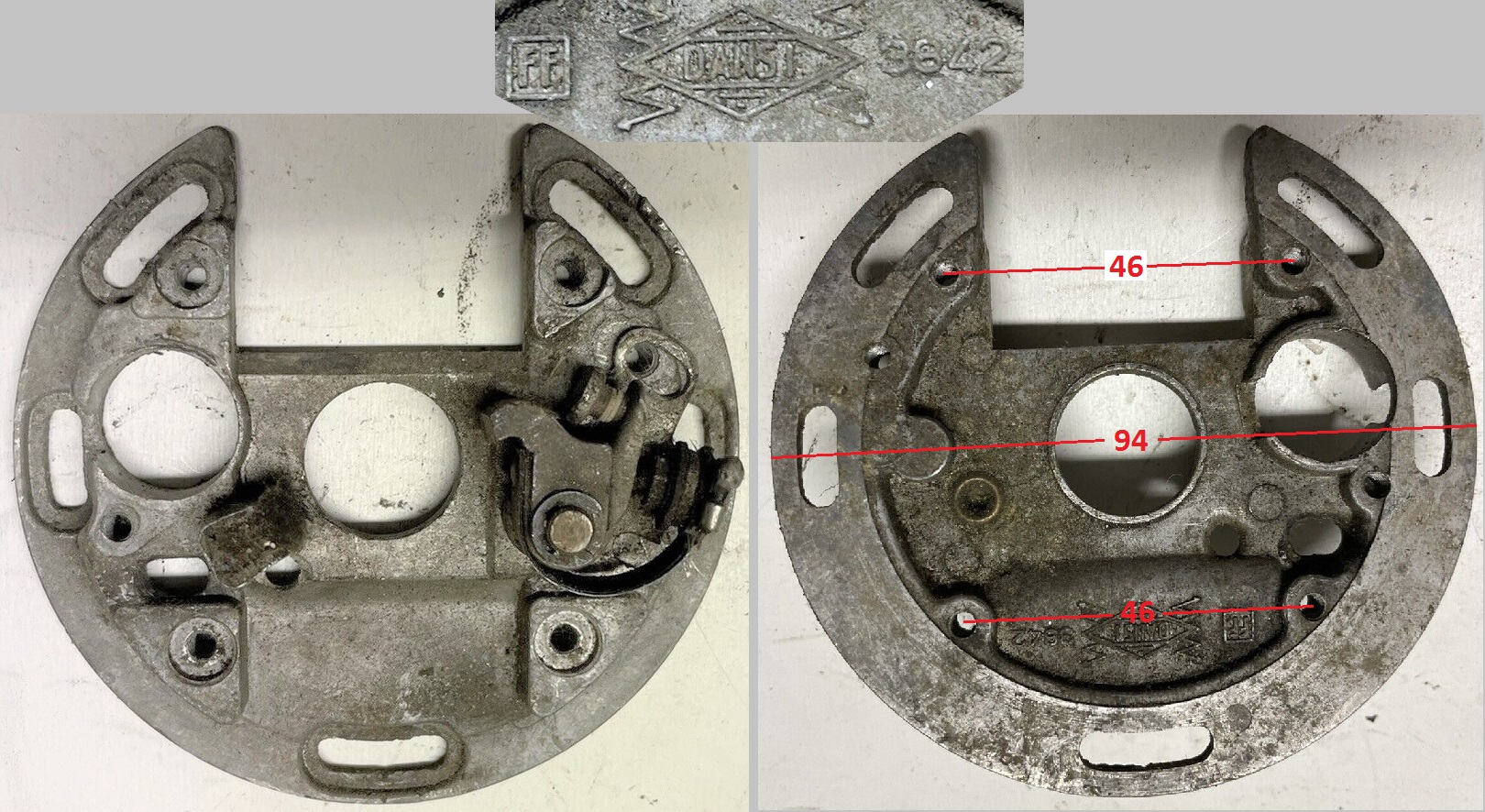

1Sc   ∅94 2+3 stepped 4  1S smooth  5 x 43  4 x 46  3842
000  Benelli R2063/B = 772.001.0.799, Morini .
2Db  ∅94 2+3 stepped 4  2D smooth  4 x 47  4 x 47
000  various .
2Dc  ∅94 2+3 stepped 4  2D   ribbed  4 x 47  4 x 47
000  Benelli, various .
2Sc   ∅94 2+3 stepped 4  2S   ribbed  4 x 47  4 x 47
000  Aermacchi .
2Dd  ∅94 2+3 long step 4 2D smooth  4 x 47  4 x 47
000  Benelli SD462/3 = 772.006.0.799 G2,GM, Morini
2Sd  ∅94 2+3 long step 4 2S  smooth  4 x 47  4 x 47  2 versions
000  Benelli M56/1, Aermacchi 29549-65PA, Morini .
2De  ∅80 2     plain 4  xx 2D smooth  4 x 47  4 x 47
000  various .

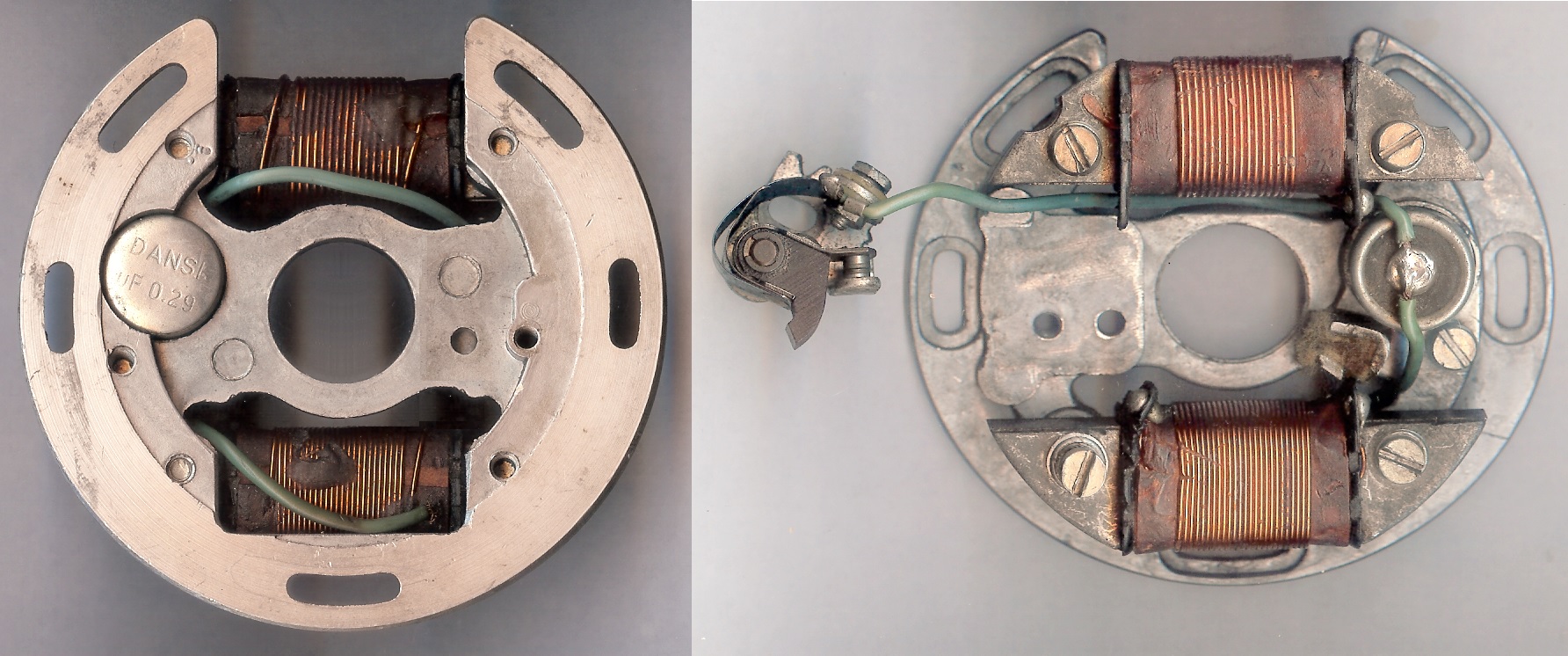

3Db ∅94 2+3 stepped 4  3D smooth  4 x 47  4 x 47
000 Benelli 69.70.22.07 G2 .
3Sc   ∅80 2     plain 4  xx 3S smooth  4 x 47  4 x 47
000 Morini mmi# M44 and M44A .

This identification data is from measurement of actual plates and from internet images. Only the older “1” type plates have Dansi numbers. The others have no markings. So here we use mm numbers with encoded digits. Digits 1 and 2 encode the points. Digit 3 encodes the outer diameter and mounting slots. Knowing the plate identity helps to identify the points and coils, and visa versa.

Magnetos
eng  Benelli# 000 Benelli# 0000 Benelli#  magneto#.
FA   00.00.00.00 000.000.0799  G221 0  ASL205NS .
FA   70.71.24.00 000.000.0799  G7094 0  MSL105? Export FA .
3VK 00.00.00.00 000.000.0799  G221 0  ASL205NS .
3VK 00.00.00.00 000.000.0799  000000 ADP220VS .
3VK 70.71.16.20 000.000.0799  000000 100884 ’78 3VK-NT .
3VK 70.71.24.00 000.000.0799  G7094 0  MSL105? Export FA 1976 .

4M   00.00.00.00 000.000.0799  G314 0  ASL204NS .
4M   00.00.00.00 427.016.0799  R2063   ???????  ’70’s Turismo .
4M   35.71.24.00 000.000.0799  000000 ???????  ’78 Turismo .

4MS 00.00.00.00 000.000.0799  G26 00  ASL5N
4MS 00.00.00.00 000.000.0799  G221 0  ASL205NS .

GM   00.00.00.00 427.022.0799  FA3774  ??????? G.man, Motorella .

GM, G2 00.00.00 427.005.0799  N14  0  MDP44 ’67-73 Gentleman, Bobo .
G2   48.71.24.71 427.027.0799  N14  0  100892 ’70-75 Bobo, Guzzi Chiu .

G2   48.71.24.72 000.000.0799  000000 101662 G.man 2, ’78-G2, G2 Elle .
G2   48.71.24.90 000.000.0799  000000 101441  G2-US .
G2   69.71.24.15 000.000.0799  000000  ???????  Gentleman 1974 .
G2   71.71.24.25 000.000.0799  000000 101813 G2-US .
GK   00.00.00.00 000.000.0799  N134 0  ADP244S .

90   00.00.00.00 000.000.0799  R3086   ASL308MB

125 00.00.00.00 000.000.0799  M56 00  ASL207?
125 00.00.00.00 000.000.0799  M246 0  ??????? ’65-69 Cobra 125 .
175 00.00.00.00 000.000.0799  M375 0  ASL232S .
250 00.00.00.00 000.000.0799  SD596   ADL54?
250 00.00.00.00 000.000.0799  SD595   ADL54/ANB .

00   00.00.00.00 000.000.0799  000000







3. US models with Aermacchi engines

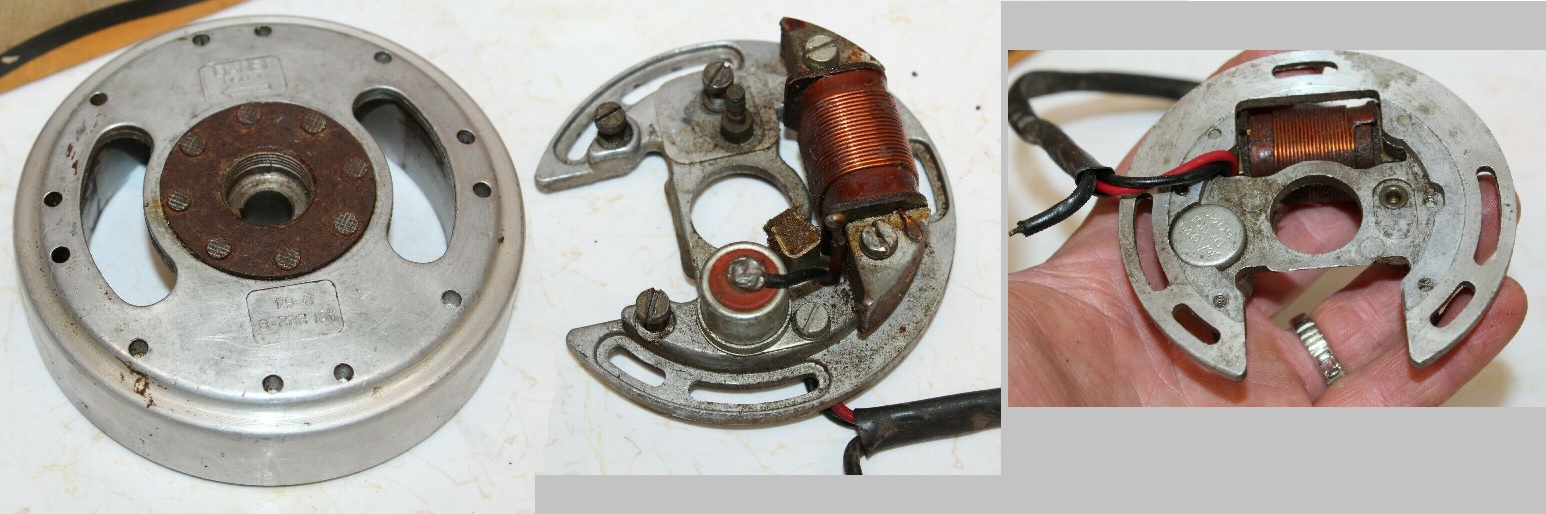

ASL222S  82 x 110 alum. rotor, ∅94 3+2 long-slot stator
rotation Sinistra, M19-1 puller, type 5

’65-66 Harley Davidson M50, MS50
29529-65P   $19.0 points 01.3240 M56/2
32726-65P   $15.0 condenser 07.0074 M17D
11212P-00   $0.00 woodruff key 2.5?
29595-65P   none  flywheel nut M9-1.0
29595-65P   $7.00 substitute M9-1.0 x 9 hex12

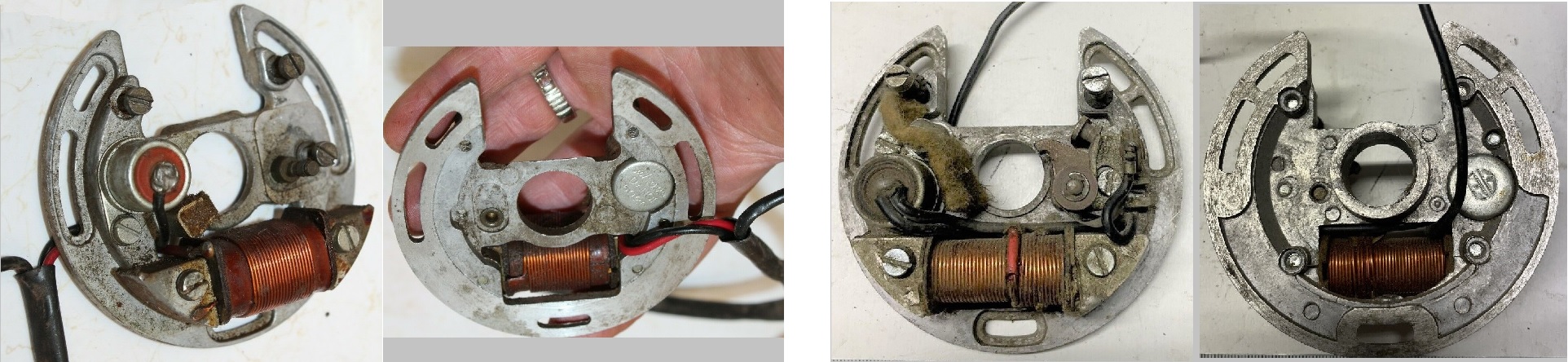

29549-65PA none  base plate ⇐ 3+2 long-slot = Benelli M56/1





ASL234NS

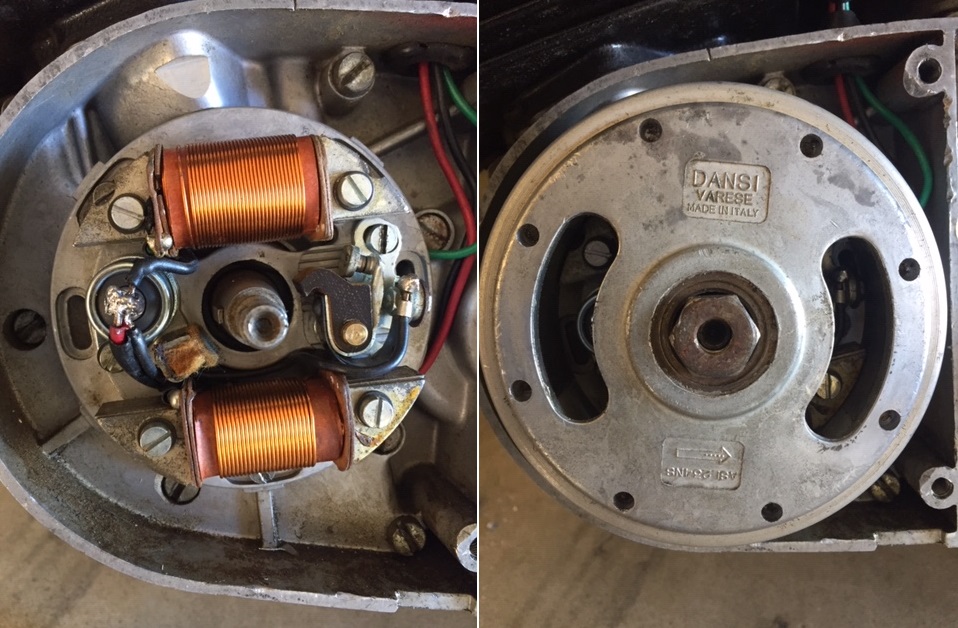

82 x 110 aluminum rotor, ∅94 3+2 slot stator
rotation Sinistra, puller M19-1, type 5

’73-74 Harley Davidson X-90, Z-90
$26.0 points
01.3236
$15.0
condenser 07.0074 = M17D
none  base plate ⇐ 3+2 slot = Benelli G221/1





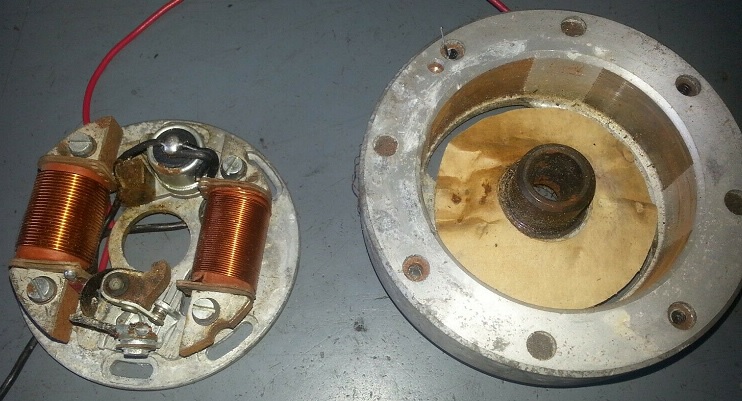

ASL236NS  82 x 110 aluminum rotor, ∅94 3+2 slot stator
rotation Sinistra, M19-1 puller, type 5

’70-73 Harley Davidson ML65 Leggero
29529-65P   $19.0 points 01.3240 M56/2
32726-65P   $15.0 condenser 07.0074 M17D
11212P-00   $0.00 woodruff key 2.5?
29595-65P   none  flywheel nut M9-1.0
29595-65P   $7.00 substitute M9-1.0 x 9 hex12
29549-65PA none  base plate ⇐ 3+2 slot
29549-65PA none  long slots got shorter but # stayed the same





ASL237
82 x 110 aluminum rotor, ∅94 3+2 slot stator
rotation Sinistra, puller M19-1, type 5

’72 Harley Davidson Rapido 125
29529-65P $19.0 points 01.3240 M56/2
32726-65P $15.0 condenser 07.0074 = M17D









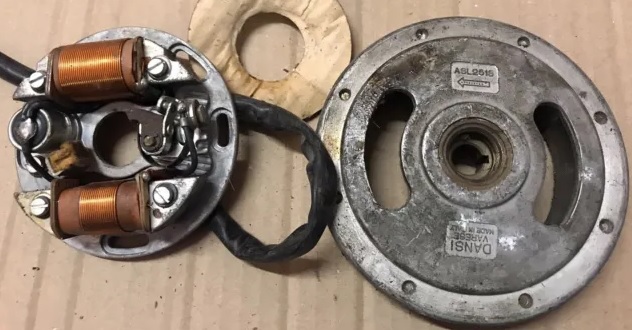

ASL251S  82 x 110 aluminum rotor, ∅94 3+2 slot stator
rotation Sinistra, puller M19-1, type 5

’70’s Harley Davidson
000 $19.0 points 01.3240 M56/2
000 $15.0 condenser 07.0074 = M17D











4. US models with Morini engines

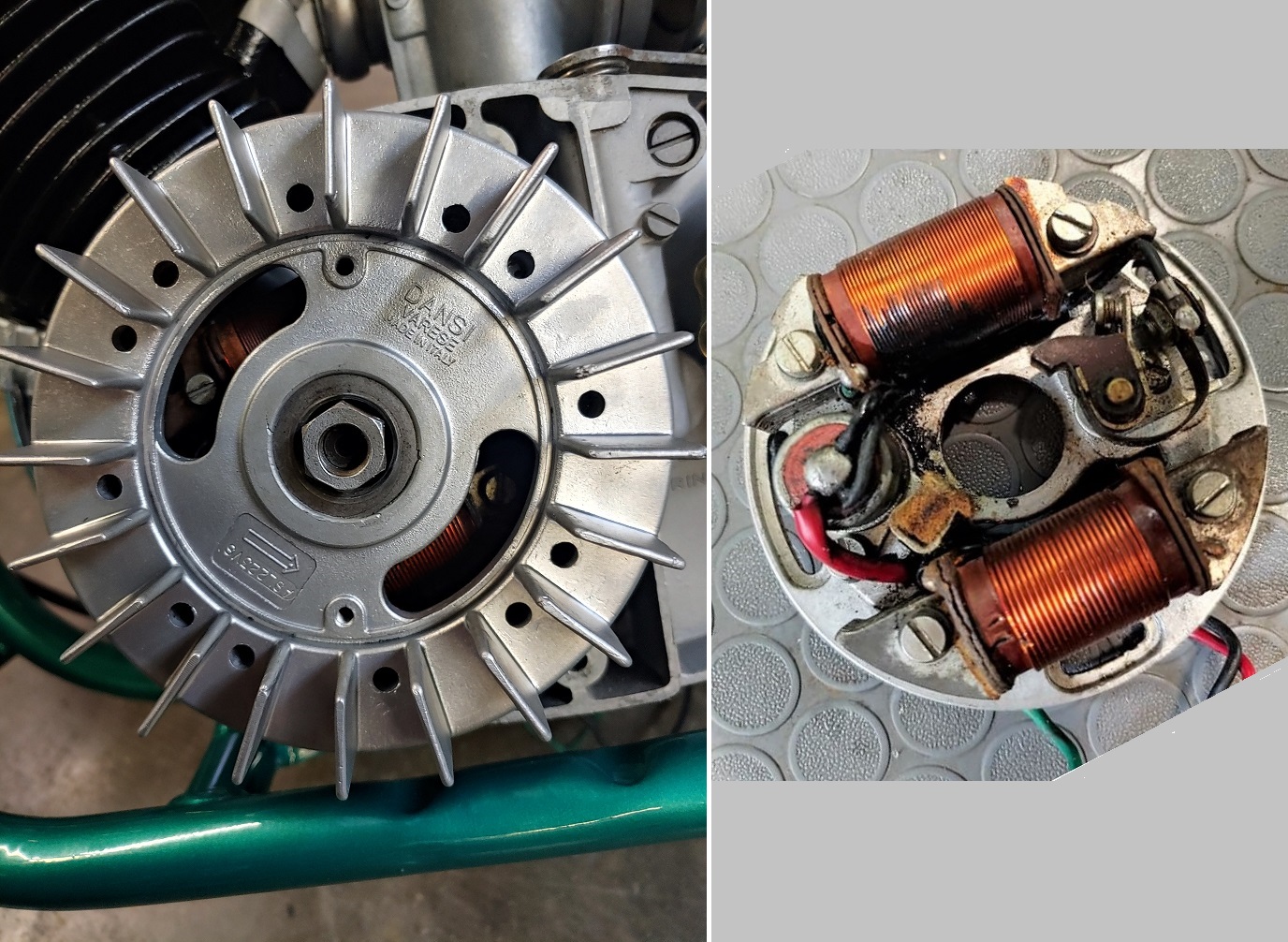

ASL223VS   82 x fan alum. rotor, ∅94 3+2 long-slot stator
rotation Sinistra, M19-1 puller, type 5

’66-69 Chris  Cycle (Wilier) M2, M2V with Morini 3CV engine
$19.0 points 01.3240 = M56/2
$15.0 condenser 07.0074 = M17D





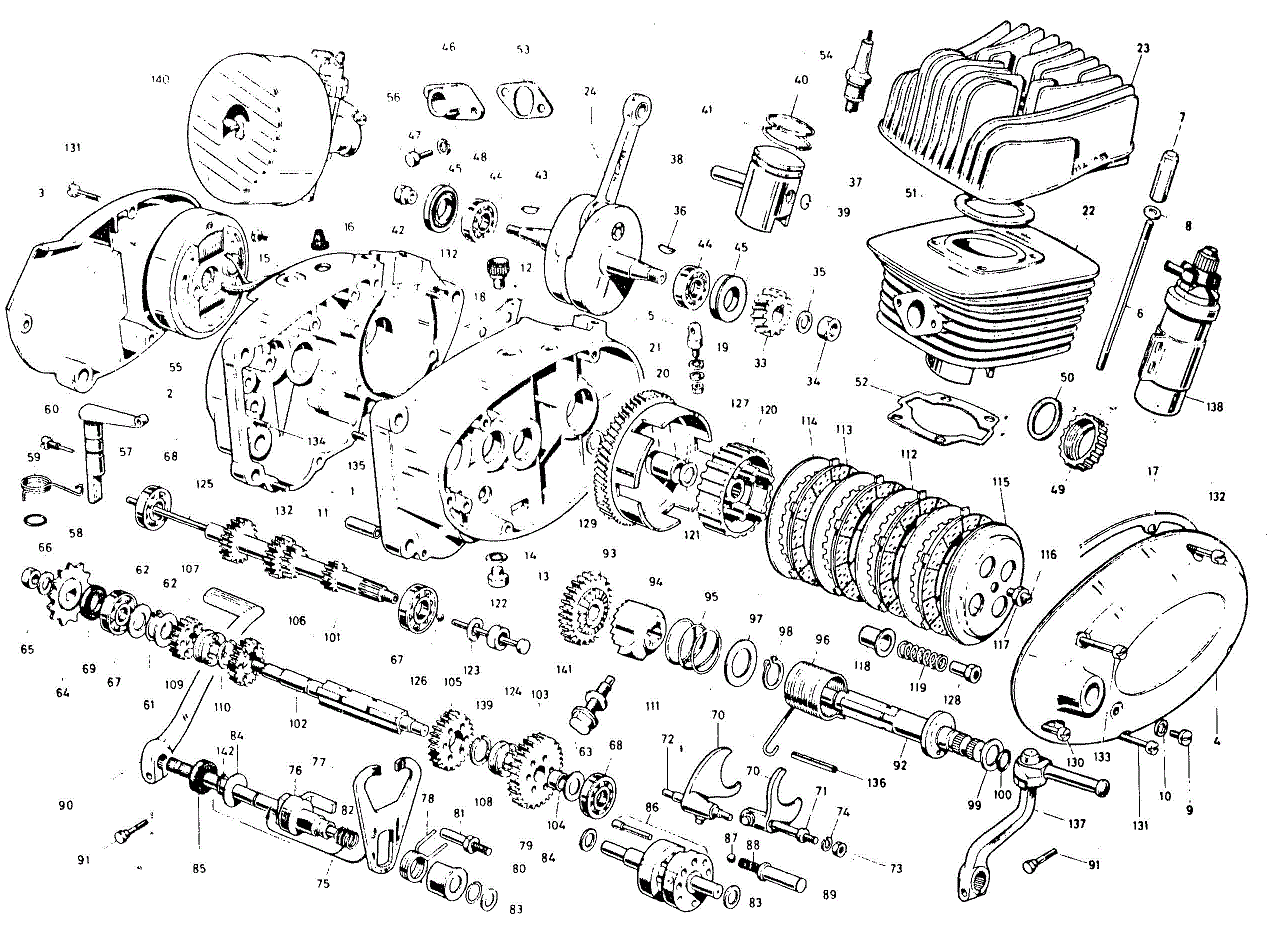

ASL233S  82 x 110 aluminum rotor, ∅94 3+2 slot stator
rotation Sinistra, M19-1 puller, type 2

’71-72 Indian MX100, Motorsport 100 off-road, Morini 101 engine

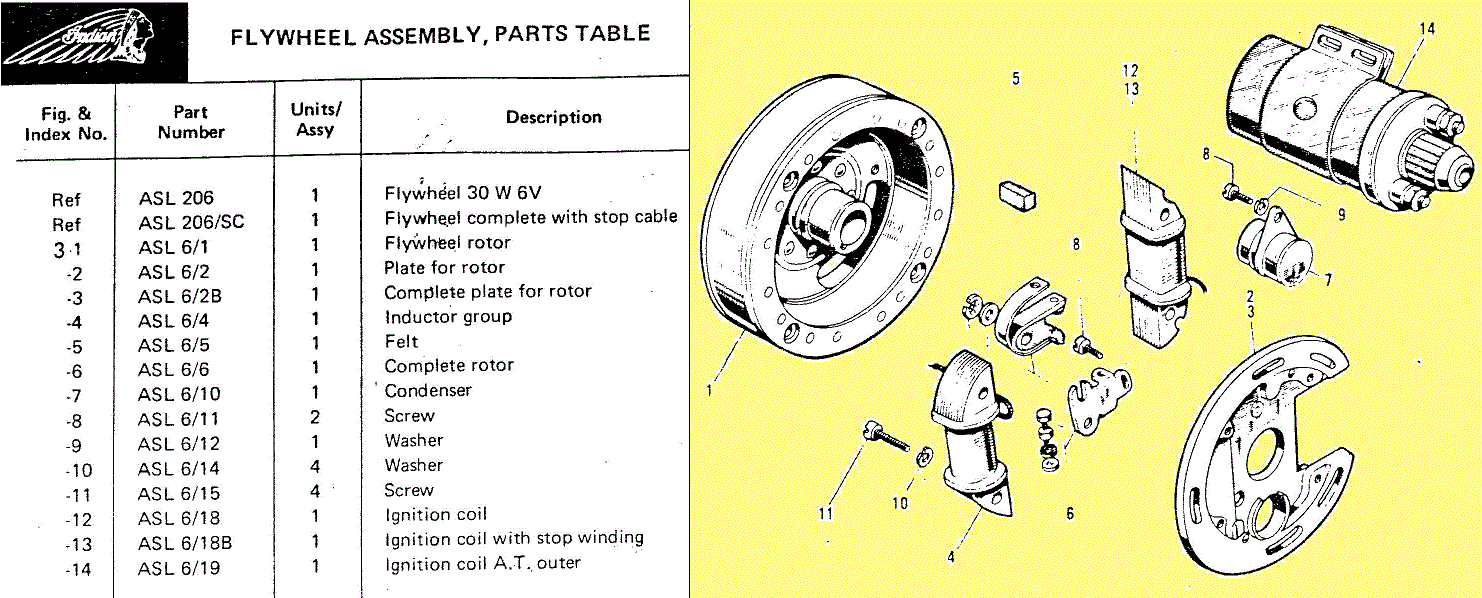

ASL206  none  magneto ASL233S
ASL6/1   none  rotor (flywheel)
ASL6/2   none  base plate
ASL6/4   none  lights coil
ASL6/6   $26.0 points 01.3236 = G221/4
ASL6/10 $15.0 condenser 07.0074 = M17D
ASL6/18 none  ignition source coil (internally grounded)
12.7005 $0.00 flywheel key
13.3002 $0.00 flywheel nut

Link to Indian Dirt Bike Parts Manuals





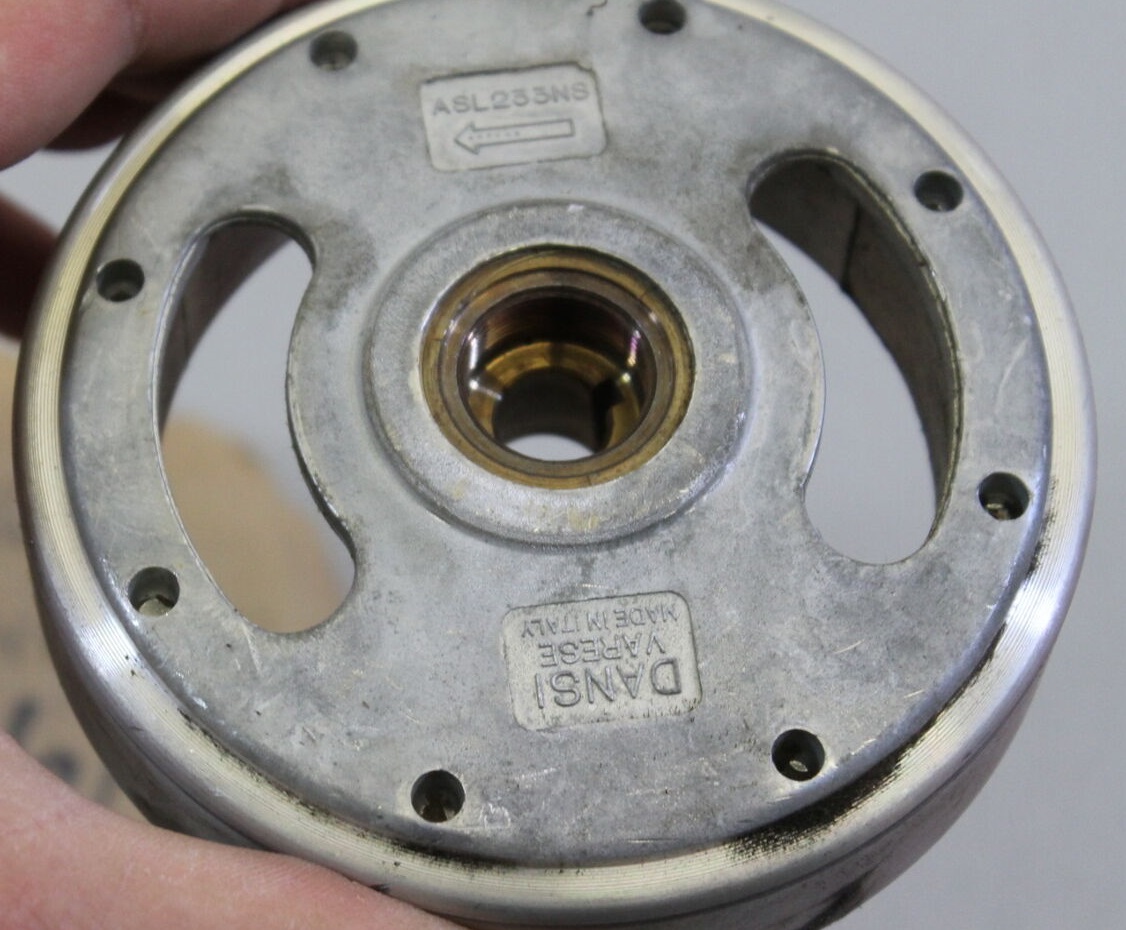

ASL233NS  82 x 110 aluminum rotor, ∅94 3+2 slot stator
rotation Sinistra, M19-1 puller, type 5

’71-72 Indian Bobcat on-road mini-cycle, Morini 101 engine
ASL206/SC  none  magneto ASL233NS
ASL6/1 000 none  rotor (flywheel)

ASL6/2 000 none  base plate
ASL6/4 000 none  lights coil

ASL6/6 000 $26.0 points 01.3236 = G221/4
ASL6/10 00 $15.0 condenser 07.0074 = M17D
ASL6/18B 0 none  ignition source coil with ground wire

12.7005 00 $0.00 flywheel key
13.3002 00 $0.00 flywheel nut

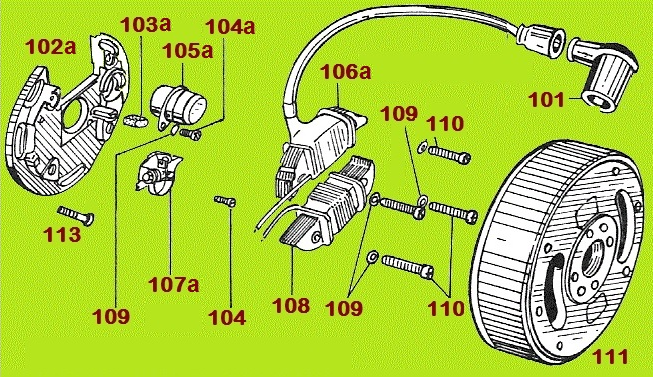

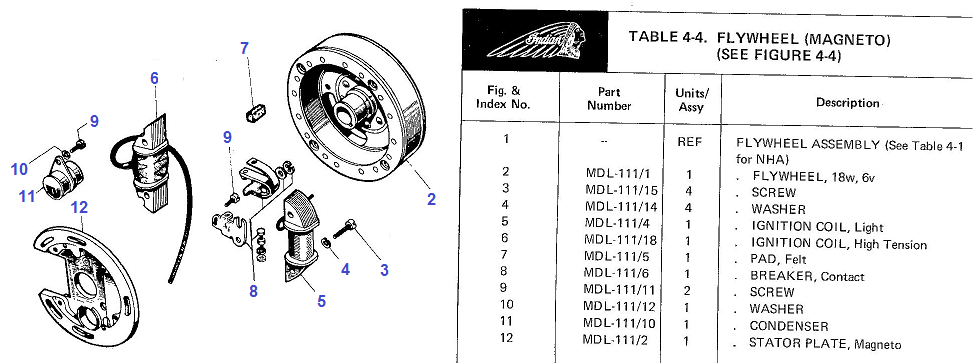

MDL111  82 x 110 aluminum rotor, ∅94 3+2 long-slot stator
rotation Destra, puller M19-1, Morini 29.0006, type 1

’70-73 Indian (Italjet) MM5A, JC5A Morini S5K, S5K2 engine
and ’70’s EU models with Morini F5M2, M4 engine

MDL111/6   $29.0points
01.3239
MDL111/10 $15.0 condenser 07.0074 = M17D





101286  ∅82 x 103 steel rotor, ∅80 2 slot stator
rotation Sinistra, M19-1 puller, Morini 29-0034, type 4

’75-77 Intramotor-Gloria Morini MO1 engine
’76-79 NVT, Malaguti Morini MO1, MO2 engine
’76-79 Pacer Sport (some), others Morini MO1, MO2 engine

M#  qty  price  description

M14   1 $16.0 points CEV-type for left rotation
M15   2 $2.50 screw for points & cond. M4 x 8 small head
M16   1 $0.20 lock washer for points screw Ø4 x 9 x 1
M17   1 $15.0 condenser M17D
M22   5 $0.40 thin lock washer for cond. & coil screws Ø4
M00   2 $1.00 29-6022 stator plate screws M4 x 12 phillips

M12   1  N/A    felt wiper, early type
M20   1 $75.0 ignition coil up. 47-12-72 1 short cond. wire
M21   1 $65.0 lighting coil lo. 47-15-72 long grn, long blk
M24   2 $0.50 ignition coil screw M4 x 20 slot
M25   2 $0.50 lighting coil screw M4 x 25 slot

M26   1  N/A    steel flywheel, says 101286 ( same as 101765)
M44   1  N/A    stator plate with cut-out for spark coil
M45   1 $190. stator assembly OD ∅80, slots ∅65, at 9 & 3 o’clock
M83   1 $4.50 woodruff key M83 12-7025 2.5 x 9 (x 3)

M00   1 none  29-0034 magneto 101286 = M26 + M45

M20 ignition coil for Dansi 101286

M20 ignition coil
for Dansi 101286

M21 lighting coil for Dansi 101286

M21 lighting coil
for Dansi 101286

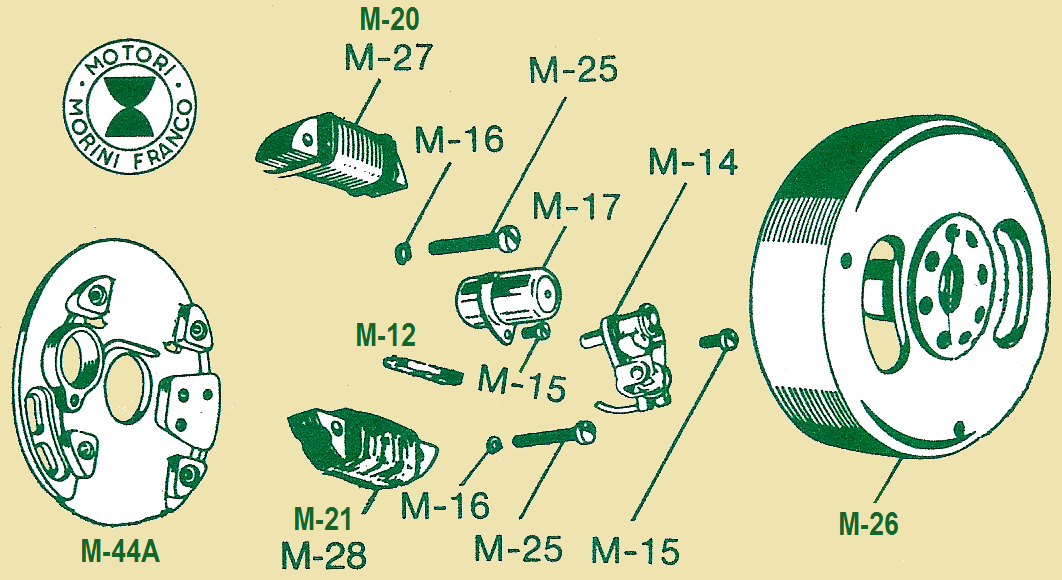

101765  ∅82 x 103 steel rotor, ∅80 2 slot stator
rotation Sinistra, M19-1 puller, Morini 29-0045, type 5

’76-85 Motomarina, Scorpion Morini MO1, MO2 engine
’77-80 Motobecane Sebring Morini MO1, MO2 engine
’76-80 Pacer (some), others Morini MO1, MO2, M1, MO4B engine
M#  qty  price  description
M14   1 $16.0 points CEV-type for left rotation
M15   2 $2.50 screw for points & cond. M4 x 8 small head
M16   1 $0.20 lock washer for points screw Ø4 x 9 x 1
M17   1 $15.0 condenser M17D
M22   5 $0.40 thin lock washer for cond. & coil screws Ø4
M00   2 $1.00 29-6022 stator plate screws M4 x 12 phillips

M12A 1  N/A    felt wiper, late type
M25A 4 $0.50 ign and light coil screw M4 x 25 phillips
M26A 1 $150. steel flywheel, says 101765 (=101286)
M27   1 none  ignition coil up. 47-14-72 long grn, to cond.
M28   1 $65.0 lighting coil lo. 47-15-72 long black wire
M44A 1  N/A    stator plate, no cut-out for  spark coil
M45A 1 $200. stator assembly OD ∅80, slots ∅65, at 9 & 3 o’clock
M83   1 $4.50 woodruff key M83 12-7025 2.5 x 9 (x 3)

M00   1 $330. 29-0045 magneto 101765 = M26A + M45A

M27 ignition coil for Dansi 101765

M27 ignition coil
for Dansi 101765

M27 ignition coil for Dansi 101765

M28 lighting coil
for Dansi 101765



















101732  ∅82 x 103 steel rotor, ∅80 2 slot stator
rotation Sinistra, M19-1 puller, Morini 29-0045, type 5
superseded in early 1977 by 101765

’75-77 Intramotor-Gloria (some), others, Morini MO1 engine
M#  qty  price  description
M14   1 $16.0 points CEV-type for left rotation
M15   2 $2.50 screw for points & cond. M4 x 8 small head
M16   1 $0.20 lock washer for points screw Ø4 x 9 x 1
M17   1 $15.0 condenser M17D
M22   5 $0.40 thin lock washer for cond. & coil screws Ø4
M00   2 $1.00 29-6022 stator plate screws M4 x 12 phillips

M12   1  N/A    felt wiper, early type
M25   4 $0.50 ignition and lighting coil screw M4 x 25 slot
M26A 1  N/A    steel flywheel, says 101732 (same as 101286)
M27   1 none  ignition source coil (upper) 47-14-72 1 long green, 1 to condenser
M28   1 $65.0 lighting source coil (lower) 47-15-72 1 long black wire
M44   1  N/A    stator plate, early (same but with cut-out, for internal spark coil)
M45A 1  N/A    stator assembly OD ∅80, slots ∅65, at 9 & 3 o’clock
M83   1 $4.50 woodruff key M83 12-7025 2.5 x 9 (x 3)



M27 coil: Because the service manuals did not mention the “external ignition ground” troubleshooting procedure, where you ground the green wire to get spark, many people have replaced the coils, both the internal M27 ignition source coil and the external spark coil (transformer), when they did not need them. As a result, the supply of M27 source coils has ran out.

M44 plate: The M44 stator plate bare (for 101286) and the M44A (for 101765) have different part numbers and different felt wipers, but they do interchange. The M44A has no cut-out for a internal transformer spark coil, and so is a later design. The M44A is made stronger.

On a moped with a Morini engine, the number on the Dansi flywheel tells 1) what magneto it has, external (101765 or 101732) or internal (101286) ignition ground, 2) what brake light wiring the bike has, series brake light switches (9342 normally closed) in parallel with the light for 101765 or 101732, or parallel brake light switches (9343 normally open) in series with the light for 101286, 3) what CEV 9530 tail light version it has, one with a brake light resistor hidden inside (101765 or 101732), or with no resistor (101286).This matters a lot when troubleshooting a bike that has no spark. Bikes with external ignition ground often loose spark because of a loose brake light wire. On those you always ground (connect to the frame) the green magneto wire first, and then re-check for spark. That way you will know if the problem is external, in the bikes wires and lights, or internal in the magneto, such as dirty points.







5. EU models with Morini engines




ASL6?  82 x 110? aluminum rotor, ∅94 3+2 slot stator
rotation Sinistra, M19-1 puller, type 1

various models off-road with Morini 101 engine
Morini#  price
29-0022  none  magneto without B.A.T.E.
= without bobina alta tension esterna (external high tension coil)
ASL6/2   none  base plate
ASL6/3   none  internal spark (high tension) coil
ASL6/4   none  lights coil
ASL6/6   $26.0 points 01.3236 = G221/4
ASL6/10 $15.0 condenser 07.0074 = M17D
12.7005   $0.00 flywheel key
13.3002   $0.00 flywheel nut

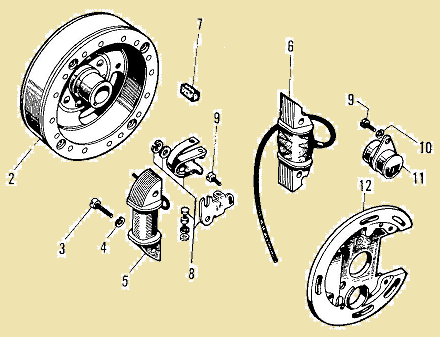

MSL111  82 x 110 aluminum rotor, ∅94 3+2 slot stator
rotation Sinistra, M19-1 puller, type 1

’60’s models with Morini M4 engine
$19.0 points xxx 01.3240 = M56/2
$15.0 condenser 07.0074 = M17D

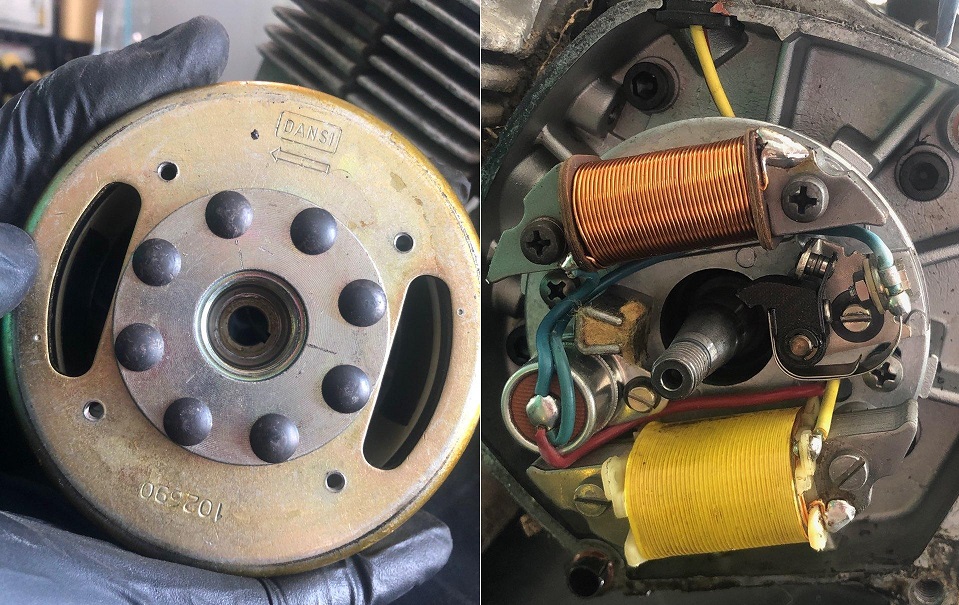

102690  ∅82 ∅103 steel rotor, ∅80 2 slot stator
rotation Sinistra, M19-1 puller, type 2

1980’s models with Morini M1K engine
$16.0 points xxx 01.3557 = M14
$15.0 condenser 07.0074 = M17D





101603  82 x 103 steel rotor, ∅94 3+2 slot stator
rotation Sinistra, M19-1 puller, Morini 29.0045, type 2

70’s-80’s models with Morini M4? engine
$16.0 points xxx 01.3557 = M14
$15.0 condenser 07.0074 = M17D







6. US models with Benelli engines

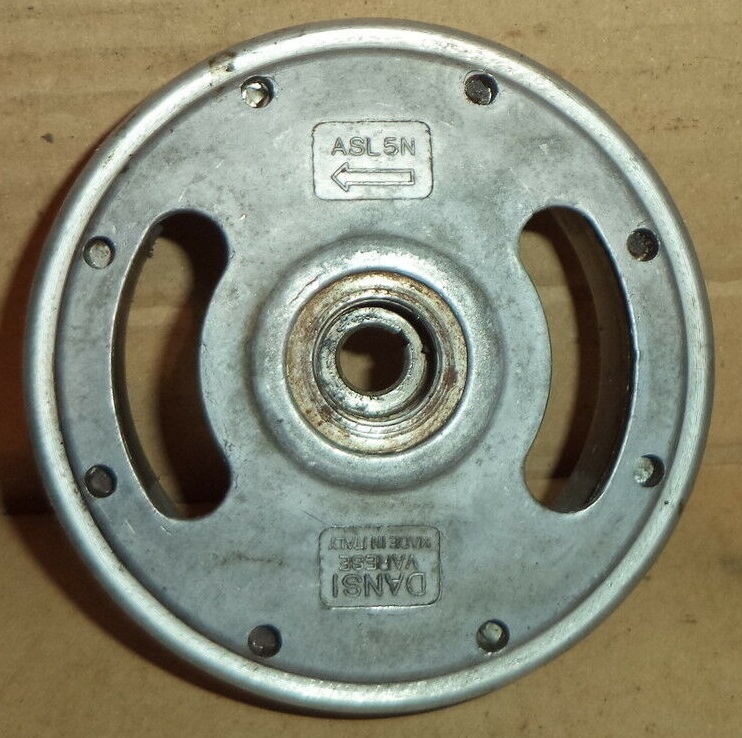

ASL5N  ∅82 x 110 aluminum rotor, ∅94 3+2 slot stator
rotation Sinistra, M19-1 puller, type 2

1965-68 Benelli Fireball 50 with Benelli 4MS engine
106 none  G26  magneto ASL5N
110 $0.00 I 9020  flywheel nut
099 $2.00 G7274  woodruff key #M81 2.0 x 3.7
193 none  G221/1  base plate
196 $26.0 G221/4  points 01.3236
194 none  G26/1  ignition coil
195 none  G26/3  lights coil
198 $15.0 G26/2  condenser 07.0074 M17D





ASL205NS  ∅82 x 110 aluminum rotor, ∅94 3+2 slot stator
rotation Sinistra, M19-1 puller, type 5

1965-66 Riverside 450 SS Sport 50 with Benelli 4MS engine
1965-68 Riverside Moped with Benelli FA engine
1974-75 Benelli 3V, 3VK with Benelli 3V, 3VK engine

106 none  G221  magneto ASL205NS
110 $0.00 I 9020  flywheel lock nut
099 $2.00 G7274  woodruff key #M81 2.0 x 3.7
193 none  G221/1  base plate
196 $26.0 G221/4  points 01.3236
194 none  G221/2  ignition coil
201 none  G221/9  lights coil
198 $15.0 G221/6  condenser 07.0074 M17D





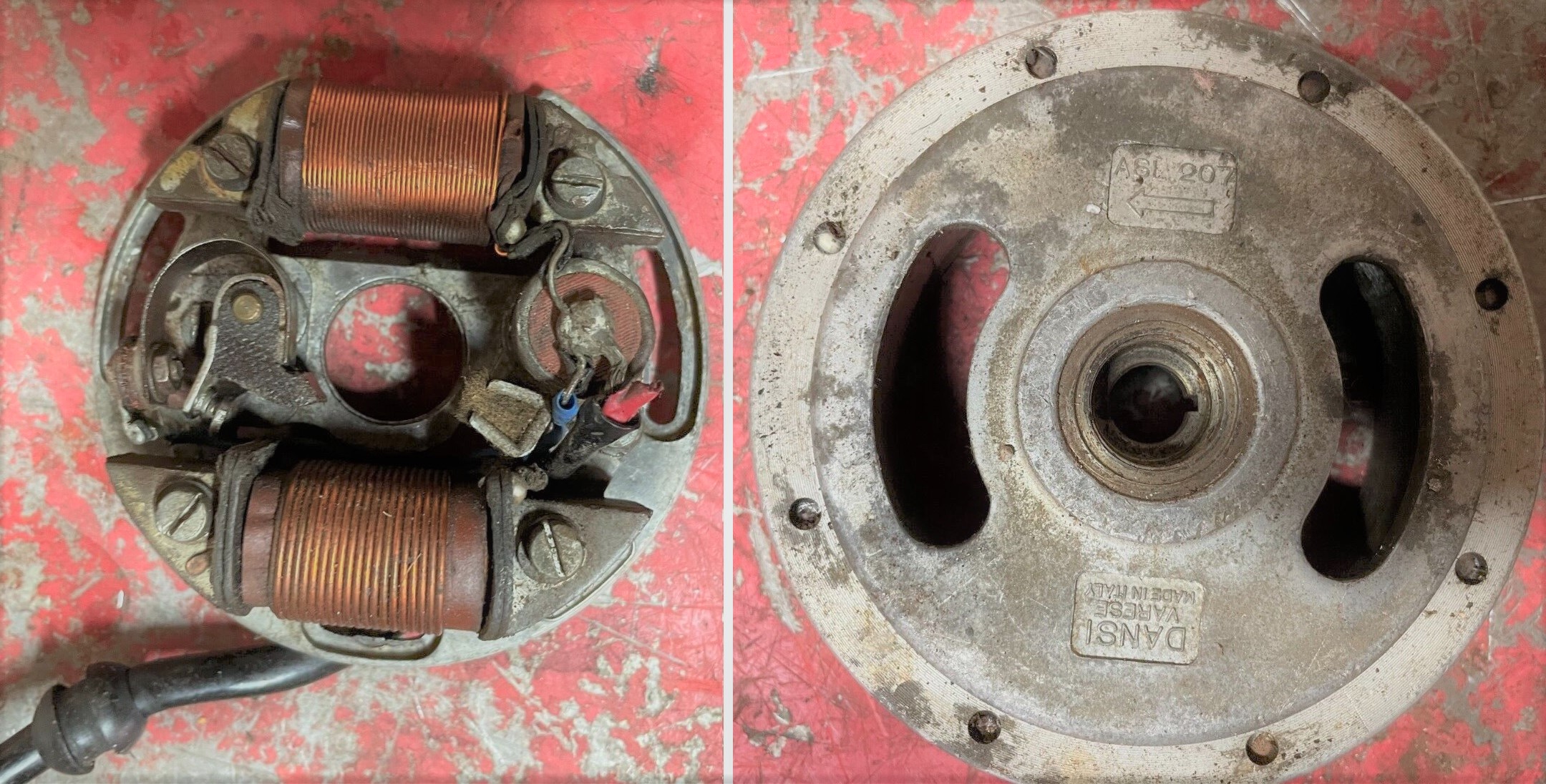

ASL207?  82 x 110 aluminum rotor, ∅94 3+2 long-slot stator
rotation Sinistra, M19-1 puller, type 2

1965 Riverside Touring 125, 1966 Scrambler 125
156 none  M56  magneto
158 $0.00 M58  flywheel nut
144 $2.00 G7274  woodruff key #M81 2.0 x 3.7
178 none  M56/1  base plate
181 $19.0 M56/2  points
182 none  M56/3  ignition coil
182 none  M56/4  lights coil, green and black wires
187 $15.0 G221/6  condenser M17D





ASL???
82 x 110? aluminum rotor, ∅94 3+2 slot stator
rotation Sinistra, M19-1 puller, type 5

1965-69 Ward Riverside 125 Lightweight
1965-69 Benelli Cobra 125, 1966-71 Cobra 125 Trail
156 none  M246  magneto
158 $0.00 M58  flywheel nut
099 $2.00 G7274  woodruff key #M81 2.0 x 3.7
178 none  M56/1  base plate
181 $19.0 M56/2  points
182 none  M56/3  ignition coil
182 none  M246/B  lights coil
187 $15.0 G221/6  condenser





ADP220VS  82 x fan aluminum rotor, ∅94 3+2 long-slot stator
rotation Destra, M19-1 puller, type 5

1965-67 Riverside Scooter 350-S with Benelli 3V engine









ADP244S  82 x 110 aluminum rotor, ∅94 3+2 slot stator
rotation Destra, M19-1 puller, type 5

1969-69 Benelli Buzzer, Hornet GK engine
1970-73 Benelli Buzzer 65, 1970-72 Buzzer 65 Jr GK65 engine

1971-72 Benelli Hurricane 65 GK65 engine
072 none  N134  magneto ADP244S
069 $0.00 G7090  flywheel nut
076 $2.00 G7274  woodruff key #M81 2.0 x 3.7
161 none  SD426/3  base plate
158 $29.0 CS 0004  points 01.3239
153 none  G221/2  spark coil
153 none  G314/A  lights coil
159 $15.0 G221/6  condenser





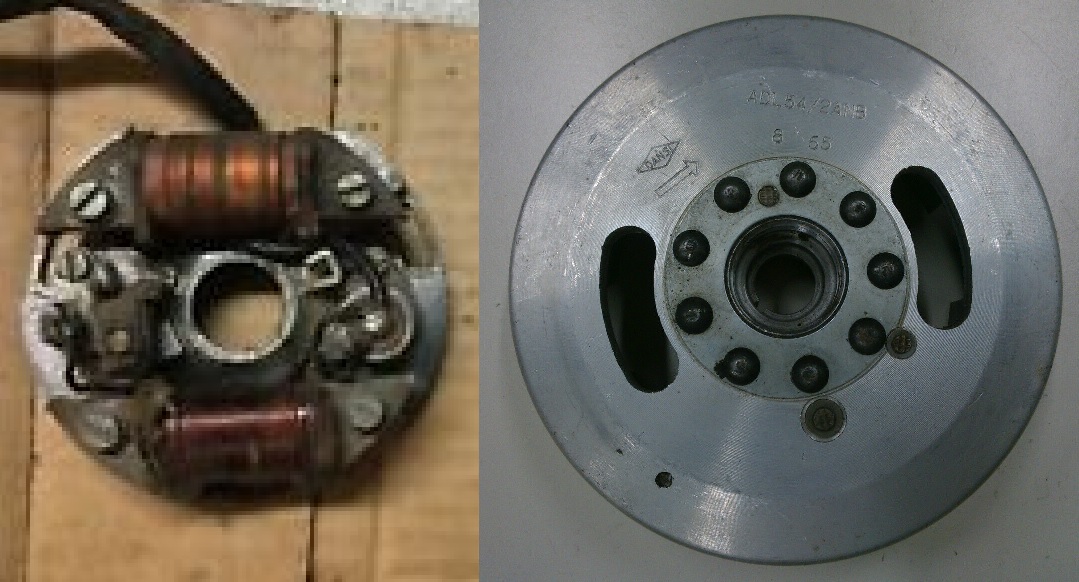

ADL54/ANB  82 x 110 aluminum rotor, ∅94 3+2 slot stator
rotation Destra, machined flywheel, Benelli SD595, type 5

1965-68 Benelli Sprite 125  OHV engine
$18.0 points 01.3235 = SD5/B
$15.0 condenser 07.0074 = M17D = 1984/F





ADL54?  82 x 110 aluminum rotor, ∅94 3+2 slot stator
rotation Destra, machined flywheel?, Benelli SD596, type 5

1965-68 Benelli Sprite 200, 250 OHV engine
1967-68 Benelli Barracuda 250 OHV engine

$18.0 points 01.3235 = SD5/B
$15.0 condenser 07.0074 = M17D = 1984/F

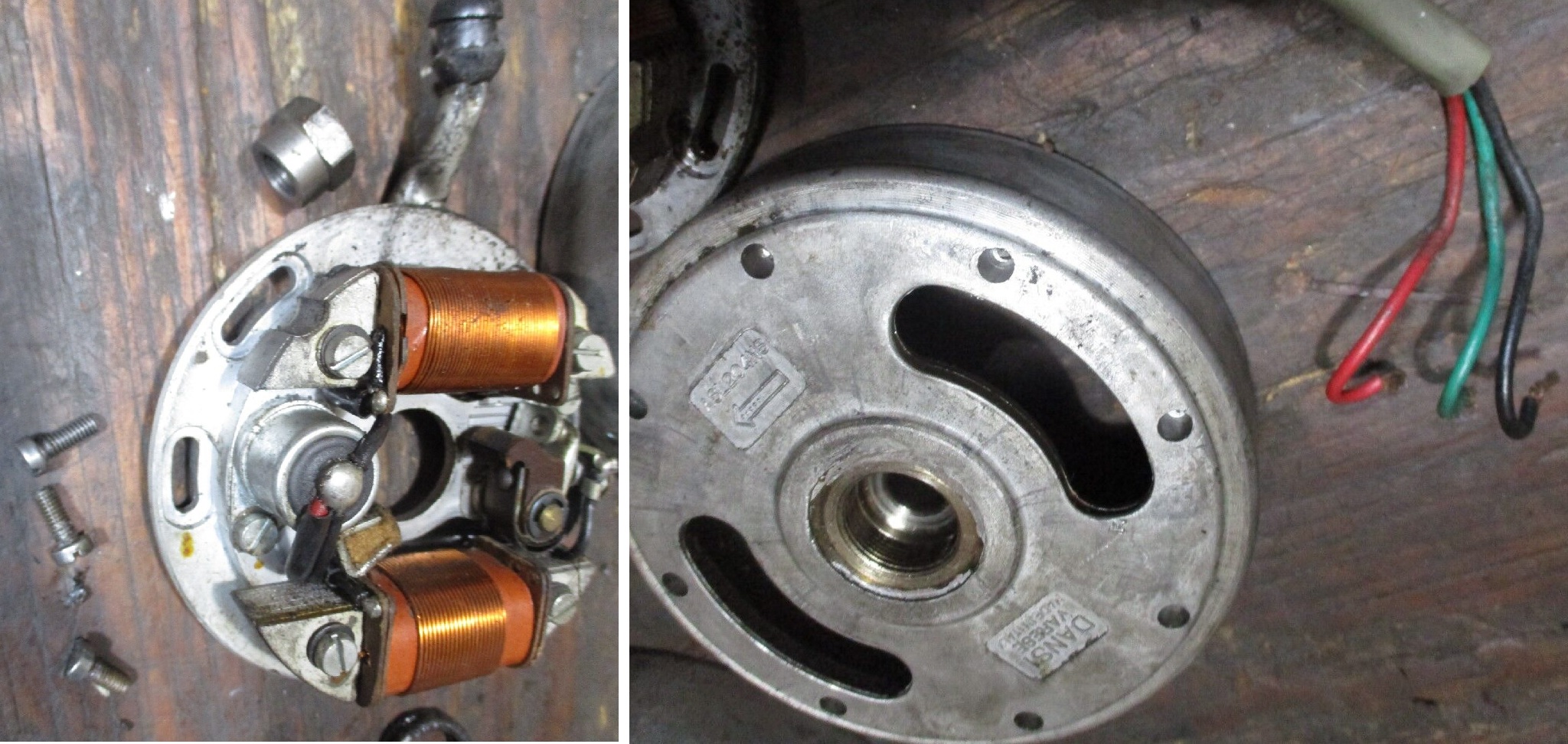

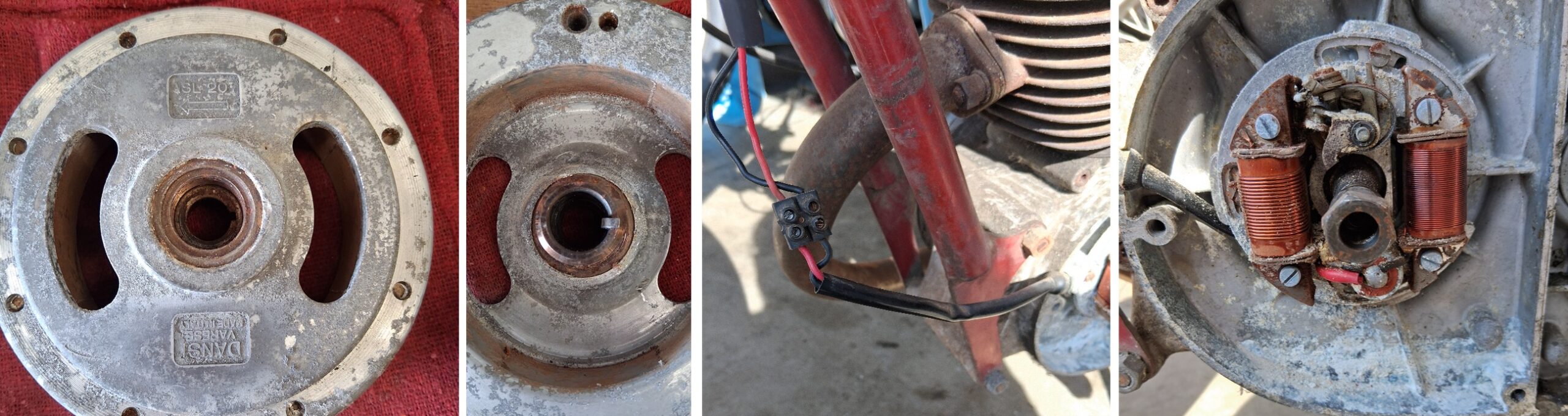

ASL204NS  ∅82 ∅110 aluminum rotor, ∅94 3+2 slot stator
rotation Sinistra, M19-1 puller, type 5

1967-69 Benelli Dynamo 50 Compact, 1969 Dynamo 50 Trail (69) 4M
1970-71 Benelli Dynamo 65 Compact, Woodsbike, Scrambler (71) 4M65
1972-72 Benelli Dynamo 65 Compact, Woodsbike, Scrambler (72) 4M65
1970-72 Benelli Cougar 65 (71-on)
1970-73 Benelli Mini Enduro 65
106 none  G314  magneto ASL204NS
110 $0.00 G7090  flywheel nut
110 $0.00 I 9020  flywheel nut (Dynamo 50 only)
099 $2.00 G7274  woodruff key #M81 2.0 x 3.7
193 none  G221/1  base plate
196 $26.0 G221/4  points 01.3236
194 none  G221/2  ignition coil
194 none  G314/A  lights coil
198 $15.0 G221/6  condenser 07.0074 M17D





ASL232S  82 x 110 aluminum rotor, ∅94 3+2 slot stator
rotation Sinistra, M19-1 puller, type 5

1970-72 Benelli Volcano 180
148 none  M375  magneto ASL232S
150 $0.00 M58  flywheel nut M10?
136 $2.00 G7274  woodruff key #M81 2.0 x 3.7
206 none  M56/1  base plate
208 $19.0 M56/2  points 01.3240
209 none  M375/C  ignition coil
209 none  M375/B  lights coil
203 $15.0 G221/6  condenser 07.0074

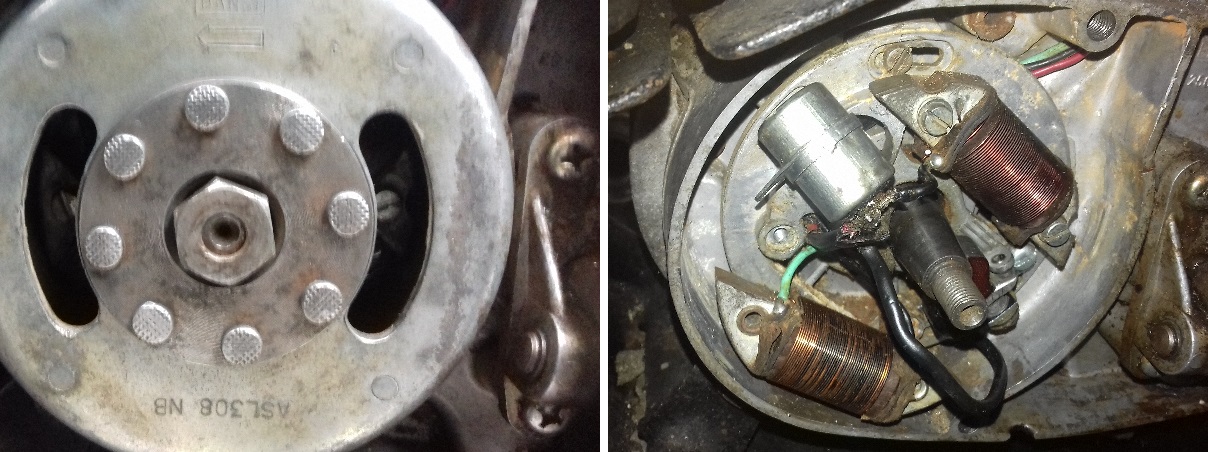

ASL308NB
∅82 x 103 steel rotor, ∅94 3+2 slot stator
rotation Destra, M19-1 puller, type 4

1973-76 Benelli Banshee 90 with 90 single
1973-74 Benelli Panther 125 with 125 single

116 none  000.000.0799  R3086  magneto ASL308NB
114 $0.00 264.004.0799  I 9020  flywheel nut
121 $2.00 958.006.0799  G7274  woodruff key #M81 2.0 x 3.7
198 none  772.001.0799  R2063/B  base plate
202 $26.0 799.001.0799  G221/4  points 01.3236
203 none  000.000.0799  R3086/B  coil
203 none  713.001.0799  R3086/D  coil
200 $15.0 723.001.0799  G221/6  condenser M17D





101441  82 x 103 steel rotor, ∅94 3+2 slot stator
rotation Destra, M19-1 puller, type 4

1976-77 Benelli Blazer with Benelli G2 engine
1976-77 Moto Guzzi Robin, Chiu with Benelli G2 engine
000 48.71.24.90  M00 none  magneto 101441
074 35.70.79.00  M00 $9.50 UI7090 flywheel nut M9-1.0 x 16
074 35.70.79.00  M00 $00.0 ∅13 x 10 inside, hex14 x 6 outside

102 69.70.22.07  M00 none  stator plate for 1-piece CEV-left points
103 40.70.95.70  M00 none  G221/11 felt wiper/greaser
104 35.70.79.00  M15 $2.50 G221/3 points & condenser screw
104 35.70.79.00  M15 $00.0 M4 x 8 small head, replacement

105 35.70.86.00 M17D$15.0 G221/6 condenser M17D
106 48.71.50.90  M20 $75.0 ignition source coil (lower) 1 short wire
107 48.70.88.70  M18 $16.0 points, 1-piece CEV-left-hand type
108 48.71.51.90  M21 $65.0 lights coil 6V 15/10w (upper) grn, blk
109 70.71.89.20  M22 $0.20 G221/8 thin lock washer ∅4 x 7 x 0.5
110 35.71.57.50  M25 $0.50 G221/7 coil screw M4 x 25 slot
111 48.71.16.81  M00 none  steel flywheel, says 101441
112 48.71.57.70  M00 none  SD404/1 screws and washers kit
113 98.20.04.10  M00 $0.70 stator plate screw M4 x 12 slot

Benelli Blazer was the USA version of the Benelli Bobo.

Moto Guzzi Robin (sheet frame) was the USA version of the Moto Guzzi Chiu. The Moto Guzzi Robin (monotube frame) was the same as the Benelli G2. The Moto Guzzi Robin with stamped sheet-metal frame had either a Dansi 101813 external ignition ground magneto, or a Dansi 101441 internal ignition ground magneto. The blue one above with 101441 had normally open brake light switches connected in parallel, so the brake light did not get power until either switch was closed. If the green wire became disconnect, the engine would still run.

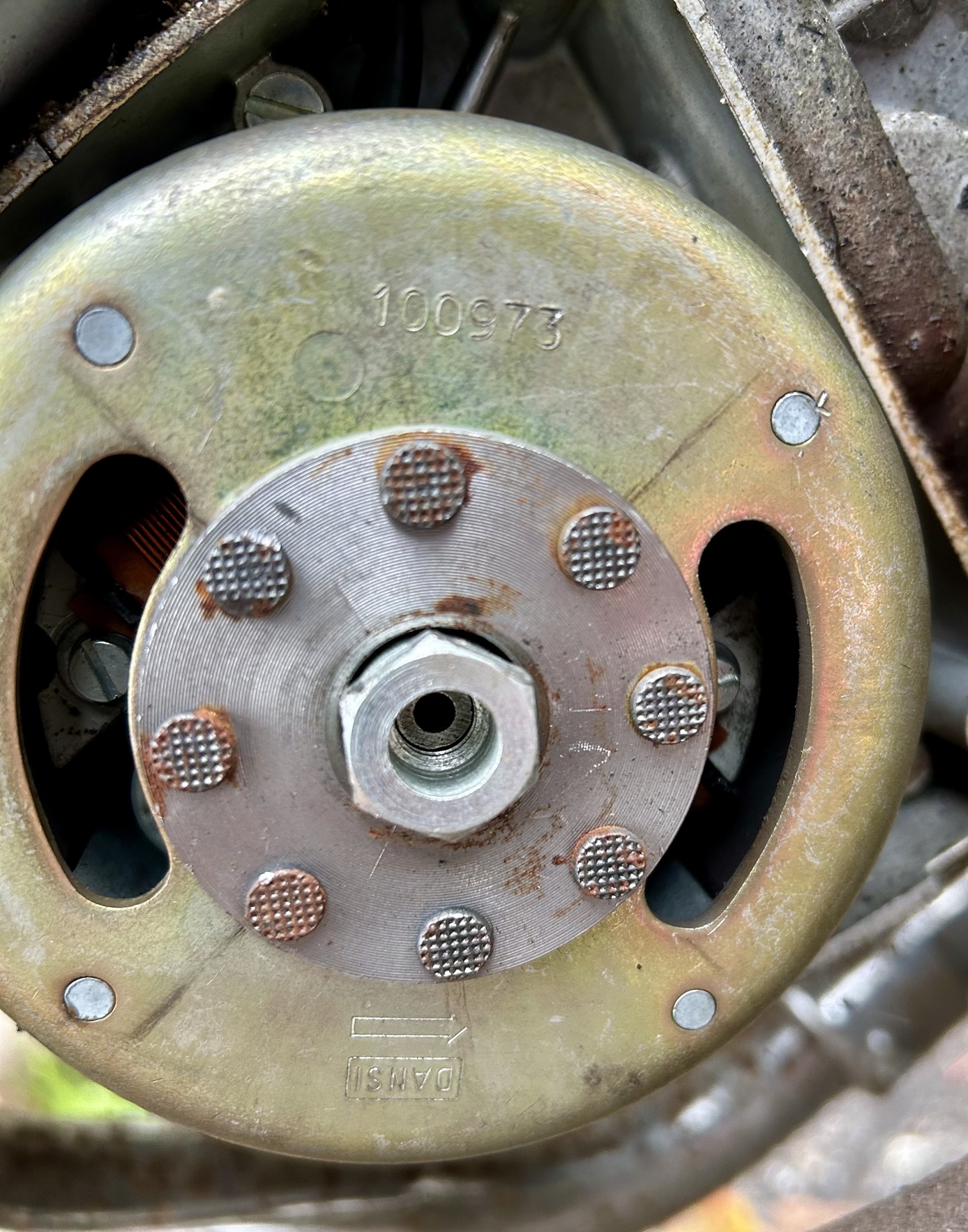

The late 1970’s Dansi steel magneto flywheels for Benelli look like the late 1970’s Morini ones, but the rotation is opposite, clockwise and the stator plate is very different. The stator plate has 5 mounting slots, not two, and is larger. The stator plate has two upper mount screws and one lower. The upper lighting coil is notched for the screw installation. The lower ignition coil is not notched.

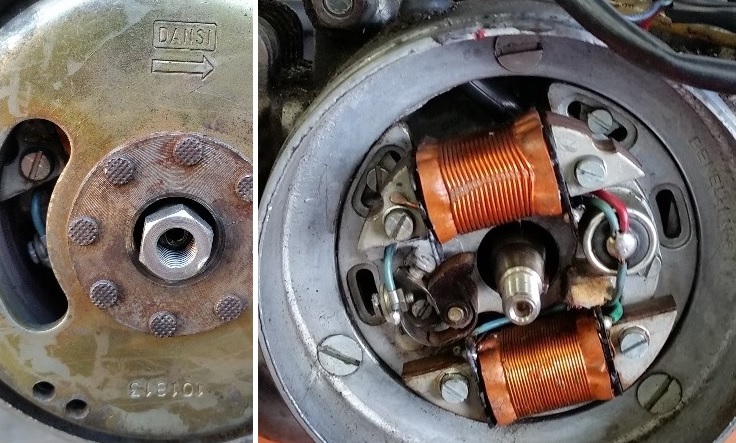

Dansi 101813 on Moto Guzzi Robin

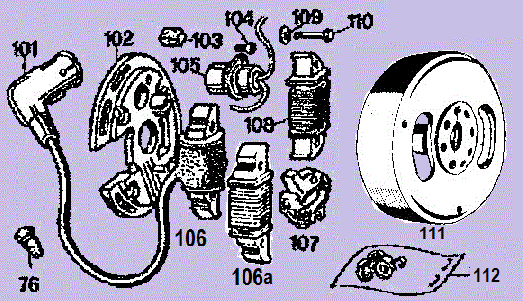

101813  82 x 103 steel rotor, ∅94 3+2 slot stator
rotation Destra, M19-1 puller, type 5

1977-80 Benelli G2 with Benelli G2 engine
1977-80 Moto Guzzi Robin with Benelli G2 engine

000 71.71.24.25  M00 none  magneto 101813
074 35.70.79.00
M00 $9.50 UI7090 flywheel nut M9-1.0 x 16
074 35.70.79.00  M00 $00.0 ∅13 x 10 inside, hex14 x 6 outside

102 69.70.22.07  M00 none  stator plate
103 40.70.95.70  M00 none  G221/11 felt wiper/greaser
104 35.70.79.00  M15 $2.50 G221/3 points & condenser screw
104 35.70.79.00  M15 $00.0 M4 x 8 small head, replacement

105 35.70.86.00 M17D$15.0 G221/6 condenser M17D
106 71.71.50.25  M27 none  ign. source coil (lower) grn, short
107 48.70.88.70  M18 $16.0 points M18
108 71.71.51.25  M28 $65.0 lights coil 6V 25w (upper) 1 black
109 70.71.89.20  M22 $0.20 G221/8 thin lock washer ∅4 x 7 x 0.5
110 35.71.57.50  M25 $0.50 G221/7 coil screw M4 x 25 slot
111 71.71.21.25  M00 none  steel flywheel, says 101813
112 48.71.57.70  M00 none  SD404/1 screws and washers kit
113 98.20.04.10  M00 $0.70 stator plate screw M4 x 12 slot

Moto Guzzi Robin (sheet frame) was the USA version of the Moto Guzzi Chiu. The Moto Guzzi Robin (monotube frame) was the same as the Benelli G2. The Moto Guzzi Robin with stamped sheet-metal frame had either a Dansi 101813 external ignition ground magneto, or a Dansi 101441 internal ignition ground magneto. The orange one above with 101813 had normally closed brake light switches connected in series, so the brake light was normally shorted out, until either switch was opened. If the green wire became disconnected, like when the brake light wires were unplugged, the engine would not run.

External ignition ground: On a 101813 the ignition coil has an external ground, the green wire. It must always be grounded in order to have spark. The green wire powers the brake light. Normally the brake light switches are closed, taking all the electricity from the brake light. Opening either brake light switch causes the brake light to go on, opposite to all normal light switches. Normal light switches close to make the light go on. Think of it like turning off your shower, by turning on the garden hose.







7. EU models with Benelli engines





100892 82 x 110 aluminum rotor, ∅94 3+2 slot stator
rotation Destra, M19-1 puller, type 1

1970-74? Benelli Bobo with Benelli G2 engine
071 none  427.027.0799 N14  magneto 100892 ?
074 $9.50 264.025.0799 UI7090 flywheel nut M9-1.0 x 16
074 $00.0 ∅13 x 10 inside, hex14 x 6 outside wheel

061 $2.00 958.006.0143 G7274  woodruff key
102 none  772.006.0799 SD462/3  base plate
103 none  742.005.0799 G221/11  felt greaser
104 none  793.007.0799 G221/3  points screw M4 x 8 small slot
104 $2.50 793.007.0799 replacement M4 x 8 small phillips
105 $15.0 000.000.0000 G26/2  condenser M17D
106 none  713.006.0799 N14/B  spark coil

107 $29.0 000.000.0000 CS0004 points 01.3239
108 none  713.005.0799 N14/C  lights coil
109 $0.20 776.013.0799 G221/8  lock washer ∅4 thin
110 $0.50 793.041.0799 G221/7  coil screw M4 x 25(23) slot
111 none  780.003.0799 N14/A  flywheel rotor Bobo
112 none  783.006.0799 SD404/1  screws and washers
113 none  983.042.0125 MU1147 stator plate screw M4 x 10 slot
113 $1.20 983.042.0125 MU1147 replacement M4 x 10 phillips





MDP44  82 x 110 aluminum rotor, ∅94 3+2 slot stator
rotation Destra, M19-1 puller, type 1

1967-70? Benelli Gentlemen with Benelli GM engine
1970-73? Benelli Bobo 1 with Benelli G2 engine

1970-73? Benelli Bobo 2 with Benelli G2 engine
071 none  427.005.0799  N14  magneto MDP44?
074 $9.50 264.025.0799 UI7090 flywheel nut M9-1.0 x 16
074 $00.0 ∅13 x 10 inside, hex14 x 6 outside wheel

061 $2.00 958.006.0143  G7274  woodruff key
102 none  772.006.0799  SD462/3  base plate
107 $29.0 779.002.0799  CS0004  points 01.3239
106 none  713.006.0799  N14/B  spark coil
108 none  713.005.0799  N14/C  lights coil
105 $15.0 723.002.0799  G26/2  condenser M17D





ASL314B
  ∅82 x 103 steel rotor, ∅94 3+2 slot stator
rotation Sinistra, M19-1 puller, type 4

1973-74 Benelli 125, 250 twin cylinder
$19.0 points xxx
01.3240 (two sets)
$15.0 condenser 07.0074 = 35708600 = M17D





ADP44  82 x 110 aluminum rotor, ∅94 3+2 slot stator
rotation Destra, M19-1 puller, type 2

1970-73 Benelli Gentleman with Benelli GM engine
1962-72 Moto Morini Corsarino 50
$29.0
points xxx 01.3239
$15.0 condenser 07.0074 = M17D

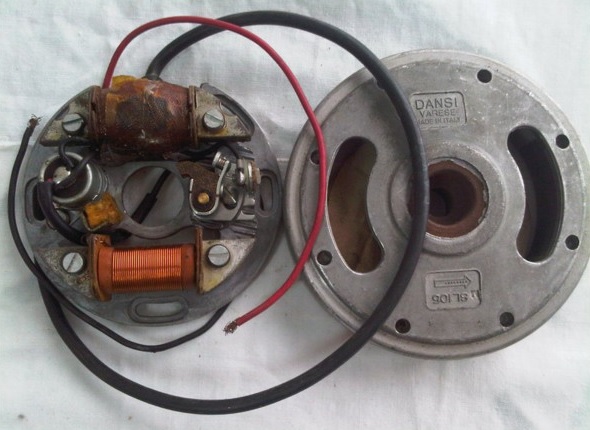

MSL105 82 x 110 aluminum rotor, ∅94 3+2 slot stator
rotation Sinistra, M19-1 puller, type 1
Benelli 70.71.24.00 = G7094/4

1974-on Benelli 3VK with Benelli 3VK engine
1976-on Benelli Export FA with Benelli FA engine

$19.0 points xxx 01.3240 = M56/2
$15.0 condenser 07.0074 = M17D





100844
  ∅82 x 103 steel rotor, ∅94 3+2 slot stator
rotation Destra, M19-1 puller, type 2

1978? Benelli 3VK-NT (Export FA) with 3VK engine
000 70.71.16.20  M00 none  magneto 100884







101662  82 x 103 steel rotor, ∅94 3+2 slot stator
rotation Destra, M19-1 puller, type 2

1978-on Benelli G2 Version A pedali G2 engine
1974-on G2 Elle with G2K engine

071 none  48.71.24.72  magneto 101662?
074 $0.00 48.71.95.70  flywheel nut
061 $2.00 91.60.02.38  woodruff key
102 none  69.70.22.07  base plate
107 $16.0 48.70.88.70  points M18 01.3558
106  48.71.50.71  ignition coil
108  48.71.51.71  lights coil
105 $15.0 35.70.86.00  condenser M17D





101662  82 x 103 steel rotor, ∅94 3+2 slot stator
rotation Destra, M19-1 puller, type 2

Benelli ? with Benelli G2 engine
100  48.71.24.71 M00 1  N/A    magneto 101662?
102  69.70.22.07 M00 1  N/A    stator plate for 1-piece CEV-left points
103  40.70.95.70 M00 1  N/A    G221/11 felt wiper/greaser
104  35.70.79.00 M15 2 $2.50 G221/3 points & condenser screw
104  35.70.79.00 M15 2 $00.0 M4 x 8 small head, replacement

105  48.70.86.70 M00 1 $15.0 G221/6 condenser M17D
106  48.71.50.70 M00 1  N/A    spark coil (lower) 1 spark wire
107  48.70.88.70 M18 1 $16.0 points, 1-piece CEV-left-hand type
108  48.71.51.70 M00 1  N/A    lights coil 6V 18W (upper) 1 black? wire
109  70.71.89.20 M22 4 $0.20 G221/8 thin lock washer ∅4 x 7 x 0.5
110  35.71.57.50 M25 4 $0.50 G221/7 coil screw M4 x 25 slot
112  48.71.57.70 M00 1  N/A    SD404/1 screws and washers kit
113  98.20.04.10 M00 3 $0.70 stator plate screw M4 x 12 slot








’70’s Benelli Turismo 50, Cross 50 with Benelli 4M engine
134  00.00.00.00 427.016.0799 R2063  magneto
150  92.75.00.73 264.004.0799 I9020  flywheel nut
109  91.60.02.38 958.006.0143 G7274  woodruff key
192  00.00.00.00 793.008.0799 R2063/E  ign coil screw M5
193  00.00.00.00 772.001.0799 R2063/B  base plate M5↑, M4↓
194  00.00.00.00 713.009.0799 R2063/F  ignition coil
195  48.70.86.70 723.001.0799 G221/6  condenser
197  35.70.88.00 779.001.0799 G221/4  points
198  00.00.00.00 713.010.0799 R2063/C  lights coil
199  35.71.57.50 793.041.0799 G221/7  lights coil screw M4 x 25






1978 Benelli Turismo 50 with Benelli 4M engine
’70’s Moto Guzzi 50 TT with Benelli 4M
087  35.71.24.00 000.000.0799 00000  magneto
089  35.06.72.70 000.000.0799 00000  flywheel nut
083  91.60.02.38 958.006.0143 G7274  woodruff key
100  35.70.22.00 000.000.0799 00000  base plate
091  35.71.50.00 000.000.0799 00000  ignition coil
092  35.71.56.00 000.000.0799 00000  ign coil screw
093  35.70.86.00 723.002.0799 G26/2  condenser
095  35.70.88.00 779.001.0799 G221/4  points
096  35.71.51.00 000.000.0799 00000  lights coil
097  35.71.55.00 000.000.0799 00000  lights coil screw




1970-73? Gentleman with engine GM
070  00.00.00.00 427.022.0799  FA3774  magneto
067  00.00.00.00 264.025.0799  G7090  flywheel nut
073  91.60.02.38 958.006.0143  G7274  woodruff key
152  00.00.00.00 772.007.0799  000000 base plate
160  69.70.88.00 779.002.0799  CS0004 points
159  00.00.00.00 713.008.0799  000000 ignition coil
158  00.00.00.00 713.005.0799  N14/C    lights coil
154  00.00.00.00 723.003.0799  000000  condenser




Gentleman 2 with engine G2
070  48.71.24.72 000.000.0799  000000 magneto
067  48.71.95.70 000.000.0799  UI7090 flywheel nut
073  91.60.02.38 958.006.0143  G7274    woodruff key
152  69.70.22.07 000.000.0799  000000 base plate
160  69.70.88.00 779.002.0799  CS0004 points
159  48.71.50.71 000.000.0799  000000 ignition coil
158  48.71.51.71 000.000.0799  000000 lights coil
154  35.70.86.00 723.001.0.799 G221/6 condenser






Gentleman 1974 with engine G2
070  69.71.24.15 000.000.0799  0000000  magneto
067  92.75.00.73 000.000.0799  0000000  flywheel nut
073  91.60.02.38 000.000.0799  0000000  woodruff key
152  69.70.22.01 000.000.0799  0000000  base plate
160  69.70.88.07 000.000.0799  0000000  points
159  71.71.50.00 000.000.0799  0000000  ignition coil
158  48.71.51.70 000.000.0799  0000000  lights coil
154  48.70.86.70 000.000.0799  0000000  condenser




Moto Guzzi Chiu with engine G2
fig#  Benelli# 00 Benelli# 00000 Dansi#
009  48.71.24.70 000.000.0799  00 00 00  magneto
009  92.75.00.93 000.000.0799  00 00 00  flywheel nut
012  91.60.02.38 000.000.0799  00 00 00  woodruff key
000  00.00.00.00 000.000.0799  00 00 00  base plate
015  48.70.95.70 000.000.0799  40 39 92  felt greaser
016  48.70.86.70 000.000.0799  40 39 66  condenser
017  48 70 88 70 000.000.0799  40 88 00  points
018  48 71 50 70 000.000.0799  40 49 61  spark coil
019  48.71.51.70 000.000.0799  40 29 86  lights coil
020  48.71.57.70 000.000.0799  00 00 00  screw set




Euro model with engine
000  00.00.00.00 000.000.0799  0000000  magneto
000  00.00.00.00 000.000.0799  0000000  flywheel nut
000  00.00.00.00 000.000.0799  0000000  woodruff key
000  00.00.00.00 000.000.0799  0000000  base plate
000  00.00.00.00 000.000.0799  0000000  points
000  00.00.00.00 000.000.0799  0000000  ignition coil
000  00.00.00.00 000.000.0799  0000000  lights coil
000  00.00.00.00 000.000.0799  0000000  condenser





8. EU models with various engines




MDL102   ∅82 x 110? aluminum rotor, ∅80 2 slot stator
rotation Destra, type 1, different coils, curvy

$29.0 points xxx 01.3239
$15.0 condenser 07.0074 = M17D







ADL8  82 x 110 aluminum rotor, ∅94 3+2 slot stator
rotation Destra, machined, type 2

$29.0 points xxx 01.3239
$15.0 condenser 07.0074 = M17D

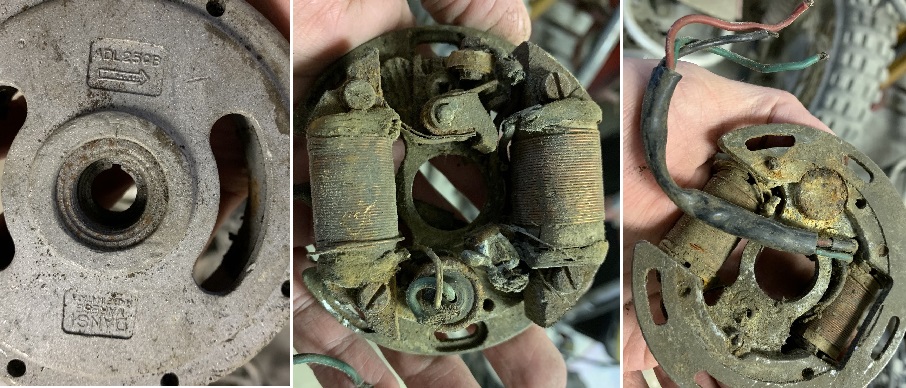

ADL250B  82 x 110 aluminum rotor, ∅94 3+2 slot stator
rotation Destra, puller M19-1, type 4

60’s-70’s models
$29.0 points xxx 01.3239
$15.0 condenser 07.0074 = M17D





ADL2S 82 x 110 aluminum rotor, ∅94 3+2 slot stator
rotation Destra, puller M19-1, type 2

1960’s models
$29.0 points xxx 01.3239
$15.0 condenser 07.0074 = M17D





ADL60
 ∅82 x 110 aluminum rotor, ∅94 3+2 slot stator
rotation Destra, puller M19-1, type 2

early 60’s models
$18.0 points 01.3235 = SD5/B
$15.0 condenser 07.0074 = M17D = 1984/F





ASL111
 ∅82 x 110 aluminum rotor, ∅94 3+2 slot stator
rotation Sinistra, M19-1 puller, type 5

1968 Beta Camoscio
$19.0 points 01.3240
$15.0 condenser 07.0074





Dn60A ∅82? x 110? aluminum rotor, ∅94? 3 slot stator
rotation Sinistra, 20mm condenser (19.8 hole)

1950’s MV Agusta
