Contents
1. Frame
2. Fork
3. Fender
4. Chassis
5. Controls
6. Electrical
7. Speedometer
Parts for 14 US models in 5 groups
1. ’76-82 Variant SL (Non-reed engine)
1. ’83-85 Variant SL (Pyramid reed engine)
1. ’85-86 Variant SL (Flat reed “Start” engine)
2. ’78-82 Variant SLE (Non-reed engine)
2. ’83-84 Variant SLE (Pyramid reed engine)
2. ’83-84 Variant SLE-E (Pyramid reed engine)
2. ’84-85 Variant SLE (Flat reed “Start” engine)
2. ’84-85 Variant SLE-C (Flat reed “Start” engine)
2. ’85-86 Variant SLE-X (Flat reed “Start” engine)
3. ’76-82 Variant TT (Non-reed engine)
4. ’78-79 Laguna (Non-reed engine)
4. ’80-82 Sport Laguna (Non-reed engine)
5. ’78-82 C5 Diablo (Non-reed engine)
5. ’83-87 RD50 (Pyramid reed engine)
Variant SL, SLE and TT models have a stamped sheet metal frame like most vintage mopeds. Laguna, RD50 and C5 models have a tubular cradle frame like most vintage motorcycles.
Variant SL is shown in olive green. But there are no olive green parts in any of the Derbi Motor Corp of America (DMCA) parts catalogs or price lists. So either olive green SL was not produced or it was made in very small numbers.
1. Frame Parts
# 12345 ’70’s # ’89 price list # price new or good-used .
0 00011 79.01.010 0A0.01.00.011 none frame cradle Laguna, C5
0 00001 82.01.013 000.82.01.013 none frame cradle RD50
1 10000 82.01.015 000.82.01.015 none frame silver ’76-82 SL
1 10000 00.00.000 000.00.00.000 none frame white ’83-86 SL
1 11000 82.01.016 000.82.01.016 none f. blk 78-80 SL 78-84 SLE
1 01000 87.01.010 000.87.01.010 none frame gold x ’78-79 SLE
1 01000 00.00.000 000.00.00.000 none frame wine ’80-84 SLE
1 00100 88.01.010 000.88.01.010 none frame green ’76-77 TT
1 00100 85.01.011 000.85.01.011 none frame yellow ’78-80 TT
1 00100 85.01.012 000.85.01.012 none frame red xx ’78-82 TT
2 11100 82.03.010 000.82.03.010 $150 swing arm alum. ’76-82
2 11000 00.00.000 0A0.03.50.011 none swing arm steel ’83-86
2 00011 77.03.010 0A0.03.00.011 none swing arm Laguna, C5
3 10100 82.03.360 000.82.03.360 $10.0 right mount SL, TT
3 01000 87.03.360 000.87.03.360 $12.0 right mount SLE
4 11100 82.03.370 000.82.03.370 $10.0 left mount
5 11100 82.08.010 000.82.08.010 60-40 center stand
5 00010 77.08.010 000.77.08.010 $70.0 stand Laguna longer
5 00001 79.08.010 000.79.08.010 $100 stand RD50 longest
6 11111 31.08.060 000.31.08.060 $8.00 stand bumper
7 11111 82.08.070 000.79.08.070 22-15 pivot pin ∅10 x 112
8 11100 82.08.080 000.82.08.080 $15.0 stand spring, sheet frame
8 00011 79.08.080 000.79.08.080 $20.0 stand spring, cradle frame
9 22222 00.47.110 000.00.47.110 $1.50 external circlip for ∅10
10 88800 65.13.060 000.00.02.825 $0.60 bolt M8-1.25 x 25 hex13
11 88800 00.33.080 000.00.33.080 $0.25 lock washer ∅8 substitute
12 22200 82.03.230 000.82.03.230 none swing arm bushing
13 11100 82.15.350 000.82.15.350 $5.00 chrome strip
# qty ’70’s # ’89 price list # price others not in this group
0 1 00.00.000 0F0.19.01.601 none frame black ’85-86 SLE-X
0 1 00.00.000 0F0.19.10.932 none frame white ’87 Var. Sport
0 1 00.00.000 0F0.19.10.931 none frame red xx’88 Var. Sport
0 1 00.00.000 0F0.19.10.933 none fr. met grey ’89-90 V. Spt.
2. Fork Parts
1,2,3. SL, SLE, TT fork, 4. Laguna fork, 5. C5, RD50 fork
4 is renumbered to match 1,2,3 and 5 is renumbered to match 4
# 12345 ’70’s # ’89 price list # price new or good-used .
0 10000 50.02.005 000.00.00.000 none fork w/clamps blk ’78 SL
0 10000 50.02.006 000.00.00.000 none fork w/clamps sil 76-78 SL
0 01000 50.02.004 000.00.00.000 none fork w/clamps gld ’78 SLE
1 10000 50.02.000 0A0.20.40.711 none fork silver ’78-82 SL
1 10000 00.00.000 0A0.02.70.001 none fork white ’83-86 SL
1 10000 00.00.000 0A0.02.70.002 none fork red ’83-86 SL
1 11000 82.02.006 000.00.00.000 none fork blk 78-84 SLE, 78 SL
1 01000 87.02.000 000.00.00.000 none fork gold ’78-79 SLE
1 01000 00.00.000 000.00.00.000 none fork wine ’80-84 SLE
1 00100 50.02.001 000.50.02.001 none fork plain ’76-82 TT
1 00010 00.00.000 0D0.02.30.001 none fork Laguna
1 00001 25.02.002 000.25.02.002 none fork plain C5
1 00001 00.00.000 0A0.02.90.001 none fork RD50
2 11000 82.02.010 000.82.02.010 none fork yoke SL,SLE, SLE-X
2 00100 85.02.010 000.85.02.010 none fork yoke TT
2 00010 43.02.010 000.43.02.010 none fork yoke Laguna
2 00001 28.02.011 000.28.02.011 none fork yoke C5
3 11100 82.02.130 000.82.02.130 none L slider silver
3 10000 00.00.000 0B0.02.22.126 none L slider white
3 10000 00.00.000 0B0.02.22.123 none L slider red
3 01000 00.00.000 0B0.02.22.124 none L slider black
3 01000 00.00.000 0B0.02.22.125 none L slider wine
3 00010 43.02.120 0D0.02.30.121 none L slider Laguna
3 00001 25.02.120 000.25.02.120 none L slider C5
4 11100 82.02.120 000.82.02.120 none R slider silver
4 10000 00.00.000 0B0.02.10.134 none R slider white
4 10000 00.00.000 0B0.02.10.138 none R slider red
4 01000 00.00.000 0B0.02.10.136 none R slider black
4 01000 00.00.000 0B0.02.10.135 none R slider wine
4 00010 43.02.120 0D0.02.30.121 none R slider Laguna
4 00001 25.02.130 000.25.02.130 none R slider C5
5 22200 82.02.530 000.83.02.160 none spring with rod
6 22200 83.02.160 000.83.02.160 none spring anchor rod
7 22200 82.02.170 000.82.02.170 none fork spring
7 00020 43.02.170 000.43.02.170 none fork spring Lag
7 00002 65.02.170 000.65.02.170 none fork spring C5
8 22000 82.02.340 000.82.02.340 none sleeve
8 00200 89.02.340 000.89.02.340 none sleeve TT
9 22200 31.02.470 000.31.02.470 none dust ring 28-43-6
9 00040 89.02.470 000.89.02.470 none fork seal 28-40-7
10 22000 82.02.200 000.82.02.200 none rubber guide
10 00200 09.02.200 000.00.00.000 none rubber guide TT
11 20000 82.02.230 000.87.02.230 none dust cover grey
11 02000 87.02.230 000.87.02.230 none dust cover chrome
12 22200 61.02.500 000.61.02.500 none slider screw M6 allen
12 00020 89.02.500 000.89.02.500 none slider screw M6 allen
13 22200 82.02.190 000.82.02.190 none fork tube ∅28 SL SLE TT
13 00020 28.02.890 0D0.02.00.981 none fork tube ∅28 Laguna
13 00002 25.02.890 000.25.02.890 none fork tube ∅28? C5, RD
14 10000 50.02.241 000.50.02.241 none R light support silver
14 10000 00.00.000 0A0.02.10.247 none R light support white
14 10000 00.00.000 0A0.02.10.246 none R light support red
14 11000 50.02.242 000.50.02.242 none R light support black
14 01000 50.02.244 000.50.02.244 none R light support gold
14 01000 00.00.000 0A0.23.01.248 none R light support wine
14 00100 50.02.243 000.50.02.243 none R light support TT
14 00010 00.00.000 0D0.02.00.258 none R light support Laguna
14 00001 00.00.000 0D0.02.80.241 none R light support C5/RD
15 10000 50.02.251 000.50.02.251 none L light support silver
15 10000 00.00.000 0A0.02.10.257 none L light support white
15 10000 00.00.000 0A0.02.10.256 none L light support red
15 11000 50.02.252 000.50.02.252 none L light support black
15 01000 50.02.254 000.50.02.254 none L light support gold
15 01000 00.00.000 0A0.23.01.258 none L light support wine
15 00100 50.02.253 000.50.02.253 none L light support TT
15 00010 00.00.000 0D0.02.40.241 none L light support Laguna
15 00001 00.00.000 0D0.02.70.251 none L light support C5/RD
16 22200 82.02.260 000.82.02.650 none support seal
17 11100 85.02.090 000.85.02.090 none top plate SL SLE TT
17 00010 43.20.310 000.43.20.310 none top plate Laguna
17 00001 28.02.090 000.28.02.090 none top plate C5
18 22200 31.02.270 000.31.02.270 $7.00 tube cap M?? x ??
18 00022 89.02.270 000.89.02.270 none tube cap M?? x ??
19 11110 31.02.111 000.31.02.111 none stem nut
19 00001 19.02.110 000.19.02.110 none stem nut C5
20 11110 56.02.100 000.56.02.100 none stem washer
20 00001 31.02.100 000.31.02.100 none stem washer C5
21 11100 04.02.060 000.04.02.060 none lower frame race
22 00011 31.02.060 000.31.02.060 none lower frame race
22 11111 31.02.060 000.31.02.060 none upper frame race
23 11111 31.02.070 000.31.02.070 none lower cone race
24 11110 85.02.080 000.85.02.080 none cone lock nut
24 00001 31.02.081 000.31.02.081 none cone lock nut
25 22222 00.02.855 000.00.02.855 $1.00 clamp bolt M8 x 55 hex
26 22222 00.31.080 000.00.31.080 $0.30 clamp washer ∅8
27 22222 00.21.080 000.00.21.080 $0.80 clamp nut M8
28 11111 00.61.040 000.00.61.040 $4.00 bag of 46 3/16″ balls
29 22200 61.02.260 000.61.02.260 none rubber washer
30 22200 13.02.400 000.13.02.400 none light support cap
31 11111 31.02.071 000.31.02.071 none upper cone race
32 22222 50.18.080 000.50.18.080 none reflector CEV 04931 says 218
33 22222 00.02.610 000.00.02.610 $0.80 reflector bolt M6 x 10 hex
34 22222 00.31.060 000.00.31.060 $0.20 flat washer
35 22222 00.34.060 000.00.34.060 $0.80 washer ∅6 internal star
36 22222 00.21.060 000.00.21.060 $0.30 reflector nut M6
37 00200 09.02.230 000.09.02.230 none bellows cover TT
38 00200 19.12.810 000.00.00.000 none bellows clamp TT
39 11001 82.02.090 000.82.02.092 $50.0 top plate alum. w/mounts
40 22000 82.02.740 000.82.02.740 none handlebar clamp
40 00002 89.02.740 000.89.02.740 none handlebar clamp C5
41 44004 00.34.070 000.00.34.070 $1.00 clamp washer ∅7 int. star
42 44000 00.31.070 000.00.31.070 $0.50 clamp washer ∅7 flat
43 44000 82.02.730 000.82.02.730 $0.60 clamp nut M7
43 00004 31.25.290 000.82.02.730 $0.60 clamp nut M7
44 00400 85.02.400 000.85.02.400 none light support seat
56 00010 00.04.620 000.00.04.620 $0.70 bolt M6 x 20 allen
59 00020 21.02.220 000.00.00.000 none light support guide ring
60 00020 43.02.230 000.00.00.000 none dust cover Laguna
60 00020 25.02.230 000.25.02.230 none dust cover C5
61 00022 25.02.810 000.25.02.810 none dust cover clamp
68 00020 19.02.881 000.00.00.000 none bottom spring
68 00002 25.02.880 000.25.02.880 none bottom spring
69 00020 31.02.280 000.31.02.280 $1.00 seal washer ∅6
71 00020 65.02.530 0D0.02.40.531 none damper assy
72 00020 65.02.160 000.00.00.000 none damper tube
73 00020 89.02.540 000.00.00.000 none damper piston
74 00020 85.02.560 000.00.00.000 none damper roll pin
81 00002 00.04.615 000.00.04.615 $0.70 support bolt M6 x 15-allen
82 00002 89.02.630 000.89.02.630 none fork cap washer
83 00002 00.21.060 000.00.21.060 $0.30 support nut M6
86 00002 28.20.050 000.00.00.000 none sticker CROSS
90 00002 25.20.260 000.25.20.260 none spacer
92 00004 00.34.060 000.00.34.060 $0.80 washer ∅6 internal star
93 00002 28.02.791 0D0.02.00.981 none bar clamp base use MB?
96 00002 00.34.080 000.00.34.080 $0.80 washer ∅8 int. star
99 00002 00.23.060 000.00.23.060 $0.90 nut M6 nylock
3. Fender Parts
# 12345 ’70’s # ’89 price list # price new or good-used .
1 10000 00.00.000 0A0.07.40.011 $40.0 F fender white
1 10000 00.00.000 0A0.07.40.012 none F fender red
1 11000 82.07.010 000.82.07.015 $50.0 F fender chrome
1 11000 87.07.010 0A0.07.00.431 none F fender black
1 00100 85.07.020 000.85.07.020 $50.0 F fender TT green
1 00100 85.07.021 000.85.07.021 none F fender TT red
1 00100 85.07.022 000.85.07.022 none F fender TT yellow
1 00100 87.07.011 000.87.07.011 none F fender wine
2 10000 00.00.000 0A0.07.30.141 $40.0 R fender white
2 10000 00.00.000 0A0.07.30.142 none R fender red
2 10000 50.07.140 0A0.07.00.146 none R fender silver
2 10000 50.07.141 000.87.07.141 $40.0 R fender black
2 01000 87.07.141 000.87.07.141 none R fender black
2 01000 87.07.142 000.87.07.142 none R fender gold
2 00100 50.07.142 000.87.07.144 none R fender green
2 00100 50.07.143 000.50.07.143 none R fender yellow
2 00100 50.07.144 000.50.07.144 none R fender red
3 22200 31.10.610 000.00.00.000 none washer
4 44400 00.02.810 000.00.00.000 $2.00 hex bolt M8 x 10
5 44400 00.02.620 000.00.00.000 $1.00 hex bolt M6 x 20
6 44000 00.34.080 000.00.00.000 $1.00 washer ∅8 inner teeth
7 77700 00.34.060 000.00.34.060 $0.80 washer ∅6 internal star
8 44400 00.00.000 000.00.00.000 $0.30 flat washer ∅8
9 77700 00.21.060 000.00.00.000 $0.30 nut M6
10 88800 00.31.060 000.00.00.000 $0.20 flat washer ∅6
11 22200 00.15.620 000.00.00.000 $0.80 screw M6 x 20 phillips
12 11100 50.10.970 000.00.00.000 none tail light ground cable
13 11000 81.14.010 000.00.00.000 25-17 luggage rack
14 11100 81.14.110 000.81.14.110 $14.0 horn/rack support
15 66600 00.02.615 000.00.00.000 $0.80 hex bolt M6 x 15
16 11100 00.00.000 000.00.00.000 none 0
17 22200 00.00.000 000.00.00.000 none 0
18 22200 00.00.000 000.00.00.000 none 0
19 22200 00.00.000 000.00.00.000 none 0
4. Chassis Parts
# 12345 ’70’s # ’89 price list # price new or good-used .
1 11100 82.04.011 000.82.04.011 none gas tank
2 11100 82.04.140 000.82.04.140 none gas cap ∅36 push-in
3 11100 82.04.180 000.82.04.180 none petcock
4 11000 81.06.010 000.81.06.010 none seat for SL, SLE
5 11100 82.08.070 000.79.08.070 22-15 pivot pin ∅10 x 112
6 10000 82.06.140 000.82.06.140 none seat lock plate for SL
7 11000 82.06.181 000.82.06.181 none seat lock spring
8 22000 82.06.190 000.82.06.190 none seat lock rivet
9 22200 00.47.110 000.00.47.110 $1.50 external circlip for ∅10
10 22200 80.15.950 000.80.15.950 none seat bumper
11 22200 82.15.020 000.82.15.020 $8.00 cables grommet
12 11000 82.15.100 000.82.15.100 $30.0 #1 footrest right N
13 11000 82.15.500 000.82.15.500 $35.0 #2 footrest left N
13 11000 00.00.000 000.87.15.100 $40.0 #3 footrest right P,F
13 11000 00.00.000 000.87.15.500 $55.0 #4 footrest left P,F
14 10100 82.18.220 0A0.15.20.561 $70.0 #5 center cover N (early orig)
14 11100 82.18.220 0A0.15.20.561 none #6 center cover N (non reed)
14 11100 00.00.000 0A0.22.00.561 $70.0 #7 center cover P (pyr. reed)
14 00000 00.00.000 0A0.18.20.221 none #8 center cover F (flat reed)
15 11100 82.18.870 000.82.18.870 none long spacer
16 11100 82.18.880 000.82.18.880 $13.0 shock tube
17 11100 82.18.910 000.82.18.910 none spacer L upper
18 22200 31.15.420 000.31.15.420 none shock washer
19 22200 31.15.410 000.31.15.410 none shock nut
20 20000 81.15.190 000.85.15.191 none shock SL
20 02000 87.15.190 000.87.15.191 none shock SLE
20 00200 85.15.191 000.85.15.191 none shock TT
21 11100 22.15.690 000.22.15.690 none o-ring for holding tool kit
22 10000 82.15.180 000.82.15.180 none L chain guard grey ’76-82 SL
22 01000 00.00.000 000.87.15.180 $50.0 L chain guard gold ’78-84 SLE
22 00100 00.00.000 000.85.15.180 none L chain guard black ’76-82 TT
23 11100 31.15.201 F18370 0000 $20.0 chain 93 + 1 links 415 Iris worn
23 11100 31.15.201 000.00.00.000 $20.0 chain 93 + 1 links 415H
23 00010 09.15.201 0B0.15.30.201 none chain 101+1 links 415 Iris
23 00010 09.15.201 000.00.00.000 $23.0 chain 101+1 links 415H
23 00001 65.15.200 000.65.15.200 none chain 109+1 links 415 Iris
23 00001 65.15.200 000.00.00.000 $23.0 chain 109+1 links 415H
23 00000 00.00.000 0A0.15.10.201 $55.0 chain 105+1 415 Iris V. Sp.
23 00000 00.00.000 0A0.15.10.201 $23.0 chain 105+1 415H V. Sport
24 11100 82.04.500 000.82.04.500 none clamp fuel valve
25 11111 31.15.210 F17695 0000 $4.00 master link for 415 Iris only
25 00000 31.15.210 000.00.00.000 $3.00 master link for 415H only
26 22200 31.25.260 000.31.25.260 none shock bushing
27 20000 81.22.021 000.81.22.021 none decal Derbi SL black
27 20000 81.22.022 000.00.00.000 none decal Derbi SL gold
27 02000 87.22.021 000.87.22.021 none decal Derbi SLE gold
27 02000 87.22.020 000.87.22.020 none decal Derbi SLE black
28 02000 87.15.320 000.87.15.320 none lower side stripe black
28 20000 87.15.321 000.87.15.321 none lower side stripe red
28 11000 87.15.323 000.87.15.323 none lower R side stripe gold
28 11000 87.15.331 000.87.15.331 none lower L side stripe gold
29 01000 82.15.400 000.82.15.400 none upper L side stripe black
29 10000 82.15.402 000.82.15.402 none upper L side stripe red
29 11000 82.15.405 000.82.15.405 none upper L side stripe gold
30 01000 82.18.960 000.82.18.960 none upper R side stripe black
30 10000 82.18.962 000.82.18.962 none upper R side stripe red
30 11000 82.18.965 000.82.18.965 none upper R side stripe gold
31 66600 82.15.310 001.10.61.300 $2.00 screw footrest & coil
32 22000 82.15.730 000.82.15.730 none decal Variant black
32 22000 87.15.730 000.87.15.730 none decal Variant gold
33 44400 00.31.080 000.00.32.080 $0.30 motor washer ∅8
34 22200 00.21.080 000.00.21.080 $0.80 motor nut M8-1.25
35 22200 00.34.080 000.00.34.080 $1.00 washer int. star ∅8
36 22200 00.02.830 000.00.02.830 $0.60 shock bolt M8 x 30 hex
37 11100 00.02.899 000.00.00.000 $3.00 motor bolt M8 x 105
38 66600 35.15.370 000.35.15.370 none footrest washer
39 44400 82.22.080 000.82.22.080 none footrest washer
40 22200 00.02.899 000.00.00.000 $2.00 motor bolt M8 x 100
41 11100 85.04.320 000.00.00.000 none fuel hose for non-reed
42 20000 82.22.330 000.82.22.330 none shock cover lower
42 02000 82.22.331 000.82.22.331 none shock cover lower chrome
43 20000 82.18.300 000.82.18.301 none shock cover upper
43 02000 82.18.301 000.82.18.301 none shock cover upper chrome
44 11100 82.22.100 000.00.00.000 none choke control upper
45 11100 82.22.090 000.00.00.000 none choke control lower for non-reed
45 11100 00.00.000 000.00.00.000 none choke control up+lo for non-reed
45 11000 00.00.000 000.00.00.000 none choke control lower for pyr-reed
45 11000 00.00.000 0A0.44.00.301 none choke control up+lo for pyr-reed
46 00200 85.15.780 000.85.15.780 none decal Derbi
47 00200 85.15.320 000.85.15.320 none decal TT
48 00100 85.06.010 000.85.06.010 none seat for TT
49 00100 82.10.820 000.82.10.820 $2.00 seat spacer TT ∅8-18 x 7
50 00100 31.05.130 000.31.05.130 $6.00 seat bolt w/knob TT
51 01000 87.22.220 000.87.22.550 none R chain guard gold SLE
52 01000 87.06.140 000.87.06.140 none seat lock support SLE
53 02000 81.06.190 000.81.06.190 none seat lock rivet SLE
54 01000 55.05.130 000.55.05.130 $45.0 seat lock w/ 2 keys SLE
55 11000 81.18.990 000.81.18.990 none sticker set side stripes
Derbi Center Panels: The center panel choke button is supposed to push the Delorto carburetor choke lever down, and later allow it to release back up after the bike is started and the throttle is momentarily maxed out. But it often does not work properly, and it is finicky. When it sticks, either on or off, you must wiggle or move the center panel to make it click, or else remove the panel and operate the lever directly. The main cause is an incorrect angle of the carburetor. Loosen the clamp and rotate one way or the other. The carb should be vertical, but the finicky panel might require it to be slightly tipped. Because of this difficulty, many Derbi owners have cut holes in, or removed and discarded their center panels. Derbi fixed the problem on the 1986-1989 models by using a choke cable and a right handlebar lever. No more reaching down and fussing.
Derbi Center Panel Choke Button Parts: There are three different “feet” that press onto the vertical plastic button shaft. Here are shown the correct ones, for reference purposes. Some are for sale but not yet listed. Also the steel tongue at the front is for sale but not shown here.
5. Controls Parts
# 12345 price ’70’s # ’89 price list # new or good-used .
1 11100 $45.0 50.09.011 000.00.00.000 handlebar for clamps
1 11100 $45.0 50.09.010 000.50.09.010 handlebar w/mounts
2 22202 $28.0 82.09.200 0A0.09.10.202 brake lever plastic
2 22222 22-15 00.00.000 0A0.09.10.202 brake lever metal
3 11111 25-18 82.09.390 000.82.09.390 decomp lever
4 33333 $2.50 31.09.210 0D0.21.00.791 shoulder bolt M5
5 33333 $1.00 00.23.051 000.00.23.051 nut nylock M5-0.8
6 22222 $6.00 31.09.220 000.31.09.220 slotted ferrule

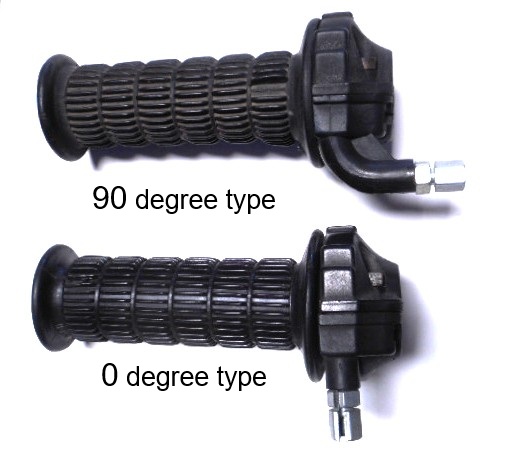

7 11111 90-70 28.09.080 000.28.09.080 throttle control 0 degree
7 11111 $80.0 00.00.000 0A0.09.10.081 throttle control 90 degree
8 11111 $6.00 50.09.550 000.50.09.550 slotted adjuster M7-1.0
9 11100 $15.0 55.09.090 000.50.09.090 right grip waffle
9 00011 none 28.09.090 000.50.09.090 right grip Laguna
10 11100 $18.0 55.09.070 000.00.09.070 left grip waffle
9 00011 none 28.09.070 000.50.09.070 left grip Laguna
15 11100 none 68.09.530 000.68.09.531 cable tie
# price front brake cables . fig# C x E .
’76-85 SL, SLE, ’76-82 TT
11 $22.0 80.09.230 000.80.09.230 1 945 x 100 2-ends
11 none 80.09.230 000. CBL-B100 1 945 x 100 Taiwan
11 $24.0 80.09.230 000.80.09.230 2 910 x 100 2-ends
’78-83 Laguna
11 $24.0 43.09.230 0D0.09.00.231 3 850 x 100 2-ends
’78-82 C5, ’83-87 RD50
11 none 79.09.230 0A0.09.20.231 4 1100? x 100 2-ends
’85-86 SLE-X, ’87-89 Variant Sport
11 none 00.00.000 0F0.09.00.231 5 995 x 112 2-ends
’87-89 DS50
11 none 00.00.000 0E0.09.20.231 6 1050? x 112 2-ends

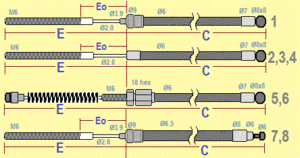

# price rear brake cables . fig# C E Eo .
’79-80 SL, SLE, TT with anchor bar
12 $27.0 80.09.430 000.80.09.430 1 1510 181 96 .
12 $24.0 80.09.230 000. CBL-B101 1 1510 191 96 Taiwan
’76-78 SL, SLE, TT no anchor bar
12 $18.0 82.09.430 000.82.09.430 2 1510 152 90 .
’80-83 SL, SLE, TT
12 $18.0 82.09.430 000.82.09.430 2 1510 142 80 .
’84-86 SL, SLE
12 $26.0 00.00.000 0A0.09.70.431 4 1525 143 72 .
’78-83 Laguna
12 $29.0 62.09.430 0A0.09.00.431 5 1390 145 .
’78-82 C5
12 $29.0 79.09.431 000.79.09.431 6 1550 132 .
’83-87 RD50
12 none 00.00.000 0A0.09.10.432 3 1600?143?72? .
’85-86 SLE-X, ’87-89 Variant Sport
12 none 00.00.000 0A0.09.80.431 7 1540 156 86 .
’87-89 DS50
12 none 00.00.000 0E0.09.10.451 8 1590?156?86?
Anchor bar: 1976-82 Derbi SL, SLE and TT non-reed (piston ported) models can have two possible rear brake cables, depending on whether or not the bike has an “anchor bar”. It’s the bracket that attaches the brake plate and carries the braking force to near the swing-arm pivot. It’s purpose is to isolate the brake action from the suspension action. So going over bumps does not change the braking behavior. Mopeds generally do not have a anchor bar, but motorcycles generally do. The first Derbi models sold in the US 1976-78 did not have it, then they did 1979-80, then they did not again after 1980.
1. SL, SLE, TT rear brake cable for anchor bar is different
2. 31 mm difference, 3. ’79 with anchor bar, 4. Service Bulletin 2
Exposed length E is about 31 mm longer for ’76-82 Derbi mopeds (Variant SL, SLE, TT) with a brake anchor bar installed. This is a result of the cable stop being relocated farther away from the brake arm. The cable conduit stops at a tab with a 4.5 mm hole, located on the steel anchor bar, rather than a slotted and bottomed 6.5 mm hole in a tab on the aluminum brake plate.
Anchor bar upgrade kit: In 1980 they offered a Rear Brake Modification Kit which was an anchor bar, some hardware, and an anchor-bar-type brake cable 000.80.09.430, to replace the no-anchor-bar cable 000.82.09.430. The installation instructions are given in Service Bulletin 2 shown here.
Because of this you can’t say what rear brake cable is correct just from knowing the bike’s identity (make, model, year, ID number). You have to know whether it has a brake anchor bar installed or not.

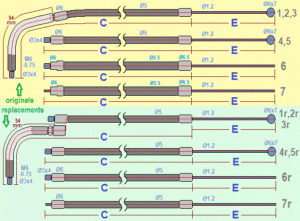

# price throttle cables .00 throt fig# C x E .
’76-82 SL, SLE, TT (Non-reed engine)
13 none 50.09.170 000.50.09.170 0 1 985 x 75 2-ends
13 $38.0 50.09.170 000. CBL-T100 0 1 orig. replacement
13 $34.0 50.09.170 000.50.09.170 0 1r pipe 2g, nylon lined
13 $22.0 50.09.170 000.50.09.170 0 1v orig pipe, not lined
’78-82 Laguna (Non-reed engine)
13 none 43.09.170 000.43.09.170 0 2 890 x 99 2-ends
13 $34.0 43.09.170 000.43.09.170 0 2r pipe 2g, nyl. lined
’83-85 SL, SLE (Pyramid reed engine)
13 none 00.00.000 0A0.09.30.171 90 3 960 x 99 2-ends
13 $34.0 00.00.000 0A0.09.30.171 90 3r pipe 2g, nyl. lined
13 $22.0 00.00.000 0A0.09.30.171 90 3v orig pipe, not lined
’78-82 C5 (Non reed), ’83-87 RD50 (Pyr. reed)
13 none 28.09.170 000.28.09.170 0 4 1030 x 75 2-ends
13 $22.0 28.09.170 000.28.09.170 0 4r no pipe, nylon lined
’85-86 SLE (Flat reed engine)
13 none 00.00.000 0F0.09.70.171 D 5 935 x 99 2-ends
13 $22.0 00.00.000 0F0.09.70.171 D 5r no pipe, nylon lined
’86-87 SLE-X, ’87-89 Variant Sport
13 none 00.00.000 0A0.09.40.171 D 6 935×115 1-end
13 $12.0 00.00.000 0A0.09.40.171 D 6r no pipe, nylon lined
’87-89 DS50 (Flat reed engine)
13 none 00.00.000 0E0.09.20.171 D 7 1130×115 0-ends
13 $10.0 00.00.000 0E0.09.20.171 D 7r no pipe, nylon lined
# price start cables .0000000 fig# C E
. ’76-87 SL, SLE, TT, C5, RD50
13 none 82.09.400 000.82.09.400 1 732 x 42 2-ends
13 $16.0 82.09.400 000 CBL-D100 1 orig. replacement
. ’78-82 Laguna
13 $26.0 82.09.400 0A0.09.00.401 2 585 x 42 2-ends
. ’87-89 Variant Sport
13 none 00.00.000 0A0.09.30.401 3 825 x 42 2-ends
. ’86-89 DS50
13 none 00.00.000 0E0.09.00.401 4 ??? x 42 2-ends
# price choke cables .000000 fig# C E
. ’86-89 SLE-X, Variant Sport
00 none 00.00.000 0F0.09.00.651 1 950 x 70 1-end
00 $12.0 00.00.000 0F0.09.00.651 1r 950 x 70 1-end
. ’86-89 DS50
00 none 00.00.000 0E0.09.20.651 2 1120?x70 1-end
00 none 00.00.000 0E0.09.20.651 2r 1120?x70 1-end
6. Electrical Parts
# 12345 ’70’s # ’89 price list # price new or good-used .
1 11100 85.10.310 000.85.10.310 $27.0 horn 6V 18w replacement .
2 11100 50.10.300 000.50.10.300 $120 main harness new, fresh
2 11100 50.10.300 000.50.10.300 $80.0 main harness good-used
2 01000 87.10.300 000.87.10.300 none main harness SLE-E
2 00010 00.00.000 0A0.10.60.301 none main harness Laguna
2 00001 00.00.000 000.79.10.301 none main harness C5, RD50
3 11111 50.10.800 CEV 8189 000 $25.0 run switch w/wires
4 11111 50.10.140 CEV 8188 000 $15.0 light switch w/wires
5 11111 37.10.130 H101C 000.00 $2.50 bulb 6V 21w
6 11111 50.10.370 H101B 000.00 $2.00 bulb 6V 5w
7 11111 50.10.680 H101A 000.00 $2.00 bulb 6V 10w
8 11111 00.02.620 000.00.02.620 $1.00 hex bolt M6 x 20
9 11111 00.02.060 000.00.02.060 $0.30 nut M6
10 11111 00.31.060 000.00.31.060 $0.20 washer ∅6 flat
11 33333 00.34.060 000.00.34.060 $0.80 washer ∅6 internal star
12 11111 50.10.661 000.50.10.661 $3.00 horn ground terminal
13 11111 50.10.660 000.50.10.660 $2.00 head light ground terminal
14 11111 50.10.020 CEV 04909 00 $20.0 head light housing
15 33333 50.10.100 CEV 18541 00 $1.00 head light screw
16 11111 50.10.340 CEV 04816 00 $32.0 tail light lens
17 11111 50.10.330 CEV 19609 00 $10.0 mount cushion
18 11111 50.10.360 CEV 04814 00 none tail light housing
19 11111 50.10.110 CEV 04818.2 0 $25.0 bulb housing
20 11111 50.10.780 CEV 19626 00 $6.00 ignition resistor
21 22222 50.10.570 CEV 18696 00 $1.00 lens screw
22 11111 50.10.550 CEV 04910 00 $40.0 head light lens
23 11111 50.10.010 CEV 1211 000 45-35 head light assy
24 11111 50.10.320 CEV 9400.2 00 $109 tail light assy
25 22222 50.10.600 000.00.02.615 $0.80 hex bolt M6 x 15
26 11100 50.10.970 000.50.10.970 none wire, engine ground
27 11100 82.35.051 000.82.35.051 $9.00 wire, tail light ground
28 22222 50.23.200 CEV 9342 000 22-17 switch, stop
29 11111 50.23.210 000.50.23.210 $9.00 wire, horn ground
30 11100 50.23.220 000.50.23.220 $38.0 stop light harness hand/hand
30 00011 50.23.221 000.50.23.221 none stop light harness hand/foot
31 22222 50.10.760 CEV 15863 00 $2.00 cover, stop switch
1. Wiring diagram for Derbi SL, SLE, TT, C5, RD50
2. Wiring diagram for Derbi SLE-E with electric start
3. Wiring harness for a non-USA Derbi, like an SLE-E
wiring but without any brake light wires, price $60 new
4. Wiring harness 50.10.300 for Derbi SL, SLE, TT
7. Speedometer Parts
# 12345 ’70’s # ’89 price list # price new or good-used .
1 11111 50.16.010 000.50.16.010 65–40 speedometer VDO
2 11110 82.16.020 0A0.16.30.021 47–33 cable 780 lower push-on
2 00001 79.16.020 0A0.16.40.021 none cable 800 lower push-on
2 00000 00.00.000 0A0.16.50.021 none cable 780 lower end cap
3 11110 82.16.050 0A0.16.30.051 $39.0 driver R Veglia 807550 push-on
2 00001 79.16.050 0D0.16.10.051 none driver R Veglia 807250 push-on
2 00000 00.00.000 000.00.00.000 none driver L Veglia end cap
4 11100 50.16.220 000.50.16.220 19-10 speedo mount
4 00001 82.16.221 000.82.16.221 none speedo mount C5
5 11111 82.16.830 000.82.16.830 $9.00 speedo cover
6 11111 50.16.860 000.50.16.860 $7.00 speedo bulb socket
7 11111 50.16.870 H101E 000.00 $1.50 speedo bulb 6V 1.5w BA7s
8. Tool Kit and Other Parts
# qty ’70’s # ’89 price list # price new or good-used .
1 1 82.51.110 000.31.51.000 $5.00 tool pouch
2 1 35.51.030 000.35.51.030 $5.00 screw driver & tire lever
3 1 31.51.230 000.31.51.230 none box multi wrench
4 1 35.51.020 000.35.51.020 none spark plug socket
5 1 82.51.120 000.00.00.000 none owners manual SL SLE TT
5 1 50.51.121 000.00.00.000 none owners manual C5
5 1 50.51.121 0A0.51.10.121 none owners manual Laguna
6 1 00.00.000 888.11.52.340 $75.0 Derbi mirror original
