Contents
15. Float needles
16. Float bowls
17. Gaskets and O-rings
18. Jets
15. Float needles (valves)
Baby valves: These are the float needle valves for the smallest “baby” Keihin carburetors. Most other float needles are bigger than these, but look the same in photos.
16123-063-004 float needle valve $13 all metal type
On road models: 1969-70 Honda PC50, 1969-70 Honda PS50, 1970-72 Honda PC50K1, 1971-73 PF50 Amigo standard (FR DK NE), 1971-73 PF50 Amigo Graduate (UK), 1970-71 PS50K1, PS50K1 (NE), others

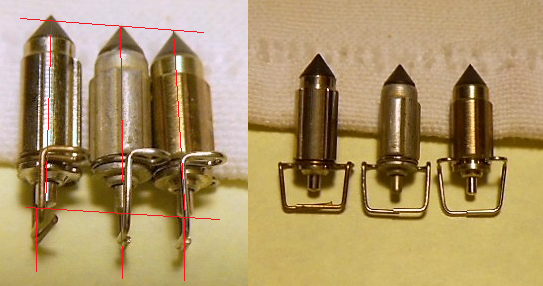

16011-881-741 float needle valve N/A stirrup type, 3-sided for 4.00 hole
supersedes 16011-143-620, 16011-147-004
On road models: 1977-79 Honda NC50 Express (with PA08B-A carb), 1978-79 PA50I and PA50II Hobbit, 1976-78 Z50A Mini Trail Off road: 1976-78 Honda Z50A, 1977-79 XL75, 2004-07 CR80F, 1976-78 XR75, 1979-84 XR80, 1985-03 XR80R, 1977 CT125, 1976 TL125
16155-883-005 float needle valve $22 regular type, 3-sided for 4.00 hole
On road models: 1973-77 Honda PC50K1, 1973-78 Honda PF50 Amigo/Novio, 1978-83 Indian AMI-50, 1979-83 Honda NC50 Express (with PA08B-B carb), 1980-83 PA50II Hobbit, 1979-81 NA50 Express II, 1981-82 NX50 Express SR, 1982-83 NU50 Urban Express, 1980-83 C70 Passport, 1978-79 CT90 Trail 90, 1986 CT110 Trail 110, 1982 MB5, 1990 NS50, 1984-85 NQ50 Spree, 1988-90 SA50 Elite 50, 1985-91 CH80 Elite 80 Off road: 1979-99 Honda Z50R, 1988 ZB50, 2000-03 XR50R, 2004-12+ CRF50F, 2004-09, CRF70F, 1978-82 CT70, 1997-03 XR70R, 1978-79 Honda CT90, 1980-84 CT110
Valve seats: The seat is the hole that the needle tip seals against. These “baby” Keihin PA series carbs have non-replaceable valve seats. Most motorcycle carburetors have replaceable float valve seats that screw in or push in. The seat is normally replaced with the needle. With these the seat must be cleaned, polished and inspected. It’s a tiny round hole at the end of a dark small round tunnel. It’s hard to see. It must be perfectly circular with no nicks or scratches on the edge of the hole, where it seals against the rubber cone tip of the needle. The walls of the tunnel must be clean, smooth and shiny or the float might stick open a little and cause an overflow leak.
Beware of low cost float needles (valves). These have to be made precisely the same as originals in order to function properly. In the photo, the left one is a 16011-991-741 generic low-cost replica, made incorrectly. The stirrup wire is bent and the needle is longer. The right and middle are 16011-991-741 Honda originals (or KL-made replicas) for comparison, made correctly.

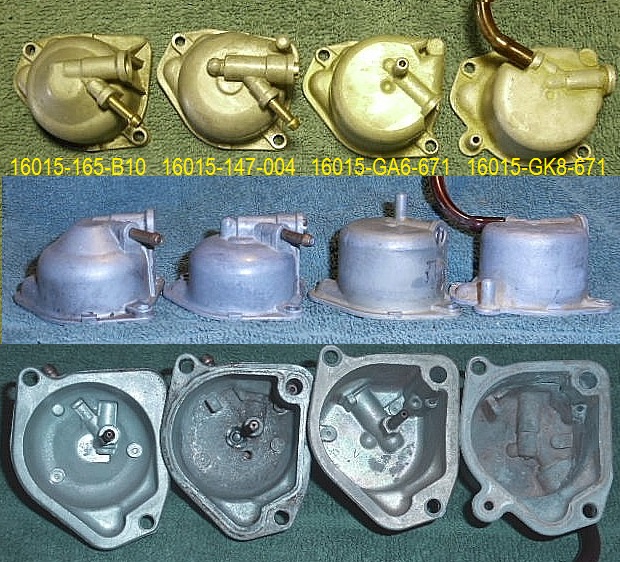

16. Float Bowls for “baby” Keihin
Chamber families 165, 147A, 191, GK8
Here the chamber sets from above are all listed together, along with the carbs and bikes they go on. A chamber set includes the float bowl, float gasket, drain screw, and drain screw o-ring. As a courtesy, here are the links to CMS in Netherlands where you can view their image and see their price and availability.
Families: A chamber set family is one or more chamber sets that can interchange.
Jet pad: Before about 1980 these carburetors had push-in main jets. The push-in main jet was supported by a pill size rubber pad. The jet pad was held by a circular wall in the bottom of the float bowl. You can see that in the image on the right. The second bowl is for a jet pad, but the first bowl is not.
Choke jet: Carbs with fuel enrichment type chokes have a jet in one corner of the float bowl (2nd, 3rd, and 4th in the image). Carbs with air valve choke plates do not have a choke jet (first in the image).
Float Bowls (chambers) with no choke jet ================= chamber gasket
16015-064-004 064 family
cmsnl.com roundish shape, shallow for jet pad, no choke jet
on carbs C4A C5A C5B F4A F5A lever-plate choke
on bikes 69-70 PC50/PS50, 70-73 PC50K1/PS50K1, 71-73 PF50
16015-114-004 114 family
cmsnl.com roundish shape, deep for jet pad, no choke jet
on carbs 655A 674A lever-plate choke
on bikes 72-75 Z50, 70-75 QA50
16015-081-004 081 family
cmsnl.com NC50-shape, shallow for jet pad, no choke jet
on carbs PA00A PA01A lever-plate choke
on bikes 73-77 PF50R, 73-78 PC50K1
16015-130-640
on carbs PA03AA lever-plate choke
on bikes 76-78 Z50A, 79-81 Z50R and other Z50’s
16015-099-691 165 family
cmsnl.com NC50-shape, shallow, for no jet pad, no choke jet
on carbs PAM0A PA03HA PA03HB PA03MA others lever-plate choke
on bikes 78-83 Indian, 88-99 Z50R, 04-05 CRF50F many others
16015-130-641
on carbs PA03CA PA03DA lever-plate choke
on bikes 80-85 Z50R
same
16015-165-920 ⇒ 16015-165-621
on carbs
on bikes
16015-165-621
on carbs PA03FB lever-plate choke
on bikes 86-87 Z50R
same
16015-165-B10
cmsnl.com NC50-shape, shallow, for no jet pad, no choke jet
on carbs PA03?? lever-plate choke
on bikes 93-96 Z50J (Japan model)
Float Bowls (chambers) with choke jet ================= chamber gasket
16015-147-004 147A family
cmsnl.com NC50-shape, shallow, for jet pad, with choke jet
on carbs PA08BA black float, cable-enrich choke
on bikes 77-78 NC50
on carbs PA08BB 08EA 08EB 08DA white float cable-enrich choke
on bikes 78-80 NC50, 79-80 NA50
same
16015-187-043 use 16015-191-034 191 family
on carbs PA13EA white float vacuum-enrich choke
on bikes 82-83 NU50, NU50M

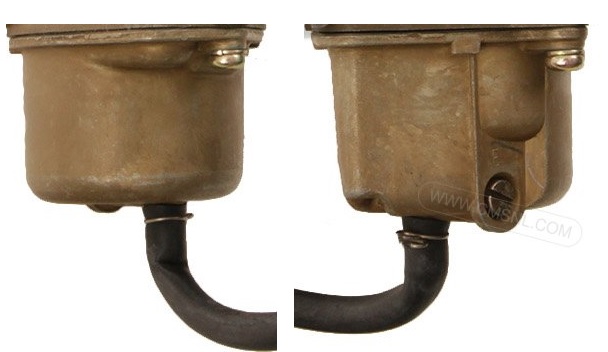

16015-187-671 use 16015-191-034
on carbs PA13BA white float vacuum-enrich choke
on bikes 81-82 NX50
16015-191-014 ⇒ 16015-191-024
on carbs PA15AA PA16AA white float vacuum-enrich choke
on bikes 81 NC50, 81 NA50
same
16015-191-024 ⇒ 16015-191-034
on carbs PA15AA PA16AA white float vacuum-enrich choke
on bikes 81 NC50, 81 NA50
16015-191-034 available soon
on carbs PA15AA PA16AA white float vacuum-enrich choke
on bikes 81 NC50, 81 NA50
16015-GA6-671 use 16015-191-034
on carbs PA13EA white float vacuum-enrich choke
on bikes 82-83 NC50
16015-GK8-671 GK8 family
on carbs PA29CD PA29HA others electric-enrich choke
on bikes 84-86 NQ50, 83-85 NM50
17. Gaskets
There are 100’s of vintage Honda carburetors. Many share the same gaskets, but have maybe one or two things different. To reduce the number of different gasket sets, Honda combines several sets into one multi-set. In a multi set there are extra “optional” gaskets, that may or may not be needed. These are in separate packages labeled A or B. There is a sheet of paper with a table of replacement gasket set part numbers, the specific part numbers they replace, and a number, usually 1 or 0, in the A and B columns, telling how many of each “optional” gaskets are required.
Multi-App Sets (for several carburetors)
16010-114-305 $34
fits 1972-75 Honda Z50A (minus 2 x 18 o-ring)
fits 1970-72 Honda QA50
fits 1970-73 Honda PC50K1
1p top rubber washer 10 x 15 x 1
1q (A) drain screw washer 3 x 6 x 0.5
1d main jet o-ring 1 x 3 (5 od)
1e jet support disk Ø7.5 x 1.7
1n float bowl gasket 1.5 x 40 (43 od)
1r drain plug o-ring 2 x 4 (8 od)
16010-143-305 $33
fits 1976-78 Z50A Mini Trail, 1979-81 Z50R
fits ’77 NC50 and some ’78-79 (except drain plug o-ring)
fits 1973-77 PC50K1
fits 1978-80 Indian AMI50 (except drain plug o-ring)
1a top rubber washer 10 x 18 x 1
1h (A) intake o-ring 2 x 18 (22 od)
1c (B) intake o-ring 2 x 20 (24 od)
1d main jet o-ring 1 x 3 (5 od)
1s jet support disk Ø7.5 x 1.8
1f float bowl gasket Ø1.5 NC50 type
1i drain plug o-ring 2 x 2.5 (6.5 od)
16010-147-505 $31
fits 1979 NC50 and some 1978
fits 1979-80 NA50 and NC50
fits
1b top rubber washer 13 x 16.5 x 1
1c intake o-ring 2 x 20 (24 od)
1d (A) idle fuel screw o-ring 1 x 3 (5 od)
1g (A) drain plug o-ring 1.5 x 4 (7 od)
1f float bowl gasket Ø1.5 NC50 type
1i (B) drain plug o-ring 2 x 2.5 (6.5 od)

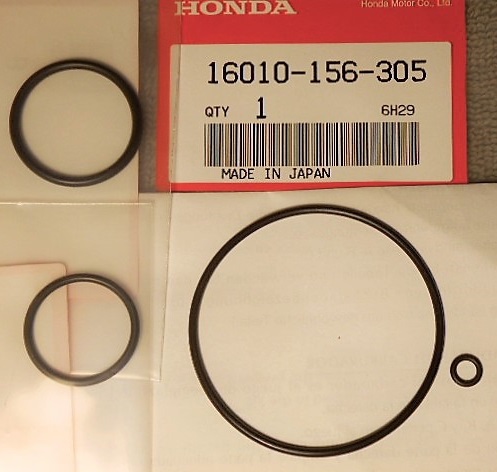

16010-156-305 $24
fits 1978-83 Honda PA50
1c intake o-ring 2 x 20 (24 od)
1w intake o-ring 2.5 x 24 (29 od)
1g drain plug o-ring 1.5 x 4 (7 od)
1j float bowl gasket 2 x 50 (54 od)
16010-181-305 $35
fits 1979-86 Z50R, 2000-03 XR50R, 2004-11+ CRF50F
1a top rubber washer 10 x 18 x 1
1h intake o-ring 2 x 18 (22 od)
1l top rubber washer 13 x 19 x 1
1g drain plug o-ring 1.5 x 4 (7 od)
1f float bowl gasket Ø1.5 NC50 type

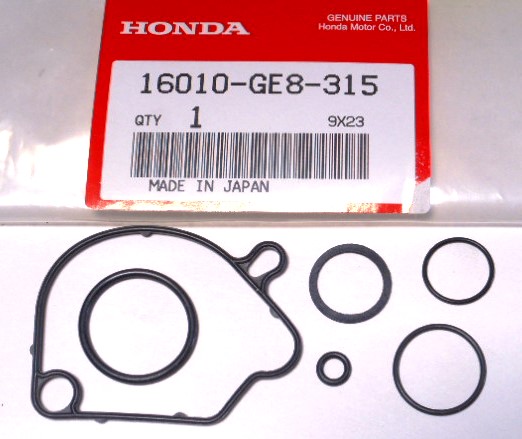

16010-GE8-315 $27
fits 84 NB50M, 82-85 NJ50M, 84-86 NQ50, NQ50M
1b top rubber washer 13 x 16.5 x 1
1c intake o-ring 2 x 20 (24 od)
1x (A) o-ring 1 x 12.5 (14.5 od)
1z (B) o-ring 1 x 16 (18od)
1g drain plug o-ring 1.5 x 4 (7 od)
1v float bowl gasket 2.5 tall x 1.5 with loop
16010-GF8-305 $32
fits 1981-82 NX50, 1982-83 NU50
1b top rubber washer 13 x 16.5 x 1
1h intake o-ring 2 x 18 (22 od)
1d (A) idle fuel screw o-ring 1 x 3 (5 od)
1t (B) o-ring 1.5 x 8.5 (11.5 od)
1u (B) nylon washer 6.2 x 11 x 0.8
1g drain plug o-ring 1.5 x 4 (7 od)
1k float bowl gasket 2.5 tall x 1.5 wide NQ50 type
Individual Gaskets
# price part# or sect# Gaskets and Seals
a $$3 6.1.1a 000000 rubber washer 10 x 18 x 1
b $$8 6.1.1b 000000 rubber washer 13 x 16.5 x 1
c $$2 6.1.2 0000000 o-ring 2.0 x 20 (24 od)
d 0$2 16176.551.004 o-ring 1.0 x 3 (5 od)
e $14 16197.063.004 jet pad disk 7.3 x 1.75
f $18 6.1.5 0000000 float gasket 1.5 x 1.5 70’s type
g $$2 6.1.6 0000000 o-ring 1.5 x 4 (7 od)
h $$2 6.1.7 0000000 o-ring 2.0 x 18 (22 od)
i 0$2 16175.260.004 o-ring 2.0 x 2.5 (6.5 od)
j $11 6.1.9 0000000 o-ring 2.0 x 50 (54 od)
k $22 8.1.3 0000000 float gasket 2.5 x 1.5 80’s type
l 0$4 16110.181.831 rubber washer 13 x 19 x 1
n 0$216174.044.004 o-ring 1.5 x 40 (43 od)
o $3 5.1.1o 000000 o-ring 1.5 x 5 (8 od)
p 0$5 16171.044.004 rubber washer 10 x 15 x 1
q $$2 17.1q 0000000 fiber washer 3 x 6 x 0.5
r 0$5 16175.001.004 o-ring 2.0 x 4 (8 od)
s $14 6.1.1s 000000 jet pad disk 7.3 x 1.85
t $2 17.1t 0000000 o-ring 1.5 x 8.5 (11.5 od)
u $$2 17.1u 0000000 nylon washer 6.2 x 11 x 0.8
v $20 8.1.1v 000000 float gasket 2.5 x 1.5 with loop
w $3 17.1w 0000000 o-ring 2.5 x 24 (29 od)
x N/A 8.1.1x 000000 o-ring 1.0 x 12 (14 od)
y N/A 16189.056.004 seal washer 6 x 8 x 0.5
z $2 8.1.1z 000000 o-ring 1.0 x 16 (18 od)
Left is Oreo cookie “e” from set 16011-114-305, 1.75 mm thick.
Right is Oreo cookie “s” from set 16011-143-305, 1.85 mm thick.
Individual Gaskets a to z Contained in Gasket Sets
Multi-sets are red. They have extra gaskets for other applications.
Solo-sets are black. They only have the gaskets that are needed.
a b c d e f g h i j k l n o p q r s t u v w x z gasket set # price carbs .
a b c d e f g h i j k l n o p q r s t u v w x z 16010-044-680 $14 50B
a b c d e f g h i j k l n o p q r s t u v w x z 16010-114-305 $34
a b c d e f g h i j k l n o p q r s t u v w x z 16010-114-004 $34 655A 674A
a b c d e f g h i j k l n o p q r s t u v w x z 16010-063-000 $32 C5B
a b c d e f g h i j k l n o p q r s t u v w x z 16010-063-004 $32 C4A,4B,5A F4A,5A
a b c d e f g h i j k l n o p q r s t u v w x z 16010-122-305
a b c d e f g h i j k l n o p q r s t u v w x z 16010-122-004 N/A PA06A,07A
a b c d e f g h i j k l n o p q r s t u v w x z 16010-131-004 N/A 006A
a b c d e f g h i j k l n o p q r s t u v w x z 16010-143-305 $33
a b c d e f g h i j k l n o p q r s t u v w x z 16010-143-620 $31 PA08BA
a b c d e f g h i j k l n o p q r s t u v w x z 16010-081-004 $31 PA00A 01A 03A
a b c d e f g h i j k l n o p q r s t u v w x z 16010-081-014 $29 PA03BA 03CA
a b c d e f g h i j k l n o p q r s t u v w x z 16010-147-505 $31
a b c d e f g h i j k l n o p q r s t u v w x z 16010-147-711 $30 PA08BB,EA,EB,DA
a b c d e f g h i j k l n o p q r s t u v w x z 16010-147-004 $30 PA08BB,EB
a b c d e f g h i j k l n o p q r s t u v w x z 16010-156-305 $24
a b c d e f g h i j k l n o p q r s t u v w x z 16010-124-760 $23 BB21AB,F 20AC,F
a b c d e f g h i j k l n o p q r s t u v w x z 16010-181-305 $35
a b c d e f g h i j k l n o p q r s t u v w x z 16010-181-831 $33 PA03DA,FB
a b c d e f g h i j k l n o p q r s t u v w x z 16010-GE8-315 $27
a b c d e f g h i j k l n o p q r s t u v w x z 16010-GE8-305 $27 PA29CB,CD,DA,DB
a b c d e f g h i j k l n o p q r s t u v w x z 16010-GF8-305 $32
a b c d e f g h i j k l n o p q r s t u v w x z 16010-187-003 $30 PA12A 13BA 13EA
a b c d e f g h i j k l n o p q r s t u v w x z 16010-190-004 $29 PA15A 16A 13BB 25A
18. Jets
5 x 9.5 Push-in price size carbs models
99114.063.0550 none 55 C4A, C4B ’69-70 PC50 40km/h
99114.063.0550 none 55 S4A, S4B ’69-70 PS50 40km/h
99114.063.0550 none 55 F4A ’72-73 PF50, PC50K1 40km/h
99114.063.0580 $16 58 S5B ’70-71 PS50K1
99114.063.0620 none 62 C5A, C5B ’69-70 PC50 50km/h
99114.063.0620 none 62 S5A, S5B ’69-70 PS50 50km/h
99114.063.0620 none 62 F5A ’72-73 PF50, PC50K1 50km/h
99201.122.0650 none 65 PA 06A ’73-75 PM50, ’73-78 PF50M
99201.122.0750 none 75 006A ’74-75 MR50

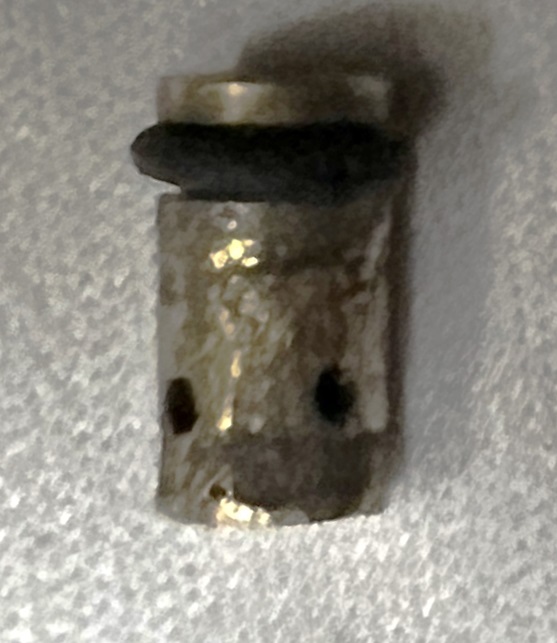

99201.122.0750 none 75 PA 07A ’75-78 PF50M 50km/h
5 x 8.5 Push-in price size carbs models
99201.081.0550 none 55 PA 02A ’74-75? Z50J1 Germany
99201.081.0580 $16 58 PA 03A ’76-78 Z50A
99201.081.0650 $22 65 PA 01A ’73-77 PC50K1 40km/h

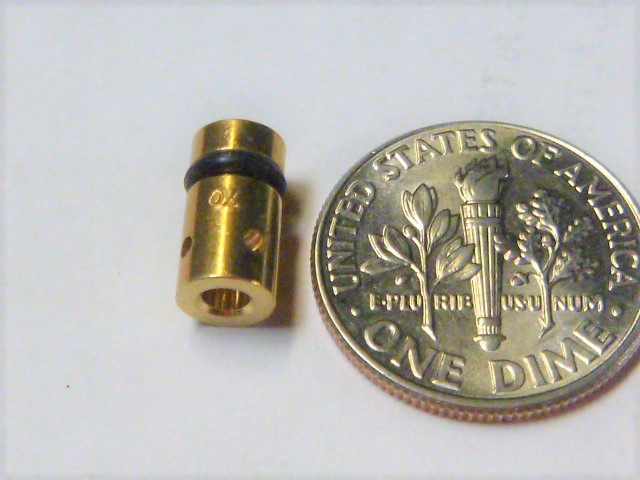

99201.081.0700 $22 70 PA 00A ’73-77 PC50K1 50km/h
99201.081.0780 $23 78 PA 08B-A ’77-79 NC50 #70 drilled to 78
5 x 15? Push-in price size carbs models
99201.114.048 none 48 674A ’70-75 QA50
99201.114.052 none 52 655A ’72-75 Z50A
99201.114.055 none 55 655A ’72-75 Z50A

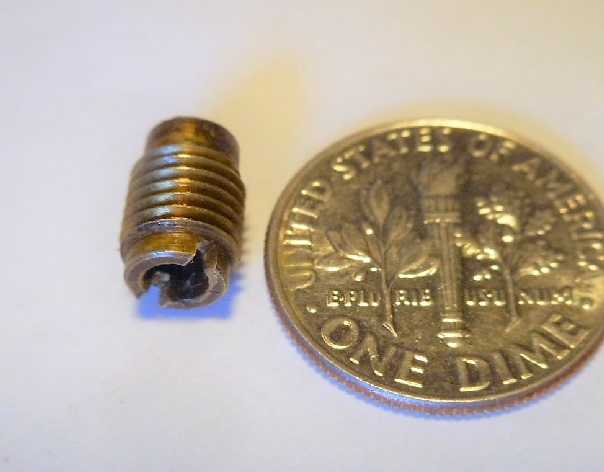

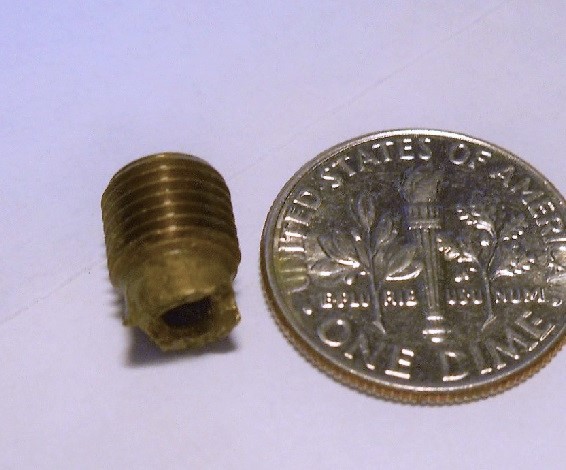

1. 99101-187-0700, 2. 99101-124-0700
M6-0.75 Screw-in $ size carb models .
99101.187.0580 0$7 58 PA03DA ’82-85 Z50R
99101.187.0580 $00 58 PA03FB ’86-87 Z50R
99101.187.0680 0$7 68 PA29CD ’85 NQ50
99101.187.0680 $00 68 PA29HA ’83-85 NB50
99101.187.0700 $$7 70 PAMOA ’78-80 Indian
99101.187.0700 $00 70 PA25A? ’82-83 NC50I
99101.187.0750 0$7 75 PA15A ’81 NC50
99101.187.0750 $00 75 PA16A ’81 NA50
99101.187.0750 $00 75 PA13BB ’82-83 NC50
99101.187.0760 0$7 76
99101.187.0780 0$7 78 PA13BA ’81-82 NX50
99101.187.0800 0$7 80
99101.187.0850 0$7 85 PA13EA ’82-83 NU50, NU50M
M7-0.75 Screw-in $ size carb models .
99101.124.0600 $7 60 BB21A ’78-79 PA50 I (20mph)
99101.124.0780 $7 78 BB20A ’78-83 PA50 II (30mph)
19. Where else to get Keihin parts
Consolidated Motor Spares B.V. (CMS): This is an excellent online store from the bike-loving nation of Netherlands that has “every” Honda part. They have parts schematic illustrations for every Honda model worldwide, and photos of every part on every Honda, and not just motorcycles. And not just Honda, but also Kawasaki, Suzuki, and Yamaha. Much of the information of the Honda “Baby” Keihin carburetors came from CMS. https://www.cmsnl.com/
