Dell’Orto SHB 19.19D

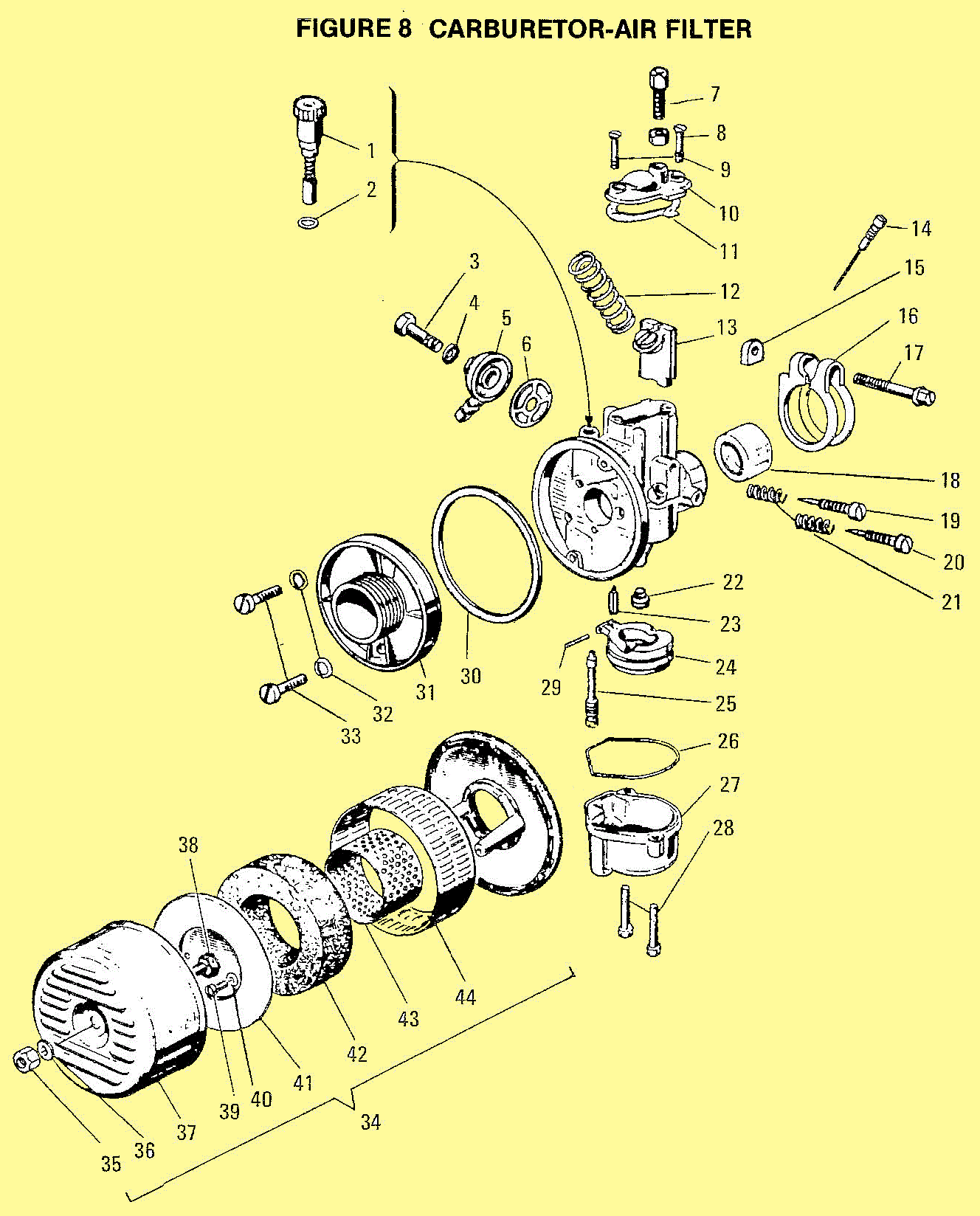

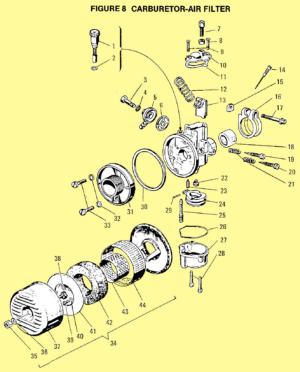

This carburetor was on 1972-75 Indian ME/MX 74/76 with Minarelli P4-70 or P6-70 engine.

1   0000 none  choke control
2   0000 none  0
3   0000 none  0
4   0000 none  0
5   0000 $8.00 inlet banjo
6   0000 none  fuel filter 7? id  x 23? od
7   0000 none  0
8   0000 none  0
9   0000 none  0
10 0000 none  0
11 0000 none  0
12 0000 none  slide spring
13 7938 3 none  slide
14 0000 none  idle jet #40 (5mm thread)
15 0000 none  0
16 0000 none  0
17 0000 none  0
18 0000 none  clamp sleeve 23 OD
19 0000 none  0
20 0000 none  idle air screw (tighter is richer)
21 0000 none  0
22 0000 none  main jet #102  5mm type
23 2838 $10.0 float needle same as SHA
24 0000 none  float
25 0000 none  choke jet #60 (5mm thread)
26 0000 none  float gasket
27 0000 none  0
28 0000 none  0






Dell’Orto ME15-BS


Left is from the Service manual, for all Dellorto applications.

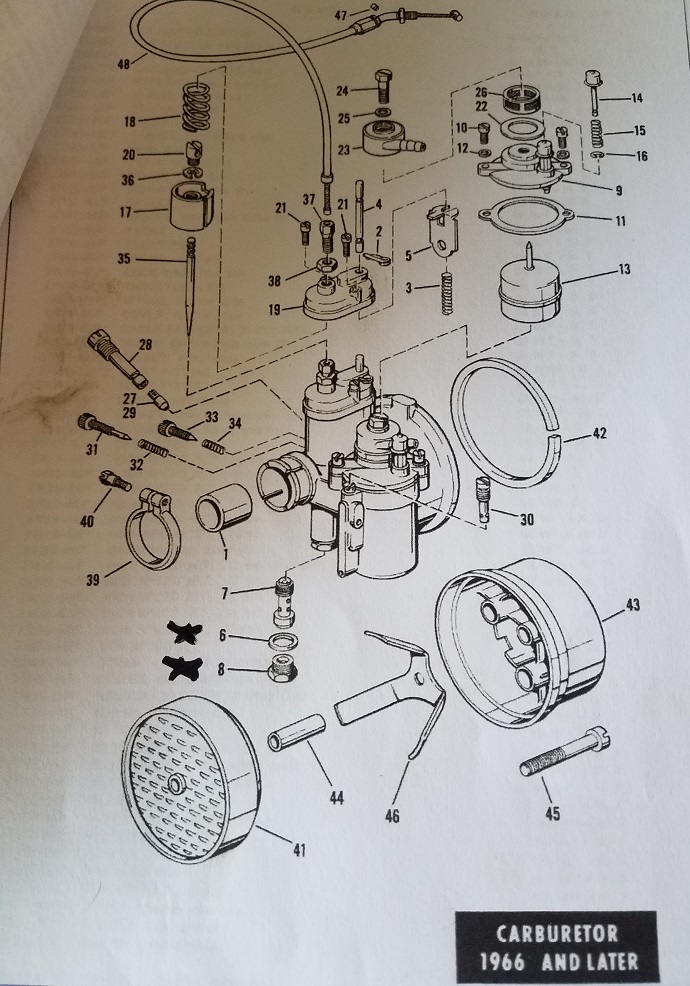

Right is from the Parts manual, only for Benelli Dynamo 65.

S# P# Del-Ben#  price .
1  188 1476  000 none  cable boot
2  189 1104/C     $5.00 top adjuster with nut A13 M6-0.75
000 1691  000 $2.00 top adjuster nut
4  190 3318  000 $2.00 top screw M4-0.75 x 14 slot (not M4-0.7)
000 1481  000 none  pipe adjuster
000 1692  000  none  pipe adjuster
000 3600  000 none  cable pipe
000 3698  000 none  cable pipe
8  191 4064  000 none  throttle spring
9  197 4018  000 none  nipple
10 198 3322  000 none  ring
11 200 4019/50   none  throttle slide
12 199 4065/02   none  jet needle
13 202 1721  000 none  mount clamp
14 203 1111  000 none  mount screw
14 000 5656  000 none  mount screw
15 000 4472  000 none  seal ring
16 201 4477  000 none  clamp sleeve
16 000 4478  000 none  clamp sleeve
16 000 4783  000 none  clamp sleeve
16 000 5667  000 none  clamp sleeve
16 000 6039  000 none  clamp sleeve
17 212 4017  000 none  jet holder
18 211 3315/67 0 none  main jet
19 207 3606  000 $2.00 air screw spring
20 208 3357  000 none  idle air screw
21 209 1411  000 none  speed screw spring
22 210 4626  000 none  idle speed screw
23 204 4498/258 none  needle jet
24 205 4022  000 none  gasket
25 206 4021  000 none  plug
26 214 4026  000 none  gasket
27 000 3446  000 none  slide pin
28 178 4025/40    none  idle jet
29 193 4043  000 none  choke spring
30 192 4024/05   none  choke slide
31 195 4023  000 none  choke rod
32 194 3917  000 none  carb top
33 196 3479  000 none  choke clip
34 177 4167/18   none  float
35 179 4045  000 none  float gasket
36 000 1493  000 none  tickler clip
37 000 4044  000 none  tickler spring
38 000 4168  000 none  tickler
39 180 4169  000 none  float top assy
40 181 5011  000 none  float washer
41 182 1308  000 none  float screw
42 183 1432  000 none  gasket
43 184 1435  000 none  filter
44 000 4628  000 none  inlet
44 185 5000  000 none  inlet
44 000 5001  000 none  inlet
44 000 5671  000 none  inlet
45 186 3385  000 $1.50 gasket
46 187 3770  000 none  inlet bolt










Dell’Orto ME18-BS

Dellorto ME18-BS

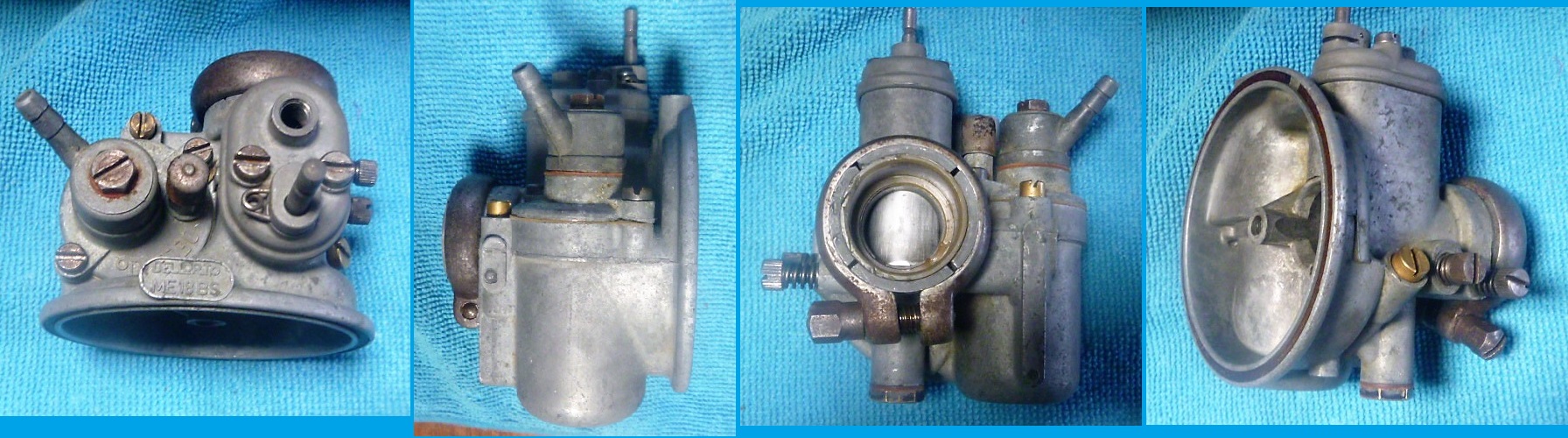

This carburetor was on a 1965-66 Harley Davidson M50, made in Italy by Aermacchi

∅23 clamp diameter
68 jet, cleaned with 0.027″ wire
40 idle jet cleaned w/0.016″ wire
has idle fuel screw (tighter is leaner)
Z58A needle jet

Dellorto ME18-BS

It was also on 1970-71 Indian ME76 with Minarelli P6-70 engine.

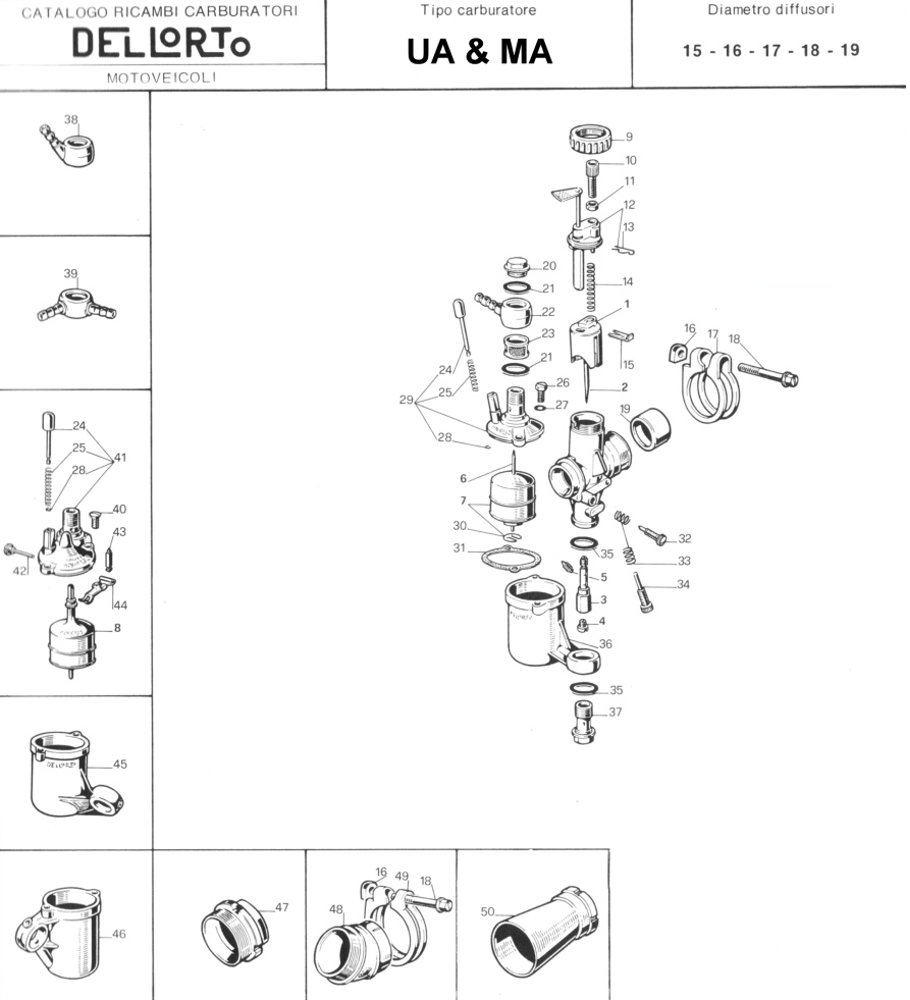

Dell’Orto UA and MA late

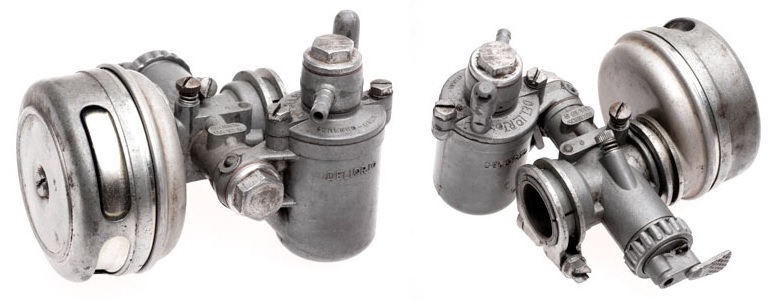

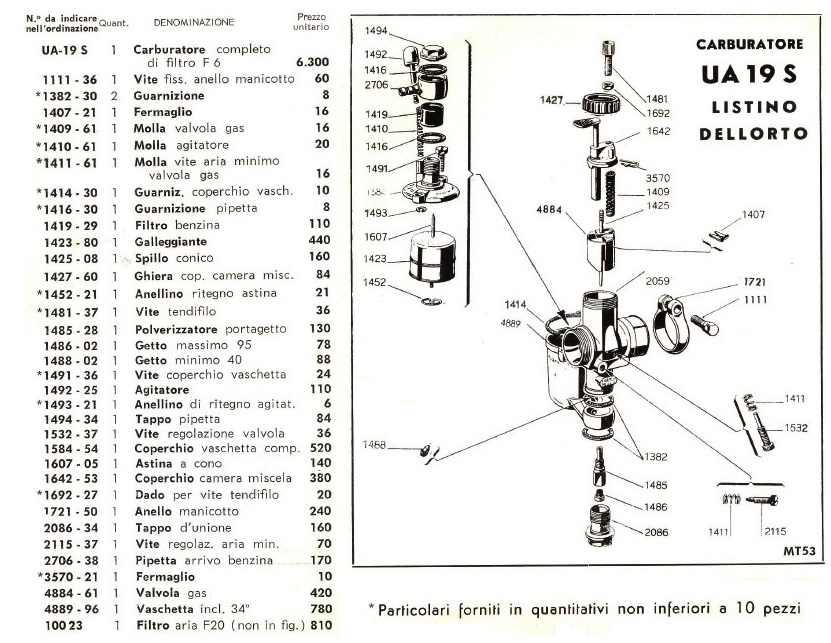

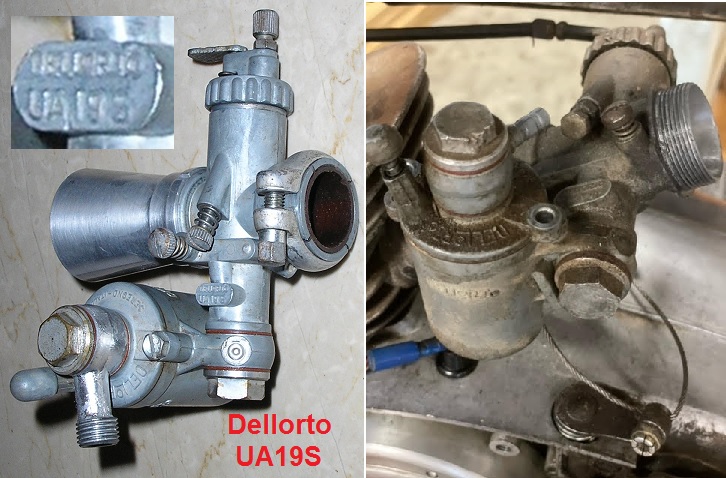

Dellorto UA19 S “late” Minarelli # M42-116



 # Dellorto#
004884 throttle slide
02  00000 throttle needle
03  00000 atomizer
001486 main jet 5mm (specify size)
000000 x
001607 float needle only
000000 x
003076 float assy
001427 screw-on top
10  01481 cable adjuster
11  01692 adjuster lock nut
12  01642 carb top
13  03570 choke clip
14  01409 throttle slide spring
15  01407 throttle needle clip
16  08128 clamp nut
17  08129 mount clamp
18  00000 clamp bolt
19  13910 clamp sleeve 23 id x 26 od
20  00000
21  00000
22  00000
23  00000
24  00000
25  00000
26  00000
27  00000
28  00000
29  00000
30  00000
31  00000
32  00000
33  00000
34  00000
35  00000
36  00000
37  00000
38  00000
39  00000




Dell’Orto UA19-S early








Dell’Orto T4 12 S1



This 1950’s carburetor has a 62 main jet, and another jet, size 210, probably an air jet.
