Contents:
1. US models with 4M or 4MS engine
Fireball, Sprint, Riverside 450-SS
Dynamo Compact, Dynamo Trail, Super Mini
2. US models with 4M65 engine
Dynamo Compact, Dynamo Trail (Scrambler)
Woodsbike, Cougar, Mini Enduro
| models (US in blue) | engine | bore | cc | comp | hp | tires |
| ’68-69 Dynamo Compact | 4M | 40 | 49 | 1.5 | 3.50-8 | |
| ’76 Sprint | 4M | 40 | 49 | 1.5 | 2.25-18 | |
| ’65-68 Fireball | 4MS | 40 | 49 | 9.8 | 4.5 | 2.25-18 |
| ’65-66 Riverside 450-SS | 4MS | 40 | 49 | 9.8 | 4.5 | 2.25-18 |
| ’67-68 Fireball Trail | 4MS | 40 | 49 | 9.8 | 4.5 | 2.75-17? |
| ’69 Dynamo Compact | 4MS | 40 | 49 | 9.8 | 4.5 | 3.50-8 |
| ’69 Super Mini | 4MS | 40 | 49 | 9.8 | 4.5 | 2.50-14? |
| ’69-71 Dynamo Trail | 4M65 | 44 | 59 | 3.00-10 | ||
| ’69-71 Dynamo Compact | 4M65 | 44 | 59 | 3.00-10 | ||
| ’70-71 Woodsbike | 4M65 | 44 | 59 | 3.00-10 | ||
| ’70-72 Cougar | 4M65 | 44 | 59 | 2.75-17 | ||
| ‘71-73 Mini Enduro | 4M65 | 44 | 59 | 2.75-14? | ||
| ’72 Trail II, Woods II | 4M65 | 44 | 59 | 3.00-10 | ||
| ’72-73 Dynamo II | 4M65 | 44 | 59 | 3.00-10 | ||
| ‘74-75 Dynamo Trail | 4M65 | 44 | 59 | 3.00-10 | ||
| ’76-77 Dynamo | 4M65 | 44 | 59 | 3.00-10 |
How to tell if a Benelli Dynamo is 49 cc (4M or 4MS) or 59 cc (4M65). From left side photos, the carburetor is SHA14/12 or UA16-S on 49 cc and ME15BS on 59 cc. From disassembled engine parts, the case halves have part numbers in the casting inner side, or the piston size can be measured with a caliper.
1. US models with 4M or 4MS engine
49cc vertical cylinder 4-speed foot-shift, manual clutch.

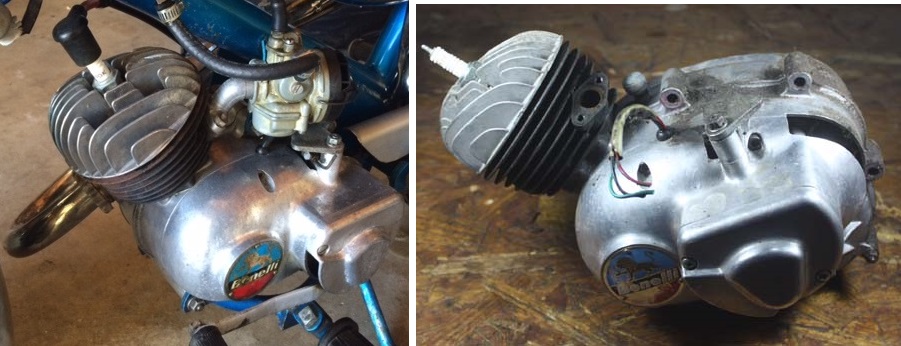

4M engine: The 4M has a mild cylinder, with shorter and narrower ports, a 12mm ID intake, and a smaller 12mm Dellorto SHA 14/12 side-draft carburetor. It is limited to 1.5 horsepower to be operated in most countries or states without a drivers license. The 4M engine was on ’68-69 Benelli Dynamo Compact and ’76 Benelli Sprint. M means marce, Italian for “march”, or in the motorcycle industry “foot-shift”.
1. 4M engine with SHA 14-12 carb
2. ’68 Dynamo Compact, 4M engine
3. ’69 Dynamo Compact, 4M engine
4. ’76 Sprint (with pedals), 4M engine
4MS engine: The 4MS has a “sport” cylinder, with taller and wider ports, a 16mm ID intake, and a larger 16mm Dellorto UA16S down-draft carburetor. Horsepower 4.5 at 7800 rpm. This is the version shown in the parts illustration. The 4MS engine was on the ’65-68 Benelli Fireball, ’67-68 Fireball Trail, ’65-68 Riverside 450SS, and ’69 Dynamo Compact and Super Mini.
1. 4MS engine with UA16-S carb

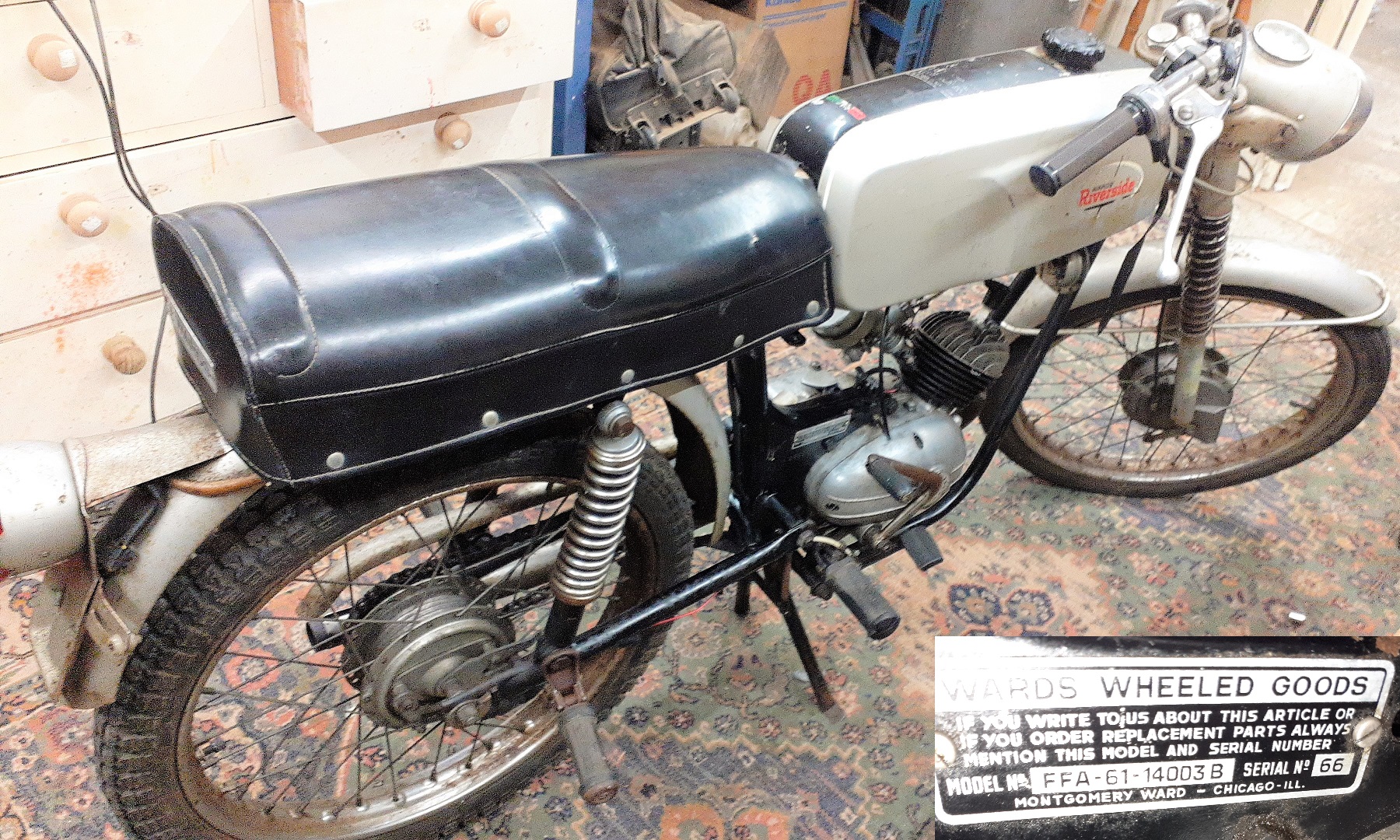

2. ’66 Riverside 450SS, 4MS engine
3. ’69 Benelli Super Mini, 4MS engine
4. ’69 Benelli Dynamo Trail, 4MS engine

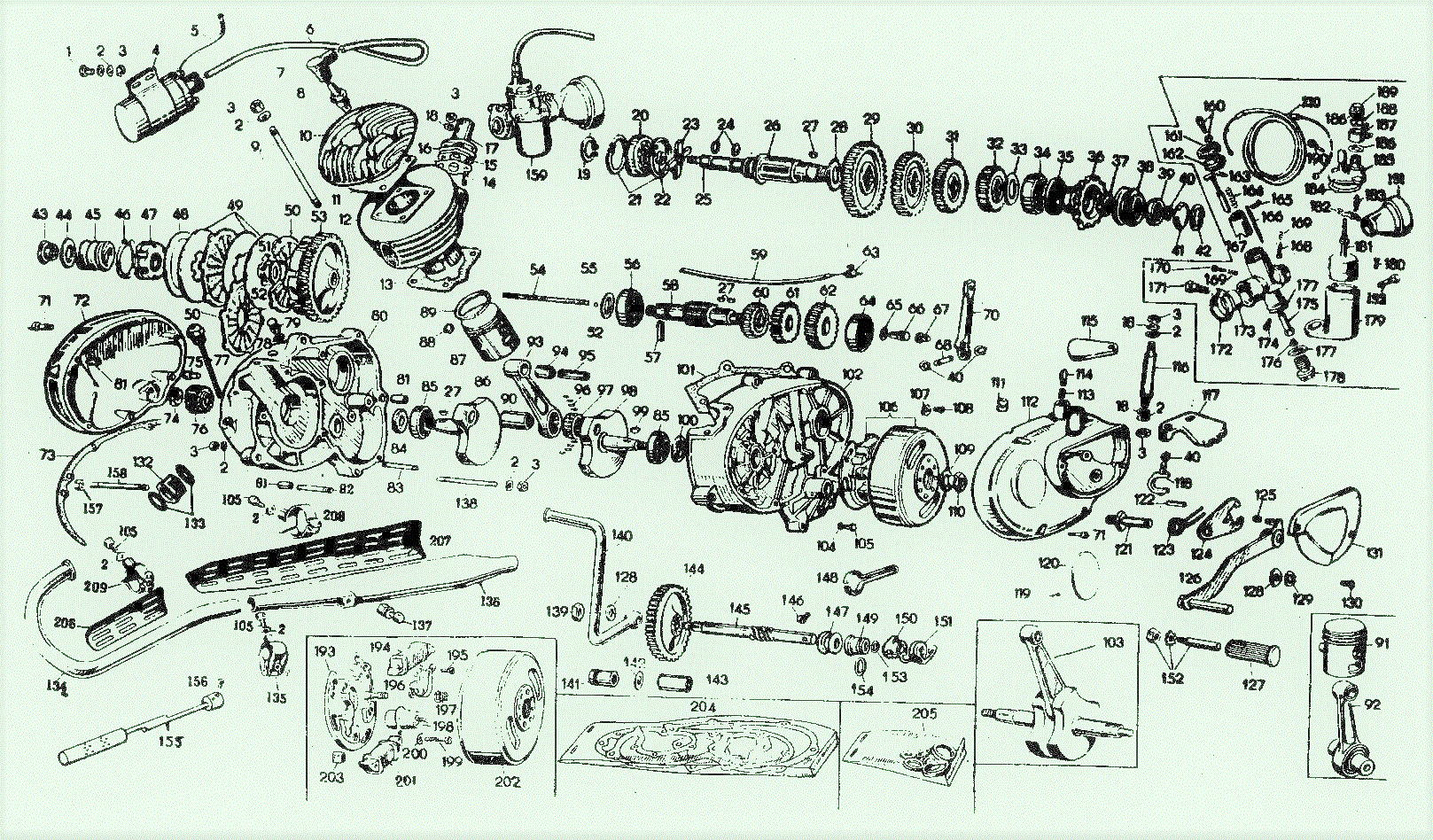

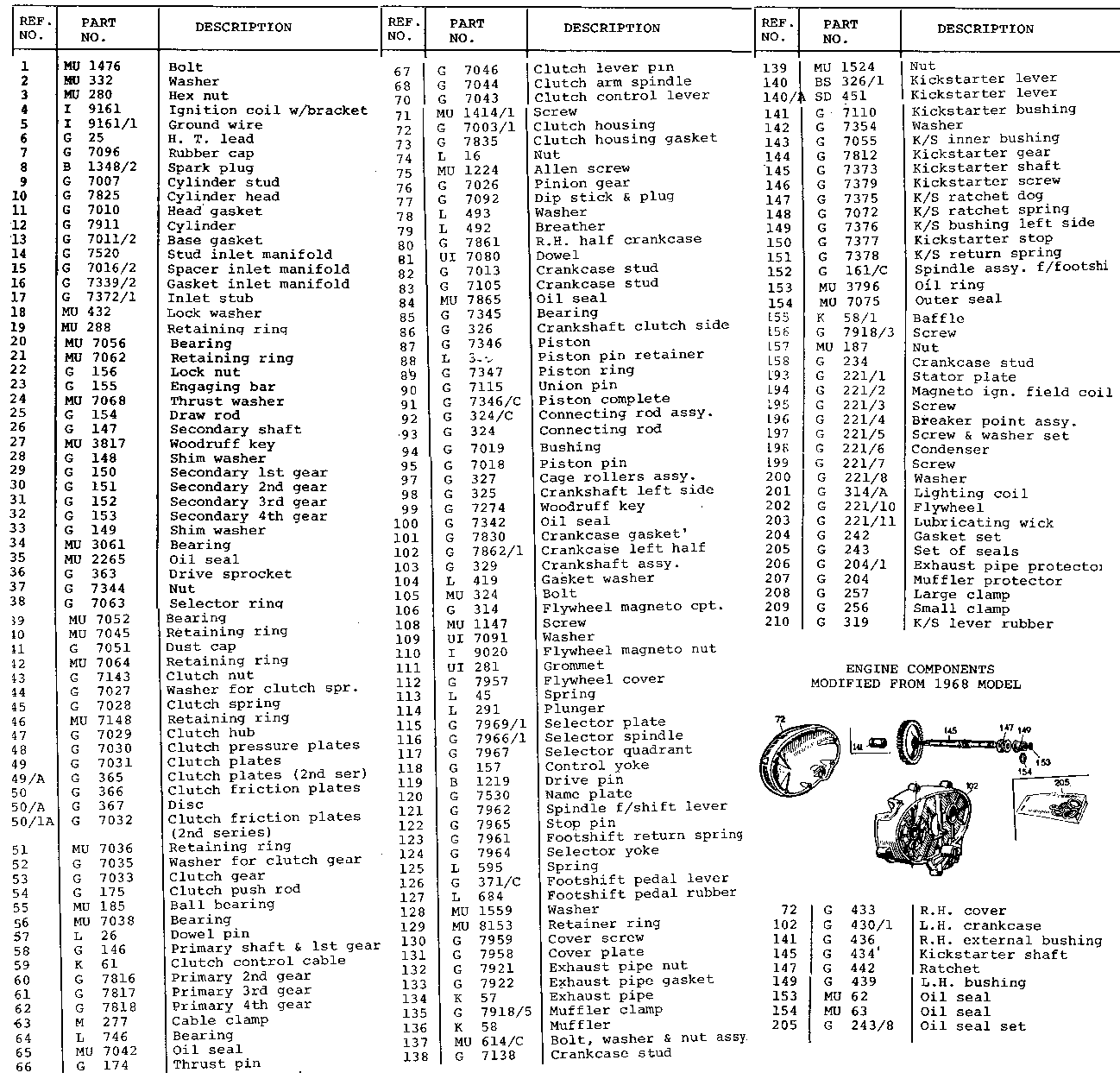

Benelli 4M and 4MS Engine Parts
00# 1980# 0 price 0 1970# 0 Engine Parts .
002 95000206 $0.20 MU332 head washer ∅6
003 92602206 $0.30 MU280 head & ex. nut M6
008 35717000 $4.00 B1348/2 spark plug = NGK B6ES
009 00000000 none G7007 0 cylinder stud M6 x ?
011 00000000 $12.0 G7010 0 head gasket ∅41
013 00000000 none G7011/2 base gasket
035 00000000 $7.50 MU2265 drive seal 28-38-7
084 00000000 $00.0 MU7865 L & R crank seal
085 90201416 none G7345 0 L & R crank bearing 6004 C3
085 90201416 $8.00 G7345 0 crank bearing subst. 6004
087 70060400 none G7346 0 piston bare dome top use #91
088 90272012 $1.50 MU339 0 piston clip 12 mm
089 48060870 $10.0 G7347 0 piston ring 40 x 1.5 GN
089 48060872 $22.0 G7347/2 piston ring 1os 40.2
089 48060874 none G7347/4 piston ring 2os 40.4
089 48060876 $10.0 G7347/6 piston ring 3os 40.6
090 00000000 $8.00 G7115 0 piston pin ∅12 x ?
091 70060220 none G7346/C piston assy 40 dome, use flat top
091 71060210 $65.0 N257/C piston assy 40 flat top GOL
091 71060310 none N257/C2 piston assy 1os 40.2 flat top
091 71060311 none N257/C4 piston assy 1os 40.4 flat top
091 71060312 none N257/C6 piston assy 1os 40.6 flat top
095 00000000 $00.0 G7018 0 piston pin 12 x ??
100 00000000 $12.0 G7342 0 left crank seal 15-25-5
101 00000000 $75.0 G29 000 carb for 4M, SHA 14-12, 58 jet
104 00000000 $00.0 L419 00 washer
105 00000000 $00.0 MU324 0 screw
106 00000000 none G314 00 magneto assy Dansi ASL204NS
108 00000000 $1.30 MU1147 stator screw M4 x 10-slot
109 00000000 $1.50 UI7091 flywheel washer 9 x 13
110 00000000 none I9020 00 flywheel nut C2 M9-1.0 x 14 hex15
110 00000000 $7.00 I9020 00 substitute C8 M9-1.0 x 9 hex12
159 00000000 none G7920/3 carb for 4MS, Dellorto UA 16S
0# 1980# 0 price 0 1970# 0 Magneto Dansi ASL204NS
193 00000000 none G221/1 stator plate bare
194 00000000 none G221/2 ignition source coil
195 00000000 $2.50 G221/3 cond. screw M4 x 8 small head
196 00000000 $26.0 G221/4 points 01.3236
197 00000000 none G221/5 points screw & clip set
198 00000000 $15.0 G221/6 condenser 07.0074 M17D
199 00000000 $1.50 G221/7 coil screw M4 x 25 slot
200 00000000 $0.50 G221/8 coil lock washer 4
201 00000000 none G314/A lights source coil
202 00000000 none G221/10 flywheel Dansi ASL204NS
203 00000000 none G221/11 grease felt
Benelli Dynamo Frame Parts
A. ’68-69 Compact
B. ’69-71 Compact
Benelli Dynamo Compact ’68-71 Frame Parts
o# ab price 0 1970# 0 Frame Parts .
01 11 none G255/2 seat
08 10 none K43 00 gas tank ’68-69
09 10 none G173 00 gas cap M50-1.5-int. ’68-69
07 01 $30.0 N226/2 gas cap ¼-turn-60-ex ’69-on
10 10 none L3223 0 gas cap seal ring
15 11 $20.0 G7186 0 fuel petcock A2 10×1-down
16 11 $2.00 L425 00 petcock seal ring C17
o# ab price 0 1970# 0 Domino Controls note 1
21 11 none G7782 00 L control 1-lever
22 10 none G7107/3 R control wrap type ’68-69
22 01 none G582/1 0 R control slide type ’69-on
23 10 none G7/2B 00 grip set ’68-69 original
23 00 $12.0 G7/2B 00 grip set Magura replica
24 11 25-18 G7107/3A D20a lever open no ball
24 00 23-15 G7107/3A D20 lever closed ball end
25 22 $4.00 G7107/3B D14 cable anchor pin
26 22 $7-$3 G7107/3C D8 pivot bolt M6 x 25
26 22 $7.00 G7107/3C D9 pivot tube 6-8 x 12
26 22 $2-$1 G7107/3C D7 pivot nut M6 flange
27 00 none G7107/3D G24 adjuster A1b (not used)
28 11 $0.00 G7108/1A D16? R clamp bolt M6x18 allen
28 11 $0.00 G7108/1A D17? L clamp bolt M6x20 allen
29 11 $4.00 G7108/1D D15 clamp lock tube
30 11 $2.00 G6/4 000 throttle cable pinch bolt P5a
31 11 none G7782/A left control housing
32 00 none G7107/3E V29 adjuster A3a (not used)
o# ab price 0 1970# 0 Cable Parts .
36 10 $10.0 K60 throttle cable thin black ’68-69
36 00 $10.0 K60 throttle cable thin grey ’69-on
37 10 $18.0 K62 F brake cable thick black ’68-69
37 01 none K62 F brake cable thick grey ’69-on
38 10 $18.0 K61 clutch cable thick black ’68-69
38 01 none K61 clutch cable thick grey ’69-on
39 66 $1.50 G364 cable step ferrule
40 11 $3.00 M277 clutch pinch bolt P20
62 11 none K30 stop plate note 2
83 10 none K27 brake pedal
85 11 $9.00 L3564 clevis clamp with 85,86
86 11 none UI3437 clevis pin
87 11 none MU305 cottor pin
88 10 $16.0 K63 R brake cable thick black ’68-69
88 01 none K63 R brake cable thick grey ’69-on
| throt. | lever | lever | throt. | brake | handlebar | |||
| # | years | engine | type | type | ends | cable | cable | type |
| a | ’68-69 | 4M | wrap | open | plain | black | black | solid long |
| b | ’69-71 | 4MS, 4M65 | slide | open | plain | black | grey | folding |
| c | ’72-74? | 4M65 | slide | closed | ball | black | grey | folding forward |
Note 1. Early 1970’s Domino controls were on US models. ’68-69 had wrap-type throttle with a thread-less-bottomed hole made for no adjuster. ’69-on had slide-type throttle also with no adjuster. The brake and clutch cables went into thread-less-bottomed holes made for no adjusters. The parts catalog shows and lists the cable adjusters #27 G7107/3D and #32 G7107/3E, but they are not in any internet photos.
Note 2. The brake and clutch cables on US models are thick, with 2mm inner wire and 6mm conduit with 7mm end caps. The clutch cable K61, with 6mm OD conduit, passes through a 6mm hole in the stop plate K30. The step ferrule (cable end) G364 adapts the 6mm OD cable conduit to stop at the 6mm ID cable hole. The same G364 step ferrule is on the upper end of the clutch cable, and on the rear brake cable for the same reason, to adapt a 6mm conduit to stop at a 6mm hole.
Benelli Dynamo Compact ’68-69 Other Parts
0# 1980# 0 price 0 1970# 0 Other Parts .
01 00000000 none G213 0 tail light assy
02 00000000 none G213/2 tail light lens
03 00000000 $2.00 G213/3 tail light bulb 1154 6V 21/5w
04 00000000 $0.00 G213/1 lens screw
05 00000000 none K53 000 wiring harness
06 00000000 $23.0 G311/C multi switch CEV 8052 replica
06 00000000 $21.0 G311/C multi switch replica black
07 00000000 none G213/4 tail light housing
08 00000000 $0.25 MU432 lock washer 6
09 00000000 $0.30 G213/7 tail light nut M6
10 00000000 none M255 0 tail light mount
11 00000000 $0.00 MU235 mount bolt M6 x 12?
12 00000000 none K56 000 clamp
13 00000000 none I9025/2 rubber tube
15 00000000 $32.0 G333 0 horn 6VAC 18w black
17 00000000 $0.20 MU332 washer 6
18 00000000 none L3473 0 tail light wires rubber tube
34 00000000 none K45/A 0 wheel rim 8″
35 00000000 none K47 000 tire 3.50 – 8
36 00000000 none K48 000 tube 3.50 – 8
47 00000000 $25.0 G7503/1B brake shoe set (no springs)
48 00000000 $8.00 G7503/1C brake spring H64KS 51mm
49 00000000 none K45/E 0 front brake plate bare
51 00000000 $0.00 G127/I cam
57 00000000 none K46/B 0 rear brake plate bare
60 00000000 $0.00 K46/E 0 shock absorber ring
61 00000000 none G
62 00000000 none G
63 00000000 none G
64 00000000 none G
65 00000000 none SD453/27T sprocket
66 00000000 none G133/1A lock plate
67 00000000 none K46/G 0 outer left spacer
68 00000000 none I9246/A axle nut M12
69 00000000 none I9246/L axle washer
70 00000000 none L3814/3 chain adjuster
71 00000000 none K46/H 0 rear axle ∅12
72 00000000 none MU8042 sprocket bolt M7
73 00000000 none MU2511 sprocket nut M7 tall
74 00000000 none K45/G 0 front brake assy
75 00000000 none K46/I 00 rear brake assy
76 00000000 $0.00 G7089/11 chain
77 00000000 none G
78 00000000 none G
81 00000000 none G311 00 CEV “bullet” headlight assy
82 00000000 none G311/1 0 sealed beam #4667 6V 18w
82 00000000 $32.0 G311/1 0 replaceable bulb headlight .
83 00000000 none G
84 00000000 none G
85 00000000 none G
86 00000000 none K55 000 speedometer set
87 00000000 none G227/6 speedometer CEV ∅60 ∅2.7?
88 00000000 none K55/A 0 speedo cable CEV ∅2.7 thick wire
89 00000000 none K55/B 0 speedo driver CEV 7278
90 00000000 $1.50 G227/4 speedo bulb 6V 1.5w BA9s
00# 1980# 0 price 0 1970# 0 Carb Parts Dellorto SHA14/12
105 43934400 $5.00 DE6107 float chamber
106 46934700 $2.00 DE6123 float gasket
107 43934500 $4.00 DE3598 float screw M4-0.75 x 18
108 43933000 $18.0 DE6122 float white plastic 3.5 gr
109 43933100 $2.00 DE4560 hinge pin Ø2 x 16.5
110 43934800 $10.0 DE2838 float needle
111 00000000 $5.00 DE1486/58 jet #58
112 43938600 $4.00 DE6140 idle speed screw
113 43936300 $2.00 DE3606 idle screw spring
114 46938900 $5.00 DE6448 clamp sleeve 18 x 20
115 46938600 $2.00 DE6305 clamp screw M6
116 43937600 $2.50 DE6304 clamp nut, use M6 regular
117 43937500 $10.0 DE6103 throttle slide #1 used
118 43932200 $3.00 DE6111 top gasket
119 43935000 $16.0 DE6110/C top assy used
120 49938700 $5.00 DE1104/C cable adjuster A13
121 43932800 $2.00 DE3318 top screw M4-0.75 x 14
122 00000000 $3.00 DE6159 air filter gasket
123 00000000 $7.00 DE6114 choke plate-lever
124 00000000 $3.00 DE6105 choke spring
125 00000000 $3.00 DE5417 choke pivot bolt
126 43932500 $9.00 DE6117 air filter
127 70931020 $10.0 DE6183 air cover
128 70934220 $6.00 DE6235 air cover clip
129 00000000 $5.00 DE6109 fuel filter disk
130 00000000 $8.00 DE6106 inlet banjo metal
131 00000000 $1.50 DE3385 inlet seal washer 5 x 9
132 00000000 $5.00 DE4190 inlet screw M5-0.75 x 15
2. US models with 4M65 engine
59cc vertical cylinder 4-speed foot-shift, manual clutch.
4M65 engine: The advertised size is 65cc, but the actual size is 59.3cc. Bore and stroke were 44 x 39 mm. 22*22*3.14*39/1000 = 59.3. The Benelli 4M65 engine is on 1971-73 Mini Enduro, 1970-72 Cougar, 1969-71 Dynamo Compact, Dynamo Trail (Scrambler), Woodsbike, 1972-73 Compact II, Dynamo II, Woods II, 1974-75 Dynamo Trail, 1976-77 Dynamo. It has a larger piston and cylinder, larger intake, and a larger Dellorto ME15BS carburetor.
1. 4M65 engine with ME15-BS carb
2. ’70-72 Cougar, 4M65 engine
3. ’71-73 Mini Enduro, 4M65 engine
4. ’72 Trail II specs, 4M65 engine, late tank
1. ’69 Dynamo Trail, 4M65 engine, early tank
2. ’70 Dynamo Trail, 4M65 engine, early tank
3. ’74 Dynamo Trail, 4M65 engine, late tank

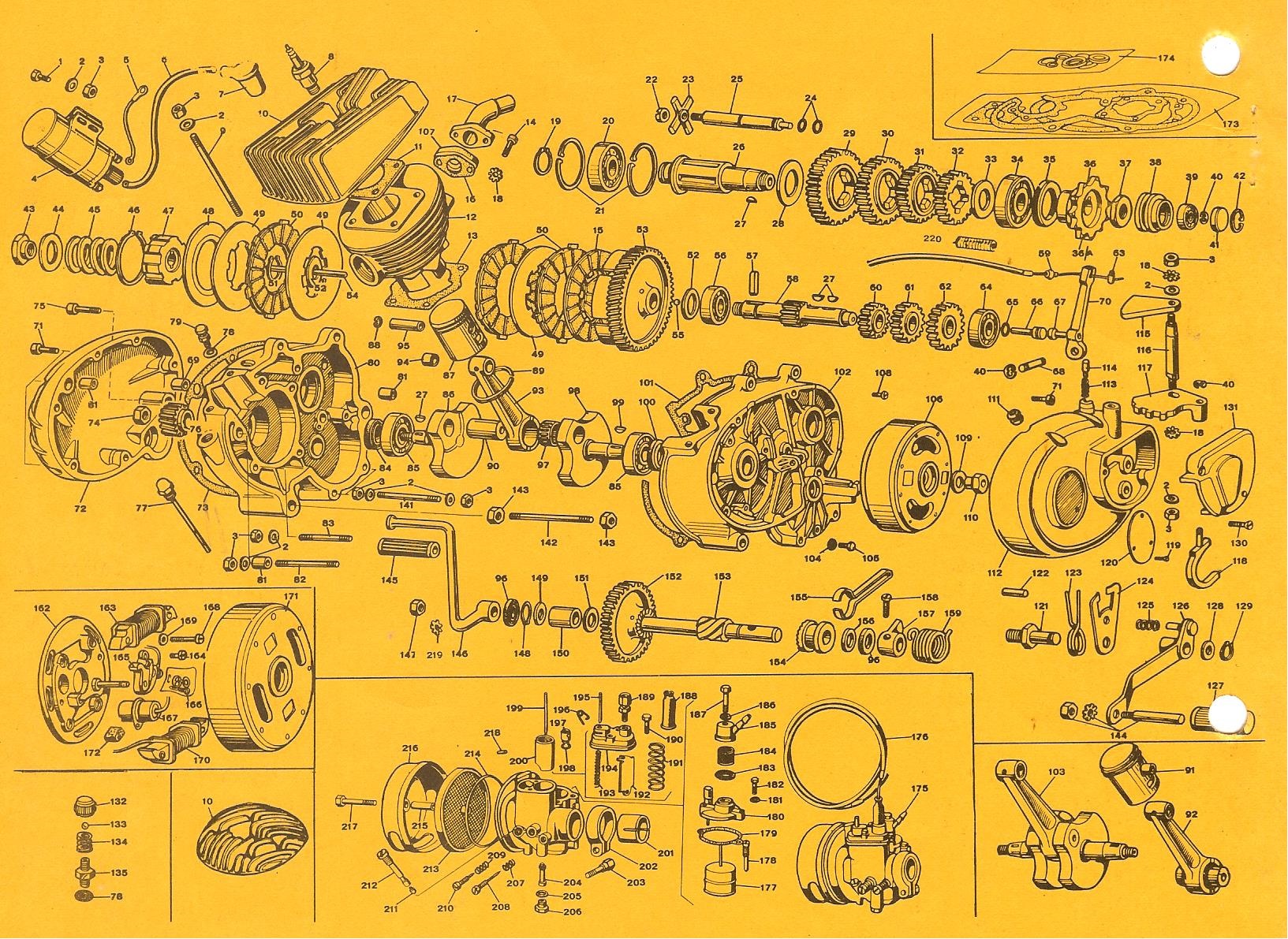

Benelli 4M65 Engine Parts
0# 1980# 0 price 0 1970# 0 Engine Parts .
010 00000000 none G78250 head small round
010 00000000 none G00000 head big square, Super Mini only
087 00000000 none G421 00 piston bare
089 00000000 $10.0 G591 00 piston ring Std 44.0 x 1.5 GN
091 00000000 none G421/C piston assy Std 44.0 x 17-12-18
099 00000000 $2.00 G7274 woodruff key #M81 2.0 x 3.7
106 00000000 none G421/C magneto Dansi ASL204NS
106 00000000 $1.30 MU1147 stator screw M4 x 10-slot
109 00000000 $1.50 UI7091 flywheel washer 9 x 13
110 00000000 none G7090 0 flywheel nut M9-1.0 special
110 00000000 $7.00 G7090 0 substitute M9-1.0 x 9 hex12
110 00000000 $19.0 P19x22 0flywheel puller tool M19/M22
111 00000000 none UI281 0 magneto wires grommet
112 00000000 none G7957 0 transmission cover
0# 1980# 0 price 0 1970# 0 Magneto Dansi ASL204NS
162 00000000 none G221/1 stator plate bare
163 00000000 none G221/2 ignition source coil
164 00000000 $2.50 G221/3 cond. screw M4 x 8 small head
165 00000000 $26.0 G221/4 points 01.3236
166 00000000 none G221/5 points screw & clip set
167 00000000 $15.0 G221/6 condenser 07.0074 M17D
168 00000000 $1.50 G221/7 coil screw M4 x 25 slot
169 00000000 $0.50 G221/8 coil lock washer 4
170 00000000 none G314/A lights source coil
171 00000000 none G221/10 flywheel Dansi ASL204NS
172 00000000 none G221/11 grease felt
0# 1980# 0 price 0 1970# 0 Other Parts
173 00000000 none G242/11 gasket set
174 00000000 $0.00 G243/11 seal set
175 00000000 none G590 00 carburetor ME15-BS
176 00000000 $10.0 K60 throttle cable thin black ’68-69
176 00000000 $10.0 K60 throttle cable thin grey ’69-76
0# 1980# 0 price 0 1970# 0 Carb Parts Dellorto ME15-BS
177 00000000 none DE4167/18 float bowl
178 00000000 none DE4025/40 idle jet #40
179 00000000 none DE4045 00 float gasket
180 00000000 none DE4169 00 float top assy
181 00000000 none DE5011 00 float washer
182 00000000 none DE1308 00 float screw
183 00000000 none DE1432 00 gasket
184 00000000 none DE1435 00 filter
185 00000000 none DE5000 00 inlet
186 00000000 $1.50 DE3385 00 seal washer 5 x 9
187 00000000 none DE3770 00 inlet bolt M5-0.75
188 00000000 $2.00 DE1476 00 cable boot
189 49938700 $5.00 DE1104/C top adjuster w/nut A13 M6-0.75
190 43932800 $2.00 DE3318 00 top screw M4-0.75 x 14
191 00000000 none DE4064 00 throttle spring
192 00000000 none DE4024/05 choke slide
193 00000000 none DE4043 00 choke spring
194 00000000 none DE3917 00 carb top
195 00000000 none DE4023 00 choke rod
196 00000000 none DE3479 00 choke clip
197 00000000 none DE4018 00 nipple
198 00000000 none DE3322 00 ring
199 00000000 none DE4065/02 jet needle
200 00000000 none DE4019/50 throttle slide
201 00000000 none DE4477 00 clamp sleeve
202 00000000 none DE1721 00 mount clamp
203 00000000 none DE1111 00 mount screw
204 00000000 none DE4498/258 needle jet
205 00000000 none DE 4022 00 gasket
206 00000000 none DE4021 00 plug
207 43936300 $2.00 DE3606 00 idle screw spring
208 00000000 none DE3357 00 idle air screw
209 00000000 none DE1411 00 speed screw spring
210 00000000 none DE4626 00 idle speed screw
211 00000000 none DE3315/67 main jet #67
212 00000000 none DE4017 00 jet holder
213 00000000 none DE4027 00 air filter
214 00000000 none DE4026 00 air filter gasket
215 00000000 none DE4076 00 spacer
216 00000000 none DE4028 00 air cover
217 00000000 none DE4276 00 air cover screw
218 00000000 none DE3446 00 throttle slide pin
Benelli Dynamo Frame Parts
d. ’72-77 Dynamo with 4M65 engine
t. ’69-69 Dynamo Trail 4M or 4MS engine
t. ’70-75 Dynamo Trail (Scrambler) 4M65 engine
w. ’70-72 Woodsbike with 4M65 engine
This is the flat bottom gas tank with a different gas cap.
0# dtw price 0 1970# 0 Frame Parts .
01 111 none K142 00 luggage rack
05 111 none K185 00 seat
07 111 $30.0 N226/2 gas cap qtr-turn 60 ext. wing
08 111 none K186 00 gas tank
19 111 $2.00 L425 00 petcock seal ring C17
20 111 $20.0 N160 00 fuel petcock A2 10×1-down
62 111 none K30 000 stop plate
73 111 none K179 00 brake pedal
Benelli Dynamo Other Parts
d. ’72-77 Dynamo with 4M65 engine
t. ’69-69 Dynamo Trail 4M or 4MS engine
t. ’70-75 Dynamo Trail (Scrambler) 4M65 engine
w. ’70-72 Woodsbike with 4M65 engine
o# dtw price 0 1970# 0 Controls .
01 111 none G582/1 0 R control Domino 70’s slide type
02 222 none G7107/3A D20an lever open no ball ’69-71
02 222 25-18 G7107/3A D20a lever open no ball ’69-71
02 222 $18.0 G375/1A D20n lever with ball end ’72-77
02 222 23-15 G375/1A D20 lever with ball end ’72-77
03 111 $15.0 G7/2 000 D21 R grip Dom. ribbed 24 x 105
03 111 $12.0 G7/2 000 000 grip set Magura replica
04 111 $5.00 G582/C 0 D2 slide screw M4 dome end
05 111 $19.0 G582/B 0 D1 throttle slide .
06 111 $6.00 G582/D 0 D3 twist tube set screw .
07 111 $1.50 G375/L 0 D16 clamp bolt .
07 111 $4.00 G375/L 0 D15 clamp cone-tube .
08 110 none CB1164 0 BL (brake light) clamp-contact
09 110 none CB1139 0 BL rubber insulator
10 220 1- .50 2522 000 BL hex bolt M5 x 12
10 222 1- .50 2522 000 exhaust bolt M5 x 12
11 440 $0.20 MU7559 0 BL washer 5
12 220 $0.40 MU8284 0 BL nut M5
12 222 $0.40 MU8284 0 exhaust nut M5
13 666 $1.50 G364 00 cable step ferrule
14 222 $7-$3 G7107/3C D8 pivot bolt M6 x 25
14 222 $2-$1 G7107/3C D7 pivot nut M6 flange
15 222 $7.00 G7107/3C D9 pivot tube 6-8 x 12
16 110 $9.00 G582/A 0 D11 helper spring .
17 110 $18.0 K62 0000 F brake cable thick black ’68-69
17 111 none K62 0000 F brake cable thick grey ’69-76
18 110 none CB1161 0 BL anchor pin with post
19 110 none CB1186 0 BL rubber insulator
20 110 none CB1162 0 BL small clamp-contact
o# dtw price 0 1970# 0 Electrical .
21 110 none K173/A 0 headlight bezel CEV visor type
21 110 $20.0 K173/A 0 headlight bezel CEV plain type
22 110 none K173/B 0 sealed beam bulb 6V 18w #4667
22 110 $32.0 K173/B 0 replaceable bulb headlight 6V 21w
23 550 $2.50 I9247/1F headlight w-clip CEV
24 110 none G199/8 0 headlight housing bullet type
25 220 $0.20 MU332 0 headlight washer 6
25 444 $0.20 MU332 0 exhaust washer 6
26 220 $0.80 MU1476 HL hex bolt M6 x 16
27 220 none 4110/A 0 lens screw
28 110 none 4110/B 0 tail light lens
29 110 none G213/3B tail/brake bulb 6V 18/3w
29 110 $2.00 G213/3B tail/brake bulb 6V 21/5w
30 110 none CB1895 0 multi switch CEV 8052 original
30 110 $23.0 CB1895 0 multi switch CEV 8052 generic
30 001 none K155 000 kill switch Woodsbike
30 001 $11.0 K155 000 kill switch substitute
31 110 none K177 000 wiring harness
32 110 none G227/6 0 speedometer CEV 2.7 hole
33 110 $1.50 G227/4 0 speedo bulb #53 12V 2w BA9s
34 110 none K103 000 speedo cable CEV 2.5 ends
35 110 none K104 000 speedo driver CEV 2.7 hole
36 110 none K55 0000 speedometer set
37 110 $5.00 G225/2 0 terminal strip 4-row screw type
38 110 none G333 000 horn 6V 18w orig.
38 110 $32.0 G333 000 horn 6V 18w replica
39 110 none K173 000 headlight assy
40 110 none K175 000 tail light assy
o# dtw price 0 1970# 0 Controls .
41 111 none G583/1 0 L control 1-lever Domino 70’s
42 112 $4.00 G375/D 0 D14 L cable anchor pin .
43 111 $8.00 G375/H 0 D22 L grip Dom. ribbed 22 x 105
44 111 $1.50 2625/B 00D17 L clamp bolt M6x20 allen
45 000 none G375/1B V29 adjuster A3a (not used)
46 110 $18.0 K61 0000 clutch cable thick black ’68-69
46 111 none K61 0000 clutch cable thick grey ’69-76
o# dtw price 0 1970# 0 Exhaust Parts .
47 111 none K72 0000 front pipe
48 222 none G256 000 front shield mount
49 111 none G204/1 0 front heat shield
50 444 none MU324 0 hex bolt
51 111 none G7918/5 muffler clamp
52 111 none K58 0000 muffler
53 111 none G257 000 rear shield mount
54 111 none G204 000 rear heat shield
55 111 none MU614 0 muffler bolt
56 111 none MU187 0 muffler nut
o# dtw price 0 1970# 0 Cable Parts .
57 110 $16.0 K63 0000 R brake cable thick black ’68-69
57 111 none K63 0000 R brake cable thick grey ’69-76
59 111 none UI3437 0 clevis pin
60 111 $9.00 L3564 00 clevis clamp with 85,86
61 111 none MU305 0 cottor pin
63 111 $3.00 M277 00 clutch pinch bolt P20
o# dtw price 0 1970# 0 Wheel Parts .
64 222 none G127/I 0 cam shaft
65 222 none G127/L 0 cam washer
66 222 $5.00 G7885/B H59 brake lever
67 222 $0.60 MU280 0 cam nut M6 x 6
68 222 $5.00 G7885/C H60 pinch bolt
69 222 none G7503/1B brake shoe set
70 444 none G7503/1C brake shoe spring
71 444 none CS0046 0 dust cover
72 444 $0.00 L746 00 wheel bearing
101 200 none K94 000 tire 3.00 – 10 street type
101 022 none K85 000 tire 3.00 – 10 trail type
102 222 $0.00 K85 000 tube 3.00 – 10
108 111 none MU72 0 start cable oil ring
1. brake light switch, 2. wiring diagram
External Ignition Ground: The brake light switch is normally closed until the brake lever is pulled. Then the switch is open. This is opposite of what you would expect. On the Dansi ASL204NS magneto the green wire is an external ignition ground powering the brake light. It must always go to ground to have spark.
