Benelli 3V 3VK 3VK-1978

Benelli models with 3V, 3VK, 3VK-1978 engines

49cc vertical cylinder 3-speed grip-shift, manual clutch.

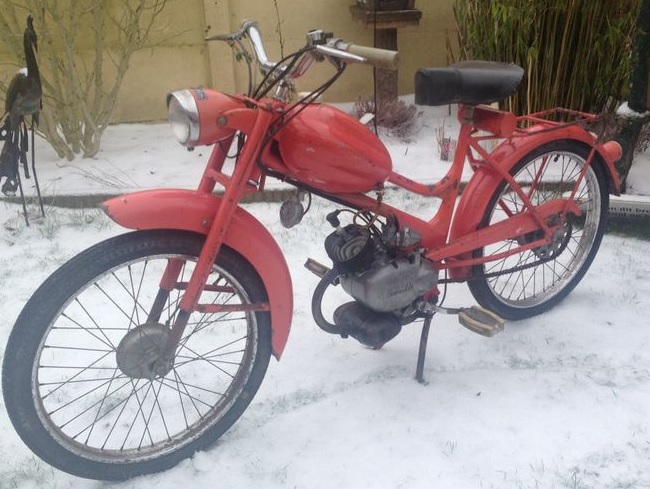

1. 1959 Benelli 3V with 3V engine

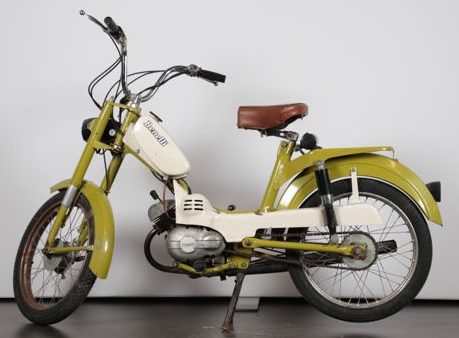

2. ’72 Benelli 3VK with 3VK engine
3. ’73 Benelli Export 3VK
4. Benelli 3VK engine

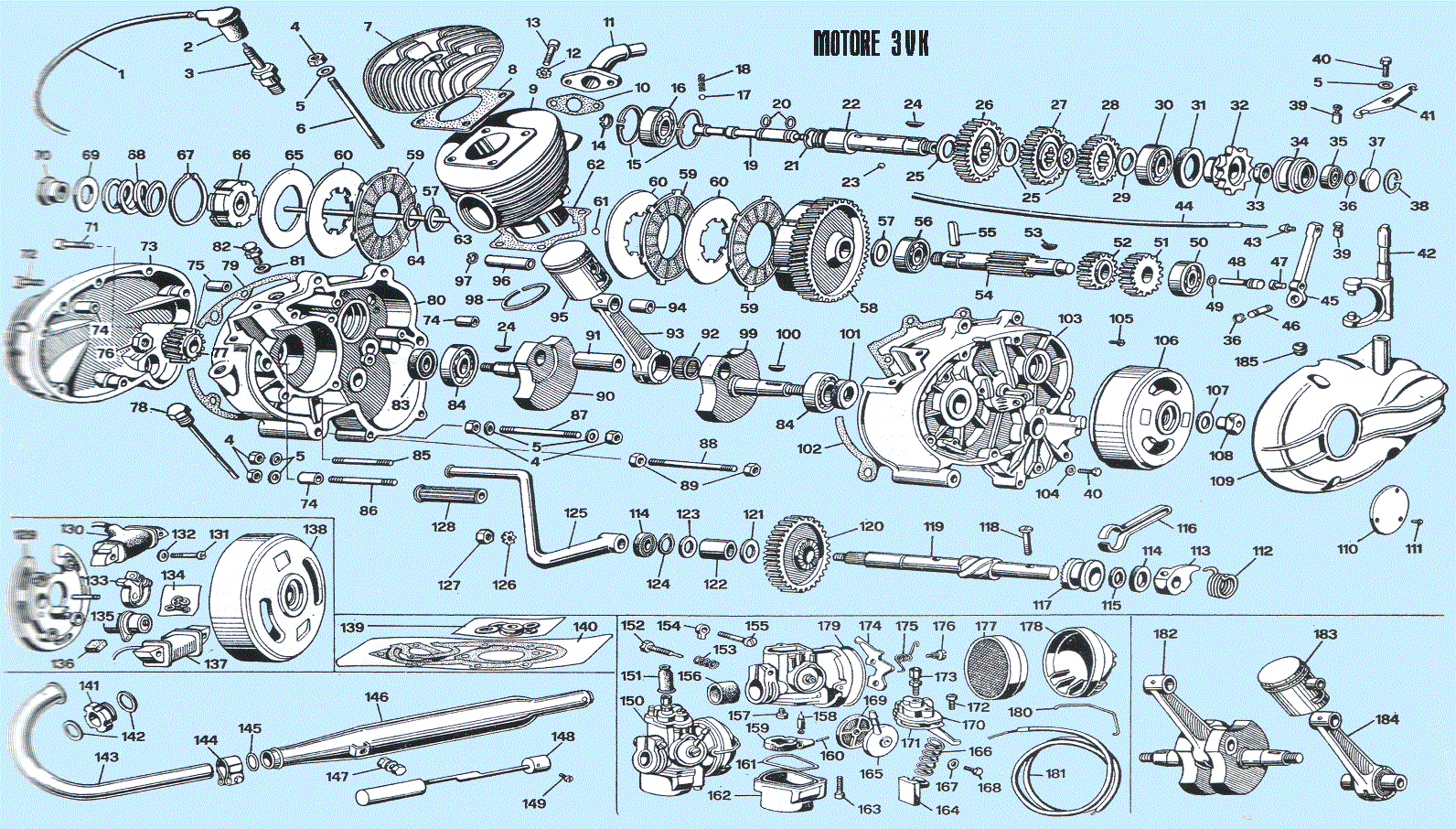

Benelli 3VK engine parts

3V and 3VK partial parts list:

00#  price 0 1980# 0000 1970# 00000 description        specs
004  $0.30 ‌92.60.22.06 MU280 head & ex. nut M6
005  $0.20 ‌95.00.02.06 MU332 head washer ∅6
006  $4.00 ‌96.50.61.05 G7483 cylinder stud M6 x 105 (107 total)
007  N/A     ‌70.02.24.00 G7825 head
008  $7.00 ‌48.02.20.70 G7010 head gasket ∅41
007  N/A     ‌00.00.00.00 G7006/A cylinder (different from FA)
011  N/A     ‌00.00.00.00 G310 intake pipe ∅18 at clamp (different from FA)
062  N/A     00.00.00.00 G7011 base gasket
095  $47.0.0 70.06.04.00 G7346 piston bare dome top hi-comp use #183
096  $10.0 48.06.12.70 G7018 piston pin ∅12 x ?
097  $1.50 90.27.20.12 L339 piston pin clip ∅12
098  $10.0 ‌48.06.08.70 G7347 0 piston ring Std 40.0 x 1.5 GN
098  $22.0 48.06.08.72 G7347/2 piston ring 1os 40.2 x 1.5 GN
098  none   48.06.08.74 G7347/4 piston ring 2os 40.4 x 1.5 GN
098  $10.0 48.06.08.76 G7347/6 piston ring 3os 40.6 x 1.5 GN
106  N/A     70.71.24.00 G7094/4 magneto assy Dansi MSL105
106  N/A     00.00.00.00 G7094/2 magneto assy CEV 6097
106  N/A     70.71.16.20 G00000  magneto assy Dansi 100844  on 3VK NT (Export FA)
133   00.00.00.00 M56/2  points for MSL105 01.3240 photo
135  $15.0 00.00.00.00 M26/2  condenser for MSL105 M17D photo
150  $75.0 70.11.26.00 G29  carburetor Dellorto SHA 14/12L genuine, modern (not all metal)
150  $00.0 00.00.00.00 G29  with correct #58 jet, 18 clamp sleeve, air cover, screen and clip
157  $5.00 35.93.57.00 DE1486/58main jet 58
133  $00.0 00.00.00.00 G7094/2Dpoints for CEV 6097
183  $65.0 70.06.02.20 G7346/C   piston assy Std 40.0 x 17-12-18 GOL
183  N/A     70.06.02.22 G7346/C2 piston assy 1os 40.2 x 17-12-18
183  N/A     70.06.02.24 G7346/C4 piston assy 2os 40.4 x 17-12-18
183  N/A     70.06.02.26 G7346/C6 piston assy 3os 40.6 x 17-12-18

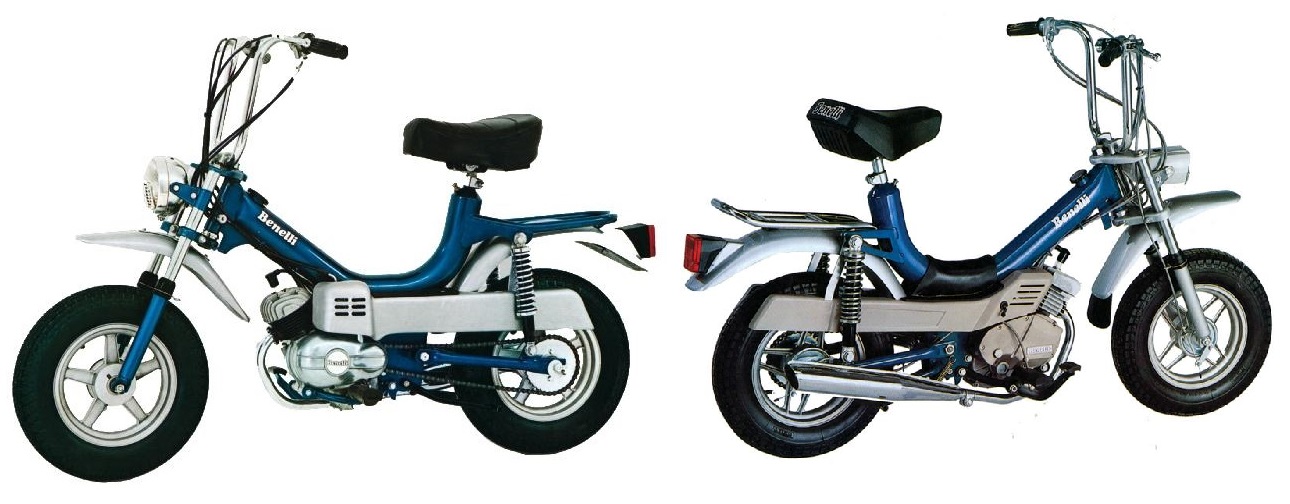

’76 Benelli Magnum 3V   ’78 Benelli Magnum 3V
3VK engine 00000000 3VK-1978 engine

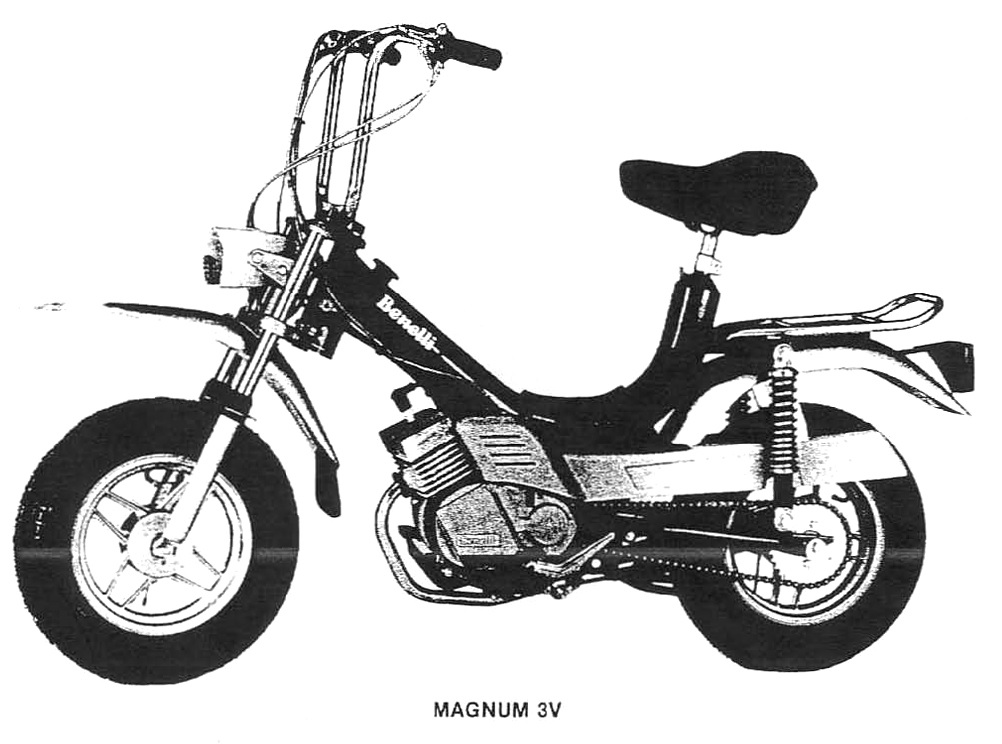

’78 Benelli Magnum 3V
3VK-1978 engine

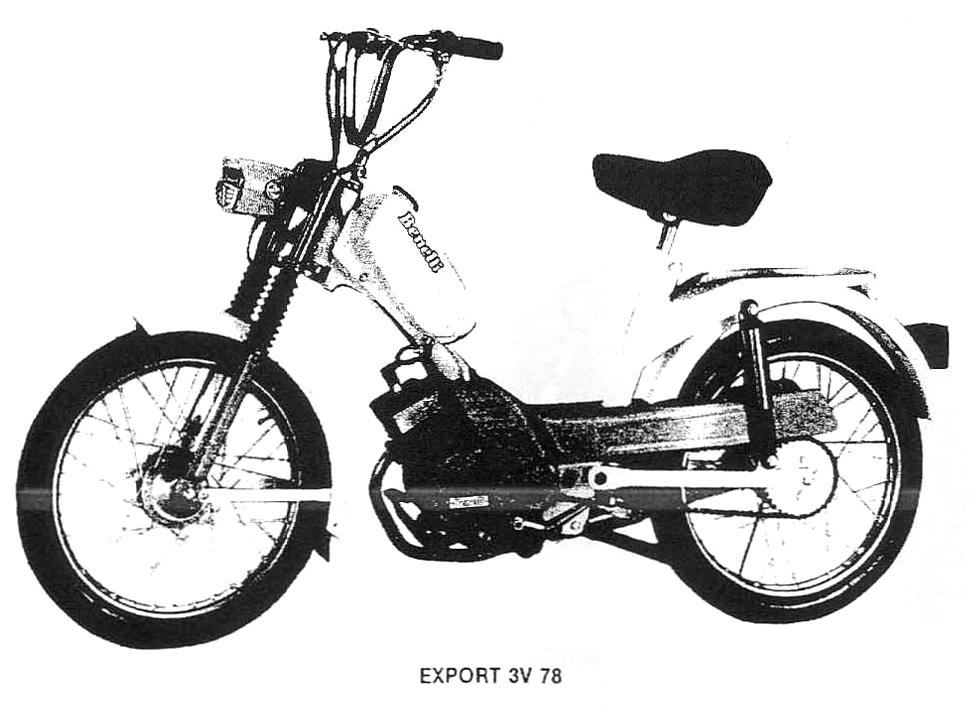

1978 Benelli Export
3VK-1978 engine
