Puch Cables

updated 2022-04











Colors:  original  replacement  application  unknown


Front Brake Cables



Replacement front brake cable, double ended
$13
  0000 204500850/1010 6.5/2.0 lined 35.6 x 4.1
$00  204500  000   replaces these originals:
none
910.810.0020
850/1010 4.8/1.6 plain 35.6 x 4.1
none 910.810.0020  75-76 Maxi N, S, Nostalgic

$25  910.818.0020  850/1010 5.3/2.1 plain 35.6 x 4.1
$00  910.818.0020  76-77 Rigid, Maxi, Newport,
$00  910.818.0020  78-85 GN (Rigid), Maxi,
$00  910.818.0020  78-79 Maxi II, Luxe, Newport L
none 910.819.0020  850/1010 6.4/2.1 lined 35.6 x 4.1
none 910.819.0020  76-77 Maxi Sport
none 910.818.0030  870/1030 5.3/2.1 oiler  36.4 x 4.1
none 910.818.0030  77-79 Sport, 83-86 Maxi Sport LS, LS2,
none 910.818.0030  80-84 Maxi Luxe, Sport MkII, Newport II,
none 910.818.0030  78-79 JC Penney, 84-86 Cobra 1, 2
none 910.819.0040  880/1040 6.4/2.1 lined 36.8 x 4.1
none 910.819.0040  78-79 Sport MkII




Replacement front brake cable, long, double-ended
$25
000 204500L  940/1100 6.5/2.0 lined 39.2 x 4.1
$00
204500L
00   replaces these originals:
$33  910.818.0050  940/1100 5.3/2.1 plain 39.2 x 4.1
$00  910.818.0050  78-79 Magnum XK, MkII
$00  910.818.0050  78-79 Sears Free Spirit
$00  910.818.0050  80-81 Magnum II, MkII
none 300.163.1000  945/1105 5.6/1.7 plain 39.4 x 4.1
none 300.163.1000  79-83 Series B, Murray 80343




Replacement front brake cable, short, no upper adjuster
$25  910.326.0010r 800/925  6.5/2.0 lined 32.3 x 4.1

none
910.326.0010  800/925  5.3/2.1 plain
 32.3 x 4.1
none
910.326.0010
78-79 Magnum X




none 910.810.0000  770/945 5.3/2.1 plain 32.5 x 4.7″
none 910.818.1032  80-81 Magnum LTD (low bars)






none 910.818.1032  900/1040 5.3/2.1 plain 36.2 x 4.7
none 910.818.1032  84-86 Austro Daimler (Maxi Plus I)
none 910.818.0032  900/1040 6.4/2.1 lined 36.2 x 4.7
none 910.818.0032  84-86 Austro Daimler II (Maxi Plus II)






Other Puch Front Brake Cables

Original front brake cables:
none 910.810.0000  000/0000 0.0/0.0 lined
none 000.000.0000  83-85 Dart (Mini Maxi)








Rear Brake Cables



Replacement rear brake cable, double ended
$15  0000 2047001515/1675 6.5/2.0 lined  61.8 x 4.1

$00  204700000   replaces these originals:
none 910.811.0010  1500/1645 4.7/1.6 plain  60.6 x 4.1
none 910.818.0010  75-76 Maxi N

none 910.818.0010  1490/1650 4.7/1.6 plain 60.8 x 4.1
none 910.818.0010  75-76 Maxi S, Nostalgic

none 910.818.0040  1490/1650 5.3/2.1 oiler 60.8 x 4.1
none 910.818.0040  76-77 Rigid, Maxi, Newport,
none 910.818.0040  77-85 GN (Rigid), Maxi
none 910.818.0040  78-79 JC Penney, Sears, Magnum XK
none 910.818.0040  80-83 Magnum II, MkII, LTD

none 910.819.0010  1490/1650 6.4/2.1 lined 60.8 x 4.1
none 910.819.0010  76-80 Maxi Sport, Sport MkII
none 910.819.0010  80-86 Maxi Luxe, Maxi Sport LS, LS2
none 910.819.0010  78-79 Magnum MkII, 84-86 Cobra 1, 2
none 300.163.1100  1495/1655 5.6/1.7 plain 61.0 x 4.1
none 300.163.1100  79-83 Series B, Murray 80342






Replacement rear brake cable, short, no upper adjuster
$25  910.820.0010r 1260/1390  6.5/2.0 lined 50.6 x 4.1

none
910.820.0010  1260/1390  5.3/2.1 plain
 60.6 x 4.1
none
910.326.0010
78-79 Magnum X

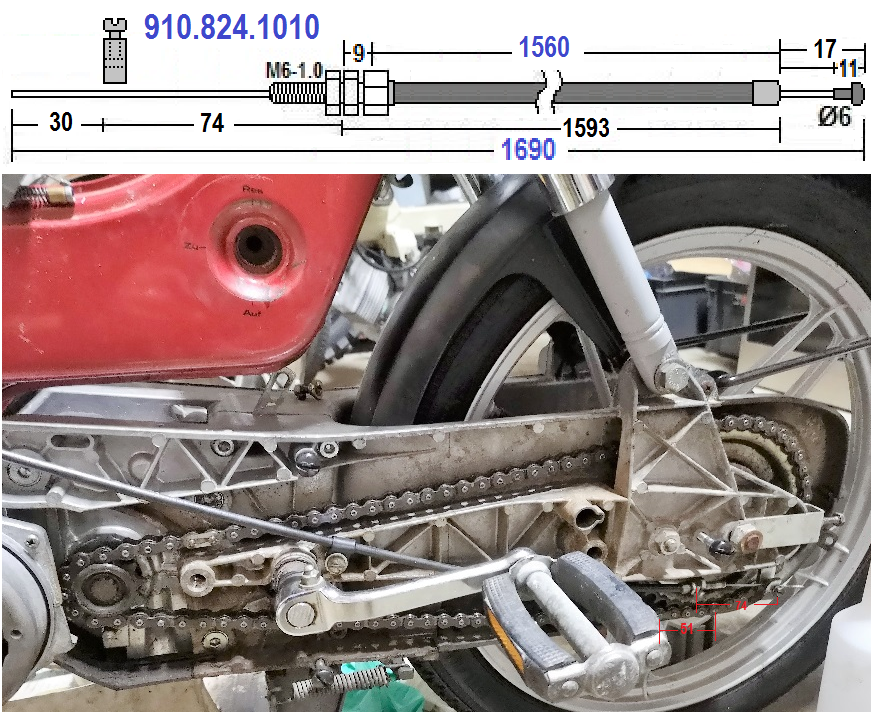

Replacement rear brake cable on left side of bike
$12  910.824.1010r 1560/1690 5.0/1.6 lined 63.1 x 3.4+
$00  910.824.1010r replaces: b

none 910.824.1010 1500/1590
none 910.824.1010 1560/1690 5.3/2.1 plain 63.1 x 3.4+

none 910.824.1010  84-86 Austro Daimler
none 910.824.1010  aka Maxi Plus or Maxi II in Europe

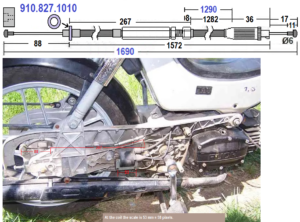

Replacement on right side of bike with inline adjuster
$31  910.827.1010r 1290/1690 5.0/1.6 lined 62.3 x 4.2
none 910.827.1010  replaces:

none 910.827.1010  1290/1690 6.4/2.1 lined 62.3 x 4.2
none 910.827.1010  84-86 Austro Daimler 2
none 910.827.1010  aka Maxi Plus 2 in Europe






Other Puch Rear Brake Cables

Double-ended original rear brake cables
none 910.820.0000  0000/0000 0.0/0.0 lined
none 000.000.0000  83-85 Dart (Mini Maxi)




Throttle Cables



.
.
.



.

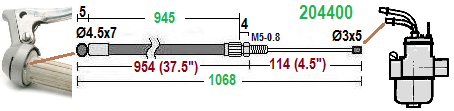

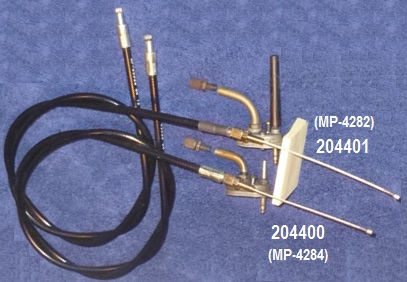

Double-ended short cable pipe replacement
$18  000 204400945/1068 5.0/1.2 lined 37.5 x 4.5
$00  0000 204400
replaces:
none 910.510.0030  895/1026 4.8/1.2 plain
none 910.510.0030  75-76 Maxi N, S, Nostalgic
none 910.510.0030  76-77 Rigid, Maxi, Newport,
none 910.510.0030  77-85 GN, Maxi (1.0, 1.5 hp)
none 910.510.0030  77-78 Maxi Sport, Sport
none 910.510.0030  78-79 Sears Free Spirit, JC Penney
none 300.165.1000  898/1030 4.7/1.3 plain
none 300.165.1000  79-83 Series B, Murray 80353
none MP-4282 00o0  898/1026 4.8/1.2 plain
none MP-4282 00o080’s replacement




.
.
.
.
.

.

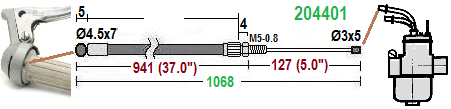

Double-ended long cable pipe replacement
$12  0000 204401932/1068 5.0/1.2 lined  37.0 x 5.0
$00  204401000   replaces:

none 910.510.0050  895/1031 4.8/1.2 plain
none 910.510.0050  77-85 GN (Rigid), Maxi (2.0 hp)
none MP-4284 00o0  895/1031 4.8/1.2 plain
none MP-4284 00o080’s replacement




Single-ended sliding-block replacement for either cable pipe
$10  0000 409500900/1010 5.0/1.2 lined 35.6 x 4.2+
$00  409500000   replaces:

none 910.522.0010  900/1010 4.8/1.2 plain 35.6 x 4.2+
none 910.522.0010  78-79 Maxi Luxe, Newport L
none 910.522.0010  78-81 Sport, Sport MkII, Maxi II
none 910.522.0010  80-81 Newport II (to 5365319)
none 910.522.0010  80-81 Maxi Luxe (to 7743644)
none 910.522.0010  78-79 Magnum XK, MkII
none 910.522.0010  80-81 Magnum II, MkII

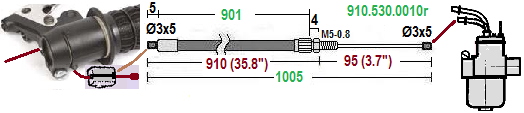

Double-ended sliding-block short cable pipe replacements
$24  910.530.0010r 901/1005 5.0/1.2 lined 35.8 x 3.7

$28  910.530.0010  900/1005 4.7/1.3 oiler  35.8 x 3.7
$00  910.530.0010  81-82 Magnum MkII ?

$24  910.530.0000r 760/865 5.0/1.2 lined 29.9 x 3.7
$25  910.530.0000  760/865 4.7/1.3 oiler 29.9 x 3.7
$00  910.530.0000  80-81 Magnum LTD (low bars)

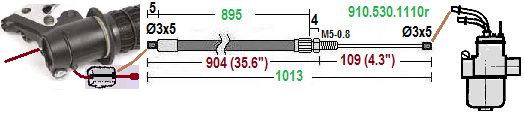

Double-ended sliding-block long cable pipe replacement
$24  910.530.1110r 895/1013 5.0/1.2 lined 35.6 x 4.3

none 910.530.1110  895/1013 4.7/1.3 oiler  35.6 x 4.3
none 910.530.1110  81-83 Newport II (from 5365320)

none 910.530.1110  81-86 Maxi Luxe (from 7743645)
none 910.530.1110  84-86 Maxi Sport LS, LS2, Cobra 1, 2




Other Puch Throttle Cables

Double-ended original throttle cables:
none
910.528.0012  700/765    4.7/1.3 plain

none
910.528.0012
78-79 Magnum X (wrap-around)
none 910.500.0000  000/000    0.0/0.0 oiler 
none 000.000.0000  83-85 Dart (Mini Maxi)
none 910.531.1060  955/1070 5.7?/1.3 lined
none 910.531.1060  84-85 AD (sliding block throttle)
none 910.504.1130  970/1110 5.7?/1.3 lined
none 910.504.1120  85-86 AD (wrap-around throttle)






Start (Clutch) Cables

for ONE SPEED Automatic (E50)



One-speed single-ended replacement
$12  204800000   850/1100 6.0/2.0 lined

$00
204800
000   aka 33.5 x 9.8+ replaces:
$15  910.211.0010  800/1050 4.8/1.6 plain
$00  910.211.0010  75-76 Maxi N, S, Nostalgic
$00  910.211.0010  76-77 Rigid, Maxi, Newport
$00  910.211.0010  77-85 GN, Maxi, Maxi Sport, Sport
$00  910.211.0010  78-79 Maxi Luxe, Newport L

$15
910.211.0030  850/1100 4.8/1.6 plain

$00
910.211.0030  80-84 Maxi Luxe
$00  910.211.0030  84-86 Maxi Sport LS
none 910.228.0020  850/1055 0.0/1.6 lined
none 910.228.0020  84-86 Cobra 1
$12
  MP-4360 000   850/1100 6.0/2.0 plain
$00
  MP-4360 000   80’s replacement




One-speed long single-ended replacement
$12  204800L00   960/1120 5.0/1.6 lined

$00
204800L
00   aka 37.8 x 6.3+ replaces:
none 910.228.0010  960/1120 4.8/1.6 plain
none 910.228.0010  78-79 Magnum XK
none 910.228.0010  78-79 Sears Free Spirit
none 910.228.0010  79-83 Series B, Murray 80344

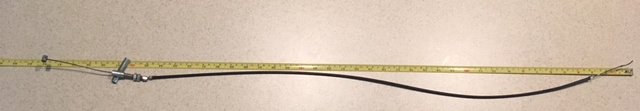

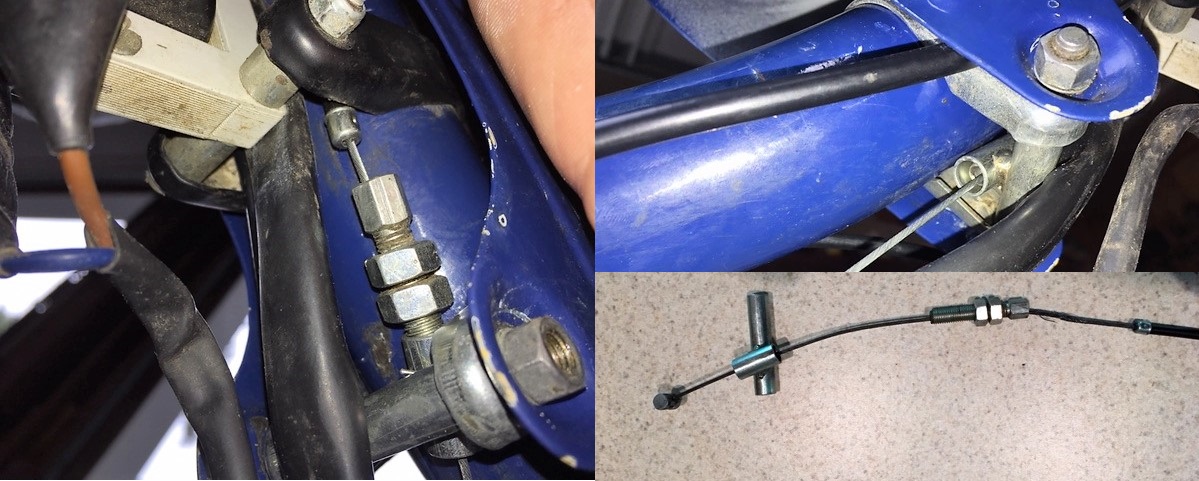

One-speed short single-ended replacement
$15  204800S00   810/1100 5.0/1.6 lined

$00
204800S
00   aka 31.9 x 11.4+ replaces:
none 910.000.0000  810/1080 4.8/1.6 plain
none 910.000.0000  78-79 JC Penney Pinto, Swinger






Other 1-Speed Start Cables

Single-ended 1-speed original start cables:
none 910.021.0010  1005/1150 0.0/1.6 lined
none 910.021.0010  84-86 Austro Daimler (Maxi Plus)






Start (Clutch) Cables

for TWO SPEED Automatic (ZA50)




OUTER CABLES 414 for short cup  (on ’78-79)
none 910.414.0020  890/1020  4.7/1.6 assembly
$12  000 414.0020r 890/1020  5.0/1.6 lined, bare

none 910.414.0020  78-79 Magnum MkII

none 910.414.0030  930/1060  4.7/1.6 assembly
$12  000 414.0030r 930/1060  5.0/1.6 lined, bare

$00  910.414.0030  78-79 Maxi II, Sport MkII
OUTER PARTS 414 for short cup
$19  910.414.0020a adapter bolt M7-1.0 ∅3.5 10hex
$18
  910.414.0020b short cup used

$$7
  910.420.0020c Magura adjuster large
$$6
  910.424.0060d inner wire 1100 with ∅6 ∅3.5 end

INNER PARTS 412 for short cup
$32  910.412.0010  inner cable assembly 412
$00  910.412.0010  78-79 Maxi II, Sport MkII
$00  910.412.0010  78-79 Magnum MkII

$15  910.412.0010a adaptor nut short
M7-1.0, M7-1.0
0$4  910.412.0010b shell-cylinder short type

none 910.412.0010c inner cable 66 mm

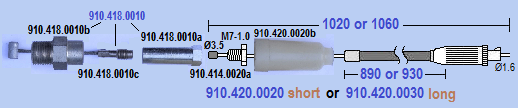

OUTER CABLES 420 for long cup  (on ’80-81)
$35  910.420.0000
730/850  4.7/1.6 assembly
$12  000 420.0000r 730/850    5.0/1.6 lined, bare
none 910.000.0000  80-81 Magnum LTD (low bars)

$45  910.420.0020  890/1020  4.7/1.6 assembly
$00  910.420.0020  (910.420.0030 shortened)

$12  000 420.0020r 890/1020  5.0/1.6 lined, bare

none 0000 MP-4364  80’s remake (end pops off)
$00  910.420.0020  80-81 Magnum II, MkII

$44  910.420.0030  930/1060  4.7/1.6 assembly
$12  000 420.0030r 930/1060  5.0/1.6 lined, bare

none 0000 MP-4362  80’s remake (end pops off)
$00  910.420.0030  80-81 Sport MkII,
$00  910.420.0030  80-82 Newport II (to 5365319)

OUTER PARTS 420 for long cup
$19  910.414.0020a adapter bolt M7-1.0 ∅3.5 10hex
$11
  910.420.0020b long cup
$$7
  910.420.0020c Magura adjuster large
$$6
  910.424.0060d inner wire 1100 with ∅6 ∅3.5 end

INNER PARTS 418 for long cup
$29  910.418.0010  inner cable assembly 418

$25  000  MP-4366   80’s remake of 910.418.0010
$00  910.418.0010  80-81 Sport MkII,
$00  910.418.0010  80-82 Newport II (to 5365319)
$00  910.418.0010  80-81 Magnum II, MkII, LTD

$11  910.418.0010a adaptor nut long M7-1.0, M7-1.0
$$2  910.418.0010b inner cable shell-cylinder long

$18  910.418.0010c inner cable 66 mm

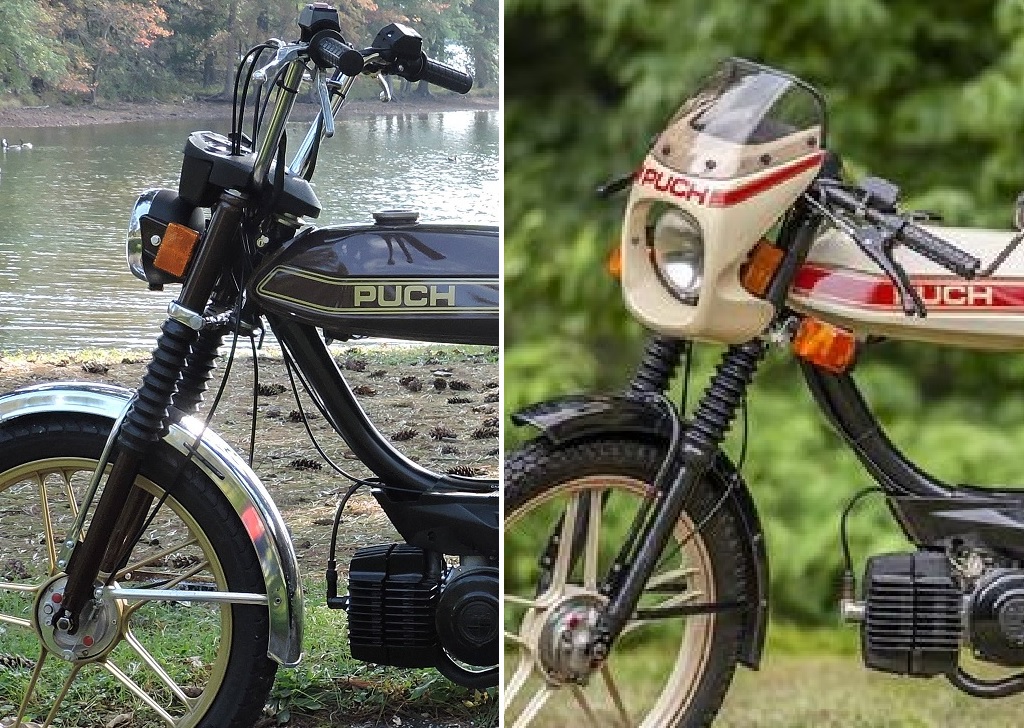

Magnum LTD cables are about 160 mm (6.3″) shorter because of the low bars.
Measured from actual cables:
start cable is  890 – 730 = 160 shorter
throttle is 900-760 mm = 140 shorter
front brake is 940 – 770 = 170 shorter

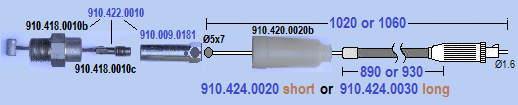

OUTER CABLES 424 service-friendly  (on ’82-86)
none 910.424.0020  890/1020  4.7/1.6 assembly
$12 000 424.0020r 890/1020  5.0/1.6 lined, bare cable

$00  910.424.0020  84-86 Cobra 2

$44  910.424.0030  930/1060  4.7/1.6 assembly
$12 000 424.0030r 930/1060  5.0/1.6 lined, bare cable

$00  910.424.0030  82-83 Newport II (from 5365320)

$00  910.424.0030  84-86 Maxi Sport LS 2
none 910.424.0060  950/1085 4.7/1.6 assembly
$12 000 424.0060r  950/1085  5.0/1.6 lined, bare cable

none 910.424.0060  84-86 Austro Daimler 2 (Maxi Plus 2)
OUTER PARTS 424
$11
  910.420.0020b long cup
$$7
  910.420.0020c Magura adjuster large
$$6
  910.424.0060d inner wire 1100 with ∅6 ∅3.5 end

INNER PARTS 422
none 910.422.0010  inner cable assembly 422
none 910.422.0010  81-83 Newport II (from 5365320)
none 910.422.0010  84-86 Maxi Sport LS 2, Cobra 2
none 910.422.0010  84-86 Austro Daimler 2 (Maxi Plus 2)

none 910.009.0181  adaptor nut long Ø6 hole, M7-1
$$2  910.418.0010b inner cable shell-cylinder long

$18  910.418.0010c inner cable 66 mm
