Honda Cables

Honda moped cables have many versions and differences. This is an illustrated spec sheet and price list combined. Showing what all the lengths and specs are allows substitutes to be found or replacements to be made or modified.






1977-79 Honda NC50 Express

These 1977-79 silver cables interchange with 1980 black ones.

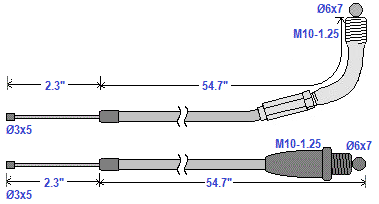

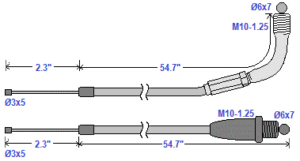

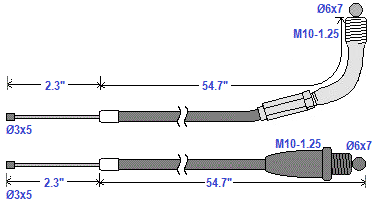

17910-147-030   throttle cable silver none
57.0″ goes inside frame, PA08B, no cable pipe

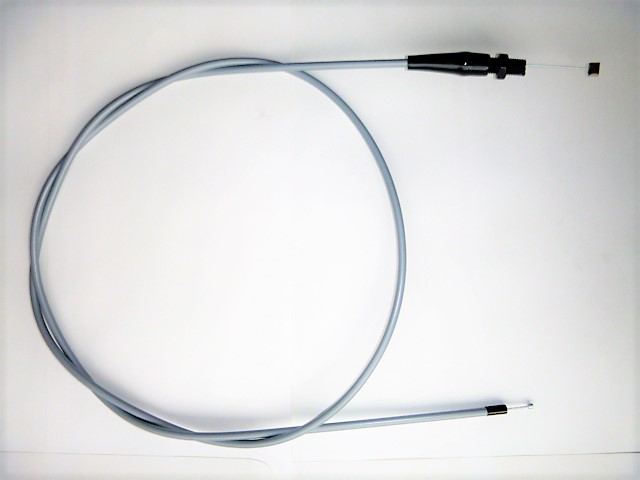

17910-147-030r  replacement gray     $35



14950-147-020  choke cable silver    none
56.3″ goes inside frame, orig. had grommet
14950-147-020r replacement gray      $23



45450-190-670  front brake cable sil none
42.4″ total length
45450-190-670r replacement gray     none



43450-147-712 rear brake & start sil none
57.4″ goes inside frame, 57.4″ total
43450-147-712r replacement gray     none






1980 Honda NC50 Express

These 1980 black cables interchange with 1977-79 silver ones.



17910-147-650   throttle cable black  none
57.0″ goes inside frame, PA08B, no cable pipe
17910-147-650r  replacement black     $35



14950-147-650  choke cable  black  none
56.3″ goes inside frame, orig. had grommet
14950-147-650r replacement black  $23



45450-190-671  front brk cable blk  none
42.4″ total length
45450-190-671r replacement black  none



43450-147-970  rear brk & start blk none
57.4″ new# 43450-147-651
43450-147-970r replacement black none

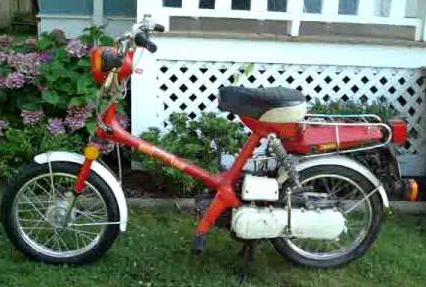

1981 Honda NC50 Express

For 1981 the wind-up start was changed to direct kick start, so the rear brake cable no longer had to operate the starter. Also the unregulated oil injection pump became regulated by a split throttle cable.



17910-191-850  throttle cable A blk none
48.0″ goes inside frame, to splitter, not carb
17910-191-850r replacement  black  $36



17911-191-010  throttle cable B blk none
13″ rotary splitter with 2 cables, to oil pump
and to PA15A carb with cable pipe
Et=2.4″, Eo=?, Ct=?, Co=?
17911-191-010r replacement  black none



45450-190-671  front brk cable  blk none
42.4″ total, same as 1980
45450-190-671r replacement black none



43450-191-405 rear brake cable blk none
57.4″, inside frame, no more wind-up start
43450-191-405r replacement black none

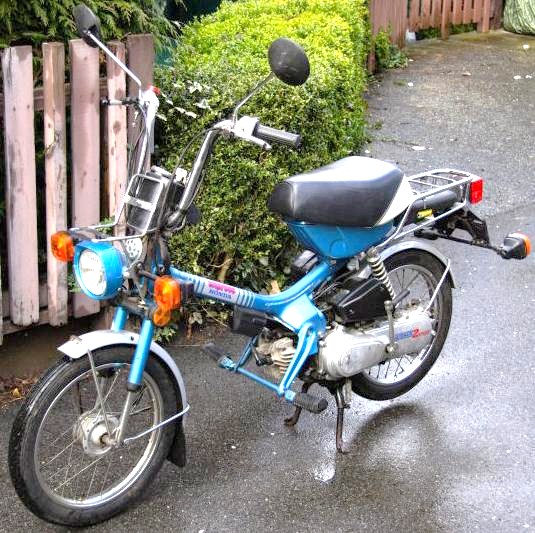

1982-83 Honda NC50 Express

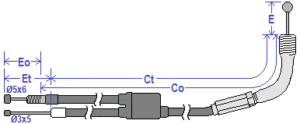

17910-GA6-670  throttle cable black none
57.5″ goes outside frame, 1-into-2 cables
to PA13B carburetor with long cable pipe
E=?, Et=?, Ct=?
17910-GA6-670r replacement  black none



45450-187-672  front brk cable  blk none
42.4″ total, longer rubber boot
45450-GA6-670r replacement  black none



43450-GA6-670  rear brk cable  blk none
57.4″ total, goes inside frame
43450-GA6-670r replacement black none

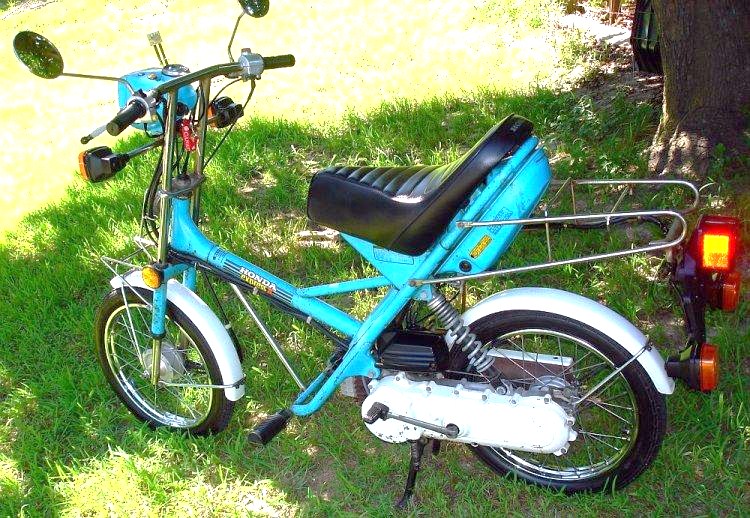

1979-80 Honda NA50 Express II





17910-163-000  throttle cable silver none
59.5″ goes outside frame, also 17910-162-010
to PA08C or PA08D carb, no cable pipe
17910-163-000r replacement gray    $35



14950-163-010   choke cable   silver none
58.8″ goes outside frame, also 14950-162-010
14950-163-010r replacement  gray    $23



45450-193-670   front brk cable silv none
45.4″ can be 42.4″ routed more directly
45450-193-670r replacement  gray   none



43450-163-670  rear brk & start silv none
60.4″ outside frame, new# 43450-163-671
43450-163-670r replacement  gray   none






1981 Honda NA50 Express II

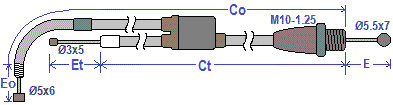

17910-193-671  throttle cable silver none
goes outside frame, 1-into-2 cables
to PA16A carb with cable pipe
60.0″ E+Ct+Et=60″, E+Co+Eo=57″
17910-193-671r replacement gray   none



45450-193-670   front brk cable silv none
45.4″ total, can be 42.4″ with NC50 routing
45450-193-670r replacement  gray   none



43450-193-670   rear brk cable  silv none
60.4″ total
43450-193-670r replacement  gray   none

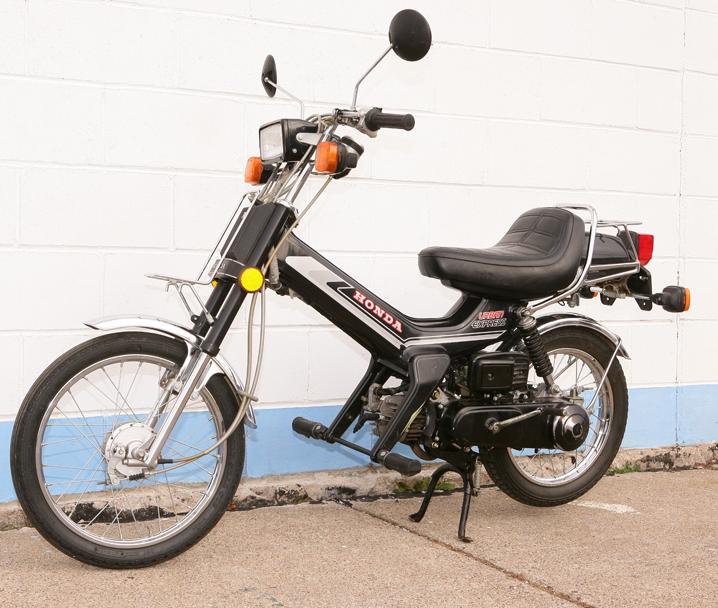

1982-83 Honda NU50 Urban Express

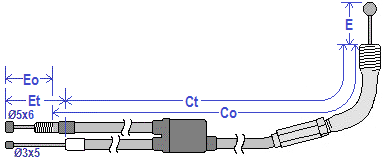

17910-GC1-000  throttle cable silver none
51″?? outside frame, 1-into-2 cables
to PA13E carburetor with cable pipe
17910-GC1-000r replacement  gray   none



45450-GC1-000   front brk cable silv none
52.0″ total, rod type
45450-GC1-000r replacement gray   none



43450-GC1-000   rear brk cable  silv none
67.0″, fits ’85-90 Spree but is 2″ longer
43450-GC1-000r replacement gray   none
43450-GC1-020r replacement black none






1978-79 Honda PA50 Hobbit

The PA50 front brake cable angles more upward, like European mopeds, unlike NC50 and Japanese motorcycles. Because of the more direct routing, the cable is shorter.

The benefit of Japanese routing is no interaction with the suspension (going over bumps does not affect the braking), while the benefit of European routing is convenience, because the cable does not hang out and interfere or get damaged.

17910-148-671  throttle cable silver none
43.7″ = 4.0 + 39.7
17910-148-671r replacement gray    $20



14950-148-010   start (decomp) silv none
32.75″ = 1.25 + 31.5
14950-148-010r replacementgray   $13
34.4″ = 1.2 + 33.2    #2071



45450-148-670   front brk cable silv none
38.4″ = 3.6 + 34.8
45450-148-670r replacement  gray   none



43450-148-670   rear brk cable  silv none
57.0″ = 2.0 + 2.4 + 52.6
43450-148-670r replacement  gray   $18
57.8″ = 2.1 + 2.4 + 53.3    #2106






1980-83 Honda PA50 Hobbit

The ’80-83 PA50 black handlebars are 2.1 inches taller than ’78-79 PA50 chrome handlebars. So all of the cables are 2.1 inches (53 mm) longer. These longer ’80-83 cables fit on a ’78-79 but have to bend forward against the side of the headlight.



17910-148-780  throttle cableblack none
45.8″ = 4.0 + 41.8
17910-148-780r replacementblack  $19



14950-148-020B start-decomp  blk none
35.5″ = 1.25 + 34.25
14950-148-020Br replacement black none
34.4″ = 1.2 + 33.2    #2072



45450-148-671   front brk cable blk none
40.5″ = 3.6 + 36.9
45450-148-671r replacement black none



43450-148-671B rear brk cable blk none
59.1″ = 2.0 + 2.4 + 54.7
43450-148-671Br replacement blk  none

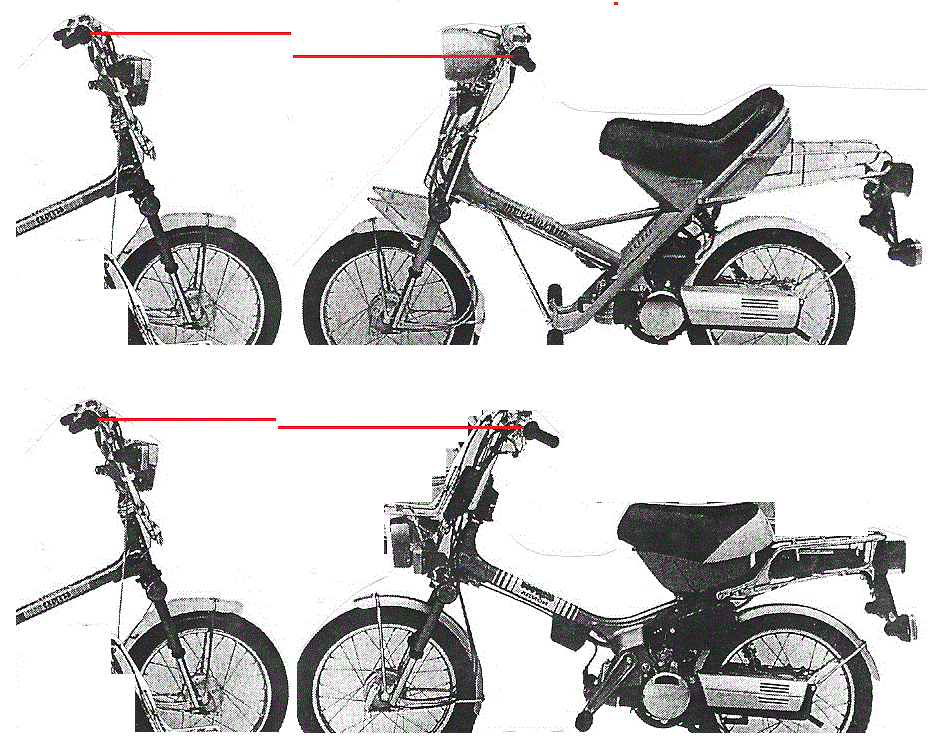

NC/NA50 comparison

FRONT BRAKE CABLE – length measurements, calculations and estimations

Treatland conduit length TC is “from top of metal cable end to the edge where the black housing plastic meets the threaded rod adjuster thing”. Myrons conduit length MC is defined by the illustration. So TC = MC – 0.9″

Treatland total length TT and Myrons total length are defined the same. So TT = MT.

Exposed length is calculated. TE = TT – TC and ME = MT MC. So TE = MT – MC + 0.9 and TE =  ME + 0.9″.

TC     TT      TE  upper  lower
MC     MT    ME
====================
00.0   00.0   0.00  ∅8   ∅8  45450-190-670  77-79 NC50 F brake silver
00.0   00.0   0.00  ∅8   ∅8  45450-190-671  80-81 NC50 F brake black
38.8   42.4  .3.6               measured

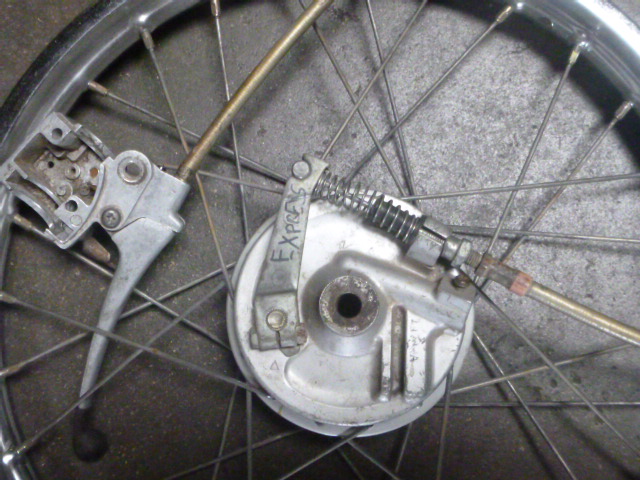

PA50 front cable fits
NC50 except for length

00.0   00.0   0.00  ∅8   ∅8  45450-193-670 79-81 NA50 F brake black
41.8? 45.4? 3.6                   3″ longer cable (estimated)

36.5   42.25 5.75  ∅8   ∅8  45450-GA6-671 82-83 NC50 F brake black
38.8? 42.4? 3.6                   longer rubber boot

47.0   52.0   5.00  ∅8  rod  45450-GC1-000 82-83 NU50 F brake silver
47.7? 52?  2.2+2.1?            longer cable for longer fork

33.5   38.0   4.50  ∅8   ∅8  45450-148-670  78-79 PA50 F brake silver
33.5   38.0   4.50  ∅8   ∅8  45450-148-671  80-83 PA50 F brake black
34.8   38.4   3.6                  measured – cable goes more straight down




REAR BRAKE CABLE – length measurements, calculations and estimations



TC     TT      TE  upper  lower
MC     MT    ME
====================
42.0   58.0   16.0  ∅8  rod  43450-147-712 77-79 NC50 R br/st silver
43.0   59.0   16.0  ∅8  rod  43450-147-651 80-80 NC50 R br/st black
44.0   58.5   14.5  ∅8  rod  43450-190-670 80-81 NC50 R brake silver
00.0   00.0   0.00  ∅8  rod  43450-191-405 81-81 NC50 R brake black
42.7   57.4   14.7                 measured

00.0   00.0   0.00  ∅8  rod  43450-163-670 79-80 NA50 R br/st silver
46.0   61.0   15.0  ∅8  rod  43450-193-670 81-81 NA50 R brake silver
45.7? 60.4? 14.7?               3″ longer? than NC50, for longer frame

00.0   00.0   0.00  ∅8  rod  43450-GC1-000 82-83 NU50 R brk silver
60.0   67.0    7.0   ∅8  rod  43450-GC1-020 82-83 NU50 R brk black
61.1?  67?     5.9?               9.6″ longer? than NC50, cable stop is closer

00.0   00.0   0.00  ∅8  rod  43450-GA6-670 82-83 NC50 R brk black
51.5? 57.4?  5.9?                 same length? as NC50, cable stop is closer

53.0   57.0   4.0   ∅8  rod  43450-148-670  78-79 PA50 R brk silver
52.6? 57.0? 4.4?

00.0   00.0   0.00  ∅8  rod  43450-148-671B 80-83 PA50 R brk black
54.7? 59.1? 4.4?

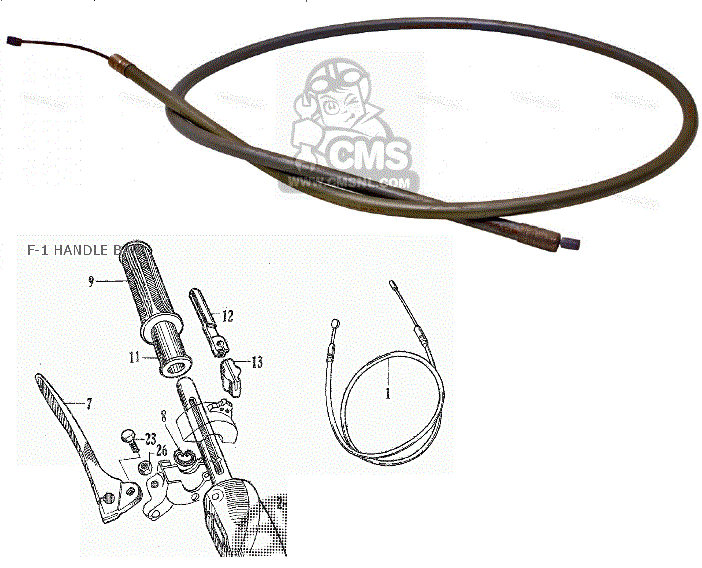

Honda C100 Throttle Cable
