Cycles Peugeot USA Parts Catalog
1. Catalogs late 64390 dark brown and early Ref 80 light brown.

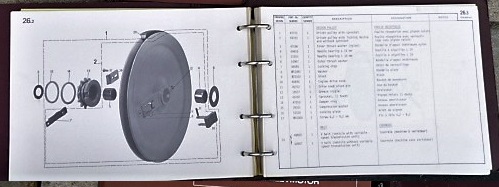

2. The list can be on the same page as the picture, or it can be on the next page. Here the picture is on page 26.2 and the list is on 26.3. The table of contents says the list page numbers.

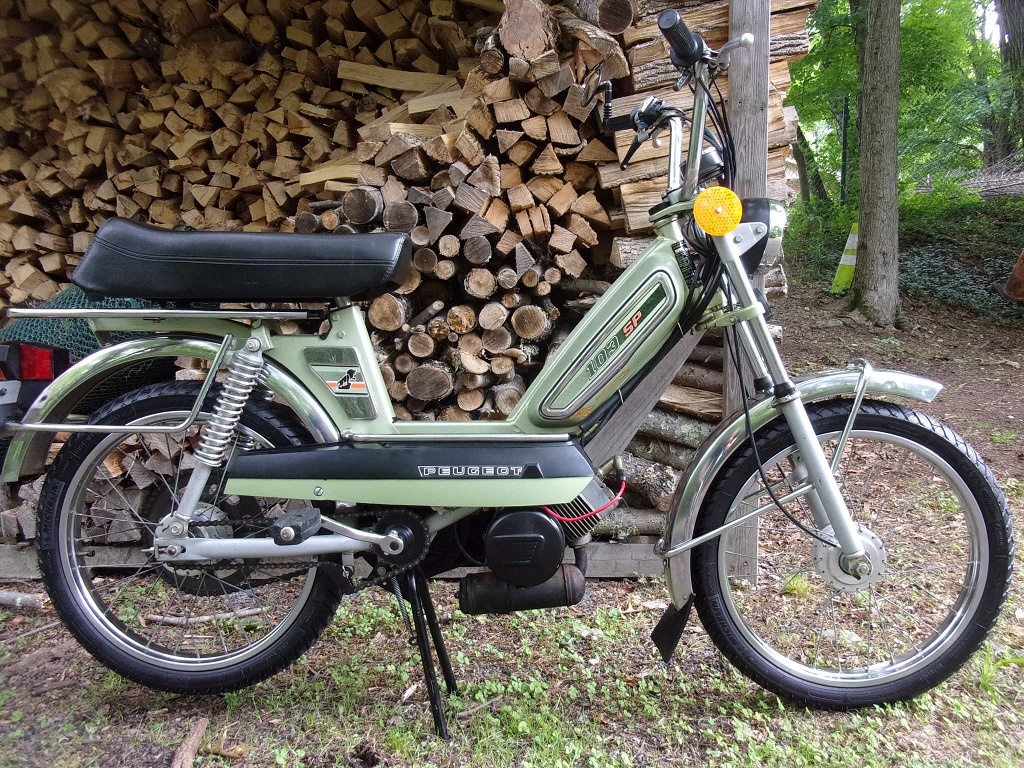

Parts are for these 16 US Models
1. 0 0 ’80-83 102 SP U3
2,3. 0 ’80-83 102 SPB U2, U3
4. 0 0 ’76-79 103 LS U1
5,6. 0 ’76-79 103 LVS U2, U3
5,6. 0 ’80-83 103 LVS U2, U3

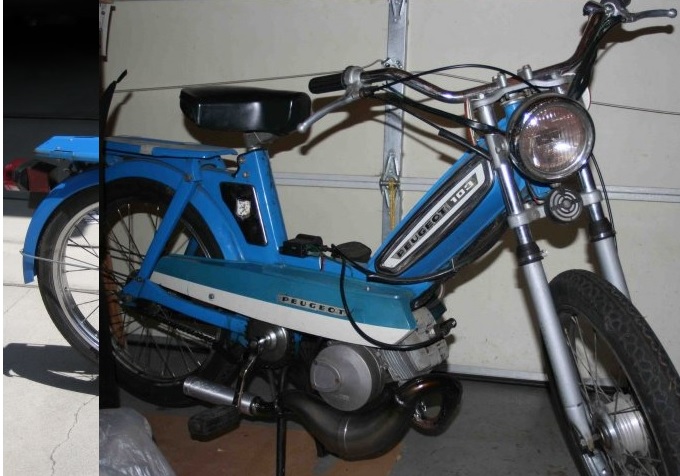

7,8,9. ’76-79 103 L2 U1, U2, U3
10,11. ’78-79 103 SP U2, U3
10,11. same except long seat added on
12,13. ’80-83 103 SPB U2, U3
14,15. ’80-83 103 SPR U2, U3
16. 00 ’80-83 TSM U3
The U numbers are speed versions. U1 is 20 mph, U2 is 25, U3 is 30.
Non-Engine Table of Contents
Here is the 6 page Table of Contents for the Cycles Peugeot USA Parts Catalog. Parts groups 1 to 19 are engine parts and groups 20 to 57 are non engine parts. They are the rows in the table.
There are 16 bike models. They are the columns in the table. Each row (parts group) has several parts pages. Each page has an illustration and a parts list.
Examples: For pedal cranks for a Peugeot 103 SP, the table says 24 is the group and 3 is the page, so those parts would be on page 24.3. For a 102 SP it says 24 and 4, so those parts would be on page 24.4.
00 1 1 1 1 1 1 1 1 . 1 1 1 1 1 1 1 T
00 0 0 0 0 0 0 0 0 . 0 0 0 0 0 0 0 S
00 2 2 2 3 3 3 3 3 . 3 3 3 3 3 3 3 M
00 S S S L L L L L . L S S S S S S
00 P P P S V V 2 2 . 2 P P P P P P
00 0 B B 0 S S 0 0 . 0 0 0 B B R R
00 u u u u u u u u . u u u u u u u u
00 3 2 3 1 2 3 1 2 . 3 2 3 2 3 2 3 3
20 1 1 1 1 1 1 1 1 . 1 1 1 1 1 1 1 2 anti-theft lock
21 0 0 0 0 0 0 0 0 . 0 0 0 0 0 0 0 1 chain guard
22 1 1 1 1 1 1 1 1 . 1 1 1 1 1 1 1 1 color chart
23 5 5 5 3 3 3 3 3 . 3 3 3 3 3 3 3 3 cables
24 4 4 4 1 2 2 1 1 . 1 3 3 3 3 3 3 5 cranks
26 5 5 5 3 3 3 3 3 . 3 3 3 3 3 3 3 3 driven pulley
27 0 0 0 1 1 1 1 1 . 1 1 1 0 0 0 0 0 electrics ’76-79
27 2 2 2 3 3 3 0 0 . 0 0 0 3 3 3 3 4 electrics ’80-83
28 0 0 0 1 1 1 1 1 . 1 1 1 0 0 0 0 0 elec. horn ’76-79
28 2 2 2 3 3 3 0 0 . 0 0 0 3 3 3 3 3 elec. horn ’80-83
29 0 0 0 3 3 3 3 3 . 3 3 3 0 0 0 0 0 elec. items ’76-79
29 5 5 5 11 11 11 0 0 . 0 0 0 7 7 7 7 9 elec. items ’80-83

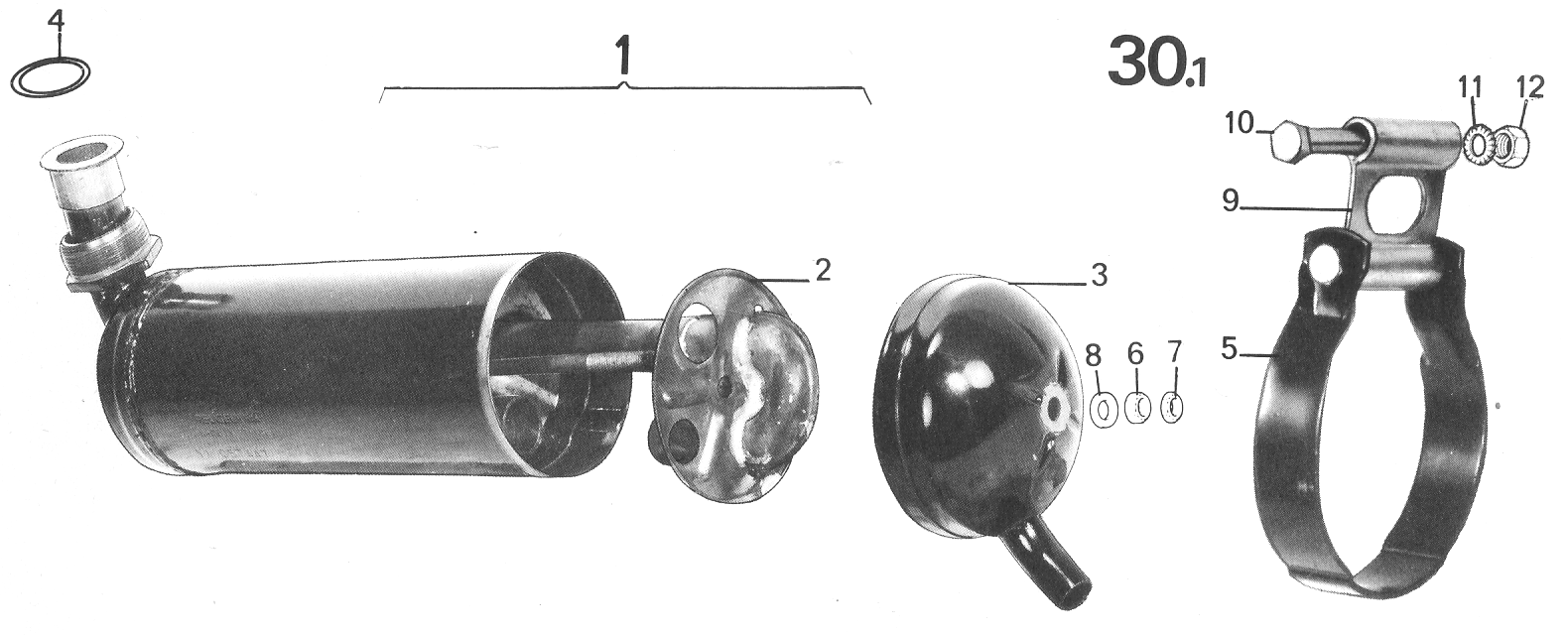

30 0 0 0 1 2 3 1 2 . 3 2 3 0 0 0 0 0 exhaust ’76-77
30 6 6 6 1 2 3 1 2 . 2 2 2 2 2 2 2 4 exhaust ’78-83

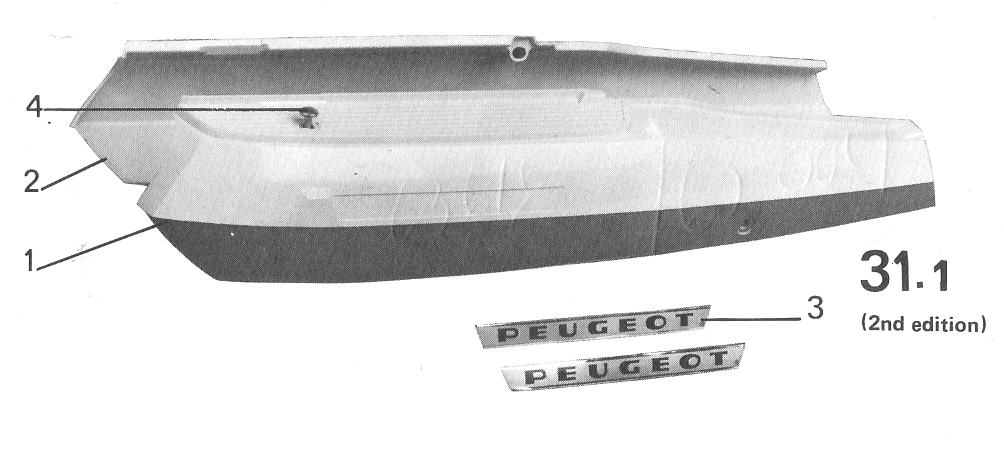

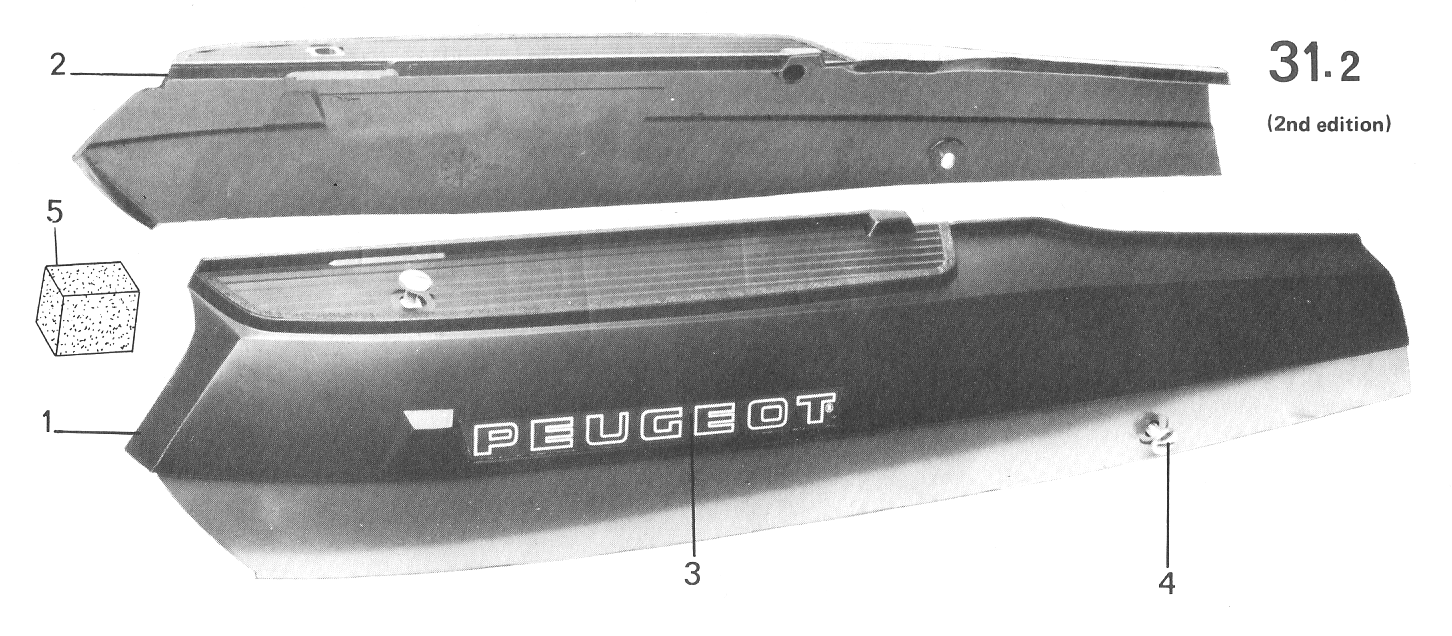

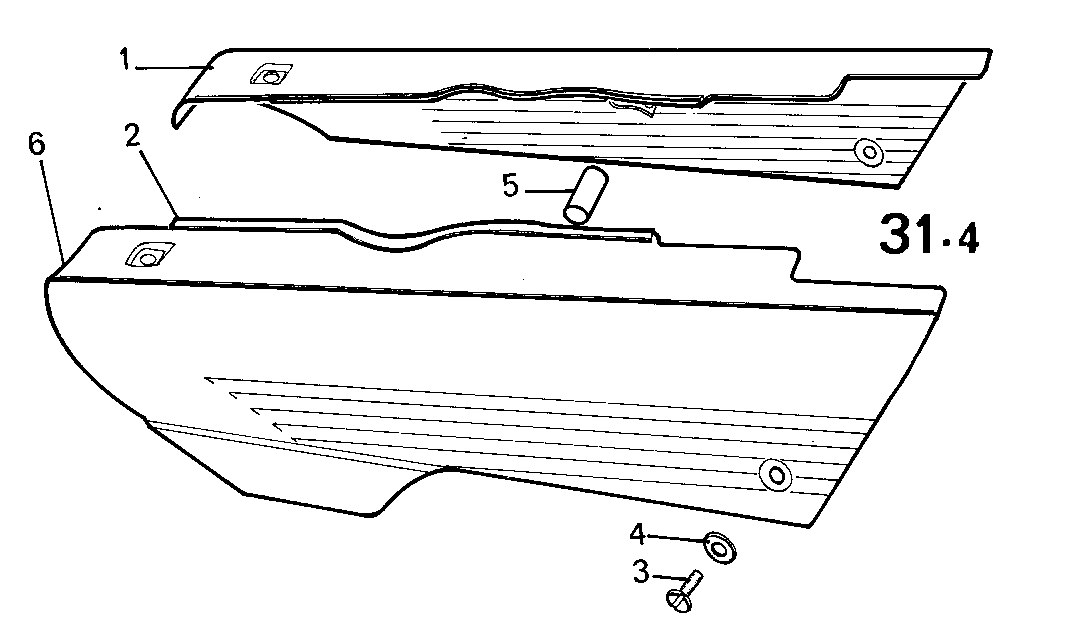

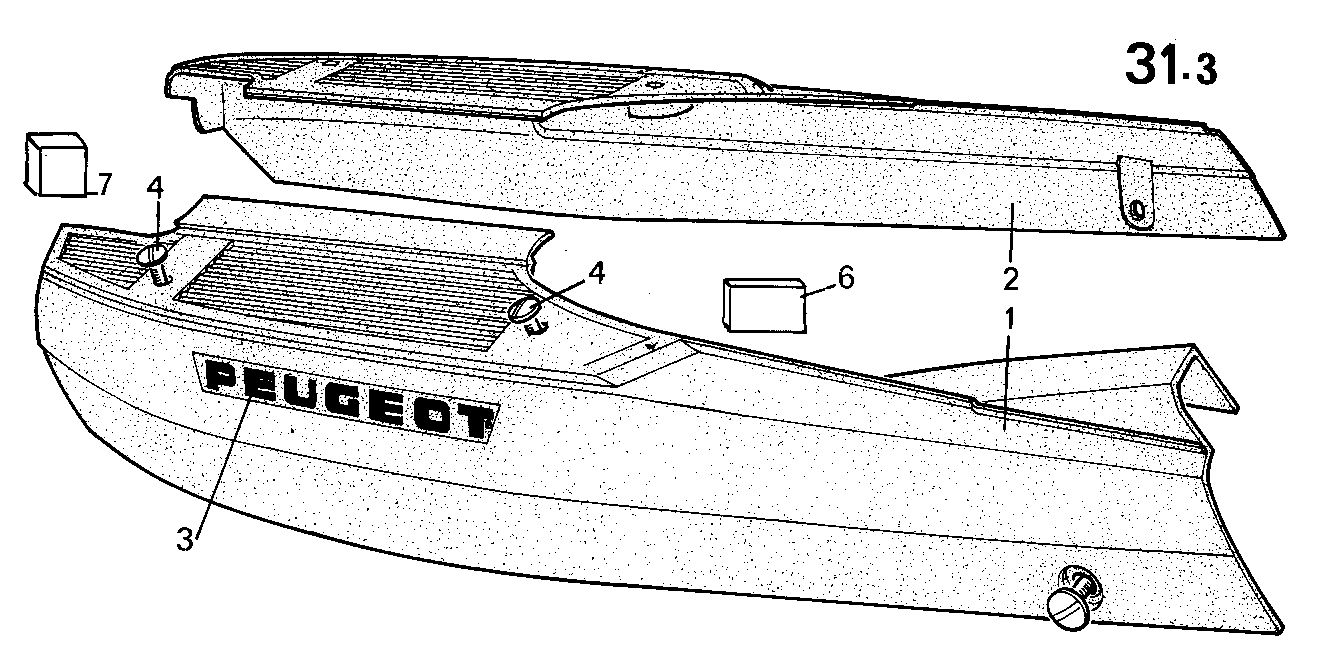

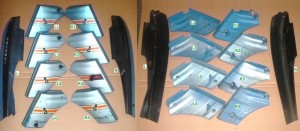

31 3 3 3 1 1 1 1 1 . 1 2 2 2 2 2 2 4 fairings (covers)

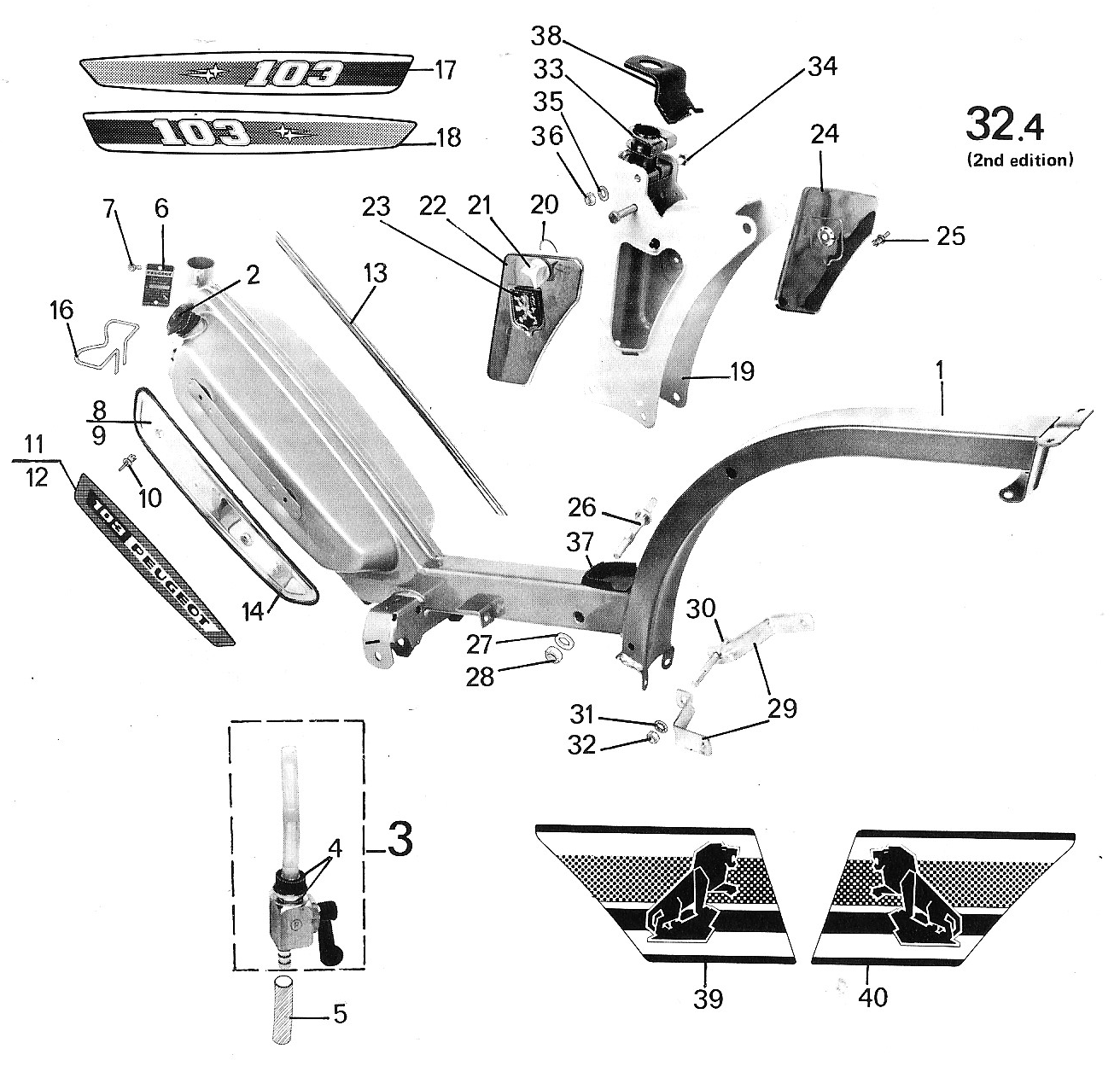

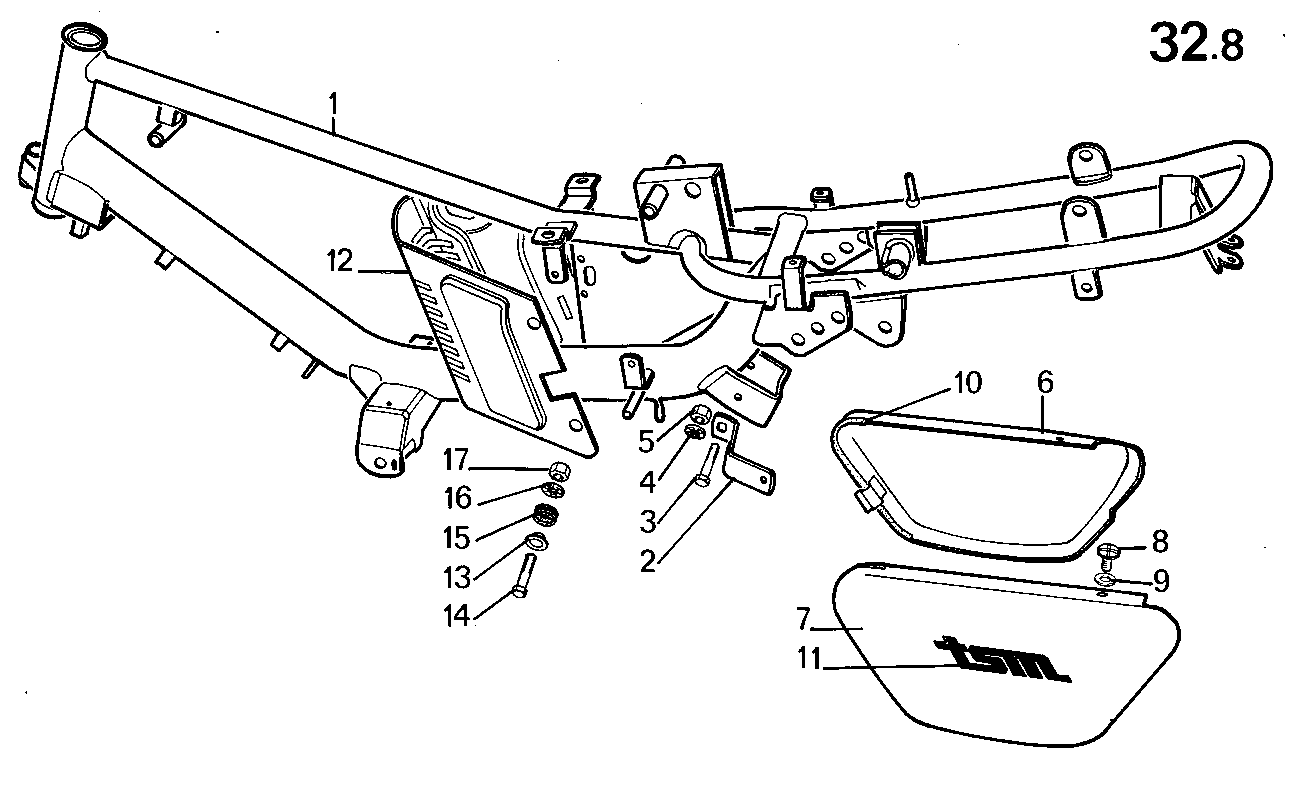

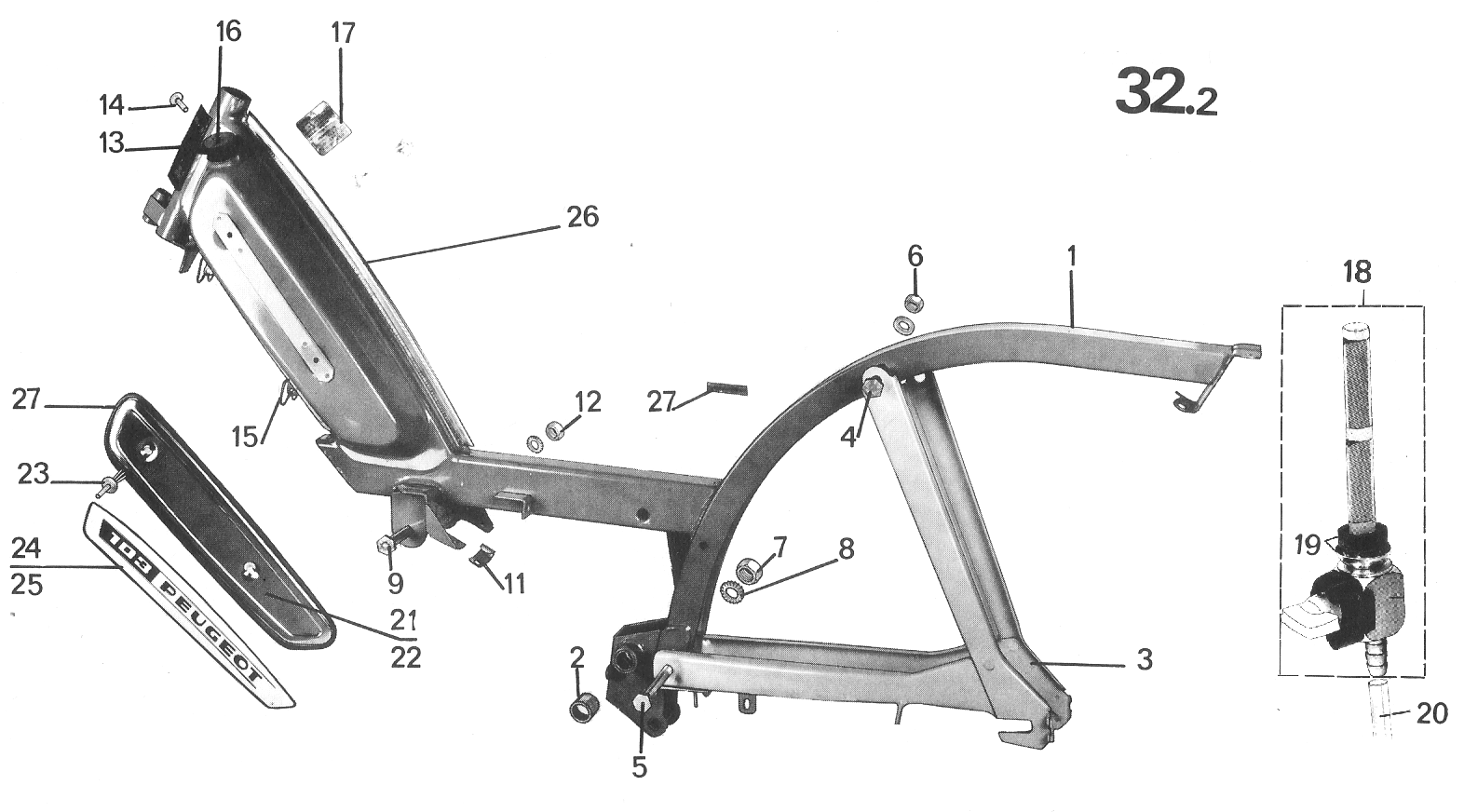

32 7 7 7 5 5 5 3 3 . 3 5 5 5 5 5 5 9 frame seat holder

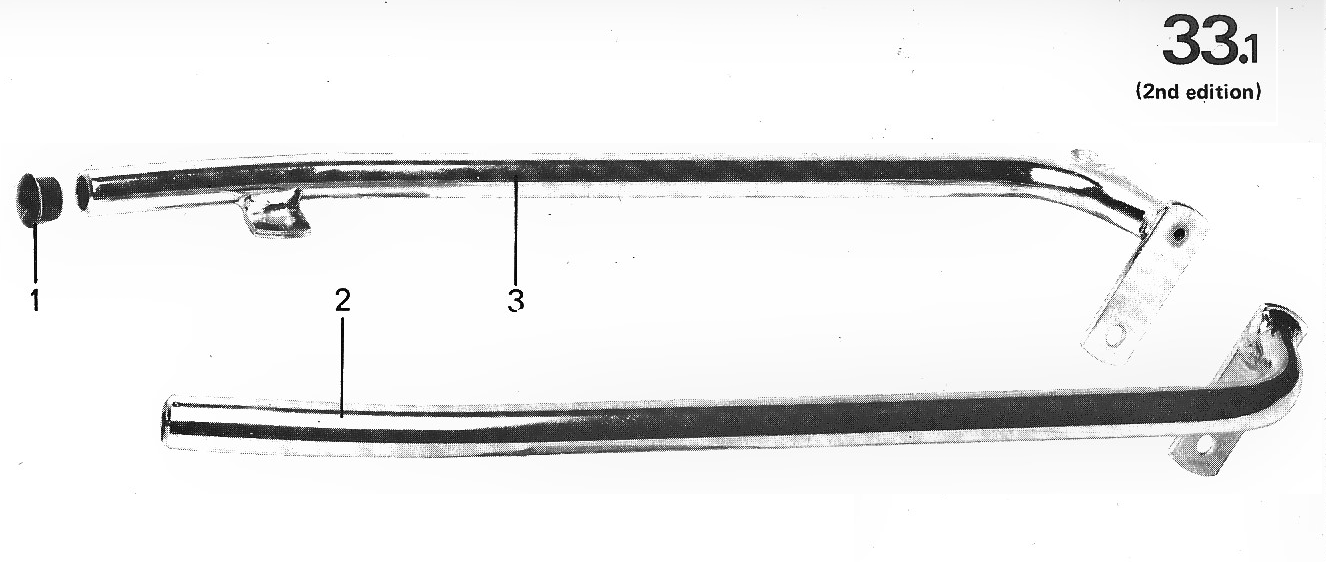

33 2 2 2 0 0 0 0 0 . 0 1 1 1 1 1 1 0 foot rest

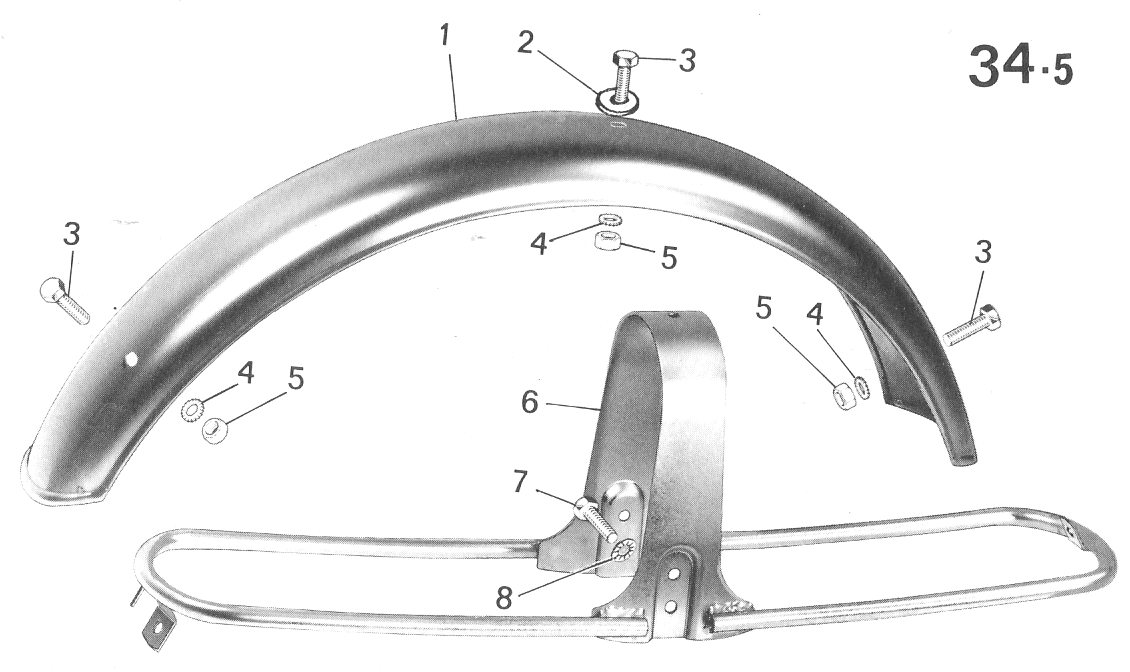

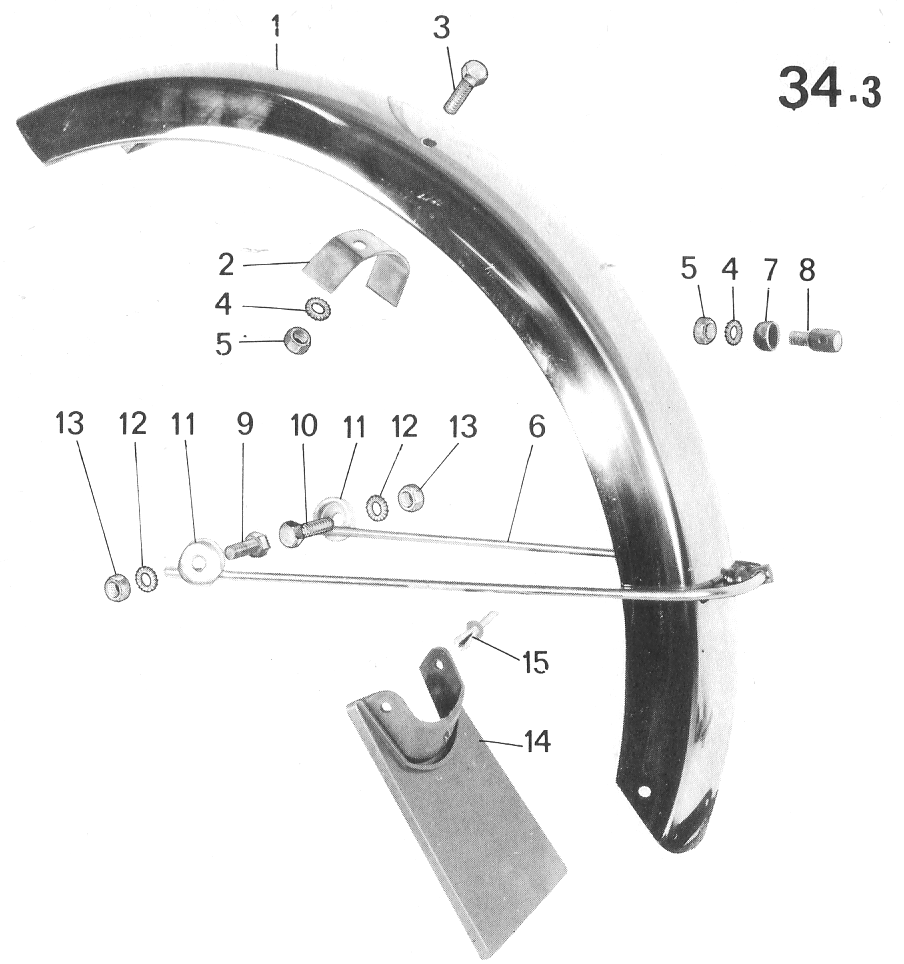

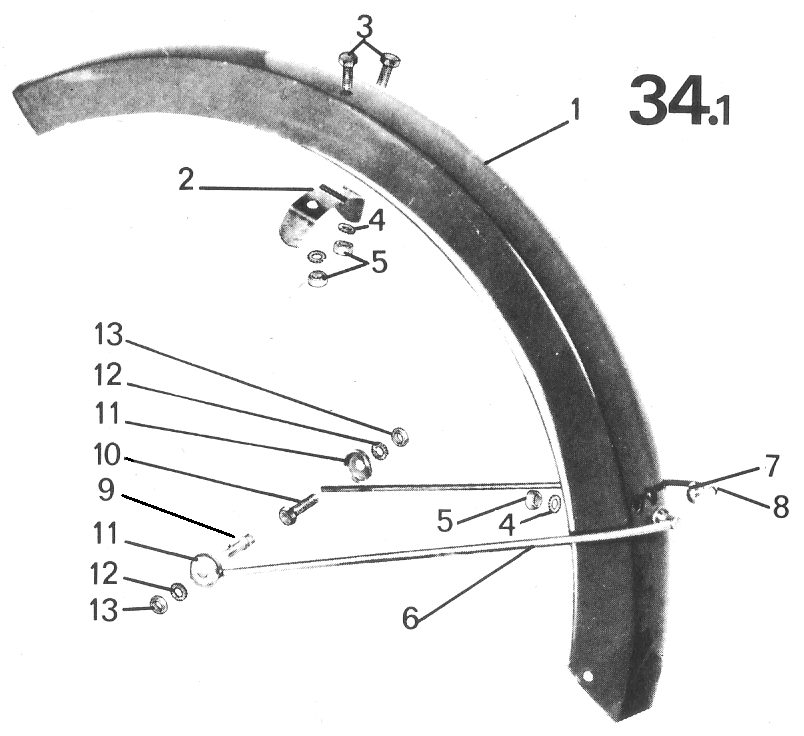

34 0 0 0 1 1 1 1 1 . 1 2 2 0 0 0 0 0 front fender ’76-79?
34 3 3 3 1 1 1 0 0 . 0 0 0 4 4 4 4 5 front fender ’80-on?
35 5 5 5 3 3 3 3 3 . 3 5 5 5 5 5 5 5 front hub
36 3 3 3 2 2 2 1 2 . 2 2 2 2 2 5 5 6 front wheel
37 7 6 7 5 5 5 3 3 . 3 5 5 5 5 5 5 1 gas tank

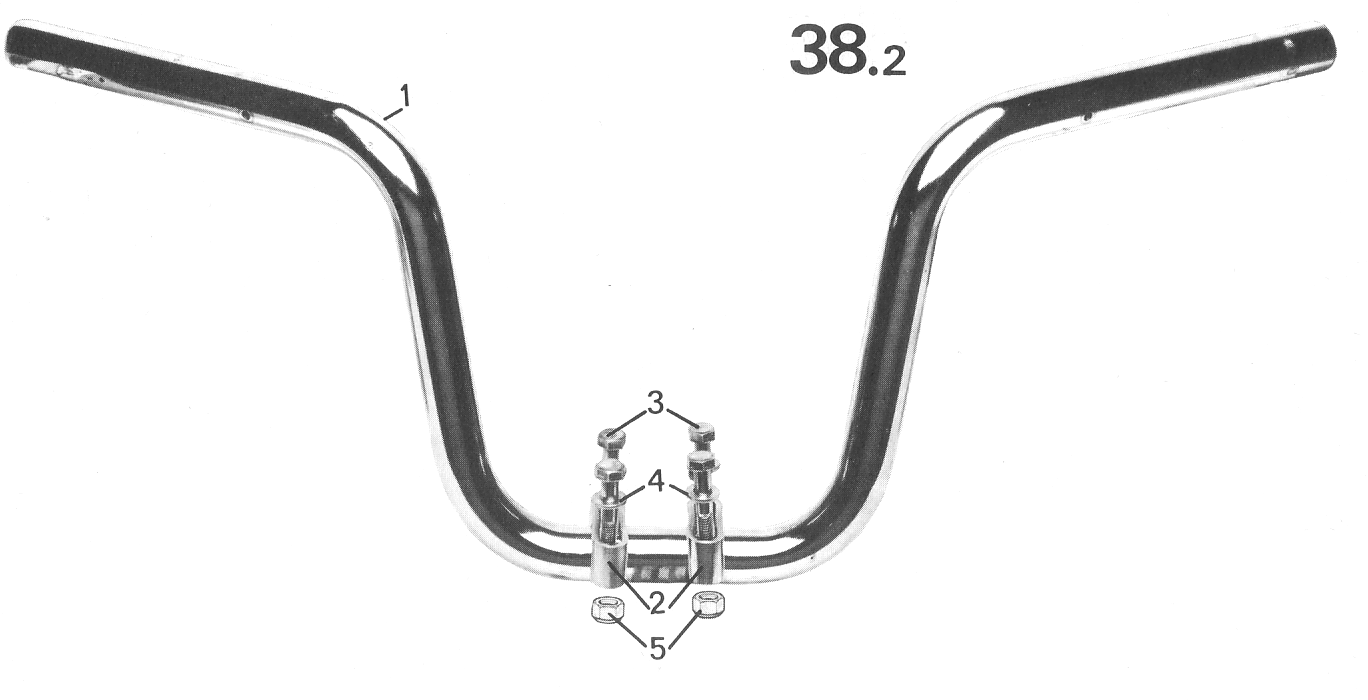

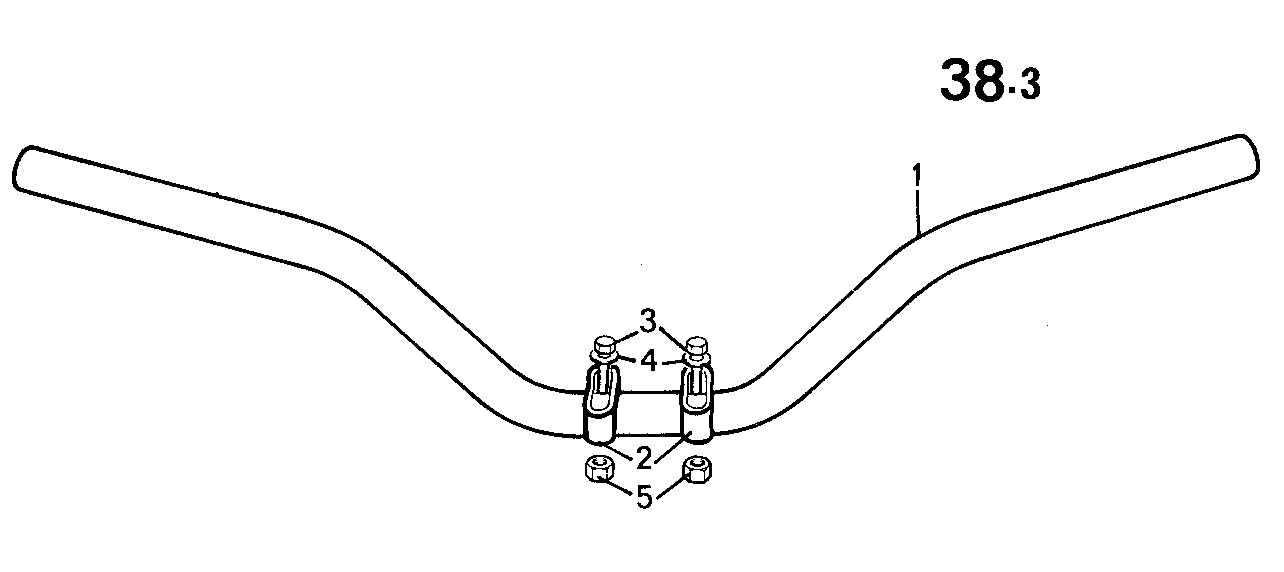

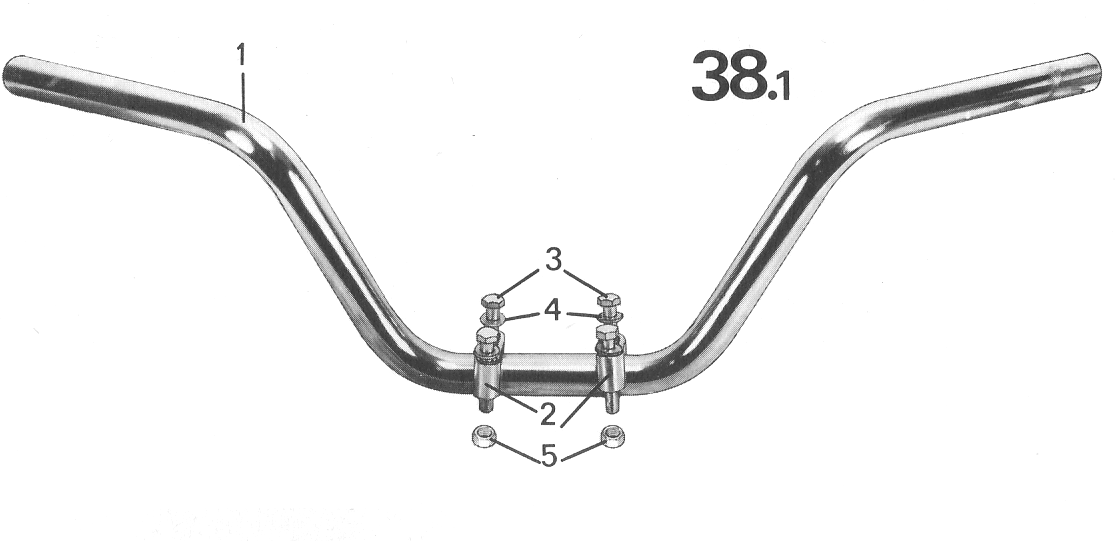

38 2 2 2 1 1 1 1 1 . 1 2 2 2 2 2 2 1 handlebar

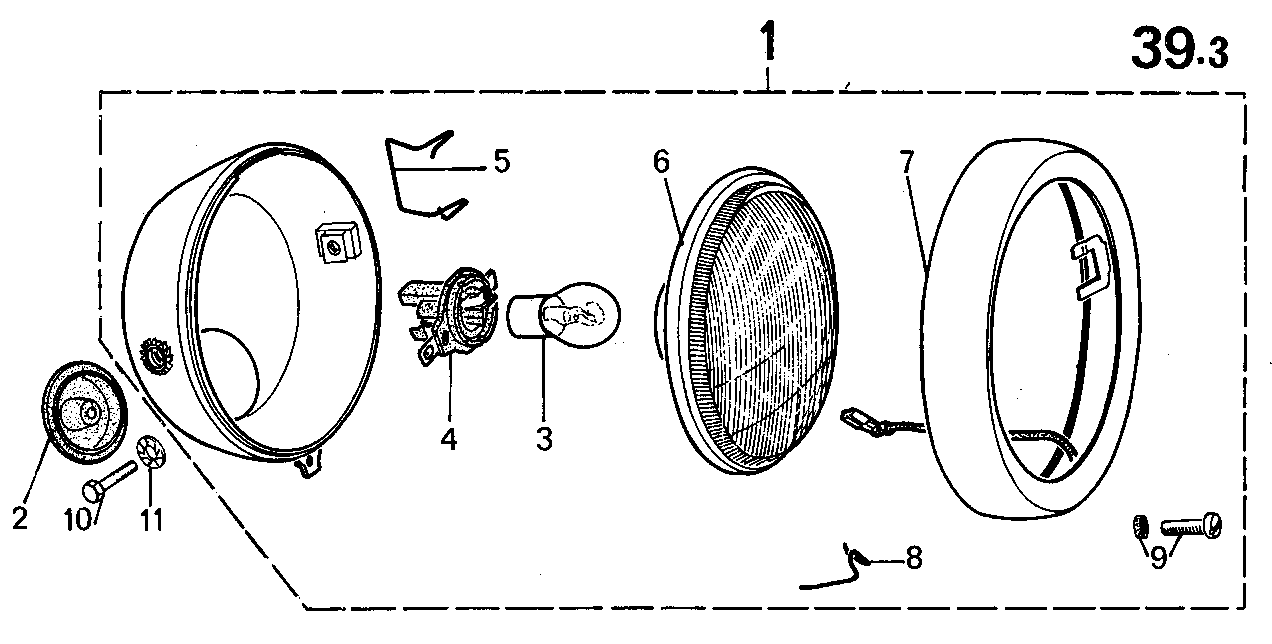

39 3 3 3 1 1 1 2 1 . 1 2 2 1 1 1 1 3 headlight
40 1 1 1 1 1 1 1 1 . 1 1 1 1 1 1 1 1 left control

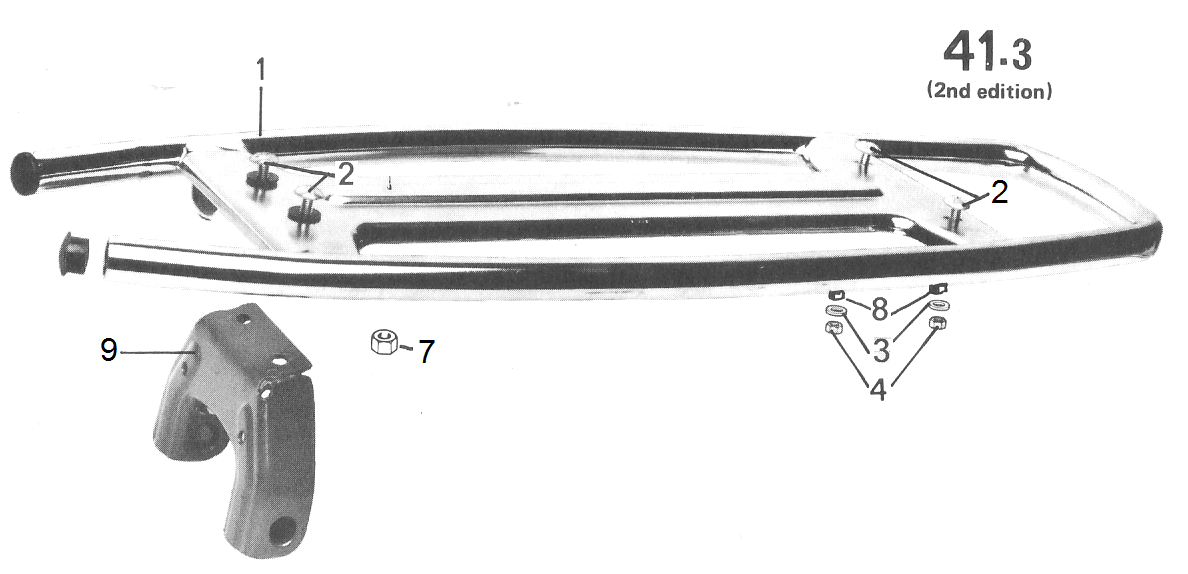

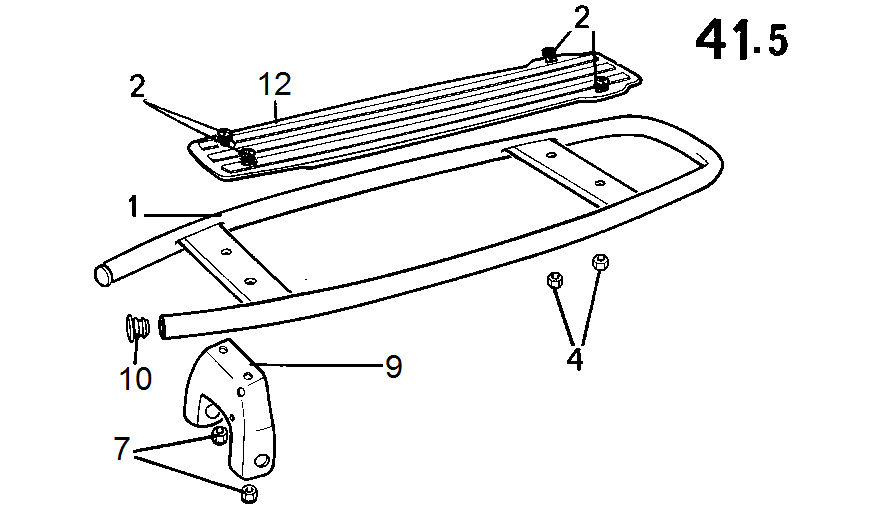

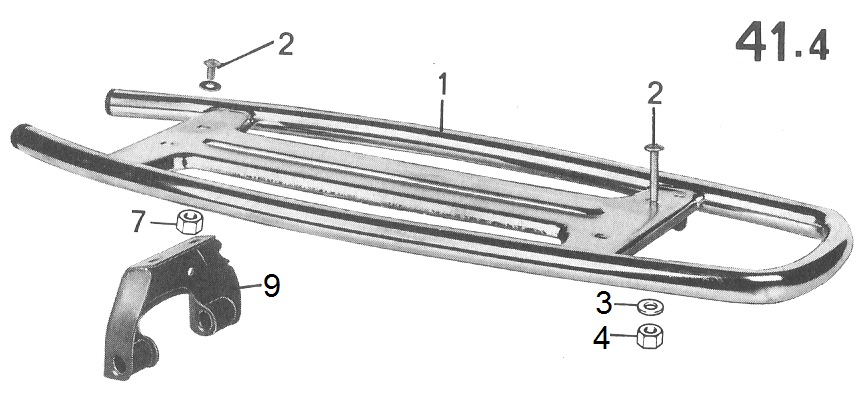

41 0 0 0 1 1 1 2 2 . 5 3 3 0 0 0 0 0 luggage rack ’76-79
41 6 6 6 5 5 5 0 0 . 0 0 0 4 4 4 4 0 luggage rack ’80-83

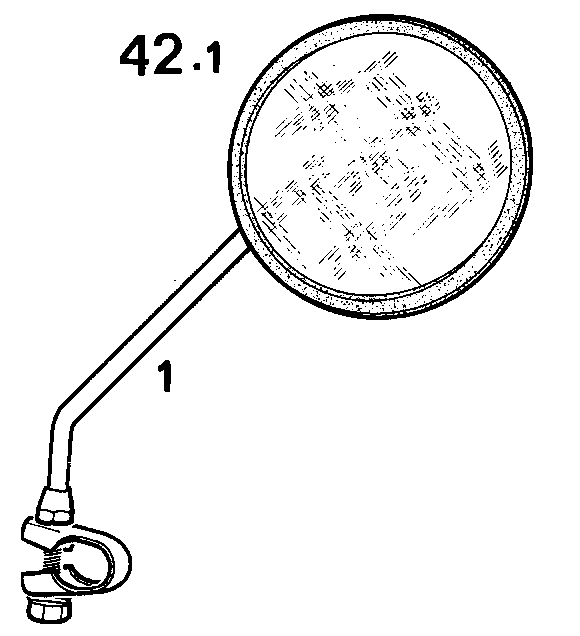

42 1 1 1 1 1 1 1 1 . 1 1 1 1 1 1 1 1 mirror
43 1 1 1 1 1 1 1 1 . 1 1 1 1 1 1 1 1 pedals
44 5 5 5 1 1 1 2 2 . 2 4 4 4 4 4 4 6 rear fender

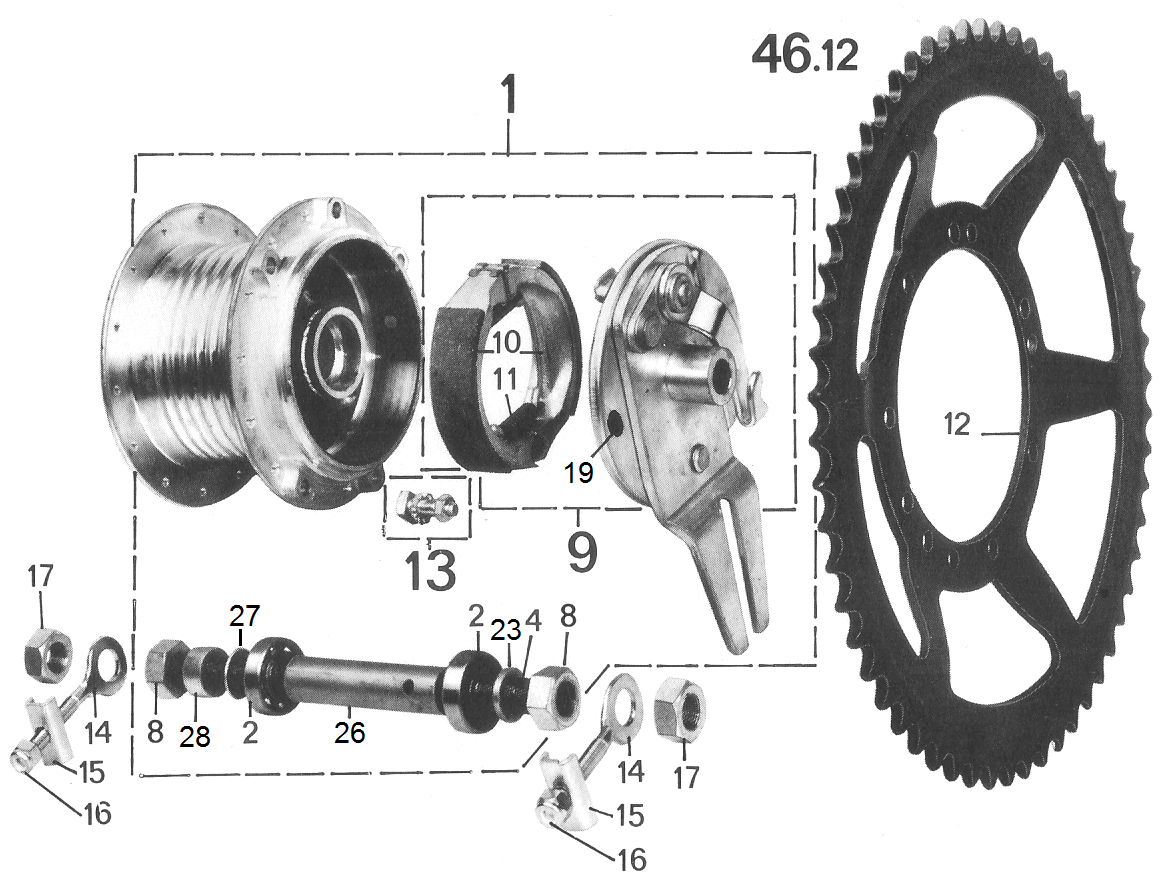

46 0 0 0 3 3 3 7 7 . 7 9 9 0 0 0 0 0 rear hub ’76-79
46 11 11 11 5 5 5 0 0 . 0 0 0 13 13 0 0 13 rear hub ’80-83

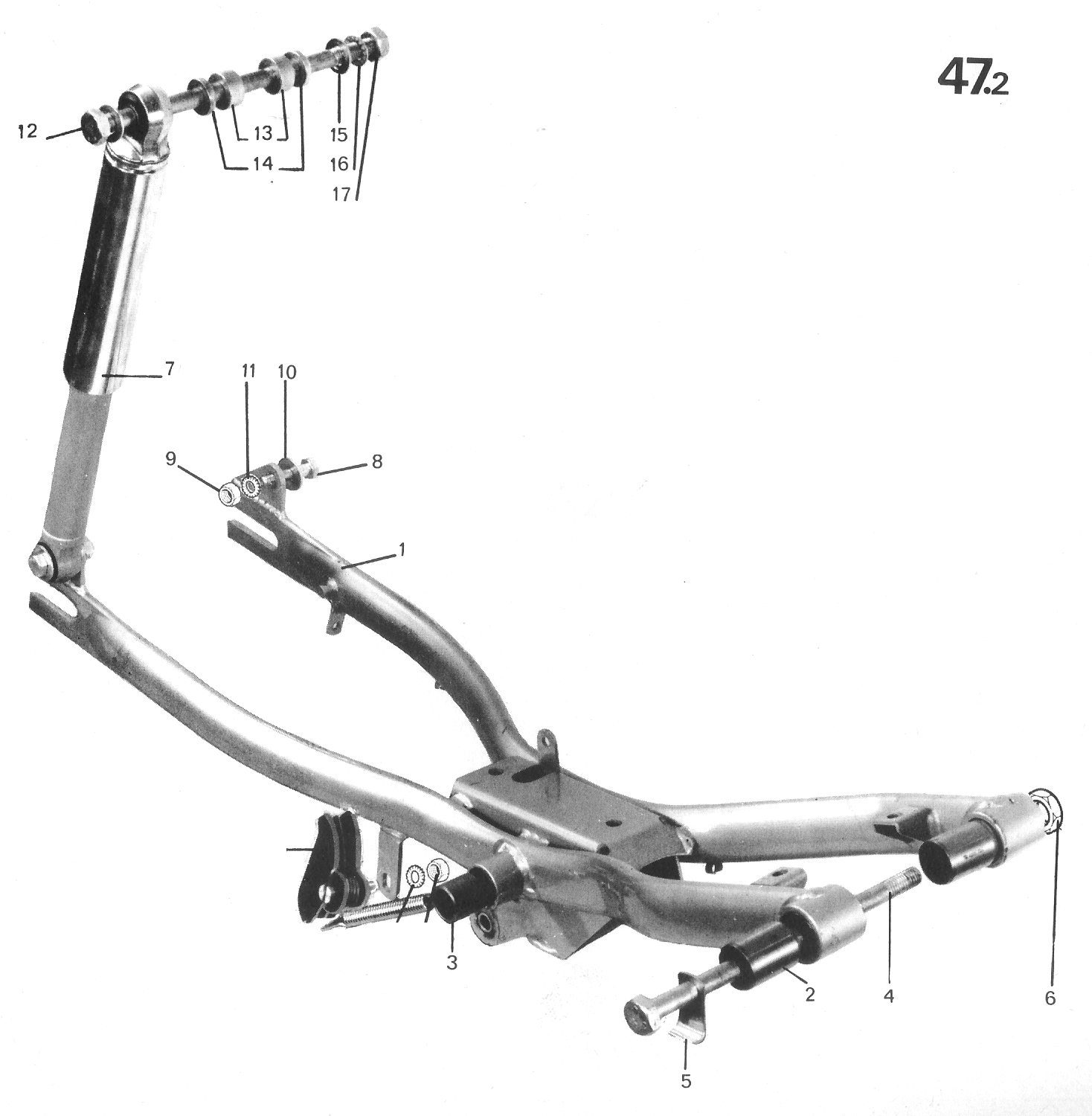

47 7 7 7 3 3 3 0 0 . 0 5 5 5 5 5 5 9 rear shocks
48 3 3 3 8 8 8 2 2 . 2 8 8 6 6 5 5 7 rear wheel

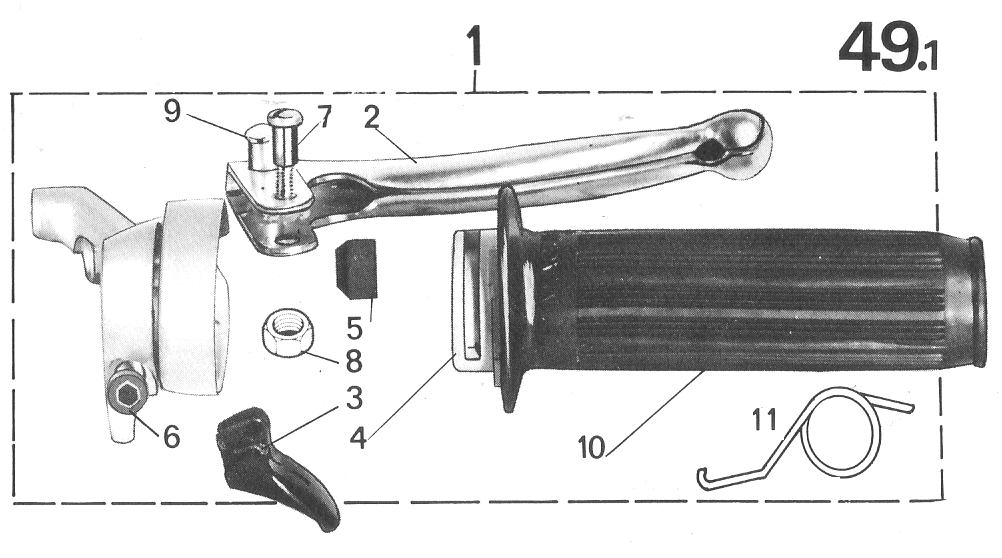

49 1 1 1 1 1 1 1 1 . 1 1 1 1 1 1 1 1 right control

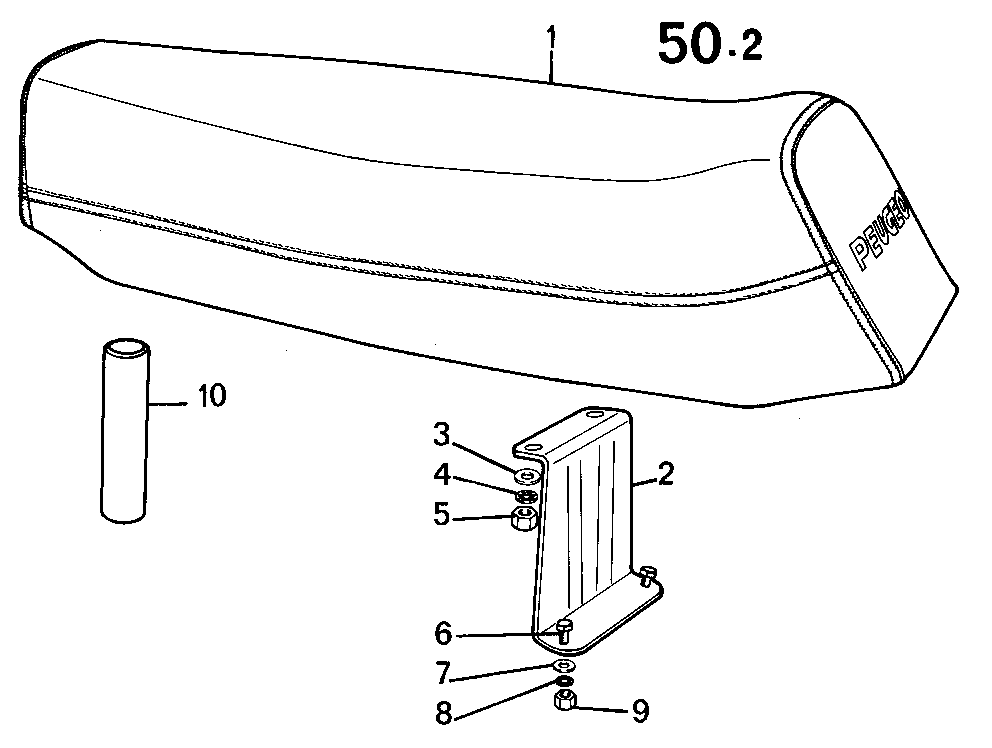

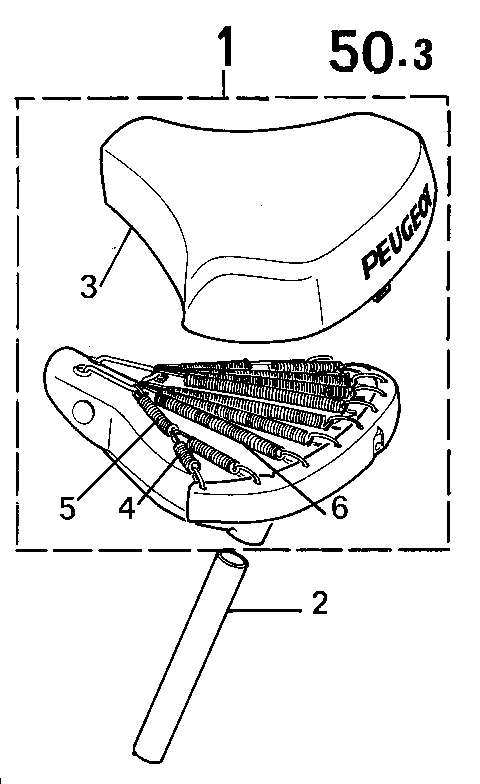

50 1 2 2 1 1 1 1 1 . 1 1/3 1 2 2 2 2 5 seat

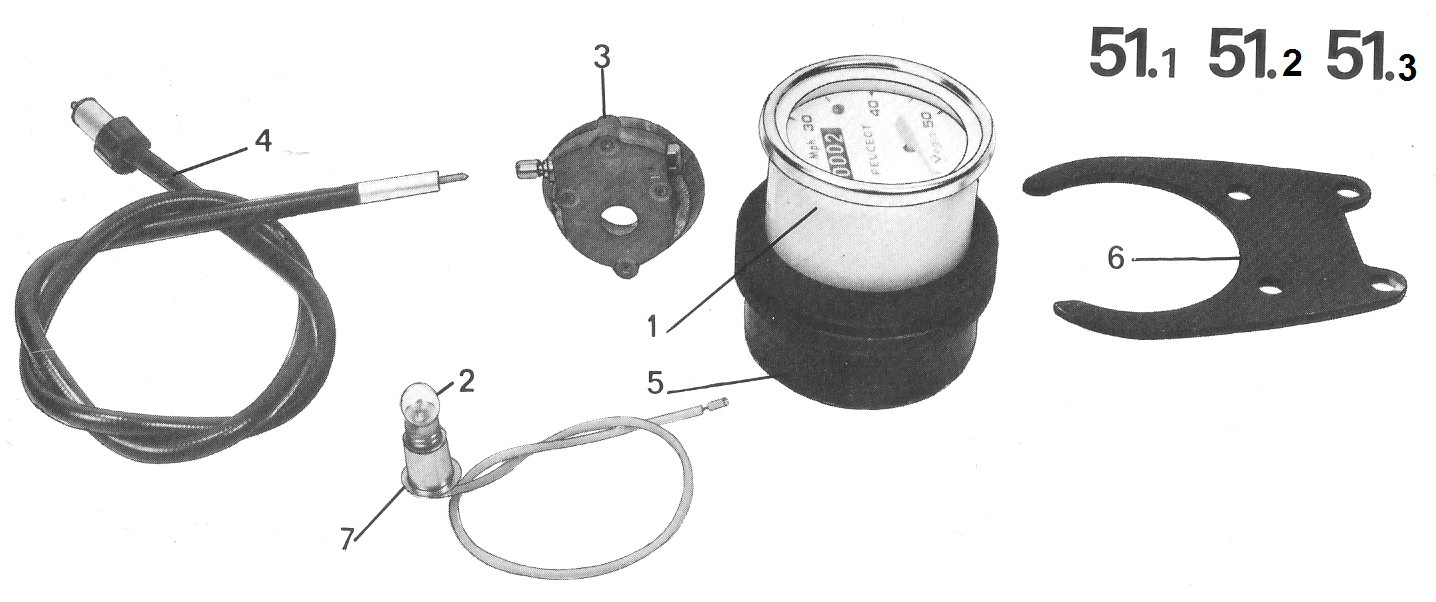

51 3 3 3 0 1 1 0 0 . 0 2 2 2 2 2 2 2 speedometer

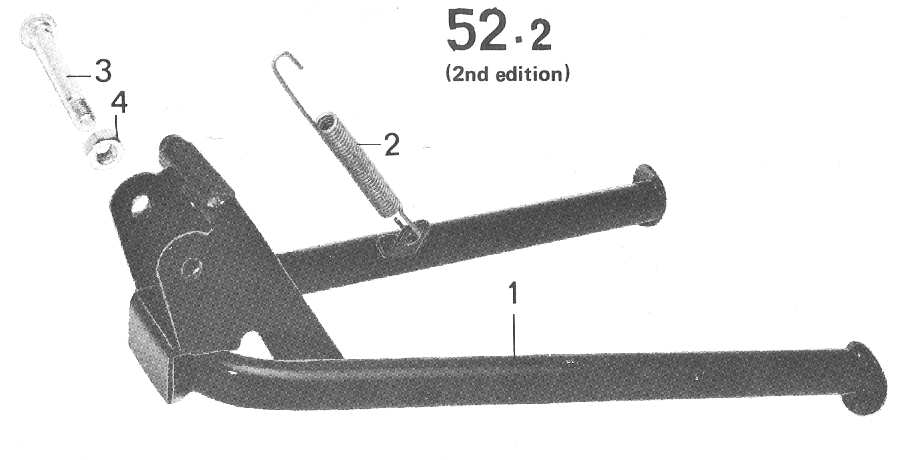

52 3 3 3 1 1 1 1 1 . 1 2 2 2 2 2 2 4 stand

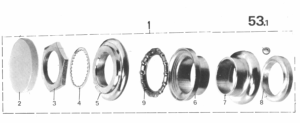

53 1 1 1 1 1 1 1 1 . 1 1 1 1 1 1 1 1 steering gear
54 3 3 3 1 1 1 1/2 1 . 1 3 3 3 3 3 3 3 tail light
55 0 0 0 3 3 3 3 3 . 3 5 5 0 0 0 0 0 telescopic fork ’76-79
55 7 7 7 11 11 11 0 0 . 0 0 0 5 5 5 5 9 telescopic fork ’80-83

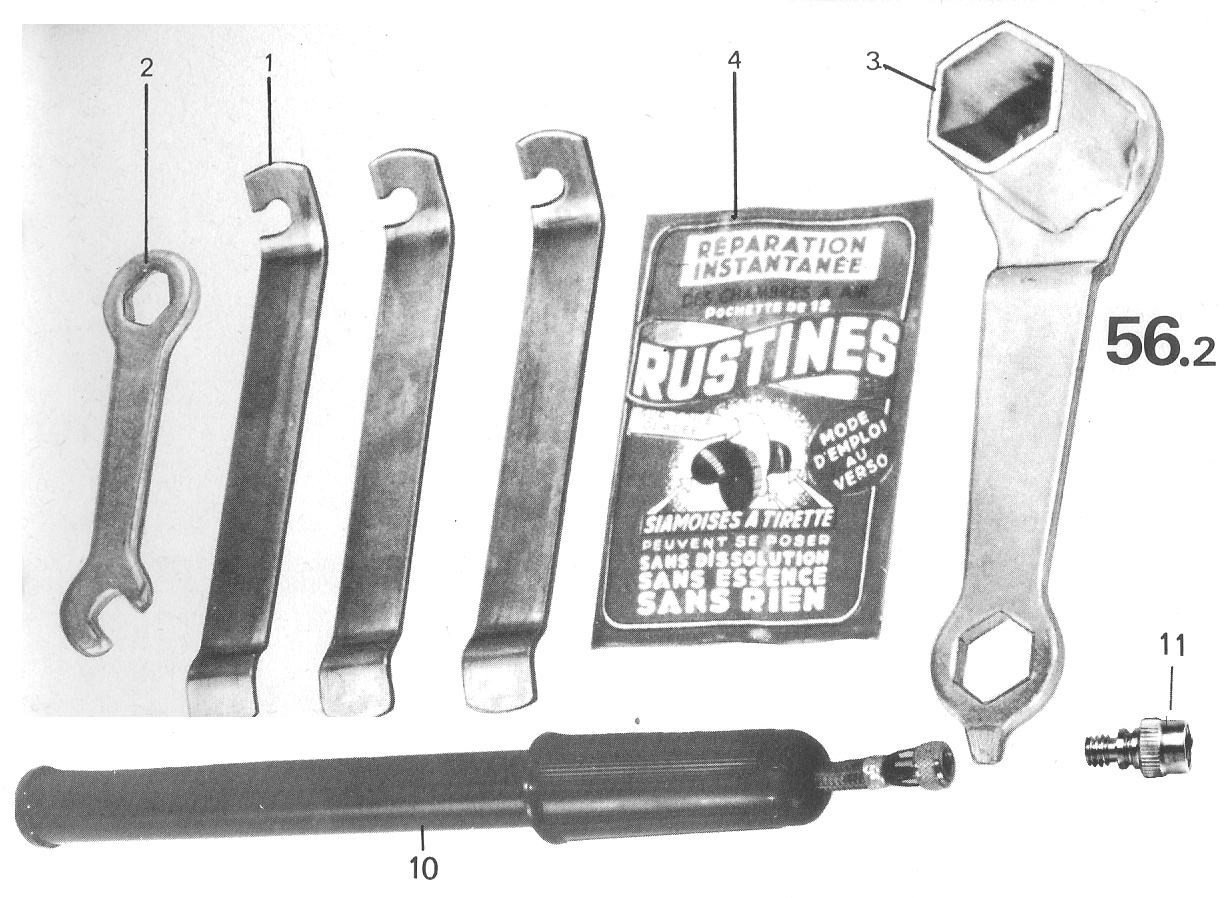

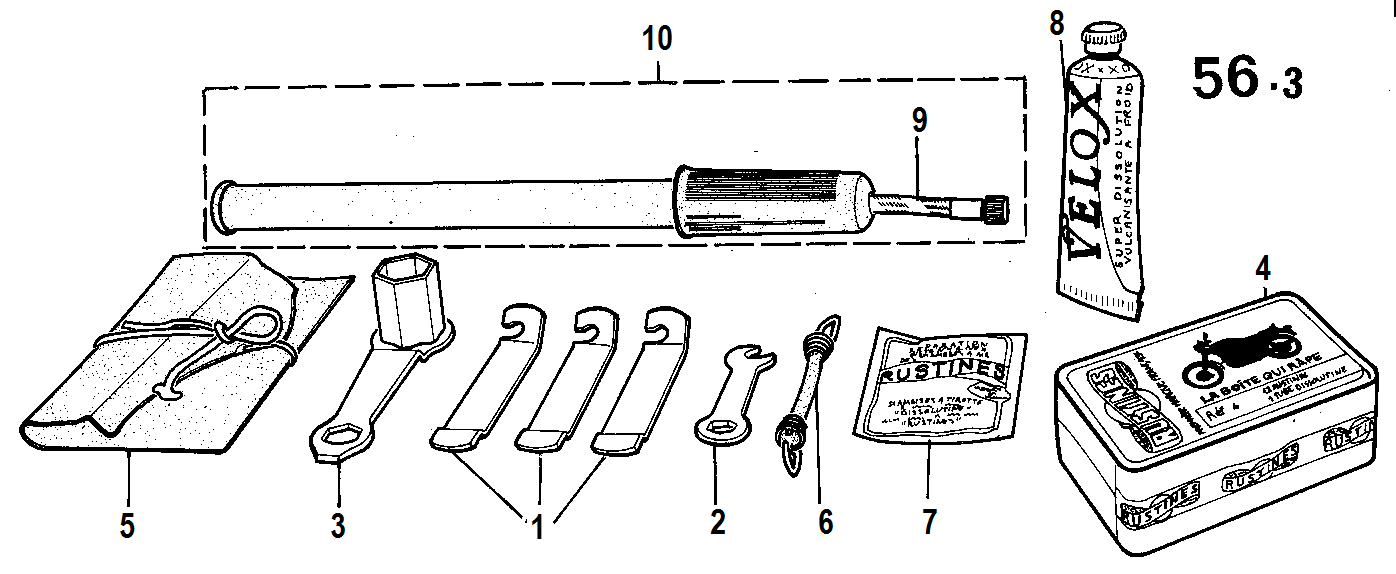

56 1 1 1 1 1 1 1 1 . 1 2 2 2 2 2 2 3 tools
57 3 3 3 3 3 3 3 3 . 3 3 3 3 3 3 3 3 transmission (chain)
Non-Engine Parts Pages

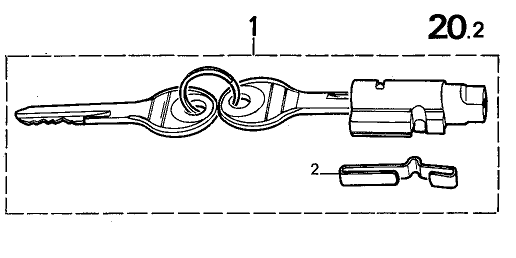

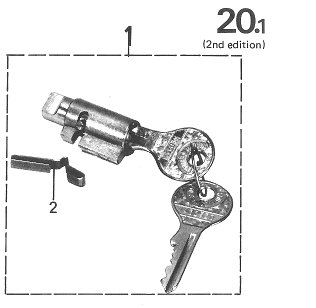

A. 20.1 steering lock
B. 20.2 steering lock for TSM
# AB price part#
1 10 $49.0 53081 lock with spring
1 01 none 61805 lock with spring TSM
2 11 $5.00 52131 spring

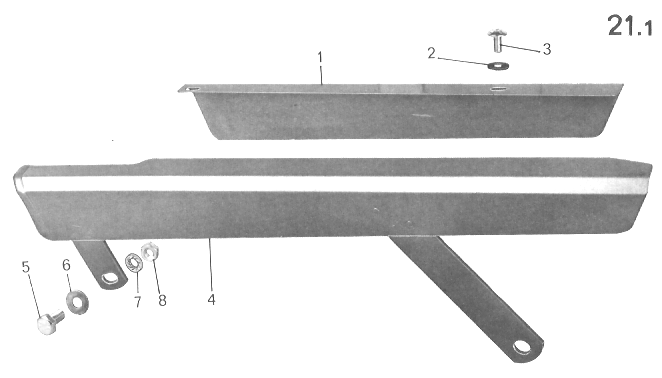

# qty price part# 21.1 chain guard for TSM
1 1 none 60722 right chain guard
2 2 $1.00 860001 soft washer 5
3 2 $1.00 808025 screw 5 x 10 slot-wide
4 1 none 60709 left chain guard
5 1 1- .50 801105 screw 6 x 12 hex
6 1 $0.20 853214 plain washer 6
7 1 $0.25 856060 lock washer 6
8 1 $0.30 832087 nut 6

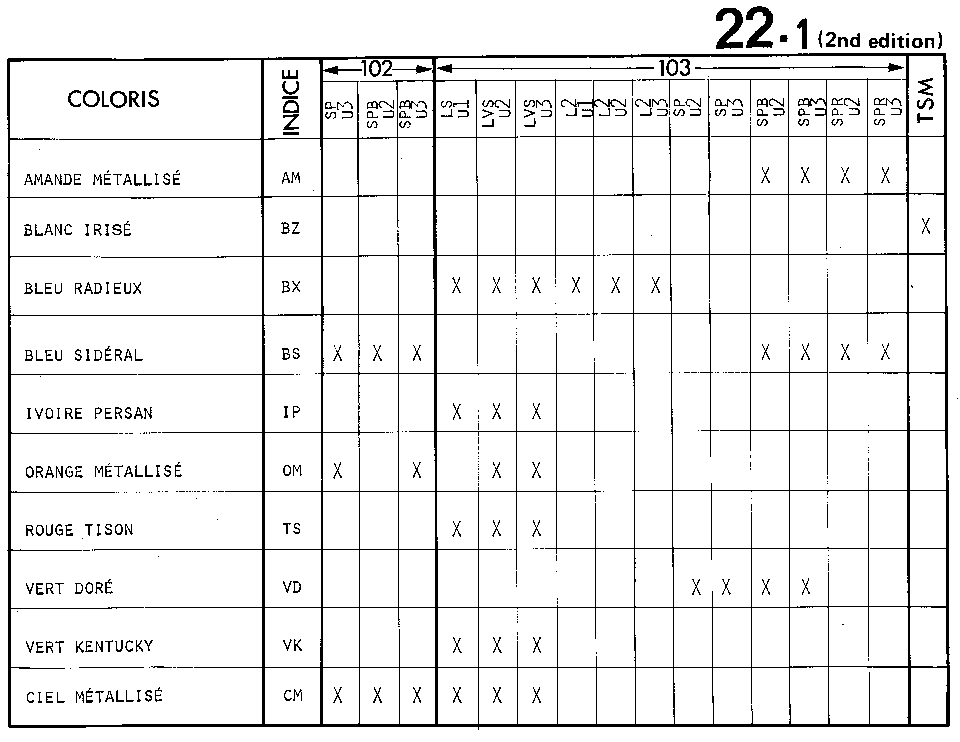

22.1 colors table
102 SP U3 ’80-83 sidereal blue, sky metallic, orange met.
102 SPB U2 ’80-83 sidereal blue, sky metallic.
102 SPB U3 ’80-83 sidereal blue, sky metallic, orange met.
103 LS U1 ’76-79 radiant blue, cinder red, kentucky green.
103 LVS U2 ’76-79 radiant blue, cinder red, kentucky green, Persian ivory.
103 LVS U3 ’76-79 radiant blue, cinder red, kentucky green, Persian ivory.
103 LS U1 ’80-83 sky metallic, Persian ivory.
103 LVS U2 ’80-83 sky metallic, Persian ivory, orange met.
103 LVS U3 ’80-83 sky metallic, Persian ivory, orange met.
103 L2 U1 ’76-79 radiant blue.
103 L2 U2 ’76-79 radiant blue.
103 L2 U3 ’76-79 radiant blue.
103 SP U2 ’78-79 sidereal blue, golden green.
103 SP U3 ’78-79 sidereal blue, golden green.
103 SPB U2 ’78-79 sidereal blue, golden green.
103 SPB U3 ’78-79 sidereal blue, golden green.
103 SPR U2 ’78-79 sidereal blue, golden green.
103 SPR U3 ’78-79 sidereal blue, golden green.
103 SPB U2 ’80-83 sidereal blue, almond metallic.
103 SPB U3 ’80-83 sidereal blue, almond metallic.
103 SPR U2 ’80-83 sidereal blue, almond metallic.
103 SPR U3 ’80-83 sidereal blue, almond metallic.
TSM 0000 ’80-83 iridescent white.
part# price # 23.3 and 23.5 cables revised
00000 $10.0 C1 ⇐ choke cable 42 x 48″
58176 $3.00 W1 inner wire 48″ (46 min. no ends)
40802 $2.00 P5 pinch bolt P5 Ø5.5 x 8
37817 $8.00 P20 (for 102) pinch bolt P20a Ø4-7
00000 $10.0 C2 ⇐ rear brake cable 53 x 65″ for ’78-on
00000 $11.0 C3 ⇐ rear brake cable 55 x 65″ with F3 for pre-’78
00000 $10.0 C4 ⇐ rear brake cable 57 x 65″ for ’80 102
58570 $5.00 W2 inner wire 65″ (62 min. 1-end Ø6 pear)
42778 $9-$5 A3a adjuster M6 original no slot
42778 $4.00 A3d adjuster M6 shiny new, same but bigger
38583 $8.00 P7c pinch bolt original Ø7 x 11
38583 $2.00 P7 pinch bolt generic P7 Ø7 x 9
00242 $0.70 F3 (pre-1978 only) ferrule F3 Ø4-7 x 10
00000 $10.0 C5 ⇒ front brake cable 35 x 48″ for 102/103
00000 $10.0 C6 ⇒ front brake cable 38 x 48″ for 103 SP
58570 $5.00 W3 inner wire 48″ (?? min. 1-end Ø6 pear)
42778 $9-$5 A3a adjuster M6 original no slot
42778 $4.00 A2 adjuster M6 shiny new, same but bigger
43678 $3.00 F1 step ferrule F1 Ø6-8 x 10
38583 $8.00 P7c pinch bolt orig. used Ø7 x 11
38583 $2.00 P7 pinch bolt generic P7 Ø7 x 9
00000 $12.0 C7 ⇒ throttle cable 37 x 47″ for 102/103
57372 $7.00 W4 inner wire 47″ (41 min. 1-end Ø5.5 x 7)
40802 $2.00 P5 pinch bolt P5 Ø5.5 x 8
00000 $12.0 C8 ⇒ decomp cable 34 x 40″ with F3 for 102/103
37817 $3.00 P20 special pinch bolt P20 Ø3.8 – 7.0
00242 $1.00 F3 step ferrule F3 Ø4-7 x 10
57185 $7.00 W4 inner wire 40″ (37 min. 1-end Ø5.5 x 7)
69774 $4.00 B20 cable sleeves ½ x 22″ black (each)

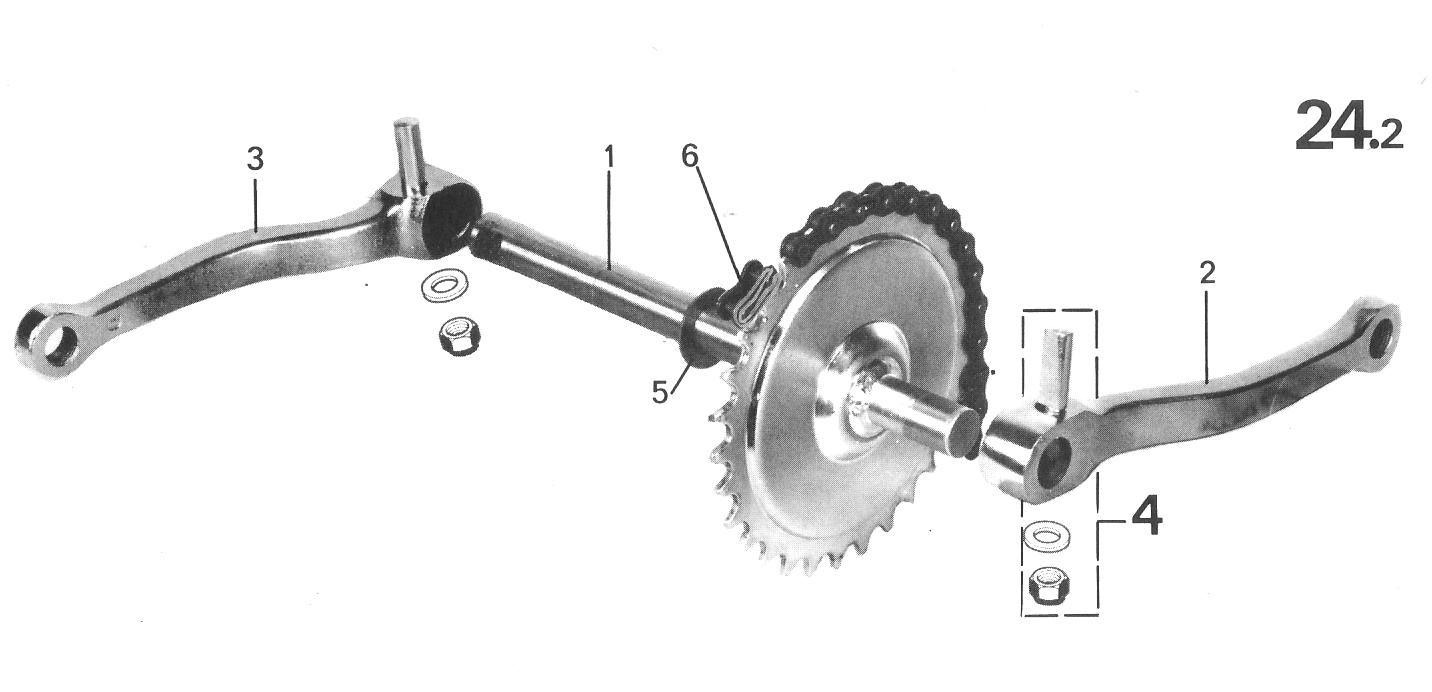

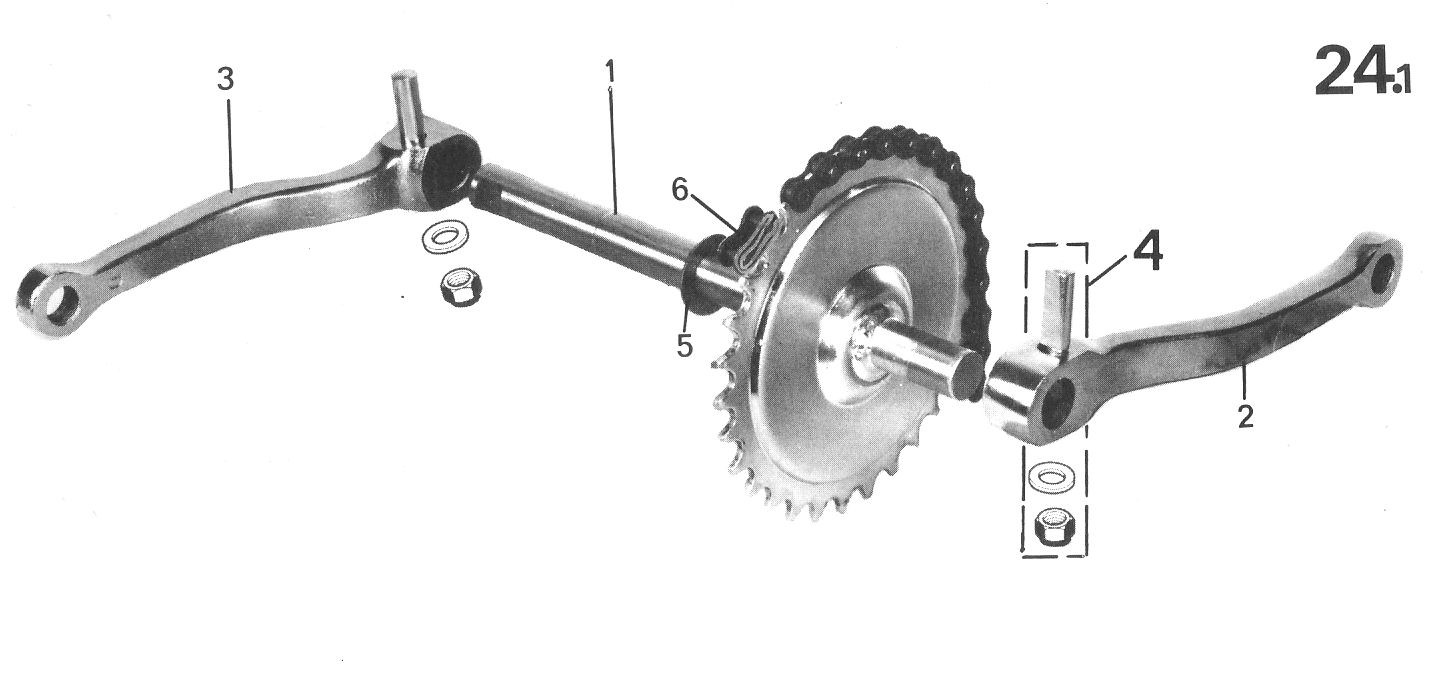

A. 24.1 pedal cranks for 103 L2 no variator

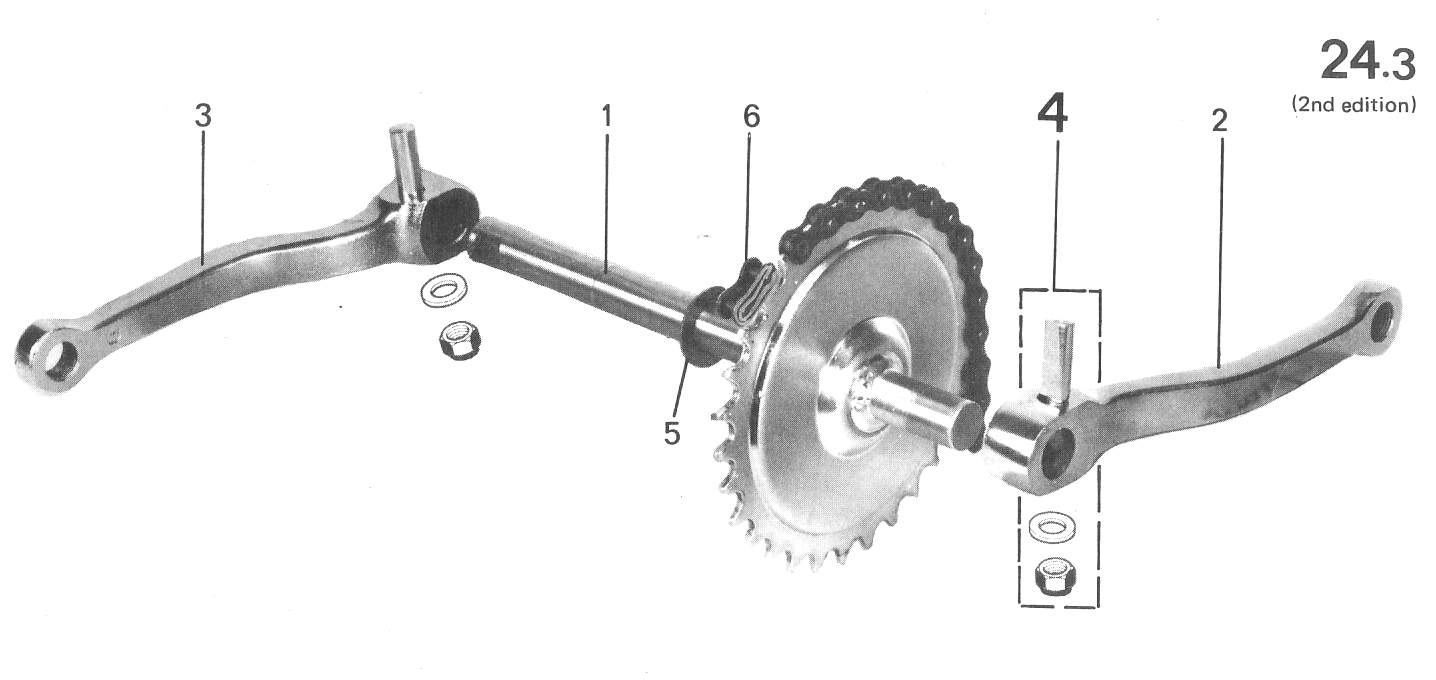

B. 24.2, 24.3 pedal cranks for 103 variator
# AB price part#
1 10 none 51823 pedal shaft with 30T sprocket
1 01 none 53755 pedal shaft with 24T sprocket black
2 11 20-12 41981 R arm orig. 531R 5¾ x 1¼ M14-1.25
3 11 30-20 16954 L arm orig. 534L 5¾ x 1¼ M14-1.25
4 22 $2.00 97974 wedge pin 9.0
5 11 $4.00 17068 washer ∅16
6 11 $2.00 00175 master link

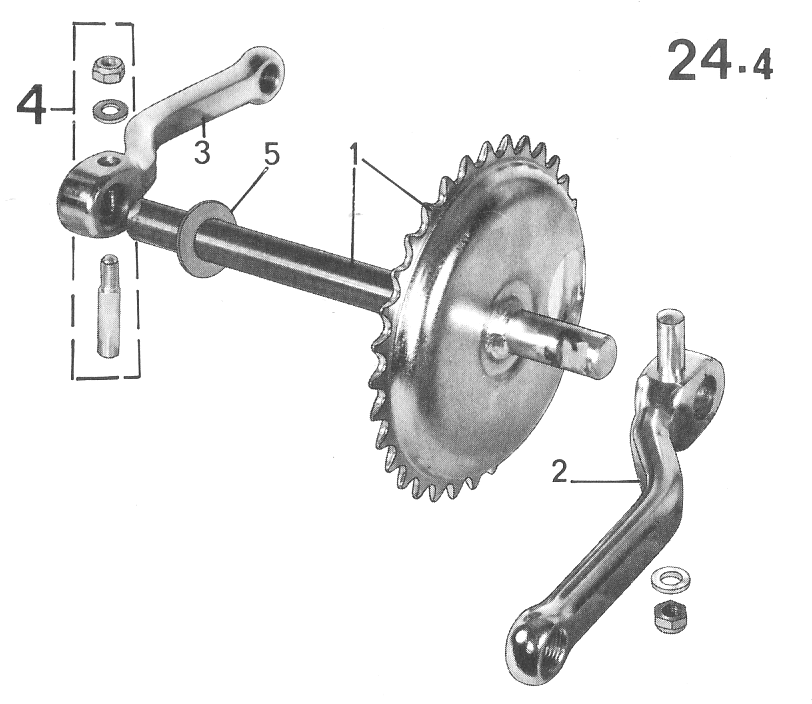

A. 24.4 pedal cranks for 102

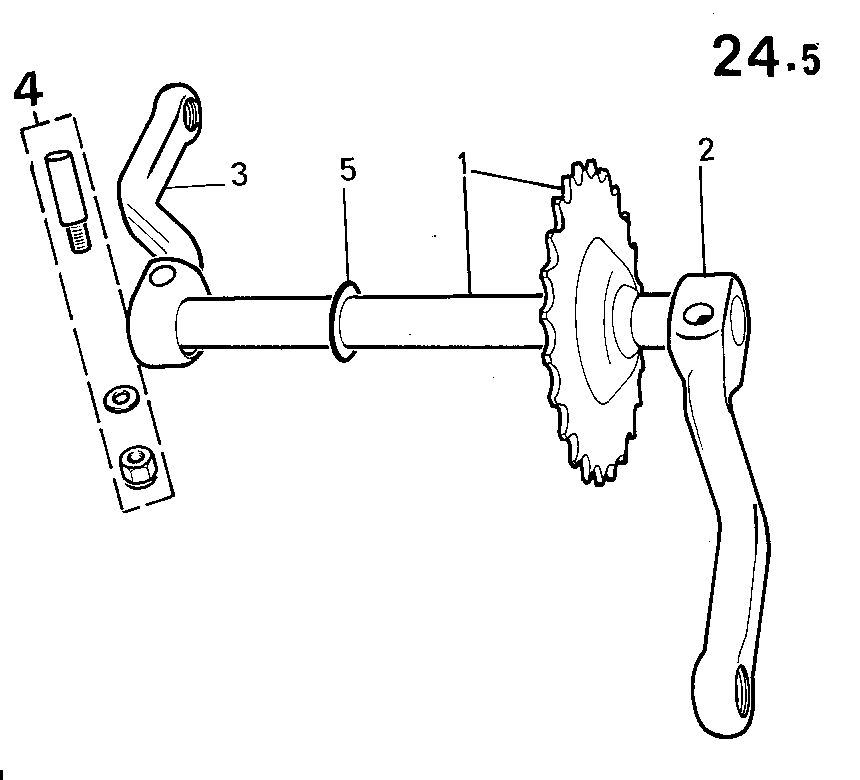

B. 24.5 pedal cranks for TSM
# AB price part#
1 10 none 56797 pedal shaft with 32T sprocket
1 01 none 53755 pedal shaft with 24T sprocket
2 11 none 52887 R crank orig. 515R 5¼ x 1 M14-1.25
3 11 20-15 61869 L crank orig. 515L 5¼ x 1¼ M14-1.25
4 22 $2.00 97974 wedge pin 9.0
5 11 $4.00 17068 washer ∅16
34 11 none 00515 crank set original 5¼ x 1¼ M14-1.25
34 11 $35.0 00513 crank set Tomos 5¼ x ¾ 9/16″-20
34 11 $36.0 00502 crank set Sachs 5 x 1½ 9/16″-20

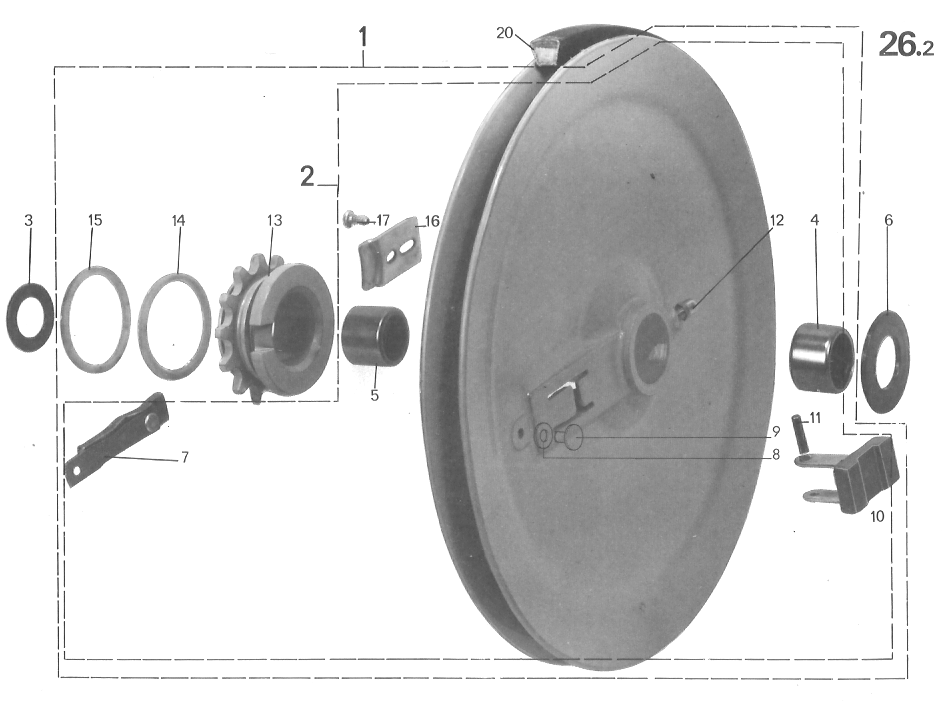

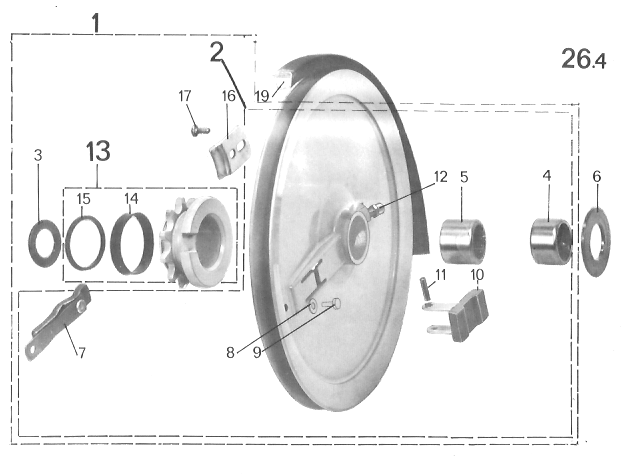

26.2 pulley 103 and 26.4 pulley 102
# qty price part#
1 1 none 49783 pulley assy 103 w/ sprocket
1 1 none 46283 pulley assy 102 w/ sprocket
2 1 none 49782 pulley assy 103 no sprocket
2 1 none 52201 pulley assy 102 no sprocket
3 1 none 47286 nylon washer
4 1 $12.0 49459 needle bearing HK1614 ∅16-22 x 14
5 1 $12.0 52265 needle bearing HK1618 ∅16-22 x 18
6 1 none 54967 plain washer
7 1 none 46698 locking stop
8 1 none 853092 plain washer
9 1 none 872002 rivet
10 1 none 46694 engage knob
11 1 none 46722 pivot pin
12 1 none 18857 grease nipple
13 1 none 49797 sprocket 11T
14 1 none 47050 damper ring
15 1 none 39331 damper ring
16 1 none 52500 locking plate
17 1 none 816008 screw 4.2 x 9.5
19 1 $12.0 46068 belt 102 no var. 9.5 x 735 original 5378
19 1 $14.0 46068 belt 102 no var. 9.5 x 740? Ventico D255
20 1 none 48815 belt 103 w/var. 13.0 x 870 original 5497
20 1 $21.0 48815 belt 103 w/var. 13.5 x 877 automotive 17340
20 1 $21.0 48815 belt 103 w/var. 12.7 x 864 industrial AX32 or A32
20 1 none 48987 belt 103 no var. 9.5 x 845 original 5379
20 1 $12.0 48987 belt 103 no var. 9.5 x 845 Ventico D255

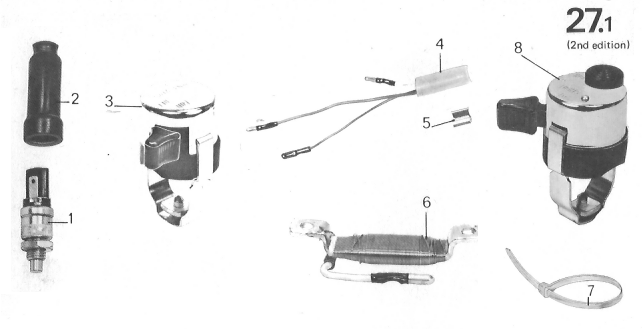

switches to-’79 27.1 103
# qty price part#
1 2 22-17 56157 brake switch CEV 9342
1 1 none normally closed when installed
3 2 $9.00 replacement Domino 2806.20.04
2 2 $2.00 56310 switch cover CEV 15863
3 1 $74.0 57878 kill switch CEV 8177
3 1 $34.0 60544 kill switch Merit 342
4 1 $9-$5 56304 rectifier
5 1 $5.00 55344 rectifier mount
6 2 $12.0 56349 reactance coil
7 9 $0.50 885008 zip tie 2.4 x 92 substitute
8 1 $32.0 56158 light switch CEV 8040

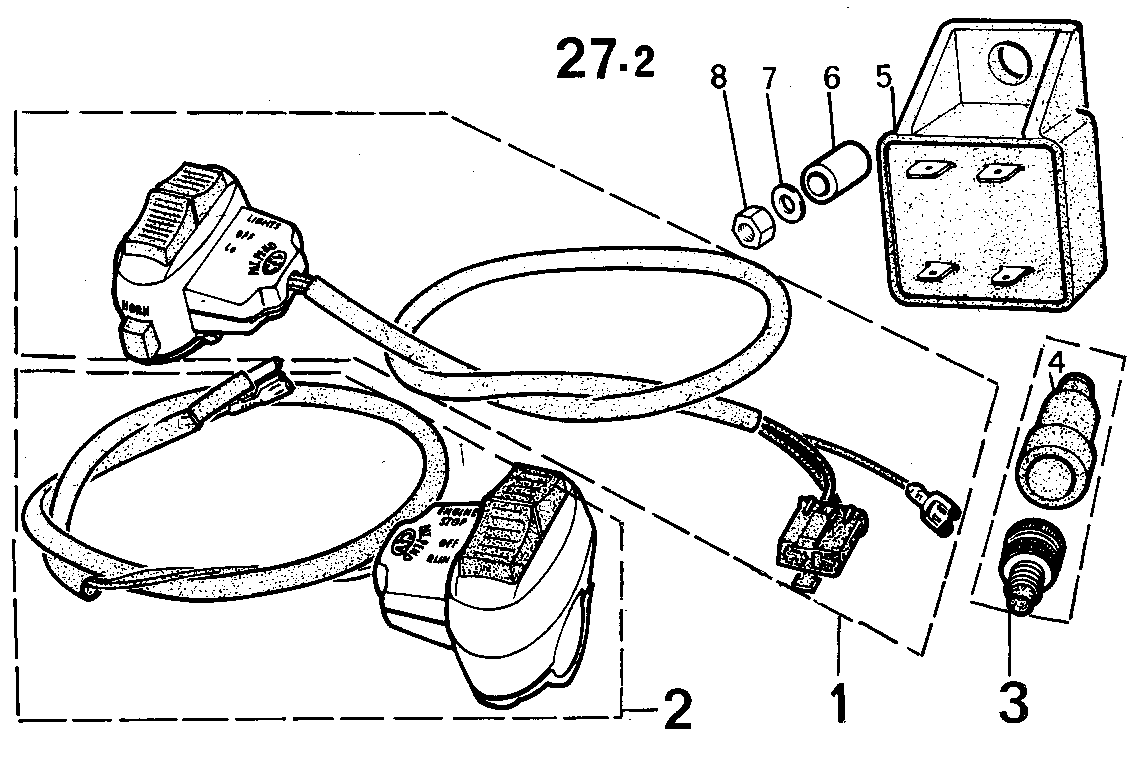

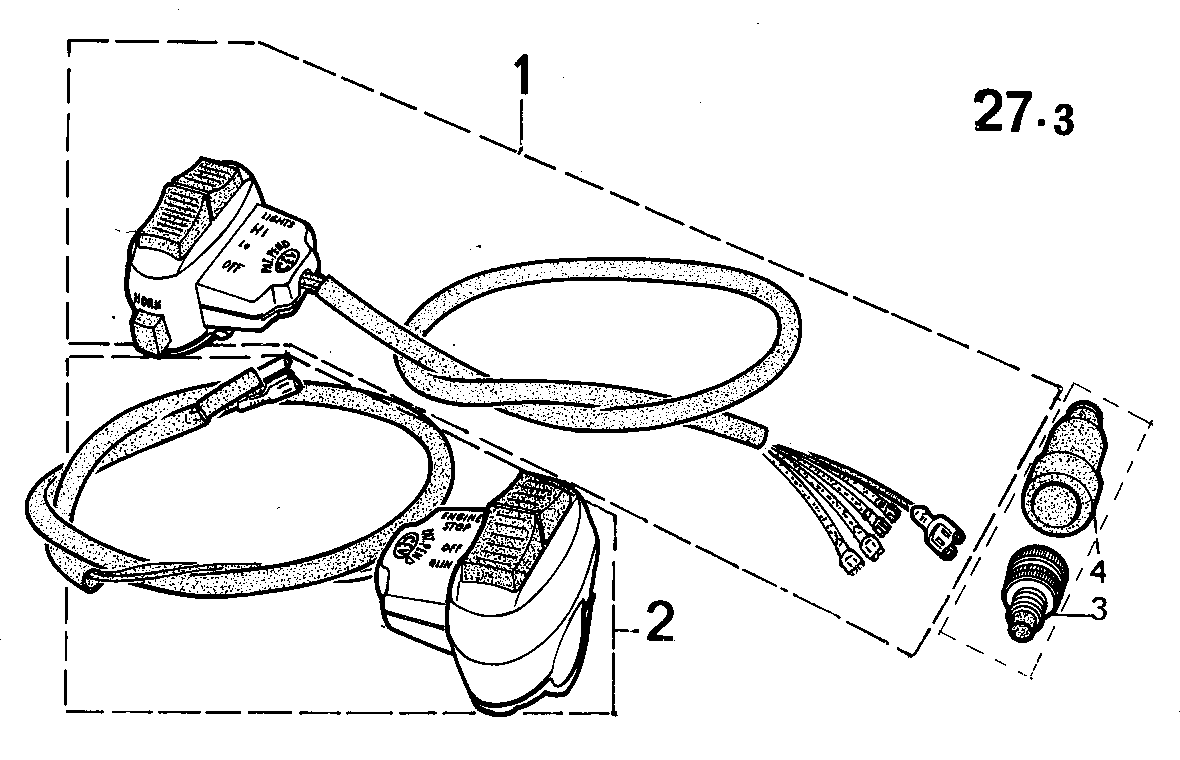

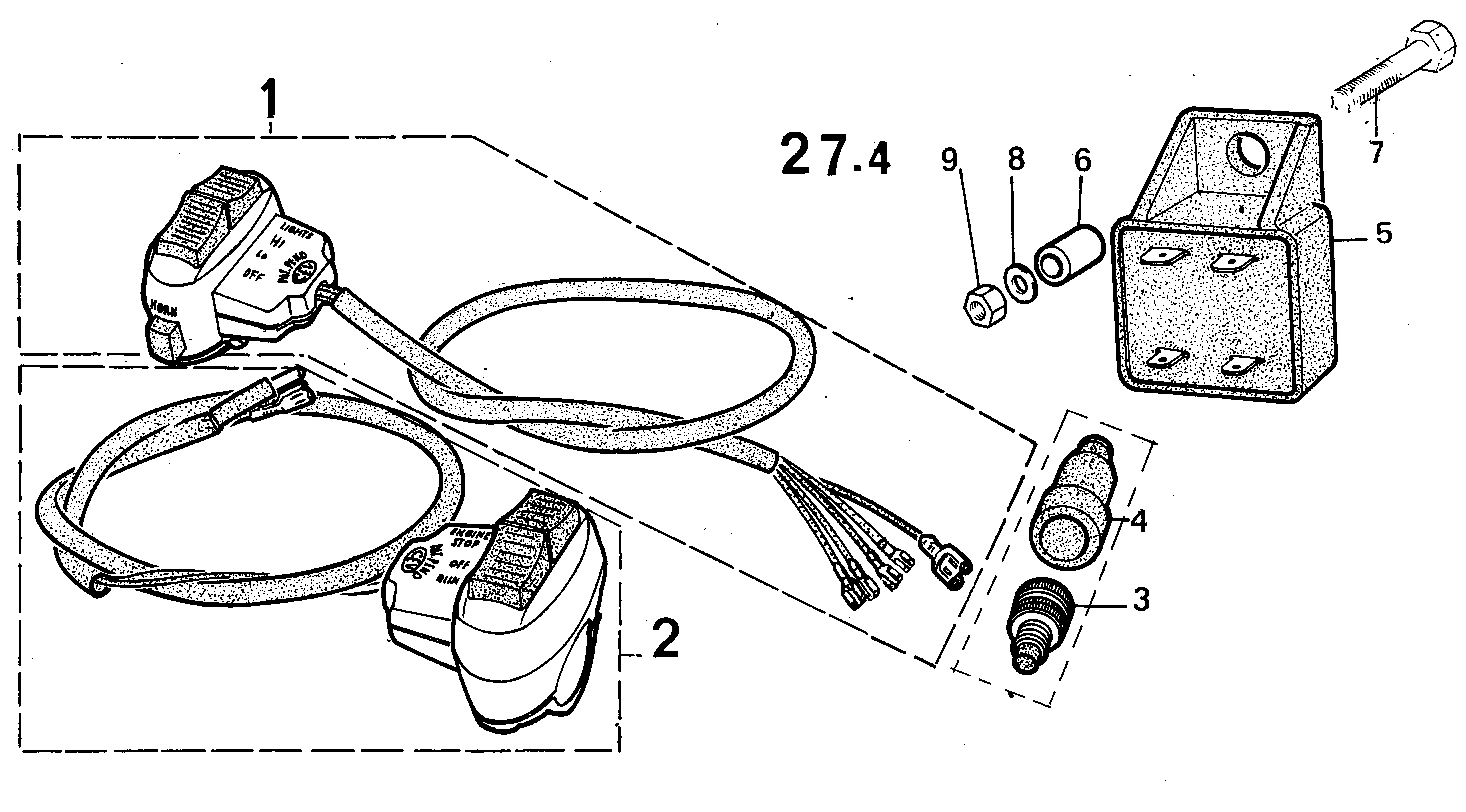

switches ’80-83 A. 27.2 102, B. 27.3 103, C. 27.4 TSM
# ABC price part#
1 010 $17.0 63334 lt. switch, 3-plug wire 103 broken knob
1 101 $25.0 64047 lights switch, 2-plug wire 102, TSM
2 111 $17.0 63335 engine switch w/wires, broken knob
3 222 $15.0 63357 brake light switch CEV 9343
3 222 none normally open when installed
3 222 $9.00 replacement Domino 2218.20.04
4 222 $2.00 56310 brake switch cover CEV 15863
5 101 $60.0 63332 transformer for 102, TSM lights
6 101 none 63156 spacer tube ∅6-10? x 15?
7 101 $0.80 853086 washer 6 inner teeth
8 101 $0.30 834010 nut

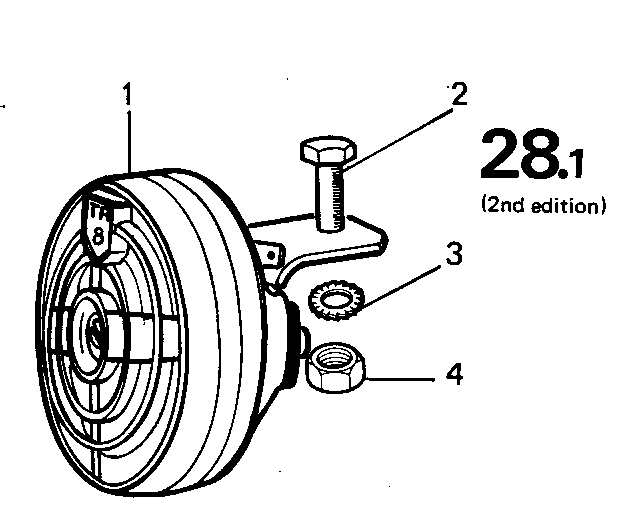

28.1 horn 103 to-’79, 28.2 102 ’80-on, 28.3 103 ’80-on
# ABC price part#
1 100 none 56342 horn 103 to-’79 25w black
1 010 none 63835 horn 102 ’80-on 10w grey
1 001 none 57402 horn 103 ’80-on 10w black
2 111 $0.80 801121 bolt M6 x 16 hex
3 111 $0.80 856060 washer 6 inner teeth
4 111 $0.30 832087 nut M6

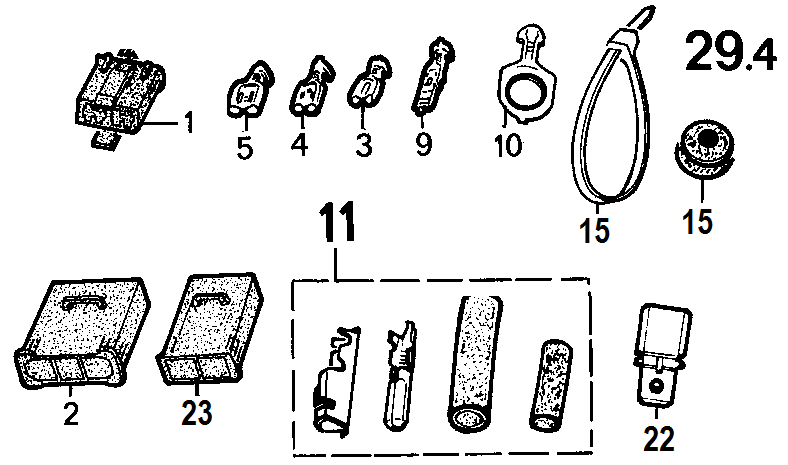

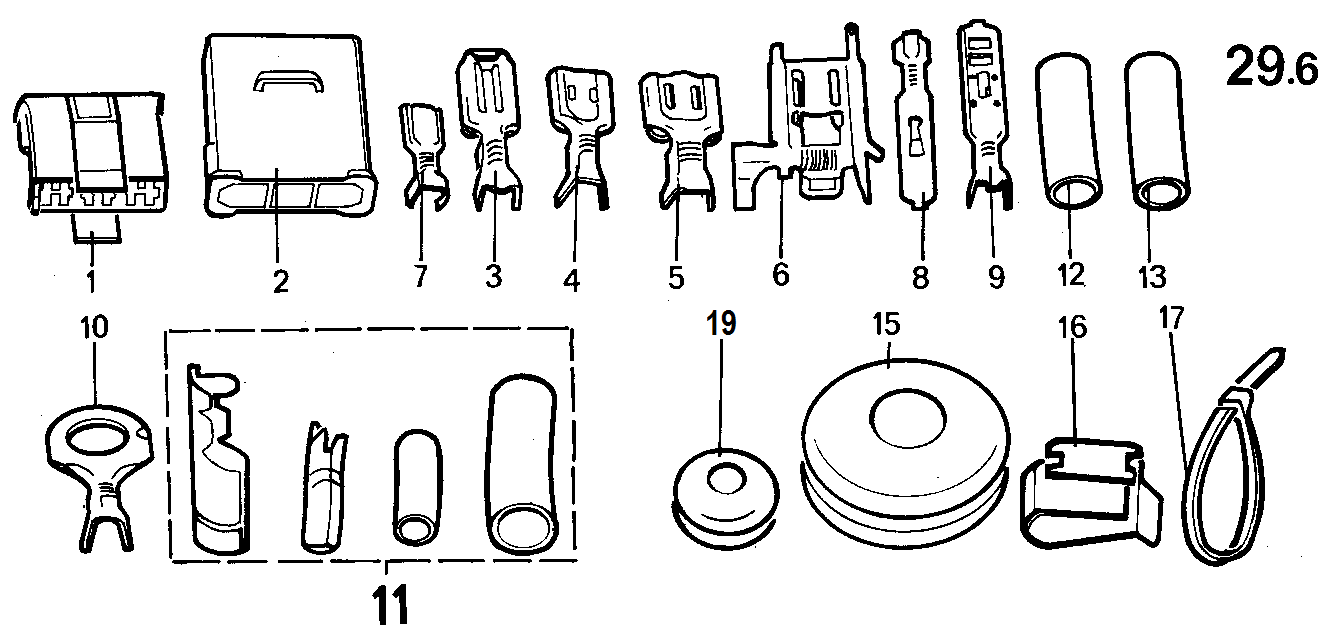

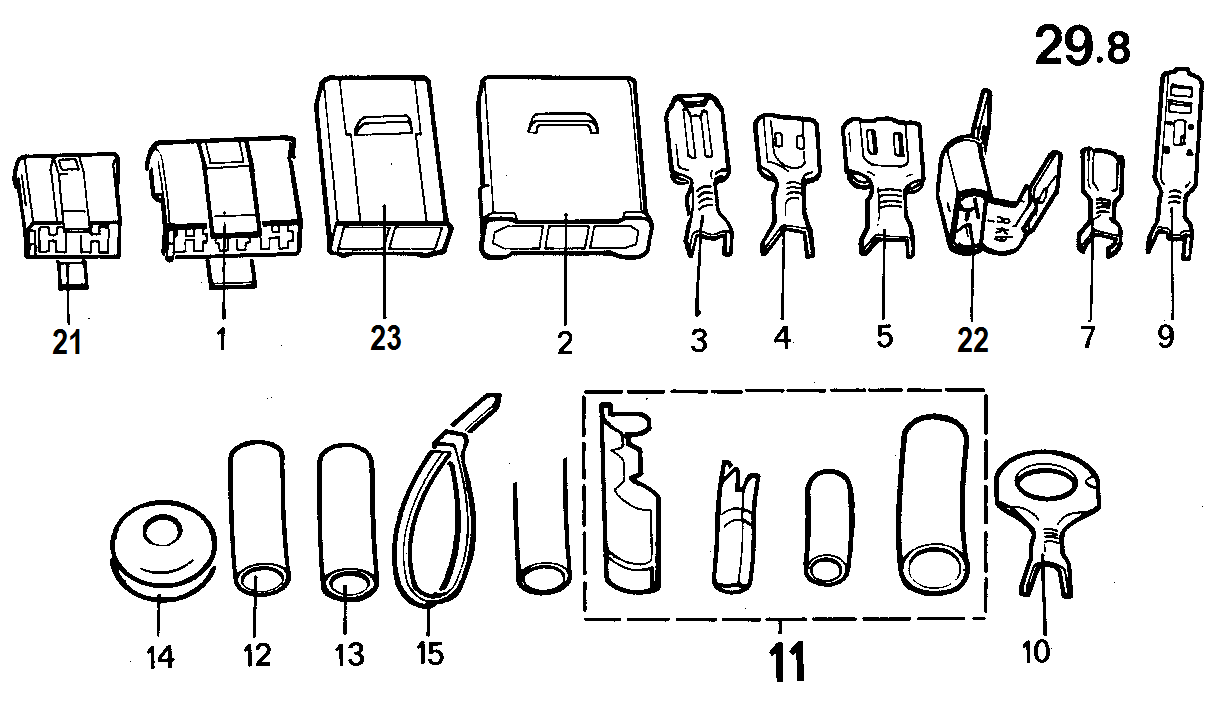

A. 29.3 electrical 103 LS, LVS, L2, SP ’76-79
B. 29.5 electrical 102 SP, SPB ’80-83
C. 29.7 electrical 103 SPB, SPR ’80-83
D. 29.9 electrical TSM ’80-83
E. 29.11 electrical 103 LVS ’80-83

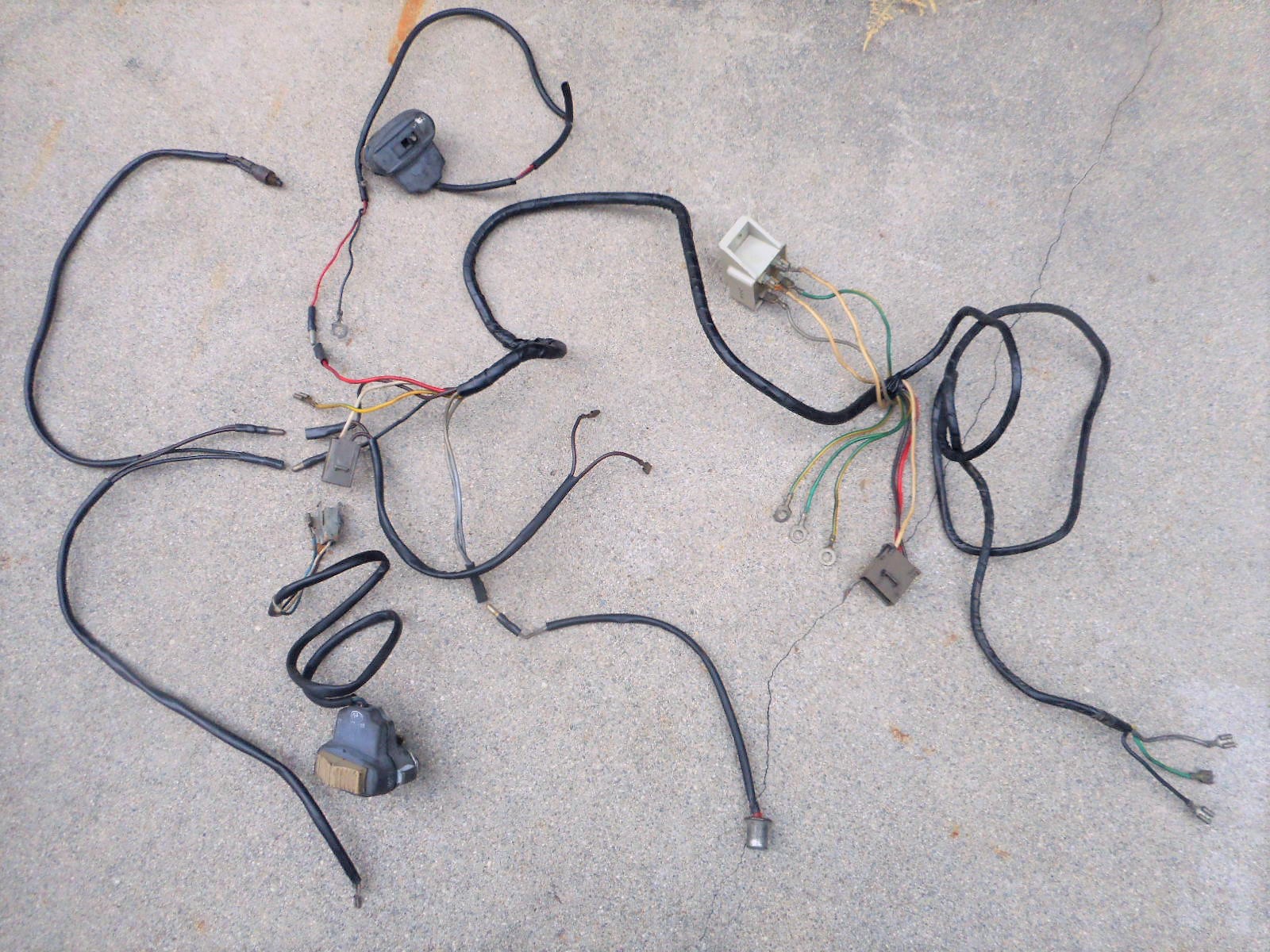

# ABCDE price part# wiring harnesses

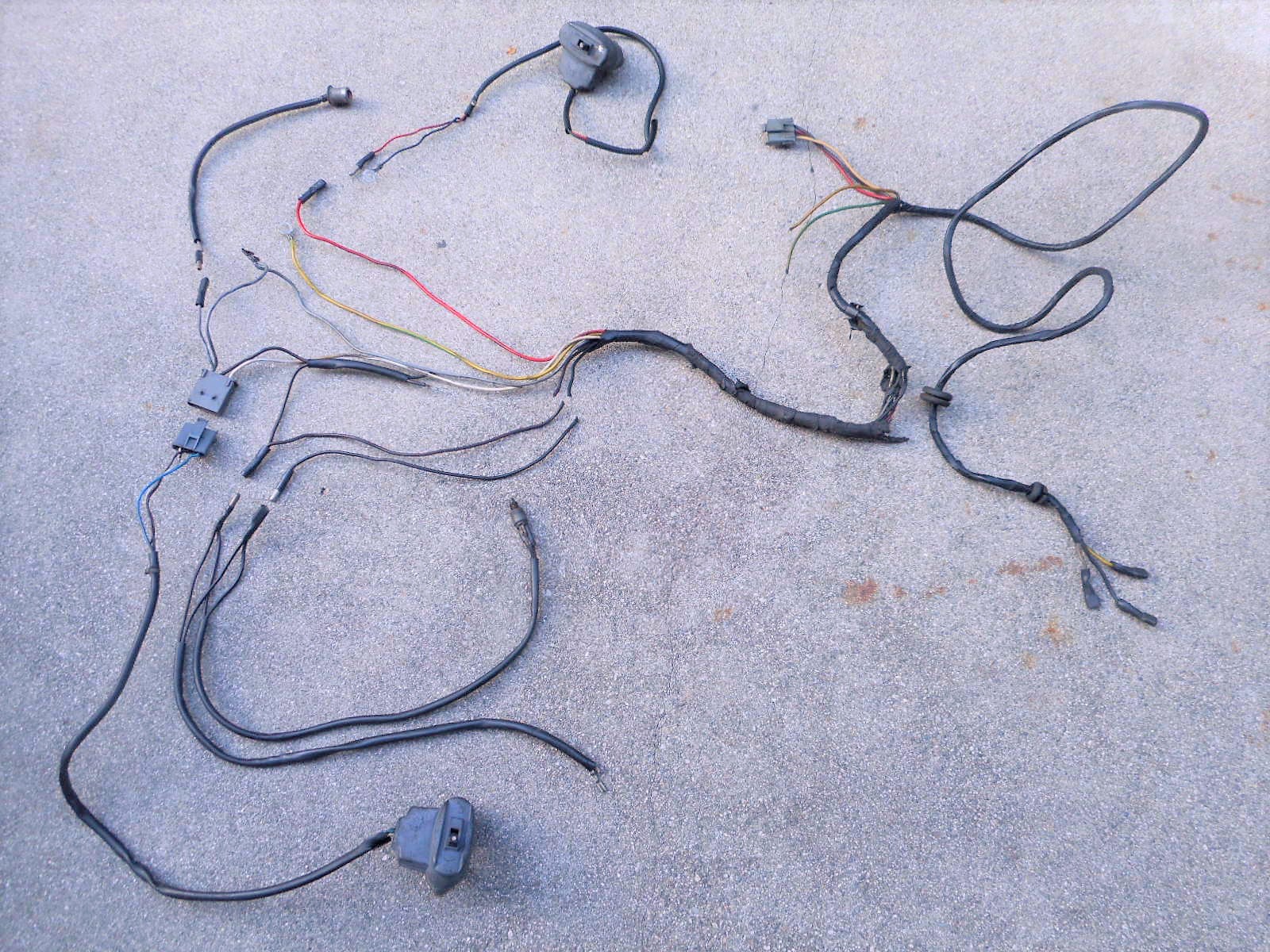

0 10000 $220 56306 ’76-79 103 LS, LVS new w/switches
0 10000 $70.0 56306 ’76-79 103 LS, LVS used no switches
0 10000 none 60448 ’77-79 103 L2
0 10000 none 60619 ’78-79 103 SP note 1
0 01000 $120 63218 ’80-83 102 SP, SPB
0 00100 none 63665 ’80-83 103 SPB, SPR
0 00010 none 63892 ’80-83 TSM
0 00001 $60.0 63660 ’80-83 103 LVS used, damaged

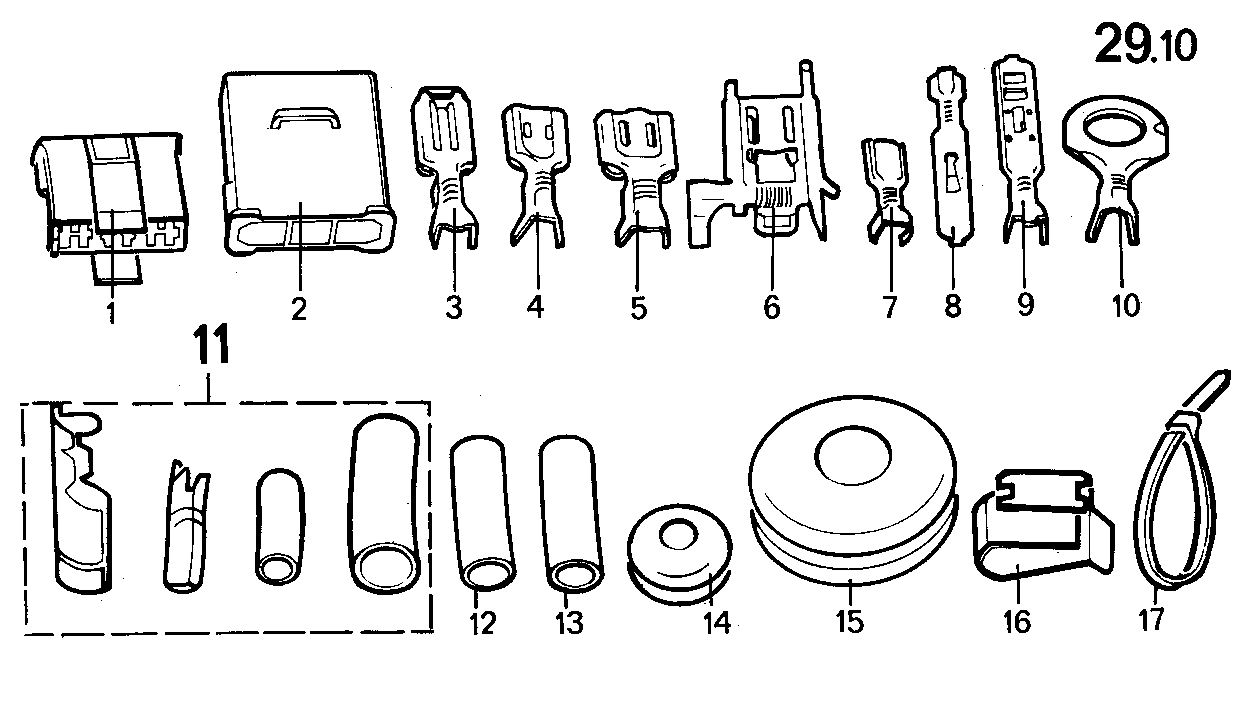

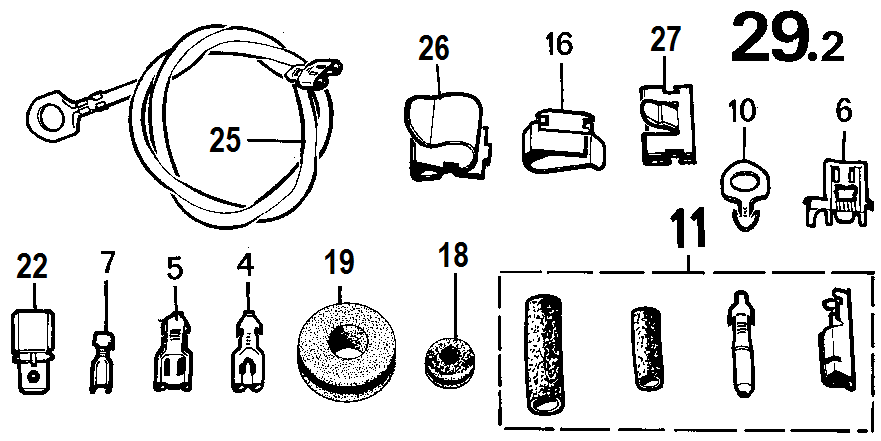

# ABCDE price part# M is male, F is female
0 00111 $28.0 63200 brake harness 520, housing 6 x 390
0 01000 $25.0 63366 brake harness 457, housing 6 x 345
0 00010 none 63893 rear harness ’80-83 TSM
1 00121 none 897056 F 3-con. box at engine
2 01211 none 897064 M 3-con. box to engine
3 02356 none 897048 F multi-connector 4.1
4 24242 $1.00 897028 F connector 5 =46911 for horn
5 38373 $1.00 897029 F connector 7
6 10101 $1.50 897044 F con. 8 for sealed beam note 2
7 40444 $1.50 56298 F connector 2.8 brake switch
8 05582 none 897045 M multi-connector 4.1
9 00202 none 897047 F multi-connector 4.1
10 23444 $1.00 897205 eyelet connector 6 =897125
11 63555 $6.00 00143 connector pin set x1 x2 x3 x4
x1 11111 $1.00 53785 shrink tube ∅4 x 17 substitute
x2 11111 $1.00 363015 shrink tube ∅6.3 x 25 substitute
x3 11111 $3.00 897130 M pin connector ∅4 od
x4 11111 $2.00 897022 F pin connector ∅6 od
14 00001 none 873070 grommet ∅20-9
15 01111 none 873108 tail light grommet ∅11-8
15 03030 $0.50 885009 zip tie 3.6 x 140 substitute
16 10111 none 873015 mount clip
17 00111 $0.50 885008 zip tie 2.4 x 92 substitute
18 10000 none 873023 tail light grommet ∅8-4
19 20100 none 873029 fender grommet ∅12-8
21 01010 none 897054 F 2-con. box at kill switch
22 11010 $3.00 897036 adapter F to 2-M 6.3
23 01010 $2.00 897062 M 2-con. box to kill switch
25 10000 none 60006 tail light ground wire
26 10000 $3.00 878014 rear strap = 55344
27 10000 none 58801 clamp
# ABCDE price housing, sold per meter note 4
00 11111 none 69048 ∅4-5 for ’76-83 speedo light
00 01111 none 69016 ∅5-6 for ’80-83 brake switch
00 10010 none 53359 ∅7-8 for ’76-83 horn wires
00 10000 none 69017 ∅9-10 ’77-79 main harness
00 00010 $5.00 69018 ∅12-13 TSM main harness
00 01111 none 413100 plastic braid ∅20
1. wiring diagram ’76-79 103 LS, LVS, L2, SP
2. wiring 56306 for ’76-79 103, new with switches
3. wiring 56306 for ’76-79 103, used, no switches
1. wiring diagram ’80-83 103 LVS, SP, SPB, SPR
2. wiring 63660 used, assembled with switches
3. wiring 63660 used, damaged, spread out, shown with but not included, 63335 engine stop switch, 63334 lights-horn switch 3-plug, 63200 brake light switch harness, and 56509 speedometer light wire and socket (see note 3). Not shown and not included is the short black headlight ground wire.
1. wiring diagram ’80-83 102
2. wiring harness 63218 used in good condition, spread out, shown with but not included, 63335 engine stop switch, 64047 lights-horn switch 2-plug with headlight wire, 63366 brake light switch harness, one 63357 brake light switch, 56509 speedometer light wire and socket (see note 3), and 63332 lights transformer. Not shown and not included is the short black headlight ground wire.
Note 1. The ’78-79 103 SP wiring harness 60619 is the same as ’76-79 103 LVS wiring harness 56306 except for 1) it has a branch off of the brake light wire for the additional reactance coil under the back of the luggage rack and 2) the Merit handlebar switches have screw-on connections instead of solder-on CEV, so the switches are not included with the harness.
Note 2. 103 models for the USA had sealed beam headlights with two 8mm male blade connectors. One 8mm female blade connector 897044 was on the wiring harness. The other 8mm connector was attached to the headlight bezel ring.
Note 3. The speedometer section 51 lists the 56509 speedometer light wire and bulb socket. 56509 originals have a grey wire with a 879130 male 4mm pin connector. 56509 replacements have a yellow wire and no connector. The 897130 connector is sold separately.
Note 4: For protection the wires go inside housing. Substitute pieces of wiring housing are available in different sizes and lengths.
A. 30.1 exhaust U1

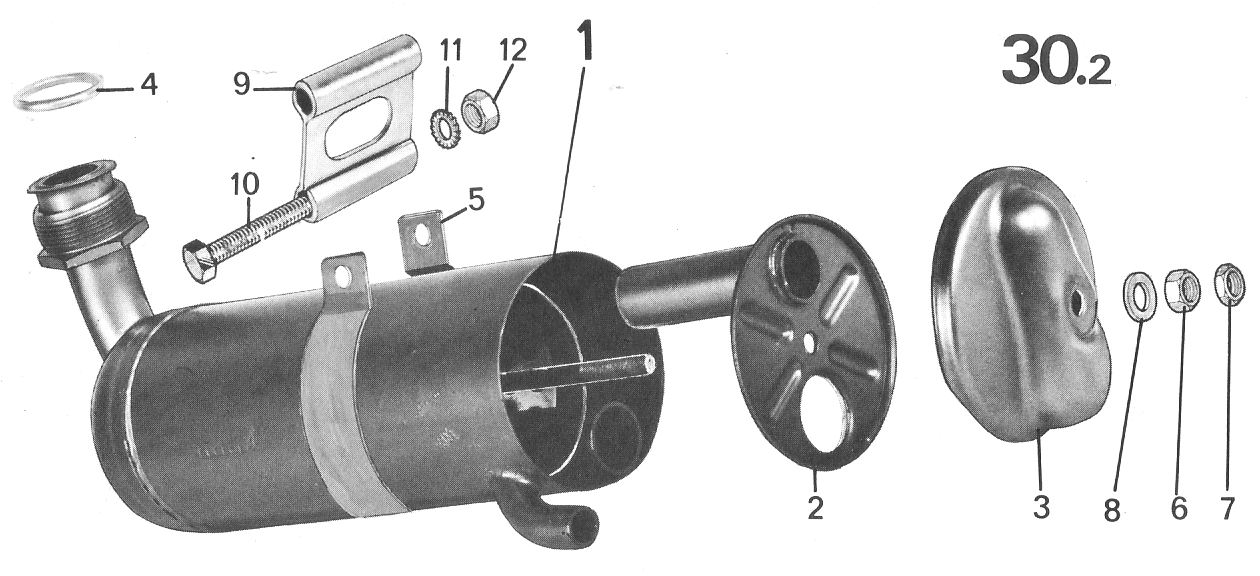

B. 30.2 exhaust U2, U3-’78-on
C. 30.3 exhaust U3-to-’77

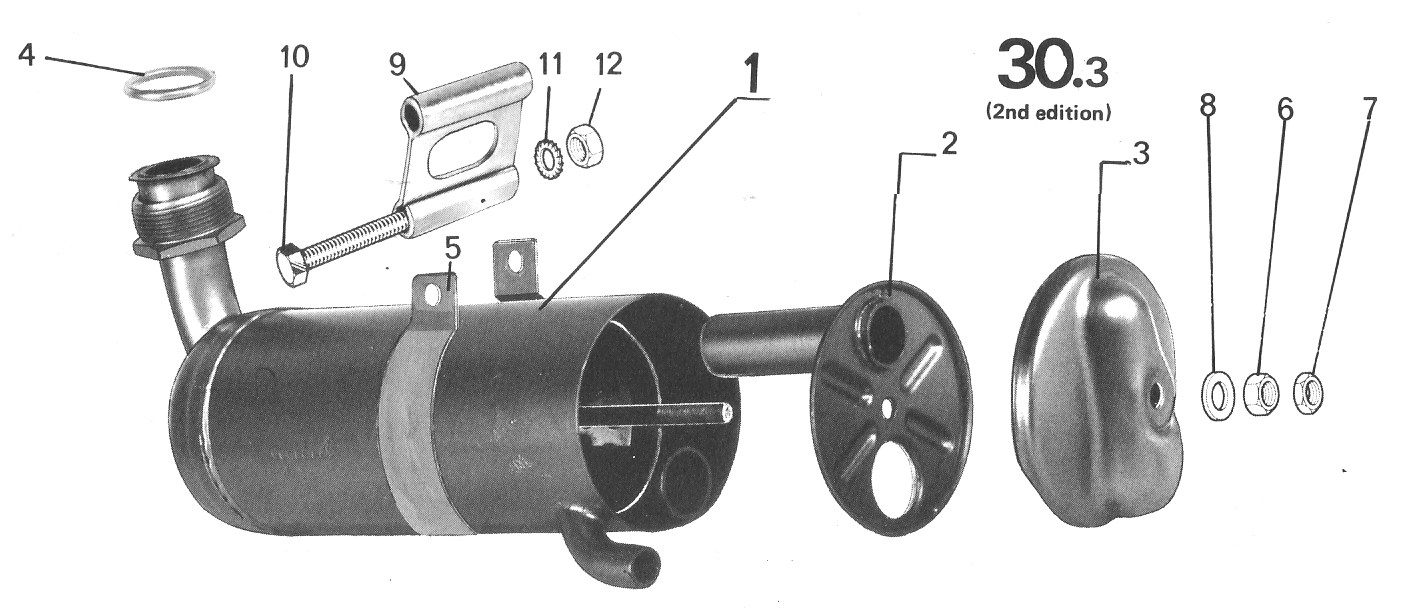

# ABC price part#
1 100 none 57447 exhaust U1 gloss black
1 010 none 51946 exhaust U2,U3 matte black
1 001 none 51975 exhaust U3 matte black
2 100 none 57451 inner disk U1 U-turn
2 010 none 49912 inner disk U2 long tube
2 001 none 52149 inner disk U3 short tube
3 100 none 55660 rear cover U1
3 011 none 49795 rear cover U2,U3
4 111 $4.00 39240 ring gasket
5 111 none 44336 mount clamp
6 111 none 32087 cover nut
7 111 none 39001 cover lock nut
8 111 none 53071 plain washer
9 111 none 46380 mount bracket
10 222 $1.00 01134 mount bolt M6 x 30 hex
11 222 $0.25 56097 mount lock washer 6
12 222 $0.30 32087 mount nut M6

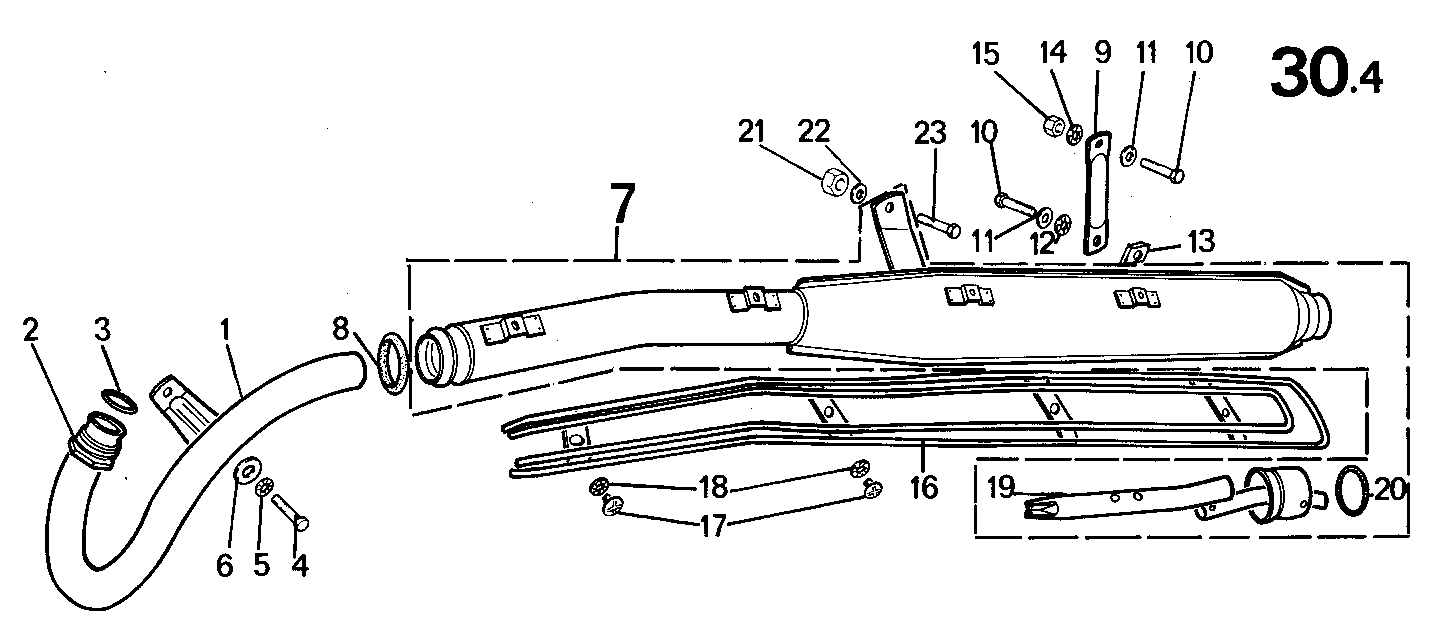

# qty price part# 30.4 exhaust for TSM
1 1 none 61653 exhaust
2 1 none 51024 exhaust pipe nut
3 1 $4.00 39240 ring gasket
4 1 $0.80 01123 bolt M7 x 20 hex
5 1 $0.50 56091 lock washer M7
6 1 $0.20 53091 plain washer M7
7 1 none 61253 silencer
8 1 $4.00 55346 rubber o-ring 5.5 x 28 (39od)
9 1 none 61285 rear holder
10 2 $1.20 01133 bolt M7 x 16 hex
11 2 none 53082 special? lock washer M7
12 1 $0.50 56091 lock washer M7
13 1 none 41003 nut
14 1 $0.50 56091 lock washer M7
15 1 $0.60 32094 nut M7
16 1 none 61279 grille
17 4 none 08038 bolt M6 x 10 cross-wide
18 4 $0.25 56060 lock washer M6
19 1 none 68106 baffle
20 1 none 68107 sealing ring
21 1 $0.80 32083 nut M8
22 1 none 56103 lock washer M8
23 1 $0.60 01158 bolt M8 x 16 hex

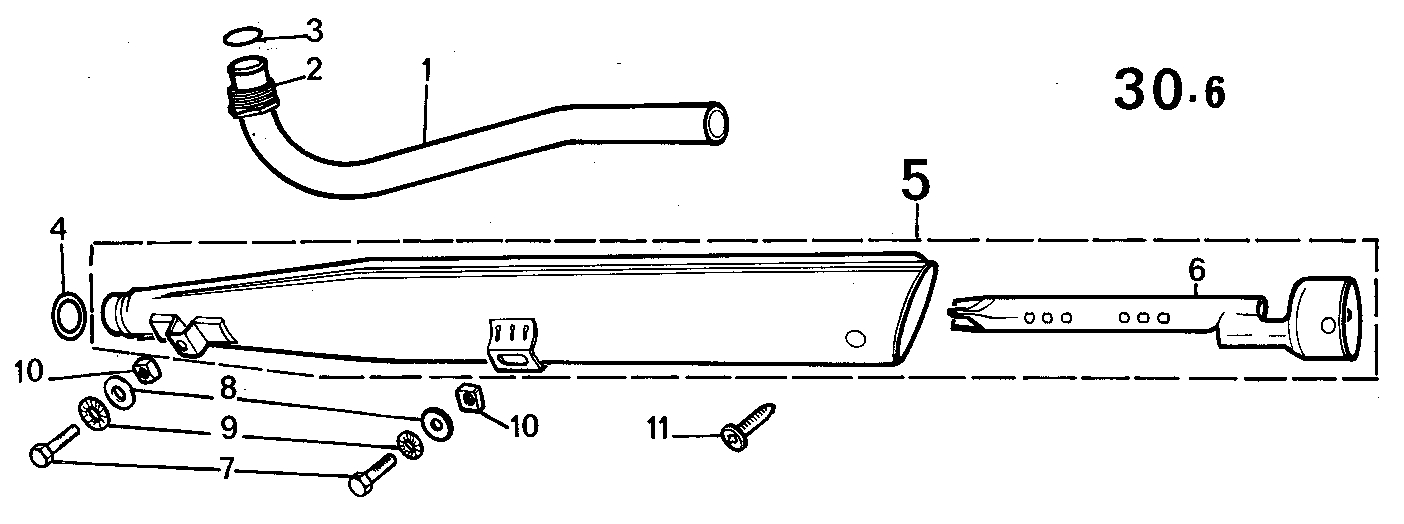

# qty price part# 30.6 exhaust for 102 .
1 1 none 63616 exhaust pipe
2 1 none 51025 exhaust pipe nut
3 1 $4.00 39240 ring gasket
4 1 $2.50 63049 rubber o-ring 3.5 x 20 (27od)
5 1 none 62004 silencer
6 1 none 63353 baffle
7 2 $1.20 801133 bolt M7 x 16
8 2 $0.20 853082 plain washer M7
9 2 $0.50 856091 lock washer M7
10 2 $0.60 841003 nut M7
11 1 none 816027 sheet metal screw 4.2 x 9.5
31.1 fairings 103 L2, LS, LVS ’76-79 white on bottom
and 103 LVS ’78-79 ivory with copper orange on bottom
and 103 LVS ’80-83 ivory with olive green on bottom
# qty price part#
1 1 none 51623 left cover (state color)
2 1 none 51624 right cover (state color)
3 2 $3.00 51631 side sticker for 103 LS, LVS (each)
3 2 none 56838 side sticker for 103 L2
4 4 $3.00 52033 screw M5 x 14 slot-wide original rusty
4 4 $0.75 52033 screw M5 x 16 slot-pan generic
0 1 none 59430 stop
0 1 none 58088 decal petrol tap
31.2 fairings 103 SP, SPB, SPR black on bottom
and fairings 103 LVS ’80-83 black on bottom
# qty price part#
1 1 none 60537 left cover (state color)
2 1 none 60538 right cover (state color)
3 2 none 60559 sticker for 103 SP
4 4 $3.00 52033 screw M5 x 14 slot-wide original rusty
4 4 $0.75 52033 screw M5 x 16 slot-pan generic
5 1 none 59430 stop
0 1 none 58088 decal petrol tap
Aftermarket Peugeot 103 Side Covers
1. original plastic none available,
1. repro plastic black $48/set, fits well, says PEUGEOT in raised letters. The new soft plastic has some scratches.
1. repro fiberglass xx $40/set, fits poorly,
2. repro fiberglass covers have a 3/8″ gap where they are supposed to touch the frame. Rubber riser tubes need to go under the front screws. They make installation difficult.
3. repro plastic chrome $48/set, fits well, says PEUGEOT in raised letters
# qty price part# 31.3 fairings 102 SP, SPB
1 1 none 61841 L cover (state color)
2 1 none 61842 R cover (state color)
3 2 none 61820 sticker
4 4 $8.00 61912 screw M5 x 20 (22 total) slot-wide original
4 4 $0.60 52033 screw M5 x 20 slot-cheese generic
6 1 none 59430 stop
# qty price part# 31.4 fairings (side covers) TSM
6 1 none 68834 L cover black
2 1 none 68835 R cover black
3 4 $3.00 52033 screw M5 x 14 wide-slot original rusty
4 4 $0.75 52033 screw M5 x 16 slot-pan generic
2 1 none 42730 edge strip (per meter)
# qty price part# 32.3 frame 103 L2
1 1 none 68451 frame blue
2 2 none 50771 pedal shaft bushing
3 1 none 51377 rear frame
4 1 none 801122 hex bolt M10-1.5 x 120
5 1 none 801303 hex bolt M10-1.5 x 100
6 1 none 832095 nut M10-1.5
7 1 none 832152 nut M10-1.5
8 1 none 856093 lock washer 10
9 1 none 801303 pivot bolt M10-1.0 x 100
11 2 none 39360 clamp
12 1 none 832153 pivot nut M10-1.0
13 1 none 00000 ID plate 103 L2
14 2 none 872077 rivet for ID plate
15 2 none 58359 cables holder clip
16 1 $35.0 52321 gas cap P30p original
16 1 $25.0 52321 gas cap P30pr original replacement
16 1 $12.0 52321 gas cap P30 generic
17 1 none 58090 fuel valve sticker
18 1 $15.0 58013 gas valve A2 M10-down
19 1 $3.00 46635 seal ring with cup
20 1 $1.00 01163 fuel hose 3/16 id clear (per foot)
21 1 none 55182 L tank plate
22 1 none 55183 R tank plate
23 4 none 872018 special rivet
24 1 none 63020 L tank sticker lt blu ’80-83
25 1 none 63019 R tank sticker lt blu ’80-83
26 1 none 51383 center strip
27 2 none 55568 gasket
For saddle holder items see 32.5 #19-32
1. gas cap push-in 30mm generic, 2. original
2. original replacement, 2. Esso replacement
32.5 frame 103 LS, LVS, SP, SPB, SPR
1# qty price part#
1 1 none 55603 frame (state color)
2 1 $35.0 52321 gas cap P30p original
2 1 $25.0 52321 gas cap P30pr original replacement
2 1 $12.0 52321 gas cap P30 generic
3 1 $15.0 58013 gas valve A2 M10-down
4 1 $3.00 46635 seal ring with cup
5 1 $1.00 01163 fuel hose 3/16 id clear (per foot)
6 1 none 57705 ID plate 103 LS U1
6 1 none 57706 ID plate 103 LVS U2
6 1 none 57707 ID plate 103 LVS U3
6 1 none 60823 ID plate 103 SP U2-U3
7 2 none 872077 rivet
8 1 none 55182 L tank plate
9 1 none 55183 R tank plate
10 4 none 872018 special rivet
# qty price part# 103 gas tank stickers
11 1 none 55470 L PEUGEOT 103 white ’76-79 L2,LS,LVS
12 1 none 55471 R PEUGEOT 103 white ’76-79 L2,LS,LVS
11 1 $8.00 00000 L PEUGEOT 103 copper ’78-79 LVS
12 1 $19.0 00000 R PEUGEOT 103 copper ’78-79 LVS
11 1 none 60566 L 103 SP green xoxoxo ’78-79 SP
12 1 $10.0 60567 R 103 SP green xoxoxo ’78-79 SP
11 1 none 00000 L 103 SP olive xoxoxo ’80-83 SP,SPB,SPR
12 1 $10.0 00000 R 103 SP olive xoxoxo ’80-83 SP,SPB,SPR
11 1 none 00000 L 103 SP blue xoxoxox ’78-79 SP
12 1 none 00000 R 103 SP blue xoxoxox ’78-79 SP
17 1 none 63019 L 103 light blue xoxox ’80-83 LVS
18 1 none 63020 R 103 light blue xoxox ’80-83 LVS
17 1 none 00000 L 103 copper xoxoxox ’80-83 LVS
18 1 none 00000 R 103 copper xoxoxox ’80-83 LVS
17 1 none 00000 L 103 olive xoxoxoxox ’80-83 LVS
18 1 none 00000 R 103 olive xoxoxoxox ’80-83 LVS
13 1 none 51383 center strip
14 2 none 55568 gasket
16 1 none 58359 cable holder clip
# qty price part# saddle support .
19 1 none 55328 seat support and tool box
20 1 none 43527 cover knob clip
21 1 none 43525 cover knob
22 1 none 51611 L cover bare
23 2 $18.0 49408 emblem ’76-79 gold on white
23 2 none 00000 emblem ’77-79 gold on red
23 2 none 00000 emblem ’78-79 gold on olive
24 1 none 51511 R cover bare
25 1 none 872018 rivet
26 1 $7.00 51317 foot rest holder
27 1 none 853105 washer
28 1 none 832131 nut
29 2 $8-$5 51353 side cover bracket
30 1 $2.00 801441 hex bolt M7 x 75
31 1 $0.50 856091 lock washer 7
32 1 $0.60 832094 nut M7
33 1 none 00000 seat post clamp
34 2 none 00000 hex bolt
35 2 none 00000 washer
36 2 none 00000 nut
38 1 none 00000 seat post cover
39 1 none 00000 L tool box sticker ’80-83
40 1 none 00000 R tool box sticker ’80-83
00 1 $20.0 00000 tool box sticker set ’80-83
1. tool box emblem white ’76-79, 2. emblem red
3. tool box sticker set ’80-83
# qty price part# 32.7 frame 102
1 1 none 68831 frame (state color)
2 2 none 50771 pedal shaft bushing
3 1 none 61826 left tank sticker
4 1 none 61827 right tank sticker
5 1 $35.0 52321 gas cap P30p original
5 1 $25.0 52321 gas cap P30pr original replacement
5 1 $12.0 52321 gas cap P30 generic
6 1 none 58090 fuel valve sticker
7 1 $29.0 63441 gas valve A8c M10-right with extender
8 1 $1.00 61764 clear fuel hose 15″
9 1 $3.00 46635 seal ring with cup
10 1 none 46485 seat post clamp
11 1 none 801141 seat clamp bolt M8 x 45
12 1 none 00000
13 1 none 00000
14 1 none 00000
15 1 none 00000
16 1 none 00000
17 4 none 00000
18 4 none 00000
19 4 none 00000
20 1 none 00000
21 2 none 00000
22 1 none 00000
23 2 none 00000
24 2 none 00000
25 2 none 00000
# qty price part# tool box parts .
30 1 none 69303 tool box complete
30 1 $45.0 69303L cover L1 sidereal blue 2 knobs
30 1 $40.0 69303L cover L2 sky metallic 2 knobs
30 1 $40.0 69303L cover L3 sky metallic 2 knobs
30 1 $30.0 69303L cover L4 sky metallic 1 knob
30 1 $20.0 69303R cover R1 sidereal blue no mount
30 1 $20.0 69303R cover R2 sky metallic no mount
30 1 $15.0 69303R cover R3 sky metallic no mount
30 1 $15.0 69303R cover R4 sky metallic no mount
31 2 none 43525 cover knob
32 1 none 61818 L sticker
33 1 none 61819 R sticker
34 2 none 54716 mount bracket (to fender)
35 2 $0.80 801119 screw M6 x 10
36 2 $0.25 856097 lock washer 6
37 2 $0.30 832087 nut M6
38 2 none 816028 screw 4.8 x 12.7
# qty price part# 32.9 frame TSM
1 1 none 61294 frame
2 1 none 00000 x
3 1 none 00000 x
4 1 none 00000 x
5 1 none 00000 x

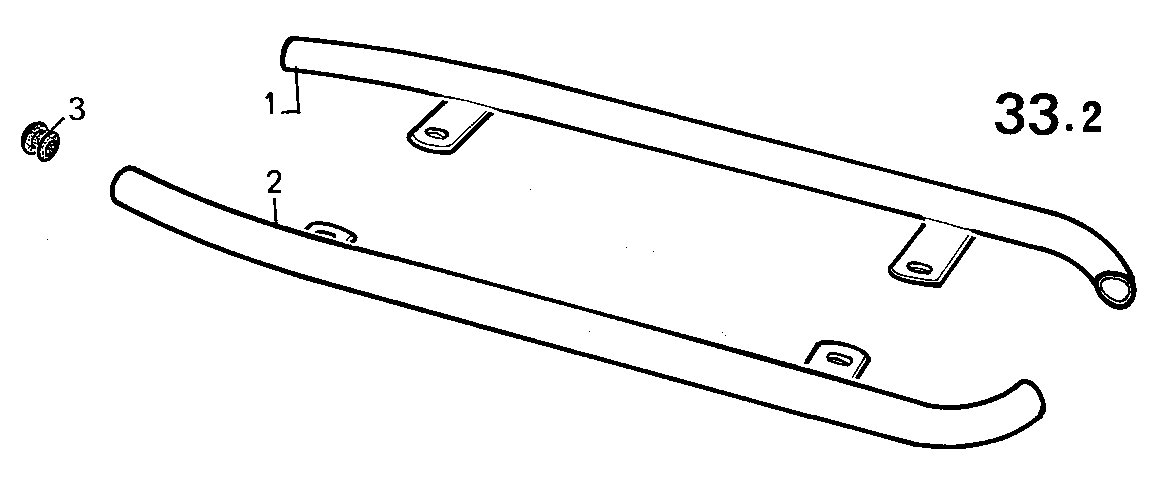

# qty price 33.1 foot rest 103 SP, SPB, SPR
1 2 $4.00 59430 end plug
2 1 none 60528 L foot rest
3 1 none 60527 R foot rest
# qty price 33.2 foot rest 102 SP, SPB
1 1 none 61722 R foot rest
2 1 none 61723 L foot rest
3 2 $5.00 51925 end plug

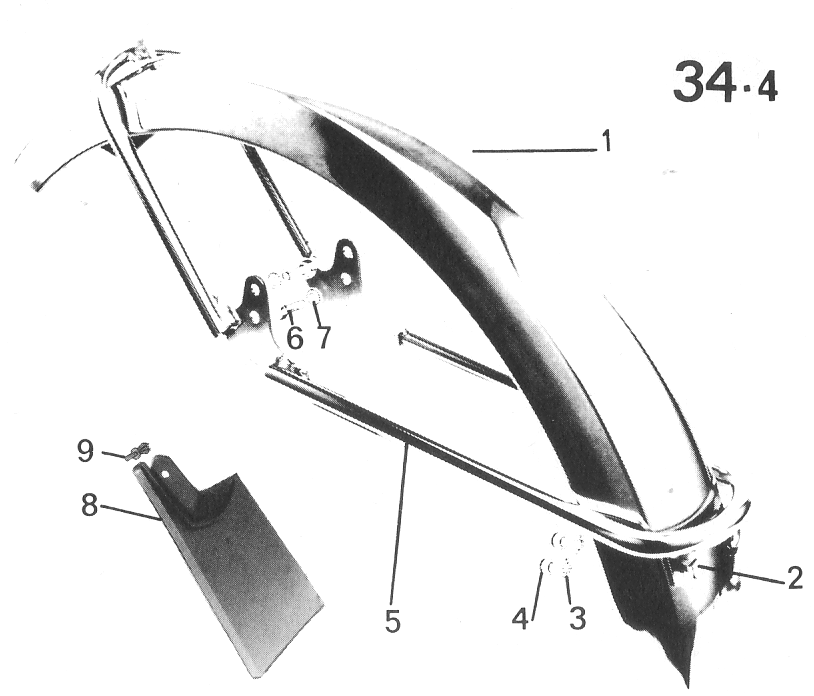

A. 34.1 front fender 103 LS,LVS, L2
B. 34.3 front fender 102 SP, SPB
# AB price part#
1 10 none 51972 fender bare inox
1 01 none 54707 fender bare inox
2 10 none 51451 support plate
2 01 none 47582 support plate
3 44 1- .50 801105 bolt M6 x 12
4 44 none 856097 lock washer
5 44 $0.30 832087 nut M6
6 10 none 51326 fender brace
6 01 none 63349 fender brace
7 22 none 42616 brace cup
8 22 none 01213 brace bolt
9 11 none 856097
10 11 $0.30 832087 nut M6
11 22 none 801120
12 22 none 43025
13 22 none 856097 lock washer
14 22 $0.30 832087 nut M6
15 11 none 51327 mud flap
16 33 none 872018 mud flap rivet

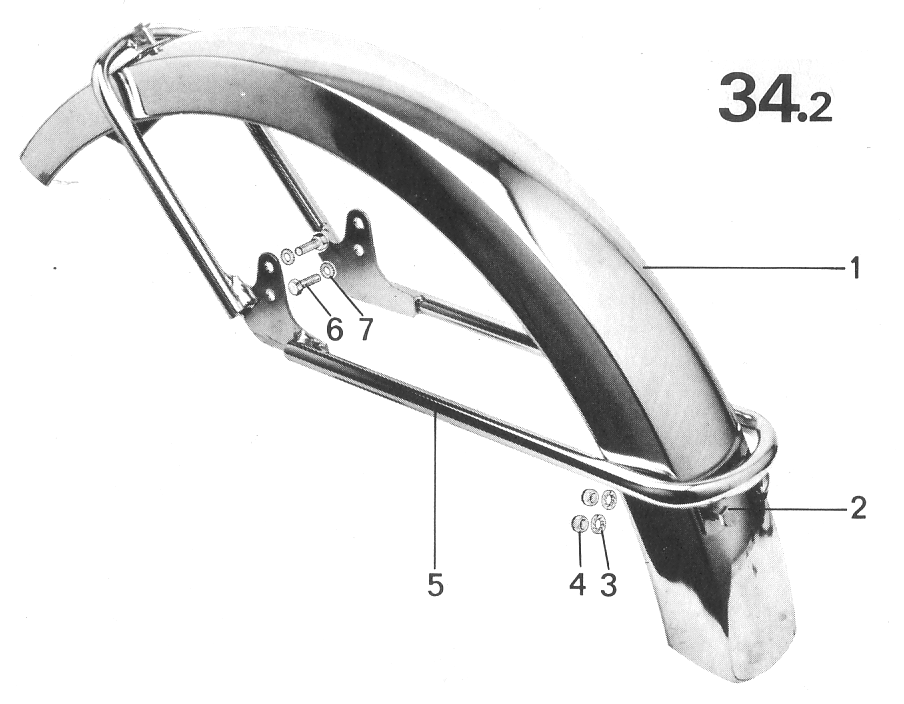

A. 34.2 front fender ’78-79 103 SP
B. 34.4 front fender ’80-83 103 SP, SPB, SPR
# AB price part# (inox is polished stainless steel)
1 10 none 60555 fender bare inox
1 01 none 55114 fender bare inox w/mud flap
2 33 $0.80 801105 bolt M6 x 10
3 33 none 856097 lock washer
4 33 $0.30 832087 nut M6
5 11 none 54040 fender mount
6 44 $0.80 801119 bolt M6 x 10 hex
7 44 none 856060 lock washer
8 01 none 51327 mud flap
9 03 none 872018 rivet
# qty price part# 34.5 front fender TSM
1 1 none 55884 fender bare inox
2 1 none 853096 plain washer 6
3 4 $0.80 801119 bolt M6 x 10 hex
4 4 none 856097 lock washer
5 4 none 832087 nut
6 1 none 55862 fender mount
7 4 $0.80 801119 bolt M6 x 10 hex
8 4 none 856060 lock washer
A. 35.3 front hub 103 L2, LS no speedo

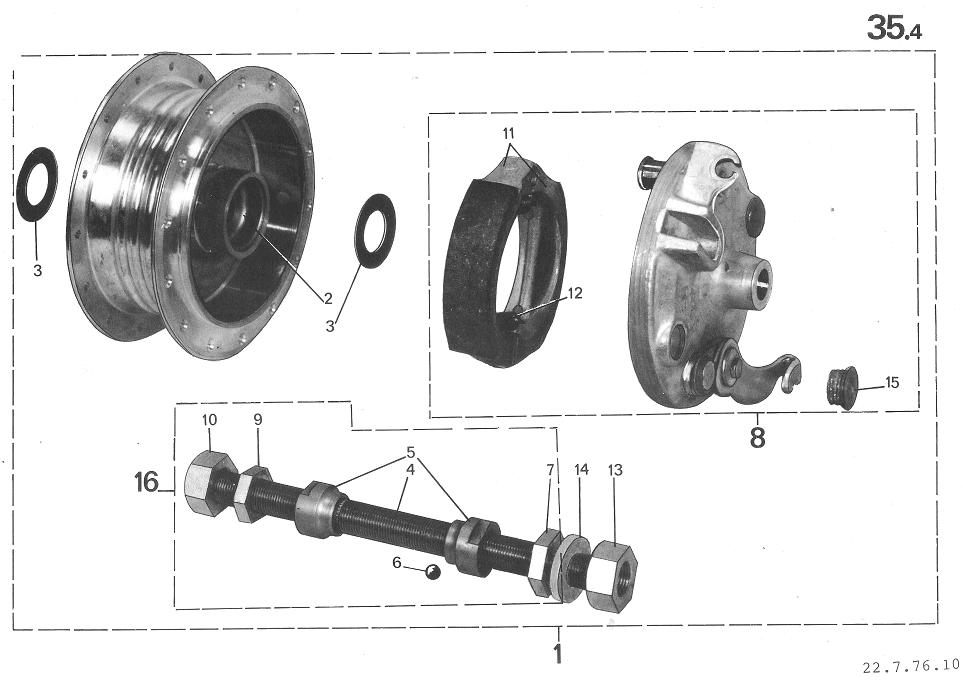

B. 35.5 front hub 102, 103, TSM
# AB price part#
1 10 none 56308 front hub for no speedo
1 01 none 60628 front hub
2 22 $5.00 69285 bearing cup
3 22 $5.00 69280 dust ring
4 11 $19.0 69417 axle M11 x 158, 153 at threads
5 22 $5.00 69284 cone
6 11 $2.00 00694 bag of 22 balls 7/32″
7 11 $3.00 69333 nut M11-1.0 x 5 hex19
8 11 45-35 68103 brake plate assy good-used
9 11 $3.00 01442 nut M11-1.0 x 5 hex17
0 01 $20.0 46709 speedo driver 11 x 2
0 01 $4.00 16676 speedo spacer 11 x 4
0 01 $3-$2 00000 speedo nut 11 x 10
10 10 $5.00 68127 no-speedo nut 11 x 16.6 hex17
11 11 $25.0 69275 brake shoe set 80 x 18 Leleu
12 22 $2.00 08703 brake spring
13 22 $3.00 69282 axle nut
14 22 none 853114 axle washer
15 22 $4-$3 68112 inspection plug
The speedo driver is 2.0mm thick at the axle. The speedo spacer is 4.0. The speedo lock nut is 10.0. That’s 16.0, about the same as the 68127 no speedo lock nut 16.6.
A. 36.1 front wheel 103 no speedo
B. 36.2 front wheel 103
C. 36.3 front wheel 102
D. 36.5 front mag wheel 103 SPR
E. 36.6 front wheel TSM
# ABCDE price part# n is 28
1 10000 none 55073 front wheel 103 no speedo
1 01001 none 58639 front wheel 103, TSM
1 00100 none 62962 front wheel 102
1 00010 none 64210 front mag wheel 103 SPR
2 11001 none 53187 rim 17 x 1.5 28-hole
2 00100 none 51488 rim 17 x 1.1 28-hole
3 11111 $2.00 44411 rim band (strip)
4 nnn0n $1.50 54192 spoke ∅2.4 x 162 w/nipple
5 nnn0n $1.00 41858 spoke nut hex, ∅4.6, thread 0.55 French
6 11110 $11.0 43633 tube 2.25/2.50-17 fits 2.00
6 00001 $13.0 43289 tube 2.75/3.00-17 fits 2.50
7 11010 $39.0 69013 tire 2.25-17 Shinko SR704 .
7 11010 $39.0 69013 tire 2.25-17 Mitas/Sava B4 .
7 11010 $34.0 69013 tire 2.25-17 Kenda K261 .
7 11010 none 69013 tire 2.25-17 Mitas/Sava MC11 .
7 00100 $35.0 69006 tire 2.00-17 Vee Rubber 126 .
7 00100 $36.0 69006 tire 2.00-17 IRC NR58 .
7 00100 none 69006 tire 2.00-17 Mitas/Sava MC11 .
7 00001 $44.0 43642 tire 2.50-17 Mitas/Sava B4 .
7 00001 $27.0 43642 tire 2.50-17 Vee Rubber 021 .
7 00001 $42.0 43642 tire 2.50-17 Mitas/Sava MC11 .
11 00010 none 64381 brake plate
12 00010 $25.0 69275 brake shoe set 80 x 18 Leleu
13 00020 none 08703 brake spring
16 00020 none 68112 inspection plug
20 00010 none 68676 axle ∅10 x 158
23 00020 none 853114 axle washer
24 00020 none 59857 axle nut with shoulder
25 00020 none 68136 bearing 10 x 30 x 9
26 00010 none 68673 center tube
27 00010 none 68674 spacer

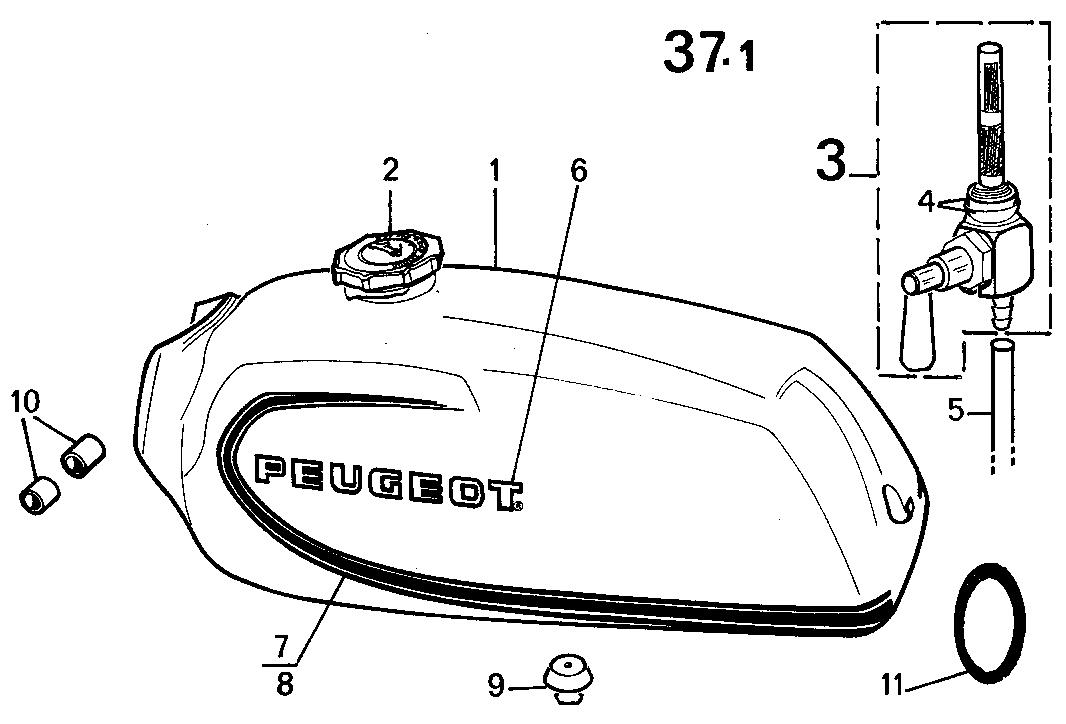

37.1 gas tank TSM
# qty price part#
1 1 none 61038 gas tank
2 1 $30.0 65526 gas cap chrome
2 1 $35.0 65526L gas cap black locking
2 1 $30.0 65526E gas cap chrome Esso
3 1 $15.0 65525 gas valve A2 10×1-down
4 1 $2.50 46635 cup with seal ring
5 1 $2.00 61764 clear fuel hose 3/16″ x 24″
6 2 none 61885 Peugeot sticker
7 1 none 61275 right stripe sticker
8 1 none 61276 left stripe sticker
9 2 none 888009 rubber stop
10 2 none 54918 mount sleeve
11 1 none 61940 mount rubber band

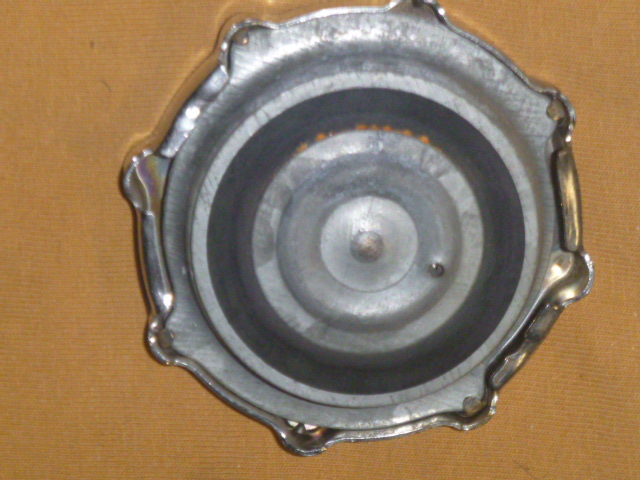

1,2. TSM gas cap, quarter-turn 60mm external-wing
3. TSM gas cap locking, 4. TSM gas cap Esso
5. TSM fuel petcock A2 made in Italy by OMG
x
A. 38.1 handlebar
B. 38.2 handlebar
C. 38.1 handlebar
# ABC price part#
1 100 none 56320 handlebar LVS
1 010 none 52711 handlebar SP
1 001 none 61711 handlebar TSM
2 222 $5-$3 54039 clamp
3 444 $1.00 801338 bolt M7 x 40 hex11
4 444 $0.60 834005 nut M7

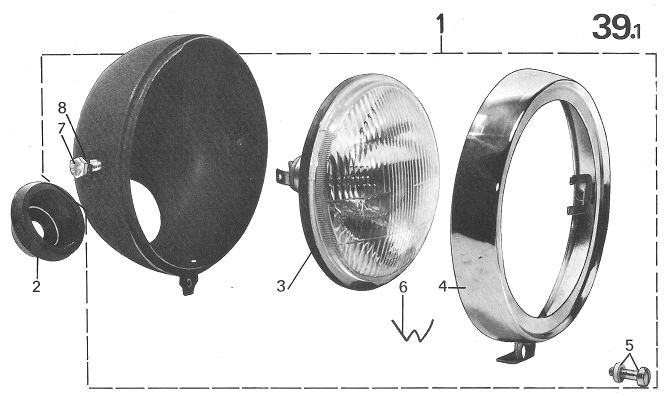

A. 39.1 headlight 103 LS,LVS,L2 U2-U3,SPB,SPR

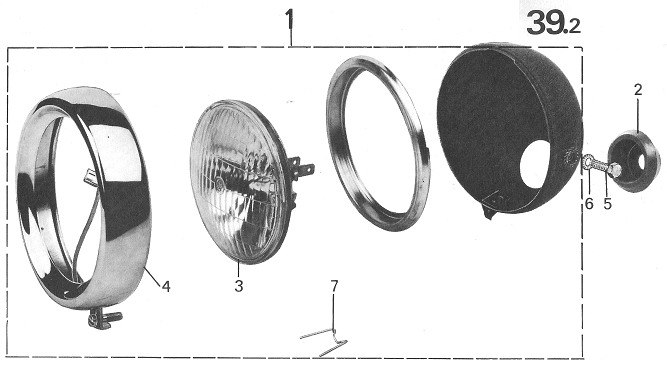

B. 39.2 headlight 103 SP, 103 L2 U1
C. 39.3 headlight 102, TSM
# ABC price part# D. Replaceable bulb headlight
1 100 none 63354 headlight CEV
1 010 none 60400 headlight Luxor
2 111 $6.00 73005 headlight grommet
3 100 none 68059 bulb sealed beam 6V 20w CEV
3 010 none 60321 bulb sealed beam 6V 25w GE 4767
3 111 $32.0 RBH-b replaceable bulb headlight
3 001 $2.50 58996 bulb replaceable 6V 21w BA15s
4 101 28–18 68060 bezel CEV 105 with wire
4 010 $75.0 68383 bezel Luxor 1710 with wire
5 101 $1.00 53108 bezel screw M5-0.8 & washer
5 010 $1.50 00000 bezel screw M5-0.9 & washer
6 505 $2.00 53107 W-clip CEV
6 050 $2.00 69886 W-clip Luxor
7 222 $1.00 801102 mount screw M6 x 20 hex
8 222 $0.50 56101 washer 6 outer teeth
9 010 $4.00 00000 adaptor ring
10 001 $18.0 63543 bulb socket CEV 04811
11 001 $2.00 63544 socket clip CEV
12 001 none 63545 reflector-glass CEV

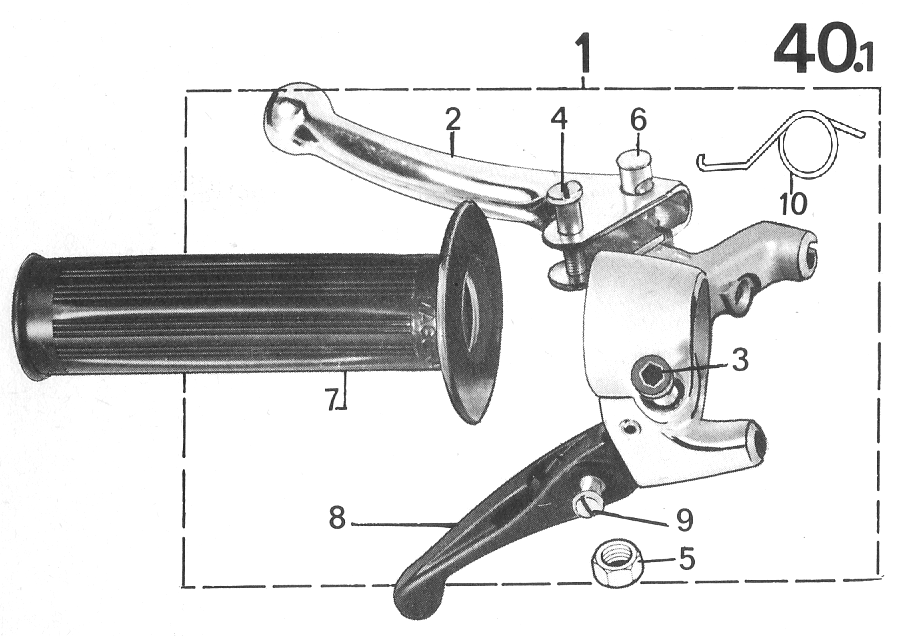

# qty price 40.1 left control Magura .
1 1 none 56325 left control assembly
1 1 none 00000 left control housing bare
2 1 none 55359 left brake lever
3 1 none 55369 clamp bolt
4 1 $2.00 55362 pivot bolt
5 1 $2.00 55363 pivot nut
6 1 $4.00 52551 anchor pin substitute
7 1 $2.00 55358 left grip
8 1 none 68057 choke lever
9 1 none 68058 pinch bolt
10 1 none 68453 left helper spring
x

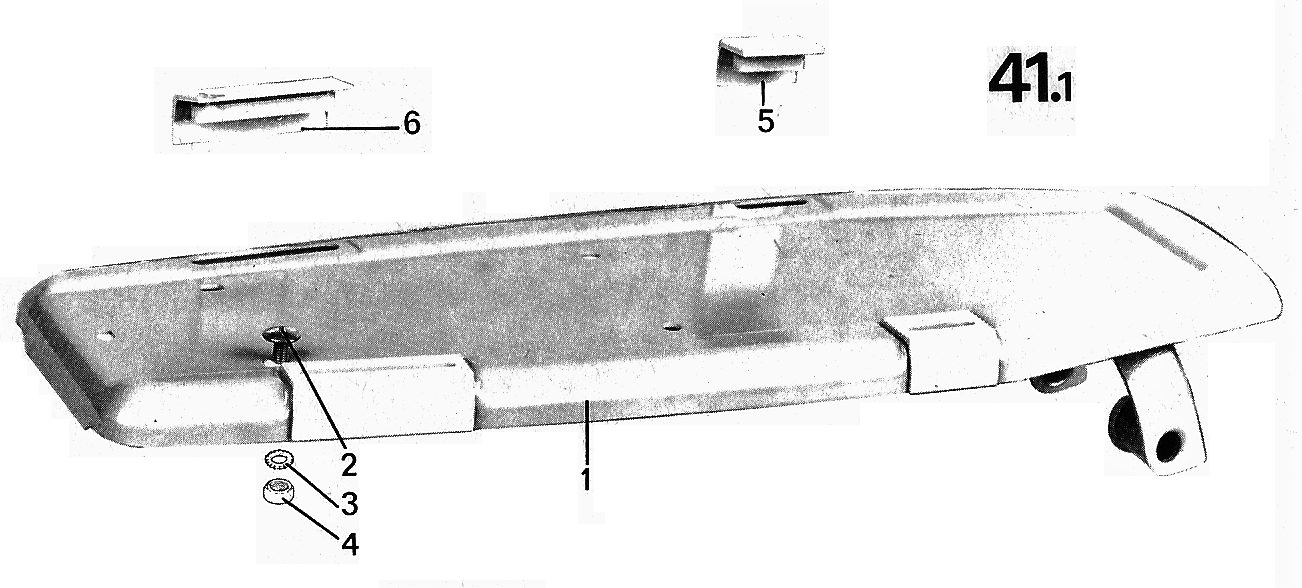

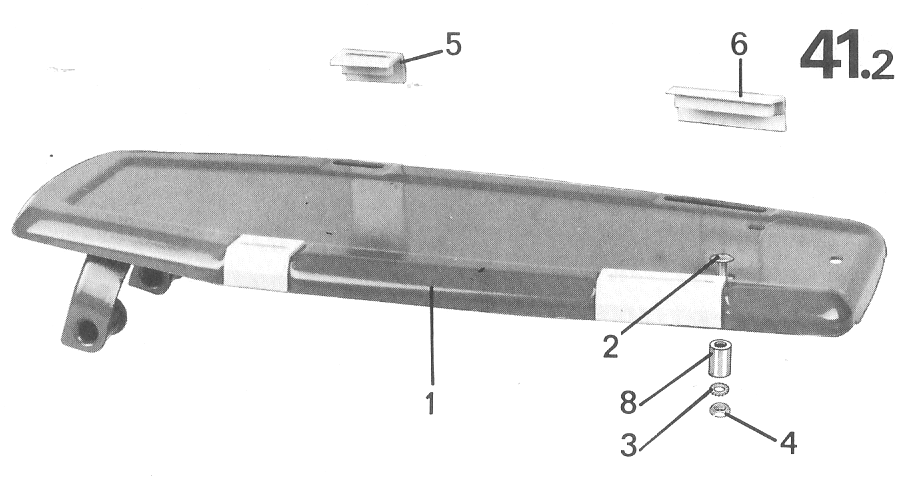

41.1 luggage carrier
# qty price part#
x
42.1 mirror
# qty price part#
x

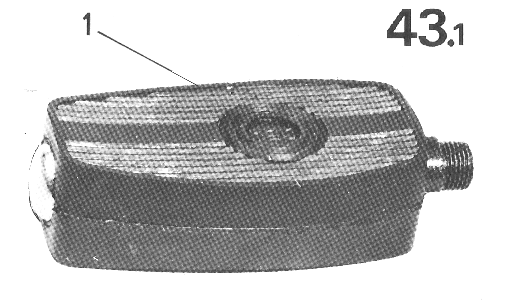

43.1 pedals
# qty price part#
x
44.1 rear fender

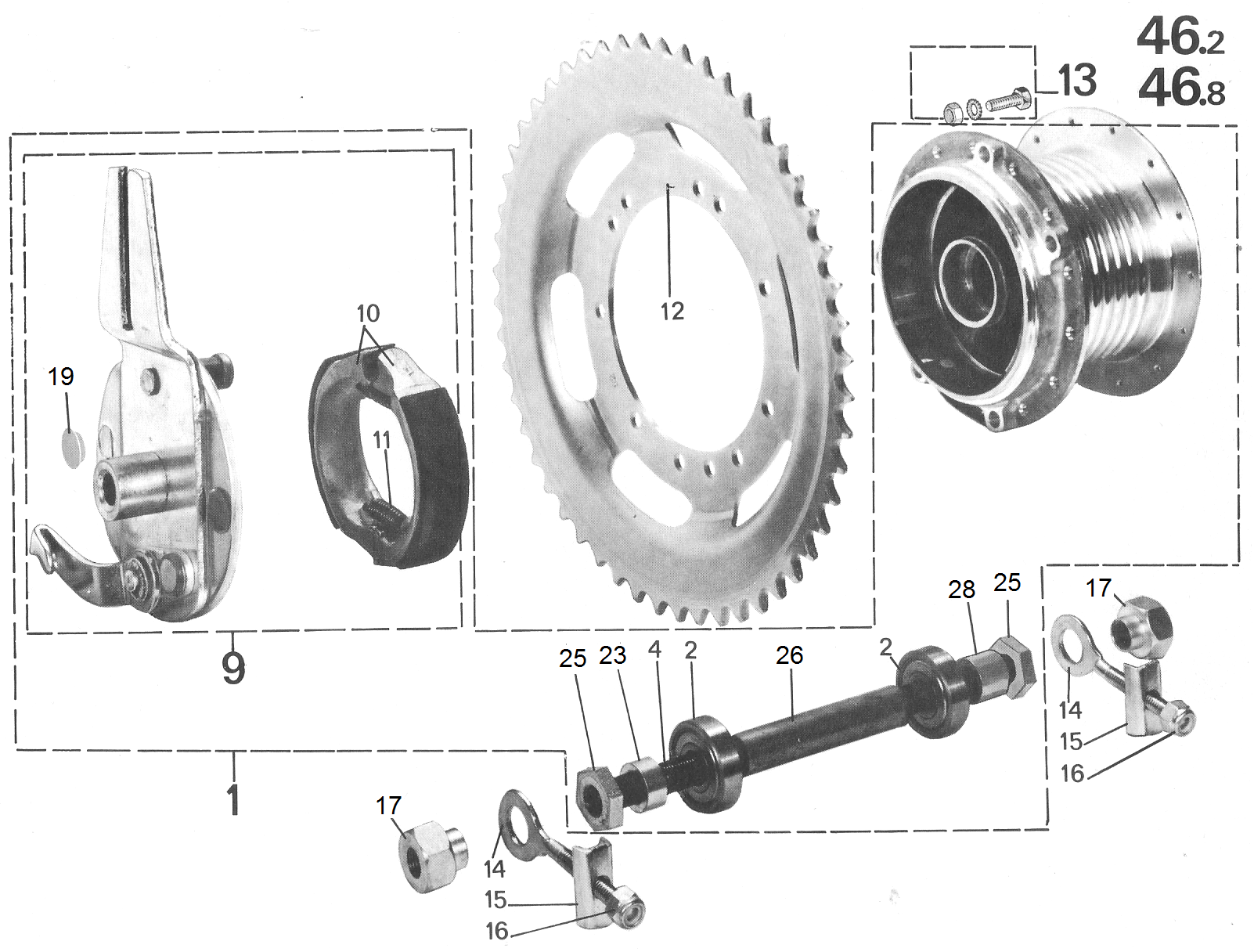

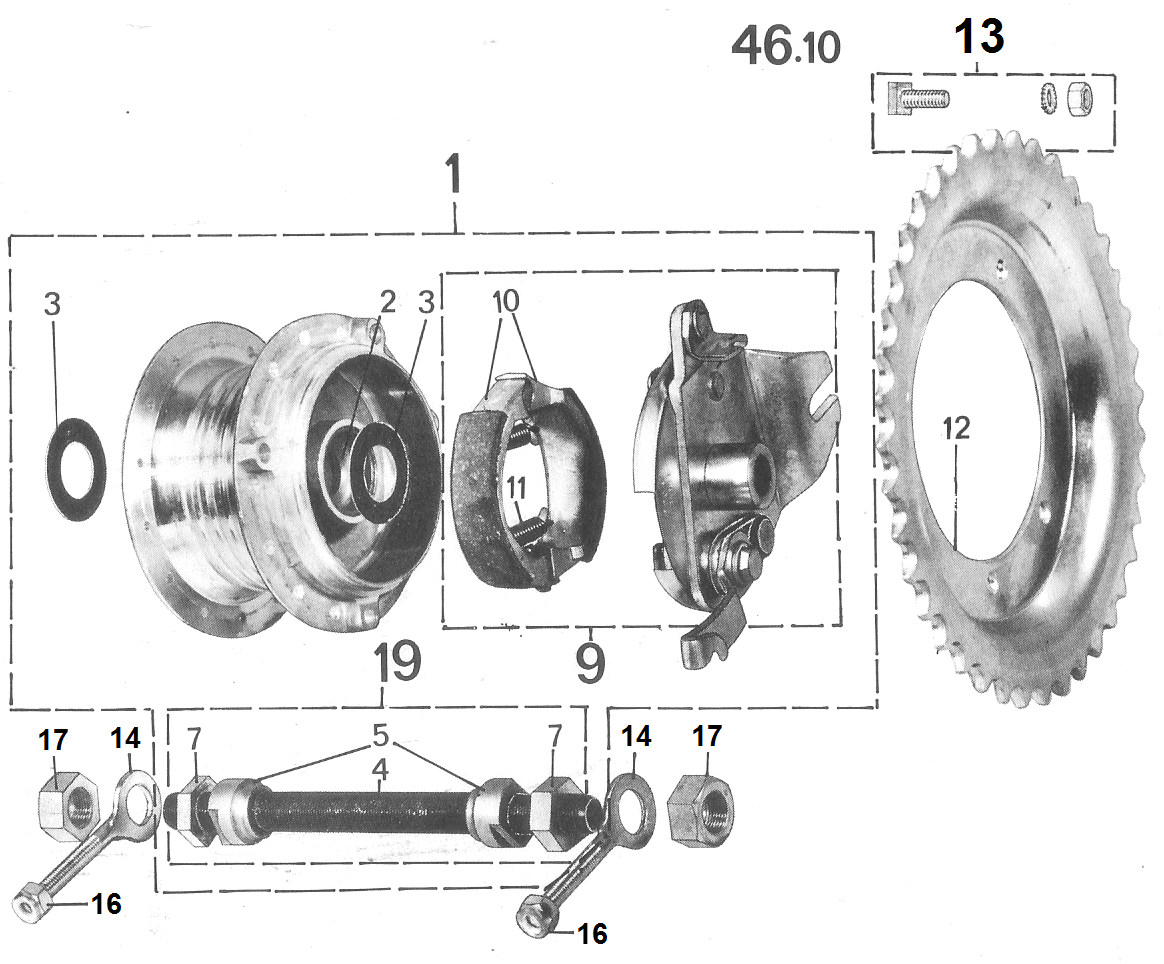

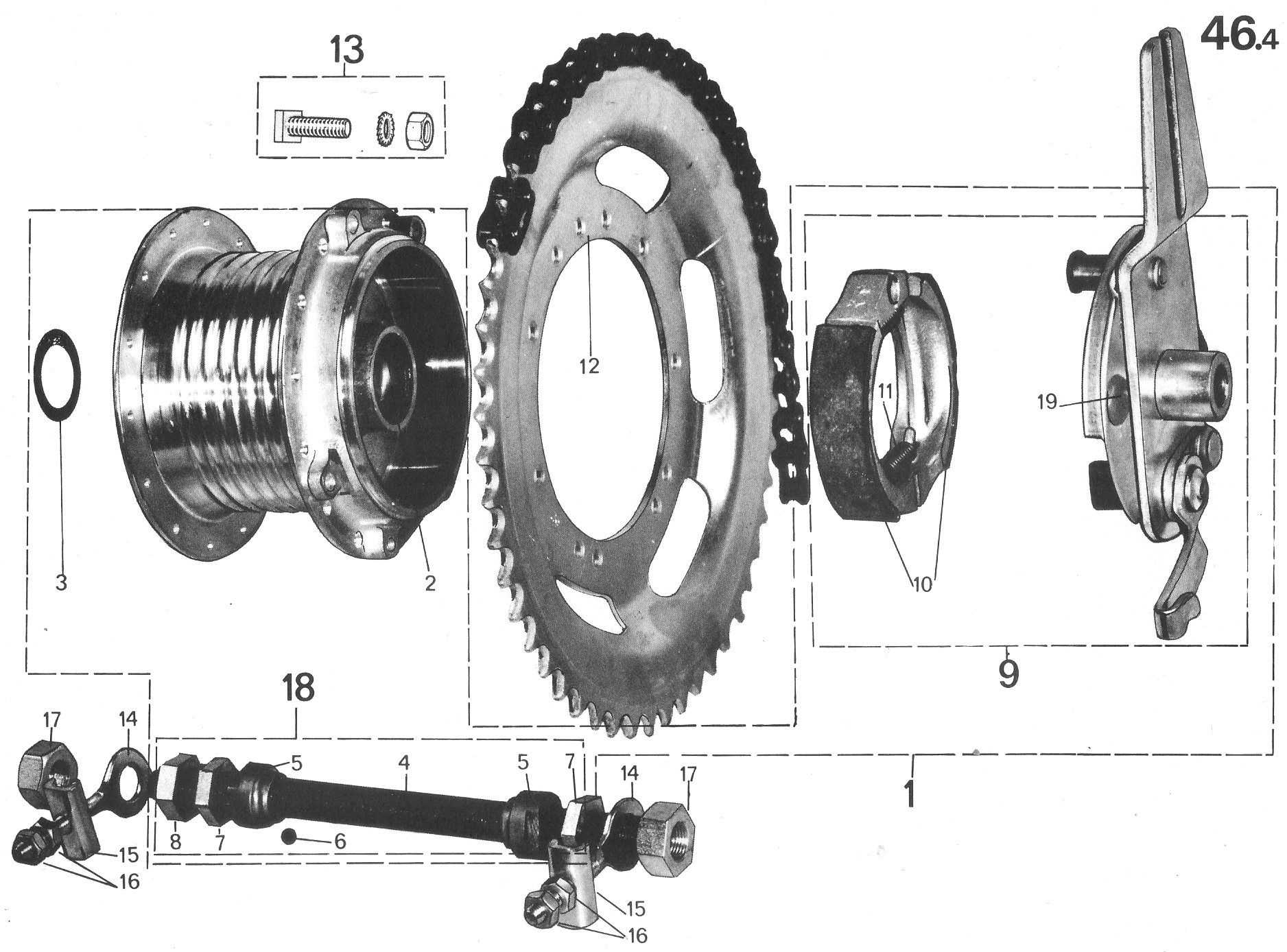

A. 46.3 rear hub ’76-79 103 LS, LVS
B. 46.5 rear hub ’76-79 103 LS, LVS
C. 46.7 rear hub ’76-79 103 L2
D. 46.9 rear hub ’78-79 103 SP
E. 46.11 rear hub ’80-83 102 SP, SPB
F. 46.13 rear hub ’80-83 103 LS, LVS, SPB, TSM
# ABCDEF price part# drum-ID-axle bearing (no sprocket)
1 100100 $100 58562 ∅80-30-10 hub sealed ’76-79 103
1 010000 none 56309 ∅80-29-12 hub loose ’76-79 103
1 001000 none 60696 ∅80-29-11 hub loose ’76-79 103 L2
1 000010 $90.0 63499 ∅70-29-12 hub loose ’80-83 102
1 000001 none 61166 ∅80-28-12 hub sealed ’80-83 103
2 200200 $6.00 68136 bearing 6200Z ∅10-30 x 9
2 020020 $10.0 69648 bearing cup ∅14-29
2 002000 $5.00 69285 bearing cup ∅13-29 L2
2 000002 $8.00 68661 bearing 6001-2RS ∅12-28 x 8
3 020020 $7.00 69680 dust ring ∅22-29
3 002000 $5.00 69280 dust ring ∅20-29 L2
4 100100 $25.0 68130 axle smooth x 10 x 180
4 010010 $17.0 69414 axle all-thread 12 x 180
4 001000 $22.0 69283 axle all-thread 11 x 180 for L2
4 000010 $20.0 69393 axle all-thread 12 x 150 (154 total)
4 000001 $22.0 68658 axle smooth x 12 x 182
5 020020 $19.0 69276 cone M12-1.0
5 002000 $5.00 69284 cone M11-1.0 L2
6 010010 $2.00 00690 bag of 26 balls 3/16″
6 001000 $2.00 00694 bag of 22 balls 7/32″ L2
7 010010 $2.00 69357 R lock nut M12-1.0 x 5 hex19
7 010000 $2.00 69357 L lock nut M12-1.0 x 5 hex19
7 001000 $3.00 01442 R lock nut M11-1.0 x 5 hex17
7 001000 $3.00 69333 L lock nut M11-1.0 x 5 hex19
7 000010 $2.50 01980 L lock nut M12-1.0 x 7 hex19
8 010000 $2.50 01980 R outer nut M12-1.0 x 7 hex19
8 001000 $3.00 69282 R outer nut M11-1.0 x 10 hex19
8 100101 $3.00 69278 R/L outer nut M12-1 x 10 hex19
9 100100 40-25 68252 brake assy ∅80-10 x 22 103
9 010001 45-30 68088 brake assy ∅80-12 x 23 103
9 001000 $45.0 68572 brake assy ∅80-11 x ?? L2
9 000010 55-40 63524 brake assy ∅70-12 x 20 102
10 111101 $25.0 69275 brake shoe set 80 x 18 Leleu
10 000010 $29.0 69274 brake shoe set 70 x 16 Leleu
11 222222 $2.00 08703 brake spring
12 001000 $29.0 00000 sprocket ∅94 36T 103 L2 U3
12 001000 $35.0 40947 sprocket ∅94 40T 103 L2 U2
12 111000 $35.0 48795 sprocket ∅94 48T 103 LS,L2 U1
12 110100 $38.0 51608 sprocket ∅94 52T 103 LVS U2,U3, SP U3
12 000100 $35.0 54443 sprocket ∅94 56T 103 SP U2
12 000001 none 61443 sprocket ∅94 59T SPB,SPR,TSM U2,U3
12 000010 none 68855 sprocket ∅81 42T 102 SP,SPB U3
12 000010 $33.0 64150 sprocket ∅81 50T 102 SP,SPB U2
13 555555 $3.00 00620 sprocket bolt-washer-nut original
13 555555 $1.20 00620 sprocket bolt-washer-nut substitute
14 222222 $4.00 42982 chain adjuster-washer-nut
15 222222 $4.00 17035 chain adjuster rear plate
16 222222 $0.30 834010 chain adjuster nut
17 020022 $3.00 69278 axle nut M12-1 x 10 hex19
17 002000 $3.00 69282 axle nut M11-1 x 10 hex19
17 200200 $2.50 68134 axle nut M10-1 x 10 hex19
18 010000 $65.0 51415 axle set M12-1.0 x 180 .
18 000010 $63.0 50522 axle set M12-1.0 x 150 for 102
19 222222 $8-$5 68113 inspection plug
23 100100 $4.00 68135 left spacer ∅10-20 x 10
23 000001 $4.00 68659 left spacer ∅12-18 x 2.5
25 200200 $3.00 68132 outer nut M10 x 5 hex19
25 000002 $3.00 69278 outer nut M12 x 10 hex19
26 100100 $15.0 68133 center spacer ∅10-14 x 67
26 000001 $12.0 68257 center spacer ∅12-16 x 67
27 000001 $00.0 00000 right thin spacer ∅12-16 x 1?
28 100100 $8.00 68131 right spacer ∅10-16 x 15
28 000001 $9.00 68660 right spacer ∅12-20? x 11
Sealed Bearing Rear Axle Spacing Calculation
The sum of the part lengths must equal the frame length.
00000 48.4 00000 46.3
00000 48.4 00000 46.9 00000 46.13
00000 ∅12 00000 ∅10 00000 ∅12 red is guessed
68088 23.0 68252 22.0 68008 23.0 brake plate
69278 10.0 68132 05.0 69278 10.0 left nut
68659 02.5 68135 10.0 68659 02.5 left spacer
68661 08.0 68136 09.0 68661 08.0 left bearing
68257 67.0 68133 67.0 68257 67.0 center spacer
68661 08.0 68136 09.0 68661 08.0 right bearing
68679 23.0 68131 15.0 68660 13.0 right spacer
00000 00.0 68132 05.0 63278 10.0 right nut
—————————————————
0000 141.5 0000 142.0 0000 141.5 frame is 142

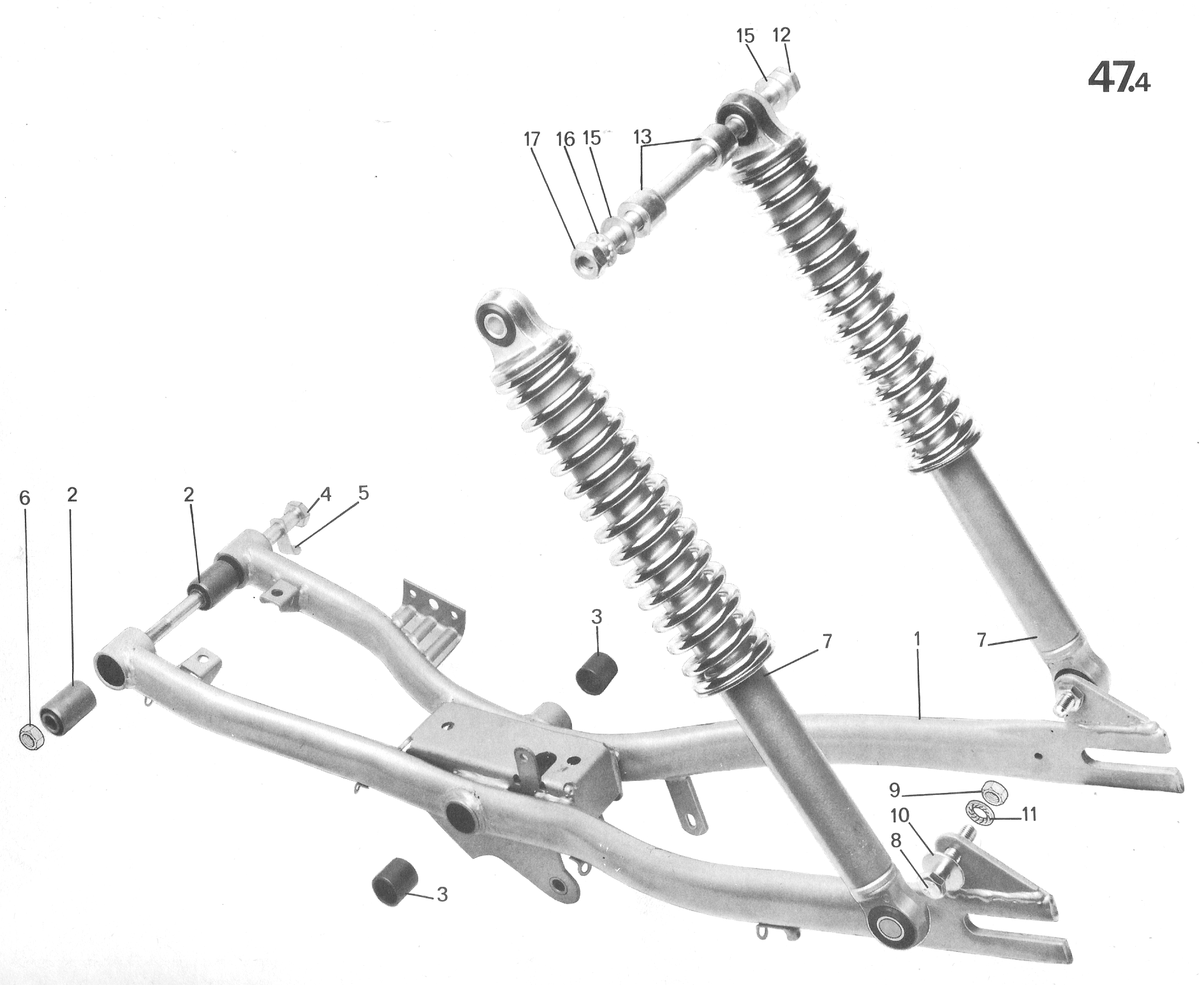

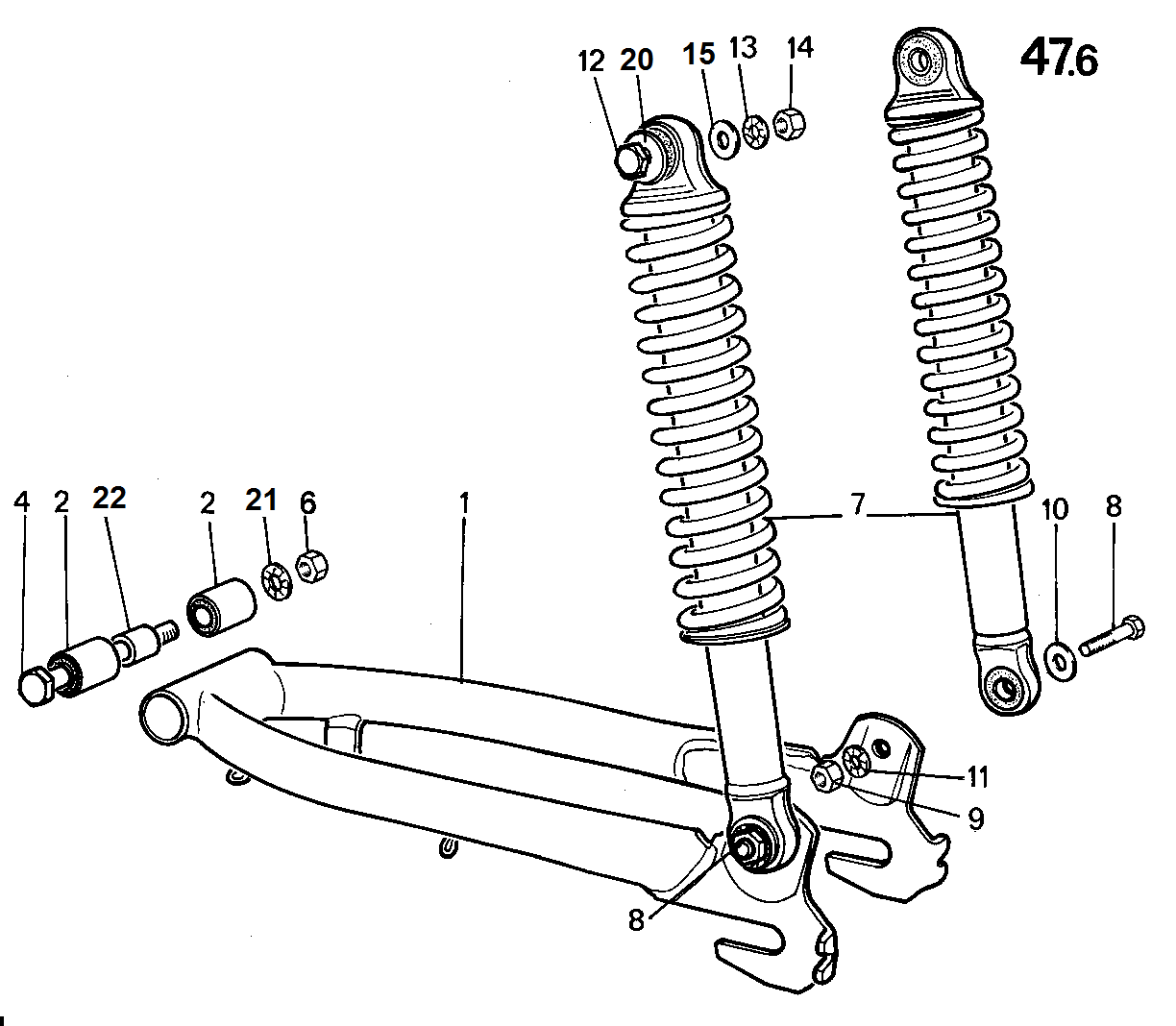

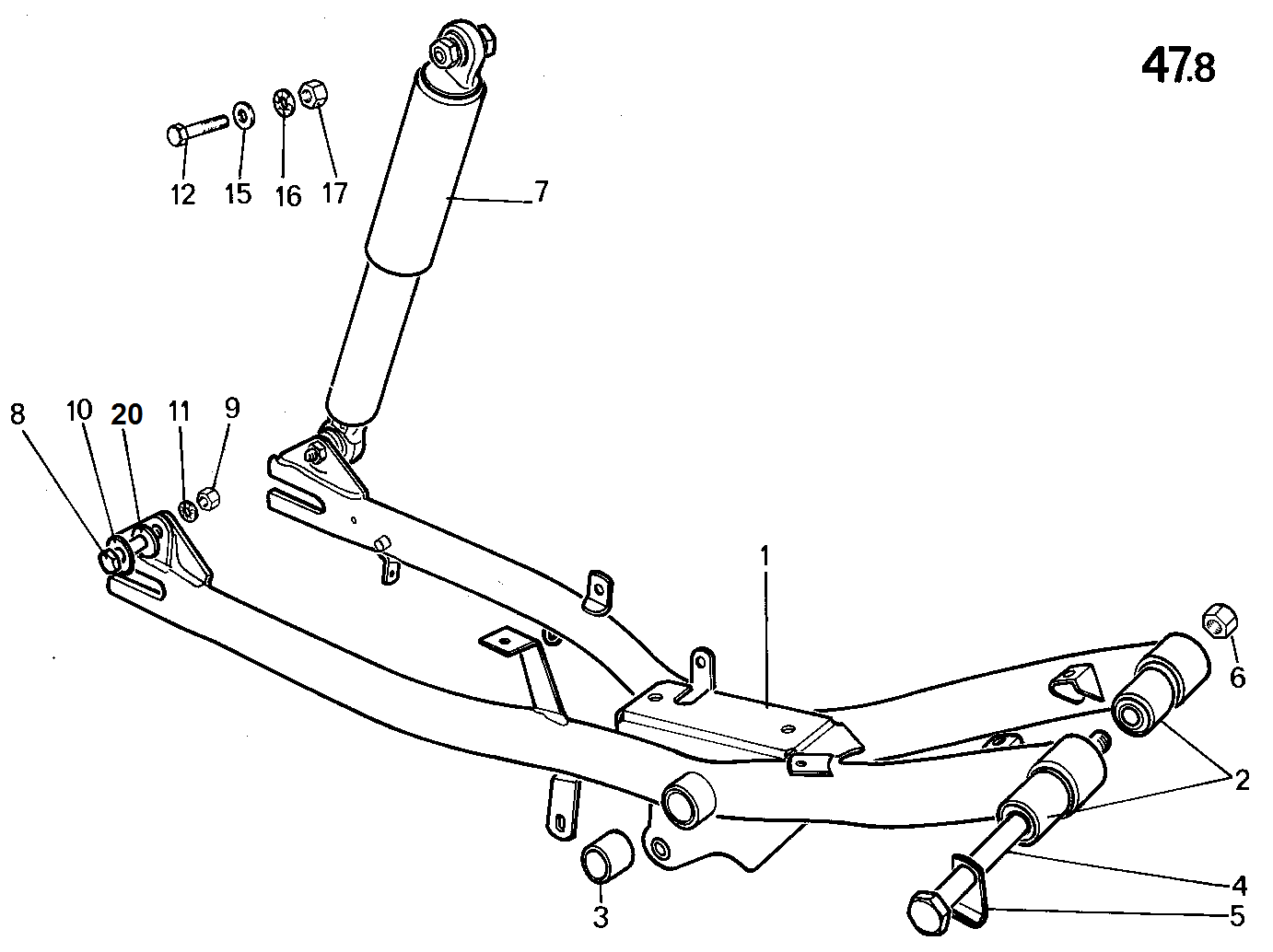

A. 47.3 rear suspension 103 LS,LVS
B. 47.5 rear suspension 103 SP,SPB,SPR
C. 47.7 rear suspension 102
D. 47.9 rear suspension TSM
# ABCD price part#
1 1100 none 51319 swing arm no coil mount ’76-79
1 0010 none 56804 swing arm 102
1 1101 none 68796 swing arm w/coil mount ’80-83
2 2222 none 44312 swing arm bushing
3 2202 none 50771 pedal shaft bushing
4 1101 none 801296 pivot bolt M10-1.0 x 170 (172)
4 0010 none 801151 pivot bolt M10-1.0 x 105
5 1101 none 48886 plug wire clamp
6 1101 none 832153 pivot nut M10-1.0
6 0010 none 832095 pivot nut M10-1.0
7 2000 none 51324 shock absorber
7 0200 none 59763 shock absorber 346
7 0200 none 61146 shock absorber 326
7 0020 none 61765 shock absorber
7 0002 none 61718 shock absorber
8 2000 none 801127 lower bolt M8 x 35
8 0200 none 801335 lower bolt M8 x 40
8 0010 none 61845 L low bolt M8 x ?? (no nut)
8 0010 none 801127 R low bolt M8 x 35
8 0002 none 801141 lower bolt M8 x 45
9 2212 none 832083 lower nut M8
10 2222 none 853090 lower washer 8 plain
11 2212 none 856092 lower washer 8 inner teeth
12 1000 none 801116 upper bolt M10 x 200
12 0100 none 801223 upper bolt M10 x 190
12 0020 none 801335 upper bolt M10 x ??
12 0002 none 801161 upper bolt M10 x 35
13 2200 none 51754 upper inner spacer 10 x ??
14 2000 none 853116 upper outer spacer 10 x 4
15 2202 none 853105 upper washer plain 10
15 0020 none 853090 upper washer plain 10
16 1122 none 856093 upper washer inner teeth 10
17 1102 none 832095 upper nut M10
17 0020 none 832083 upper nut M10
20 0010 none 853330 upper outer washer
20 0001 none 853330 lower extra washer
21 0010 none 856093 pivot lock washer
22 0010 none 43963 pivot spacer

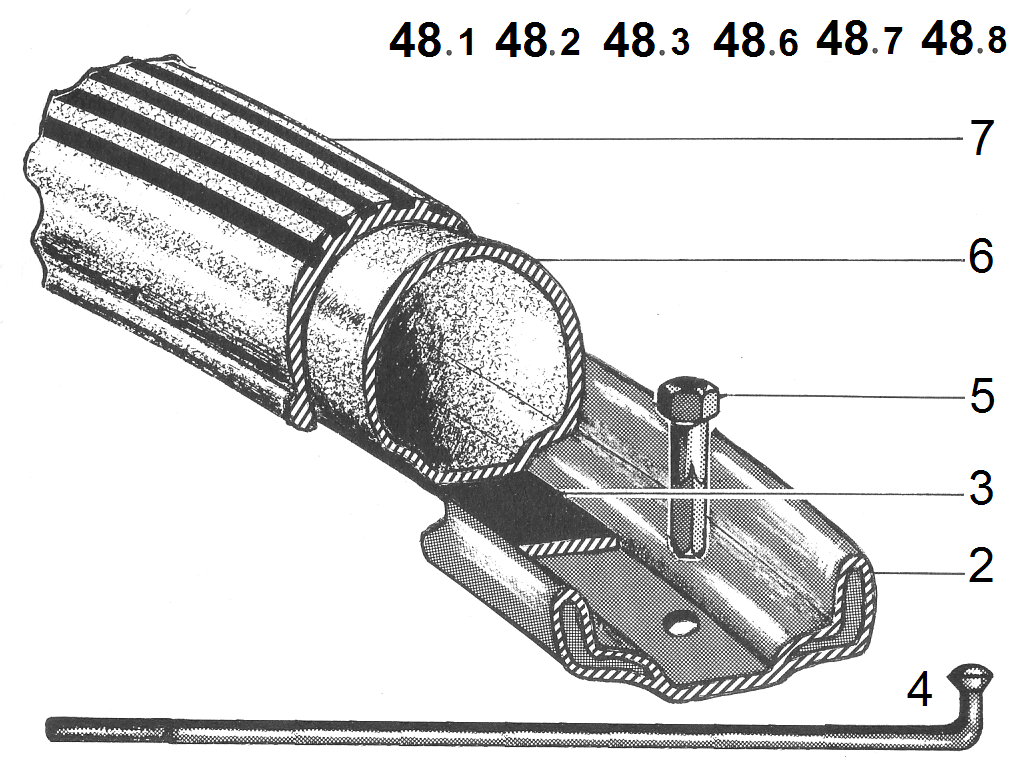

A. 48.2 rear wheel 103 L2
B. 48.3 rear wheel 102
C. 48.5 rear mag wheel 103 SPR
D. 48.6 rear wheel 103 SPB
E. 48.7 rear wheel TSM
F. 48.8 rear wheel 103 SP, LS, LVS
# ABCDEF price part# n is 28
1 100000 none 58637 rear wheel
1 010000 none 62963 rear wheel 102
1 001000 none 64211 rear mag wheel 103 SPR
1 000111 none 68755 rear wheel
2 100111 none 53187 rim 17 x 1.5 28-hole
2 010000 none 51488 rim 17 x 1.1 28-hole
3 111111 $2.00 44411 rim band (strip)
4 n00nnn $1.90 52951 spoke ∅2.7-2.4 x 167 w/nipple
4 0n0000 $2.50 47143 spoke ∅2.7-2.4 x 171 w/nipple
5 nn0nnn $1.00 41858 spoke nut hex, ∅4.6, thread 0.55 French
6 111101 $11.0 43633 tube 2.25/2.50-17 fits 2.00-2.25
6 000010 $13.0 43289 tube 2.75/3.00-17 fits 2.50-2.75
7 101101 $39.0 69013 tire 2.25-17 Shinko SR704 .
7 101101 $39.0 69013 tire 2.25-17 Mitas/Sava B4 .
7 101101 $34.0 69013 tire 2.25-17 Kenda K261 .
7 101101 none 69013 tire 2.25-17 Mitas/Sava MC11 .
7 010000 $35.0 69006 tire 2.00-17 Vee Rubber 126 .
7 010000 $36.0 69006 tire 2.00-17 IRC NR58 .
7 010000 none 69006 tire 2.00-17 Mitas/Sava MC11 .
7 000010 $44.0 43642 tire 2.50-17 Mitas/Sava B4 .
7 000010 $27.0 43642 tire 2.50-17 Vee Rubber 021 .
7 000010 $42.0 43642 tire 2.50-17 Mitas/Sava MC11 .
8 001000 $12.0 68257 center spacer ∅12-16 x 67
9 001000 $4.00 68659 left spacer ∅12-18 x 2.5
10 001000 $3.00 69278 left nut M12 x 10 hex19
11 001000 none 68680 axle 12 x 182
12 001000 45-30 68088 brake assy ∅80-12 x 23 103
13 001000 $25.0 69275 brake shoe set 80 x 18 Leleu
14 002000 $2.00 08702 brake spring
15 002000 $4.00 42982 chain adjuster-washer-nut
16 002000 $8.00 68661 bearing 6001-2RS ∅12-28 x 8
17 001000 none 68679 right spacer
18 002000 none 69278 axle nut
19 002000 $4.00 17035 chain adjuster rear plate
20 002000 $0.30 834010 chain adjuster nut
21 002000 $8-$5 68113 inspection plug
22 001000 none 61443 sprocket 56T black
22 001000 none 54443 sprocket 56T
23 001000 none 68678 sprocket bolt-washer-nut
# qty price 49.1 right control Magura .
1 1 none 56324 right control assembly
1 1 none 00000 right control housing bare
2 1 none 55365 right brake lever
3 1 none 55361 thumb lever
4 1 none 55367 twist tube
5 1 none 55368 friction spring
6 1 none 55369 clamp bolt
7 1 $2.00 55362 pivot bolt
8 1 $2.00 55363 pivot nut
9 1 $4.00 52551 anchor pin substitute
10 1 none 55364 right grip
11 1 none 68462 right helper spring

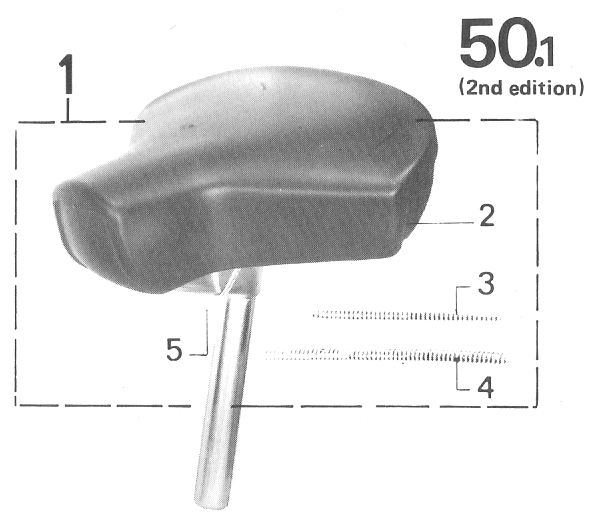

# qty price 50.1 seat 102 SP, 103 L2, LS, LVS
1 1 $45.0 51297 saddle solo with seat post 25.4
# qty price 50.2 seat 102 SPB, 103 SPB, SPR
1 1 $120 59188 saddle long
2 1 none 63446 rear mount
10 1 none 52960 seat post 25.4 short
# qty price 50.3 seat 103 SP
1 1 none 60146 saddle deluxe solo
2 1 none 51265 seat post 25.4 long
# qty price 50.4 seat TSM
1 1 none 61261 saddle lift-up long
A. 51.1 speedometer 103 LVS
B. 51.2 speedometer 103 SP,SPB,SPR
C. 51.3 speedometer 102
# ABC price part#
1 111 none 56315 speedometer
2 111 $2.00 00168 bulb 6V 0.6w screw base
3 111 $23.0 46709 speedo driver
4 101 $23.0 52732 speedo cable 655
4 010 none 60562 speedo cable 690
5 111 $4.00 52701 rubber mount
6 111 $4.00 52699 mount plate
7 110 $5.00 56509 bulb socket
7 001 none 63340 bulb socket use 56509

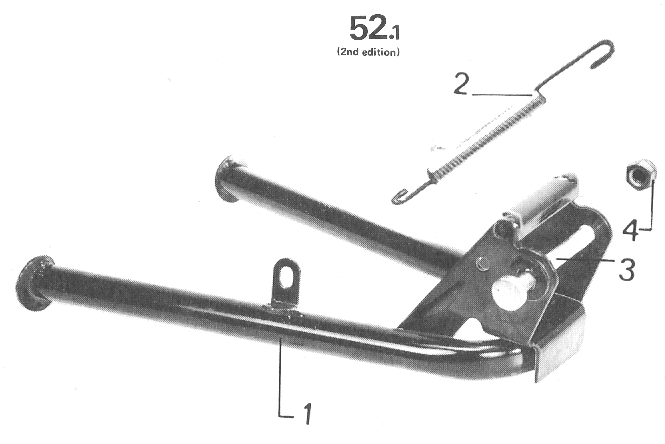

A. 52.1 stand 103 L2, LS, LVS
B. 52.2 stand 103 SP, SPB, SPR
C. 52.3 stand 102

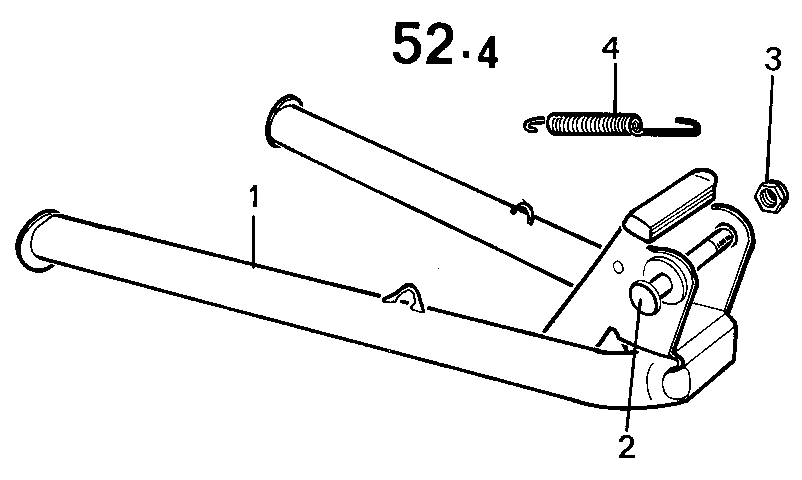

D. 52.4 stand TSM
# ABCD price part#
1 1000 none 55383 stand
1 0100 none 68795 stand
1 0010 none 62408 stand
1 0001 none 61982 stand
2 1111 none 37513 spring
3 1111 none 55324 spindle
4 1110 none 59101 nut
4 0001 none 834027 nut

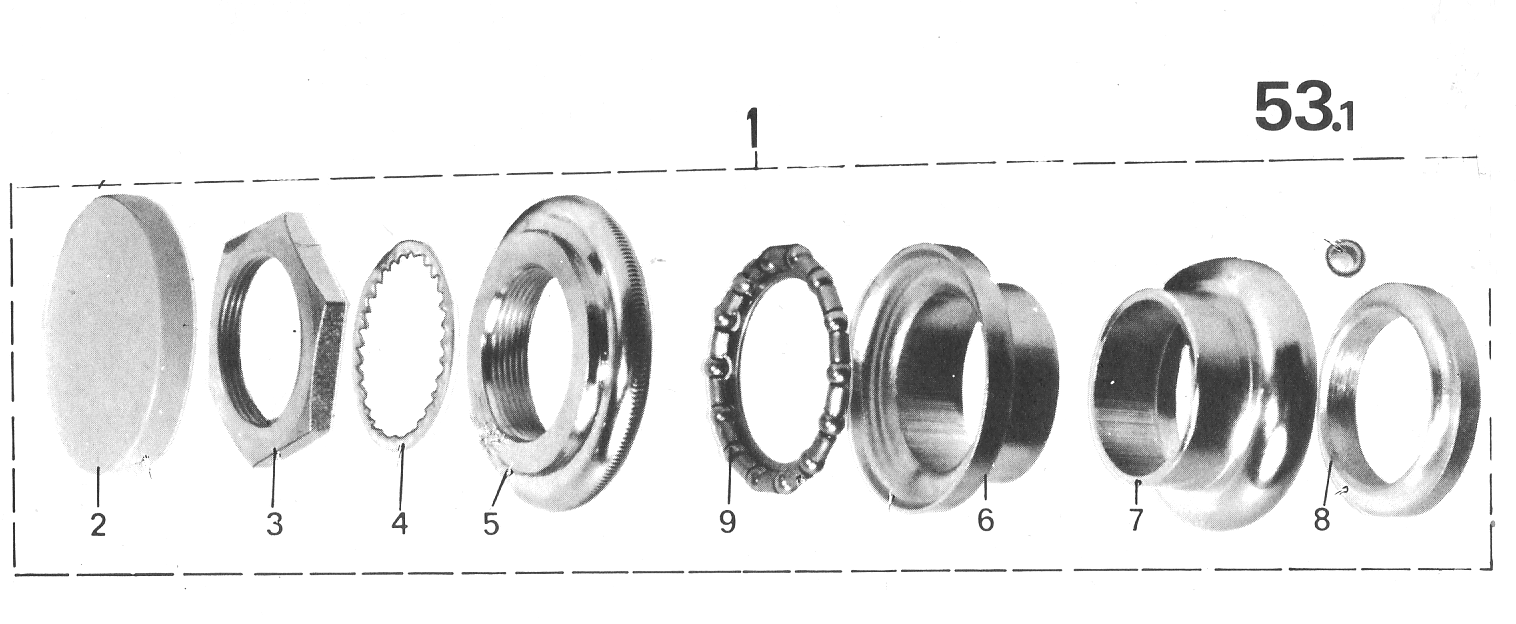

53.1 steering gear
# qty price part# .
1 1 $43.0 51974 steering set
2 1 18–10 48684 top cap chrome, press-in
3 1 $7-$5 51646 lock nut M25-1.0 x 5 hex32
4 1 none 856118 lock washer
5 1 $6-$4 91783 adjustable cone note 1
6 1 $8.00 91778 upper cup 30.0
7 1 $8.00 46840 lower cup 30.0
8 1 $8.00 14512 lower cone 26.7 id
9 2 $8.00 91502 ball cage original
9 2 $2.00 91502 bag of 26 5/32″ balls
9 2 $2.00 91502 ball cage #73, 16 5/32″
Note 1. The 91783 replacement adjustable cone has a little “nub” that must be ground off. It was for Peugeot bicycles that had a ring of holes washer.
x
54.1 tail and brake light
x
55.1 telescopic fork
A. 56.1 B. 56.2 C. 56.3 tools, pump
# ABC price part# .
1 333 $3.00 45192 tire lever
2 111 $3.00 00714 wrench 8-10
3 111 none 40596 spark plug wrench
4 111 none 00532 repair kit
5 001 none 52733 tool bag
6 001 none 61851 bag strap
7 001 none 01105 box of patches
8 001 none 00720 patch glue
9 001 none 53099 hose for shraeder valve USA
9 110 none 00000 hose for presta valve Euro
10 100 none 53022 pump ∅22 x 250 presta hose
10 010 none 53068 pump ∅22 x 300 presta hose
10 001 none 60733 pump ∅22 x 250 shraeder hose
11 110 $3.00 33202 presta-to-shraeder adapter

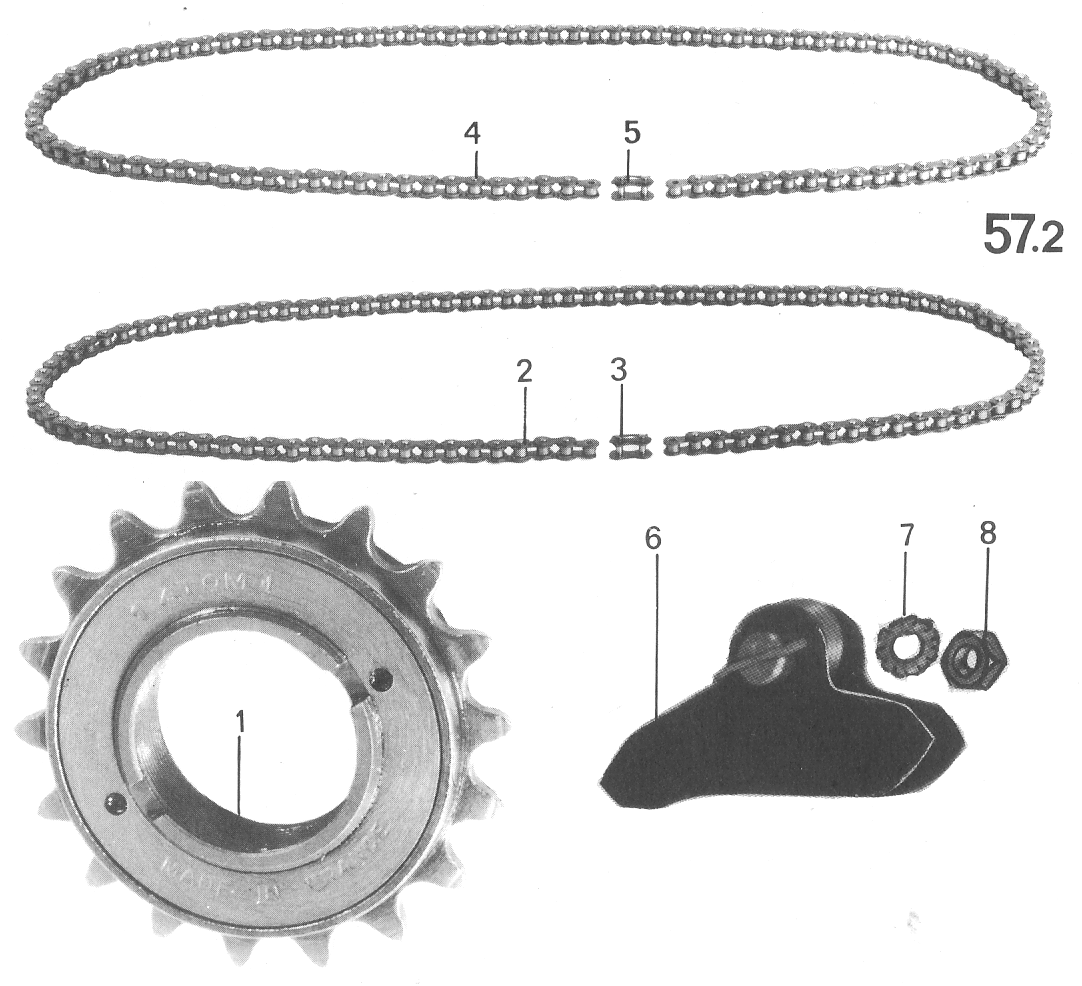

57.2 transmission (chain)
6 1 none 48660 pedal chain tensioner
7 1 none 856101 lock washer
8 1 none 832087 nut
