Welcome Vespa mopeds were made in Italy by Piaggio. Vespa is a division of Piaggio, like Chevrolet is a division of General Motors. Sometimes the bikes are called “Vespa” and sometimes they are called “Piaggio”. Both names are correct.

History: Founded by Rinaldo Piaggio in 1884, Piaggio first made railroad locomotives. In WWI and WWII they made military aircraft. They still do make aircraft and many other machines. After WWII they transitioned to civilian necessities, like motor scooters. The first Piaggio Vespa scooters had front suspension made from a light airplane landing gear. The first scooter wheels were aircraft wheels and tires. The stamped sheet metal body-frame was an aircraft design. They were named Vespa, which means “wasp” in Italian, because the two-stroke engine sounded like a wasp. The superior designs made the products light, efficient, affordable, convenient and safe. Soon Vespa became a worldwide motor vehicle manufacturer. By the 1970’s the name Vespa became synonymous with motor-scooter, like Coke is with cola, or Kleenex is with facial tissue. Read more at https://en.wikipedia.org/wiki/Piaggio

From about 1968 to 1975 Vespa mopeds were imported to the US and distributed by Western Scooter Distributors, 1599 Custer Ave, San Francisco CA 94124.

From about 1976 to 1985 they were imported and distributed by Vespa of America Corporation, National Headquarters, 355 Valley Dr, Brisbane CA 94005.

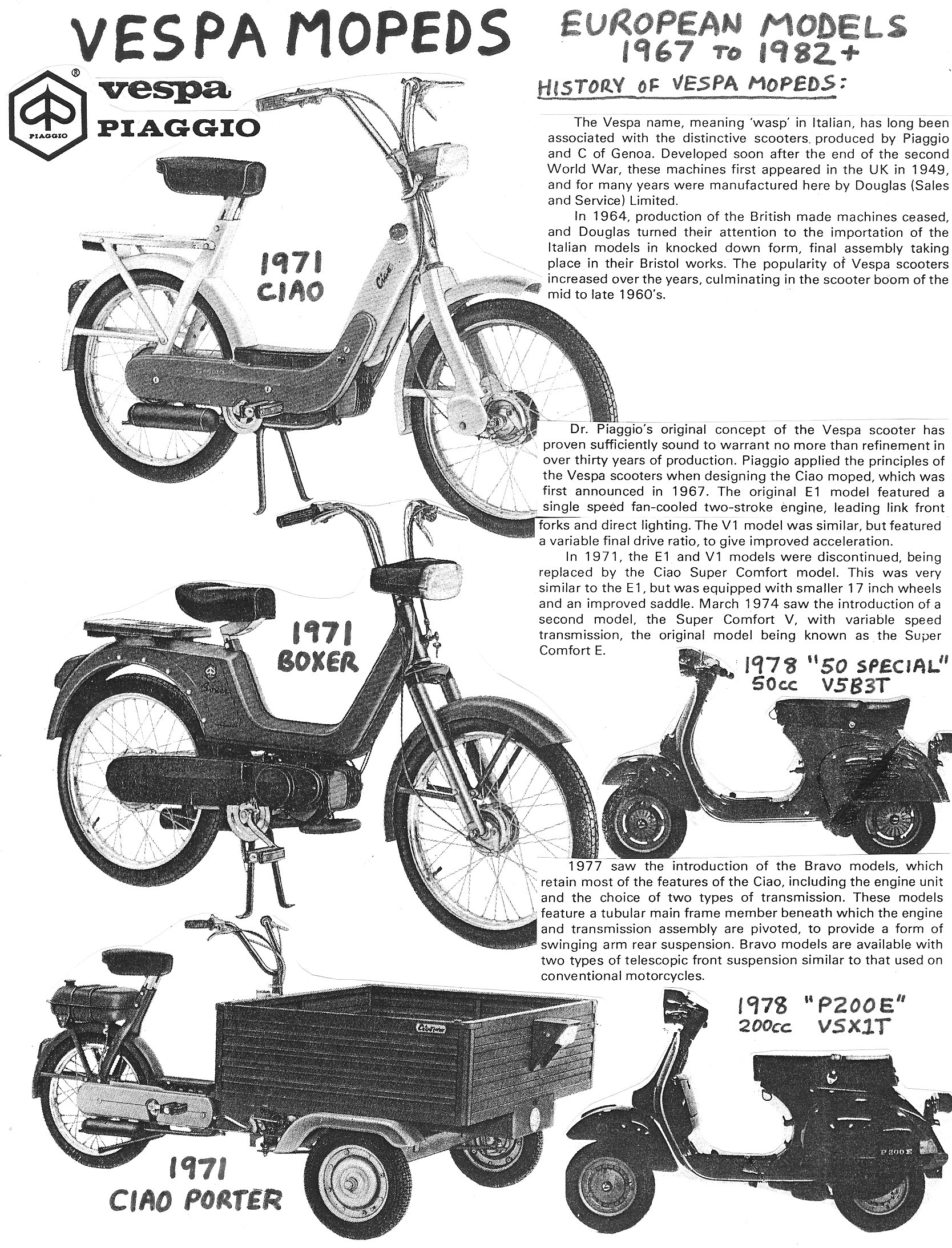

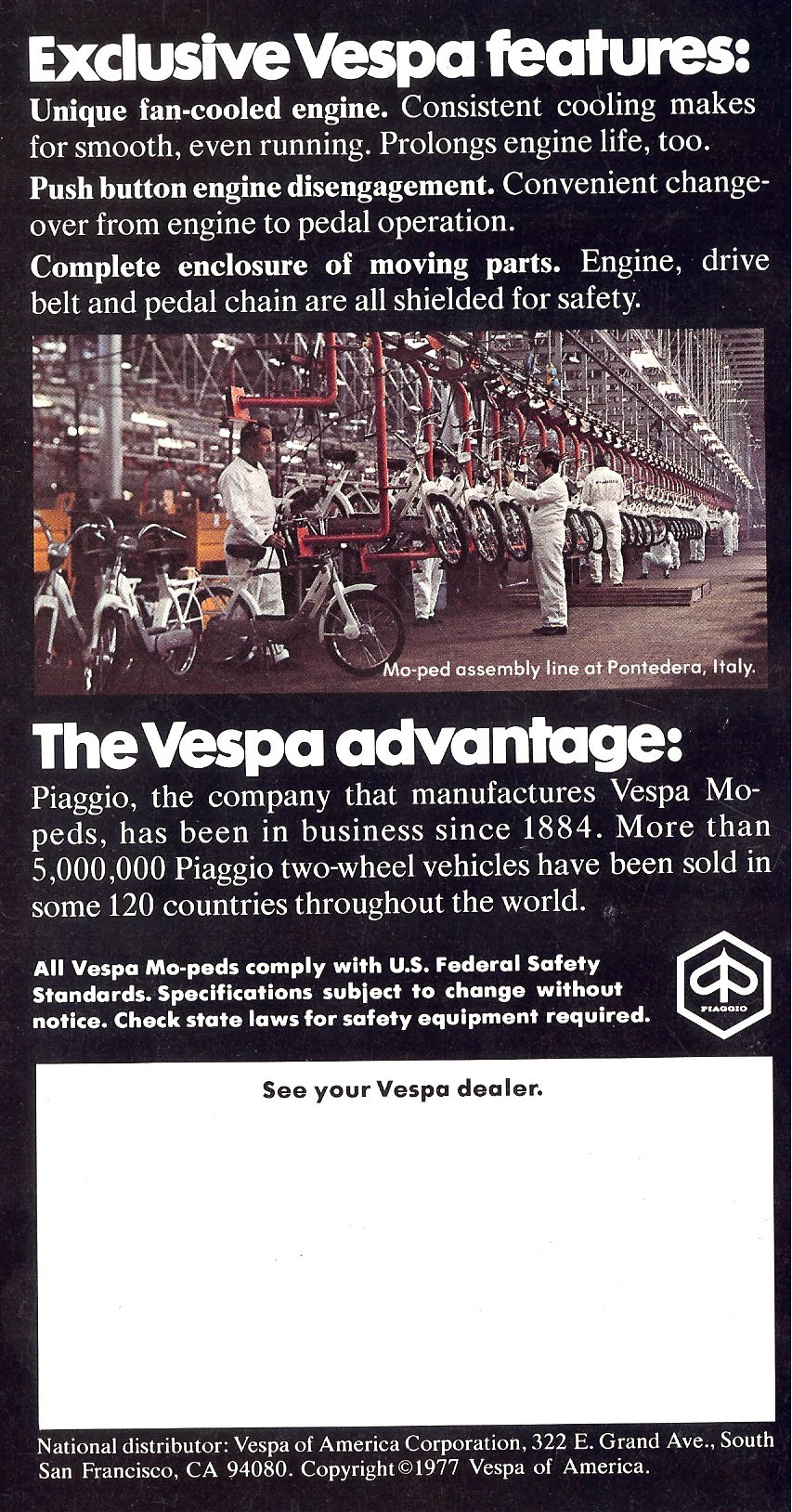

Here are Myrons Mopeds old info sheet handouts. They were black and white copies on paper.

Info Vespa 1

Info Vespa 1

Info Vespa 3

Info Vespa 3

Info Vespa 2

Info Vespa 2

Info Vespa 4

Info Vespa 4

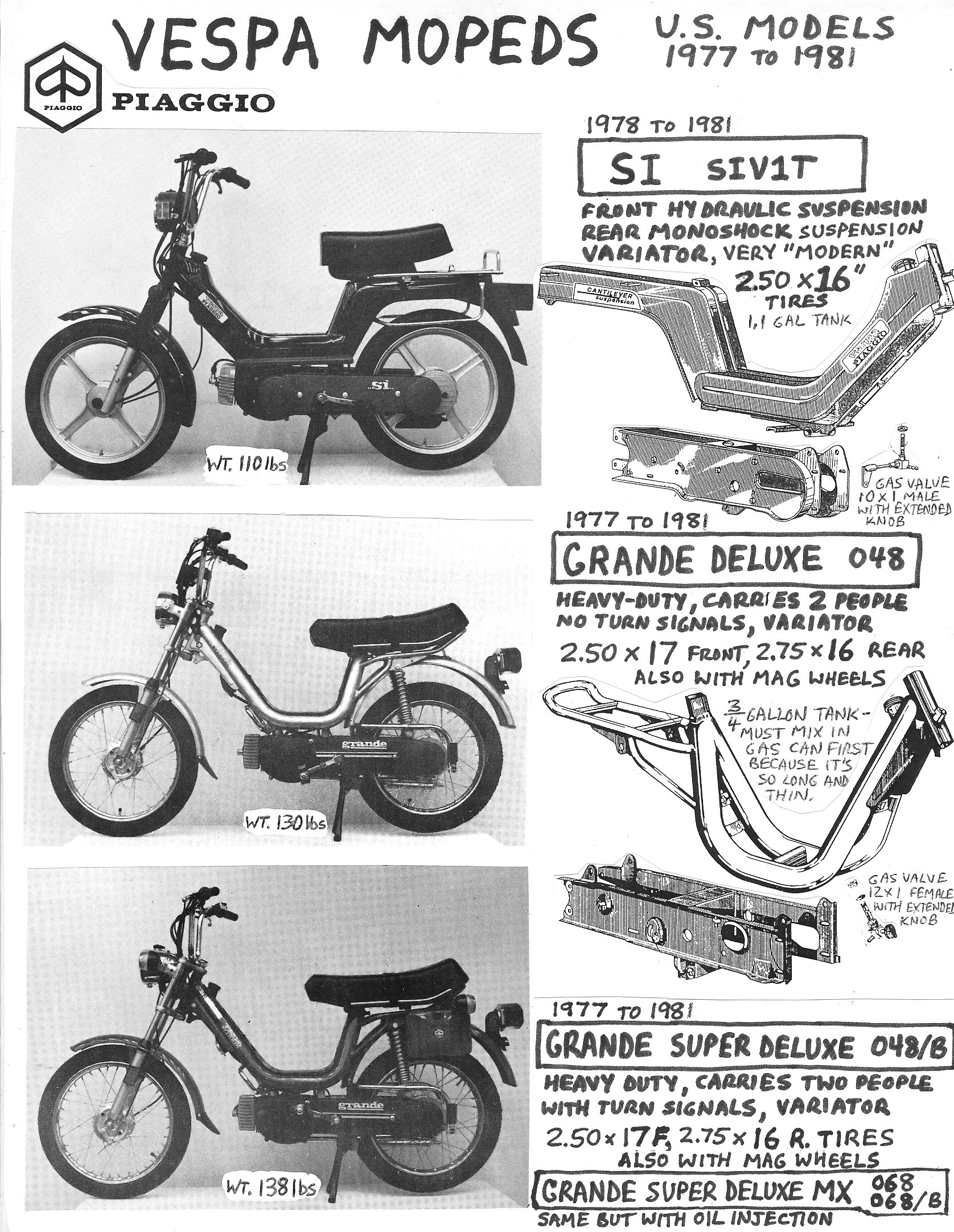

Info Vespa 5

Info Vespa 5




















Contents:   1. Vespa Mopeds
Contents:   2. Parts Manuals
Contents:   3. Electrical Parts
Contents:   4. Speedometer and Reflector Parts
Contents:   5. Steering Parts and Handlebars

Contents:   6. Engine Parts






1. Vespa Mopeds (US models 1968-1985)

Model Codes: “/B” in the model code means “with Blinkers” (turn signals and battery boxes). “E” means “Elastique” (front suspension), “N” means No front suspension. “V” means “Variatore” (variable speed transmission)

1968-71 Vespa Mopeds:

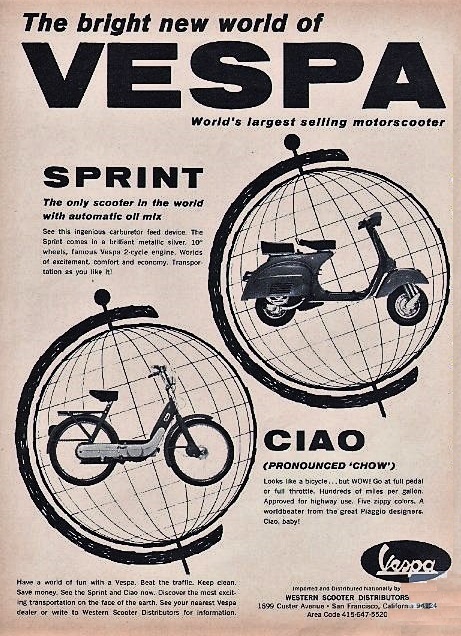

The beloved Vespa Ciao (pronounced “chow”) was first introduced to America by this ad from 1968. The model shown in this ad looks like a European model, with no brake light, no side reflectors and no electric horn. The ad says it is approved for highway use and comes in five colors. The C9N and C9E had 19 inch rims. The C7N and C7E had 17 inch rims.

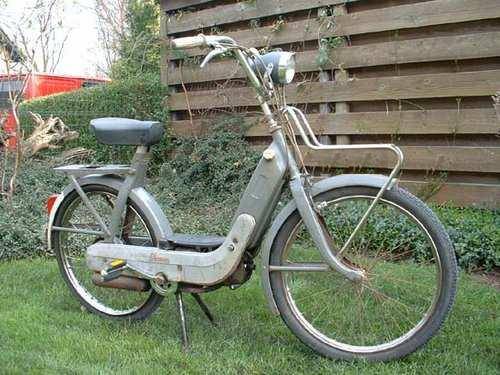

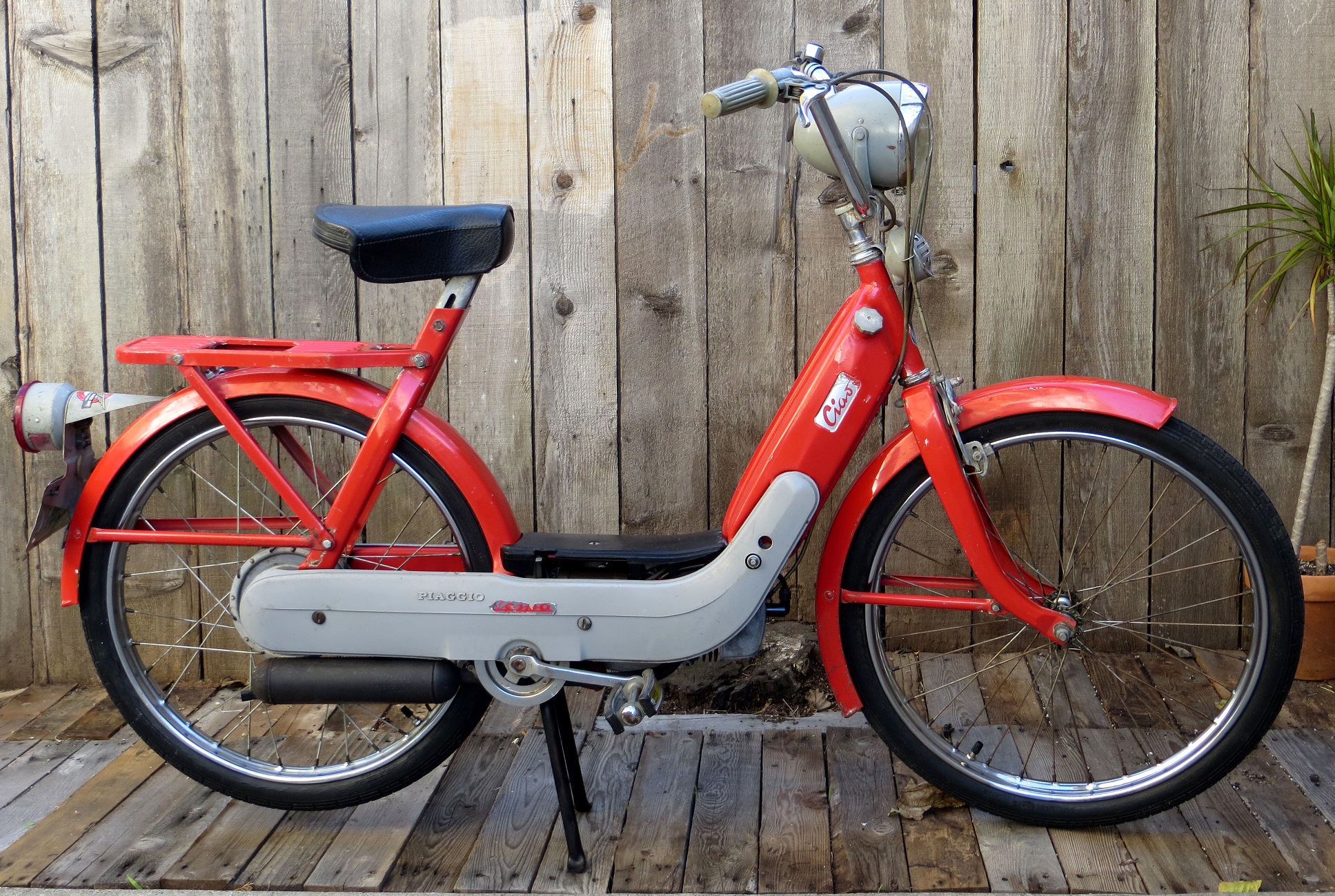

1967 Vespa Ciao C9N1

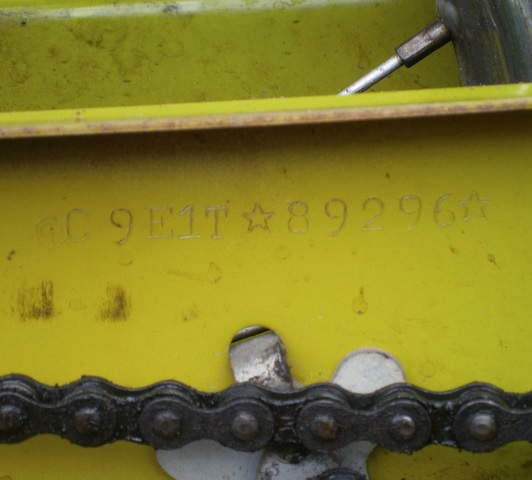

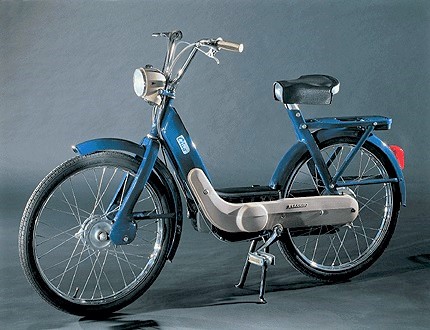

1968 Vespa Ciao C9E1

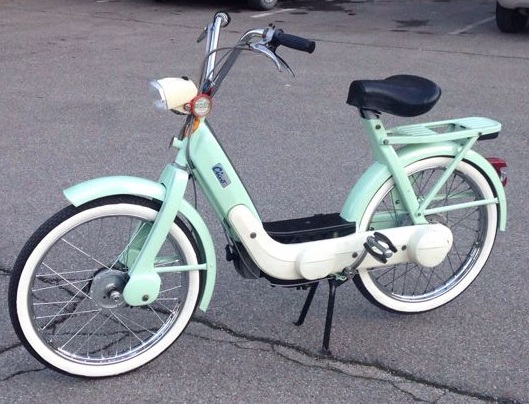

1967-69 Models

C9N1 Ciao
C9E1 Ciao
C9V1 Ciao

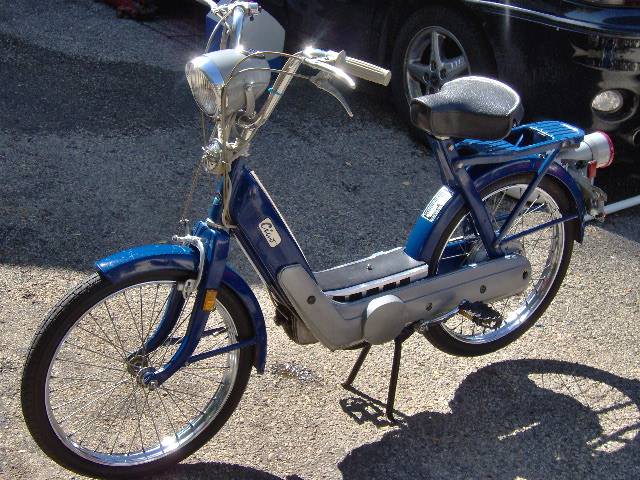

1971 Vespa Ciao C7N1

1971 Vespa Ciao C7N1

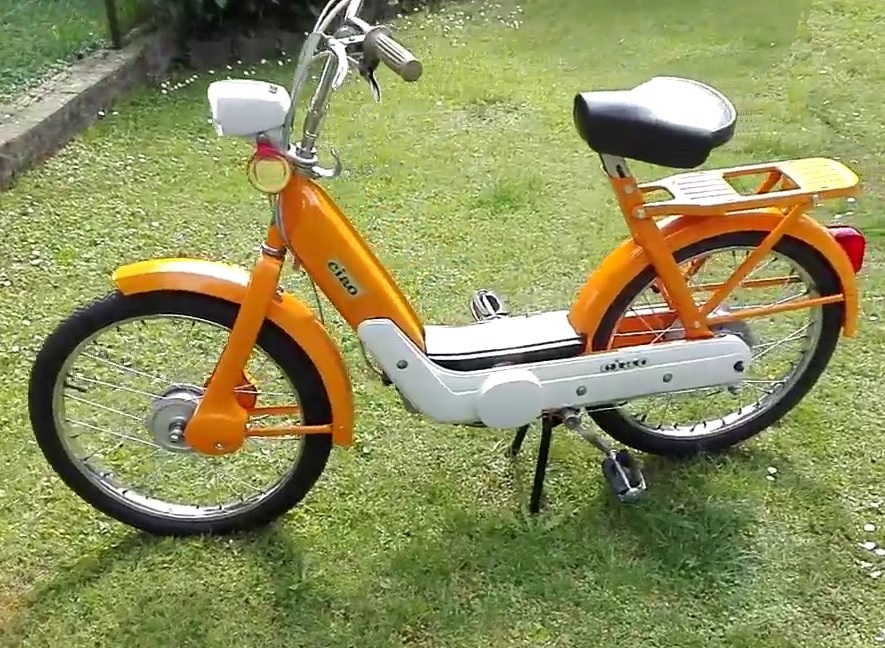

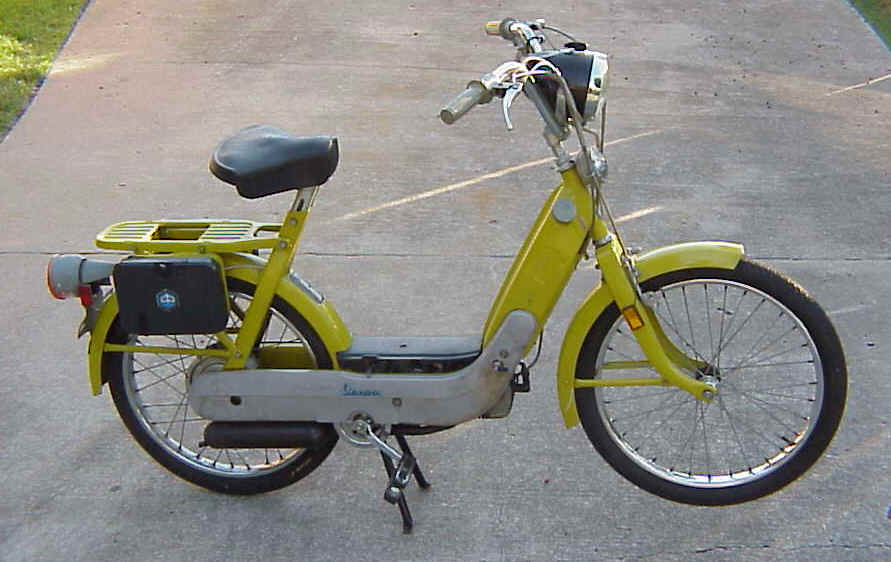

1972 Vespa Ciao C7E1T

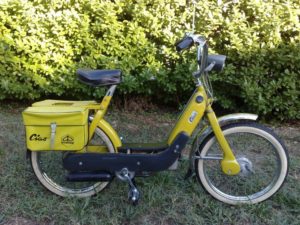

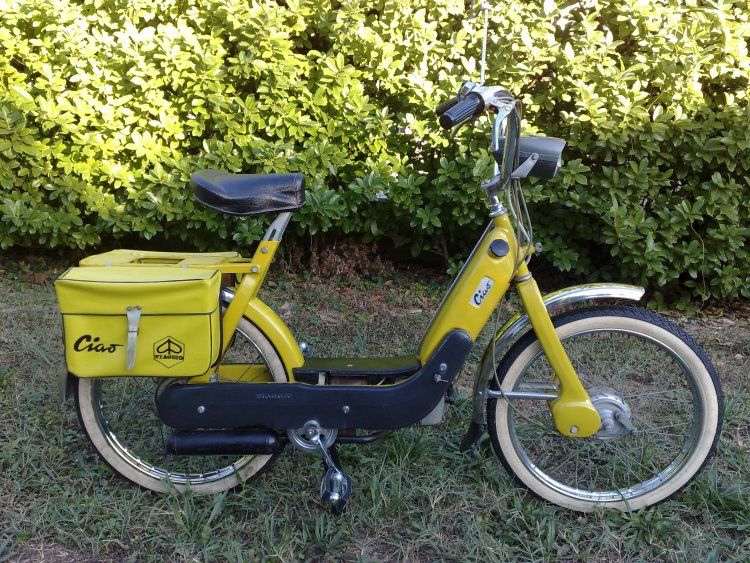

1970-71 Models

C7N1 Ciao Standard
C7E1 Ciao Special

These early US models did not have blinkers, but still had a battery. The battery box covers were dark grey.



1972-75 Vespa Mopeds:

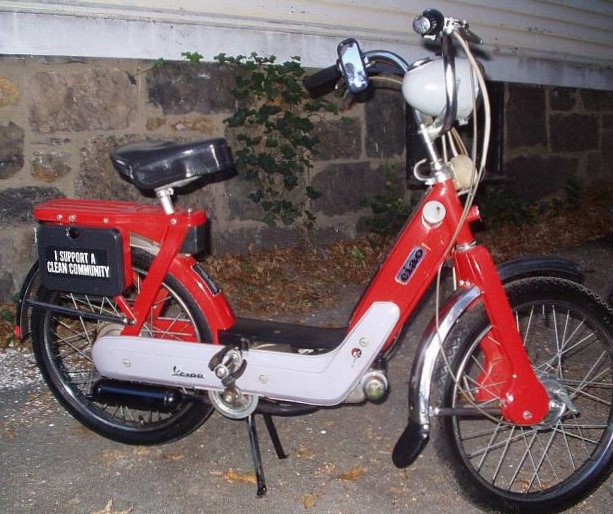

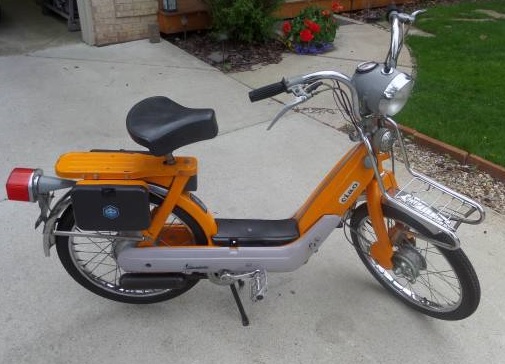

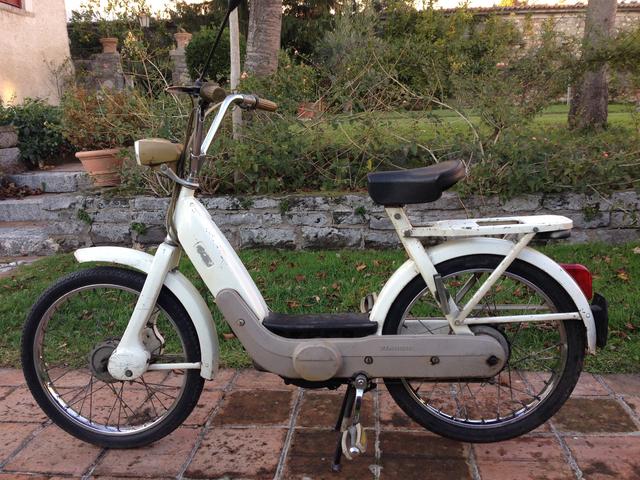

1972 Vespa Ciao C7E1T

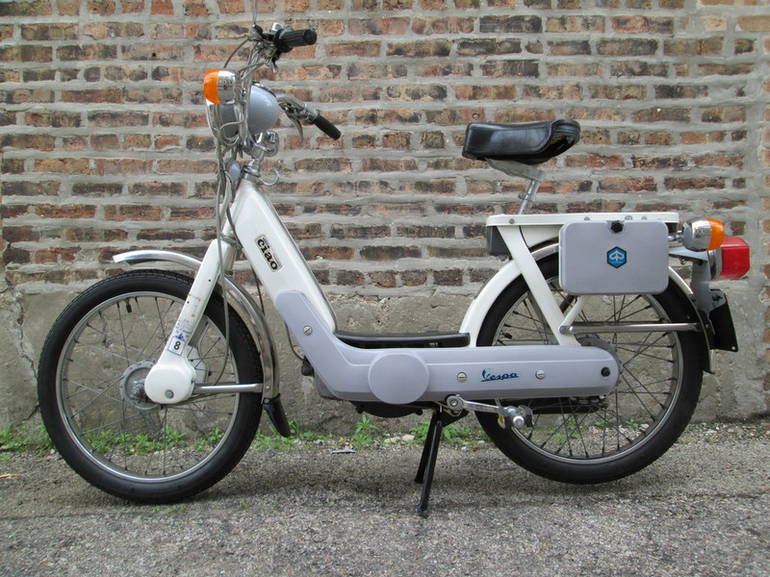

1974 Ciao C7E1T/B

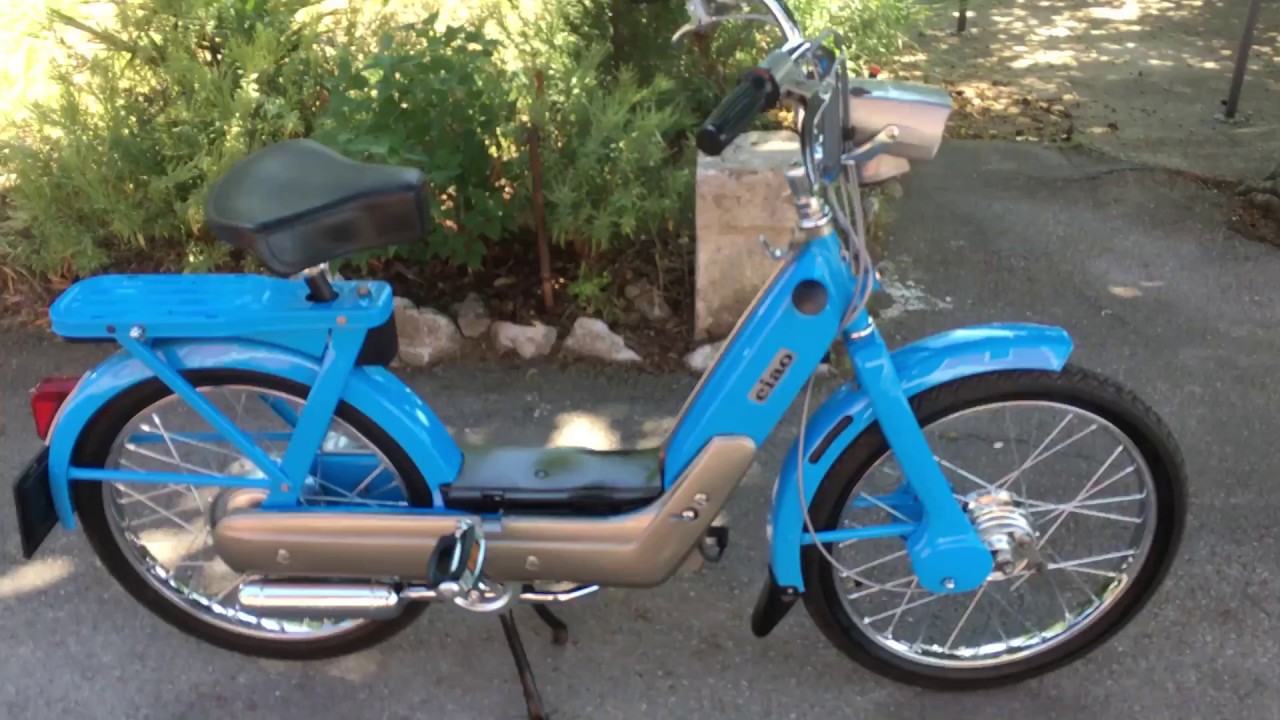

1974 Ciao C7E1T

1972-75 Models

C7N1T Ciao Standard
C7E1T Ciao Special “SC”
C7E1T/B Ciao Supreme “SC”







New for 1972: The CEV (round) tail light that shines straight back, changed to the CEV 9350 type (oval with flat sides) that also shines to the sides, as required by new 1972 US safety standards for on-road motorcycles.

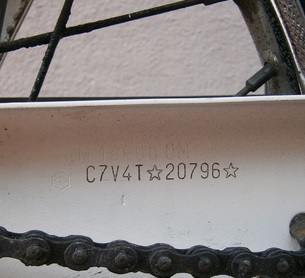

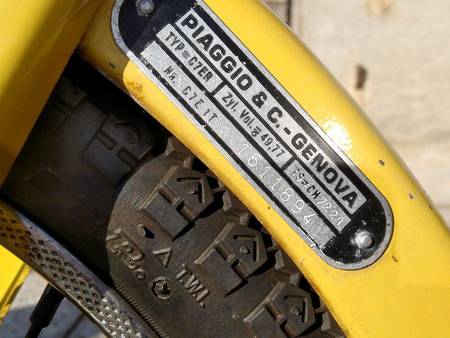

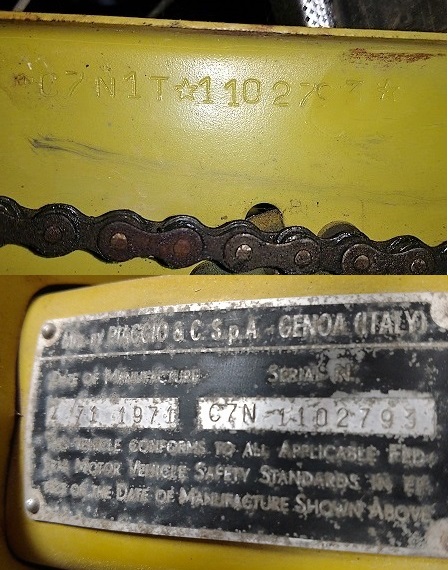

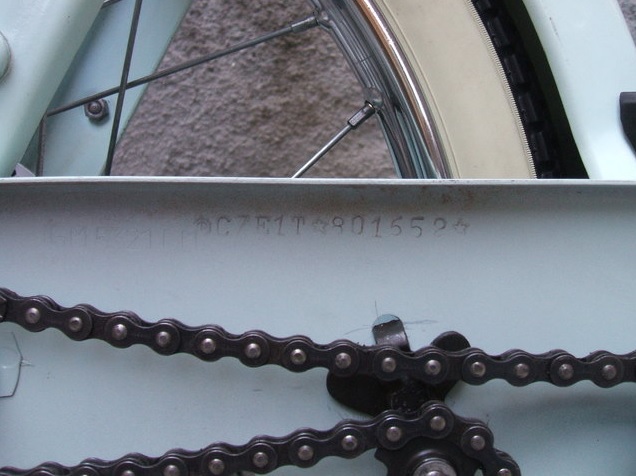

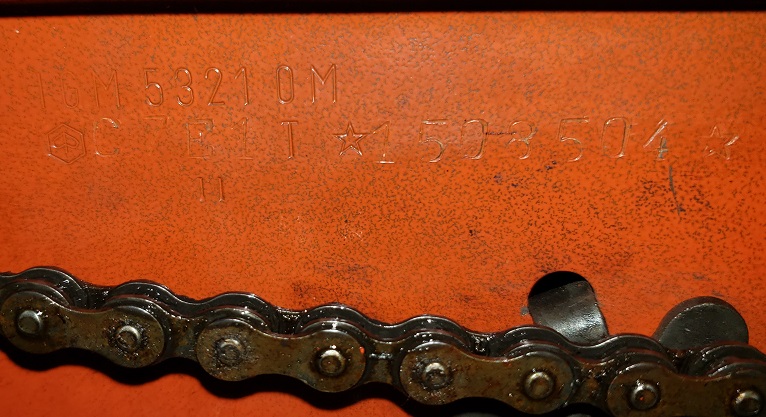

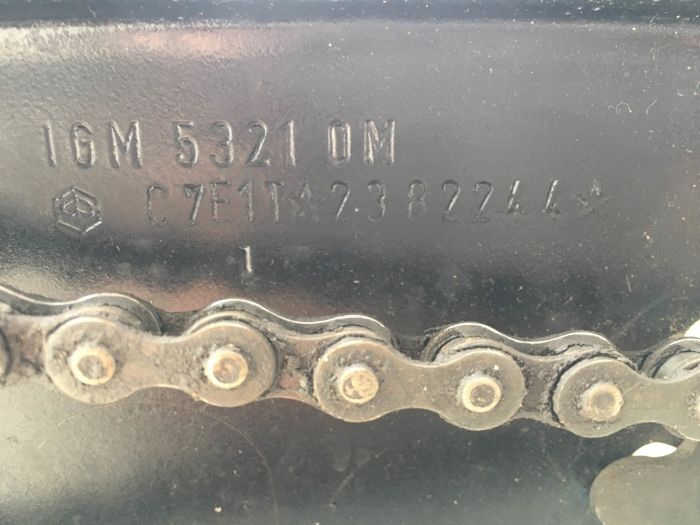

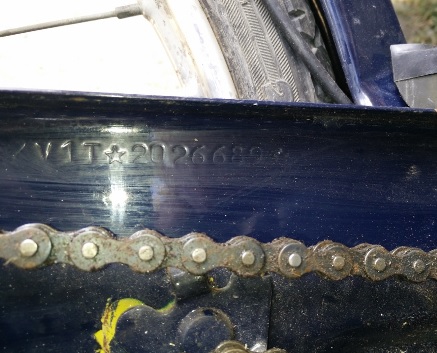

After 1971 the USA model codes had “T” added to the end. Model codes are the first part of the serial number, stamped into the frame.

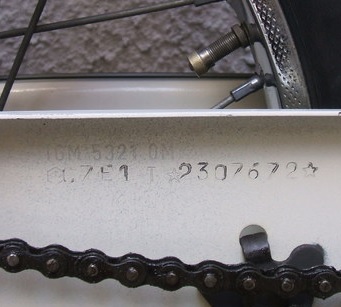

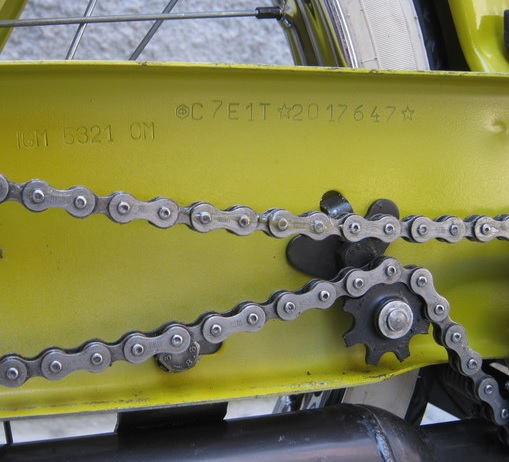

Notice the 1972 C7E1T has a small square grey box on the frame directly under the nose of the solo seat. It covers a thick coil spring for the “swinging saddle” frame as they called it. Now look above at the 1971 C7E1. Not there. The mopeds with swinging saddle frames had a big S.C. sticker on the rear fender. One likely meaning is “Sella Confortevole”, Italian for Comfortable Saddle. Just like the earlier models, the seat itself had a spring in it. So the S.C. Ciao had both a seat spring and a frame spring for the rear suspension. With swinging front and rear suspension it was more able to cross continents.

In the 1972-75 Ciao parts catalog, there are three model types, C7N (model code C7N1T), C7ESC (model code C7E1T) and C7ESC with blinkers (C7E1T/B). These were all the same speed and power, 40 km/h (25 mph).

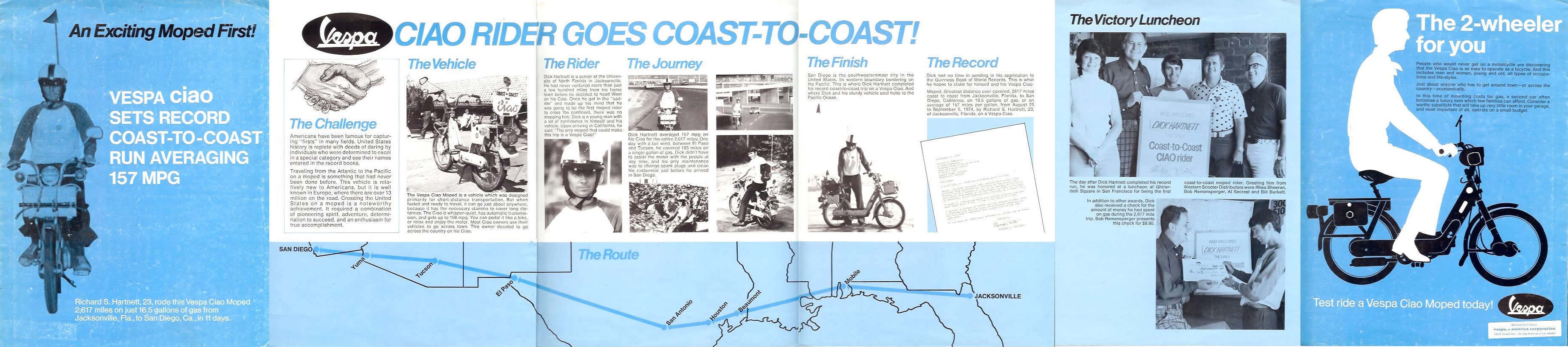

New for 1974: First documented human crossing of the United States coast to coast on a moped. Richard Hartnett rode a Vespa Ciao 2617 miles on just 16.5 gallons of gas, from Jacksonville FL to San Diego CA, in 11 days. Western Scooter Distributors honored him at a luncheon in San Francisco, in this early ad from Vespa of America Corp.

New for 1976: New US safety standards. Before 1976 there were no US safety standards specifically for mopeds. There were only motorcycle and bicycle safety standards. The brake levers did not need to have ball ends. The front brake on C7N was not a drum brake. But the 1972-75 bikes did already have USA-required brake light and side reflectors. The new US safety standards were like opening the flood gates, as the US became flooded with mopeds from Motobecane, Peugeot, Tomos, Batavus, Puch, Garelli and many more. Piaggio had already been selling mopeds for about eight years.

In the 1976-77 Ciao Bravo parts catalog, there are seven model types, C7N (C7N1T) 30mph, C7ESC (C7E1T) 20mph, C7ESC (C7E1T) 30mph, C7ESC (C7E1T/B) 30mph with blinkers, C7VSC (C7V3T) 30mph, EVL (EEV1T) 30mph, EVL (EEV1T/B) 30mph with blinkers. The 30mph versions actually went 24.9 mph, compliant with “under 25 mph” and “under 30 mph” US state laws. 24.9 is 40 km per hour, the legal limit in 1970’s Italy.

1976-77 Vespa Mopeds:

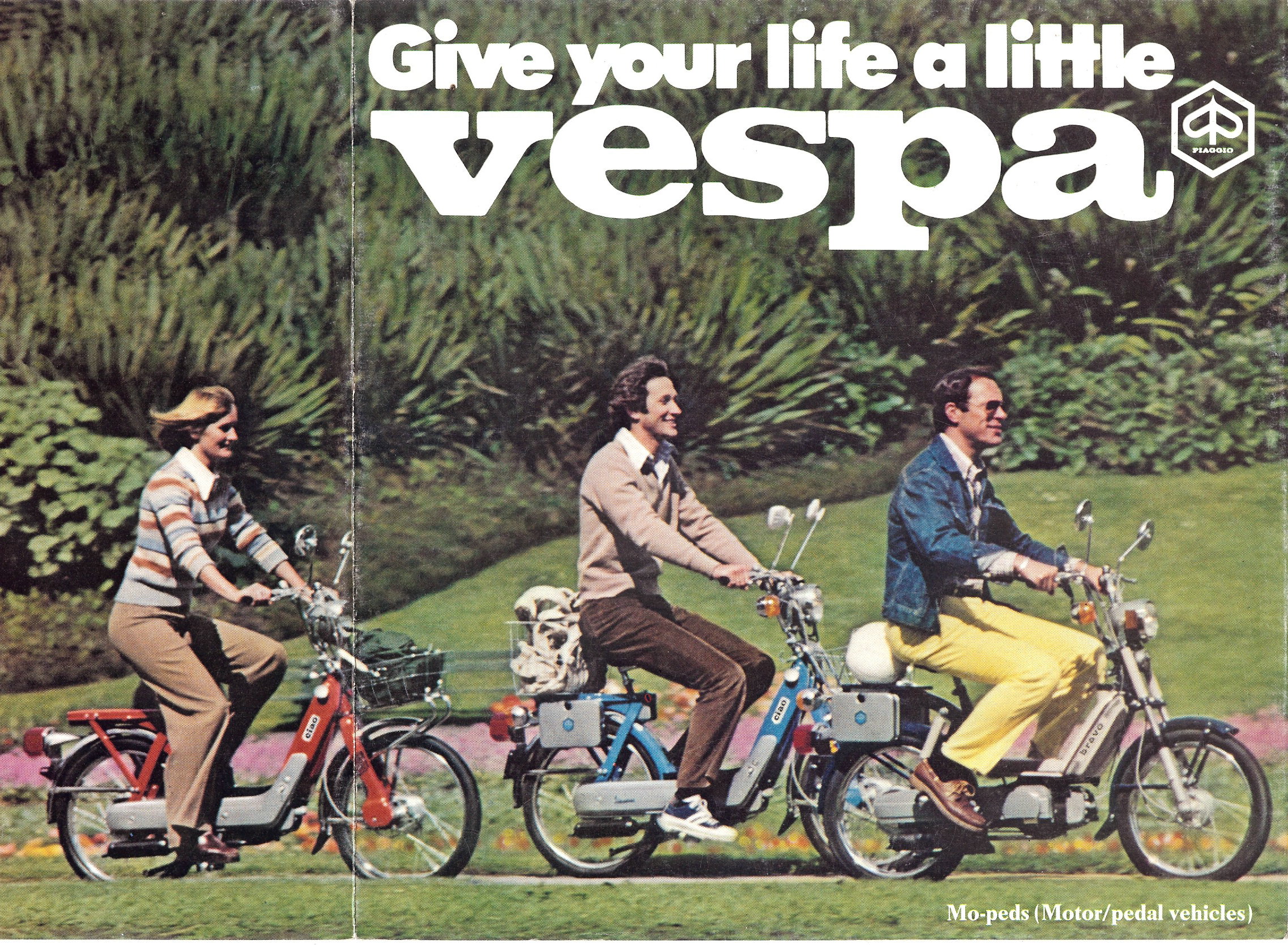

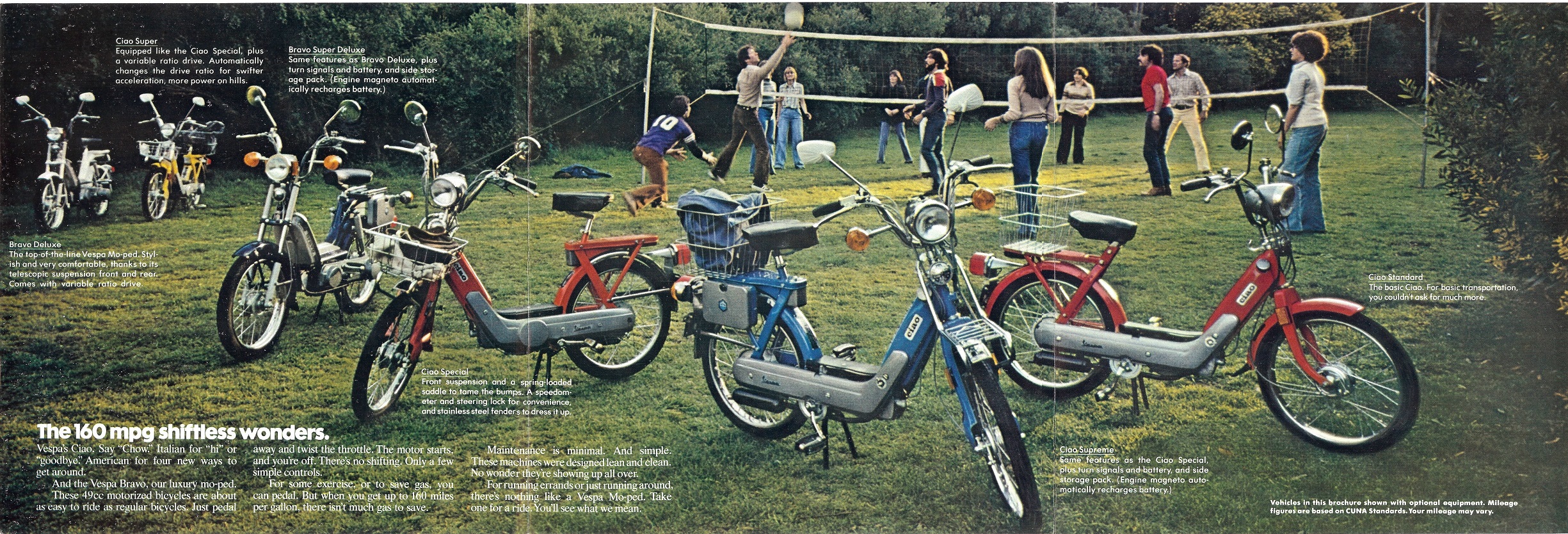

Vespa Flyer 77 p1

1977 C7E1T, C7E1T/B, EEV1T/B

Vespa Flyer 77 p5

Vespa Flyer 1977

Vespa Flyer 77 p6

Vespa 1977



1976 Models

C7N1T Ciao Standard (30mph)
C7E1T Ciao Special “SC” (20 or 30)
C7E1T/B Ciao Supreme “SC” (30)









1977 Vespa EEV1T, C7V3T, EEV1T/B, C7E1T, C7E1T/B, C7N1T



1977 Models

C7N1T Ciao Standard
C7E1T Ciao Special “SC” (20 or 30)
C7E1T/B Ciao Supreme “SC”
C7V3T Ciao Super “SC”
EEV1T Bravo Deluxe
EEV1T/B Bravo Super Deluxe





Vespa Ciao

Ciao C7E1T/B

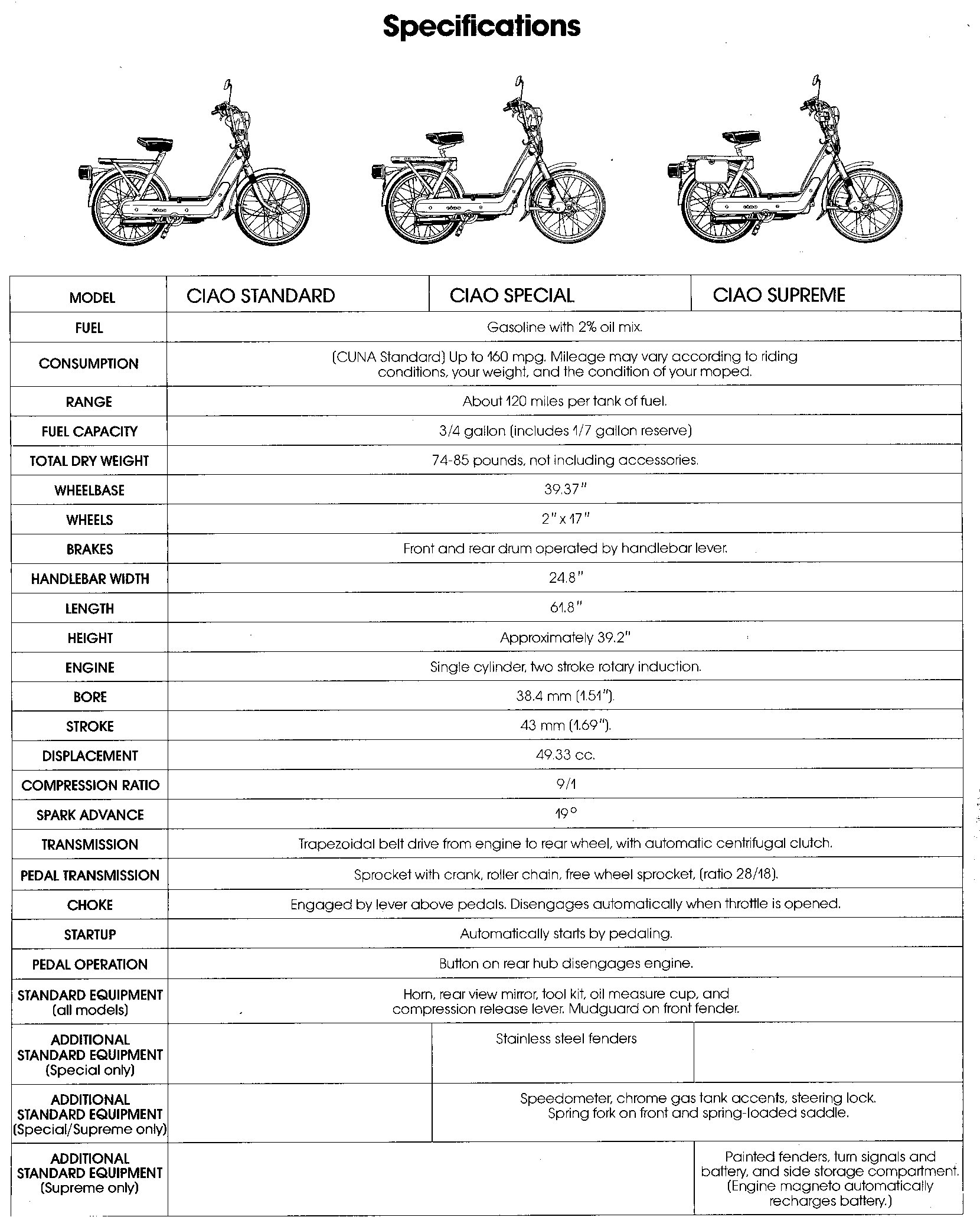

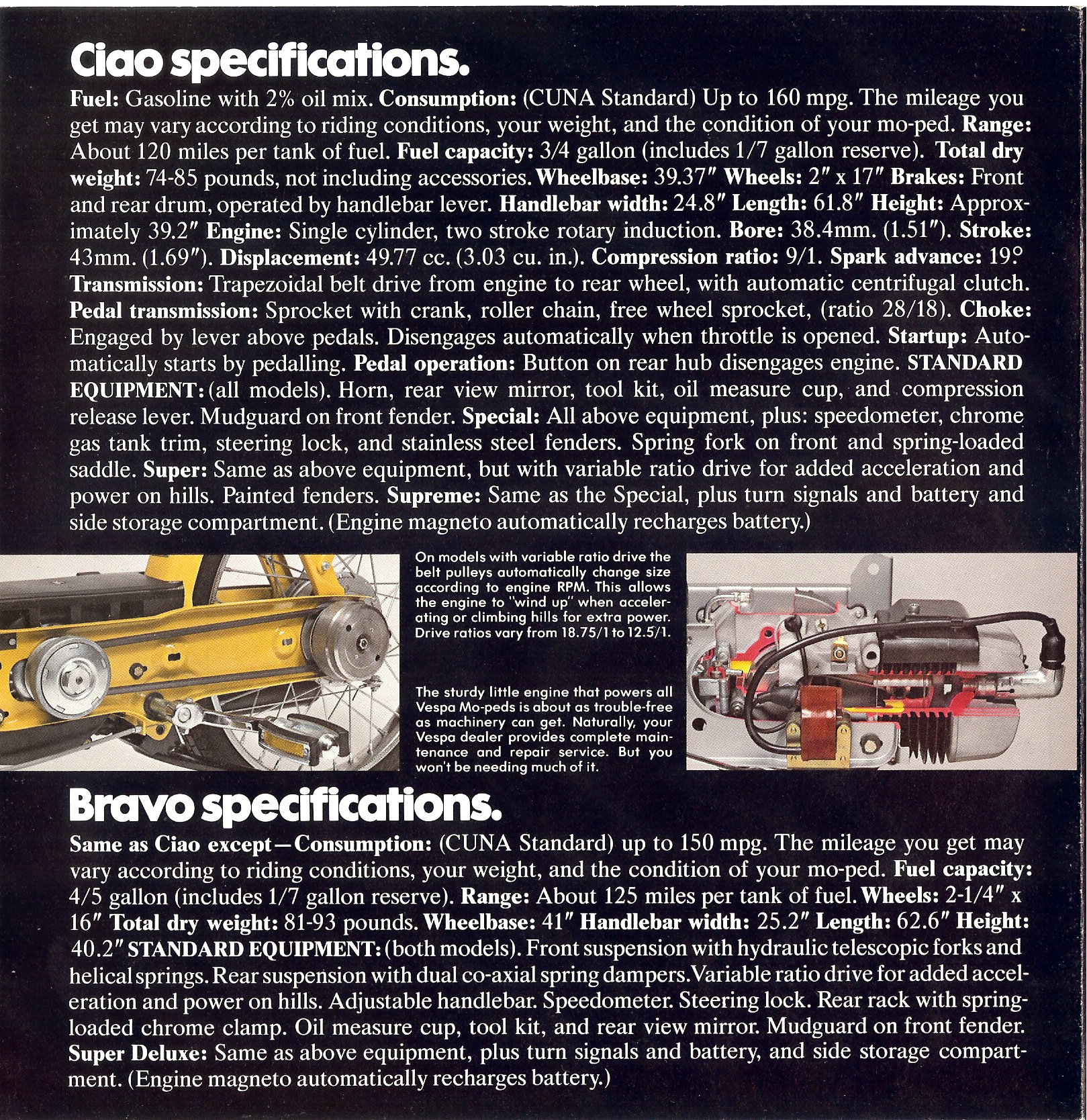

Ciao Specs

Ciao Specs

Vespa Bravo

Bravo EEV1T

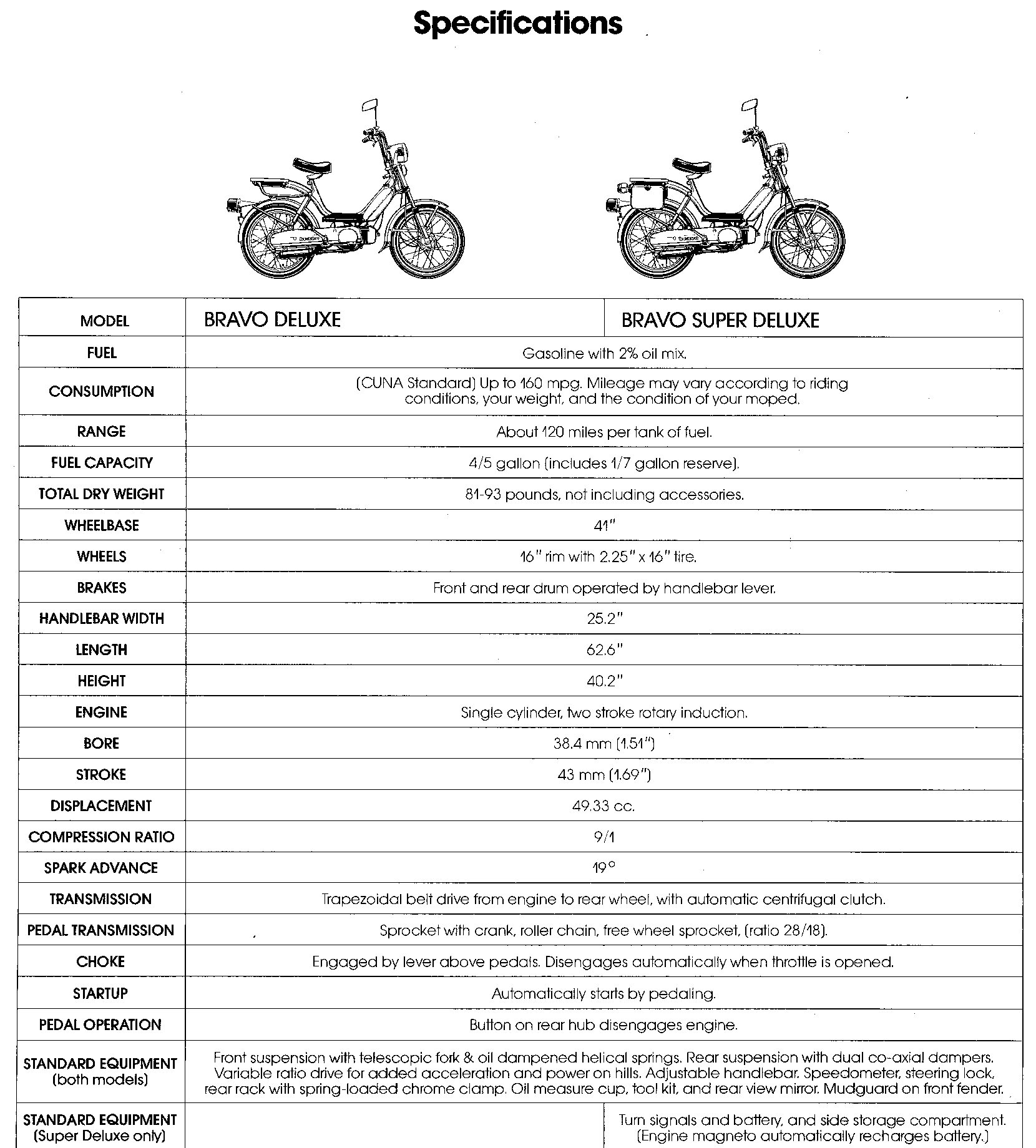

Bravo Specs

Bravo Specs

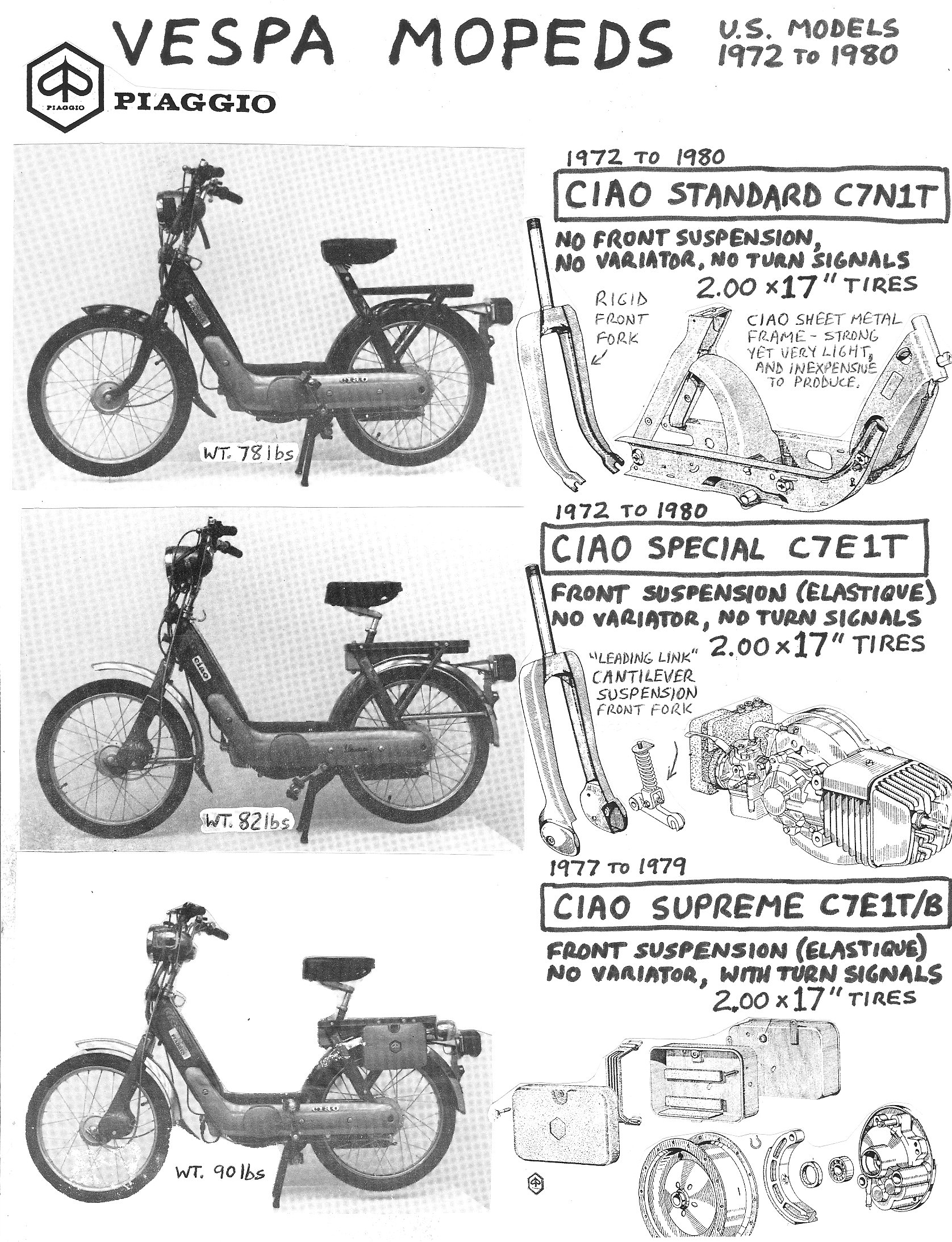

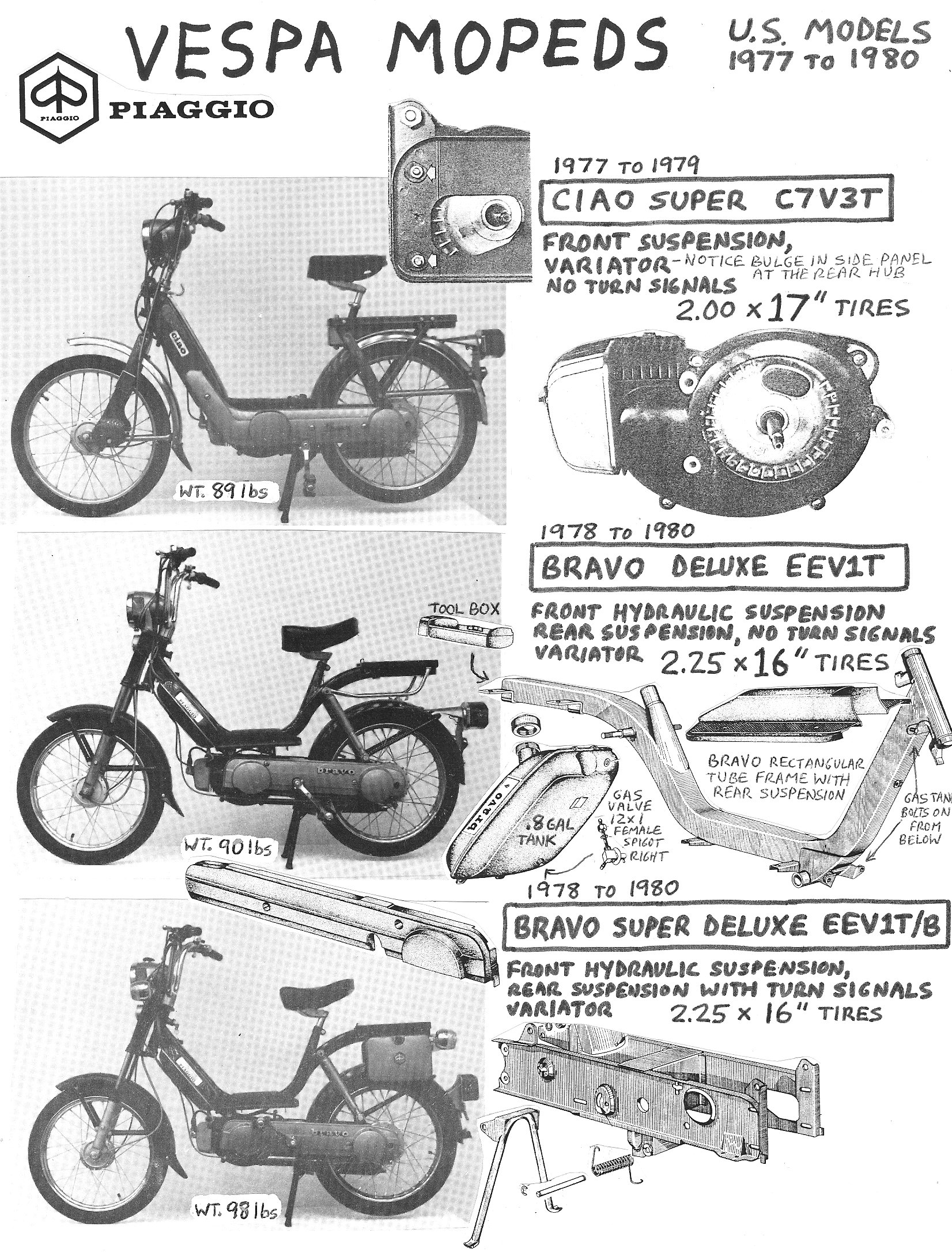

Info Vespa 6

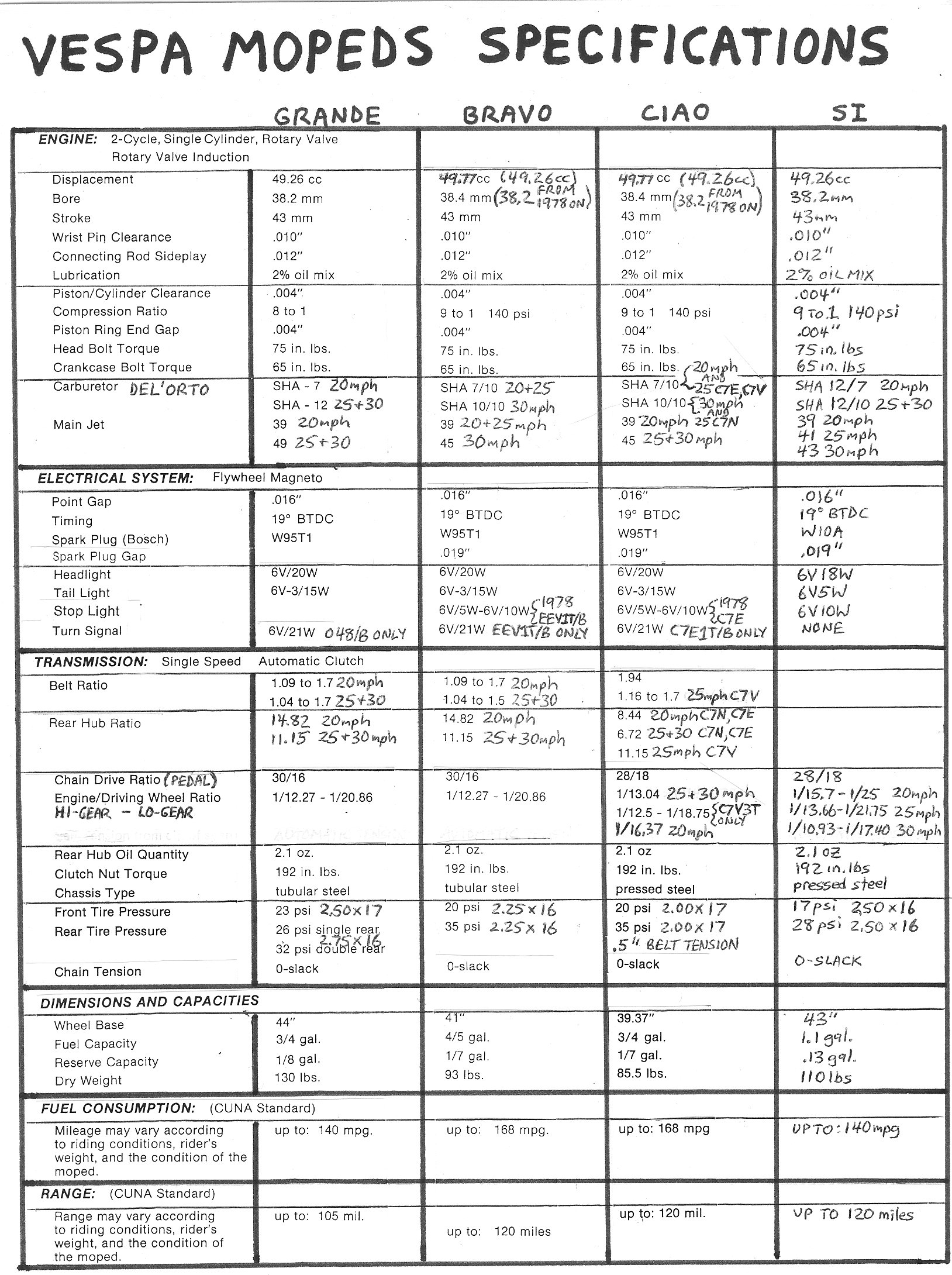

Vespa Mopeds Specifications

Info Vespa 7

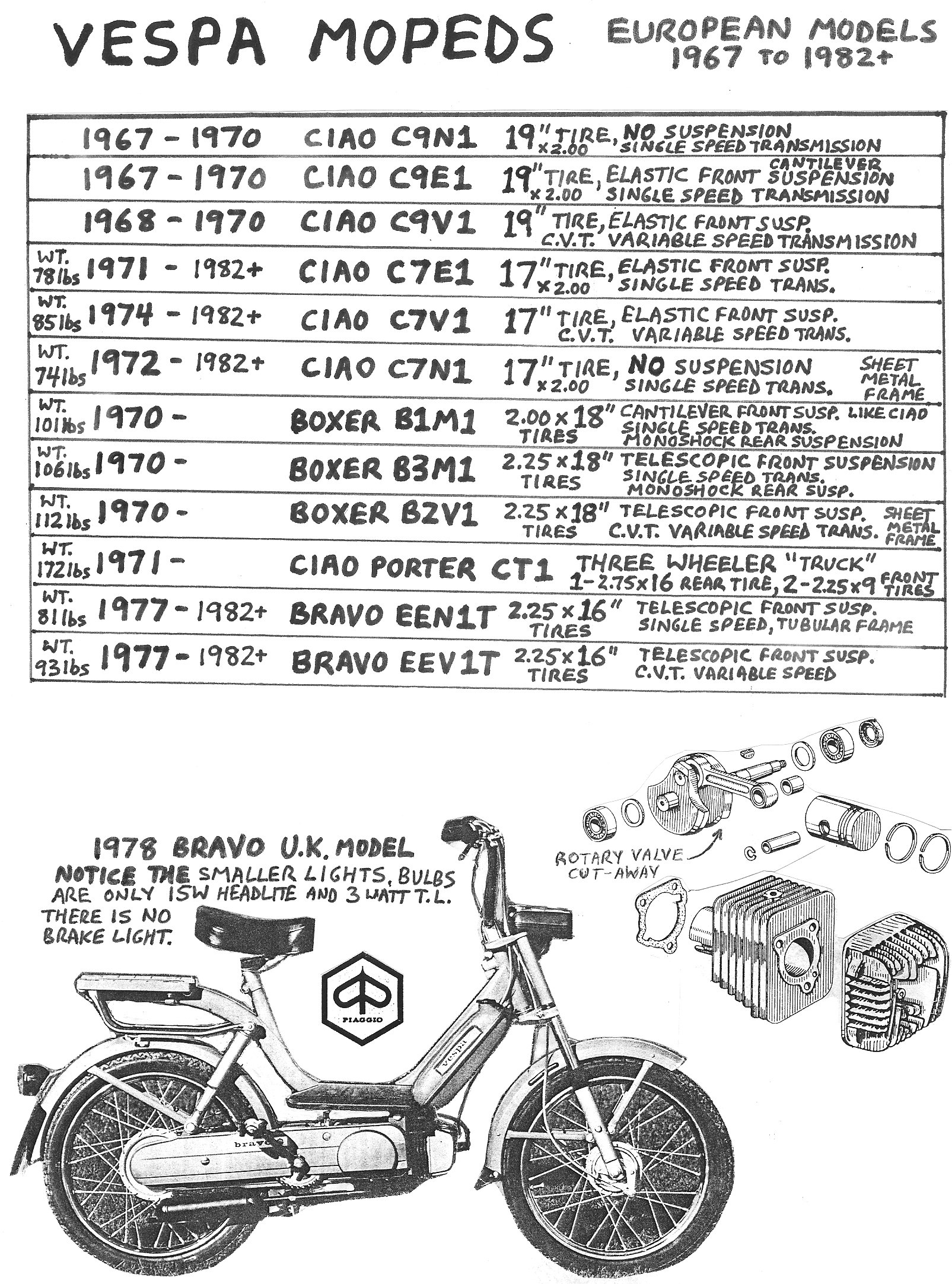

Vespa Mopeds Speed Versions Info

Speed Versions: Other than a small sticker on the sub-frame that says “30”, “25,” or “20” it is not easy to tell what speed it is supposed to go. The lower speed bikes have smaller carbs, ports, exhausts, and lower gearing, and possibly other devices to be compliant with each state’s moped speed limit. This spreadsheet of part numbers and notes, condensed from the various Piaggio parts catalogs, explains the differences.

In the 1978-80 Ciao Bravo amendment 2, and the 1978-80 Grande parts catalog there are these 15 model types, plus blinker versions:

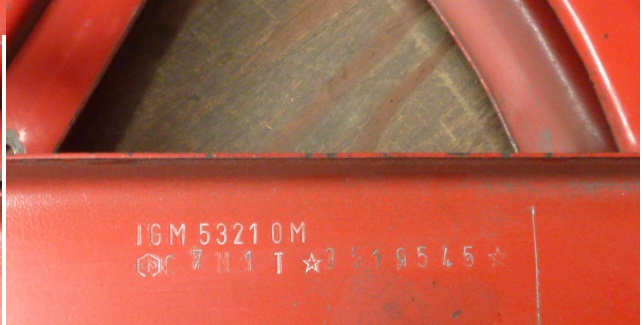

C7N (20, 25, 30mph) serial numbers from C7N1T-3516364
C7ESC (20, 25, 30mph) serial numbers from C7E1T-2351324

EVL-Ciao (20, 25, 30mph) serial numbers from C7V3T-6058864
EVL-Bravo (with plastic tank) serial #’s prior to EEV1T-6045501
048  Grande (20, 25, 30mph) serial numbers from 048-1001



1978-79 Vespa Mopeds

Vespa Folder left

Vespa 1978 left

Vespa 1978 right

Vespa 1978 right

Vespa Grande 1

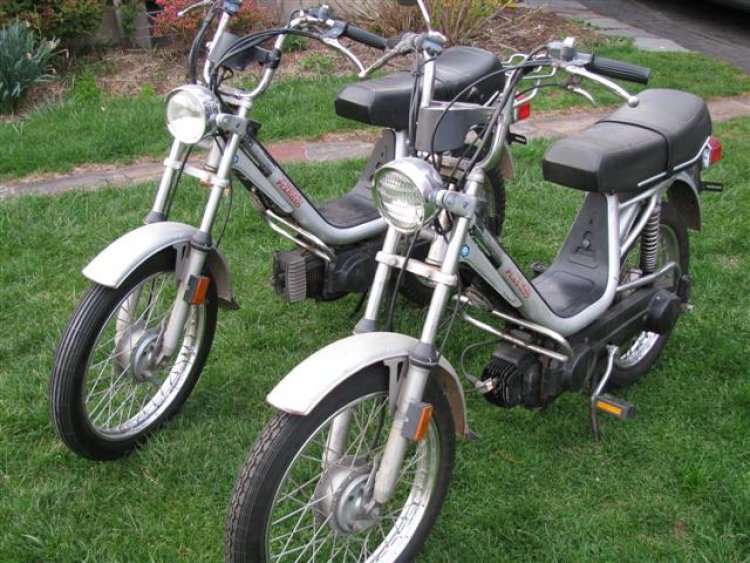

1978 Grande 048

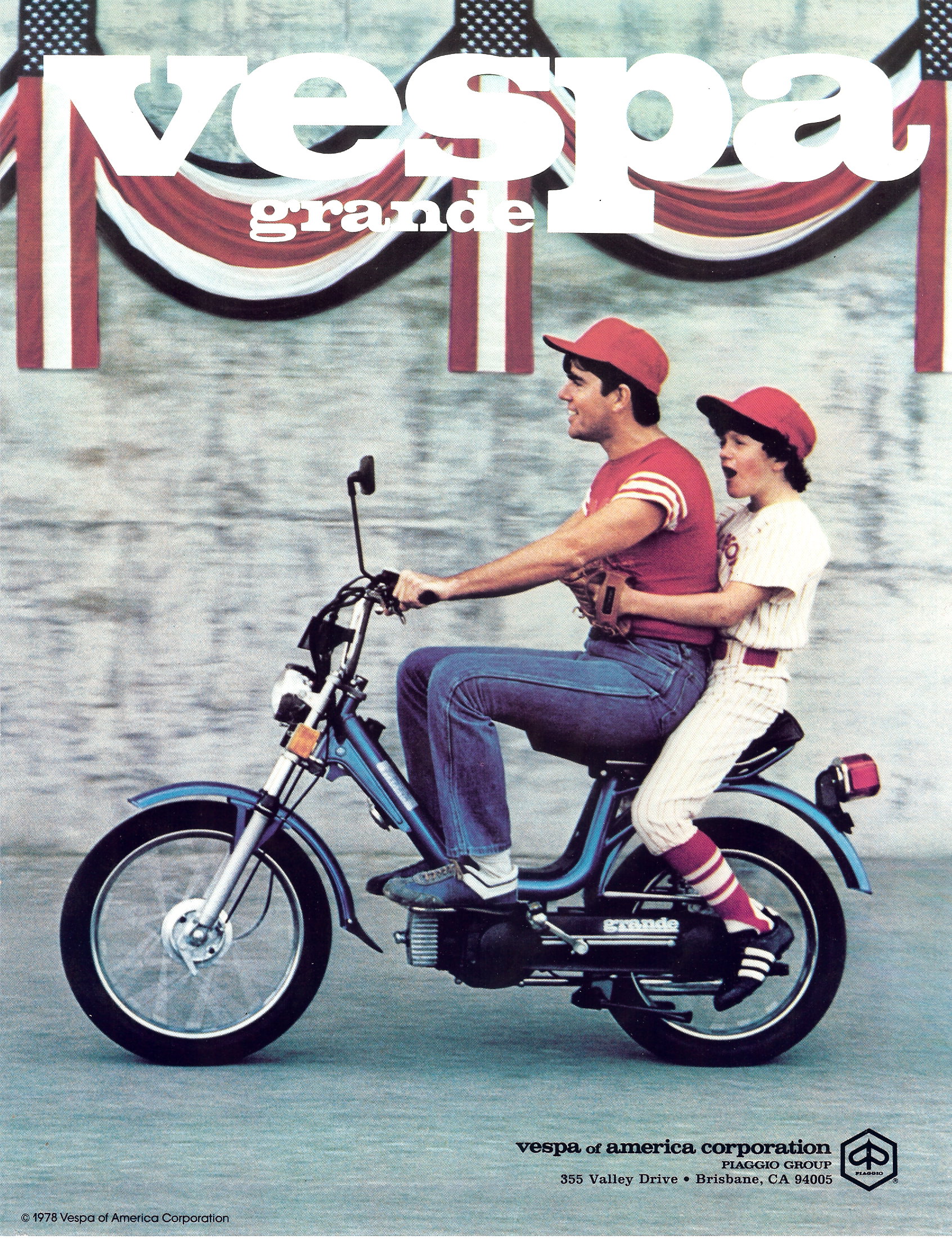

Vespa Grande 2

1978 Grande 048/B

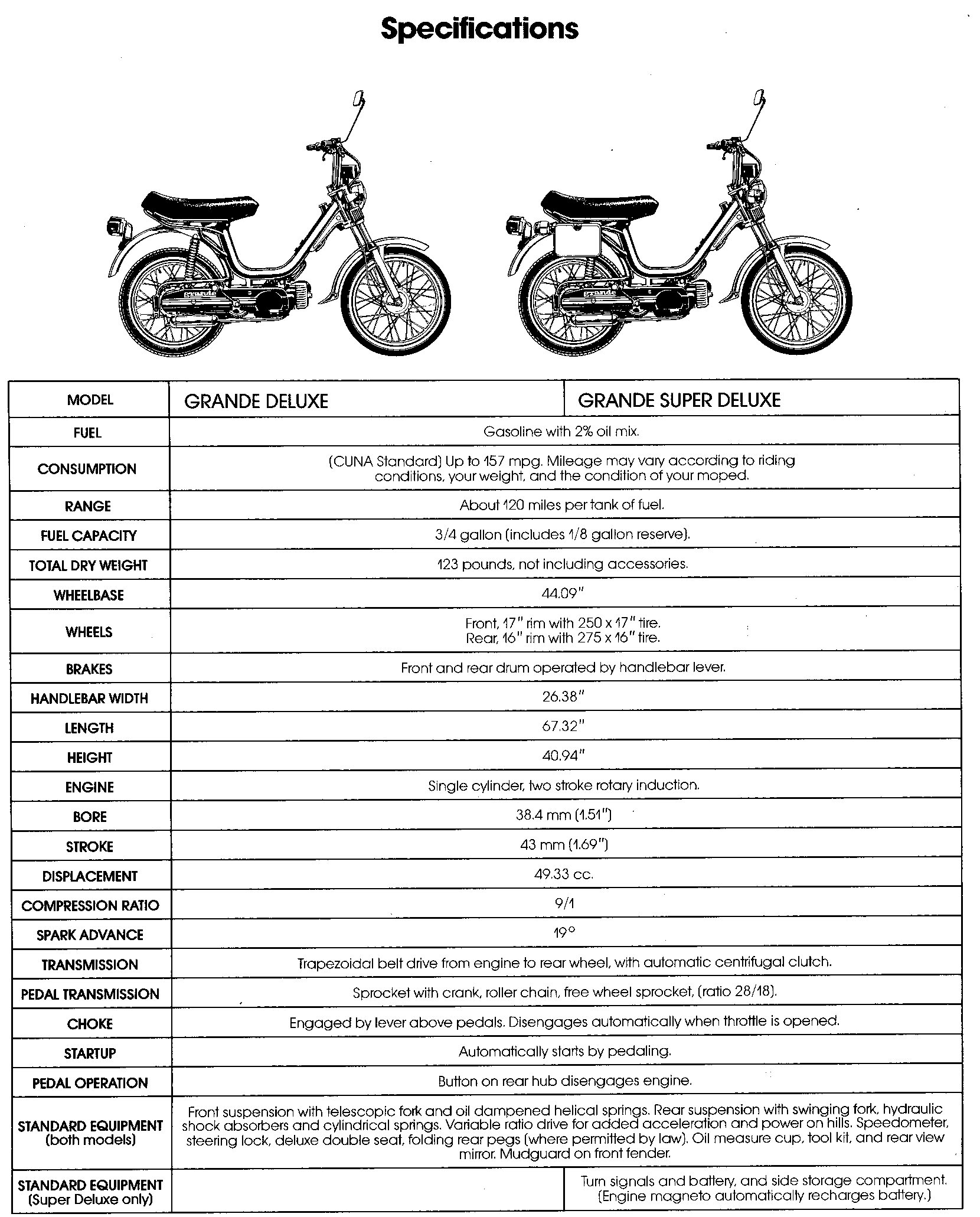

Grande Specs

















1978 Vespa Grande 048

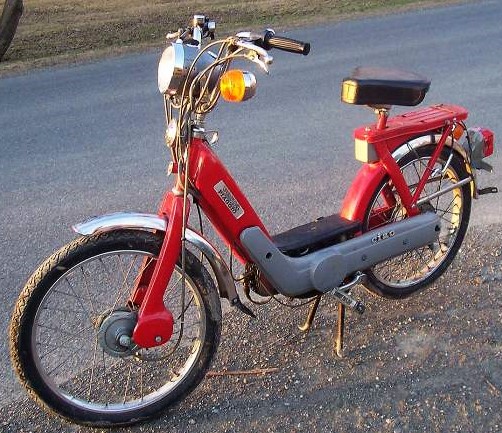

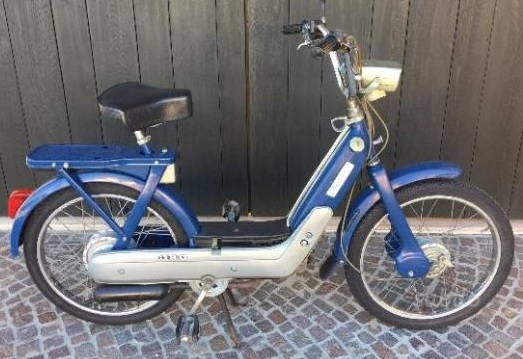

1978 Vespa Ciao C7E1T-B

1978 Vespa Ciao C7N1T

1978 Models

C7N1T Ciao Standard
C7E1T Ciao Special “SC”
C7E1T/B Ciao Supreme “SC”
C7V3T Ciao Super “SC”
EEV1T Bravo Deluxe
EEV1T/B Bravo Super Deluxe
048 Grande Deluxe
048/B Grande Super Deluxe

New for 1978:
The Grande model was introduced to USA only. It is a two-person heavy duty design. It’s twin long tube gas tanks, which are part of the frame, are too long and thin to allow oil mixing in the bike’s tank. Instead the gas and oil must be pre-mixed in a gas can before adding to the bike’s tank.

The turn-signals-with-battery versions of Ciao and Bravo have a new electrical wiring and components. Instead of an external ignition ground, where the ignition source coil powers the brake light, they have an internal ignition ground. The following components are different: wiring, brake light switches, tail light, aux. lights source coil. Now the engine never looses spark because of disconnected brake light wires.

The 1978-80 Bravo tail lamp is identical to the 1977 one, except that it does not have a secret brake light resistor inside. The 1978 with internal ignition ground does not need the resistor, but the 1977 with external ignition ground does. If you put a 1977 Bravo tail light on a 1978, the brake light will be dim. If you put a 1978 tail light on a 1977, the brake light will be super bright, and soon burn out causing loss of spark. Weird…

1979 Vespa Grande 048

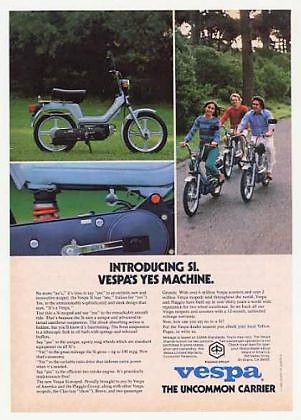

1979 Vespa Si SIV1T

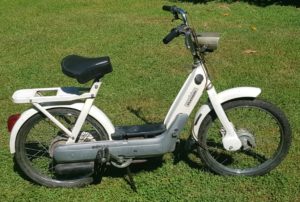

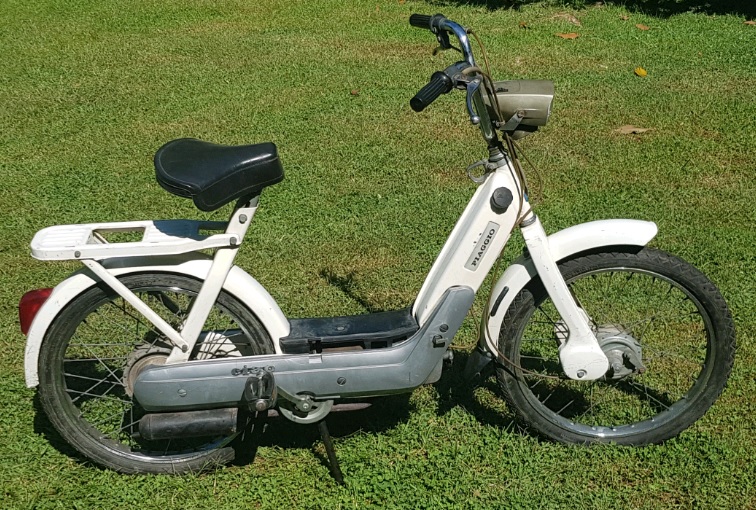

1979 Models

C7N1T Ciao Standard
C7E1T Ciao Special “SC”
C7E1T/B Ciao Supreme “SC”
C7V3T Ciao Super “SC”
EEV1T Bravo Deluxe
EEV1T/B Bravo Super Deluxe
048 Grande
048/B Grande
048 Grande (with mag wheels)
048/B Grande (with mags)
SIV1T Si

New for 1979:
The new model “Si” was introduced. “Si” means “yes”. It was more modern, with monoshock rear suspension. The Si had 4-ray type “mag” wheels, cast aluminum, made by Piaggio.

After 1979 all Grande models had Razze Incrociate “snowflake” mag wheels, made by Grimeca. The much stronger cast aluminum wheels resisted bending, and never had broken spokes.

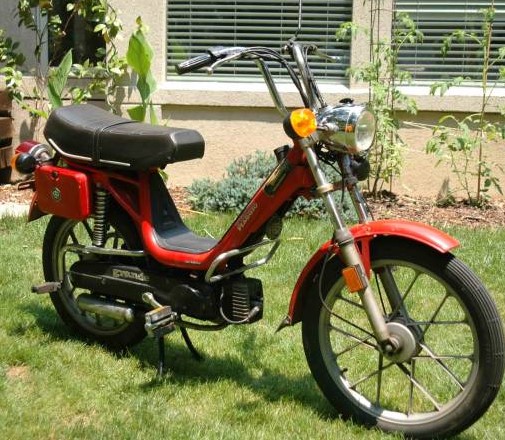

1980 Grande 048/B

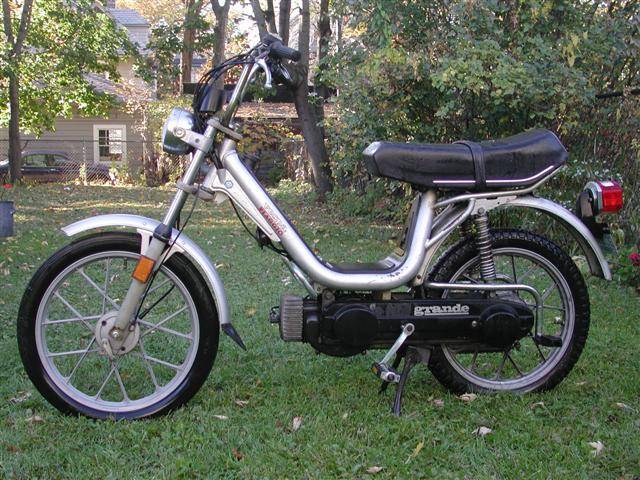

1980 Vespa Grande 048

1980 Vespa Si SIV1T

1980 Models

C7N1T Ciao Standard
C7E1T Ciao Special
C7E1T/B Ciao Supreme
C7V3T Ciao Super
EEV1T Bravo Deluxe
EEV1T/B Bravo Super Deluxe
048 Grande
048/B Grande
SIV1T Si

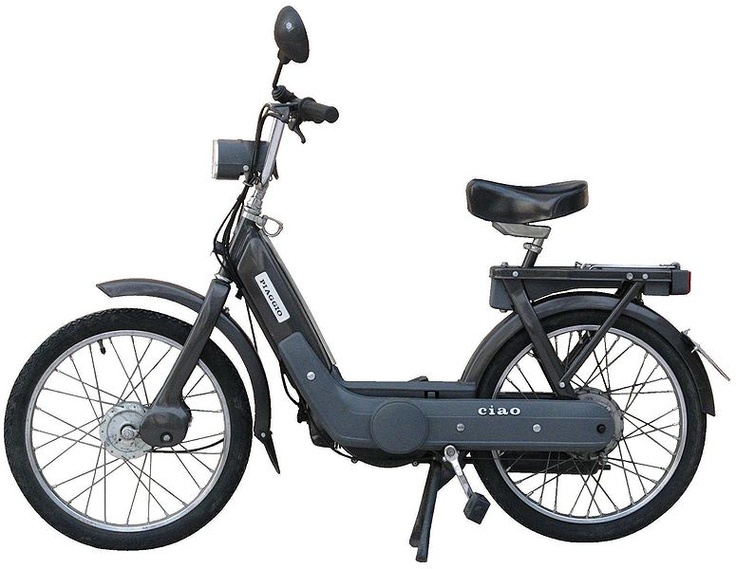

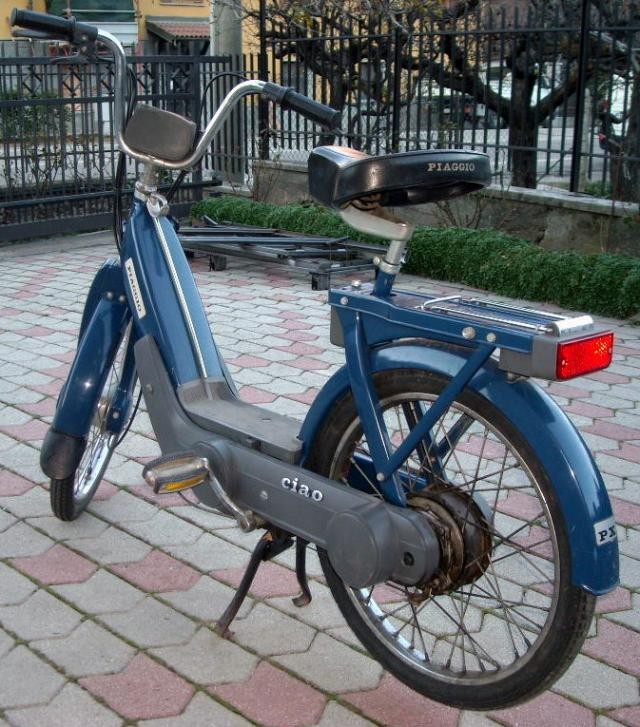

1982 Vespa Ciao PX

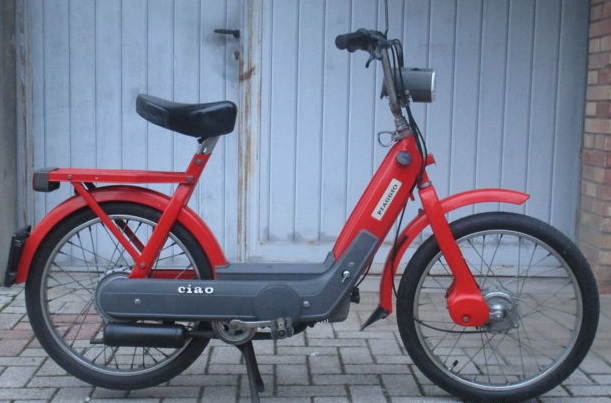

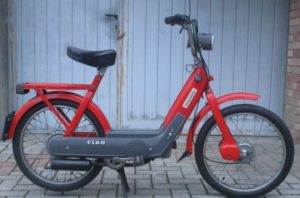

1980 Ciao PX

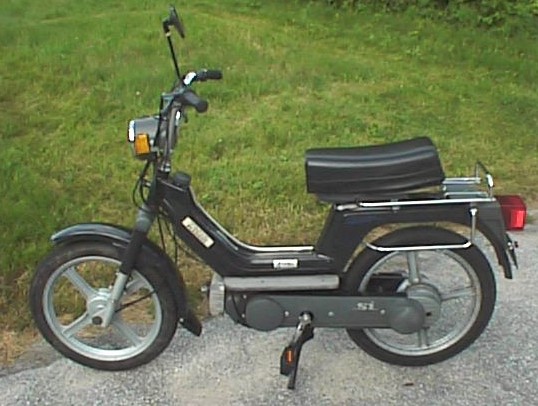

1980 Vespa Si

New for 1980-81: The Ciao C7E is modernized to the Ciao PX. The 1970’s Domino “chrome” controls become 1980’s Domino black type. The tail light became flat and tucked in under the luggage rack so it is less vulnerable to breakage. The headlight became grey plastic with a built-in switch, the light grey side covers became dark grey.

The Ciao C7N and C7V are discontinued.

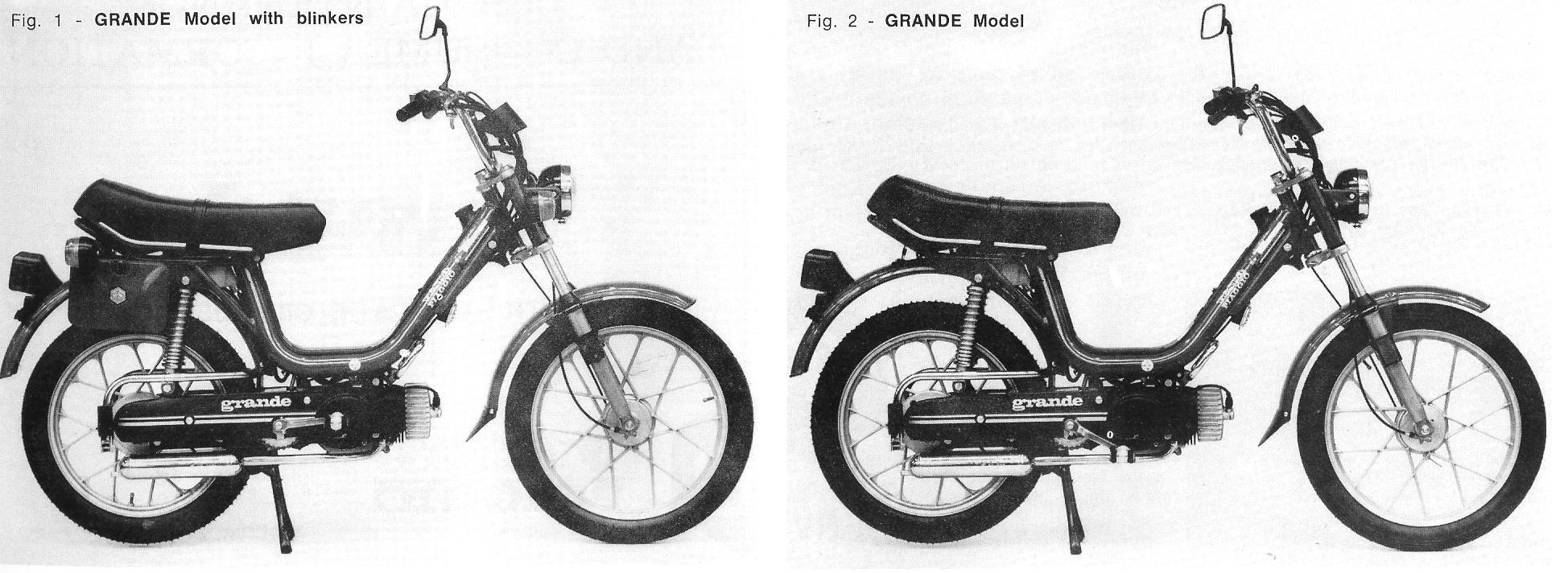

1981 Grande MX 068/B and 068

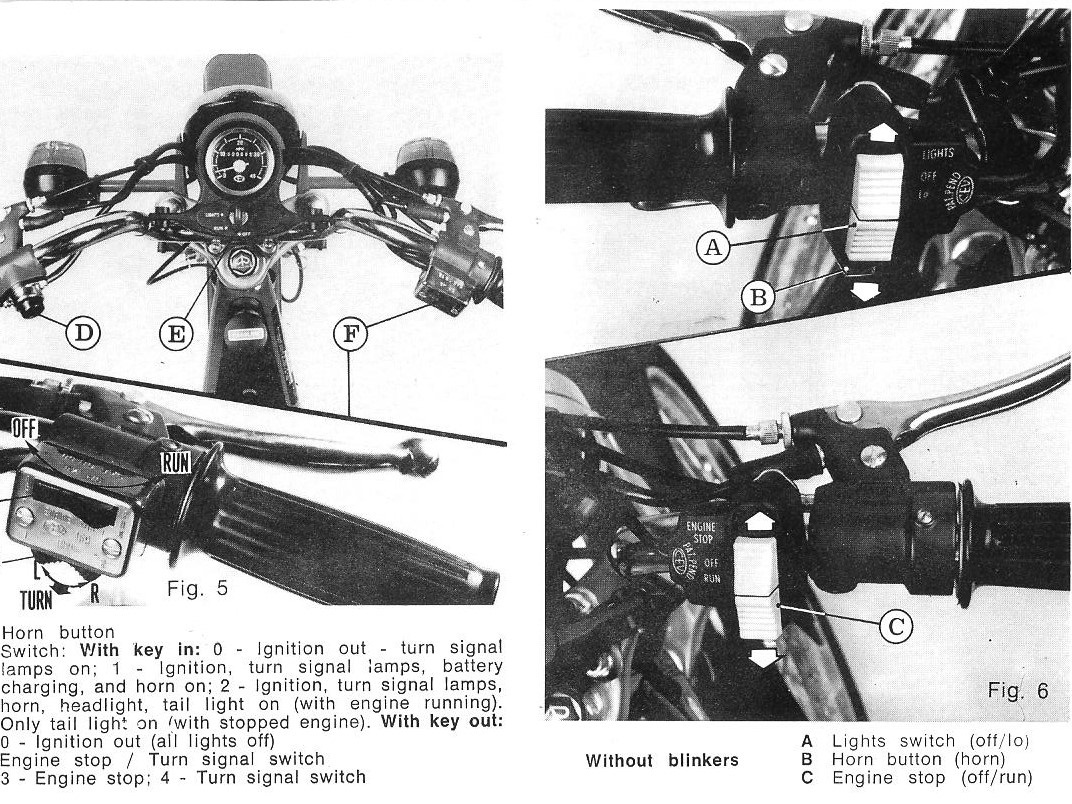

Grande MX controls

1981-83 Models

C7E1T Ciao PX
C7E1T/B Ciao PX
068 Grande MX (oil injection)
068/B Grande MX (oil inject.)
SIV1T Si (oil injection)

Unlike the Ciao PX, the Grande did not say MX anywhere on it. So the MX suffix became unused and forgotten.

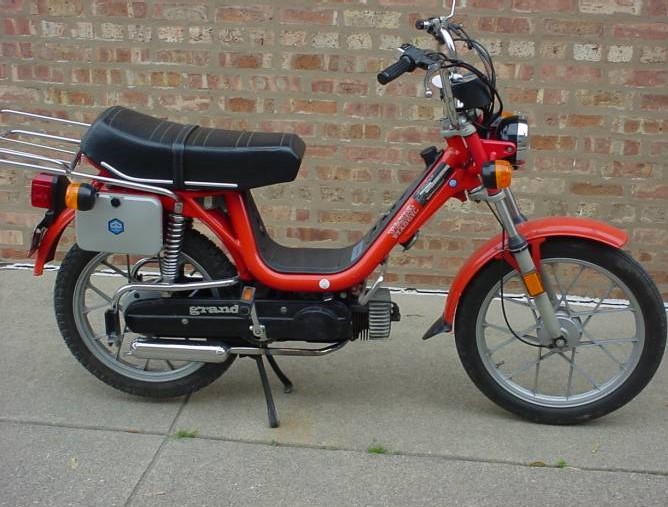

1982 Grande MX 068/B



New for 1981:
– Oil injection, on the Grande and Si. No more mixing of 1 part oil and 50 parts gas.
– I
nternal ignition ground. No more loss of spark if the brake light wires are loose.
17-digit VIN number, no more Veglia speedometer, only CEV.
– N
o more “bullet” headlight on /B models, no more chrome, only black.
– N
ew black Bravo-type tail light, more black and less gray things, like cables.
– N
ew key switch, wiring and brake light switches on blinker /B models.

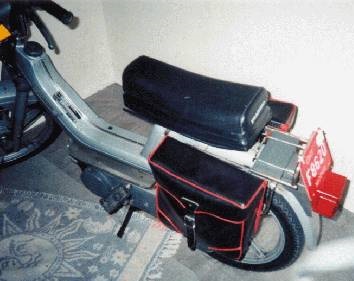

1984 Vespa Si SIV1T

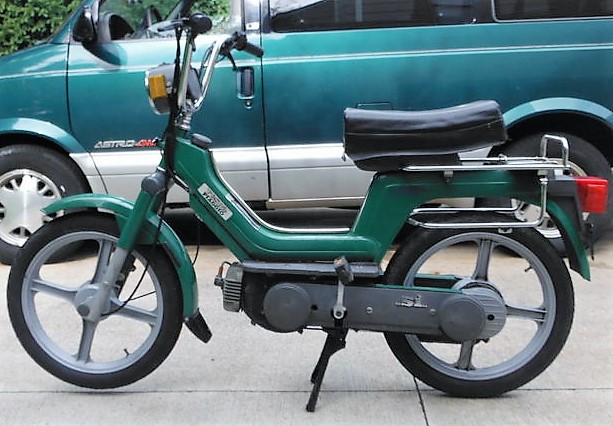

1982 Vespa Si SIV1T



1984-85 Models

SIV1T Si (oil injection)
SIV2T Si (oil injection, CDI ignition)





The final years 1983-85:
In an effort to reduce air pollution, in 1983 the US Environmental Protection Agency made it illegal to sell new two-stroke street motorcycles over 50cc. The powerful 350 to 750cc Yamaha, Suzuki and Kawasaki sport motorcycles that dominated US streets in the late 60’s and 70’s, all had to have 4-stroke engines. Mopeds and 50cc street motorcycles were exempt.
Piaggio chose to abandon the US market, rather that change it’s two-stroke 100-200cc scooter engines to 4-stroke.

Piaggio left the USA in the mid 1980’s. There were some 1984-85 Piaggio Si mopeds sold then, but no more classic two-stroke Vespa scooters after 1983. By 1983 sales of Vespa mopeds were low, thanks to low gas prices and low-cost mopeds and scooters from Honda and Yamaha. The Japanese scooters like Honda Elite 80 and Elite 125/150 had four-stroke engines, US compliant. By the end of the 1980’s well made Japanese 4-stroke scooters were common on US streets.

For over 15 years the USA did not have any new Piaggio vehicle sales. Then in the early 2000’s Piaggio returned to the US with completely redesigned modern 4-stroke scooters, but no mopeds.








2. Parts Catalogs (US models 1968-1985)

The Piaggio parts catalogs were well made, well illustrated printed notebooks. When things changed, instead of making whole new parts books, they made parts book amendments. The amendments only contained the parts that changed.

1969 Piaggio 153724
Ciao parts catalog 153483 amendment

1970-71 Piaggio 154232
Ciao Boxer parts catalog

1971-72 Piaggio 154488
Ciao C7N C9N
154232 amendment





















1972-75 Piaggio 170534 Ciao parts catalog

1976-77 Piaggio 171371 Ciao Bravo parts catalog

1978-80 Piaggio SRV/30
Ciao Bravo
171371 amendment #2

1981-83 Piaggio SRV/59
Ciao PX
 171371 amendment #3

















1978-79 Piaggio 171716
Grande parts catalog

1979-80 Piaggio SRV/46
Grande with mags
171716 amendment #1

1981 Piaggio SRV/48
Grande MX 068
171716 amendment #2

1979-80 Piaggio Vespa
Si parts catalog




















3. Electrical Parts

For wiring diagrams and electrical service info see http://www.myronsmopeds.com/category/vespa-electrical/



Original condenser
 said “Facet”, orig.
points said “Icet”, coil said “Femsa”

This table of Piaggio part numbers contains most electrical parts on most US models.
