M48 Engine

M48 Engine



Welcome. Laura engines are made in Holland (now The Netherlands).





M48  The Laura M48 is used on 1976-80 Batavus and ROG mopeds in the US. In Europe and Canada the M48 is also on Solo, and early 1971-73 Tomos, and others.

M56 engine

M56 engine

M54  In Europe and Canada, the 1973-77 Laura M54 is on Solex Tenor and others. The Laura M54 is basically an M56 top end (piston, cylinder, and head) on an M48 bottom end.

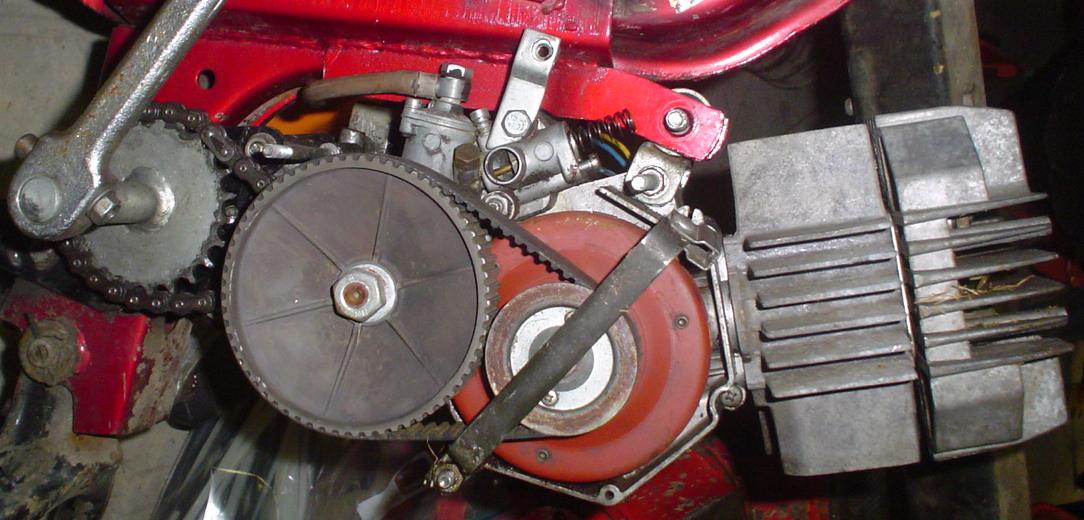

M56  The Laura M56 is used on 1978-80 Batavus mopeds in the US, and others in Europe. After 1980 it was re-made in Korea by Daelim Motor Corp. for the brand known as Trac (made by Kia) in the US. The M56 remake was on 1982-86 Trac Clipper, Eagle, and Hawk models. The M56 remake engine is 99% the same.

Contents:

1. 1972-75 Laura M48 Parts List for Info

2. 1972 Laura M48 Service Manual






1. 1972 Laura M48 Parts List – For Information Only

This Laura M48 parts list is for European models. It was originally in four languages, Dutch, French, German, and English. This version is English only. It is interesting to see the differences in the speed versions. The Dutch artwork is high quality, like their machinery. This material was made available from Mr. B. Small, in Maryland USA, for you to enjoy and use!

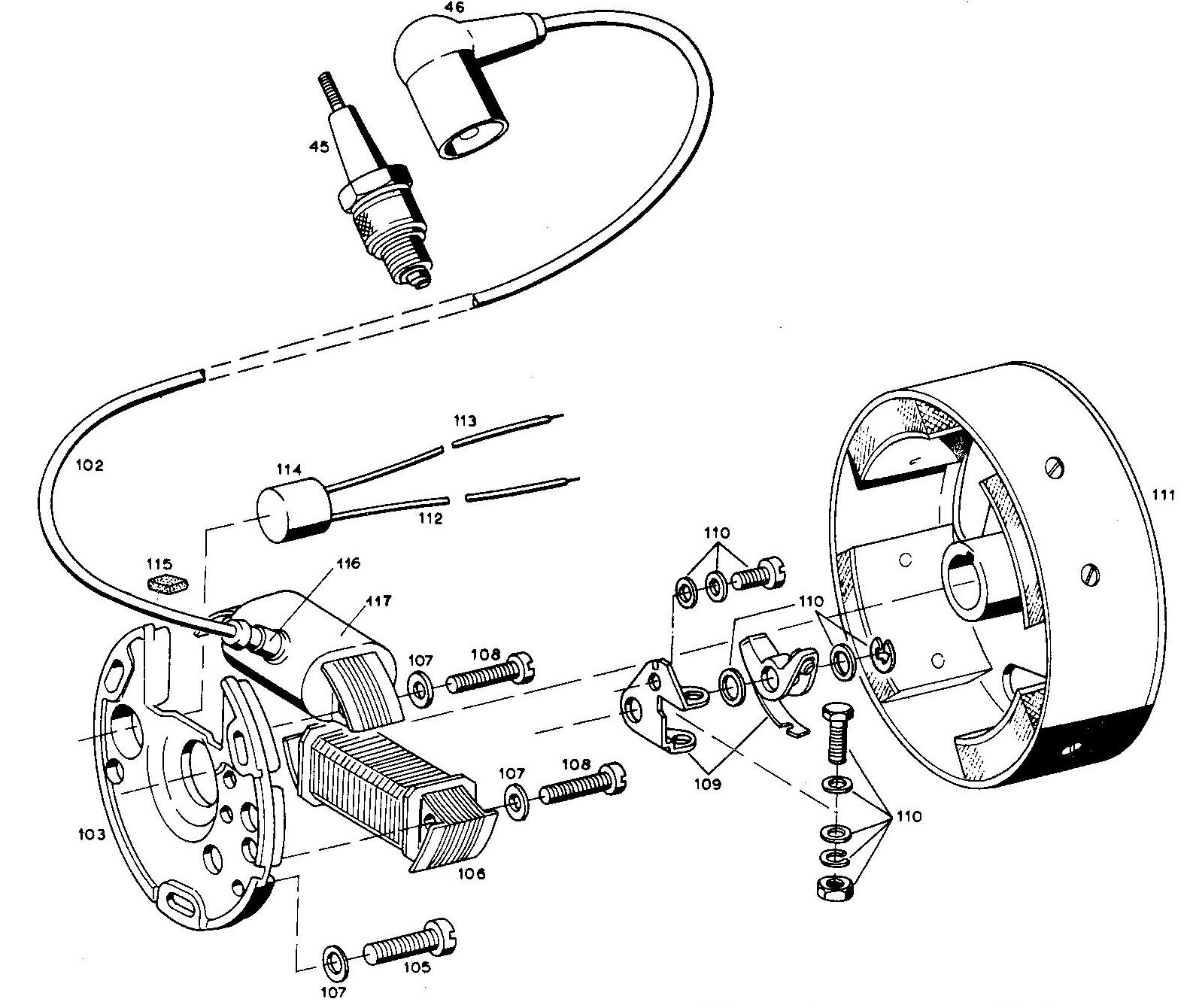

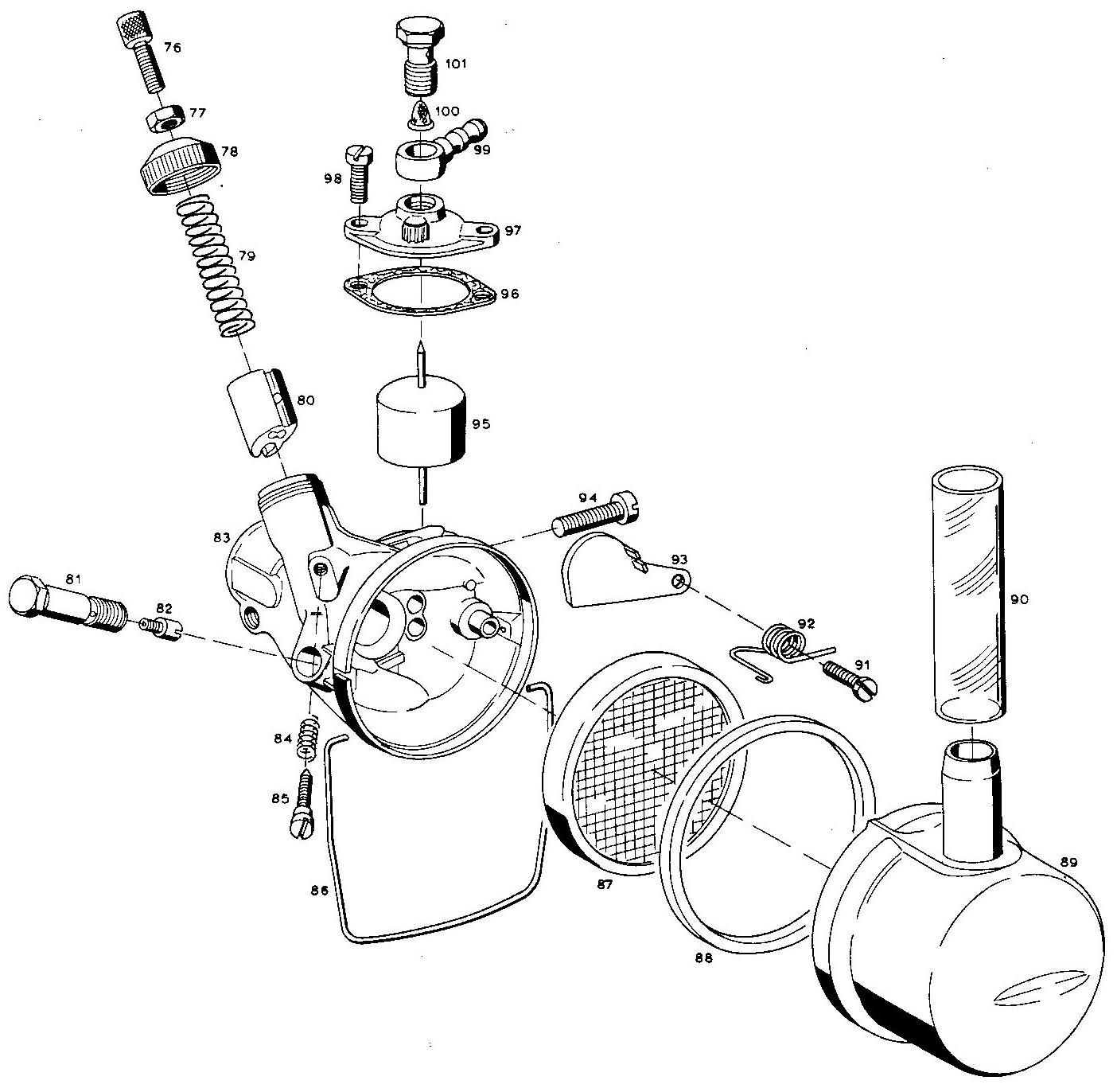

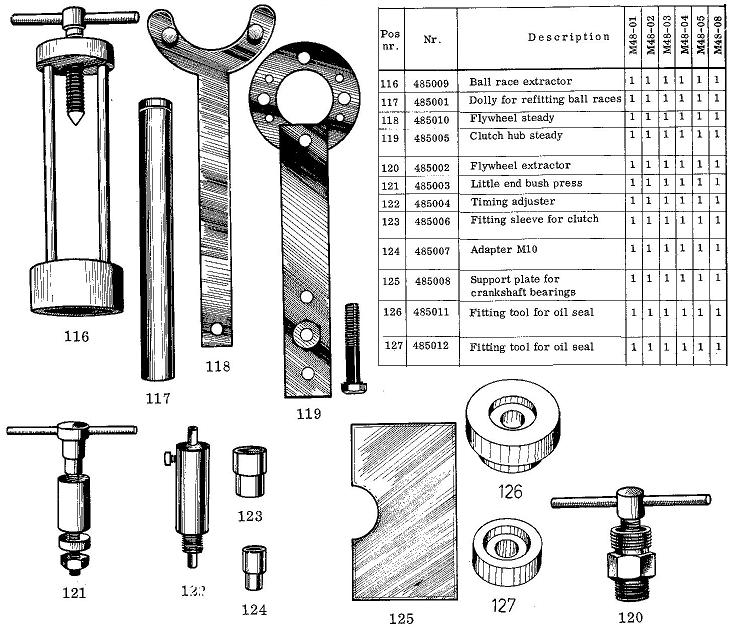

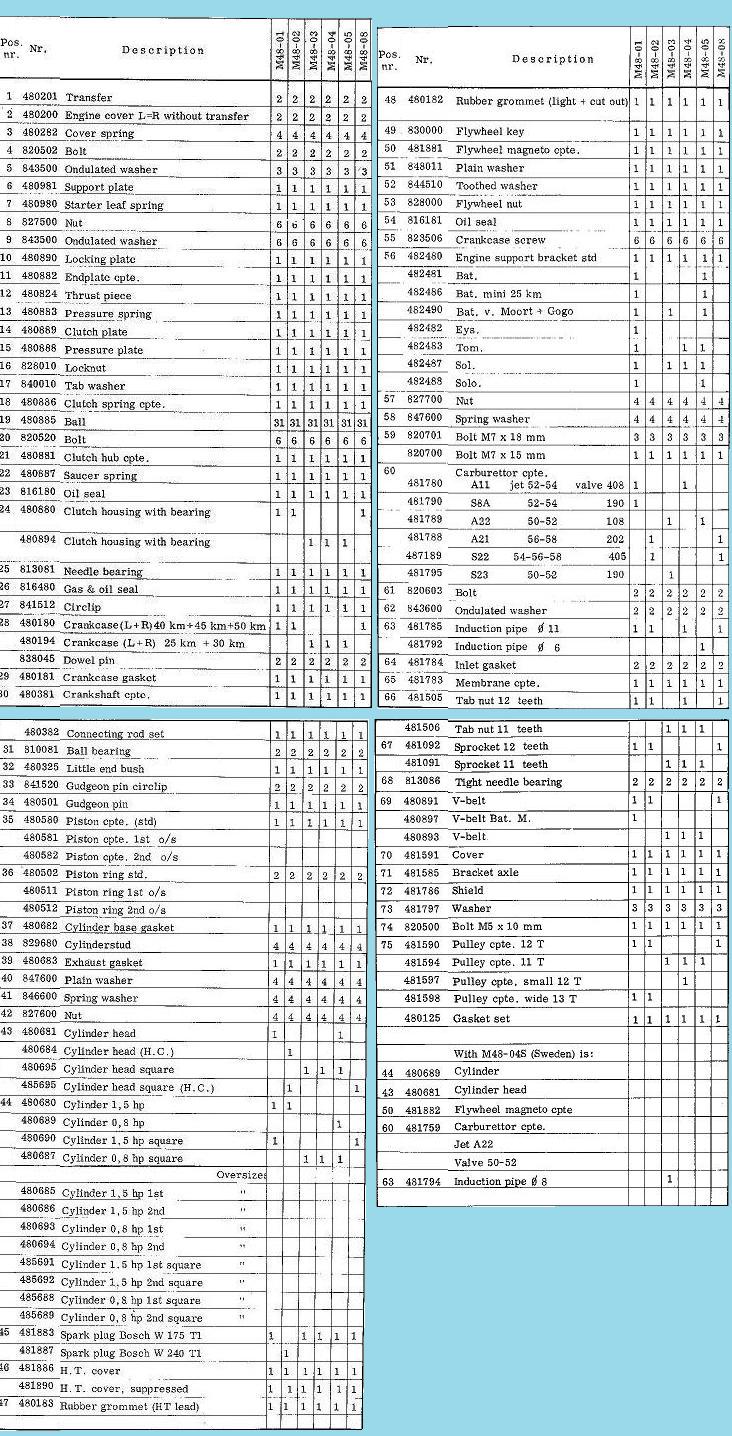

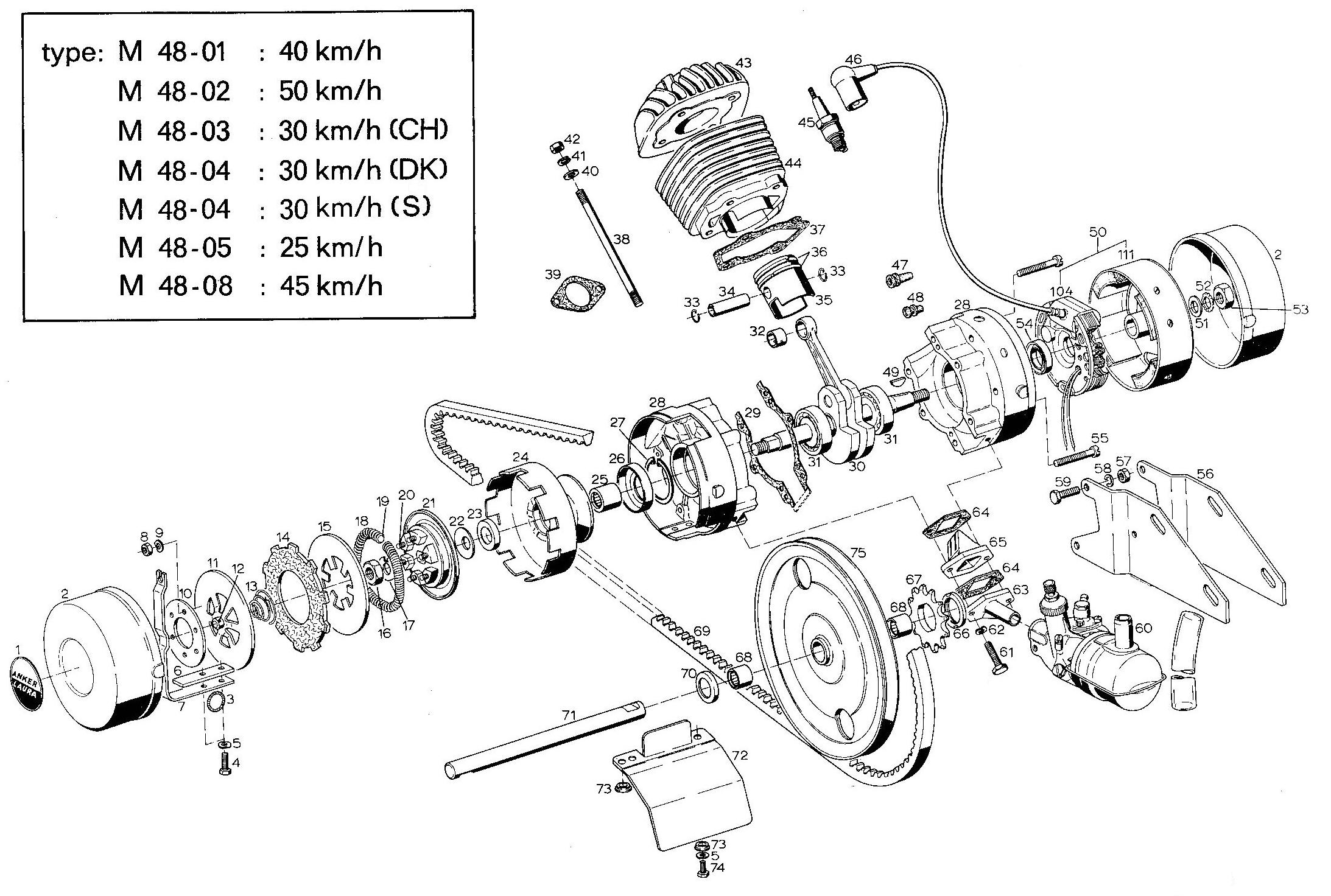

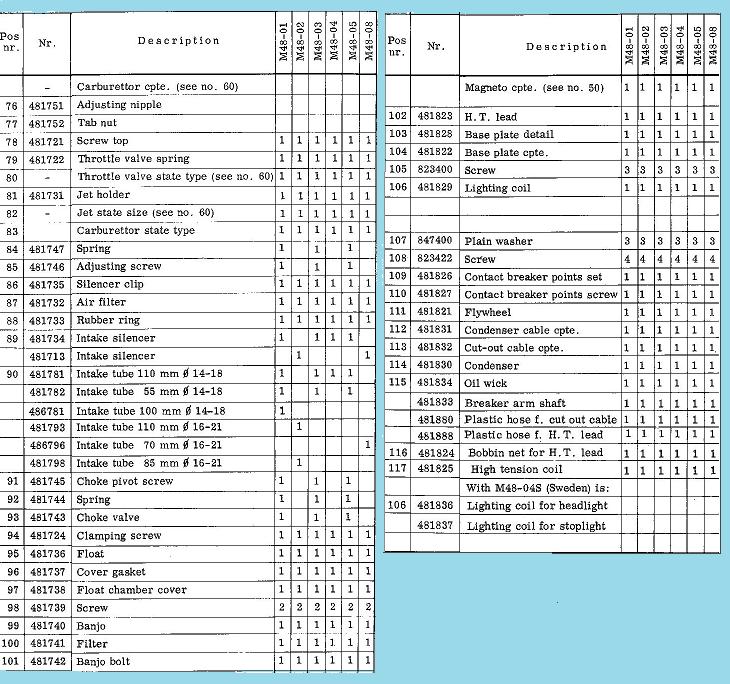

1972 Anker Laura M48 parts list header 1972 Anker Laura M48 parts list p2 1972 Anker Laura M48 parts list all 1972 Anker Laura M48 carburetor1972 Anker Laura M48 magneto 1972 Anker Laura M48 parts list carb and magneto 1972 Anker Laura M48 tools






2. 1972 Laura M48 Engine Service Manual

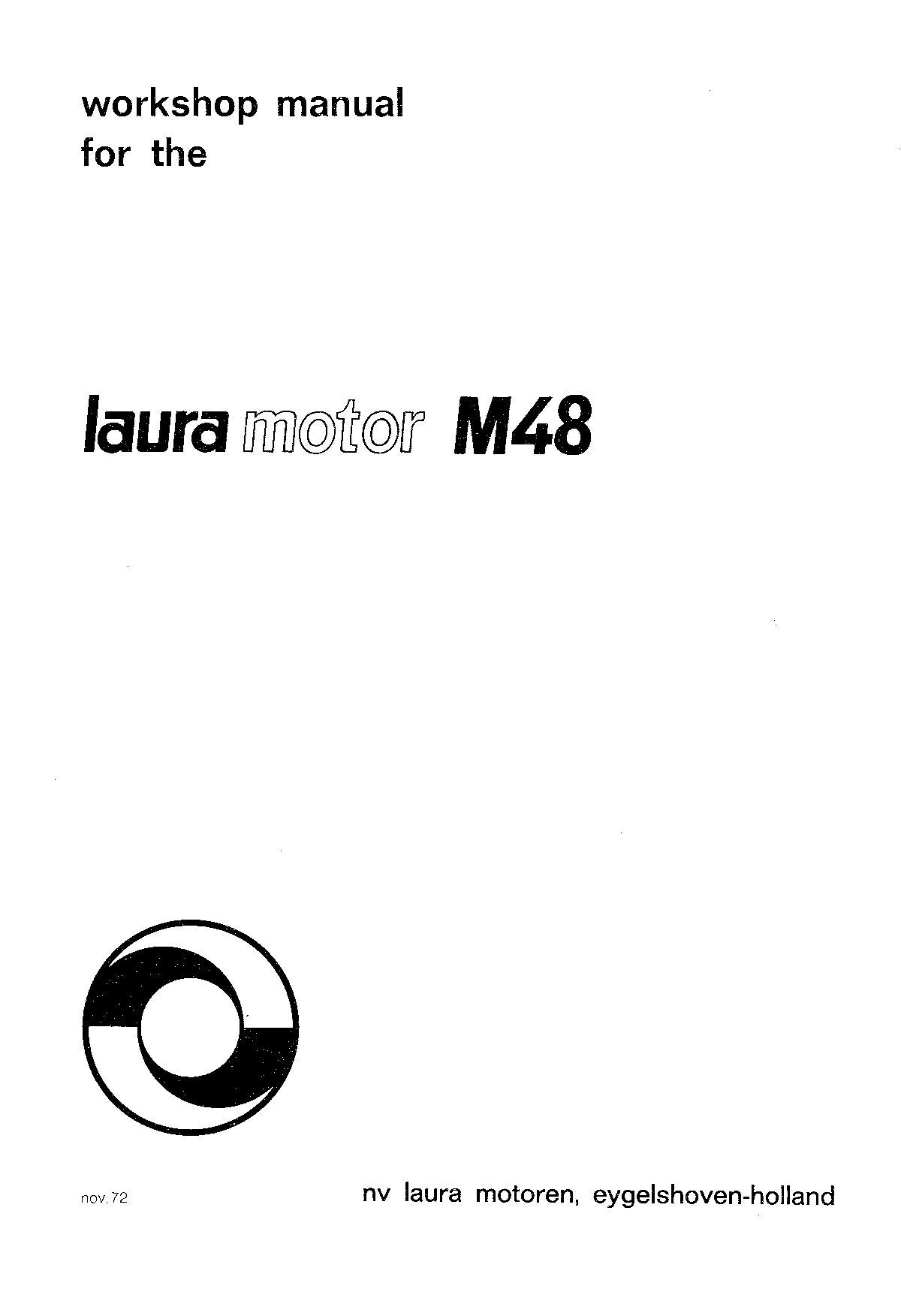

M48 Service Manual p1

M48 Service p1

M48 Service p2

M48 Service p2

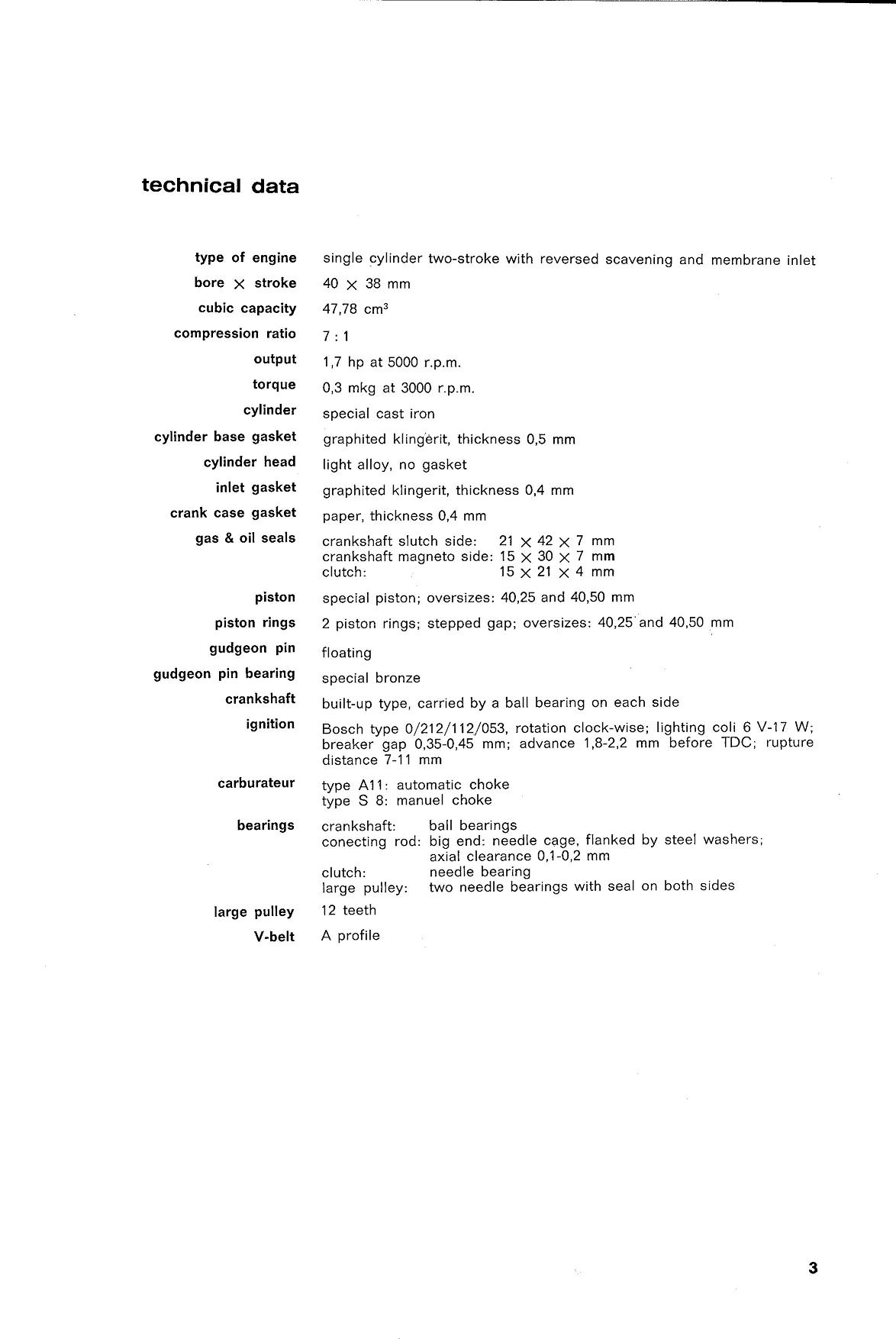

M48 Service p3

M48 Service p3

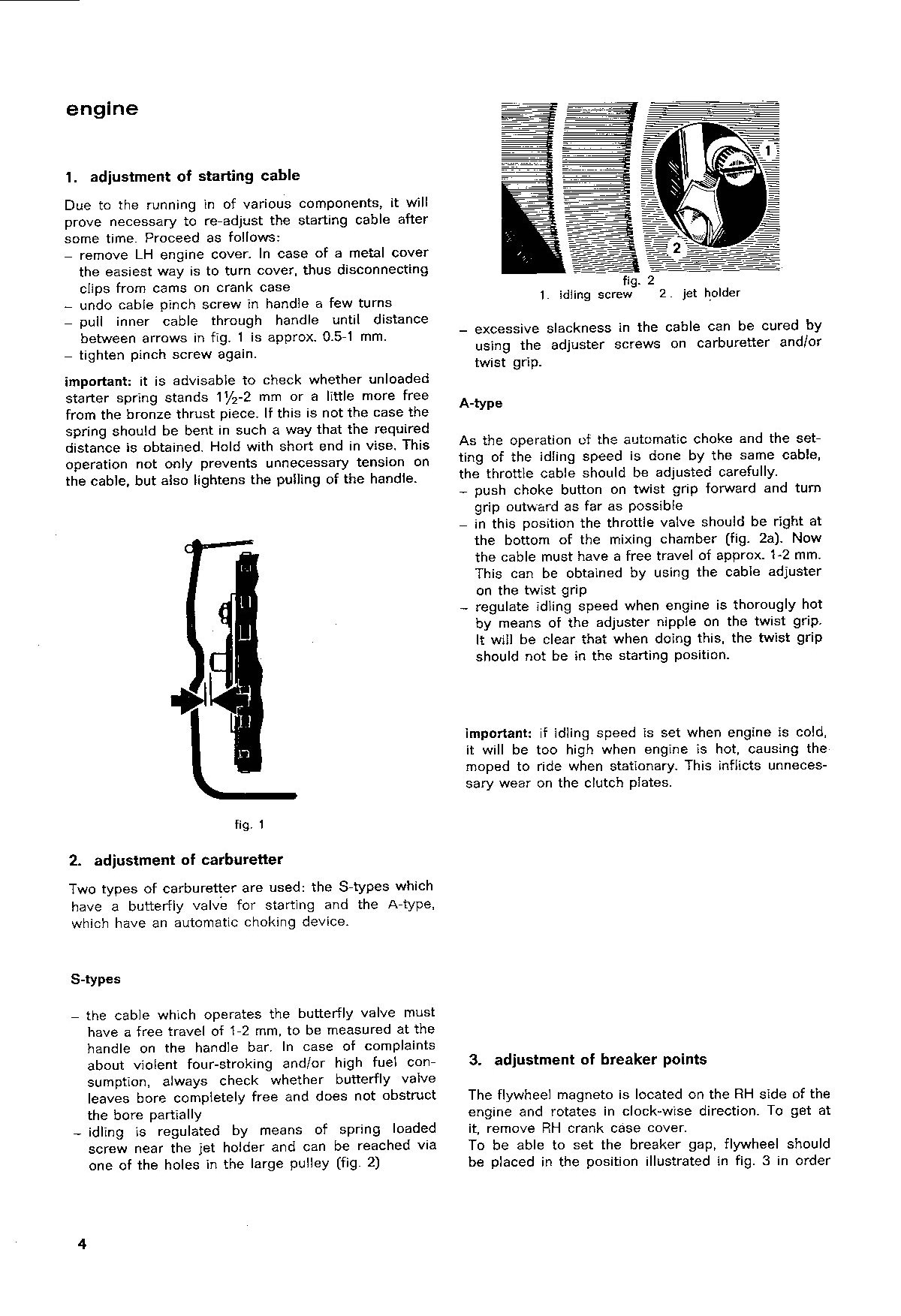

M48 Service p4

M48 Service p4

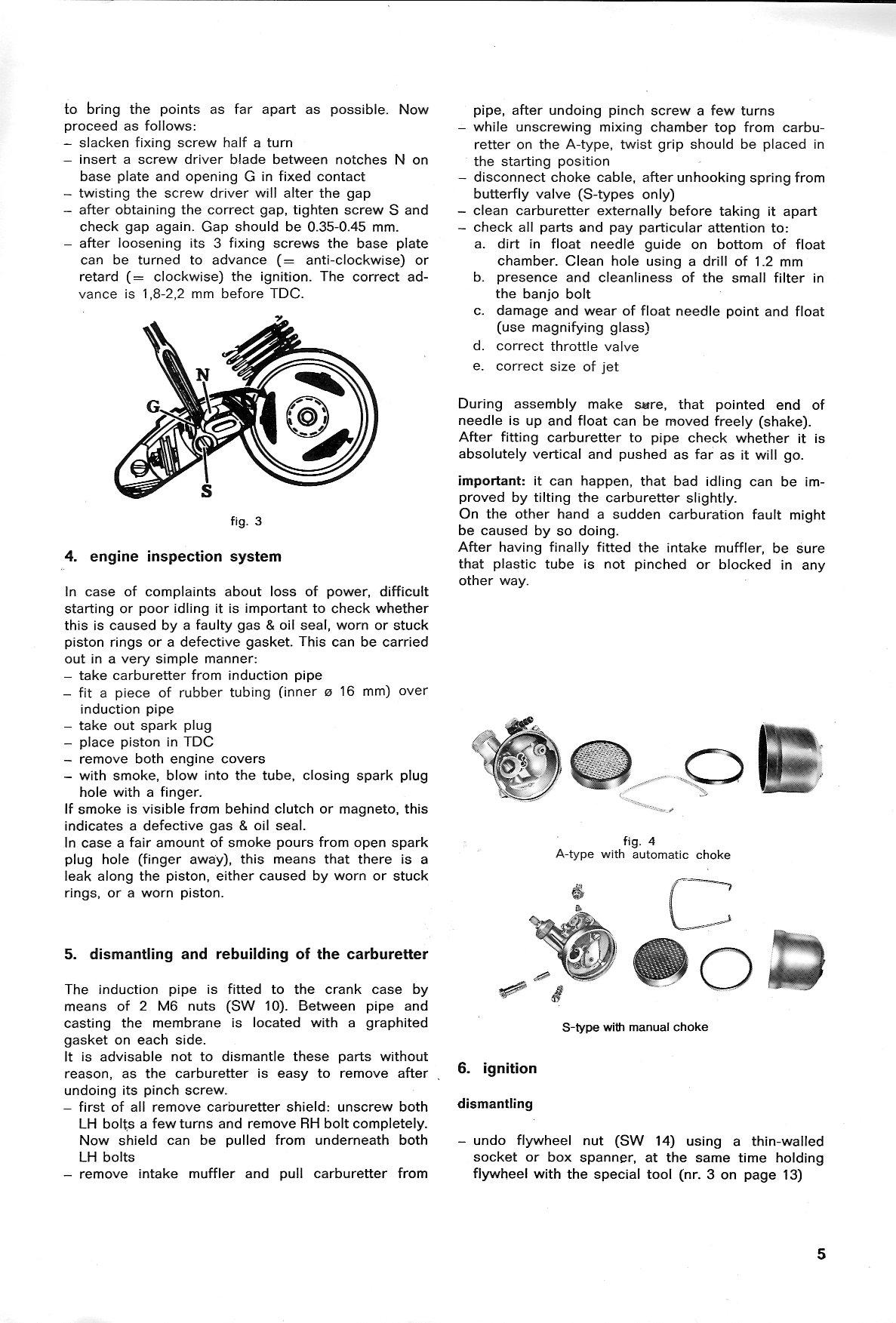

M48 Service p5

M48 Service p5

















M48 Service p6

M48 Service p6

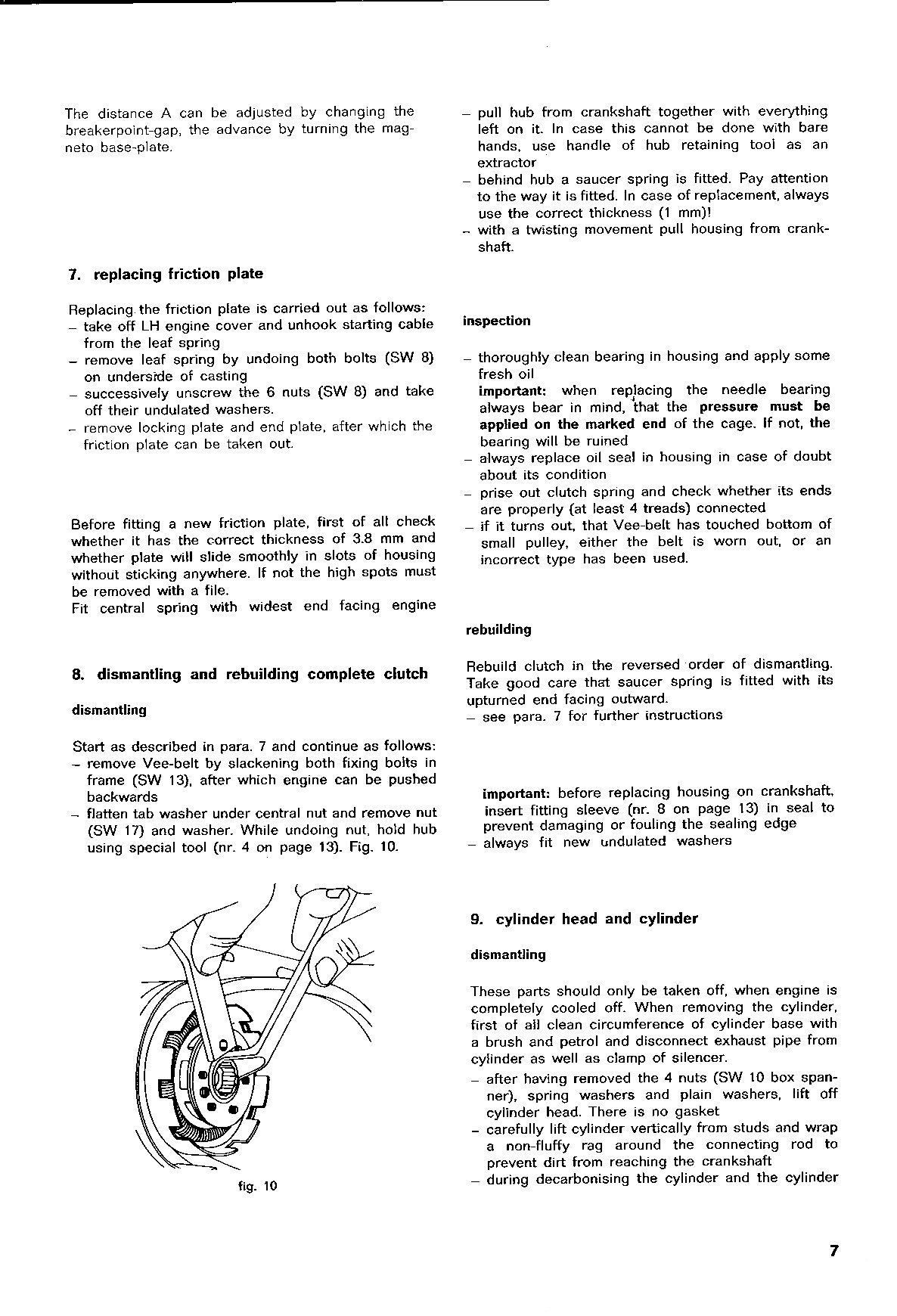

M48 Service p7

M48 Service p7

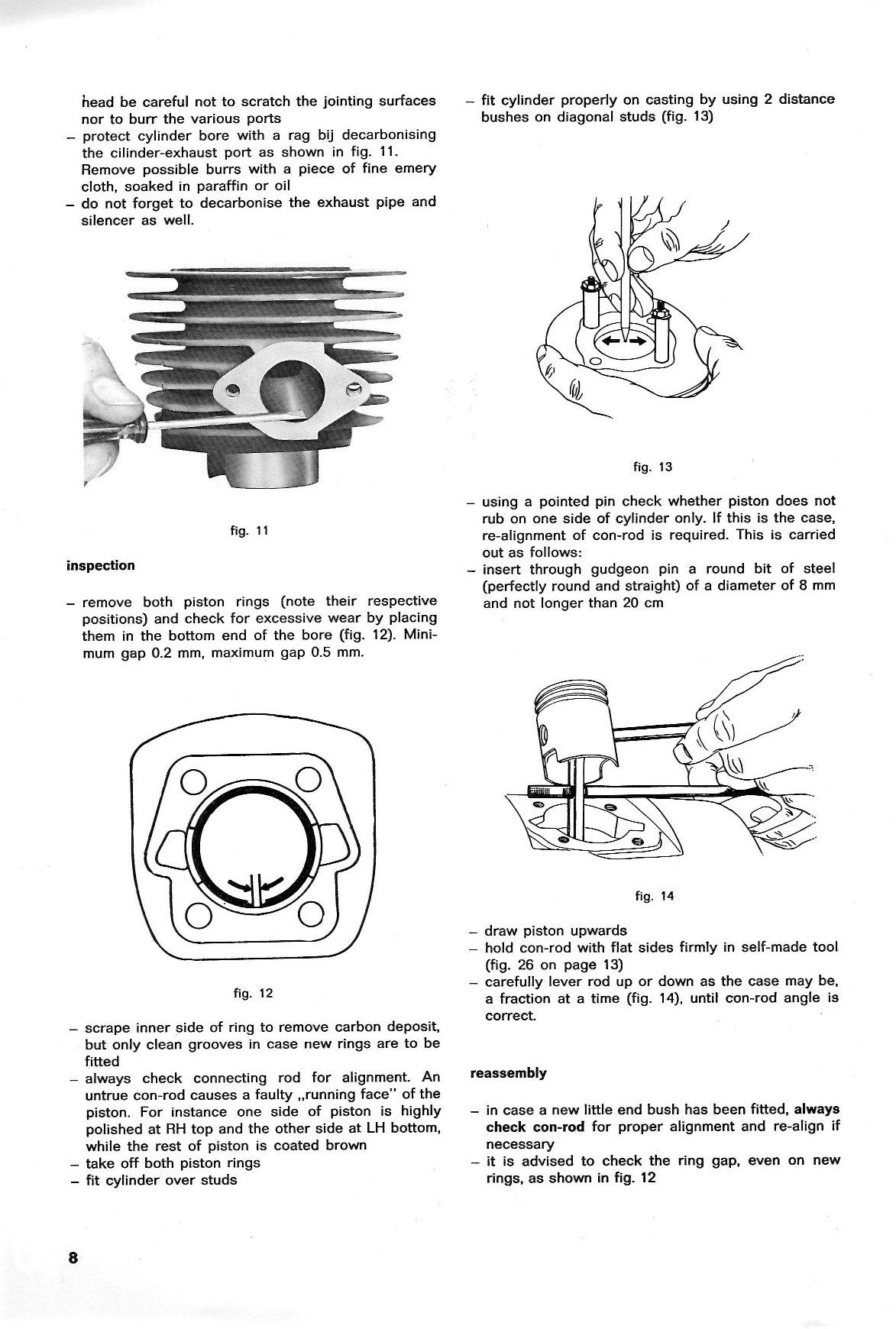

M48 Service p8

M48 Service p8

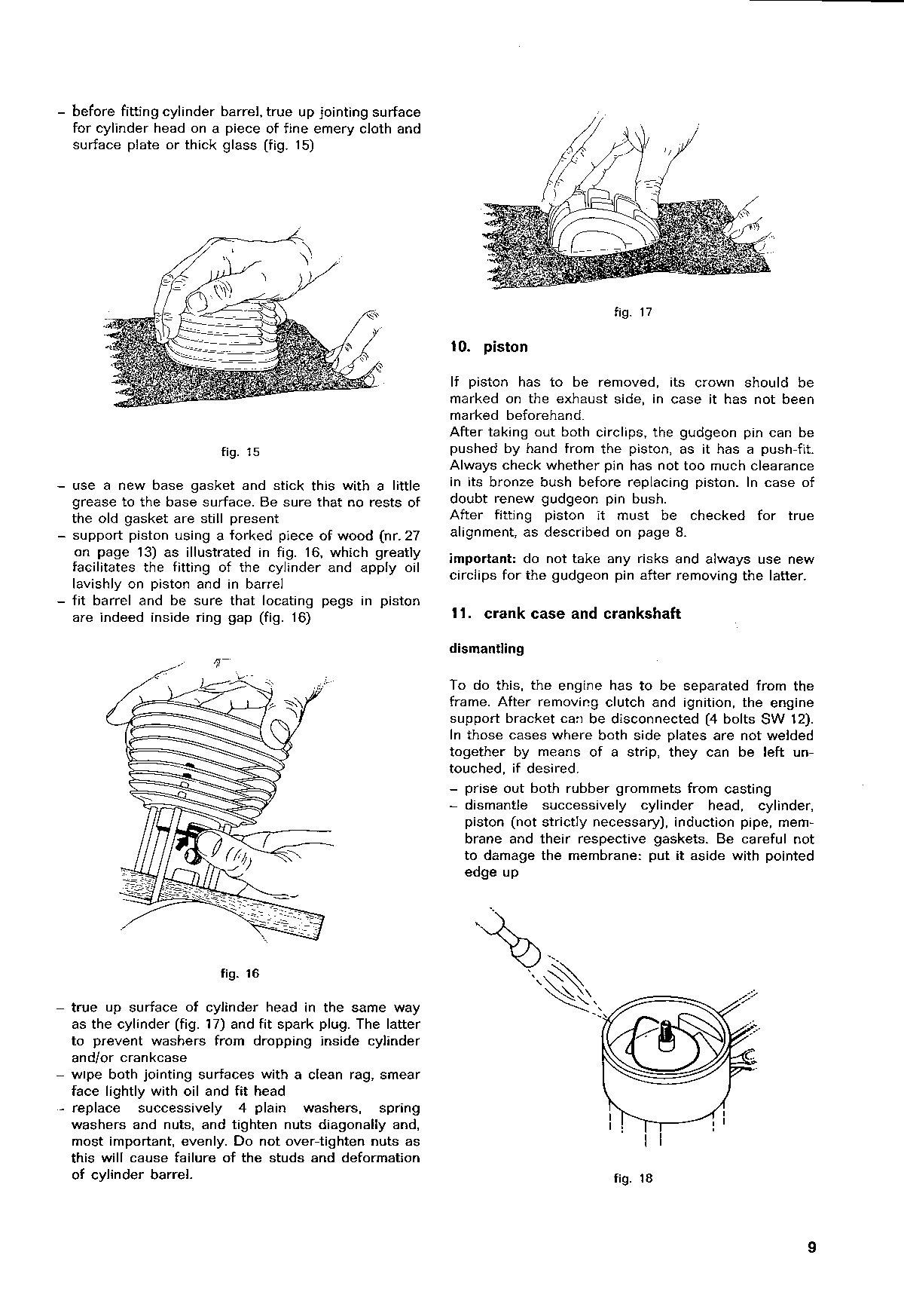

M48 Service p9

M48 Service p9

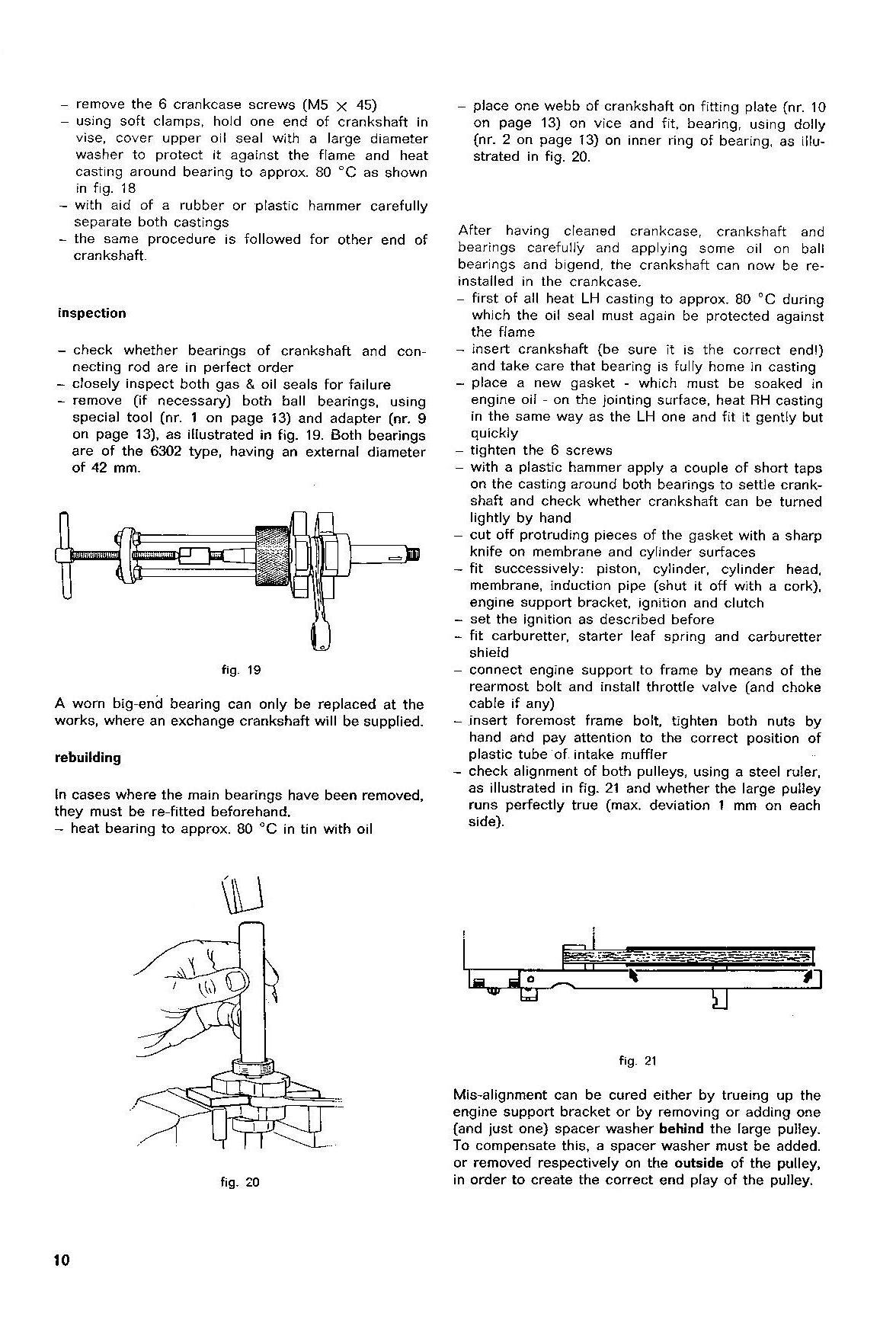

M48 Service p10

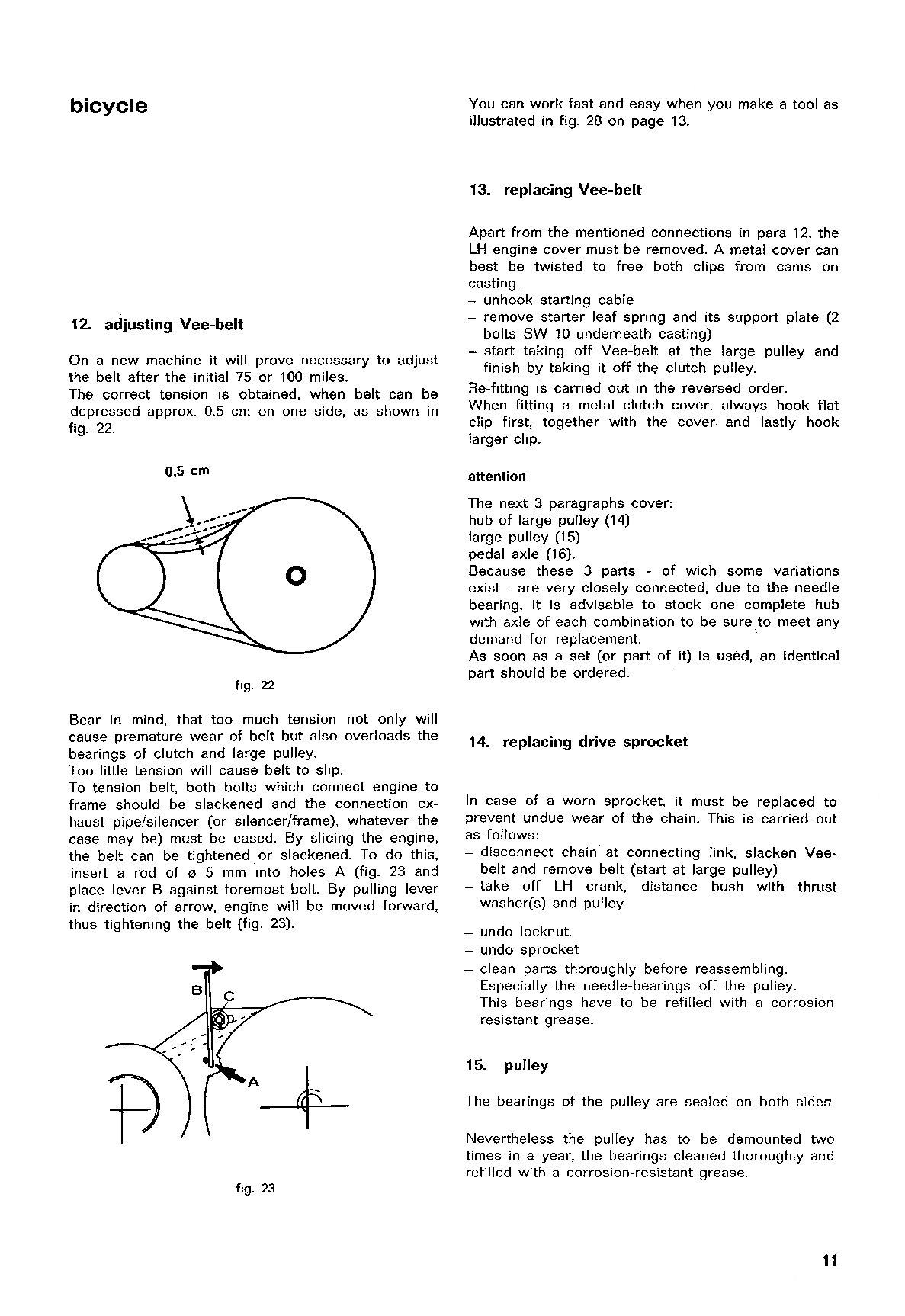

M48 Service p11

M48 Service p11

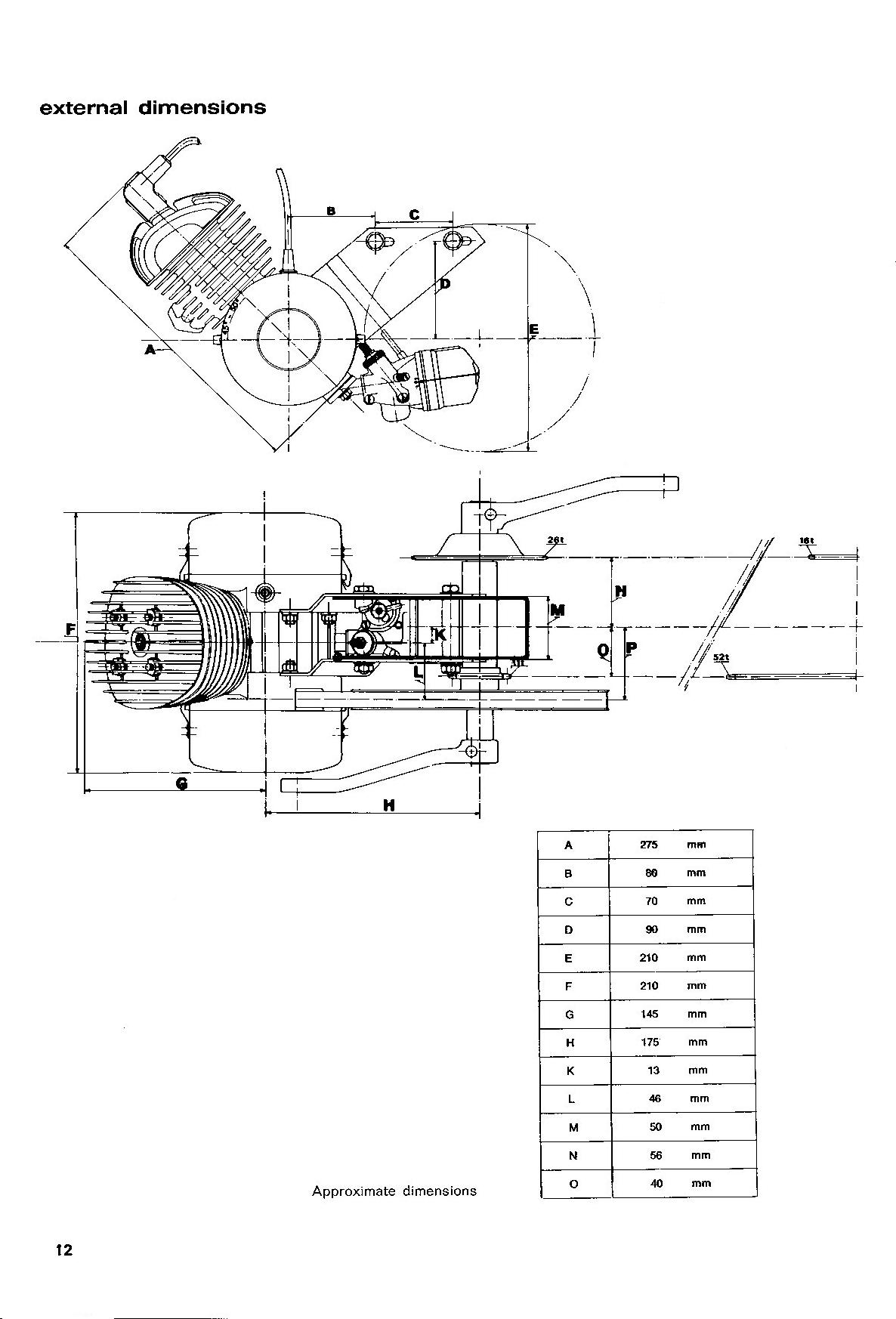

M48 Service p12

M48 Service p12

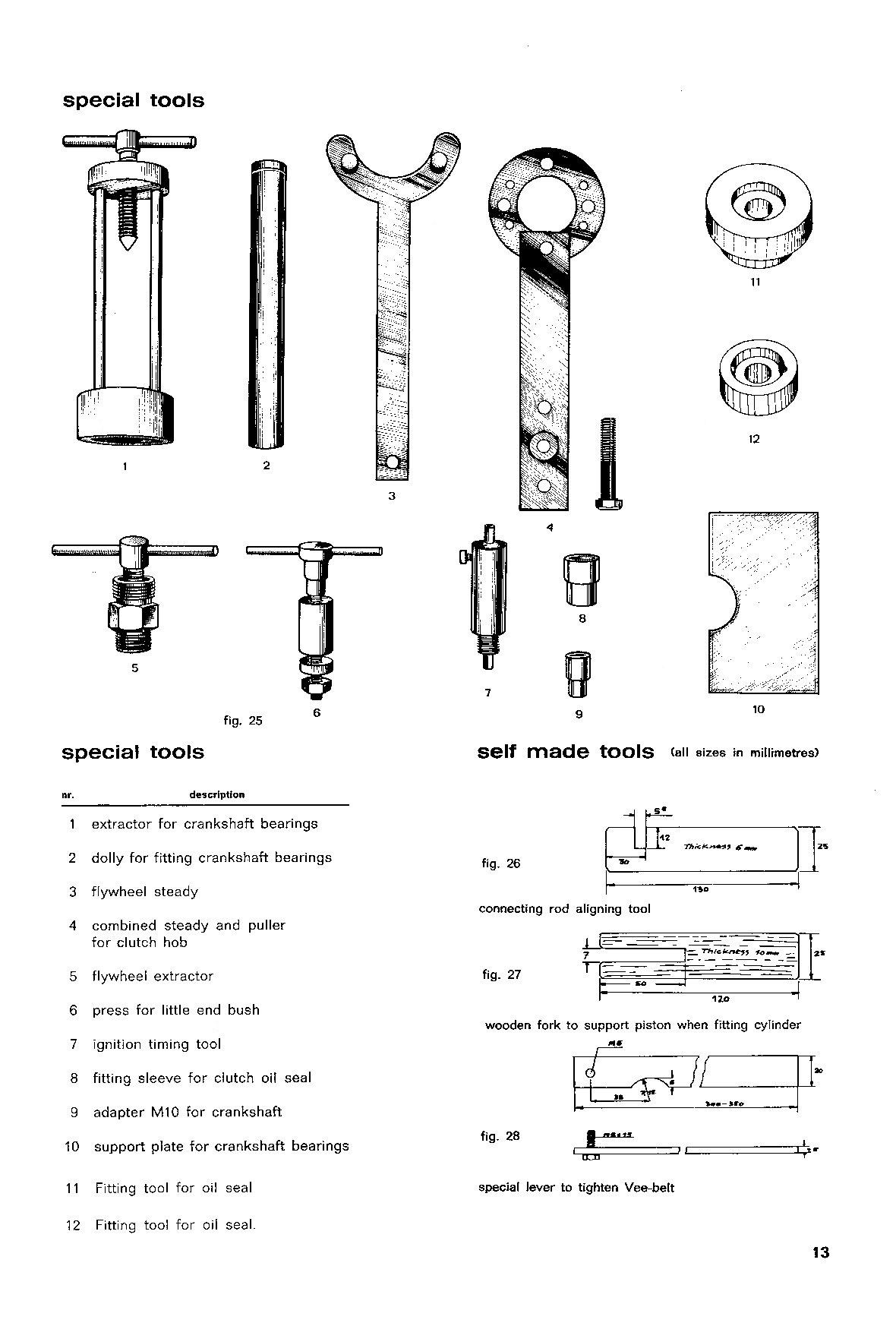

M48 Service p13

M48 Service p13

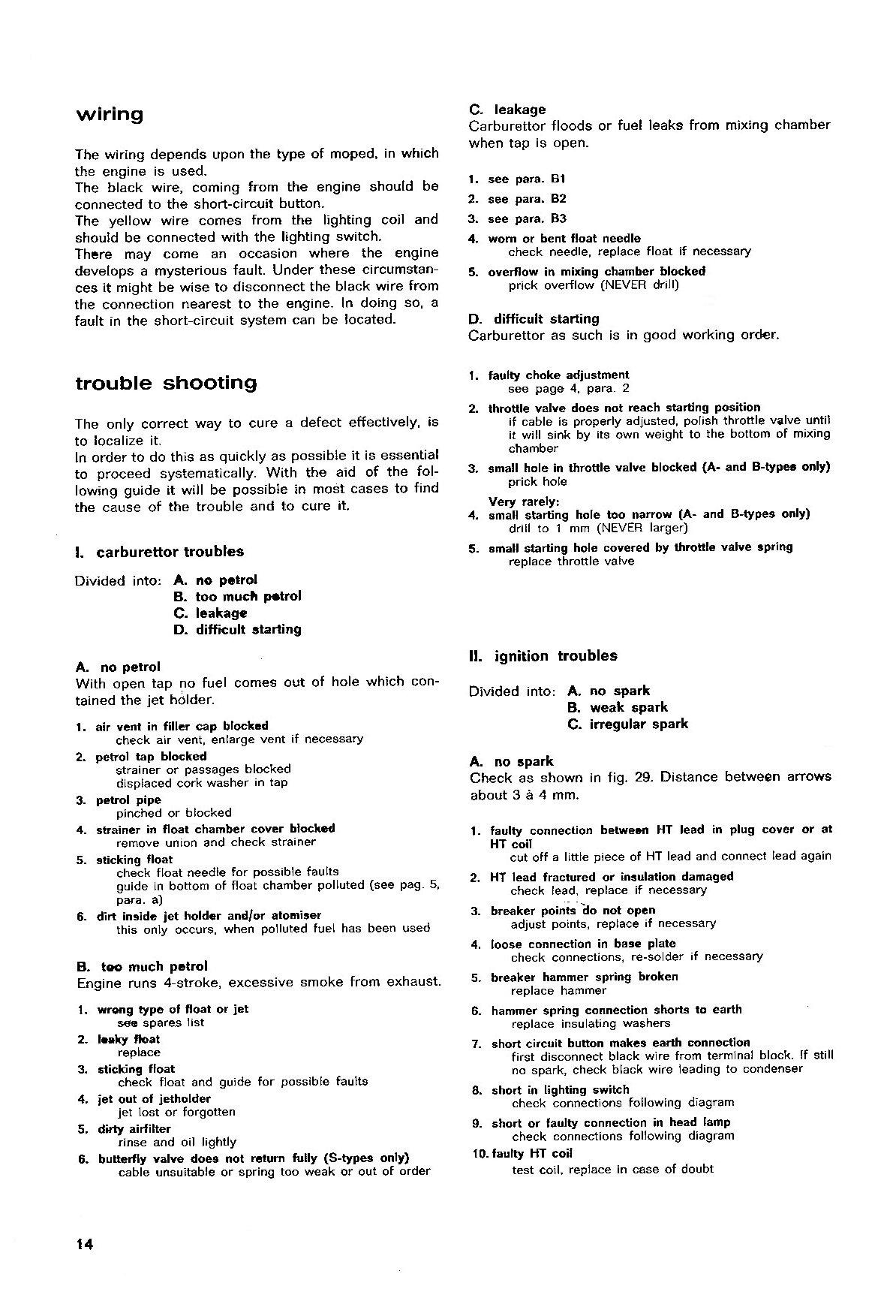

M48 Service p14

M48 Service p14

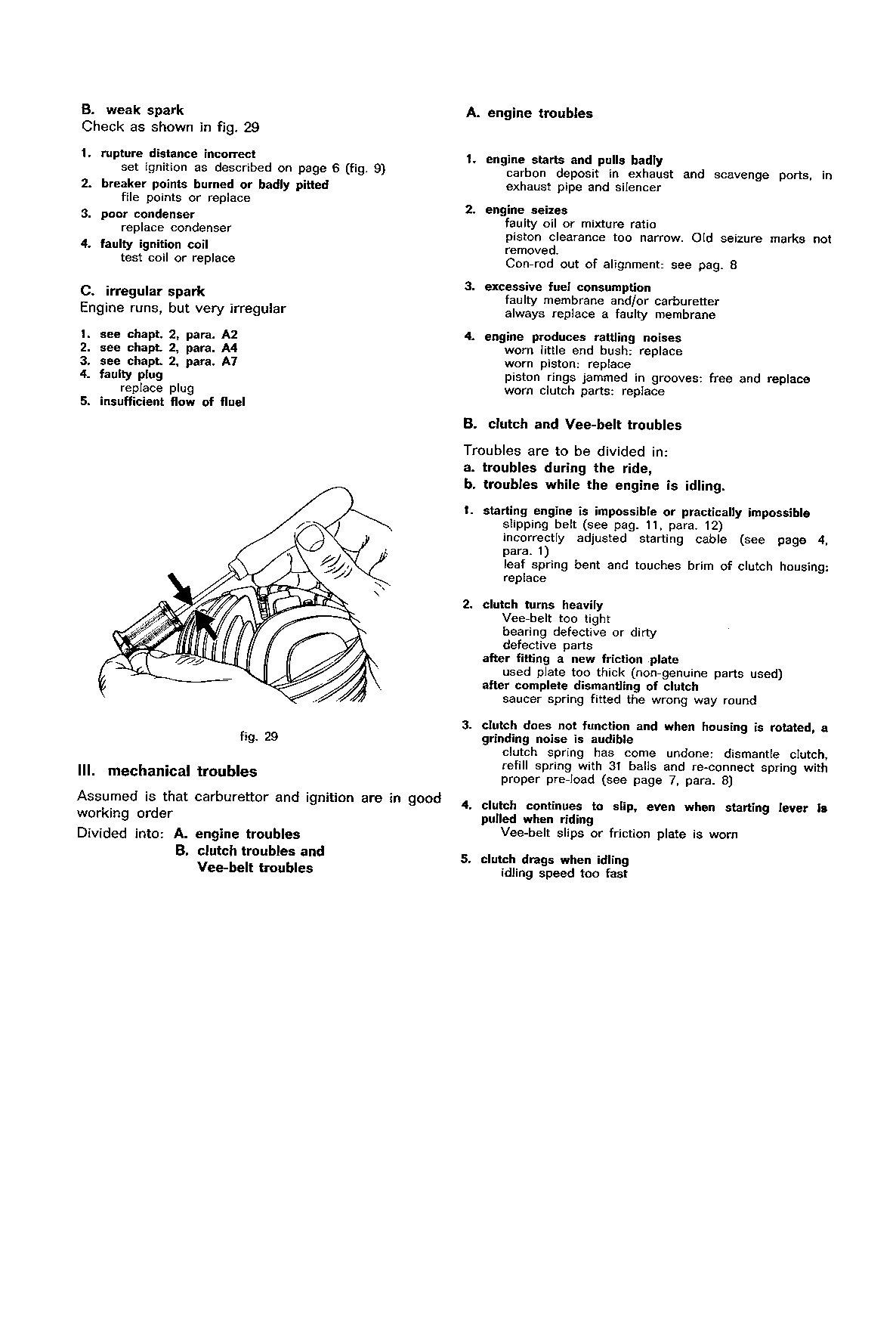

M48 Service p15

M48 Service p15























Laura M48 Service Manual p16

This beautiful technical illustration, in the tradition of the Dutch masters, is by Stijn Hoogenbos.
