Wheel Parts

July 14, 2015

Contents:

.                    A. Wheel Parts  Parts for sale, by type and part number.

.                    B. Applications  What wheels have what parts and where.

Grimeca Old Logo.                                      1. Grimeca (Italian hubs, axles and brakes)
.
          for Garelli, Cimatti, Puch, Negrini, others
.
        Grimeca compatibles (uses Grimeca brakes)
.
           Bernardi, Tomos, others

leleu small

.                                      2. Leleu (French hubs, axles and brakes)
.
           for Puch, Peugeot, Batavus, Sparta, others
.
         Leleu compatibles
(uses Leleu brakes)
.
                     Motobecane

.                                       General 5 star wheel3. Honda compatibles (Taiwan hubs, brakes)
.
           General, Angel, Indian, others



Tires, brakes, or spokes are separate, not here. Click for Tires or Brakes or Spokes


A. Wheel Parts



Spoke-type Rims

Spoke-type Rims

Rims
00000
   rim 17 x 1.60″ 36 hole (for 2.50 or 2.75) aluminum      see holmeshobbies
00000   rim 17 x 1.60″ 36 hole (for 2.50 or 2.75) aluminum      see treatland
19634   rim 17 x 1.50″ 36 hole (for 2.25 or 2.50) black steel    N/A MB type
H45/1K rim 17 x 1.35″ 36 hole (for 2.25-17 tire) chrome steel  see treatland
H45A    rim 17 x 1.20″ 36 hole (for 2.00 or 2.25) chrome steel  see treatland
H45B    rim 16 x 1.50″ 36 hole (for 2.25 or 2.50) aluminum      see treatland
H45C    rim 16 x 1.35″ 36 hole (for 2.25-16 tire) chrome steel $40 good used
00000        for Batavus or Sparta but has wider holes .230 not .210″

6357   rim strip 16-17″ rubber over spokes $2
00000       can use electrical tape (protects tube from spokes)

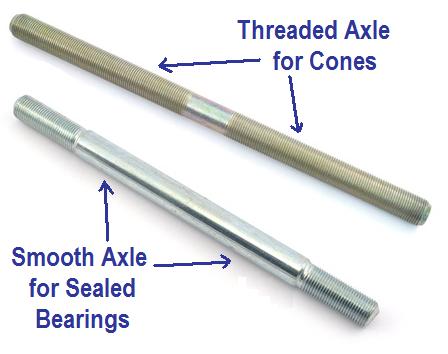

Moped Axle types

Axles

Axles – smooth
209255  axle smooth 12×150 M11-1.00 ends  $20 76-07 Tomos front (most)
222585
  axle smooth 12×165 M11-1.00 ends  $20 76-07 Tomos rear (most)
230515  axle smooth 12×185 M11-1.00 ends  N/A 08-13 Tomos rear
102204  axle smooth 12×150 M12-1.50 1-end $18 Columbia cast hub front
102205  axle smooth 12×175 M12-1.50 1-end $20 Columbia cast hub rear
418261  axle smooth 12×182 M12-1.00 ends  $20 80-86 Puch rear
574254  axle smooth 12×180 M12-1.00 ends  N/A 76-86 Garelli VIP & Gulp
2
26086  axle smooth 12×220 M12-1.00 ends  N/A 08-13 Tomos front
232868  axle smooth 12×220 M12-1.25 ends  N/A 08-13 Tomos front (some)
Axles – threaded
138427  axle M11-1.00 x 140 mm $15 front Ciao C7N (shortened 145)
614251  axle M11-1.00 x 145 mm $10 front Garelli, Cimatti, KTM, others
H52xxx  axle M11-1.00 x 150 mm $20 front Malaguti, Negrini, Pacer
400261  axle M11-1.00 x 155 mm $20 front Garelli VIP/Gulp, Puch, Sears
G69668  axle M12-1.00 x 150 mm $18 front Vespa Grande
H52Kx   axle M12-1.00 x 165 mm $18 front Negrini KPN
217092  axle M11-1.00 x 165 mm $18 R- Tomos Silver Bullet, F- Vespa Si

417261  axle M11-1.00 x 175 mm $18 rear Puch mag, front Vespa Bravo
H119x   axle M11-1.00 x 180 mm $18 rear 1-chain Grimeca spoke
H119L   axle M11-1.00 x 200 mm $30 rear 11mm extra long
H119G   axle M12-1.00 x 180 mm $18 rear 1-chain Grimeca mag
410261  axle M12-1.00 x 180 mm $18 rear Leleu-Puch 2-chain hub
H119M   axle M12-1.00 x 200 mm $25 rear 12mm extra long


Axle nuts

Axle nuts

Axle Nuts
H112
axle nut M11-1.00 17hex 10thick $5 outside of frame F or R
H56       axle nut M11-1.00 17hex  6thick $3 thin nut for locking cone onto axle
11x17x5 axle nut M11-1.00 17hex  5thick $3 special spacing for speedo drivers
H115     axle nut M11-1.00 24hex  4thick $3 large hex for rear wheel to not slip
11x17x3 axle nut M11-1.00 17hex  3thick $3 special thin for speedo drivers
H112M   axle nut M12-1.00 19hex 11thick $3 outside of frame, usually R
11x24x8 axle nut M12-1.00 24hex  8thick $5 large hex for rear wheel to not slip
H56M     axle nut M12-1.00 19hex  6thick $2 thin nut for locking cone onto axle
12x19x5 axle nut M12-1.00 19hex  5thick $3 special spacing for speedo drivers
H115M   axle nut M12-1.00 24hex  4thick $3 large hex for rear wheel to not slip
12-1.5   axle nut M12-1.50 19hex 11thick $3 some Tomos and Columbia

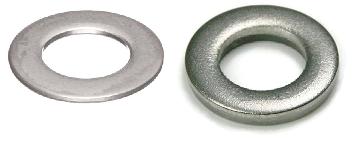

Axle washers

Axle washers

Axle Washers
044124  axle washer 11mm x 19 x 0.8 $2.00 special thin and wide
H62
      axle washer 11mm x 17 x 1.2  $1.00 special thin
H113     axle washer 11mm x 19 x 1.5  $1.00 normal axle washer
227450  axle washer 11mm x 20 x 2.0  $1 .50
H62M    axle washer 12mm x 18 x 1.2  $1.00 special thin
12×1.5  axle washer 12mm x 18 x 1.5  $1.00 can also use 1/2″ SAE
H113M   axle washer 12mm x 18 x 2.0  $1 .50 or $1.00 used, normal axle washer
031935  axle washer 12mm x 20 x 2.5  $2.00 special thick


Axle Spacers

Axle Spacers

Axle Spacers
574549  spacer 12.5×16  x  3 mm  $3
H57      spacer 12.5×16  x  4 mm  $3
space5  spacer 12.5×16  x  5 mm  $5
407041  spacer 12.5×16  x  6 mm  $5
514549  spacer 12.5×16  x  7 mm  $5
230668  spacer 12.5×16  x  8 mm  $6 Tomos 2001-13 box swingarm models
H147     spacer 12.5×16 x  9 mm  $5
222883  spacer 12.5×22 x 10 mm  $6 Tomos 1996-later rear outer left, black
500277  spacer 12.6×16 x 11 mm  N/A Columbia
space12 spacer 12.6×22 x 12 mm  $5
209253  spacer 12.5×16 x 13 mm  $6 Tomos 1976-1991 rear outer L & R
H116B   spacer 12.5×16 x 14 mm  $5
574258  spacer 12.5×16 x 16 mm N/A Garelli
227485  spacer 12.5×22 x 16 mm  $6 Tomos 1996-later front left, black
H116     spacer 12.5×16 x 17 mm  $7
H116A   spacer 12.5×16 x 20 mm  $7
space25 spacer 12.6×20 x 25 mm  $7
space29 spacer 12.6×17 x 29 mm  $7
222568  spacer 12.5×16 x 40 mm  $7 Tomos 1992-13 front 16″ mag- Slot, 10-ray, ZCW
209262  spacer 12.5×18 x 57 mm  $8 Tomos 1976-91 either 209262 rear or 206871 front
500439  spacer 12.5×18 x 61 mm N/A Columbia cast front center
222569  spacer 12.5×16 x 64 mm  $7 Tomos 1992-13 rear 16″ mag- Slot, 10-ray, ZCW
410231  spacer 12.8×16 x 70 mm $10 for 1980-86 Puch-Leleu sealed bearing hub
500430  spacer 12.8×16 x 81 mm N/A Columbia 2-chain cast rear center
space83 spacer 12.5×18 x 83 mm $12 Myrons Leleu/Puch SB upgrade


Sealed bearing

Sealed bearing

Sealed Bearings
6000Z

 sealed bearing 10x26x08  $5   see Engine Bearings
16100Z sealed bearing 10x28x08  N/A  see Engine Bearings
6200Z   sealed bearing 10x30x09  $5   see Engine Bearings
6001Z   sealed bearing 12x28x08  $5   see Engine Bearings
16101Z sealed bearing 12x30x08 $20  see Engine Bearings
6201Z   sealed bearing 12x32x10  $7   see Engine Bearings
00000
00000
00000


Balls

Balls

Bearing Balls
00690
  bearing balls 3/16″ (4.8mm) bag of 26 $2  Leleu  rear     (29 cup 12 axle) 13 per side
00694  bearing balls 7/32″ (5.5mm) bag of 22 $2  Leleu  front    (29 cup 11 axle) 11 per side
006121 bearing balls 7/32″ (5.5mm) bag of 22 $2 Grimeca rear   (30 cup 11 axle) 11 per side
H67xx  bearing balls 1/4″  (6.3mm) bag of 20 $2 Grimeca F or R (32 cup 11 axle) 10 per side
H67M   bearing balls 1/4″  (6.3mm) bag of 22 $2 Grimeca F or R (35 cup 12 axle) 11 per side
0
0

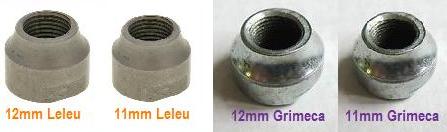

Cones

Bearing Cone (inner race)

Bearing Cones
H66
    bearing cone std. Grimeca 11mm, 19.0od x12.0 $15
00000
H66M  bearing cone big Grimeca 12mm, 22.0od x13.8 $25
00000
69284  bearing cone front Leleu 11mm, 18.1od x13.25  $5
00000
69276  bearing cone rear Leleu 12mm, 20.0 od x13.6   $25
00000


Cups

Bearing Cup (outer race)

Bearing Cups
69285
   bearing cup Leleu 29 F    $5  for all Leleu front
69648   bearing cup Leleu 29 R  $10  for all Leleu rear
417061  bearing cup Grimeca 30 $20  for 2-chain-rear “snowflake”
H69xx   bearing cup Grimeca 32   $7  for most Grimeca front or rear
H69B   bearing cup Grimeca 32  $20  Bernardi type machined outer
H69B   can use H69 or H69B xx $20   H69 and H69B interchange
H69S    bearing cup Grimeca 32   $8  has notches for speedo. driver
H69M   bearing cup Grimeca 35  $25 …
000

A dual chain rear hub or wheel has a bicycle type freewheel that surrounds the right rear wheel bearing. That limits the size of the bearing.

That is why the balls are smaller on a dual chain rear hub than on a front hub. You would think they should be bigger, because they carry 3 times more weight than the front.

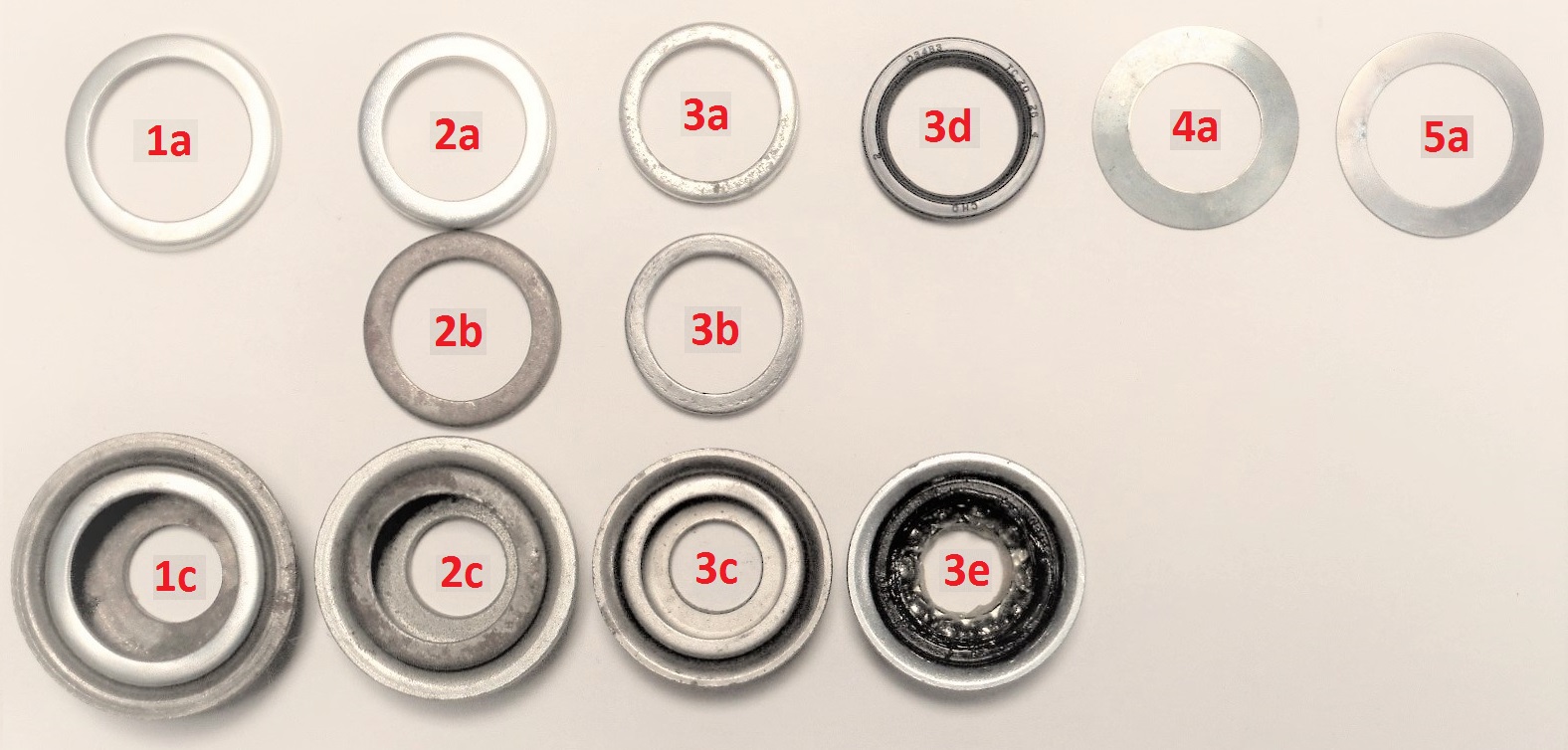

Bearing Dust Rings
69280
  dust ring for Leleu 29 F    $5  for all Leleu front, 20 x 29
69680  dust ring for Leleu 29 R    $8  for all Leleu rear, 22 x 29
417111 dust ring for Grimeca 30  $30  for 2-chain rear “snowflake” 26 x 20 x 3.5
H68     dust ring for Grimeca 32    $7  for Grimeca F or 1-chain rear 28 x 20 x 3.5
H68M   dust ring for Grimeca 35  $20  for Grimeca front or 1-chain R 31 x 23 x 4

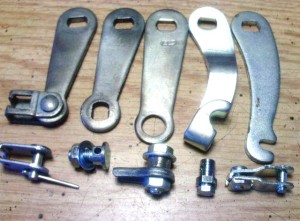

Grimeca brake arms

Grimeca brake arms 1, 3, 4, 6, 7

Brake ArmsGrimeca brake arm camshaft hole
00536T
 brake arm straight with clevis (for pear-end cable) $15
         original on Batavus, Trac with snowflake mags
00536  brake arm curved with clevis (for pear-end cable)   $15
         original on Sachs (Hercules)
H59    brake arm with flat-sided hole (for H60 pinch bolt)   $10
         original on most Grimeca wheels
209258 brake arm with Ø10 hole (for M6 loop pinch bolt)    $8
         original on 1974-91 Tomos spoke wheels
69669  brake arm with Ø11 hole (for M7 loop pinch bolt)    $15
         original on 1970-86 Vespa (Piaggio)
6 7131  brake arm curved with cradle (for barrel end cable) $22
         orig. on 78-80 Puch, Sears, JCP, Murray with snowflake mags
Klever  brake arm long with notch (for clevis-end cable)     $18
         original on 1977-80 KTM Foxi


Loop Pinch Bolts

Grimeca Pinch Bolt

Grimeca Pinch Bolt

Brake Cable Anchors
H60
  pinch bolt Grimeca type    $5  see Cable Parts
       original on most Grimeca wheels
P21  pinch bolt loop type 6mm    $7  see Cable Parts
       original on 1974-91 Tomos spoke wheels
P22  pinch bolt loop type 7mm    $7  see Cable Parts
       original on 1970-86 Vespa (Piaggio)
P8   pinch bolt Ø8 sideways barrel $4  see Cable Parts
       useful for “making” brake cables
.

Pinch bolts (cable anchors) are offered in the Cable Parts section. Here are the common brake kinds.

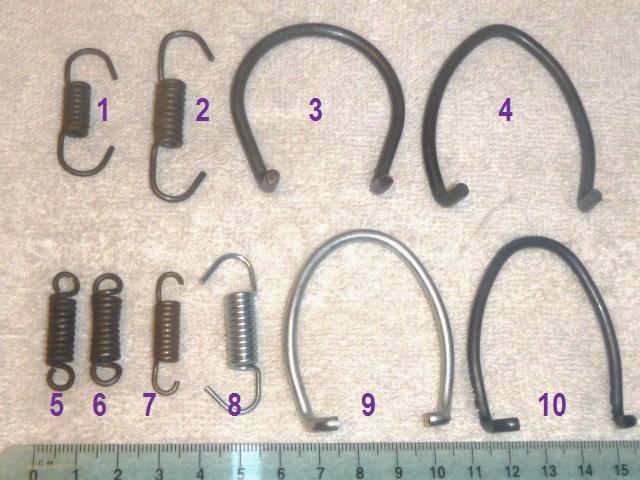

Brake Springs

Brake Springs

Brake Springs
1
H64S
    brake coil spring for Grimeca Ø90 $2 38mm long
2  H64KS  brake coil spring – Grimeca Ø105  $8 51mm long
3  H64US  brake  U-spring for Grimeca Ø90 $12  free floating
4  H64VS  brake  V-spring for Grimeca Ø90 $15  fixed to post
5  087030 brake coil spring early Leleu Ø80   $1  30mm long
6  8703L  brake coil spring  late  Leleu Ø80   $5  29mm long
7  00000  brake coil spring Motobecane Ø80 $1  32mm long
8  00000  brake coil spring for Honda Ø110? $3  42mm long
9  00000  brake  V-spring for Honda Ø80   $10 also General, others
10 00000 brake  V-spring for Honda Ø80   N/A comes with EBC301 brakes

Brake springs are very strong yet compact.
Hardware store springs are too weak or big.


Grimeca Coil Type

Grimeca Coil Spring: On steel hub spoke wheels, the center part of the hub is not as big, and there is room for dual small coil springs. Their advantage is they are much easier to install. Brakes can be folded like “from a taco to a tortilla” for installing and “from a tortilla to a taco” for removing.

Grimeca U-Spring: A second type would be the same brake shoes and brake panel, but with the two spring holes near the cam drilled bigger and a free floating horse shoe spring instead of the dual coils. This design is needed for aluminum wheels that have a bigger center portion. Without the “U” spring, the coil springs would rub.

Grimeca U-Spring

A U-Spring uses the same brake plate as coil springs. There is no visible difference on the outside, between a U-spring brake plate and a coil spring brake plate.

Grimeca V-Spring: A third type is special plate and shoe set designed to be horseshoe spring only. The brake shoes each have a pencil size hole at one end. The stationary post (opposite the cam shaft) goes through the hole in each brake and has a notch at the end for the horseshoe spring. This non-floating horseshoe spring is more “V” shaped. It is held at the tip of the V by a rounded groove in the pivot post. The V-Spring brake shoes are also nicknamed “hole kind”.

There is no visible difference on the outside, between a V-spring brake plate and a U-spring or coil spring brake plate, but inside there are three differences.

Grimeca 90x18 V-spring

Grimeca V-Spring

1) the cam shaft on a Grimeca V-spring type has a retaining plate, while a coil spring type has no plate (to allow installation by “folding the taco into a tortilla”).

2) the pivot post on a Grimeca V-spring type is longer and has a rounded groove for the V-spring.

3) the pivot post on a Grimeca V-spring has no center groove for retention, while the coil spring and U-spring types have a center groove (for the center ridge on the shoes).

The V-spring design has better retention and safety, but is more difficult to install, because it requires a huge force to spread. See how to spread a V-spring using a home made spreader tool, in the Wheels Service section.

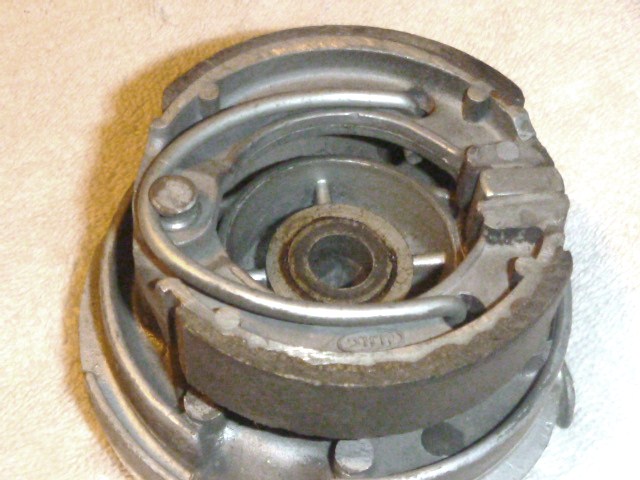

Taiwan V-Spring

Honda V-Spring

Brake Shoes
H64
    brake shoes Grimeca 90 x 18 for coil springs  $25   see Brakes
H64K  brake shoes Grimeca 105×18 for coil springs  $30   see Brakes
H64V  brake shoes Grimeca 90 x 18,  for V-Spring   $30   see Brakes
H64U  brake shoes Grimeca 90 x 18,  for U-Spring    $30   see Brakes
69275 brake shoe set Leleu 80 x 18 for coil springs  $25   see Brakes  EBC322
00000 brake shoe set Honda 80 x 18, for  V-spring  $20   see Brakes  EBC301
.

Brakes are listed in a separate section. Here are just some of the common ones.

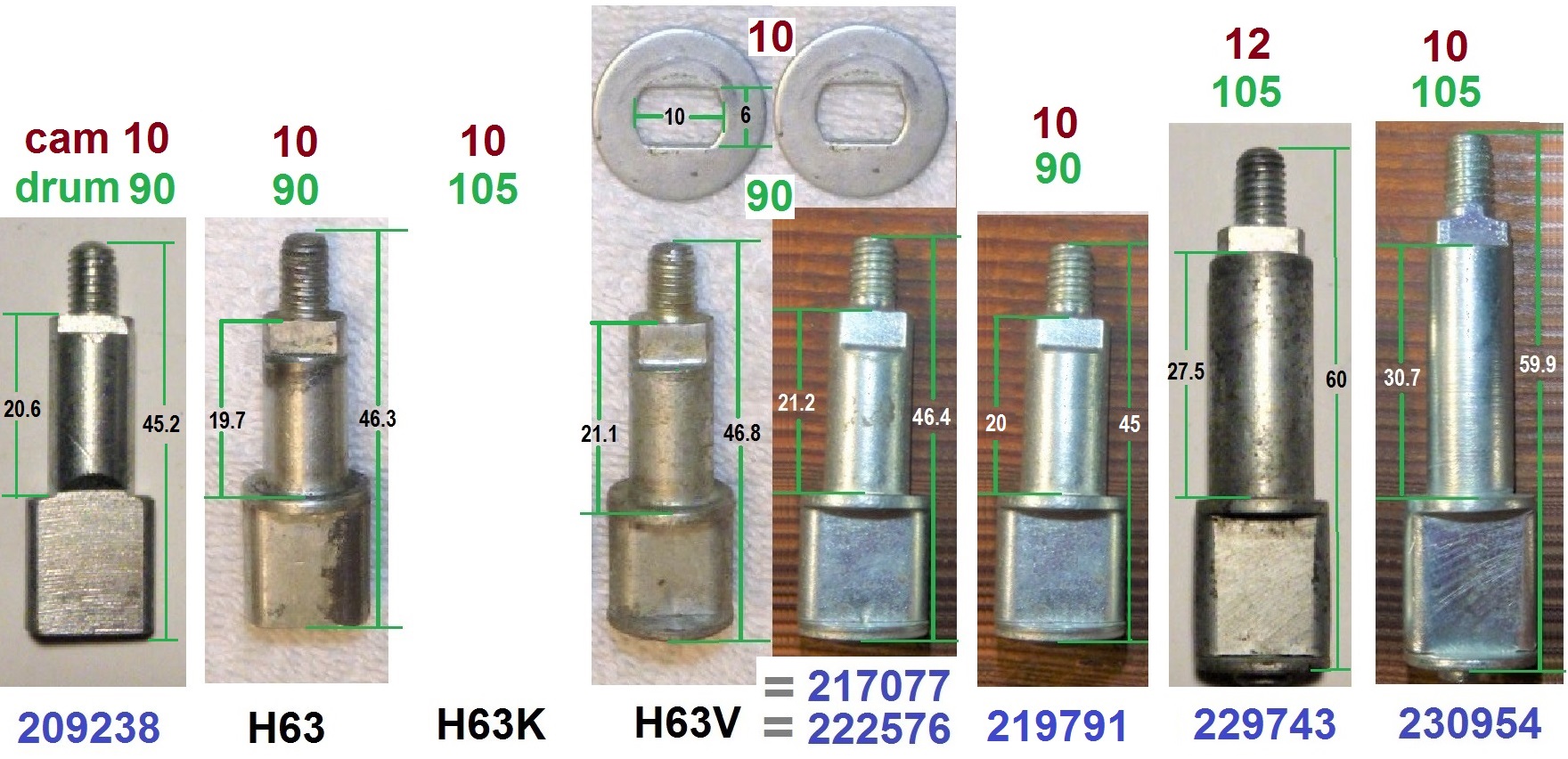

Grimeca brake cams

Brake cams 3 & 1

Grimeca brake arm camshaft holeBrake Plate parts
H63
    brake camshaft  Ø10 for Ø90 coil or U  $8   steel brake plates
2 H63K  brake camshaft Ø10 for Ø105 coil spr  $15  steel brake plates
H63V  cam with plate  Ø10 for Ø90 V spring  $15  steel brake plates
4 H63L  brake cam long  Ø10 for Ø90 V spring  $00  alum. brake plates
4 H63T  brake cam long  Ø10 for Ø105 coil spr  $15  alum. brake plates
5 H104  brake camshaft nut M6-1.0 xxxxxxxx  $0.30
6 H10    brake camshaft washer M6 xxxxxxxx  $0.20
3 H148  inspection plug black rubber xxxxxxx  $4.00
3 H53  cable adjuster M6 with nut xxxxxxxxx  $2.00  see Cable Parts

These brake cams are for Grimeca compatible brake arms with the Ø10 x 6 hole shown.


Grimeca 90x18 Plates

Grimeca 90mm Brake Plates Picnic

Grimeca 90mm Brake Plates  (no shoes)
#  Side    Wheel    Axle  Model    New  Used
1  left  front spoke 11 Italian ……..$30  $15
2  right rear  spoke 11 Baretta ……$30  $15
3  right rear  Mag   11 Italian ……..$30  $00  V-spring
4  right rear  spoke 11 Cimatti ……$00  $18
5  right front spoke 11 Cimatti ……$00  $20
6  left   rear  spoke 11 Garelli ……..$30  $15
7  right front spoke 11 Garelli ……..$30  $15
8  right front Mag   11 KTM ………..$00  $25  V-spring
9  left   rear  spoke 11 Kynast …….$40
10 right front spoke 11 Kynast …….$30
11 left   rear  Mag   11 Sachs ………$00 $40  U-spring
12 L/R   F/R   Mag   11 Unknown …$00  $15  U-spring
13 right front Mag   11 Sachs ………$20  $00 V-spring
14 right F/R   Mag   11 Unknown …$00  $20  V-spring
15 right rear  Mag   11 Tomos ……..$00 $20
16 right front spoke 11 KTM ………..N/A
17 right rear  Mag   11 Trac  ……….$00 $22  V-spring
18 right front spoke 11 Sachs? ……$00  $15
19 right front spoke 11 Ciao C7E …$00  $20

Above, the back sides of those with horse shoe springs. 12 and 11 are U-Spring, the rest are V-spring (hole kind).

The back sides of those with U or V-springs.

20 right front spoke 11 Ciao C7N …$40
21 left   rear  Mag   11 Puch ……….$00  $70  U-spring
22 left   front Mag   11 Puch steel $00  $20  U-spring
23 left   front Mag   11 Puch alum $20  $00  V-spring
24 right front spoke 12 Tomos …….$30  $15
25 right rear  spoke 12 Tomos …….$30  $15

All of MM's Grimeca brake plates in 2012

MM’s Grimeca Brake Plate Reunion in 2012

Grimeca 105mm Brake Plates (no shoes)
#  Side    Wheel    Axle  Model      New Used
31 right front spoke 11 unknown ….$20
32 right rear  spoke 1/2″ Colombia. $30
33 left   rear  spoke 11 Garelli ………$25 dull
34 right front spoke 11 Garelli ………$25 dull
35 left front spoke 12 Grande alum $25
36 left front spoke 12 Grande steel N/A




1981-1985 Tomos

3 and 4

1975-1990 Tomos spoke wheels

1 and 2

Tomos 90mm Brake Plates (no shoes)
#  Part#      Description Descrip    tion        New  Used
1975-91 steel, solid type, for spoke wheel, Ø12 axle
1  211962 front brake plate, silver, coil spring $30  $15
2  211965 rear brake  plate, silver, coil spring $30  $15
1979-85 steel, solid type, for mag wheel, Ø11 axle
3  217079 front brake plate, silver, V-spring
4  217083 rear plate silver V-spring, see 15 above $30

3 and 4

7 and 8

6

6

1986-91 steel, solid type, for mag wheel, Ø11 axle
 222196 rear  brake plate, black, V-spring $  30  $30
6  222157 front brake plate, black, V-spring
1992-95 aluminum, solid type, Ø10 cam, Ø12 axle
7  227116 rear  brake plate, 90s, V-spring
8  227115 front brake plate, 90s, V-spring

Tomos 105mm Brake Plates (all coil spring)
1996-02 aluminum, solid type, Ø12 camshaft
9  229747 front brake plate black, with shoes

11, 12, 13, 14, 9 and 5

10 229748 rear  brake plate black, with shoes  N/A
0  229736 front brake plate blk bare no shoes  N/A
0  229738 rear  brake plate blk bare, no shoes  N/A

2003-08
aluminum, self centering Ø10 cam

11 233196 rear  brake plate black, with shoes  N/A

12 233197 rear  brake plate silver, with shoes  N/A
13 233124 front brake plate black, with shoes  $75
14 233155 front brake plate silver, with shoes  $65

11, 12, 13, 14, 9 and 5 inside

2008-13 aluminum, solid type, Ø10 camshaft
15 233124 front brake plate black, with shoes  N/A
16 233196 rear  brake plate black, with shoes  N/A
17 233155 front brake plate silver, with shoes  N/A
18 233197 rear  brake plate silver, with shoes  N/A

All Tomos brake plates, made in Slovenia, interchange with Grimeca Italian made ones. The brake shoes, cams, also interchange. Tomos had their own “6mm loop” pinch bolt until 1991. So their early 209258 brake arms were “Tomos only”. After that they used the old H60 Grimeca pinch bolt and H59 Grimeca brake arm.


Italian 1-chain sprockets

1-chain sprocket holes, Italian sizes

Sprockets (single chain 4 bolt, A,B,C are 1/2″ x 3/16″ chain #415)
Sprockets
 (single chain type, 4 bolt, (D is 1/2″ x 1/4″ chain #420)
x
x part xxxxxxxxx   center bolt xxx xxxx xxx SB = sealed bearing
xx number xxxxxxxxx  hole holes teeth price   applications

X 209261 xx sprocket Ø17.0 Ø60 22T  $35  early Tomos wire wheel
H123/22W sprocket Ø39.5 Ø62 22T  $40  for Ø32 cup (Tomos)
H123/30W
 sprocket Ø39.5 Ø62 30T  N/A  for Ø32 cup (Morini)
H123/32W sprocket Ø39.5 Ø62 32T  $40  for Ø32 cup (Garelli 30)
H123/36W sprocket Ø39.5 Ø62 36T  $25  for Ø32 cup (Garelli 25)
H123/38W sprocket Ø39.5 Ø62 38T  $20  for Ø32 cup (Minarelli)

H123/42W sprocket Ø39.5 Ø62 42T  $45  for Ø32 cup (Minarelli)
222586 xx sprocket Ø42.5 Ø60 22T  $20  for Ø32 SB Tomos ’89-on
227361 xx sprocket Ø42.5 Ø60 24T   N/A  for Ø32 SB Tomos ’89-on
223119 xx sprocket Ø42.5 Ø60 28T  $10  for Ø32 SB Tomos ’89-on
227863 xx sprocket Ø42.5 Ø60 31T  $15  for Ø32 SB Tomos ’89-on

H123/30M sprocket Ø42.5 Ø66 30T   N/A  for Ø35 cup (Morini)
H123/32M sprocket Ø42.5 Ø66 32T   N/A  for Ø35 cup (Garelli)
H123/42M sprocket Ø42.5 Ø66 42T   N/A  for Ø35 cup (Minarelli)
D 713-0244 sprocket Ø45.5 Ø66 42T   N/A  for Ø35 SB (Columbia)
D 713-0245 sprocket Ø45.5 Ø66 48T  $30  for Ø35 SB (Columbia)


Sprocket parts
H122 x
   locking plate Ø39.5 4-bolt Ø62  $4.00  for Ø32 cup
H122M   locking plate Ø42.5 4
-bolt Ø66 $12.00  for Ø35 cup
222583   locking plate Ø42.5 4-bolt Ø60  $8.00  for Ø32 SB Tomos
H124 x   sprocket bolt (4) M7 x 18 or 20 $1.00  for 1-chain steel Ø90 hub
H124T    sprocket bolt (4) M7 x 22 or 25 $1.00  for 1-chain alloy Ø90 hub
H124Mx  sprocket bolt (4) M7 x 30 xxxx  $1.00  for 1-chain alloy Ø90 mag
026304   sprocket bolt (4) M7 x 25 xxxx  $1.00  for 1-chain alloy Ø105 hub & mag
026305   sprocket bolt (4) M7 x 35 xxxx  $1.00  for Revival, Streetmate hub
H124A x
  sprocket nut (4) M7 xxxxxxxxx  $0.50  for 1-chain sprockets
H61 xxx  sprocket bolt (4) M6 x 20 xxxx  $0.50  for 2-chain sprockets

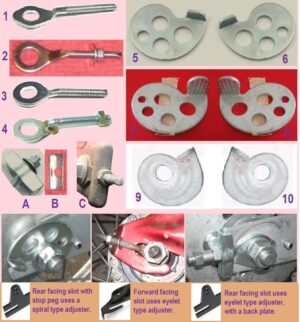

Chain Adjusters

Chain Adjusters

Chain Adjusters  hole for Ø12 axle is 12.5 – 13.0 mm
Chain Adjusters
  hole for Ø11 axle is 11.5 – 12.0 mm

                   Eyelet or Lolipop Style
1  407500 eyelet chain adjuster Ø12   $3
2  000000
 eyelet chain adjuster Ø12   $3
3  000000 eyelet chain adjuster Ø12   $5
4  000000 eyelet chain adjuster Ø12   $5
A  000000 eyelet adjuster back plate
  $4 Sparta style
B  000000 eyelet adjuster back plate  $3 Peugeot style
C  000000 eyelet adjuster back plate  $7 Puch Magnum style

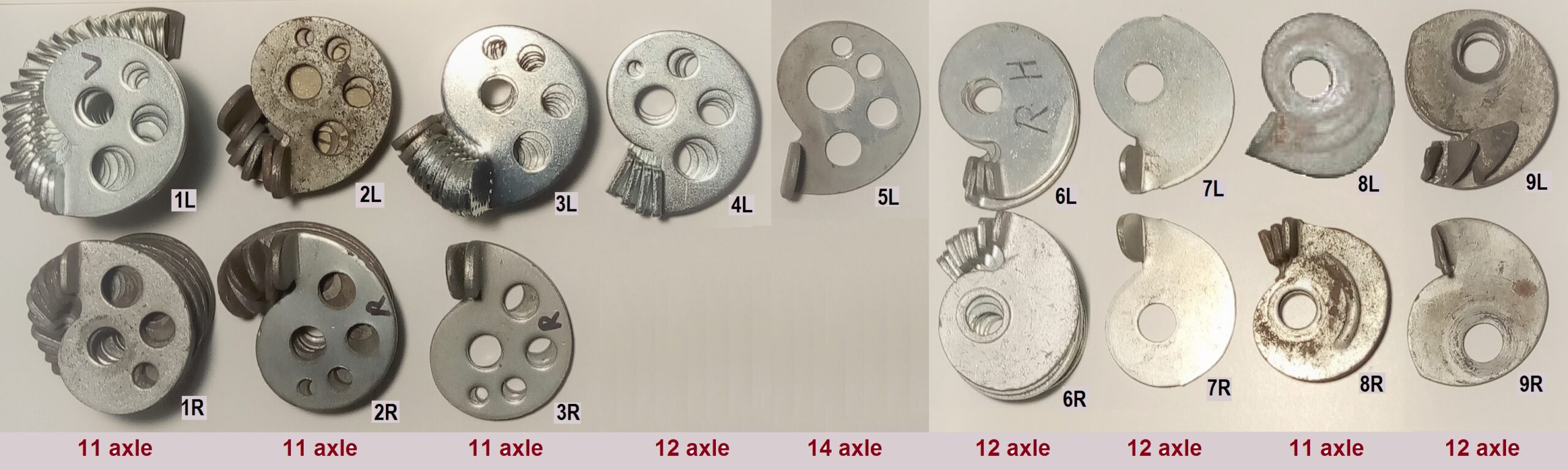

                    Spiral or Snail Style
5  209212  spiral chain adjust. right Ø11  $5 Tomos type = H114R
6  223112  spiral chain adjuster left Ø11  $7 Tomos type = H114L
5  H114Rx  spiral chain adjust. right Ø11  $5 looks like right hand
6  H114Lx  spiral chain adjuster left Ø11  $7 looks like a left hand
5  H114RM spiral chain adjust. right Ø12  $6 H114R w/bigger hole
6  H114LM spiral chain adjuster left Ø12  $8 H114L w/bigger hole
7  H114RH spiral chain adjust. right Ø12  $8 Italian heavy duty
8  H114LH spiral chain adjuster left Ø12  $8 Italian heavy duty
9  25514143 spiral chn. adjust. right Ø11 $8 Garelli “solid” type
10 25514141 spiral chn adjuster left Ø11 $8 Garelli “solid” type


B. Applications



The same wheel parts are used on many different models. So each brand had a different parts catalog, that specified many of the same parts, but called them by different names and part numbers. Here, instead of having each brand’s parts catalog, containing many repeat items, they have been combined into one price list and many applications charts. Each application chart is an exploded view illustration with a table of part numbers. Each row is an item in the illustration. Each column is a different make or model that it goes on.

The Wheel Parts price list above is followed by the Applications below. They say what part goes where, on what model, but not whether or not that part is for sale. Note the part number or specification for it, then scroll up to Wheel Parts to find it’s one-line listing. If there is a price there, then that part is for sale. If it says N/A then it is not available.







Italy Flag1. GrimecaGrimeca New small



Grimeca steel hubs or cast aluminum wheels (mags) are made in Italy. Grimeca is a world leader in motorcycle wheels, with many firsts, including the first disk brake, Ducati 1971, and the first light alloy wheel, Morini 1974.

Grimeca single-chain rear, and front spoke wheel hubs are used on Italian mopeds, including Baretta, Benelli, Bianchi, Cimatti, Colt, Concord, Fantic, Gadabout, Gitane, Intramotor, Maico, Malaguti, Moto Guzzi, Motomarina, Motobecane Sebring, Motron, Negrini, Pacer, Safari, Scorpion, Snark, Testi, and others, plus some non-Italian models of AMF, Colombia, NVT, Trac, Tomos, and others.

Grimeca double-chain rear, and front spoke wheel hubs are used on Sachs, KTM, Kynast, Odyssey, Badger. There is a motor chain sprocket and brake on one side, and a smaller bicycle chain freewheel sprocket on the other side.

Grimeca single chain rear, and front cast alloy wheels: are used on Italian mopeds, including Bianchi, Colt, Concord, Fantic, Gadabout, Malaguti,  Motomarina, Motobecane Sebring, Motron, Negrini, Safari, Snark, Testi, and others, plus some non-Italian models of  Trac, Tomos, and others. Most are the snowflake style, others are 5-star, 7-ray.

Grimeca double chain rear, and front cast alloy wheels: are used on Puch, Sears, and JC Penney.  There is a motor chain sprocket and brake on one side, and a smaller bicycle chain freewheel sprocket on the other side. Grimeca cast alloy 2-chain rear wheels were only made in the snowflake style.



Spoke wheel hubs: Grimeca makes stamped-steel hubs with 90 or 105 mm brake drums, and 30, 32, 35, or 40 mm center holes.  Within the 90mm drum size, there are at least 4 different single-chain hub bodies, with different spacings, and at least 2 different double-chain hub bodies. Each one of those hub bodies can have different axle lengths and axle spacer lengths possible. So there are dozens of configurations possible. Most 90mm Grimeca hubs have 11mm axles and axle components. Most 105mm hubs have 12mm heavy duty axles and axle cones, locknuts, nuts, washers, and spacers.



Front Hubs Ø90 (loose bearings)

Grimeca Front Hubs

Six versions of front Grimeca 11mm axle, 90mm drum, loose bearing hubs are shown here, but more exist.

Front 90mm Hub Parts

Front 90mm Hub Parts



.   Ciao  Cimatti  KTM  Garelli Malaguti  Ciao
.   C7N   Cimatti  Foxi   Spot & Negrini  C7E Qty  description
.    C7N  CimattiDeluxe  Spot & Pacer  C7E Qty  description


0  …….xxx C2350x  …….xx …….xx M3   …….    1  front wheel
1
 …….xxx C2370x  …….xx …….xx H51  …….    1  front hub complete
6  H146xx H146x H146xx H146xx H146  H146  1  front hub bare
7  H69xxx H69xxx H69xxx H69xxx H69   H69   2  bearing cup 32mm
8  H67xxx H67xxx H67xxx H67xxx H67   H67  20  ball bearing 1/4″
9  H68xxx H68xxx H68xxx H68xxx H68   H68   2  dust cover ring
10 H66xxx H66xxx H66xxx H66xxx H66   H66  2  bearing cone Ø11
11 140xxx 145xxx 145xxx 145xxx  H52   H52  1  front axle 11mm
13 574549 514549 574549 514549 H57 none 1  spacer outer brake
14 H56xxx H56xxx H56xxx H56xxx H56   H56  3  inner hub nut
15 H55xxx H55xxx H55xxx H55xxx H55   H55  2  outer washer
15a H62xx H62xxx H62xxx H62xxx H62   H62  2  thin inner washer
16 H112xx H112xx H112x H112xx H112  H112 2  outer axle nut
17 H64xxx H64xxx H64xxx H64xxx H64   H64  1  brake shoe set
18 H64Sxx H64Sx H64Sx H64Sxx H64S  H64S 2  brake spring
19 H60xxx H60xxx H60xxx H60xxx H60   H60  1  brake cable anchor
20 H59xxx H59xxx H59xxx H59xxx H59   H59  1  brake lever arm
21 H63xxx H63xxx H63xxx H63xxx H63   H63  1  brake cam shaft
22 H10xxx H10xxx H10xxx H10xxx H10   H10  1  washer M6
23 H104xx H104xx H104x H104xx H104  H104 1 nut M6
24 C7Nxxx …….xxx KTMxxx …….x  H58   Ciao  1  brake cover plate
25 H148xx H148x H148xx H148xx H148 H148 1  inspection plug
26 H53xxx H53xxx H53xxx H53xxx H53   H53  1  cable adjuster
.
12 H147xx   H147   H47   H147   H147   H1471  instead of speedo
14 H56xxx    H56    H56    H56    H56    H56 1  inner hub nut
.
.
.
.
.
.
.
.


PiaggioFront Hubs Ø105 (loose bearings)

Front 105mm Hub Parts

Front 105mm Hub Parts

Three versions of front Grimeca 11 or 12 axle, 105mm drum brake, loose bearing hubs are shown here.

Front 105mm Hub Parts

Front 105mm Hub Parts

.



xx  Garelli      Vespa xx Negrini
.x    VIP       Grande xxx KPN   qty  description


0    …….         …….       M3K    1  front wheel
1    …….         …….       H51K   1  front hub complete
6    …….         …….      …….     1  front hub bare
7    H69xxx   H69M      H69M   2  bearing cup
8    H67xxx   H67M      H67M  22 or 20 ball bearing 1/4″
9    H68xxx   H68M      H68M   2  dust cover ring
10  H66xxx   H66M      H66M   2  bearing cone
11  0261xx   12×150   H52K    1  front axle
13  H116B    574549    H57K    1  spacer outer brake
14  H56M      H56Mx    H56M   3  inner hub nut
15  H113M    H113M    H113M  2  outer washer
15a H62M     H62Mx    H62Mx  2  thin inner washer
16  H112M    H112M    H112M  2  outer axle nut
17  H64K      H64K       H64K   1  brake shoe set
18  H64KS    H64KS     H64KS  2  brake shoe spring
19  H60xxx   H60xxx    H60     1  brake cable anchor
20  H59xxx   H59xxx    H59     1  brake lever
21  H63xxx   H63xxx    H63K   1  brake cam
22  H10xxx   H10xxx    H10     1  washer M6
23  H104      H104x     H104   1  nut M6
24  …….       …….        H58K   1  brake cover plate
25  H148      H148      H148    1  inspection plug
26  H53xxx   H53xxx    H53     1  cable adjuster
.
.
.
.


Pacer small1-chain Rear Hubs Ø90 (loose bearings)

Grimeca Rear Single Chain Hubs

Five versions of 1-chain rear, loose bearing, 90mm Grimeca spoke wheel hubs are shown here, but more exist.

1-chain Rear 90mm Hub Parts

1-chain Rear 90mm Hub Parts



 Cimatti  Malaguti  Garelli x Garelli xGarelli
Cimatti   & Negrini  Sport x Sport x Super
Cimatti   & Pacerx Sport xxx HD xx Sport   Qty  description


x. narrow    wide x  extra x extra x  wide
xxx body     body x  wide x  wide    flange
0   M4NBx  M4WBx M4XWx  …….xx  M4GAx 1  rear wheel
1   C2380x H120xx 1184Mx  …….xx H120GA 1  rear hub
7   H69xxx H69xxx  H69xxx  H69Mx  H69xx  2  bearing cup
8   H67xxx H67xxx  H67xxx  H67Mx  H67xx 20 or 22 ball 1/4″
9   H68xxx H68xxx  H68xxx  H68Mx  H68xx  2  dust cover
10  H66xxx H66xxx  H66xxx H66Mx   H66xx  2  cone
14  H56xxx H56xxx  H56xxx H56Mx   H56xx  2  axle nut
15  H113xx H113xx  H113xx H113M  H113x  2  washer
15a H62xx  H62xxx  H62xxx H62Mx   H62xx  2  thin washer
16  H112xx H112xx  H112xx H112M  H112x  2  axle nut
17  H64xxx H64xxx  H64xxx H64Ux   H64xx  1  brake shoe set
18  H64Sxx H64Sxx H64Sxx H64US  H64Sx  2  brake spring
19  H60xxx H60xxx  H60xxx H60xxx  H60xx  1  cable anchor
20  H59xxx H59xxx  H59xxx H59xxx  H59xx  1  brake lever
21  H63xxx H63xxx  H63xxx H63xxx  H63xx  1  brake cam
22  H105xx H105xx  H105x  H105xx  H105x  1  washer M6
23  H104xx H104xx  H104x  H104xx  H104x  1  nut M6
25  H148xx H148xx  H148x  H148xx  H148x  1  rubber plug
26  H53xxx H53xxx  H53xxx H53xxx  H53xx   1  cable adjuster
28  …….xxx H149xx  …….xx  …….xx  …….xx   1  rear hub bare
29  H119xx H119xx  H119xx H119xx  H119x  1  rear axle
30  /42Wxx /30Wxx /32Wxx /32Mxx  /32Wx 1  sprocket H123/
31  H122xx H122xx  H122xx H122M  H122x  1  locking plate
32  H124xx H124xx  H124xx H124xx  H124x  4  bolt M7
33  H124AH124Ax H124Ax H124Ax H124A  4  nut M7
34  H116AH116Ax H116Ax H116Ax H116x  1  spacer
35  514549 H116Bx H62xxx  H62xxx 230668 1  spacer
36  H115xx H115xx  H115xx H115M   H115x  2  axle nut
37  …….xxx H118xx  …….xxx …….xx   …….xx  1  rear brake panel
38  H114Rx H114Rx  H114RxH114RM  H114R  1  right chain adjuster
39  H114Lx H114Lx  H114Lx H114LM  H114L  1  left chain adjuster




Hercules small2-chain Rear Hubs Ø90 (loose bearings)

Grimeca Rear Double Chain Hubs

Three versions of Grimeca 11mm axle, loose bearing, 90mm brake drum, dual chain rear hubs are shown.

2-chain Rear Spoke Wheel Parts

2-chain Rear 90mm Hub Parts

.  Kynast      Hercules     KTM
    Flying       Sachs        Foxi
.Dutchman   Westlake    Deluxe  Qty  description


1    ……..xx     ……..xx    ……..     1  rear wheel
   ……..xx     ……..xx    ……..     1  rear hub complete
   ……..xx     ……..x      ……..     1  rear brake plate
7    H63xxx     H63xxx    H63       1  brake cam
7a  H59xxx     ……..        ……..     1  brake lever
7b
  H105x      H105x      H105     1  washer M6
7c  H104x      H104x      H104     1  nut M6
  H64U       H64Ux      H64U    1  brake shoe set
9    H64US     H64US      H64US  1  brake U-spring
10  H119x      H119x      H119     1  rear axle
11  H112x      H112x      H112     2  outer nut
12  H113x      H113x      H113     2  outer washer
13  006121    006121    006121  22  7/32″ balls
14  417061    417061    417061   2   bearing cup Ø30
15  417111    417111    417111   2   dust ring for Ø30
16  H148x      H148       H148     1  rubber plug 9mm
17  H53xxx     H53         H53       1  cable adjuster
18  50dish      50flat      50flat      1  20mph sprocket
19  45dish      45flat      45flat      1  30 & 25 sprocket
20   H61xxx    H61xxx     H61      4  sprocket bolt
26   H115xx    H115x      H115     2  large thin nut
27   2mmxxx   2mmx x   2mm     1  thick washer
28   H66xxx    H66xxx     H66      2  bearing cone
29   H62xxx    H62xx       H62      1  thin washer
30   H56xxx    H56xxx     H56      1  thin nut under brake

31  15mmx     12mmx     3mm     1  spacer, over brake

.
.

Grimeca New small1-chain Rear Mags Ø90 (loose bearings)

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx  Four versions of Grimeca or Bernardi, 90mm brake drum,
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx  loose bearing, single chain rear “mag” wheels are shown.

1-chain Rear 90mm Mag Parts

1-chain Rear 90mm Mag Parts

x  Grimeca Grimeca Bernardi Grimecaxxx
x  11×180  12×180 11×200 12×200  <axle

x  11×175  xTrac x 11×200 1x2xx20 qty  description


0    M6Bxxx xM6xxxxx M6BLxx M6Lxxx 1  wheel 1.35×16 comp.
1    H53xxxx H53xxxx H53xxxx H53xxx 1  cable adjuster M6
2    H118xxxxTracxx xH118xx H118Mx 1  brake plate
3    H64USx  H64USx H64USx H64US1  brake spring
5    H56xxxx H56Mxx  H56xxxxH56Mx  3  axle lock nut
6    H113xxx H113Mx H113xxxH113Mx 3  outer axle washer
7    H112xxx H112Mx H112xxxH112M  2  outer axle nut
8    H59xxxx Tracxxx  H59xxx H59xxx 1  brake lever
9    H104xxx H104xx  H104X  H104xx 1  nut M6
10   H10xxxx H10xxxx H10xxx H10xxx 1  washer M6
11   H60xxxx —–xxxxxH60xxx H60xxx 1  brake cable anchor
12   H63xxxx H63xxxx H63xxx H63xxx 1  brake cam
13   H62xxxx H62MxxxH62xxx H62Mxx 1  thin washer
14   H64Uxx  H64Uxx  H64Ux  H64Uxx 1  brake shoe set
15   H68xxx  H68Mxx  H68xx  H68Mxx 2  dust cover
16   H66xxxx H66Mxx  H66xx  H66Mxx 2  bearing cone
17   H67xxxx H67Mxx  H67xx  H67Mx 20 (or 22) bearing balls
18   H69Bxxx H69Mxx H69Bxx H69Mxx 2  bearing cup
21   H119xxx H119Gx H119Lx H119Mx 1  axle
22   H148xxx H148xx  H148X  H148xx 1  inspection plug rubber
24   H115xxx H115Mx H115xx H115Mx 2  large thin lock nut
27    H116Bx 12mm x H53xxx  H53xxxx1  spacer (as required)
28   H114Lx H114LM  H114Lx H114LM 1  chain adjuster left
29   H114Rx H114RM H114Rx H114RM 1  chain adjuster right
30   H57xxx XH57xxx H53xxcxxH53xxx 1  spacer (as required)
31   /xxW x  /42M xx /xxW xx /xxMxx  1  sprocket H123/xxx
32   H122xx H122Mx H122xx  H122Mx 1  sprocket locking plate
33   H124xx H124Mx H124xx  H124Mx 4  sprocket bolt
34   H124Ax H124Ax H124Ax  H124Ax 4  sprocket nut
.
.




KromagFront Mags Ø90 (loose bearings)

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx  Two versions of Grimeca, 90mm brake drum,
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx  loose bearing front “mag” wheels are shown.

Front 90mm Mag Parts

Front 90mm Mag Parts

# xx Puch, Sears, JCP x Grimeca
#   Puch Part No.  MM #   MM#   Qty  Description
22
  349.140.7141  H112x  H112xx  2  outer axle nut
3   000.604.4124  044124 H113xx  2  outer washer
4   349.140.7081  H56xx   H56xxx  3  thin nut
6   349.140.7101  H66xx   H66xxx  2  bearing cone
11  350.113.0761  H113M  nonex    1  thick washer
16  349.140.7159  H64Ux
H64Uxx  1  brake shoe set
19
  349.140.7161  H148x  H148xx  1  inspection plug
21  000.002.4795  H105x
 H105xx  2  camshaft washers
22  000.002.4773  H104x  H104xx  1  cam shaft nut

24
 349.140.7041  407041 H112xx  1  axle spacer 6mm
25  000.900.3938  H62xx  H62xxx   1  thin washer
26  349.140.7111  H68xx  H68xxx   2  dust ring
27  349.140.7051  H69Sx  H69Sxx  1  cup with notches
28  349.140.7061  H69xx  H69xxx   1  bearing cup
29  000.002.2751  H67x   H67xxx x20 front ball 1/4″
30  349.140.7091  H63xx  H63xxx   1  brake cam
31  349.140.7070  xxxxxx  H112xx  1  brake assembly
32  349.140.7072  xxxxxx  H58xxx  1  brake plate bare

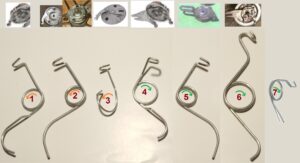

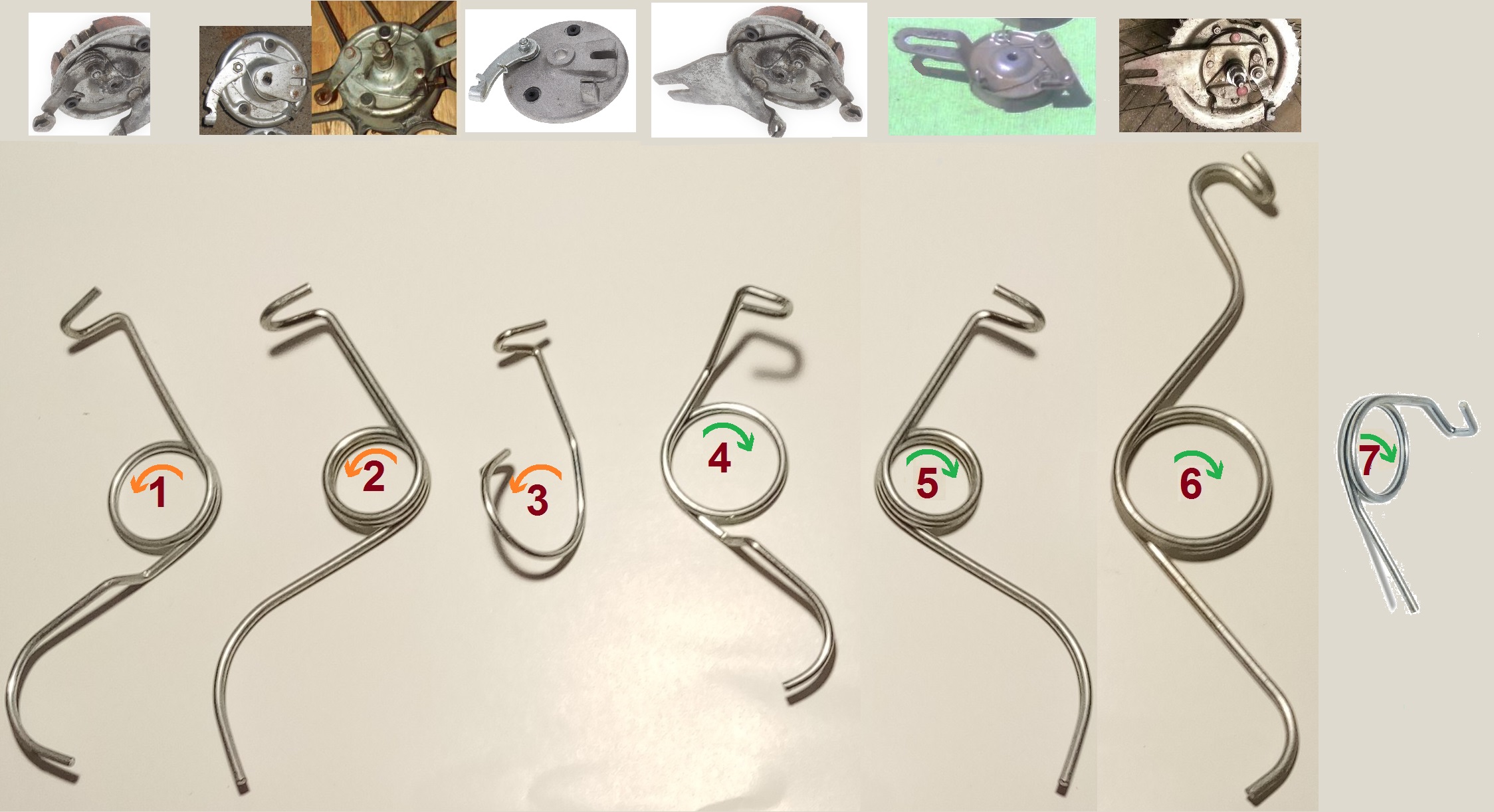

33  349.140.7191 407191  H112xx  1  helper spring
34  349.140.7131 407131  H59xxx  1   brake arm
35  349.140.0261 400261
 H52xxx  1  front axle
37  349.140.7022  xxxxxx  H112xx  1  front wheel bare
38  000.000.0000  H64US  H64US  1  brake spring U type
39  349.240.0050  xxxxxx  H112xx  1  speedo driver


Puch small2-chain Rear Mag Ø90 (loose bearings)

xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx  One version of Grimeca, 90mm brake drum,
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx  loose bearings, 2-chain rear “mag” wheel is shown.

2-chain Rear 90mm Mag

2-chain Rear 90mm Mag Parts

#   Puch Part #    MM#  qty  description
1x  349.241.0230  xxxxx   freewheel 23T
2x  349.140.7141  H112   outer axle nut
3x  000.604.4124 044124 outer washer 11x19x0.8
4x  349.140.7081  H56xx  thin nut
5x  349.241.7041 574549 spacer 3mm
6x  349.140.7101  H66    bearing cone
7x  349.241.7111 417111 rear dust ring
8x  000.900.6121 006121 rear ball 7/32″
9x  349.241.7061 417061 rear cup 30mm
10  349.241.7261 417261 rear axle 175mm
11  350.113.0761  H62    thin washer
12  349.141.7451  xxxxx  sprocket 45T
12  349.141.7401  xxxxx  sprocket 40T
13  x  rear sprocket plate
14  x  rear sprocket bolt
15  x  rear brake assembly
16  x  brake shoe U-type
17  x  rear brake cam
18  x  rear brake plate
19  x  inspection plug
20  x  rear brake arm
21  x  cam shaft washers
22  x  cam shaft nut
23  x  rear brake plate spacer
36  x  rear wheel bare
38  x  brake spring U type
.
.
.
.
.




Garelli Logo1-chain Rear Hubs Ø90 (sealed bearings)

Grimeca Rear Single Chain Hub 90mm sealed bearing

One version of Grimeca 90mm sealed bearing rear hub is shown. It was original on the two-person models Garelli Gulp and VIP. This was one of only a few 1970’s moped Italian wheels with sealed bearings. By the 1990’s it was the opposite, most moped wheels had sealed bearings.

1-chain Rear 90mm Hub (sealed bearing)

1-chain Rear 90mm Hub (sealed bearing)

xx   Garelli VIP and Gulp
# xx Garelli #xxx  MM#  Qty  description


7    063557.4365  ……..   2  bearing sleeve 28x32x36
8    003020.5600  6001Z 2  bearing 6001Z 12x28x8
9    063557.4264  ??mm  2  dust cover
10  502202.4266  ??mm   2  center spacer
15  002148.0200  H113M 2  washer
15a 502202.4258 024258 2  spacer 16mm
16  063557.4222  H112M 2  axle nut
17  502202.4266  H64xx  1  brake shoe set
18  502202.4273  H64S   2  brake spring
19  012551.4536  H60xx  1  cable anchor
20  012551.4275  H59xx  1  brake lever
21  502202.4274  H63xx  1  brake cam
22  002138.4000  H105x  1  washer M6
23  002100.3900  H104x  1  nut M6
25  506341.4246  H148x  1  rubber plug
26  000561.4515  H53xx  1  cable adjuster M6
29  063557.4254  574254 1 axle 12×180 smooth
30  000966.4234  /30W   1  sprocket 30T
31  063557.4553  H122x  1  locking plate
32  012551.4517  H124x  4  bolt M7 and nut
34  500052.4548  H147    1  spacer 9mm
35  063557.4549  574549 1  spacer 3mm
36  063557.4547  H56M   2  axle lock nut 12x6x19
37  500370.4280  …….     1  rear brake panel
38  002551.4141  H114R  1  right chain adjuster
39  002551.4143  H114L  1  left chain adjuster

Here Garelli has made adapter sleeves with lips, that the sealed bearings fit into. The lips on the sleeves prevent the press fit (or sliding fit) bearings from moving gradually sideways. The inside holes of this and the other stamped steel Grimeca hubs are smooth tubes, 30, 32 or 35mm ID. So they are not designed for sealed (lip-less) bearings.


Tomos Logo1a. Grimeca Compatibles – Tomos

In 1975 to 1991 Tomos mopeds with spoke wheels had their own Yugoslavia-made sealed bearing machined aluminum hubs, brake shoes, and stamped steel brake plates, all Grimeca compatible (same drum diameter, width, and location, same cam and pivot shaft locations and sizes).

1-chain F&R Hubs Ø90 (sealed bearings)

Tomos A3 Spoke Wheel Parts

Tomos A3 Spoke Wheel Parts

These aluminum hubs have way less broken spokes, compared to the equivalent stamped steel Grimeca hubs. The spoke holes are machined, not punched out. But the rear sprocket lacks a strong center support, so the sprocket bolts work loose as the soft metal deforms. Many sprockets have become not centered.

These hubs have a machined inner lip on each side to retain the sealed bearings. This is needed because the sealed bearings don’t have outer lips, like Grimeca loose bearing cups have. So these hubs are made for sealed (lip-less) bearings, while Grimeca loose ball hubs are not.

.
#  Tomos#   MM#   F   R  Description
1   209.856  00000  1   0  Front hub
2   211.071  H64xx  1   1  Brake shoe pair
3   211.964  00000  1   0  Front brake plate
4   209.257  H64Sx  2   2  Brake spring
5   209.255 209255 1   0  Front axle
6   209.254  H1130  4   2  Axle washer
7   209.277  H112x  2   2  Outer axle nut
8   209.249  00000  2   2  Axle lock nut
9   209.253  00000  1   2  Axle spacer
10 044.233  6001Z  2   2  Bearing 6001Z
11 206.871 209262 1   0  F center spacer 57mm
12 209.272  00000  1   0  Bearing cover
13 209.238  H6300  1   1  Brake cam shaft
14 031.932  H1000  1   1  Cam washer 6.4
15 031.075  H1040  1   1  Cam nut M6
16 209.258 209258 1   1  Brake arm
17 026.288  00000  1   1  Bolt M6x15
18 200.248  00000  1   1  Washer
19 209.275  00000  1   1  Bush
20 209.260  00000  1   1  Cable support
20 000.000  P9B0x  1   1  20 + 19 + 18 + 17
21 209.262 209262 0   1  R center spacer 57mm
22 209.263  00000  0   1  Axle spacer
23 223.112  H114L  0   1  Left spiral adjuster
24 209.212  H114R  0   1  Right spiral adjuster
25 211.965  00000  0   1  Rear brake plate
26 222.585  00000  0   1  Rear axle 165mm
27 209.239  00000  1   1  Cam washer
28 209.650  00000  1   0  Speedometer drive
29 208.253  00000  1   0  Front axle spacer
30 215.016  00000  1   1  Inspection plug
31 209.261  00000  0   1  Sprocket A3SP 22T
31 213.256  00000  0   1  Sprocket A3GM
31 211.847  00000  0   1  Sprocket A3SL
32 205.742  00000  0   2  Sprocket lock plate
33 025.208  00000  0   4  Sprocket bolt M7x22
34 031.076  00000  0   4  Sprocket nut M7
.


ColumbiaColombia sealed bearing 105mm moped hubs were mostly American made. There are two kinds, 1-chain-type stamped steel and 2-chain-type cast aluminum.

1-chain F&R Hubs Ø105 (sealed bearings)

Columbia stamped steel 105mm hubs 1-chain type

Columbia steel 105mm hubs 1-chain type

1-chain Stamped Steel Hubs: This is for the Sachs engine Columbia. The brake is on the right, sprocket on the left. The center hole was a massive 40mm, with 40×35 adaptor sleeves with thick lips holding large sealed bearings, 6202-8 12.7 x 35 x 11. The axles were long 1/2 inch bolts (12.7 mm). These hubs would normally have 15mm axles and 6202Z bearings, on a small Italian motorcycle.

Columbia front hub 105mm SB













The rear brake is on the right, and the sprocket is on the left. These heavy duty stamped steel hubs were made by Grimeca and used on the early (1977) Columbia sheet metal frame models with a Sachs engine. Later models had the 2-chain cast hubs made by Columbia.

1-chain rear hub sealed bearing

1-chain F&R 105mm Hub (sealed bearing)

#  Columbia# x MM# x F   R  description


1     xxxxxxx  …….       0   0
2     xxxxxxx  …….       0   0
5
    xxxxxxx  …….       1   0   front center spacer
6     xxxxxxx  …….       1   0   front hub assy
7     xxxxxxx  …….       2   2   adapter sleeve 35 x 40 x 44
8     xxxxxxx  …….       2   2  sealed bearing 6202-8 12.7x35x11
9     xxxxxxx  …….       0   0   dust cover (not for this)
10   xxxxxxx  …….       0   1    rear center spacer
11   xxxxxxx  1/2×5.5″ 1   0   front axle
13   xxxxxxx  13mm      1   0   front spacer outer brake
14   xxxxxxx  ??mm      2   1   rear spacer
15   xxxxxxx  1/2″sae   0   2   washer
16   xxxxxxx  1/2-20    1   1   outer axle nut
17   xxxxxxx  H64K       1   1   brake shoe set
18   xxxxxxx  H64KS     2   2   brake shoe spring
19   xxxxxxx  H60        1   1   brake cable anchor
20   xxxxxxx  H59        1   1   brake lever
21   xxxxxxx  H63        1   1   brake cam
22   xxxxxxx  H10        1   1   washer M6
23   xxxxxxx  H104       1   1   nut M6
24    xxxxxxx  …….       1   0   front brake plate
25   xxxxxxx  H148       2   2   inspection plug
26   xxxxxxx  H53        1   1   cable adjuster
28    xxxxxxx  …….       0   1   rear hub assy
29   xxxxxxx  1/2×7.0″ 0   1   rear axle
30    xxxxxxx  …….       0   1   sprocket 42T
30    xxxxxxx  …….       0   1   sprocket 48T
31    xxxxxxx  …….       0   2   sprocket lock plate
32    xxxxxxx  …….       0   4   sprocket bolt
33    xxxxxxx  …….       0   4   sprocket nut
34    xxxxxxx  …….       0   1   rear spacer
35    xxxxxxx  …….       0   1   rear spacer

36    xxxxxxx  …….       0   2   rear lock nut
37    xxxxxxx  …….       0   1   rear brake plate
38    xxxxxxx  …….       0   1   left chain adjuster
39    xxxxxxx  …….       0   1   right chain adjuster


2-chain F&R Hubs Ø105 (sealed bearings)

Columbia cast aluminum 105mm hubs 2-chain type

Columbia cast alloy 105mm hubs 2-chain type

2-chain Cast Aluminum Hubs: This is for the Solo engine Columbia, with both a pedal and motor chain. The Sachs engine Columbia also uses these hubs on certain models, but no freewheel or pedal chain is installed.

Columbia 2-chain 105 hubs

Columbia 2-chain 105 hubs







The rear brake and sprocket are both on the left. The hub center is small 28mm stepping to 24mm in the center. The step retains the lip-less sealed bearings, and so no adapter sleeves are needed.

#  F   R  Columbia#   MM#  Description
1   1   1  734.0958  N/A xx  front cast hub assy
2   1   0  750.0429  500429 front center spacer 60.6
3   1   0  746.0344  N/A xx  front brake cable
4   1   0  745.0171  N/A xx  speedometer drive VDO
5   1   0  736.0192  H113M  washer 2mm
6   2   0  736.0327  N/A xx  safety washer
7   1   0  710.2204  102204  front axle M12-1.5 x 150
8   0   1  710.2205  102205  rear axle  M12-1.5 x 170
9   0   2  000.6847  N/A xx  chain adjuster
10  0   2  750.0277  500277  spacer 11mm
11  2   2  741.0290  6001Z  bearing 6001Z 12x28x8
12  0   1  750.0430  500430 rear center spacer 80.6
13  0   1  734.1013  N/A xx  rear cast hub assy
14  0   1  713.0244  N/A xx  sprocket 42T
14  0   1  713.0245  N/A xx  sprocket 48T
15  0   2  000.6921  N/A xx  sprocket lock plate
16  0   4  710.2201  H61xxx sprocket bolt M6x20
17  2   2  732.0361  H64KS  brake spring
18  1   1  761.0173  H64Kx  brake shoe set
19  1   1  711.0692  H63K x  brake cam
20  0   1  000.6913  N/A  x  rear brake plate
21  1   1  000.6917  N/A xx  brake arm
23  1   1  736.0329  H10xxx  cam washer
24  1   1  712.2003  H104xx  cam nut M6
25  1   1  712.2204  12-1.5   axle nut M12-1.5
26  0   1  746.0345  N/A xx  rear brake cable
27  2   1  750.0436  574258  spacer 16mm

.


1-chain F&R Mags Ø90 (sealed bearings)

From 1989-1995 Tomos mopeds had die cast aluminum wheels with sealed bearings and 90mm brake drums, Grimeca compatible. Tomos made these wheels and the cast aluminum brake plates and other brake and axle components. These Tomos “web” mags replaced the earlier Grimeca “5-star” mags.

.

.

.

.

.


Tomos 1996-13 Wheel Parts

Tomos 1996-13 Wheel Parts

While pre-1996 had 90mm, starting in 1996 Tomos mopeds had 105mm brake drums and new wheel styles, still for size 2.25-16 tires. The die cast aluminum wheels have inner lips for sealed bearings

Front Mag Ø105 (sealed bearings)

#  Tomos#  MM#   Description
3  xxxxxx   xxxxx    Brake plate  see above
4  229740   H64K   Brake shoe pair 105
5  229741   H64KS  Spring
6  227114   xxxxx   Rubber plug
7  230949   xxxxx   Eccentric bush (only 2003-08)
8  230954   xxxxx   Brake cam shaft 10mm
9  229684   H59xx  Brake lever arm
10, 11, 12   H60xx  Grimeca type pinch bolt M6
13 222568 222568  Distance bush front (L=40)
14 044225  6201Z   Ball bearing 12x32x10 6201-Z
15 226086 226086  Axle front 12 x 220 12-1.00 thread
15 232868 232868  Axle front 12 x 220 12-1.25 thread
16 227485 227485  Distance bush (black)
17 031935  031935  Washer 12 x 2.5mm
18 206498  H112M  Nut M12x1.00
18 031126  031126  Nut M12x1.25
25 230631   xxxxx   Speedometer Driver

1-chain R Mag Ø105 (sealed bearings)

3  xxxxxx   xxxxx  Brake plate  see above
4  229740   H64K  Brake shoe pair 105
5  229741   H64KS  Spring
6  227114   xxxxx  Rubber plug
7  230949   xxxxx  Eccentric bush (only 2003-08)
8  230954   xxxxx  Brake cam shaft 10mm
9  229684   H59   Brake lever arm
10, 11, 12    H60    Grimeca type pinch bolt
13, 11 xxx   H53    Cable adjuster M6 (most)
14 230515  230515 Rear Axle 12×185 11-1.00 thread
15 222569   xxxxx  Distance bush rear (L=64)
16 044225  6201Z  Ball bearing 12x32x10 (6201-Z)
17 222883  222883 Distance bush black
18 230668  230668 Distance tube L=8mm
19 227450   227450 Washer Ø11x20x2
20 209277   H112  Nut M11-1.00
21 223119   xxxxx  Rear sprocket Z=28 (LX,ST,SP)
21 227361   xxxxx  Rear sprocket Z=24
21 222586   xxxxx  Rear sprocket Z=22
22 222583  222583 Locking tab for rear wheel
23 026304  026304 Screw M7x25
24 031076   H124A  Nut M7
27 031935  031935 Washer 12 x 2.5mm
30 209212   xxxxx  Chain adjuster RH
31 209212   xxxxx  Chain adjuster RH
.
.
.
.
.


1-chain rear spoke Ø110  (sealed bearings)

The 2005-2008 Tomos Arrow rear drum brake was 110mm made in Italy.

1-chain rear spoke Ø118 (sealed bearings)

The 2001-2003 early Tomos Revival rear drum brake was 118mm Grimeca. The front hydraulic disk brake was also Grimeca. But most Revivals 2004-2012 had a 105mm Grimeca rear drum brake. 2004-07 Revivals had an AJP front brake. 2008-2012 Revivals had a generic front brake.

The 1978-1981 Safari Commando rear drum brake was 118mm Grimeca.

Other Grimeca-Compatible Brakes:

 Mag wheel models of Trac (Korea), and spoke wheel models of Carabella (Mexico) and possibly Wheel King (Taiwan).




2. LeleuFrench Flagleleu small



Leleu cast aluminum hubs are made in France. E. Leleu et Cie (E. Leleu and Co.) made quality drum brake hubs for mopeds and small motorcycles, since at least the 1950’s.

Leleu hubs are original on Peugeot, Motobecane, Solex, Sparta, Puch, Batavus, aLeleu roughnd Kreidler mopeds. 1970’s US models were mostly all 80mm brake drums, with some 70mm. But earlier French mopeds in the 1950’s and 60’s commonly had 100 mm, brake drums.




Peugeot 103 rear hub

Peugeot 103LVS Rear Hub Parts

Leleu Rear spoke Ø80 loose ball
Peugeot 103, Puch (to ’79)
Sparta (Foxi), Kreidler

1   56309   1  rear hub without sprocket
2   69648   2  ball cup
3   69680   2  cover washer
4   69414   1  axle Ø12
5   69276   2  cone Ø12
6   00690  26 ball
7   69357   2  lock nut
8   01980   1  outer lock nut
9   68088   1  brake plate complete
10  69275   1  brake shoe set
11  08703   2  brake shoe spring
12  48795   1  sprocket 48 teeth (LS-U1)g
12  51608   1  sprocket 52 teeth (LVS-U2,U3)
13  00620   5  sprocket bolt
14  49282   2  chain tensioner
15  17035   2  axle stirrup
16  34010   2  stirrup nut
17  69278   2  rear axle nut
18  51415   1  rear axle set 4,5,5,7,7,8
19  68113   2  plastic plug
20
21
22
23








Peugeot 103SP rear hub

Peugeot 103SP Rear Hub Parts

Leleu Rear spoke Ø80 sealed
Peugeot 103SP (ø10 axle)
Puch 1980-86 (ø12 axle)

1   58562   1  rear hub without sprocket
2   68136   2  ball bearing
3   68135   1  sleeve
4   68130   1  axle Ø10
5   68132   2  nut
6   68133   1  spacing tube
7   68134   2  shouldered nut
8   68131   1  spacer
9   68252   1  brake plate complete
10  69275   1  brake shoe set
11  08703   2  brake shoe spring
12  48795   1  sprocket 48 teeth (LS-U1)
12  51608   1  sprocket 52 teeth (LVS-U2,U3)
13  00620   5  sprocket bolt
14  49282   2  chain tensioner
15  17035   2  axle stirrup
16  34010   2  stirrup nut
17  68113   2  plastic plug
18
19
20
21
22
23












Peugeot 103 front hub

Peugeot 103 Front Hub Parts

Leleu Front spoke Ø80 loose ball
Peugeot, Puch, Sears, JCP,
Batavus, Sparta, Kreidler

.  Peugeot   Puch   Batavus   Sparta   Kreidler
.
1   56308   56308   56308   56308   56308   1  front hub
2   69285   69285   69285   69285   69285   2  ball cup
3   69280   2  dust cover washer
4   69417   1  axle Ø11 x 158
5   69284   2  cone
6   00694  22 ball 5.55mm
7   69333   2  lock nut
8   68103   1  brake plate complete
9   01442   1  lock nut
10  68127  1  lock nut
11  69275   1  brake shoe set
12  08703  2  brake shoe spring
13  69282  2  front axle nut
14  53114  2  axle washer
15  68112  2  plastic plug
16  51404  1  front axle set
17
18
19
20
21
22
23












Peugeot 102 rear hub

Peugeot 102 Rear Hub Parts

Leleu Rear Spoke Ø70 loose ball
Peugeot 102, Motobecane 7,
Batavus VA,HS50,Starflite

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33




2a. Leleu Compatibles – Motobecane



Motobecane made many of their own components. Like the way Tomos made their hubs compatible with Grimeca, Motobecane made their hubs compatible with Leleu. So the complete wheels interchange, the brake plate complete interchanges, but most of the individual parts do not. Motobecane made both stamped steel and cast aluminum spoke wheel hubs. Their cast aluminum hub has a big M logo embossed into it.














3. Taiwan



Taiwan wheels are on Taiwan mopeds. They do things more like motorcycles and less like bicycles. Asian wheels always have sealed bearings, with axles that slide out, like motorcycles. Asian spokes have inner and outer types, like motorcycles. Asian hubs are always cast aluminum, never stamped steel, like motorcycles. Asian hubs are always single chain rears, since they do not “believe” in having both a motor and pedals at the same time.
