Tomos Models and VIN Chart

January 30, 2015
1969-72 Tomos Colibri 14V

1969-72 Tomos Colibri 14V
(Euro) same orange as A3 (USA)

1976 Tomos Automatic 3K (European model)

1976 Tomos Automatic 3K
(Euro model) same green as A3 (USA)

1974 Tomos Ad for Europe

1974 Tomos Automatic 3
(Euro advertisement)











Early Pre-USA Models. From 1956 to 1973 Tomos made, under license, mopeds and motorcycles that were exact copies of Puchs, all called Colibri 1,2,3, etc.

In 1973 Tomos introduced their own stamped steel frame, engine, and wheels, the 1973 Automatic 1, a one speed. A two speed version soon followed, the 1973 Automatic 3, and the 1974 Automatic 3K. These went 28mph, made 2.0 horsepower, and weighed 97 lbs. The A3 pedals forward like a bicycle, yet starts the engine by kicking backwards. On a Tomos there is no start or choke cable, just a front brake, a rear brake and a throttle cable.

 In 1975 Tomos introduced the two speed automatic moped to the US, simply called “Automatic”. The engine was called an “A3″. The European mopeds shown in the ad at right have the same colors as the 1975-76 US models did. They had smaller lights, no brake light, no electric horn, and no side reflectors. Other than the lighting equipment, the rest of the bike is the same.
This information comes from Tomos parts manuals, flyers and photos. Here are all of the Tomos mopeds, US models.

1975-1976 Tomos

1976 Tomos Automatic

1976 Tomos Automatic A3 (30mph)
salmon-red, on Myrons Mopeds wall

1976 Tomos A3 orange with 1977 seat, fork, panels

1975 Tomos Automatic A3
(30 mph) orange
brown ’77 seat, fork, panels




























1977-1978 Tomos

To satisfy different US state laws, Tomos made three speed versions, A3SL 20mph, A3GM 25mph, and A3SP 30mph. Fortunately, everything is the same on the three speed versions except the piston and the rear chain sprocket. The 30mph 2hp has a piston 50mm tall, and a 22 tooth rear sprocket. The 25mph 1.5hp has a piston 52mm tall, and a 24 tooth rear sprocket. The 20mph 1.0hp has a piston 55mm tall, and a 26 tooth rear sprocket. The longer pistons, below the wrist pin, restrict the intake port opening. Cut the intake side of the piston bottom skirt, to make the total length 50mm, which is 47mm at the edge. See Pistons 10mm Pin. Then change the rear sprocket to 22 tooth, to go the normal speed of 28 to 30 mph.



1977 A3SP (30mph)
1977 A3GM (25mph)
1977 A3SL (20mph)

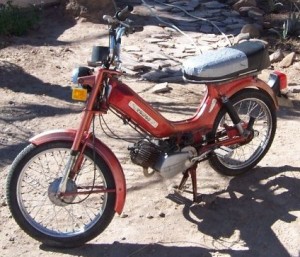

1977 Tomos A3SP Sport

1977 A3SP Sport (30mph)
1977 A3GM Sport (25mph)
1977 A3SL Sport (20mph)
vertical Sport stickers below seat

1977 A3SP (30mph)
has “1978” style stickers.
It does not say Sport on the side panels because it has a solo seat.





























1978 Tomos A3GM Sport

1978 Tomos Ad The greatest sidekick since Tonto

1978 Tomos A3SP Sport, blue, green, brown, red















1978 Tomos A3GM Sport V

1978 Tomos A3GM Sport















1978 Tomos A3

1978 A3SP with bent fork























In 1977-78, for models with a long seat, Tomos added the word “Sport” to the stickers on the engine side panels. So there were 18 different “1978” style sticker combinations: 3 color versions (blue, green, or red/brown) times 2 seat versions (solo or long) times 3 speed versions (20, 25 or 30mph).




1979-1980 Tomos

1979 A3SP Sport (30mph)
1979 A3GM Sport (25mph)
This 1979 has “1978” stickers.

1980 Tomos Bullet SP

1979 Bullet, with a bent fork
has 1980 stickers, says Bullet

1980 Tomos Bullet

1980 Tomos Bullet (25 or 30)
seat has been re-covered pleated























1980 Tomos Bullet SP (30)
1980 Tomos Bullet GM (25)

1981 Silver Bullet

1979 Silver Bullet SP (30mph)
1979 Silver Bullet GM (25mph)
1980 Silver Bullet SP (30mph)
1980 Silver Bullet GM (25mph)























In 1979 the Bullet and Silver Bullet model names were introduced. The stickers changed style and stopped saying Sport, or A3SP, or A3GM, or A3SL. Instead there were two sticker sets, white and black that said “Bullet”, or black and red that said “Silver Bullet”. The engine had either Tomos SP (30mph) or Tomos GM (25mph) sticker on the right side. After 1978 there were no more 20mph models made.

The Silver Bullet had more features than the Bullet: oil injection, turn signals, mag type wheels, luggage rack, a lift-up seat (to get to the two stroke engine oil tank) and chrome fenders. Oil injection means you don’t have to mix the oil and gasoline.

Before 1979, the long seat Tomos models did not have luggage racks. In 1979 Tomos made the “pommel horse” style seat, which is shorter. It had a zipper on the side leading to a tool compartment. The “pommel horse” was too short for two people, intentionally. But it left some room for a luggage rack. Some 1979-80 Bullets had the 1977-78 two-person seat with no luggage rack. They did not all change to “pommel horse” at once.




1981-1985 Tomos

VIN Codes: 1980 was the last year of sequential frame serial numbers on motor vehicles. 1981 was the start of mandatory (1980 was optional) 17-digit coded V.I.N format for motor vehicles worldwide. Digits 5 and 6 (red) are the two-digit model code. Digit 10 (blue) encodes the year. A=1980, B=1981, C=1982, D=1983, E=1984, F=1985, G=1986, H=1987, J=1988, K=1989, L=1990, M=1991, N=1992, P=1993, R=1994, S=1995, T=1996, V=1997, W=1998, X=1999, Y=2000, 1=2001, 2=2002, 3=2003, 4=2004, 5=2005, 6=2006, 7=2007, 8=2008, 9=2009, A=2010, B=2011, C=2012, D=2013, etc.

1981 Tomos Bullet SP (30)
VY2A0111#BK######
1981 Tomos Bullet GM (25)
VY2A0211#BK######
1982 Tomos Bullet SP (30)
VY2A0111#CK######
1982 Tomos Bullet GM (25)
VY2A0211#CK######
1983 Tomos Bullet SP (30)
VY2A0111#DK######
1983 Tomos Bullet GM (25)
VY2A0211#DK######
1984 Tomos Bullet SP (30)
VY2A0111#EK######
1984 Tomos Bullet GM (25)
VY2A0211#EK######
1985 Tomos Bullet SP (30)
VY2A0111#FK######
1985 Tomos Bullet GM (25)
VY2A0211#FK######

1981 Silver Bullet SP (30)
oil injection, snowflake mag wheels
VY2A0411#BK######
1981 Silver Bullet GM (25)
VY2A0511#BK######

1984 Tomos Silver Bullet V

1981 Silver Bullet SP
oil injection, 5-star mag wheels
VY2A0811#BK######
1981 Silver Bullet GM
VY2A0911#BK######
1982 Silver Bullet SP
VY2A0811#CK######
1982 Silver Bullet GM
VY2A0911#CK######
1983 Silver Bullet SP
VY2A0811#DK######
1983 Silver Bullet GM
VY2A0911#DK######
1984 Silver Bullet SP
VY2A0811#EK######
1984 Silver Bullet GM
VY2A0911#EK######
1985 Silver Bullet SP
VY2A0811#FK######
1985 Silver Bullet GM
VY2A0911#FK######





















1981 Tomos Silver Bullet no oil injection spoke wheels

1981 Silver Bullet SP
no oil injection, spoke wheels
VY2A0711#BK######
1982 Silver Bullet SP
VY2A0711#CK######
1983 Silver Bullet SP
VY2A0711#DK######

























1985 Golden Bullet SP (30)
VY2A1111#FK######
1986 Golden Bullet SP (30)
VY2A1111#GK######


































1986-1991 Tomos

The 1986-91 Tomos “late” A3 engine was black, not natural aluminum. The crank cases were cut wider for modern bearings, 17x40x12 6302, not 17x40x10 L17.

The carb is a Dellorto SHA14/12P, not an Encarwi A83, but still 12mm.

The controls are Domino “1980’s black”, not Magura. The throttle cable is single ended (universal), not double ended and specific.

The wheels are still Grimeca cast aluminum alloy, “5-star” style with sealed bearings, not “snowflake” style with loose balls and cones.





1986 Tomos Bullet pedal (30)
VY2A1211#GK######
1987 Tomos Bullet pedal (30)
VY2A1211#HK######
1988 Tomos Bullet pedal (30)
VY2A1211#JK######

1986 Golden Bullet pedal (30)
VY2A1311#GK######
1987 Golden Bullet pedal (30)
VY2A1311#HK######
1988 Golden Bullet pedal (30)
VY2A1311#JK######
1989 Golden Bullet pedal (30)
VY2A1311#KK######

1988 Tomos Bullet TT (30)
VY2A1411#JK###### (pedal)
VY2A??11#JK###### (kick)
1989 Tomos Bullet TT (30)
VY2A1411#KK###### (pedal)
VY2A??11#KK###### (kick)

























1987 Golden Bullet TTLX (30mph)
VY2A1911#HK###### (pedal)
VY2A??11#HK###### (kick)
1988 Golden Bullet TTLX (30mph)
VY2A1911#JK###### (pedal)
VY2A??11#JK###### (kick)

1988 Tomos A3 Bullet Z

1986 Bullet A3-01 (25mph)
VY2A2011#GK###### (pedal)
1987 Bullet A3-01 (25mph)
VY2A2011#HK###### (pedal)
1988 Bullet A3-01 (25mph)
VY2A2011#JK###### (pedal)
1989 Bullet A3-01 (25mph)
VY2A2011#KK###### (pedal)

.

.

.

.

.

.

.

.

1990 Tomos Bullet TT kick

1990 Bullet TT kick
VY2A??11#LK######
1991 Bullet TT kick
VY2A??11#MK######

.

.

.

.
.
.
.
.
.
1990 Tomos Golden Bullet TTLX

1989 Golden Bullet TTLX
VY2A3011#KK###### (pedal)
VY2A??11#KK###### (kick)
1990 Golden Bullet TTLX
VY2A3011#LK##### (pedal)
VY2A??11#LK##### (kick)
1991 Golden Bullet TTLX
VY2A3011#MK##### (pedal)
VY2A??11#MK##### (kick)

1990 Tomos Bullet TS turn signals, premix gas/oil VY2A3312#K######

1990 Tomos Bullet TS
turn signals, premix gas/oil
VY2A3312#LK###### (pedal)
1991 Tomos Bullet TS
VY2A3312#MK###### (pedal)

.

.

.
.
.
.
.
.
.
.
.
.
.
.
.

.

1990 Tomos Bullet TT

1990 Bullet TT pedal
VY2A3111#LK#####
1991 Bullet TT pedal
VY2A3111#MK#####

1989 Tomos A3 Bullet

1989 Tomos Bullet pedal (30)
VY2A2911#KK######
1990 Tomos Bullet pedal
VY2A2912#LK######
1991 Tomos Bullet pedal
VY2A2912#MK######

.

.

.

.

.

.

.

.

.




1992-1995 Tomos

A35 engine, Dellorto carburetor center mounted, CEV square headlight

1992 Tomos A35 Bullet
ZZ1A3412#NK###### (pedal)

1993 Tomos A35 Bullet TT
ZZ1A3512#PK###### (pedal)
ZZ1A4012#PK###### (kick)

.

.

.

.

.

.

.

.

.

.

.





1992 Tomos Colibri
ZZ1A3612#NK###### (pedal)
ZZ1A3712#NK###### (kick)

1995 Tomos Colibri
ZZ1A3612#SK###### (pedal)
ZZ1A3712#SK###### (kick)

.

.

.

.

.

.

.

.

.

.

.

1992 Tomos A35 Golden Bullet

1993 Tomos A35 Golden Bullet
VY2A3811#PK###### (pedal)

1992 Tomos A35 Golden Bullet TTLX Z

1992 Tomos A35 Golden Bullet TTLX
VY2A3911#NK###### (pedal)
VY2A4111#NK###### (kick)

.

.

.

.

.

.

.

.

.

.

 .
 .
 .
After the civil war, in 1992 Yugoslavia’s republics became separate nations.
VIN digits 1,2,3 changed from Yugoslavia Two (VY2) to Slovenia One (ZZ1).

1993 Tomos Sprint
ZZ1A4212#PK###### (pedal)
ZZ1A4312#PK###### (kick)

1995 Tomos Sprint
ZZ1A4212#SK###### (pedal)
ZZ1A4312#SK###### (kick)

.
 .
 .
 .
 .
 .
 .
 .
 .
 .
 .
 .
 .
 .
 .
 .
 .
 .
1993-1995 Tomos Sprint

1993-1995 Tomos Sprint

1993-1994 Tomos Sprint TT

1993-1994 Tomos Sprint TT

.
 .
 .
 .
 .
 .
 .

.

.

.

.

.

1994 Tomos Targa Z

1994 Tomos Targa (white/green)
ZZ1A4412#RK###### (pedal)
ZZ1A4712#RK###### (kick)

1994 Tomos Targa LX

1994 Tomos Targa LX
ZZ1A4612#RK###### (pedal)
ZZ1A4812#RK###### (kick)

.

.

.

.

.

.

.

.

.

.

.

.

1995 Tomos Targa (white/burgundy)
ZZ1A4512#SK###### (pedal)
ZZ1A4912#SK###### (kick)

1995 Tomos Targa LX (with a bent fork)
ZZ1A4612#SK###### (pedal)
ZZ1A4812#SK###### (kick)

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.


1998-2005 Tomos Off Road

2001 Tomos Super Tom

Welcome, parents of 5 to 10 year old motorcycle riders. Watch out for Superman’s cousin, Super Tom.Wring, wrang. Tomos A35 two stroke, two speed power. You can’t hold it back, it’s too strong!

.

.

.

.

.

.

2003 MC50 Senior Pro

2003 MC50 Senior

2003 MC50 Junior

2003 Tomos MC36

.

.

.

.

.

.

.

.

’05 MC50 Senior Pro

2005 MC50 Senior

2005 MC50 Junior

2005 Tomos MC36

.

.

.

.

.

.

.

.

.

.

.

2005 Tomos MC80

Welcome, race fans. The Tomos MC80 is a 79cc 3-speed semi-automatic (foot shift but no clutch).It has a Bing 14mm carburetor, 7.0 compression ratio, 5.1″ travel fork, and 105mm brake drums.Tires 2.50-16 front, 2.75-14 rear. Weight 190 lbs……

.

.

.

.

.

.




1996-2006 Tomos

1996 Tomos Sprint
ZZ1A6112#TK###### (pedal)
ZZ1A6412#TK###### (kick)

1996 Tomos Targa LX
ZZ1A6212#TK###### (pedal)
ZZ1A6512#TK###### (kick)

1996 Tomos Targa
ZZ1A6312#TK###### (pedal)
ZZ1A6612#TK###### (kick)













.

.

.

.

.

.

.



2004 Tomos Tomos
ZZ1A6312#4K######

2005 Tomos ST
ZZ1A6312#5K######

2005 Tomos ST
ZZ1A6312#5K######

.

.

.

.

.

.

.

.

.

.



2005 Tomos LX
ZZ1A6212#5K######

2005 Tomos LX
ZZ1A6212#5K######

.

.

.

.

.

.

.

.

.

.

1998 Tomos TT Classic

2005 Limited Edition
ZZ1A6212#5K###### (pedal)
ZZ1A6512#5K###### (kick)

.

.

.

.

.

.

.

.

.

.

.

.

.

.

2004 Tomos Revival

2003 Tomos Revival

.

.

.

.

.

.

.

.

.

2005 Tomos Arrow
ZZ1A7812#8K###### (pedal)
ZZ1A7712#8K###### (kick)

.
.
.
.
.

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.

.

2008 Tomos Arrow-R
ZZ1A7712#8K###### (pedal)
ZZ1A7612#8K###### (kick)

2008 Tomos Arrow R
ZZ1A7712#8K###### (pedal)
ZZ1A7612#8K###### (kick)

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.

2007 Tomos Streetmate
ZZ1A8012#7K###### (pedal)
ZZ1A7912#8K###### (kick)

2005 Tomos Streetmate
ZZ1A8012#5K###### (pedal)
ZZ1A7912#5K###### (kick)

.
.
.
.
.
.

.
.
.
.
.
.
.
.
.
.
.

2012 Tomos Streetmate-R Z

2008 Tomos Streetmate-R
ZZ1A9412#8K###### (pedal)
ZZ1A9312#8K###### (kick)

2012 Tomos Streetmate-R

2012 Tomos Streetmate-R
ZZ1A9412#CK###### (pedal)
ZZ1A9312#CK###### (kick)

.
.

 .
 .
 .
.
.
.
.
.
.
.
.
 .
 .
 .
 .
 .

 .

2007 Tomos LX
ZZ1A9212#7K######

 .
 .
 .
 .
 .
 .
 .
 .
 .
 .
.
.
.
.
.
 .
 .
 .

2009 Tomos ST
ZZ1A9012#7K###### (pedal)
ZZ1A8912#AK###### (kick)

2012 Tomos LX
ZZ1A9212#CK######

.
.
.
.
.
.
.
.
.

.
.
.
.









Welcome. Find your Tomos (USA) model from the VIN. See history and pictures. Click to enlarge.
