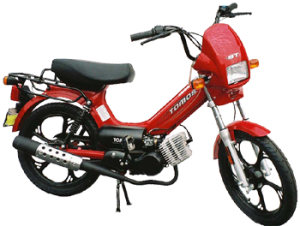

Parts for Tomos ST 2007-2012

December 12, 2011
Click to see each parts group image, 1 to 18. Click to enlarge to full size. Click the back arrow to return.
1 Engine                 2 Crank, Clutch       3 Transmission       4K Kick Starter      4P Pedal Starter     5 Magneto, Ignition
6 Oil Injection         7 Carburetor          8 Exhaust, Seat       9 Covers, Fairing     11 Frame Parts     12,13 Decals, Fork
14 Handlebars        15 Controls            16 Front Wheel       17 Rear Wheel        18 Electrical Parts

Welcome to the Tomos A55 ST Parts Gallery.        Vehicle Identification Number (digits 5, 6, 10) examples:

Tomos ST 2007 pedal:   ZZ1A9012#7K###### (shown)        Tomos ST 2010  kick:    ZZ1A8912#AK######

Five ST Parts manuals are combined here, 2007, 2008, 2009, 2011, 2012, with many additions and improvements. All prices are included.

Substitute parts are labeled with a Z and shaded light green. They can replace an original part that is not available, or offer an optional style or color. We don’t like N/A either!



Wide format makes it possible to view many years at once. Prints on 14″ legal size paper with Preferences settings: Orientation: Landscape, Paper Size: Legal

Some notes about Tomos parts:

  1. ISO 7380 bolts are use throughout, when practical. ISO 7380 is a type of machine screw with a domed allen head, also known as button head (BA) allen. The six-sided hole for the allen wrench is one size smaller than a regular allen head. So an M6 allen bolt takes a 5mm allen wrench, while a M6 button head allen bolt takes a 4mm allen wrench, an M5 allen takes a 4mm wrench, while an M6 BA takes a 3mm wrench, and so on. The button head looks and feels nicer, but strips the wrench hole easy. ISO 7380 buttonhead allen bolts were used from 2003 to 2009. Before that the bolt style was pan-phillips and regular hex.
  2. Flange hex bolts are used throughout the 2010 and later models. The flange is like a built-in washer under the hex. They work great but look ugly. The 2010-2011 parts manuals still contain the older buttonhead allen bolts. When the parts become available the 2010-2011 manuals will be updated. Until then if you order certain screws/bolts for a 2010-2011, you will get some that work the same but look way different.
  3. Spring ring means lock washer.
