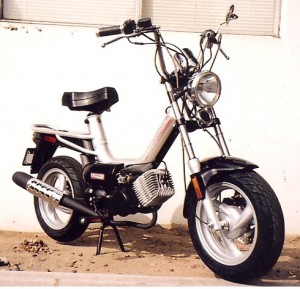

Parts for Tomos Arrow 2005

December 12, 2011
Click to see each parts group image, 1 to 15. Click to enlarge to full size. Click the back arrow to return.
1 Engine                  2 Crank, Clutch      3 Transmission         4K Kick Starter      4P Pedal Starter    5 Magneto, Ignition
6 Carburetor            7 Oil Injection         8 Ex, Seat, Covers   9 Decals, Fenders      10 Frame             11 Front Fork
12 Controls, Bars    13 Front Wheel       14 Rear Wheel          15 Electrical Parts

 Welcome to the Tomos Arrow Parts Gallery.       Vehicle Identification Number (digits 5, 6, 10) examples:

Arrow 2005 pedal:   ZZ1A7812#5K###### (shown)       Arrow 2005  kick:    ZZ1A7712#5K######

One Arrow parts manual is here, 2005, with many additions and improvements. All prices are listed.

Substitute parts are labeled with a Z and shaded light green. They can replace an original part that is not available, or offer an optional style or color. We don’t like N/A either!

Prints on regular paper with Preferences settings: Orientation: Landscape, Paper Size: Letter
