1976 Puch Maxi S, Maxi N, Nostalgic

Info Puch 1976 A

1976 Maxi N, S

Info Puch 1976 B

1976 Nostalgic

Info Puch 1976 N

1976 Maxi N

Info Puch 1976 Nostalgic, S

1976 Nostalgic, S




















1977 Puch Rigid, Maxi, Maxi S, Newport

The Maxi N became the Rigid. The Nostalgic became the Newport. The Maxi S became Maxi Sport.

Info Puch 1977 A

1977 Rigid, Maxi

Info Puch 1977 B

1977 Maxi-S, Newport

Info Puch 1977 1

Puch 1977 p1

Info Puch 1977 2

Puch 1977 p2









Info Puch 1977 3

Puch 1977 p3

Info Puch 1977 4

Puch 1977 p4















Info Puch 1977 5

Puch 1977 p5

Info Puch 1977 6

Puch 1977 p6

Info Puch 1977 7

Puch 1977 p7

Info Puch 1977 8

Puch 1977 p8
















1978-1979 Puch GN, Maxi, Maxi Luxe, Sport, Newport L, Sport MkII, Maxi II, Magnum XK, Magnum MkII

Info Puch 1978

Info Puch 1978

Puch 1978 Flyer

Puch 1978 Flyer



The Rigid became the GN.
The two speed engine was introduced on Maxi II.
The Maxi Sport became the Sport, or Sport MkII.
The Newport became Newport L, or Newport (oil inject).
The Magnum top tank models were introduced.









Puch 1978 GN

Puch 1978 GN

Puch 1978 Maxi

Puch 1978 Maxi

Puch 1978 Maxi Luxe

Puch 1978 Maxi Luxe

Puch 1978 Newport

Puch 1978 Newport















Puch 1978 Sport

Puch 1978 Sport

Puch 1978 Sport MkII

Puch 1978 Sport MkII

Puch 1978 Magnum XK

Puch 1978 Magnum XK

1978 Magnum MkII

1978 Magnum MkII


















1980-1981 Puch Maxi, Maxi Luxe, Newport II, Sport MkII, Magnum II, Magnum LTD, Series B

Info Puch 1980

Info Puch 1980

Puch 1980 Magnums

1980-81 Magnums

Many one speed models were discontinued.
The Newport became Newport II.
The Magnum XK became Magnum II.
The 100 year anniversary Magnum Limited Edition.
The Puch Series B was better known as Murray.













1981 Puch Series B

1981 Puch Series B
90% same as Murray

Puch 1981 p1-2

Puch 1981 p1-2

Puch 1981 p3-4

Puch 1981 p3-4

















Puch 1981 p5-6

Puch 1981 p5-6

Puch 1981 p7-8

Puch 1981 p7-8

Puch 1981 p9-10

Puch 1981 p9-10

Round Out Your Wheels

Puch 1980 Ad
















1982-1984 Puch Dart, Maxi Sport LS, Cobra, Austro-Daimler        (II means 2-speed)

Puch 1984 A

Puch 1984 A

Puch 1984 B

Puch 1984 B

Puch spent much time and money designing the Austro Daimler.
Puch called the Austro Daimler “Maxi Plus” in the parts manual.
Too bad it had a high price, and was only made 1984-1986.













1985-1986 Puch Maxi, Maxi Sport LS, Maxi Sport LS II, Cobra II, Austro-Daimler II

Info Puch 1986

Info Puch 1986

1985 Puch Maxi

1985 Puch Maxi

1985 Puch Maxi Sport LS 2

1985 Maxi Sport LS-2















Puch 1986 Cobra II

Puch 1986 Cobra II

Puch 1986 Cobra II

Puch 1986 Cobra II
















1987-2005 “Puch” made by Piaggio, Manet, Hero

Puch Remakes Not Puch

Puch Remakes

After over 100 years, Steyr Daimler Puch went out of business. The moped making equipment was sold to three different countries. First Piaggio in Italy produced the Puch Super Maxi in the early 1990’s. Then Manet in Slovakia produced the Puch Korado in the late 1990’s. Then Hero in India produced the Hero Puch Automatic in the early 2000’s. These remake Puchs had many things the same, but also many things, especially out-sourced components, different from the original Puchs.












Puch Info

Puch Models Chart

Puch Models Chart

Puch Speed Versions

Puch Speed Versions

Puch Engines

Puch Engines
































Puch Wheel Parts

Puch Spoke Wheels

Puch Spoke Wheels (pre-1980)































1   freewheel 23T
2  rear axle nut
3  rear inner nut
4  rear axle washer
5  rear cone
6  rear dust ring
7  rear ball
8  rear cup
9  rear lock nut
10 rear axle
11 rear hub bare
12 sprocket bolt
13 sprocket washer
14 sprocket nut
15 sprocket
16 brake shoe
17 brake spring
18 rear brake plate
19 rear inspect plug
20 rear assist spring
21 front axle nut
22 front axle washer
23
24
25
26
27
28
29
30
31
32
33
34
35

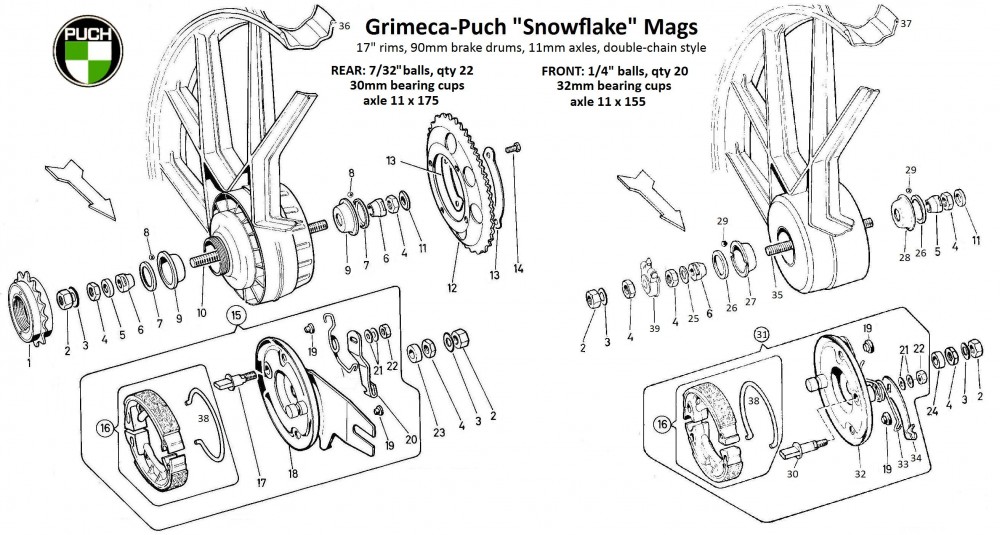

>>>>>>>>>>> S N O W F L A K E   W H E E L S   f o r   P U C H  <<<<<<<<<<<<
>>>>>>>>>> G R I M E C A   P U C H   M A G S <<<<<<<<<
Part # # ←picture#………Description Price      Applications
###### ### ############################# #### ##################################
……G R I M E C A .. P U C H…M A G S… 77-79 Puch Sport/Magnum MkII/Sears Free Spirit
1 freewheel 23 tooth see sprockets see sprockets…must be big to clear swingarm
H112 2 axle nut M11x1.0/hex17/length=10mm see Grimeca
3 thin washer M11/19/length=0.8mm $1 see Axle Washers
H56 4 thin nut M11x1.0/hex17/length=6mm see Grimeca
5 spacer ID=12/OD=16/length=3mm $3 see Axle Spacers
H66 6 cone Grimeca 11mm see Grimeca
7 rear dust ring for 30mm cup
8 rear ball bearing 7/32″=5.5mm qty 22 $2 see Wheel Bearings
9 rear bearing cup OD=30mm $18
10 rear axle M11x1.0/length=180mm see Axles
11 washer M12/18/length=2mm see Axle Washers
12 chain sprocket 45or40T…see sprockets see Sprockets
13 sprocket locking plate $2
14 sprocket bolt M6x16/hex10 see Hardware
15 rear brake panel complete N/A
16 brake shoes 90mm for horseshoe see Brakes
17 rear brake cam 40mm long $10
18 rear brake panel bare N/A
H148 19 rubber inspection plug 9mm see Grimeca
20 rear brake arm $7
20a rear brake helper spring $5
21 brake arm washers see Hardware
22 brake arm nut M6 see Hardware
23 spacer ID=12/OD=16/length=7mm see Axle Spacers
24 spacer ID=12/OD=16/length=6mm see Axle Spacers
25 washer M12/18/length=1mm see Axle Washers
H68 26 dust cover Grimeca for 32mm cup see Grimeca
27 bearing cup RH Grimeca OD=32 w/slots $6 slots for VDO speedo Puch/KTM/Kynast
H69 28 bearing cup Grimeca OD=32mm see Grimeca
H67 29 ball bearing 1/4″ see Wheel Bearings
30 front brake cam 46mm long $10
31 front brake panel assy steel used $35
31a front brake panel assy aluminum $35 original on some models new upgrade
32 front brake panel bare $25
33 front brake helper spring $5
34 front brake arm $5
35 front axle M11x1.0/length=155mm ref see Axles
36 rear Snowflake rim bare $100
37 front Snowflake rim bare $80
38 horseshoe brake spring $8 scarce
39 speedo driver VDO/len=?? see speedo see speedo
