Mirrors

September 6, 2011

Mount Types

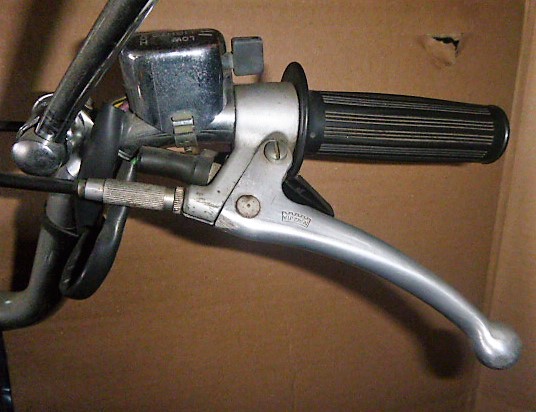

Clamp-on 70’s Magura

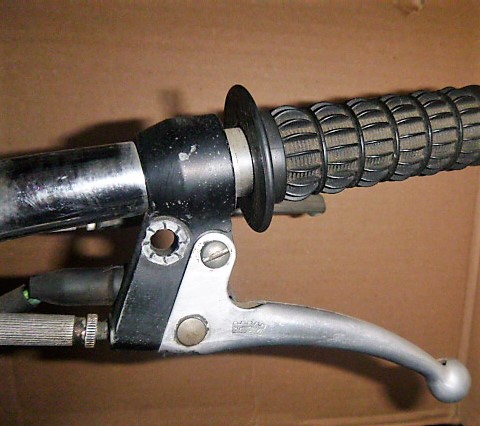

Bolt-on 80’s Magura

Bolt-on 80’s Domino

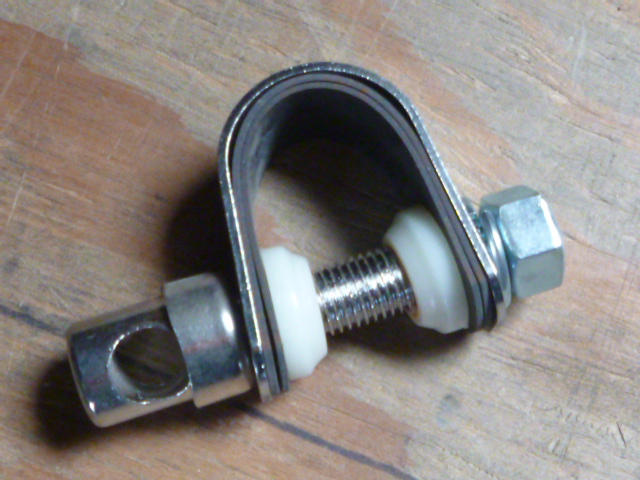

Clamp-on Mirrors

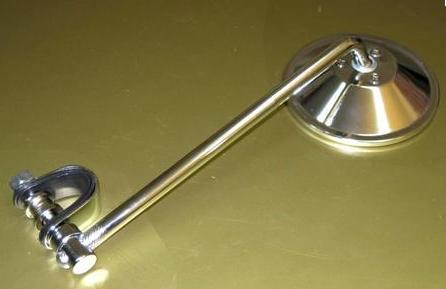

Round chrome clamp on mirror 8 inch

1. R or L round chrome
 10 inch clamp-on
fits all 7/8″ handlebars
56-9865     $12

3. Maltese Cross chrome clamp-on 10 inch

2. R or L Maltese Cross chrome
8 inch clamp-on
fits all 7/8″ handlebars
16-0096        $15




















Screw-in Mirrors

3. R or L round black 10″
M8 screw-in reversible
right hand thread (RHT)
60-0020 $15

4. R & L black rectangular screw-in

4. R & L rectangular
black M8 screw-in
both RH thread
20-46208   $20/pair

2. R or L round black 10″ M8 screw-in reversible right hand thread

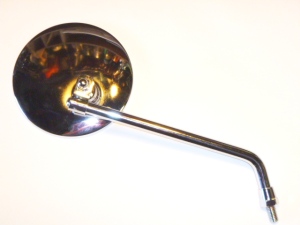

5. R or L round chrome
M8 screw-in reversible
right hand thread (RHT)
56-9808           $15






















Bolt-on Mirrors

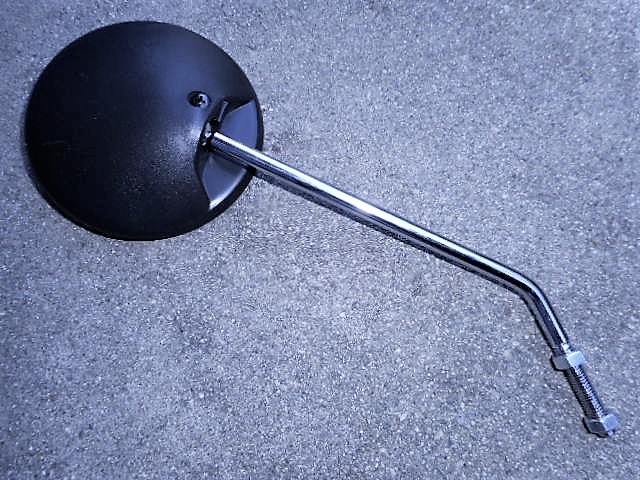

6. R or L round black/chrome
M8 bolt-on “deep” (long threads)
 also a clamp-on  56-9901 $15

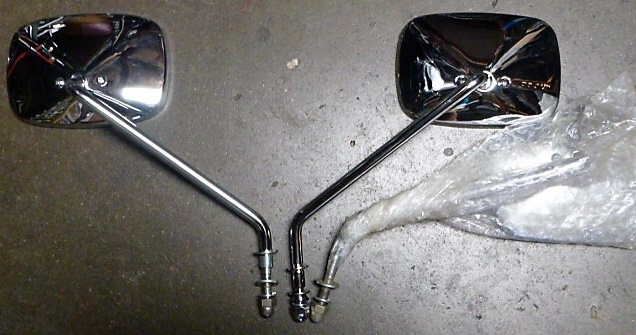

11. R or L Harley style chrome rounded 5/16" screw-in or clamp-on right hand thread

7. R or L Harley style chrome 5/16″ RHT
bolt-on (short thread)
49-0738         $15

Some bolt-on controls have “deep” holes, where the mirrors need to have a longer threaded section. The HR controls on 1991-2007 Tomos need M8 bolt-on “deep” type mirrors.

A “deep” type bolt-on can replace a “short” bolt-on, or a clamp-on, by repositioning the upper nut.

Either type of bolt-on can replace a right hand thread screw-in.








Tomos OEM Mirrors 1978-2013

1978 to 2008: For three decades wise Tomos used the same part number 223255 for the mirror, even though the style changed five times (’78-80, ’80-86, ’87-91, ’89-00, ’01-08). So if you wanted to get a matching mirror for the other side, you could only get one for a few years. If you waited too long, the replacement mirror would be a newer style. These 223255 mirrors were all reversible, where the glass can be made to face the reverse direction, so they work on either the right or left side.

N/A means not available. All US-model Tomos moped mirror types are shown here, but not all are for sale.

2008 to 2013: Many design changes happened in 2008. Non-reversible screw-in mirrors were on all 2008 Tomos models, where in 2007 they were only on Revival, Streetmate, and Arrow. On those models, the Italian way (left thread) of threading a right side mirror changed to the Asian way (right thread).

Add to that confusion, a “wheel of fortune” with 100 slices, 98 rights and 2 lefts, that determines whether a new bike will get right or left hand threads, in the right mirror hole. 98% of the time, the wheel lands on “right”, but 2% of the time it lands on “left”.

RH and LH threads: Screw-in mirrors sometimes have left-hand threads. That means they screw-in the opposite direction. A right hand (RH) thread screws in clockwise. A left hand (LH) thread screws in counter-clockwise.

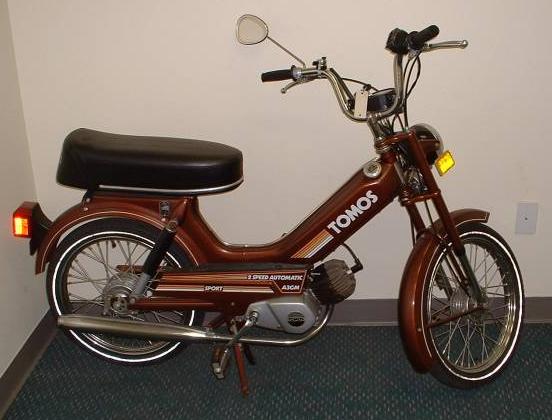

1978 Tomos with
 223255 78-80

223255 78-80 N/A

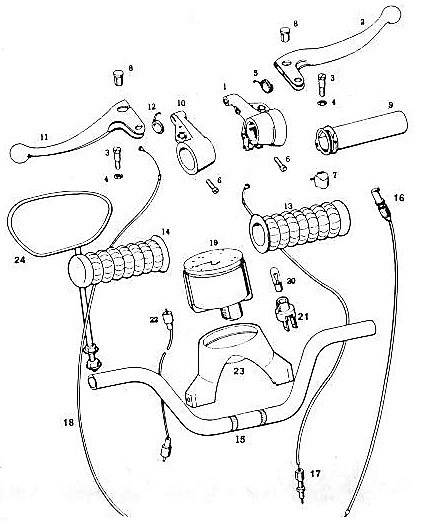

1978-1980 Magura controls, silver, no mirror mount holes

clamp-on left mirror             clamp-on right mirror

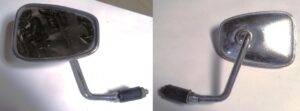

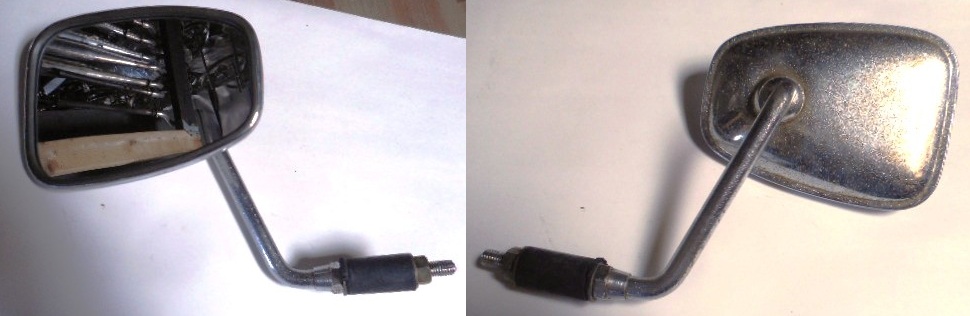

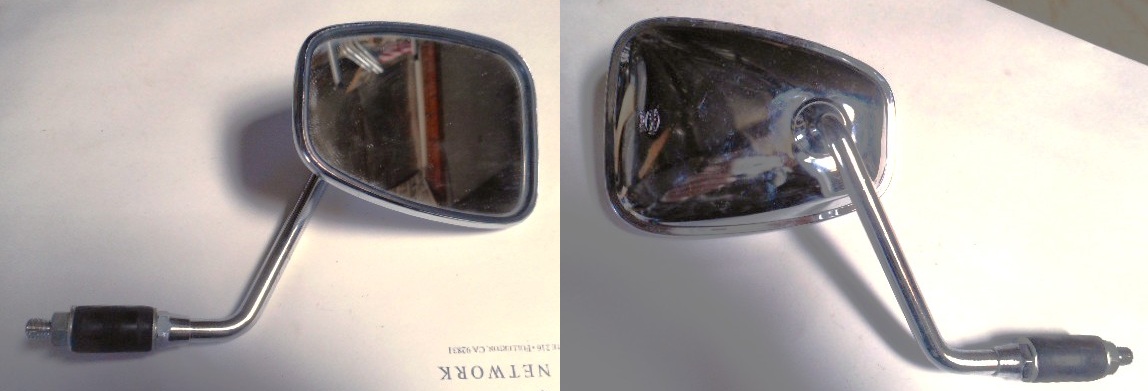

This mirror is a clamp-on, reversible. It has an irregular rounded shape with a white border.

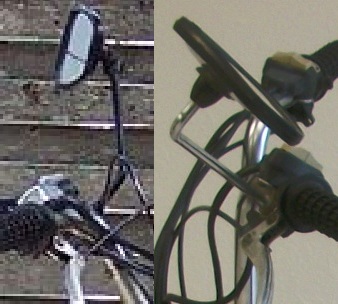

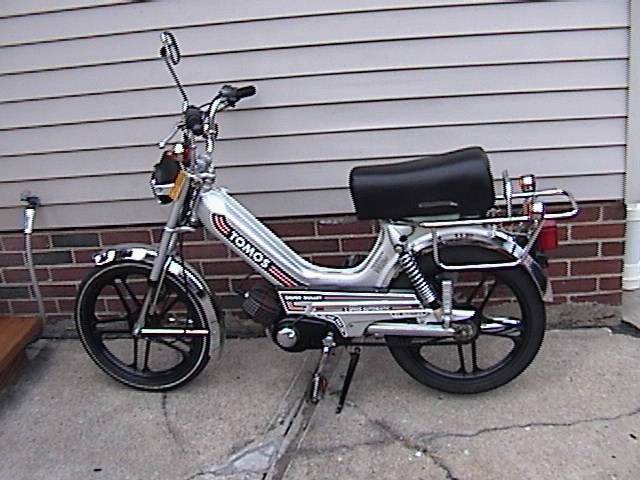

1985 Tomos with
 223255 80-86

223255 80-86 N/A

1980-1986 Magura controls, black housings, left bolt-on hole

bolt-on left mirror           clamp-on right mirror

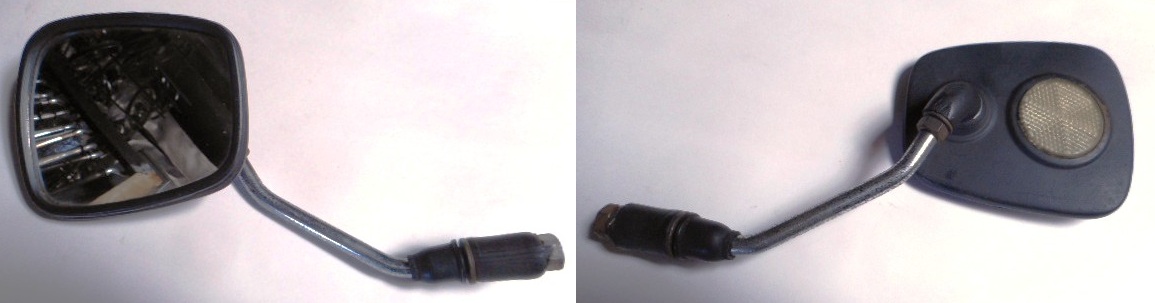

This mirror is a bolt-on, reversible. It has the same irregular rounded shape, but with a black border. It can also be a clamp-on.

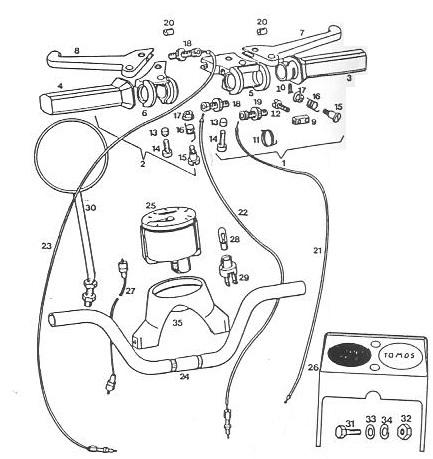

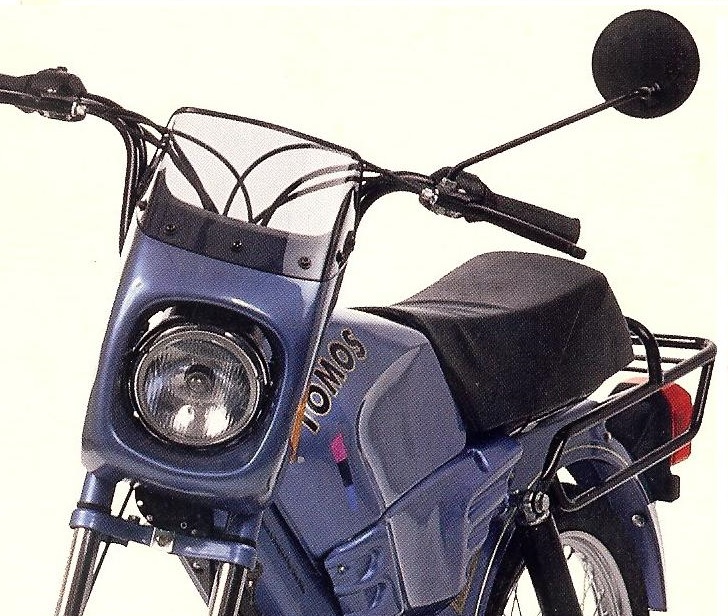

1987 Tomos with
 223255 87-91

223255 87-91 N/A

1987-1991 Domino controls, all black, bolt-on mount holes

bolt-on left mirror               bolt-on right mirror

This mirror is a bolt-on, reversible. It is circular and all black. The stalk clamps in the center of the circle.

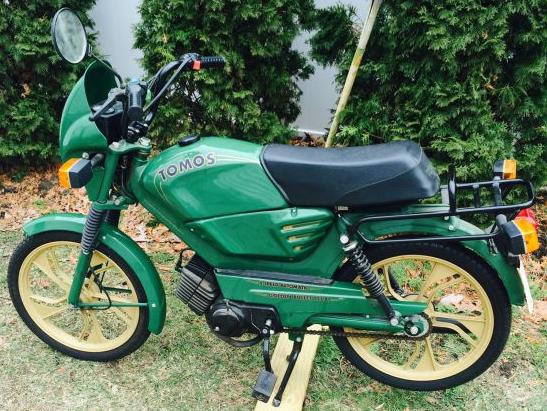

1993 Tomos with
 223255 89-00

223255 89-00 $25

1989-1990 Domino controls, all black, bolt-on mount holes

1991-2000 HR controls, all blackblue horn button, bolt-on “deep”

bolt-on left mirror                    bolt-on right mirror

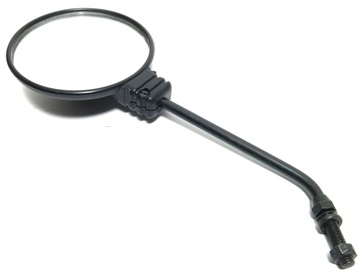

This mirror is a bolt-on, reversible. It is circular, all black, and rounded in the back. The stalk clamps at the edge. The glass is very convex, so objects are closer than they appear. Many become corroded, wavy, or foggy. It is made in Slovenia by Tomos. E3 approved.




223691   $25

no photo

1991-1992 A35 Bullet, Colibri (some)

HR controls, all blackblue horn button, bolt-on “deep”

bolt-on left mirror                    bolt-on right mirror

This mirror was not used much. Most early 1990’s US models had round mirrors. That is why there is no photo. It is made in Slovenia by Tomos. E4 approved.




2003 Tomos with
223255 01-08

223255 01-08 N/A

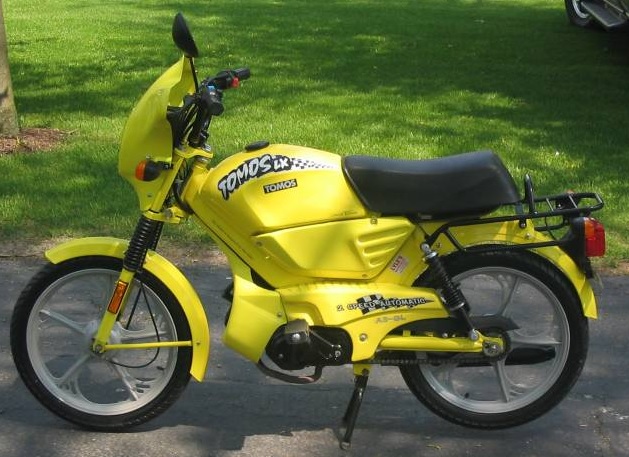

2001-2008 Sprint, Targa, ST, LX

HR controls, all blackblue horn button, bolt-on “deep”

bolt-on left mirror                   bolt-on right mirror

This mirror is a bolt-on, reversible. It is circular, all black, and rounded in the back. The stalk clamps at the edge. The shape is like a teardrop. This mirror is not convex, and has good visibility. It is made in Slovenia by Tomos. E4 and DOT approved.




232988 N/A
R mirror L thread

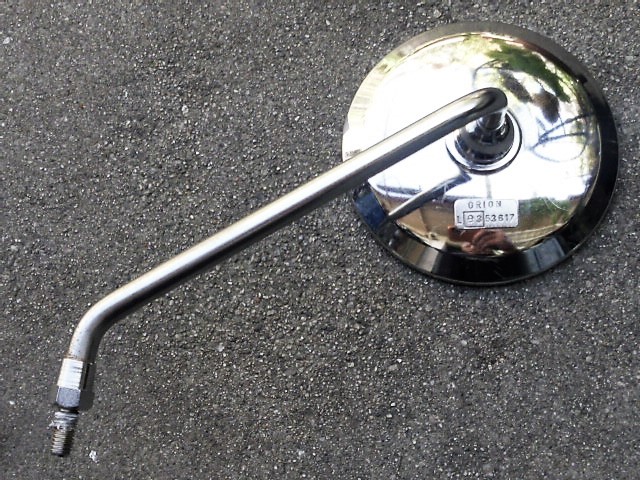

2005 Revival with
left mirror 232759

232759 $25 used
L mirror R thread

2001-2007 Revival, Streetmate, Arrow

Domino controls, yellow horn button, screw-in

screw-in left, RH thread   screw-in right, LH thread

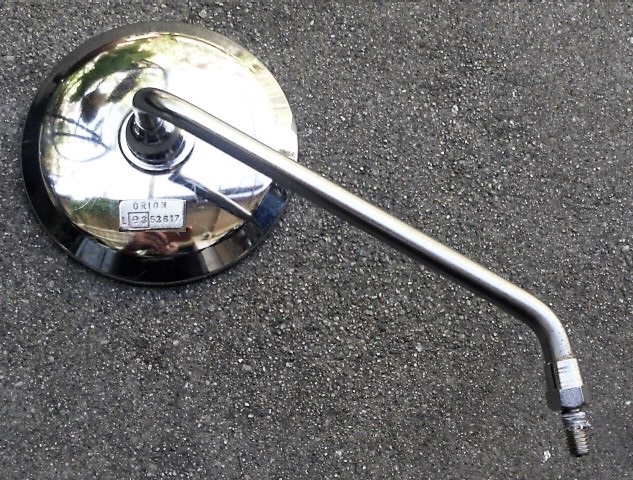

These mirrors are left or right, not reversible. They are circular, all chrome, and almost flat in the back. The stalk is thick, 10mm. They are made by Orion. E3 approved.

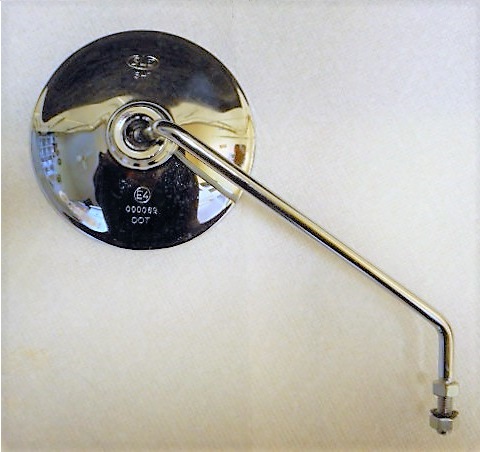

236967 N/A
R mirror L thread

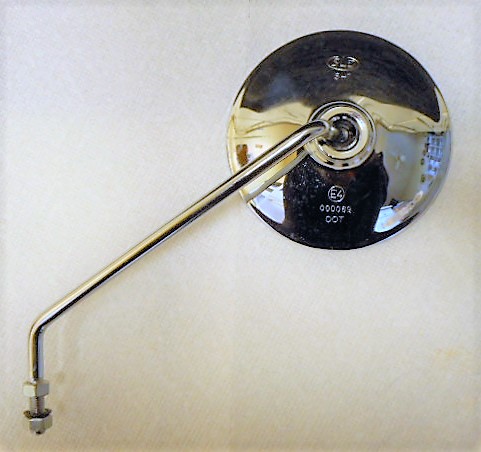

236968 $30 new
L mirror R thread



The replacement (spares) mirrors with the same part number were the later style made by SLD. These mirrors, left and right, are circular, all chrome, and rounded in back. The stalk is thin, 8mm. They are made by SLD. E4 and DOT approved.

236968 supersedes 232759        236967 supersedes 232988.






none offered
R mirror R thread

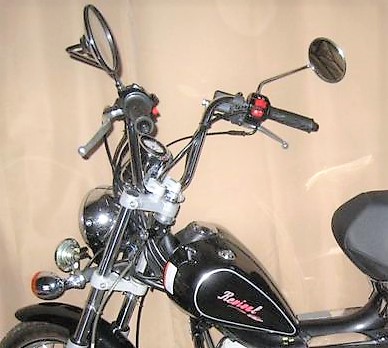

2008 Revival with
left mirror 236968

236968 $30 new
L mirror R thread

’08-13 Revival, Streetmate, St.-R, Arrow-R

TBS controls, red horn button, screw-in holes

left, RH thread      right, RH thread (most)

left, RH thread      right, LH thread (some)

This left mirror is screw-in, circular, all chrome, and rounded in back. It is made by SLD. E4 and DOT approved.




7. L Tomos 2010's round black M8 RH screw-in

236965 $30 new
R mirror L thread

8. R Tomos 2010's round black M8 RH screw-in made by twisting a left

236966 $25
L mirror R thread

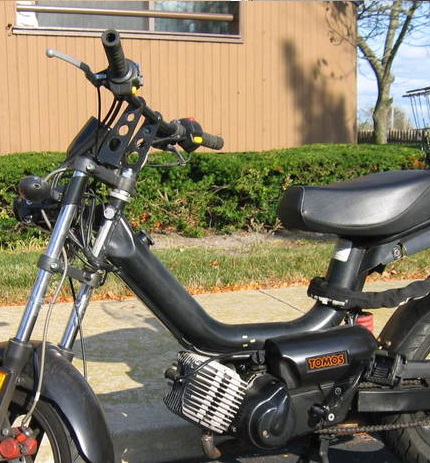

2007 Arrow-R

2006-2007 Arrow-R

Domino controls, yellow horn button, screw-in holes

screw-in left, RH thread   screw-in right, LH thread

These mirrors, screw-in left and right, are circular, all black, and rounded in back. They are made by SLD. E4 and DOT approved.

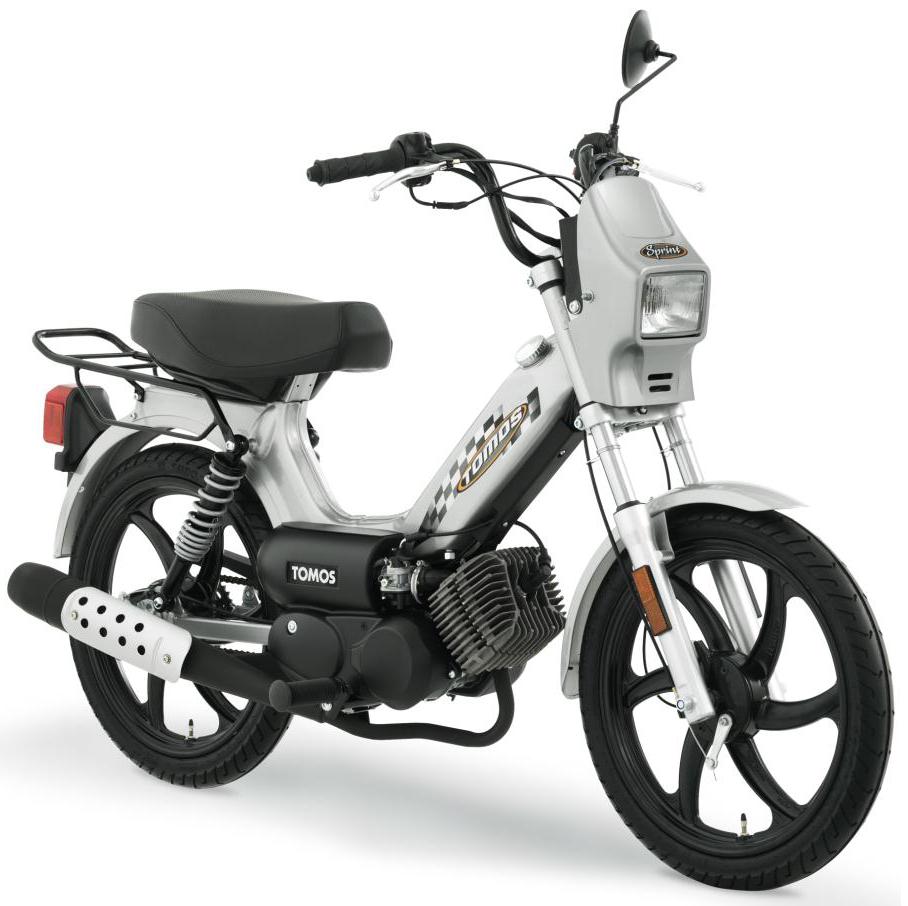

2012 Sprint with
left mirror 236966

none offered
R mirror R thread

8. R Tomos 2010's round black M8 RH screw-in made by twisting a left

236966 $25
L mirror R thread

2008-2013 Sprint, ST, LX

TBS controls, red horn button, screw-in holes

left, RH thread      right, RH thread (most)

left, RH thread      right, LH thread (some)

This left screw-in mirror is circular, all black, and rounded in back. It is made by SLD. E4 and DOT approved.



None offered: Around 2007 Tomos USA changed the screw-in mirror descriptions to 236965 MIRROR BLACK RHM LHT, 236966 MIRROR BLACK LHM RHT, 236967 MIRROR CHROME RHM LHT, 236968 MIRROR CHROME LHM RHT to say what side and what thread. But the actual part labels printed in Slovenia on the non-reversible mirrors still said MIRROR CHROME (REVERSIBLE) or MIRROR BLACK (REVERSIBLE). Tomos did not supply matching right hand mirrors RHM with right hand thread RHT, for 2008 and later, to the Tomos USA inventory. So the only matching right and left mirrors for a 2008-2013 Tomos moped (US model) are aftermarket mirrors.

Twisting: One way to get a matching right mirror is to twist a 236966 black or 236968 chrome left mirror 180 degrees. This makes the straight stalk curved and leaves vise marks. If done carefully the marks and curve are not noticeable. The chrome tends to crack and does not “like” the twisting as much as the black. This is how Myrons Mopeds supplied matching right side RH thread mirrors, dozens of times, that Tomos did not offer.

Wheel of fortune: For 2008-13 models, besides the incorrect labeling and lack of spare rights, Tomos somehow combined the supply of TBS (Domino clone) right control housings, right hand thread, with Domino right control housings, left hand threads. Some, like 2%, Tomos bikes had LH thread, while most, like 98% had RH thread. There is no way to predict which models, or years, or colors had the leftie mirror threads. This was only on the right side, thankfully. The left always had right hand M8x1.25 threads.

Since no one can say for sure what the right side mirror threads are, just by the year and model, the thread type must be determined by the owner or the person near the bike. Here are three ways to tell what thread it is:

  1. Visually. If the threads get deeper in the hole as you go clockwise with your eyes, then it is RH thread.
  2. If the left side mirror (M8x1.25 RH thread) can also screw in the right side hole, then it is RH thread.
  3. If there is a M8x1.25 bolt available, it can be used as a tester. If it can screw in, then it is RH thread.
