Forks

July 14, 2014

Contents:  A. Forks   B. Fork Parts   C. Swing Arms

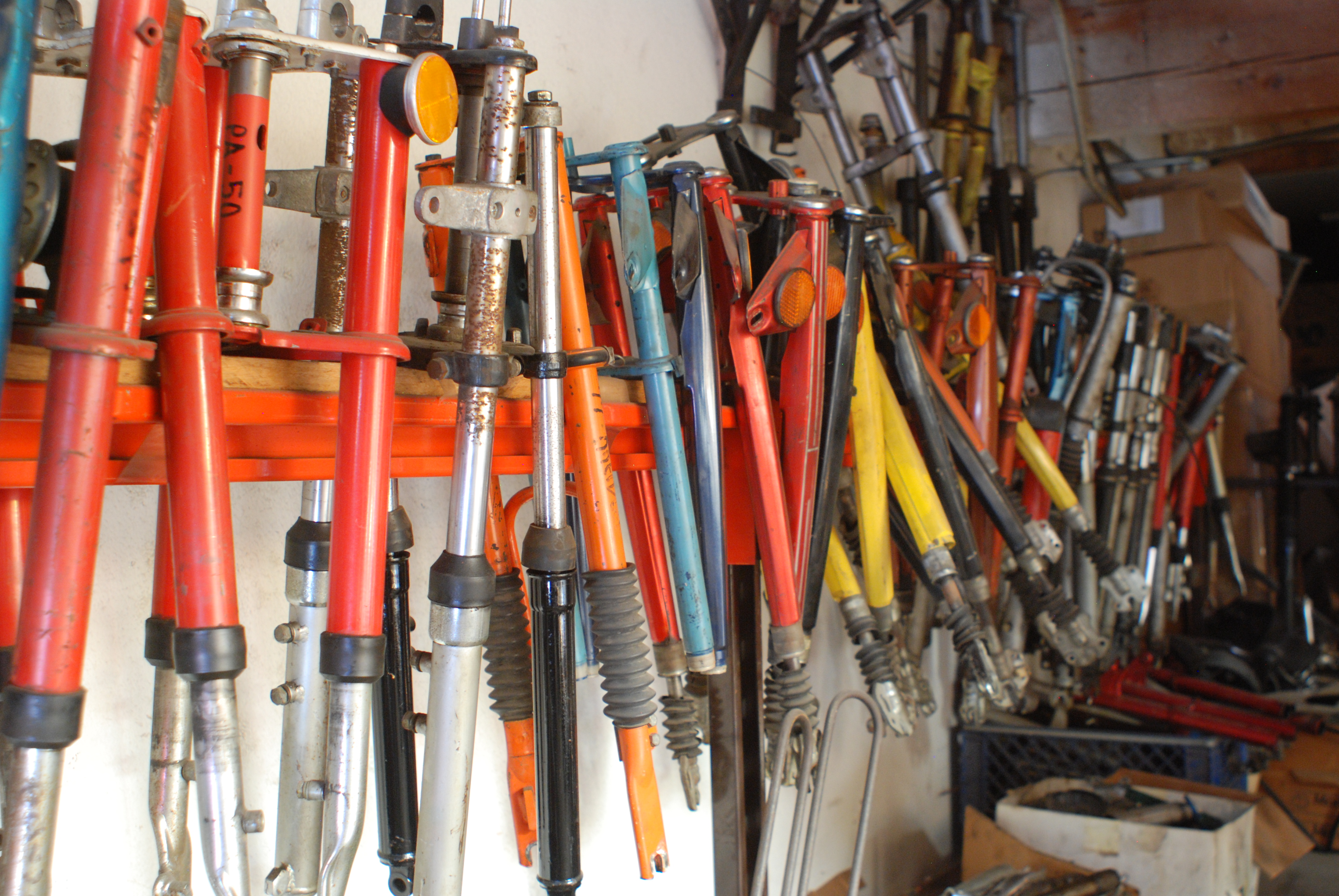

A. Forks



Part # # ←picture#………Description Price      Applications
###### ### ############################# #### ##################################
…… F…R…O…N…T……F…O…R…K…S……
fork assy used straight Puch Maxi $100 Puch Maxi
fork assy used straight Motobecane $80 Motobecane
fork assy used straight Tomos early $100 Tomos 75-85
fork assy used straight Tomos N/A Tomos 86-06
fork assy used straight Batavus $100 Batavus 76-78
fork assy used straight Peugeot 103 LVS $100 Peugeot 103 LVS 76-80
fork assy used straight Peugeot 103 SP N/A Peugeot 103 SP 78-80 longer
many other used straight forks call
fork assy new Tomos Sprint/ST/LX silver Tomos 07-later Sprint/ST/LX
fork assy new Tomos Revival longer silver Tomos 07-later Revival&Streetmate
fork assy new Tomos Streetmate-R black Tomos 07-later Revival&Streetmate
fork tube one Peugeot 103 LVS new $50 Peugeot 103 LVS 76-80
fork tube one Peugeot 103 SP new $65 Peugeot 103 SP 78-80 longer
fork tube one Tomos A35 new $40 Tomos A3/A35 86-06
fork tube one used w/bushings Puch $45 Puch Maxi 75-86
fork bushing one nylon Puch Maxi $20 scarce Puch Maxi 75-86
fork top nut open hole early Puch Maxi $8 fits almost all mopeds
fork top nut closed late Puch Maxi $10 fits almost all mopeds






B. Fork Parts



1. Clamp-on Headlight Mounts

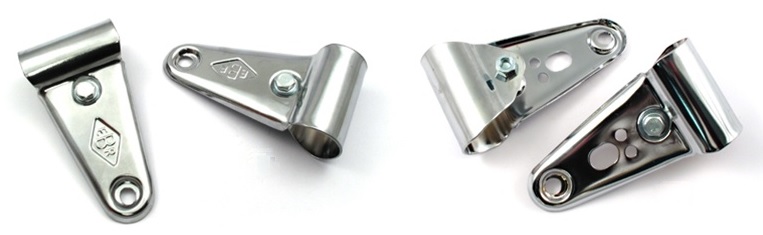

Clamp-on headlight mounts

For 28-30 mm fork tubes:

$17/pair or $9 each for Version 1 with EBR logo, no holes

$19/pair or $10 each for Version 2 with turn signal holes





For 26mm fork tubes:

The 28-30 brackets can work on 26mm fork tubes, with a 1.5mm rubber sleeve under the clamp.
The rubber sleeve also helps reduce vibration of the head light.
$2/
pair or $1 each for 1.5mm thick large black rubber washers used as sleeves.

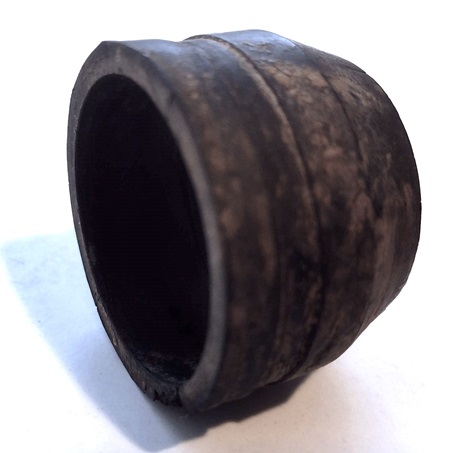

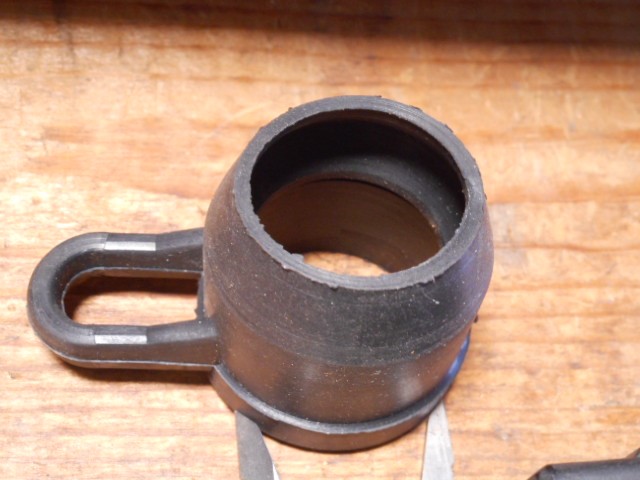

2. Fork Boots

fixed  slider slider
tube
 tube x  lip
diam  diam  diam  bike model
24.0   35.5   38.2   Indian AMI-50
25.0   36.0   none   treatland
26.0   00.0   00.0   General
26.0   33.2   none   Peugeot

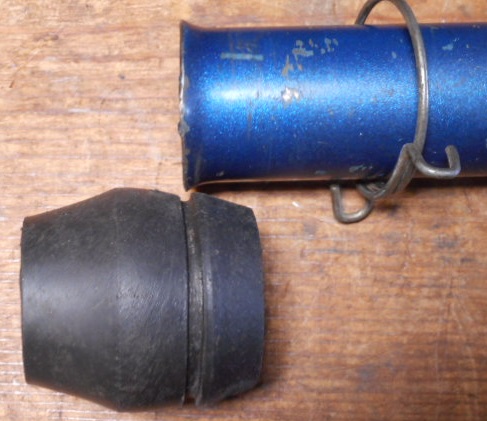

28.0   33.0   35.7   Garelli

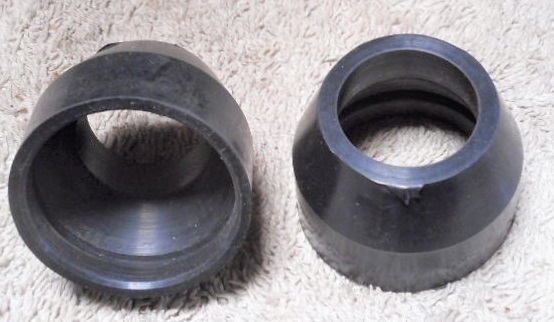

Indian fork boot












C. Swing Arms

Myrons has original swing arms. They are yet displayed or listed. Use email to inquire.
