Switches

July 14, 2014

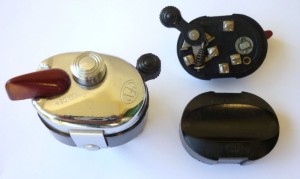

CEV 1950s all in onePuch MS50 and Tomos Colibri switch late 1950's1950’s Clamp-On Switches
At left is a 1950’s Italian made CEV “All in One” clamp-on switch. “All in One” means all of the buttons in one switch unit: lights, horn, and engine stop. At right is a 1959 Tomos Colibri 4 light and horn switch, polished cast aluminum. In the 1950’s and 60’s Tomos and Puch mopeds were the same. Tomos Colibri was a Yugoslavian “remake” of the Austrian made Puch MS50 series (sheet metal 50).


1960’s – 1970’s Clamp-On Switches
Before 1973 on motorcycles, and before 1976 on motorized bicycles, switches did not have to meet US DOT requirements. They did not have to say what they were for. They did not have to be reachable without letting go of the handlebar.

Most 1950’s-60’s mopeds had an “All in One” type switch, either CEV, Aprilia, or others, mounted on the left handlebar.

CEV switch 8052.1CEV 8052.1 “All in One” Lights Hi-Off-Lo, Horn, Engine Stop – Left side
8052.1   N/A  Switch assy, rounded and flat chrome, 2-buttons plus 3-position toggle
           (can also be turn signal left-off-right, horn, and engine stop)
           (this was original on pre-1976 and non-USDOT-compliant models)
           (’76-on US models had a toggle kill switch, reachable with the right thumb)


Lights-horn switch three positionGeneric Lights Hi-Off-Lo, Horn (or Engine Stop) – Left or Right side
401-68800  $15   Switch assy, rounded and flat chrome, 1-button plus 3-position toggle
               (can also be turn signal left-off-right, horn, and engine stop)





All in one switch two positionGeneric Lights Off-On and Horn (or Engine Stop) – Left or Right side
401-68710  $12   Switch assy, rounded and flat chrome, 1-button plus 2-position toggle






Universal Clamp-on Engine Stop Button – Right Side
609-1451  $12  Switch assy, momentary contact, press to “kill” engine
                   (can also be used as a horn button)
This is a low cost substitute for the original engine stop switch.
Pushing the button grounds the ignition wire, stopping the engine.




Merit 1960s all in oneMerit late 1960’s “Rectangular Chrome” All-In-One – Left side
  $25  Cap only
Merit Werke began in Germany 1966, then later moved to Malta, in the Mediterranean.
They still make automotive switches, with the same MW logo, but with the name Merit Malta.



Merit 1960s engine stopMerit late 1960’s “Rectangular Chrome” Engine Stop – Right side
  $20  Cap only, says “ON   OFF   OFF”

These older or non-US caps interchange with the newer US-compliant caps.





Merit 1960s lights and hornMerit late 1960’s “Rectangular Chrome” Lights and Horn – Left side

  $50  Complete switch new, says “MW Germany” inside, with clamp






CEV Oval switch 8109
CEV 8109 “Oval Chrome” “All in One” Switch – left side (or R)
8109       N/A    Switch, Engine Stop, Lights, Horn, with partial mount
Omount  N/A  Oval type switch mount, hole spacing 36mm, for 7/8″ (22mm) bar
Oscrew    $2  two M3 x 0.5 x 25 machine screws, countersunk slot head
Use with Domino “Diamond” controls, or drill holes in handlebar, to mount directly.



Aprilia Diamond Chrome all in one
Aprilia “Diamond Chrome” All-in-One – Left side

  $35  Complete switch with clamp, says “APRILIA”
Aprilia “Diamond Chrome” ,36mm bolt spacing, goes across the handlebar,
CEV “Diamond Chrome”, also 36mm, but goes in line with the handlebar.
This Aprilia “All in One” was original on a 1968 Innocenti Lambretino moped, and dozens more.



CEV switch 8042
CEV 8042 “Diamond Chrome” Lights/Horn Switch – Left Side (or R)
8042     N/A   Switch assy with partial mount, set screw connections
Use with Domino “Diamond” controls, or drill holes in handlebar, to mount directly.



CEV switch 8033
CEV 8033 “Diamond Chrome” Turn Signal/Horn Switch – Left Side (or R)
8033      N/A   Switch assy with partial mount, set screw connections
Use with Domino “Diamond” controls, or drill holes in handlebar, to mount directly.






CEV 80??   “Diamond Chrome” Turn Signal Switch – right side (or L)CEV switch 188
CEV80??   N/A  Switch, says “CEV 188“, without mount, with set screw connections
Use with Domino “Diamond” controls, or drill holes in handlebar, to mount directly.




CEV switch 8192
CEV 8192  “Diamond Chrome” Horn Button – left side (or R)
8192       $25   Switch, without mount, for horn or engine stop
              (original on ’78-79 Vespa Grande with blinkers)




Aprilia Long Square Chrome all in one switch
Aprilia “Long Square Chrome” All-in-One – Left side

 N/A  Switch only, says “APRILIA”, 38mm hole spacing
Aprilia “Long Square Chrome”, 38mm, identified by horn rivet on right.
CEV “Long Square Chrome”, also 38mm, interchanges, horn rivet on left.




CEV switch 8041

CEV 8041 “Round Chrome” Lights/Horn Switch – Left Side
8041      $30  Switch assembly with set screw connections
8041.c     $5  Chrome cap, says “CEV Mod. 8041”
clamp    $25  clamp with special screw and nut



CEV switch 8053.1CEV 8053 “Round Chrome” Turn Signal Switch – Left Side
8053.1  N/A  Switch assembly, 3-position Left Off Right, set screw connections
8053.c  N/A  Chrome top cap says “CEV”
clamp   $25  clamp with special screw and nut
8053.s  $45  Substitute switch assy, made from a 8041 assy and a 8040.3 base


CEV turn signal switch substitute

8053.1 substitute
left: 8041 switch assy
right: 8040.3 base top

CEV TS switch bottom view

8053.1 substitute
CEV 8040.3 bottom view
before cutting jumper

CEV TS switch mods

8053.1 substitute
top: original cap & base
bottom: modified ones

CEV TS switch cap R - orig CEV 2041 cap

8053.1 substitute
R – orig CEV 2041 cap
L – button cut and glued














1970’s and early 80’s Clamp-On Switches, US DOT compliant
Mopeds (motorized bicycles) had less strict equipment laws than motorcycles did, and still do. They don’t need to have turn signals, or a permanently-on head light. The US DOT equipment laws dictate what the switches do, what they say and where they go. Engine stop always goes on right, reachable by right thumb. Lights and horn are reachable by left thumb. In the 1970’s US DOT compliant switches had English words. After the mid 1980’s US DOT allowed international icons.

CEV 8177

CEV 8177

CEVCEV switch 8177 8177 “Round Chrome” Engine Stop Switch – Right Side
8177    N/A  Switch assy, circular, engine stop, with set screw connections
8177.1  $45  Switch assy, circular, engine stop, with solder connections
8177.c    $6  Chrome top cap, circular, says “ENGINE STOP   OFF   RUN”
clamp   $25  clamp with special screw and nut


CEV 8040.3 wiring

CEV 8040.3

CEV 8040.5 wiring

CEV 8040.5

CEV CEV 80408040.5 “Round Chrome” Lights/Horn – Left Side
8040.3  $35  Switch assy with set screw connections
8040.5  $25  Switch assy with solder connections
8040.c    $8  Chrome cap, says “LIGHTS  LO HORN”
clamp   $25  clamp with special screw and nut



 Merit 342 engine stop switch bodyMerit 342 “Rectangular Chrome” Engine Stop Switch – Right sideMerit switch 342
 MP-342   $45   new $35 used/repaired   Switch assy, Puch 349.1.53.830.0
 342cap      Chrome cap – see #3 below
 Mclamp    $4  4-piece clamp, top, 2 sides, and a M4x12 screw
 When the knob breaks off, repair it by sticking a red hot small nail straight in.
 It freezes in strong. Cover the nail with tape and then shrink wrap.



Merit switch 343Merit 343 lights and horn switch bodyMerit 343 “Rectangular Chrome” Lights/Horn Switch – Left side
           (momentary closed, normally open horn button)
MP-343   $50 new, $40 used   Switch assy, Puch 349.2.53.817.0 (pre-1977)
343cap      Chrome cap with horn button – see #2 below
Same clamp as 342. When the knob breaks off, just leave the lights always on.
On a pre-1977 Puch, with violet and yellow horn wires, if you remove this switch and unplug the horn the engine will still run.
Notice how the 1976 Puch horn wire (violet) goes in at the lower right.


Merit switch 343Merit 343Z lights and horn switch bodyMerit 343Z “Rectangular Chrome” Lights/Horn Switch – Left side
           (momentary open, normally closed horn button – Puch only)
MP343Z   $50 used only  Switch assy, Puch part 349.3.53.817.0 (1977-on)
Same cap & clamp as 343. If the knob breaks, leave the lights always on.
On a 78-on Puch, if you remove this switch, and unplug the horn, the engine will not run. The blue wire with the black stripe is an “external ignition ground” wire. To bypass this, and make it run, ground the blue/black wire at the engine.
Notice the 1978 Puch horn wire (blue/black) goes in at the upper right.

These Merit switch modifications came from Mark Shroeder, Mopeds-A-Go-Go, in the late 1980’s:
To make a Merit 343Z (2 post) body into a 343, just move the wire to the other post.
To make a Merit 343 (1 post) body into a 343Z, it is possible, but not easy, to heat up, and relocate the horn post.
To make a Merit 343 (1 post) or 343Z (2 post) body into a 342, don’t do anything, just exchange the cap.
To make a Merit 342 (no post) into a 343 or 343Z, it’s difficult to make and install a post and exchange the cap.
To make a Merit 343 “LO-LO” into a “HI-LO”, cut the brass bridge between the “LO” posts and exchange the cap.


Merit Rectangular Chrome Switch Caps1 HI-LO-OFF  HORN  $20  used, tested
2 LO-OFF-LO HORN  $10  used, tested
The spring gets weak, and/or the rivet gets rusty. On most bikes, that just makes the horn weaker, but on a ’77-later Puch, that causes the horn to stay on slightly all of the time (so does a loose clamp).
3 ENGINE RUN-OFF   $5  used, beautiful

Merit caps have highly polished high quality German chrome.



Aprilia Diamond Chrome engine stop
Aprilia “Diamond Chrome” Engine Stop Switch – Right side

          $35  Complete switch with clamp
Aprilia “Diamond Chrome” switches are  mounted at 90 degrees to the handlebar,
while CEV “Diamond Chrome” switches are  mounted in line with the handlebar.




CEV 8166 front and backCEV 8166.? “Square Plastic” Turn/Engine Stop Switch – right side

CEV8166.?   $35   Switch only, used, tested good, with wires soldered on
says “CEV 195  ENGINE STOP  OFF  RUN, L TURN R,  START”
The electric start button is missing on this version for pedal or kick start bikes.




CEV 195CEV 8166.? “Square Plastic” Turn/Engine Stop/Start Switch – right side
CEV8166.?   N/A   Switch only, solder connectors
says “CEV 195  ENGINE STOP  OFF  RUN, L TURN R,  START”
For many 1970’s Italian motorcycles with electric start.




CEV switch 8167.2 (says 196)CEV 8167.2 “Square Plastic” Lights/Hi/Lo/Horn/Flash Switch – left side
8167.2   N/A  Switch only, says “CEV 196 Lights On/Off, Hi/Lo, Flash, Horn”
For Cimatti, KTM, Sparta mopeds original with hi/lo head light.
For Italian made, pre-1973 US motorcycles, and many others.



CEV switch 8167.1 (says 196)CEV 8167.? “Square Plastic” Hi/Lo /Horn /Flash Switch – left side
8167.?    N/A   Switch only, says “CEV 196 Lights Hi/Lo, Flash, Horn”
For Italian made, 1973-later US motorcycles required to have head light always on .
The rails in the switch body, and the steel rollers get cavities from arcing.
They can usually be cleaned and made smooth again.

                                CEV 195 and 196 “Square Plastic” Switch Parts
1   blue rocCEV square plastic switch partsker       n/a  these get melted
2   black rocker     n/a  these get melted worse
3   rocker spring    n/a  smaller than the button spring
4a roller contact    $4  used
4b roller contact    $8  new   Make this from a piece of drill bit.
5   switch body      $15  new  Replace if rails are badly pitted.
6   hinge pin           $2
7   screw M4x25  $0.50
8   blue button       $5
9   button spring    $3
10 plate contact    $7
11 black button     $6


CEV switch mount 04726
CEV 04726 “Square Plastic” Switch Housing/Mount – left side (or R)
04726    $35   Aluminum switch housing assy
18395      $2   rubber grommet
18453      $1   two M6 x 16 allen bolts
18368u   $8   switch body bare, used
18376    $20  switch clamp (breaks when over tightened),
MPclamp  $5  substitute for 18376, clamp for Merit mount 342B and 343B
The substitute clamp holes must be drilled and tapped to M6x1.0, or use smaller bolts.


CEV 8189 “Clamp-on Plastic” Engine Stop Switch – Right sideCEV switch 8189CEV 8189 wiring
8189     $30  Switch assy, says “ENGINE STOP   OFF   RUN”
8189u    $15  Switch assy used, with the writing faded away
Pclamp   $4  Chrome clamp
Pscrew   $1  two M4x30 phillips screws
These plastic switches were more durable than older chrome kinds.
Their knob did not break easy. Their clamp did not detach easy.


CEV switch 8188CEV 8188 wiringCEV 8188 “Clamp-on Plastic” Lights/Horn Switch – Left side
8188     $13  Switch assy, says “LIGHTS  OFF  Lo” , 2-position + horn
8188u    $7  Switch assy used, with the writing faded away
Pclamp   $4  Chrome clamp
Pscrew   $1  two M4x30 phillips screws
These  switches have 3mm wide mini male blade connectors.
The wires have female mini blades, like the brake light wires.


CEV switch 8190CEV 8190 wiringCEV 8190 “Clamp-on Plastic” Hi/Lo/Off/Horn Switch – Left side
8190    N/A  Switch assy, says “LIGHTS  Hi Lo OFF” , 3-position + horn
Pclamp   $4  Chrome clamp
Pscrew   $1  two M4x30 phillips screws




Merit switch 342A and mount 342BMerit mount 342B repaired with zip tieMerit 342A “Square Plastic” Engine Stop Switch – Right side
MP-342A   $40  Switch, without mount, Puch part 349.2.53.830.0
MP-342A   $15  Switch, good used, without mount
Merit 342B  Mount for Engine Stop Switch – Right side
MP-342B   $40  Mount, without switch, Puch part 349.1.54.018.0
MP-342B   $30  Mount, good used, without switch
If the mount breaks, use a zip tie, with notches cut at the corners.


Merit switch 343A and mount 343B
Merit mount 343B repairedMerit 343A “Square Plastic” Light/Puch-Horn Switch – Left side
(momentary open, normally closed horn button, for Puch only)
MP-343A   $40  Switch, without mount, Puch part 349.4.53.817.0
MP-343A   $30  Switch, good used, without mount
Merit 343B  Mount for Light/Puch-Horn Switch – Left side
MP-343B   $40  Mount, without switch, Puch part 349.1.54.818.0
MP-343B   $30  Mount, good used, without switch
MPclamp   $4  clamp for Merit mount 342B and 343B, also fits CEV “square plastic”


1970’s integrated controls: Aprilia or CEV Switches “molded into” Domino controls
Integrated controls means the electrical buttons and switches are part of the twist throttle and hand levers, rather than separate. The purpose of integrated controls is to locate the switches close to the operator’s thumbs, for increased safety and convenience, and to reduce cost and save space on the handlebar. Motorcycles had this first, because they have more buttons, generally. While the European switches below can be replaced separately from the controls, with most Taiwan and Japanese mopeds you had to buy the whole control assembly to get new switches and buttons. More on that will be in the Taiwan Mopeds parts department.


CEV 8191 “Square Chrome” Turn/Engine Stop Switch – Right (or L) CEV switch 8191
8191    $15  Switch only, 30mm hole spacing, says “CEV 169 OFF  ENGINE STOP  L  TURN  R”
             For ’79-83 Tomos Silver Bullet, screwed into handlebar directly, with rubber mount.
Smount $15  Rubber mount for 8191





CEV switch 8191 on Domino square right control
CEV 8191 apart with rubber mountLeft, CEV 8191 for Tomos Silver Bullet. The wires come out of the notch in the rubber base.

Right, CEV 8191 for Vespa Grande, no rubber mount. The wire notch is in the Domino control.




Aprilia switch Garelli engine stopDomino Chrome OvalGarelli  “Oval Chrome” Engine Stop Switch – right (or L)
Oval-R   $55   Switch only, says “ENGINE STOP  GARELLI  RUN OFF”.
For ’77-80 Garelli w/Domino “Diamond” controls, Garelli 507991.6.300
Hole spacing 36mm, same as CEV “Diamond” switches.
The pivot post inside breaks if the rider’s knee hits it.
Then the “clicker” escapes. Replace the base with a CEV 8176.


Aprilia switch Garelli light-hornGarelli  “Oval Chrome” Lights/Horn Switch – left (or R)
Oval-L   N/A  Switch only, says “LIGHTS   GARELLI   ON  OFF”.
For ’77-80 Garelli w/Domino “Diamond” controls, Garelli 507991.6.400
Hole spacing 36mm, same as CEV “Diamond” switches.
The pivot post inside breaks if the rider’s knee hits it.
Then the “clicker” escapes. Replace the base with a CEV 8176.


CEV switch 8176CEV 8176   “Diamond Chrome” Turn Signal/Horn Switch – left side (or R)
8176       $15  Switch, says “CEV 188  L  TURN  R”, no mount, set screw connections
Use with Domino “Diamond” controls. takes two M4 x 15 metric screws.
Or drill holes in handlebar, to mount directly, using the “Diamond” Direct Mount below.



CEV 40488CEV ????  CEV “Diamond” Clamp-On Mount – L or R side
40488?      N/A   Switch mount, clamp-on, for either side
For mounting CEV or Aprilia “Diamond” switches (36mm holes) onto a 22mm bar.




CEV or Aprilia Diamond switch mountCEV ????  CEV “Diamond” Direct Mount – Left side (or R)
05020?      $8   Switch mount, bare, wires come out at right-lower, for left side.
For screwing CEV  or Aprilia “Diamond” switches (36mm holes) directly onto the handlebar.
Drill small 1/16″ holes in handlebar 36mm (1 7/16″) apart.
Use sheet metal screws, appropriate size and length.

Grabor switch substitute for CEV 8192Grabor 8192  “Diamond Chrome” Horn Button – left side (or R)
8192.G   $25   Switch, without mount, for horn or engine stop
Original on ’80-83 Vespa Grande with blinkers.
Use with Domino “Diamond” controls. takes two M4 x 15 metric screws.
Or drill holes in bar, to mount directly, using the “Diamond” Direct Mount.



Early 80’s Domino-and-OSL-Integrated Switches: CEV “Diamond Plastic”
By the end of the 1970’s, the shape of pretty much everything from toasters to automobiles, that used to be rounded, was straight. Many things that were metal became plastic. On Garelli mopeds, the all curved Garelli “Oval Chrome” switch shape was modernized to CEV “Diamond Plastic”, with the same 36mm bolt spacing. The new design was much stronger and more resistant to breaking, because the sliding switch had a large platform that almost touches the base. The newer “knobs” are low and wide, not tall and thin.


CEV switch 8194CEV switch 8194 installedCEV 8194   “Diamond Plastic” Engine Stop Switch – right side (or L)
8194      N/A  Switch, without mount, with solder connections
Was sold new without wires, which had to be soldered on skillfully.
Use with Domino “Diamond” controls. takes two M4 x 15 metric screws.
Or drill holes in bar, to mount directly, using the “Diamond” Direct Mount.


CEV switch 8193CEV switch 8193 installedCEV 8193   “Diamond Plastic” Lights/Horn Switch – left side (or R)
8193      N/A  Switch, without mount, with solder connections
Was sold new without wires, which had to be soldered on skillfully.
Use with Domino “Diamond” controls. takes two M4 x 15 metric screws.
Or drill holes in bar, to mount directly, using the “Diamond” Direct Mount.


Domino Diamond block off plate black plasticDomino D-25   “Diamond Plastic” Block-Off Plate – L or R side
D-25     $6  plate, 36mm holes, black plastic, for when there is no switch
M4x10  $1  two phillips screws M4 x 10, shorter for a plate
M4x15  $1  two phillips screws  M4 x 15, longer for a switch



1980’s Domino-Integrated Switches: CEV and Daelim
There were not many US-model mopeds in the late 1980’s, other than Derbi, Garelli, Jawa, Tomos, Trac (Daelim), pretty much. Except for Jawa, they all used late 1980’s black Domino controls with fully integrated switches.

Trac late 1980's right side engine stop switchTrac late 80's Domino right switch engine stop installedDaelim  “1980’s – 90’s” Engine Stop switch– right side

23232        $35   new, switch only, says “ENG. STOP   OFF  RUN”
Comes with wires (black male bullet, green male bullet)
Original on 1985-88 Trac Clipper, Olympic, Hawk (no turn signals, pedals)
Original on 1986-89  Trac Escot,  Liberty,  Image  (turn signals, kickstart)
Fits any “late 1980’s – 90’s Domino” right control.




Trac late 1980's left side lights horn switch Daelim  “1980’s – 90’s” Lights and Horn switch – left side
23233        $40  used, tested good, switch only, says “⊂≡  ON  OFF   HORN”
Comes with wires (red bullet, yellow bullet, grey bullet)
Original on 1985-88 Trac Clipper, Olympic, Hawk (no turn signals, pedals)
 Fits any “late 1980’s – 90’s Domino” left control.





Trac late 1980's Domino left switch lights, turn, hornTrac late 80's Domino left switch lights, turn, hornDaelim  “1980’s – 90’s” Lights, Turn and Horn switch – left side

23234        N/A  switch only, says “⊂≡  ON  OFF    HORN    ⇐  TURN  ⇒”
Comes with wires (red,yellow,grey,orange,lt blu, lt grn, all male bullet)
Original on 1986-89  Trac Escot,  Liberty,  Image  (turn signals, kickstart) Fits any “late 1980’s – 90’s Domino” left control.
This is the first use of icons on moped switches – 1985.





CEV late 1980s right side lights and engine stopCEV 8246  “1980’s – 90’s black button”  lights, engine stop – right side

222.427       N/A   Switch only, says “LIGHTS  ON OFF   ENGINE STOP  STOP RUN”
Original on 1986-91 Tomos Bullet, Bullet TT, Golden Bullet, Golden Bullet TTLX
Original on 1986-89 Derbi Variant Sport, others
Was sold new without wires, which had to be soldered on skillfully.
The red switch button breaks, usually from the riders knee hitting it.
Fits any “late 80’s – 90’s Domino” right control.




CEV late 1980s left side horn onlyCEV 1980s left switch horn only installedCEV ????  “1980’s – 90’s black button”  horn only – left side
222.645      N/A   Switch only, says “HORN    “
Original on 1986-91 Tomos Bullet, Bullet TT (round head light, no turn signals)
Fits any “late 80’s – 90’s Domino” left control.





CEV late 1980s left side turn and hornCEV ????  “1980’s -90’s black button” turn, horn switch – left sideCEV 1980s left switch turn and flash for Euro model

222.426      $35   Switch only, says “HORN   L  TURN  R  CEV 300
Original on 1986-91 Golden Bullet, Golden Bullet TTLX (round head light, turn signals)
Fits any “late 80’s – 90’s Domino” left control.
At right, it’s European all-icon cousin. Over there they signal by momentarily flashing their high beam, rather than by horn. So their buttons have different functions. By 1984-85 Europe already had all-icon switches, a few years before the USA allowed them.




CEV late 1980s left side turn, hi-lo and hornCEV 8232  “1980’s – 90’s black button” turn, Hi-Lo, horn switch – left side
34040        N/A   Switch only, says “HI  LO  P   HORN   L  TURN  R  CEV 300
Original on 1987-90 Trac DH100 Super Hawk
Original on many late 80’s bikes with turn signals and hi-lo head light.
Was sold new without wires, which had to be soldered on skillfully.
Fits any “late 80’s – 90’s Domino” left control.




HR and Domino 1990's controls

Top: HR controls, Bottom: “80’s – 90’s Domino”

1990’s HR-Integrated Switches – All Icons
Icons appeared first on US mopeds in 1985 on Trac/Daelim, then in 1987 on Derbi Variant Sport and DS50. In the 1980’s the world somehow realized it made more economic sense for motorcycle switches to use symbols, with one version for all, rather than using words and having to make many language versions. By the 1990’s the US had switched to icons, at the time when Tomos and Jawa were the only European mopeds remaining. There were several “remakes”: Kinetic (India) is like Vespa/Piaggio, Manet (Slovakia) is like Puch, Hero (India) is like Puch, and others. Some of those copied “80’s – 90’s Domino” controls.
These HR (Hidria Rotomatika) switches below do not interchange with Domino. The HR switches are slightly smaller than Domino, and their top peg is smaller. HR switches must go on HR controls, aka “1992-2007 Tomos” controls.



CEV 1990s right switch lights and engine stop
HR 1990s right switch lights and engine stop bottom viewHR  “1990’s blue button” lights, engine stop switch – right side
227002        $40   Switch only, all icons
Original on 1992-2007 Tomos (A35 and A55) Sprint, Targa, ST, LX
Was sold new without wires, which had to be soldered on skillfully.
Fits any “1992-07 Tomos” right control.
Look just below the black light switch to see the circled HR logo (Hidria Rotomatica).





CEV 1990s right switch lights engine stop and startHR  “1990’s blue button” Hi-Lo, horn, engine stop – left side
???        N/A   Switch only, all icons
Not for US models. For countries that allow engine stop to be on the left.
Was sold new without wires, which had to be soldered on skillfully.
Fits any “1992-07 Tomos” left control.





CEV 1990s left switch hi-lo and horn
HR 1990s left switch hi-lo and horn bottom viewHR  “1990’s blue button” Hi-Lo, horn switch – left side
227595        $40   Switch only, all icons
Original on 1993-07 Tomos Sprint, 1993-94 Sprint TT (no turn signals)
Was sold new without wires, which had to be soldered on skillfully.
Fits any “1992-07 Tomos” left control.
Many switch problems are from “cold” solder joints. The cure is re-solder.




CEV 1990s left switch hi-lo turn horn
HR 1990s left switch hi-lo turn horn bottom viewHR  “1990’s blue button” Hi-Lo, turn, horn switch – left side
227001        $45   Switch only, all icons
Original on 1992-07 Tomos A35 Bullet, Targa, ST, LX (all with turn signals)
Was sold new without wires, which had to be soldered on skillfully.
Fits any “1992-07 Tomos” left control.
Many switch problems are from “cold” solder joints. The cure is re-solder.





2000’s Domino-Integrated Switches – wires pre-soldered with single multi-pin plug
Put away that soldering iron. The new century brings wires pre-soldered by the factory, with a convenient multi-pin plug.

Domino 2000s right side engine stop and startDomino “2000’s yellow button” engine stop, start – right side
232987        $50   Switch only, all icons, made in Italy by Domino
Original on Tomos 2002-07 Revival, 2005-07 Streetmate, 2005 Arrow
For mopeds, scooters and motorcycles with electric start.
Was sold new with wires soldered on, with a single multi-pin plug.
Fits any “2000’s Domino” right control.





Domino 2000s left side hi-lo turn and horn
Domino “2000’s yellow button” hi/lo, turn, horn – left side
232788        $50   Switch only, all icons, made in Italy by Domino
Original on Tomos 2002-07 Revival, 2005-07 Streetmate, 2005 Arrow
For mopeds, scooters and motorcycles with hi/lo and turn signals.
Was sold new with wires soldered on, with a single multi-pin plug.
Fits any “2000’s Domino” left control.




2010’s TBS-Integrated Switches – wires pre-soldered with single multi-pin plug
High quality long lasting switches and controls at half the price of Italian. They’re as good, or better.

TBS 2010s right switch engine stop and start
TBS 2010s right switch partsTBS “2010’s red button” engine stop, start – right side
237129        $25   Switch only, all icons
Original on Tomos 2008-13 all models.
For mopeds and motorcycles with electric start.
Sold new with wires and a single multi-pin plug.
Fits any “2000’s Domino” right control, or compatible.
The TBS plug is different from Domino. See above and Wirings.



TBS 2010s left switch hi-lo turn and horn

TBS “2010’s red button” hi/lo, turn, horn – left side
aluminum casting number

aluminum casting number

237130        $25   Switch only, all icons
Original on Tomos 2008-13 all models.
For mopeds and cycles with hi/lo and turn.
Sold new with wires and a single multi-pin plug.
Fits any “2000’s Domino” left control, or compatible.
The TBS plug is different from Domino. See above and Wirings.




Brake Light Switches:
On most mopeds of the 1970’s and 80’s (except Motobecane, Jawa, and Asian-made ones) there were two kinds of brake light switch. They were both made by CEV. They both screwed into the brake lever perch/mounts on Magura, Domino, OSL, and PV controls, where the button of the switch is pushed by the edge of the hand brake lever. They both have the same physical dimensions and appearance, except for the color of the tip/button. The black button brake light switch was “normally open” when installed, and became “closed” when the brake was squeezed. The white or brass tip brake light switch was “normally closed” when installed, and became “open” when the brake was applied.

What is confusing is that, unlike most momentary switches, the button (tip) is always being pushed in 99% of the time. Only when the brake is applied, is the button released. So a switch that is normally open when it is installed on the bike, is normally closed when it is off the bike in your hand. And visa versa. That is why the words “when installed” are added to the switch description.


Brake light switch black tip CEV good used
CEV 9343 “normally-open-when-installed” brake light switch
9343       $15  used, cleaned and tested
(open when button is pushed in, closed when out)





CEV 9342 CEV 9342 “normally-closed-when-installed” brake light switch
9342       $35  used, cleaned and tested

(closed when button is pushed in, open when out)




Brake light switch black tip Magura
Magura “normally-open-when-installed” brake light switch
9343M     $20  new  (closed when button is released out)
This is a German-made 9343. Looks slightly different, works perfect.




Brake light switch black tip replica
Generic “normally-open-when-installed” brake light switch
9343G     N/A  new  (closed when button is released out)
This is a generic copy of a CEV 9343. Looks good but many were bad.





Brake light switch white tip replica
Generic “normally-closed-when-installed” brake light switch
9342G    N/A  new  (open when button is released)
In the mid 2000’s these were made correct, like a white tip CEV.
But later ones functioned like a black tip CEV, the opposite way.






Brake light switch white tip long replica
Generic “normally-open-when-installed” brake light switch
635022     $12  new  (closed when button is released)
 These have a white tip but function like a CEV black tip.



Brake light switch Tomos 1990's longer original
Tomos “normally-open-when-installed” brake light switch, longer
227191     $15  new  (closed when button is released)
For 1992-early 08 Tomos with “1990’s Domino” controls.
Also for many 1970’s -80’s mopeds, when a small o-ring is added as a “riser”.






Brake light switch Tomos 1990's longer replica
Generic “normally-open-when-installed” brake light switch, longer
227191G    n/a  new  (closed when button is released)
For 1992-early 08 Tomos with “1990’s Domino” controls.
Also for many 1970’s -80’s mopeds, when a small o-ring is added as a “riser”.



Brake light switch Tomos small plastic
Tomos “normally-open-when-installed” brake light switch, smaller
243241     n/a  new  (closed when button is released)
232867     $15  new  (closed when button is released)
For 2008-13 Tomos Sprint, ST, LX right & left, Revival, Streetmate, Sm-R left only


Brake light switch Tomos large brass
Tomos “normally-open-when-installed” brake light switch, big
243607     $15  new  (closed when button is released)
For 2008-13 Tomos Revival, Streetmate, Streetmate-R, right side (front disk brake)






Switch Parts:

Blade Connectors

ELO316    $1.00   3mm female blade connector, new and shiney
ELO316u  $0.50   3mm female blade connector, new but corroded slightly
blwire      $1.00   3mm female blade connector factory-crimped onto wire, new
Unless they are factory-crimped, these need soldering, or they often slip off.



15863     $2.00    rubber cover (boot) for CEV brake light switch
