updated 2021-10
thin screen format
Contents:
1. Tools
Tire tools
Wheel tools
Wrenches
Holders
Piston tools
Pullers
Timing tools
2. Special Tools
Benelli
Garelli
Honda
Laura
Minarelli
Morini
Motobecane
Peugeot
Puch
Sachs
Solex
Tomos
Vespa
Prices in green are new, dark green are good-used. N/A means not available.
1. Tools
Tire Tools
Tire levers
for removal or install
8.5 inch, tool steel
08-0003 $6 each
Quick stick
for tire install only
for sliding, not prying
61149 6 inch Teflon $5
Wheel Tools
Cone wrench 15 mm
for moped wheels with
cones and loose bearings
6170 Park SCW-15 $10
Spoke wrench round
for all bicycle spokes
6127 8-slot $5
Spoke wrench straight
for all motorcycle spokes
15-1521 6-slot $6
Freewheel remover
Sun Tour type
Park FR-6 $12
Freewheel remover
Atom type
Park FR-6 modified $26
Wrenches
Pedal wrench 15mm
semi-thin, for pedals
62194 Park PW-5 $14
Pedal wrench 15 mm
Myrons $10
Spark plug socket wrench
13/16″ hex (21 mm)
34-2111 9 inch $10
Spark plug socket wrench
2-piece 21 mm $6

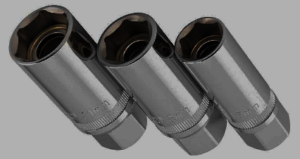

Spark plug sockets
21 hex (13/16) for NGK BR6ES (14 mm) $3
19 hex ( 3/4″ ) for NGK DR6ES (12 mm)
16 hex ( 5/8″ ) for NGK CR6ES (10 mm)
Spark plug socket wrench
for Motobecane $6.00
short type 21/13 mm
Spark plug socket wrench
21/27 mm portable $3
Allen Wrenches
T-handle allen (hex) wrenches
.10 mm $2.50 . 3/8″ $2.50
0 8 mm $2.50 . 5/16″ $2.50
0 6 mm none . 1/4″ $2.50
5.5 mm $2.00 . 7/32″ $2.00
0 5 mm $2.00 . 3/16″ $2.00
4.5 mm $2.50 . 5/32″ $2.00
0 4 mm $2.00 . 9/64″ $2.00
0 3 mm $1.50 . 1/8″ $2.00
2.5 mm $1.50 . 7/64″ $1.50
0 2 mm $1.50 . 3/32″ $1.50
L-type allen (hex) wrenches
.14 mm $4.00 .
.12 mm $3.00 .
.10 mm $2.50 . 3/8″ $2.50
0 8 mm $2.50 . 5/16″ $2.50
0 6 mm $1.50 . 1/4″ $2.50
5.5 mm $2.00 . 7/32″ $2.00
0 5 mm $1.50 . 3/16″ $2.00
4.5 mm $2.50 . 5/32″ $2.00
0 4 mm $2.00 . 9/64″ $2.00
0 3 mm $1.50 . 1/8″ $1.50
2.5 mm $1.50 . 7/64″ $1.50
0 2 mm $1.50 . 3/32″ $1.50
1.5 mm $2.00
Holder Tools
Flywheel holder large
useful for unfreezing engines
Myrons $15
Piston Tools
Piston pin press
for pin ∅12
Peugeot 68467 $35
Piston bushing press
for pin ∅12 bushing ∅14
Myrons $30
Piston stop
deluxe N/A
Piston stop
plain $14
The piston stop keeps the piston from rising all the way up, and thus prevents the crankshaft from rotating. When the piston is parked against it, the crankshaft nuts can be tightened (or loosened) to the proper torque. Without it the crank nuts cannot be fully tightened or loosened. There are also holder tools that fit into the windows in the flywheel. They perform the same function as a piston stop. A piston stop works on any engine with a straight spark plug, not angled, like most two stroke engines have.
Pullers
Pullers (extractors) screw-on type
Screw-on puller M17-1.0
deep for Vespa/Piaggio flywheel
Buzzetti P1710d $22.0
Screw-on puller M19-1.0
for 80 mm ID flywheels CEV, Dansi
generic P19100 $18.0
Screw-on puller M19-1.0 and M22-1.5
Buzzetti P19x22 $19.0
Screw-on puller M20-1.0
= 69254 for Peugeot 102, 103 flywheel
Buzzetti P20100 $18.0
Screw-on puller M22-1.0
for 3-piece bicycle cranks
Takagi (Japan) P22100 $24
Screw-on puller M22-1.5
for 80 id flywheels Bosch, Motoplat
Buzzetti P22150 $17.0
Screw-on puller M24-1.0
for Motobecane clutch
Buzzetti P24100 $15.0
Screw-on puller M24-1.0 and M26-1.0
generic P24x26 $19.0
Screw-on puller M26-1.0
for Motobecane (Novi) flywheel hub
generic P26100 $15.0
Screw-on puller M26-1.5 and M22-1.5
generic P26x22 $19.0
Screw-on puller M26-1.5 internal
for clutch on Derbi and Honda PA50
Derbi PI26150 $35 good-used
Screw-on puller M30-1.5 internal
for Adler clutch on Benelli and Demm
Benelli 48 91 27 70 PI30150 $43
Pullers (extractors) 2-or-3 bolt type
3-bolt puller
for Solex flywheel
P3B001 $22
2-bolt puller
for Minarelli and Puch clutch
two 6mm pull bolts
P2B001 $15.0
2-bolt puller large 6 inch reach
has 3/8″ pull bolts, but can be 6 mm
has two snap on bearing tips
Proto 4214 P2B002 $40
Pullers (extractors) 2-or-3 jaw
# price jaws good-used unless noted
1 $19 7 x 11″ Snap-on CJ118-1 very wide, very adjustable
2 $22 4.5 x 7″ heavy duty
3 $18 3 x 7.5″ Proto 866-B
3a $5 3 x 7.5″ Proto jaw long (each)
3a $2 3 x 4″ Proto jaw short (each)
4 $5 4 x 6.0″ one broken jaw, needs welding
5 $5 2.5 x 4″ lightweight
6 $5 2.5 x 4″ lightweight
7 $1 2.5 x 4″ lightweight broken handle
8 $22 3.0 x 3″ Proto 4250N heavy duty 3-jaw
9 $2 2.5×2.5″ non-adjustable
10 $4 3.0 x 3″ non-adjustable
Timing Tools
0,5 none vintage dial gauge (mm) and holder, fits Motobecane barely
0,6 $40.0 modern dial gauge (inch) and holder, works but “jumpy”
7,8 none Peugeot 69258 requires a feeler gauge
0,9 $45.0 Sachs 0276.135.100
,10 none Motobecane 100013
,11 none unidentified
,12 none unidentified
Timing tools are piston position indicators. They tell you where the piston is at.
Ignition timing is when the spark happens. It is a little Before Top Dead Center (BTDC). There are two ways of stating the ignition timing, crankshaft angle in degrees, or piston position in mm. Ignition timing for mopeds is about 20 to 25 degrees BTDC (crankshaft angle), or 1.5 to 2.0 mm BTDC (piston position). The spark happens at the moment the points open.
Points gap is the maximum gap. It can be within a range of 0.014 to 0.018″. Setting the points gap also sets the ignition timing. A wider maximum gap setting causes the points to open earlier, making the ignition timing angle larger (more advanced). A thinner maximum gap setting causes the points to open later, making the timing angle smaller (more retarded).
Using a timing tool in the spark plug hole is needed when there are no timing marks on the edge of the flywheel.
Other Tools
Wrenches, sockets, stamp sets, chain tools, others.
2. Special Tools
Benelli Tools
abcde. f gh i j engine tools for these 1970’s UK models
10000.00000 G2K ’78 Motorella 1-speed automatic
01000.00000 G2 0 ’00 G2 w/pedals 1-speed automatic
00100.00000 G2K ’00 G2 elle, G2KS 1-spd automatic
00010.00000 3VK ’78 Magnum 3V 3-speed cable shift
00001.00000 3VK ’78 Export 3V 3-speed cable shift
00000.10000 5M ’00 50 Turismo 5-speed foot shift
00000.01000 5MS ’78 50 Magnum 5-speed foot shift
00000.00100 5MS ’76 50 Cross 5-speed foot shift
00000.00010 5M125 125 Turismo 5-speed foot shift
00000.00001 5M125 125 Enduro 5-speed foot shift
0# 0 Benelli# 0 abcde. f gh i j price colors: new/used original/replacement
01 48.91.26.70 11000.11111 none sprocket puller
02 48.90.27.70 11111.00000 $40.0 flywheel holder
02 48.90.27.20 01000.00001 $40.0 sprocket holder
03 35.90.27.00 00000.11111 none flywheel holder
03 35.90.27.00 10000.11100 none sprocket holder
04 69.90.81.00 00000.00010 none sprocket holder
05 43.90.63.00 11111.11111 none flywheel puller M19-1.00
05 00. P19100 11111.11111 $18.0 flywheel puller same
06 35.90.63.01 00011.11111 none pinion puller
07 35.90.15.00 00000.11100 none pinion holder
07 35.91.15.70 00000.00011 none pinion holder
08 35.90.65.00 00000.11111 none clutch fitting tool
09 35.90.61.00 00000.11111 none clutch disks holder
10 48.90.61.70 01000.00000 $45.0 gear holder
10 48.90.61.70 11100.00000 $45.0 Rimoldi clutch holder
11 48.91.27.70 11100.00000 $43.0 Adler clutch puller internal M30-1.5
12 69.90.33.00 11100.00000 none clutch housing puller
13 69.90.61.00 11100.00000 none Rimoldi clutch puller 2-bolt
13 69. P2B001 11100.00000 $15.0 clutch puller same
Laura Tools
colors: new used original replacement
0# Laura# price M48 Tools
116 485009 48-33 bearing puller for 6302 bearings 42 OD
116 485009 $7-$5 bearing puller cage half only, 42 OD (takes 2)
322 565018 $10.0 bearing puller rod/stud only (takes 2)
117 485001 $10.0 driver tube ∅20-15.5 x 170 for 6302 bearings 15 ID
118 485010 none flywheel holder for M48 ∅90 ID use 304 instead
119 485005 45-32 clutch holder and puller
120 485002 $28.0 flywheel puller 26-1.5 & 22-1.5
120 P26150 $20.0 flywheel puller M26-1.5
121 485003 $35.0 piston bushing press (original)
122 485004 none timing gauge (piston indicator)
123 485006 none fitting sleeve ∅21 for clutch seal 20-42-7 offset
124 485007 none crank end protector M10 for flywheel removal
125 485008 $10.0 crank support plate for bearing installation
126 485011 $10.0 driver ring ∅48 for L clutch seal 20-42-7 offset
127 485012 $8-$6 driver ring ∅36 for R crank seal 14-30-7
# Laura# price M56 Tools
301 485002 see 120 flywheel puller 26-1.5 & 22-1.5
301 P22150 $20.0 flywheel puller M22-1.5
302 485003 see 121 piston bushing press
303 485008 see 125 crank support plate
304 485010 $13.0 flywheel holder for M56 ∅80 or M48 ∅90 ID
305 565001 42-28 clutch holder
306 565002 38-25 clutch puller 3-bolt M5 x 65
307 565003 19-15 ratchet wheel holder
308 565004 $15.0 ignition adjusting tool
309 565005 $28.0 clutch nut special socket
310 565006 $10.0 driver ring ∅38-17 for L drive seal 17-35-7
311 565007 none driver ring ∅29-15 for pulley seal 15-30-5
312 565008 $10.0 driver ring ∅30-20 for R drive seal 20-26-4
313 565009 $10-6 driver ring ∅34-15 L,R crank seal 15-32-7, 21-32-7
314 565010 $10-6 driver tube ∅25-20.5 for right end of drive shaft
315 565011 $10-6 driver tube ∅22-17.5 for pulley bearing 6203 17id
316 565012 $12.0 crank end protector M8 for flywheel removal
317 565013 $9.00 fitting sleeve ∅18 for drive seal 17-35-7
318 565014 $9.00 fitting sleeve ∅16 for pulley seal 15-30-5
319 565015 $10.0 fitting sleeve ∅21 for R crank seal 21-32-7
320 565016 $9.00 driver tube ∅22-15.5 for crank bearings 6202 15id
321 565017 $15.0 clip spreader-installer for clutch clip
322 565018 48-33 bearing puller for 6202 bearing 35 OD
322 565018 $7.00 bearing puller cage half only, 35 OD (takes 2)
322 565018 $10.0 bearing puller rod/stud only (takes 2)
Minarelli Tools
0colors: new used original replacement
0MMI# Minarelli# price C# is from Cimatti and Motron
C1600 00.0000.0 none wrench open 32 steering cone
C1610 00.0000.0 none wrench octagon 32 steering nut
C1620 00.0000.0 none wrench 10 and 17
C1630 00.0000.0 none allen wrench 5
C1240 00.0000.0 none spark plug wrench 21
C6900 00.0000.0 none points tester
06920 05.0050.0 none sprocket puller
06930 05.0064.0 $38.0 V1 case splitter U50-1
06930 05.00064.0 none V1/V2 case splitter
06950 05.0080.0 $29.0 CEV flywheel puller U1-2 M19-1
p19100 0.0000.0 $18.0 flywheel puller same
06960 00.0000.0 none sprocket holder U2-8
06970 05.0081.0 none V1 clutch holder U35-2
06970 05.0335.0 none kick start nut holder
06980 05.0007.0 none V1 clutch puller 2-bolt
p2b001 0.0000.0 $15.0 clutch puller same
06990 05.0332.0 none flywheel holder 3-prong U49-2
00000 00.0000.0 none flywheel holder 2-prong U29-1
06990 05.0338.0 $25.0 flywheel holder adjustable
09000 00.0000.0 none V1 tool kit (not shown)
09010 05.0251.0 none guide for crankshaft seal
09020 05.0252.0 none guide for pedal shaft seal
09030 05.0371.0 none driver for crank & drive seals
09040 05.0250.0 none guide for drive shaft seal
09050 05.0370.0 none driver for pedal shaft seal
09060 05.0335.0 none clutch nut wrench 14mm (not shown)
Morini Tools
Morini# price colors: new used original replacement
14-0500 none 1980 Morini Franco Motori tool kit
14-0501 $25.0 flywheel puller M19-1.0 and M22-1.5
14-0503 $29.0 sprocket puller
14-0506 $19.0 clutch & flywheel holder, adjustable
14-0507 $15.0 sprocket holder
14-0508 none clutch & gear puller 2-bolt adjustable
P2B001 $15.0 clutch puller same
14-0509 none manual-clutch holder
14-0510 $24.0 manual-clutch hub holder
Morini# price Morini tools not in kit
14-0511 none case splitter
14-0513 none variator disc assembly press
14-0514 none variator disassembly disc.
Motobecane Tools
0 MB# price colors: new used original replacement
100001 $0.00 circlip spreader pliers
100002 $0.00 circlip squeezer pliers
100003 $0.00 grease zerk socket wrench
100004 none piston stop
100004 $14.0 piston stop
100005 $40.0 flywheel holder
100006 $0.00 bushing puller
100007 $0.00 magnet extractor
100008 none piston pin tool
100009 none pedal bushing press
100010 $0.00 crank seal installer
100011 60-40 bearing puller assy
100012 $22.0 fork top tool re-ground
100013 none timing gauge
100014 none steering race press
100015 $0.00 crankshaft support plate 120 x 30
100016 $0.00 bearing installer tube
100017 none feeler gauge metric
100018 none spoke wrench
100019 none fork wrench 32 hexagon or octagon
100019 23-15 fork wrench 32 octagon (not shown)
100020 none clutch puller M26-1.0 black original
P24100 $15.0 clutch puller same
100021 none cam puller M24-1.0 says Novi
P24100 $15.0 cam puller same
100022 none freewheel clamp wrench
100023 $22.0 flywheel nut square drive
100024 $40.0 motor mount press
100025 $40.0 piston pin press
100026 none variator vise holder
100027 $38.0 pulley strap holder
100028 $0.00 grease applicator
100029 none spark plug wrench compact
100030 $0.00 ?
100031 none timing light
001229 none fork wrench
Peugeot Tools
Peug# price part# colors: shown not shown
Peug# price colors: new used original replacement
68048 N/A Decompressor pin riveting tool
68049 N/A 1.5mm feeler gauge
68457 N/A PEUGEOTEST test light for continuity of points and wires
68460 $25 Clutch drum holding strap
68467 $35 Tool for mounting and removing wrist pin
69079 0$8 10mm socket FACOM made in France
69083 $14 16mm socket FACOM made in France
69084 $10 17mm socket FACOM made in France
69085 $10 21mm socket FACOM made in France
69092 N/A Snap ring pliers (original)
69097 $45 Crankshaft extractor
69098 $18 Crankshaft end protector (for M10x1 end)
69104 $18 Torque handle for extended nut (installing crank)
69105 $10 Extended nut attachment for crank installation M10-1.0
69106 $10 Extended nut attachment for crank installation M11-1.0
69107 $10 Ext. nut attachment M12-1.0 (not for Peugeot 103)
69108 $15 Left crankcase guide
69109 $15 Left crankcase drift
69110 $15 Left crank seal guide sleeve
69111 $20 Right crankcase base
69112 N/A Right crankcase guide for the seal
69113 $13 Right crank seal guide sleeve
69114 $15 Right crankcase drift
69115 $18 Right crankcase guide for the bearing
69137 0$8 Stepped spacer for installing the crank at the proper angle
69140 $15 Cutaway clutch drum for testing lining clearance
69141 $18 Clutch assembling stand for testing lining clearance
69142 $10 Knurled nut M11x1 for holding clutch while removing pulley
69143 $15 Tapered sleeve for resetting crank into clutch
69145 N/A Special grease for clutch balls
69151 $12 Base for holding oil seal sleeve 69110, while replacing clutch side seal
69153 $18 32mm socket FACOM made in France
69158 N/A Gas tank sealant
69254 $35 Flywheel extractor (original made in France)
69255 N/A Bench mounted engine support
69256 $18 Wrist pin centering tool for installing the pin
69258 N/A Ignition advance timing tool
69259 $12 Driving pulley holding tool
69260 N/A Engine support spring compressor rod
69646 $35 Rotor holding wrench for magneto
69802 N/A Torque wrench with reducer and lengthener
Peugeot (moped) tools at Myrons Mopeds in July 2016
Puch Tools
o# qty: a is 1-speed b is 2-speed c is 1-speed auto-start
r# abc 000.0 part# 0 colors: new used original replacement
——————————————————————-
01 111 000.050.7012 none flywheel puller M26-1.50
01 111 000.0 P26150 $19.0 flywheel puller same
10 111 000.000.0278 none dial indicator with holder
02 111 350.170.0120 $12.0 bearing installer 17 id for 6302, L17
03 111 905.012.1010 none ignition timing (buzz) box
0– 010 905.014.0010 none #2 bearing puller 2-arm for E20
04 010 905.014.0020 none #1 bearing puller 2-arm for cover
04 010 905.014.0060 none #1 puller cage 21/2 for cover bearing
0– 010 905.014.0100 none #2 puller cage 21/6 for E20 (outer)
0– 010 905.014.0170 none #1 puller cage 21/02 for cover bearing
05 111 905.016.1012 none flywheel holder adjustable
09 010 905.031.1012 none assembly table U-shaped table
06 111 905.033.1041 $10.0 crankshaft support plate protects crank
07 111 905.034.1010 $38.0 #7 bearing puller with ring, no cages
07 111 905.034.1010 $22.0 #7 bearing puller no ring, no cages
08 111 905.617.1010 none reamer & holder adjustable 12mm by Hunger
0– 111 905.631.1062 none engine holder (non-rotating)
09 010 905.631.1081 none crank sleeve ∅20 tapered, protects seal
10 111 905.632.1010 none dial indicator holder only
11 010 905.632.1070 none crank shim measurer 98mm
12 010 905.632.1090 none trans. shim measurer 130mm
13 111 905.633.1050 none piston bushing press ∅12 ∅14
13 111 905.633.1050 $32.0 piston bushing press same
14 010 905.633.1112 none bearing installer 20 id for E20
15 010 905.633.1121 none seal installer depth: left 12, right 0
0– 020 905.634.1050 none #7 puller cage set L17 inner
0- 020 905.634.1050 $33.0 #7 puller cage (1) L17 inner
16 101 905.634.1090 none clutch hub puller 2-bolt M6
16 101 000. P2B001 $15.0 clutch hub puller same
0– 020 905.634.1100 none #7 puller cage set E20 inner
07 202 905.634.1110 $50.0 #7 puller cage set 6302 outer
07 202 905.634.1110 $30.0 #7 puller cage (1) 6302 outer
17 002 905.634.1130 none #7 puller cage set oil pump gear
18 111 905.634.5010 none steering cup press
19 111 905.635.4012 none spoke wrench long single size
19 111 905.635.4012 $5.00 spoke wrench round multi size
20 111 905.635.4021 none axle cone wrench 15mm
20 111 905.635.4021 $10.0 axle cone wrench 15mm Park (USA)
21 111 905.635.4040 none freewheel remover 2-prong ∅38
22 111 905.636.1080 none engine holder (rotating type)
23 010 905.636.1092 $45.0 second gear locking device
23 010 905.636.1102 $55.0 clutch locking device
0– 001 905.636.1111 none clutch locking device (auto-start)
24 010 905.641.1012 none spring pliers
0– 111 906.621.0010 none Puch low scale ohmmeter
0– 111 906.622.0020 none Puch ignition tester
Sachs Tools
00 qty a = 504 b = 505 0 price: new/used
0# ab 000 Sachs# 0 price colors: original/replacement
01 11 0276.065.101 $40.0 piston pin press, no insert (works without it)
01 11 0276.065.101 $8.00 piston pin press, no band, no insert
02 11 0277.083.000 none insert for piston pin press ∅11.8 ∅7.8
03 11 0276.023.001 $12.0 locating pin solid ∅11.8 x 50
04 11 0278.022.005 $12.0 protective sleeve for left crank
05 01 0276.156.000 none protective cap for 505 10mm ID
06 11 0276.135.100 $45.0 ignition timing gauge (piston indicator)
07 10 0976.130.001 none flywheel puller M22-1.50 for 504 (most)
07 10 0000. P22150 $17.0 flywheel puller same
07 01 0276.150.005 none flywheel puller M26-1.50 for 505
07 01 0000. P26150 $19.0 flywheel puller same
08 11 0276.182.000 $15.0 clutch holder
09 11 0276.180.002 $43.0 hook wrench multi-tool
10 11 0276.181.100 $39.0 flywheel holder adjustable
11 11 0276.019.101 none crankshaft support plate
12 11 0276.175.000 none revolution counter
13 11 0276.170.000 none torque wrench
14 11 0276.179.000 none puller for sprocket
15 11 1476.013.000 none bearing puller assy a, b, c
a 11 1476.011.000 $10.0 puller tube bare
b 11 1440.027.001 $27.0 puller push bolt
c 11 1476.012.000 none puller push bearing (not necessary)
16 11 1447.009.000 $33.0 clamping ring 58 id
17 22 1476.014.002 $10.0 puller cage (each) for 6202 bearing
18 11 0276.081.000 none mounting jig base, tips and locks
19 11 0276.082.000 none mounting jig swivel unit
20 11 0276.085.005 none mounting jig clamp screw
21 01 0276.088.006 none mounting jig main bracket for 505
22 10 0276.000.000 none mounting jig adaptor bar for 504
23 11 0276.000.000 none mounting jig assy 18, 19, 20, 21, 22
Solex Tools
Solex# price colors: new used original replacement
200001 none reamer for decomp valve
200002 none stud extractor
200003 none 21 mm deep socket
200004 none stator plate puller
200004 none stator plate driver tube
200005 none flywheel puller 3-bolt
P3B001 $28.0 flywheel puller same
200006 none front brake adjuster
200007 none bearing puller
200008 none clutch limiter
200009 none piston stop (stroke limiter)
200010 none engine mount plate
Tomos Tools
colors: new/used original/replacement
a = ’74-85 A3, b = ’86-91 A3, c = ’92-06 A35, d = ’02-18 A55
732.746 abcd price x = some
011.008 1111 none gauge pin
700.334 1111 none flywheel puller M26-1.50 for Ducati, Zem, Iskra
P26150 1111 $19.0 flywheel puller same
702.856 1111 $13.0 crank bearing/seal driver (from case)
704.467 1000 none L17 bearing inner race puller
704.467 1000 $27.0 L17 bearing inner race puller 2-bolt clamp-on
706.472 1111 none extractor bridge required for 706.485
706.485 1111 none extractor for left countershaft bearing ∅12
706.485 1111 none slide hammer extractor for any ∅10 bearing
706.761 1000 none early tool?
708.253 1100 $35.0 con rod bushing press ∅10 x ∅14
710.807 1111 none drive gears backlash tool
712.024 0000 none starter device spring holder (not shown)
712.025 0000 none starter device spring holder (not shown)
714.011 1111 none repair stand for rear 2 mount holes
716.714 0000 none con rod bushing press ∅12
730.159 0000 none clutch drum holder (not shown)
731.148 1000 none early repair stand?
731.155 0111 none 6203 bearing puller (from shaft) cage set
731.183 0000 none chain sprocket holder (not shown)
731.798 1100 $27.0 A3 clutch spring installer part A goes in vice
731.798 1100 $32.0 A3 clutch spring installer part B
732.152 1100 none riveter for J-spring anchor (not shown)
732.193 1111 none dial gauge supporter
732.202 1111 none flywheel holder 2-prong version
732.268 1100 $28.0 A3 roller clutch installer ∅12.7 ∅18.9
732.367 1111 none main shaft bearing driver ∅15.75 ∅19.0
732.746 1111 none flywheel puller M26-1.50 use 700.234
735.753 1111 none crankshaft mounting fork
732.767 1000 none main shaft bearing driver use 732.367
735.888 1111 none case splitter set for 3-M4-bolt stator holes
736.533 0x00 none flywheel puller CEV M19-1.00 for CEV
P19100 0x00 $18.0 flywheel puller same
736.913 xx10 none brake U-spring spreader for ’78-95 mag wheels
737.080 1100 none oil pump centering pin
737.535 0011 none A35 clutch spring installer part A
737.535 0011 none A35 clutch spring installer part B
737.536 0011 none A35 roller clutch installer ∅14.0 ∅19.0 x 75
975.709 1111 none dial gauge
Top left is 731.798 Part A on a #2 A3 clutch.
The L-shape tang prevents rotation.
Top right is 731.798 Part B.
737.535 Part A would be larger for the larger hole of a #2 A35 clutch.
Bottom is 731.798 Part A inverted, on a #1 A3 clutch.
The flat sided post prevents rotation.
Bottom right is 731.798 Part B.
737.535 Part A would have splines for the splined hole of a #1 A35 clutch
