Welcome to: gas valves, gas caps, seats, speedometers, speedo cables, speedo drivers, reflectors, covers and panels, rear shocks, front forks, frame parts. This parts category is not as simple and uniform as the others. The only thing a seat, a gas valve, a reflector and a speedo cable have in common is they’re in this category!
1 G A S V A L V E S
===============================================================================
1 Gas Valve
10×1 male
spigot left
2 Gas Valve
12×1 female
spigot left
3 Gas Valve
16x1female
spigot down
| Part # | # | ←picture#………Description | Price | Applications |
| ###### | ### | ############################# | #### | ################################## |
| 408200 | 3 | gas valve 16×1 spigot down | $20 | Sparta Foxi/ Puch Magnum |
| KTMgas | gas valve 16×1 side mount | $40 | KTM use 401400 plus $20 for 12-16mm adaptor | |
| 633783 | gas valve 14×1 spigot down | $20 | Honda Express Yamaha QT50 General ST | |
| Diablo | gas valve 14×1.25 | $25 | Derbi Diablo, RD50 dirt bike mopeds | |
| 401400 | gas valve 12×1 side mount | $20 | Puch Maxi/Vespa Ciao | |
| 229169 | gas valve 12×1 spigot left extend knob | $20 | Tomos A35 Targa/Vespa Grande | |
| 403100 | gas valve 12×1 spigot down | $18 | Batavus/Garelli/Sears/Sachs/JC Penney | |
| continued | Motobecane Sebring/Kreidler/others | |||
| continued | Cimatti with original 10M-12F adaptor | |||
| continued | Colombia (tube frame w/sideways valve) | |||
| 2 | gas valve 12×1 spigot left | |||
| 227125 | gas valve 12×1 spigot left early Tomos | N/A | Tomos Bullet/A35 Sprint/Vespa Bravo | |
| 233727 | gas valve 12×1 spigot right universal | $20 | Tomos top tank | |
| 403200 | 1 | gas valve 10×1 male spig L Motobecane | $20 | Motobecane |
| 403300 | gas valve 10×1 male spig L Peugeot | $20 | Peugeot/Cimatti without adaptor | |
| must remove Cimatti R tank to install | ||||
| none | gas line 3/16″ clear nylon per foot | $1 | all | |
| Yconn | gas line “Y” connector 3/16 for “gauge” | $2 | all | |
| 151920 | gas filter inline 1/4″ (tight) clear | $5 | for bigger 1/4″ fuel line | |
| 209.6 | gas filter inline 3/16″ green | $5 | for mopeds | |
| 151921 | gas filter inline 1/4″ (tight) angled | $5 | for bigger 1/4″ motorcycle fuel line | |
| 121585 | gas filter inline 3/16″ clear round | $4 | most popular one for stock mopeds |
2 G A S C A P S
===============================================================================
Gas caps come in 4 types. 1. Quarter turn, 2. Push in, 3. Screw in, 4. Pop up. Each type has different sizes.
30, 40, 60mm quarter turn moped gas lids
Quarter turn has two “wings” on opposite sides that enter two slots in the gas tank lip. Then when the gas cap is rotated 90 degrees to the right, which is one fourth of a turn, it locks on and seals the outer edge by the spring tension in the wings. European quarter turn gas lid wings are about 2mm deeper than Asian quarter turn gas lid wings. So to use a Puch Maxi gas lid on a Honda Express, you need to add an extra rubber washer 2mm thick (or possibly bend the wings).
Push in lid gas tanks have a smooth round wall, about as deep as it is wide. The lids are usually black plastic with thin flexible circular ridges that press against the wall. The entrance has a taper for easy operation. In the 1976 USA moped standards, push in gas lids were supposedly required to be quarter turn. Puch and Garelli switched from push-in to quarter-turn but not everyone else did. Again in 2010, quarter turn gas caps are mandated in the USA, this time not for safety reasons, but for environmental ones. Most 1970′s Peugeot push in lids have shrunk and require an o-ring to restore the size.
Screw in lid gas tanks have threads. The lid must be screwed on one or more full turns clockwise. The threads on the lid can be either female (inner) or male (outer). Many of the old Garelli screw-in female lids have shrunk. More on the threads later.
Pop up gas lids are generally on top tank mopeds and modern motorcycles. Turn the key and the lid pops open.
1. qtr-turn 30mm
chrome bottom view
30 is the tank ID
1. qtr-turn 30mm
chrome top view
30 is the tank ID
2. qtr-turn 30mm chrome locking
3. pop-up clamp-on
Clamps on to 45mm gas lid lips.
45 is the tank OD
4. qtr-turn 40mm
black plain
5. qtr-turn 60mm
black locking
6. qtr-turn 40mm
black locking
40 is the tank ID
7. qtr-turn 30mm
used chrome Puch
with oil measuring cup
8. qtr-turn 30mm
used alum Puch
9. push-in 30mm
black
10. qtr-turn 40mm
(with qtr-turn 30mm)
11. pop-up locking
chrome General
(not available)
12. qtr-turn 30mm
chrome Puch used
13. screw-in male
Motobecane
chrome locking
14. screw-in male Motobecane
chrome new with dipstick
15. screw-in
male for MB
16. screw-in female
Vespa/Piaggio
17. push-in 30mm
Puch aftermarket
18. push-in 30mm
Hercules/Sachs
19. push-in 40mm
“Puch” Korado
20. qtr-turn 40mm
chrome locking
with two keys
21. qtr-turn 30mm
chrome Garelli
22. screw-in female
Garelli black
the kind that shrinks
23. qtr-turn 30mm
black (with widths)
24. qtr-turn 60mm
chrome Peugeot
26. push-in 32mm Derbi
shows how some shrink
to 30mm
26. Derbi 8204140 gas lid
left – ’76-86 not shrunk
rt – ’86-89 shrunk to 30
25. push-in 36mm
Derbi Laguna
| Part # | # | ←picture#………Description | Price | Applications |
| ###### | ### | ############################# | #### | ################################## |
| 206401 | 1 | gas cap 1/4 turn 30mm (tank) chrome | $10 | 77-later Puch Tomos Sparta many |
| 222145 | 23 | gas cap 1/4 turn 30mm (tank) black | N/A | 77-later Puch Tomos Sparta many |
| gas cap 1/4 turn 30mm chro Puch w/cup | $50 | 77-later Puch Tomos Sparta many | ||
| 8 | gas cap 1/4 turn 30mm alum used Puch | $25 | 77-later Puch Tomos Sparta many | |
| 12 | gas cap 1/4 turn 30mm chro. used Puch | $25 | 77-later Puch Tomos Sparta many | |
| 7 | gas cap 1/4 turn 30mm used Puch w/cup | $40 | 77-later Puch Tomos Sparta many | |
| 2 | gas cap 1/4 turn 30mm chrome locking | $17 | 77-later Puch Tomos Sparta many | |
| 21 | gas cap 1/4 turn 30mm chrome Garelli | $35 | Garelli and other Italian mopeds | |
| 632610 | 10 | gas cap 1/4 turn 40mm chrome | $10 | Tomos top tank, Puch top tank, Sears |
| 4 | gas cap 1/4 turn 40mm black | N/A | Tomos top tank, Puch top tank, Sears | |
| gas cap 1/4 turn 40mm chrome Puch | $45 | Tomos top tank, Puch top tank, Sears | ||
| 6 | gas cap 1/4 turn 40mm black locking | $25 | Tomos top tank, Puch top tank, Sears | |
| 20 | gas cap 1/4 turn 40mm chrome locking | $17 | Tomos top tank, Puch top tank, Sears | |
| 24 | gas cap 1/4 turn 60mm chrome Peugeot | $30 | Peugeot top tank | |
| 5 | gas cap 1/4 turn 60mm black locking | $30 | Peugeot top tank | |
| 9 | gas cap push-in 30mm aftermarket | N/A | Peugeot, Garelli (some) | |
| 18 | gas cap push-in 30mm Hercules/Sachs | N/A | early Hercules/Sachs | |
| 17 | gas cap push-in 32mm Puch/KTM | N/A | early Puch, KTM, Derbi | |
| 19 | gas cap push-in 40mm Puch Korado | N/A | Puch Korado (made by Manet) | |
| gas cap push-in 50mm Testi/Gitane | $15 | Gitane (made by Testi) | ||
| 14 | gas cap screw-on male MB chrome new | $45 | Motobecane 50 and 40 | |
| gas cap screw-on male MB plastic new | $30 | Motobecane 50 and 40 | ||
| 15 | gas cap screw-on male MB chrome used | $30 | Motobecane 50 and 40 | |
| 13 | gas cap screw-on male MB chro locking | $40 | Motobecane 50 and 40 | |
| gas cap screw-on male MB 7 plastic new | $35 | Motobecane 7 (bigger) | ||
| 16 | gas cap screw-on female Vespa 1-5/8″ | $30 | Vespa mopeds: Ciao,Bravo,Grande | |
| 22 | gas cap screw-on female Garelli | N/A | early Garelli top tank | |
| gas cap screw-on female Vespa Si | $30 | Vespa Si, bigger than Ciao/Bravo/Grande | ||
| 11 | gas cap pop-up 50mm General top tank | N/A | Gitane 50mm lid fits General tank | |
| 3 | gas cap pop-up clamps on | $12 | semi-universal fits 40-45mm outer lips |
1977 Puch Maxi tank
qtr-turn 30mm
1974 Puch Maxi tank
push-in 30mm
#17 is a copy of this lid
Garelli Super Sport tank
screw-in (female lid)

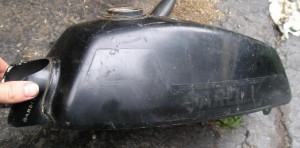

Garelli Super Sport tank
quarter-turn 30mm
76-89 Derbi Variant
gas tank 32mm
3 S E A T S
===============================================================================
| Part # | # | ←picture#………Description | Price.. | Applications |
| ………… … S…E…A…T…S………………… | ||||
| bicycle seats have a 7/8″=22mm clamp | seat poles are 24-35mm w/22mm top end | |||
| many used seats for walk-in sales only | coming soon: seat pole sizes & Apps | |||
| 4904 | seat single w/springs | $20 | any moped with a bicycle-style seat pole | |
| 36096 | seat single deluxe w/springs | $30 | any moped with a bicycle-style seat pole | |
| 36098 | seat single deluxe XL with/springs | $40 | any moped with a bicycle-style seat pole | |
| seat single Puch original fresh | $120 | Puch Maxi | ||
| seat single Puch recovered w/pleats | $100 | Puch Maxi | ||
| seat single Peugeot new w/1″post | $40 | Peugeot 103 and others with 1″ hole | ||
| 36211 | seat banana small black for 16″ bike | $20 | requires rear sissy bar Do It Yourself | |
| 36221 | seat banana med black for 20″bike | $20 | requires rear sissy bar DIY | |
| 36296 | seat banana large black for 26″bike | $20 | requires rear sissy bar DIY | |
| seat long with F&R mounts | $100 | requires bicycle-style seat pole | ||
| front mount for Puch Maxi long seat | $20 | Puch Maxi replaces the pole | ||
| seat medium for Puch Sport | N/A | Puch Sport and Sport MkII | ||
| seat long for Batavus HS50 fresh | $150 | Batavus HS50/Mobat xlnt cond | ||
| seat long for Vespa Grande rough | $20 | covered tightly in cloth fabric |
4 S P E E D O M E T E R S
===============================================================================
Speedo Basics: Speedometers on mopeds are all mechanical type, not electronic. A “driver” or “sender” on the front wheel rotates the cable. The cable, with a spinning wire inside, goes up to the speedometer “gauge” or “head”. Inside the head a spinning magnet moves the needle. An “odometer” or mileage meter is also driven by the cable, with gears. Either the speedometer or odometer can work without the other, but the both need the cable and driver to be working. So when both speed and miles don’t work, it’s usually caused by a broken cable, and sometimes the driver. If either the speedo or odo works, then the cable and driver must be good.
Speedo Families: There are several brands of moped speedometers: CEV (Italian), VDO (German), Huret (French), Veglia (Italian), plus other minor ones, Stewart Warner (USA), Tatung (Taiwan), Walker licensed by VDO (Spain), and maybe more. Each family has it’s own style of cable wire and cable end piece threads. So a CEV speedo requires a CEV speeedo cable, and a VDO speedo requires a VDO cable, pretty much. In the table below, all of the speedometer specifications and applications are listed. It is under construction…
CEV Speedometers
CEV Speedometers, 1970s blue, 1980s black, click to enlarge
These are the vintage CEV speedometers for sale. They have all been cleaned, checked, and lubed. 15 out of 17 were originally frozen from “the old grease turning into glue”. It takes days or weeks and dozens of repeated applications of penetrating oil and rotation on a drill, before all of the stickiness is gone. If any stickiness is left behind, it can re-freeze a year later. A frozen speedo will cause the speedo cable to break right away. That is the main reason why 35 year old mopeds often have broken speedo cables. The other reason is the cable gets kinked or tangled.
diam color max tested dev from odometer glass/face # mileage mm back/text speed speed 23.8 avg condition condition price ========================================================================== 1 03297 60 dk blue/wht 40mph 24.0 +0.2 works: now 03298 used, cracked $40 2 00002 60 dk blue/wht 40mph 10.0 -13.8 works: now 00003 reads very low $40 3 00001 60 dk blue/wht 40mph 22.5 -1.3 works: now 00002 new, perfect glass $100 4 00009 60 dk blue/wht 40mph 21.0 -2.8 frozen only speedo works $40 5 01062 60 dk blue/wht 40mph 25.0 +1.2 works: now 01063 used, good “glass” $100 6 00001 60 dk blue/wht 40mph 25.0 +1.2 works: now 00002 new, tiny scratches $90 7 00847 60 dk blue/wht 40mph 24.0 -0.8 works: now 00848 used, scratched bad $50 8 00001 60 dk blue/wht 40mph 23.0 -1.8 works: now 00002 new, tiny scratches $80 9 03751 60 dk blue/wht 60mph 25.0 +1.2 works: now 03752 used, good glass $130 10 00000 48 white/black 40mph 26.0 +2.2 works: now 00001 new, smaller size $100 11 00000 60 dk blue/wht 40mph 24.0 -0.8 works: now 00001 new in original box $100 12 00001 60 dk blue/wht 40mph 23.5 -0.3 works: now 00002 new in original box $100 13 00001 60 dk blue/wht 40mph 24.0 +0.2 works: now 00002 new in original box $100 14 00000 60 dk blue/wht 40mph 20.5 -3.3 works: now 00001 new in original box $80 15 05182 60 black/white 40mph 25.0 +1.2 works: now 05183 has a small smudge $90 16 00995 60 black/white 40mph 25.0 +1.2 works: now 00996 slightly cloudy $90 17 00084 60 black/white 40mph 27.0 +3.2 works: now 00085 very good “glass” $110 xx 00367 60 dk blue/wht 40mph froze —- unknown for parts only $20 xx 00000 60 dk blue/wht 40mph froze —- unknown for parts only $20These CEV speedometers are all tested on the same drill, for comparison of speed accuracy. The odometer accuracy never varies – it either works or not. It takes up to 3 minutes at 20mph to click off one mile. Each speedometer is tested for at least 3 minutes, some over 10 minutes all together. Once all of the 17 tested speeds are retested and verified, an average speed can be calculated. First the highest and lowest are ignored. Then the remaining 15 test speeds are added up and the sum is divided by 15 to give 23.8 average. You can see that most of the speedos tested at 23, 24, or 25 mph. The accuracy is an important factor in determining the price. The condition of the glass, face, and needle are also important.
| Part # | # | ←picture#………Description | Price | Applications |
| S P E E D O C A B L E S | ||||
| 204200 | speedo cable VDO Puch Maxi 25.7″ | $15 | Puch Maxi, Sparta, Batavus, Flandria | |
| oldver | speedo cable VDO Puch 29.5″ | $20 | Puch Maxi Sears FS red not silver | |
| speedo cable VDO Puch 31.5″ | $30 | Puch Magnum Sears FS silver | ||
| 217664 | speedo cable VDO Tomos 30.7″=780mm | $15 | Tomos 04-later many others | |
| 213729 | speedo cable CEV Tomos 29.5=750mm | $15 | Tomos 75-04 many others | |
| speedo cable Huret Motobecane/Garelli | N/A | Motobecane and Garelli | ||
| speedo cable Veglia Peugeot | N/A | Peugeot |
5 R E F L E C T O R S
===============================================================================
To be added to later. Many reflectors are available.
6 C O V E R S & P A N E L S
===============================================================================
| Part # | # | ←picture#………Description | Price | Applications |
| ###### | ### | ############################# | #### | ################################## |
| ………S..I..D..E…..P..A..N..E..L..S……… | ||||
| 410200 | side panel set Puch black new | $50 | Puch 1-spd step-thrus 74-86 | |
| side panel set Puch black used xlnt | $60 | Puch 1-spd step-thrus 74-86 | ||
| side panel set Puch black used rough | $30 | Puch 1-spd step-thrus 74-86 | ||
| side panel set Puch2sp black used xlnt | $70 | Puch 2-spd step-thrus 78-86 | ||
| side panel set Puch2sp black used rough | $40 | Puch 2-spd step-thrus 78-86 | ||
| side panel set Puch Magnum black | N/A | Puch top-tanks/Sears Free Spirit | ||
| 204900 | side panel screw w/knob Puch M5x45 | $8 | Puch Maxi: 2 on right 1 on left | |
| 205100 | side panel screw w/knob Puch M5x35 | $8 | Puch Maxi: 2 on left 1 on right | |
| 632607 | side panel screw w/knob Puch M5x15 | $5 | Puch Magnum/Sears Free Spirit | |
| side panel screw phillips Puch M5x45 | $1 | replaces original costs less | ||
| side panel screw phillipsPuch M5x35 | $1 | replaces original costs less | ||
| side panel screw wide slot M5x15 | $1 | Peugeot/Puch Magnum/Sears/others | ||
| side panel set Peugeot 103 black remake | $60 | Peugeot 103 | ||
| side panel set Peugeot 102 used good | $60 | Peugeot 102 | ||
| side panel set Motobecane 50 used rough | $60 | Motobecane Mobylette 50/50V | ||
| side panel set Motobecane 40 new white | $100 | Motobecane Mobylette 40 hard tail | ||
| side panel screw Motobecane M5x0.9×15 | N/A | must tap to M5x0.8 | ||
| side panel screw wide slot M5x0.8×15 | $1 | replaces MB after re-threading | ||
| side panel set Tomos A3 used metal | N/A | Tomos 75-95 | ||
| side panel set Tomos A35 used plastic | N/A | Tomos 96-06 | ||
| side panel R Tomos A35 gloss black new | $55 | Tomos 96-06 ST LX | ||
| side panel L Tomos A35 gloss black new | $55 | Tomos 96-06 ST LX | ||
| side panel R Tomos A55 gloss black new | $65 | Tomos 07-on Sprint ST LX non-black | ||
| side panel L Tomos A55 gloss black new | $55 | Tomos 07-on Sprint ST LX non-black | ||
| side panel R Tomos A55 flat black new | $65 | Tomos 07-on Sprint ST LX black frame | ||
| side panel L Tomos A55 flat black new | $55 | Tomos 07-on Sprint ST LX black frame | ||
| side panel R Tomos A55 chrome new | $70 | Tomos 01-on Revival Streetmate | ||
| side panel L Tomos A55 chrome new | $60 | Tomos 01-on Revival Streetmate | ||
| ….E..N..G..I..N..E…..C..O..V..E..R..S… | ||||
| magneto cover Sachs 504 chrome used | $15 | Foxi/Sachs/Flying Dutchman | ||
| magneto cover Sachs 505 bigger used | $15 | Sachs Balboa/Prima/General/others | ||
| magneto cover Puch used rough | $15 | Puch | ||
| magneto cover Peugeot alum rough | $15 | Peugeot | ||
| magneto cover Motobecane rough | $20 | Motobecane | ||
| magneto cover Batavus 76-78 | N/A | Batavus M48 engine | ||
| magneto cover Batavus 78-79/Trac 79-83 | $20 | Batavus M56 engine later became Trac |
7 F R O N T F O R K S
===============================================================================
| Part # | # | ←picture#………Description | Price | Applications |
| ###### | ### | ############################# | #### | ################################## |
| …… F…R…O…N…T……F…O…R…K…S…… | ||||
| fork assy used straight Puch Maxi | $100 | Puch Maxi | ||
| fork assy used straight Motobecane | $80 | Motobecane | ||
| fork assy used straight Tomos early | $100 | Tomos 75-85 | ||
| fork assy used straight Tomos | N/A | Tomos 86-06 | ||
| fork assy used straight Batavus | $100 | Batavus 76-78 | ||
| fork assy used straight Peugeot 103 LVS | $100 | Peugeot 103 LVS 76-80 | ||
| fork assy used straight Peugeot 103 SP | N/A | Peugeot 103 SP 78-80 longer | ||
| many other used straight forks | call | |||
| fork assy new Tomos Sprint/ST/LX silver | $180 | Tomos 07-later Sprint/ST/LX | ||
| fork assy new Tomos Revival longer silver | $180 | Tomos 07-later Revival&Streetmate | ||
| fork assy new Tomos Streetmate-R black | $180 | Tomos 07-later Revival&Streetmate | ||
| fork tube one Peugeot 103 LVS new | $50 | Peugeot 103 LVS 76-80 | ||
| fork tube one Peugeot 103 SP new | $65 | Peugeot 103 SP 78-80 longer | ||
| fork tube one Tomos A35 new | $40 | Tomos A3/A35 86-06 | ||
| fork tube one used w/bushings Puch | $45 | Puch Maxi 75-86 | ||
| fork bushing one nylon Puch Maxi | $20 | scarce Puch Maxi 75-86 | ||
| fork top nut open hole early Puch Maxi | $8 | fits almost all mopeds | ||
| fork top nut closed late Puch Maxi | $10 | fits almost all mopeds |
8 R E A R S H O C K S
===============================================================================
| Part # | # | ←picture#………Description | Price | Applications |
| ###### | ### | ############################# | #### | ################################## |
| …… R… E…A…R……S…H…O…C…K…S…… | ||||
| shocks pair 11″… …280x10mm HD chrome | $75 | Tomos all except Revival&Streetmate | ||
| shocks pair 2″… …305x12mm HD chrome | $70 | Puch Maxi requires old 8×12 sleeves | ||
| shocks pair 12.3/4″ 325x10mm HD chrome | $70 | raises-up a regular Tomos | ||
| 221032 | shock one 12.3/4″ 325x10mm StreetmateR | $50 | Tomos Streetmate-R compliant |
9 F R A M E P A R T S
===============================================================================
